Model Electrolux SU180MXRH1 DISHWASHER – Common Parts & Diagrams
02 - DOOR PARTS
03 - CONSOLE AND CONTROL PARTS

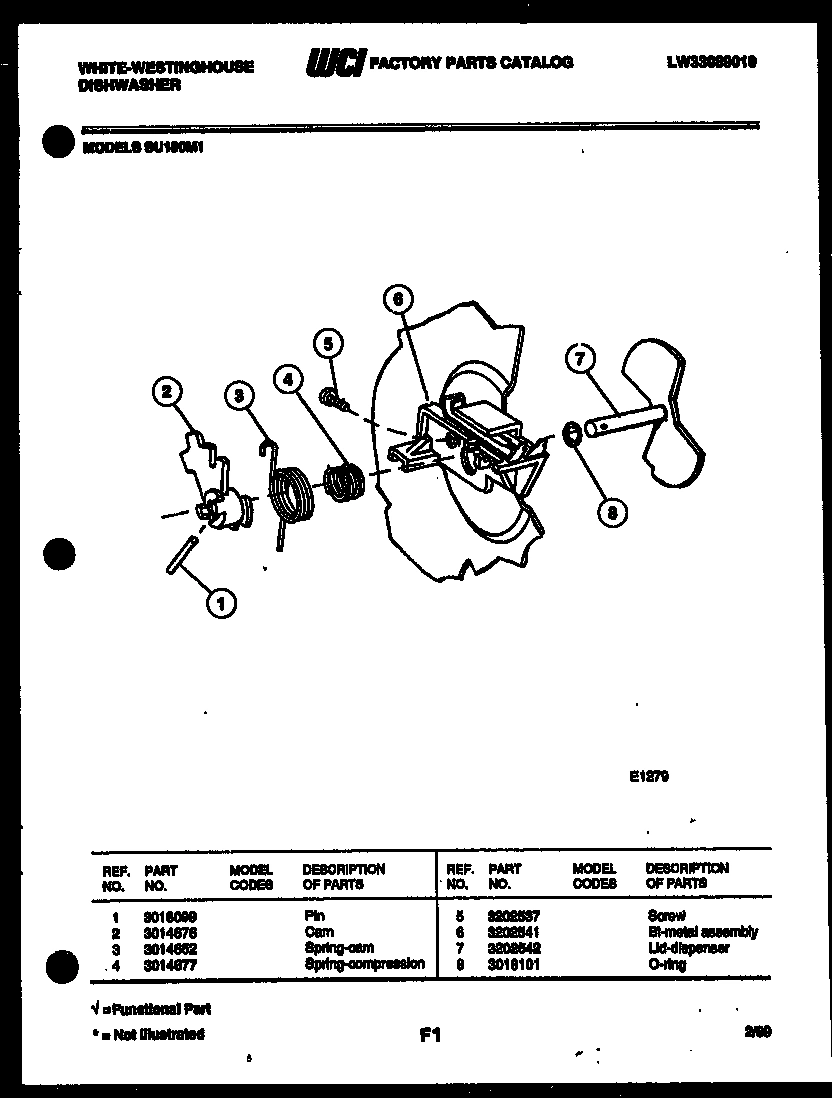

04 - CAM

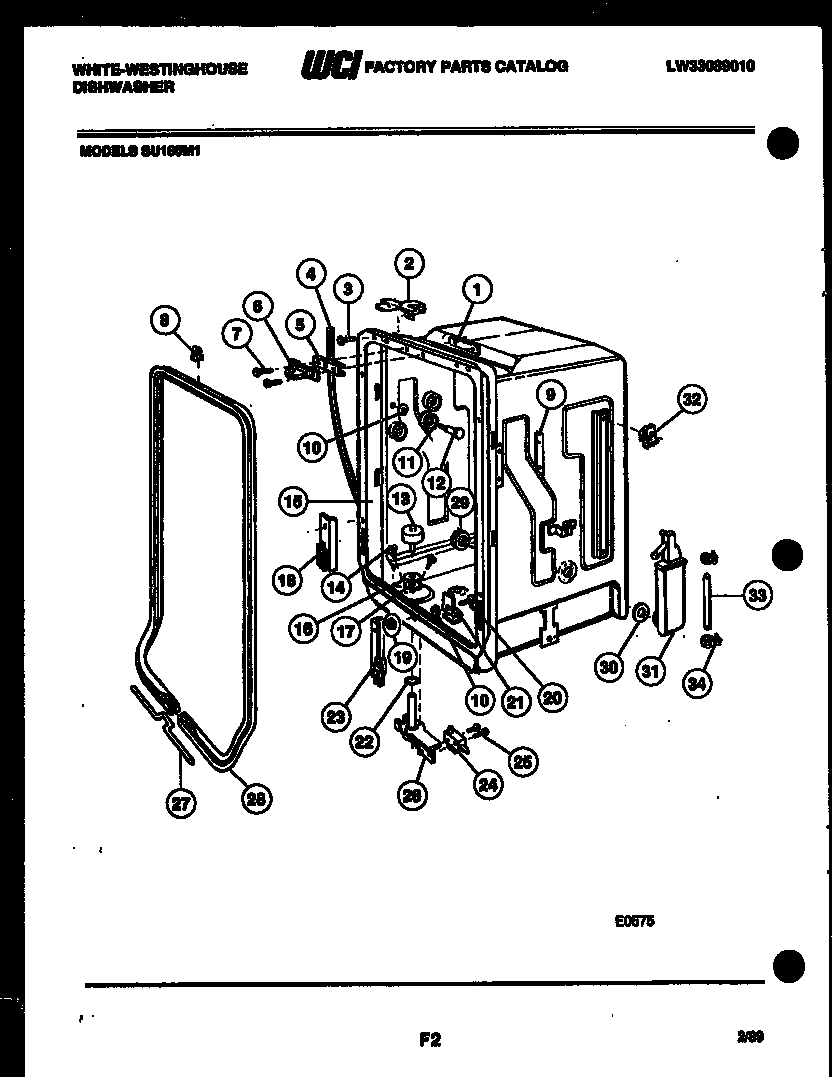

05 - TUB AND FRAME PARTS

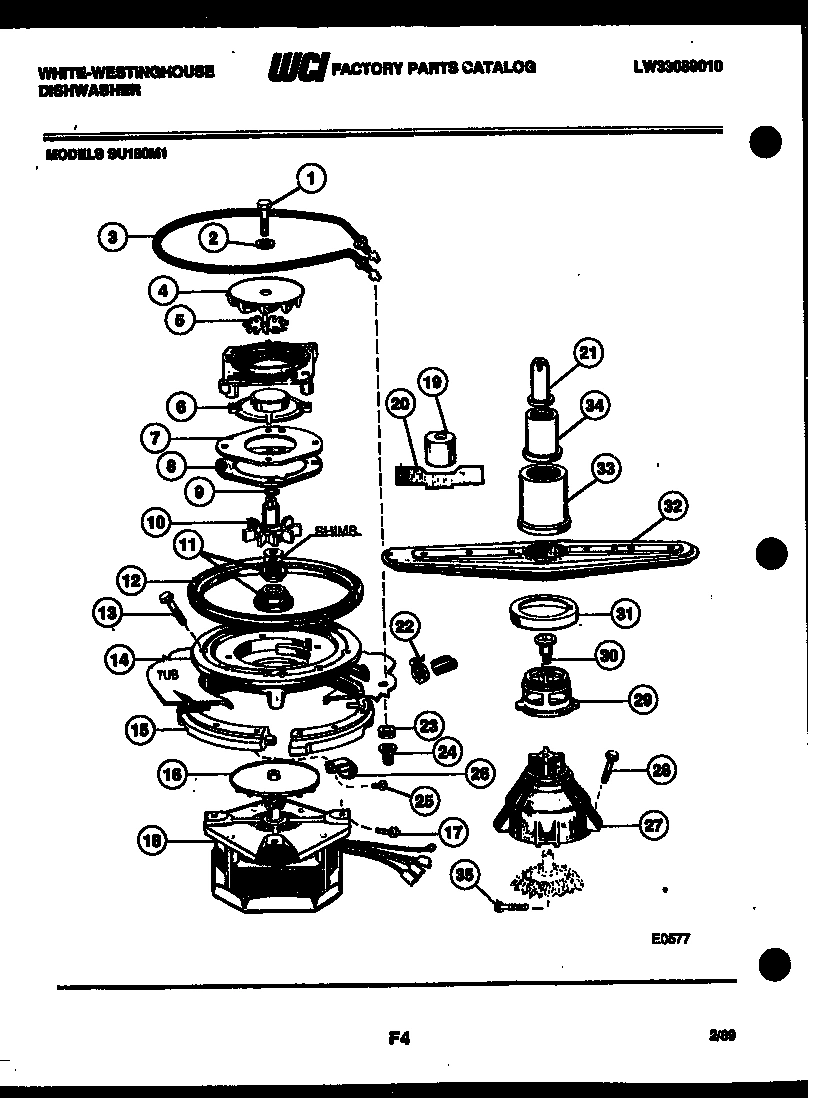

06 - MOTOR PUMP PARTS

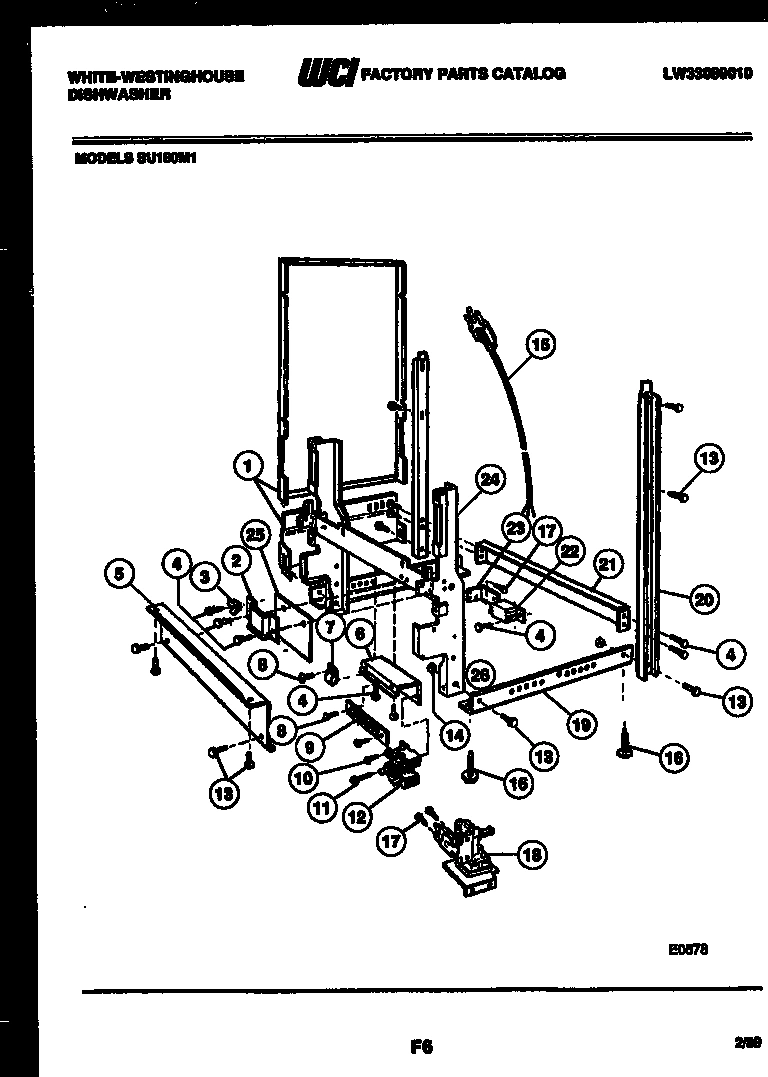

07 - POWER DRY AND MOTOR PARTS

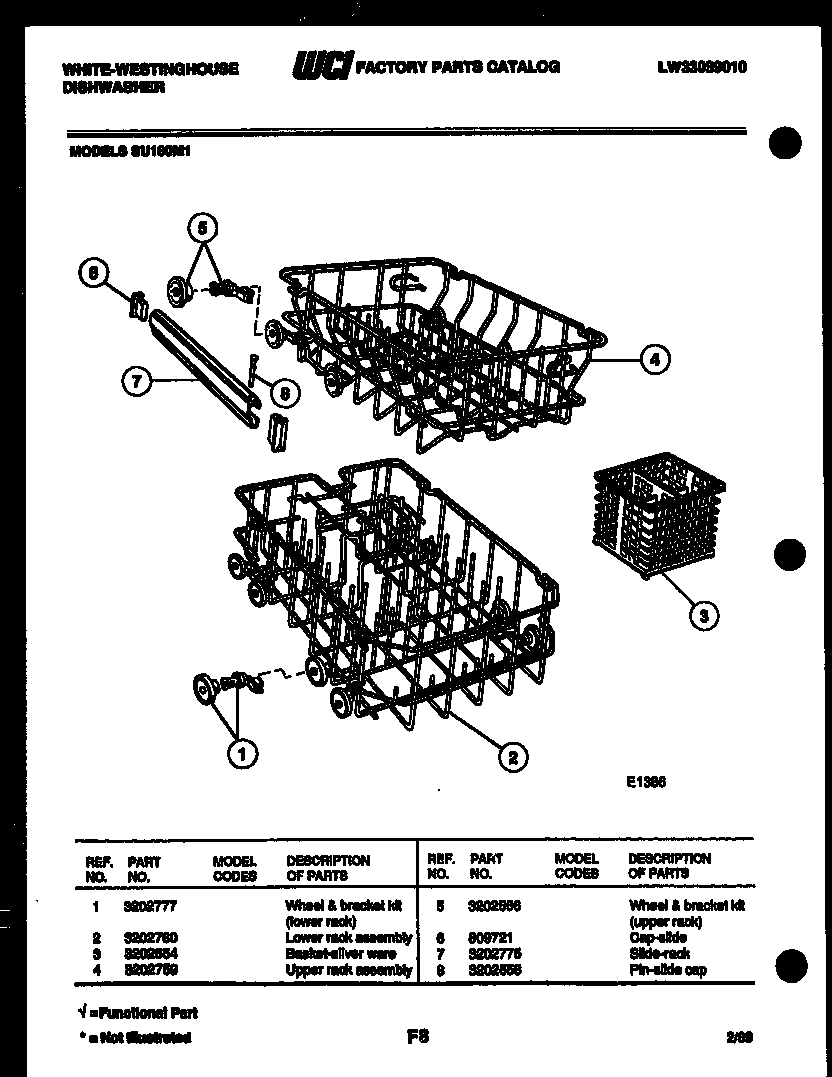

08 - RACKS AND TRAYS
Common parts from model Electrolux SU180MXRH1 DISHWASHER
1
PANEL-INNER DOOR WCI 809653 Contact Us For Availability
1
WCI 3018021 WCI 3018021 Contact Us For Availability
1
WCI 3018099 WCI 3018099 Contact Us For Availability
1
PLATE-TAPPING WCI 3018068 Contact Us For Availability
1
WCI 3014673 WCI 3014673 Contact Us For Availability
1
PANEL-SIDE WHEAT (RIGHT OR LEFT) WCI 3018191 Contact Us For Availability
2
WCI 3018022 WCI 3018022 Contact Us For Availability
2
WCI 3018069 WCI 3018069 Contact Us For Availability
2
WCI 3018102 WCI 3018102 Contact Us For Availability
2
CLAMP-WIRE WCI 3018136 Contact Us For Availability
2
LOWER RACK ASSEMBLY WCI 3202760 Contact Us For Availability
3
LATCH-ASSEMBLY WCI 3014690 Contact Us For Availability
3
TERMINAL GROUNDING WCI 3018047 Contact Us For Availability
3
WCI 3018023 WCI 3018023 Contact Us For Availability
3
WCI 3018034 WCI 3018034 Contact Us For Availability
3
WCI 3014652 WCI 3014652 Contact Us For Availability
3
HEATER (INCLUDES NO. 23 & 24) WCI 3014683 Contact Us For Availability
3
BASKET-SILVERWARE WCI 3202554 Contact Us For Availability
4
WCI 3018041 WCI 3018041 Contact Us For Availability
4
WCI S000010602 WCI S000010602 Contact Us For Availability
4
HOSE-DRAIN WCI 3018070 Contact Us For Availability
4
WCI 3018103 WCI 3018103 Contact Us For Availability
4
UPPER RACK ASSEMBLY WCI 3202759 Contact Us For Availability
5
WCI 3018043 WCI 3018043 Contact Us For Availability
5
WCI 3202537 WCI 3202537 Contact Us For Availability
5
WCI 3018025 WCI 3018025 Contact Us For Availability
5
WCI 3202565 WCI 3202565 Contact Us For Availability
5
WCI 3018104 WCI 3018104 Contact Us For Availability
5
WCI 3018137 WCI 3018137 Contact Us For Availability
5
WCI 3202556 WCI 3202556 Contact Us For Availability
6
GRILLE-VENT WCI 3018026 Contact Us For Availability
6
BI-METAL ASSEMBLY WCI 3202541 Contact Us For Availability
6
WCI 3014689 WCI 3014689 Contact Us For Availability
6
SHROULD-IMPELLER WCI 3014671 Contact Us For Availability
6
BRACKET-TERMINAL BRD WCI 3018138 Contact Us For Availability
6
CAP-SLIDE WCI 809721 Contact Us For Availability
7
WCI 3018042 WCI 3018042 Contact Us For Availability
7
KNOB-CONTROL WCI 3018027 Contact Us For Availability
7
WCI 3202542 WCI 3202542 Contact Us For Availability
7
WCI 3018105 WCI 3018105 Contact Us For Availability
7
WCI 3202775 WCI 3202775 Contact Us For Availability
8
WCI 3018045 WCI 3018045 Contact Us For Availability
8
WCI 3018065 WCI 3018065 Contact Us For Availability
8
WCI 5303207475 WCI 5303207475 Contact Us For Availability
8
WCI 3018101 WCI 3018101 Contact Us For Availability
8
CLIP KIT-TUB GASKET (INCLUDES NO. 21) WCI 3014661 Contact Us For Availability
8
WCI 3202558 WCI 3202558 Contact Us For Availability
9
WCI 3202538 WCI 3202538 Contact Us For Availability
9
WCI 3018029 WCI 3018029 Contact Us For Availability
9
WCI 3018073 WCI 3018073 Contact Us For Availability
9
WCI 3014675 WCI 3014675 Contact Us For Availability
9
WCI 3018139 WCI 3018139 Contact Us For Availability
10
WCI 3018030 WCI 3018030 Contact Us For Availability
10
WCI 3018074 WCI 3018074 Contact Us For Availability
10
PUMP SEAL KIT (INCLUDES NO. 2, 4, 5, 9, 11 & WCI 3018107 Contact Us For Availability
10
SCREW WCI 3018140 Contact Us For Availability
11
WCI 3014693 WCI 3014693 Contact Us For Availability
11
WATER SEAL WCI 3014633 Contact Us For Availability
11
SCREW WCI 3018141 Contact Us For Availability
12
WCI 3202534 WCI 3202534 Contact Us For Availability
12
WCI 3018032 WCI 3018032 Contact Us For Availability
12
SCREW WCI 3018075 Contact Us For Availability
12
WCI 3018108 WCI 3018108 Contact Us For Availability
12
WCI 3014653 WCI 3014653 Contact Us For Availability
13
WCI 3018058 WCI 3018058 Contact Us For Availability
13
WCI 3018033 WCI 3018033 Contact Us For Availability
13
WCI 3014636 WCI 3014636 Contact Us For Availability
13
WCI 3014699 WCI 3014699 Contact Us For Availability
13
WCI 3018142 WCI 3018142 Contact Us For Availability
14
WCI 3018109 WCI 3018109 Contact Us For Availability
14
WCI 3018143 WCI 3018143 Contact Us For Availability
15
WCI 3014666 WCI 3014666 Contact Us For Availability
15
WCI 3018035 WCI 3018035 Contact Us For Availability
15
TUB & GASKET ASSY WCI 3202858 Contact Us For Availability
15
CLAMP RING WCI 3018064 Contact Us For Availability
15
POWER CORD KIT (USE ONLY WHEN LOCAL CODES PER WCI 3018144 Contact Us For Availability
16
ARM-CNTERBALANCE RH WCI 3018054 Contact Us For Availability
16
HOUSING TERMINAL TIMER WCI 3018036 Contact Us For Availability
16
PLATE-FLOAT TUBE WCI 3018077 Contact Us For Availability
16
WCI 3018110 WCI 3018110 Contact Us For Availability
16
WCI 3018145 WCI 3018145 Contact Us For Availability
17
WCI 3018056 WCI 3018056 Contact Us For Availability
17
WCI 3018037 WCI 3018037 Contact Us For Availability
17
GASKET-FLOAT TUBE WCI 3018078 Contact Us For Availability
17
WCI 3018111 WCI 3018111 Contact Us For Availability
17
WCI 3018146 WCI 3018146 Contact Us For Availability
18
ARM-CNTERBALANCE LH WCI 3018048 Contact Us For Availability
18
BOARD-TERMINAL WCI 3018038 Contact Us For Availability
18
GUIDE-ARM LH WCI 3018079 Contact Us For Availability
18
MOTOR ASSY (INCLUDES NO. 1, 9, 16 & 20) WCI 3018112 Contact Us For Availability
18
WCI 3018147 WCI 3018147 Contact Us For Availability
18A
COMPLETE PUMP & MOTOR ASSY (INCLUDES NO. 1, 2 WCI 3018113 Contact Us For Availability
19
WCI 3018062 WCI 3018062 Contact Us For Availability
19
WCI 3018039 WCI 3018039 Contact Us For Availability
19
WCI 3018080 WCI 3018080 Contact Us For Availability
19
TOOL SEAL INSTAL. (REQUIRED WHEN INSTALLING N WCI 3018114 Contact Us For Availability
19
ANGLE-SIDE BASE KIT WCI 3018148 Contact Us For Availability
20
WCI 3018081 WCI 3018081 Contact Us For Availability
20
WCI 3018115 WCI 3018115 Contact Us For Availability
20
WCI 3018149 WCI 3018149 Contact Us For Availability
21
WCI 3018082 WCI 3018082 Contact Us For Availability
21
TIP-TOWER WCI 3018116 Contact Us For Availability
21
WCI 3018150 WCI 3018150 Contact Us For Availability
22
WCI 3018044 WCI 3018044 Contact Us For Availability
22
WCI 3018083 WCI 3018083 Contact Us For Availability
22
CLAMP-HOSE WCI 3018117 Contact Us For Availability
22
COVER-JUNCTION BOX WCI 3018151 Contact Us For Availability
23
WCI 3202540 WCI 3202540 Contact Us For Availability
23
GUIDE-ARM RH WCI 3018084 Contact Us For Availability
23
WCI 3014682 WCI 3014682 Contact Us For Availability
23
BRACKET-JUNCTION BOX WCI 3018152 Contact Us For Availability
24
BAFFLE WCI 3202856 Contact Us For Availability
24
WCI 3018085 WCI 3018085 Contact Us For Availability
24
HINGE ASSEMBLY WCI 3018153 Contact Us For Availability
25
TRIM-BOTTOM DOOR WCI 3202661 Contact Us For Availability
25
WCI 3018086 WCI 3018086 Contact Us For Availability
25
WCI 3202614 WCI 3202614 Contact Us For Availability
26
FLOAT SWITCH KIT (INCLUDES NO. 16, 17, 22, 24 WCI 3018087 Contact Us For Availability
27
PANEL-ACCESS (BLACK) WCI 3018066 Contact Us For Availability
27
ROD-JUNCTION WCI 3202776 Contact Us For Availability
27
IMPELLER HOUSING KIT (INCLUDES NO. 6 & 7) WCI 3018120 Contact Us For Availability
28
WCI 3018061 WCI 3018061 Contact Us For Availability
28
GASKET & WIRE ASSY (INCLUDES NO. 8 & 27.) WCI 3202756 Contact Us For Availability
28
WCI 3018154 WCI 3018154 Contact Us For Availability
29
WCI 5300807601 No Longer Available
29
WCI 3018090 WCI 3018090 Contact Us For Availability
29
WCI 3018121 WCI 3018121 Contact Us For Availability
30
GASKET - WATER INLET WCI 3018091 Contact Us For Availability
30
WCI 3018122 WCI 3018122 Contact Us For Availability
31
WATER INLET ASSEMBLY WCI 3018092 Contact Us For Availability
31
WCI 3018123 WCI 3018123 Contact Us For Availability
32
WCI 3018093 WCI 3018093 Contact Us For Availability
32
SPRAY ARM ASSEMBLY WCI 3018124 Contact Us For Availability
33
TUBING (INCLUDES NO. 34) WCI 3018094 Contact Us For Availability
33
BASE-TOWER WCI 3018125 Contact Us For Availability
34
WCI 3018126 WCI 3018126 Contact Us For Availability
35
WCI 3018127 WCI 3018127 Contact Us For Availability
× ![]()
