Model Speed Queen ST75CSH Dryer – Common Parts & Diagrams
Control Panel Assembly for Rotary Coin Drop Models
Control Panel Components for DT, JT and
ST Manual Timer Models

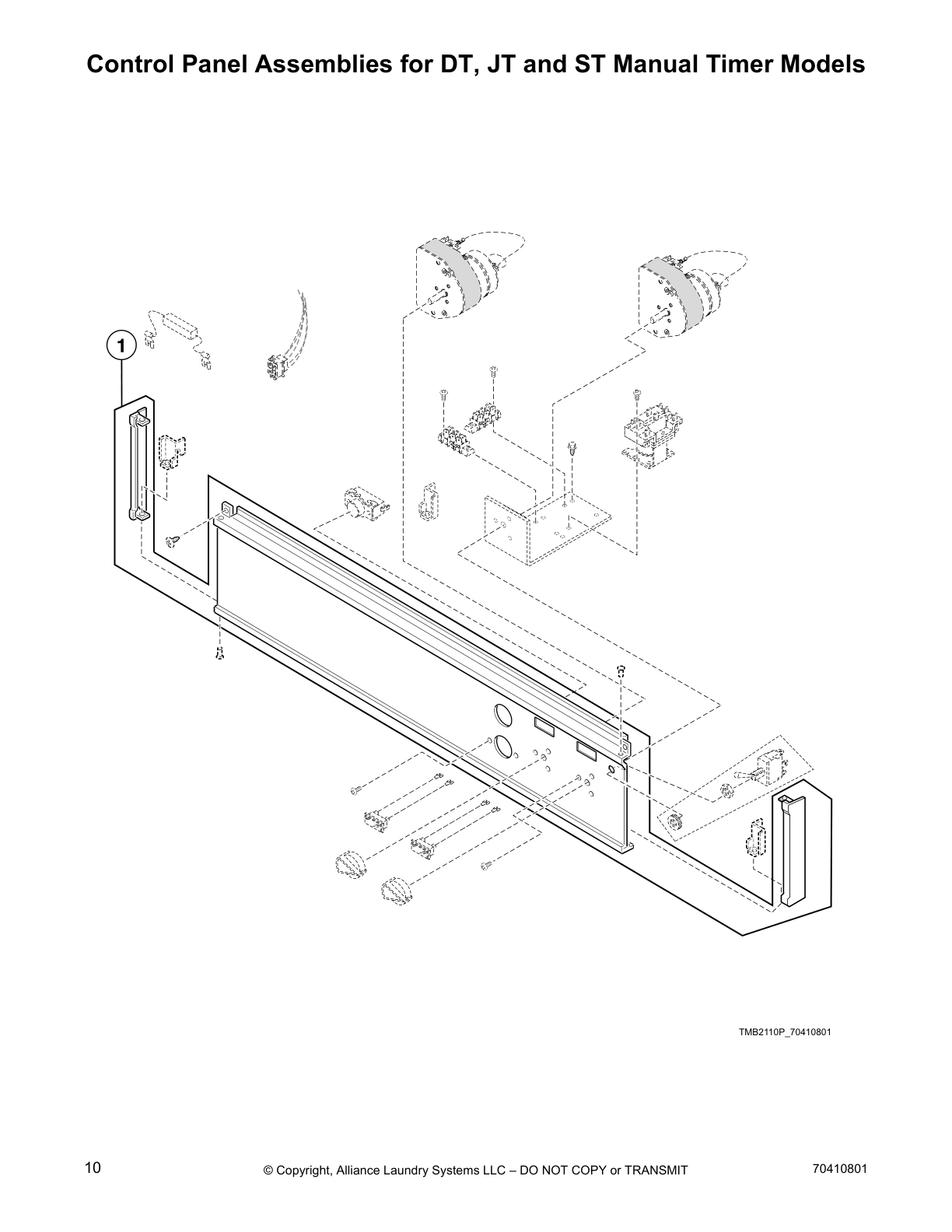

Control Panel Assemblies for DT, JT and ST Manual Timer Models

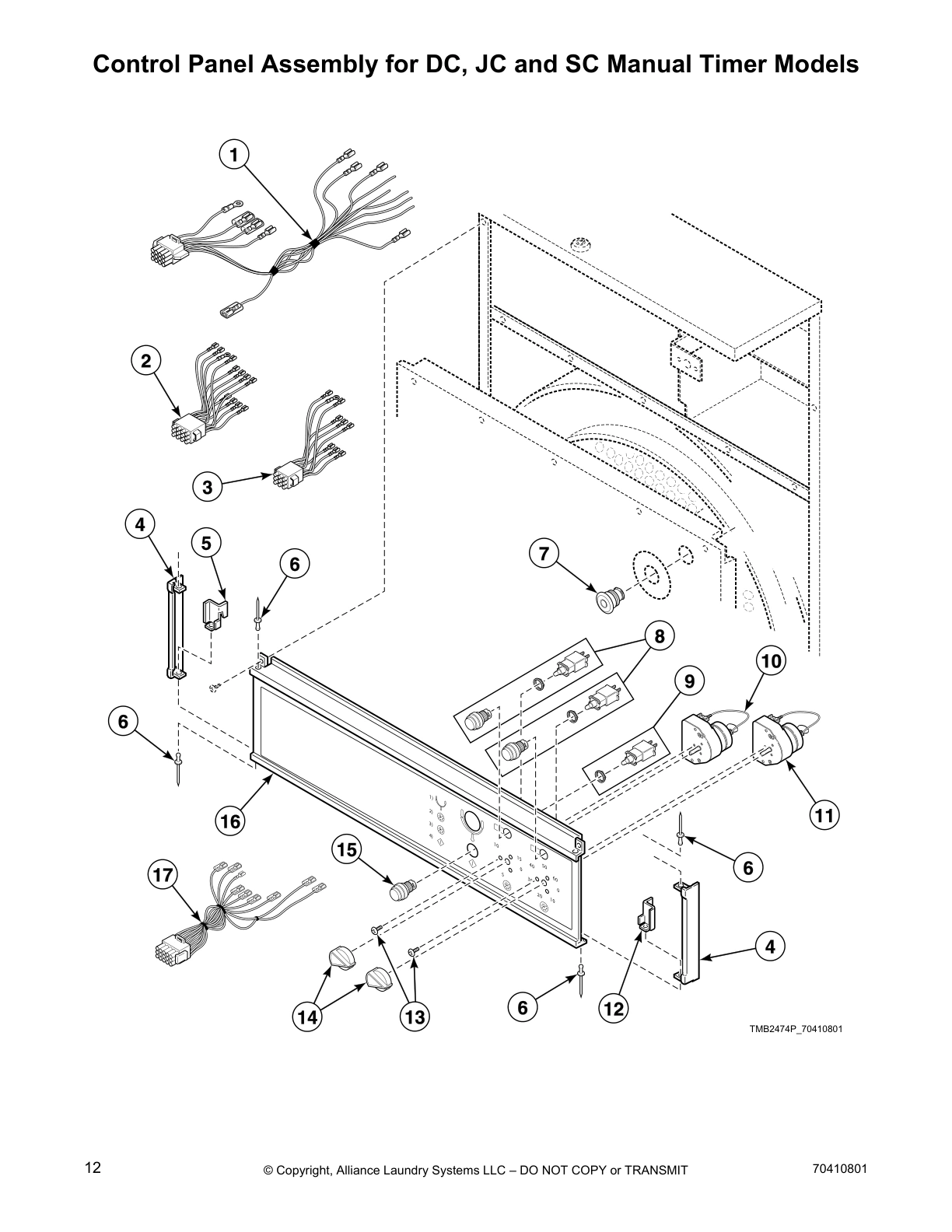

Control Panel Assembly for DC, JC and SC Manual Timer Models

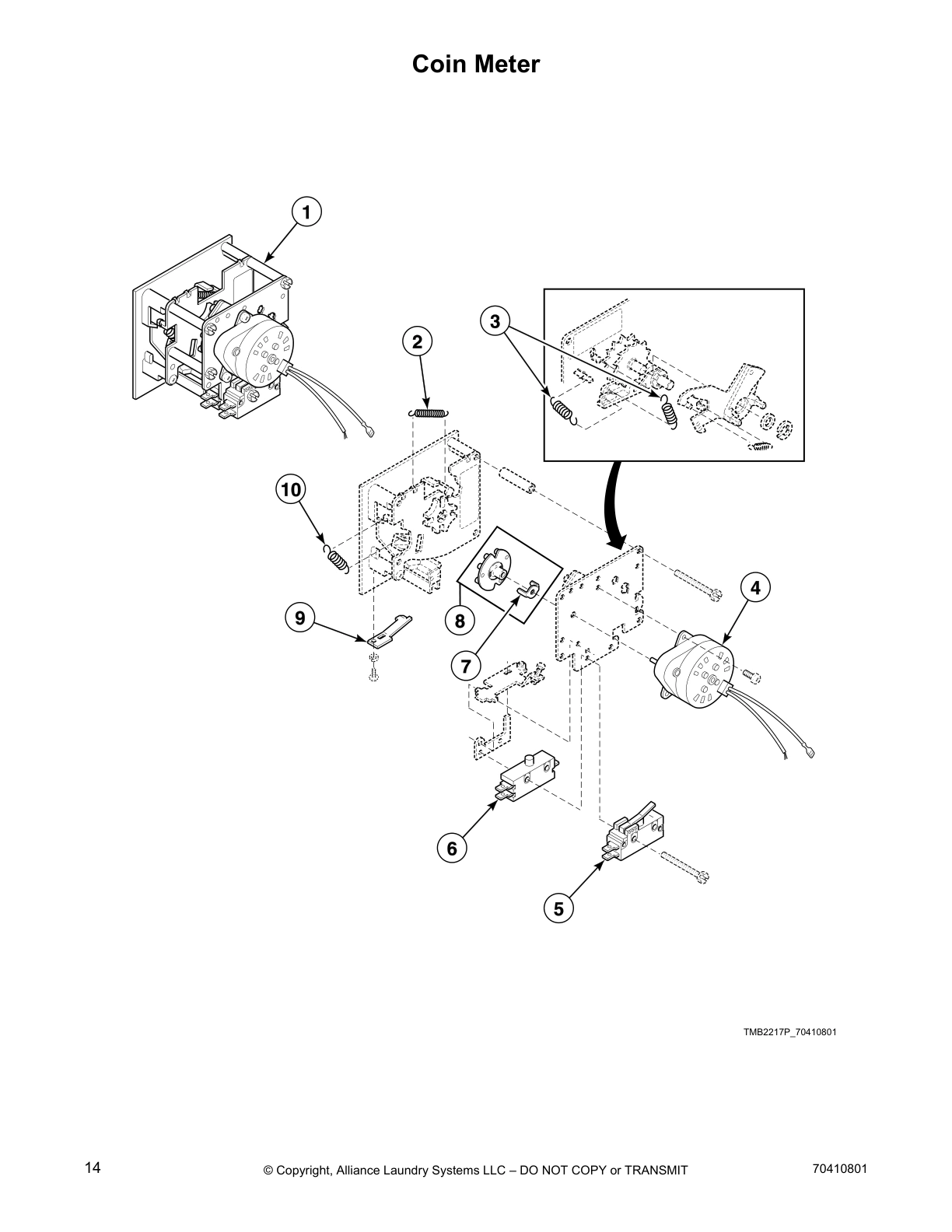

Coin Meter

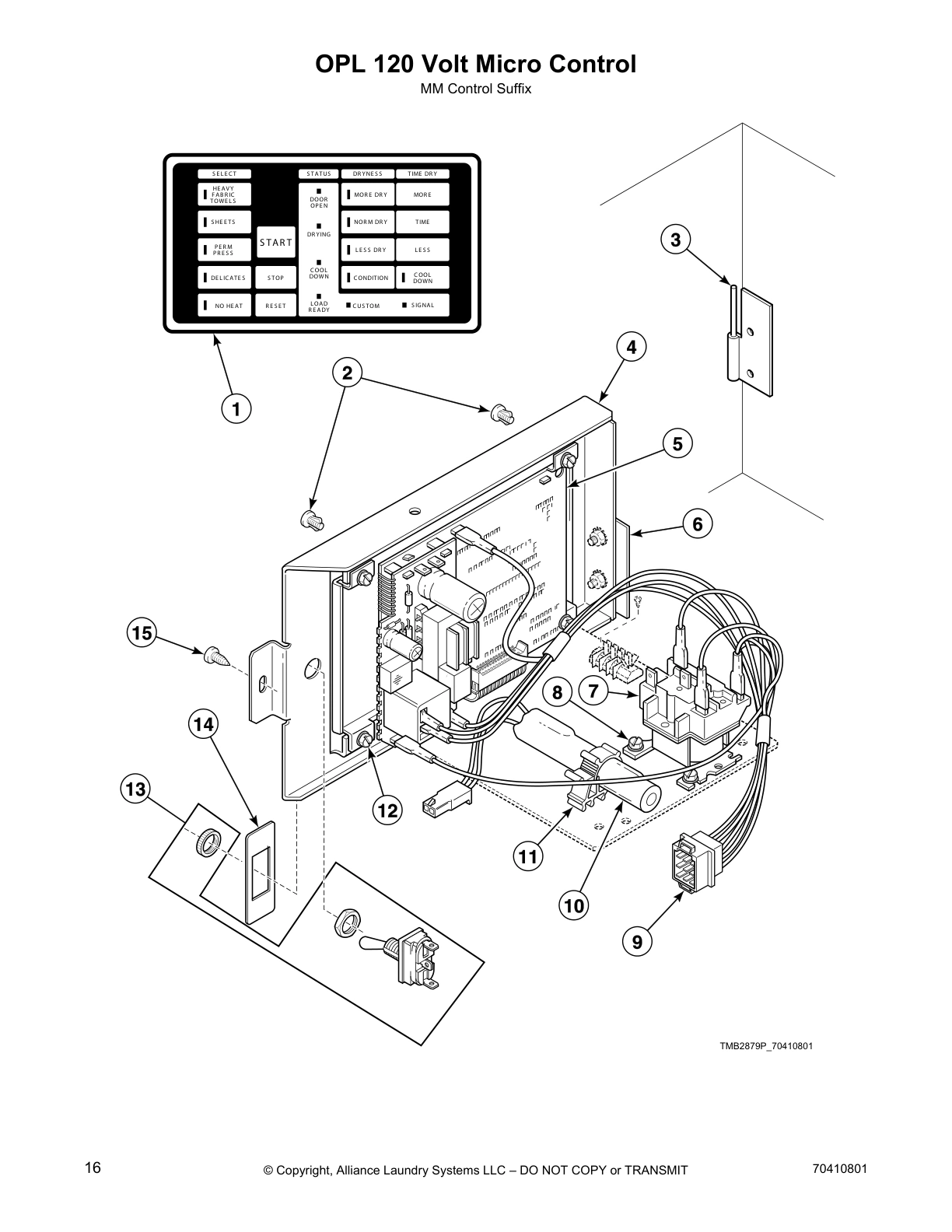

OPL 120 Volt Micro Control

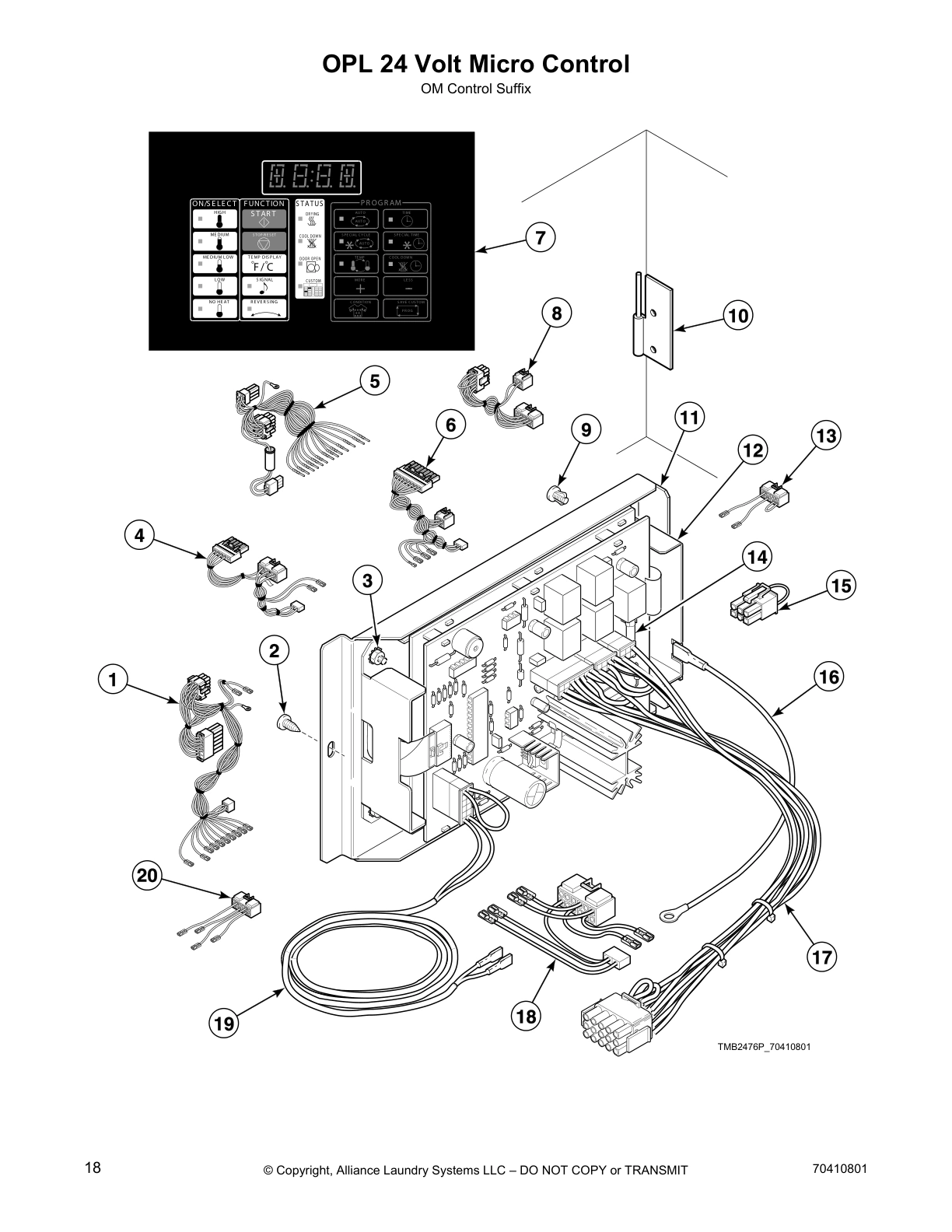

OPL 24 Volt Micro Control

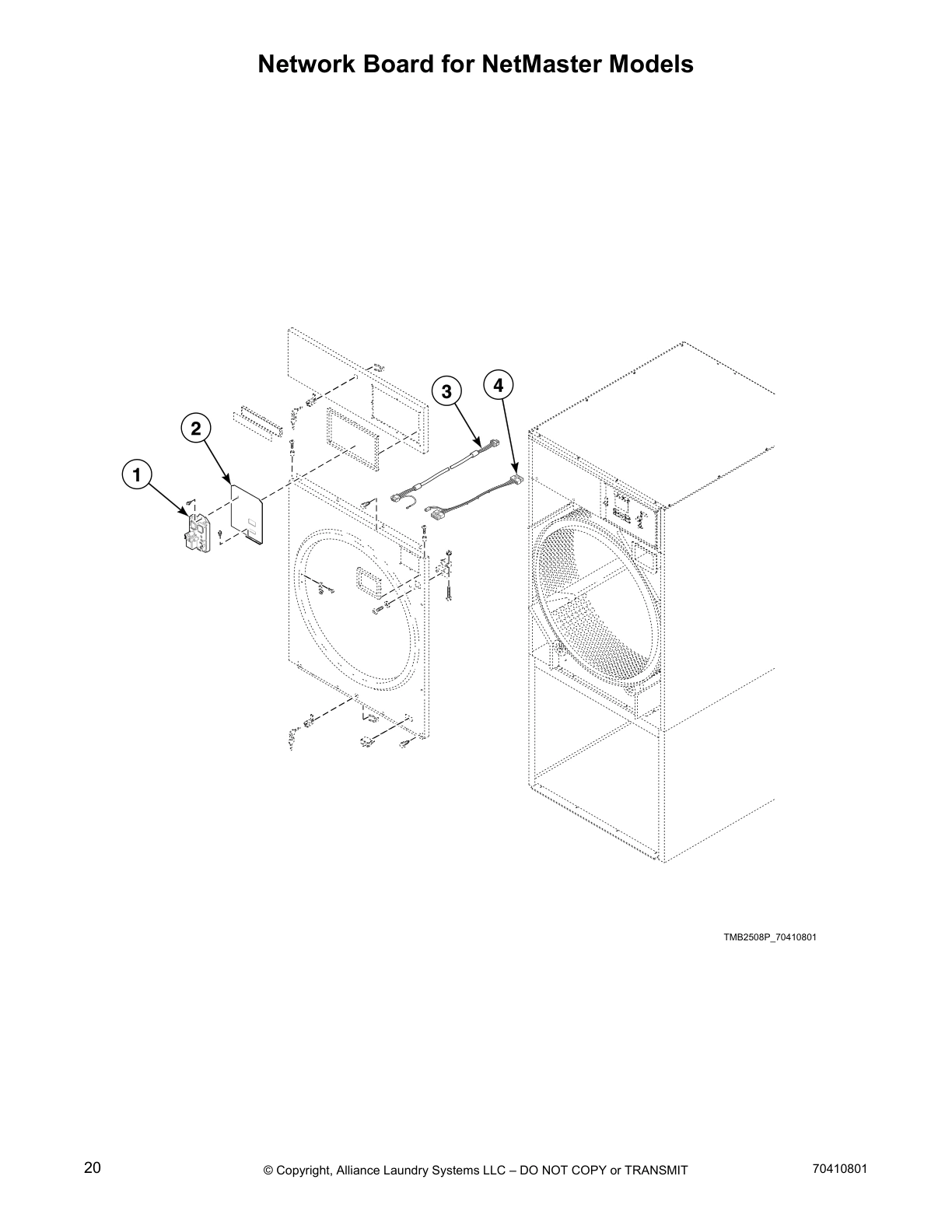

Network Board for NetMaster Models

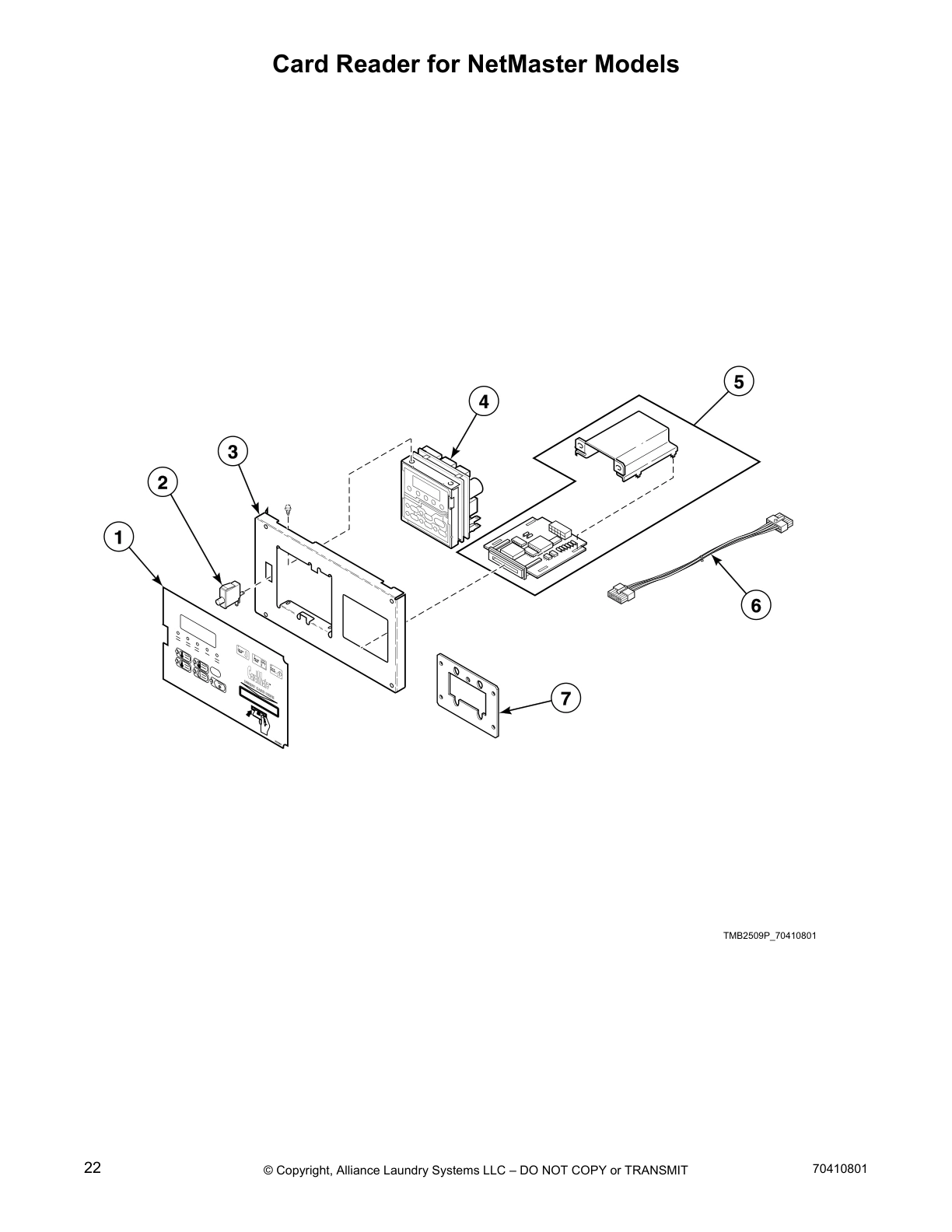

Card Reader for NetMaster Models

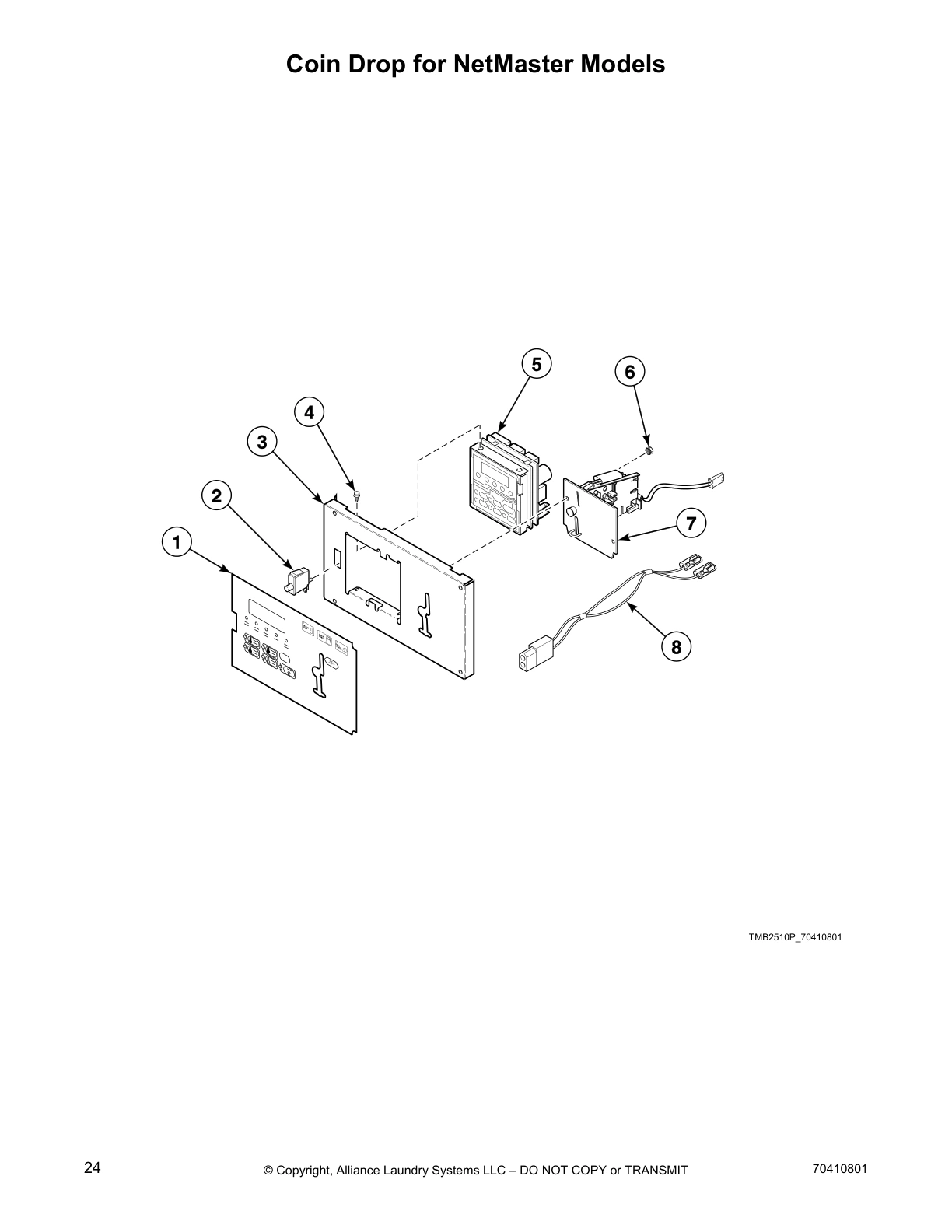

Coin Drop for NetMaster Models

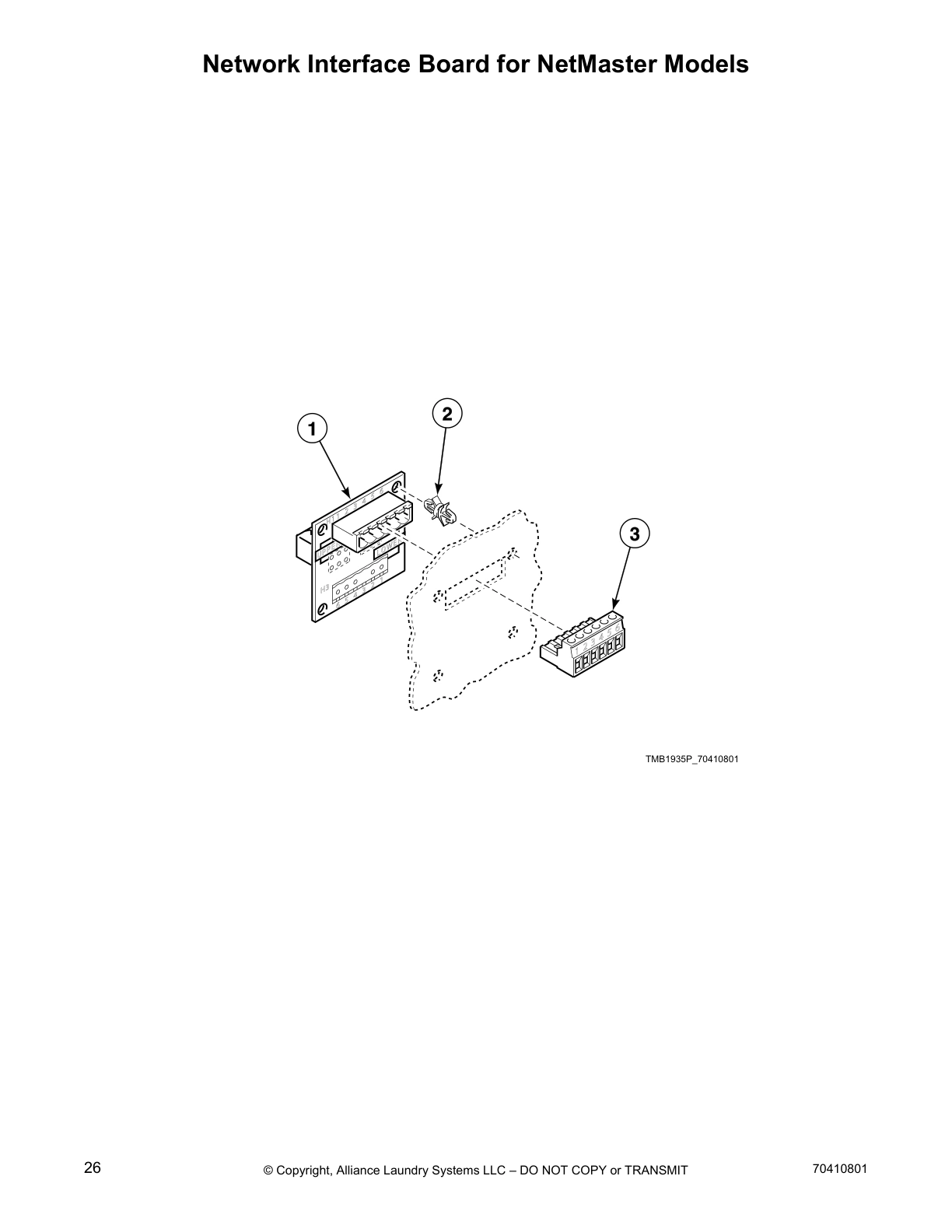

Network Interface Board for NetMaster Models

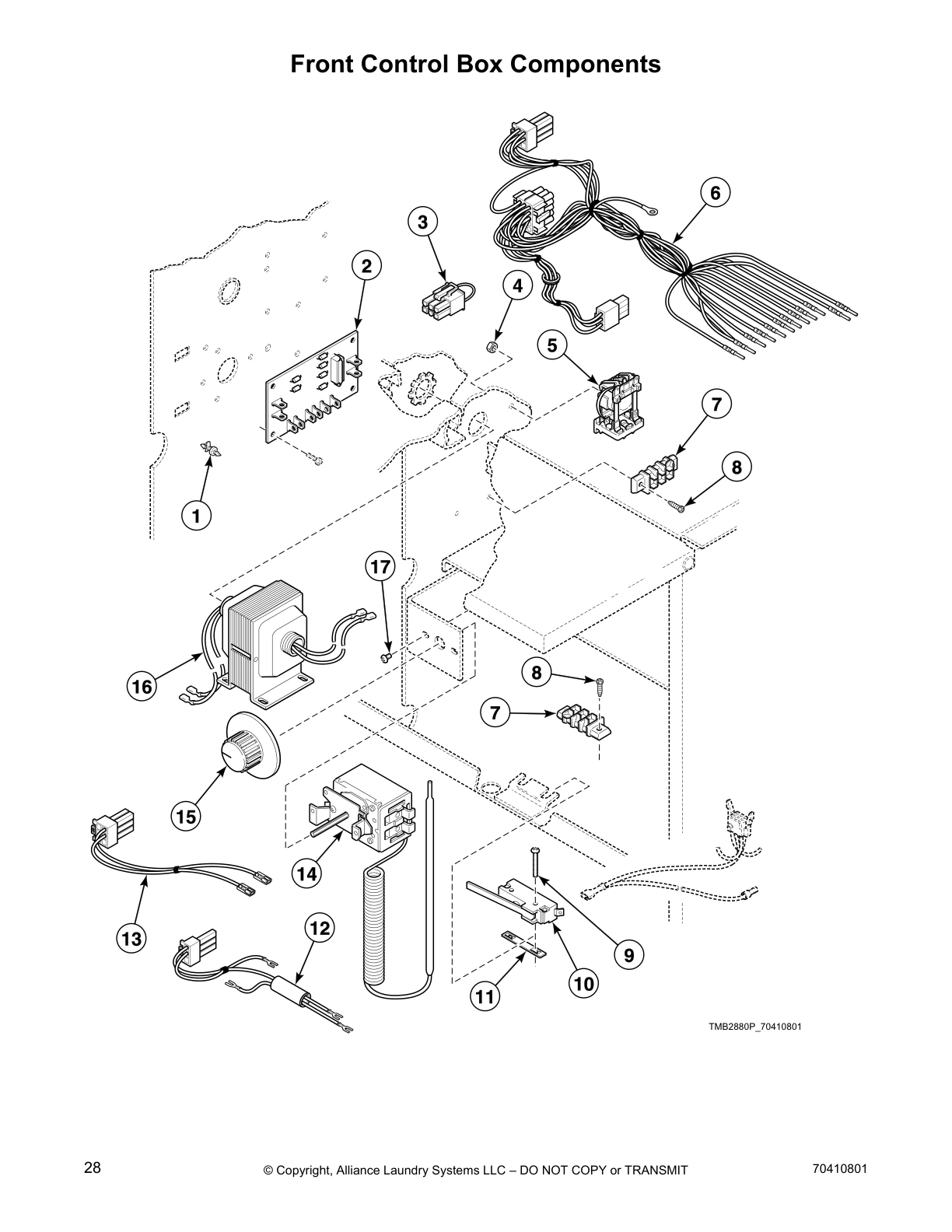

Front Control Box Components

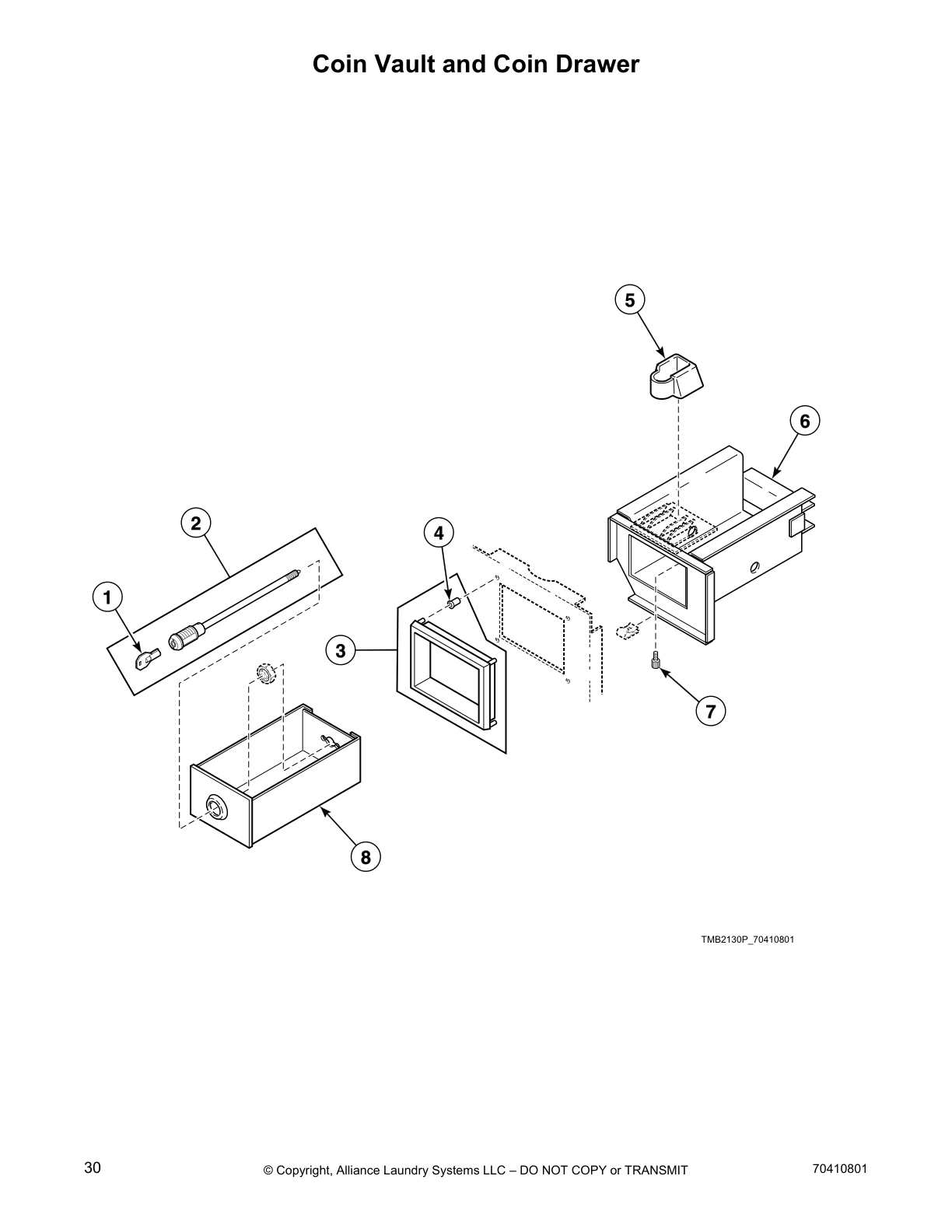

Coin Vault and Coin Drawer

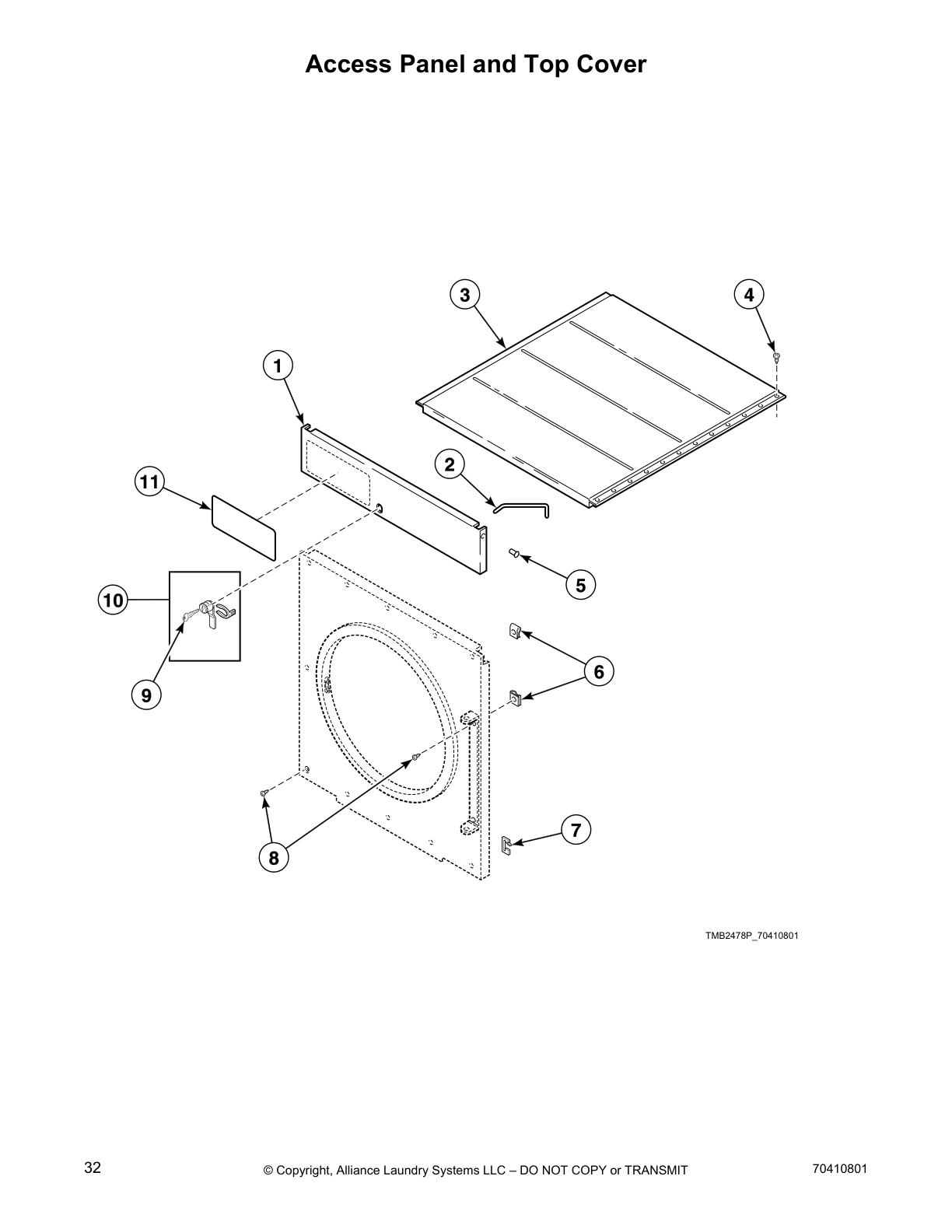

Access Panel and Top Cover

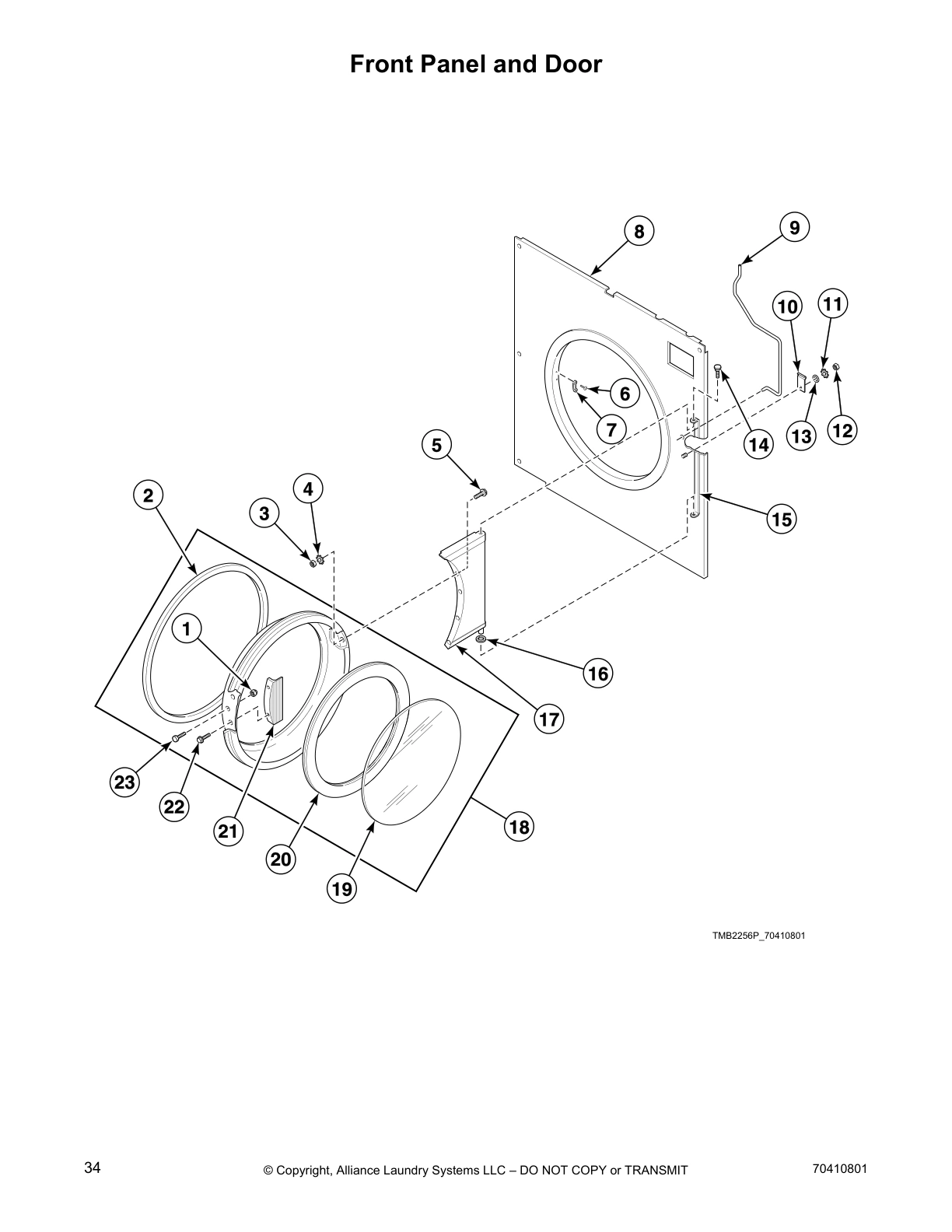

Front Panel and Door

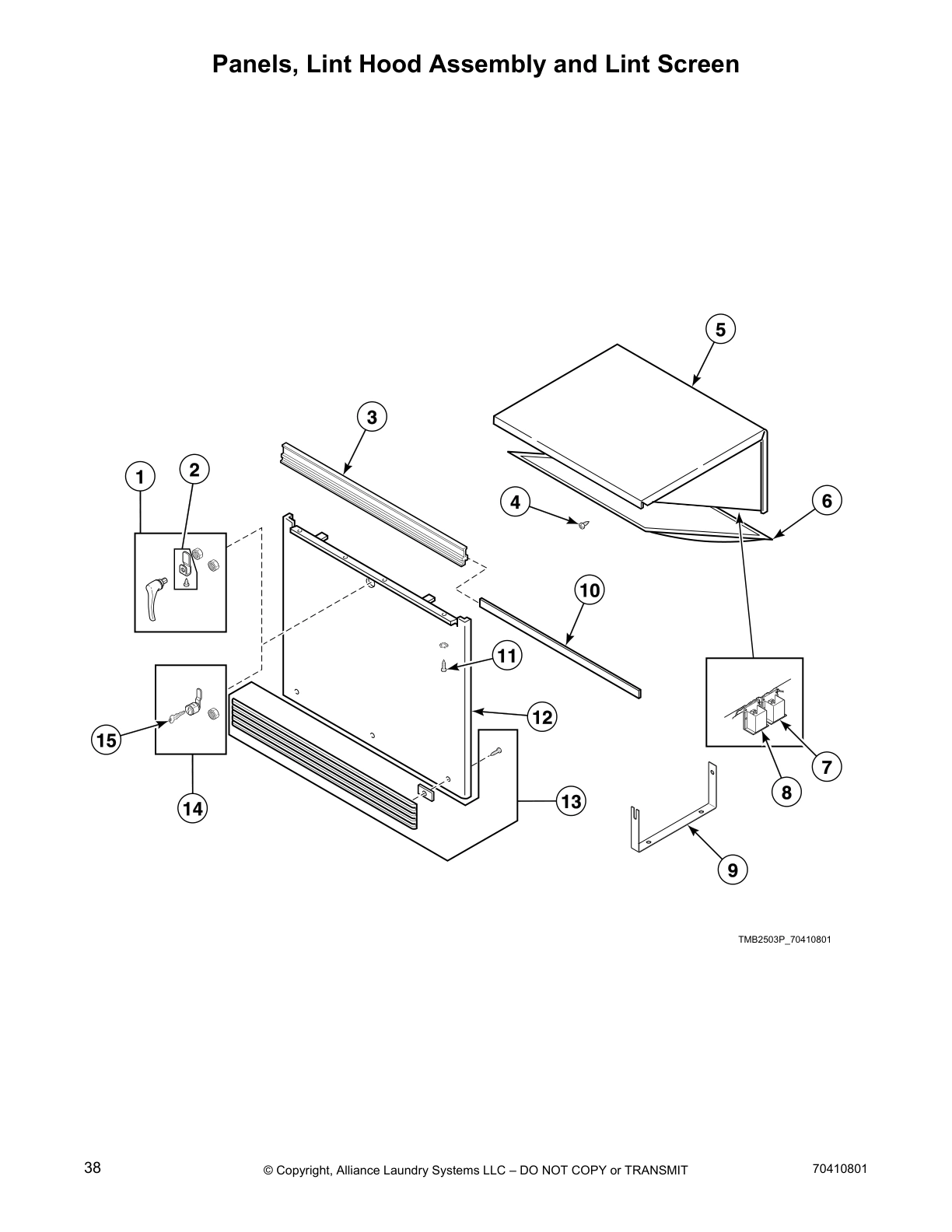

Panels, Lint Hood Assembly and Lint Screen

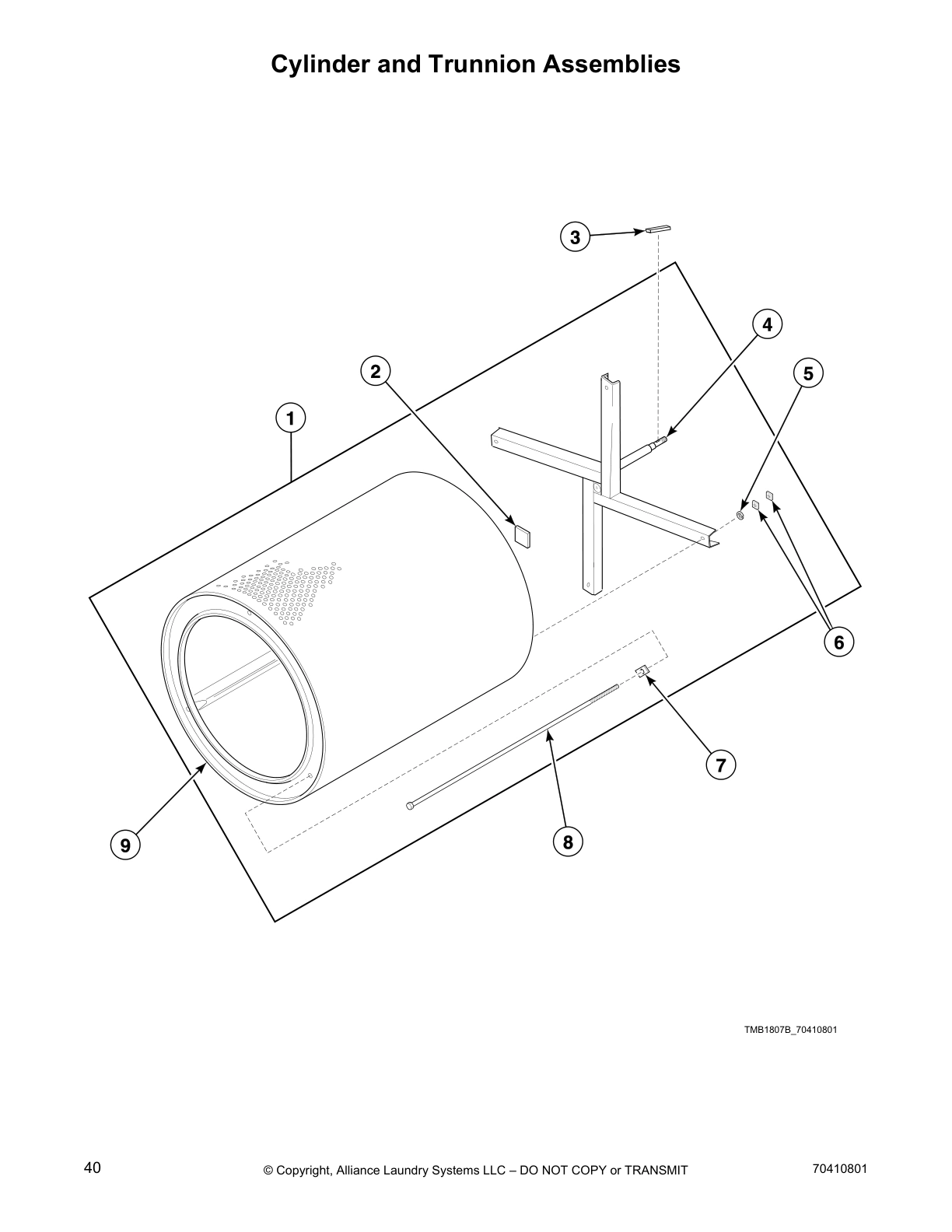

Cylinder and Trunnion Assemblies

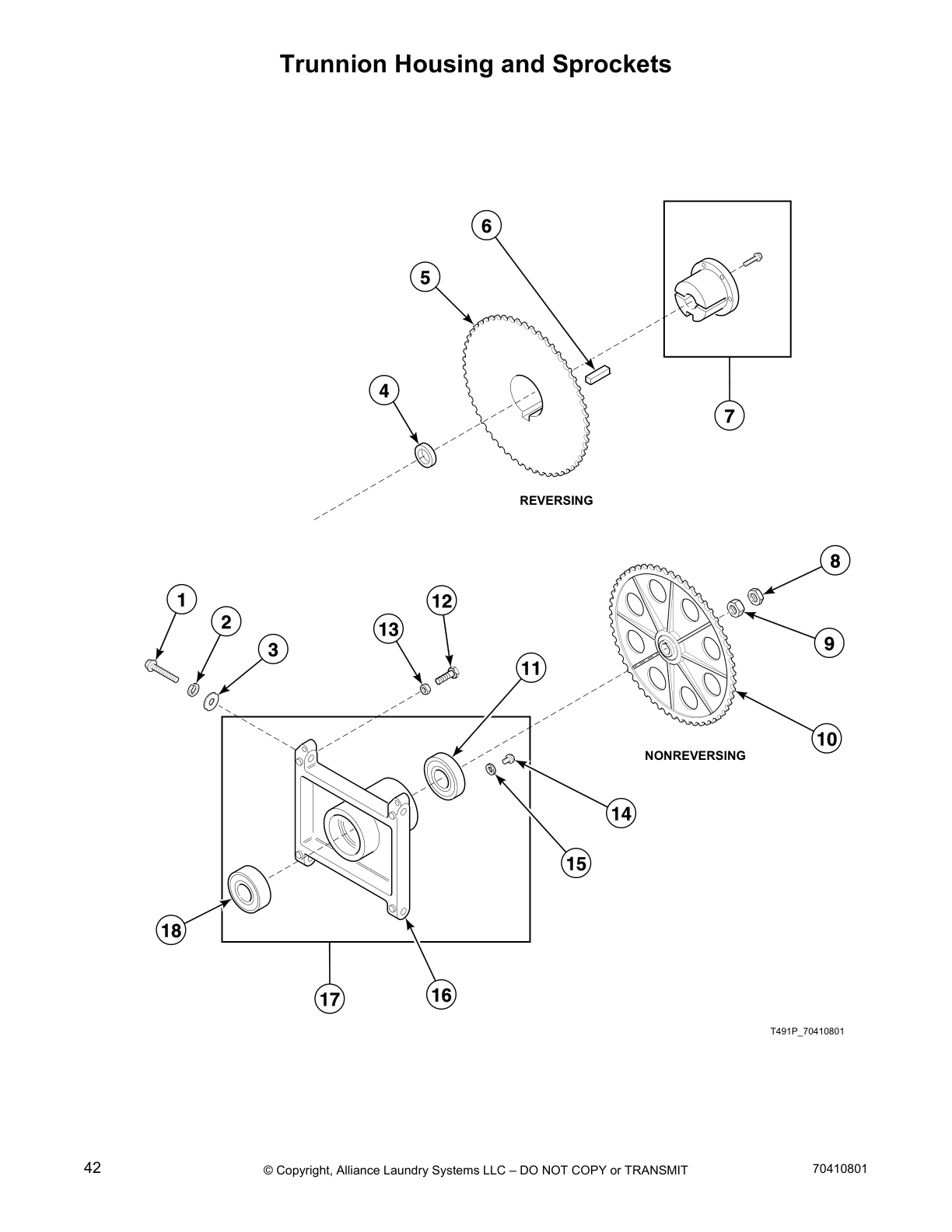

Trunnion Housing and Sprockets

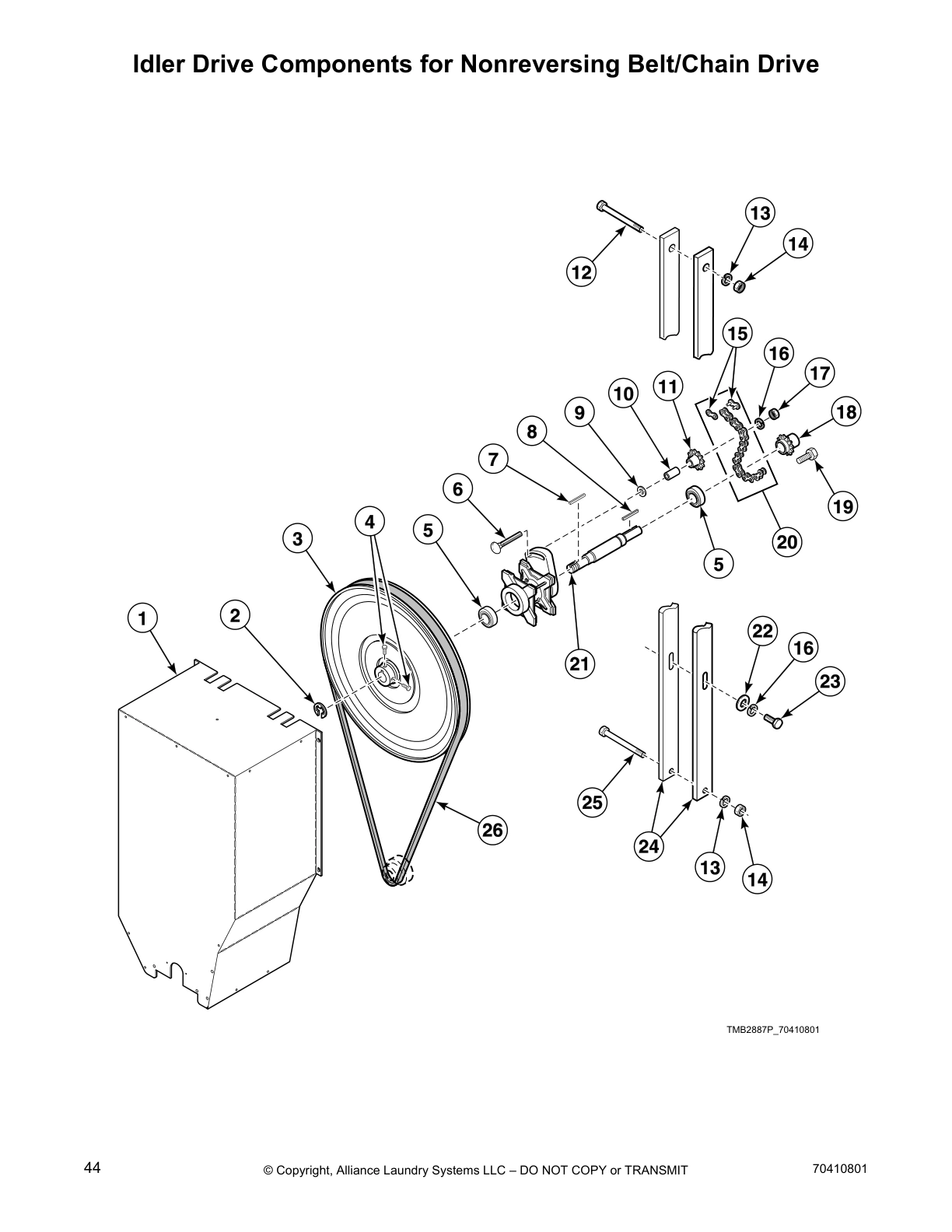

Idler Drive Components for Nonreversing Belt/Chain Drive

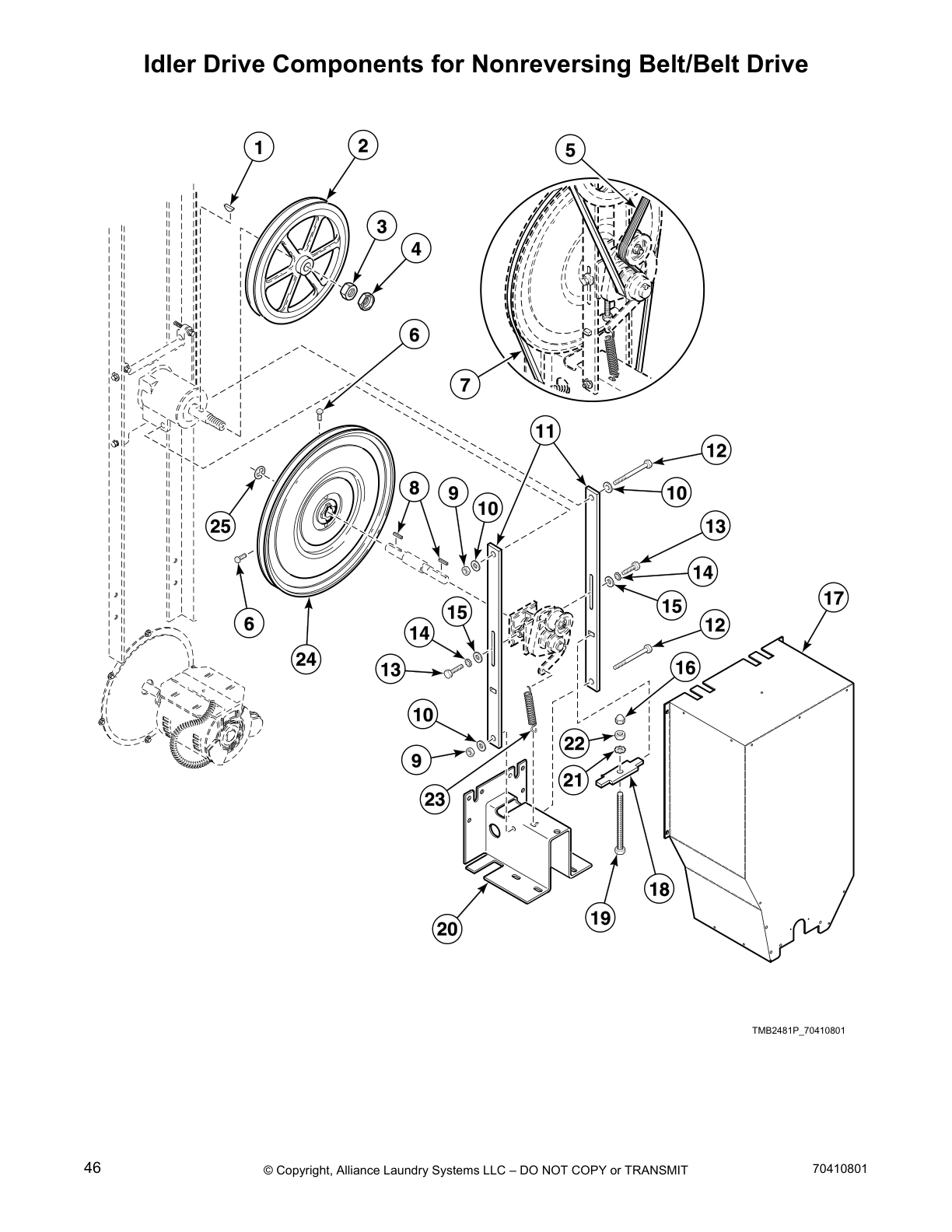

Idler Drive Components for Nonreversing Belt/Belt Drive

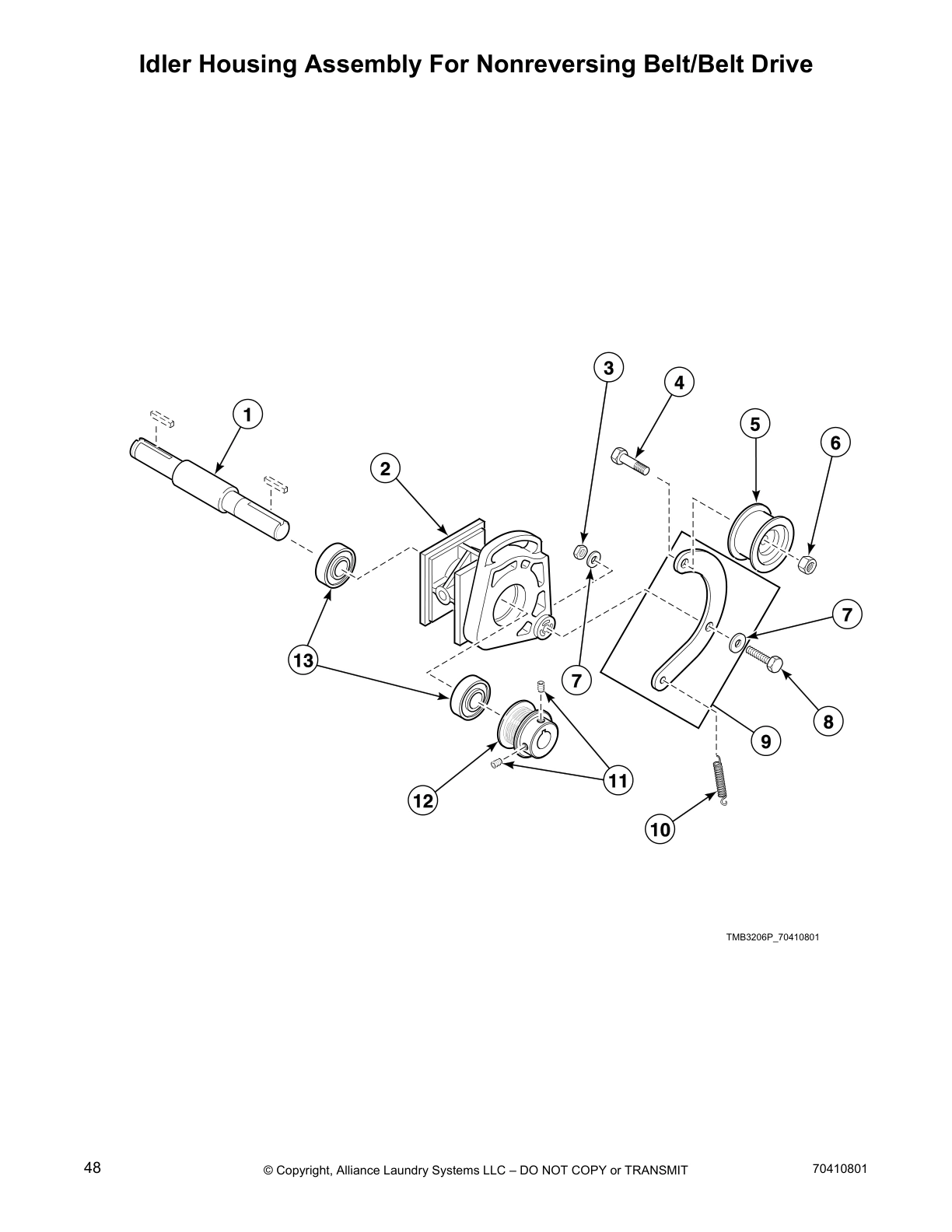

Idler Housing Assembly For Nonreversing Belt/Belt Drive

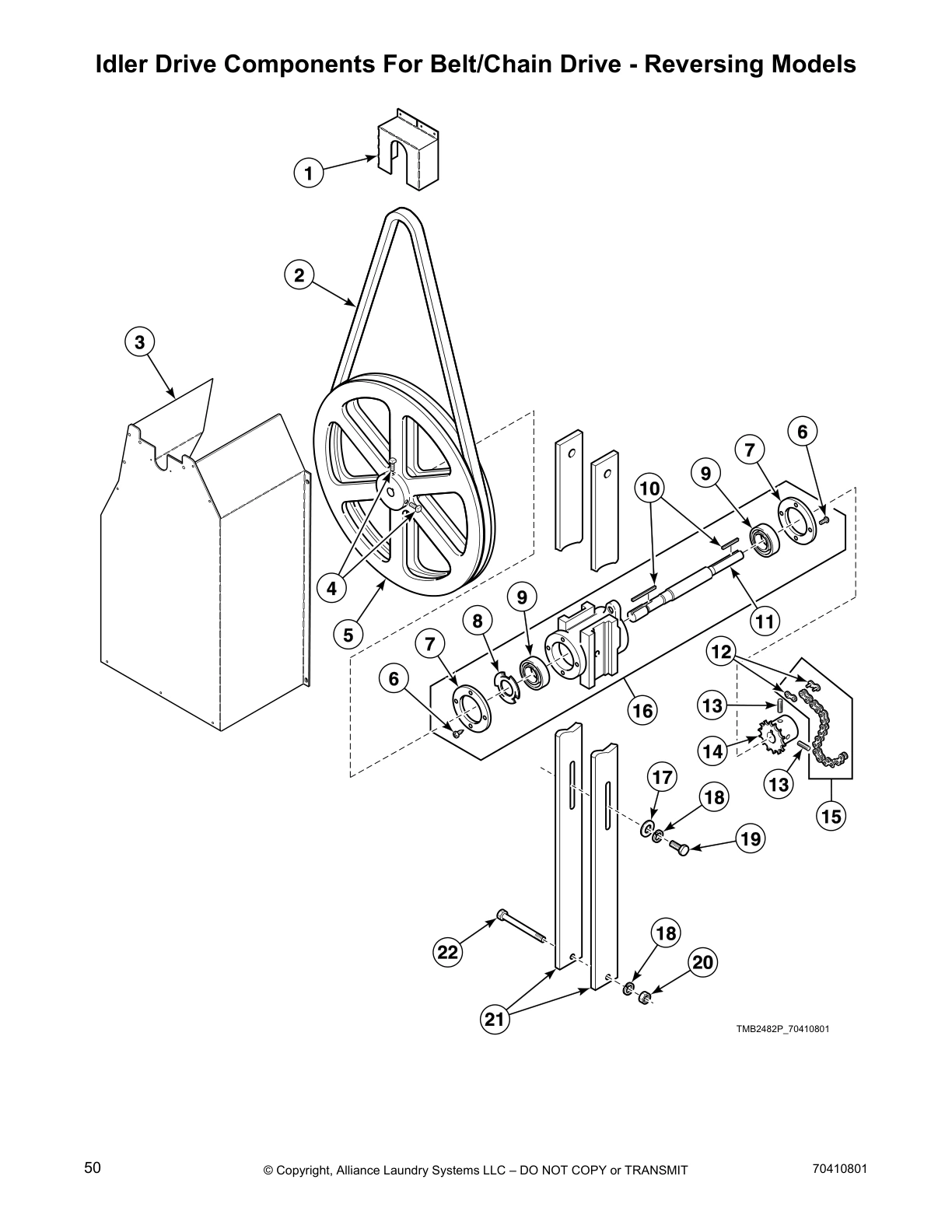

Idler Drive Components For Belt/Chain Drive - Reversing Models

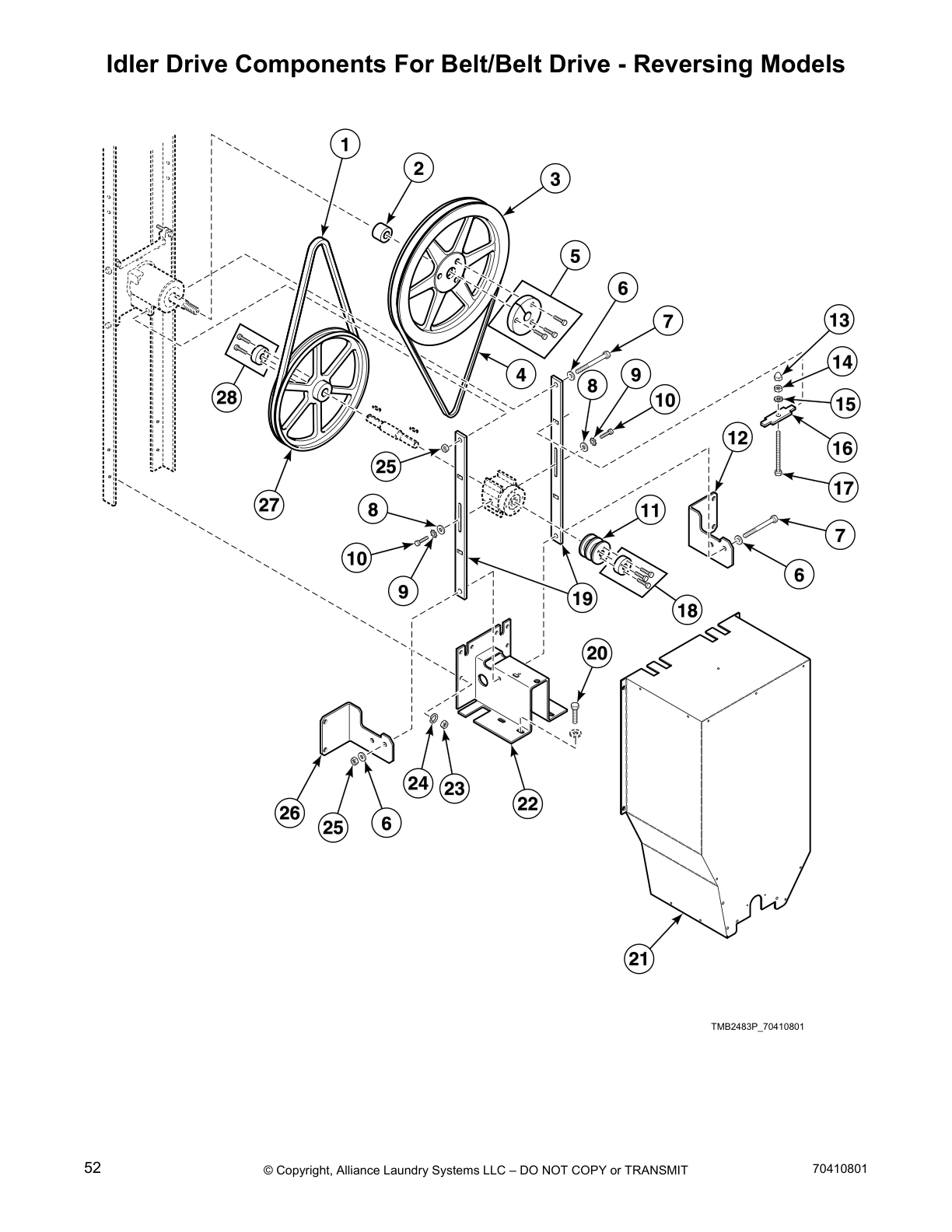

Idler Drive Components For Belt/Belt Drive - Reversing Models

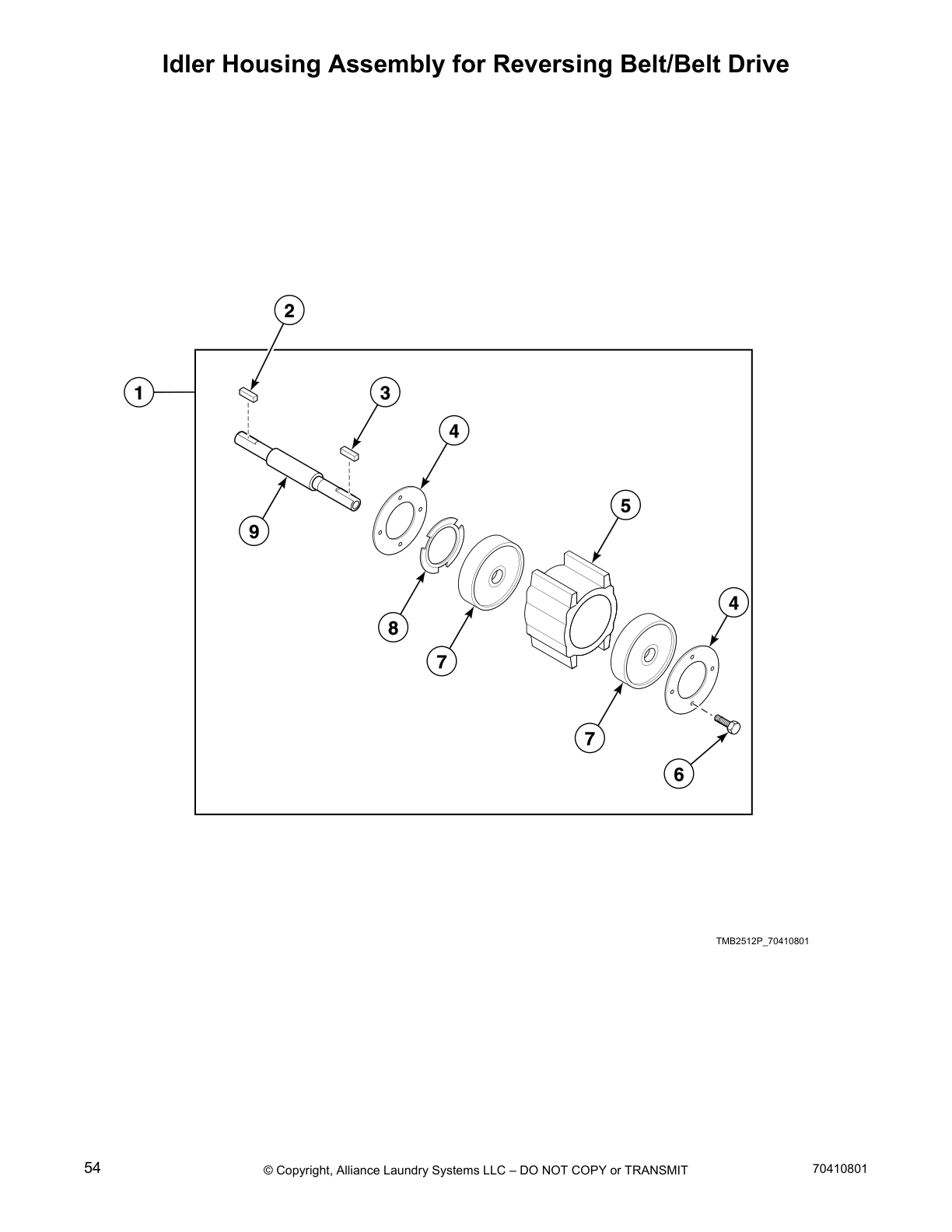

Idler Housing Assembly for Reversing Belt/Belt Drive

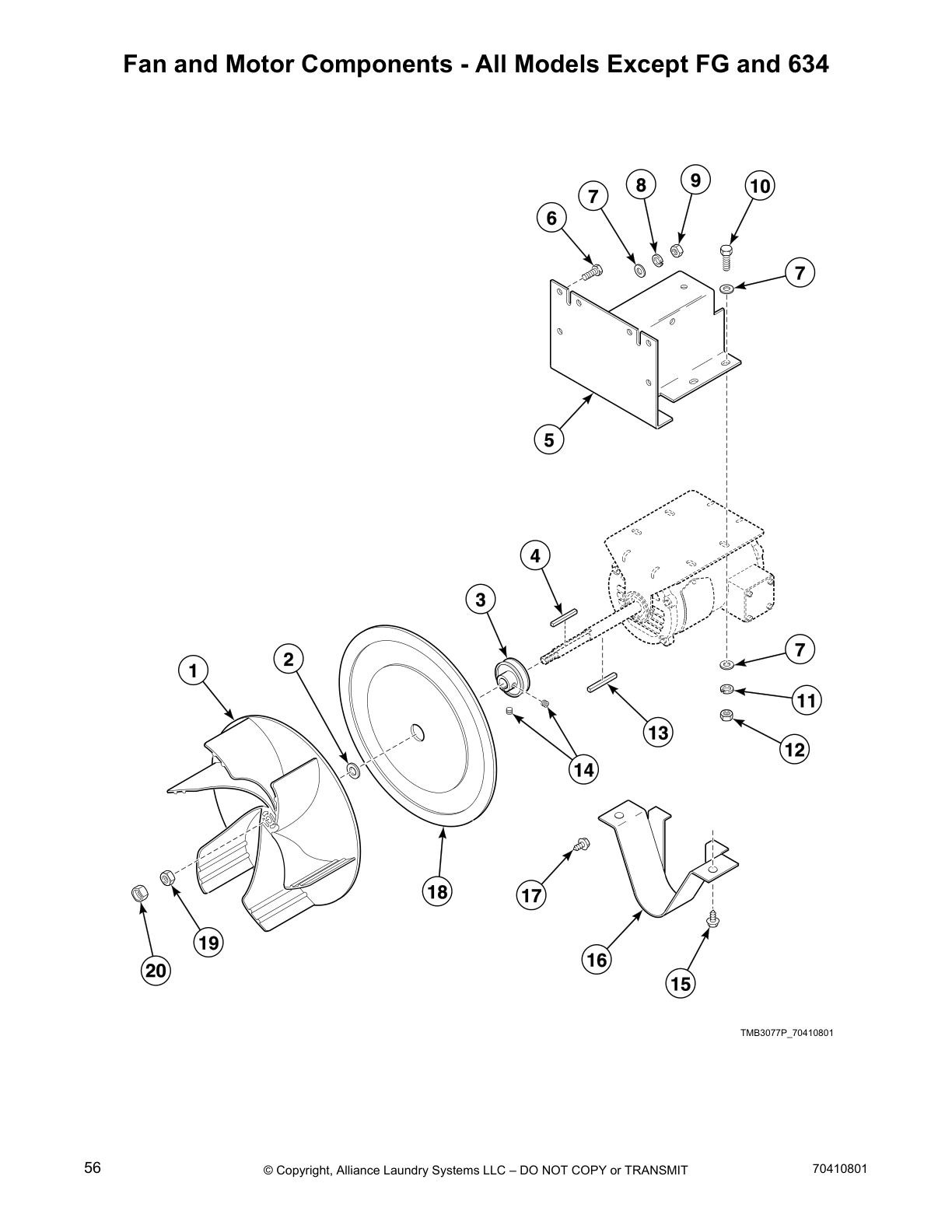

Fan and Motor Components - All Models Except FG and 634

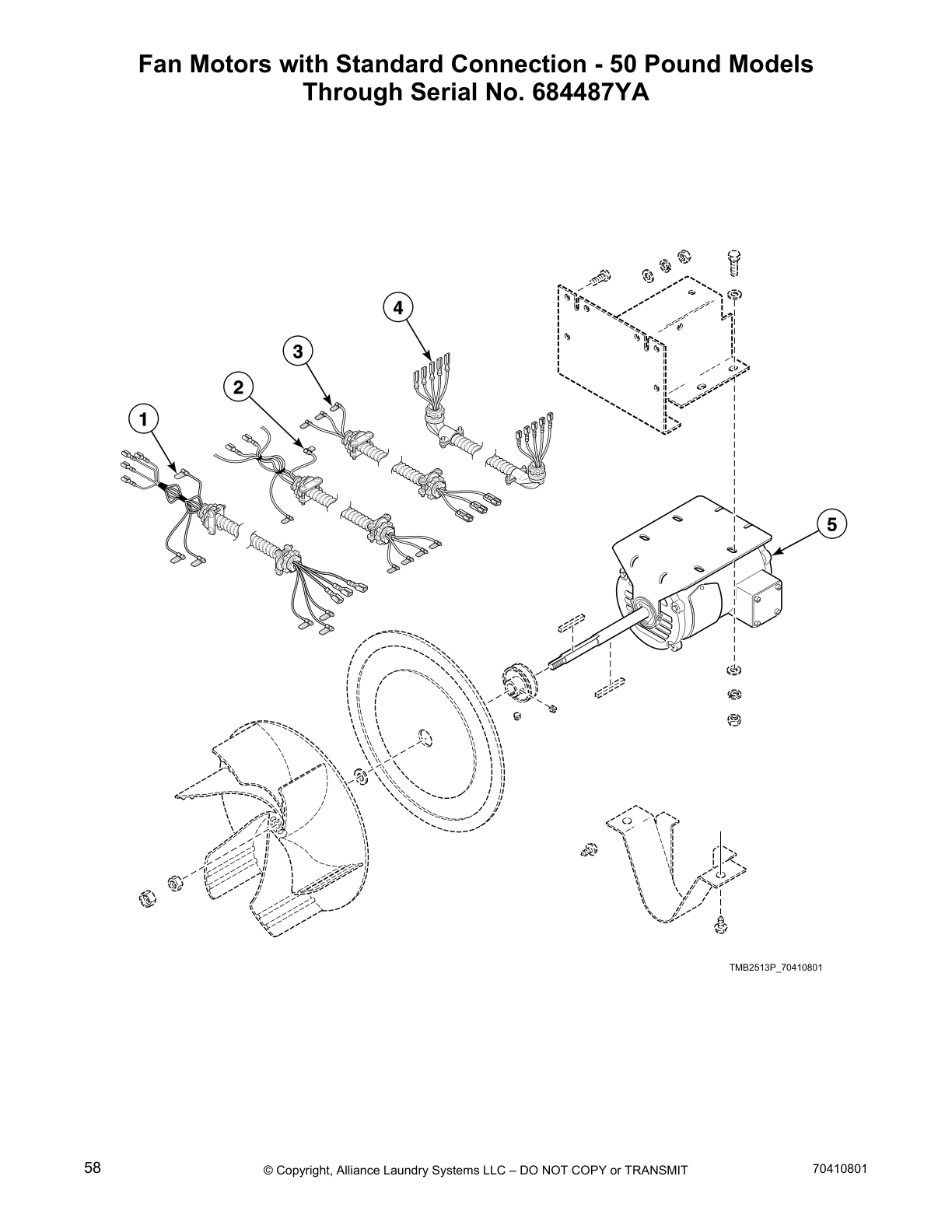

Fan Motors with Standard Connection - 50 Pound Models
Through Serial No. 684487YA

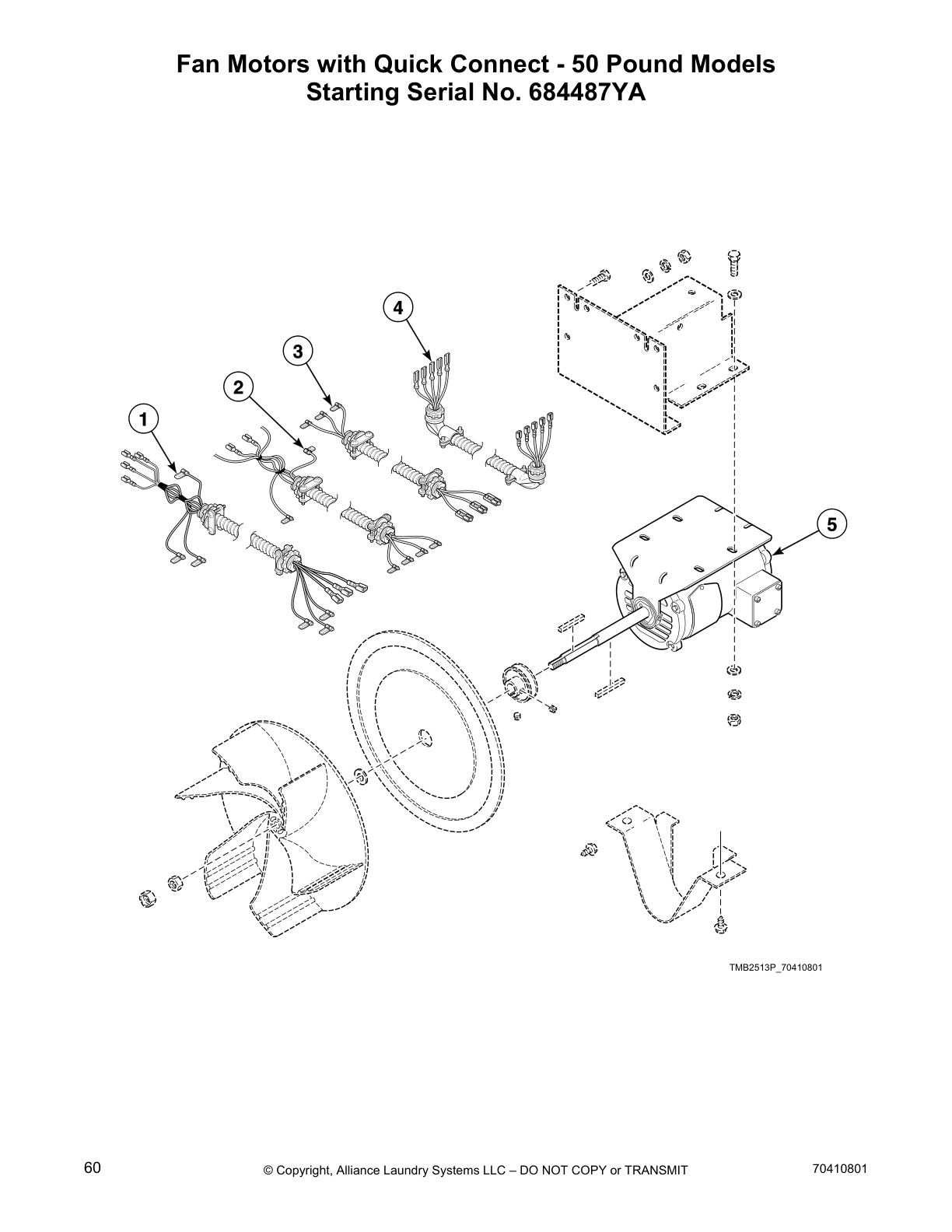

Fan Motors with Quick Connect - 50 Pound Models
Starting Serial No. 684487YA

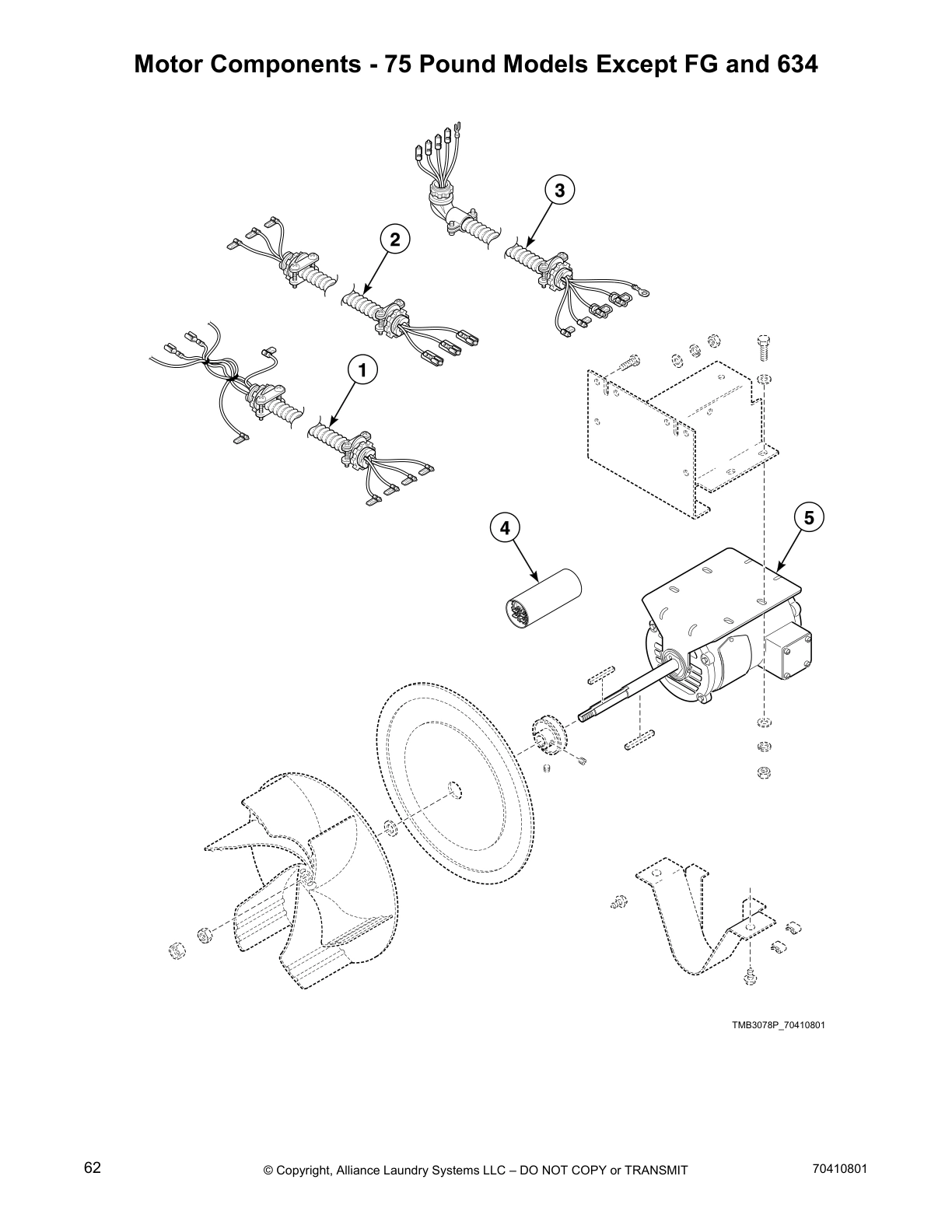

Motor Components - 75 Pound Models Except FG and 634

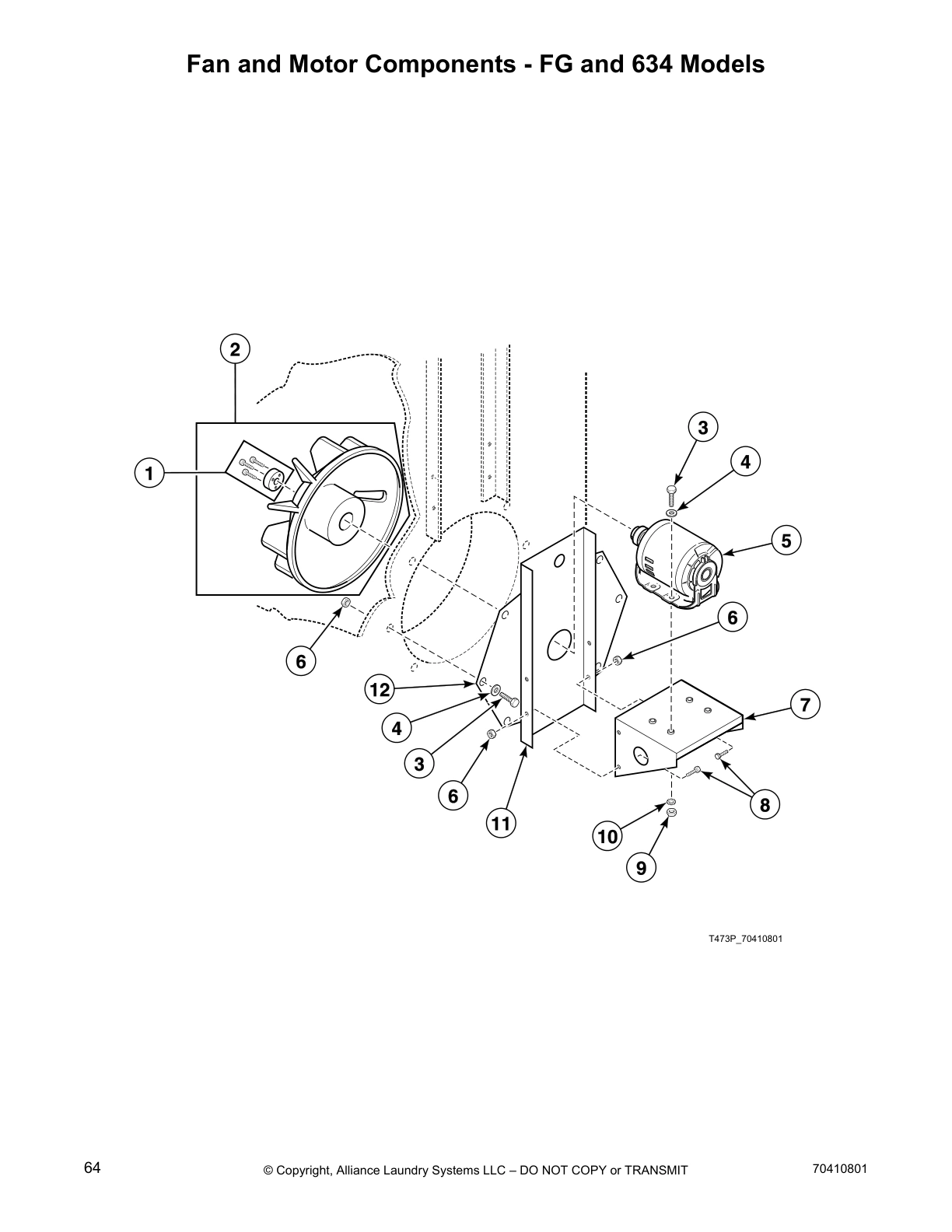

Fan and Motor Components - FG and 634 Models

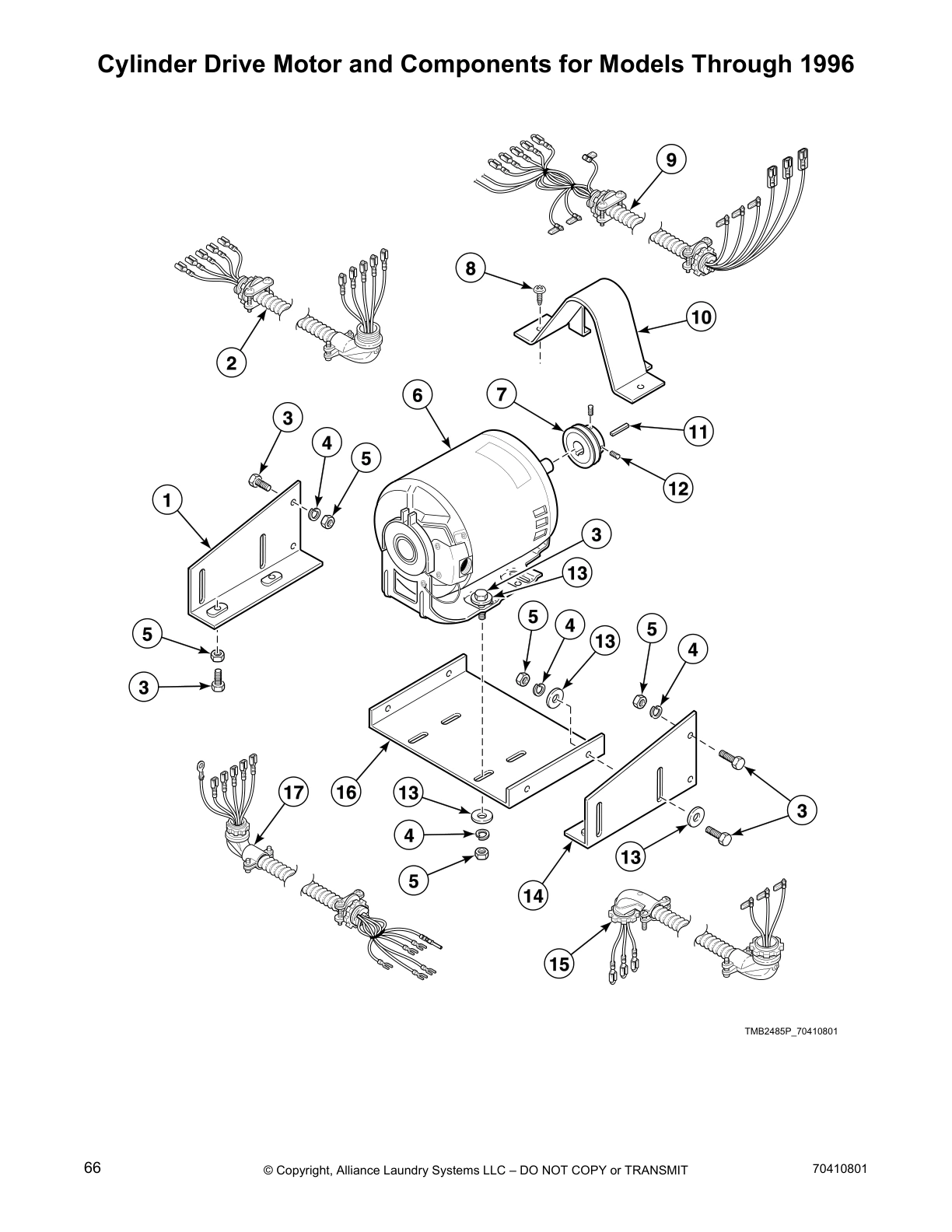

Cylinder Drive Motor and Components for Models Through 1996

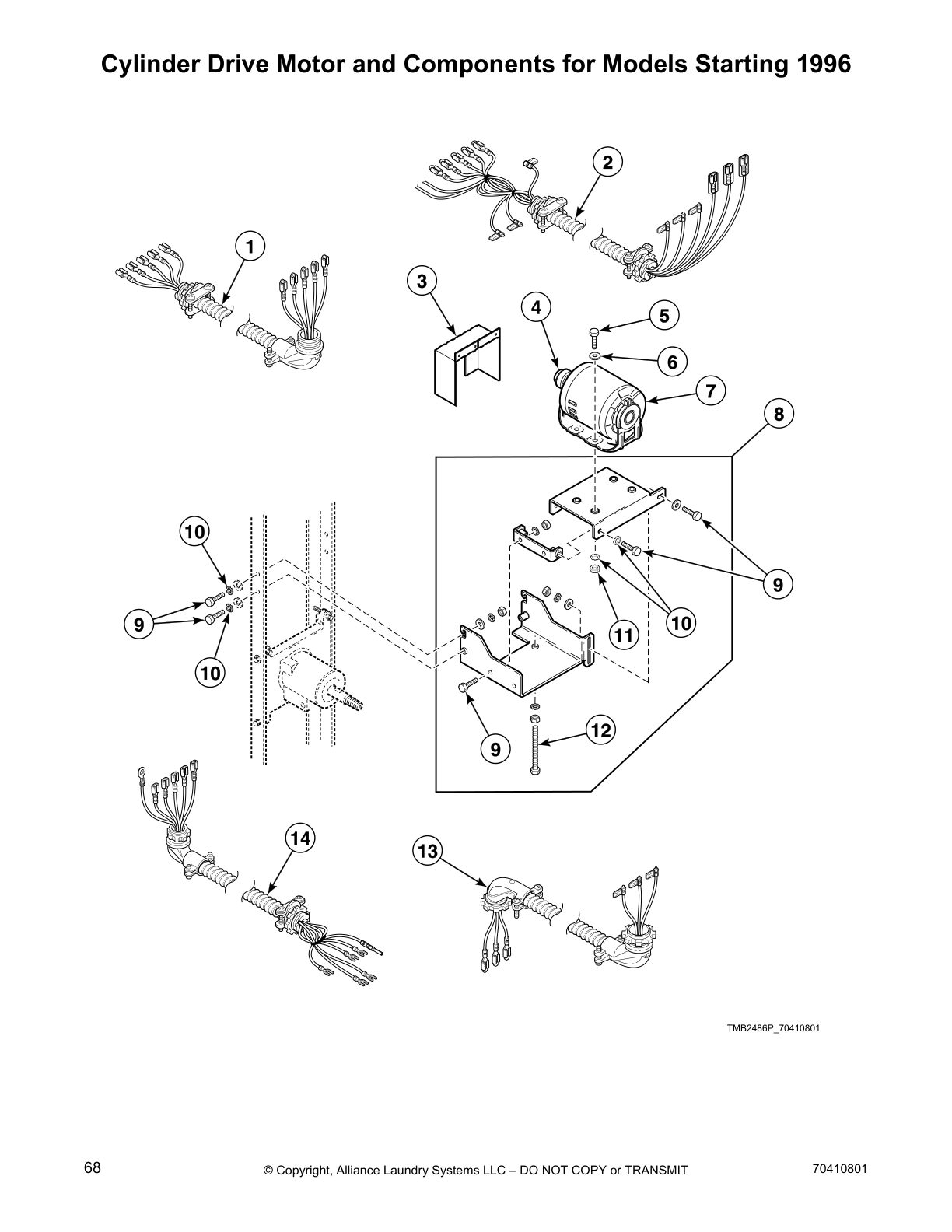

Cylinder Drive Motor and Components for Models Starting 1996

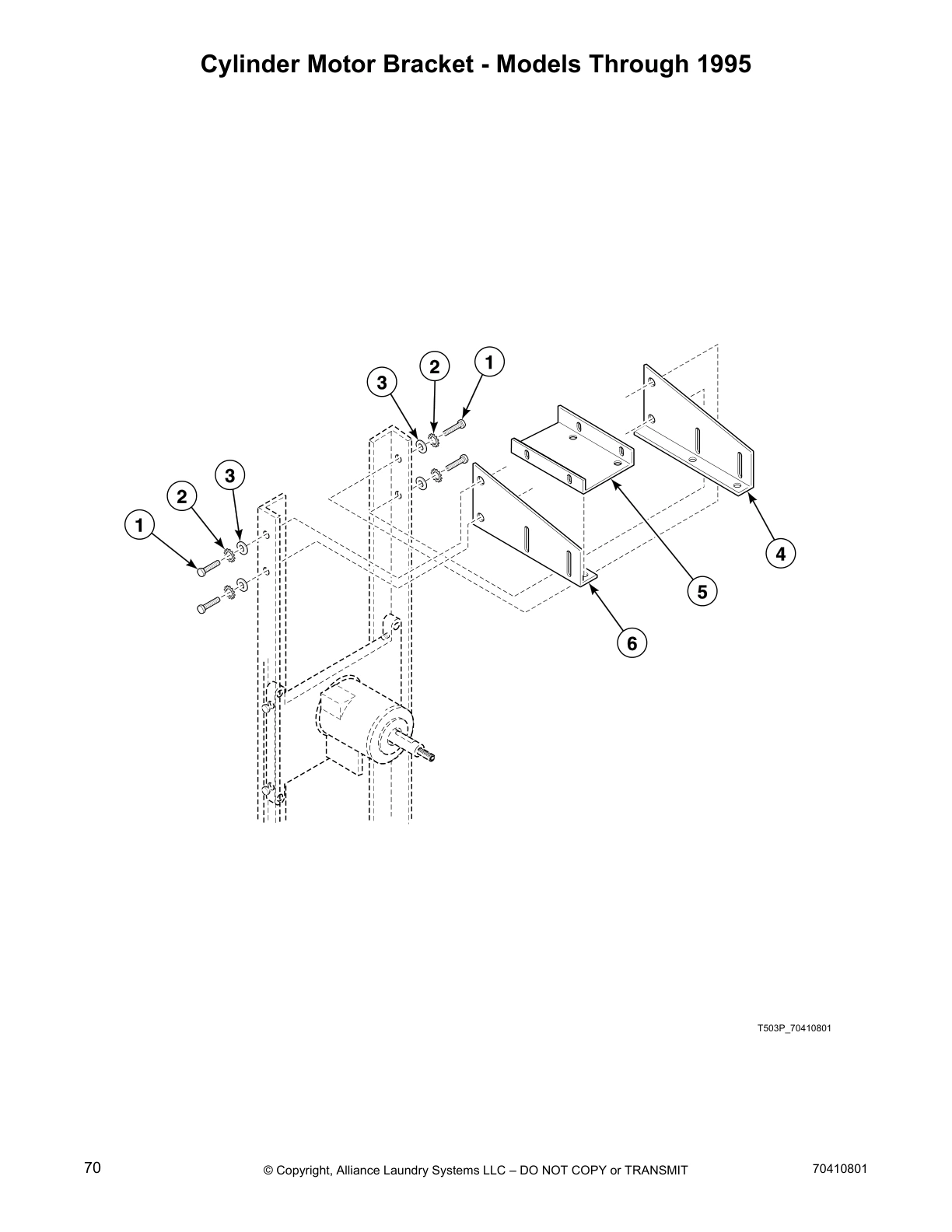

Cylinder Motor Bracket - Models Through 1995

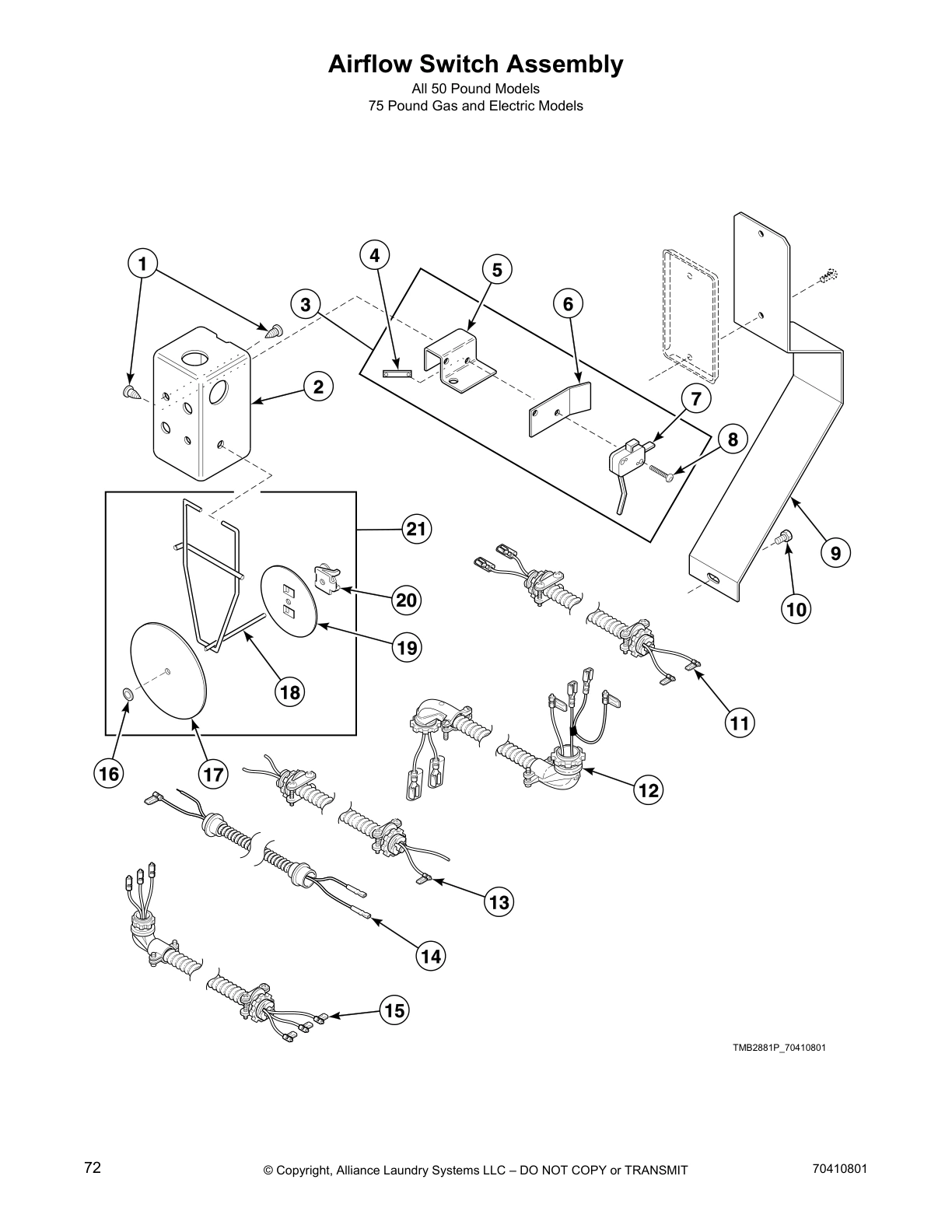

Airflow Switch Assembly

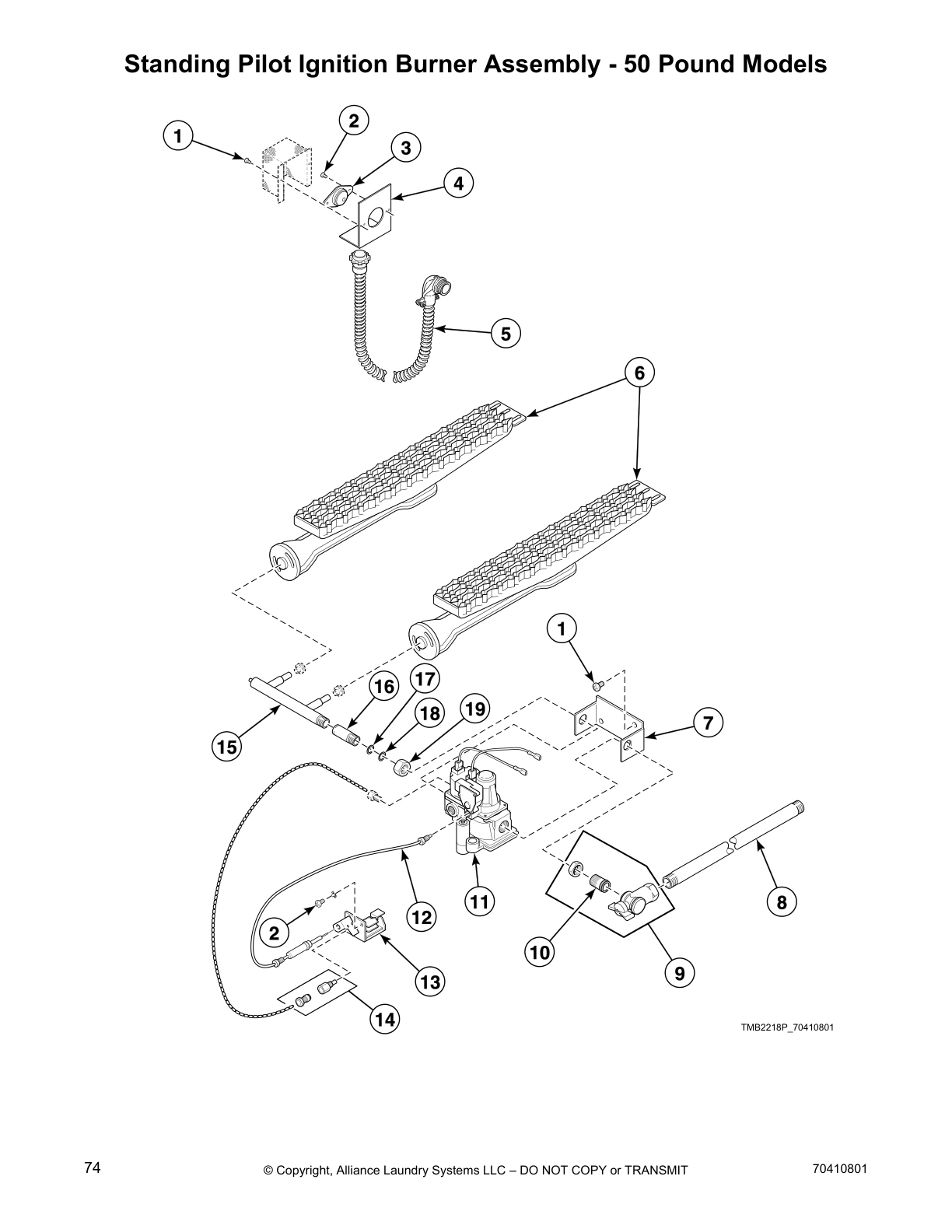

Standing Pilot Ignition Burner Assembly - 50 Pound Models

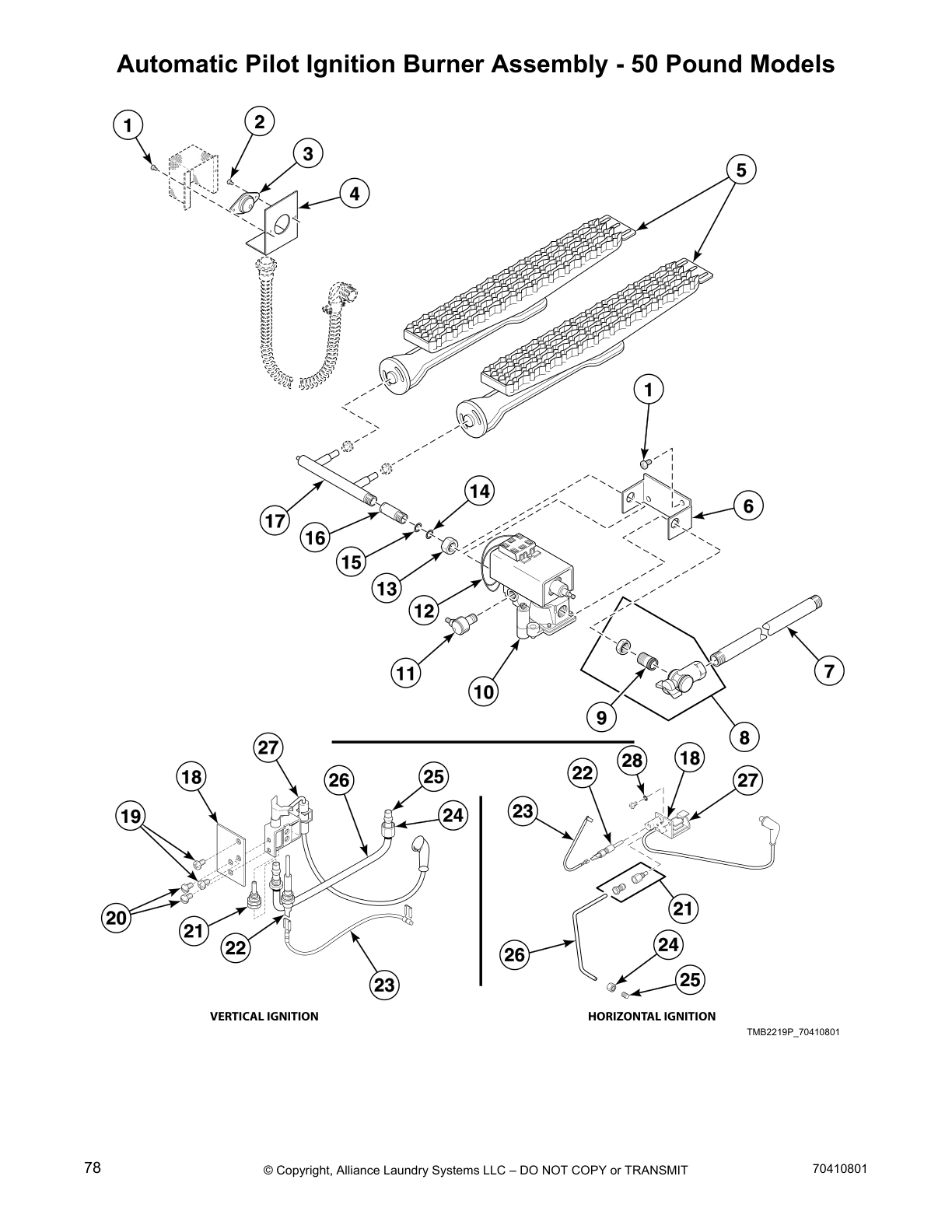

Automatic Pilot Ignition Burner Assembly - 50 Pound Models

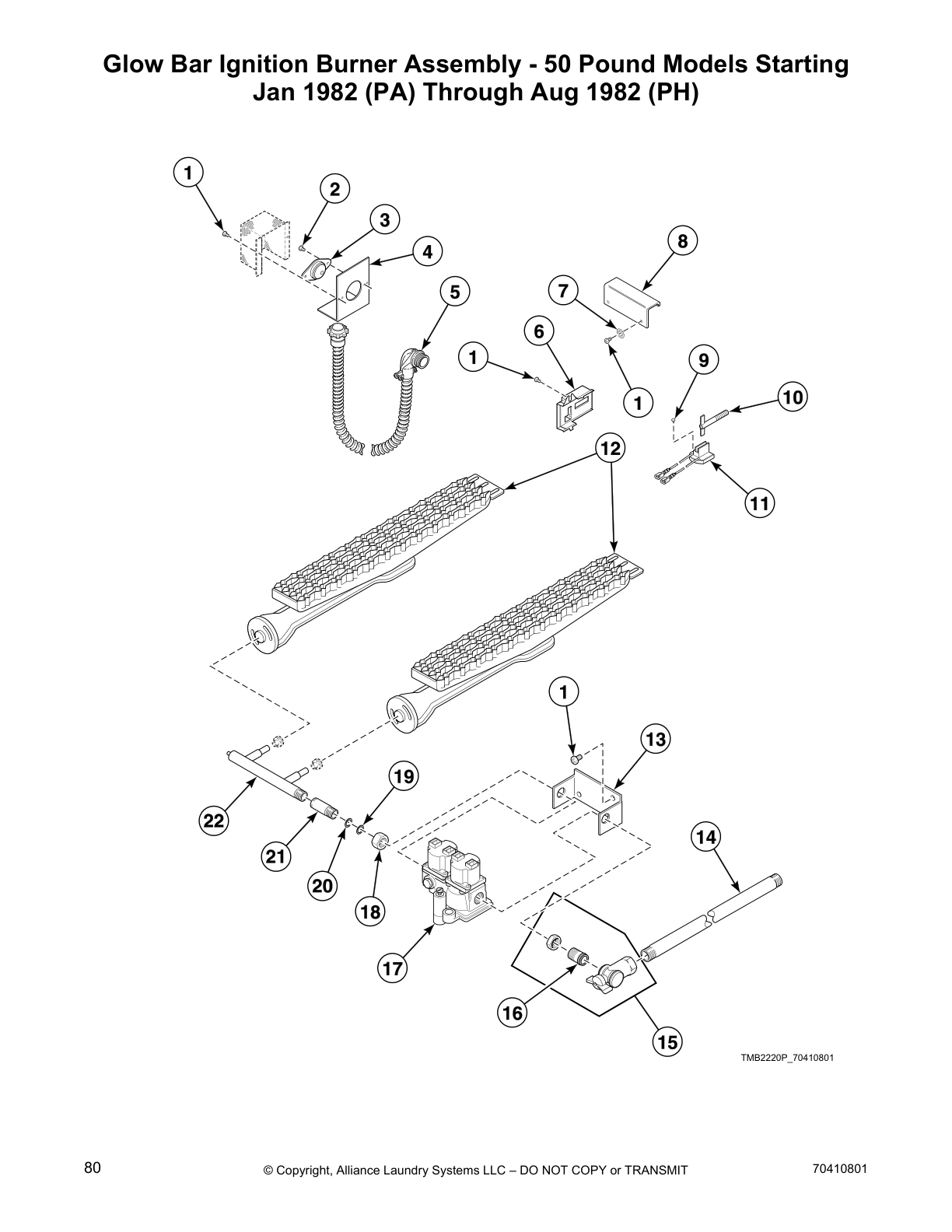

Glow Bar Ignition Burner Assembly - 50 Pound Models Starting
Jan 1982 (PA) Through Aug 1982 (PH)

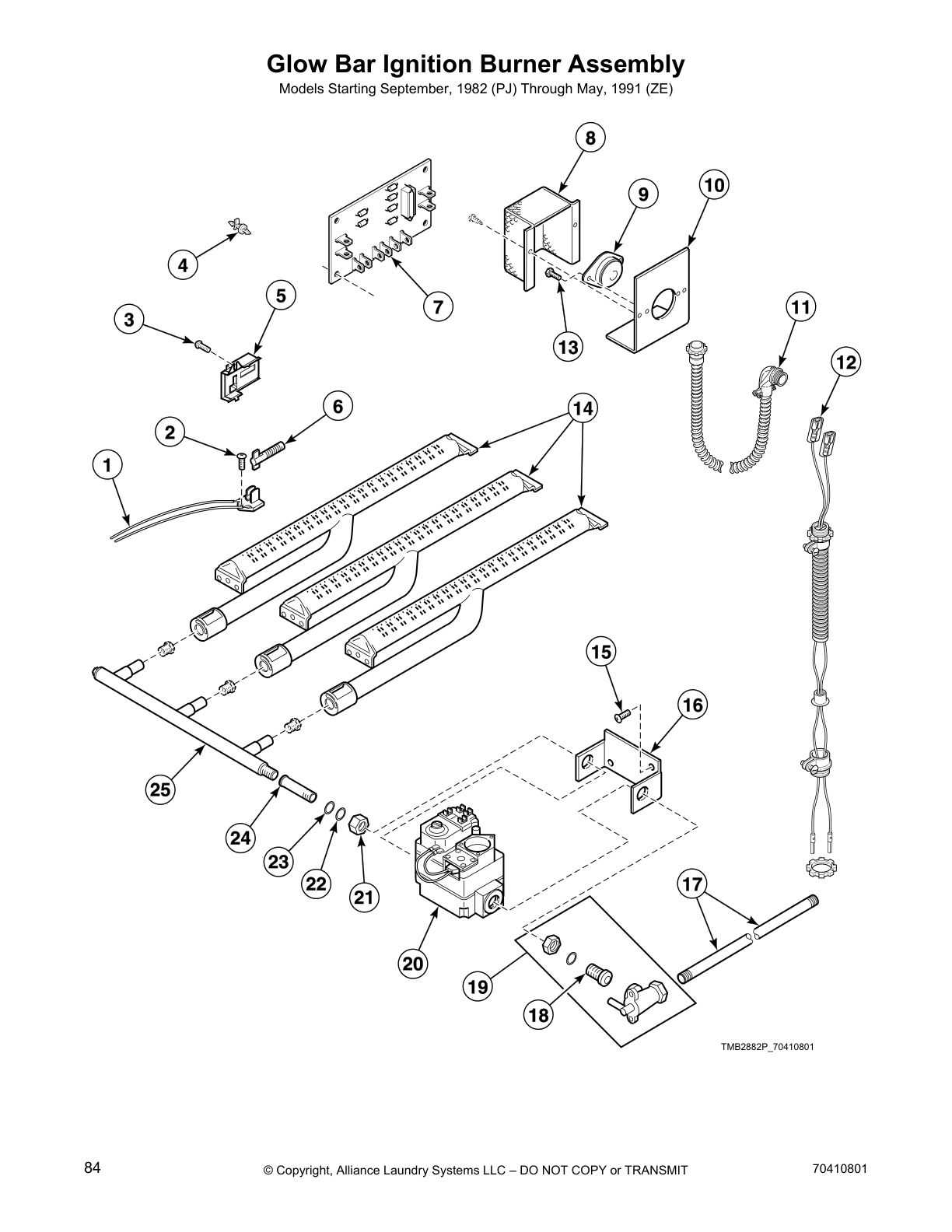

Glow Bar Ignition Burner Assembly

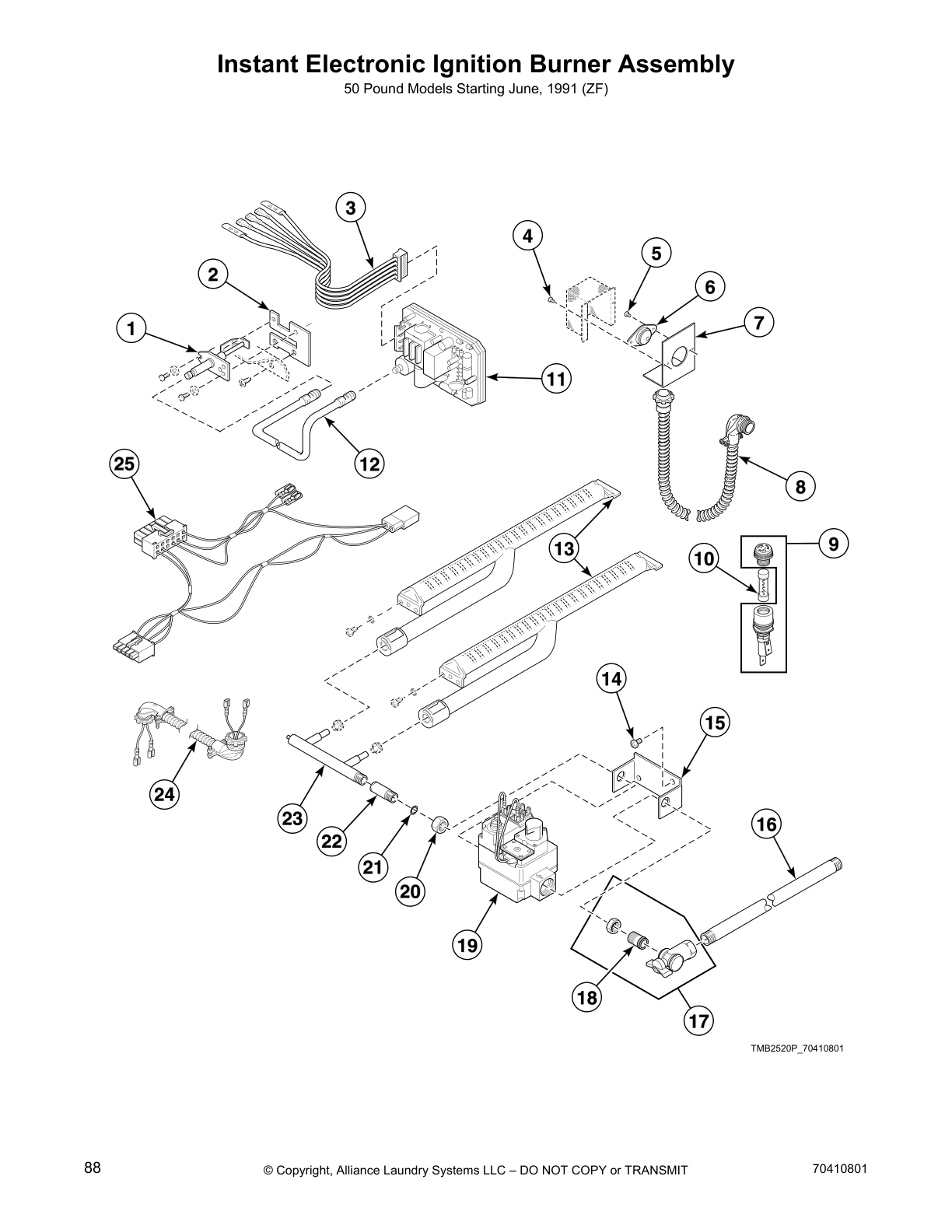

Instant Electronic Ignition Burner Assembly

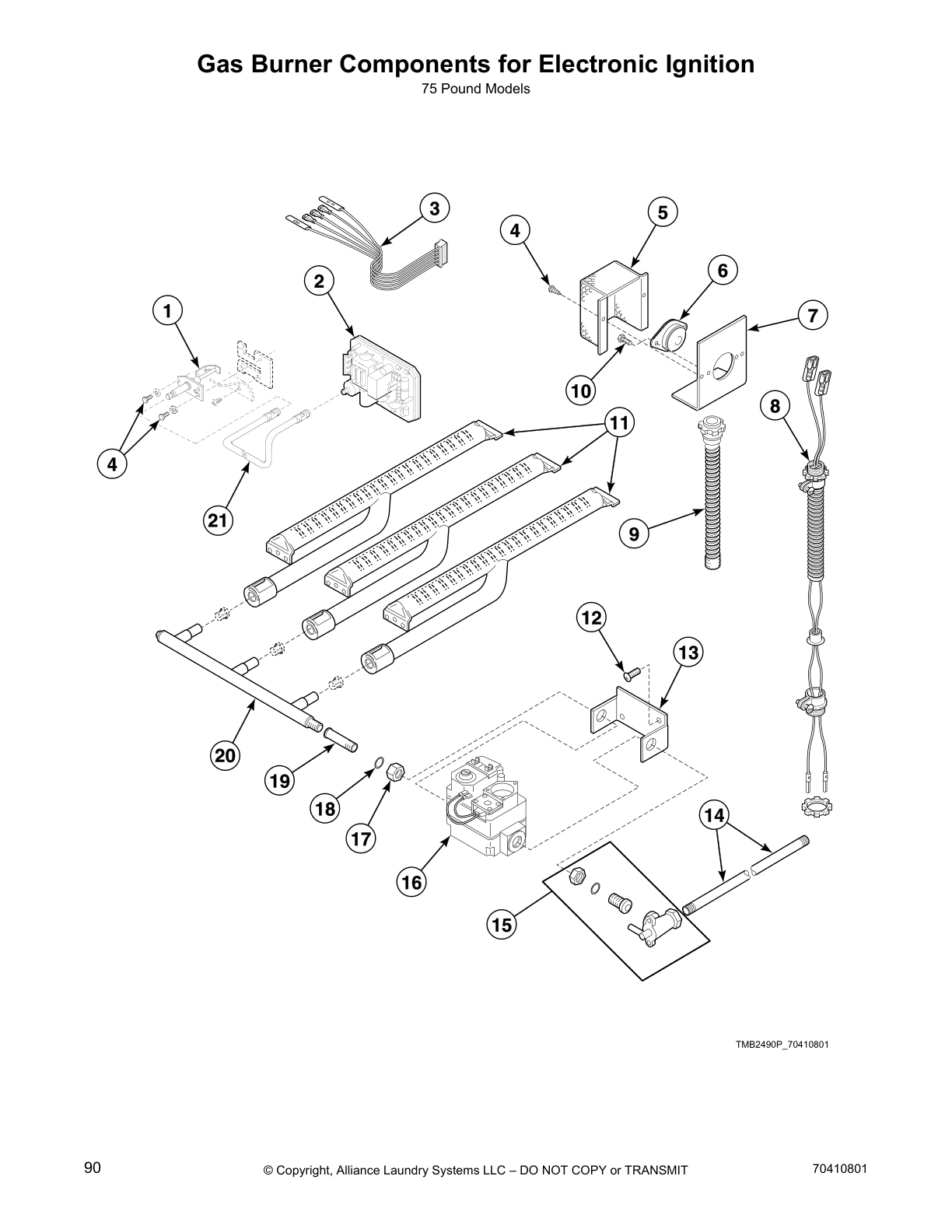

Gas Burner Components for Electronic Ignition

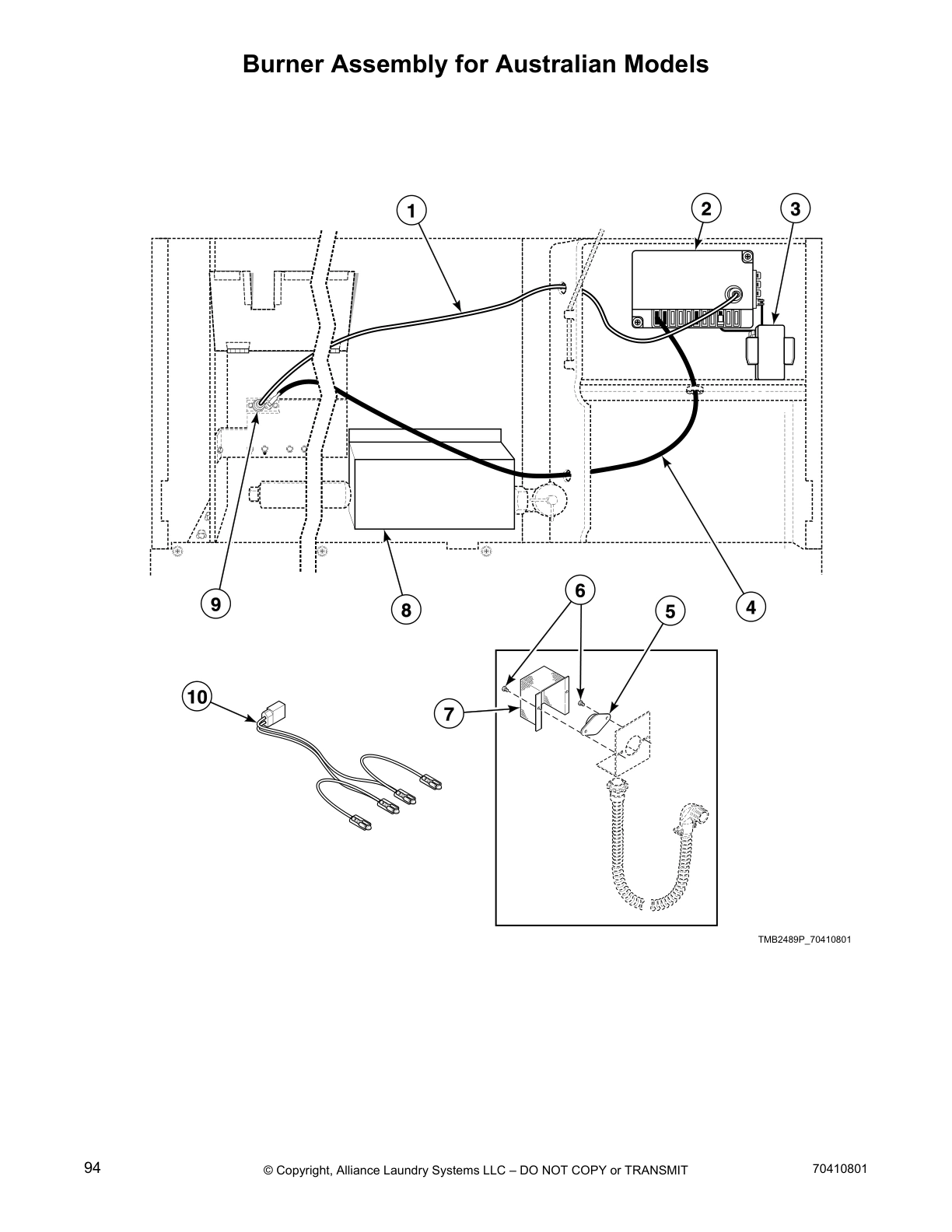

Burner Assembly for Australian Models
Gas Valve Assembly for Dungs/B-M System

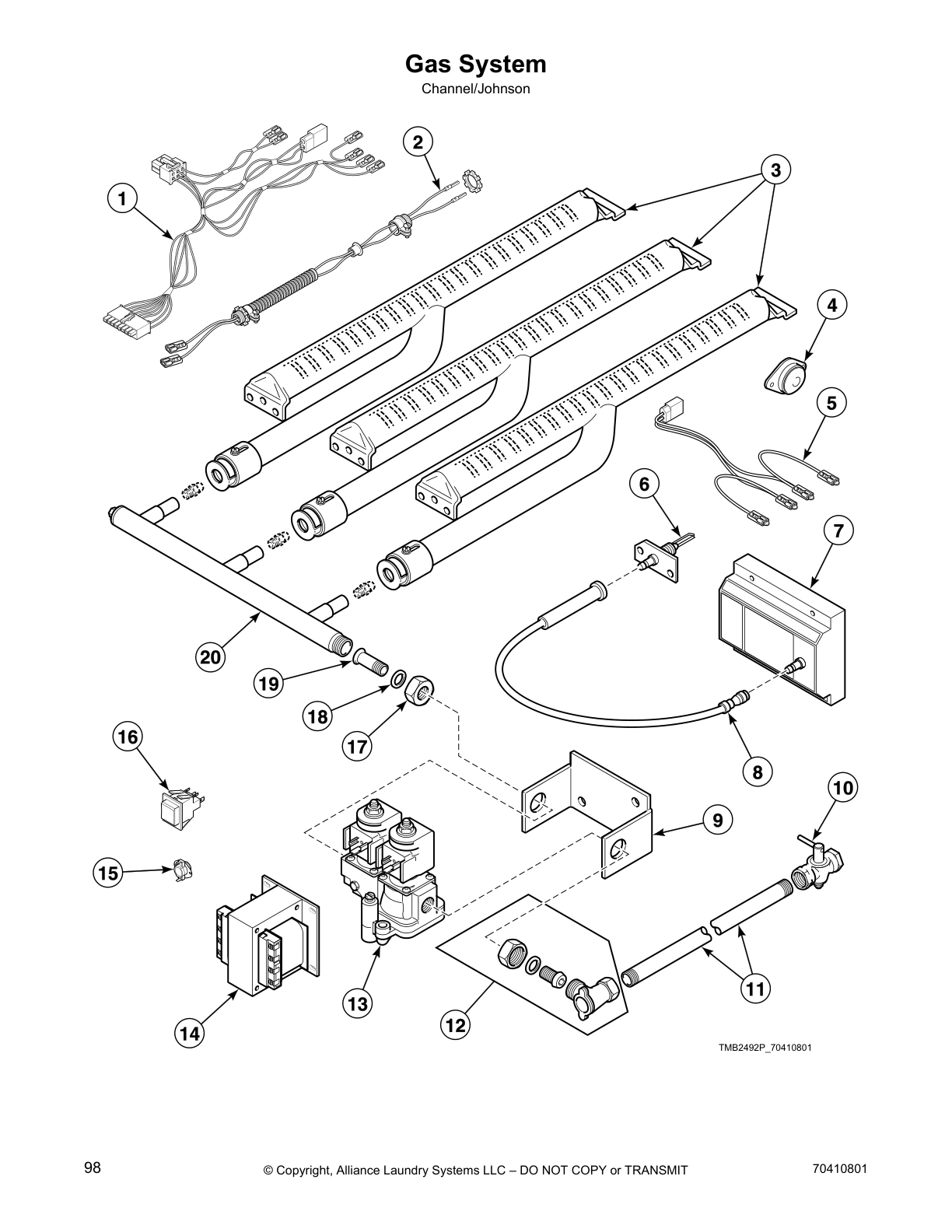

Gas System

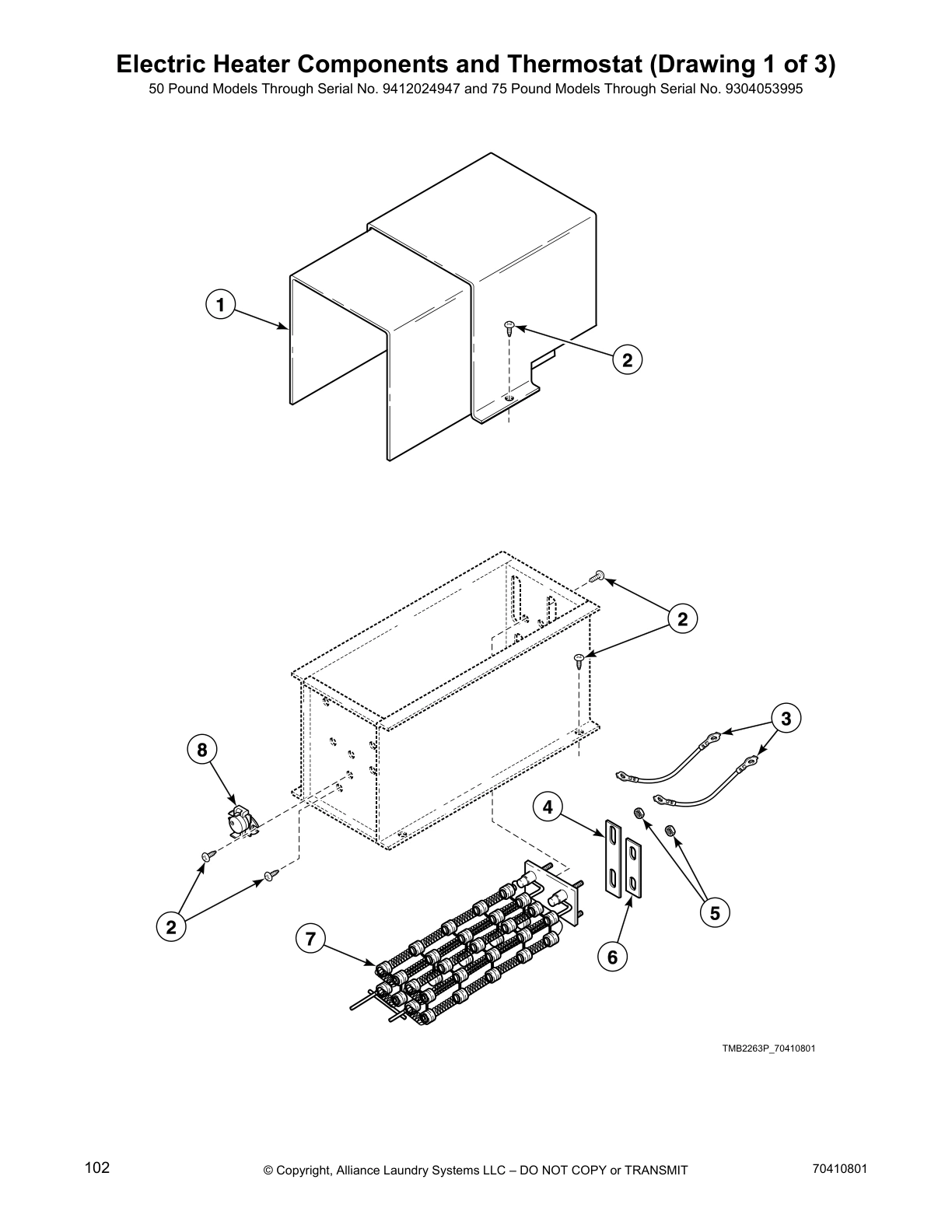

Electric Heater Components and Thermostat (Drawing 1 of 3)

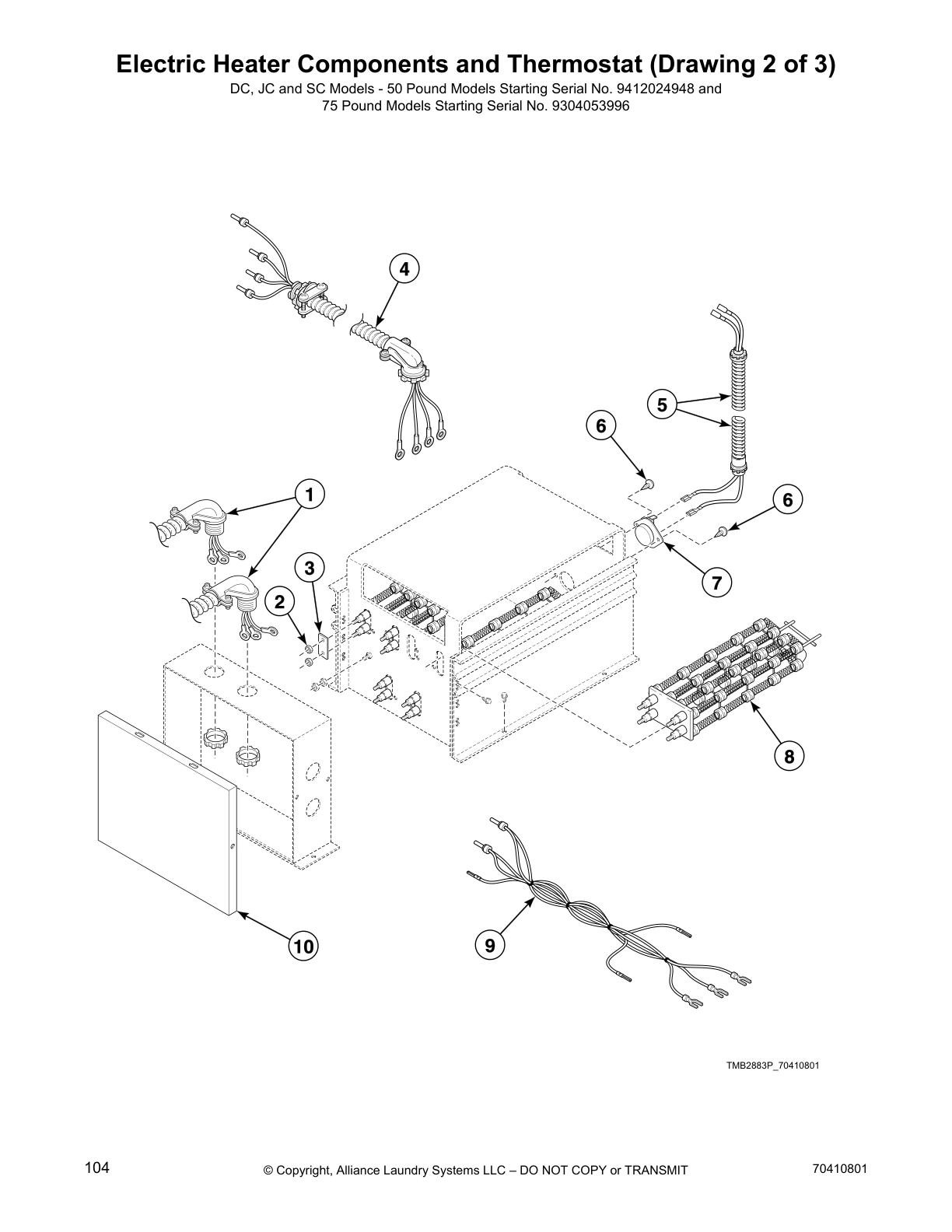

Electric Heater Components and Thermostat (Drawing 2 of 3)

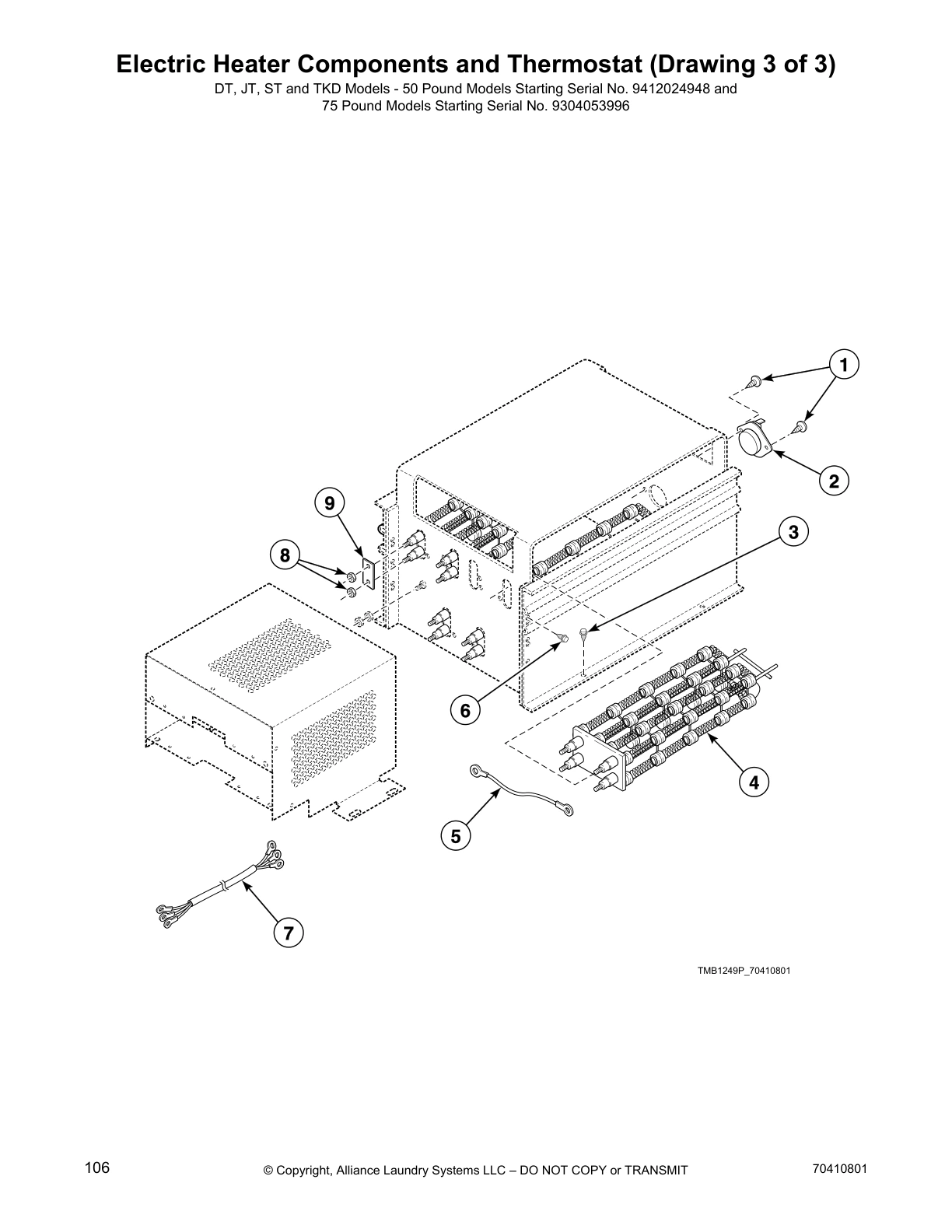

Electric Heater Components and Thermostat (Drawing 3 of 3)

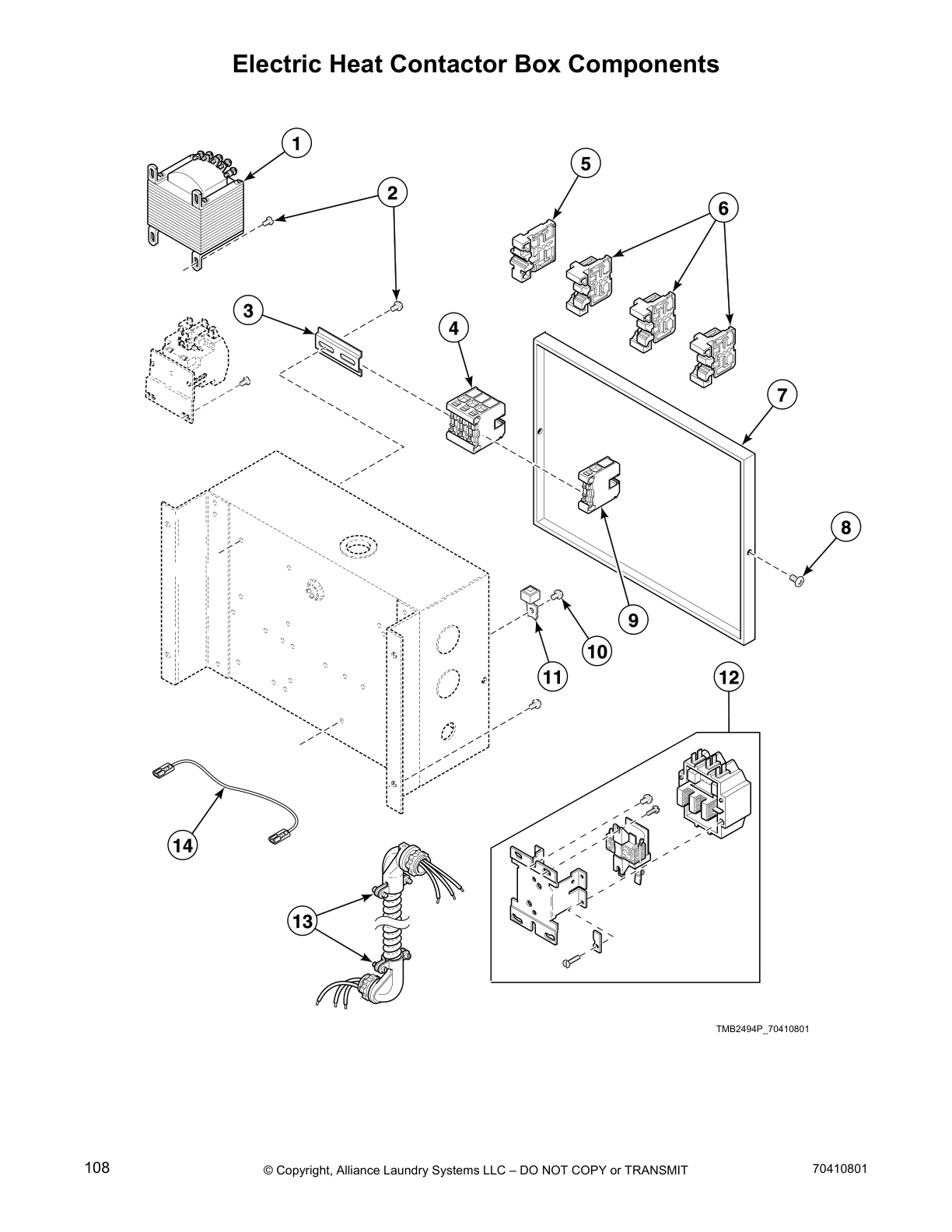

Electric Heat Contactor Box Components

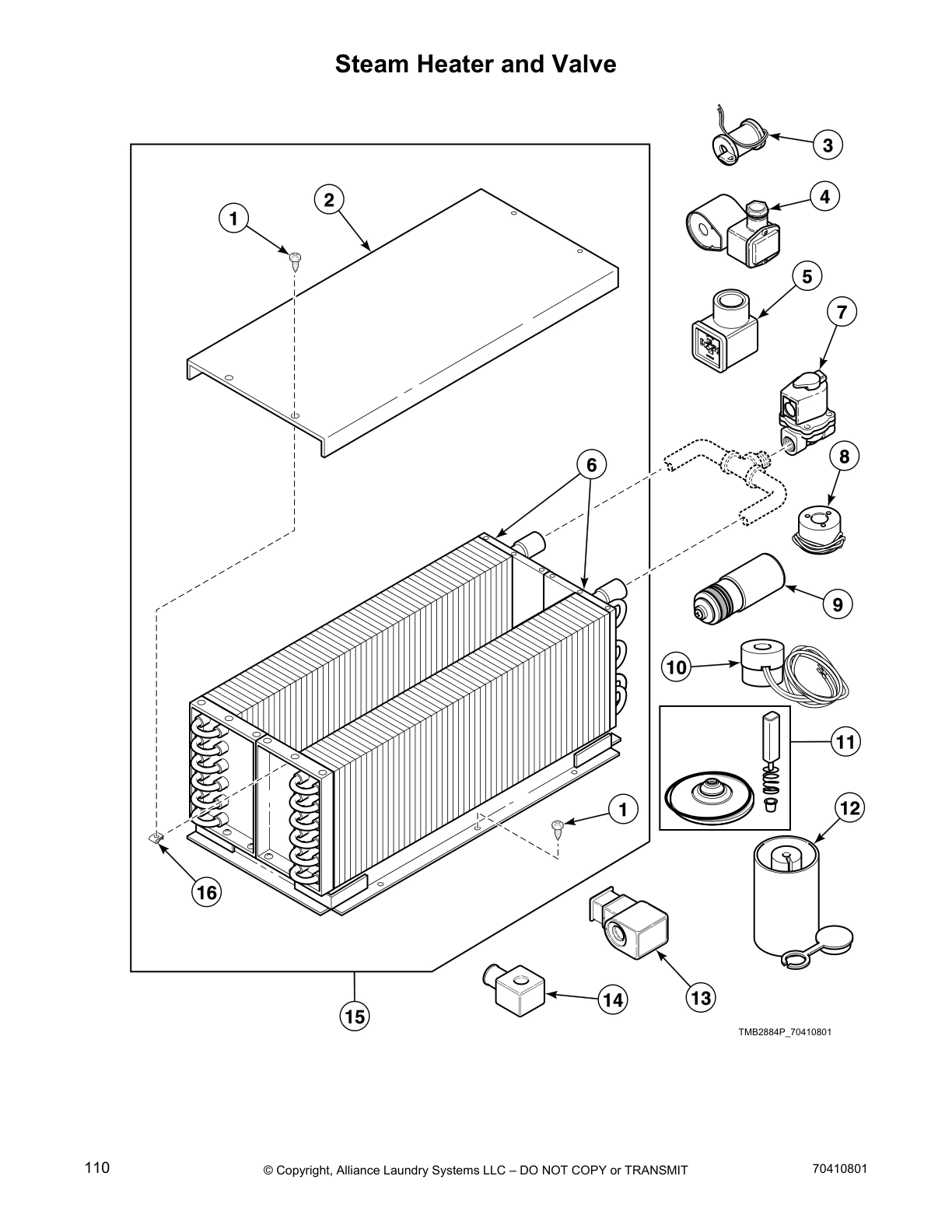

Steam Heater and Valve

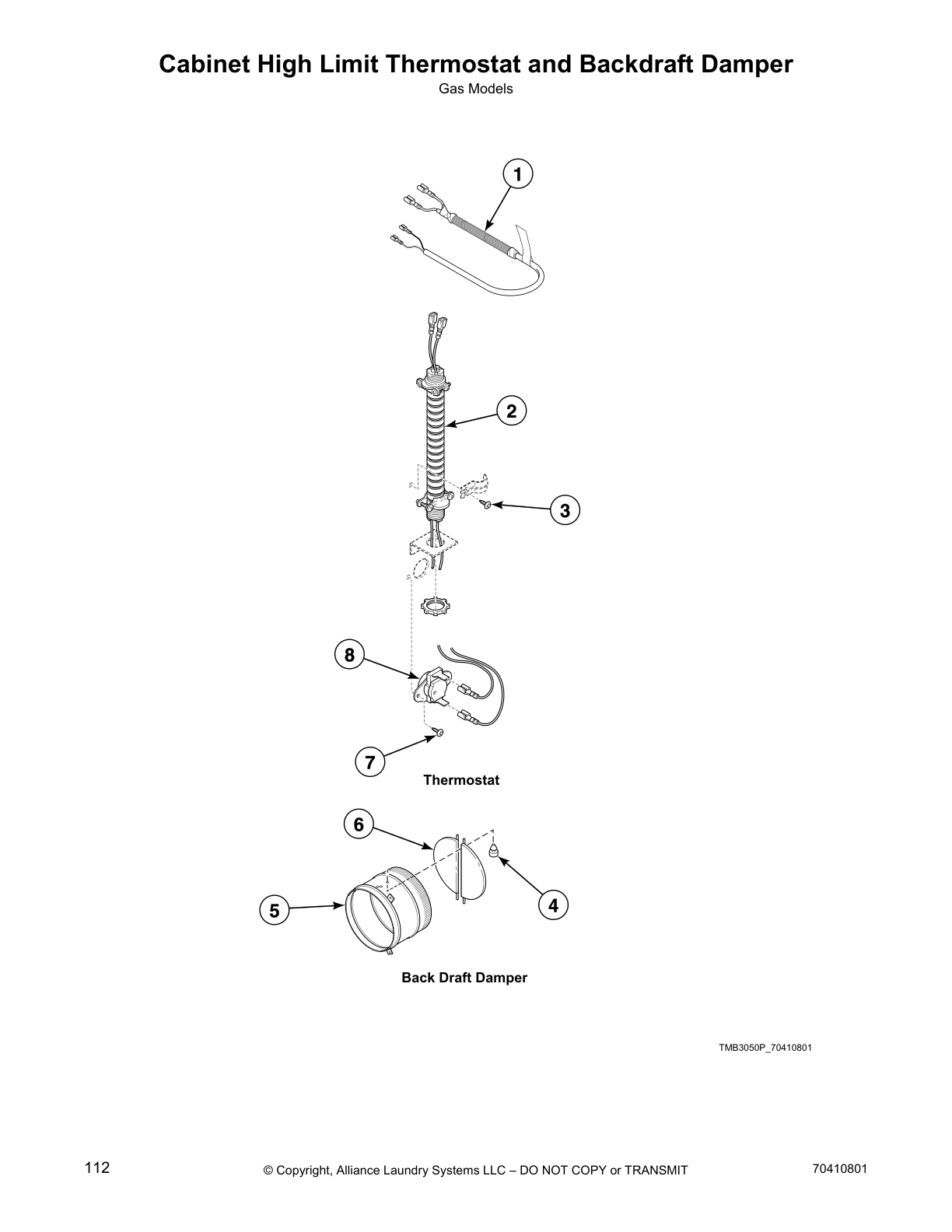

Cabinet High Limit Thermostat and Backdraft Damper

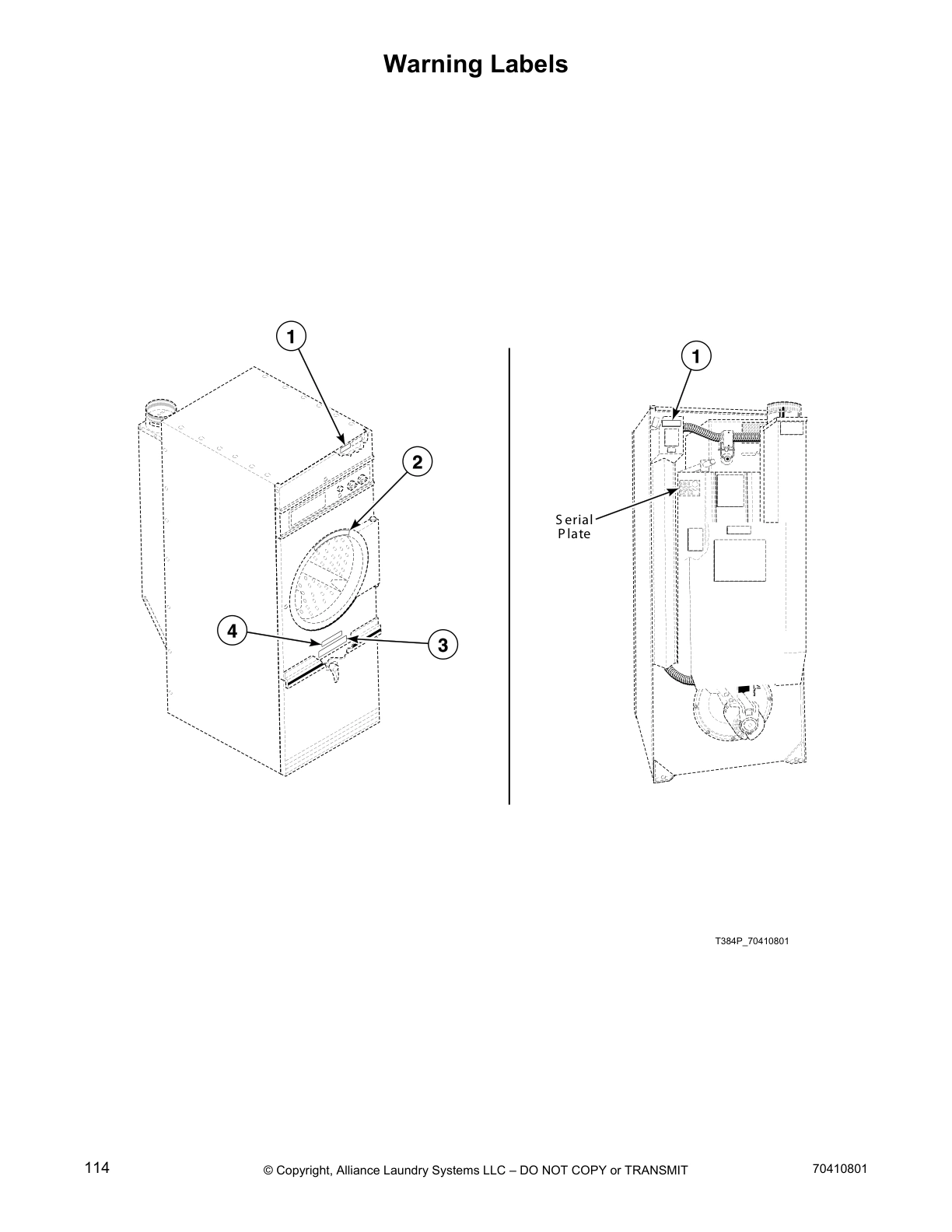

Warning Labels

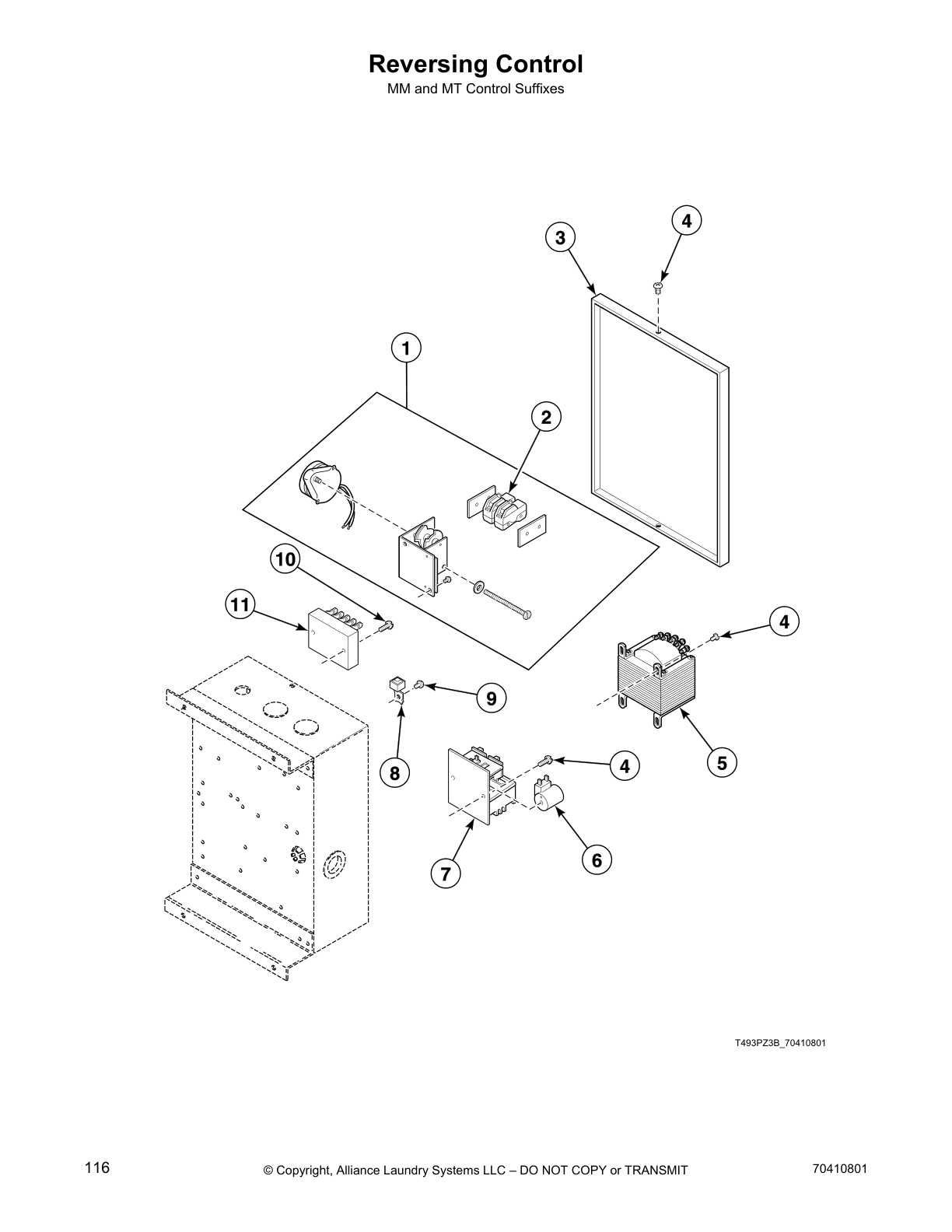

Reversing Control

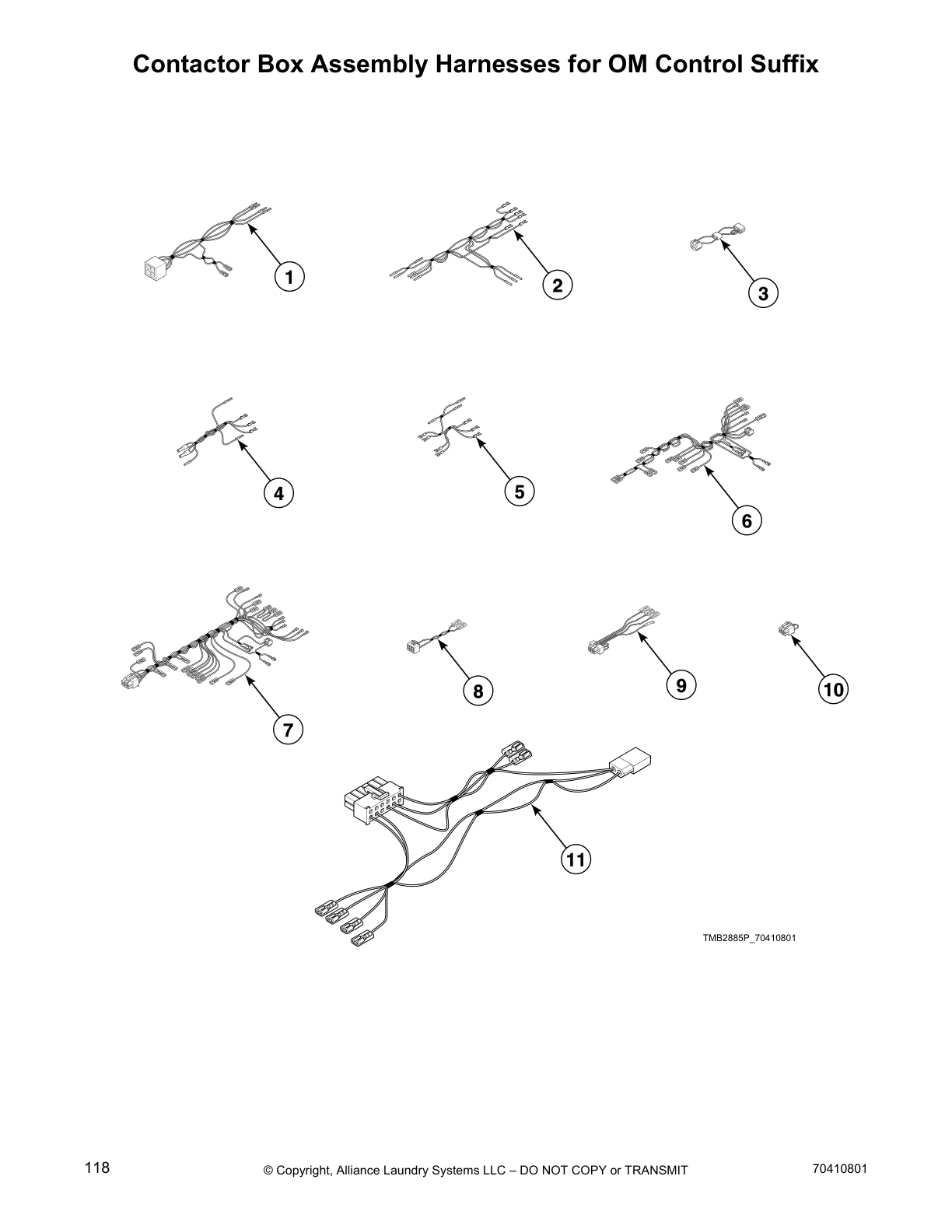

Contactor Box Assembly Harnesses for OM Control Suffix

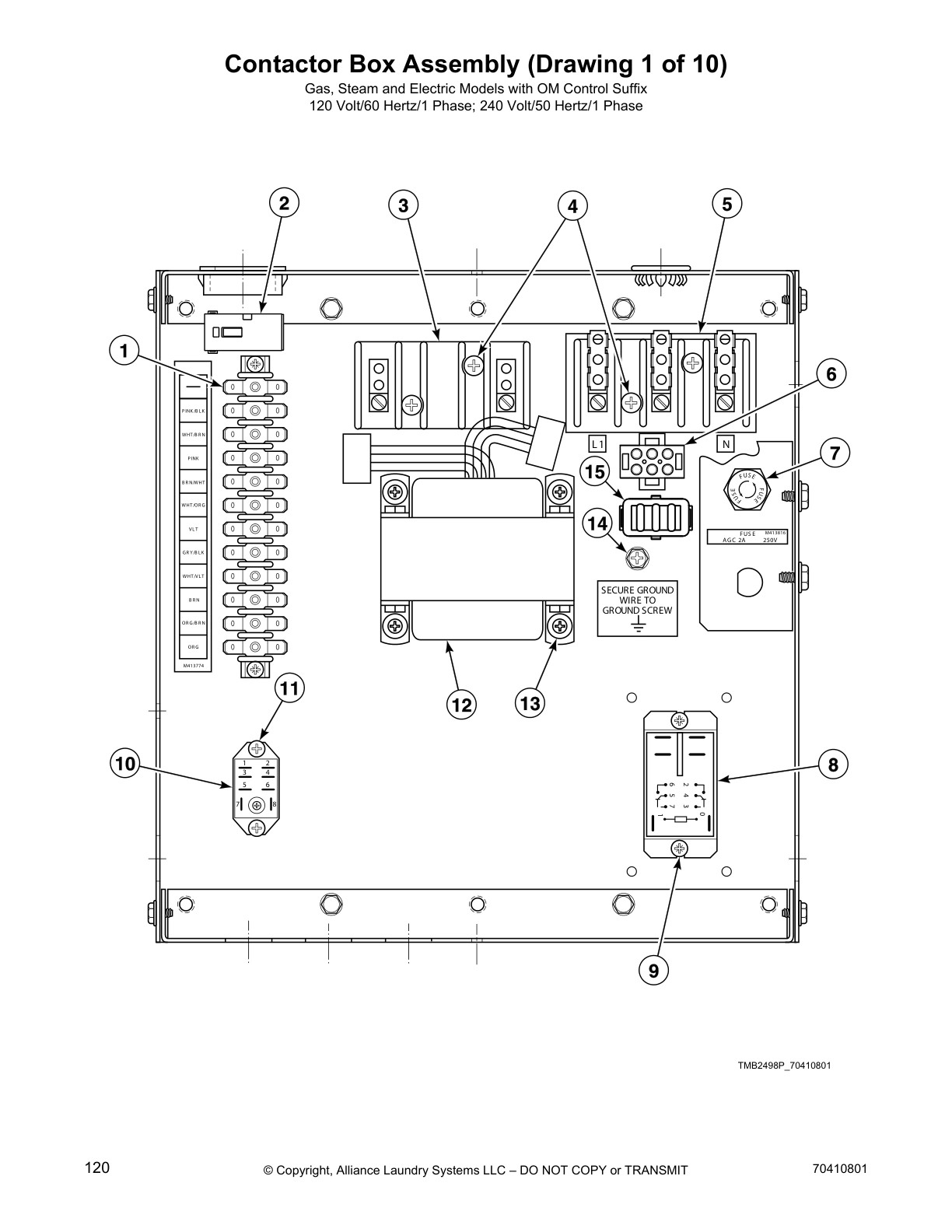

Contactor Box Assembly (Drawing 1 of 10)

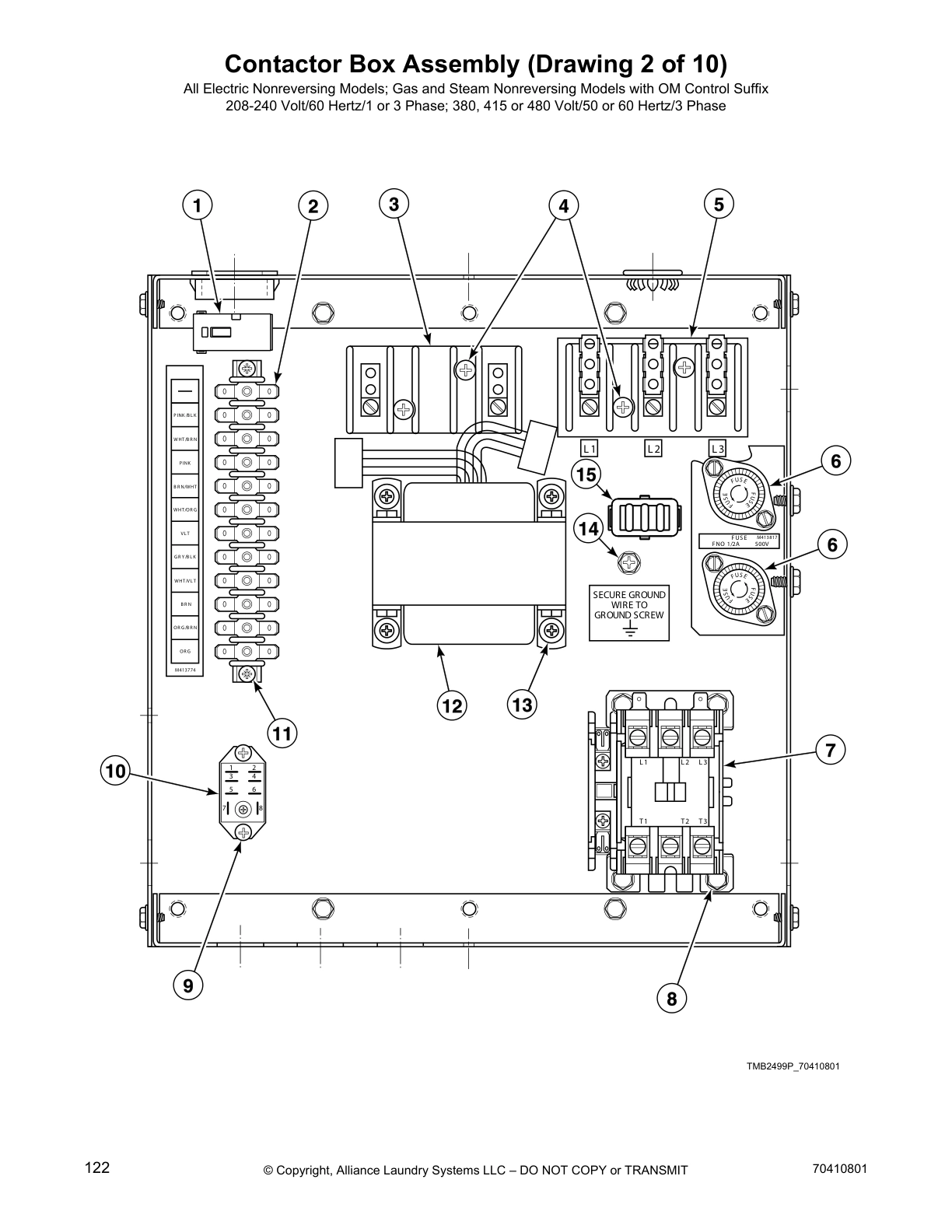

Contactor Box Assembly (Drawing 2 of 10)

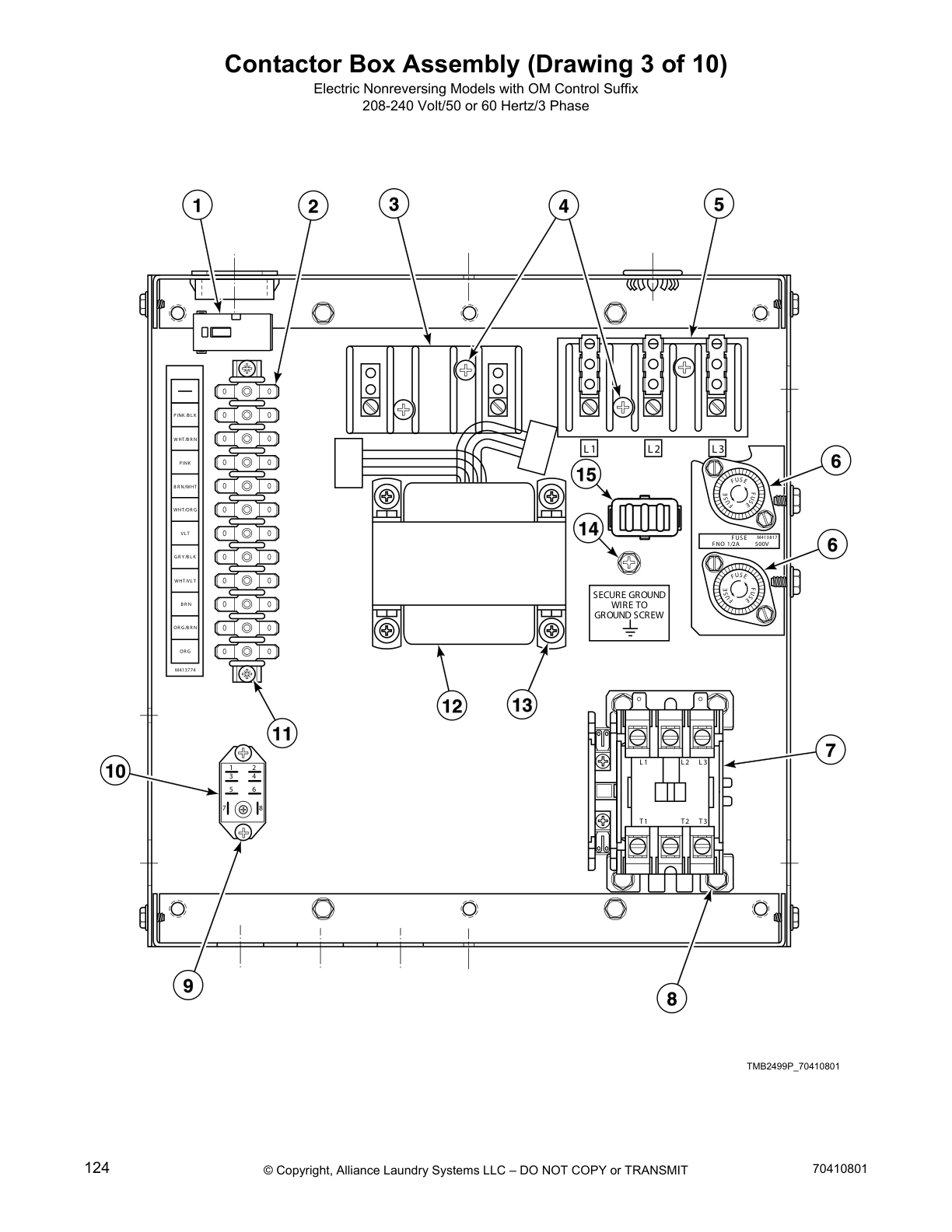

Contactor Box Assembly (Drawing 3 of 10)

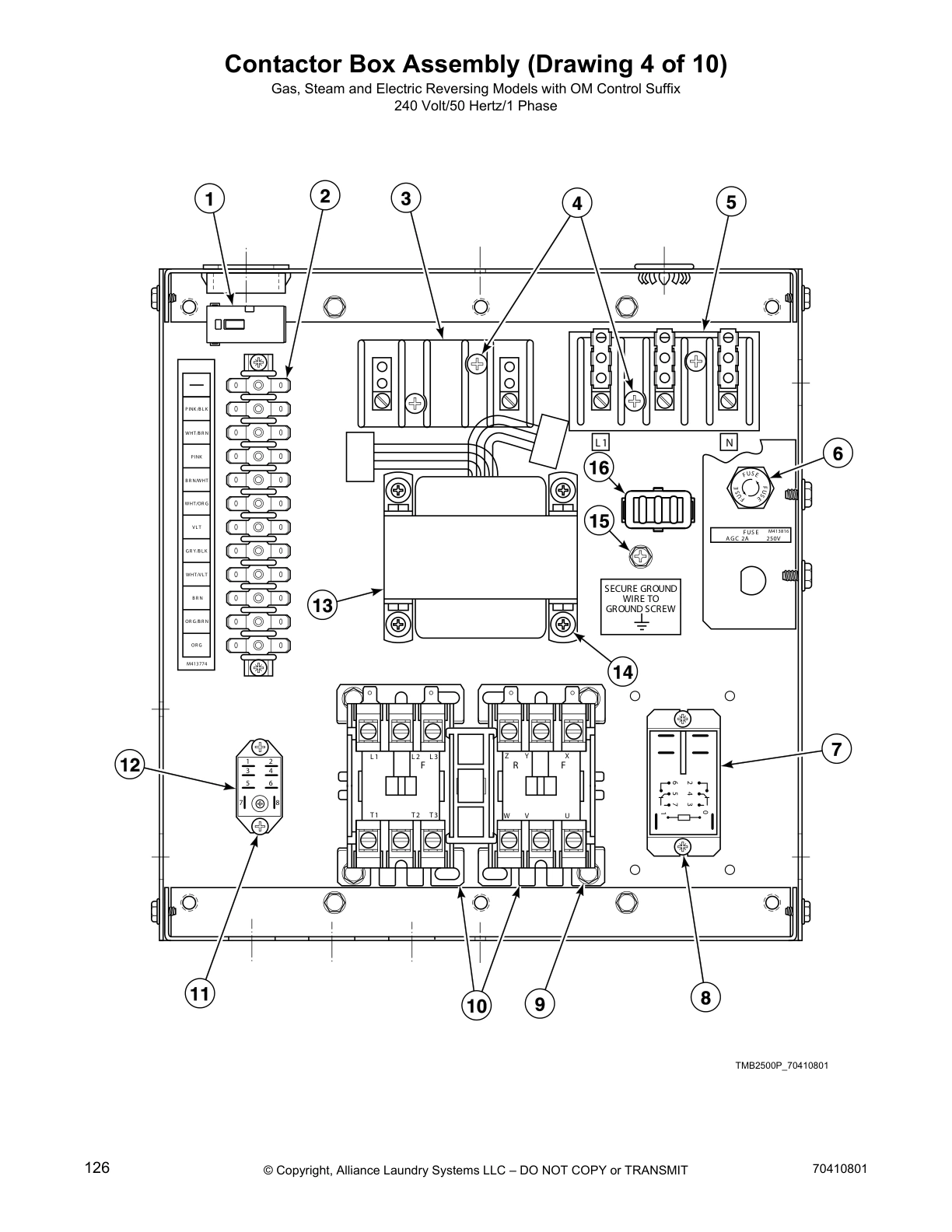

Contactor Box Assembly (Drawing 4 of 10)

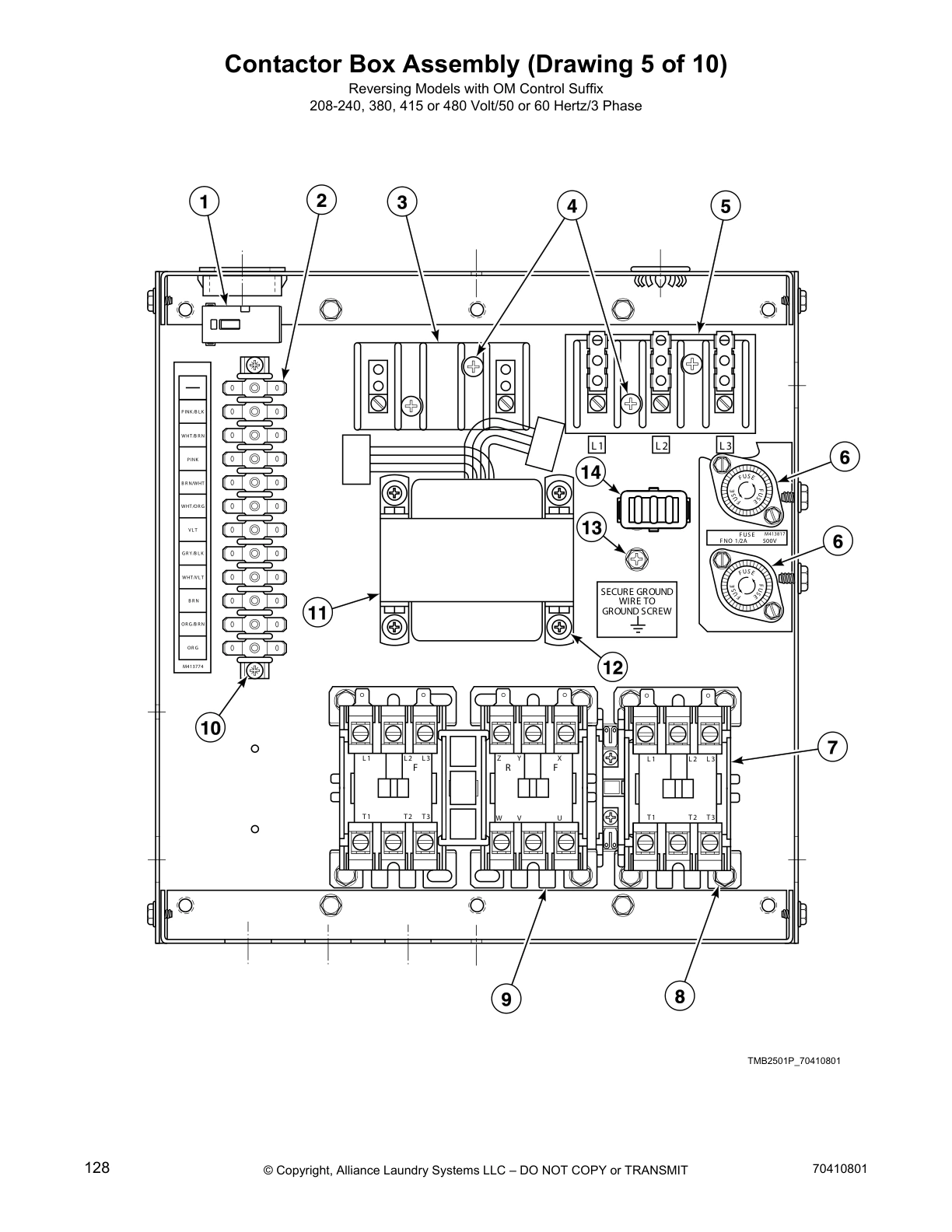

Contactor Box Assembly (Drawing 5 of 10)

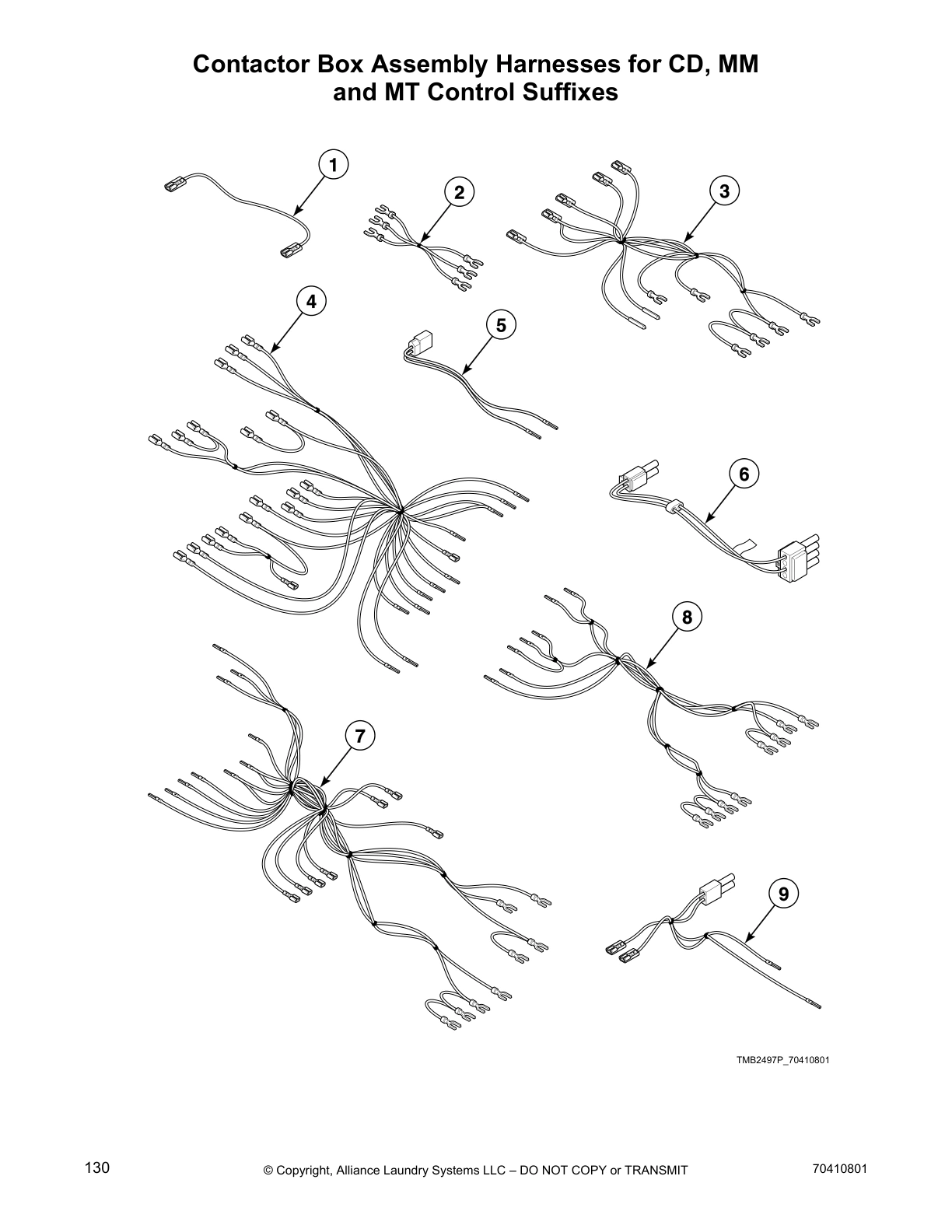

Contactor Box Assembly Harnesses for CD, MM
and MT Control Suffixes

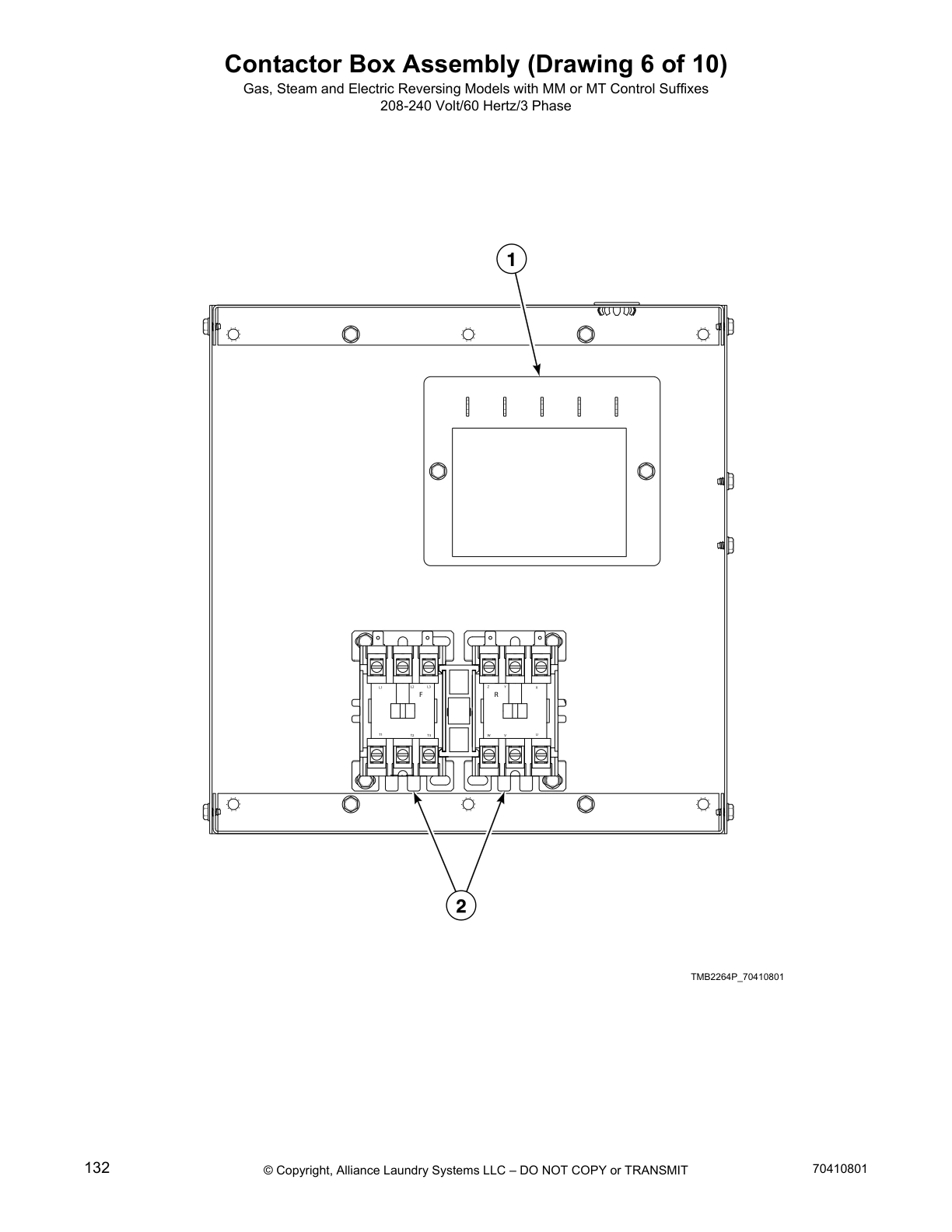

Contactor Box Assembly (Drawing 6 of 10)

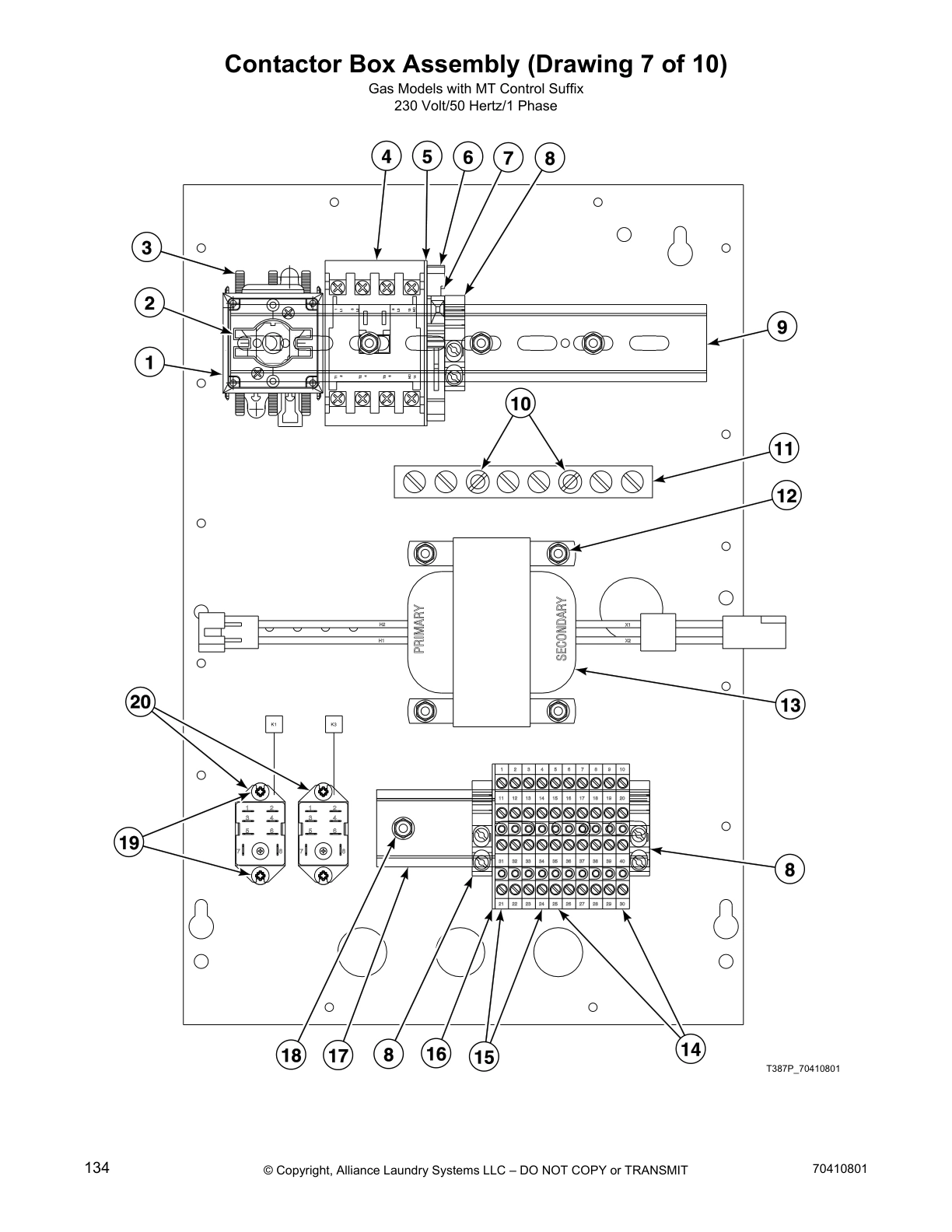

Contactor Box Assembly (Drawing 7 of 10)

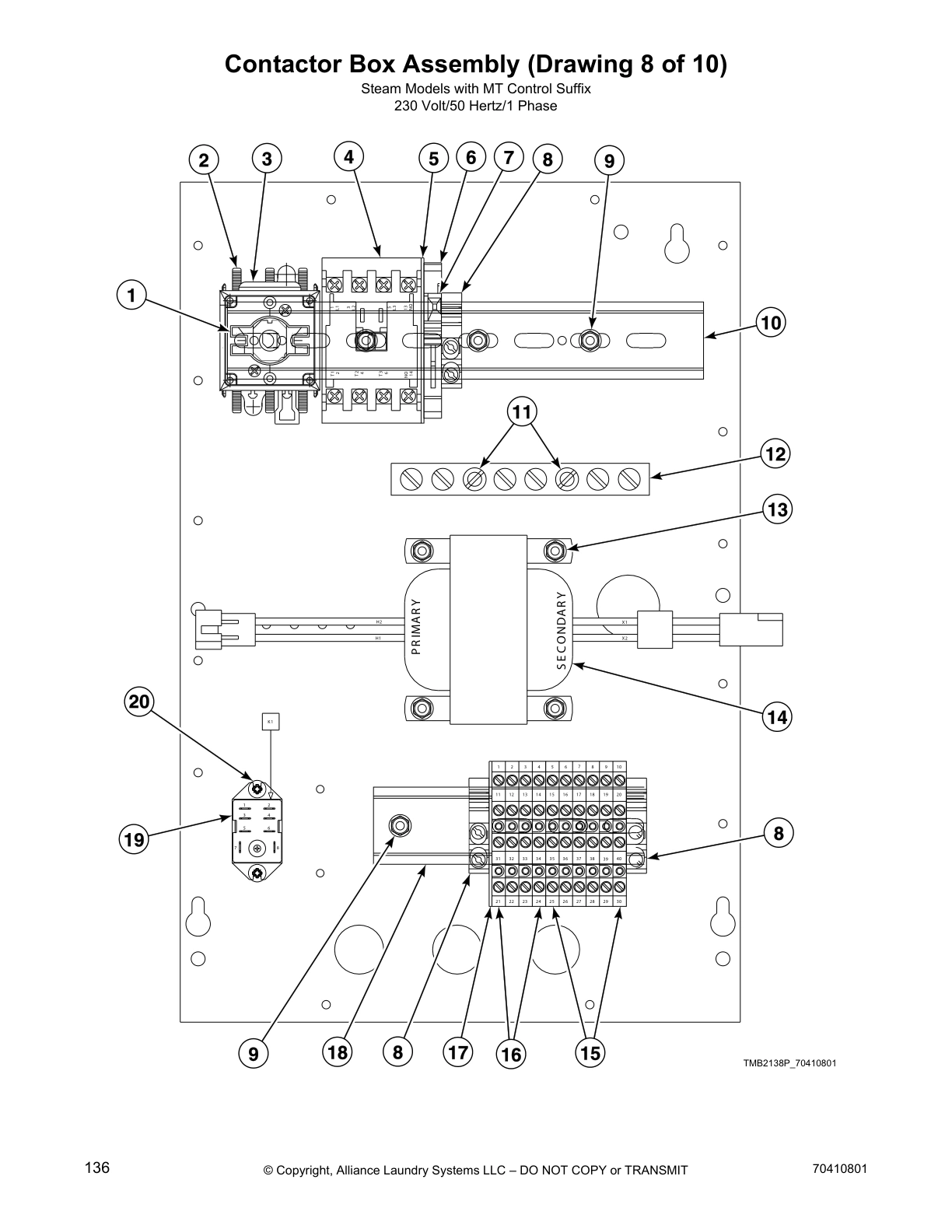

Contactor Box Assembly (Drawing 8 of 10)

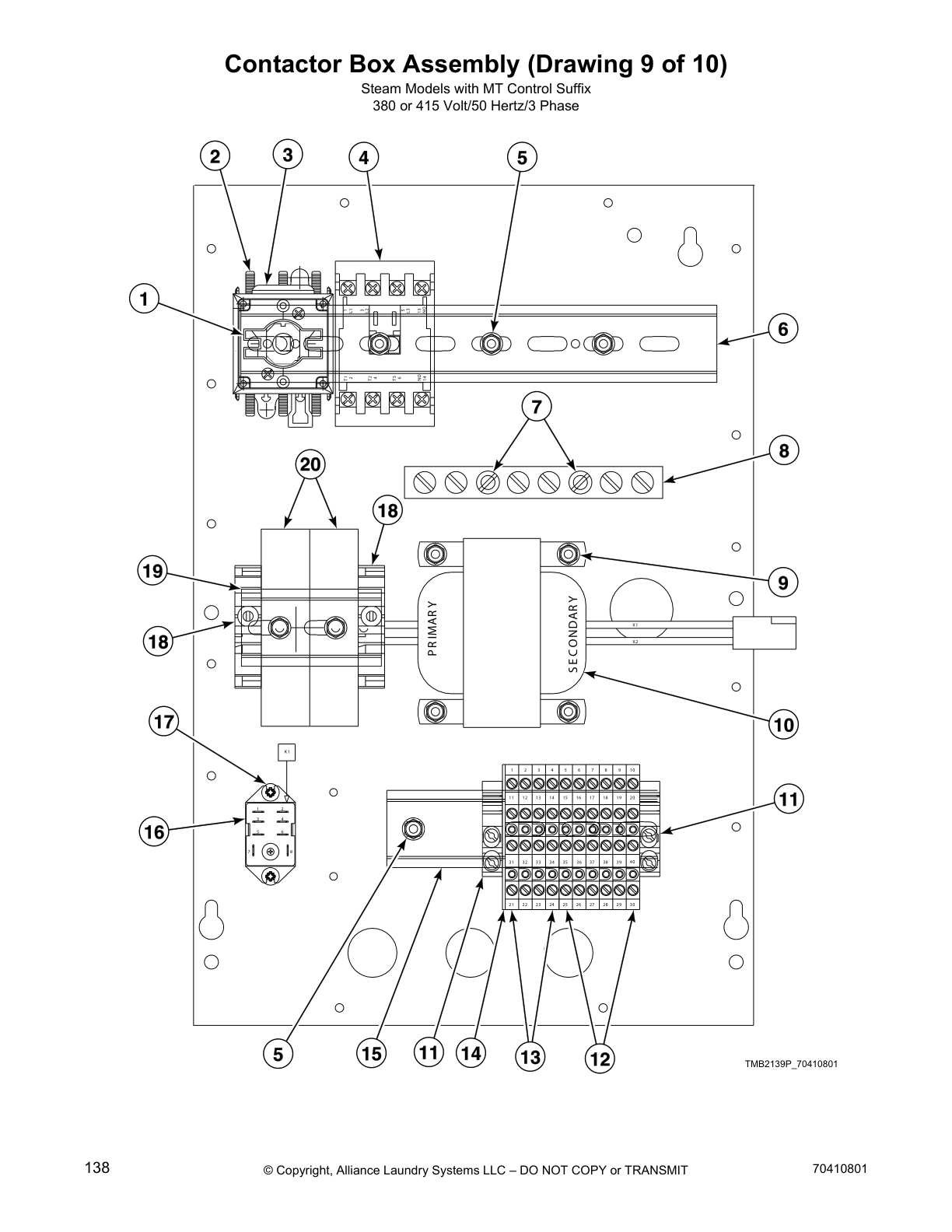

Contactor Box Assembly (Drawing 9 of 10)

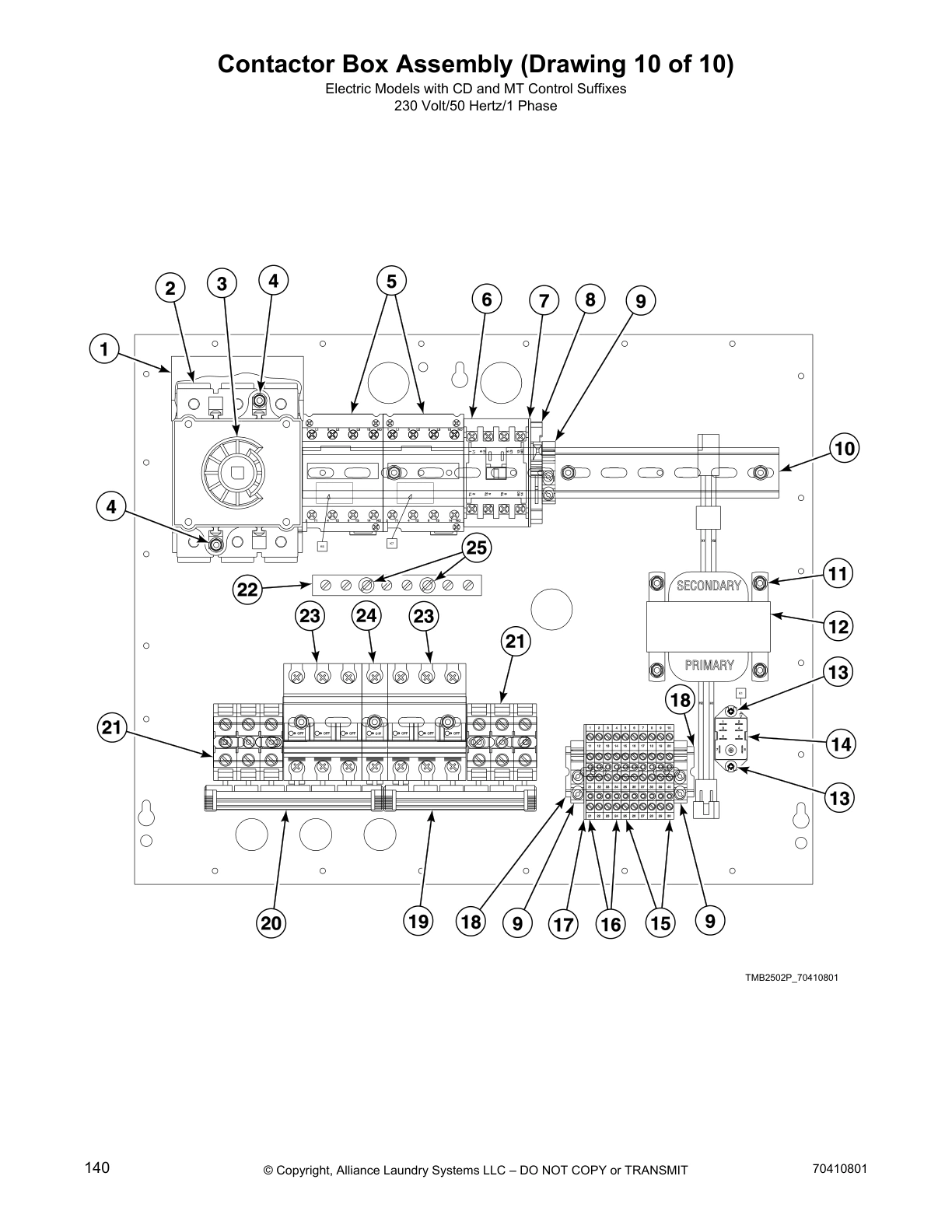

Contactor Box Assembly (Drawing 10 of 10)

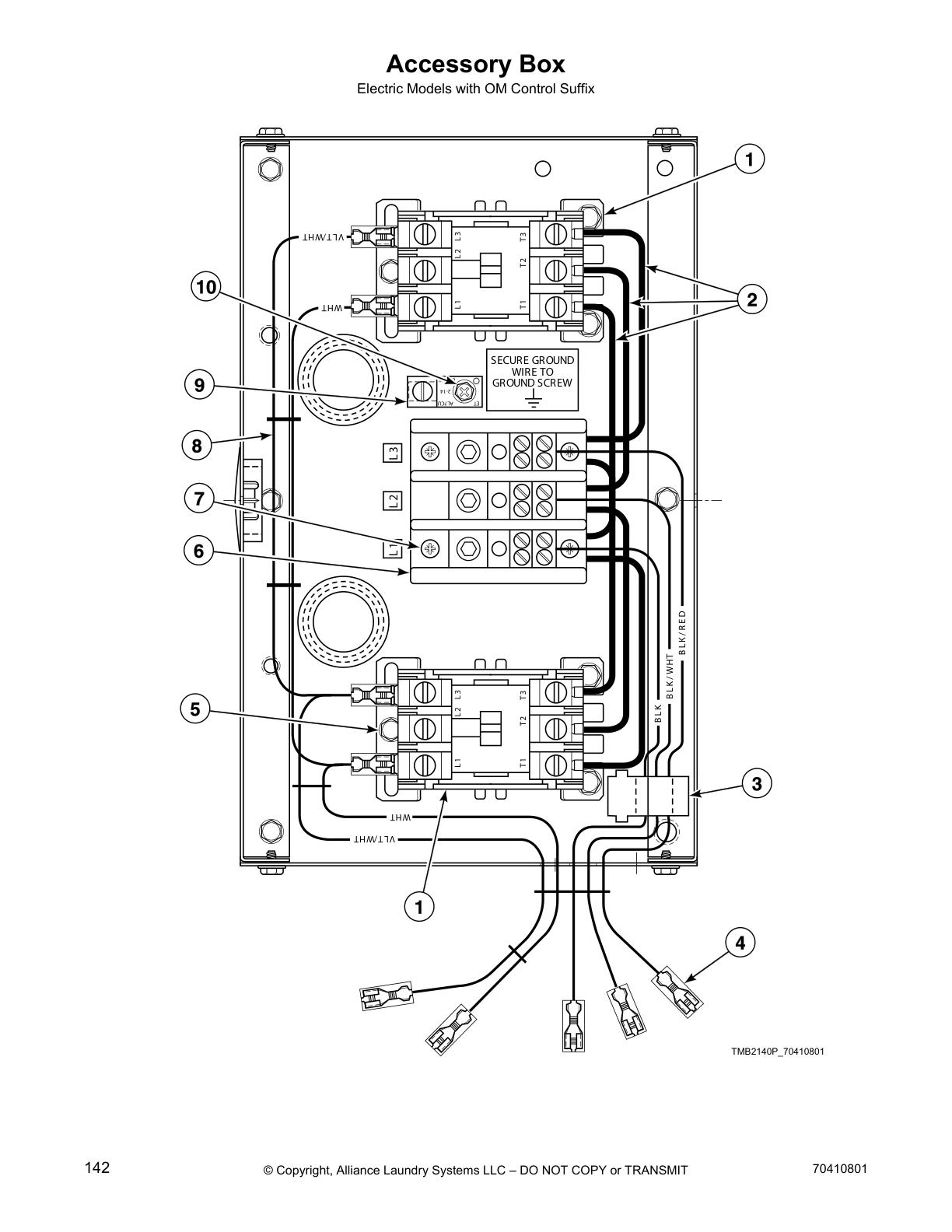

Accessory Box

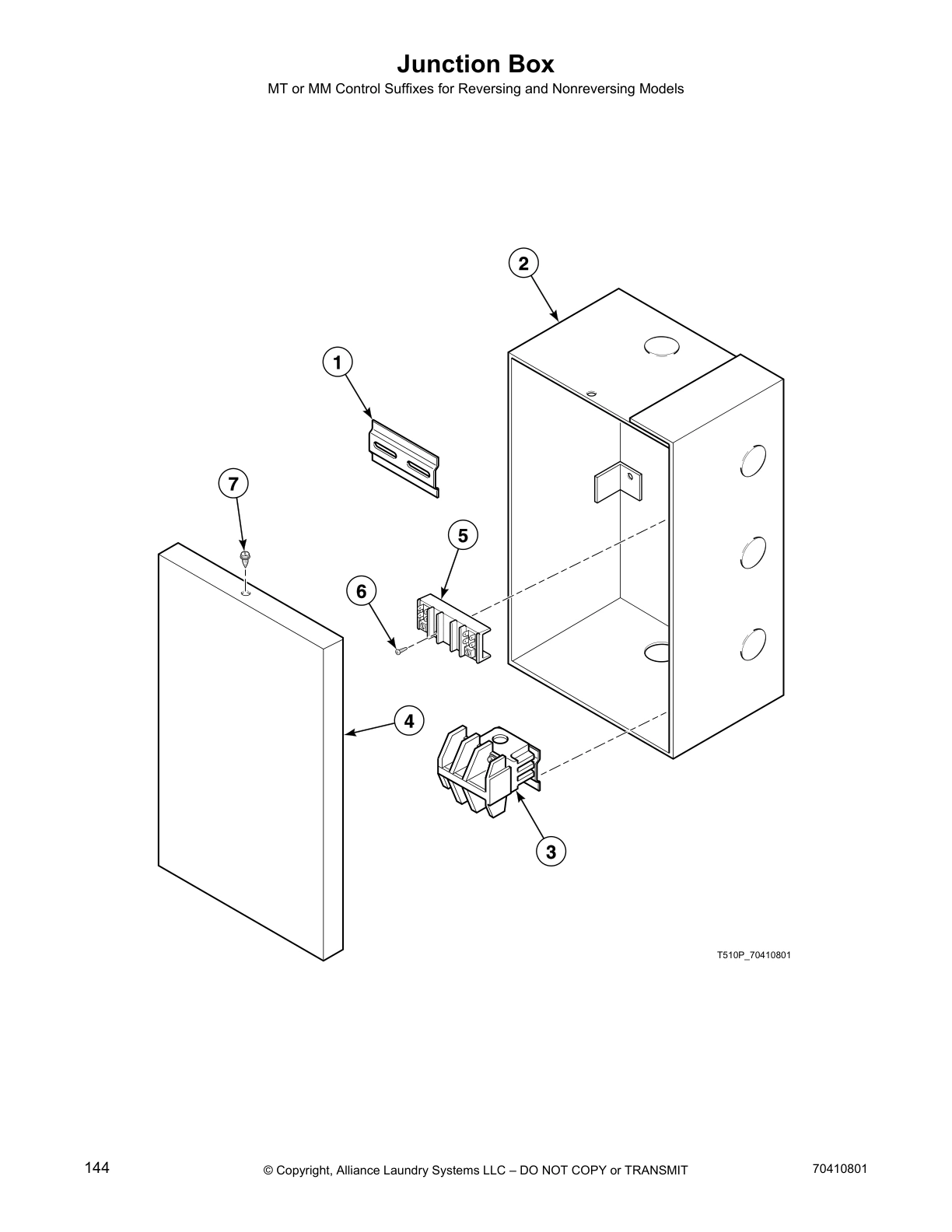

Junction Box
Common parts from model Speed Queen ST75CSH Dryer
Motor SPQ M410298 Contact Us For Availability
Thermistor Assembly SPQ M401312 Contact Us For Availability
SPQ M404992 SPQ M404992 Contact Us For Availability
SPQ M401985P SPQ M401985P Contact Us For Availability
SPQ M411191P SPQ M411191P Contact Us For Availability
SPQ M406291 SPQ M406291 Contact Us For Availability
SPQ M411188P SPQ M411188P Contact Us For Availability
SPQ M413617 SPQ M413617 Contact Us For Availability
SPQ M413298P SPQ M413298P Contact Us For Availability
SPQ F8322903 SPQ F8322903 Contact Us For Availability
SPQ M413624 SPQ M413624 Contact Us For Availability
SPQ M413684P SPQ M413684P Contact Us For Availability
SPQ M413118 SPQ M413118 Contact Us For Availability
1
Belt SPQ M412981 Contact Us For Availability
1
Fan Kit SPQ M4936P3 Contact Us For Availability
1
Handle and Cam Assembly SPQ M410243P Contact Us For Availability
1
Communication Board SPQ 210095P Contact Us For Availability
1
Vault Key SPQ M401701 Contact Us For Availability
1
Top Front Access Panel SPQ M410802 Contact Us For Availability
1
Nut SPQ M414215 Contact Us For Availability
1
Cylinder and Trunnion Assembly SPQ M406906P Contact Us For Availability
1
Key SPQ M400008 Contact Us For Availability
1
Screw SPQ M400063 Contact Us For Availability
1
Idler Shaft SPQ M412223P Contact Us For Availability
1
Idler Housing Kit SPQ 917P3 Contact Us For Availability
1
Motor Bracket Assembly SPQ M400520 Contact Us For Availability
1
Cylinder Motor Harness Assembly SPQ M413687 Contact Us For Availability
1
Reversing Timer SPQ M411683 Contact Us For Availability
1
Extension Handle SPQ M412370 Contact Us For Availability
2
Idler Housing Kit SPQ 943P3P Contact Us For Availability
2
Guide Rail SPQ M411814P Contact Us For Availability
2
Screw SPQ M400784P Contact Us For Availability
2
Motor Mounting Ring Kit SPQ M400991 Contact Us For Availability
2
Lock and Key SPQ M401581P Contact Us For Availability
2
Cam and Screw SPQ M400595 Contact Us For Availability
2
Felt Pad SPQ M409091 Contact Us For Availability
2
Key SPQ M400015 Contact Us For Availability
2
Washer SPQ M400013 Contact Us For Availability
2
Motor Bracket SPQ 44024001 Contact Us For Availability
2
Key SPQ M401327 Contact Us For Availability
2
Ring SPQ M412156 Contact Us For Availability
2
Fan Motor Harness Assembly SPQ M413686 Contact Us For Availability
2
Low Pressure Steam Cover SPQ M400974 Contact Us For Availability
2
Contactor Kit SPQ M4870P3 Contact Us For Availability
2
Fuse Receptacle SPQ M413863 Contact Us For Availability
2
Mounting Switch Base SPQ M412366 Contact Us For Availability
3
Control Plate Assembly SPQ 70413301 Contact Us For Availability
3
3 Circuit Data Connector SPQ 210155 Contact Us For Availability
3
Screw SPQ M400072 Contact Us For Availability
3
Shadow Box and Clip SPQ M400131P Contact Us For Availability
3
Top Cover Panel SPQ M403385 Contact Us For Availability
3
Key SPQ M409090P Contact Us For Availability
3
SPQ M400033 SPQ M400033 Contact Us For Availability
3
SPQ M412916 SPQ M412916 Contact Us For Availability
3
Motor Hardware Kit SPQ M414566 Contact Us For Availability
3
Motor Capacitor SPQ M413281 Contact Us For Availability
3
Belt Guard SPQ M412573 Contact Us For Availability
3
Steam Valve Coil SPQ M400828 Contact Us For Availability
3
Lint Compartment Label SPQ 430527 Contact Us For Availability
3
Jumper Configuration Assembly SPQ M413510 Contact Us For Availability
3
Fuse SPQ M413542 Contact Us For Availability
3
Ferrite Core Assembly SPQ M413930P Contact Us For Availability
3
Nut SPQ M412538 Contact Us For Availability
4
SPQ M412090 SPQ M412090 Contact Us For Availability
4
SPQ M400592 SPQ M400592 Contact Us For Availability
4
Screw SPQ 70175807 Contact Us For Availability
4
SPQ M400661 SPQ M400661 Contact Us For Availability
4
Trunnion Assembly SPQ M409015P Contact Us For Availability
4
SPQ M400035 SPQ M400035 Contact Us For Availability
4
Pulley SPQ M413541 Contact Us For Availability
4
Idler Housing SPQ M401370 Contact Us For Availability
4
SPQ M414564 SPQ M414564 Contact Us For Availability
4
Motor Capacitor SPQ M410302 Contact Us For Availability
4
Solenoid Valve DIN Connector SPQ M412258 Contact Us For Availability
4
Ground Buss Assembly SPQ M412187P Contact Us For Availability
5
Motor Kit SPQ M414567 Contact Us For Availability
5
SPQ 430642 SPQ 430642 Contact Us For Availability
5
Screw SPQ M412612 Contact Us For Availability
5
Control Kit SPQ D501524 Contact Us For Availability
5
Drive Rivet SPQ M400713 Contact Us For Availability
5
Lint Hood Assembly SPQ M400515 Contact Us For Availability
5
Trunnion Assembly SPQ M402144 Contact Us For Availability
5
SPQ M412475 SPQ M412475 Contact Us For Availability
5
SPQ M412086P SPQ M412086P Contact Us For Availability
5
SPQ M400994P SPQ M400994P Contact Us For Availability
5
Motor Capacitor SPQ M410301 Contact Us For Availability
5
Jumper Wire Assembly SPQ M412645 Contact Us For Availability
5
Steam Coil SPQ 70205701P Contact Us For Availability
5
Jumper Configuration Assembly SPQ M413508 Contact Us For Availability
5
Contactor SPQ M410529 Contact Us For Availability
6
Coin Vault Assembly SPQ 44102801 Contact Us For Availability
6
Clip SPQ M400984 Contact Us For Availability
6
Belt Drive Conversion Kit SPQ M405232 Contact Us For Availability
6
SPQ M411483 SPQ M411483 Contact Us For Availability
6
Motor SPQ M414565 Contact Us For Availability
6
Steam Valve SPQ M413299P Contact Us For Availability
6
Coil SPQ M400915 Contact Us For Availability
6
Jumper Harness Assembly SPQ M413509 Contact Us For Availability
6
Terminal Block SPQ M410457P Contact Us For Availability
7
SPQ M404151 SPQ M404151 Contact Us For Availability
7
Loading Spring SPQ M401375P Contact Us For Availability
7
SPQ M403432P SPQ M403432P Contact Us For Availability
7
SPQ 430648 SPQ 430648 Contact Us For Availability
7
Idler Arm Kit SPQ M405535 Contact Us For Availability
7
SPQ M401393 SPQ M401393 Contact Us For Availability
7
Reversing Contactor SPQ 91024P Contact Us For Availability
7
Steam Valve Kit SPQ 70370301P Contact Us For Availability
7
Control Box Harness Assembly SPQ M413506 Contact Us For Availability
7
SPQ M413878 SPQ M413878 Contact Us For Availability
7
Screw SPQ M405364 Contact Us For Availability
7
SPQ M412540 SPQ M412540 Contact Us For Availability
8
Limit Thermostat SPQ M410542 Contact Us For Availability
8
Coin Drop Assembly SPQ 70256402P Contact Us For Availability
8
SPQ M400003 SPQ M400003 Contact Us For Availability
8
Spacer SPQ M413836 Contact Us For Availability
8
SPQ M412119 SPQ M412119 Contact Us For Availability
8
Idler Shaft SPQ M400401 Contact Us For Availability
8
SPQ M410852 SPQ M410852 Contact Us For Availability
8
SPQ M414232 SPQ M414232 Contact Us For Availability
8
SPQ M412537 SPQ M412537 Contact Us For Availability
9
SPQ M414320P SPQ M414320P Contact Us For Availability
9
Rib Rod SPQ 44261801 Contact Us For Availability
9
SPQ M401223 SPQ M401223 Contact Us For Availability
9
Thermistor SPQ M413212P Contact Us For Availability
9
SPQ BDK5075R SPQ BDK5075R Contact Us For Availability
9
SPQ M4322P3 SPQ M4322P3 Contact Us For Availability
9
SPQ M412099 SPQ M412099 Contact Us For Availability
9
SPQ M412520P SPQ M412520P Contact Us For Availability
9
SPQ M411283 SPQ M411283 Contact Us For Availability
9
Steam Valve SPQ M400637P Contact Us For Availability
9
Contactor Box Harness Assembly SPQ M413505 Contact Us For Availability
9
SPQ M413544P SPQ M413544P Contact Us For Availability
10
Door Switch SPQ M400952 Contact Us For Availability
10
Timer Kit SPQ M410900P Contact Us For Availability
10
Bypass Harness Assembly SPQ M413168 Contact Us For Availability
10
Spring Clip SPQ M400402 Contact Us For Availability
10
Sprocket SPQ M400090P Contact Us For Availability
10
Extension Spring SPQ M412120 Contact Us For Availability
10
Belt Guard SPQ M413008 Contact Us For Availability
10
Motor Harness Assembly SPQ M412107 Contact Us For Availability
10
Screw SPQ M402917 Contact Us For Availability
10
Screw SPQ 51778 Contact Us For Availability
10
Transformer SPQ M412412P Contact Us For Availability
11
Bearing SPQ F100136P Contact Us For Availability
11
Pulley SPQ M412884 Contact Us For Availability
11
Screw SPQ M400071 Contact Us For Availability
11
Nameplate SPQ M410355 Contact Us For Availability
11
Washer SPQ M400017 Contact Us For Availability
11
Key SPQ M400993 Contact Us For Availability
11
Chain Sprocket SPQ M401369P Contact Us For Availability
11
Steam Valve Rebuild Kit SPQ M412259 Contact Us For Availability
11
Transformer SPQ M414229P Contact Us For Availability
12
Hinge Pin SPQ 20275 Contact Us For Availability
12
Lint Panel Assembly SPQ M405646 Contact Us For Availability
12
Bolt SPQ M400650 Contact Us For Availability
12
Screw SPQ M400065 Contact Us For Availability
12
Nut SPQ 02428 Contact Us For Availability
12
Micro V Pulley SPQ M411466P Contact Us For Availability
12
Valve Rebuild Kit SPQ F8379502 Contact Us For Availability
12
Relay SPQ 430746 Contact Us For Availability
12
Network Capacitor Assembly SPQ M414228P Contact Us For Availability
12
Transformer SPQ M412477P Contact Us For Availability
13
Support Bearing SPQ 70448701 Contact Us For Availability
13
Terminal Strip SPQ M400044 Contact Us For Availability
13
Hinge Bracket SPQ 03189 Contact Us For Availability
13
Kickplate Kit SPQ M414438P Contact Us For Availability
13
Nut SPQ M412626 Contact Us For Availability
13
Screw SPQ M413565 Contact Us For Availability
13
Valve Repair Kit SPQ M401384 Contact Us For Availability
14
Temperature Control Thermostat SPQ M406959P Contact Us For Availability
14
Belt Guard SPQ M400077 Contact Us For Availability
14
Sprocket SPQ M401364P Contact Us For Availability
14
Cylinder Motor Harness Assembly SPQ M400521 Contact Us For Availability
14
Cylinder Motor Harness Assembly SPQ M413688 Contact Us For Availability
14
Terminal Strip SPQ M413100P Contact Us For Availability
14
Steam Solenoid SPQ 70351012 Contact Us For Availability
14
Terminal Block SPQ M412534 Contact Us For Availability
15
Panel Key SPQ M401680 Contact Us For Availability
15
Door Assembly SPQ 431044 Contact Us For Availability
15
Tension Plate Assembly SPQ M412188 Contact Us For Availability
15
Roller Chain SPQ M400597P Contact Us For Availability
15
Steam Heater Assembly SPQ 70351011P Contact Us For Availability
15
End Barrier SPQ M412631 Contact Us For Availability
16
Sprocket SPQ M401360P Contact Us For Availability
16
Transformer Kit SPQ M401199P Contact Us For Availability
16
Trunnion Housing Assembly SPQ M413826 Contact Us For Availability
16
Bushing SPQ M414405 Contact Us For Availability
16
Clip SPQ M413572P Contact Us For Availability
16
Ground Buss Assembly SPQ M412632 Contact Us For Availability
17
Transformer SPQ M402650P Contact Us For Availability
17
Door Ring Gasket SPQ M400514 Contact Us For Availability
17
Motor Bracket SPQ 44132405 Contact Us For Availability
17
Guide Rail SPQ M412627 Contact Us For Availability
17
Key and Instruction Kit SPQ M410059 Contact Us For Availability
17
Nut SPQ M412633 Contact Us For Availability
18
Spacer SPQ 44041901P Contact Us For Availability
18
Door Glass Seal Kit SPQ M400447P Contact Us For Availability
18
Roller Chain SPQ M401365P Contact Us For Availability
18
Spacer SPQ M412917P Contact Us For Availability
18
Motor Bracket SPQ M401362 Contact Us For Availability
18
Fuse SPQ M412615 Contact Us For Availability
19
Washer SPQ M409385 Contact Us For Availability
19
Door Handle SPQ 430475 Contact Us For Availability
19
Nut SPQ M405525 Contact Us For Availability
19
Belt Guard Assembly SPQ M412476 Contact Us For Availability
19
Bolt SPQ M400022 Contact Us For Availability
20
Belt SPQ M401425 Contact Us For Availability
20
Pop Rivet SPQ M406129 Contact Us For Availability
20
Resilient Ring Kit SPQ M400034 Contact Us For Availability
20
Contactor SPQ M412996 Contact Us For Availability
21
Door Latch SPQ 70211901P Contact Us For Availability
21
Double V Sheave SPQ 44132402 Contact Us For Availability
22
Front Panel Assembly SPQ M400133 Contact Us For Availability
22
Contactor SPQ M412656 Contact Us For Availability
23
Door Switch Rod SPQ 430117 Contact Us For Availability
24
Key SPQ M400061 Contact Us For Availability
25
Idler Kit SPQ M401182P Contact Us For Availability
25
SPQ M400399 SPQ M400399 Contact Us For Availability
25
SPQ M400026 SPQ M400026 Contact Us For Availability
25
End Section SPQ M412688 Contact Us For Availability
26
Belt Drive Conversion Kit SPQ 44086901P Contact Us For Availability
27
SPQ M412931 SPQ M412931 Contact Us For Availability
28
SPQ M412885P SPQ M412885P Contact Us For Availability
NI
SPQ 44046001P SPQ 44046001P Contact Us For Availability
NI
SPQ M412227P SPQ M412227P Contact Us For Availability
NI
SPQ BDK5075 SPQ BDK5075 Contact Us For Availability
NI
SPQ 44106901P SPQ 44106901P Contact Us For Availability
NI
SPQ M400636P SPQ M400636P Contact Us For Availability
NI
Coin Vault Jumper Wire SPQ 38519 Contact Us For Availability
NI
SPQ M414305P SPQ M414305P Contact Us For Availability
NI
SPQ M401677 SPQ M401677 Contact Us For Availability
NI
SPQ M411132P SPQ M411132P Contact Us For Availability
NI
SPQ M400603 SPQ M400603 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ M401402 SPQ M401402 Contact Us For Availability
NI
SPQ M402517P SPQ M402517P Contact Us For Availability
NI
SPQ M4641P3 SPQ M4641P3 Contact Us For Availability
NI
SPQ M4640P3 SPQ M4640P3 Contact Us For Availability
NI
SPQ 70142 SPQ 70142 Contact Us For Availability
NI
SPQ M405419P SPQ M405419P Contact Us For Availability
NI
SPQ M409735P SPQ M409735P Contact Us For Availability
NI
SPQ 44046201P SPQ 44046201P Contact Us For Availability
NI
Fan Motor SPQ M410300 Contact Us For Availability
NI
Motor SPQ M410296 Contact Us For Availability
NI
Contactor Box Cover SPQ M414351 Contact Us For Availability
NI
SPQ F951P3 SPQ F951P3 Contact Us For Availability
NI
SPQ F8322902 SPQ F8322902 Contact Us For Availability
NI
SPQ M400152 SPQ M400152 Contact Us For Availability
NI
Reversing Contactor Kit SPQ M4849P3 Contact Us For Availability
NI
Network Capacitor Harness Assembly SPQ M413695 Contact Us For Availability
NI
SPQ M413683P SPQ M413683P Contact Us For Availability
NI
SPQ M413614P SPQ M413614P Contact Us For Availability
NI
SPQ M405824 SPQ M405824 Contact Us For Availability
NI
SPQ M413615P SPQ M413615P Contact Us For Availability
NI
SPQ 70121001 SPQ 70121001 Contact Us For Availability
× ![]()
