Model Speed Queen ST120CSH Dryer – Common Parts & Diagrams
Control Panel Assembly for Rotary Coin Drop Models
Control Panel Components for DT, JT and
ST Manual Timer Models

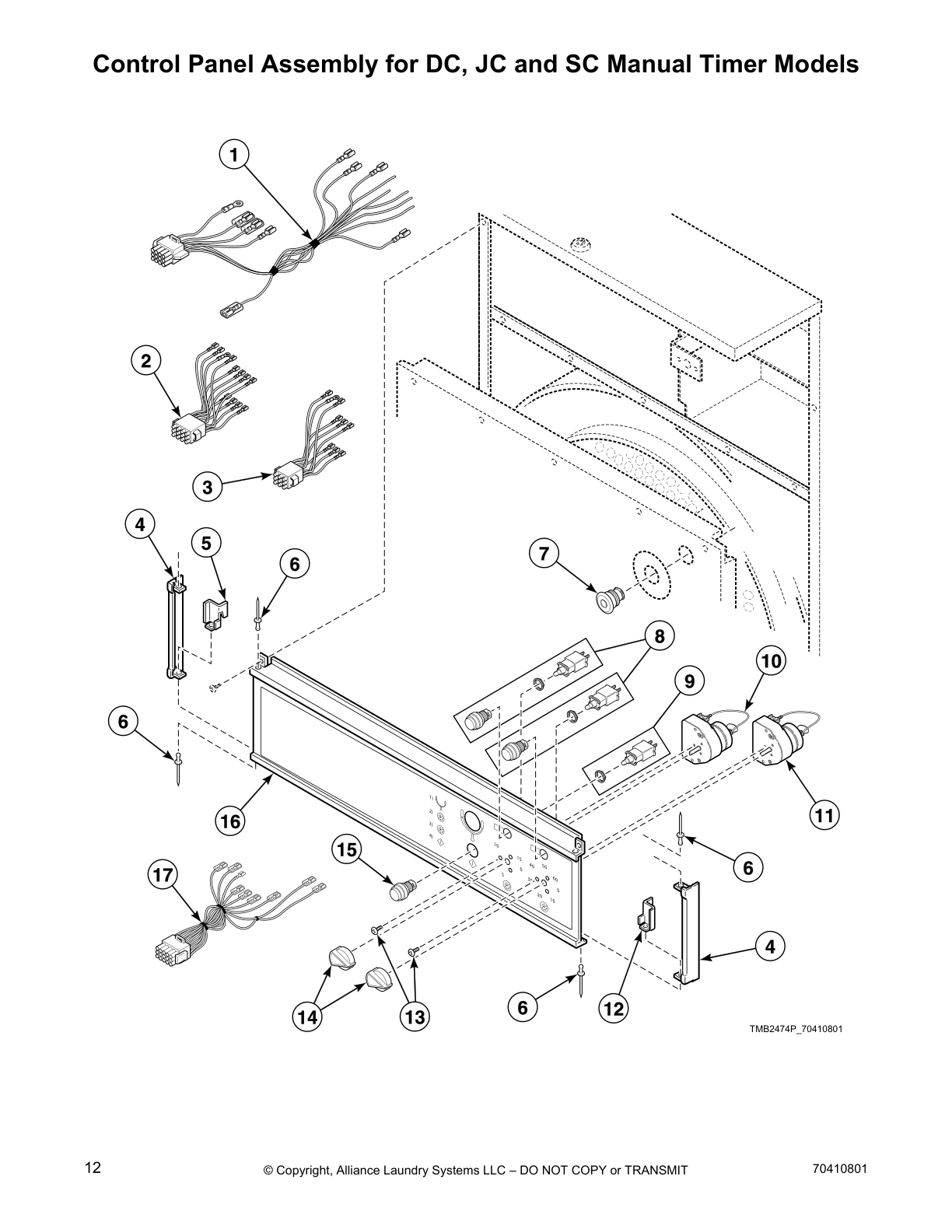

Control Panel Assembly for DC, JC and SC Manual Timer Models

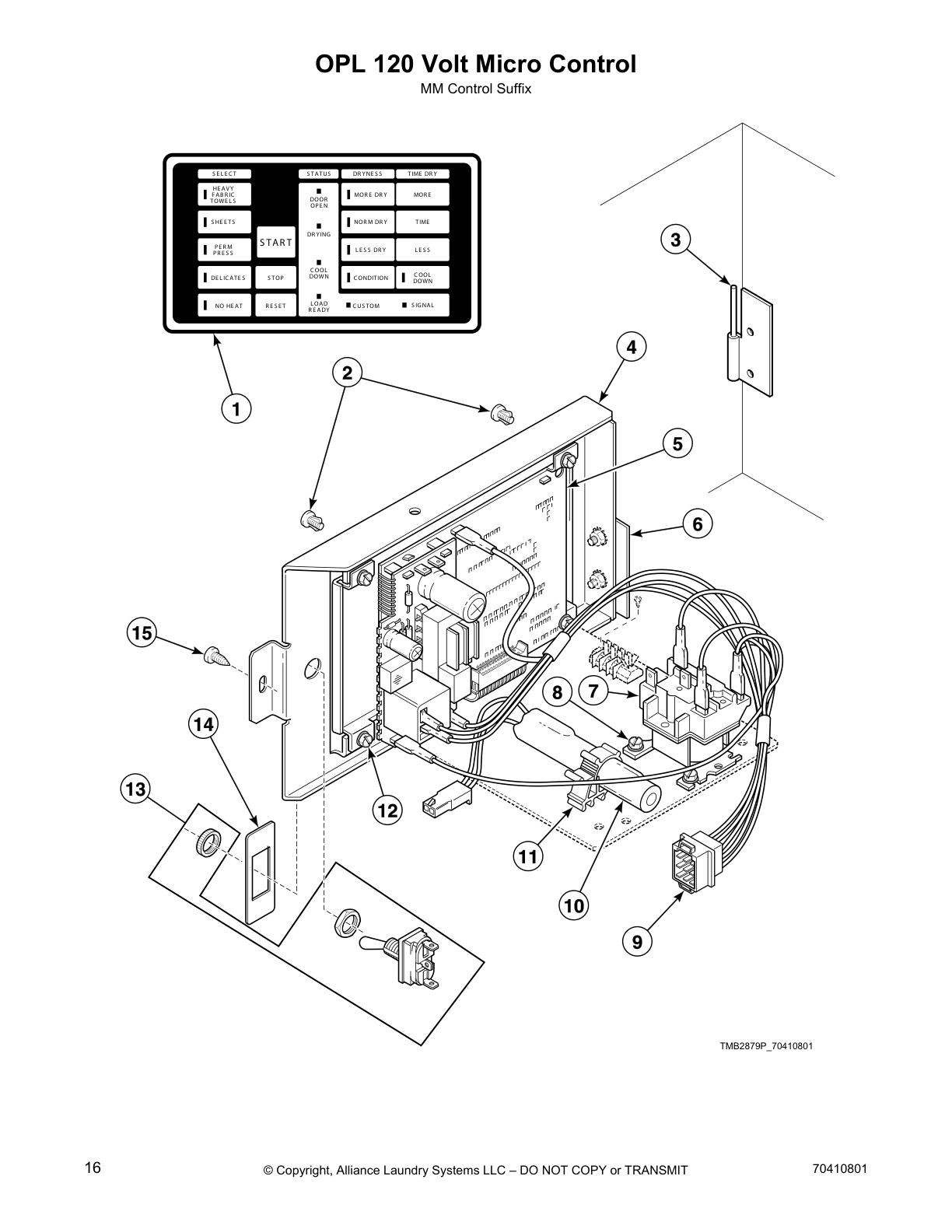

OPL 120 Volt Micro Control

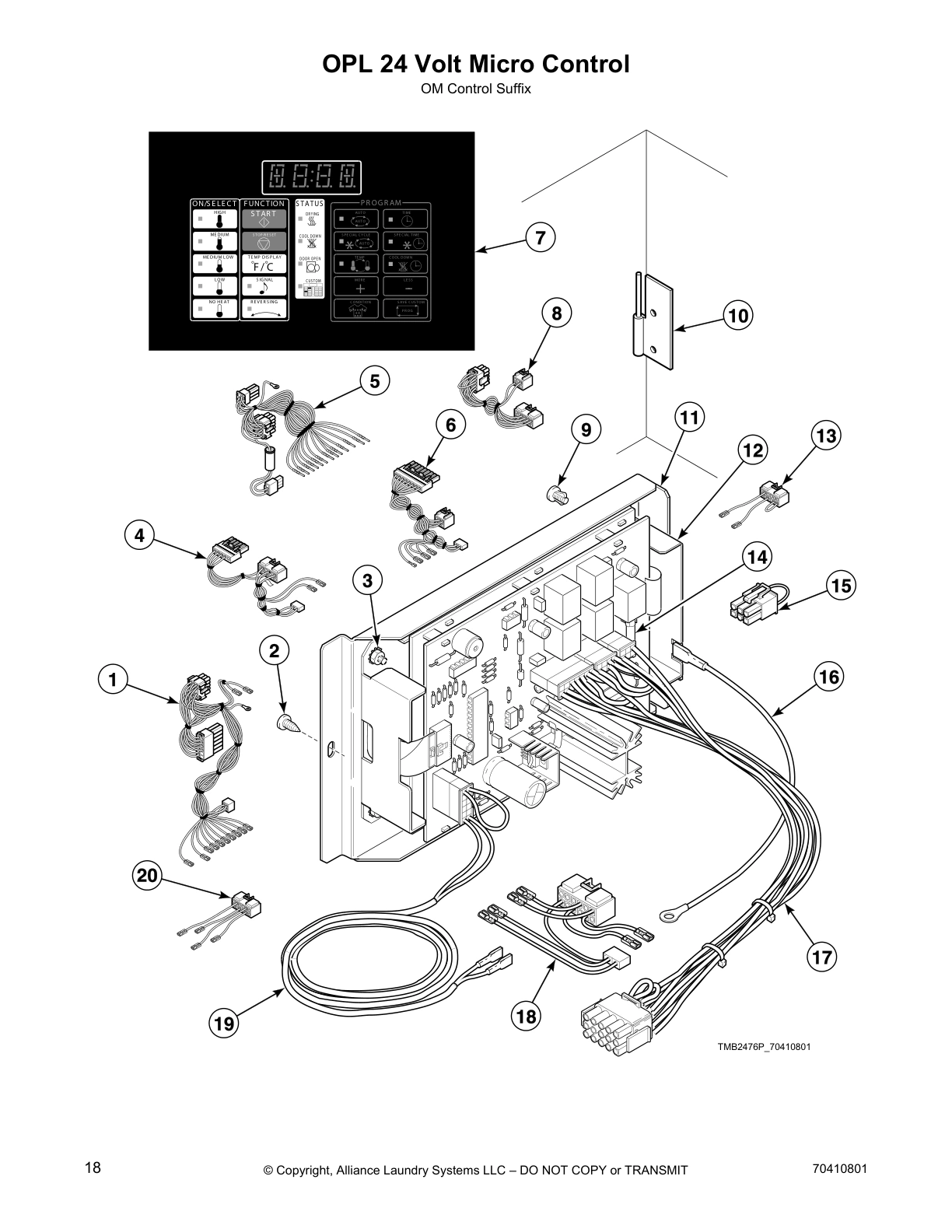

OPL 24 Volt Micro Control

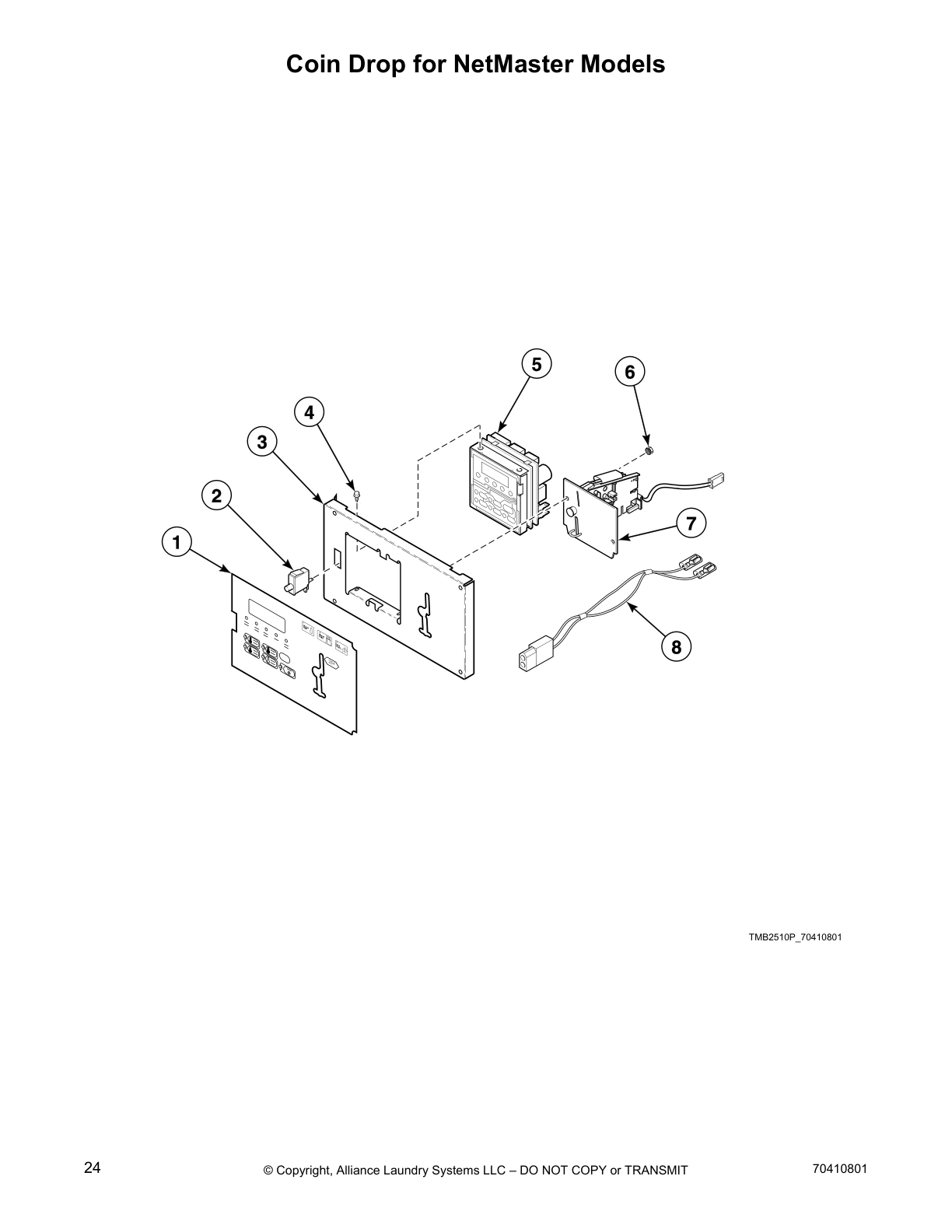

Coin Drop for NetMaster Models

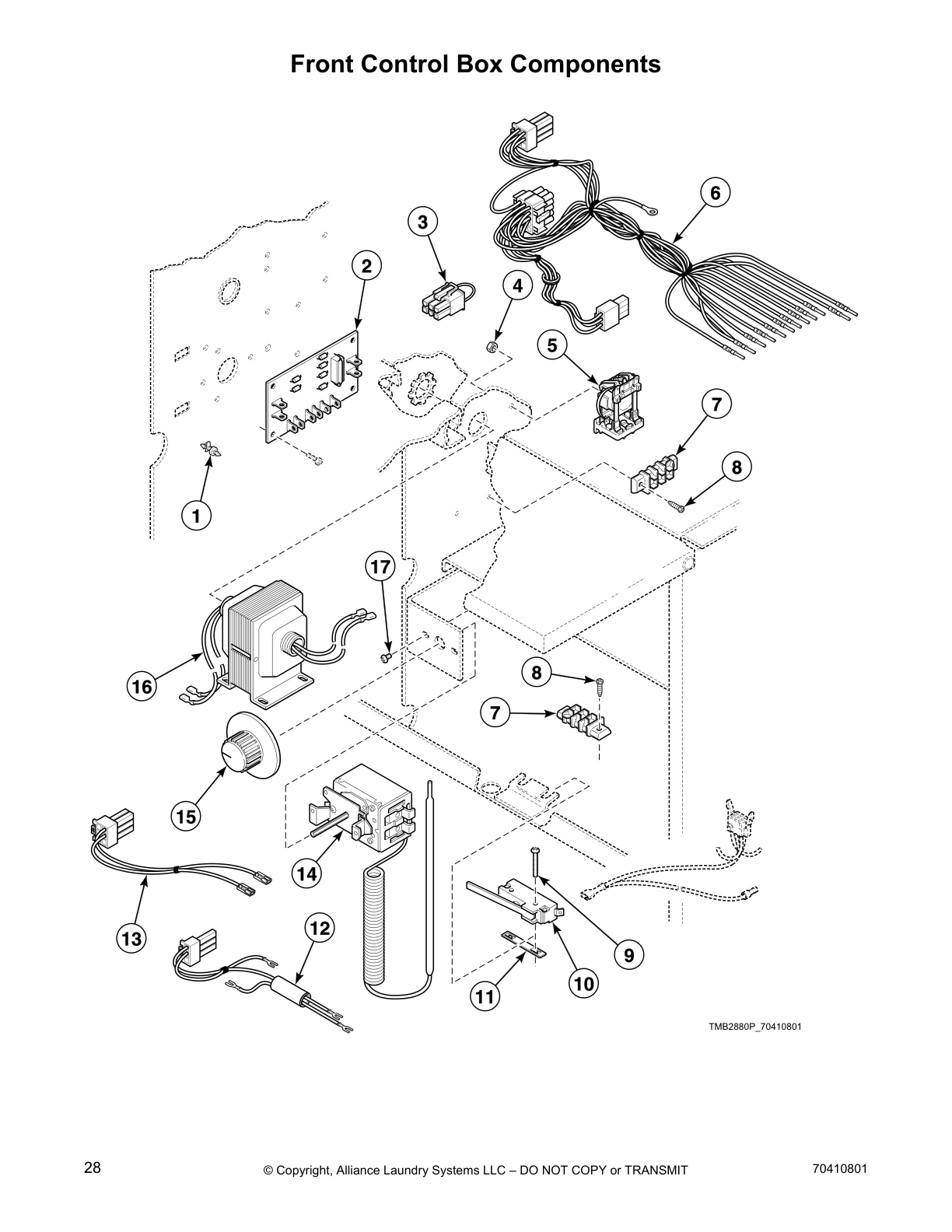

Front Control Box Components

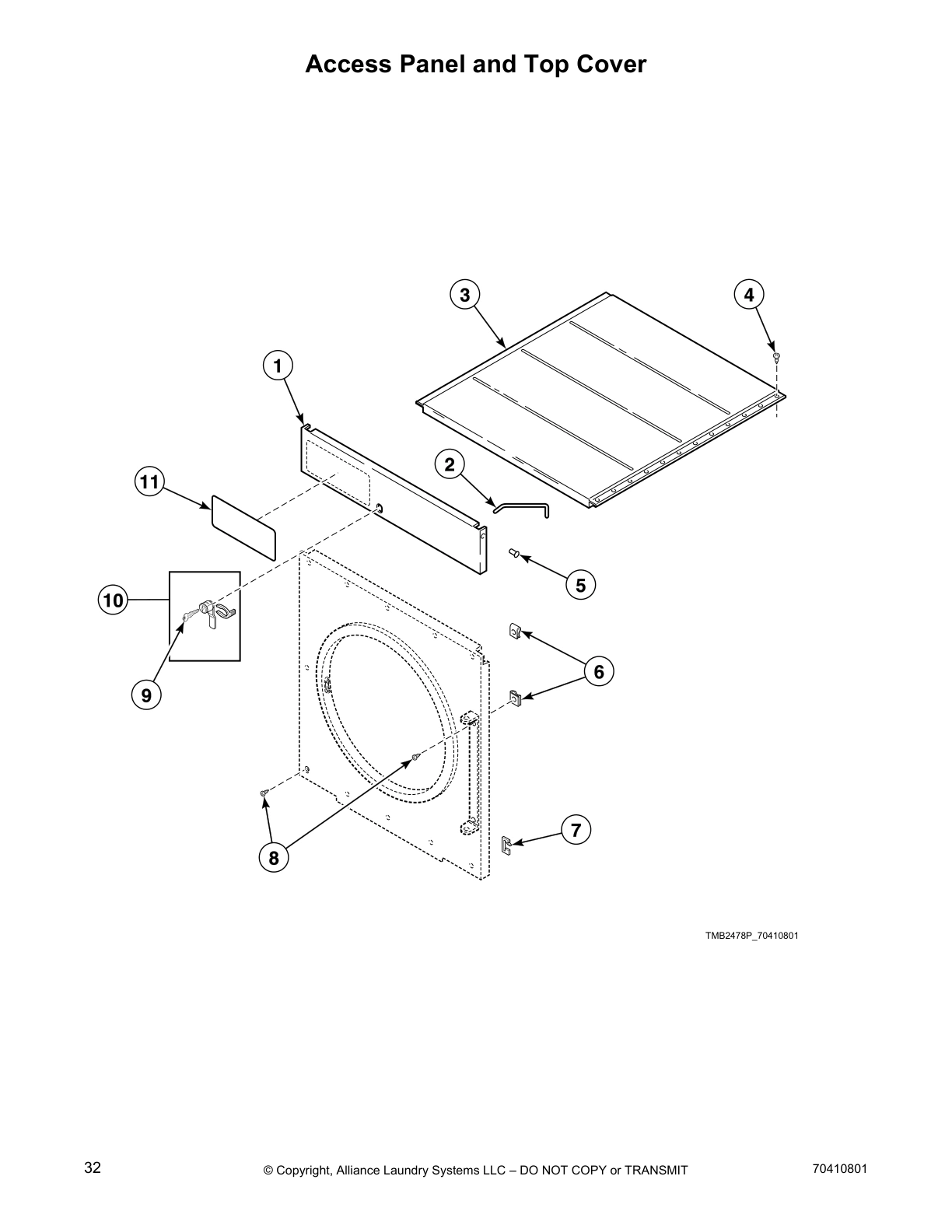

Access Panel and Top Cover

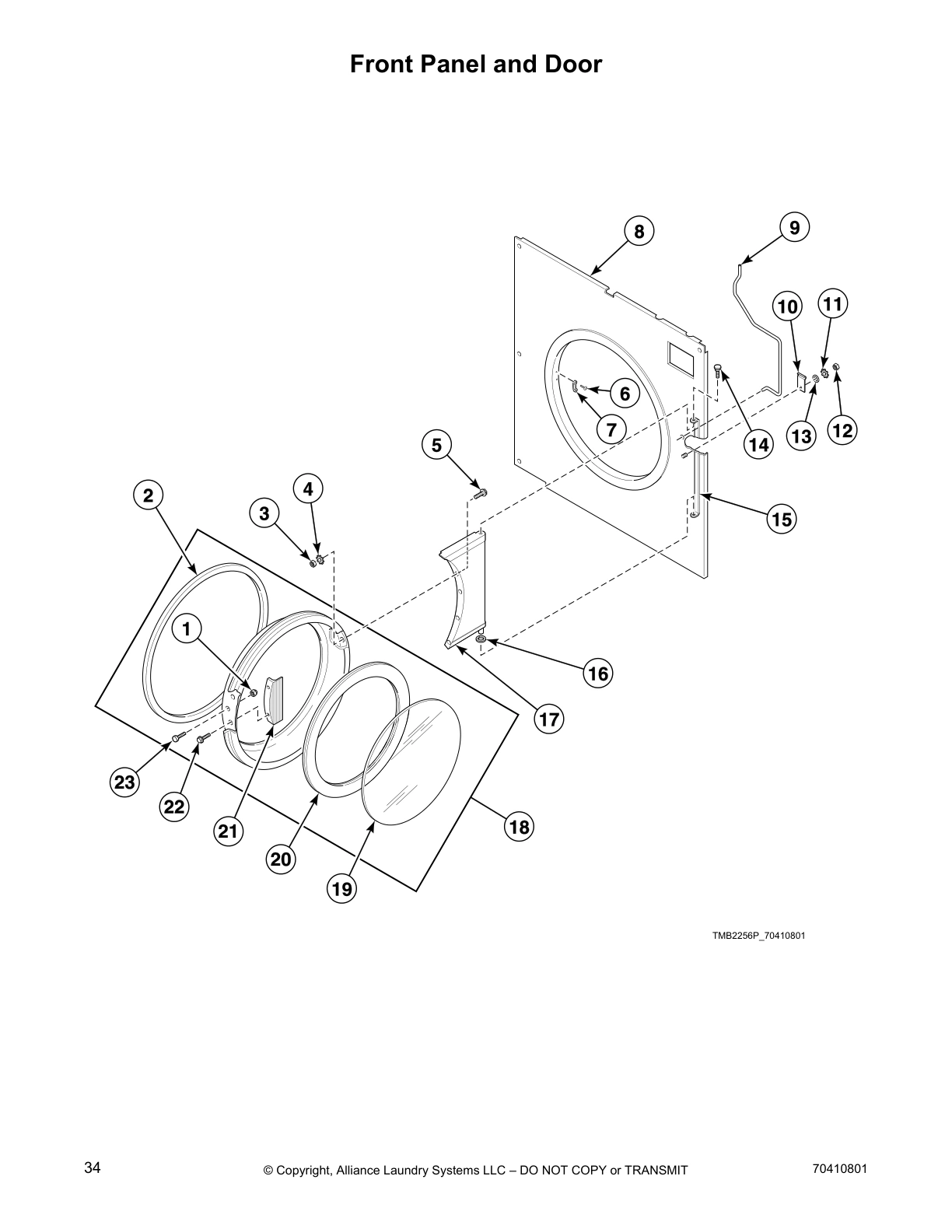

Front Panel and Door

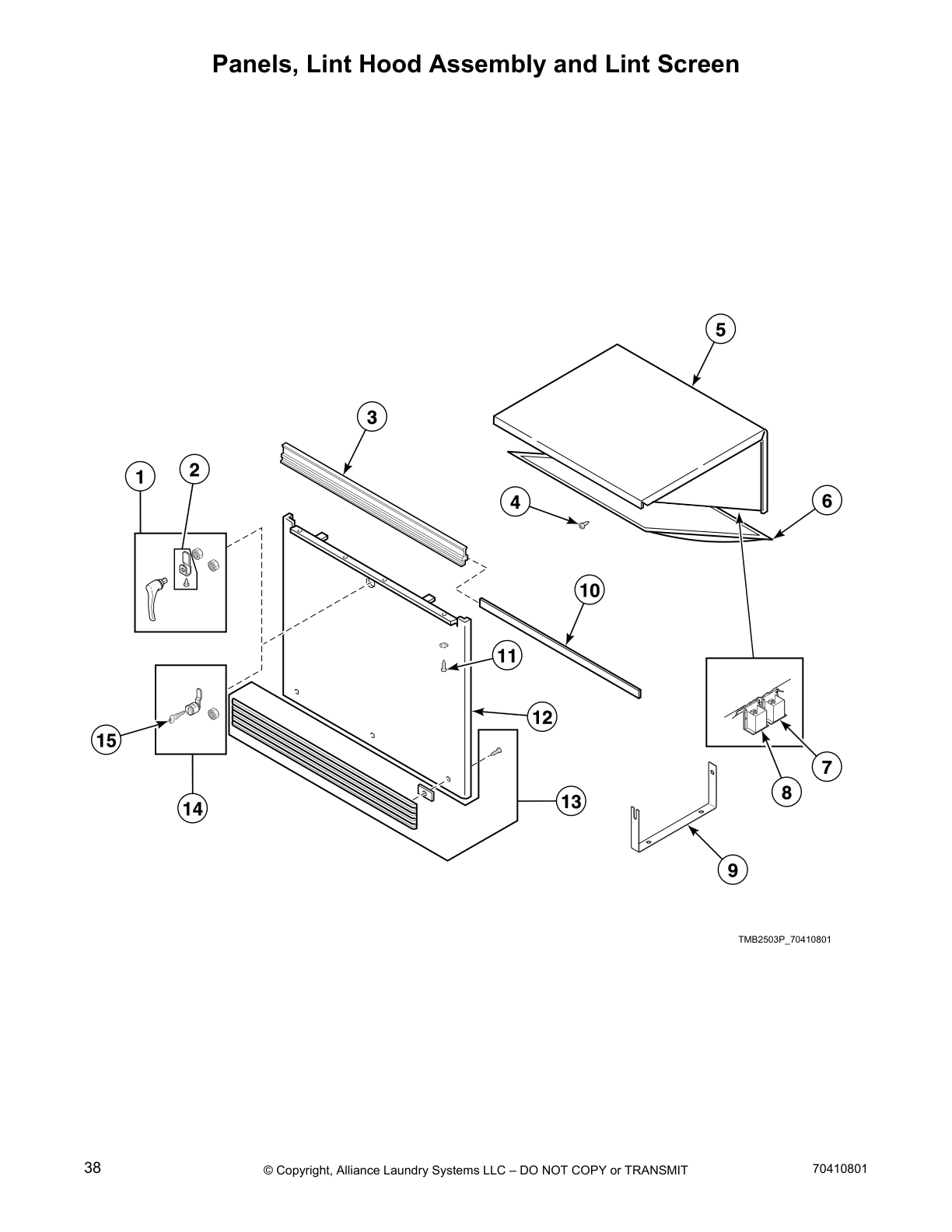

Panels, Lint Hood Assembly and Lint Screen

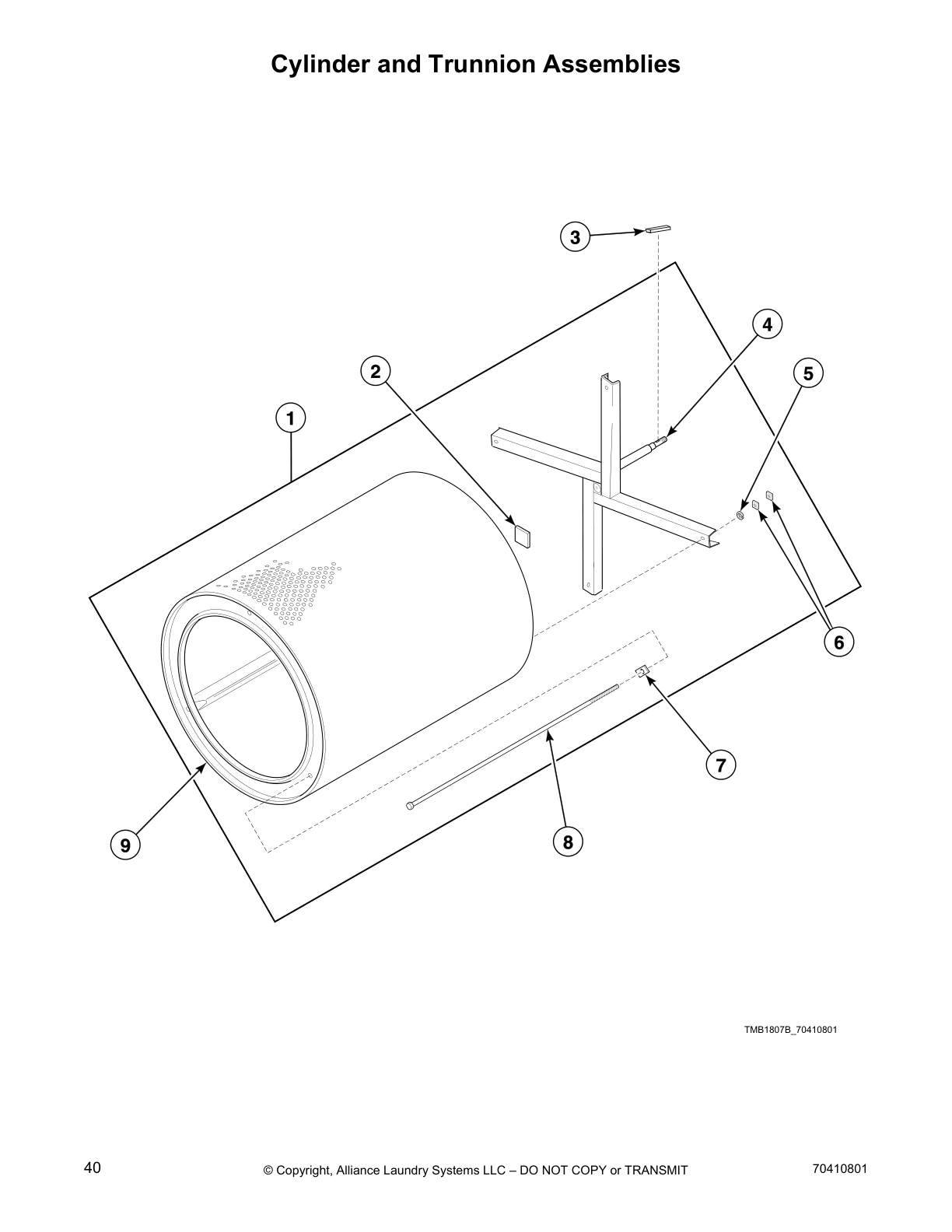

Cylinder and Trunnion Assemblies

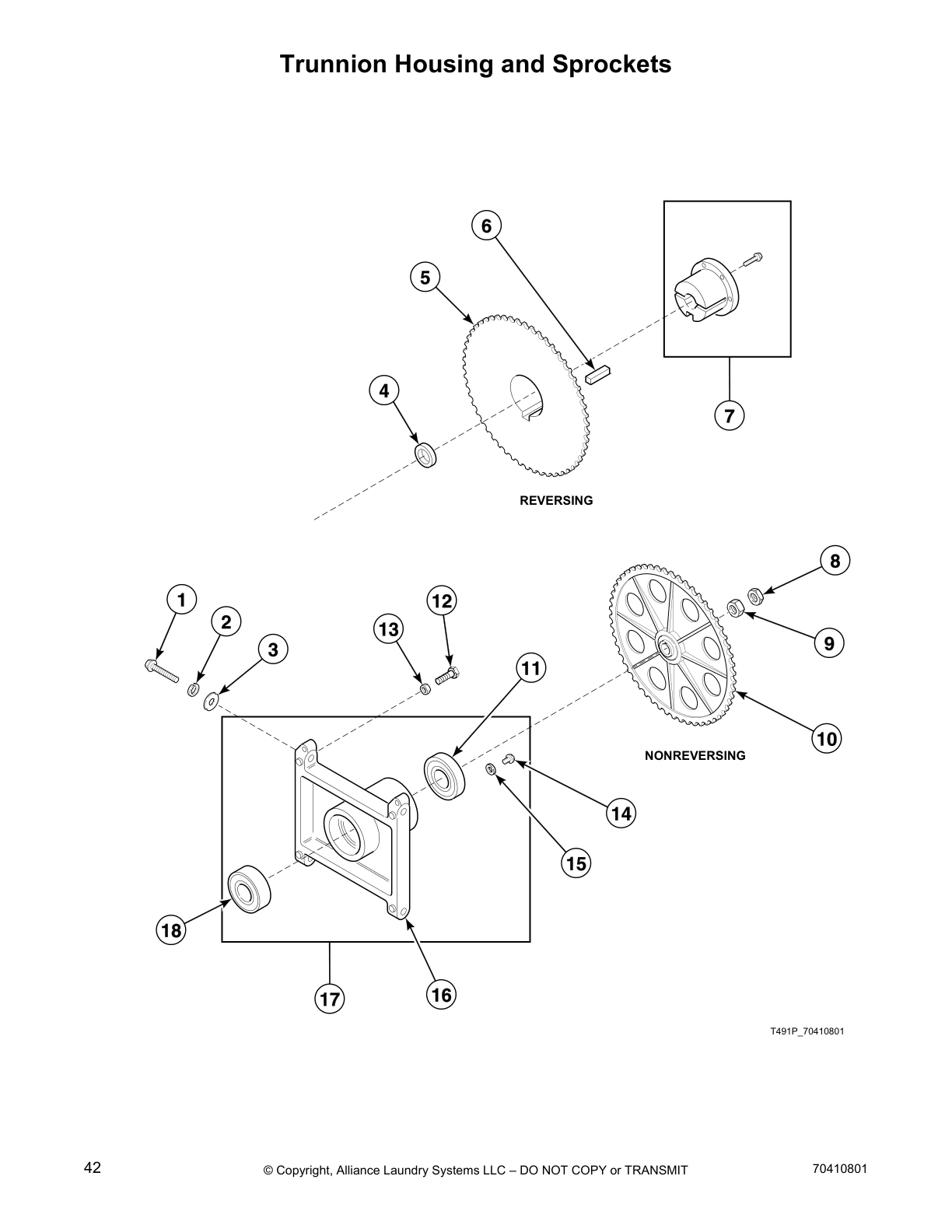

Trunnion Housing and Sprockets

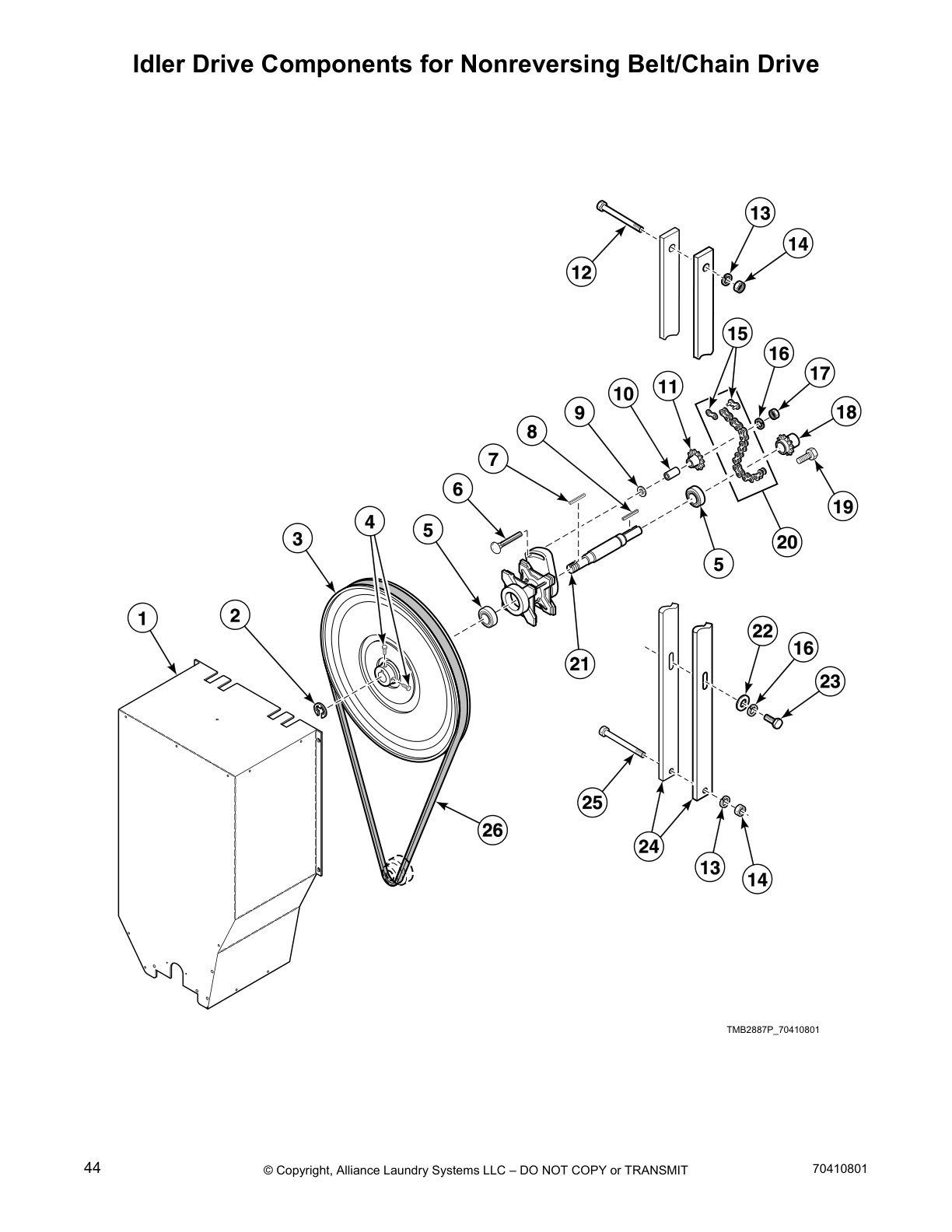

Idler Drive Components for Nonreversing Belt/Chain Drive

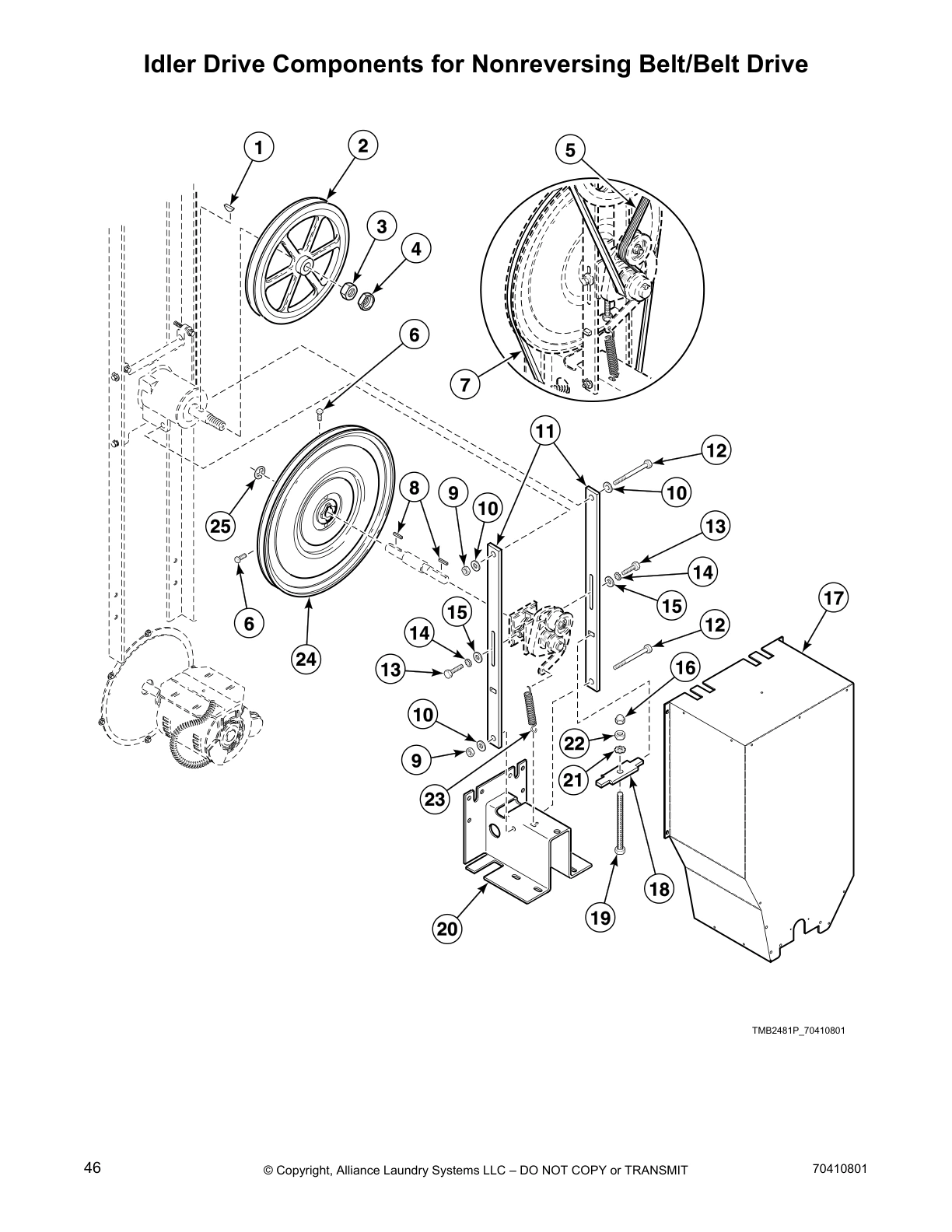

Idler Drive Components for Nonreversing Belt/Belt Drive

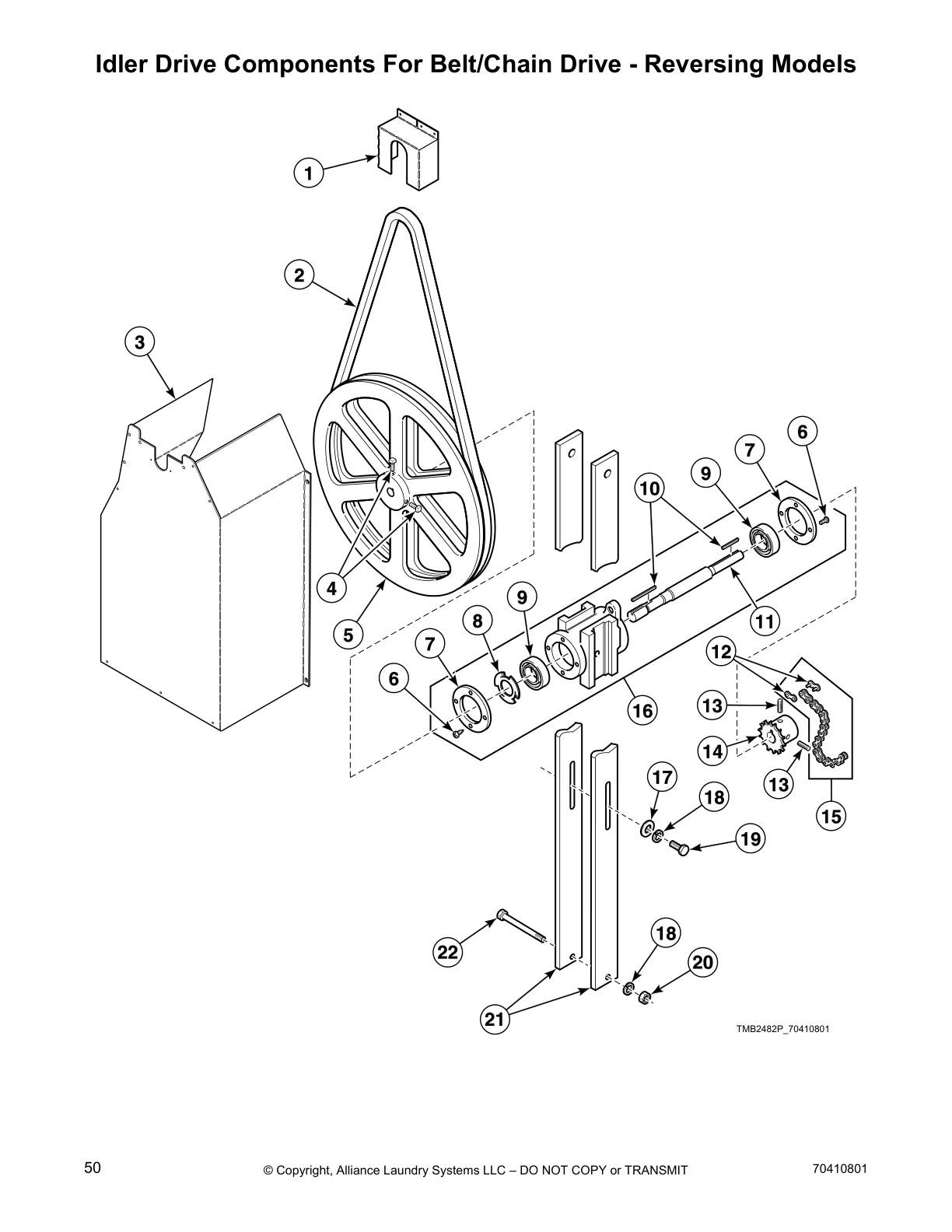

Idler Drive Components For Belt/Chain Drive - Reversing Models

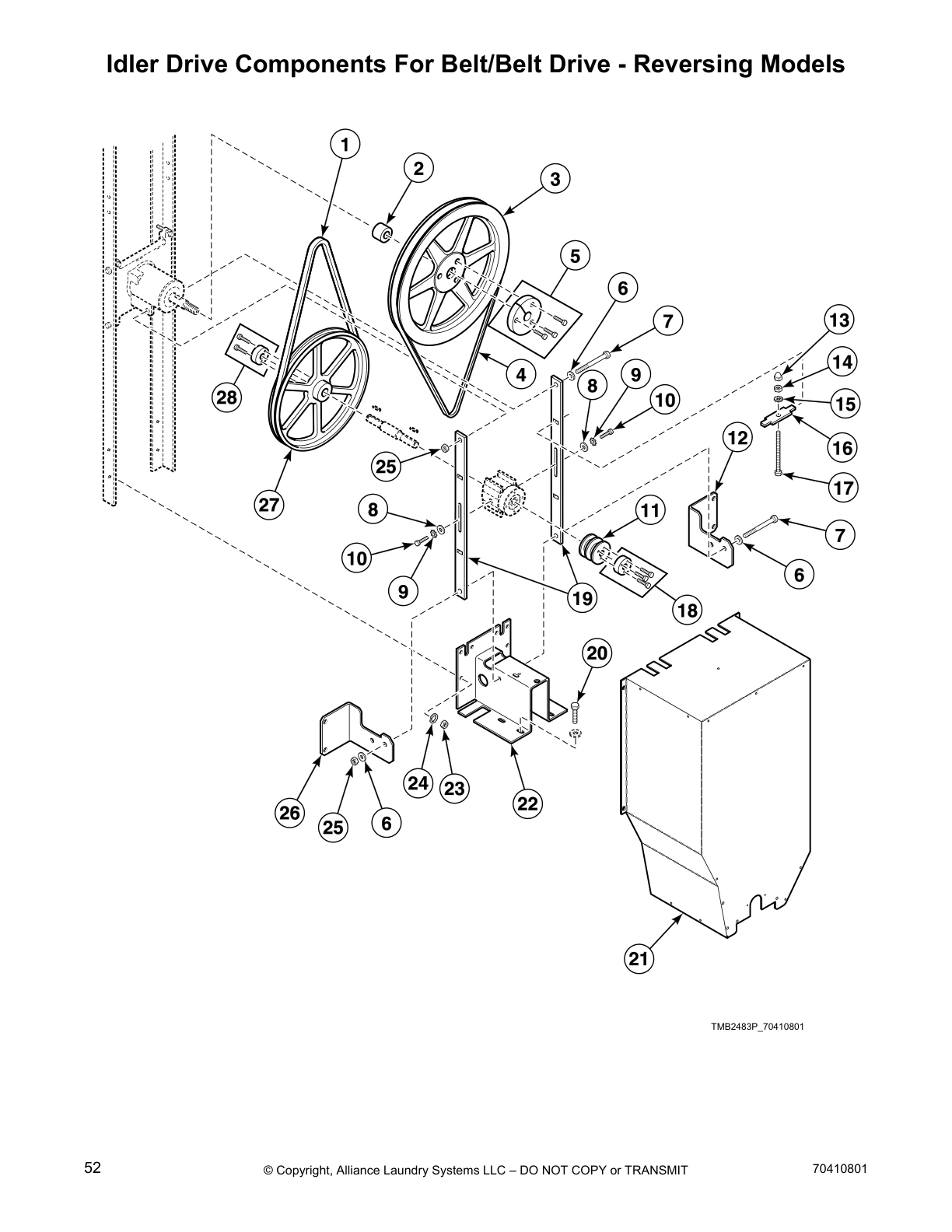

Idler Drive Components For Belt/Belt Drive - Reversing Models

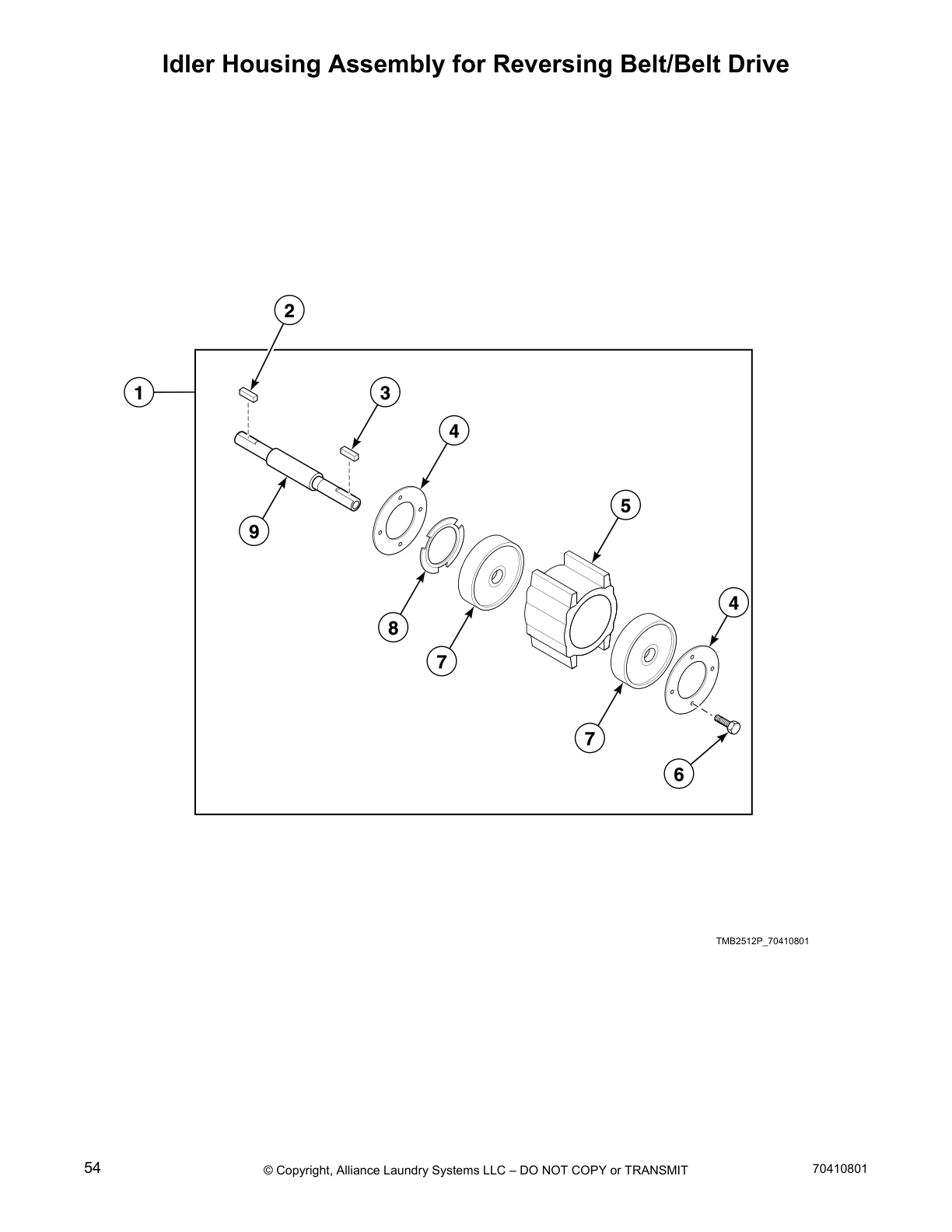

Idler Housing Assembly for Reversing Belt/Belt Drive

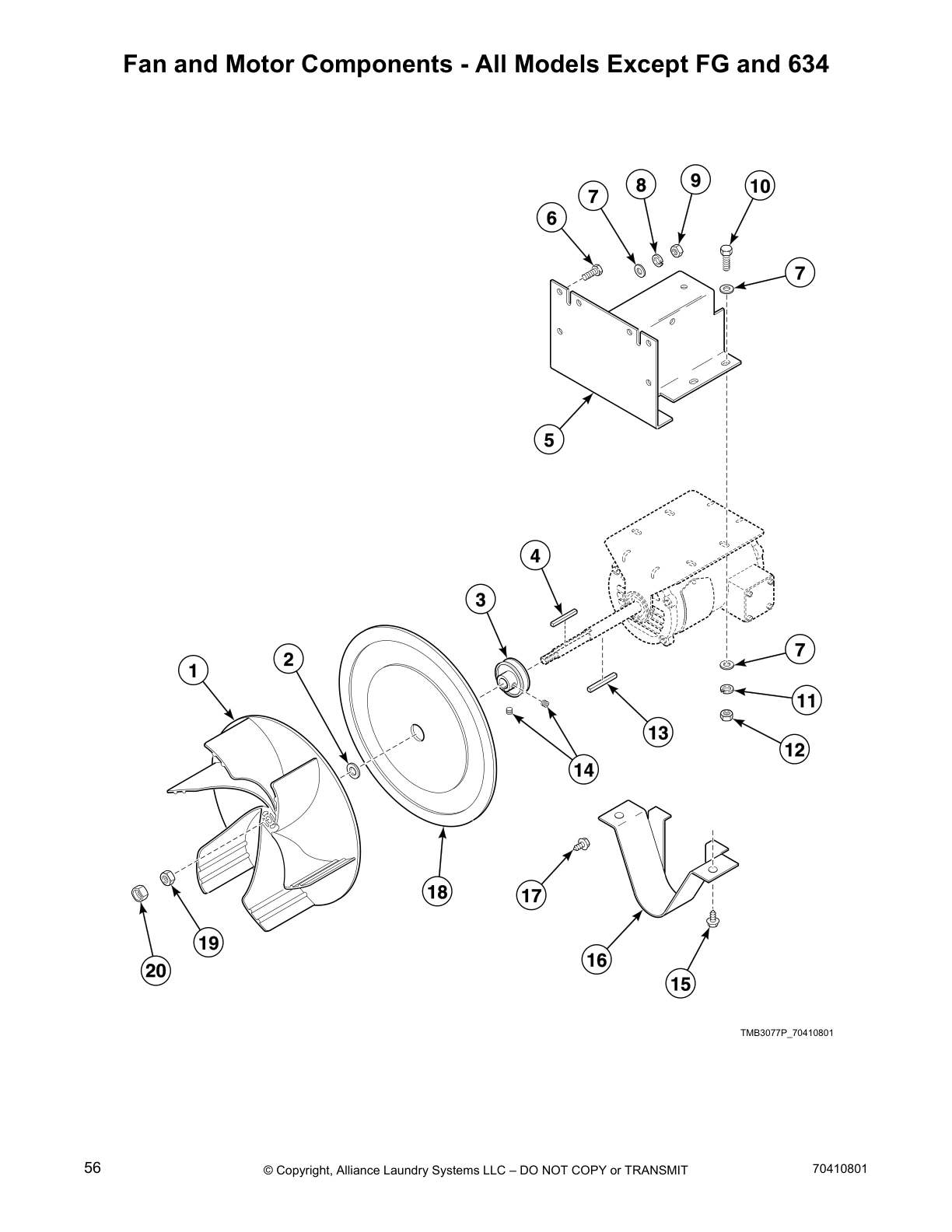

Fan and Motor Components - All Models Except FG and 634

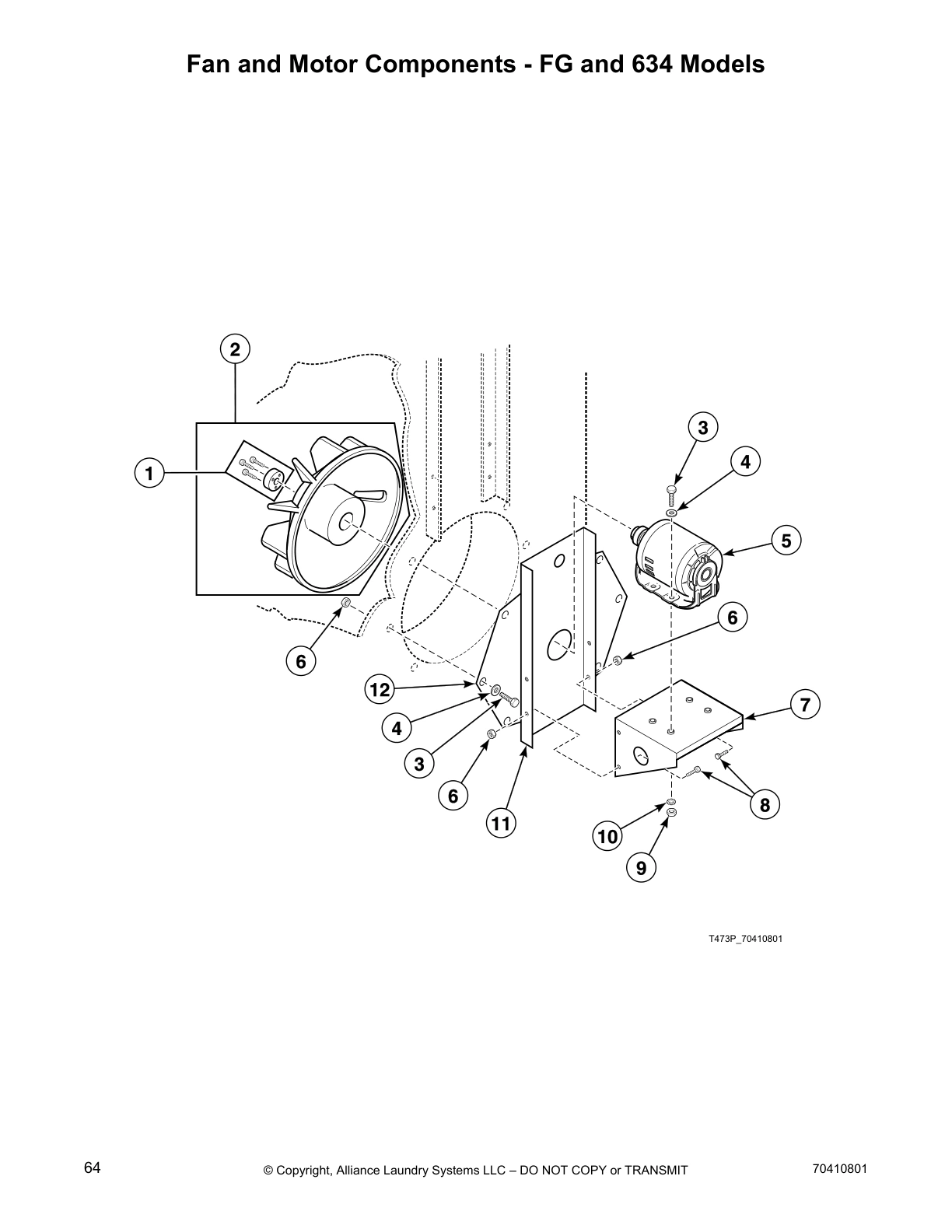

Fan and Motor Components - FG and 634 Models

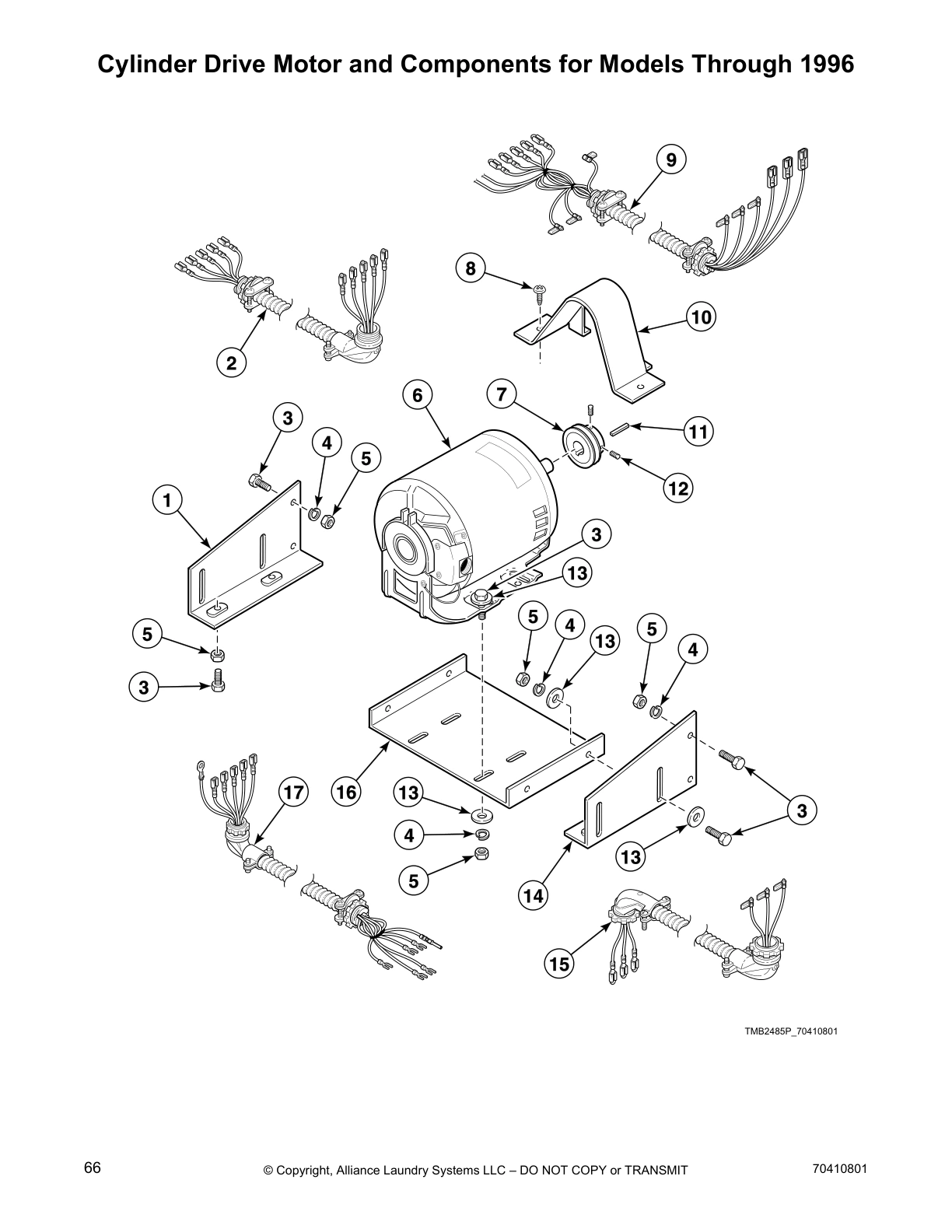

Cylinder Drive Motor and Components for Models Through 1996

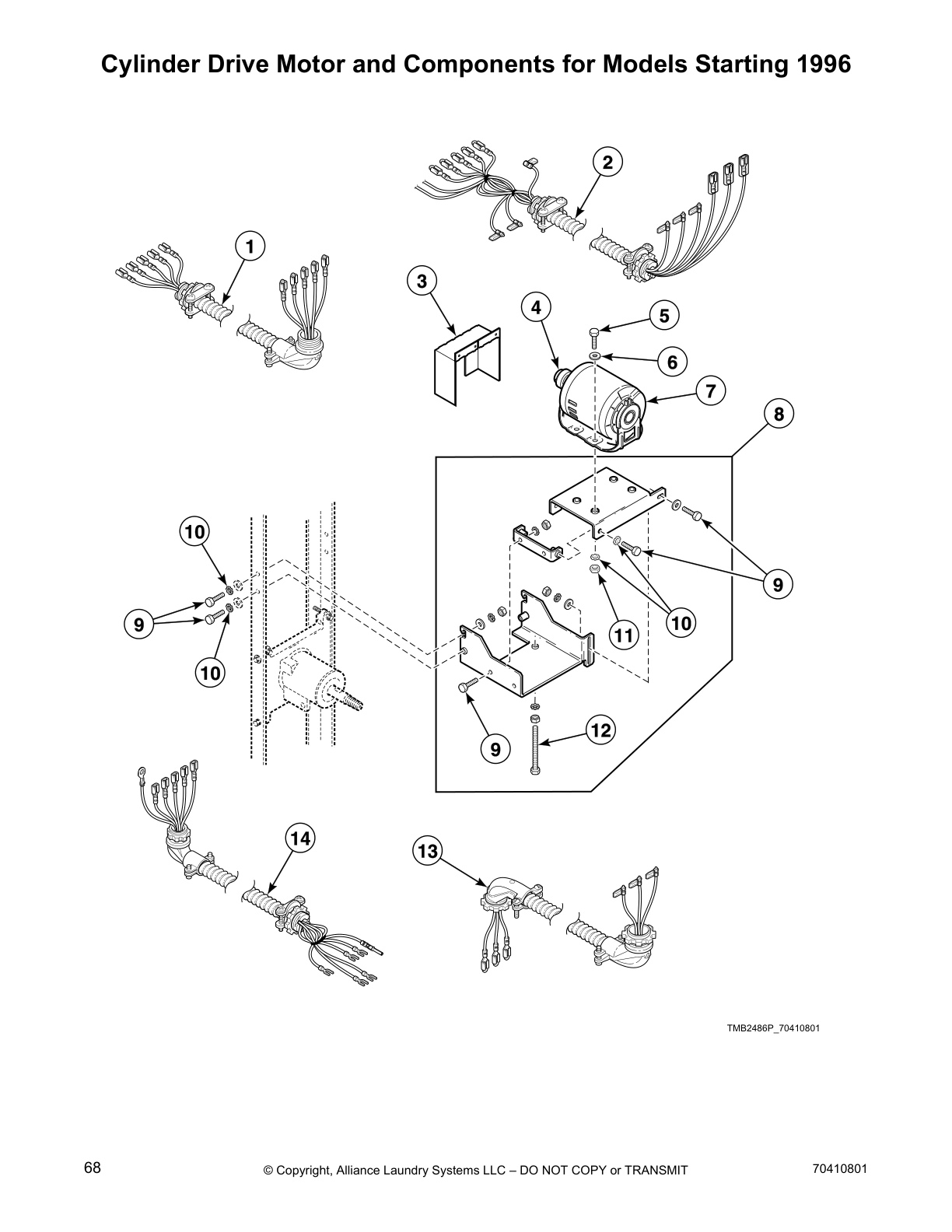

Cylinder Drive Motor and Components for Models Starting 1996

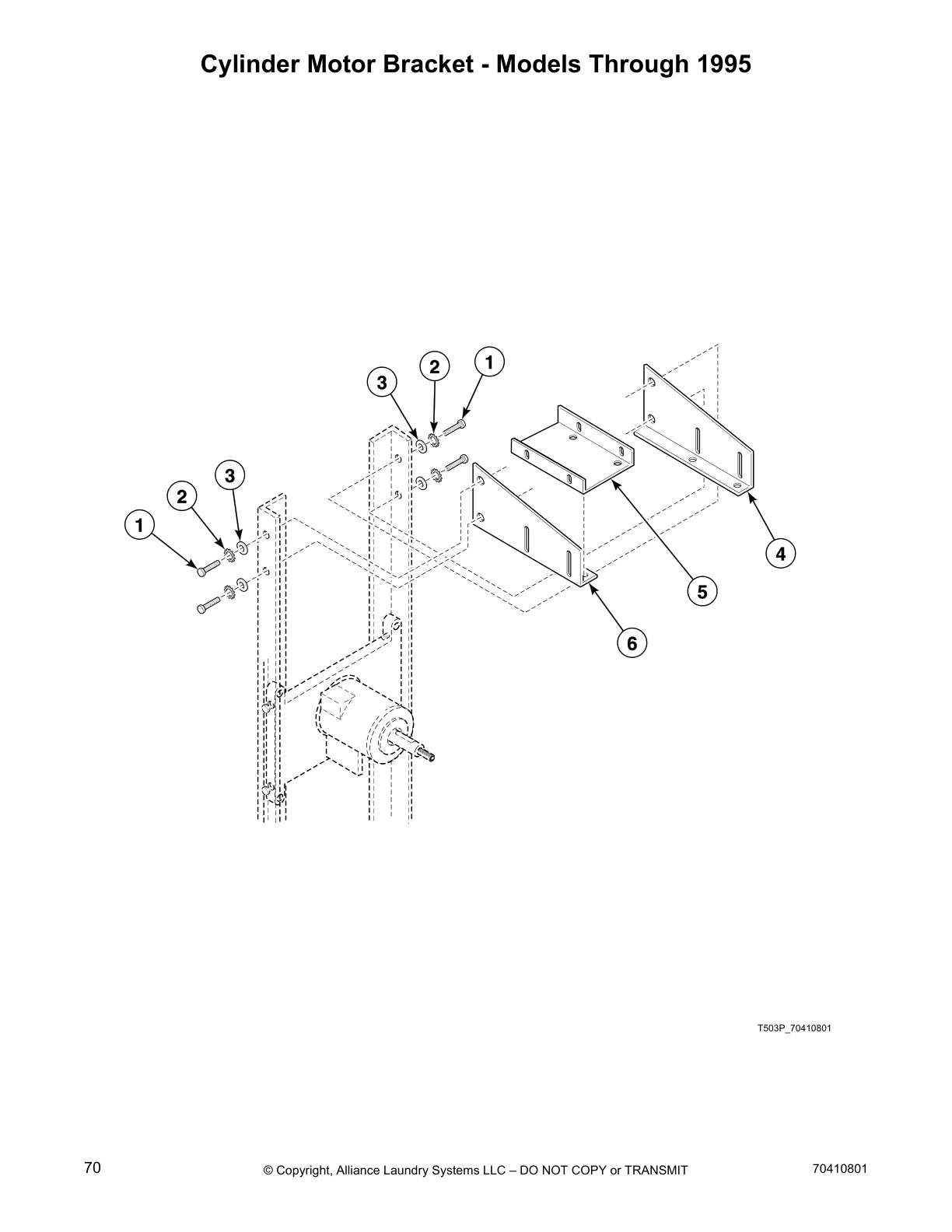

Cylinder Motor Bracket - Models Through 1995

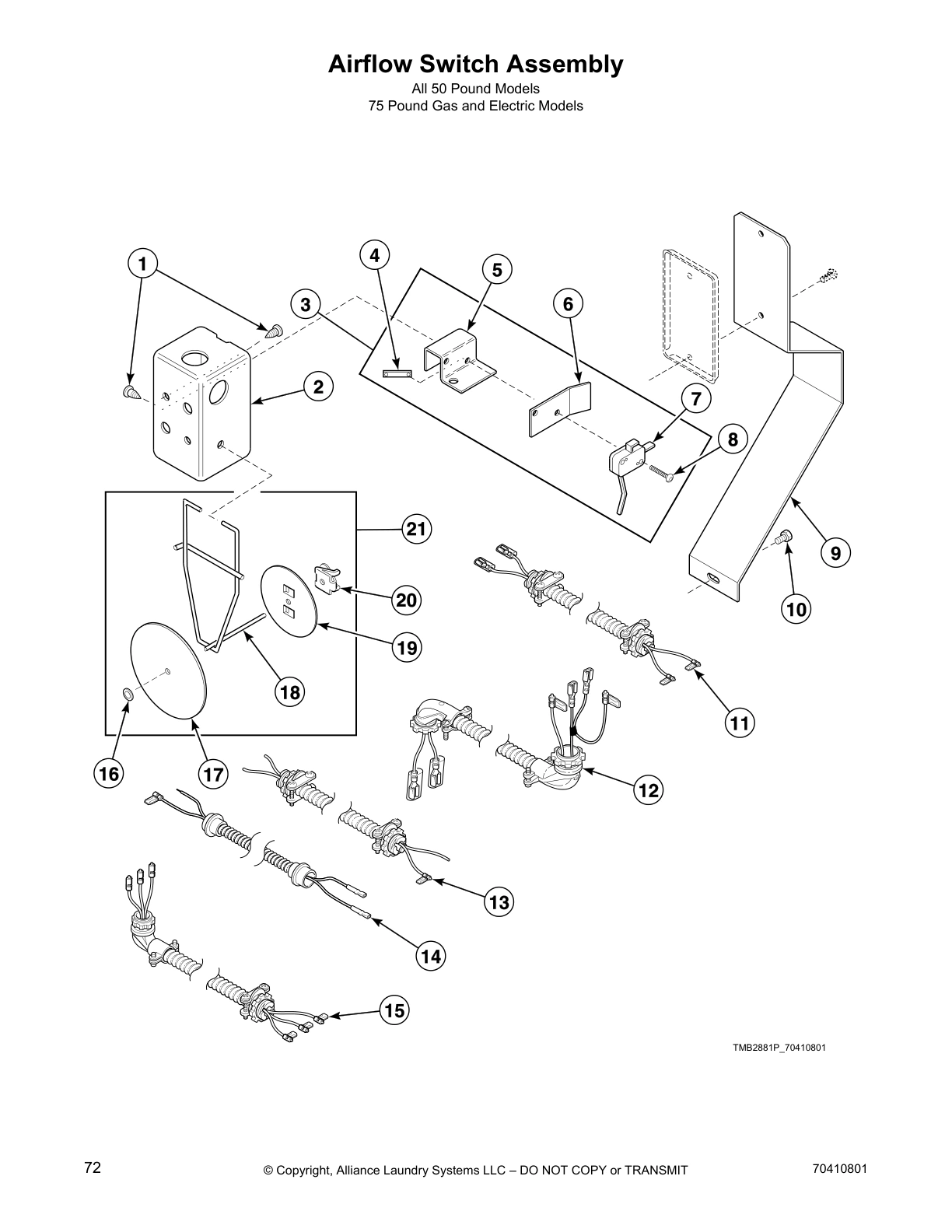

Airflow Switch Assembly

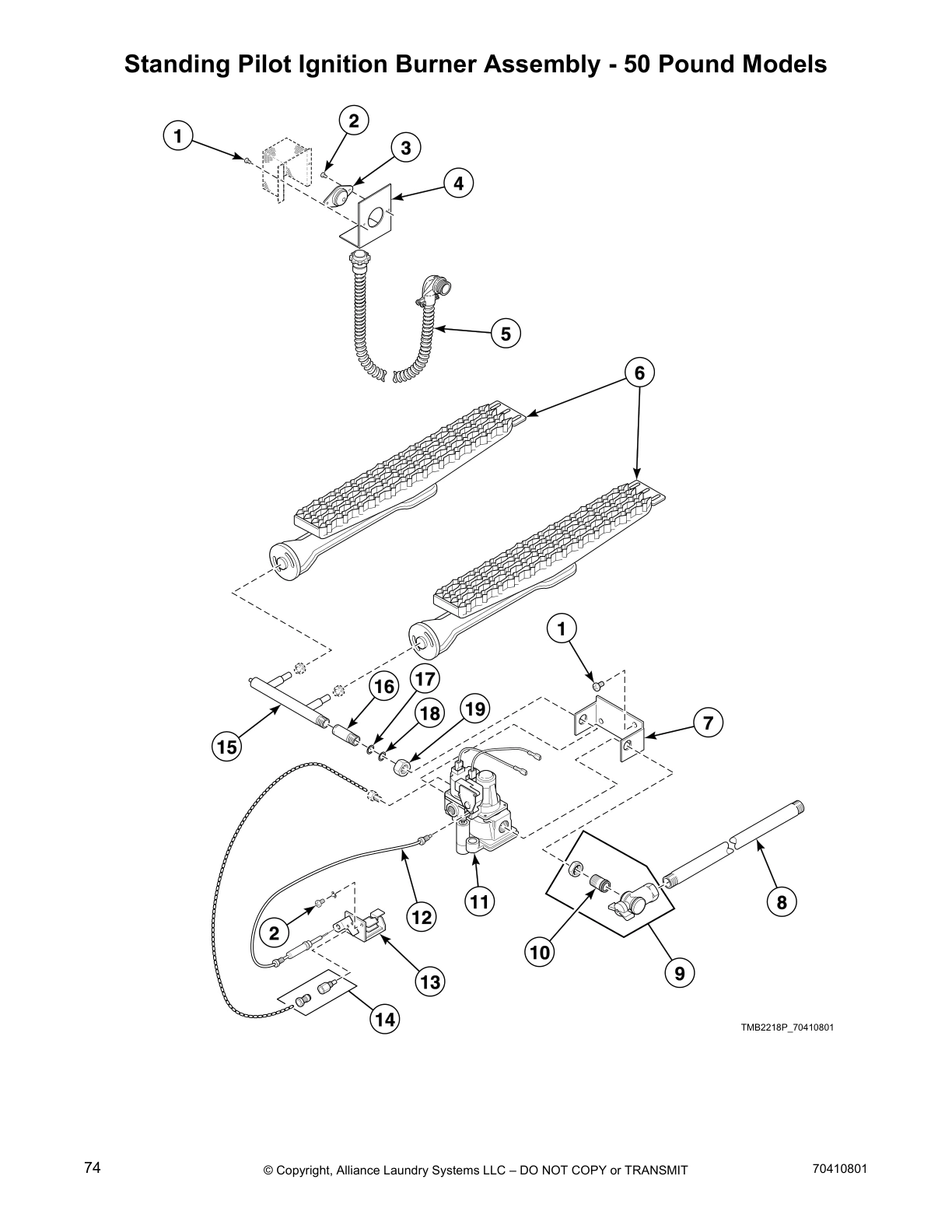

Standing Pilot Ignition Burner Assembly - 50 Pound Models

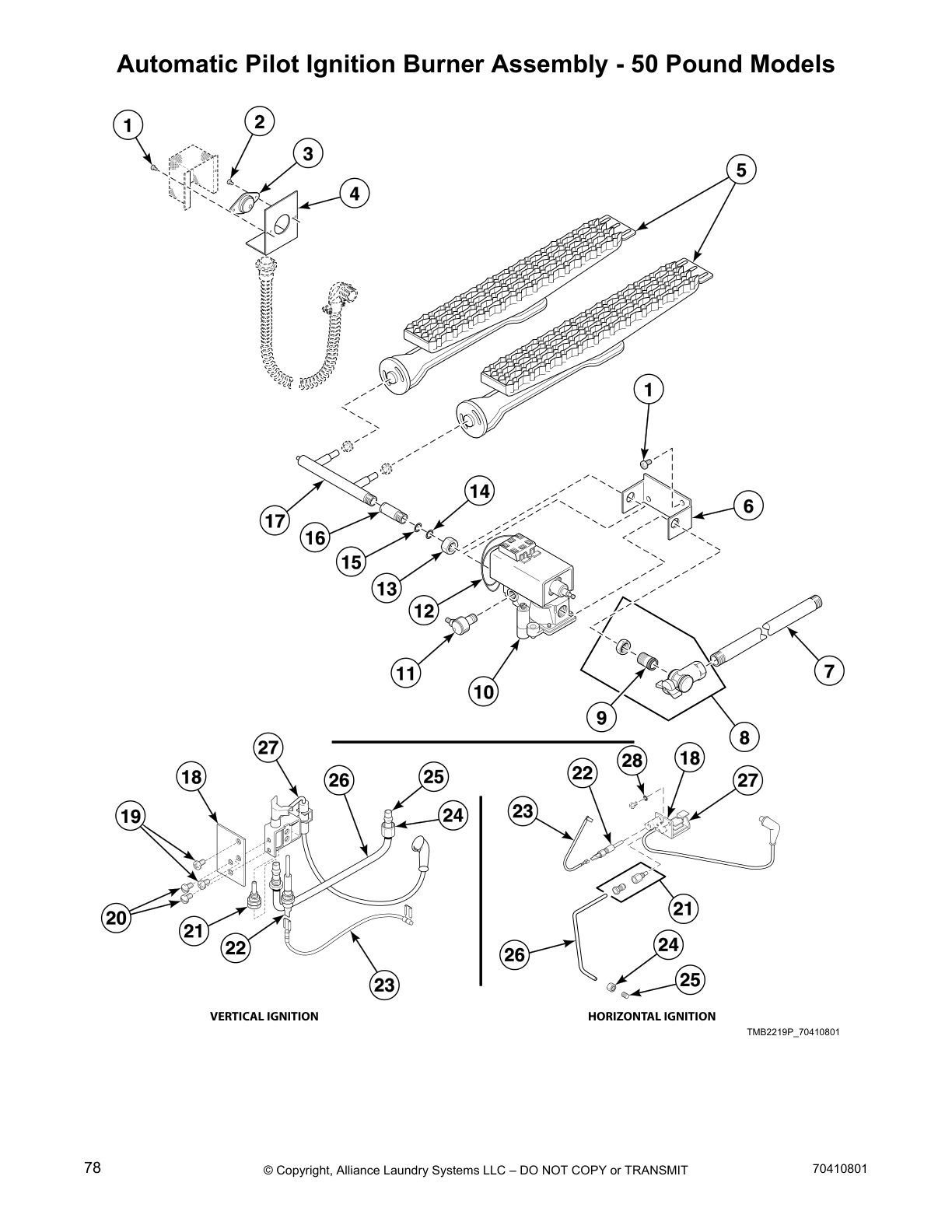

Automatic Pilot Ignition Burner Assembly - 50 Pound Models

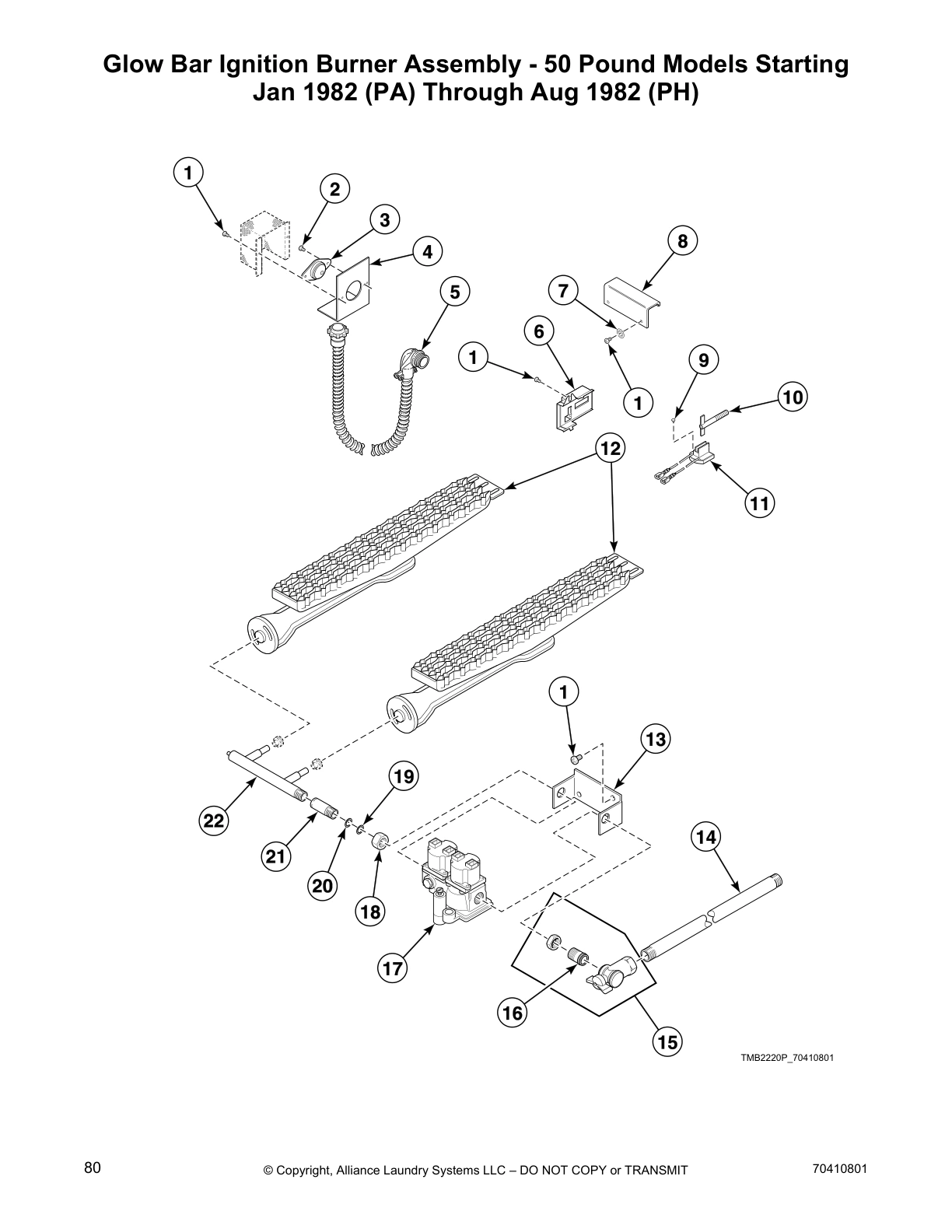

Glow Bar Ignition Burner Assembly - 50 Pound Models Starting
Jan 1982 (PA) Through Aug 1982 (PH)

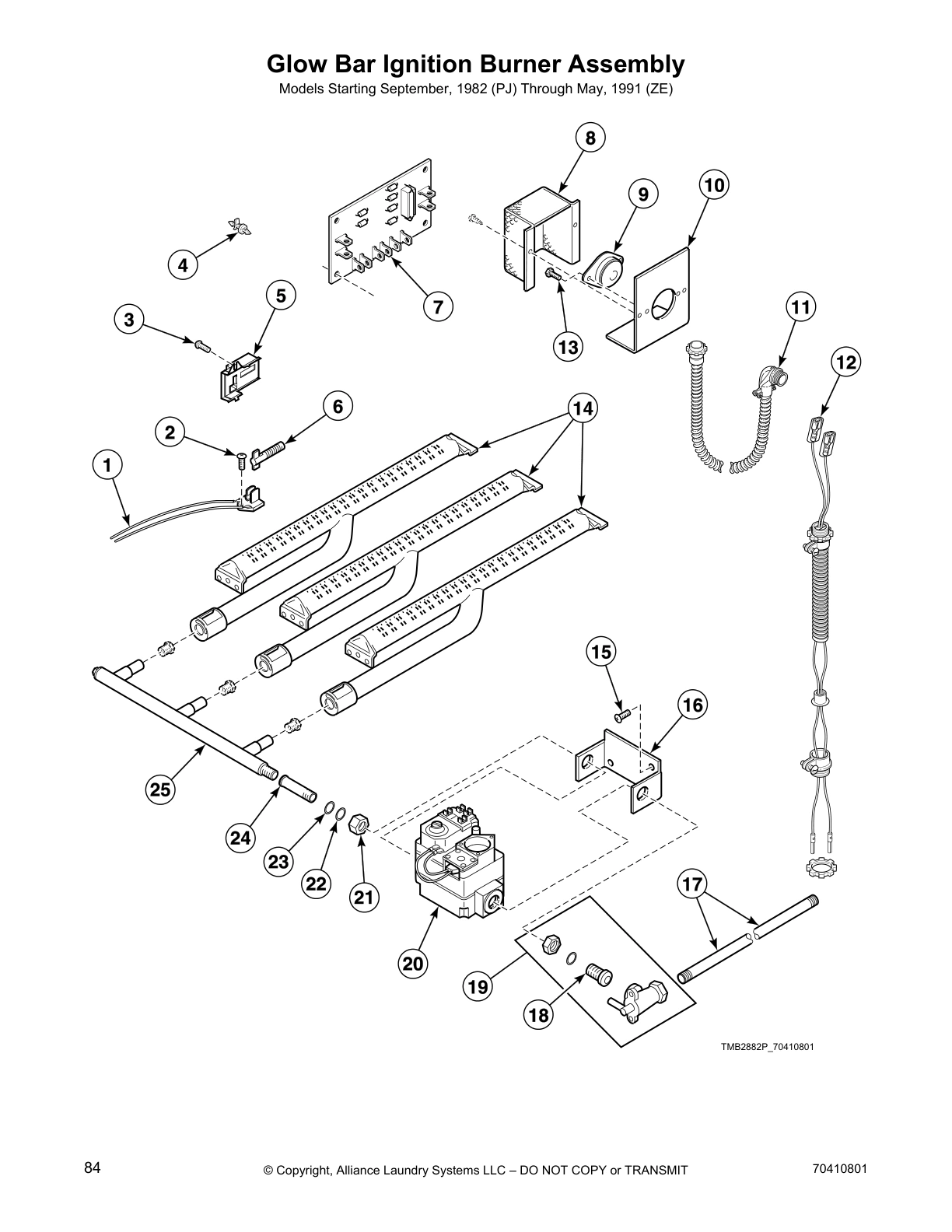

Glow Bar Ignition Burner Assembly

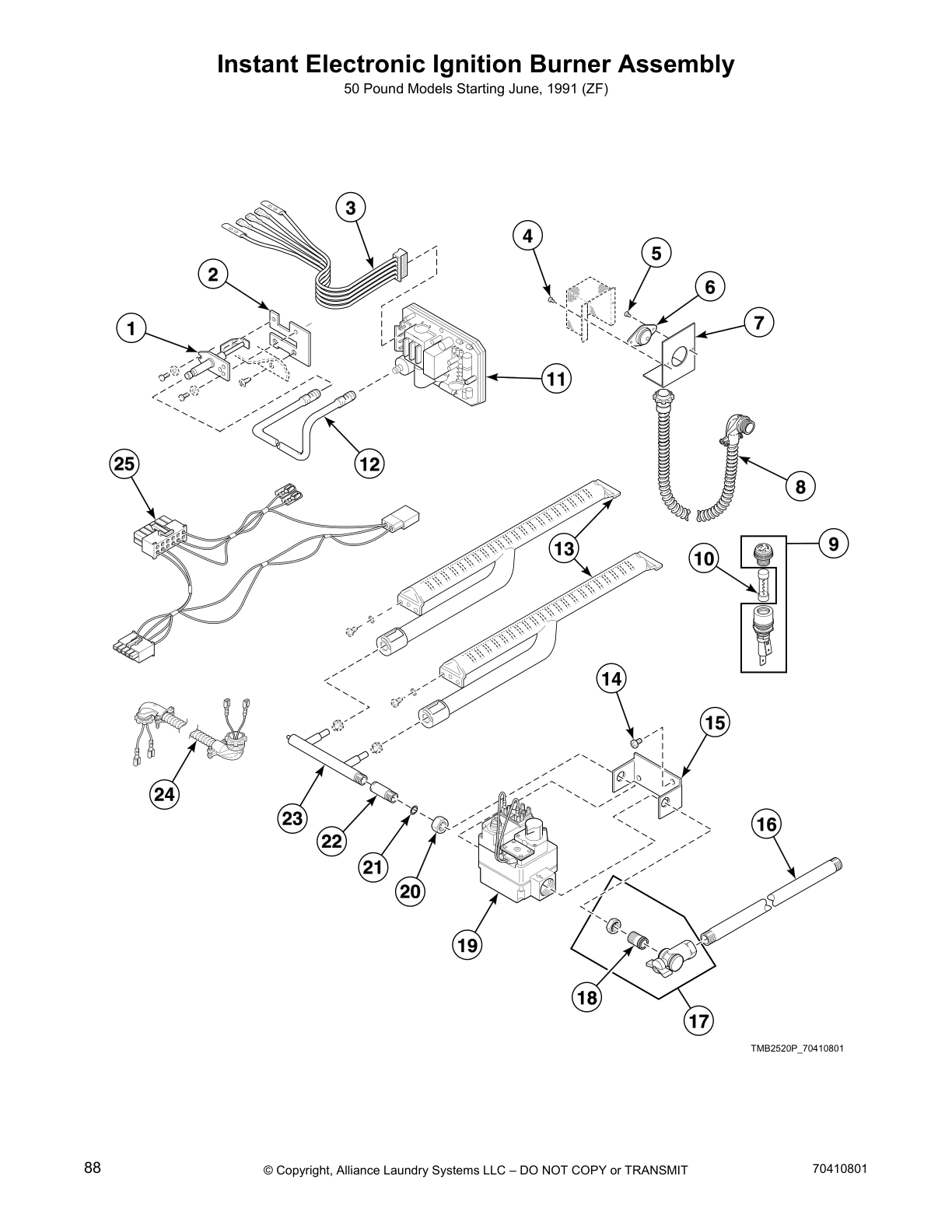

Instant Electronic Ignition Burner Assembly

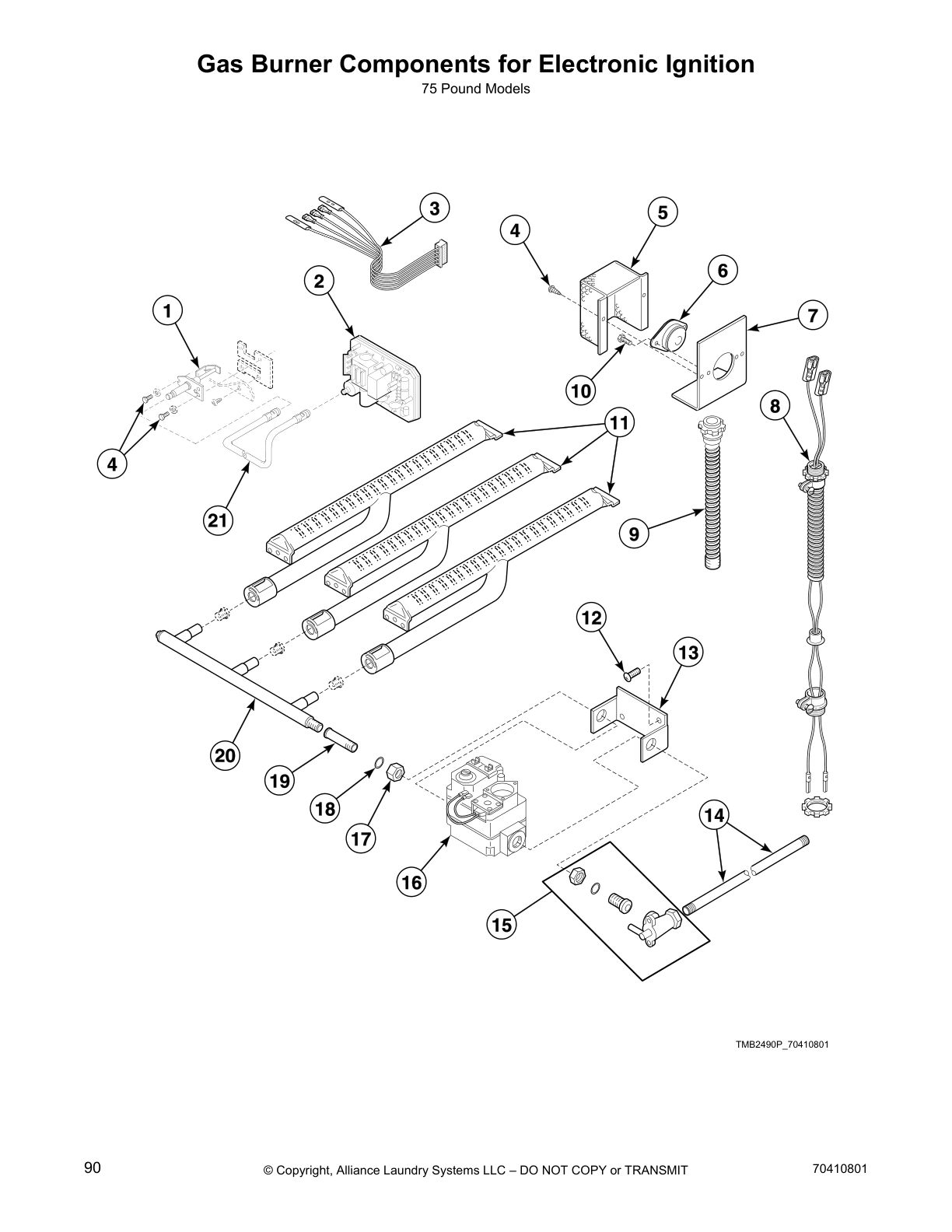

Gas Burner Components for Electronic Ignition

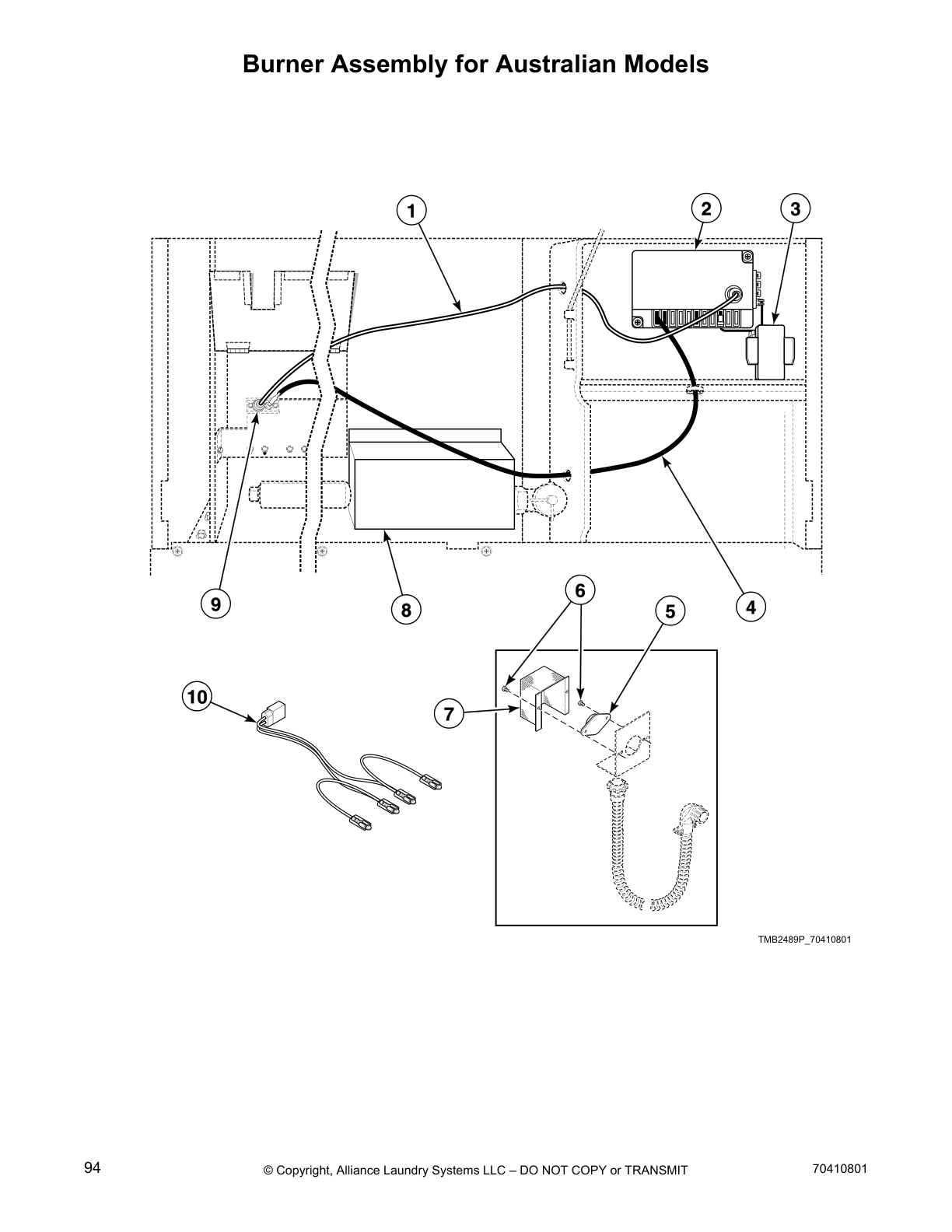

Burner Assembly for Australian Models

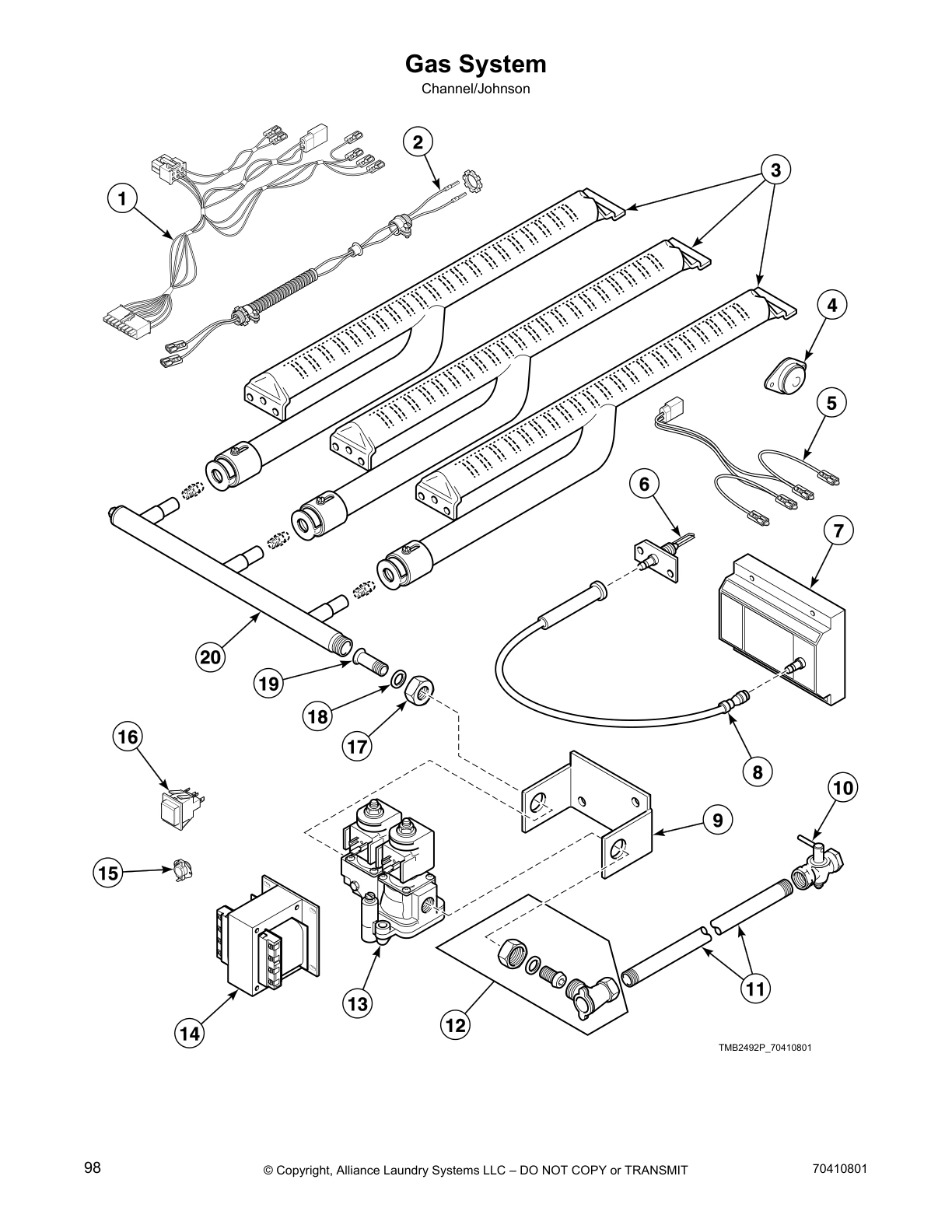

Gas System

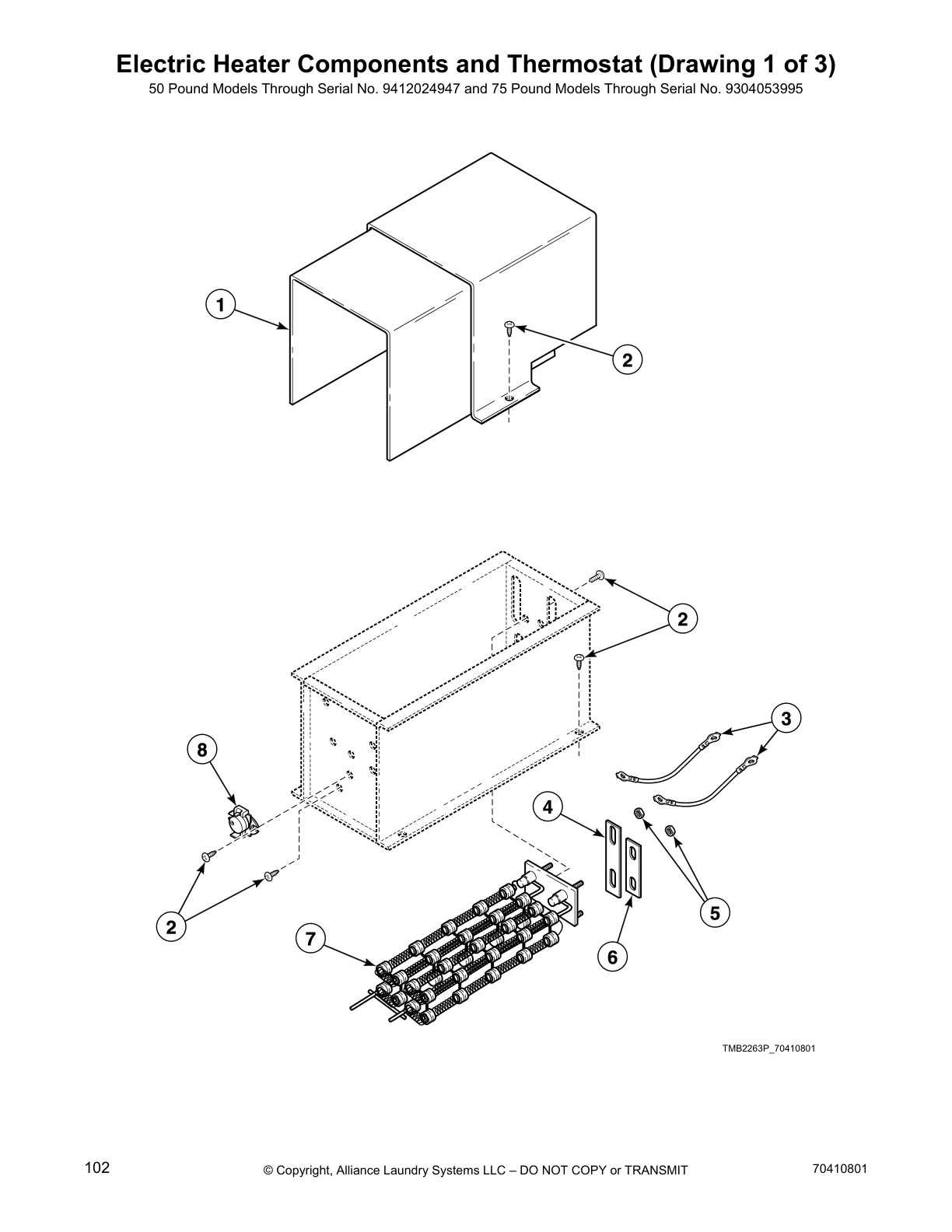

Electric Heater Components and Thermostat (Drawing 1 of 3)

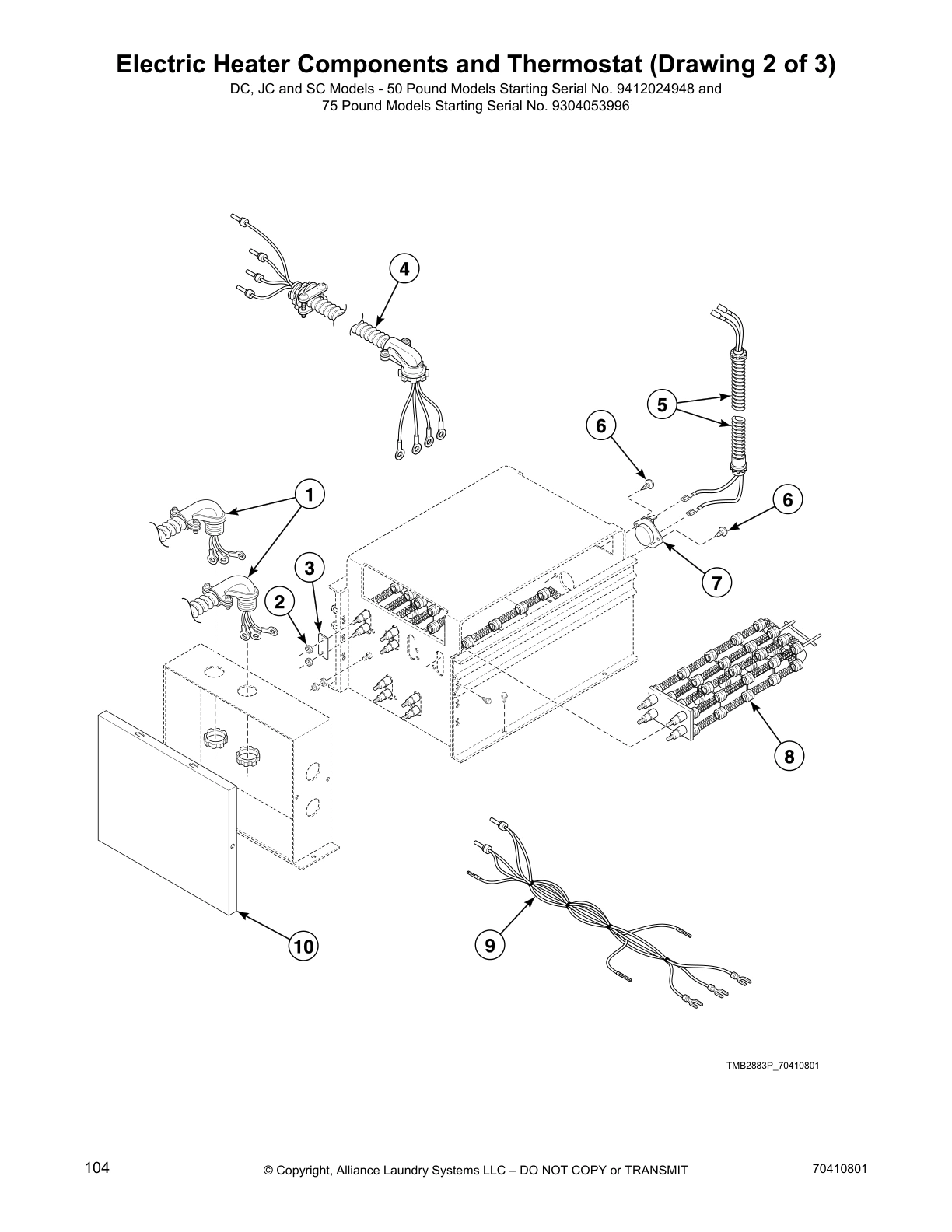

Electric Heater Components and Thermostat (Drawing 2 of 3)

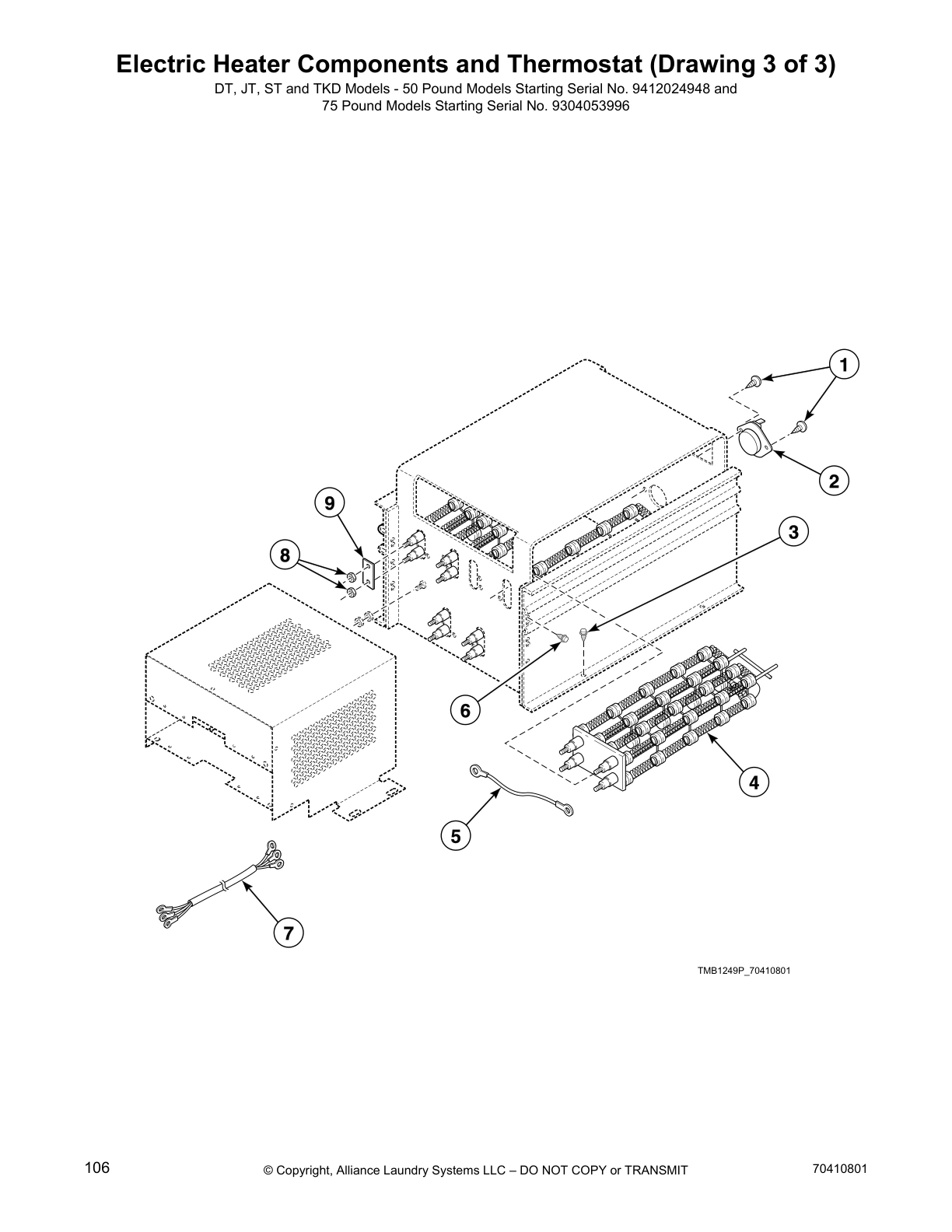

Electric Heater Components and Thermostat (Drawing 3 of 3)

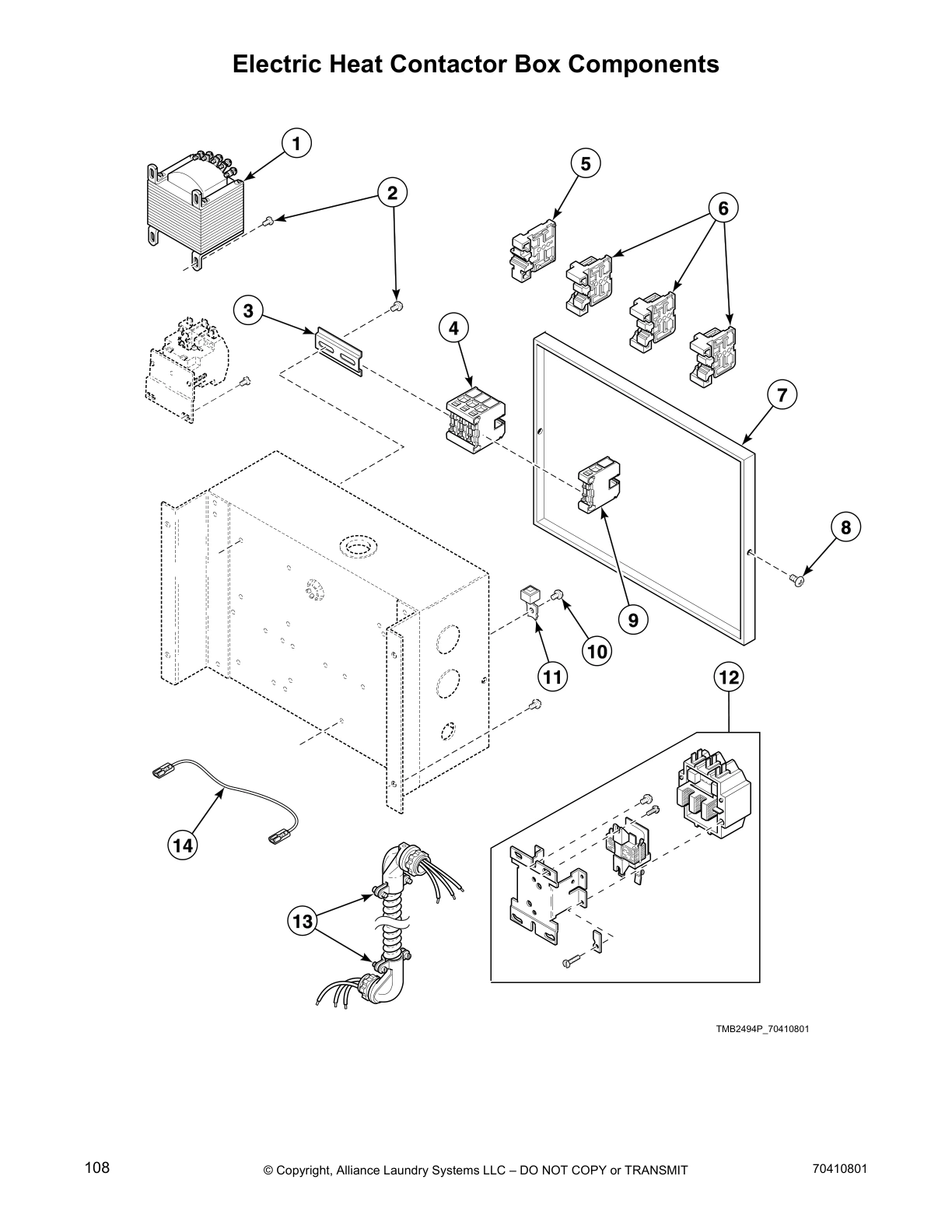

Electric Heat Contactor Box Components

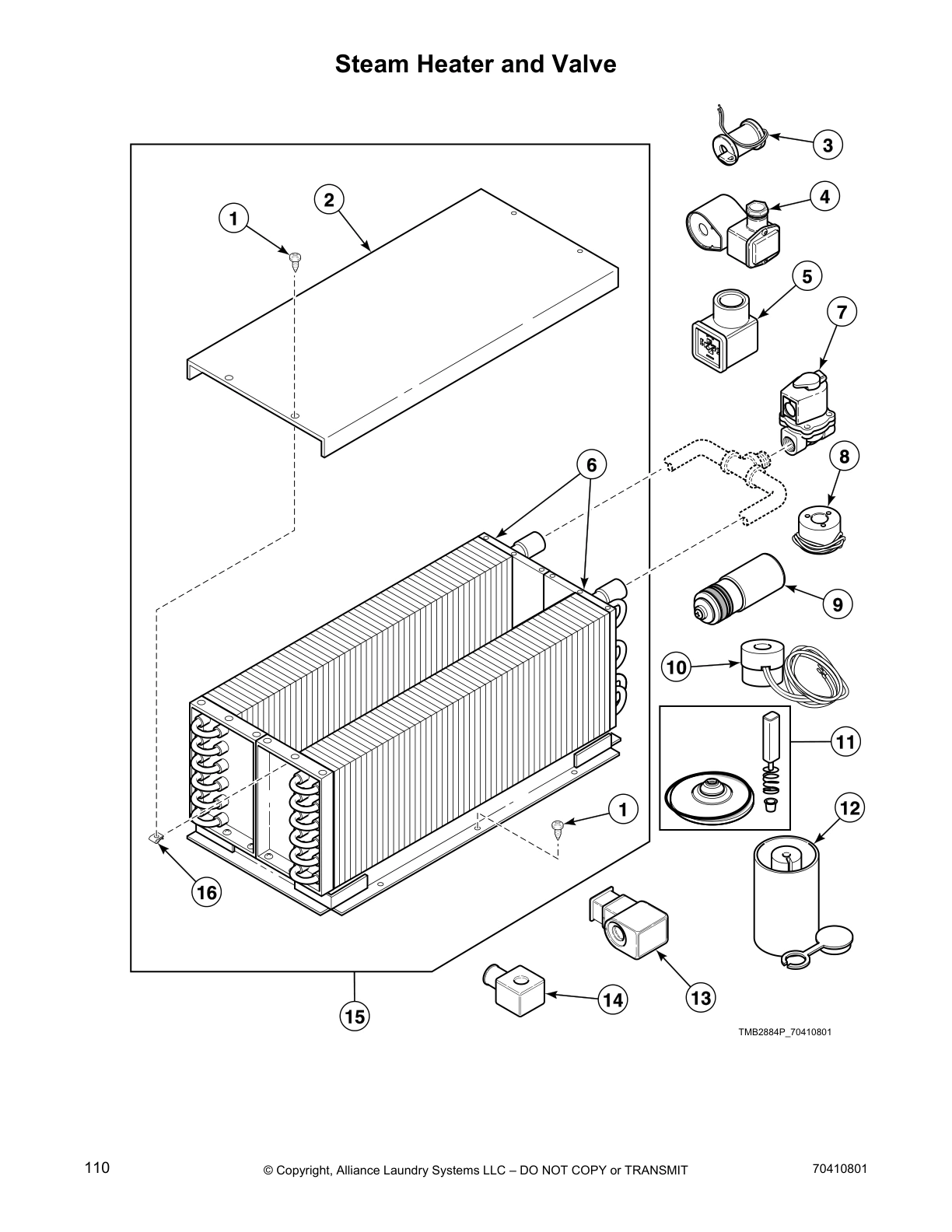

Steam Heater and Valve

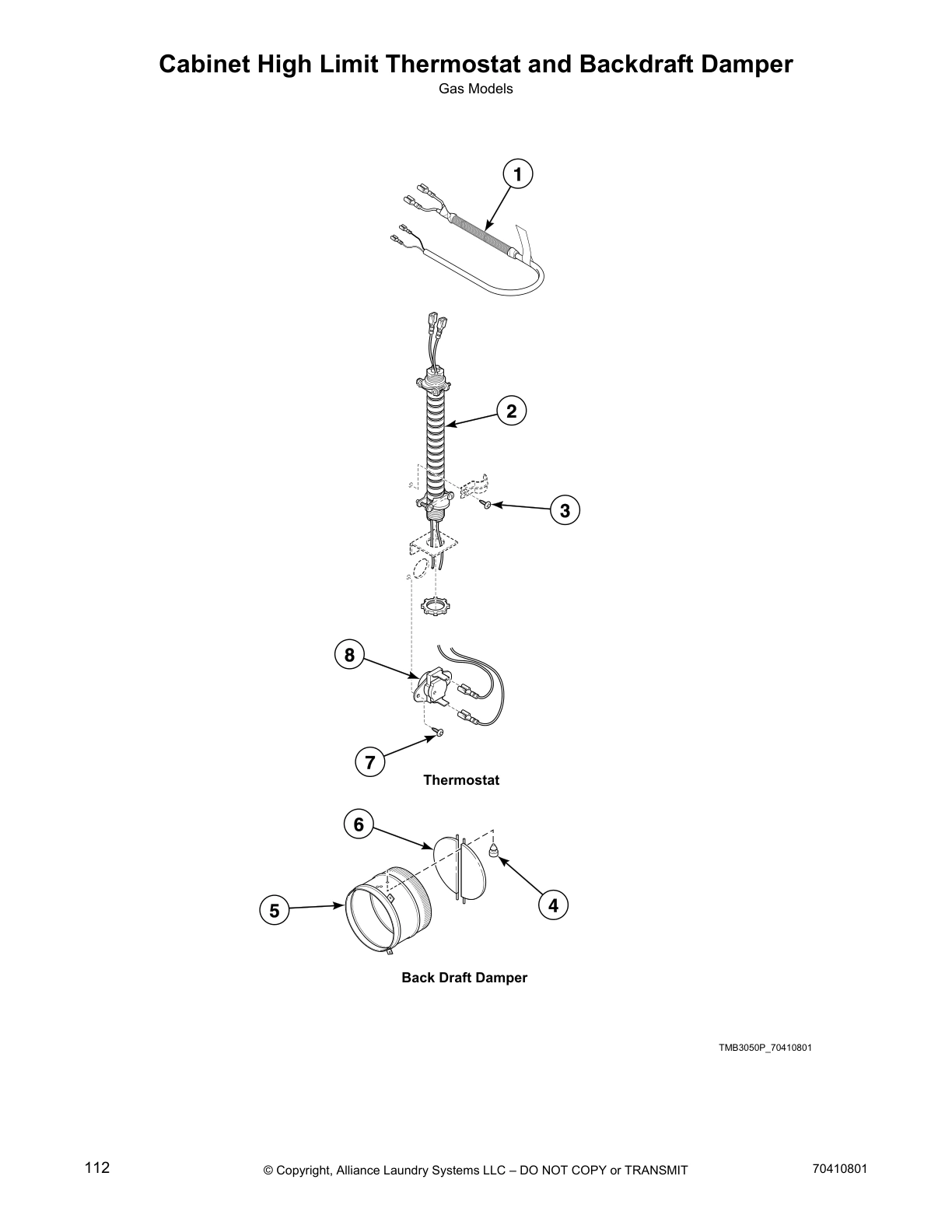

Cabinet High Limit Thermostat and Backdraft Damper

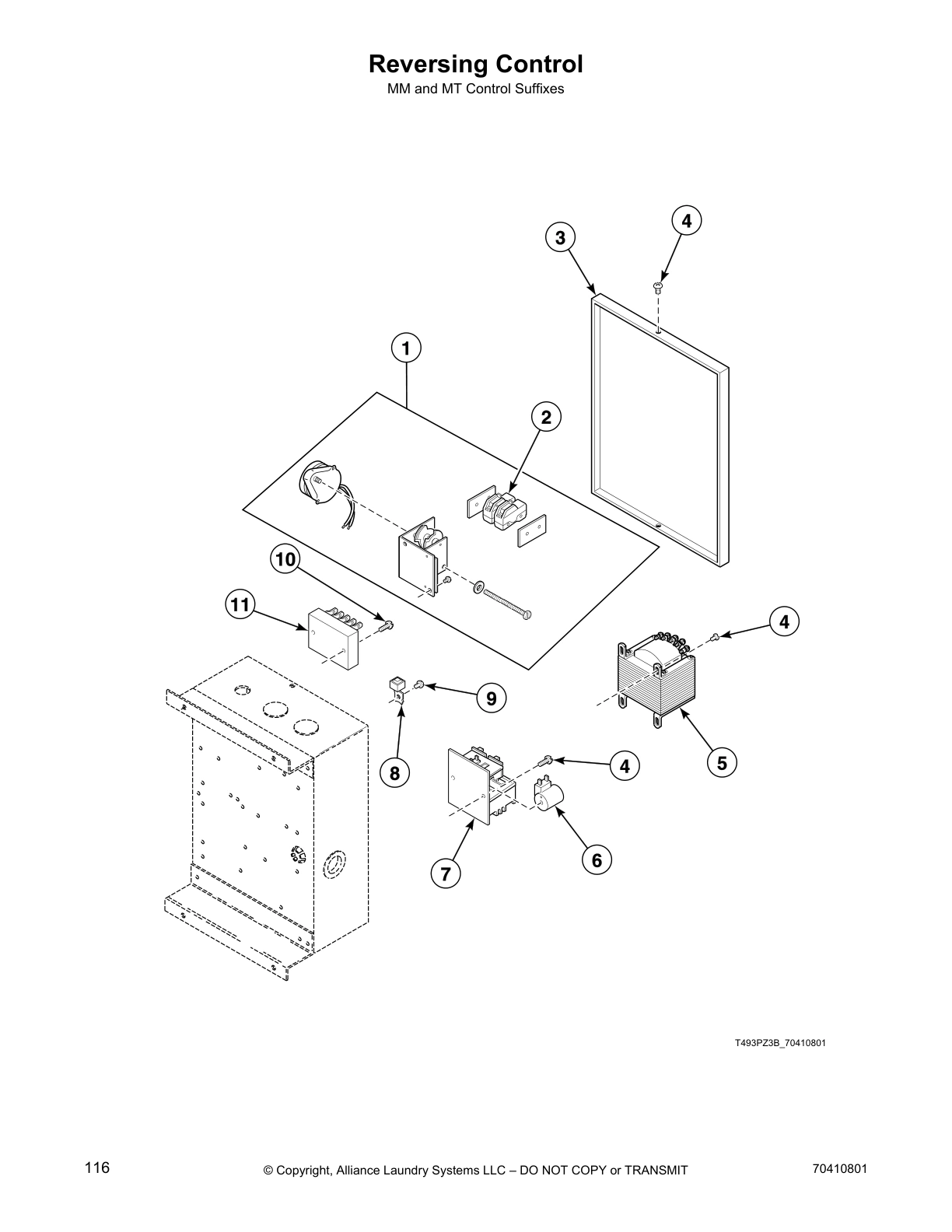

Reversing Control

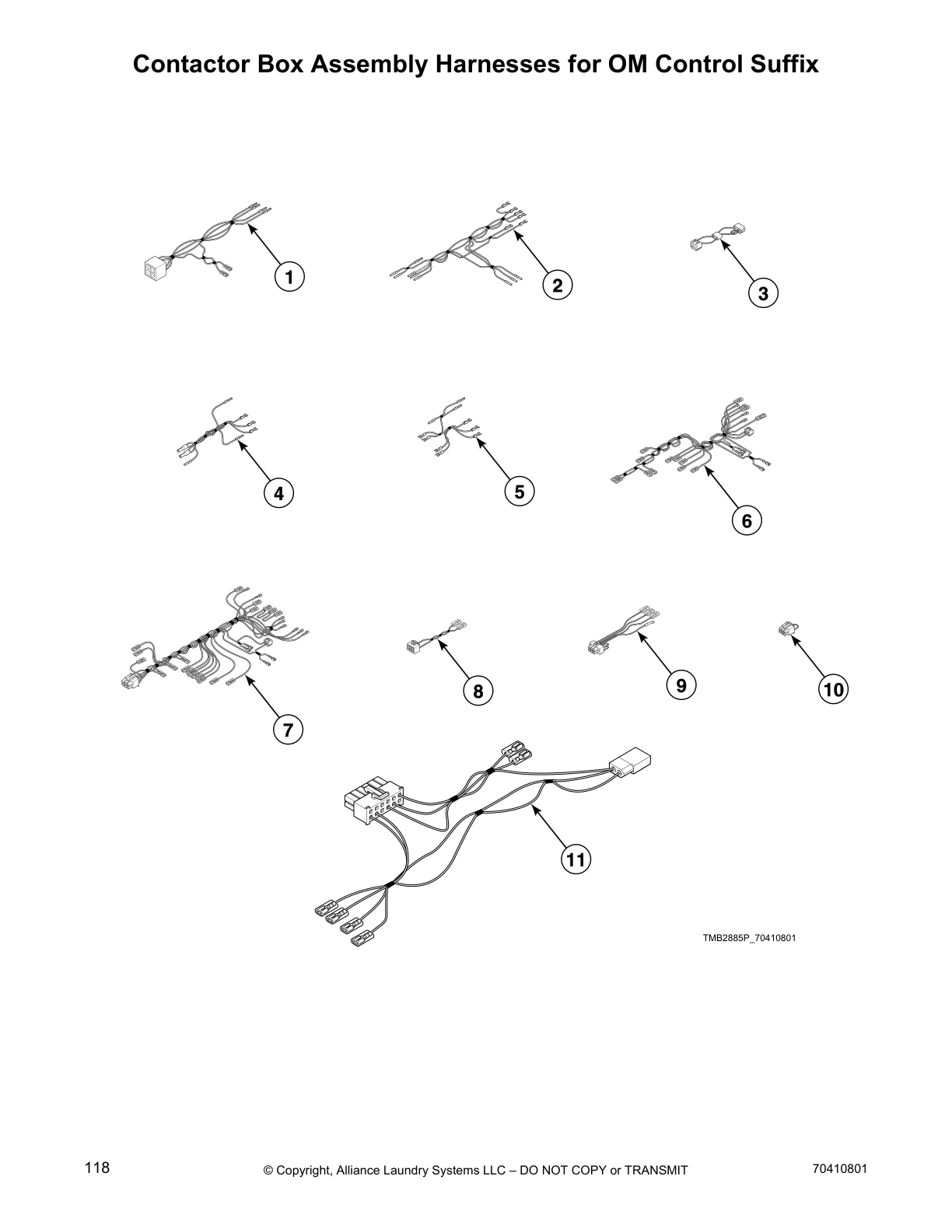

Contactor Box Assembly Harnesses for OM Control Suffix

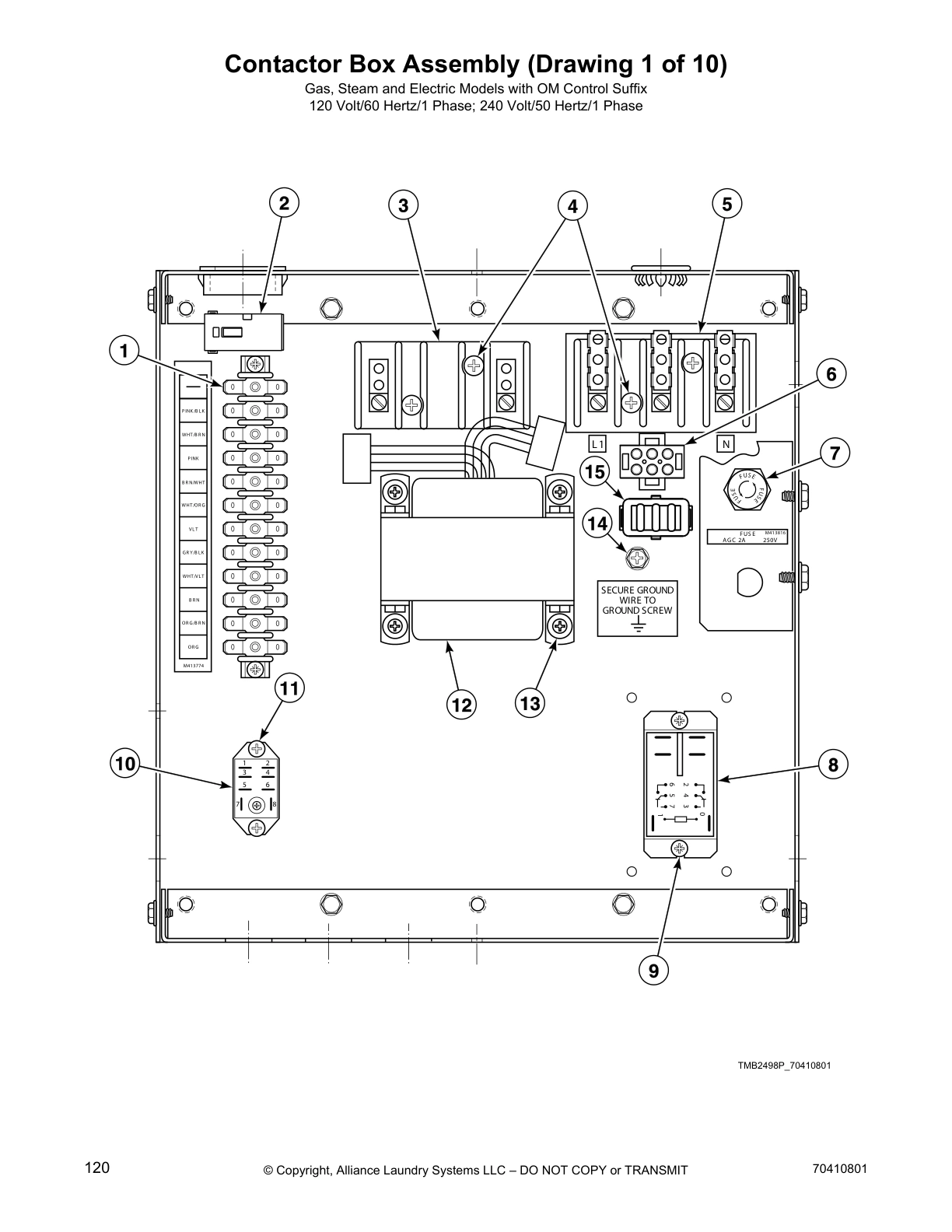

Contactor Box Assembly (Drawing 1 of 10)

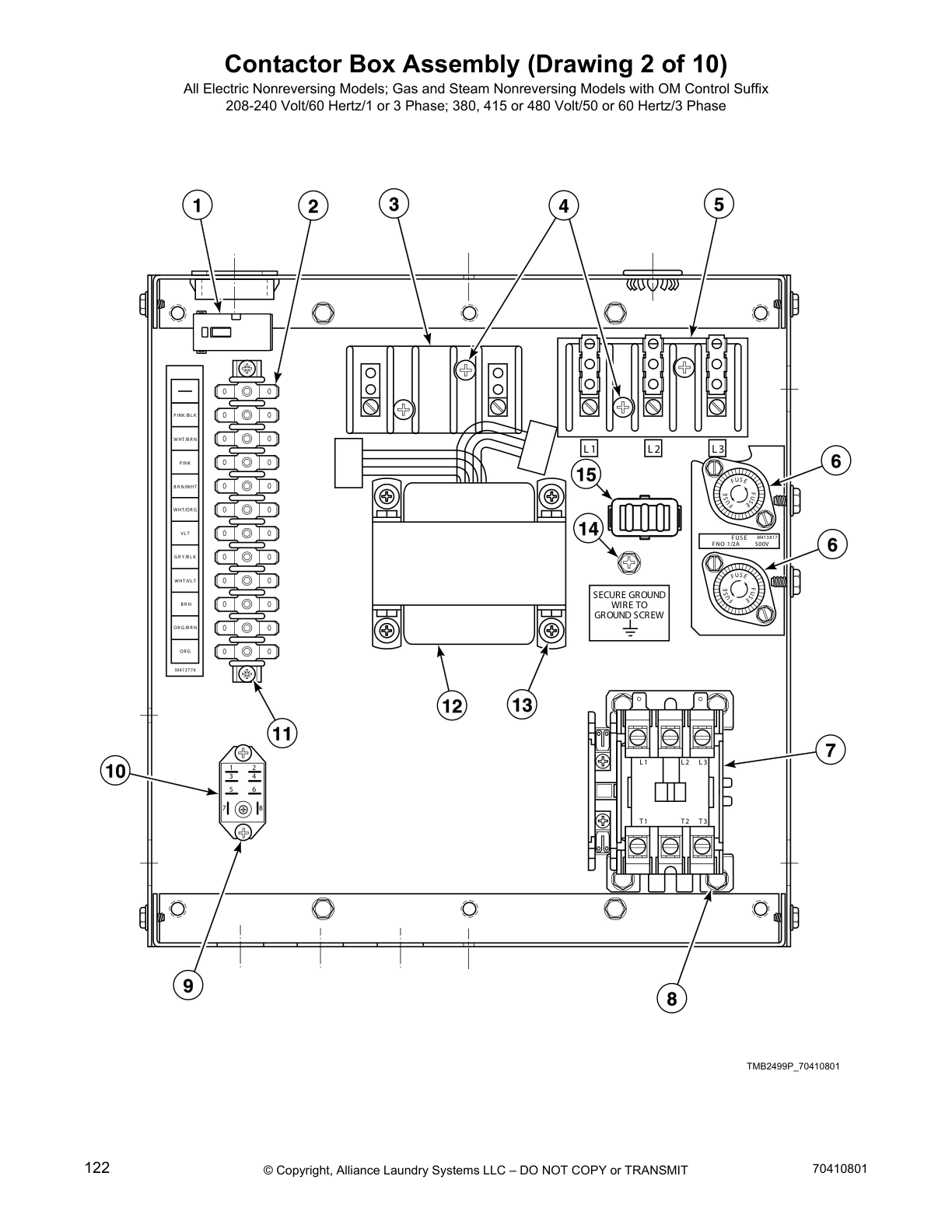

Contactor Box Assembly (Drawing 2 of 10)

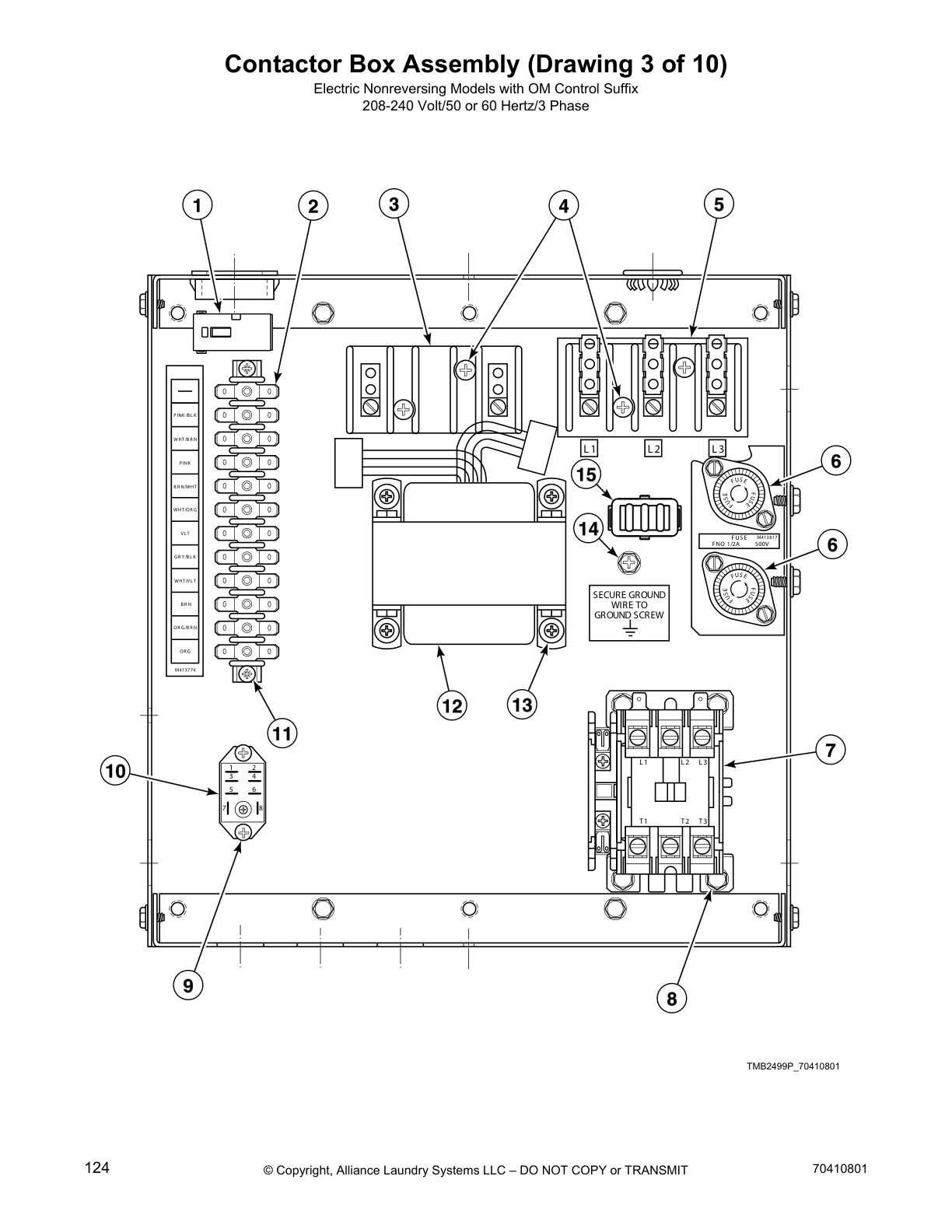

Contactor Box Assembly (Drawing 3 of 10)

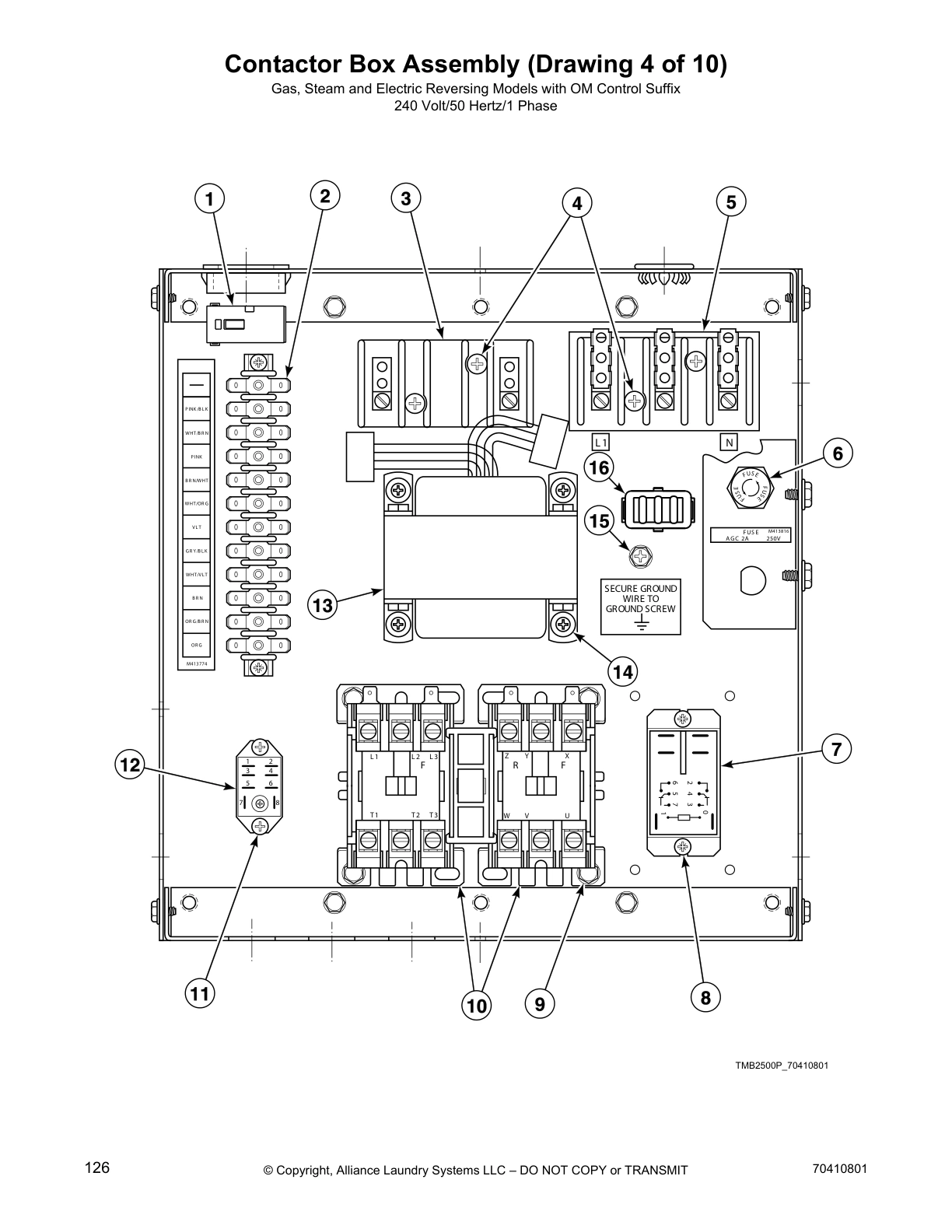

Contactor Box Assembly (Drawing 4 of 10)

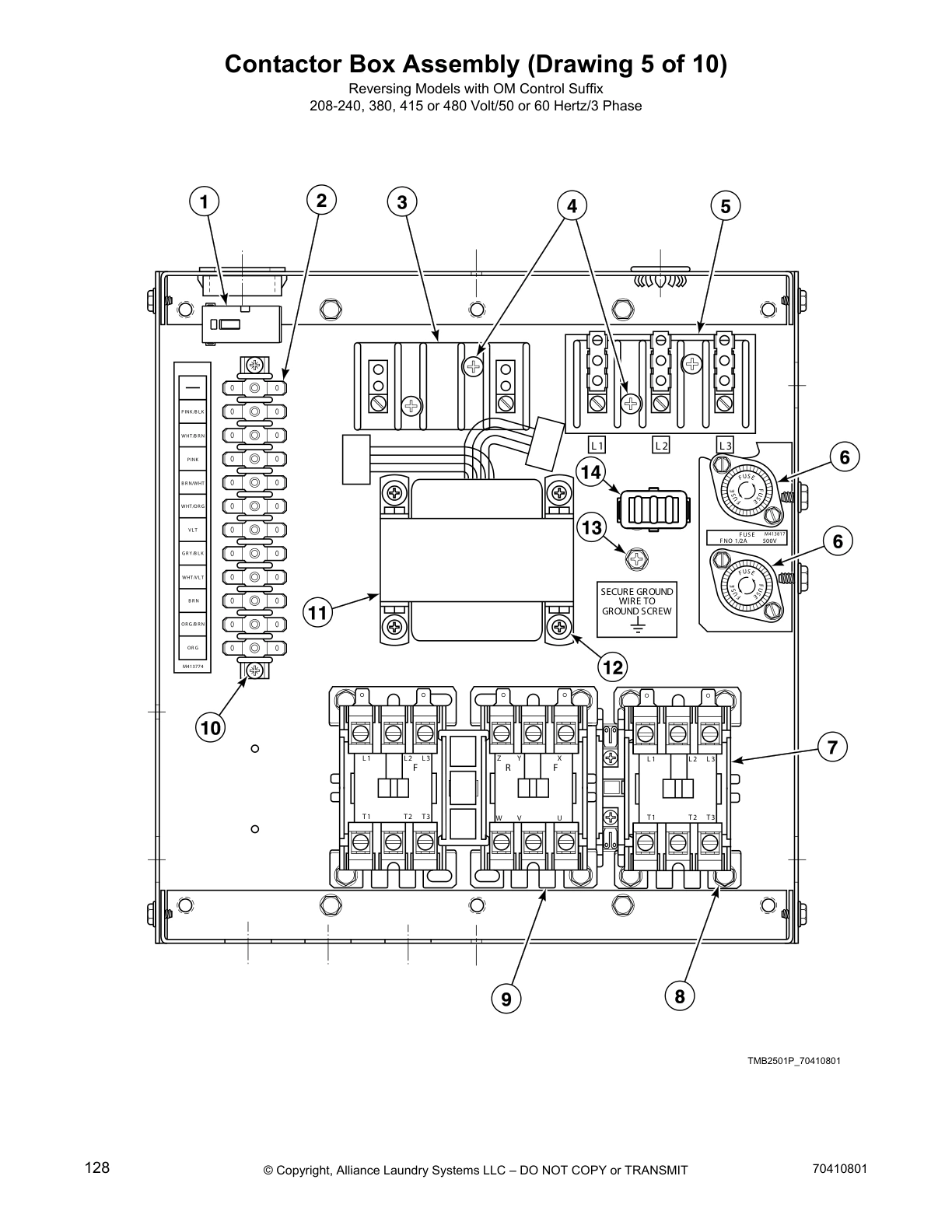

Contactor Box Assembly (Drawing 5 of 10)

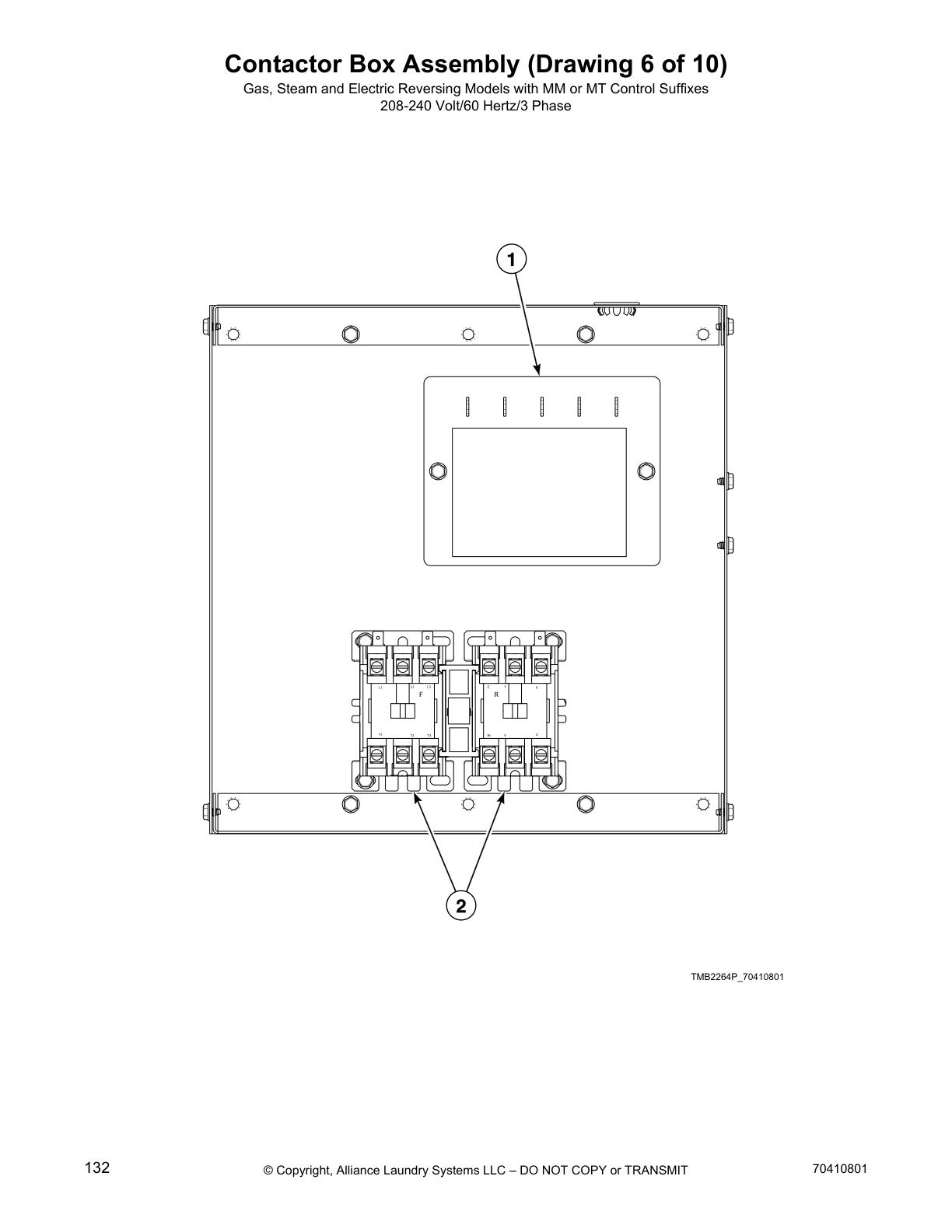

Contactor Box Assembly (Drawing 6 of 10)

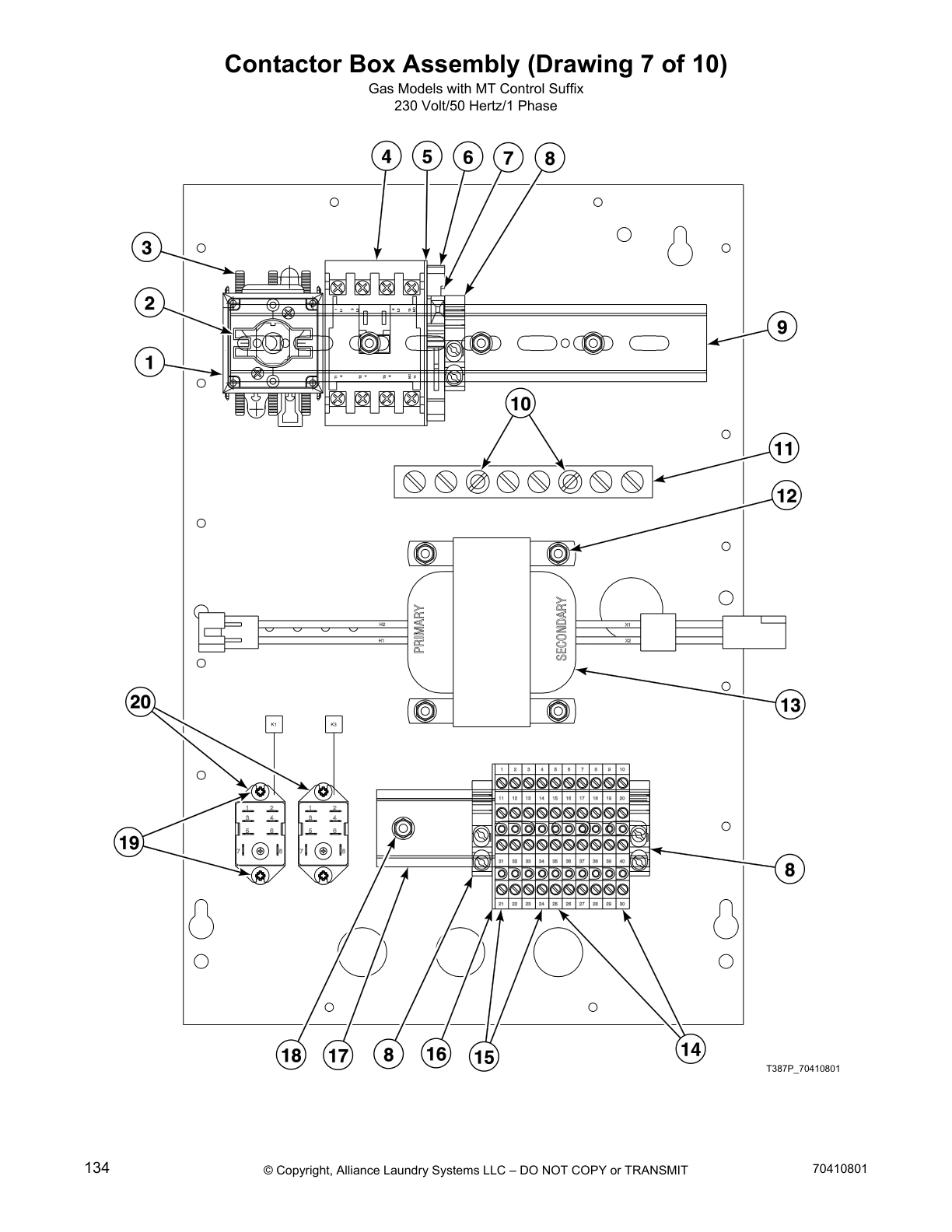

Contactor Box Assembly (Drawing 7 of 10)

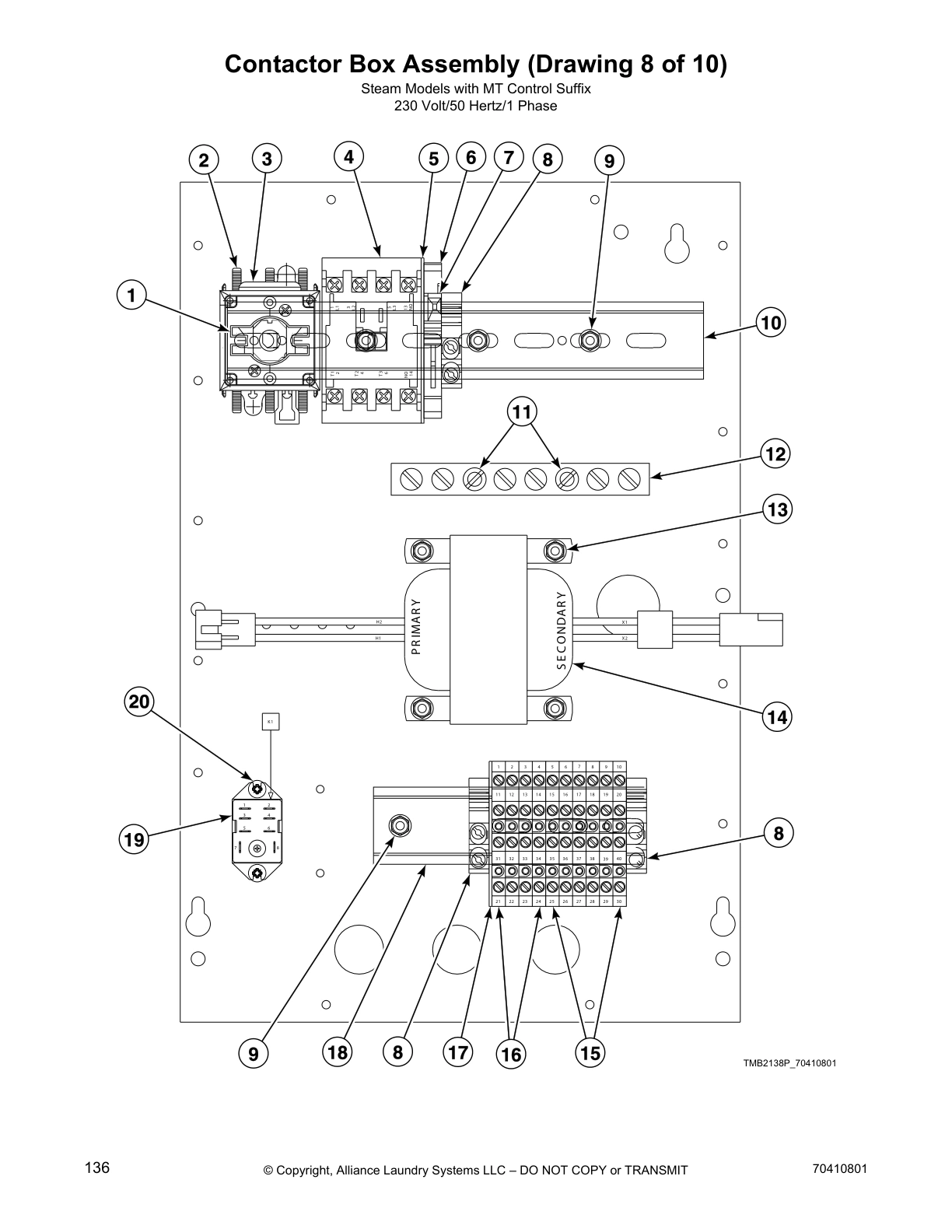

Contactor Box Assembly (Drawing 8 of 10)

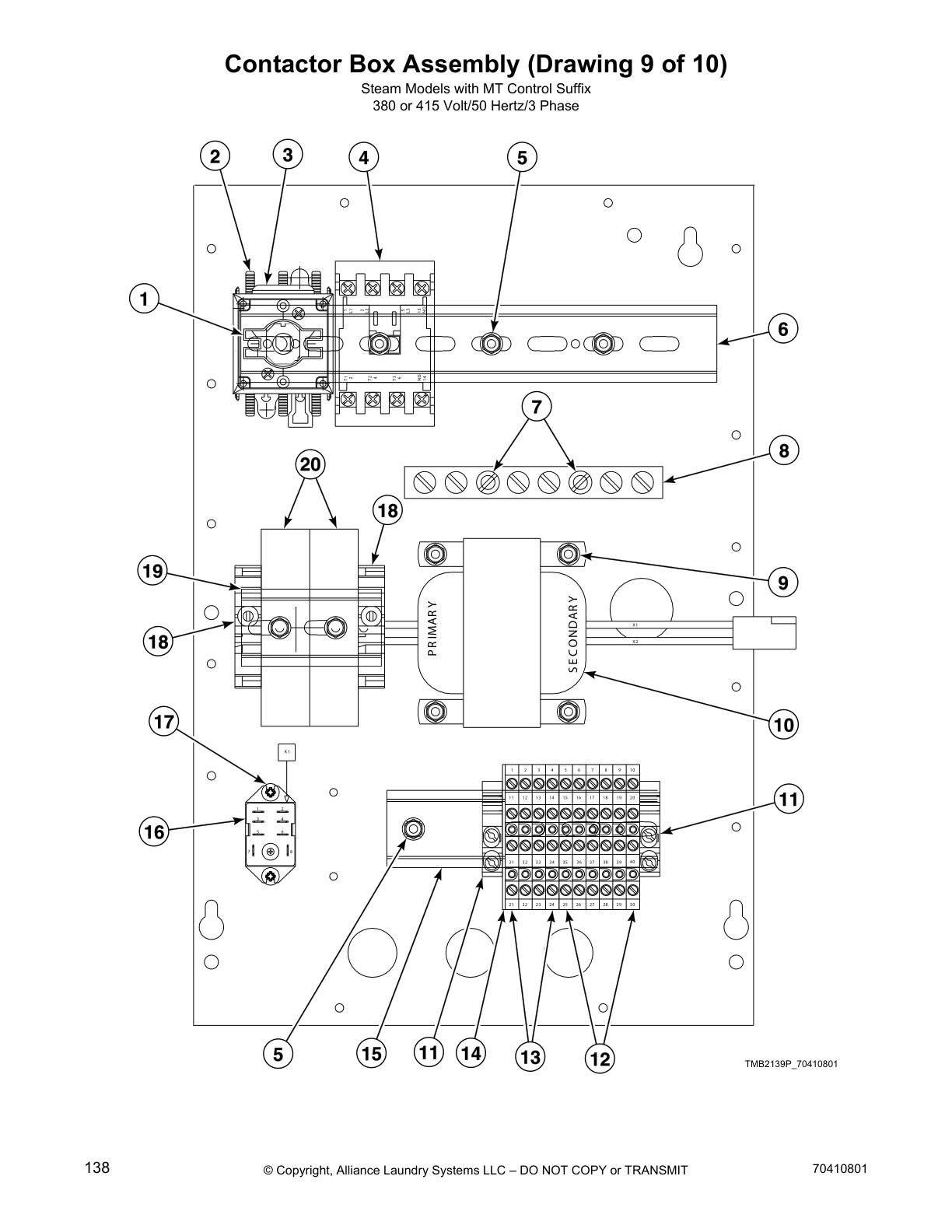

Contactor Box Assembly (Drawing 9 of 10)

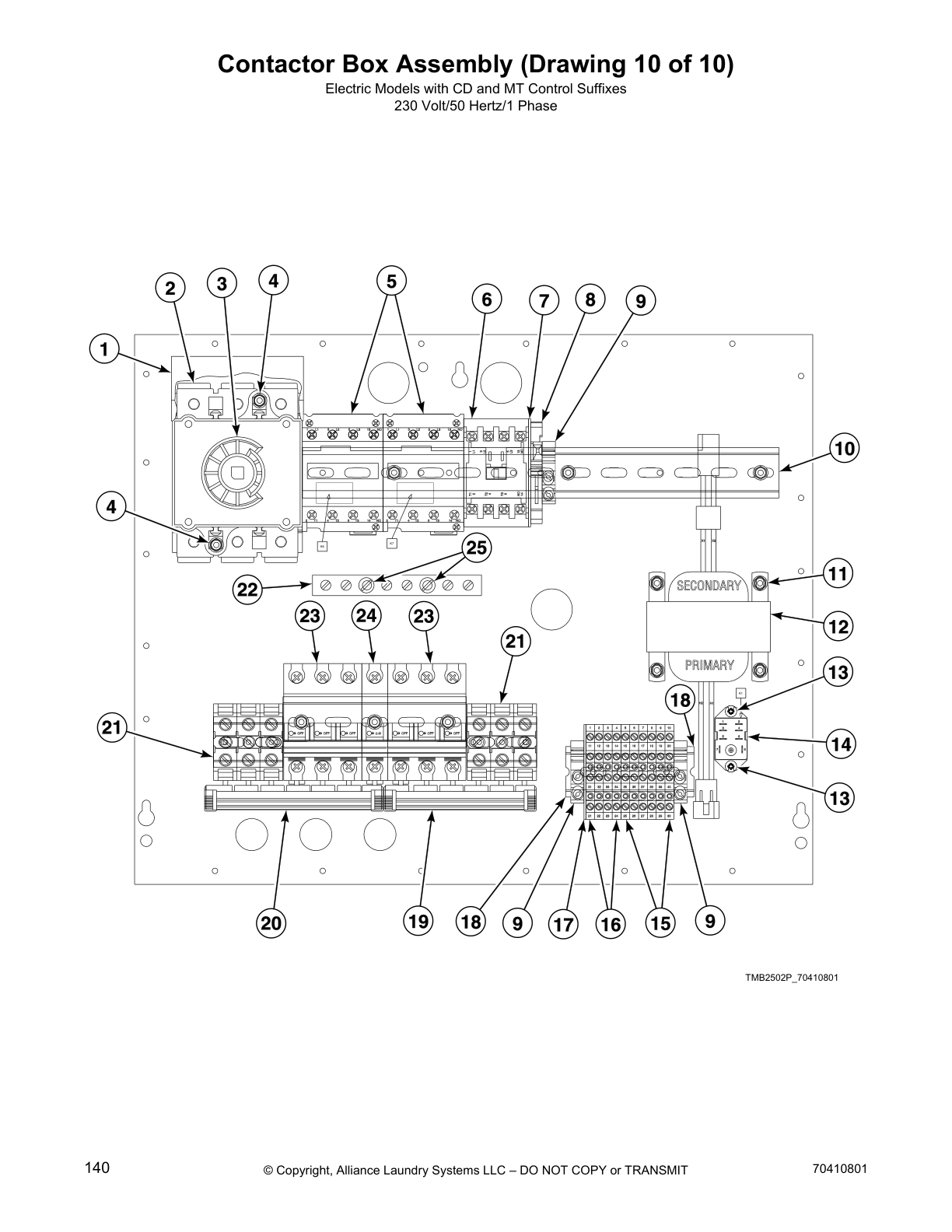

Contactor Box Assembly (Drawing 10 of 10)

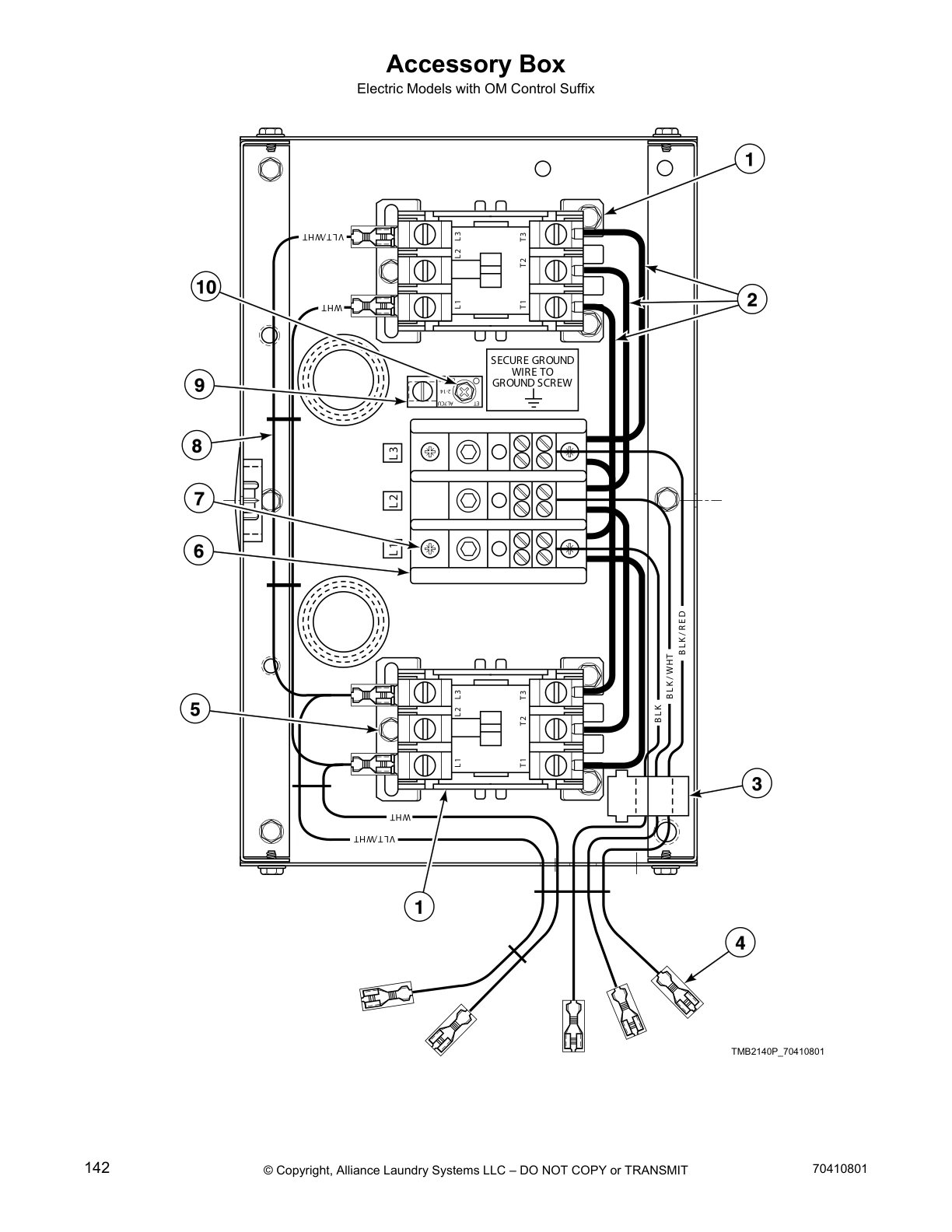

Accessory Box

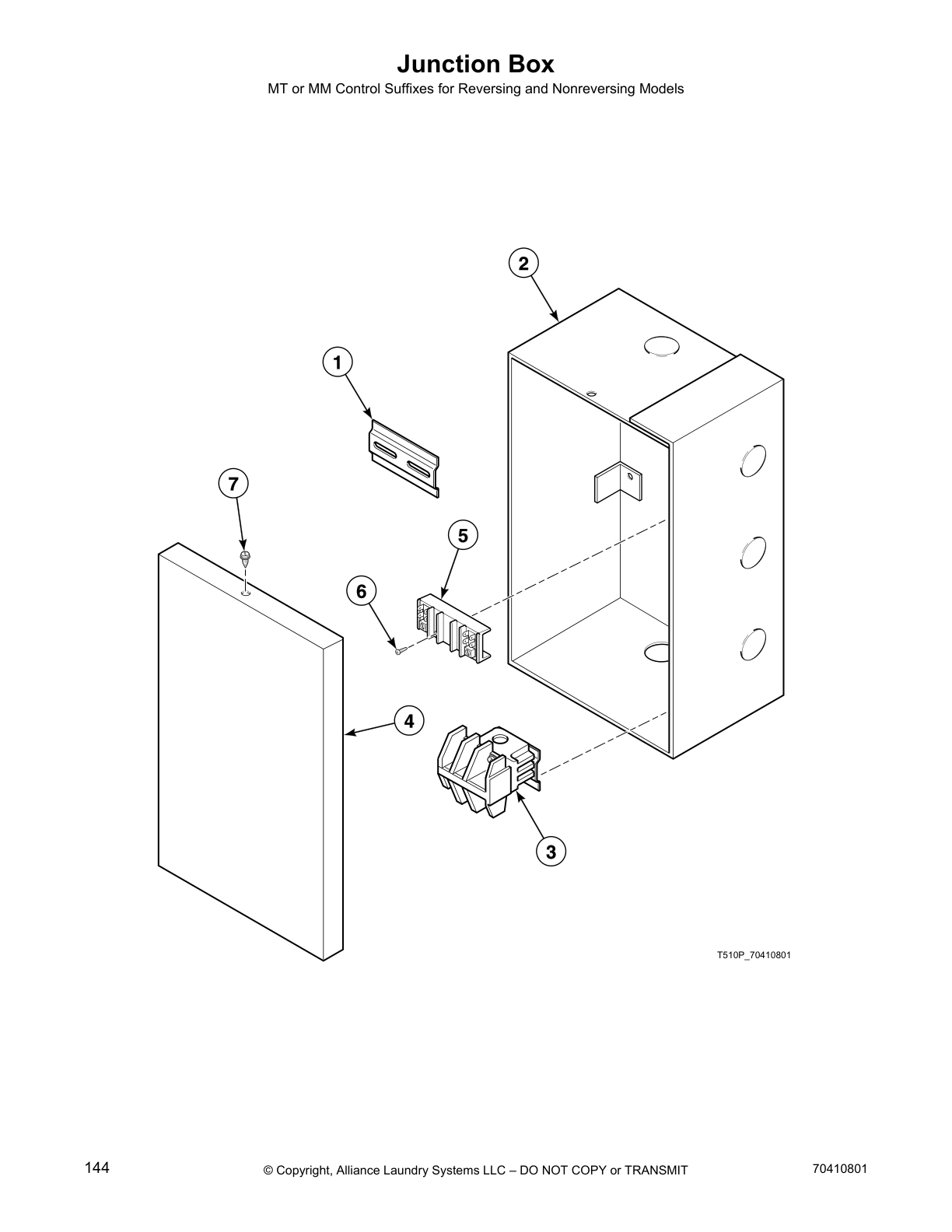

Junction Box
Common parts from model Speed Queen ST120CSH Dryer
Network Capacitor Harness Assembly SPQ M413624 Contact Us For Availability
1
Bushing SPQ H87529111P Contact Us For Availability
1
Reversing Timer SPQ M411683 Contact Us For Availability
2
Ignition Control SPQ M406789P Contact Us For Availability
2
Washer SPQ M400015 Contact Us For Availability
2
Washer SPQ M400013 Contact Us For Availability
2
Fan and Bushing Assembly SPQ M414546 Contact Us For Availability
2
Reversing Contactor Kit SPQ M4849P3 Contact Us For Availability
3
Steam Valve Coil SPQ M412258 Contact Us For Availability
3
Jumper Configuration Assembly SPQ M413510 Contact Us For Availability
3
Fuse Receptacle SPQ M413863 Contact Us For Availability
3
Contactor SPQ M410529 Contact Us For Availability
4
Steam Valve SPQ 70205701P Contact Us For Availability
5
Nut SPQ 44046301P Contact Us For Availability
5
Jumper Harness Assembly SPQ M413508 Contact Us For Availability
5
Terminal Block SPQ M410457P Contact Us For Availability
6
Network Capacitor Harness Ass SPQ M413878 Contact Us For Availability
7
Fan Contactor SPQ 91024P Contact Us For Availability
7
Steam Valve SPQ M413299P Contact Us For Availability
7
Screw SPQ M405364 Contact Us For Availability
8
Thermistor SPQ M413212P Contact Us For Availability
8
SPQ 22688 SPQ 22688 Contact Us For Availability
8
SPQ M401938 SPQ M401938 Contact Us For Availability
8
Reversing Contactor SPQ M413118 Contact Us For Availability
9
SPQ 70142 SPQ 70142 Contact Us For Availability
9
SPQ M413614P SPQ M413614P Contact Us For Availability
10
Timer Kit SPQ M410900P Contact Us For Availability
10
Bypass Harness Assembly SPQ M413168 Contact Us For Availability
10
Screw SPQ 51778 Contact Us For Availability
11
Steam Valve Rebuild Kit SPQ M412259 Contact Us For Availability
11
Transformer SPQ M414229P Contact Us For Availability
12
Network Capacitor Assembly SPQ M414228P Contact Us For Availability
14
Terminal Block SPQ M400044 Contact Us For Availability
15
Terminal Block SPQ M413100P Contact Us For Availability
18
Bushing SPQ M412917P Contact Us For Availability
19
SPQ M409385 SPQ M409385 Contact Us For Availability
NI
SPQ 44106901P SPQ 44106901P Contact Us For Availability
NI
SPQ M401402 SPQ M401402 Contact Us For Availability
NI
SPQ M413298P SPQ M413298P Contact Us For Availability
NI
SPQ F8322903 SPQ F8322903 Contact Us For Availability
NI
Reversing Contactor Jumper Assembly SPQ M413506 Contact Us For Availability
NI
SPQ M413615P SPQ M413615P Contact Us For Availability
NI
SPQ M405363 SPQ M405363 Contact Us For Availability
× ![]()
