Model Speed Queen ST110CSH Dryer – Common Parts & Diagrams
Single Timer Control
Dual Timer Controls

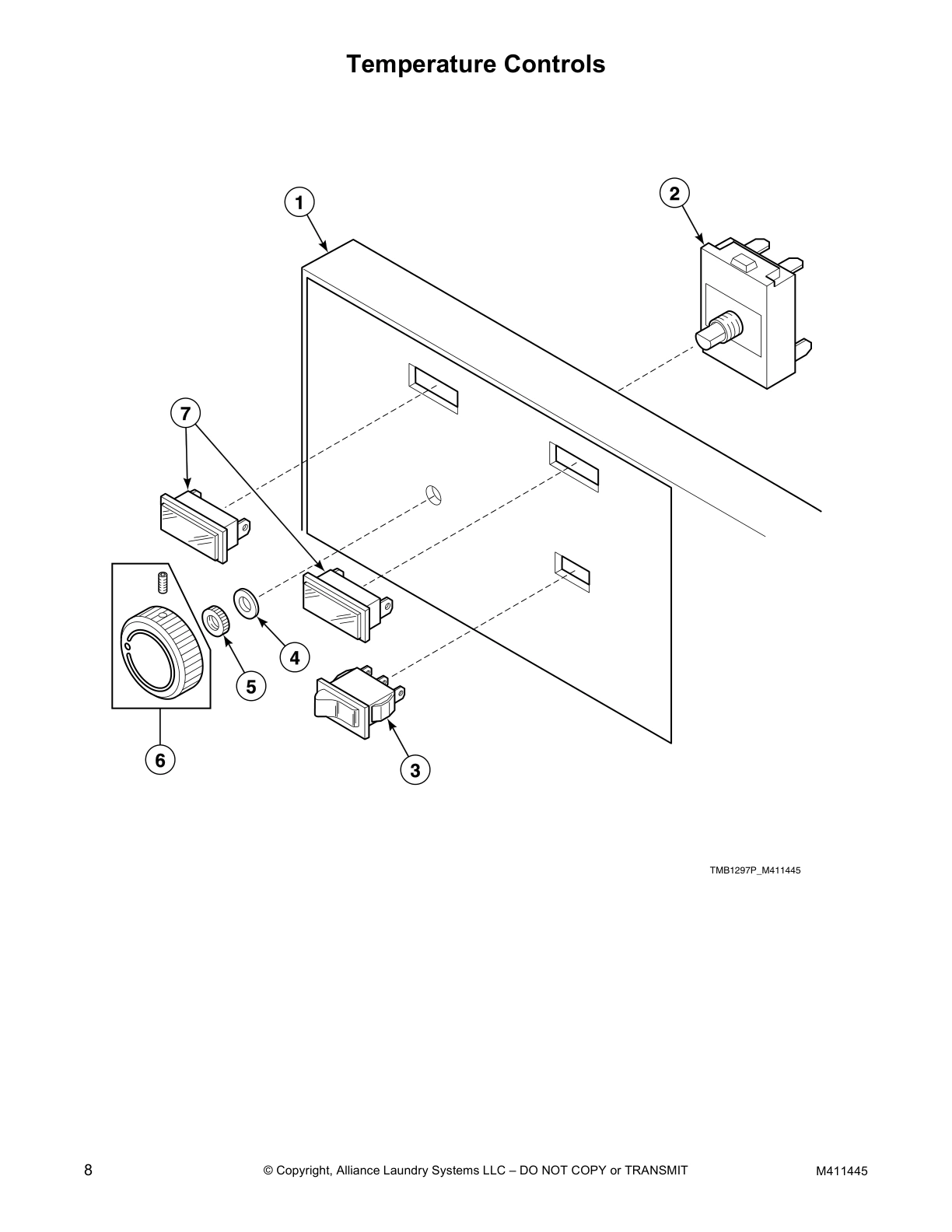

Temperature Controls

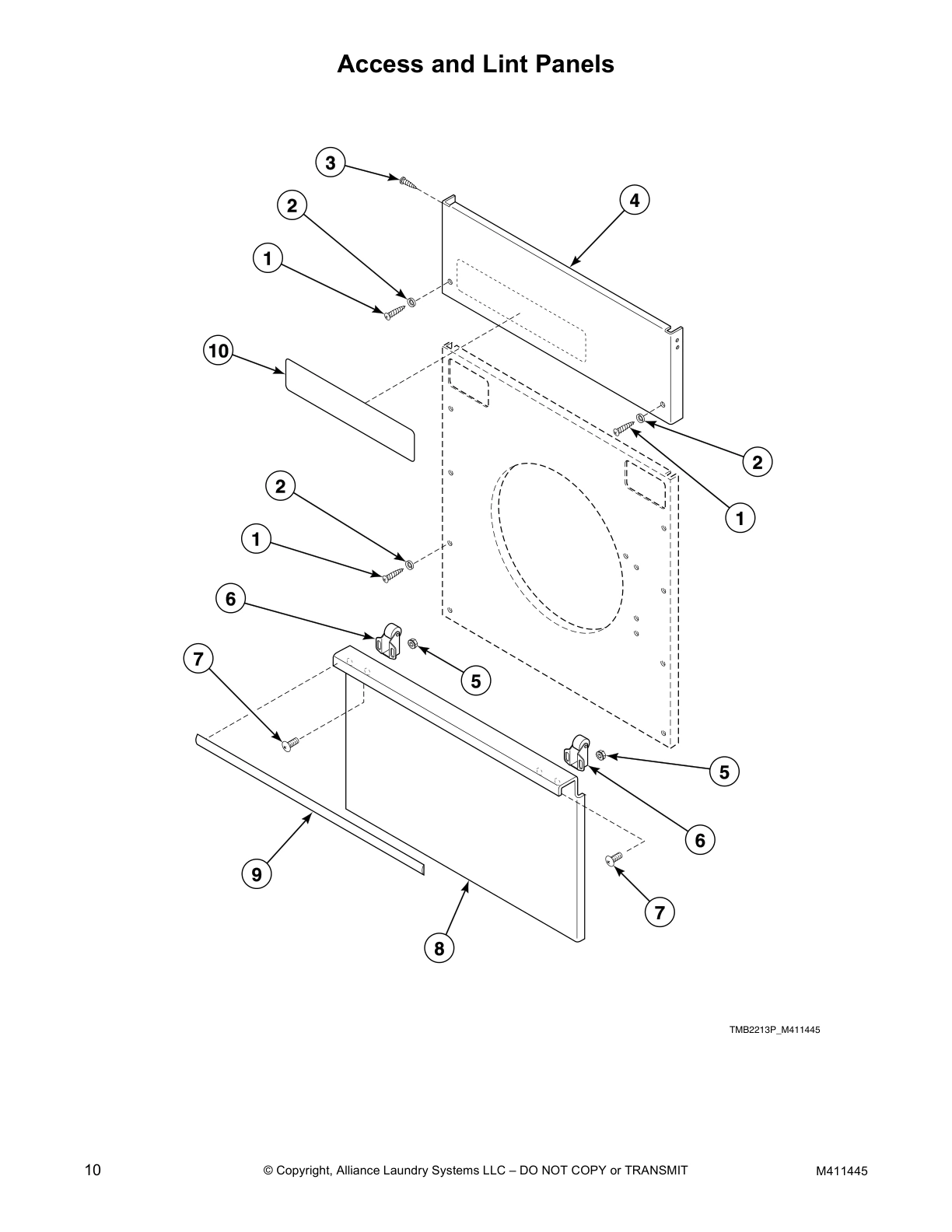

Access and Lint Panels

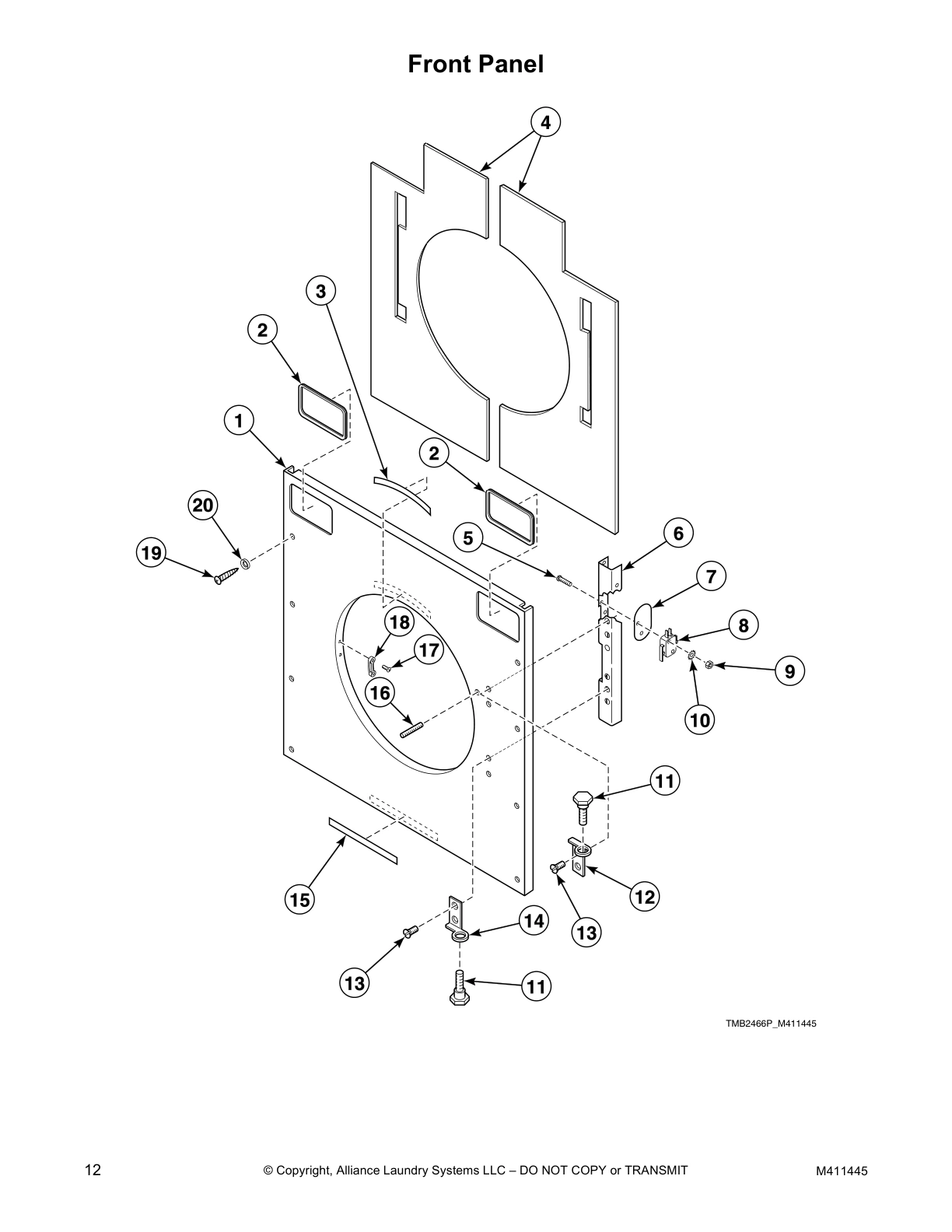

Front Panel

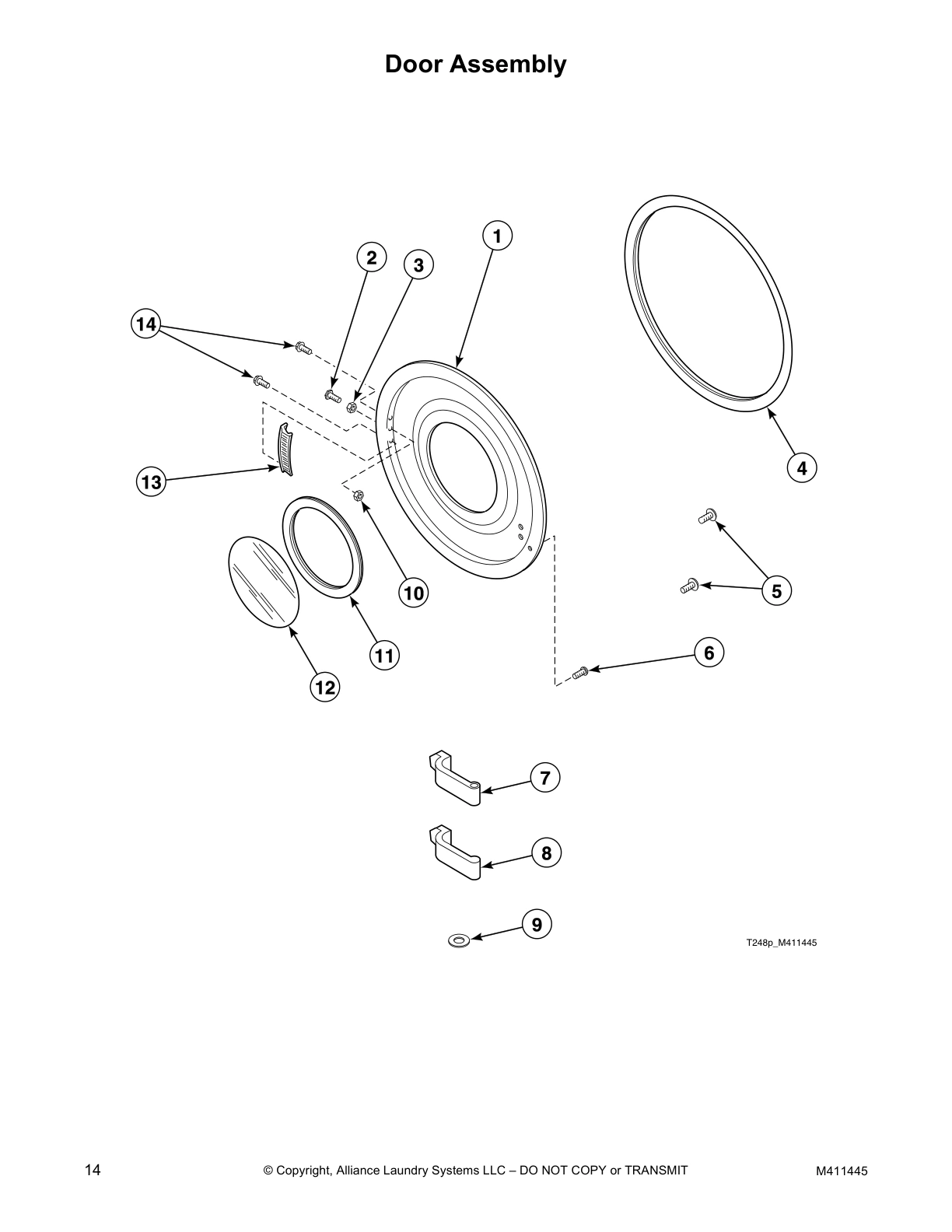

Door Assembly

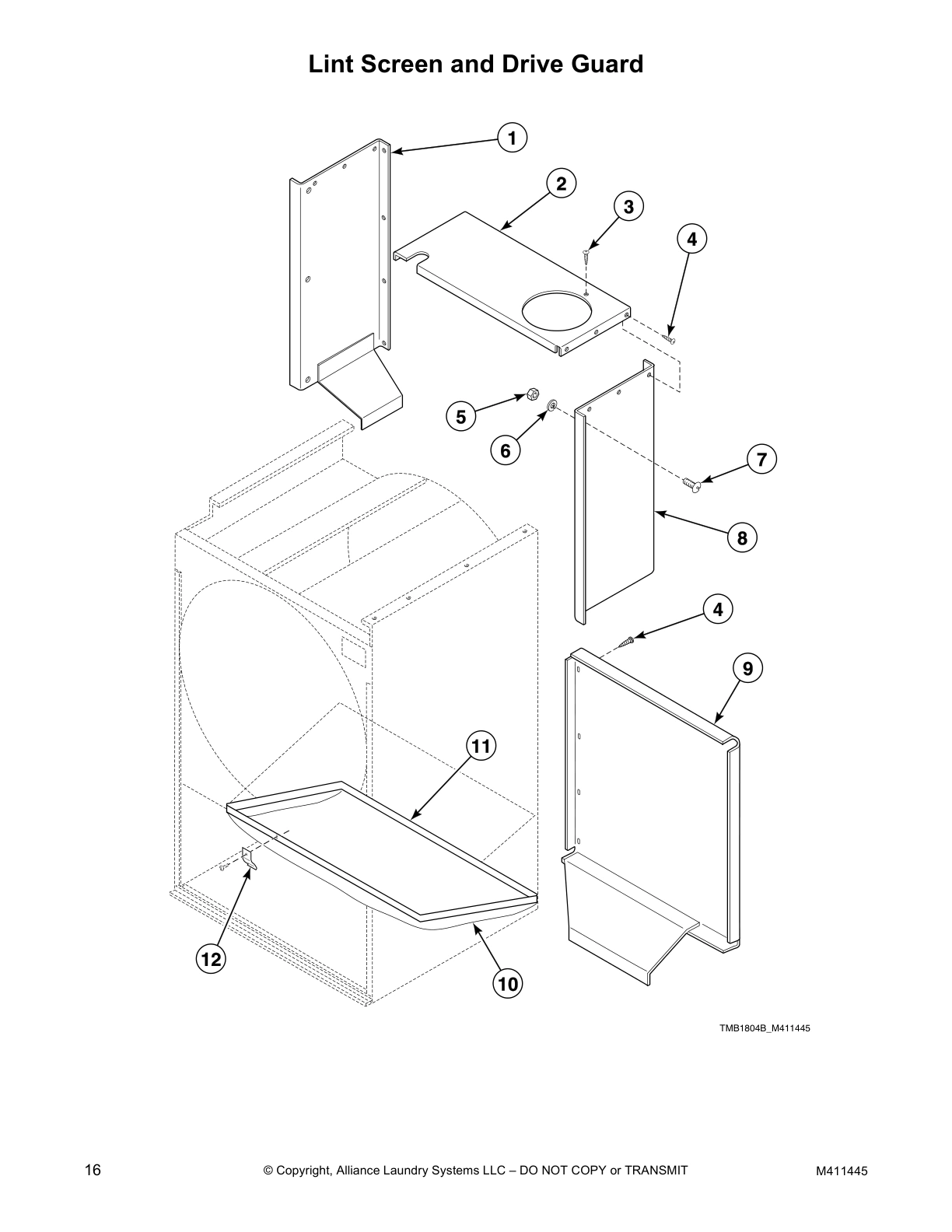

Lint Screen and Drive Guard

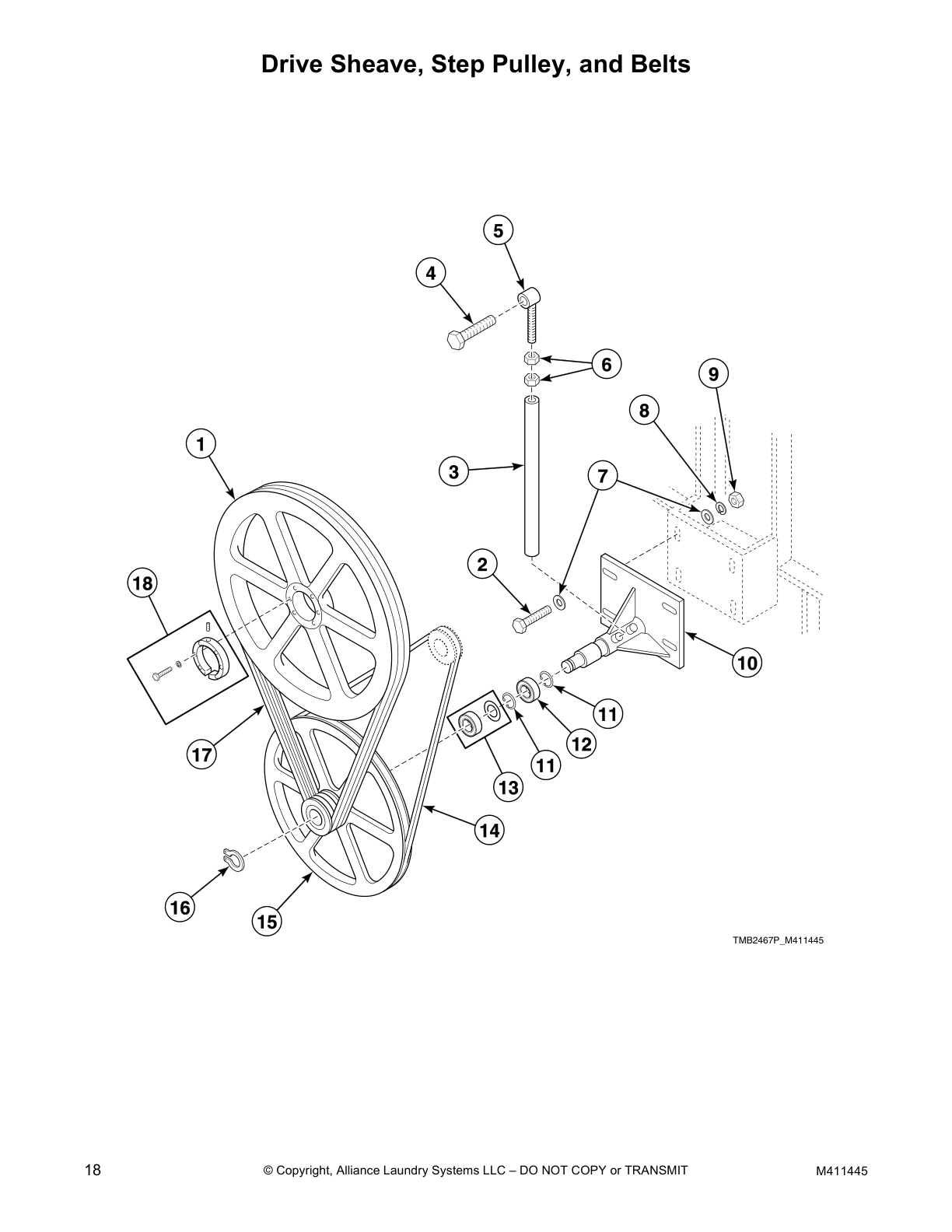

Drive Sheave, Step Pulley, and Belts

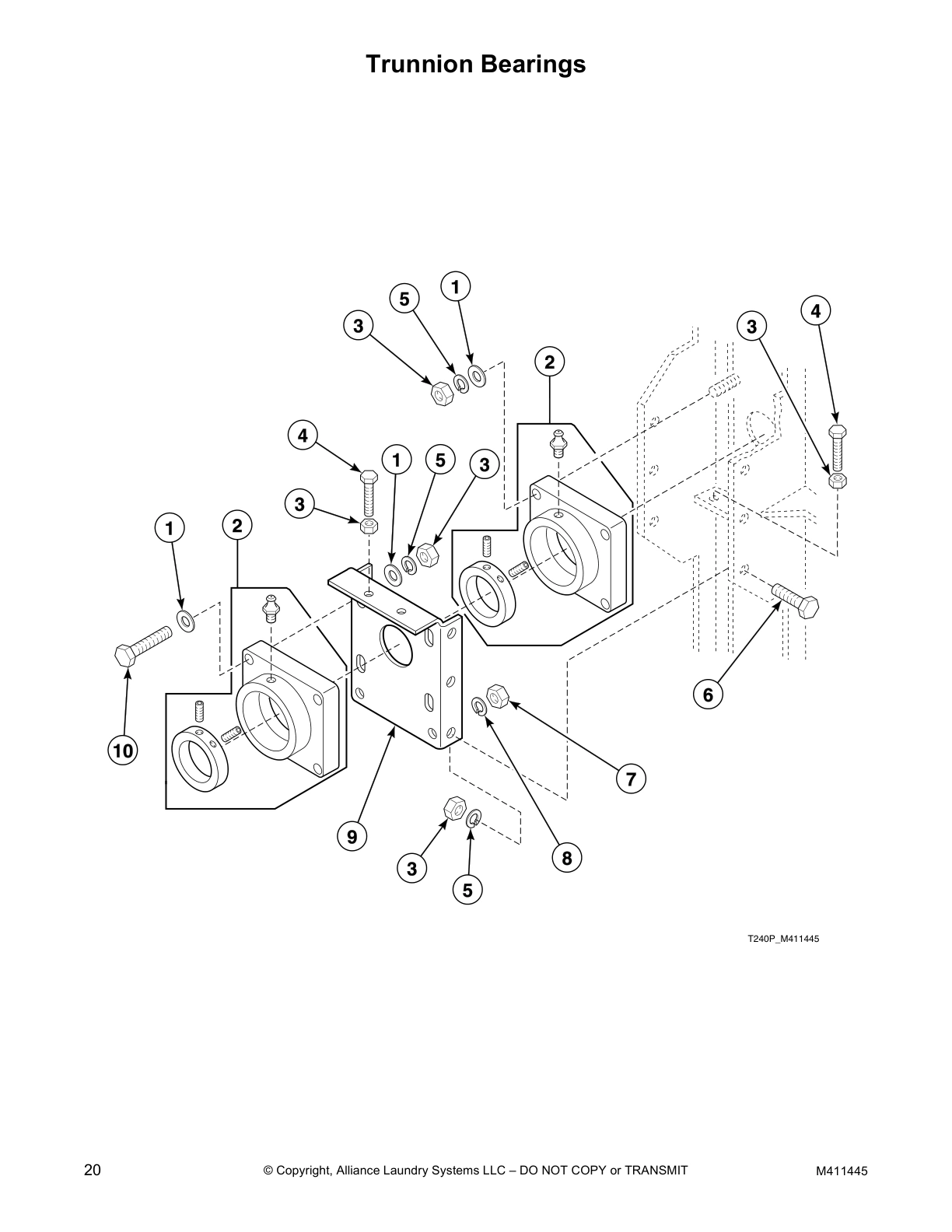

Trunnion Bearings

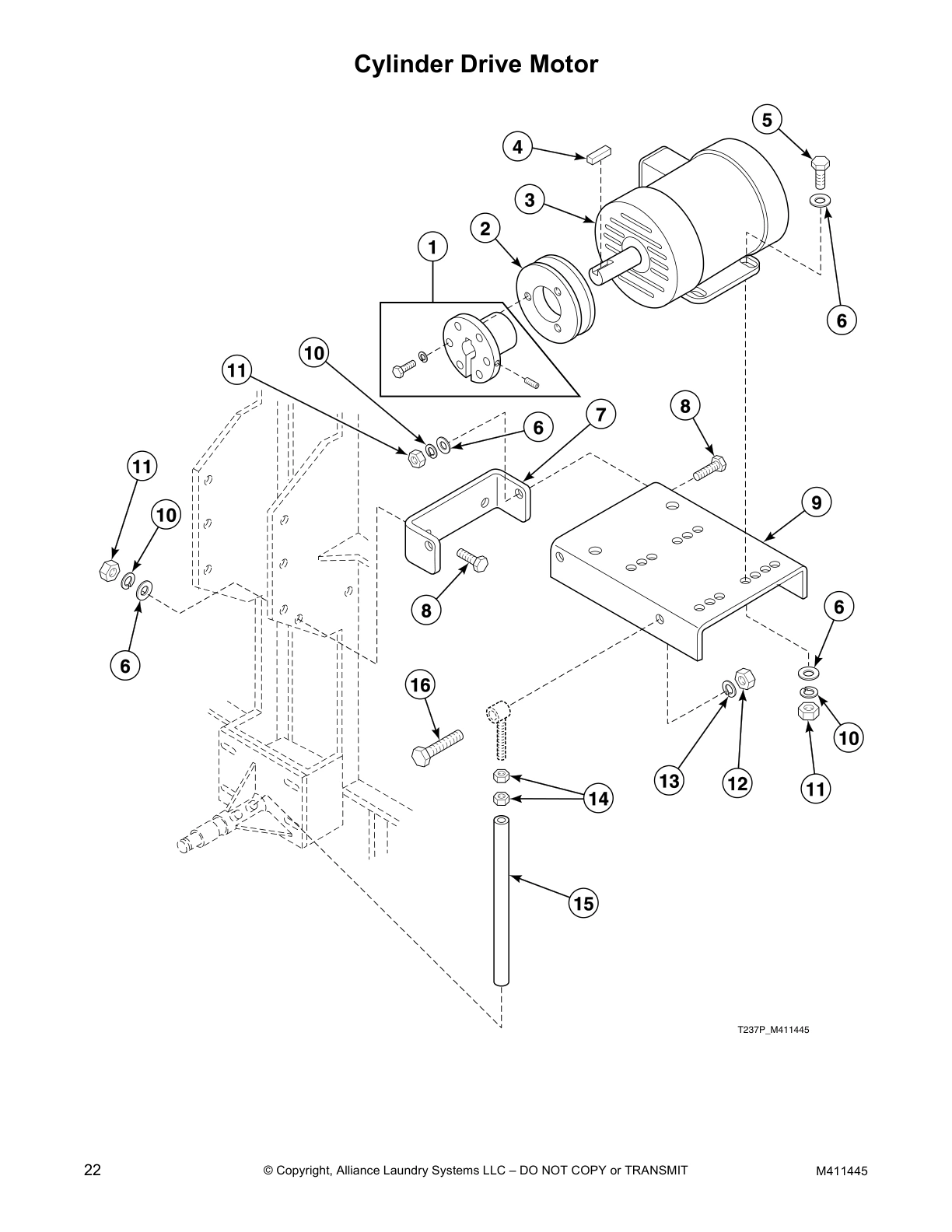

Cylinder Drive Motor

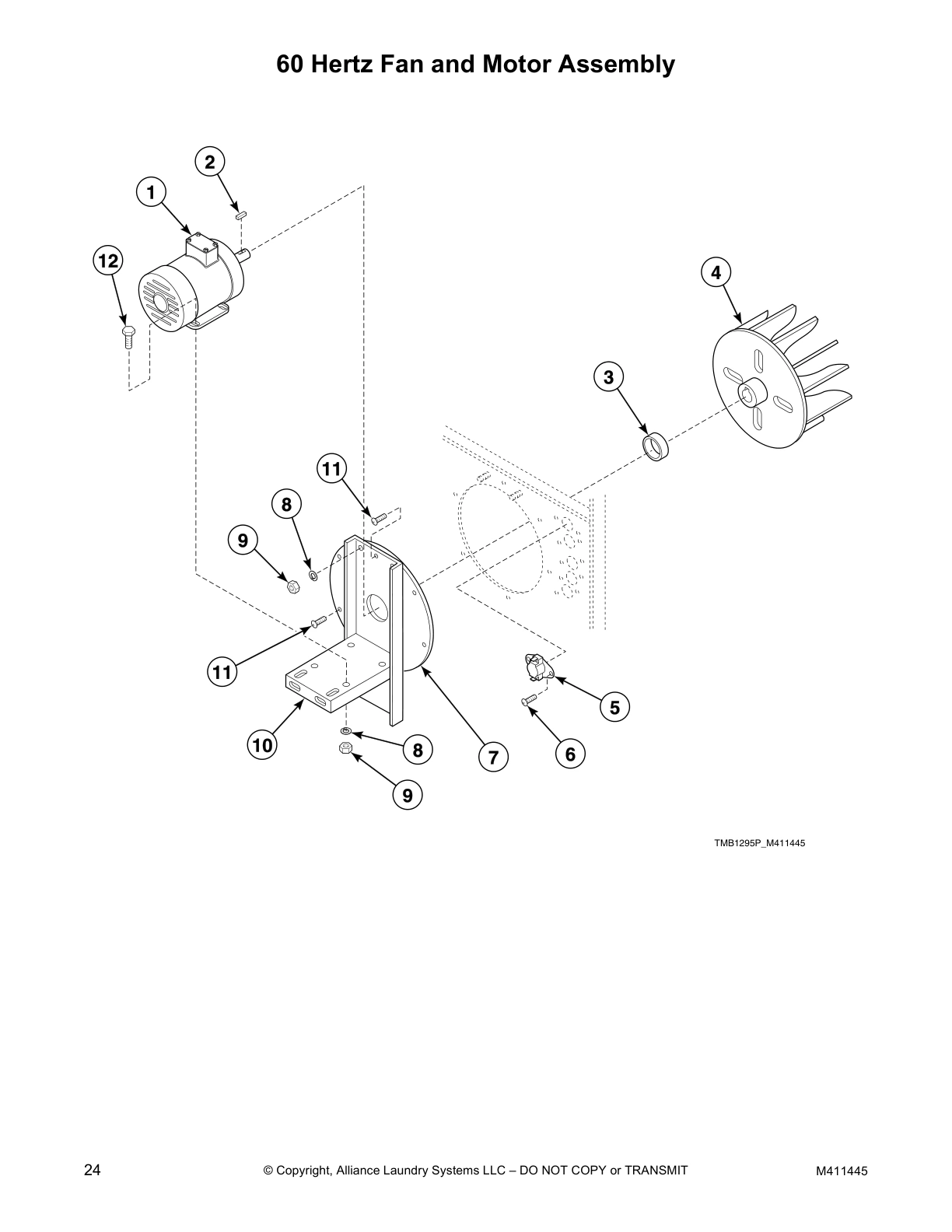

60 Hertz Fan and Motor Assembly

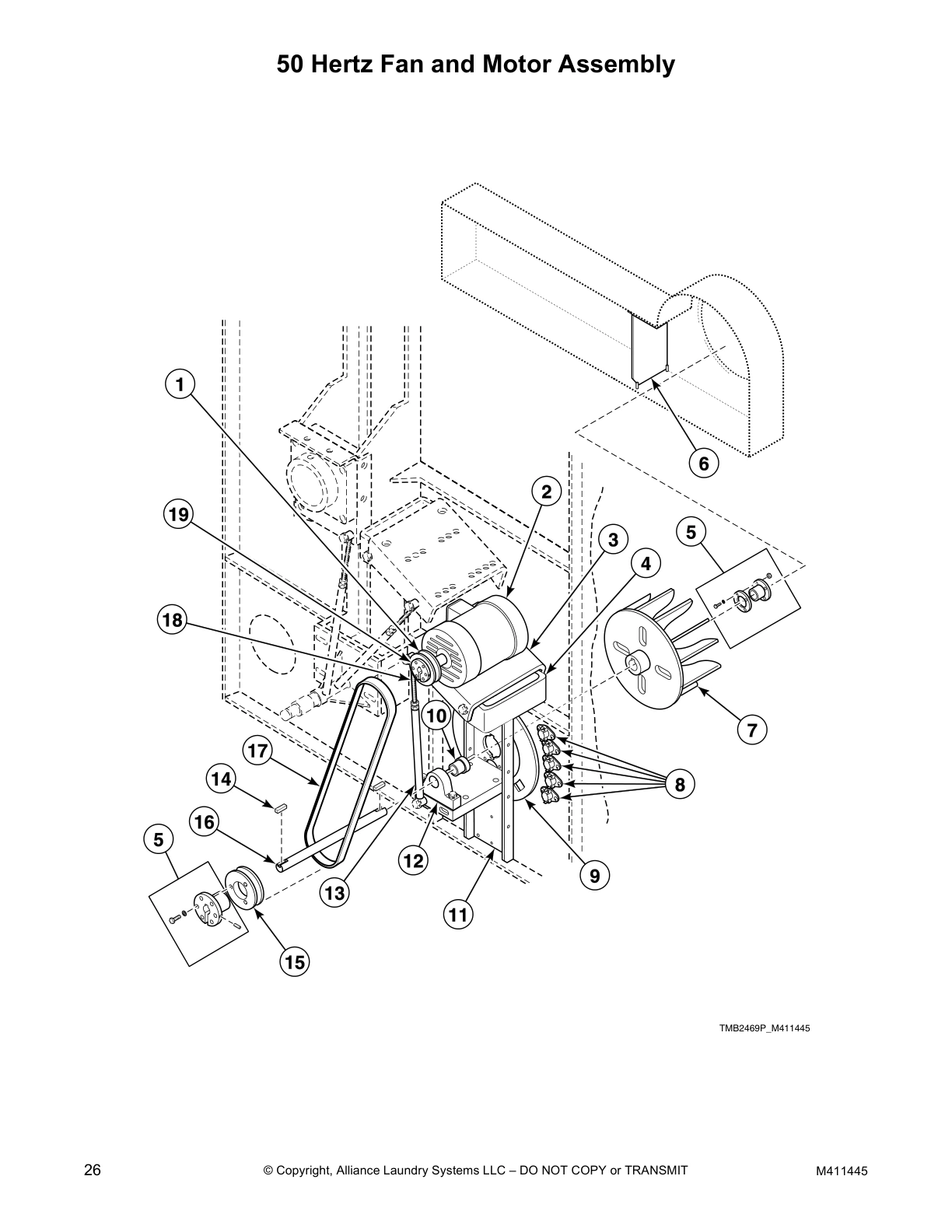

50 Hertz Fan and Motor Assembly

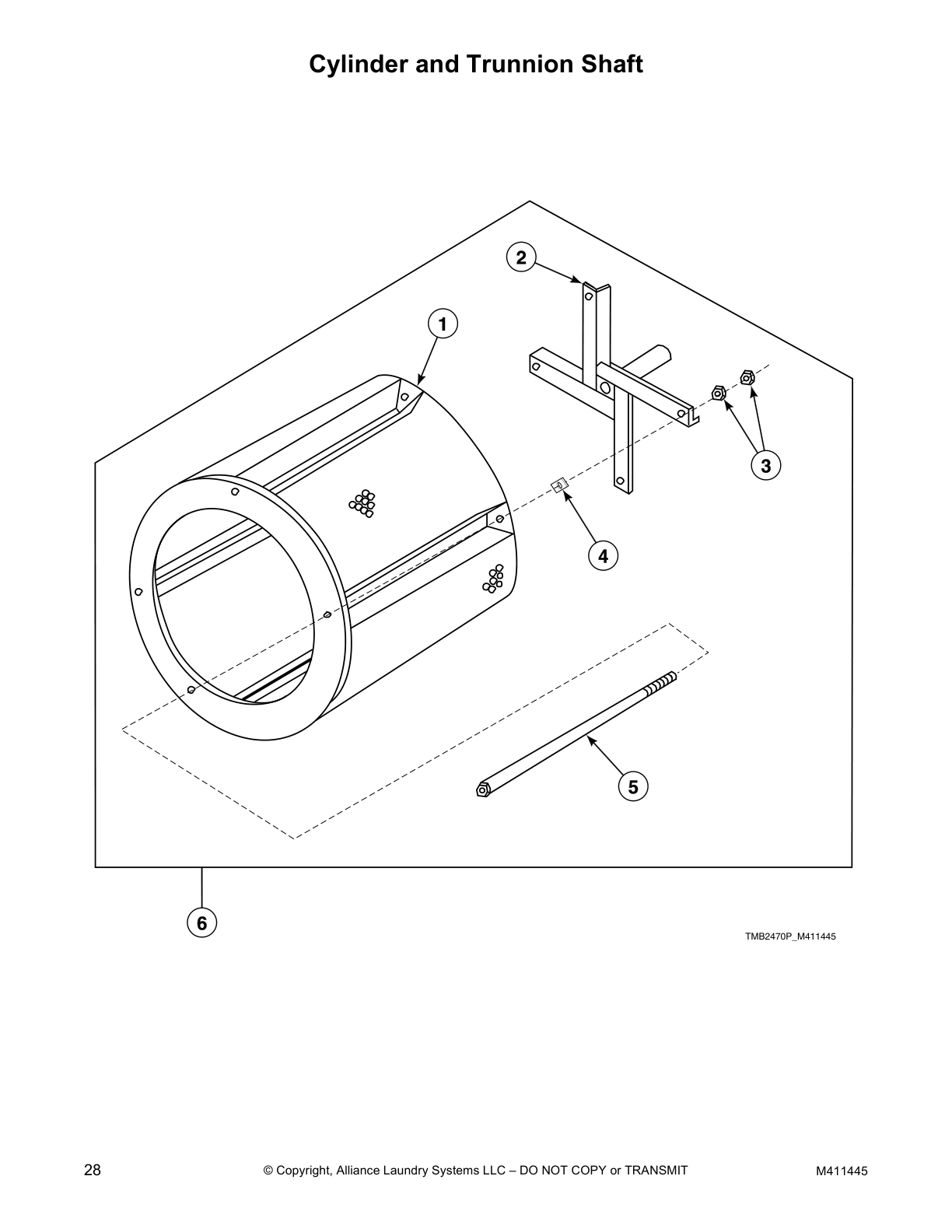

Cylinder and Trunnion Shaft

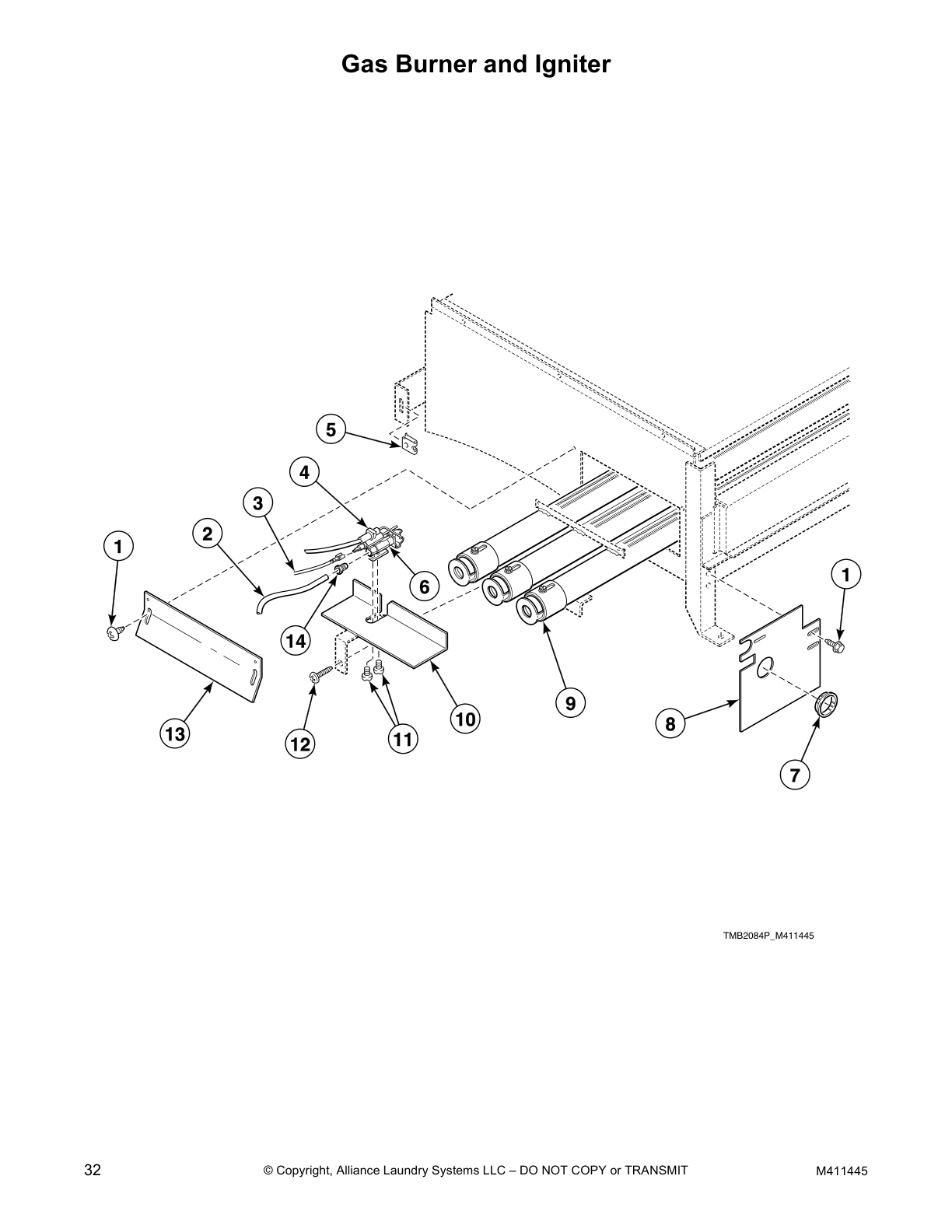

Gas Burner and Igniter

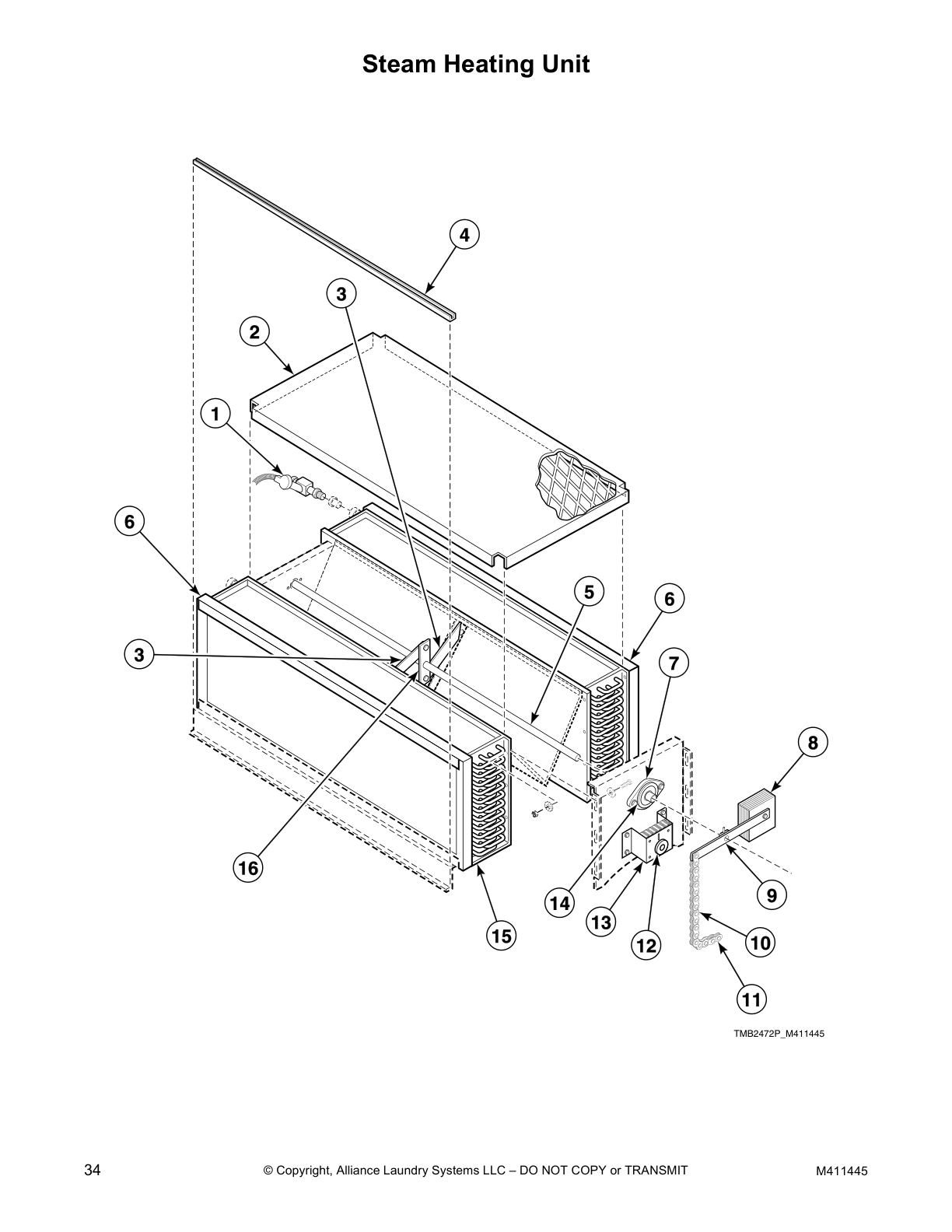

Steam Heating Unit

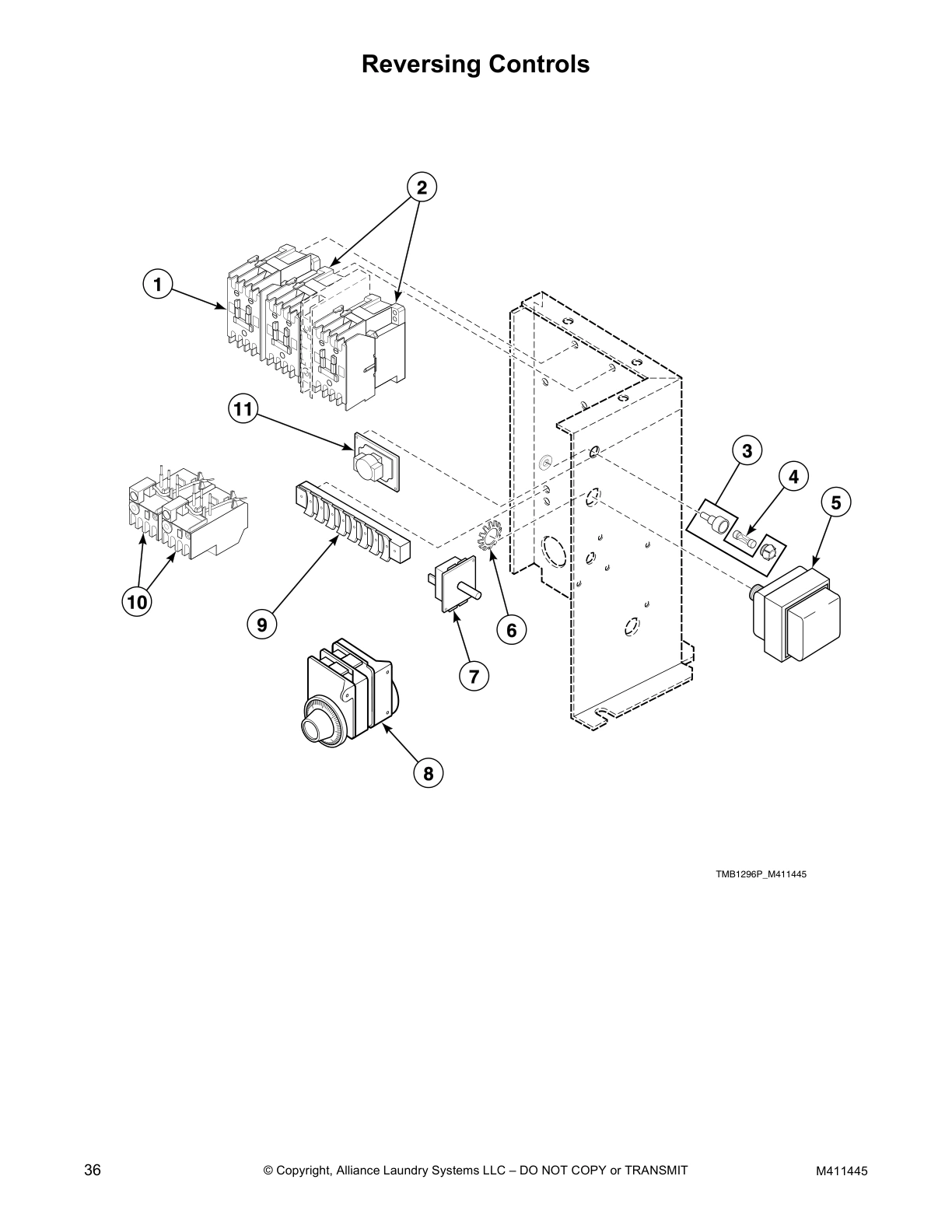

Reversing Controls

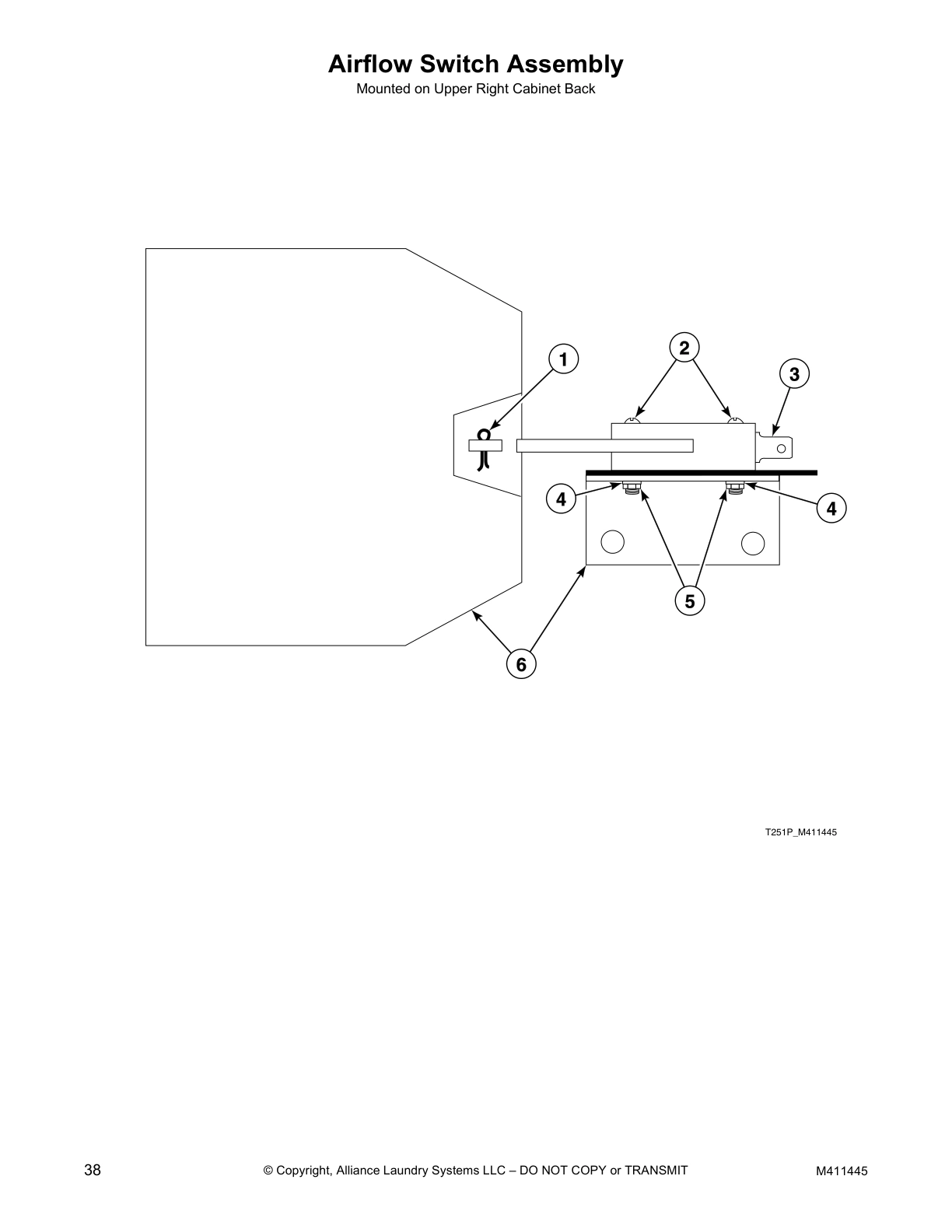

Airflow Switch Assembly
Common parts from model Speed Queen ST110CSH Dryer
SPQ 22688 SPQ 22688 Contact Us For Availability
SPQ M400013 SPQ M400013 Contact Us For Availability
SPQ H8900530H SPQ H8900530H Contact Us For Availability
SPQ 44054802 SPQ 44054802 Contact Us For Availability
1
Push-to-Start Switch Kit SPQ 44106901P Contact Us For Availability
1
Motor SPQ 44046301P Contact Us For Availability
1
Sheave SPQ H8752251H Contact Us For Availability
1
Bushing SPQ H87529129P Contact Us For Availability
1
Sheave SPQ H87520334 Contact Us For Availability
1
Cylinder Assembly SPQ M409788 Contact Us For Availability
1
Cotter Pin SPQ 02470 Contact Us For Availability
2
Switch SPQ 27762 Contact Us For Availability
2
Loading Door Gasket SPQ M400661 Contact Us For Availability
2
Key SPQ H88001565 Contact Us For Availability
2
Flange Bearing SPQ 44048301P Contact Us For Availability
2
Trunnion Assembly SPQ H96427513 Contact Us For Availability
2
Steam Cover SPQ 44018401 Contact Us For Availability
2
Contactor SPQ H8300831HP Contact Us For Availability
2
Screw SPQ M401938 Contact Us For Availability
3
Base Bracket SPQ H87520466 Contact Us For Availability
3
Base Bracket SPQ M413171 Contact Us For Availability
3
Nut SPQ M409659 Contact Us For Availability
3
Fuse Holder SPQ H83900050 Contact Us For Availability
3
Lever Arm Switch SPQ 44021701 Contact Us For Availability
4
Washer SPQ 91176 Contact Us For Availability
4
Lower Door Hinge SPQ H96409156P Contact Us For Availability
4
Bearing Mounting SPQ H88213996 Contact Us For Availability
4
Damper Assembly SPQ H96428693 Contact Us For Availability
4
Spacer SPQ 44055501 Contact Us For Availability
4
Filter Channel SPQ H96388087 Contact Us For Availability
4
Fuse SPQ G137653 Contact Us For Availability
5
Door Switch SPQ M401223 Contact Us For Availability
5
Nut SPQ 70072901 Contact Us For Availability
5
Washer SPQ H88129648 Contact Us For Availability
5
SPQ H8371044H SPQ H8371044H Contact Us For Availability
5
Fan and Bushing Assembly SPQ M412917P Contact Us For Availability
5
Transformer SPQ H83904664P Contact Us For Availability
6
Nut SPQ H88110267 Contact Us For Availability
6
SPQ H88111703 SPQ H88111703 Contact Us For Availability
6
SPQ H8371047HP SPQ H8371047HP Contact Us For Availability
6
Thermostat SPQ M409967 Contact Us For Availability
6
Cylinder and Trunnion Assembly SPQ M401402 Contact Us For Availability
6
Steam Coil Filter SPQ H96382106 Contact Us For Availability
6
Airflow Switch Vane SPQ 70502301 Contact Us For Availability
7
SPQ H96409198 SPQ H96409198 Contact Us For Availability
7
SPQ M410701P SPQ M410701P Contact Us For Availability
7
Blower Cover SPQ M414546 Contact Us For Availability
7
Bearing Flangette SPQ H96382080 Contact Us For Availability
8
SPQ H96418728 SPQ H96418728 Contact Us For Availability
8
SPQ M410702P SPQ M410702P Contact Us For Availability
8
Bearing Mounting Flangette SPQ H8900531H Contact Us For Availability
8
Damper Counterweight SPQ M413331 Contact Us For Availability
8
Reversing Timer SPQ H96422399P Contact Us For Availability
9
SPQ M410900P SPQ M410900P Contact Us For Availability
9
SPQ H96422241 SPQ H96422241 Contact Us For Availability
9
SPQ M410031 SPQ M410031 Contact Us For Availability
9
SPQ H96428008 SPQ H96428008 Contact Us For Availability
9
SPQ H89005235 SPQ H89005235 Contact Us For Availability
9
SPQ F0430166-00A SPQ F0430166-00A Contact Us For Availability
9
Actuator Arm Assembly SPQ H96387501 Contact Us For Availability
10
Lint Screen SPQ 44077701P Contact Us For Availability
10
Jackshaft Assembly SPQ H96357751 Contact Us For Availability
10
Ball Bearing Insert SPQ H8768212H Contact Us For Availability
10
Drive Chain SPQ H96388186 Contact Us For Availability
10
Overload Relay SPQ H8300105HP Contact Us For Availability
11
Hinge Pin SPQ M410029 Contact Us For Availability
11
Door Seal Kit SPQ 70211904P Contact Us For Availability
11
Lint Screen Frame SPQ M409652 Contact Us For Availability
11
Retaining Ring SPQ H88603477 Contact Us For Availability
11
Blower Motor Base Kit SPQ H608P3 Contact Us For Availability
11
Master Link SPQ H96382072P Contact Us For Availability
12
Panel Hinge Kit SPQ M409975 Contact Us For Availability
12
Door Glass and Seal Kit SPQ M409899P Contact Us For Availability
12
Lint Screen Clip SPQ H96418413 Contact Us For Availability
12
Ball Bearing SPQ H87672374 Contact Us For Availability
12
Ball Bearing SPQ 44104801 Contact Us For Availability
12
Drive Wheel SPQ H96388178 Contact Us For Availability
13
Screw SPQ M410041P Contact Us For Availability
13
Door Handle SPQ M400133 Contact Us For Availability
13
Step Pulley Outer Bearing Kit SPQ M4718P3 Contact Us For Availability
13
Motor Bracket SPQ H96388145 Contact Us For Availability
14
Door Latch SPQ H88129788 Contact Us For Availability
14
Screw SPQ M409385 Contact Us For Availability
14
Sheave SPQ H88412093 Contact Us For Availability
14
Key SPQ H8752006H Contact Us For Availability
14
Bearing Insert SPQ H96382098 Contact Us For Availability
15
Step Pulley SPQ H96428024 Contact Us For Availability
15
Blower Shaft SPQ H87520284 Contact Us For Availability
15
Steam Coil SPQ H96382023P Contact Us For Availability
16
Belt SPQ M412000 Contact Us For Availability
17
Door Switch Mount SPQ M410042P Contact Us For Availability
17
Rod End SPQ H8753170H Contact Us For Availability
18
Mounting Insulation SPQ M400072 Contact Us For Availability
18
Bushing SPQ 44048501 Contact Us For Availability
18
Screw SPQ H8752985HP Contact Us For Availability
19
Motor Base SPQ H87529111P Contact Us For Availability
NI
SPQ M400671 SPQ M400671 Contact Us For Availability
NI
SPQ H89005227 SPQ H89005227 Contact Us For Availability
NI
SPQ H96358007 SPQ H96358007 Contact Us For Availability
NI
SPQ 70142 SPQ 70142 Contact Us For Availability
NI
SPQ H8768302H SPQ H8768302H Contact Us For Availability
NI
SPQ H88301411 SPQ H88301411 Contact Us For Availability
NI
SPQ 44054801 SPQ 44054801 Contact Us For Availability
× ![]()
