Model Speed Queen ST055F Dryer – Common Parts & Diagrams
Touch Control - Vend Models with V in the 7th Position
Touch Control - OPL Models with V in the 7th Position

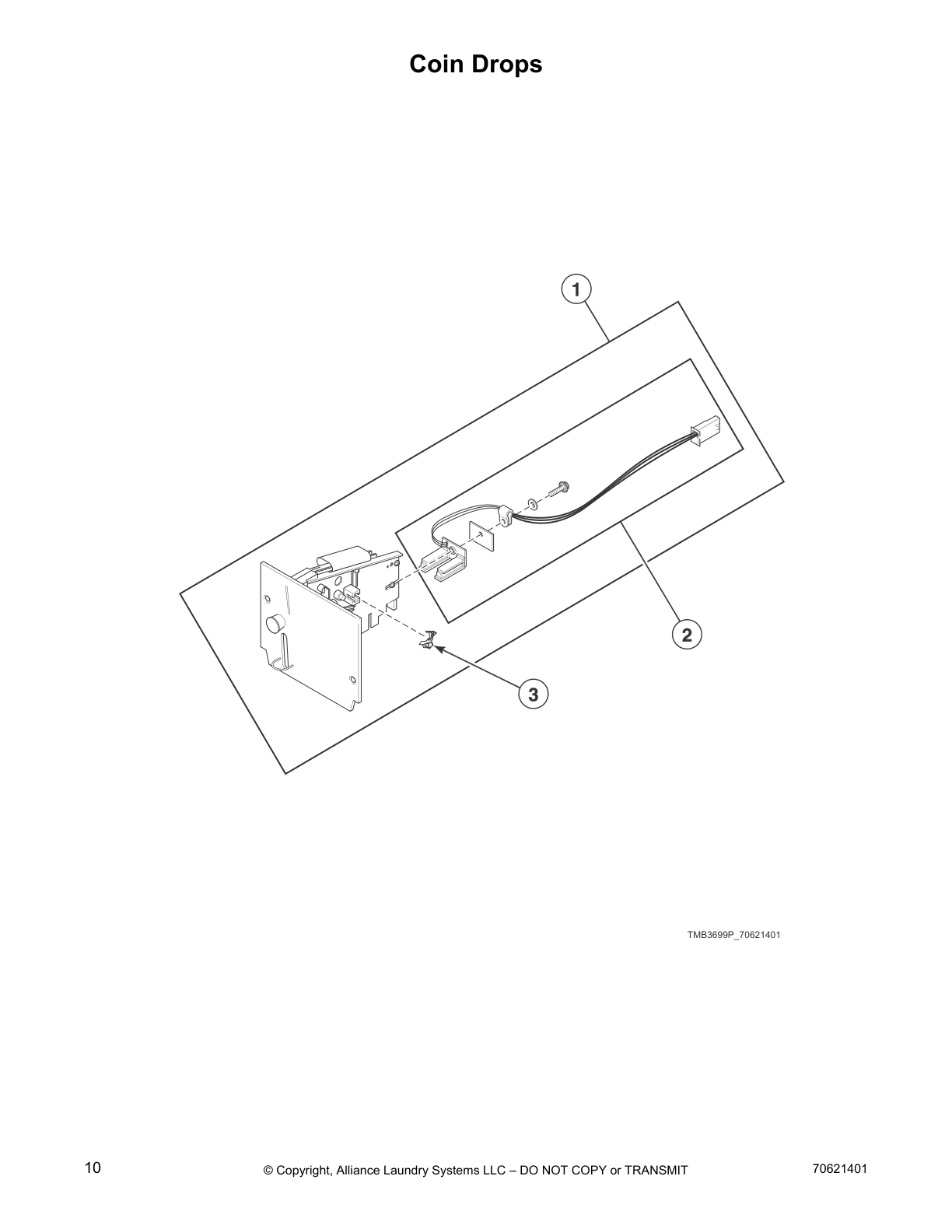

Coin Drops

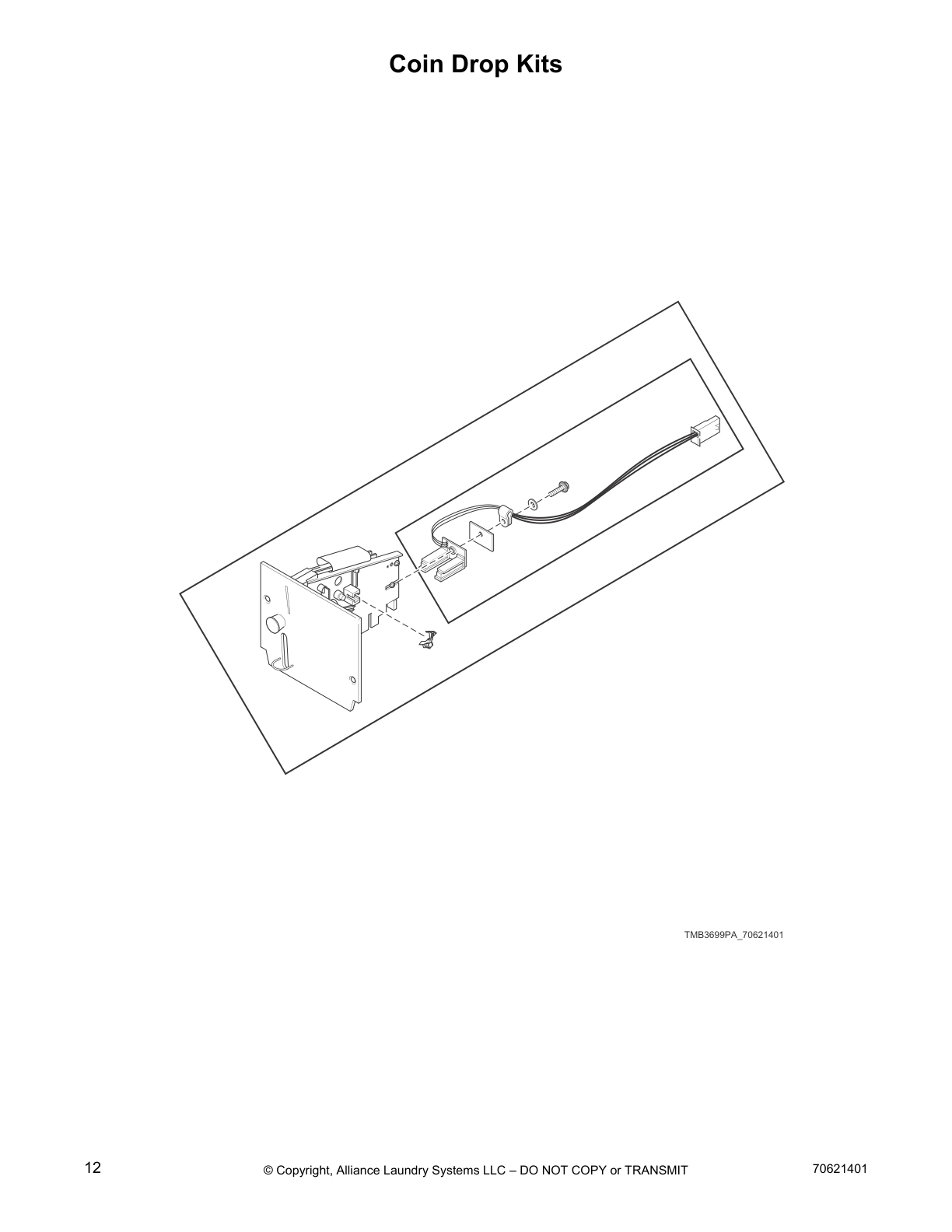

Coin Drop Kits

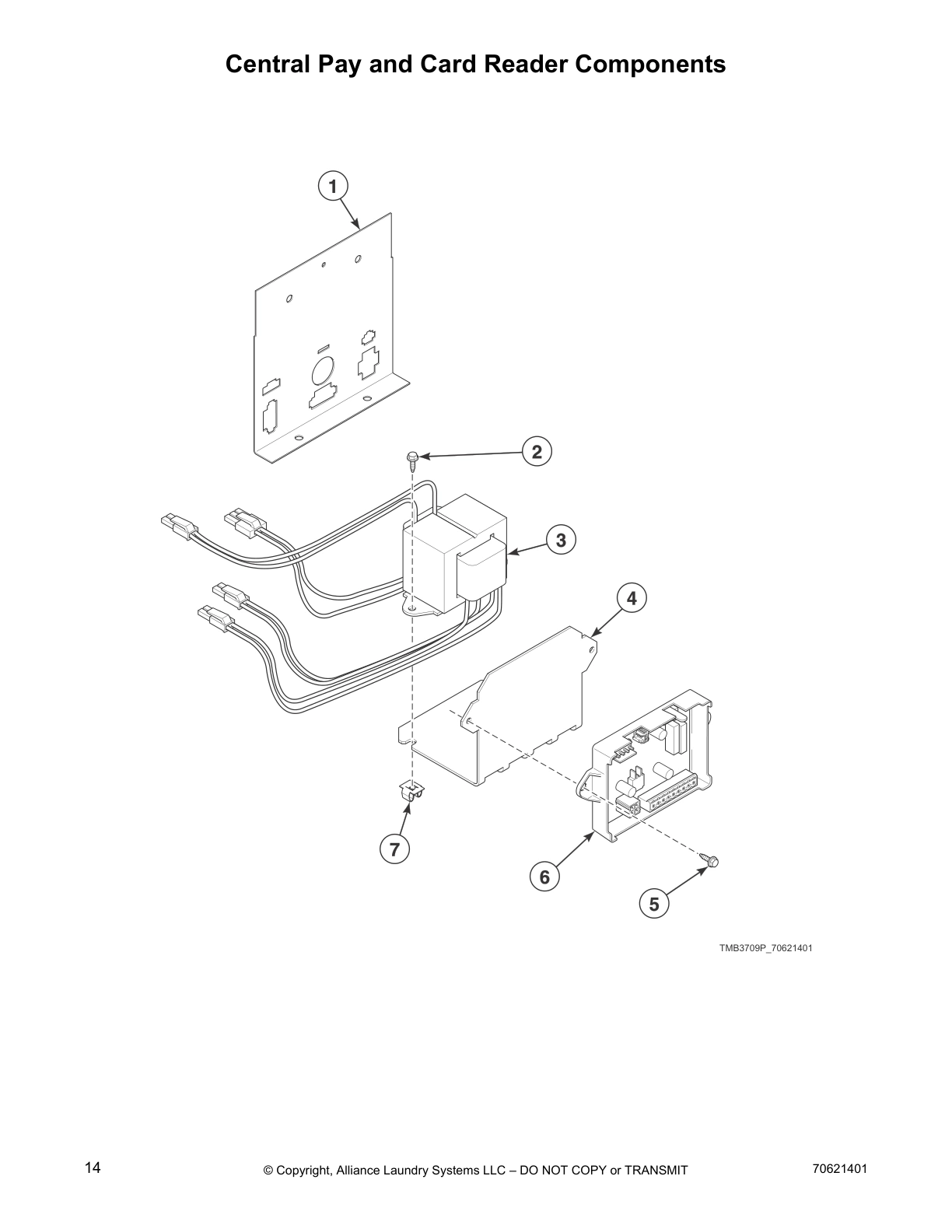

Central Pay and Card Reader Components

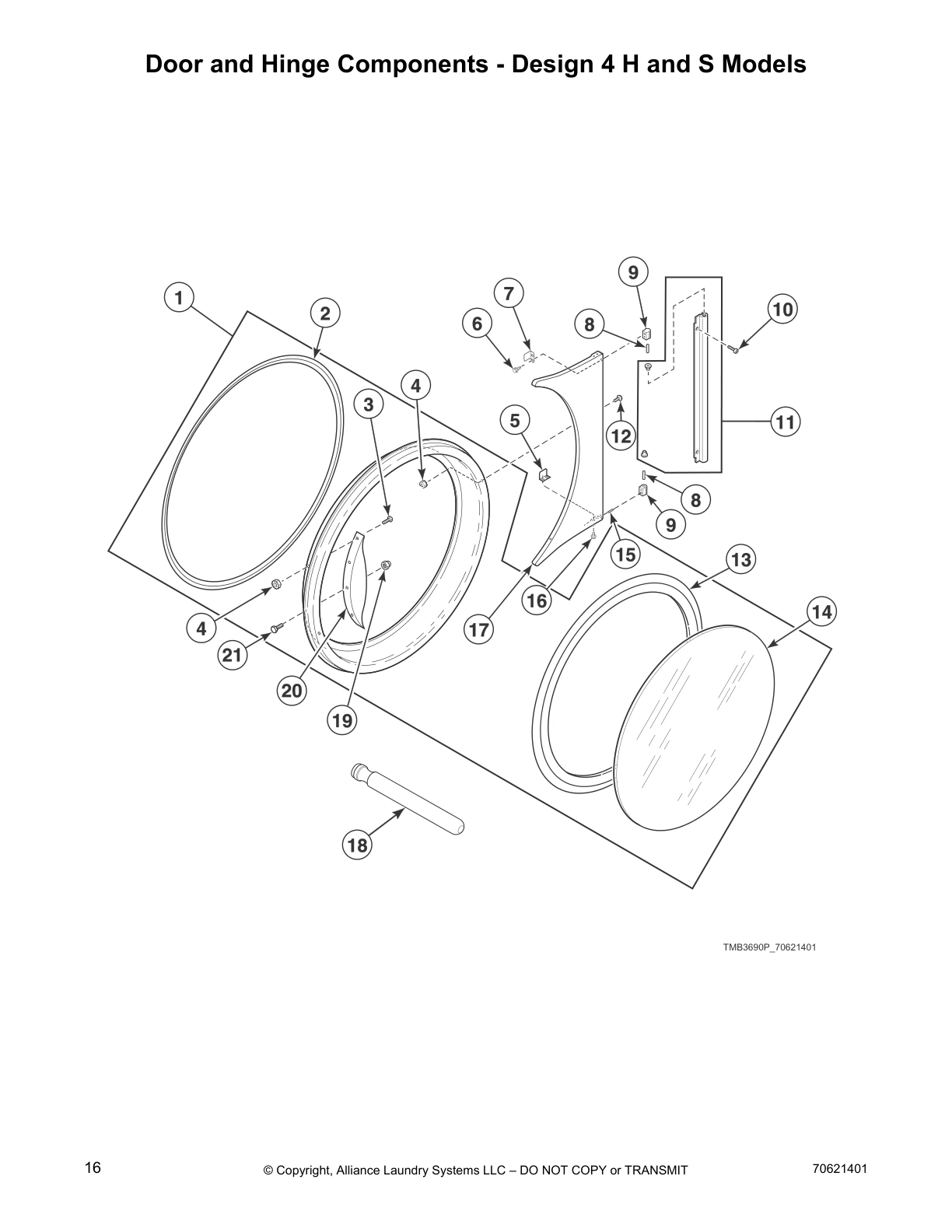

Door and Hinge Components - Design 4 H and S Models

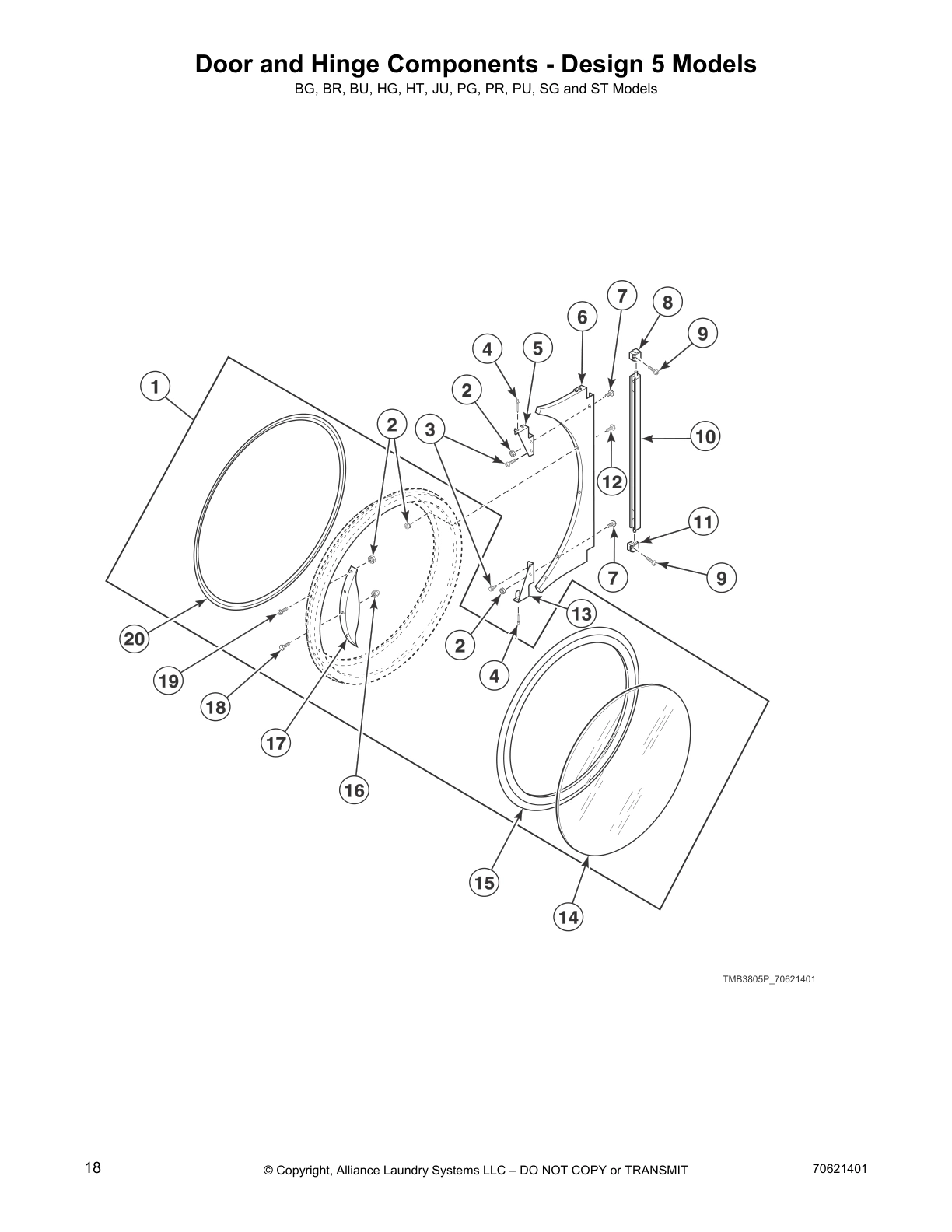

Door and Hinge Components - Design 5 Models

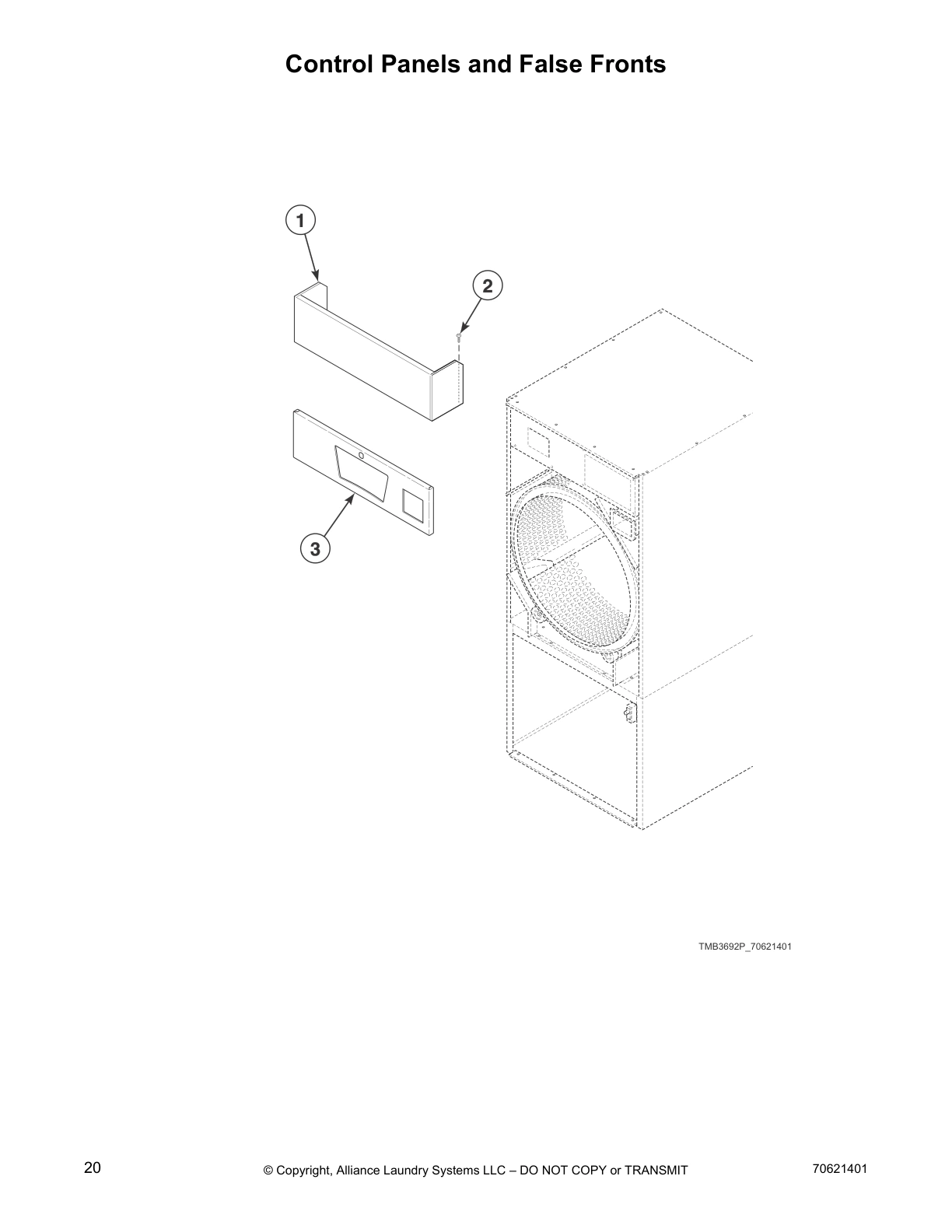

Control Panels and False Fronts

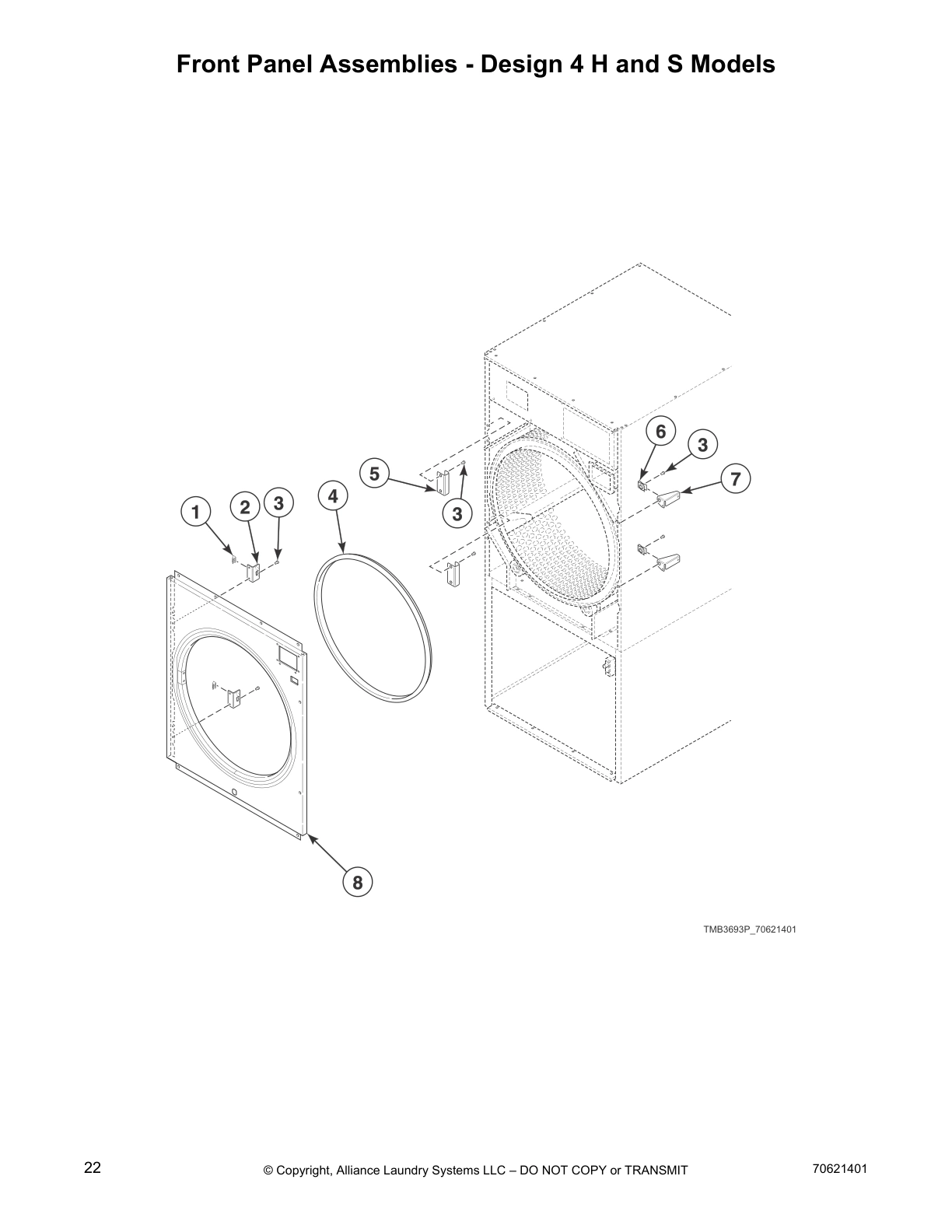

Front Panel Assemblies - Design 4 H and S Models

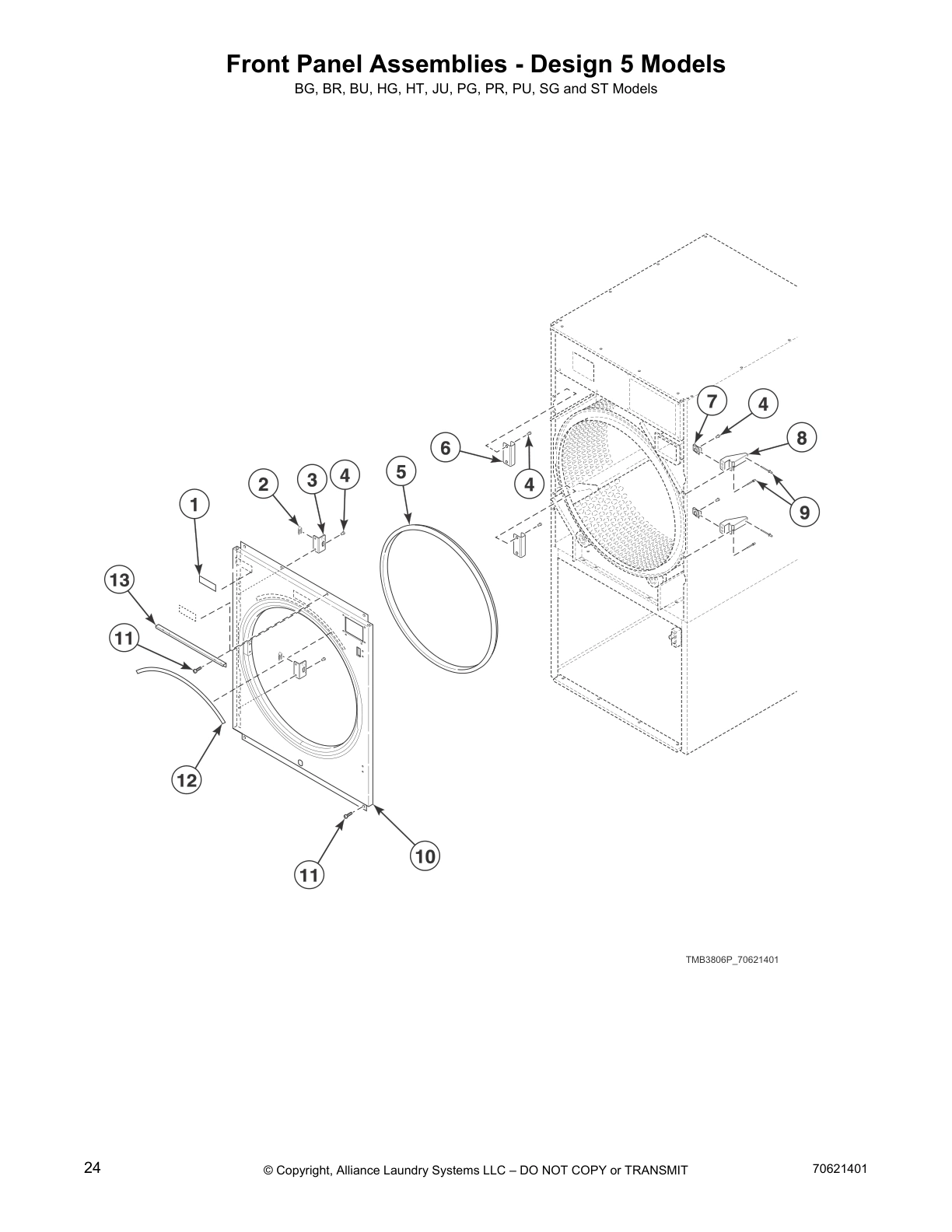

Front Panel Assemblies - Design 5 Models

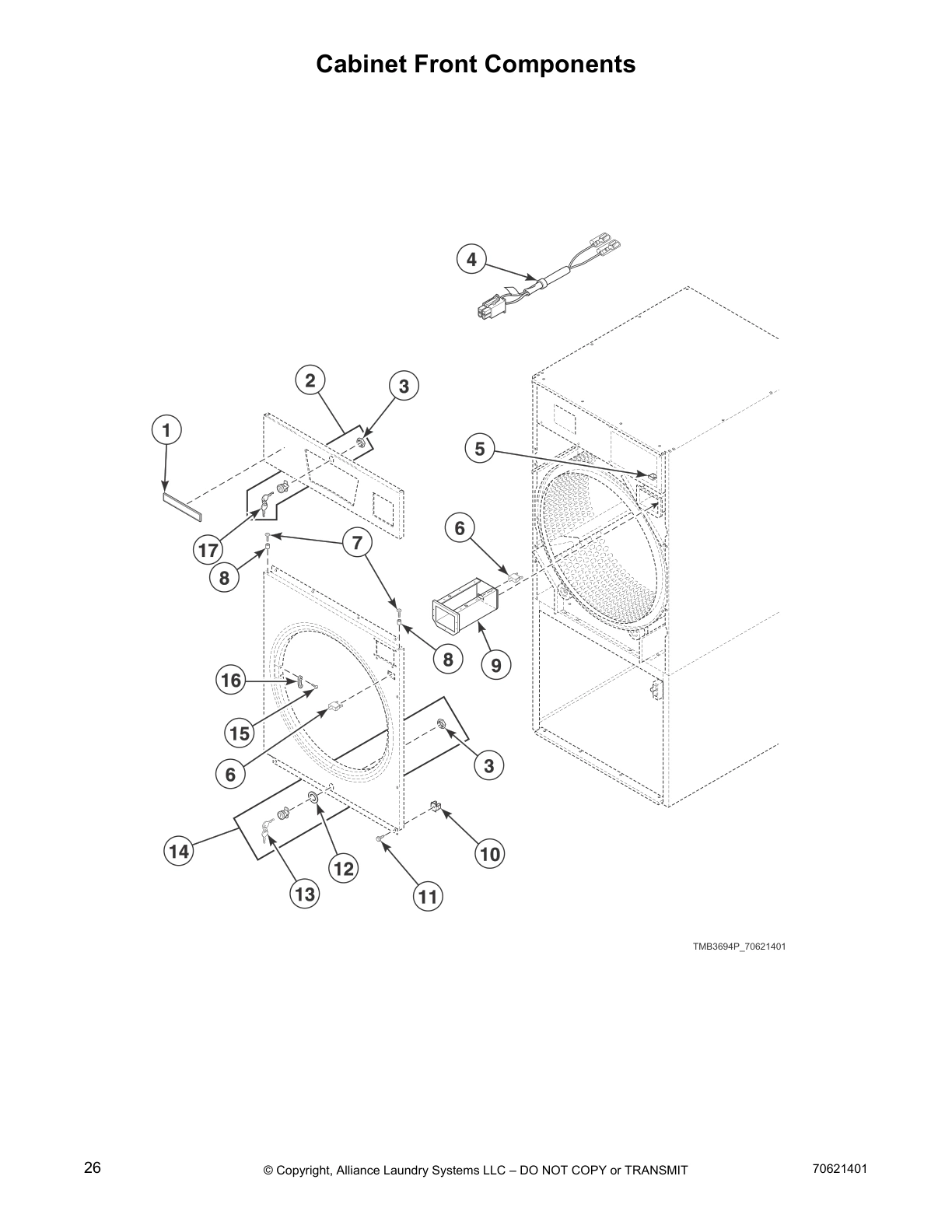

Cabinet Front Components

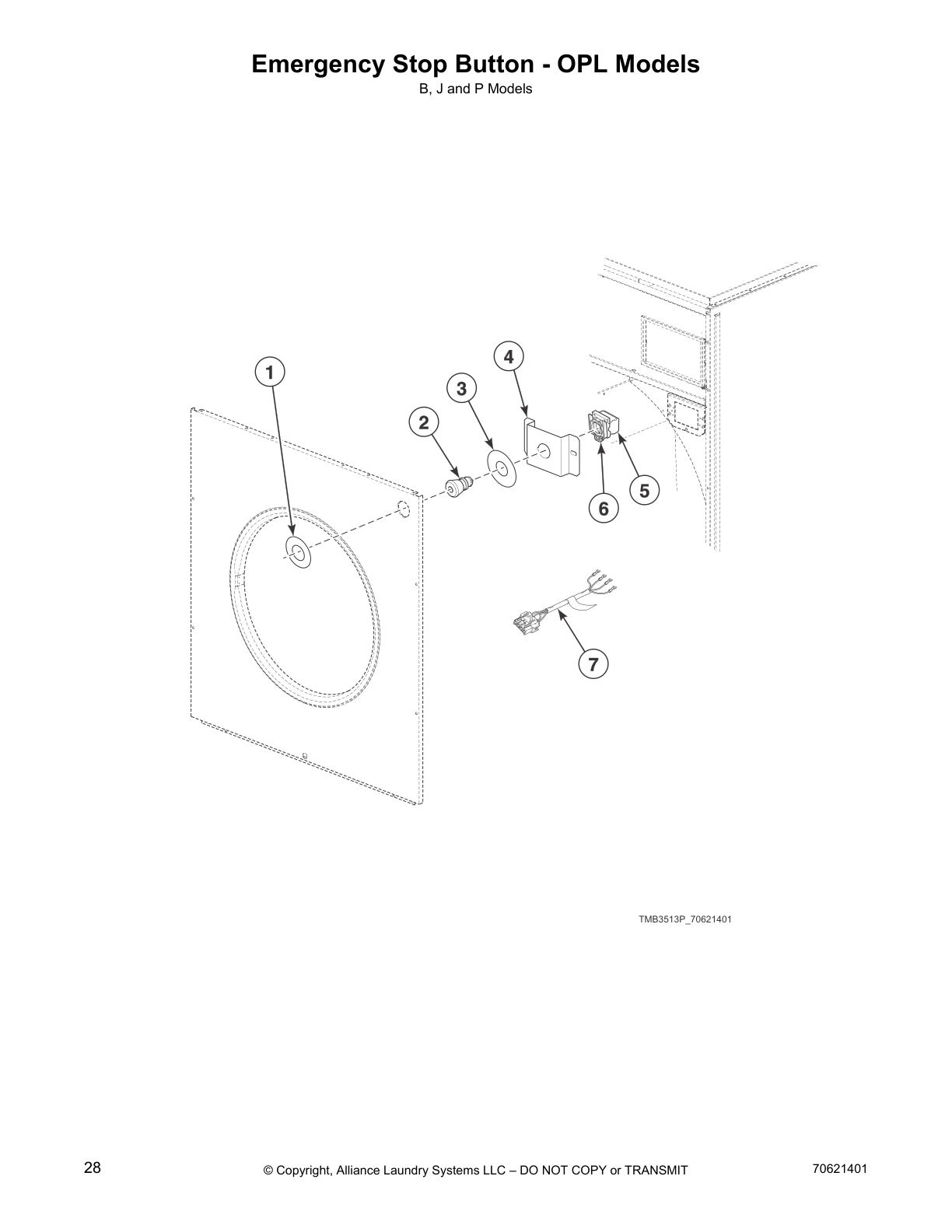

Emergency Stop Button - OPL Models

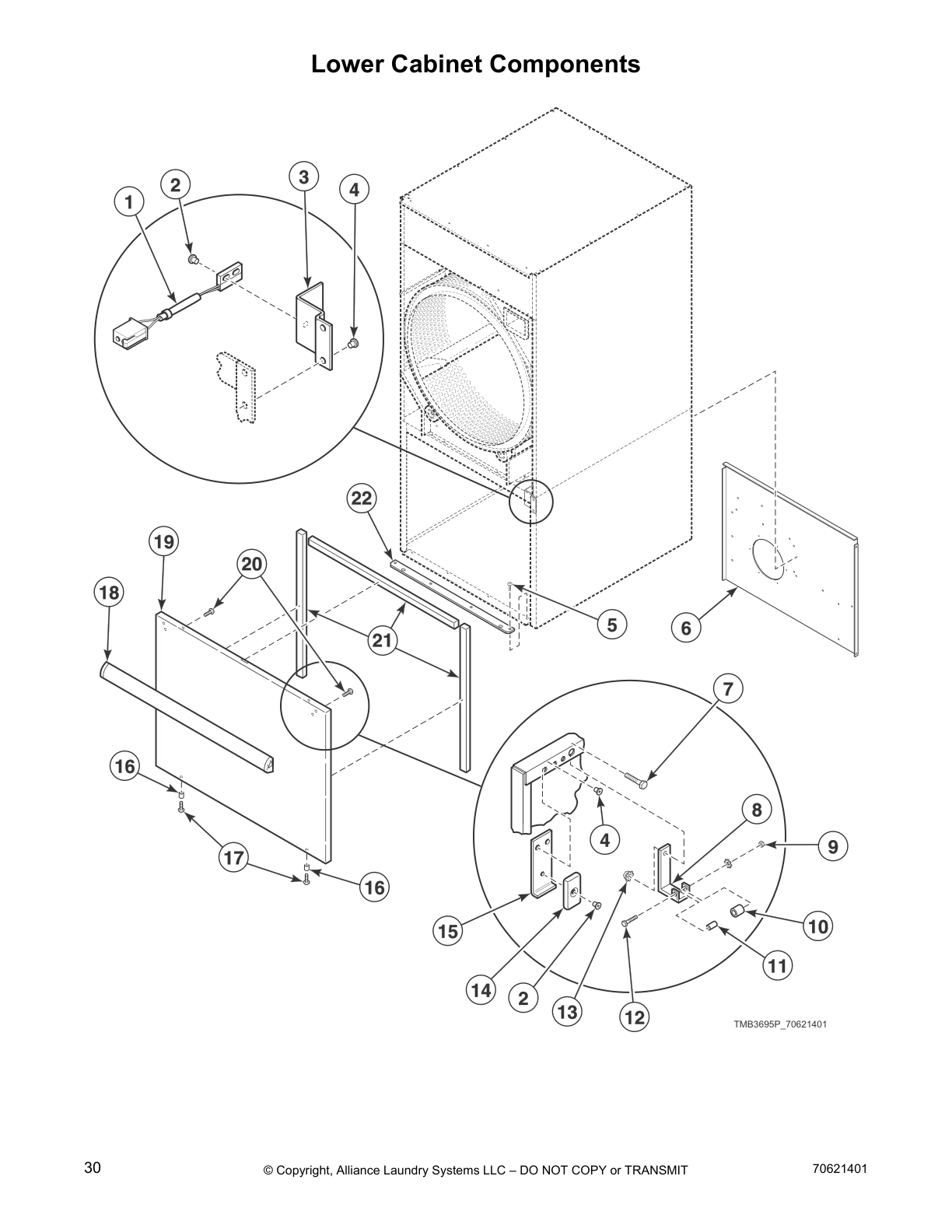

Lower Cabinet Components

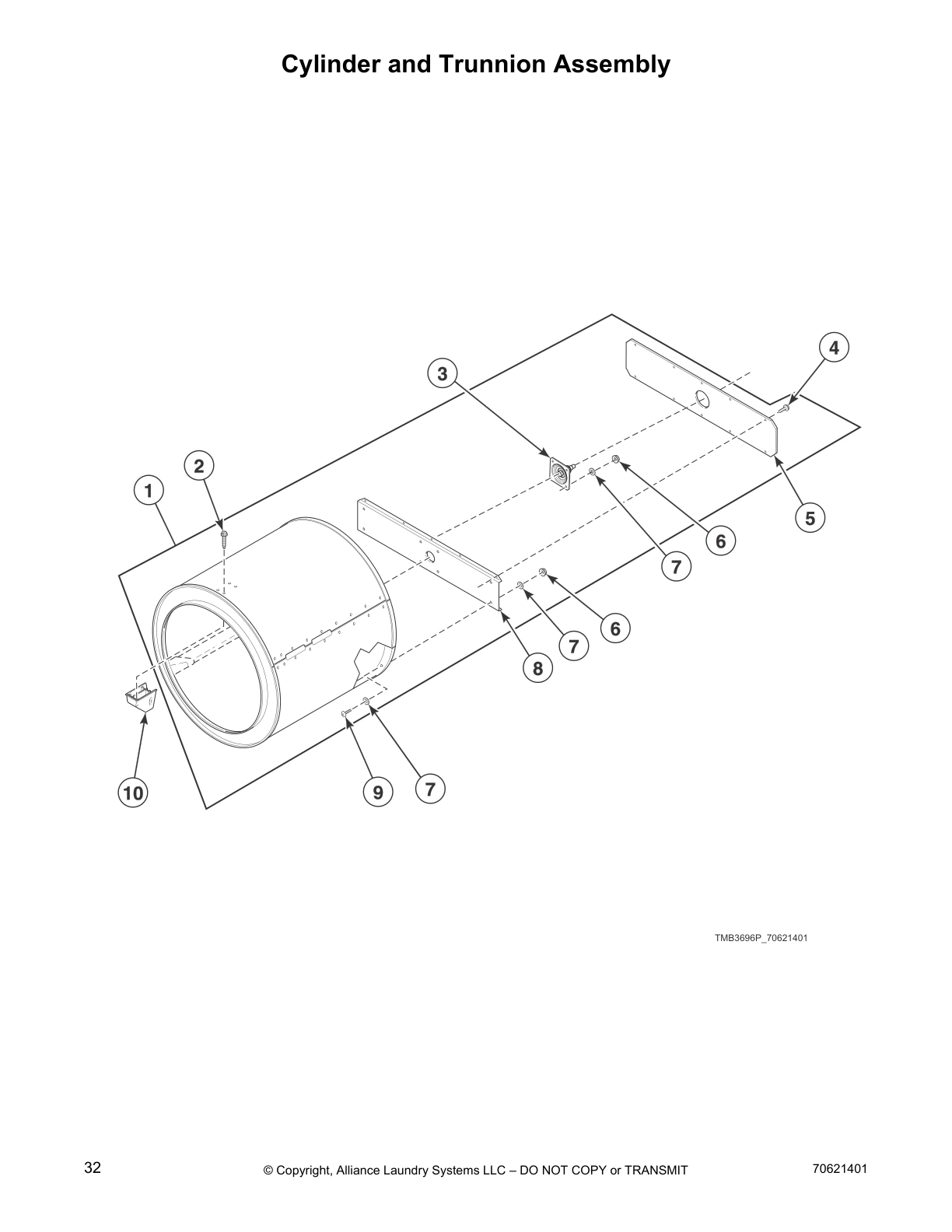

Cylinder and Trunnion Assembly
Cylinder Components

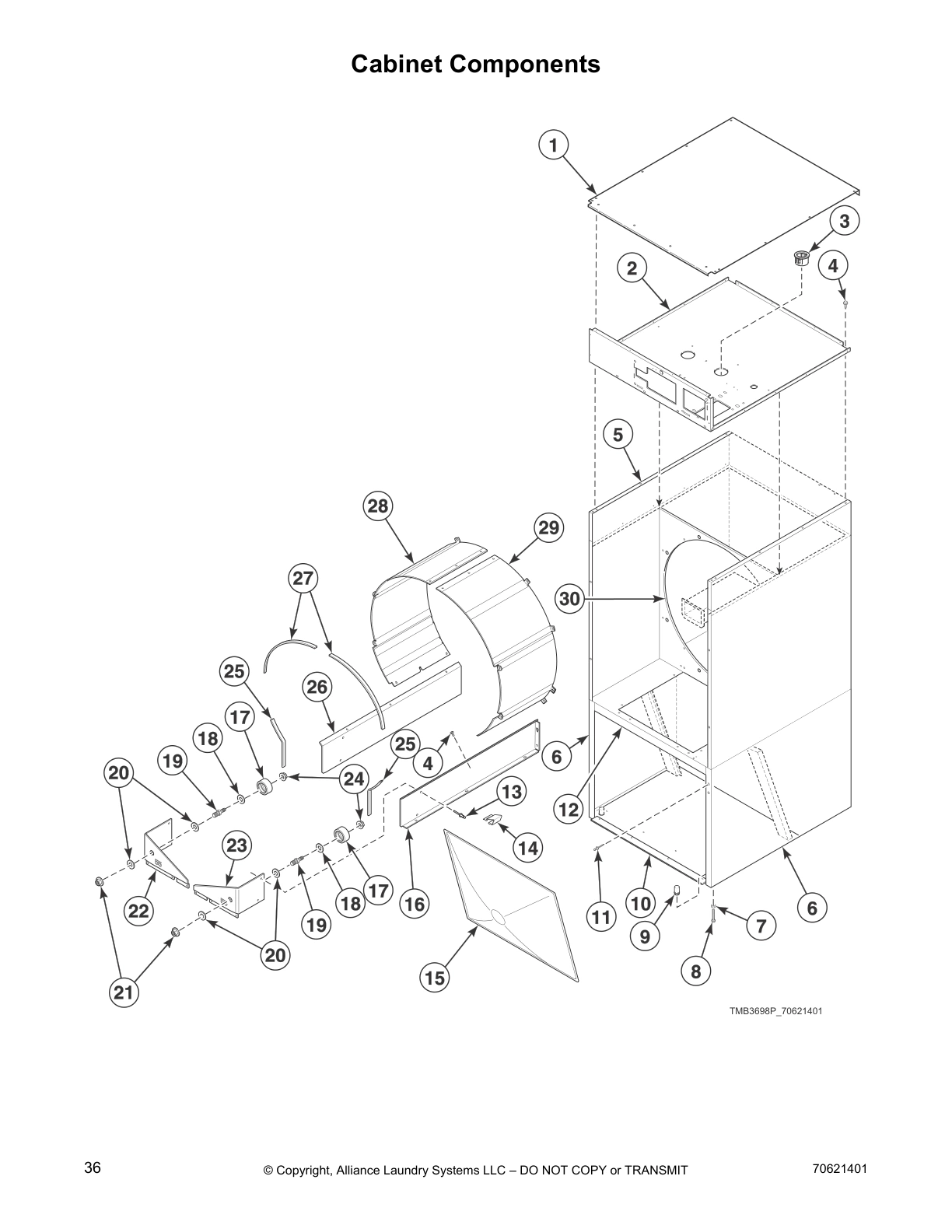

Cabinet Components

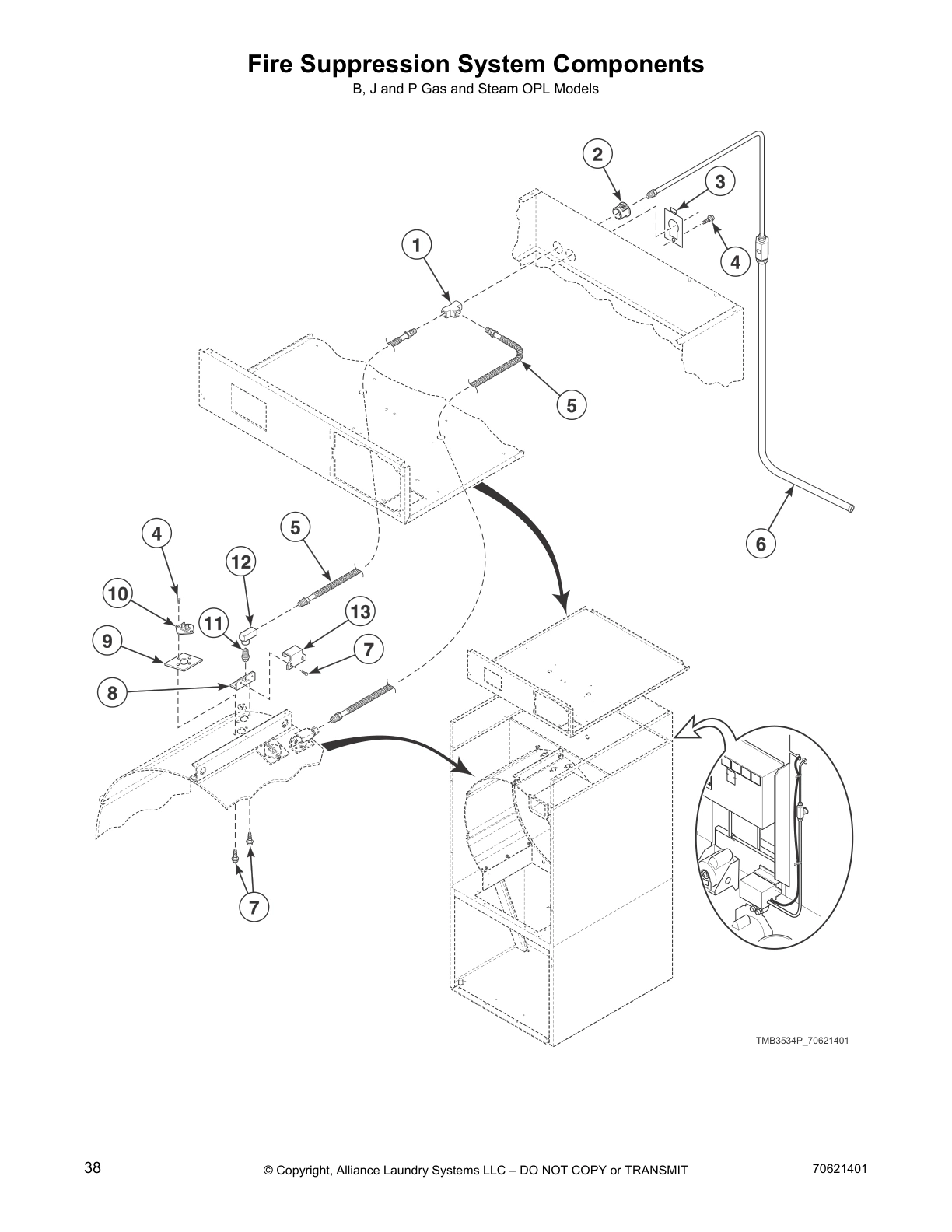

Fire Suppression System Components

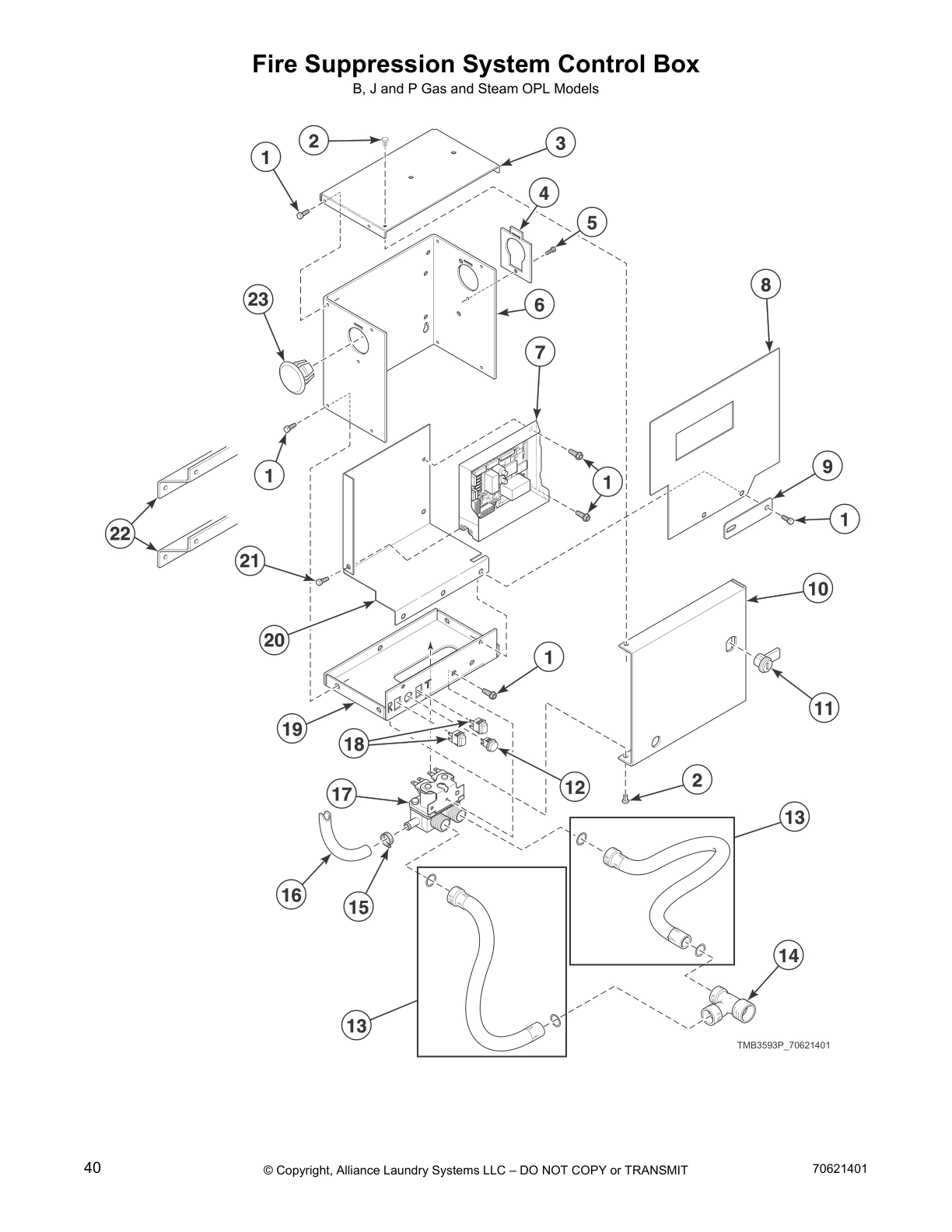

Fire Suppression System Control Box

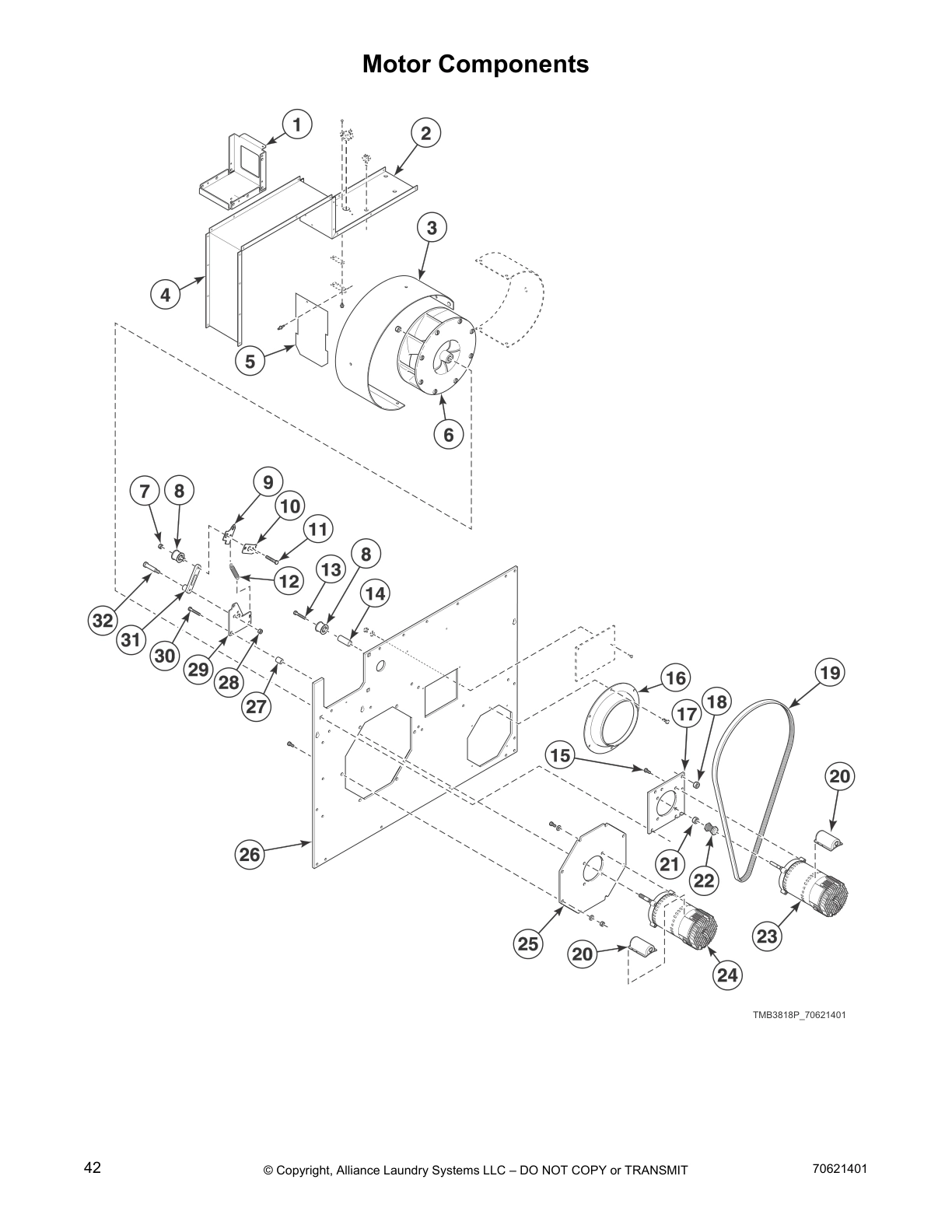

Motor Components
Blower and Exhaust Components
Airflow Switch

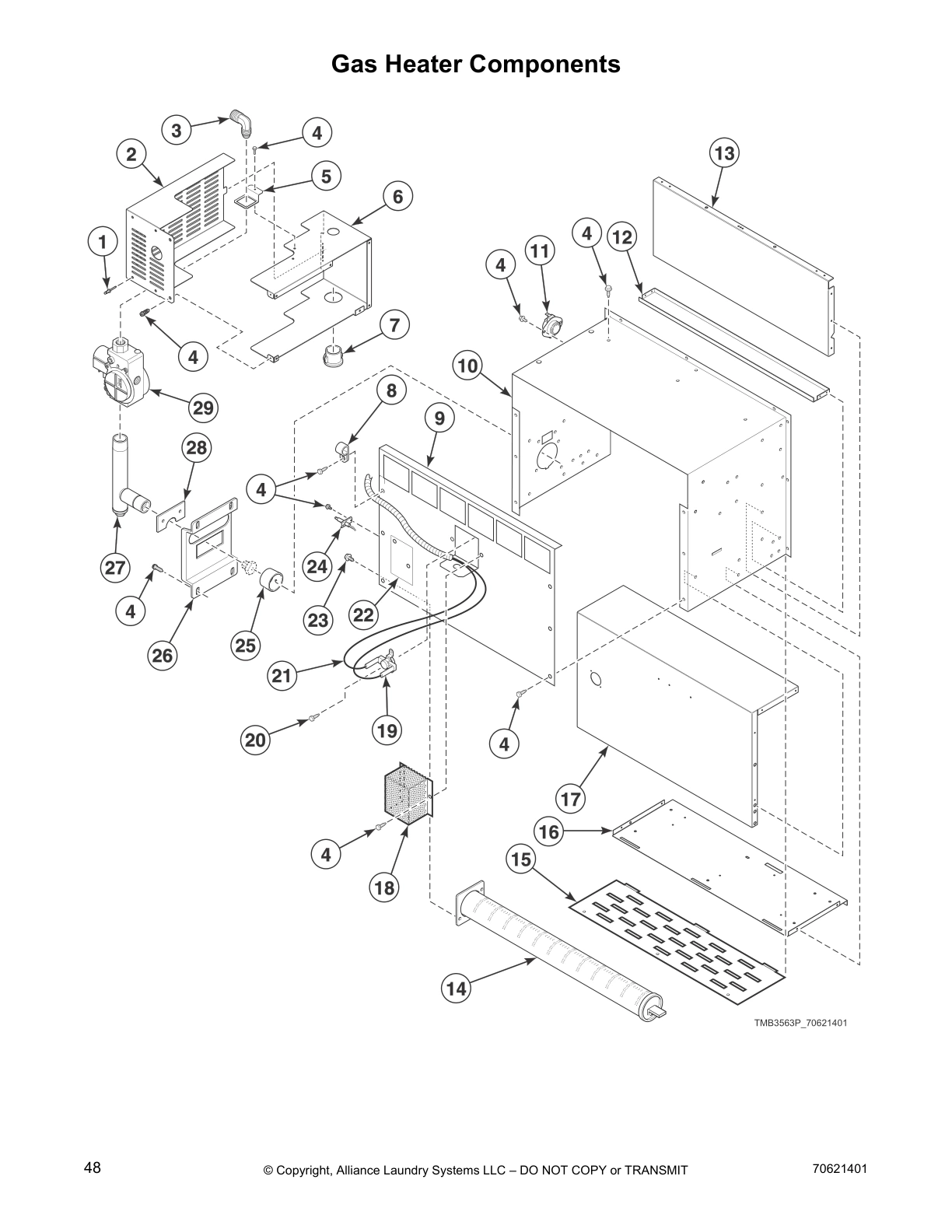

Gas Heater Components
Electric Heater Components

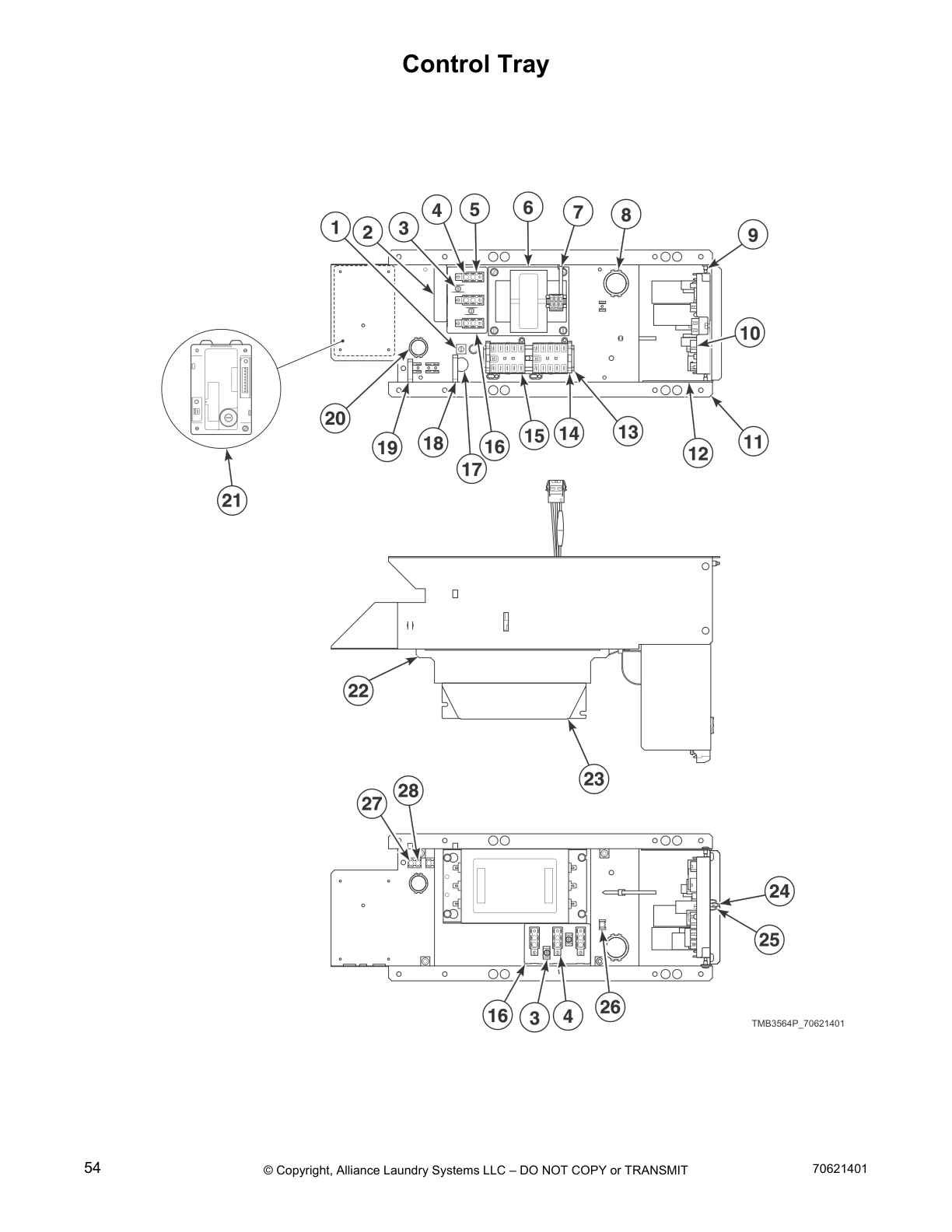

Control Tray
Accessory Box - Electric 200-240 Volt Models
Accessory Box - Electric 380-480 Volt Models
Common parts from model Speed Queen ST055F Dryer
Coin Drop Kit SPQ CK108 Contact Us For Availability
SPQ CK100 SPQ CK100 Contact Us For Availability
SPQ CK122 SPQ CK122 Contact Us For Availability
SPQ CK120 SPQ CK120 Contact Us For Availability
SPQ CK117 SPQ CK117 Contact Us For Availability
SPQ 44355606 SPQ 44355606 Contact Us For Availability
SPQ 44272301 SPQ 44272301 Contact Us For Availability
SPQ 70614201 SPQ 70614201 Contact Us For Availability
SPQ 44295412 SPQ 44295412 Contact Us For Availability
SPQ 70516105 SPQ 70516105 Contact Us For Availability
SPQ 70516101 SPQ 70516101 Contact Us For Availability
SPQ 70516106 SPQ 70516106 Contact Us For Availability
1
False Front SPQ 70405104 Contact Us For Availability
1
Nameplate SPQ F8664901 Contact Us For Availability
1
Cylinder Assembly SPQ 70408802P Contact Us For Availability
1
Blower Housing SPQ 70554801 Contact Us For Availability
1
Airflow Switch Cover SPQ 70356601 Contact Us For Availability
1
Stove Connectors Cover SPQ 70365201 Contact Us For Availability
2
Rear Bearing Shim SPQ 70355001 Contact Us For Availability
2
Screw SPQ 70405004 Contact Us For Availability
2
Screw SPQ 70705221W Contact Us For Availability
2
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
2
Blind Rivet SPQ F8245101 Contact Us For Availability
2
Screw SPQ 70070101 Contact Us For Availability
2
Airflow Switch Wrapper SPQ 70356101 Contact Us For Availability
3
Support Bearing SPQ 70448701 Contact Us For Availability
3
SPQ 802822 SPQ 802822 Contact Us For Availability
3
Pushbutton Switch SPQ 44088801 Contact Us For Availability
3
Emergency Stop Label SPQ 44012901 Contact Us For Availability
3
Idler Wheel Assembly SPQ 70500901 Contact Us For Availability
3
Switch SPQ 70411901 Contact Us For Availability
3
Terminal Block Shield SPQ 51783 Contact Us For Availability
4
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
4
Cable Tie SPQ 430642 Contact Us For Availability
4
Hold-Down Clip SPQ 70705221 Contact Us For Availability
4
Rear Cylinder Channel Plate SPQ 70564807 Contact Us For Availability
4
SPQ 70653801 SPQ 70653801 Contact Us For Availability
4
Airflow Switch Arm SPQ 70319401 Contact Us For Availability
4
Stove Top and Sides SPQ 70525601 Contact Us For Availability
5
Coin Box SPQ 70296401 Contact Us For Availability
5
Contact Switch SPQ F8069501 Contact Us For Availability
5
SPQ 70501301 SPQ 70501301 Contact Us For Availability
5
Blower Inlet Cone SPQ 70554901 Contact Us For Availability
5
Heater Element SPQ 70034412P Contact Us For Availability
5
Bushing SPQ 70333001 Contact Us For Availability
5
Warning Label SPQ 685837 Contact Us For Availability
6
Harness SPQ 44088001 Contact Us For Availability
6
SPQ 70576101 SPQ 70576101 Contact Us For Availability
6
Door Catch Kit SPQ 70413301 Contact Us For Availability
6
Contact Base SPQ F8538101 Contact Us For Availability
6
Washer SPQ 70305301 Contact Us For Availability
6
Tumbler Dolly Kit SPQ 70378801WP Contact Us For Availability
6
Fan Motor SPQ 70392701P Contact Us For Availability
6
Switch Bracket SPQ 70356301 Contact Us For Availability
6
Stove Partition SPQ 70034411 Contact Us For Availability
7
Central Pay Harness SPQ 70612704 Contact Us For Availability
7
Emergency Stop Harness SPQ 44272401 Contact Us For Availability
7
SPQ 70132301 SPQ 70132301 Contact Us For Availability
7
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
7
Stove Grill SPQ 70034410P Contact Us For Availability
7
EMI Filter Kit SPQ 70335601 Contact Us For Availability
7
SPQ 70488102 SPQ 70488102 Contact Us For Availability
8
SPQ 70071401 SPQ 70071401 Contact Us For Availability
8
Front Panel Assembly SPQ 70705122 Contact Us For Availability
8
SPQ 70030301 SPQ 70030301 Contact Us For Availability
8
Drywall Screw Magnet Kit SPQ 70411301 Contact Us For Availability
8
Nut SPQ 70346501 Contact Us For Availability
8
SPQ 70247701 SPQ 70247701 Contact Us For Availability
8
SPQ 70303101 SPQ 70303101 Contact Us For Availability
8
Airflow Switch Vane SPQ 70319201 Contact Us For Availability
8
Jumper Strip SPQ 70357201 Contact Us For Availability
9
SPQ 70622401 SPQ 70622401 Contact Us For Availability
9
SPQ F160673P SPQ F160673P Contact Us For Availability
9
SPQ 70305201 SPQ 70305201 Contact Us For Availability
9
Support Housing Bearing Assembly SPQ 70506403 Contact Us For Availability
9
SPQ 70063201 SPQ 70063201 Contact Us For Availability
9
SPQ 70058502 SPQ 70058502 Contact Us For Availability
9
SPQ 70484901P SPQ 70484901P Contact Us For Availability
9
Jumper Bar SPQ 70214901 Contact Us For Availability
10
Screw SPQ FR004022 Contact Us For Availability
10
Front Panel Assembly SPQ 70705222W Contact Us For Availability
10
Roller Catch Wheel SPQ 70297601 Contact Us For Availability
10
End Cap SPQ 70408801P Contact Us For Availability
10
Rear Cylinder Seal SPQ 70013704P Contact Us For Availability
10
Lower Pan SPQ 70377601 Contact Us For Availability
10
Blower Motor Mounting Plate SPQ 70349601 Contact Us For Availability
10
Auxiliary Contact Block SPQ 44313201 Contact Us For Availability
11
Screw SPQ M411072 Contact Us For Availability
11
Front Panel Assembly SPQ 70705222 Contact Us For Availability
11
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
11
Roller Catch Spacer SPQ 70030201 Contact Us For Availability
11
Screw SPQ 70508301 Contact Us For Availability
11
Screw SPQ 70126101 Contact Us For Availability
11
Control Tray SPQ 70492401 Contact Us For Availability
11
Contactor SPQ 70482701 Contact Us For Availability
12
Washer SPQ M400991 Contact Us For Availability
12
Screw SPQ 44349101 Contact Us For Availability
12
Lock Shim SPQ 70342401 Contact Us For Availability
12
Screw SPQ 70072801 Contact Us For Availability
12
Control Board Control Tray SPQ 70494901 Contact Us For Availability
13
Door Glass SPQ 70211902P Contact Us For Availability
13
Key SPQ 70155602 Contact Us For Availability
13
Center Cylinder Seal SPQ 70066005 Contact Us For Availability
13
Exhaust Thimble SPQ F430144 Contact Us For Availability
13
Blower Assembly SPQ 70302201P Contact Us For Availability
13
Circuit Breaker SPQ 70488101 Contact Us For Availability
14
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
14
Door Glass SPQ 44008401P Contact Us For Availability
14
Magnet SPQ 70343101 Contact Us For Availability
14
Nut SPQ M400022 Contact Us For Availability
15
Power Distribution Block SPQ M413865 Contact Us For Availability
15
Door Glass Installation Tool SPQ 70436301 Contact Us For Availability
15
Pop Rivet SPQ 44166601 Contact Us For Availability
15
Nut SPQ 70126104 Contact Us For Availability
15
Contactor SPQ 70482601 Contact Us For Availability
16
Nut SPQ M414215 Contact Us For Availability
16
Door Latch SPQ M401223 Contact Us For Availability
16
Damper and Hinge Exhaust Assembly SPQ 70215101 Contact Us For Availability
16
Lever Arm and Belt Kit SPQ 70015601 Contact Us For Availability
16
Insulator SPQ M413862 Contact Us For Availability
16
Power Distribution Block Cover SPQ 44014901P Contact Us For Availability
17
Door Handle SPQ 44007901 Contact Us For Availability
17
Roller Seal SPQ 70616701 Contact Us For Availability
17
Damper Spacer SPQ 70209501 Contact Us For Availability
17
Screw SPQ F8206901 Contact Us For Availability
18
Door Ring Gasket SPQ M4221P4 Contact Us For Availability
18
Nut SPQ M400661 Contact Us For Availability
18
Handle and Caps Assembly SPQ 70154411 Contact Us For Availability
18
Roller Shaft SPQ 70443601 Contact Us For Availability
18
Thermistor SPQ 70376201 Contact Us For Availability
18
Wire Clip SPQ F8449501 Contact Us For Availability
19
Door Ring Gasket SPQ 70442101 Contact Us For Availability
19
Washer SPQ 70249501 Contact Us For Availability
19
Motor Pulley SPQ 70655103 Contact Us For Availability
19
Limit Access Bracket SPQ 70220901 Contact Us For Availability
19
Snap Bushing SPQ F8449502 Contact Us For Availability
19
Contactor SPQ 70482801 Contact Us For Availability
20
Nut SPQ 70261401 Contact Us For Availability
20
SPQ 70296802 SPQ 70296802 Contact Us For Availability
20
Screw SPQ 70178701 Contact Us For Availability
20
Ground Lug Connector SPQ M411283 Contact Us For Availability
21
Lint Panel Pivot Plate SPQ 70289101P Contact Us For Availability
21
Sheet Metal Edge Gasket SPQ 70288801 Contact Us For Availability
21
Fan Motor SPQ 44333202 Contact Us For Availability
22
Pop Rivet SPQ 70392101 Contact Us For Availability
22
Blower Motor Mounting Plate SPQ 70559101 Contact Us For Availability
22
DIN Rail SPQ M412690 Contact Us For Availability
23
Plug SPQ 70180001 Contact Us For Availability
23
Lower Rear Assembly SPQ 44259601P Contact Us For Availability
24
Blower Housing Scroll SPQ 44259501P Contact Us For Availability
24
Nut SPQ M400770 Contact Us For Availability
25
Bushing SPQ 70015707 Contact Us For Availability
27
Center Partition SPQ 70015710 Contact Us For Availability
27
Terminal Block SPQ M400003 Contact Us For Availability
28
Screw SPQ 70378002 Contact Us For Availability
29
Side Panel SPQ 70378001 Contact Us For Availability
30
Spray Paint SPQ 70376801 Contact Us For Availability
32
SPQ 70016301 SPQ 70016301 Contact Us For Availability
NI
SPQ 70155601 SPQ 70155601 Contact Us For Availability
NI
SPQ 70482901 SPQ 70482901 Contact Us For Availability
NI
SPQ 38464P SPQ 38464P Contact Us For Availability
NI
SPQ 210195 SPQ 210195 Contact Us For Availability
NI
SPQ 70513316 SPQ 70513316 Contact Us For Availability
NI
SPQ 70513314 SPQ 70513314 Contact Us For Availability
NI
SPQ 70513312 SPQ 70513312 Contact Us For Availability
NI
SPQ 70513309 SPQ 70513309 Contact Us For Availability
NI
SPQ 70513303 SPQ 70513303 Contact Us For Availability
NI
SPQ 70482401 SPQ 70482401 Contact Us For Availability
NI
SPQ 70513311 SPQ 70513311 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK109 Contact Us For Availability
NI
SPQ CK101 SPQ CK101 Contact Us For Availability
NI
SPQ CK099 SPQ CK099 Contact Us For Availability
NI
SPQ CK121 SPQ CK121 Contact Us For Availability
NI
SPQ CK119 SPQ CK119 Contact Us For Availability
NI
SPQ CK116 SPQ CK116 Contact Us For Availability
NI
Transformer Harness SPQ 70612702 Contact Us For Availability
NI
SPQ 44272302 SPQ 44272302 Contact Us For Availability
NI
SPQ 203346 SPQ 203346 Contact Us For Availability
NI
Rivet SPQ 70173402 Contact Us For Availability
NI
Gasket SPQ 70030401 Contact Us For Availability
NI
Gasket SPQ 70705121 Contact Us For Availability
NI
Emergency Stop Bypass Harness SPQ F8519403 Contact Us For Availability
NI
SPQ 70126301 SPQ 70126301 Contact Us For Availability
NI
SPQ 70117613 SPQ 70117613 Contact Us For Availability
NI
SPQ 70391101 SPQ 70391101 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
Drywall Screw Magnet Kit SPQ 430260P Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ 70478701P SPQ 70478701P Contact Us For Availability
NI
SPQ 70050401P SPQ 70050401P Contact Us For Availability
NI
Nut SPQ M400869 Contact Us For Availability
NI
Stove Limit Harness SPQ 70066501 Contact Us For Availability
NI
SPQ 70564303 SPQ 70564303 Contact Us For Availability
NI
SPQ 44281709 SPQ 44281709 Contact Us For Availability
NI
SPQ 44357401 SPQ 44357401 Contact Us For Availability
NI
SPQ 70516103 SPQ 70516103 Contact Us For Availability
NI
SPQ F8134001 SPQ F8134001 Contact Us For Availability
NI
SPQ F8611601 SPQ F8611601 Contact Us For Availability
NI
SPQ 70516104 SPQ 70516104 Contact Us For Availability
NI
SPQ 70516102 SPQ 70516102 Contact Us For Availability
NI
SPQ 44309001 SPQ 44309001 Contact Us For Availability
NI
SPQ 44309002 SPQ 44309002 Contact Us For Availability
× ![]()
