Model Speed Queen ST0300DSL Dryer – Common Parts & Diagrams

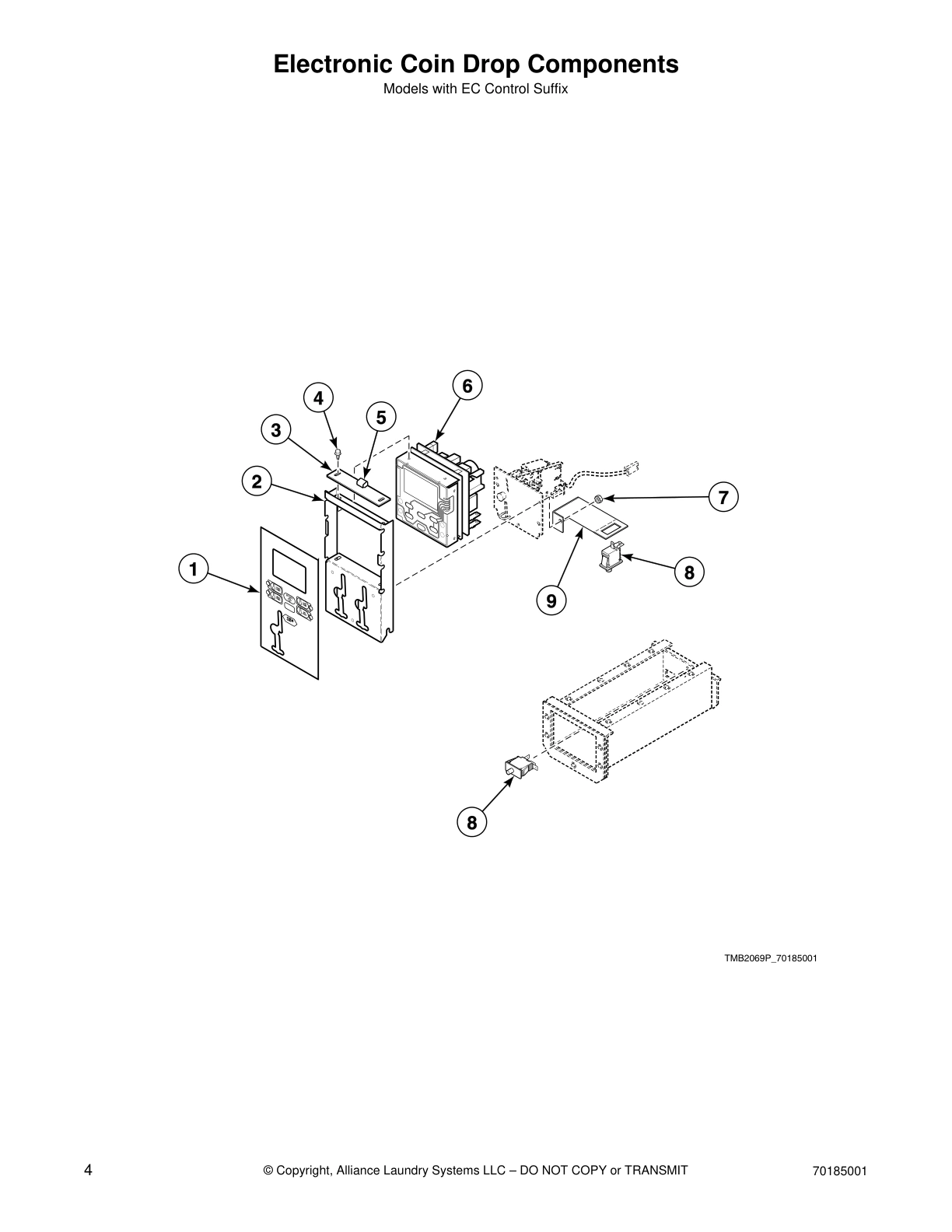

Electronic Coin Drop Components
Coin Drop Assemblies
Card Reader Control Components
Electromechanical Coin Drop Components
Coin Meters and Components
Manual Dual Timer Control
NetMaster Card Reader
NetMaster Coin Drop
NetMaster Network Interface Board
NetMaster Network Board
Upper Front Panel Components
Lower Front Panel Components
Upper Cylinder Support Components
Lower Cylinder Support Components
Lint Drawer Components
Door and Hinge Components
Cylinder Components
Drive Motor Components
Drive Motors
Blower and Exhaust Components
Blower Motors
Airflow Switch Components
Gas Burner Housing
Gas Burner Components
Gas Valve and Piping
Gas Valve Assembly
Electric Heater Components
Steam Heater Components
Rear Control Box - Gas Non-CE Models (Drawing 1 of 2)
Rear Control Box - Gas Non-CE Models (Drawing 2 of 2)
Rear Control Box - Steam Non-CE Models
Rear Control Box - Electric Non-CE Models
Rear Control Box - Gas CE Models
Rear Control Box - Steam CE Models
Rear Control Box - Electric CE Models
Through Serial No. 112006347
Rear Control Box - Electric CE Models
Starting Serial No. 112006348
Common parts from model Speed Queen ST0300DSL Dryer
SPQ 70506402 SPQ 70506402 Contact Us For Availability
Jumper Calibration Assembly SPQ 70211801 Contact Us For Availability
Control Panel Harness Assembly SPQ 70206601 Contact Us For Availability
SPQ 70232601 SPQ 70232601 Contact Us For Availability
SPQ F160673P SPQ F160673P Contact Us For Availability
SPQ 70296401 SPQ 70296401 Contact Us For Availability
SPQ 70226701 SPQ 70226701 Contact Us For Availability
SPQ 70320801 SPQ 70320801 Contact Us For Availability
Drive Motor SPQ 70338101P Contact Us For Availability
Blower Motor SPQ 70342601P Contact Us For Availability
Jumper Harness Assembly SPQ 70086401 Contact Us For Availability
Steam Jumper Assembly SPQ M413505 Contact Us For Availability
Main Remote Interface Harness Assembly SPQ M413508 Contact Us For Availability
SPQ 70204501 SPQ 70204501 Contact Us For Availability
SPQ 70113101 SPQ 70113101 Contact Us For Availability
1
Belt SPQ 70276201P Contact Us For Availability
1
Blower Motor SPQ 70337501P Contact Us For Availability
1
Mounting Bracket SPQ 70131301 Contact Us For Availability
1
Overlay SPQ 70235101 Contact Us For Availability
1
Overlay SPQ 70184102 Contact Us For Availability
1
Communication Board SPQ 210097 Contact Us For Availability
1
Baffle Gasket SPQ 70015701 Contact Us For Availability
1
Lint Screen Assembly SPQ 70290601 Contact Us For Availability
1
Door Assembly SPQ 70212300 Contact Us For Availability
1
Cylinder Assembly SPQ 70372502P Contact Us For Availability
1
Drive Motor Kit SPQ 70337901P Contact Us For Availability
1
Duct Cover SPQ 70207501 Contact Us For Availability
1
Air Filter SPQ 70036001 Contact Us For Availability
1
Transformer SPQ M414230P Contact Us For Availability
2
Nut SPQ 70155601 Contact Us For Availability
2
End Cap SPQ M4960P3 Contact Us For Availability
2
Dual Overlay Kit SPQ 70217001P Contact Us For Availability
2
Valve Kit SPQ F8521701 Contact Us For Availability
2
Indicator Light SPQ 70080601 Contact Us For Availability
2
Screw SPQ M402797 Contact Us For Availability
2
Control Door Assembly SPQ 70184201 Contact Us For Availability
2
Control Door Assembly SPQ 70183901 Contact Us For Availability
2
Control Housing Cover SPQ 70203201 Contact Us For Availability
2
Shadow Box Clip SPQ 70176002P Contact Us For Availability
2
Expansion Clip SPQ M411072 Contact Us For Availability
2
Roller Shaft SPQ 70232602 Contact Us For Availability
2
Nut SPQ M400661 Contact Us For Availability
2
Cylinder Idler Arm SPQ 70284201 Contact Us For Availability
2
Fuse Holder SPQ M413544P Contact Us For Availability
3
Door Hinge SPQ 70296801 Contact Us For Availability
3
Potentiometer Mounting Bracket SPQ M411052 Contact Us For Availability
3
Latch Mounting Bracket SPQ 70175911 Contact Us For Availability
3
Communication Board Bracket SPQ 70205401 Contact Us For Availability
3
Lint Screen Bracket SPQ 44088801 Contact Us For Availability
3
Coin Box SPQ 70232001 Contact Us For Availability
3
Drive Access Cover SPQ 70275501P Contact Us For Availability
3
Thermistor Cover SPQ 70299201 Contact Us For Availability
3
Airflow Switch Bracket SPQ 70266301 Contact Us For Availability
3
Steam Valve SPQ F8322903 Contact Us For Availability
4
SPQ 70173401P SPQ 70173401P Contact Us For Availability
4
Motor Mount Bracket SPQ 70211502 Contact Us For Availability
4
Circuit Board Support SPQ 431347P Contact Us For Availability
4
Thermistor SPQ 70211501 Contact Us For Availability
4
Temperature Kit SPQ 70119801 Contact Us For Availability
4
Jumper Configuration Assembly SPQ M402917 Contact Us For Availability
4
Communication Connector SPQ 210099 Contact Us For Availability
4
Coin Vault Assembly SPQ 70231901 Contact Us For Availability
4
Cam and Hinge Kit SPQ M414215 Contact Us For Availability
4
Cylinder Bearing Stud Plate Assembly SPQ 70392801 Contact Us For Availability
4
Solenoid Valve DIN Connector SPQ 70370301P Contact Us For Availability
4
Transformer SPQ M414229P Contact Us For Availability
5
Airflow Switch Vane SPQ 70266201 Contact Us For Availability
5
Belt Tension Tool Kit SPQ 70211401 Contact Us For Availability
5
Screw SPQ 70184501 Contact Us For Availability
5
Coin Chute Assembly SPQ 70055001 Contact Us For Availability
5
Lint Drawer Handle Plate SPQ 70026901 Contact Us For Availability
5
Pop Rivet SPQ 70070101 Contact Us For Availability
5
Limit Thermostat SPQ 70112801 Contact Us For Availability
5
Thermostat Cover SPQ 70139901 Contact Us For Availability
6
Airflow Switch Kit SPQ 70270901P Contact Us For Availability
6
Fuse Bracket SPQ 430642 Contact Us For Availability
6
Control Door Latch SPQ D501524 Contact Us For Availability
6
Coin Vault Switch Harness Assembly SPQ 70015705 Contact Us For Availability
6
Lint Drawer Front Kit SPQ 70333101 Contact Us For Availability
6
SPQ 70115902 SPQ 70115902 Contact Us For Availability
6
SPQ 70062401 SPQ 70062401 Contact Us For Availability
6
Limit Thermostat SPQ M409443 Contact Us For Availability
7
Airflow Switch SPQ 70267301 Contact Us For Availability
7
Jumper Calibration Assembly SPQ 431318 Contact Us For Availability
7
Control Panel Harness Assembly SPQ 70131701P Contact Us For Availability
7
Clip SPQ 70015702 Contact Us For Availability
7
Lint Drawer Handle SPQ 70323201 Contact Us For Availability
7
Drywall Screw Magnet Kit SPQ 70257101 Contact Us For Availability
7
SPQ 70202501 SPQ 70202501 Contact Us For Availability
7
Nut SPQ M411307 Contact Us For Availability
7
Steam Filter Holder SPQ 70369301 Contact Us For Availability
7
Fan Contactor SPQ M413862 Contact Us For Availability
7
Fuse Receptacle SPQ M414232 Contact Us For Availability
8
SPQ 70108001 SPQ 70108001 Contact Us For Availability
8
Control Panel Harness Assembly SPQ 70211703P Contact Us For Availability
8
SPQ 70233101 SPQ 70233101 Contact Us For Availability
8
Pop Rivet SPQ 70036601 Contact Us For Availability
8
Overlay SPQ 70322901P Contact Us For Availability
8
SPQ M400044 SPQ M400044 Contact Us For Availability
8
SPQ 70257201 SPQ 70257201 Contact Us For Availability
8
Airflow Switch Plate SPQ 70271601 Contact Us For Availability
8
Thermostat Bracket SPQ 70137801 Contact Us For Availability
9
SPQ 70013701P SPQ 70013701P Contact Us For Availability
9
SPQ 70475001P SPQ 70475001P Contact Us For Availability
9
Control Kit SPQ 70206301P Contact Us For Availability
9
SPQ 70069901 SPQ 70069901 Contact Us For Availability
9
SPQ M401938 SPQ M401938 Contact Us For Availability
9
SPQ 70176102P SPQ 70176102P Contact Us For Availability
9
SPQ 70232801 SPQ 70232801 Contact Us For Availability
9
SPQ 70322902P SPQ 70322902P Contact Us For Availability
9
SPQ 70126201 SPQ 70126201 Contact Us For Availability
9
SPQ M412985 SPQ M412985 Contact Us For Availability
9
Jumper Harness Assembly SPQ M414240 Contact Us For Availability
9
Fuse Bracket SPQ M413118 Contact Us For Availability
10
Transformer SPQ M414312P Contact Us For Availability
10
Door Hinge Lug Assembly SPQ 44035001 Contact Us For Availability
10
Coin Carrier Spring SPQ 70151301 Contact Us For Availability
10
Timer Control Assembly SPQ 70175301P Contact Us For Availability
10
Nut SPQ 70184101 Contact Us For Availability
10
Pushbutton Switch SPQ 70413301 Contact Us For Availability
10
Control Housing SPQ 70119901 Contact Us For Availability
10
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
10
Nut SPQ 70022101 Contact Us For Availability
10
Cabinet Strap SPQ 70058301 Contact Us For Availability
10
Cylinder Kit SPQ 70372501P Contact Us For Availability
10
Nut SPQ M400022 Contact Us For Availability
10
Motor Channel SPQ 70261701 Contact Us For Availability
10
Airflow Switch Cover SPQ 70281801 Contact Us For Availability
11
Key SPQ 44089302P Contact Us For Availability
11
Rear Stabilizer Bracket SPQ M400034 Contact Us For Availability
11
Screw SPQ 70033502 Contact Us For Availability
11
Kickplate SPQ 70117605 Contact Us For Availability
11
Center Cylinder Seal Assembly SPQ 70066003 Contact Us For Availability
11
Cylinder Kit SPQ 70222202P Contact Us For Availability
12
Key SPQ 70155602 Contact Us For Availability
12
Relay SPQ 70179101 Contact Us For Availability
12
Pop Rivet SPQ 70126401 Contact Us For Availability
12
Roller Shaft SPQ 70057101 Contact Us For Availability
12
Rear Cylinder Bearing Housing SPQ 70222201P Contact Us For Availability
12
Cylinder Idler Bracket SPQ 70261601 Contact Us For Availability
12
Blower Inlet Cone SPQ 70200301 Contact Us For Availability
13
Lint Drawer Gasket SPQ 70117901P Contact Us For Availability
13
Washer SPQ 70013901 Contact Us For Availability
13
Screw SPQ M412534 Contact Us For Availability
13
Retaining Ring SPQ 70030401 Contact Us For Availability
13
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
13
Idler Bracket SPQ 70443301 Contact Us For Availability
14
Start Switch SPQ 70108501 Contact Us For Availability
14
Nut SPQ M400991 Contact Us For Availability
14
Door Glass SPQ M400784P Contact Us For Availability
14
Spacer SPQ 430725 Contact Us For Availability
14
Washer SPQ 70270301 Contact Us For Availability
14
Screw SPQ 70014101 Contact Us For Availability
15
Pushbutton Switch SPQ 431264 Contact Us For Availability
15
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
15
Drum Idler Spring SPQ 70045301 Contact Us For Availability
15
Exhaust Duct Assembly SPQ 70126101 Contact Us For Availability
15
Fan Contactor SPQ M413614P Contact Us For Availability
16
Pop Rivet SPQ 70131801P Contact Us For Availability
16
Coin Vault Trim SPQ M401223 Contact Us For Availability
16
Partition Baffle SPQ 70232701 Contact Us For Availability
16
Door Handle SPQ 44007902P Contact Us For Availability
16
Screw SPQ 70265901 Contact Us For Availability
16
Blower Housing Scroll SPQ 70246201 Contact Us For Availability
16
Insulator SPQ 51778 Contact Us For Availability
17
Trunnion and Seal Kit SPQ 70448701 Contact Us For Availability
17
Rear Panel SPQ 70017701 Contact Us For Availability
17
Start Switch SPQ M412079P Contact Us For Availability
17
Front Panel Seal SPQ M400003 Contact Us For Availability
17
Upper Front Panel Assembly SPQ 70120501 Contact Us For Availability
17
Door Ring Gasket SPQ M409385 Contact Us For Availability
17
Washer SPQ 70218101 Contact Us For Availability
18
Overlay SPQ 70116901 Contact Us For Availability
18
Lower Front Panel Assembly SPQ 70117502 Contact Us For Availability
18
Idler Wheel Assembly SPQ 430648 Contact Us For Availability
18
Key SPQ 70017401 Contact Us For Availability
18
Fuse Holder SPQ M405824 Contact Us For Availability
19
Blower Housing Cover Assembly SPQ 70144101 Contact Us For Availability
19
Retaining Ring SPQ 70023601 Contact Us For Availability
19
Motor Pulley SPQ 70050401P Contact Us For Availability
20
Key SPQ 70114601 Contact Us For Availability
20
Roller Support Bracket SPQ 70215302 Contact Us For Availability
20
Idler Assembly Service Kit SPQ 70284203 Contact Us For Availability
21
Lock, Key and Nut Kit SPQ 70116902 Contact Us For Availability
21
Rear Cylinder Channel Plate SPQ 70411301 Contact Us For Availability
21
Motor Capacitor SPQ 70259901 Contact Us For Availability
23
Control Door Latch SPQ 70082201 Contact Us For Availability
NI
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
NI
Blower Motor Kit SPQ 70337601P Contact Us For Availability
NI
Drive Motor SPQ 70337801P Contact Us For Availability
NI
Steam Coil SPQ 70231201P Contact Us For Availability
NI
SPQ M402455 SPQ M402455 Contact Us For Availability
NI
SPQ 70218201 SPQ 70218201 Contact Us For Availability
NI
SPQ M406297 SPQ M406297 Contact Us For Availability
NI
SPQ M4694P3 SPQ M4694P3 Contact Us For Availability
NI
SPQ 70236301 SPQ 70236301 Contact Us For Availability
NI
Card Reader Harness Assembly SPQ 70324601 Contact Us For Availability
NI
SPQ 70204801 SPQ 70204801 Contact Us For Availability
NI
Communication Harness Assembly SPQ 70211101 Contact Us For Availability
NI
SPQ 70176104P SPQ 70176104P Contact Us For Availability
NI
SPQ 70198801 SPQ 70198801 Contact Us For Availability
NI
SPQ 70022001 SPQ 70022001 Contact Us For Availability
NI
SPQ 70243402 SPQ 70243402 Contact Us For Availability
NI
SPQ 70235201 SPQ 70235201 Contact Us For Availability
NI
SPQ 70215303 SPQ 70215303 Contact Us For Availability
NI
SPQ 70180101 SPQ 70180101 Contact Us For Availability
NI
SPQ 70058502 SPQ 70058502 Contact Us For Availability
NI
SPQ 70320802 SPQ 70320802 Contact Us For Availability
NI
SPQ 70115301 SPQ 70115301 Contact Us For Availability
NI
SPQ 70114701 SPQ 70114701 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 70127301 SPQ 70127301 Contact Us For Availability
NI
SPQ M4853P3 SPQ M4853P3 Contact Us For Availability
NI
Drive Motor Kit SPQ 70338001P Contact Us For Availability
NI
SPQ 70056201 SPQ 70056201 Contact Us For Availability
NI
SPQ 70017801 SPQ 70017801 Contact Us For Availability
NI
Blower Motor Kit SPQ 70337701P Contact Us For Availability
NI
Fan Contactor SPQ 91024P Contact Us For Availability
NI
Junction Box Harness Assembly SPQ M413509 Contact Us For Availability
NI
High Limit Harness SPQ 70204601 Contact Us For Availability
NI
SPQ 70084001 SPQ 70084001 Contact Us For Availability
NI
Jumper Configuration Assembly SPQ M414228P Contact Us For Availability
NI
Jumper Harness Assembly SPQ M413510 Contact Us For Availability
NI
High Limit Harness SPQ M413504 Contact Us For Availability
NI
SPQ 70067001P SPQ 70067001P Contact Us For Availability
× ![]()
