Model Whirlpool SS630PER0 SLIDE-IN GAS RANGE – Common Parts & Diagrams
05 - BROILER AND BAKE BURNER
07 - DOOR

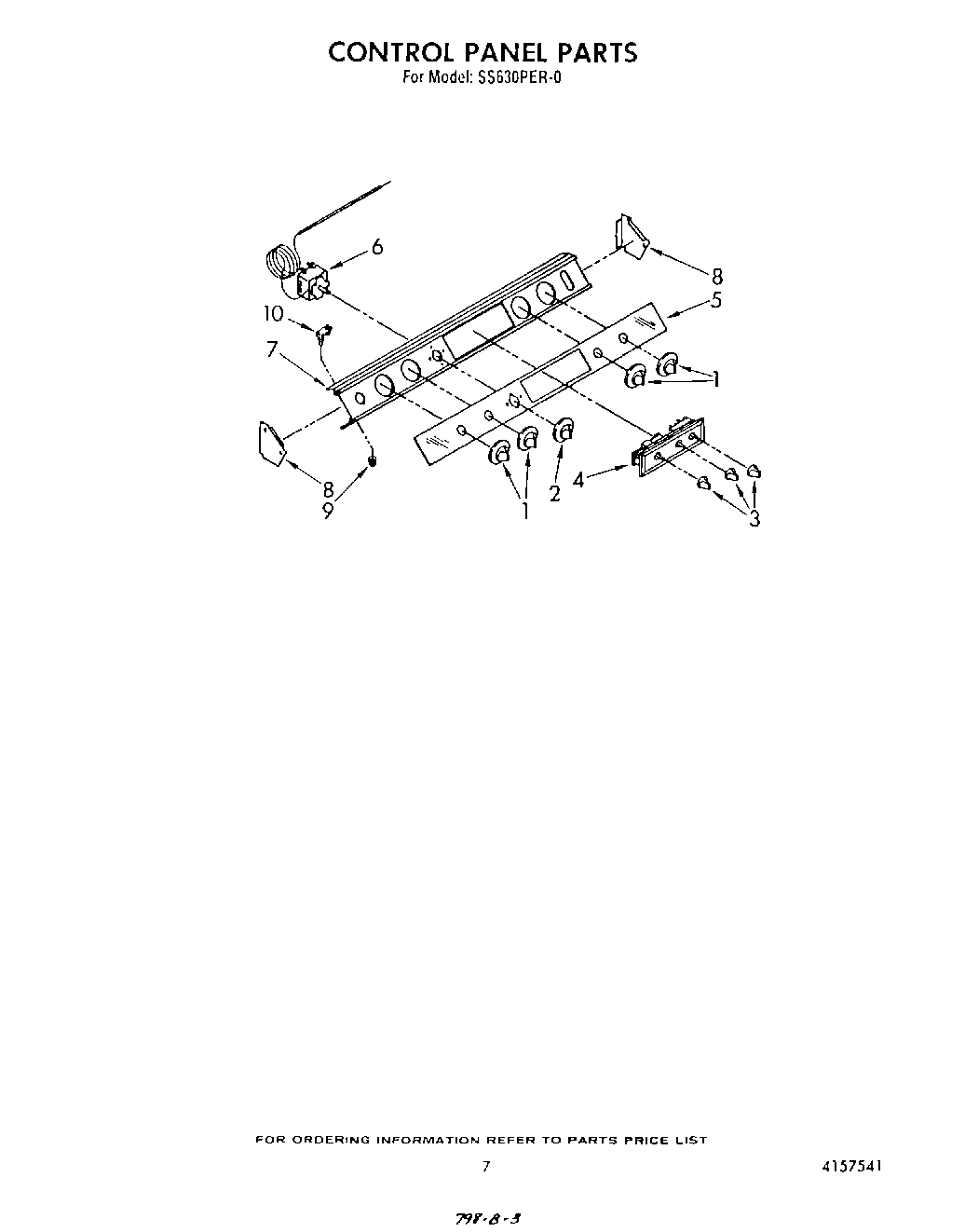

06 - CONTROL PANEL , LIT/OPTIONAL

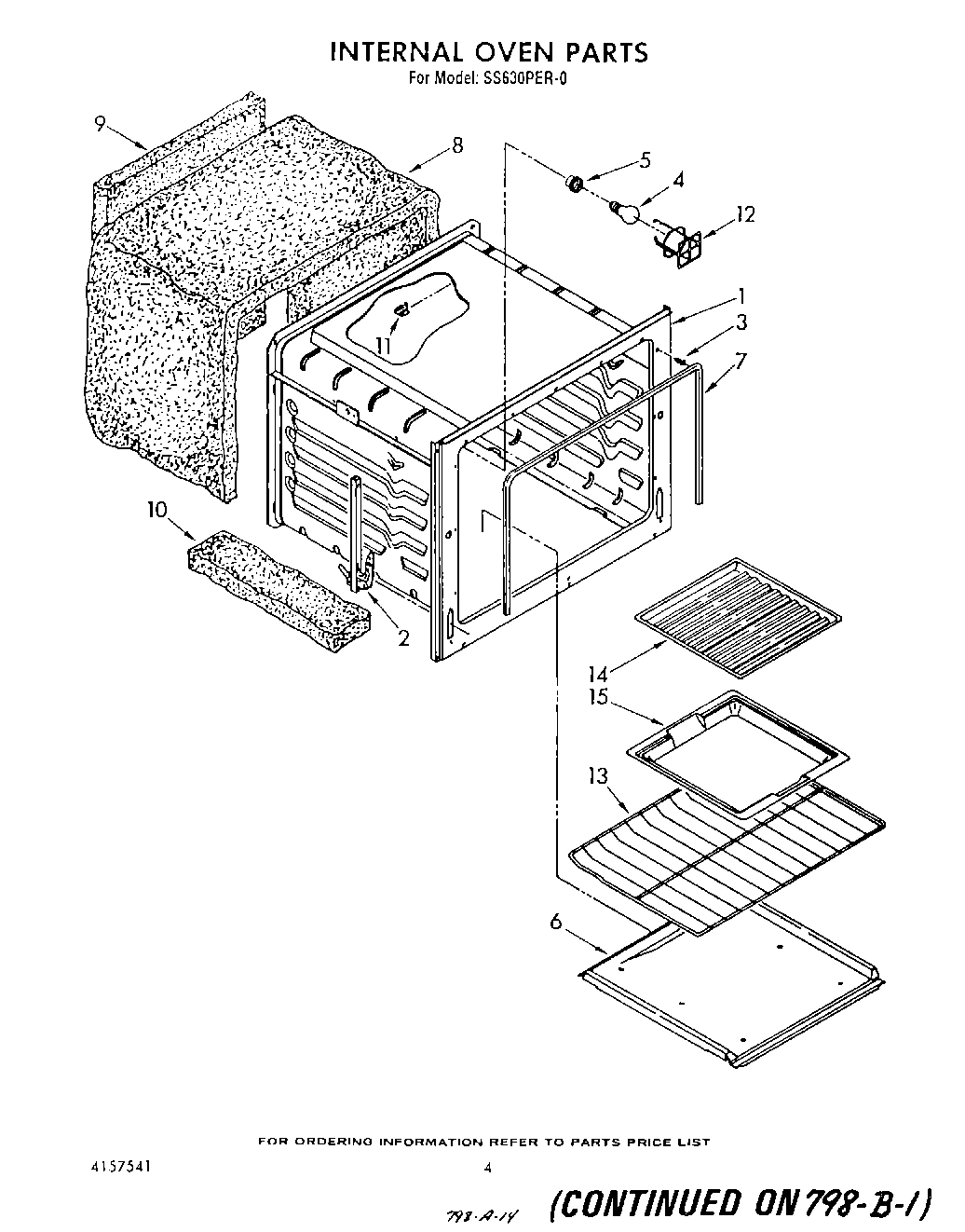

03 - INTERNAL OVEN

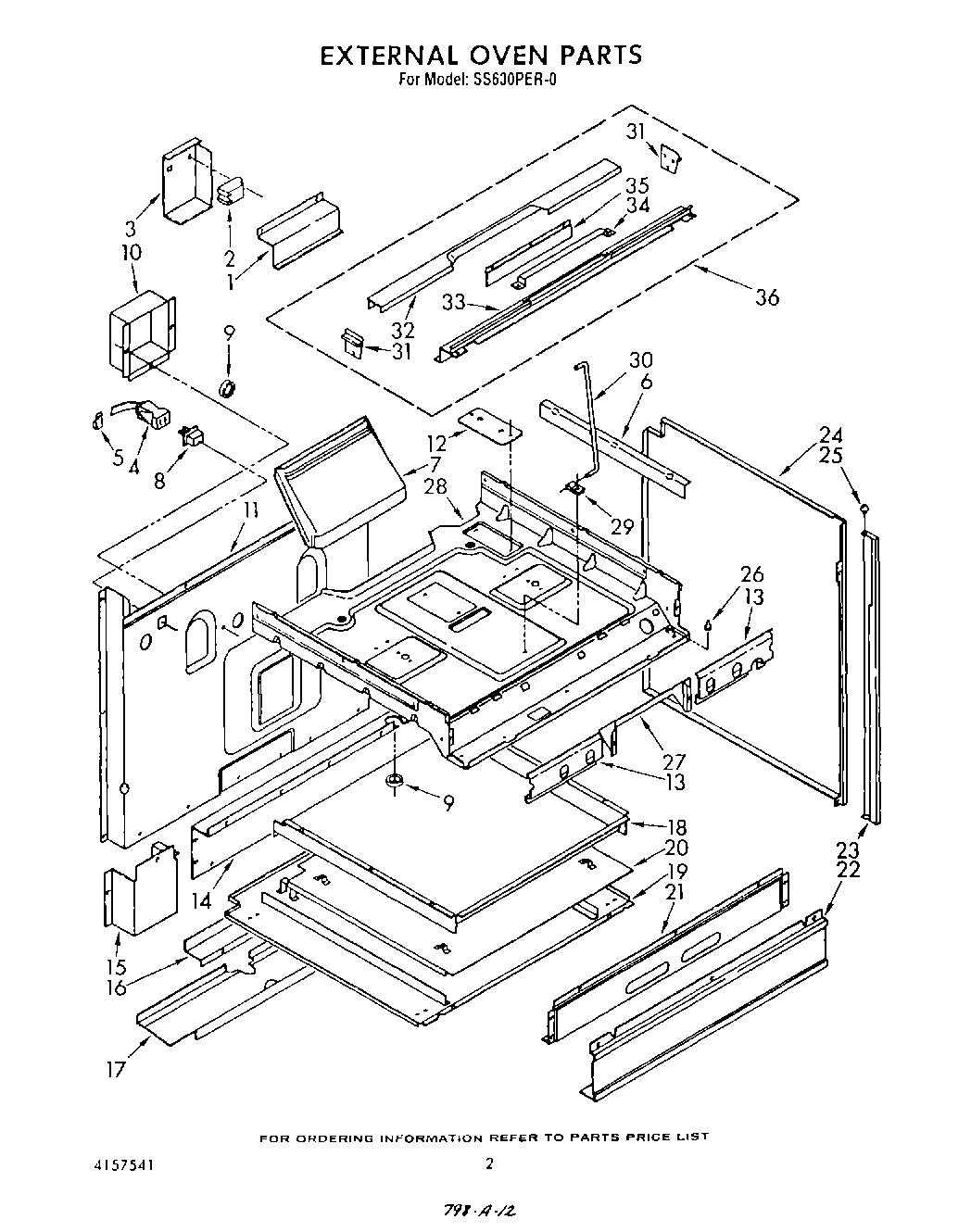

02 - EXTERNAL OVEN

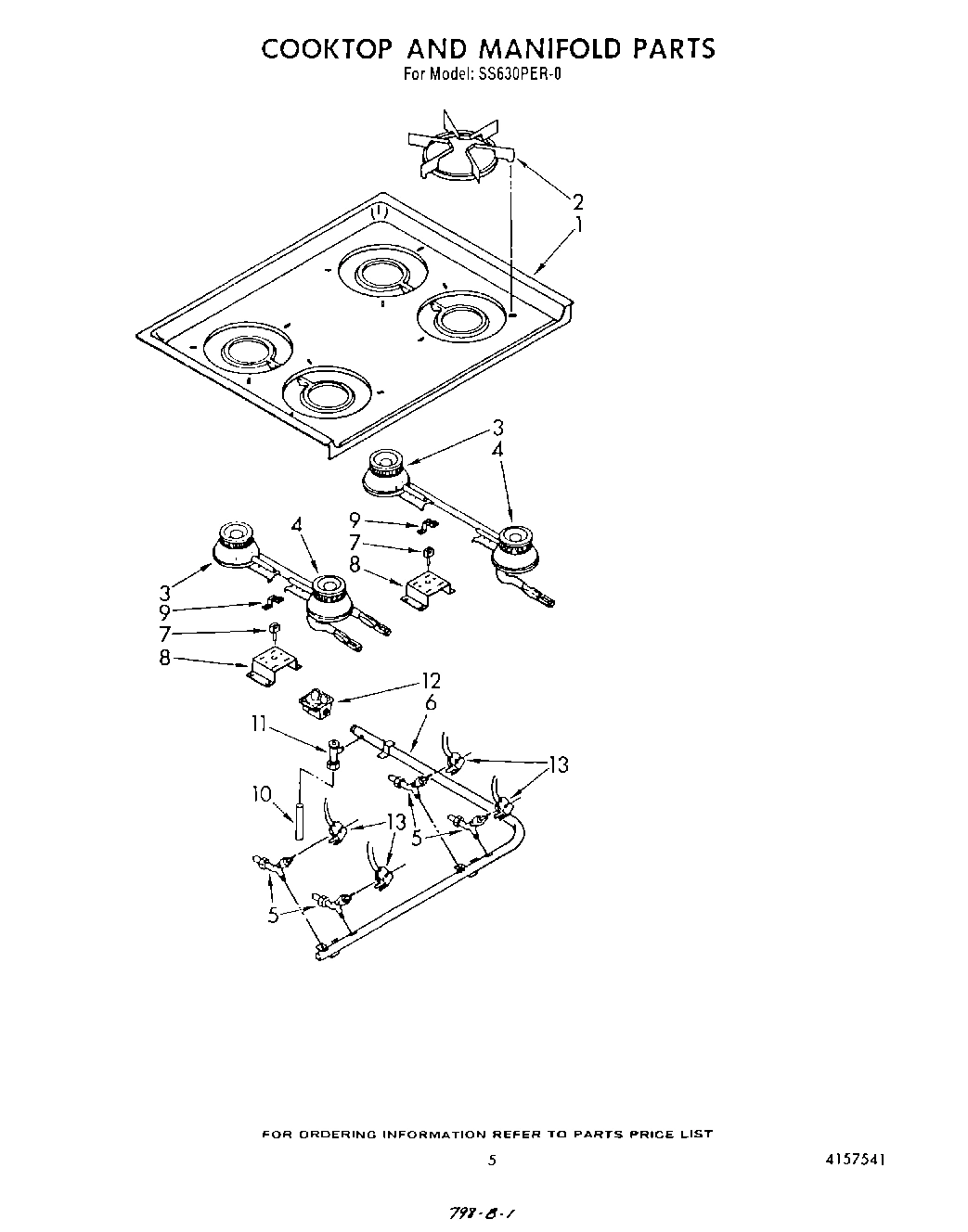

04 - COOKTOP AND MANIFOLD
Common parts from model Whirlpool SS630PER0 SLIDE-IN GAS RANGE
List, Repair Parts WPL LIT4157541 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
Instructions, Installation WPL LIT786736 Contact Us For Availability
Guide, Use & Care WPL LIT786776 Contact Us For Availability
1
Ignitor WPL 4157446 Contact Us For Availability
1
Handle WPL 4157423 Contact Us For Availability
1
Screw, 10A X 3/4 (2) WPL 4157433 Contact Us For Availability
1
Screw, 8-32 X 3/8 (4) WPL 786723 Contact Us For Availability
1
Knob, Burner (4) WPL 4157412 Contact Us For Availability
1
Oven (Not Serviceable) WPL ARI130664A Contact Us For Availability
1
Cover, Module WPL 4157372 Contact Us For Availability
1
Cooktop, Chrome WPL 4157370 Contact Us For Availability
2
Burner, Broiler WPL 4157456 Contact Us For Availability
2
Frame, Door WPL 4157424 Contact Us For Availability
2
Knob, Thermostat WPL 4157413 Contact Us For Availability
2
Hinge (2) WPL 4157389 Contact Us For Availability
2
Screw, 10-32 X 3/8 (2) WPL 4157554 Contact Us For Availability
2
Screw, 8-32 X 3/8 (1) WPL 786232 Contact Us For Availability
2
Module, Spark WPL 786323 Contact Us For Availability
2
Grate (4) WPL 4157371 Contact Us For Availability
3
Orfice WPL 4157457 Contact Us For Availability
3
Glass, Outter WPL 4157425 Contact Us For Availability
3
Knob, Clock (3) WPL 786434 Contact Us For Availability
3
Clip, Seal WPL 4157392 Contact Us For Availability
3
Bracket, Module WPL 4157373 Contact Us For Availability
3
Burner, Rear (2) WPL 4157434 Contact Us For Availability
4
Connector, Tube WPL 4157458 Contact Us For Availability
4
Baffle, Door WPL 4157426 Contact Us For Availability
4
Clock WPL 4157414 Contact Us For Availability
4
Cord, Power WPL 786578 Contact Us For Availability
4
Burner, Front (2) WPL 4157436 Contact Us For Availability
5
Tube, Broiler WPL 4157452 Contact Us For Availability
5
Insulation WPL 4157427 Contact Us For Availability
5
Inlay WPL 4157415 Contact Us For Availability
5
Socket WPL 786591 Contact Us For Availability
5
Strain Relief WPL 4157298 Contact Us For Availability
5
Valve (4) WPL 4157438 Contact Us For Availability
6
Burner, Bake WPL 4157445 Contact Us For Availability
6
Frame, Glass WPL 4157428 Contact Us For Availability
6
Screw WPL 4157431 Contact Us For Availability
6
Thermostat WPL 4157416 Contact Us For Availability
6
Bottom, Oven WPL 4157393 Contact Us For Availability
6
Bracket Support (2) WPL 4157374 Contact Us For Availability
6
Pipe, Manifold WPL 4157439 Contact Us For Availability
6
Screw, 8-32 X 3/8 (2) WPL 4157555 Contact Us For Availability
7
Deflector WPL 4179145 Contact Us For Availability
7
Rivet (3) WPL 786281 Contact Us For Availability
7
Glass, Inside WPL 4157429 Contact Us For Availability
7
Panel, Control WPL 4157417 Contact Us For Availability
7
Seal WPL 4157394 Contact Us For Availability
7
Flue WPL 4157375 Contact Us For Availability
7
Electrode WPL 4157440 Contact Us For Availability
8
Liner WPL 4157430 Contact Us For Availability
8
Endcap (L.H.) WPL 4157418 Contact Us For Availability
8
Endcap (R.H.) WPL 4157419 Contact Us For Availability
8
Plug WPL 4157376 Contact Us For Availability
8
Support, Burner WPL 4157441 Contact Us For Availability
9
Nut (2) WPL 4157448 Contact Us For Availability
9
Valve, Bake WPL 4157450 Contact Us For Availability
9
Bezel WPL 4157420 Contact Us For Availability
9
Bushing WPL 786750 Contact Us For Availability
9
Bracket, Electrode WPL 4157442 Contact Us For Availability
10
Tube, Main WPL 4157443 Contact Us For Availability
10
Switch WPL 4157421 Contact Us For Availability
10
Insulation WPL 4157409 Contact Us For Availability
10
Cover, Plug WPL 4157377 Contact Us For Availability
11
Valve, Broil WPL 4157454 Contact Us For Availability
11
Clip, Thermobulb WPL 4157410 Contact Us For Availability
11
Panel, Rear (Upper) WPL 4157378 Contact Us For Availability
11
Valve, Shut Off WPL 4157444 Contact Us For Availability
12
Bracket, Valve WPL 4157455 Contact Us For Availability
12
Shield, Bulb WPL 4157411 Contact Us For Availability
12
Cover, Access WPL 4157379 Contact Us For Availability
12
Regulator, Pressure WPL 786123 Contact Us For Availability
13
Rack WPL 4157461 Contact Us For Availability
13
Shield, Wire (Right) WPL 4157380 Contact Us For Availability
13
Shield, Wire (Left) WPL 4157405 Contact Us For Availability
13
Switch, Ignitor (4) WPL 4157435 Contact Us For Availability
14
Grid WPL 786346 Contact Us For Availability
14
Panel, Rear (Lower) WPL 4157381 Contact Us For Availability
15
Pan WPL 786345 Contact Us For Availability
15
Panel, Rear (Side) WPL 4157382 Contact Us For Availability
16
Bracket, Support WPL 4157383 Contact Us For Availability
17
Shield, Valve WPL 4157384 Contact Us For Availability
18
Bottom, Bake Burner WPL 4157385 Contact Us For Availability
19
Panel, Bottom WPL 4157387 Contact Us For Availability
20
Shield, Heat WPL 4157388 Contact Us For Availability
21
Bracket, Lower WPL 4157390 Contact Us For Availability
22
Screw (3) WPL 786242 Contact Us For Availability
22
Panel, Lower WPL 4157391 Contact Us For Availability
23
Trim, Side (Left) WPL 4157395 Contact Us For Availability
23
Trim, Side (Right) WPL 4157396 Contact Us For Availability
24
Panel, Side (Left) WPL 4157397 Contact Us For Availability
24
Panel, Side (Right) WPL 4157398 Contact Us For Availability
25
Spacer (2) WPL 4157401 Contact Us For Availability
26
Protector (2) WPL 4157402 Contact Us For Availability
27
Shield, Thermostat WPL 4157403 Contact Us For Availability
28
Burner Box WPL 4157404 Contact Us For Availability
30
Rod, Support WPL 4157408 Contact Us For Availability
31
Endcap (Left) WPL 4157462 Contact Us For Availability
31
Endcap (Right) WPL 4157465 Contact Us For Availability
32
Trim, Lower WPL 4157463 Contact Us For Availability
33
Vent WPL 4157467 Contact Us For Availability
34
Screw (2) WPL 4157464 Contact Us For Availability
34
Deflector, Vent WPL 4157468 Contact Us For Availability
35
Sh WPL 4157470 Contact Us For Availability
36
WPL 4157471 WPL 4157471 Contact Us For Availability
× ![]()
