Model Whirlpool SS385PEEB0 SLIDE-IN GAS RANGE – Common Parts & Diagrams

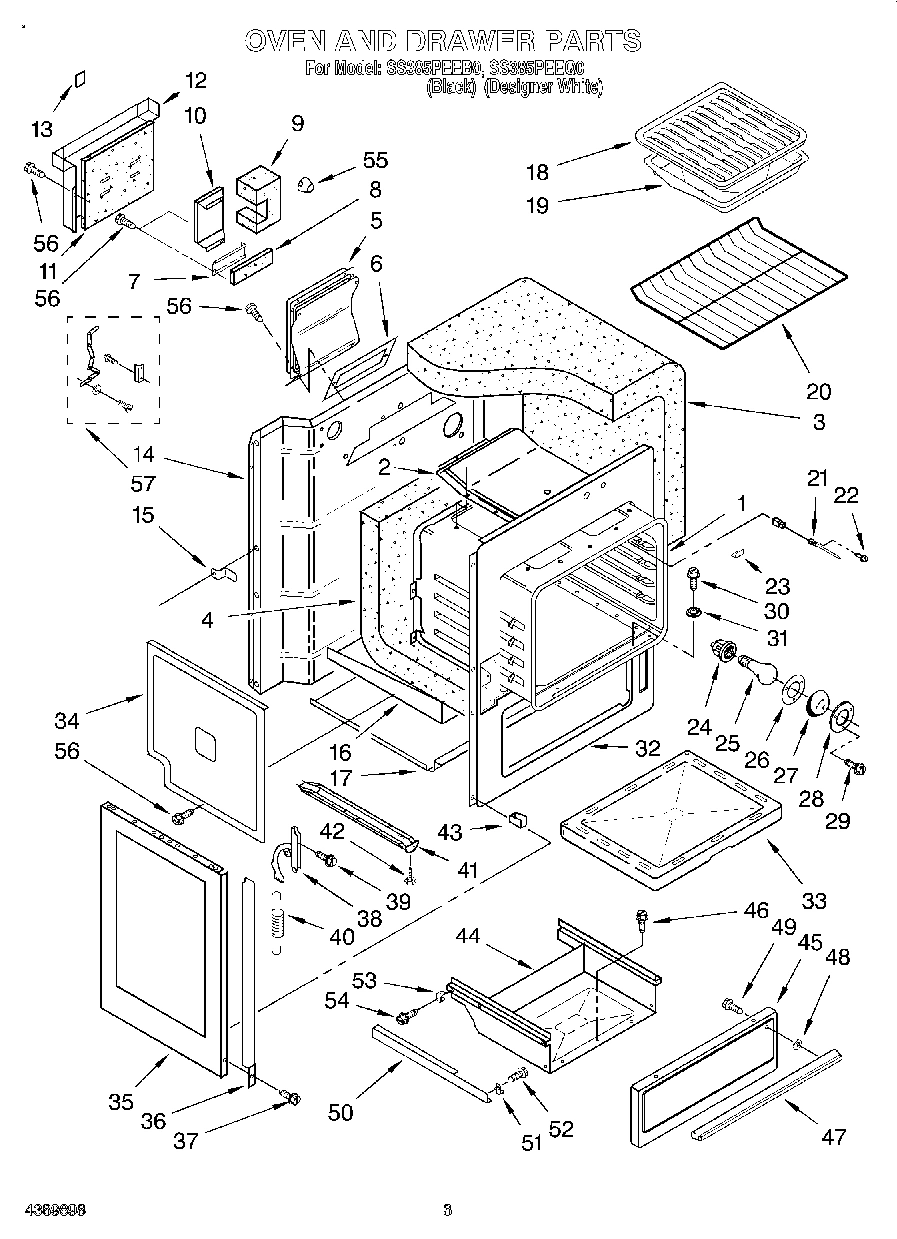

02 - OVEN AND DRAWER

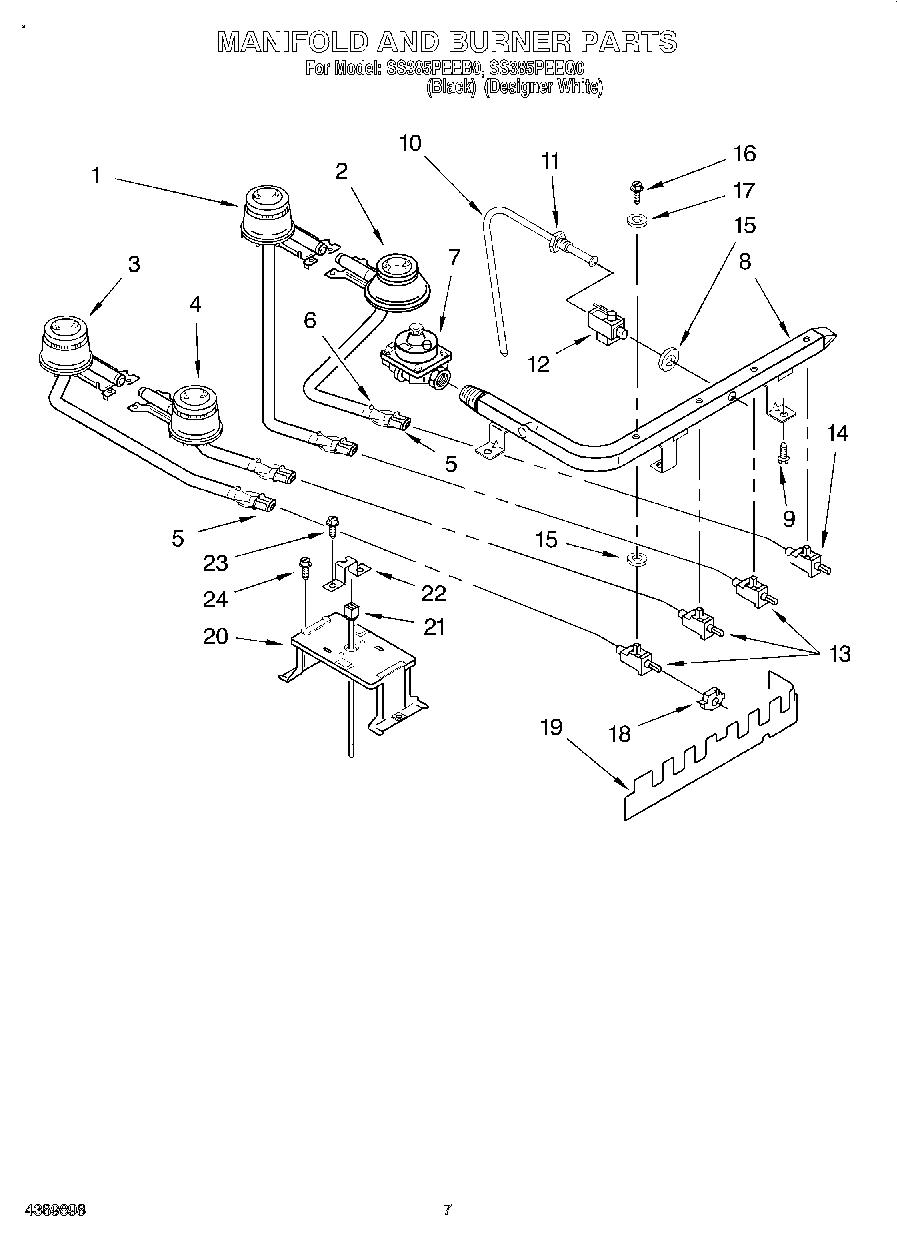

04 - MANIFOLD AND BURNER

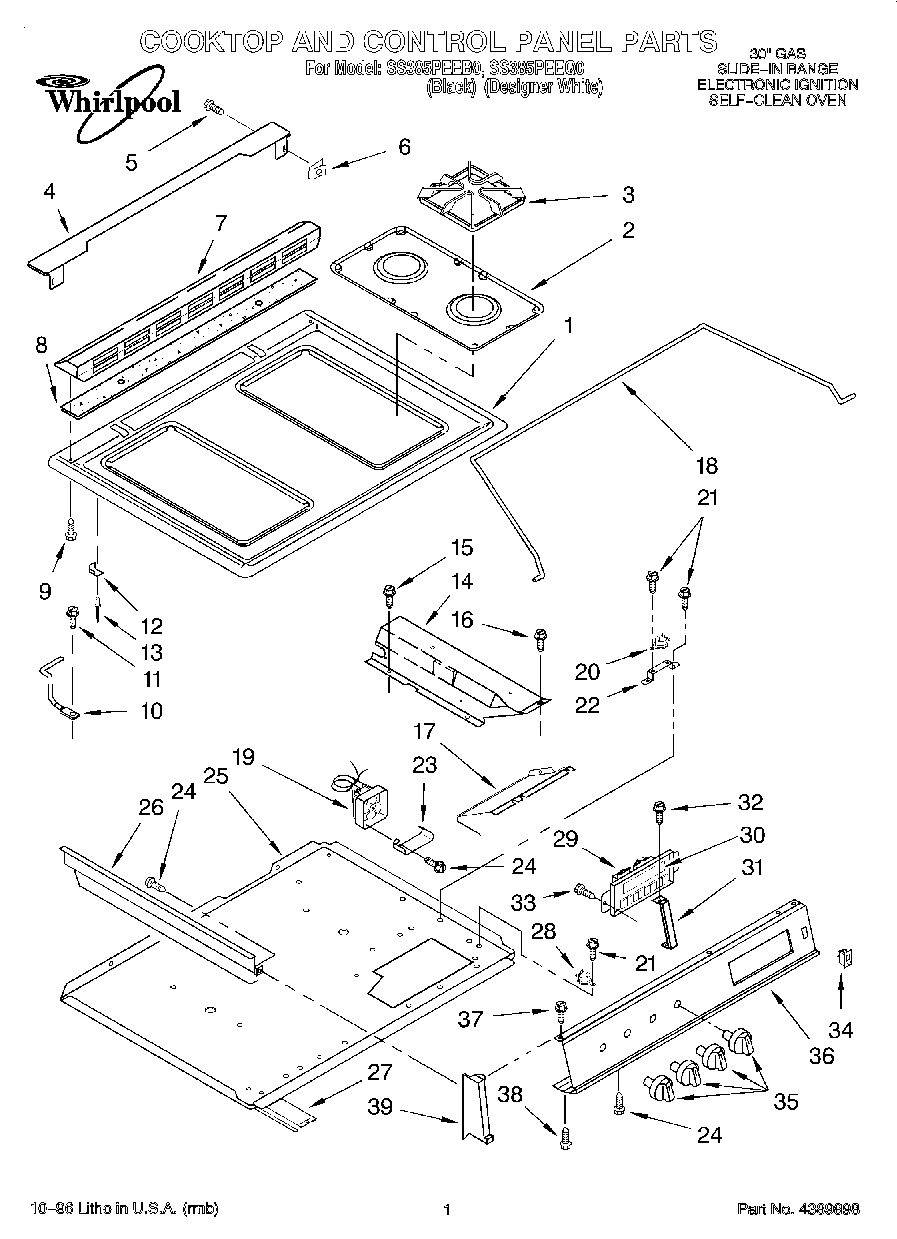

01 - COOKTOP AND CONTROL PANEL

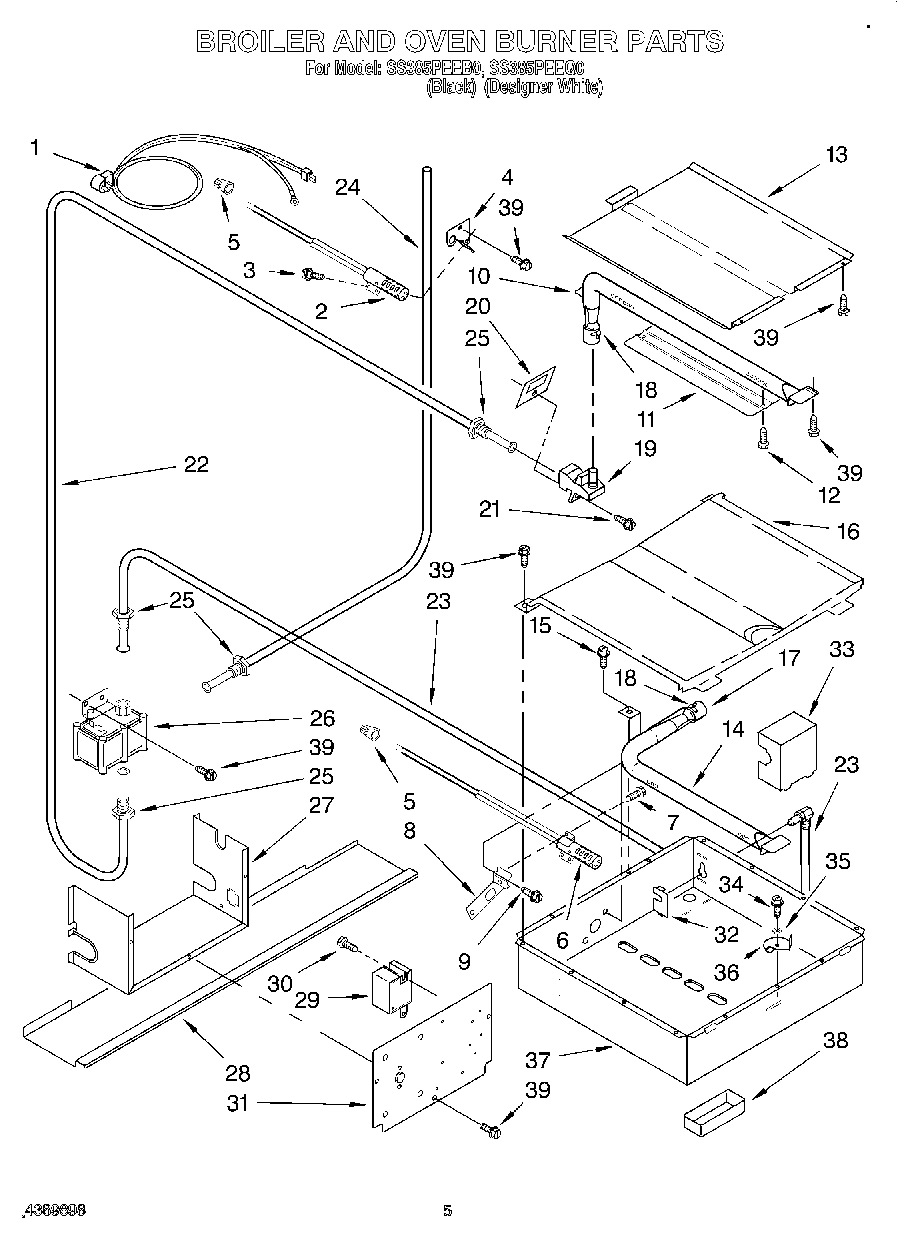

03 - BROILER AND OVEN BURNER

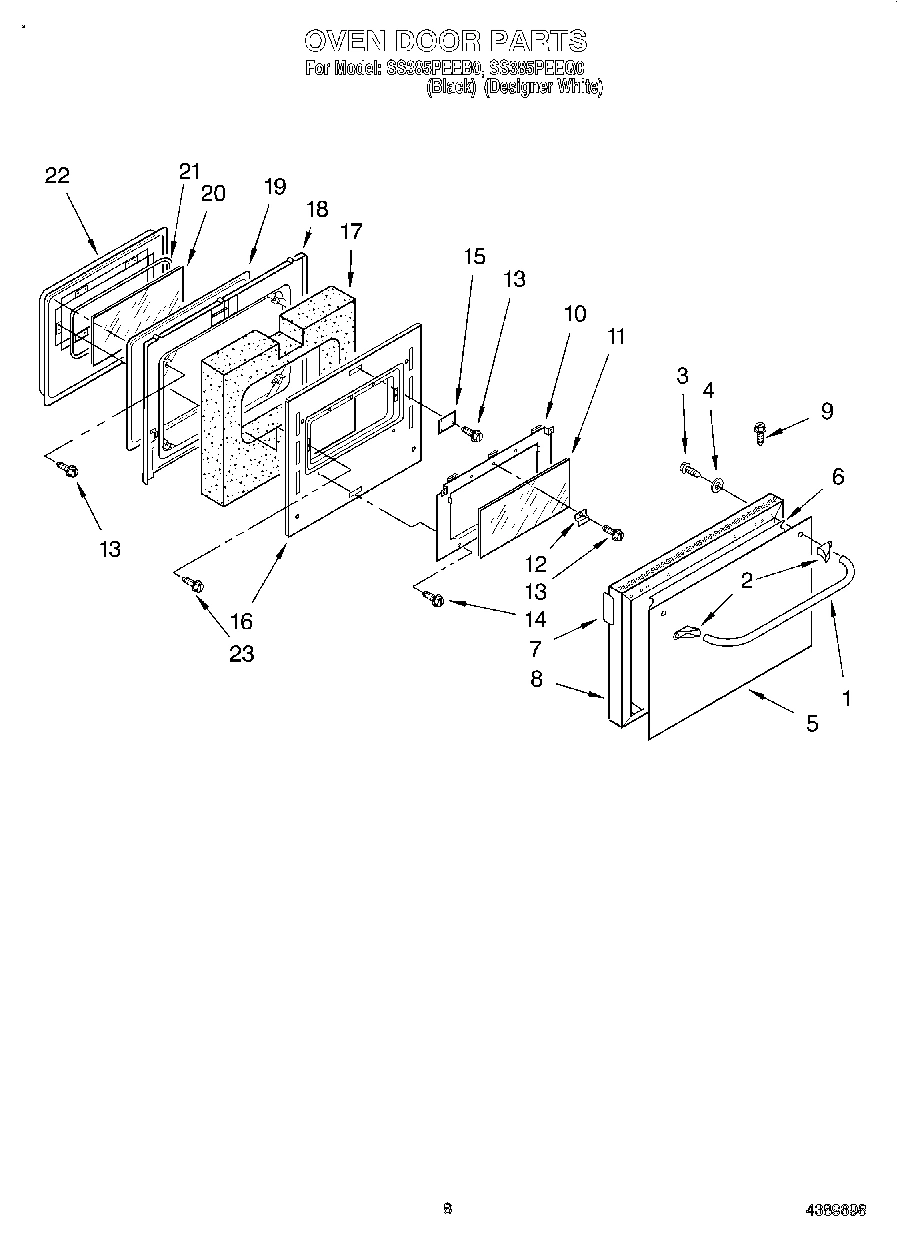

05 - OVEN DOOR

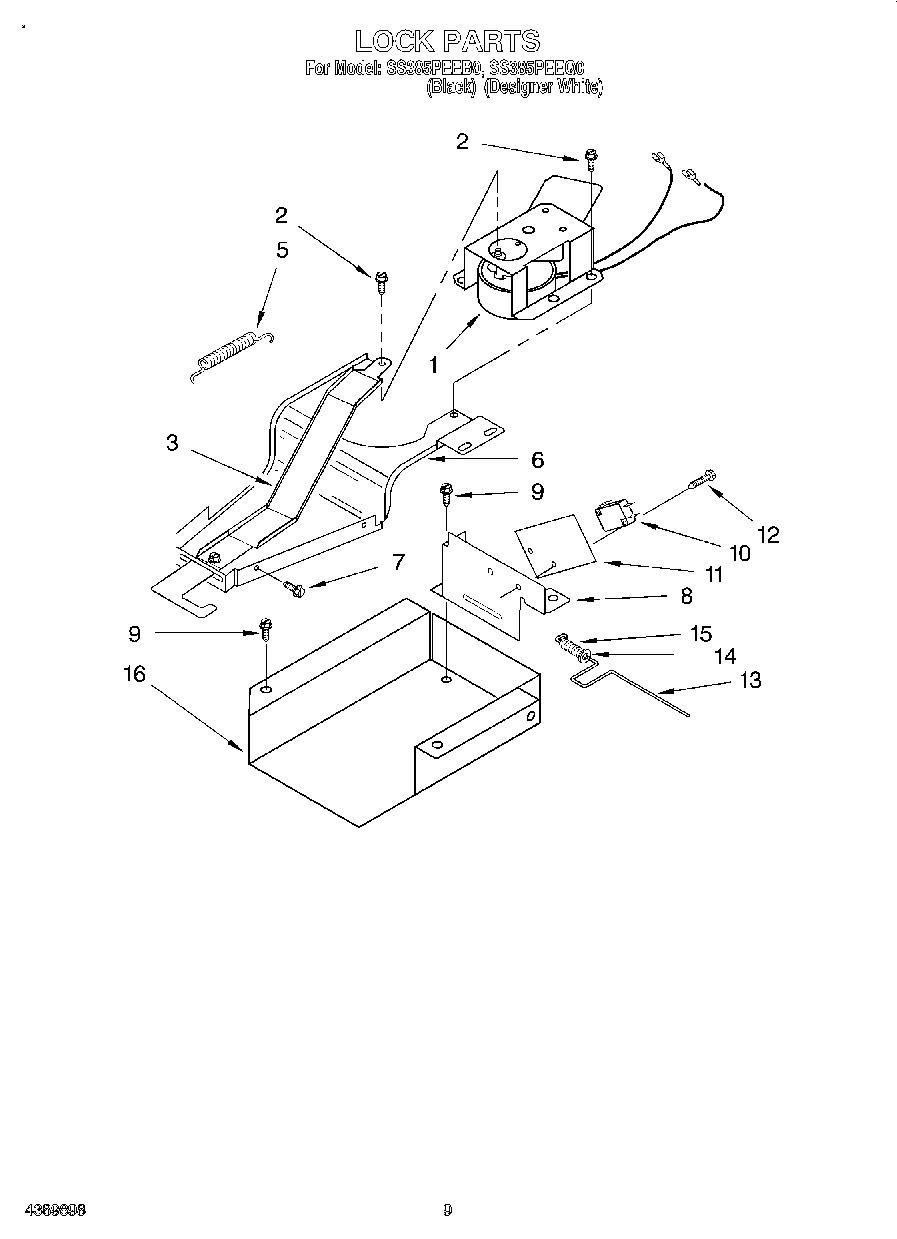

06 - LOCK, LITERATURE
Common parts from model Whirlpool SS385PEEB0 SLIDE-IN GAS RANGE
Installation Instructions WPL LIT4389355 Contact Us For Availability
Use & Care Guide WPL LIT4389869 Contact Us For Availability
1
Liner, Oven WPL 4389431 Contact Us For Availability
1
Burner, Right Rear WPL 4389485 Contact Us For Availability
1
Cooktop (Black) WPL 4389377 Contact Us For Availability
1
Cooktop (White) WPL 4389378 Contact Us For Availability
1
Cord, Power WPL 4389523 Contact Us For Availability
1
Handle, Oven Door (Black) WPL 4389412 Contact Us For Availability
1
Handle, Oven Door (White) WPL 4389413 Contact Us For Availability
1
Motor, Lock WPL 4389419 Contact Us For Availability
2
Flue Box Assy. WPL 4389439 Contact Us For Availability
2
Burner, Right Front WPL 4389483 Contact Us For Availability
2
Drip Pan (2) WPL 4389384 Contact Us For Availability
2
Endcap, Handle (2) (Black) WPL 4389521 Contact Us For Availability
2
Endcap, Handle (2) (White) WPL 4389522 Contact Us For Availability
3
Insulation, Top And Sides WPL 4389450 Contact Us For Availability
3
Burner, Left Rear WPL 4389484 Contact Us For Availability
3
Grate (4) (Black) WPL 4389385 Contact Us For Availability
3
Grate (4) (White) WPL 4389386 Contact Us For Availability
3
Screw, Handle (4) WPL 4389524 Contact Us For Availability
3
Lever, Lock WPL 4389429 Contact Us For Availability
4
Insulation, Back And Bottom WPL 4389451 Contact Us For Availability
4
Burner, Left Front WPL 4389482 Contact Us For Availability
4
Filler Strip (Black) WPL 4389899 Contact Us For Availability
4
Filler Strip (White) WPL 4389900 Contact Us For Availability
4
Bracket, Broil Ignitor WPL 4389496 Contact Us For Availability
4
Spacer, Handle (2) WPL 4389418 Contact Us For Availability
5
Deflector, Flue WPL 4389440 Contact Us For Availability
5
Shutter, Air WPL 4389509 Contact Us For Availability
5
Glass, Door Front (Black) WPL 4389400 Contact Us For Availability
5
Glass, Door Front (White) WPL 4389401 Contact Us For Availability
5
Spring, Lock WPL 4389430 Contact Us For Availability
6
Gasket, Deflector WPL 4389464 Contact Us For Availability
6
Ignitor, Bake WPL 4389493 Contact Us For Availability
6
Reflector, Heat WPL 4389406 Contact Us For Availability
6
Plate, Lock WPL 4389428 Contact Us For Availability
7
Shield, Wire WPL 4389441 Contact Us For Availability
7
Regulator, Pressure WPL 4389489 Contact Us For Availability
7
Cover, Vent WPL 4389387 Contact Us For Availability
7
Screw, Ignitor To Bracket WPL 4389549 Contact Us For Availability
7
Insulator, Door Frame (2) (Black) WPL 4389404 Contact Us For Availability
7
Insulator, Door Frame (2) (White) WPL 4389405 Contact Us For Availability
8
Insulation, Flue WPL 4389454 Contact Us For Availability
8
Pipe, Manifold WPL 4389891 Contact Us For Availability
8
Insulation, Vent WPL 4389393 Contact Us For Availability
8
Bracket, Bake Ignitor WPL 4389494 Contact Us For Availability
8
Frame, Oven Door (Black) WPL 4389414 Contact Us For Availability
8
Frame, Oven Door (White) WPL 4389415 Contact Us For Availability
8
Bracket, Switch WPL 4389426 Contact Us For Availability
9
Insulation, Rear WPL 4389452 Contact Us For Availability
9
Screw (2) WPL 4389551 Contact Us For Availability
9
Screw, Trim (6) (Black) WPL 4389552 Contact Us For Availability
9
Screw, Trim (6) (White) WPL 4389553 Contact Us For Availability
10
Shield, Wire WPL 4389442 Contact Us For Availability
10
Hinge, Cooktop (Right) WPL 4389389 Contact Us For Availability
10
Hinge, Cooktop (Left) WPL 4389390 Contact Us For Availability
10
Burner, Broiler WPL 4389488 Contact Us For Availability
10
Plate, Glass Mtg. WPL 4389399 Contact Us For Availability
10
Switch WPL 4389422 Contact Us For Availability
11
Insulation, Deflector WPL 4389453 Contact Us For Availability
11
Baffle, Lower WPL 4389515 Contact Us For Availability
11
Glass, Mid Door WPL 4389402 Contact Us For Availability
11
Insulator, Switch WPL 4389424 Contact Us For Availability
12
Shield, Deflector WPL 4389443 Contact Us For Availability
12
Valve, Shut-Off WPL 4389498 Contact Us For Availability
12
Bracket, Hinge (2) WPL 4389392 Contact Us For Availability
12
Retainer, Glass (2) WPL 4389398 Contact Us For Availability
12
Screw, Mtg. (2) WPL 4389539 Contact Us For Availability
13
Pad, Felt (2) WPL 4389410 Contact Us For Availability
13
Valve, Burner (3) WPL 4389874 Contact Us For Availability
13
Pop Rivet (2) WPL 4389566 Contact Us For Availability
13
Screw, Retainer WPL 4389540 Contact Us For Availability
13
Baffle, Upper WPL 4389516 Contact Us For Availability
13
Pin, Switch WPL 4389427 Contact Us For Availability
14
Back, Main WPL 4389433 Contact Us For Availability
14
Valve, RF Burner WPL 4389873 Contact Us For Availability
14
Duct, Fan WPL 4389363 Contact Us For Availability
14
Burner, Bake WPL 4389486 Contact Us For Availability
14
Screw, Plate (6) WPL 4389534 Contact Us For Availability
14
Washer, Nylon WPL 4389567 Contact Us For Availability
15
Spacer, Retainer (2) WPL 4389447 Contact Us For Availability
15
Gasket, Valve (5) WPL 4389512 Contact Us For Availability
15
Shield, Heat WPL 4389407 Contact Us For Availability
15
Spring, Actuator WPL 4389425 Contact Us For Availability
16
Retainer, Bottom WPL 4389438 Contact Us For Availability
16
Screw, Valve Mtg. WPL 4389544 Contact Us For Availability
16
Baffle, Oven Burner WPL 4389514 Contact Us For Availability
16
Retainer, Insulation WPL 4389397 Contact Us For Availability
16
Box, Lock WPL 4389423 Contact Us For Availability
16
Main Wire Harness WPL 4389561 Contact Us For Availability
16
Ignitor Harness WPL 4389562 Contact Us For Availability
16
Switch Harness WPL 4389563 Contact Us For Availability
16
Lock Motor Harness WPL 4389564 Contact Us For Availability
17
Baffle, Heat WPL 4389435 Contact Us For Availability
17
Gasket, Screw (5) WPL 4389511 Contact Us For Availability
17
Cover, Wire WPL 4389391 Contact Us For Availability
17
Shutter, Air WPL 4389510 Contact Us For Availability
17
Insulation, Door WPL 4389394 Contact Us For Availability
18
Screw, Shutter WPL 4389545 Contact Us For Availability
18
Switch, Valve (4) WPL 4389890 Contact Us For Availability
18
Support, Cooktop WPL 4389388 Contact Us For Availability
18
Liner, Oven Door WPL 4389396 Contact Us For Availability
19
Deflector, Air WPL 4389517 Contact Us For Availability
19
Fan Assembly WPL 4389375 Contact Us For Availability
19
Fitting, Orifice WPL 4389506 Contact Us For Availability
19
Gasket, Oven Door WPL 4389409 Contact Us For Availability
20
Rack, Oven (2) WPL 4389455 Contact Us For Availability
20
Support, Burner (2) WPL 4389504 Contact Us For Availability
20
Switch, Limit WPL 4389421 Contact Us For Availability
20
Cover, Chip WPL 4389513 Contact Us For Availability
20
Glass, Inner WPL 4389403 Contact Us For Availability
21
Sensor, Oven WPL 4389882 Contact Us For Availability
21
Electrode, Spark (Left) WPL 4389501 Contact Us For Availability
21
Electrode, Spark (Right) WPL 4389502 Contact Us For Availability
21
Screw WPL 4389560 Contact Us For Availability
21
Screw WPL ARI130660A Contact Us For Availability
21
Seal, Inner Glass WPL 4389408 Contact Us For Availability
22
Bracket, Ignitor WPL 4389495 Contact Us For Availability
22
Bracket, Switch WPL 4389368 Contact Us For Availability
22
Tubing, 3/8`` (Includes No. 25) WPL 4389479 Contact Us For Availability
22
Plug, Oven Door WPL 4389395 Contact Us For Availability
23
Cover WPL 4389475 Contact Us For Availability
23
Bracket, Fan WPL 4389371 Contact Us For Availability
23
Tubing W/Orifice (Includes No. 25) WPL 4389481 Contact Us For Availability
24
Tubing, 3/8`` (Includes No. 25) WPL 4389480 Contact Us For Availability
25
Nut, Tubing WPL 4389559 Contact Us For Availability
25
Bottom, Burner Box WPL 4389381 Contact Us For Availability
26
Gasket, Lens WPL 4389461 Contact Us For Availability
26
Extension, Side (2) WPL 4389364 Contact Us For Availability
26
Valve, Control WPL 4389492 Contact Us For Availability
27
Lens, Oven Light WPL 4389462 Contact Us For Availability
27
Support, Burner Box WPL 4369382 Contact Us For Availability
27
Cover, Valve WPL 4389499 Contact Us For Availability
28
Retainer, Lens WPL 4389463 Contact Us For Availability
28
Switch, Fan Limit WPL 4389420 Contact Us For Availability
28
Shield, Wire WPL 4389519 Contact Us For Availability
29
Screw, Retainer WPL 4389550 Contact Us For Availability
29
Control, Clock/Oven WPL 4389875 Contact Us For Availability
29
Spark Module WPL 4389497 Contact Us For Availability
30
Plate, Clock (Black) WPL 4389366 Contact Us For Availability
30
Plate, Clock (White) WPL 4389367 Contact Us For Availability
30
Screw, Module (2) WPL 4389546 Contact Us For Availability
31
Washer WPL 4389555 Contact Us For Availability
31
Bracket, Clock (2) WPL 4389372 Contact Us For Availability
31
Cover, Wire Front WPL 4389500 Contact Us For Availability
32
Frame, Front WPL 4389432 Contact Us For Availability
32
Screw (3) WPL 4389548 Contact Us For Availability
32
Plate, Orifice WPL 4389507 Contact Us For Availability
33
Screw (6) WPL 4389527 Contact Us For Availability
33
Bottom, Oven WPL 4389436 Contact Us For Availability
33
Shield, Orifice WPL 4389508 Contact Us For Availability
34
Retainer, Side (2) WPL 4389437 Contact Us For Availability
34
Screw WPL 4389547 Contact Us For Availability
35
Panel, Body Side (2) WPL 4389883 Contact Us For Availability
35
Knob, Control (4) (White) WPL 4389876 Contact Us For Availability
35
Knob, Control (4) (Black) WPL 4389881 Contact Us For Availability
35
Washer WPL 4389554 Contact Us For Availability
36
Trim, Side (Black Left Hand) WPL 4389465 Contact Us For Availability
36
Trim, Side (Black Right Hand) WPL 4389466 Contact Us For Availability
36
Trim, Side (White Left Hand) WPL 4389467 Contact Us For Availability
36
Trim, Side (White Right Hand) WPL 4389468 Contact Us For Availability
36
Panel, Control (Black) WPL 4389379 Contact Us For Availability
36
Panel, Control (White) WPL 4389380 Contact Us For Availability
36
Latch, Burner Box WPL 4389518 Contact Us For Availability
37
Burner Box Bottom WPL 4389487 Contact Us For Availability
38
Hinge, Oven Door (Right) WPL 4389472 Contact Us For Availability
38
Hinge, Oven Door (Left) WPL 4389473 Contact Us For Availability
38
Retainer, Insulation WPL 4389520 Contact Us For Availability
39
Screw, Hinge (6) WPL 4389538 Contact Us For Availability
39
Endcap (Black Right Hand) WPL 4389360 Contact Us For Availability
39
Endcap (White Left Hand) WPL 4389361 Contact Us For Availability
39
Endcap (White Right Hand) WPL 4389362 Contact Us For Availability
39
Endcap (Black Left Hand) WPL 4389411 Contact Us For Availability
40
Spring, Door (2) WPL 4389474 Contact Us For Availability
41
Rail, Base (Includes No. 42) WPL 4389469 Contact Us For Availability
42
Screw, Leveler (4) WPL 4389478 Contact Us For Availability
43
Spacer (4) WPL 4389558 Contact Us For Availability
44
Drawer, Storage WPL 4389434 Contact Us For Availability
45
Panel, Drawer (Black) WPL 4389445 Contact Us For Availability
45
Panel, Drawer (White) WPL 4389446 Contact Us For Availability
47
Handle, Drawer (Black) WPL 4389448 Contact Us For Availability
47
Handle, Drawer (White) WPL 4389449 Contact Us For Availability
48
Spacer, Handle (2) (Black) WPL 4389416 Contact Us For Availability
48
Spacer, Handle WPL 4389417 Contact Us For Availability
49
WPL 4389543 WPL 4389543 Contact Us For Availability
50
WPL 4389470 WPL 4389470 Contact Us For Availability
51
WPL 4389477 WPL 4389477 Contact Us For Availability
52
WPL 4389536 WPL 4389536 Contact Us For Availability
53
WPL 4389476 WPL 4389476 Contact Us For Availability
54
WPL 4389537 WPL 4389537 Contact Us For Availability
55
WPL 4389556 WPL 4389556 Contact Us For Availability
57
WPL 4389471 WPL 4389471 Contact Us For Availability
× ![]()
