Model Whirlpool SS373PEXT0 SLIDE-IN GAS RANGE – Common Parts & Diagrams

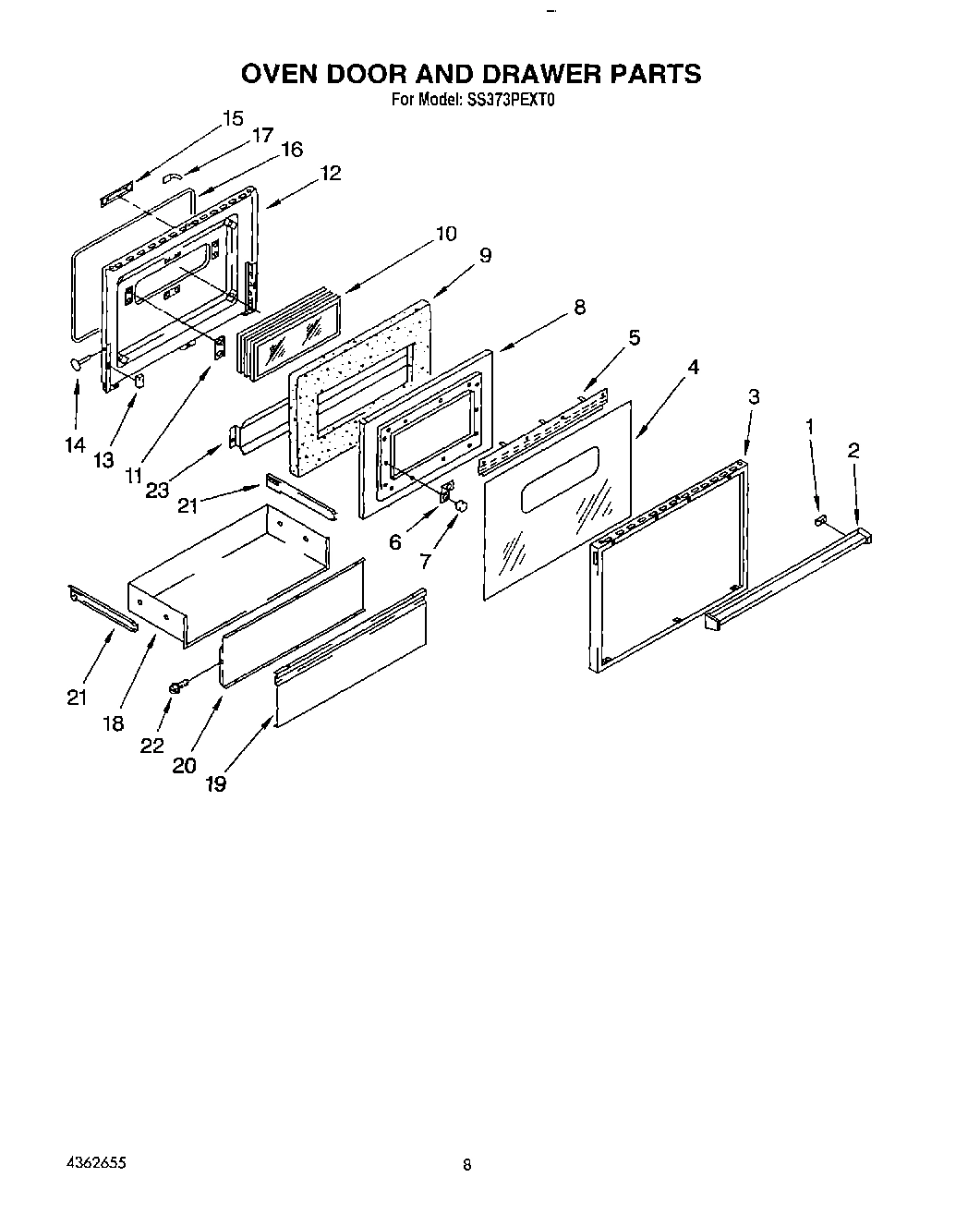

05 - OVEN DOOR AND DRAWER

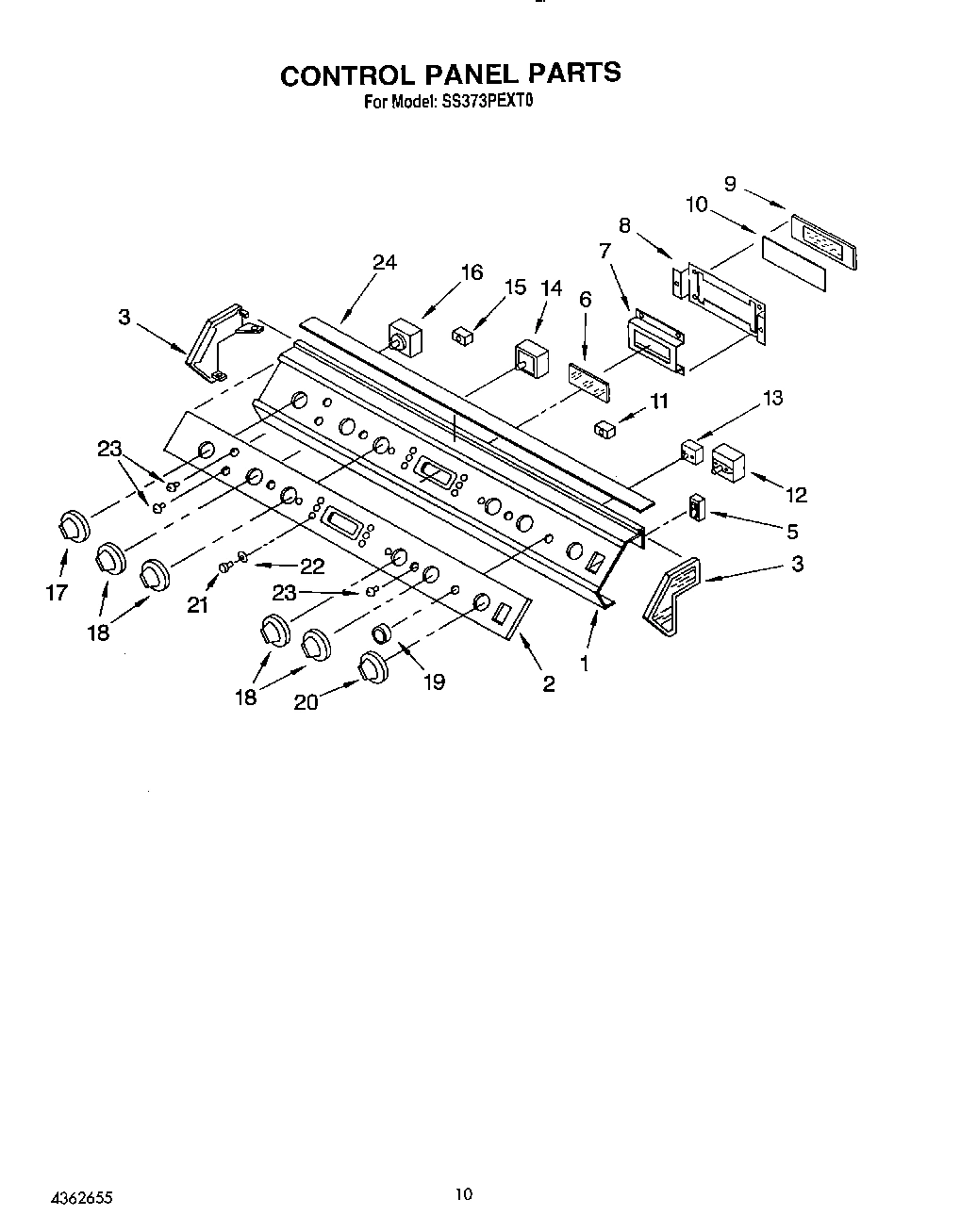

07 - CONTROL PANEL
02 - LOWER OVEN
04 - MAINTOP AND OVEN
06 - MANIFOLD
03 - VENTILATION, LIT/OPTIONAL
10 - ROTISSERIE, GRIDDLE
08 - COOKTOP MODULE
09 - GRILLE MODULE
11 - ELECTRICAL OVEN
Common parts from model Whirlpool SS373PEXT0 SLIDE-IN GAS RANGE
Guide, Use & Care WPL LIT4320704 Contact Us For Availability
Installation Instructions WPL LIT4320705 Contact Us For Availability
Repair Parts List WPL LIT4362655 Contact Us For Availability
1
Handle, Door WPL 786408 Contact Us For Availability
1
Glass, Insert WPL 4362685 Contact Us For Availability
1
Control Panel Panel WPL 4362686 Contact Us For Availability
1
Frame, Side (Right Side) WPL 4315674 Contact Us For Availability
1
Frame, Side (L.H.) WPL 4362654 Contact Us For Availability
1
Oven Bottom WPL 4315114 Contact Us For Availability
1
Burner, Broiler WPL 4320907 Contact Us For Availability
1
Filter WPL 4321000 Contact Us For Availability
1
Griddle WPL 786100 Contact Us For Availability
1
Kit, Rotisserie (Complete) WPL 786225 Contact Us For Availability
1
Module Top WPL 4321182 Contact Us For Availability
1
Pan, Grille WPL 4315615 Contact Us For Availability
2
Spacer WPL 786410 Contact Us For Availability
2
Inlay, Control WPL 4321033 Contact Us For Availability
2
Box, Burner WPL 786336 Contact Us For Availability
2
Plenum Top WPL 4321053 Contact Us For Availability
2
Motor, Rotisserie 60 Hz. WPL 4321290 Contact Us For Availability
2
Module Pan WPL 786110 Contact Us For Availability
2
Burner Grille WPL 4362670 Contact Us For Availability
3
Frame WPL 786417 Contact Us For Availability
3
End Cap (Right Hand) WPL 4321034 Contact Us For Availability
3
End Cap (Left Hand) WPL 4321035 Contact Us For Availability
3
Board, Clock WPL 4321040 Contact Us For Availability
3
Trim, Panel Side WPL 4321011 Contact Us For Availability
3
Frame, Maintop Front WPL 4320998 Contact Us For Availability
3
Plenum Rear WPL 4321074 Contact Us For Availability
4
Glass, Black WPL 786419 Contact Us For Availability
4
Support, Drawer WPL 4321012 Contact Us For Availability
4
Frame, Maintop Rear WPL 4321138 Contact Us For Availability
4
Bracket, Burner Mounting WPL 4179235 Contact Us For Availability
4
Cover, Plenum Rear WPL 4321054 Contact Us For Availability
4
Bracket, Motor Mounting WPL 786166 Contact Us For Availability
4
Burner Front WPL 4321286 Contact Us For Availability
4
Electrode, Grille WPL 786205 Contact Us For Availability
4
Cable, Clock WPL 4321065 Contact Us For Availability
5
Baffle, Air WPL 786422 Contact Us For Availability
5
Track Drawer (L.H.) WPL 4321013 Contact Us For Availability
5
Track Drawer (R.H.) WPL 4321014 Contact Us For Availability
5
Frame, Maintop (L.H. Side) WPL 4362591 Contact Us For Availability
5
Frame, Maintop (R.H. Side) WPL 4362592 Contact Us For Availability
5
Orifice WPL 4179324 Contact Us For Availability
5
Spit, Rotisserie WPL 4321288 Contact Us For Availability
5
Burner Rear WPL 4321287 Contact Us For Availability
5
Support, Grille Burner WPL 786118 Contact Us For Availability
5
P.C. Board, Power Supply WPL 4321066 Contact Us For Availability
6
Support, Glass (3) WPL 786425 Contact Us For Availability
6
Glass, Clock WPL 4321036 Contact Us For Availability
6
Switch, Latch WPL 786669 Contact Us For Availability
6
Frame, Maintop Center WPL 4320999 Contact Us For Availability
6
Gasket, Fan Scroll WPL 4179303 Contact Us For Availability
7
Bumper, Rubber (3) WPL 786526 Contact Us For Availability
7
Bracket, Clock Glass WPL 4321037 Contact Us For Availability
7
Filler, Front Frame WPL 4315118 Contact Us For Availability
7
Wheel, Blower WPL 786155 Contact Us For Availability
7
Skewer (2) WPL 786163 Contact Us For Availability
7
Support, Burner Base WPL 786113 Contact Us For Availability
7
Grille (2) WPL 4362621 Contact Us For Availability
7
Plug Block WPL 786196 Contact Us For Availability
8
Back, Door WPL 4320875 Contact Us For Availability
8
Bracket, Clock WPL 4321038 Contact Us For Availability
8
Screw, Bracket WPL 4321039 Contact Us For Availability
8
Teenut WPL 4157527 Contact Us For Availability
8
Cover, Vent WPL 4321001 Contact Us For Availability
8
Housing Blower WPL 4321055 Contact Us For Availability
8
Screw, Thumb (2) WPL 786162 Contact Us For Availability
8
Support, Venturi WPL 786114 Contact Us For Availability
8
Switch, Fan WPL 4179178 Contact Us For Availability
9
Insulation WPL 4315673 Contact Us For Availability
9
Leveling Leg WPL 786602 Contact Us For Availability
9
Backrail, Lo WPL 4362625 Contact Us For Availability
9
Plate, Motor Mounting WPL 4314921 Contact Us For Availability
9
Connector, Electrode WPL 786117 Contact Us For Availability
10
Window Assembly WPL 4362602 Contact Us For Availability
10
Lens- Clock WPL 4321041 Contact Us For Availability
10
Bracket, Flue Support WPL 4320929 Contact Us For Availability
10
Tubing Assembly (Gas Valve To Broiler Burner) WPL 4362639 Contact Us For Availability
10
Grommet, Rubber (3) WPL 786234 Contact Us For Availability
10
Handle, Rotisserie WPL 4321289 Contact Us For Availability
10
Electrode WPL 786279 Contact Us For Availability
10
Screw, 8-32 X 3/16 WPL 786231 Contact Us For Availability
11
Retainer (4) WPL 4179236 Contact Us For Availability
11
Light, Indicator WPL 4315016 Contact Us For Availability
11
Heat Shield, Drawer WPL 4321070 Contact Us For Availability
11
Gasket, Vent WPL 4320930 Contact Us For Availability
11
Vent WPL 4320951 Contact Us For Availability
11
Nut WPL 786741 Contact Us For Availability
11
Hood & Tubing Assembly (Gas Valve To Lower Ov WPL 4362635 Contact Us For Availability
11
Motor Blower WPL 4315281 Contact Us For Availability
11
Rack, Rotisserie WPL 786159 Contact Us For Availability
11
Lockwasher No.8 WPL 786283 Contact Us For Availability
12
Liner, Pad (8 & 12 Required for Complete Door WPL 4320300 Contact Us For Availability
12
Switch, Selector Element WPL 4179076 Contact Us For Availability
12
Hinge, Door (R.H.) WPL 786374 Contact Us For Availability
12
Hinge, Door (L.H.) WPL 786739 Contact Us For Availability
12
Flue, Dilution WPL 4320924 Contact Us For Availability
12
Spacer, Motor Cover (4) WPL 4314926 Contact Us For Availability
12
Grate, Top Burner WPL 4364025 Contact Us For Availability
12
Sensor, Oven WPL 4315255 Contact Us For Availability
13
Bumper (2) WPL 4179237 Contact Us For Availability
13
Switch, Fan WPL 4321043 Contact Us For Availability
13
Screw WPL 786245 Contact Us For Availability
13
Cover, Chip WPL 4315098 Contact Us For Availability
13
Tubing, Inlet To Manifold WPL 4362647 Contact Us For Availability
13
Cover, Motor WPL 4314924 Contact Us For Availability
13
Clip, Top Mounting WPL 786280 Contact Us For Availability
13
Pin, Ground WPL 786204 Contact Us For Availability
13
Block, Terminal WPL 4315225 Contact Us For Availability
14
Pin, Hinge (2) WPL 786428 Contact Us For Availability
14
Front Frame (Not Serviceable) WPL 4362535 Contact Us For Availability
14
Hook Bolt, Oven Shell WPL 786350 Contact Us For Availability
14
Valve, Dual Gas WPL 4362692 Contact Us For Availability
14
Duct, Wall WPL 4321056 Contact Us For Availability
14
Pop Rivet (4) WPL 786281 Contact Us For Availability
14
Grille Module, Complete WPL 4363084 Contact Us For Availability
14
P.C. Board, Oven WPL 4362622 Contact Us For Availability
15
Plate, Latch WPL 786671 Contact Us For Availability
15
Light, Indicator Oven WPL 786306 Contact Us For Availability
15
Heat Shield Clock WPL 4362665 Contact Us For Availability
15
Washer WPL 786351 Contact Us For Availability
15
Duct, Floor WPL 4321057 Contact Us For Availability
15
U-Clip (2) WPL 786282 Contact Us For Availability
15
Switch, High Limit WPL 4321067 Contact Us For Availability
16
Gasket, Door WPL 4320302 Contact Us For Availability
16
Screw WPL 786228 Contact Us For Availability
16
Thermostat WPL 4362642 Contact Us For Availability
16
Retainer, Insulation Side (R.H.) WPL 4321016 Contact Us For Availability
16
Retainer, Insulation Side (L.H.) WPL 4321017 Contact Us For Availability
16
Nut, Hex 10-32 WPL 786352 Contact Us For Availability
16
Manifold (2) WPL 4362693 Contact Us For Availability
16
Plate, Duct-Floor WPL 4321058 Contact Us For Availability
16
Switch, Fan WPL 786246 Contact Us For Availability
17
Clip WPL 786426 Contact Us For Availability
17
Knob, Thermostat WPL 4362687 Contact Us For Availability
17
Oven Shell WPL 4362623 Contact Us For Availability
17
Valve, Top Burner (4) (Right) WPL 4362645 Contact Us For Availability
17
Valve, Top Burner (4) (Left) WPL 4362646 Contact Us For Availability
17
Gasket, Transition Wall-Floor WPL 4321059 Contact Us For Availability
17
Switch, Self-Clean WPL 4321069 Contact Us For Availability
18
Drawer WPL 4321029 Contact Us For Availability
18
Knob, Surface WPL 4362688 Contact Us For Availability
18
Bracket, Conduit WPL 4321018 Contact Us For Availability
18
Insulation, Wrapper WPL 4321005 Contact Us For Availability
18
Tubing, Inlet To Valve WPL 4362648 Contact Us For Availability
18
Transitior, Wall WPL 4321060 Contact Us For Availability
19
Panel, Front WPL 4314976 Contact Us For Availability
19
Knob, Fan Switch WPL 4321046 Contact Us For Availability
19
Cover, P.C. Board WPL 4321071 Contact Us For Availability
19
Insulation, Back WPL 4321006 Contact Us For Availability
19
Fitting WPL 4320319 Contact Us For Availability
19
Cord, Power WPL 4362664 Contact Us For Availability
20
Liner, Front WPL 4315696 Contact Us For Availability
20
Knob, Selector Switch WPL 4320738 Contact Us For Availability
20
Support, P.C. Board WPL 4315254 Contact Us For Availability
20
Grid, Broiler WPL 786346 Contact Us For Availability
20
Valve, Shut Off WPL 4362689 Contact Us For Availability
20
Duct Side WPL 4321061 Contact Us For Availability
20
Burner Cap WPL 4321110 Contact Us For Availability
21
Runner (L.H.) WPL 4321030 Contact Us For Availability
21
Runner (R.H.) WPL 4321031 Contact Us For Availability
21
Button, Clock WPL 4321048 Contact Us For Availability
21
Panel, Side (L.H.) WPL 4321019 Contact Us For Availability
21
Panel, Side (R.H.) WPL 786369 Contact Us For Availability
21
Pan, Broiler WPL 4315109 Contact Us For Availability
21
Transition, Side WPL 786156 Contact Us For Availability
21
Module Complete WPL 4320715 Contact Us For Availability
22
Bushing, Clock Button WPL 4321049 Contact Us For Availability
22
Retainer, Top WPL 4362603 Contact Us For Availability
22
Oven Rack WPL 786347 Contact Us For Availability
22
Inlet WPL 4362641 Contact Us For Availability
23
Baffle, Heat WPL 4320304 Contact Us For Availability
23
Lens, Indicator Light WPL 4321050 Contact Us For Availability
23
Burner Box WPL 4321072 Contact Us For Availability
23
Insulation, Door Latch WPL 4362667 Contact Us For Availability
23
Regulator, Pressure WPL 4362637 Contact Us For Availability
23
Transitior, Tube WPL 4321062 Contact Us For Availability
23
Bolt, Blower Motor (3) WPL 4314922 Contact Us For Availability
23
Washer, Blower Motor (3) WPL 4314923 Contact Us For Availability
23
Nut, Blower Motor Mounting (3) WPL 786439 Contact Us For Availability
24
Insert, Control Panel WPL 4321051 Contact Us For Availability
24
Retainer, Rear Insulation WPL 4321021 Contact Us For Availability
24
Insulation, Top WPL 4321008 Contact Us For Availability
25
Cover, Wire Rear WPL 4321022 Contact Us For Availability
25
Oven Burner, Lower WPL 4362651 Contact Us For Availability
26
Shield, Rear WPL 4321023 Contact Us For Availability
26
Bracket, Frame Trim WPL 4321010 Contact Us For Availability
27
Support, Maintop (Front) WPL 4362605 Contact Us For Availability
27
Support, Maintop (Rear) WPL 4362606 Contact Us For Availability
28
Tubing L.R. WPL 4362631 Contact Us For Availability
29
Bracket, Mounting Latch WPL 786378 Contact Us For Availability
29
Trim, Flue WPL 4362640 Contact Us For Availability
29
Tubing L.F. WPL 4362632 Contact Us For Availability
30
Latch, Oven Door WPL 4362636 Contact Us For Availability
30
Tubing R.F. WPL 4362629 Contact Us For Availability
31
Latch Arm WPL 4320864 Contact Us For Availability
31
Tubing R.R. WPL 4362630 Contact Us For Availability
32
Knob Latch WPL 4320863 Contact Us For Availability
33
Switch, Latch Upper WPL 786127 Contact Us For Availability
35
Insulator, Latch WPL 786380 Contact Us For Availability
36
Support, Clock P.C. Board WPL 4321026 Contact Us For Availability
37
Bracket, Self-Clean WPL 4315273 Contact Us For Availability
37
Bracket, Terminal Board WPL 4321073 Contact Us For Availability
37
Bracket, Latch WPL 786381 Contact Us For Availability
41
Anti-Tip Kit WPL 4315792 Contact Us For Availability
× ![]()
