Model Whirlpool SS363BETT2 SLIDE-IN GAS RANGE – Common Parts & Diagrams
02 - INTERNAL OVEN
04 - MANIFOLD

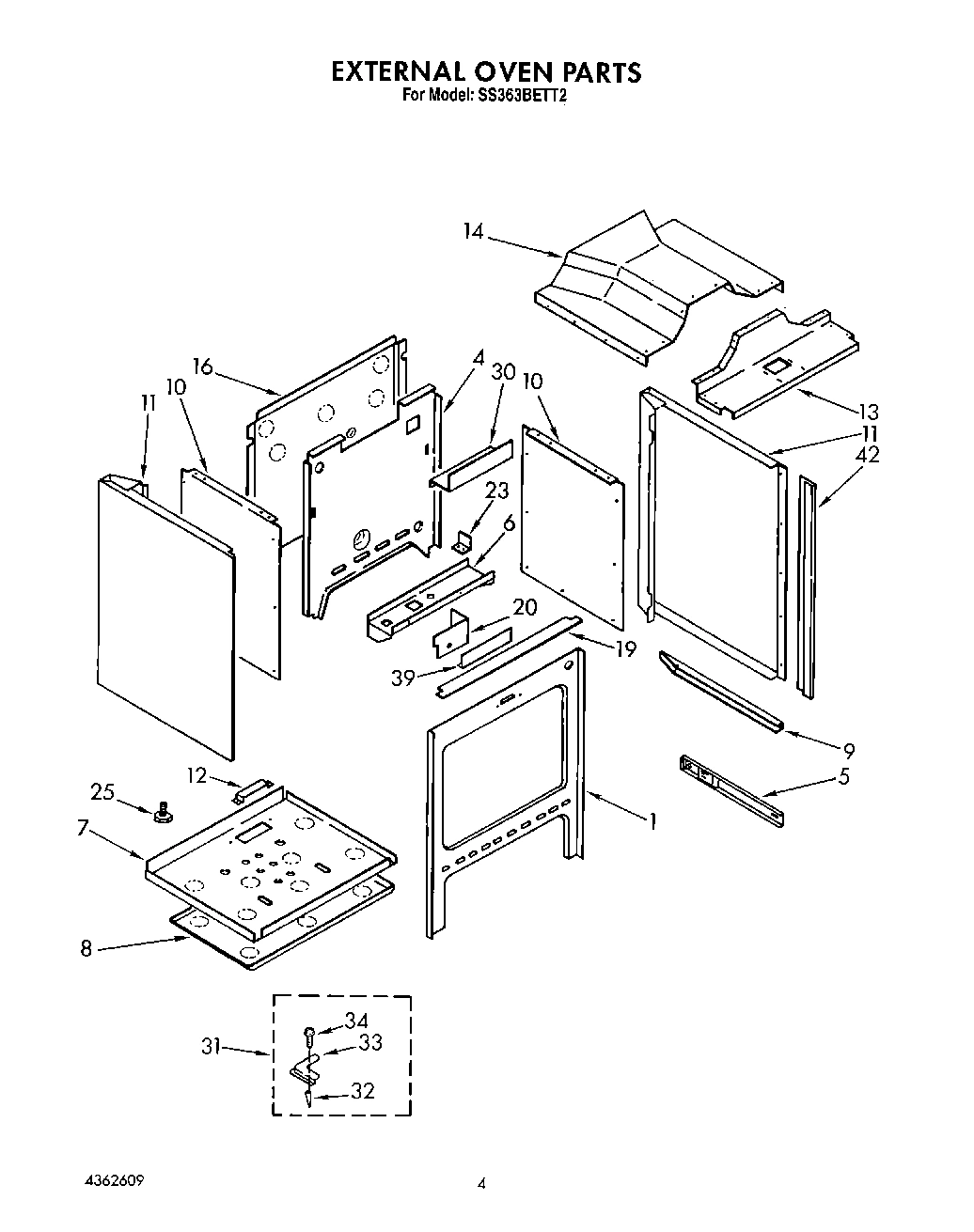

03 - EXTERNAL OVEN

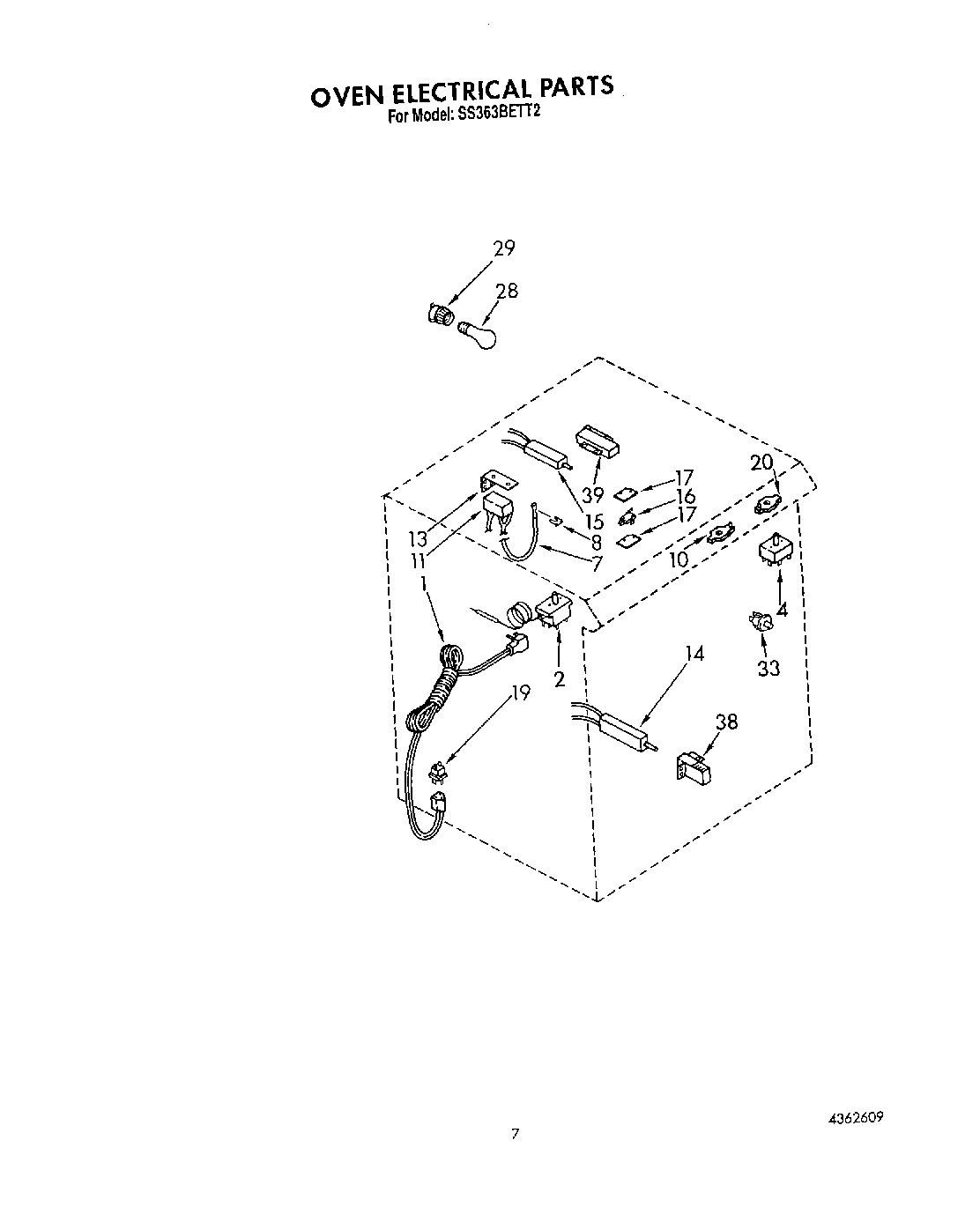

05 - OVEN ELECTRICAL

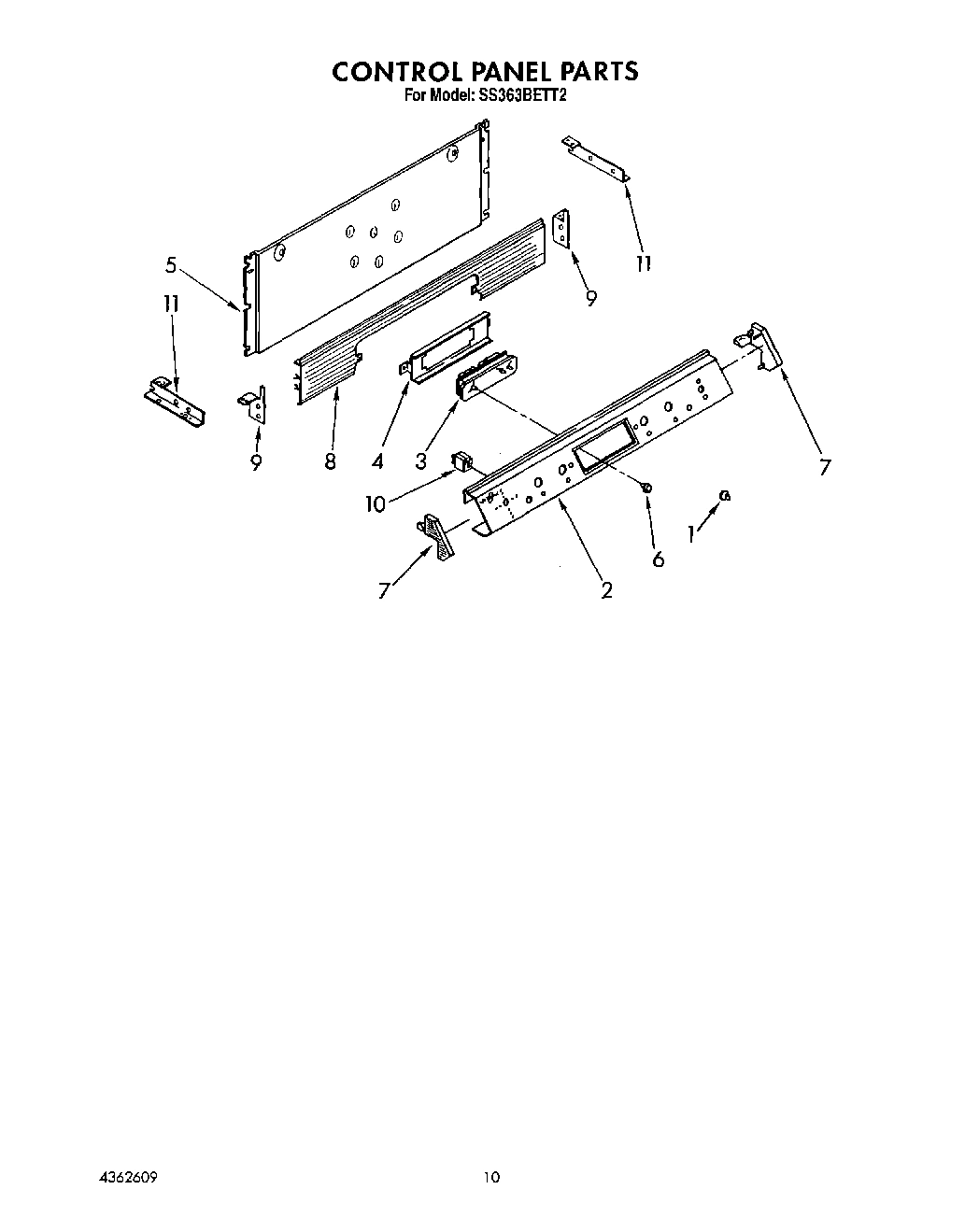

07 - CONTROL PANEL, LIT/OPTIONAL

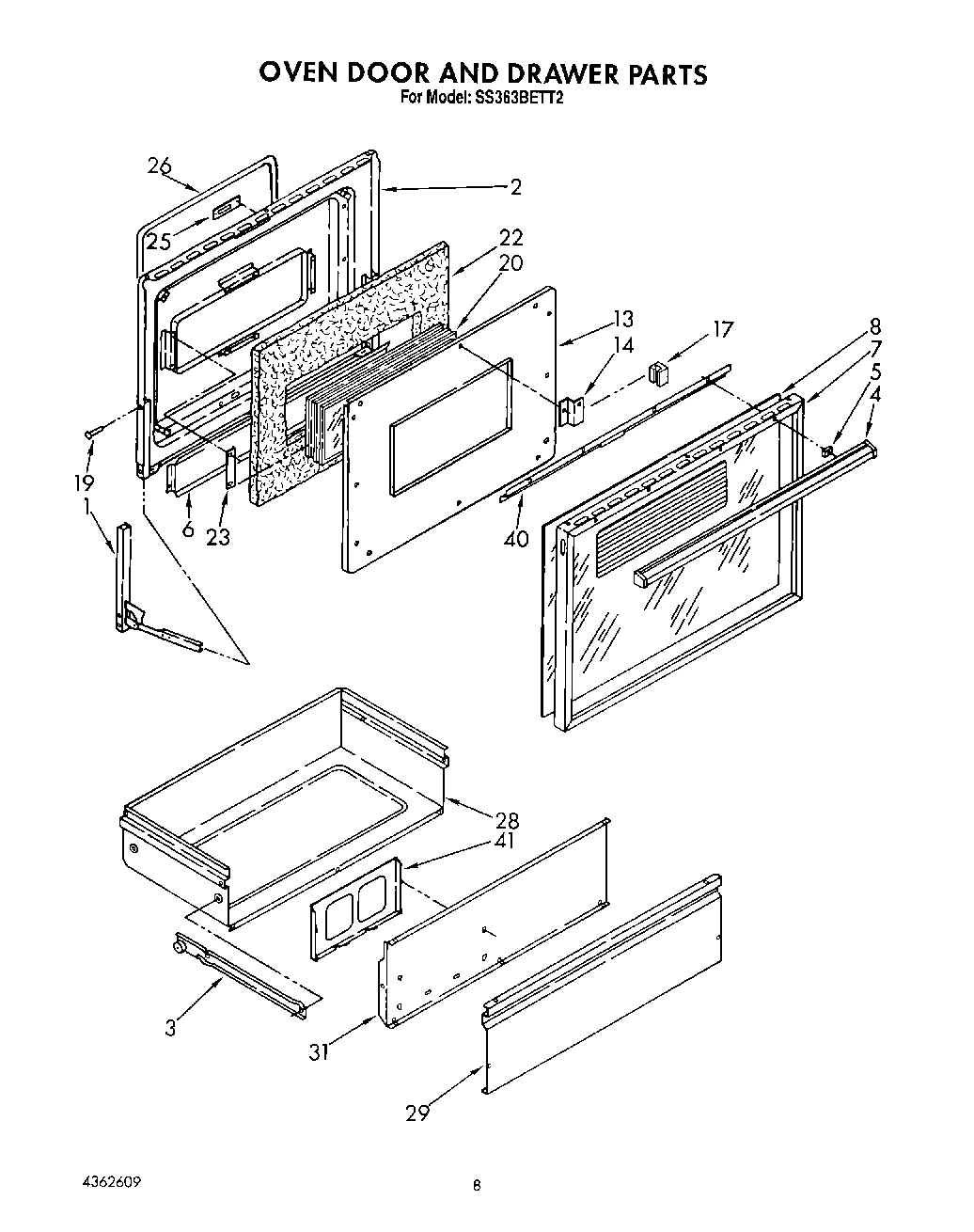

06 - OVEN DOOR AND DRAWER

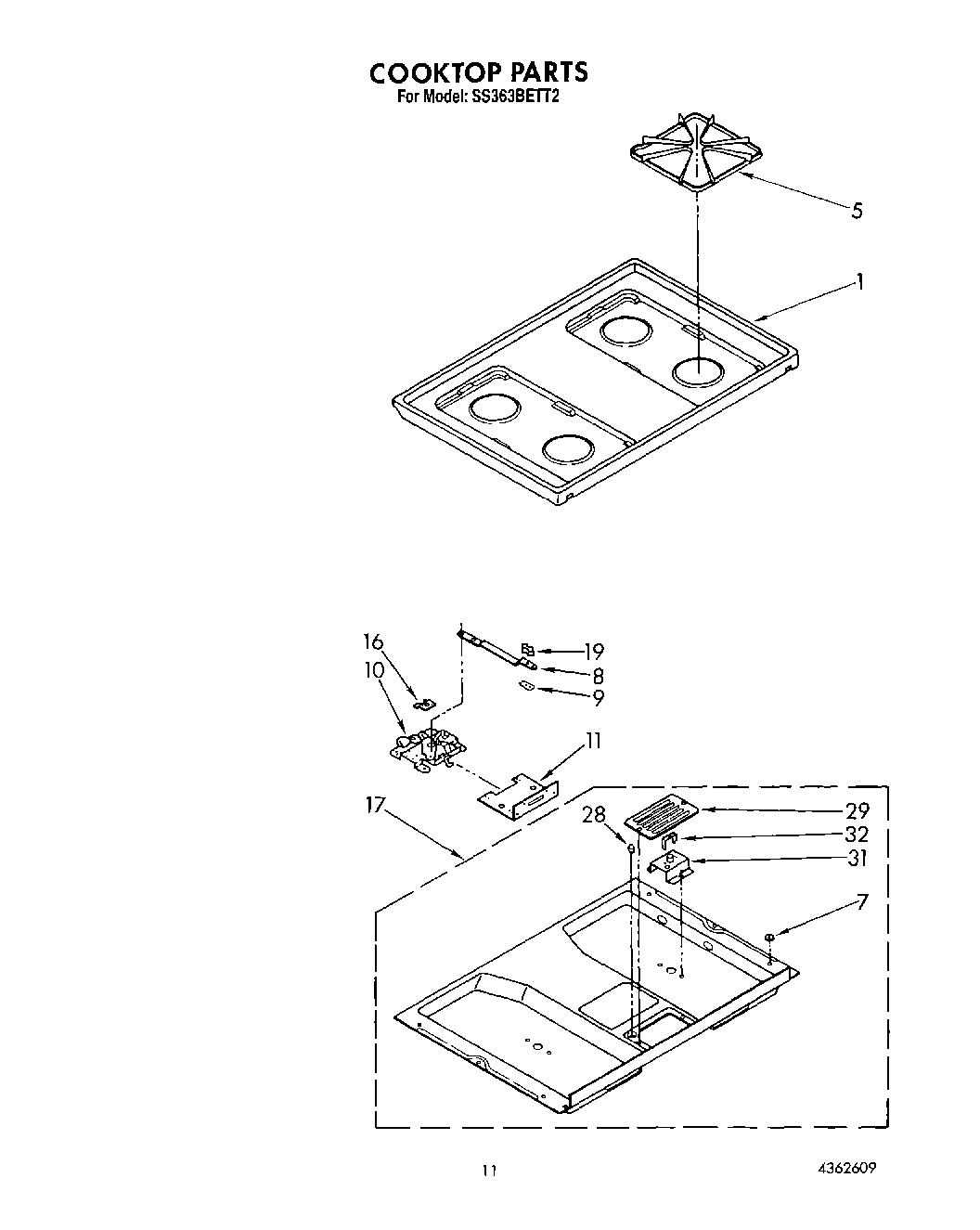

08 - COOKTOP
Common parts from model Whirlpool SS363BETT2 SLIDE-IN GAS RANGE
Guide, Use & Care WPL LIT4320796 Contact Us For Availability
Instructions, Installation WPL LIT4320912 Contact Us For Availability
List, Repair Parts WPL LIT4362609 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
1
Sheild, Thermostat Bulb WPL 786349 Contact Us For Availability
1
Burner, Ultra Ray Broiler WPL 4179233 Contact Us For Availability
1
Frame, Front WPL 4320374 Contact Us For Availability
1
Cord, Power WPL 786578 Contact Us For Availability
1
Knob, Timer WPL 786434 Contact Us For Availability
1
hinge, oven door (right side) WPL 786374 Contact Us For Availability
1
Hinge, Oven Door (Left Side) WPL 786739 Contact Us For Availability
1
Top, Main (Chrome) WPL 4315019 Contact Us For Availability
2
Oven 30`` Self-Clean WPL 4362573 Contact Us For Availability
2
Thermostat, Oven WPL 4321095 Contact Us For Availability
2
Screw, 6-32 x 3/16 WPL 786245 Contact Us For Availability
2
Panel, Control WPL 4362594 Contact Us For Availability
2
Liner, Oven Door WPL 4320984 Contact Us For Availability
2
Screw, 8-32 X 5/8 (4) WPL 786755 Contact Us For Availability
3
Chamber, Broiler Burner WPL 786597 Contact Us For Availability
3
Timer WPL 4315011 Contact Us For Availability
3
runner (l.h.) WPL 4320308 Contact Us For Availability
3
Runner (R.H.) WPL 4320309 Contact Us For Availability
4
Bracket, Ignitor WPL 786543 Contact Us For Availability
4
screw, 10-24 x 7/16 (2) WPL 786740 Contact Us For Availability
4
Bracket, Burner Mounting WPL 4179235 Contact Us For Availability
4
Retainer, Rear Insulation WPL 4315784 Contact Us For Availability
4
Switch, Selector WPL 4179076 Contact Us For Availability
4
Mounting Bracket Timer WPL 4315012 Contact Us For Availability
4
Handle WPL 786408 Contact Us For Availability
5
Burner, Box, Lower WPL 786336 Contact Us For Availability
5
track, storage draw (right side) WPL 4315768 Contact Us For Availability
5
Track, Storage Draw (Left Side) WPL 4315769 Contact Us For Availability
5
Rear Cover WPL 4315025 Contact Us For Availability
5
Spacer, Handle (4) WPL 786410 Contact Us For Availability
5
Grate, Top Burner (4) WPL 786354 Contact Us For Availability
6
Bushing, Clock WPL 4315007 Contact Us For Availability
6
Baffle, Heat WPL 4320304 Contact Us For Availability
7
Flue, Inner WPL 786337 Contact Us For Availability
7
spud, orifice (natural gas no. 50) WPL 786308 Contact Us For Availability
7
Retainer, Bottom Insulation WPL 4320832 Contact Us For Availability
7
Endcap (R.H.) WPL 4315008 Contact Us For Availability
7
Endcap (L.H.) WPL 4315009 Contact Us For Availability
7
Frame WPL 786417 Contact Us For Availability
7
Spacer, Nylon (2) WPL 786342 Contact Us For Availability
8
Tubing, (Inlet To Gas Valve) WPL 4320314 Contact Us For Availability
8
Heat Shield, Storage Draw WPL 786364 Contact Us For Availability
8
Back Rail WPL 4315013 Contact Us For Availability
8
Panel, Black Glass WPL 786418 Contact Us For Availability
8
Handle, Latch WPL 786376 Contact Us For Availability
9
Brace, Bottom (R.H.) WPL 4315781 Contact Us For Availability
9
brace, bottom (l.h.) WPL 4315782 Contact Us For Availability
9
Endcap, Backrail (Right Hand) WPL 4315014 Contact Us For Availability
9
Endcap, Backrail (Left Hand) WPL 4315015 Contact Us For Availability
9
Support, Handle WPL 786690 Contact Us For Availability
10
Orifice & Tubing Assembly (Gas Valve To Ulta WPL 4320312 Contact Us For Availability
10
Retainer, Insulation (2) WPL 4362543 Contact Us For Availability
10
Switch, Spark (2) WPL 4314974 Contact Us For Availability
10
Indicator Light (2) WPL 4315016 Contact Us For Availability
10
Latch Assembly WPL 786303 Contact Us For Availability
11
Gasket, Oven Back WPL 786340 Contact Us For Availability
11
Nut WPL 786741 Contact Us For Availability
11
hood & tubing assembly (gas valve to lower ov WPL 4320315 Contact Us For Availability
11
Panel, End (2) WPL 4321113 Contact Us For Availability
11
Spark Module WPL 4320867 Contact Us For Availability
11
Support, Backguard (R.H.) WPL 4362595 Contact Us For Availability
11
Support, Backguard (L.H.) WPL 4362596 Contact Us For Availability
11
Bracket, Latch Mounting WPL 4315774 Contact Us For Availability
12
Retainer, Ignitor WPL 4320890 Contact Us For Availability
13
Flue, Dillution WPL 786341 Contact Us For Availability
13
Tubing (Inlet To Tee) WPL 4362579 Contact Us For Availability
13
Retainer, Top Front Insulation WPL 4362598 Contact Us For Availability
13
Bracket, Spark Module WPL 4320892 Contact Us For Availability
13
Retainer, Insulation WPL 4320875 Contact Us For Availability
14
Valve, Dual Gas Valve WPL 4320316 Contact Us For Availability
14
Retainer, Top Back Insulation WPL 4362597 Contact Us For Availability
14
bracket, glass support (4) WPL 786425 Contact Us For Availability
15
Nut (2) WPL 786753 Contact Us For Availability
16
Manifold (2) WPL 4315004 Contact Us For Availability
16
rear panel, WPL 4315785 Contact Us For Availability
16
nut, 6-32 WPL 786748 Contact Us For Availability
16
bushing, snap WPL 786750 Contact Us For Availability
16
Switch, Oven Door Latch WPL 786669 Contact Us For Availability
16
screw, 4-40 x 5/8 (2) WPL 786751 Contact Us For Availability
16
Bracket, Switch WPL 4362570 Contact Us For Availability
16
screw, 4-40 (2) WPL 786752 Contact Us For Availability
17
Valve, Top Burner (4) WPL 4315005 Contact Us For Availability
17
Insulator, Switch WPL 786380 Contact Us For Availability
17
Bumper, Window (2) WPL 4179237 Contact Us For Availability
17
Burner Box WPL 4320865 Contact Us For Availability
19
Fitting WPL 4320319 Contact Us For Availability
19
Frame, Filler Front WPL 4362577 Contact Us For Availability
19
Plug, Male WPL 786570 Contact Us For Availability
19
Pin-Hinge (2) WPL 4362533 Contact Us For Availability
19
Knob, Latch Handle WPL 786386 Contact Us For Availability
20
Rack, Oven (2) WPL 786347 Contact Us For Availability
20
Valve, Shut-Off WPL 786312 Contact Us For Availability
20
Plate, Cover WPL 4315776 Contact Us For Availability
20
Switch, Spark (2) WPL 4314975 Contact Us For Availability
20
Window Assembly WPL 786429 Contact Us For Availability
22
Bottom, Oven WPL 4315114 Contact Us For Availability
22
Inlet WPL 4320321 Contact Us For Availability
22
Insulation, Door WPL 4315673 Contact Us For Availability
23
Pan, Broiler WPL 4315109 Contact Us For Availability
23
Regulator, Pressure WPL 786313 Contact Us For Availability
23
Bracket, Gas Valve (2) WPL 4315678 Contact Us For Availability
23
Retainer, Window (4) WPL 4179236 Contact Us For Availability
25
Grid, Broiler WPL 786346 Contact Us For Availability
25
Oven Burner, Lower WPL 786314 Contact Us For Availability
25
Leg, Leveling (4) Side Frame (2) WPL 4315777 Contact Us For Availability
25
Plate, Latch (2) WPL 786671 Contact Us For Availability
26
Channel, Broiler Burner (2) WPL 786355 Contact Us For Availability
26
Top Burner, Front (2) WPL 786315 Contact Us For Availability
26
gasket assembly WPL 4320302 Contact Us For Availability
28
Duct, Cup WPL 786353 Contact Us For Availability
28
Orifice (L.P.) WPL 786309 Contact Us For Availability
28
Top Burner, R.R. WPL 786316 Contact Us For Availability
28
Wrapper, Storage Drawer WPL 4320306 Contact Us For Availability
29
Bracket, Mounting Oven Shell WPL 4320330 Contact Us For Availability
29
Top Burner, L.R. WPL 786317 Contact Us For Availability
29
Panel, Drawer (Black) WPL 4314976 Contact Us For Availability
29
Plate, Cover WPL 4320377 Contact Us For Availability
30
cover, electrical WPL 4315779 Contact Us For Availability
31
Knob, Top Burner (4) WPL 4315020 Contact Us For Availability
31
Anti Tip Kit WPL 4315756 Contact Us For Availability
31
Liner, Door Panel WPL 4320307 Contact Us For Availability
31
Bracket, Top (2) WPL 786684 Contact Us For Availability
32
Knob, Oven Control WPL 4362593 Contact Us For Availability
32
Anchor (2) WPL 4315786 Contact Us For Availability
32
Bracket, Electrode (2) WPL 786754 Contact Us For Availability
33
Bracket WPL 4315792 Contact Us For Availability
33
Switch, Oven Light WPL 4179328 Contact Us For Availability
34
Cover, Flue WPL 4315210 Contact Us For Availability
34
Knob, Selector WPL 786562 Contact Us For Availability
34
Screw (2) WPL 4320348 Contact Us For Availability
35
Trim, Flue WPL 4362574 Contact Us For Availability
36
Cover, Chip WPL 4320934 Contact Us For Availability
38
Elbow, Manifold (2) WPL 4320940 Contact Us For Availability
38
Bracket, Bake Ignitor WPL 786801 Contact Us For Availability
39
Heat Shield, Clock WPL 4362578 Contact Us For Availability
39
Bracket, Broiler Ignitor WPL 786802 Contact Us For Availability
40
Baffle, Air WPL 786422 Contact Us For Availability
41
Rack, Literature WPL 786807 Contact Us For Availability
42
Trim, Side Panel (Right Hand) WPL 4362575 Contact Us For Availability
42
Trim, Side Panel (Left Hand) WPL 4362576 Contact Us For Availability
× ![]()
