Model Whirlpool SS363BETT0 SLIDE-IN GAS RANGE – Common Parts & Diagrams
02 - INTERNAL OVEN
04 - MANIFOLD

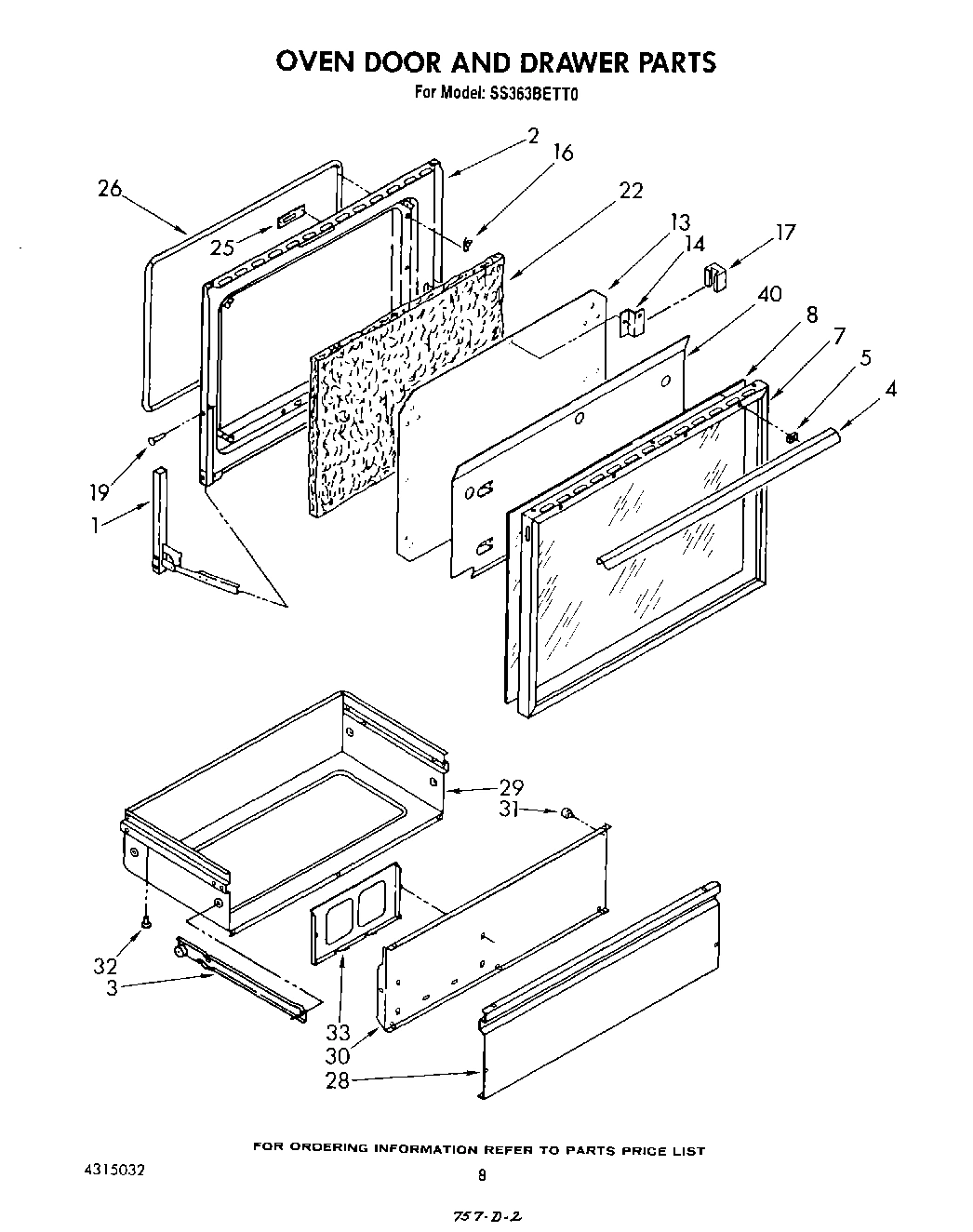

06 - OVEN DOOR AND DRAWER

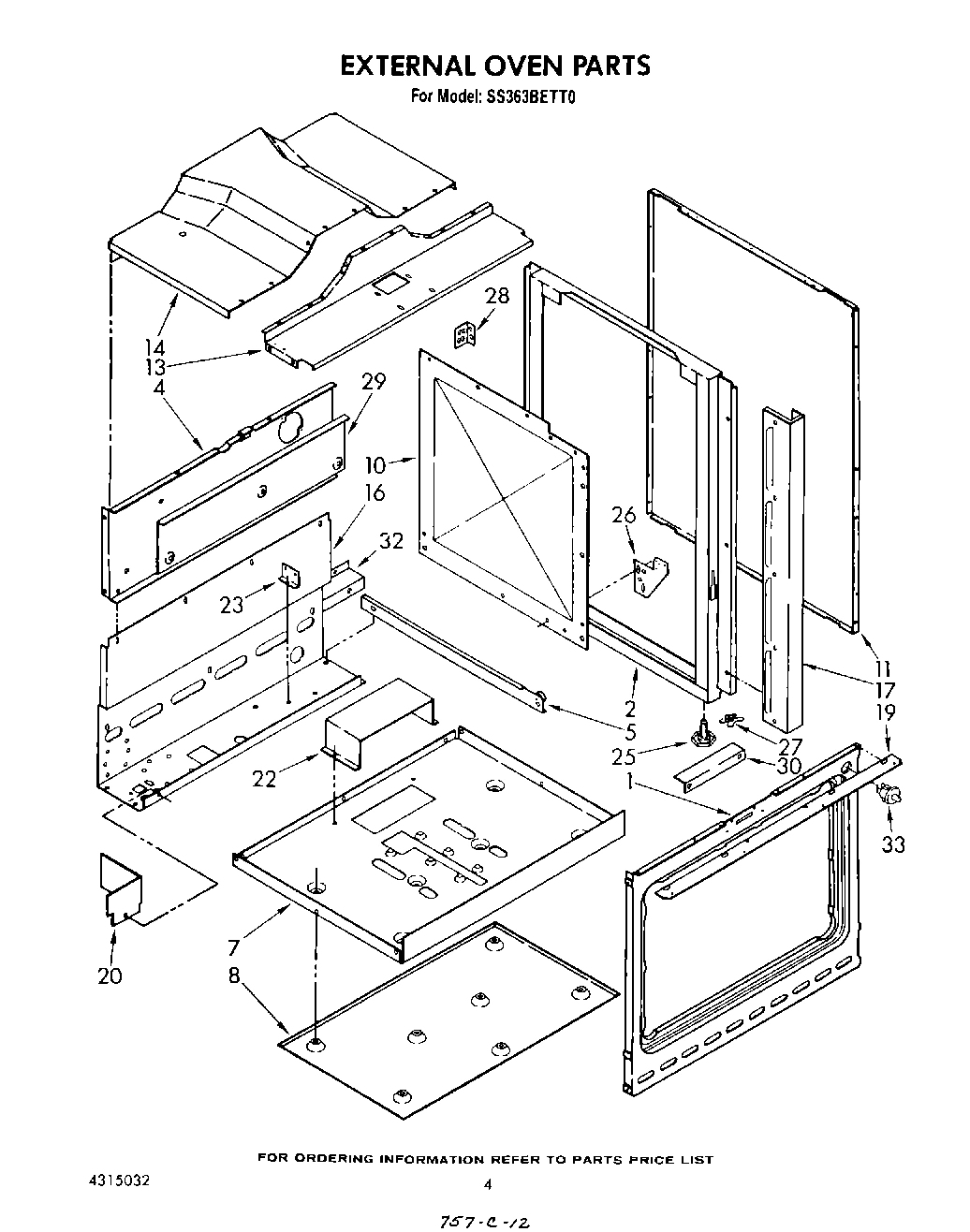

03 - EXTERNAL OVEN

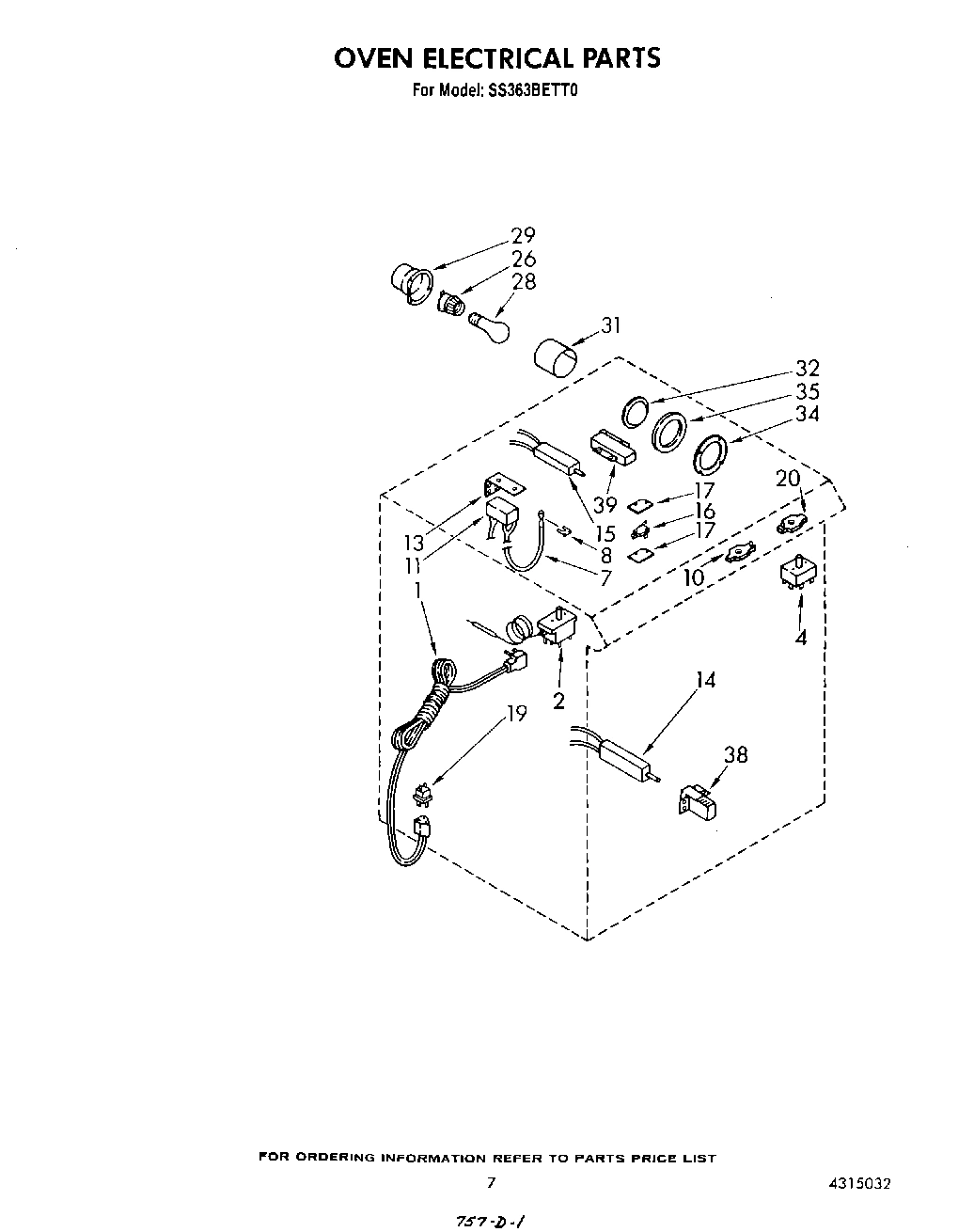

05 - OVEN ELECTRICAL
Common parts from model Whirlpool SS363BETT0 SLIDE-IN GAS RANGE
1
Sheild, Thermostat Bulb WPL 786349 Contact Us For Availability
1
Burner, Ultra Ray Broiler WPL 4179233 Contact Us For Availability
1
hinge, oven door (right side) WPL 786374 Contact Us For Availability
1
Hinge, Oven Door (Left Side) WPL 786375 Contact Us For Availability
1
Frame, Front WPL 4179327 Contact Us For Availability
1
Cord, Power WPL 786578 Contact Us For Availability
2
Oven 30`` Self-Clean WPL 786334 Contact Us For Availability
2
Liner, Oven Door WPL 786405 Contact Us For Availability
2
Screw, 8-32 X 5/8 (4) WPL 786755 Contact Us For Availability
2
Frame, Side (Right Side) WPL 786809 Contact Us For Availability
2
Frame, Side (Left Side) WPL 786810 Contact Us For Availability
2
Thermostat, Oven WPL 4314978 Contact Us For Availability
2
Screw, 6-32 x 3/16 WPL 786245 Contact Us For Availability
3
Chamber, Broiler Burner WPL 786597 Contact Us For Availability
3
Runner (L.H.) WPL 786813 Contact Us For Availability
3
runner (R.H.) WPL 786814 Contact Us For Availability
4
Bracket, Ignitor WPL 786543 Contact Us For Availability
4
screw, 10-24 x 7/16 (2) WPL 786740 Contact Us For Availability
4
Bracket, Burner Mounting WPL 4179235 Contact Us For Availability
4
Handle WPL 786408 Contact Us For Availability
4
Rear Panel, Upper WPL 4179143 Contact Us For Availability
4
Switch, Selector WPL 4179076 Contact Us For Availability
5
Burner, Box, Lower WPL 786336 Contact Us For Availability
5
Spacer, Handle (2) WPL 786410 Contact Us For Availability
5
Track, Storage Drawer (Rivet, Plastic (2)) WPL 786527 Contact Us For Availability
5
Track, Storage Draw (Right Side) WPL 786811 Contact Us For Availability
5
Track, Storage Draw (Left Side) WPL 786812 Contact Us For Availability
7
Flue, Inner WPL 786337 Contact Us For Availability
7
spud, orifice (natural gas no. 50) WPL 786308 Contact Us For Availability
7
spud, orifice (LP gas no. 58) WPL 786309 Contact Us For Availability
7
Frame WPL 786417 Contact Us For Availability
7
Retainer, Bottom Insulation WPL 786363 Contact Us For Availability
8
Gasket, Side Chamber (2) WPL 786338 Contact Us For Availability
8
Tubing (Inlet To Gas Valve) WPL 786547 Contact Us For Availability
8
Panel, Black Glass WPL 786418 Contact Us For Availability
8
Heat Shield, Storage Drawer WPL 786364 Contact Us For Availability
10
Gasket, Front Chamber WPL 786339 Contact Us For Availability
10
Orifice & Tubing Assembly (Gas Valve To Ultra WPL 786548 Contact Us For Availability
10
Retainer, Insulation (2) WPL 786365 Contact Us For Availability
10
Switch, Spark (2) WPL 4314974 Contact Us For Availability
11
Gasket, Oven Back WPL 786340 Contact Us For Availability
11
Nut WPL 786741 Contact Us For Availability
11
Hood & Tubing Assembly (Gas Valve To Lower Ov WPL 786549 Contact Us For Availability
11
Panel, End (2) WPL 786369 Contact Us For Availability
11
Module, Spark WPL 786323 Contact Us For Availability
13
Flue, Dillution WPL 786341 Contact Us For Availability
13
Tubing (Inlet To Tee) WPL 4315026 Contact Us For Availability
13
Retainer, Insulation WPL 786423 Contact Us For Availability
13
Retainer, Top Front Insulation WPL 786371 Contact Us For Availability
13
Bracket, Spark Module WPL 786581 Contact Us For Availability
14
Valve, Dual Gas Valve WPL 786310 Contact Us For Availability
14
Bracket, Glass Support (3) WPL 786425 Contact Us For Availability
14
Retainer, Top Back Insulation WPL 786372 Contact Us For Availability
15
Nut (2) WPL 786753 Contact Us For Availability
16
Manifold (2) WPL 4315004 Contact Us For Availability
16
Clip, Speed (15) WPL 786426 Contact Us For Availability
16
Rear Panel, Lower WPL 4179142 Contact Us For Availability
16
nut, 6-32 WPL 786748 Contact Us For Availability
16
bushing, snap WPL 786750 Contact Us For Availability
16
Switch, Oven Door Latch WPL 786669 Contact Us For Availability
16
screw, 4-40 x 5/8 (2) WPL 786751 Contact Us For Availability
17
Valve, Top Burner (4) WPL 4315005 Contact Us For Availability
17
Bumper, Window (2) WPL 4179237 Contact Us For Availability
17
Trim, Side Panel (2) WPL 4315003 Contact Us For Availability
17
Insulator, Switch WPL 786380 Contact Us For Availability
19
Fitting WPL 786556 Contact Us For Availability
19
Pin, Hinge (2) WPL 786428 Contact Us For Availability
19
Frame, Filler Front WPL 786384 Contact Us For Availability
19
Plug, Male WPL 786570 Contact Us For Availability
20
Rack, Oven (2) WPL 786347 Contact Us For Availability
20
Valve, Shut-Off WPL 786312 Contact Us For Availability
20
Plate, Cover WPL 786385 Contact Us For Availability
20
Switch, Spark (2) WPL 4314975 Contact Us For Availability
22
Bottom, Oven WPL 786348 Contact Us For Availability
22
Inlet WPL 786557 Contact Us For Availability
22
Cover, Burner WPL 786388 Contact Us For Availability
23
Pan, Broiler WPL 786345 Contact Us For Availability
23
Regulator, Pressure WPL 786313 Contact Us For Availability
23
Bracket, Gas Valve (2) WPL 786389 Contact Us For Availability
25
Grid, Broiler WPL 786346 Contact Us For Availability
25
Oven Burner, Lower WPL 786314 Contact Us For Availability
25
Plate, Latch WPL 786671 Contact Us For Availability
25
Leg, Leveling (4) WPL 786602 Contact Us For Availability
26
Channel, Broiler Burner (2) WPL 786355 Contact Us For Availability
26
Top Burner, Front (2) WPL 786315 Contact Us For Availability
26
Gasket Assembly WPL 786432 Contact Us For Availability
26
Bracket, Door Switch WPL 786699 Contact Us For Availability
26
Socket, Oven Lamp WPL 786653 Contact Us For Availability
27
Nut (4) WPL 4157527 Contact Us For Availability
28
Duct, Cup WPL 786353 Contact Us For Availability
28
Top Burner, R.R. WPL 786316 Contact Us For Availability
28
Panel, Drawer WPL 4314976 Contact Us For Availability
28
Gusset (2) WPL 4315018 Contact Us For Availability
29
Hook Bolt, Oven Shell WPL 786350 Contact Us For Availability
29
Top Burner, L.R. WPL 786317 Contact Us For Availability
29
Wrapper, Drawer WPL 4179232 Contact Us For Availability
29
Heat Shield WPL 4315025 Contact Us For Availability
29
Housing, Oven Light WPL 786743 Contact Us For Availability
30
Liner, Drawer WPL 786668 Contact Us For Availability
30
Heat Shield, Clock WPL 4315024 Contact Us For Availability
31
Washer (4) WPL 786351 Contact Us For Availability
31
Knob, Top Burner (4) WPL 4315020 Contact Us For Availability
31
Bumper (2) WPL 786526 Contact Us For Availability
31
Retainer, Insulation WPL 786573 Contact Us For Availability
32
Nut, Hex 10-32 (2) WPL 786352 Contact Us For Availability
32
Knob, Oven Control WPL 4315021 Contact Us For Availability
32
Cover, Electrical WPL 4315106 Contact Us For Availability
32
Lens, Oven Light WPL 786574 Contact Us For Availability
33
Rack, Literature WPL 786807 Contact Us For Availability
33
Switch, Oven Light WPL 4179328 Contact Us For Availability
34
Cover, Flue WPL 4315210 Contact Us For Availability
34
Knob, Selector WPL 786562 Contact Us For Availability
34
Retainer, Oven Light Lens WPL 786575 Contact Us For Availability
35
Inlet Tee WPL 4315219 Contact Us For Availability
35
Gasket, Oven Light WPL 786576 Contact Us For Availability
36
Tubing (Tee To L.H. Manifold) WPL 4315027 Contact Us For Availability
37
Tubing (Tee To R.H. Manifold) WPL 4315028 Contact Us For Availability
38
Elbow, Manifold (2) WPL 4315029 Contact Us For Availability
38
Bracket, Bake Ignitor WPL 786801 Contact Us For Availability
39
Bracket, Broiler Ignitor WPL 786802 Contact Us For Availability
40
Baffle, Air WPL 786422 Contact Us For Availability
× ![]()
