Model Whirlpool SS330PEBH0 SLIDE-IN GAS RANGE – Common Parts & Diagrams
02 - OVEN AND DRAWER
01 - COOKTOP AND CONTROL PANEL

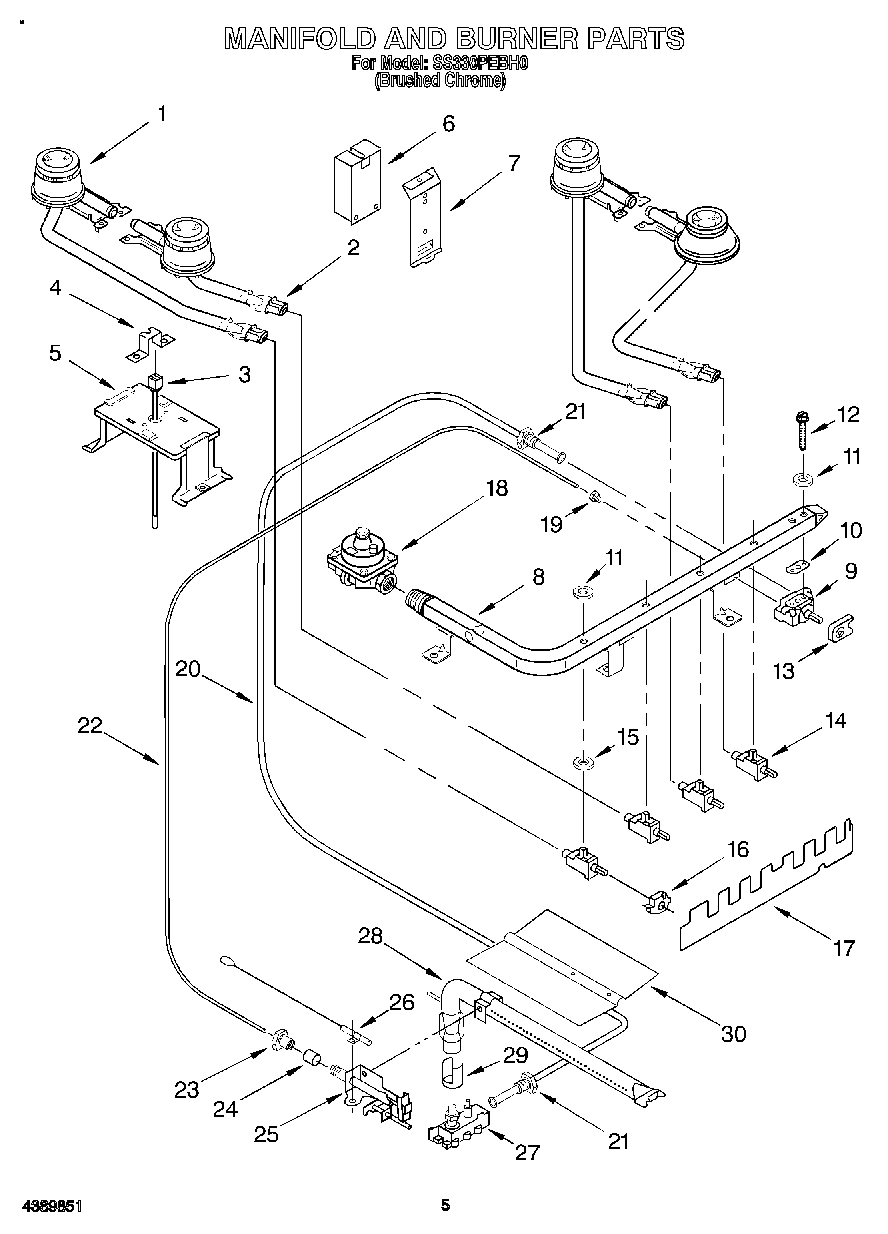

03 - MANIFOLD AND BURNER

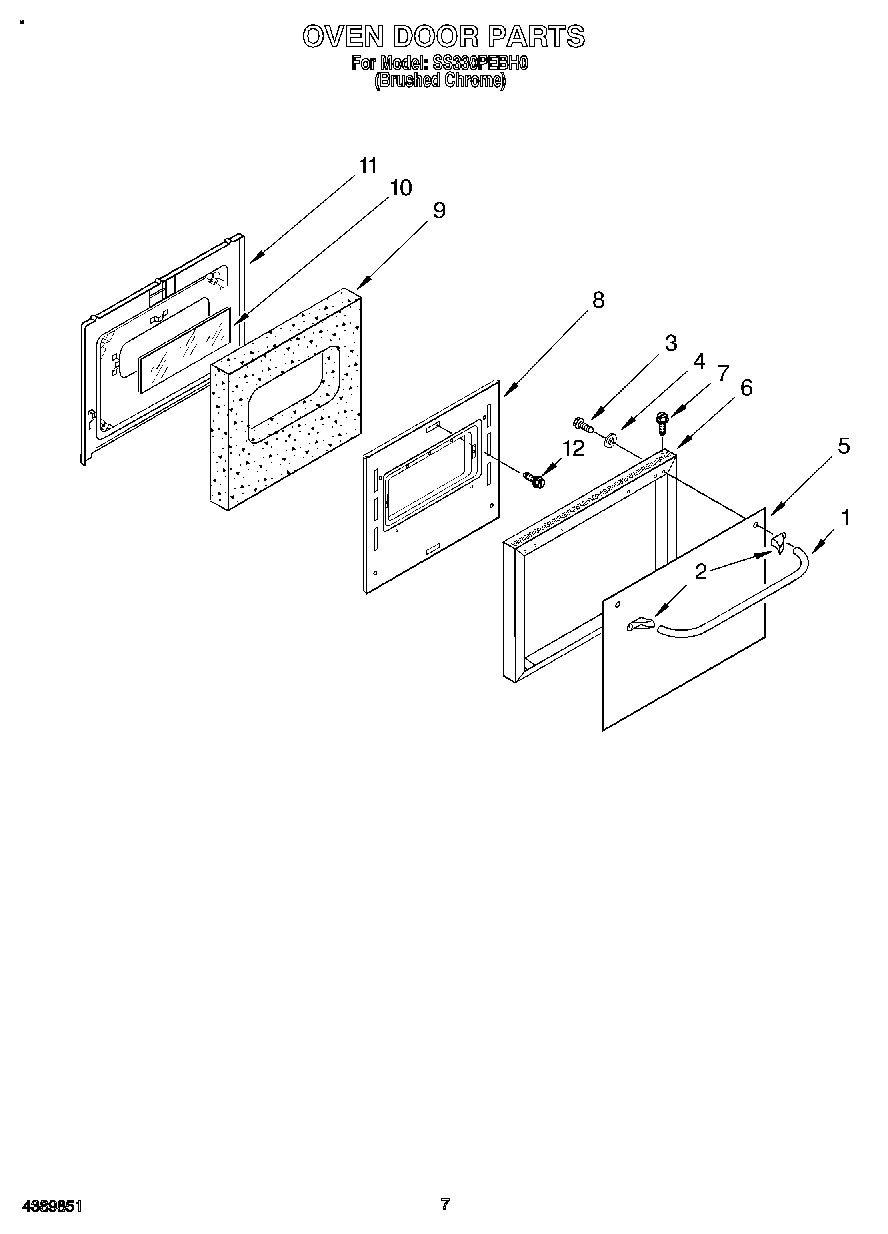

04 - OVEN DOOR, LITERATURE
Common parts from model Whirlpool SS330PEBH0 SLIDE-IN GAS RANGE
Use & Care Guide WPL LIT4389352 Contact Us For Availability
Installation Instructions WPL LIT4389355 Contact Us For Availability
1
Liner, Oven WPL 4389850 Contact Us For Availability
1
Cooktop WPL 4389377 Contact Us For Availability
1
Burner Assembly (All Include No.2) (Left Fron WPL 4389482 Contact Us For Availability
1
Burner Assembly (All Include No.2) (Left Rear WPL 4389484 Contact Us For Availability
1
Burner Assembly (All Include No.2) (Right Rea WPL 4389485 Contact Us For Availability
1
Burner Assembly (All Include No. 2) (Right Fr WPL 4389816 Contact Us For Availability
1
Handle, Oven Door WPL 4389412 Contact Us For Availability
2
Retainer, Side (2) WPL 4389741 Contact Us For Availability
2
Drip Pan (2) WPL 4389384 Contact Us For Availability
2
Shutter, Air (4) WPL 4389509 Contact Us For Availability
2
Endcap, Handle (2) WPL 4389521 Contact Us For Availability
3
Bottom, Main WPL 4389792 Contact Us For Availability
3
Grate (4) WPL 4389385 Contact Us For Availability
3
Igniter, Top (Right Side) WPL 4389823 Contact Us For Availability
3
Igniter, Top (Left Side) WPL 4389824 Contact Us For Availability
3
Screw, Handle (4) WPL 4389524 Contact Us For Availability
4
Rail, Base (Includes No. 5) WPL 4389469 Contact Us For Availability
4
Screw, Vent Cover WPL 4389551 Contact Us For Availability
4
Cover, Vent WPL 4389782 Contact Us For Availability
4
Bracket, Ignitor WPL 4389495 Contact Us For Availability
4
Spacer, Handle (2) WPL 4389418 Contact Us For Availability
5
Leg, Leveler WPL 4389478 Contact Us For Availability
5
Hinge, Maintop (Right) WPL 4389389 Contact Us For Availability
5
Hinge, Maintop (Left) WPL 4389390 Contact Us For Availability
5
Support, Burner (2) WPL 4389504 Contact Us For Availability
5
Glass, Door Front WPL 4389576 Contact Us For Availability
6
Back, Main WPL 4389433 Contact Us For Availability
6
Screw (6) WPL 4389540 Contact Us For Availability
6
Rivet, Pop (2) WPL 4389840 Contact Us For Availability
6
Module, Spark WPL 4389821 Contact Us For Availability
6
Screw WPL 4389839 Contact Us For Availability
6
Frame, Oven Door WPL 4389602 Contact Us For Availability
7
Insulation, Back WPL 4389799 Contact Us For Availability
7
Support, Module WPL 4389786 Contact Us For Availability
7
Cover, Wire WPL 4389785 Contact Us For Availability
7
Screw, Frame (6) WPL 4389552 Contact Us For Availability
8
Bottom, Burner Box WPL 4389780 Contact Us For Availability
8
Pipe, Manifold WPL 4389833 Contact Us For Availability
8
Retainer, Insulation WPL 4389397 Contact Us For Availability
9
Insulation, Wrap WPL 4389798 Contact Us For Availability
9
Support Rod, Top WPL 4389388 Contact Us For Availability
9
Thermostat, Oven WPL 4389818 Contact Us For Availability
9
Insulation, Door WPL 4389737 Contact Us For Availability
10
Shield, Wire WPL 4389795 Contact Us For Availability
10
Support, Burner Box WPL 4389382 Contact Us For Availability
10
Gasket, Thermostat WPL 4389829 Contact Us For Availability
10
Glass, Inner WPL 4389739 Contact Us For Availability
11
Plate, Light Cover WPL 4389806 Contact Us For Availability
11
Extension, Side WPL 4389364 Contact Us For Availability
11
Gasket, Screw (8) WPL 4389511 Contact Us For Availability
11
Liner, Door WPL 4389738 Contact Us For Availability
12
Support, Flue WPL 4389784 Contact Us For Availability
12
Endcap (Right) WPL 4389360 Contact Us For Availability
12
Endcap (Left) WPL 4389411 Contact Us For Availability
12
Screw, Mtg. (2) WPL 4389838 Contact Us For Availability
12
Screw, Liner WPL 4389541 Contact Us For Availability
13
Deflector, Flue WPL 4389794 Contact Us For Availability
13
Panel, Manifold WPL 4389779 Contact Us For Availability
13
Switch, Igniter (Thermostat) WPL 4389832 Contact Us For Availability
14
Shield, Deflector WPL 4389796 Contact Us For Availability
14
Insulation, Panel WPL 4389781 Contact Us For Availability
14
Valve, Burner (4) WPL 4389819 Contact Us For Availability
15
Cord, Power WPL 4389834 Contact Us For Availability
15
Bracket, Clock WPL 4389776 Contact Us For Availability
15
Gasket, Valve (4) WPL 4389512 Contact Us For Availability
15
Screw, Valve Mtg. WPL 4389544 Contact Us For Availability
16
Plug, Receptacle WPL 4389800 Contact Us For Availability
16
Switch, Igniter (4) WPL 4389825 Contact Us For Availability
17
Bushing, Cord WPL 4389556 Contact Us For Availability
17
Knob, Thermostat WPL 4389783 Contact Us For Availability
17
Deflector, Air WPL 4389831 Contact Us For Availability
18
Knob, Burner (4) WPL 4389752 Contact Us For Availability
18
Regulator, Pressure WPL 4389489 Contact Us For Availability
19
Rack, Oven (2) WPL 4389455 Contact Us For Availability
19
Clock/Timer (Includes No. 20) WPL 4389774 Contact Us For Availability
19
Nut, Loxit WPL 4389843 Contact Us For Availability
20
Bottom, Oven WPL 4389793 Contact Us For Availability
20
Motor, Clock WPL 4389778 Contact Us For Availability
20
Tubing, 3/8`` (Includes No. 21) WPL 4389814 Contact Us For Availability
21
Frame, Front WPL 4389788 Contact Us For Availability
21
Glass, Clock WPL 4389775 Contact Us For Availability
21
Nut, Tubing (2) WPL 4389559 Contact Us For Availability
22
Retainer, Door Seal WPL 4389808 Contact Us For Availability
22
Clip, Clock (2) WPL 4389841 Contact Us For Availability
22
Tubing, 3/16`` WPL 4389815 Contact Us For Availability
23
Gasket, Oven Door WPL 4389807 Contact Us For Availability
23
Knob, Clock WPL 4389777 Contact Us For Availability
23
Nut, Compression WPL 4389827 Contact Us For Availability
24
Sleeve, Compression WPL 4389826 Contact Us For Availability
25
Pilot WPL 4389828 Contact Us For Availability
25
Screw WPL 4389835 Contact Us For Availability
26
Clip, Thermo Bulb WPL 4389748 Contact Us For Availability
26
Screw WPL 4389650 Contact Us For Availability
26
Igniter, Oven WPL 4389822 Contact Us For Availability
27
Plug, Button WPL 4389742 Contact Us For Availability
27
Valve, Safety WPL 4389820 Contact Us For Availability
27
Screw (2) WPL 4389836 Contact Us For Availability
28
Hinge, Oven Door (Right) WPL 4389472 Contact Us For Availability
28
Hinge, Oven Door (Left) WPL 4389473 Contact Us For Availability
28
Hinge, Oven Door (Screw, Hinge) WPL 4389538 Contact Us For Availability
28
Burner, Oven (Includes No. 29) WPL 4389817 Contact Us For Availability
29
Spring, Oven Door WPL 4389745 Contact Us For Availability
29
Screw, Shutter WPL 4389545 Contact Us For Availability
29
Shutter, Air WPL 4389510 Contact Us For Availability
30
Panel, Body Side WPL 4389444 Contact Us For Availability
30
Screw, Baffle WPL 4389536 Contact Us For Availability
30
Baffle, Ov Burner WPL 4389830 Contact Us For Availability
31
Trim, Side (Left) WPL 4389465 Contact Us For Availability
31
Trim, Side (Right) WPL 4389466 Contact Us For Availability
32
Grid, Broiler WPL 4389802 Contact Us For Availability
33
Pan, Broiler WPL 4389801 Contact Us For Availability
34
Drawer, Broiler (Includes No. 35) WPL 4389789 Contact Us For Availability
35
Roller, Drawer (4) WPL 4389812 Contact Us For Availability
36
Rivet, Shoulder (4) WPL 4389813 Contact Us For Availability
37
Spring, Broiler (2) WPL 4389811 Contact Us For Availability
38
Hinge, Broiler (Right Hand) WPL 4389809 Contact Us For Availability
38
Hinge, Broiler (Left Hand) WPL 4389810 Contact Us For Availability
39
Guide, Drawer (Right Hand) WPL 4389804 Contact Us For Availability
39
Guide, Drawer (Left Hand) WPL 4389805 Contact Us For Availability
40
Bottom, Drawer WPL 4389791 Contact Us For Availability
41
Liner, Drawer Pnl WPL 4389790 Contact Us For Availability
42
Insulation, Drawer WPL 4389797 Contact Us For Availability
43
Panel, Drawer WPL 4389445 Contact Us For Availability
43
Screw (2) WPL 4389548 Contact Us For Availability
44
Spacer, Handle (2) WPL 4389416 Contact Us For Availability
45
Handle, Drawer WPL 4389448 Contact Us For Availability
45
Anti WPL 4389471 Contact Us For Availability
45
WPL 4389543 WPL 4389543 Contact Us For Availability
45
WPL 4389845 WPL 4389845 Contact Us For Availability
45
WPL 4389847 WPL 4389847 Contact Us For Availability
45
WPL 4389848 WPL 4389848 Contact Us For Availability
× ![]()
