Model Maytag SRI22F-A REFRIGERATOR – Common Parts & Diagrams

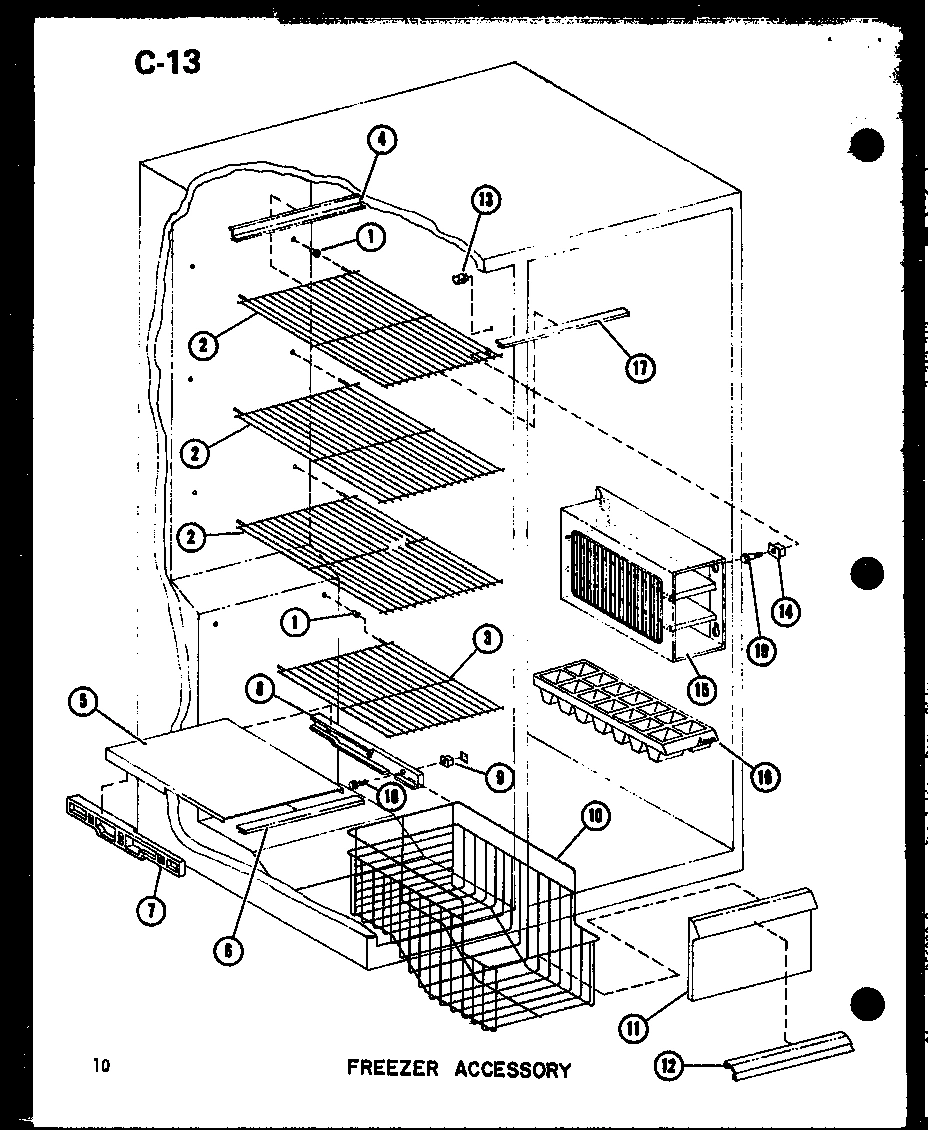

01 - FZ ACCESSORY

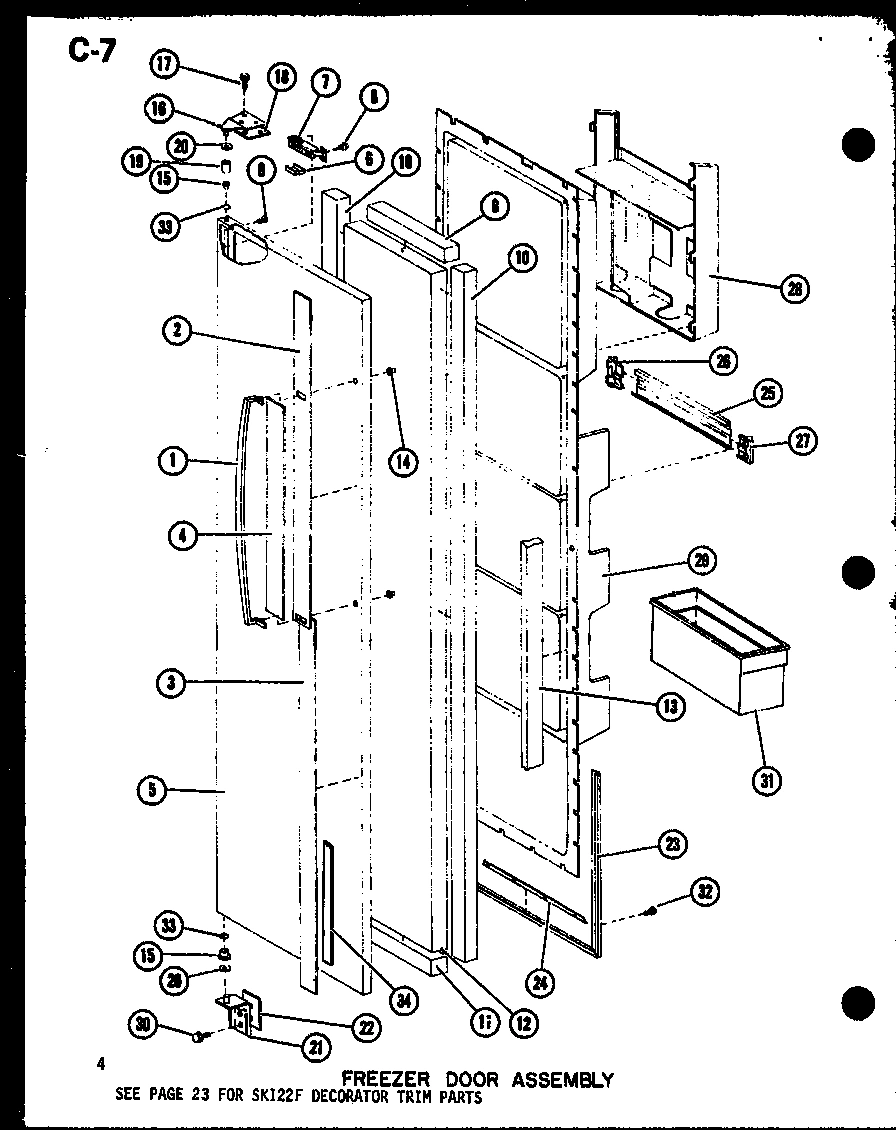

02 - FZ DOOR ASSY

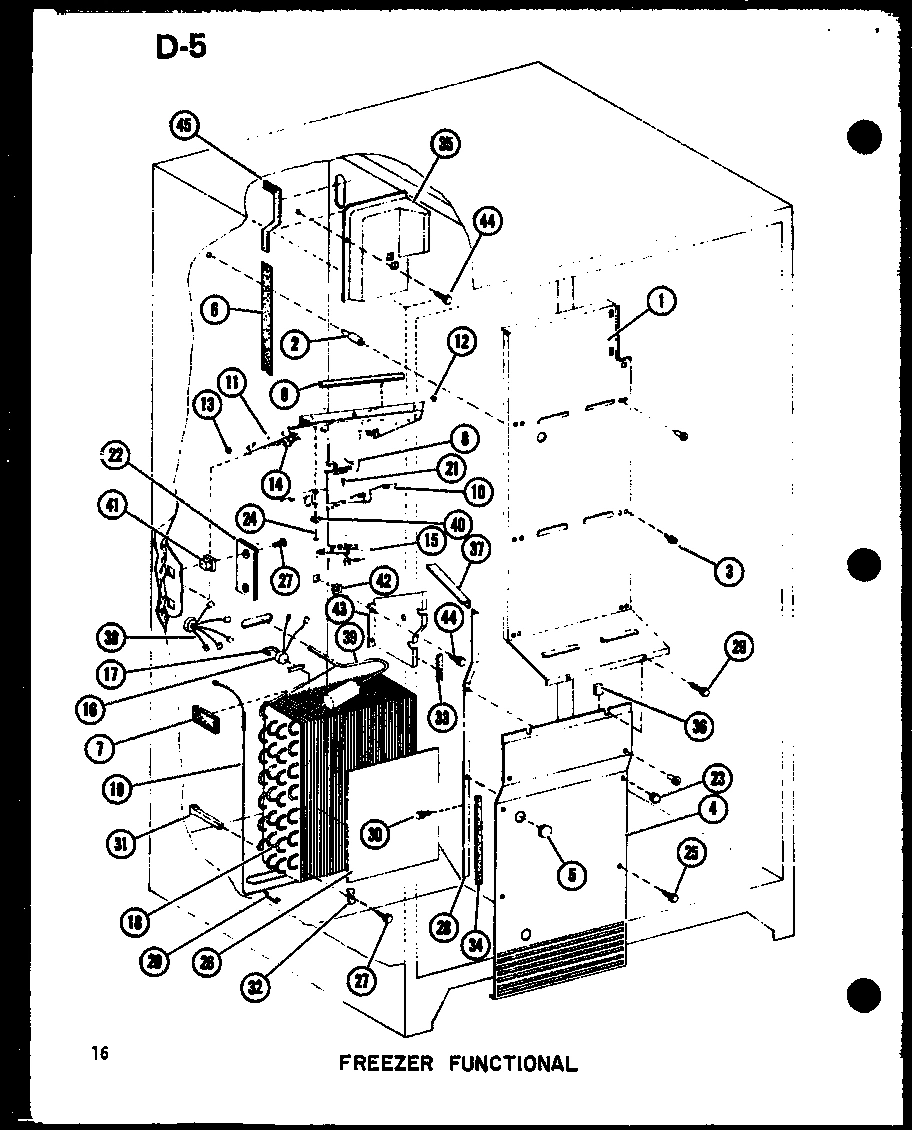

03 - FZ FUNCTIONAL

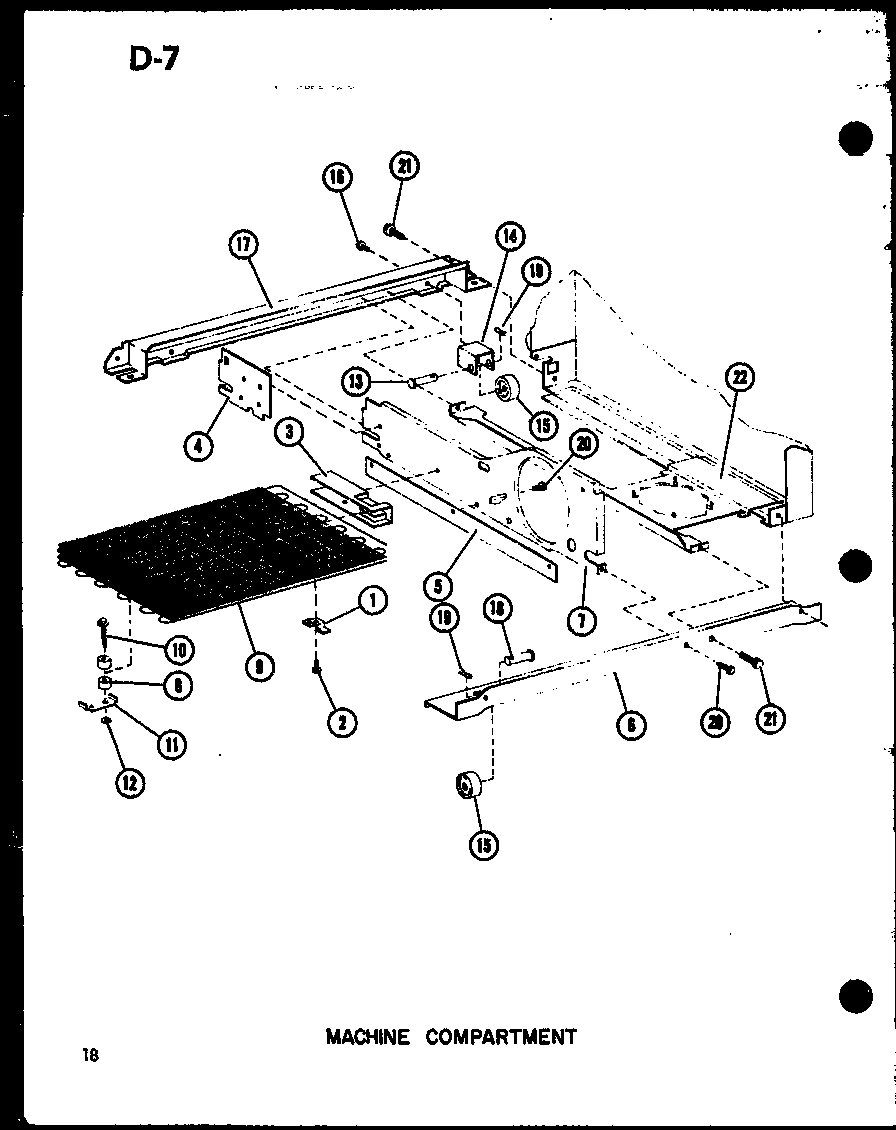

04 - MACHINE COMPARTMENT

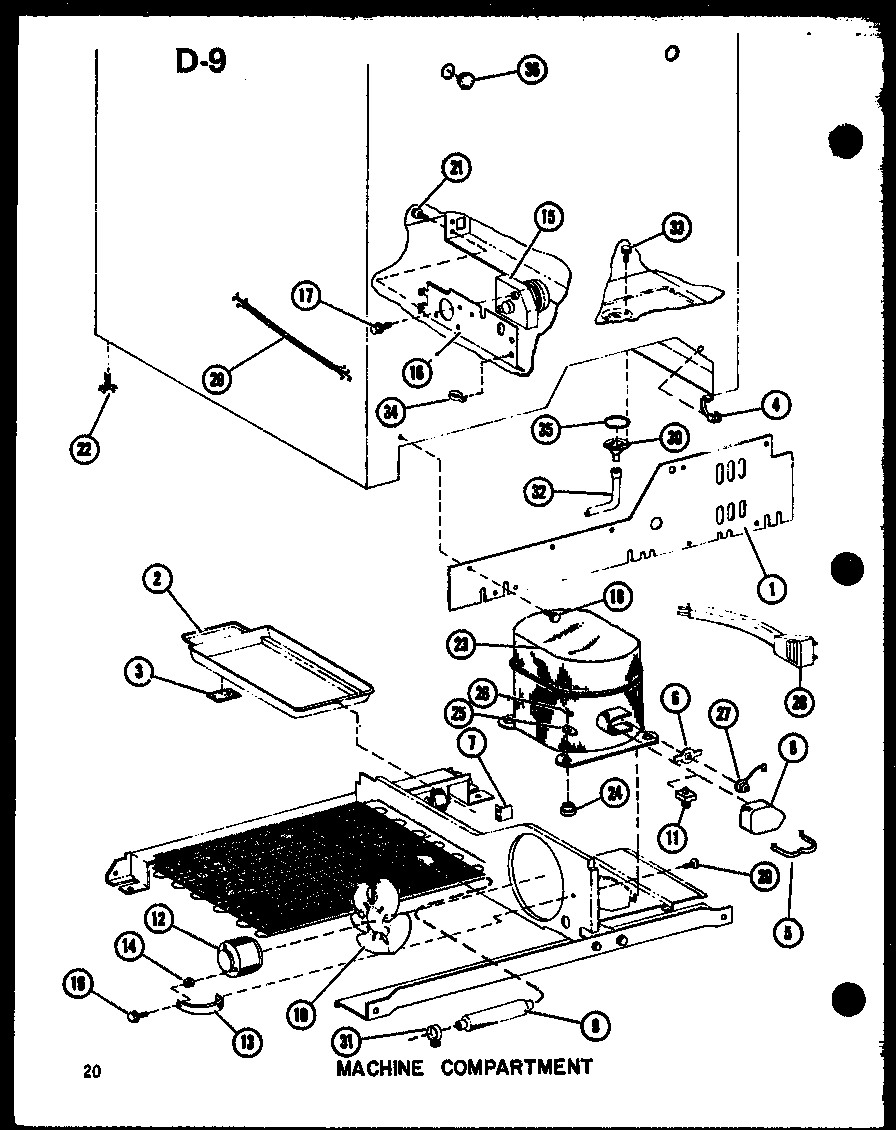

05 - MACHINE COMPARTMENT

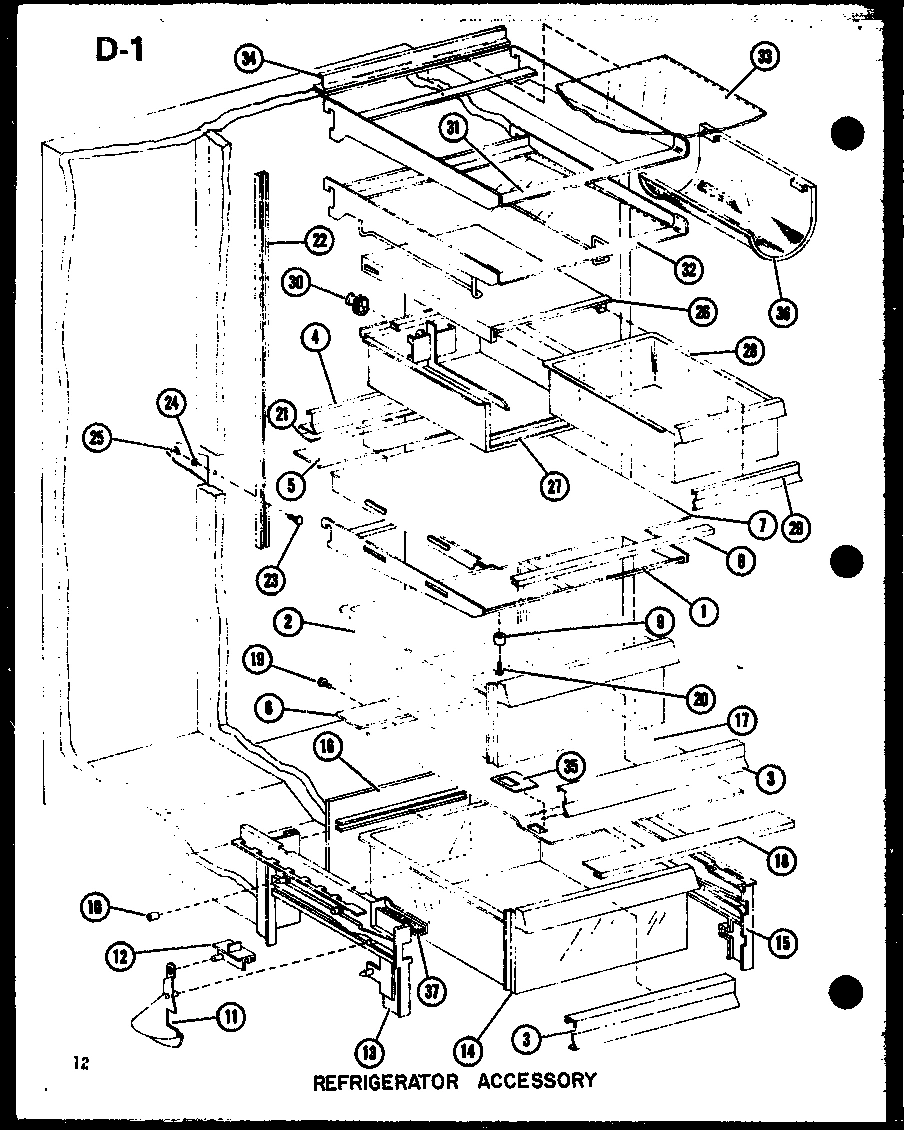

06 - REF ACCESSORY

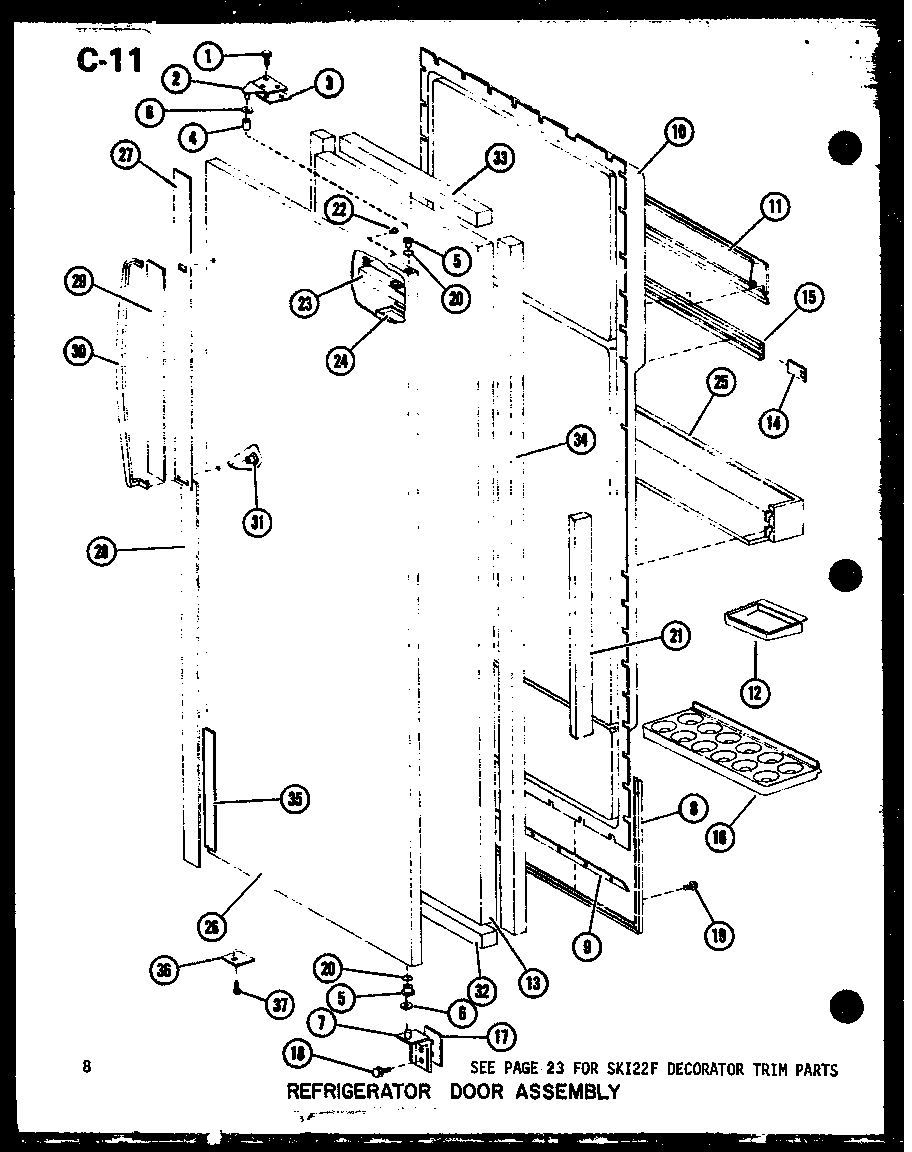

07 - REF DOOR ASSY

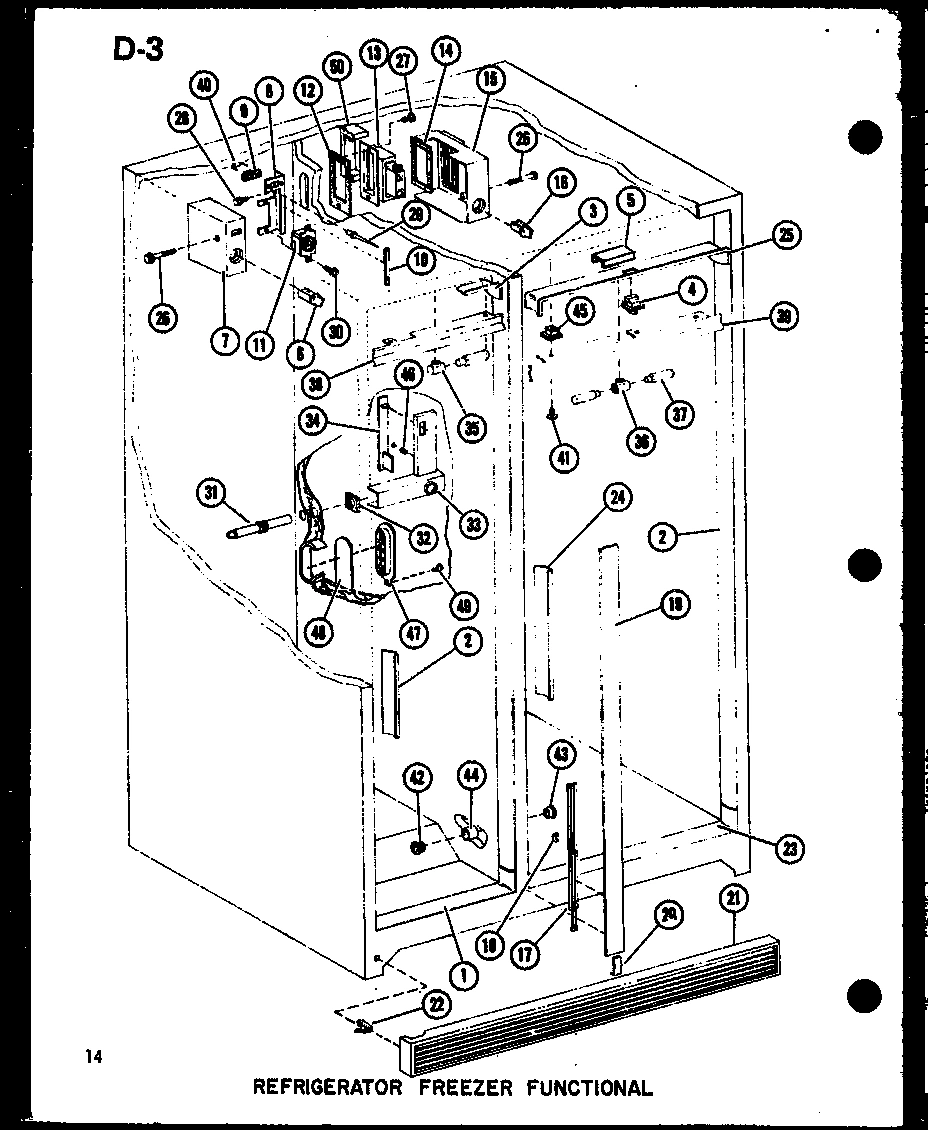

08 - REF FZ FUNCTIONAL
Common parts from model Maytag SRI22F-A REFRIGERATOR
1
MAY A0387302 MAY A0387302 Contact Us For Availability
1
MAY M0257244 MAY M0257244 Contact Us For Availability
1
MAY D7482201 MAY D7482201 Contact Us For Availability
1
CLIP-COND MAY A3054502 Contact Us For Availability
1
MAY C3655002 MAY C3655002 Contact Us For Availability
1
MAY D7000601 MAY D7000601 Contact Us For Availability
1
BREAKER FRAME MAY D3952402 Contact Us For Availability
2
MAY D7549802 MAY D7549802 Contact Us For Availability
2
MAY D7557701 MAY D7557701 Contact Us For Availability
2
MAY A3044202 MAY A3044202 Contact Us For Availability
2
MAY M0211030 MAY M0211030 Contact Us For Availability
2
MAY D7001001 MAY D7001001 Contact Us For Availability
2
MAY D7298810 MAY D7298810 Contact Us For Availability
2
MAY C8816602 MAY C8816602 Contact Us For Availability
2
MAY D7510801 MAY D7510801 Contact Us For Availability
3
MAY D7549806 MAY D7549806 Contact Us For Availability
3
MAY D7557801 MAY D7557801 Contact Us For Availability
3
MAY A3270303 MAY A3270303 Contact Us For Availability
3
MAY M0230923 MAY M0230923 Contact Us For Availability
3
MAY B0544101 MAY B0544101 Contact Us For Availability
3
MAY B5691701 MAY B5691701 Contact Us For Availability
3
MAY C8831702 MAY C8831702 Contact Us For Availability
3
MAY D3953105 MAY D3953105 Contact Us For Availability
4
MAY D7415103 MAY D7415103 Contact Us For Availability
4
MAY C8867102 MAY C8867102 Contact Us For Availability
4
MAY A3132401 MAY A3132401 Contact Us For Availability
4
MAY D7484701 MAY D7484701 Contact Us For Availability
4
MAY A0319703 MAY A0319703 Contact Us For Availability
4
MAY C8831803 MAY C8831803 Contact Us For Availability
4
MAY C3680304 MAY C3680304 Contact Us For Availability
5
MAY B8303801 MAY B8303801 Contact Us For Availability
5
MAY D7409441 MAY D7409441 Contact Us For Availability
5
MAY D7409442 MAY D7409442 Contact Us For Availability
5
MAY D7409443 MAY D7409443 Contact Us For Availability
5
MAY D7409444 MAY D7409444 Contact Us For Availability
5
MAY D7409445 MAY D7409445 Contact Us For Availability
5
BEARING-HINGE MAY C8852201 Contact Us For Availability
5
BEARING, HINGE MAY C8852202 Contact Us For Availability
5
PLUG MAY A3069103 Contact Us For Availability
5
MAY B8314102 MAY B8314102 Contact Us For Availability
5
MAY A3041801 MAY A3041801 Contact Us For Availability
5
COVER-SWITCH MAY B5743601 Contact Us For Availability
6
MAY B0596602 MAY B0596602 Contact Us For Availability
6
MAY M0274013 MAY M0274013 Contact Us For Availability
6
MAY M0274014 MAY M0274014 Contact Us For Availability
6
GASKET BAFFLE MAY B8328101 Contact Us For Availability
6
MAY C3611304 MAY C3611304 Contact Us For Availability
6
MAY A3043601 MAY A3043601 Contact Us For Availability
6
MAY C3622305 MAY C3622305 Contact Us For Availability
6
MAY D7009801 MAY D7009801 Contact Us For Availability
7
GLIDE BASKET-L K MAY D7442901 Contact Us For Availability
7
MAY B8314701 MAY B8314701 Contact Us For Availability
7
SHROUD, FAN MAY D7446702 Contact Us For Availability
7
MAY A3125701 MAY A3125701 Contact Us For Availability
7
MAY D3951406 MAY D3951406 Contact Us For Availability
7
MAY D7250103 MAY D7250103 Contact Us For Availability
7
MAY D7345503 MAY D7345503 Contact Us For Availability
8
GLIDE BASKET-R K MAY D7442902 Contact Us For Availability
8
FAN-EVAP MAY C8795501 Contact Us For Availability
8
MAY A3013906 MAY A3013906 Contact Us For Availability
8
MAY A3013907 MAY A3013907 Contact Us For Availability
8
MAY B0551801 MAY B0551801 Contact Us For Availability
8
MAY B0570902 MAY B0570902 Contact Us For Availability
8
MAY D7092608 MAY D7092608 Contact Us For Availability
8
MAY C8850501 MAY C8850501 Contact Us For Availability
9
MAY B5629006 MAY B5629006 Contact Us For Availability
9
MAY D7025101 MAY D7025101 Contact Us For Availability
9
MAY B5757702 MAY B5757702 Contact Us For Availability
9
CONDENSER ASSY PNT MAY C8860802 Contact Us For Availability
9
MAY B5715001 MAY B5715001 Contact Us For Availability
9
GLIDE PAN MAY A3213402 Contact Us For Availability
9
RETAINER GASKET MAY D7025102 Contact Us For Availability
9
MAY M0341201 MAY M0341201 Contact Us For Availability
10
MAY D7363601 MAY D7363601 Contact Us For Availability
10
BRACKET-EVAP MOTOR MAY C8829701 Contact Us For Availability
10
MAY M0257039 MAY M0257039 Contact Us For Availability
10
MAY B5742601 MAY B5742601 Contact Us For Availability
10
MAY M0117901 MAY M0117901 Contact Us For Availability
10
MAY D7516601 MAY D7516601 Contact Us For Availability
10
MAY A3030335 MAY A3030335 Contact Us For Availability
11
MAY D7419601 MAY D7419601 Contact Us For Availability
11
MAY B5629003 MAY B5629003 Contact Us For Availability
11
MAY D7371502 MAY D7371502 Contact Us For Availability
11
MAY A3085401 MAY A3085401 Contact Us For Availability
11
RELAY K MAY C3689202 Contact Us For Availability
11
MAY C8705401 MAY C8705401 Contact Us For Availability
11
MAY D7511302 MAY D7511302 Contact Us For Availability
11
MAY C3615018 MAY C3615018 Contact Us For Availability
12
MAY C8834901 MAY C8834901 Contact Us For Availability
12
MAY B5612004 MAY B5612004 Contact Us For Availability
12
MAY M0292002 MAY M0292002 Contact Us For Availability
12
MAY M0286003 MAY M0286003 Contact Us For Availability
12
MAY C8736901 MAY C8736901 Contact Us For Availability
12
MAY B5632101 MAY B5632101 Contact Us For Availability
12
MAY D3799801 MAY D3799801 Contact Us For Availability
12
MAY B8315901 MAY B8315901 Contact Us For Availability
13
MAY B0595101 MAY B0595101 Contact Us For Availability
13
MAY YA0381501 MAY YA0381501 Contact Us For Availability
13
MAY M1205302 MAY M1205302 Contact Us For Availability
13
MAY B0598701 MAY B0598701 Contact Us For Availability
13
MAY D7201203 MAY D7201203 Contact Us For Availability
13
MAY B5612005 MAY B5612005 Contact Us For Availability
13
MAY C3643115 MAY C3643115 Contact Us For Availability
14
MAY M0500107 MAY M0500107 Contact Us For Availability
14
MAY A0381401 MAY A0381401 Contact Us For Availability
14
MAY C8836303 MAY C8836303 Contact Us For Availability
14
MAY D7425701 MAY D7425701 Contact Us For Availability
14
MAY B0530006 MAY B0530006 Contact Us For Availability
14
MAY A3113601 MAY A3113601 Contact Us For Availability
15
MAY D7241412 MAY D7241412 Contact Us For Availability
15
MAY M0520102 MAY M0520102 Contact Us For Availability
15
TIMER MAY D7004112 Contact Us For Availability
15
MAY D7201303 MAY D7201303 Contact Us For Availability
15
MAY B8302601 MAY B8302601 Contact Us For Availability
15
MAY D7417301 MAY D7417301 Contact Us For Availability
16
MAY C8816601 MAY C8816601 Contact Us For Availability
16
THERMOSTAT K MAY C8871201 Contact Us For Availability
16
MAY M0236230 MAY M0236230 Contact Us For Availability
16
MAY C3647902 MAY C3647902 Contact Us For Availability
16
MAY C8705501 MAY C8705501 Contact Us For Availability
16
MAY D7466605 MAY D7466605 Contact Us For Availability
16
MAY D7009802 MAY D7009802 Contact Us For Availability
17
MAY C8795201 MAY C8795201 Contact Us For Availability
17
MAY A3143601 MAY A3143601 Contact Us For Availability
17
MAY A3143602 MAY A3143602 Contact Us For Availability
17
MAY A3143603 MAY A3143603 Contact Us For Availability
17
CLIP THERMOSTAT K MAY B8325201 Contact Us For Availability
17
MAY D7003306 MAY D7003306 Contact Us For Availability
17
MAY M0213817 MAY M0213817 Contact Us For Availability
17
MAY D7022202 MAY D7022202 Contact Us For Availability
17
MAY C3628301 MAY C3628301 Contact Us For Availability
18
MAY M0246159 MAY M0246159 Contact Us For Availability
18
MAY M0241118 MAY M0241118 Contact Us For Availability
18
MAY R0170012 MAY R0170012 Contact Us For Availability
18
PIVOT PIN K MAY M1210001 Contact Us For Availability
18
MAY B0596603 MAY B0596603 Contact Us For Availability
18
MAY M0113401 MAY M0113401 Contact Us For Availability
19
MAY M0211018 MAY M0211018 Contact Us For Availability
19
HEATER-EVAP MAY D7479703 Contact Us For Availability
19
COTTER PIN K MAY M1200001 Contact Us For Availability
19
MAY M0220101 MAY M0220101 Contact Us For Availability
19
MAY C8810401 MAY C8810401 Contact Us For Availability
19
MULLION, COPPERTONE MAY C8810402 Contact Us For Availability
19
MULLION (AVOCADO) MAY C8810403 Contact Us For Availability
19
MULLION, GOLD MAY C8810404 Contact Us For Availability
19
MULLION (ALMOND) MAY C8810405 Contact Us For Availability
20
MAY M0500902 MAY M0500902 Contact Us For Availability
20
CLIP-HEATER MAY B8324701 Contact Us For Availability
20
MAY M0221332 MAY M0221332 Contact Us For Availability
20
MAY M0230727 MAY M0230727 Contact Us For Availability
20
KEY MAY A3120801 Contact Us For Availability
21
MAY B0523561 MAY B0523561 Contact Us For Availability
21
MAY D7250104 MAY D7250104 Contact Us For Availability
21
MAY M0258055 MAY M0258055 Contact Us For Availability
21
MAY M0233844 MAY M0233844 Contact Us For Availability
21
MAY M0211530 MAY M0211530 Contact Us For Availability
21
MAY M0275160 MAY M0275160 Contact Us For Availability
21
MAY D7415410 MAY D7415410 Contact Us For Availability
22
MAY M1252001 MAY M1252001 Contact Us For Availability
22
TERM BOARD MAY B8326801 Contact Us For Availability
22
MAY C8820407 MAY C8820407 Contact Us For Availability
22
MAY M0266510 MAY M0266510 Contact Us For Availability
22
MAY D7103701 MAY D7103701 Contact Us For Availability
22
MAY M0117301 MAY M0117301 Contact Us For Availability
23
MAY D7022901 MAY D7022901 Contact Us For Availability
23
MAY D7251020 MAY D7251020 Contact Us For Availability
23
MAY M0310316 MAY M0310316 Contact Us For Availability
23
MAY D7351001 MAY D7351001 Contact Us For Availability
23
MAY M0258801 MAY M0258801 Contact Us For Availability
23
BREAKER FRAME MAY D3952603 Contact Us For Availability
24
MAY B5644001 MAY B5644001 Contact Us For Availability
24
MAY D7025103 MAY D7025103 Contact Us For Availability
24
MAY M0211020 MAY M0211020 Contact Us For Availability
24
MAY A3026101 MAY A3026101 Contact Us For Availability
24
MAY M0270508 MAY M0270508 Contact Us For Availability
24
MAY D7510901 MAY D7510901 Contact Us For Availability
25
MAY D7415703 MAY D7415703 Contact Us For Availability
25
MAY M0590101 MAY M0590101 Contact Us For Availability
25
MAY M0281003 MAY M0281003 Contact Us For Availability
25
MAY D7511402 MAY D7511402 Contact Us For Availability
25
BREAKER FRAME MAY D3952505 Contact Us For Availability
26
MAY B5631705 MAY B5631705 Contact Us For Availability
26
GASKET, EVAP. MAY B8327901 Contact Us For Availability
26
MAY A3140801 MAY A3140801 Contact Us For Availability
26
MAY D7343603 MAY D7343603 Contact Us For Availability
26
MAY D7409341 MAY D7409341 Contact Us For Availability
26
MAY D7409342 MAY D7409342 Contact Us For Availability
26
MAY D7409343 MAY D7409343 Contact Us For Availability
26
MAY D7409344 MAY D7409344 Contact Us For Availability
26
MAY D7409345 MAY D7409345 Contact Us For Availability
26
MAY M0230926 MAY M0230926 Contact Us For Availability
27
MAY B5631706 MAY B5631706 Contact Us For Availability
27
MAY M0230917 MAY M0230917 Contact Us For Availability
27
MAY C3689105 MAY C3689105 Contact Us For Availability
27
MAY D7001305 MAY D7001305 Contact Us For Availability
27
MAY D7557702 MAY D7557702 Contact Us For Availability
28
MAY D7466202 MAY D7466202 Contact Us For Availability
28
ANGLE, EVAPORATOR COVER, LEFT MAY D7393501 Contact Us For Availability
28
ANGLE-EVAP COVER MAY D7393502 Contact Us For Availability
28
MAY R0157154 MAY R0157154 Contact Us For Availability
28
MAY D7425301 MAY D7425301 Contact Us For Availability
28
MAY D7557802 MAY D7557802 Contact Us For Availability
29
MAY D7020604 MAY D7020604 Contact Us For Availability
29
MAY D7528102 MAY D7528102 Contact Us For Availability
29
MAY C8831704 MAY C8831704 Contact Us For Availability
29
MAY C8864801 MAY C8864801 Contact Us For Availability
29
MAY M0010202 MAY M0010202 Contact Us For Availability
30
MAY D7096001 MAY D7096001 Contact Us For Availability
30
DRAIN CUP MAY C8820601 Contact Us For Availability
31
MAY M0289801 MAY M0289801 Contact Us For Availability
31
MAY C8830701 MAY C8830701 Contact Us For Availability
31
MAY M0104002 MAY M0104002 Contact Us For Availability
31
MAY C8785301 MAY C8785301 Contact Us For Availability
31
MAY R0179057 MAY R0179057 Contact Us For Availability
32
CLIP-HEATER MAY B5784101 Contact Us For Availability
32
MAY D7384701 MAY D7384701 Contact Us For Availability
32
MAY R0179059 MAY R0179059 Contact Us For Availability
32
MAY B5629008 MAY B5629008 Contact Us For Availability
32
MAY A3116601 MAY A3116601 Contact Us For Availability
33
MAY B5759609 MAY B5759609 Contact Us For Availability
33
MAY M0236717 MAY M0236717 Contact Us For Availability
33
MAY B8303602 MAY B8303602 Contact Us For Availability
33
MAY B0534409 MAY B0534409 Contact Us For Availability
33
MAY B5656707 MAY B5656707 Contact Us For Availability
34
MAY B5629002 MAY B5629002 Contact Us For Availability
34
MAY B5759608 MAY B5759608 Contact Us For Availability
34
MAY M0321401 MAY M0321401 Contact Us For Availability
34
MAY C8831501 MAY C8831501 Contact Us For Availability
34
MAY B5622804 MAY B5622804 Contact Us For Availability
35
MAY R0195021 MAY R0195021 Contact Us For Availability
35
AIR TUNNEL MAY D7484901 Contact Us For Availability
35
MAY M0275584 MAY M0275584 Contact Us For Availability
35
MAY C3623501 MAY C3623501 Contact Us For Availability
35
MAY B5637601 MAY B5637601 Contact Us For Availability
36
MAY B8324801 MAY B8324801 Contact Us For Availability
36
MAY B5766402 MAY B5766402 Contact Us For Availability
36
MAY D7547602 MAY D7547602 Contact Us For Availability
36
MAY B5637701 MAY B5637701 Contact Us For Availability
37
ANGLE-FR BAFFLE MAY B5795201 Contact Us For Availability
37
MAY A3079001 MAY A3079001 Contact Us For Availability
38
MAY D7565501 MAY D7565501 Contact Us For Availability
38
MAY D3954208 MAY D3954208 Contact Us For Availability
39
MAY D7501501 MAY D7501501 Contact Us For Availability
39
MAY D3954210 MAY D3954210 Contact Us For Availability
40
MAY A4573802 MAY A4573802 Contact Us For Availability
40
MAY M0305301 MAY M0305301 Contact Us For Availability
41
MAY M0226960 MAY M0226960 Contact Us For Availability
41
MAY M0580002 MAY M0580002 Contact Us For Availability
42
AIR TUNNEL MAY A3187701 Contact Us For Availability
43
BLOCK AIR COIL MAY C8868301 Contact Us For Availability
43
MAY A3187801 MAY A3187801 Contact Us For Availability
44
SLEEVE-AIR TUNNEL MAY A3189501 Contact Us For Availability
45
MAY M0580009 MAY M0580009 Contact Us For Availability
45
GASKET AIR TUNNEL MAY B8320501 Contact Us For Availability
46
MAY M0113004 MAY M0113004 Contact Us For Availability
47
MAY C3588305 MAY C3588305 Contact Us For Availability
48
MAY B8344401 MAY B8344401 Contact Us For Availability
49
MAY M0211016 MAY M0211016 Contact Us For Availability
50
MAY C8860701 MAY C8860701 Contact Us For Availability
NI
MAY D7036805 MAY D7036805 Contact Us For Availability
NI
MAY C8823409 MAY C8823409 Contact Us For Availability
NI
MAY C8823410 MAY C8823410 Contact Us For Availability
NI
MAY D7219504 MAY D7219504 Contact Us For Availability
NI
RETURN AIR ASSEMBLY MAY B8344901 Contact Us For Availability
× ![]()
