Model Maytag SR25TW REFRIGERATOR – Common Parts & Diagrams

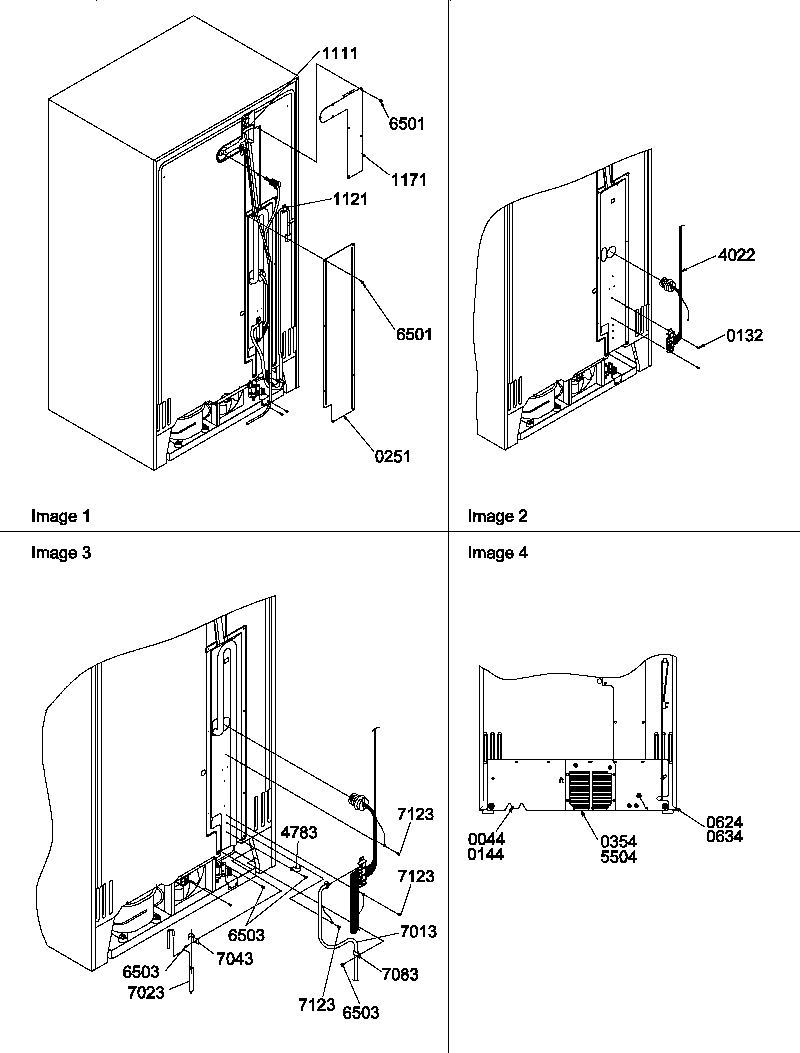

01 - CABINET BACK

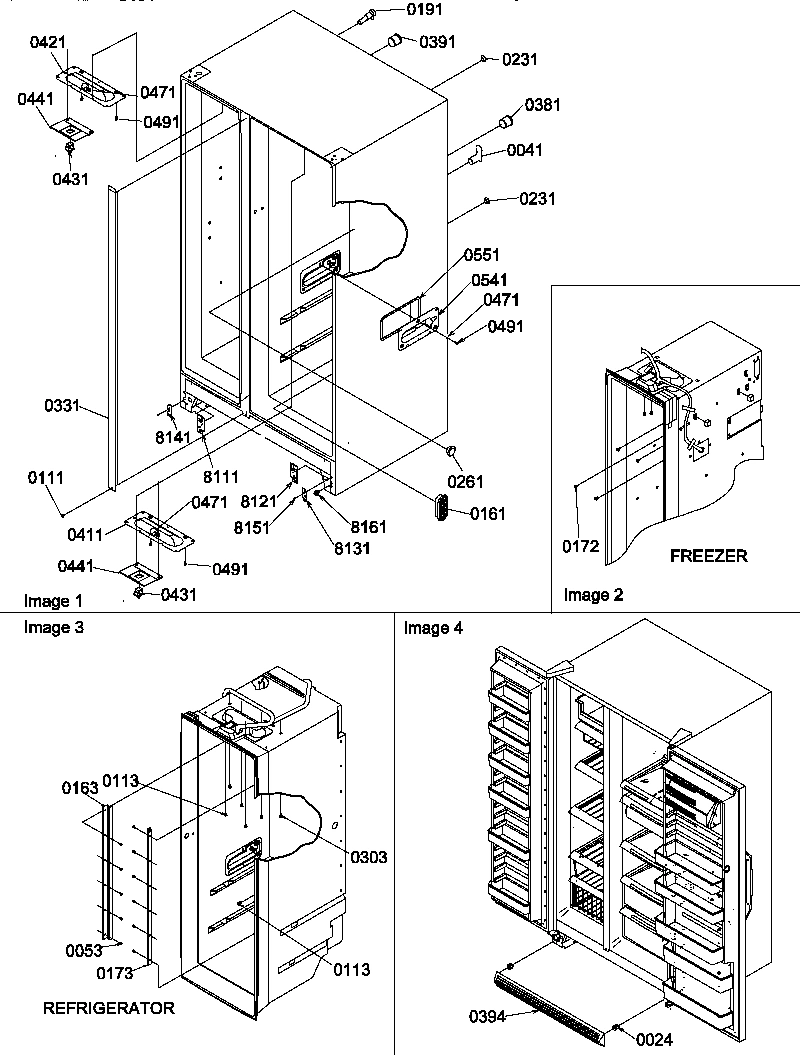

02 - CABINET PARTS

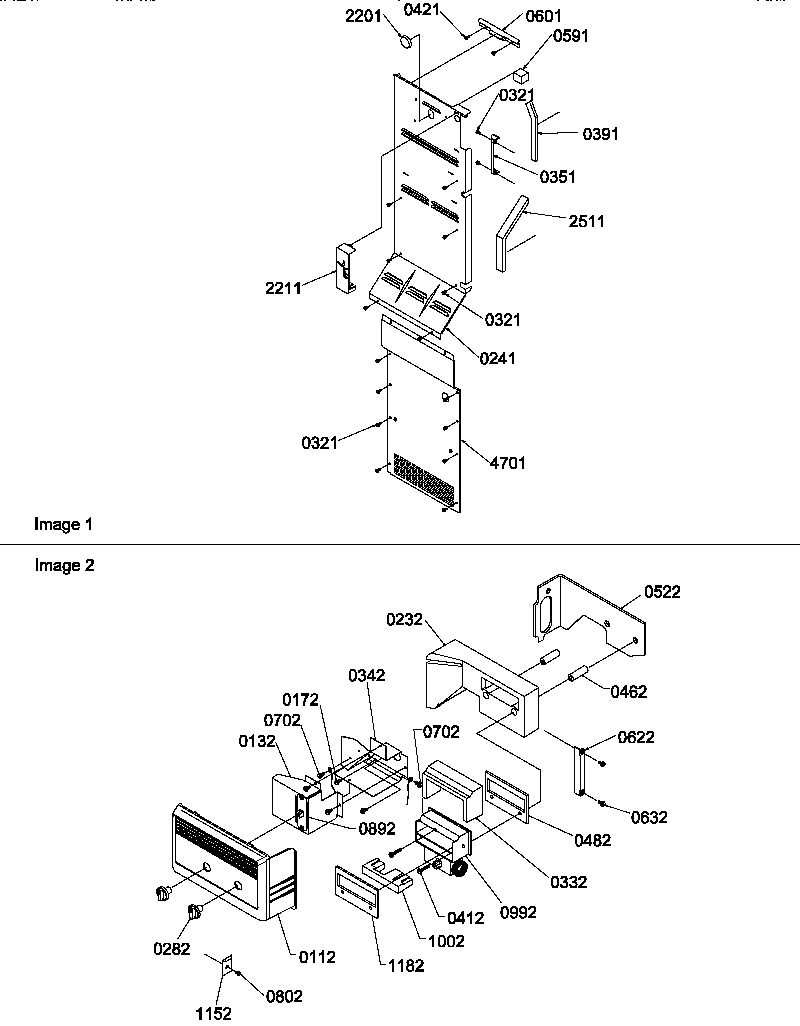

03 - CONTROL ASSY

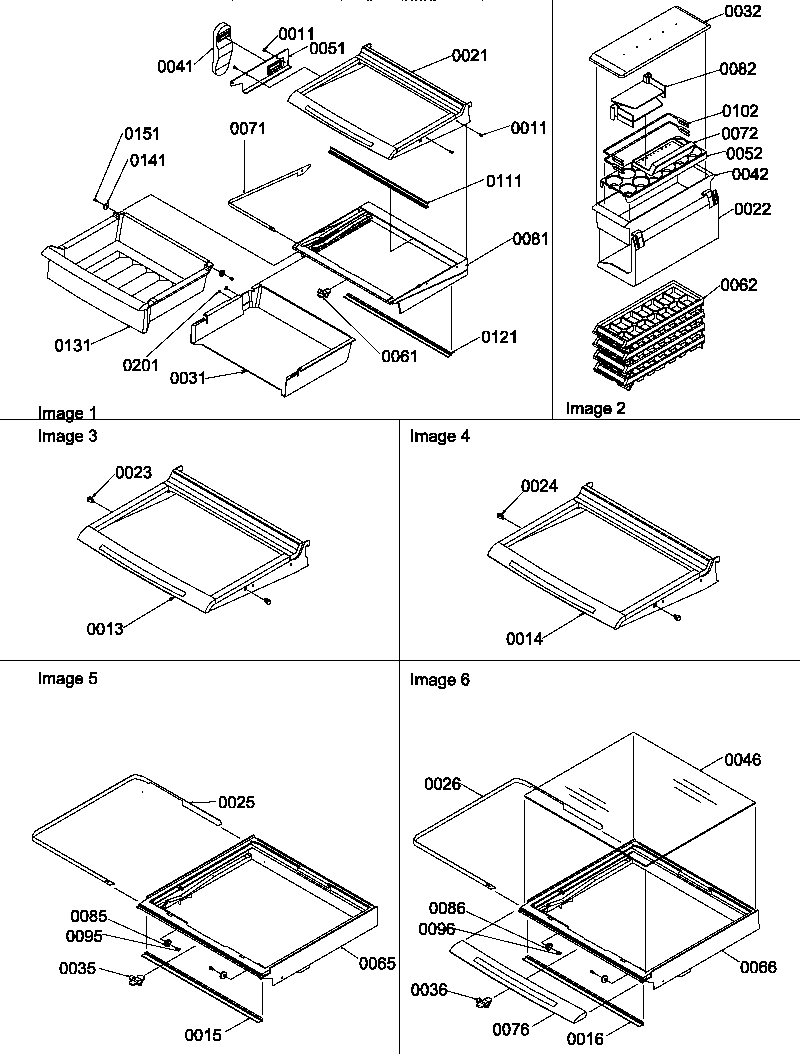

04 - DELI, SHELVES, CRISPER ASSEMBLIES & ACS

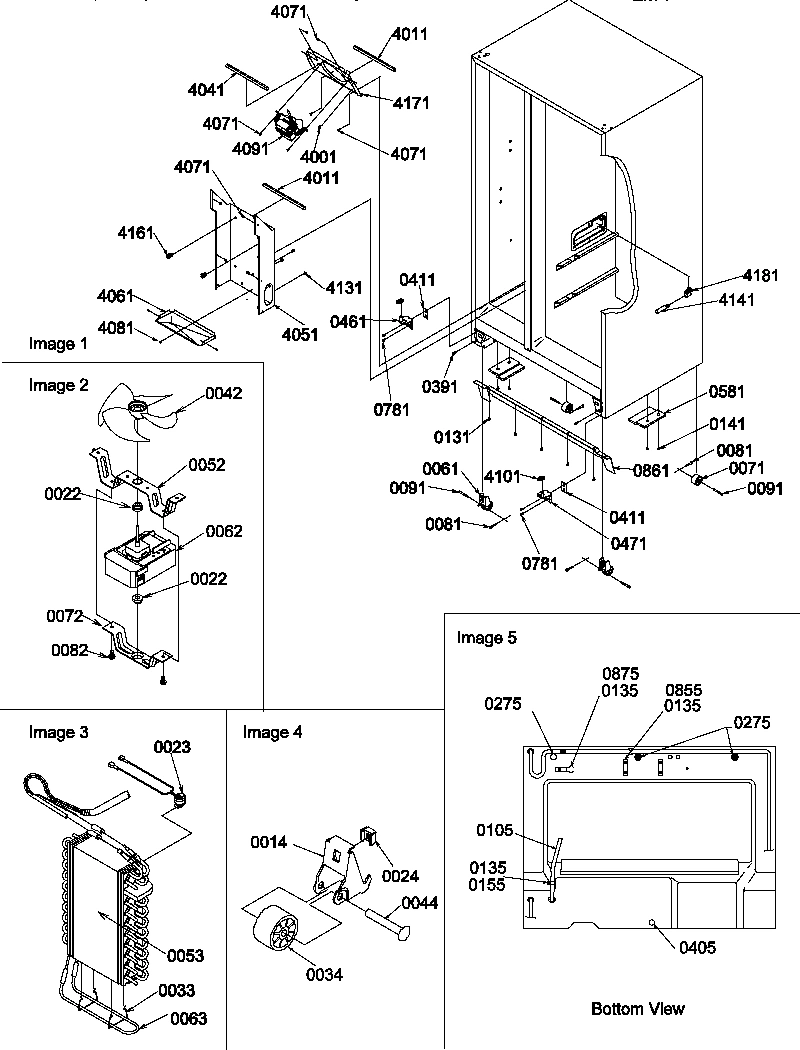

05 - DRAIN SYSTEM, ROLLERS, AND EVAP ASSY

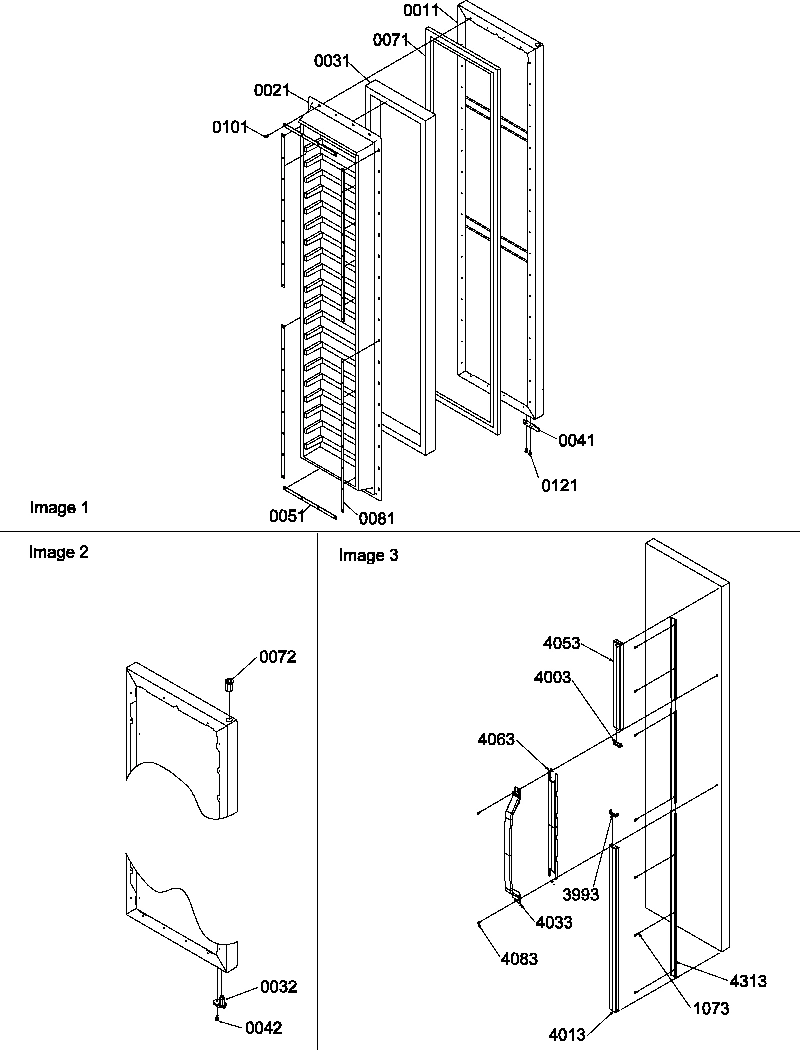

06 - FZ DOOR

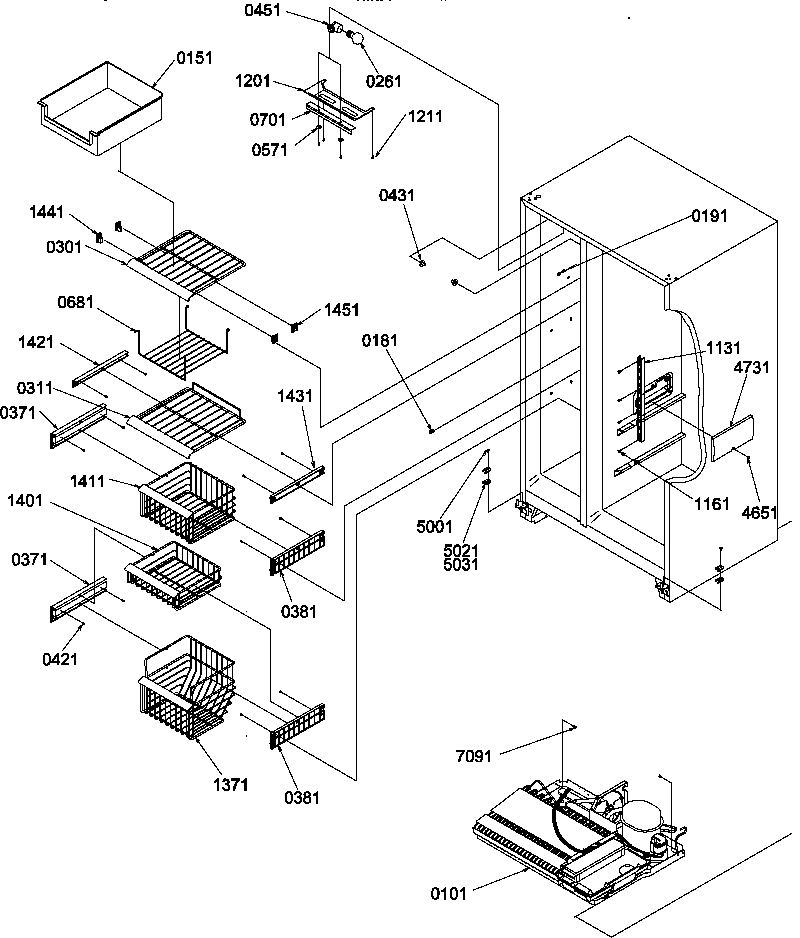

07 - FZ SHELVES AND LIGHT

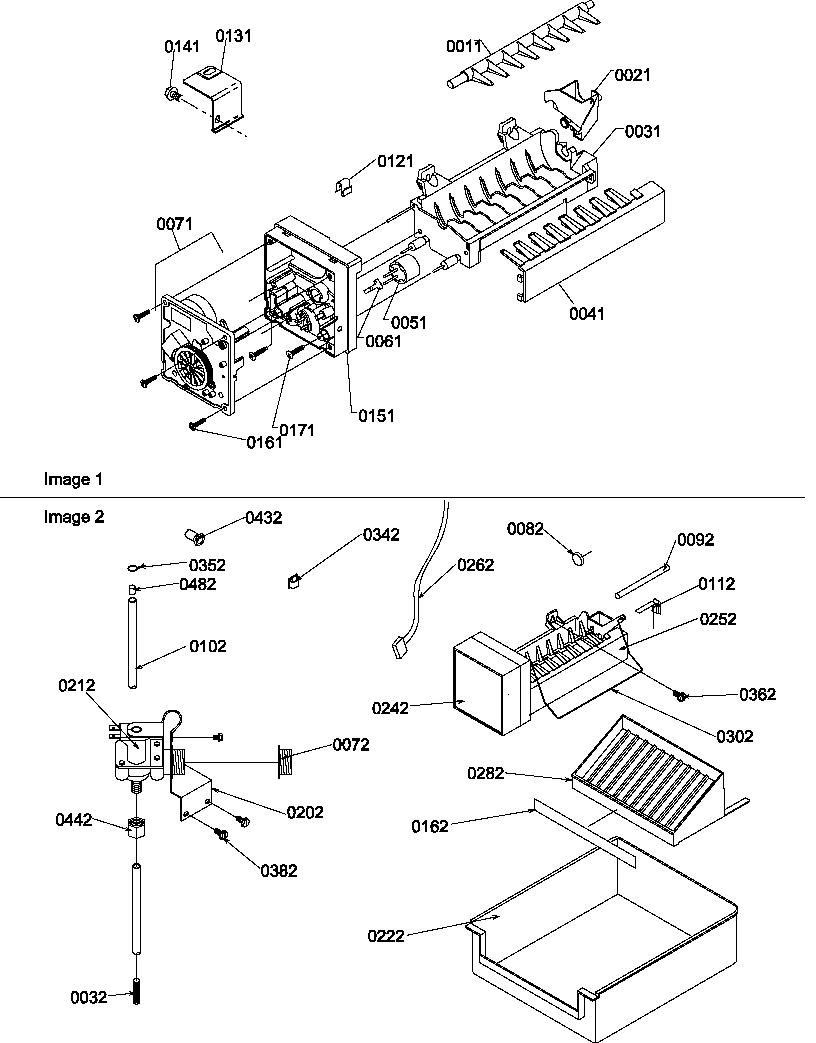

08 - ICE MAKER AND ADD ON ICE MAKER KIT

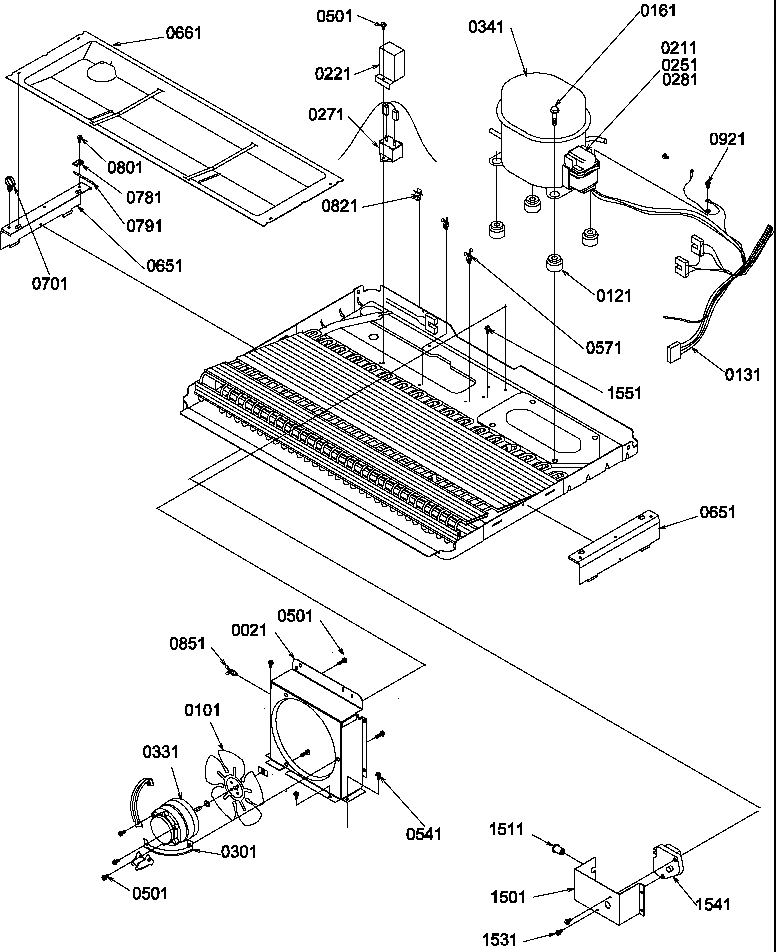

09 - MACHINE COMPARTMENT
10 - MISCELLAEOUS INFORMATION

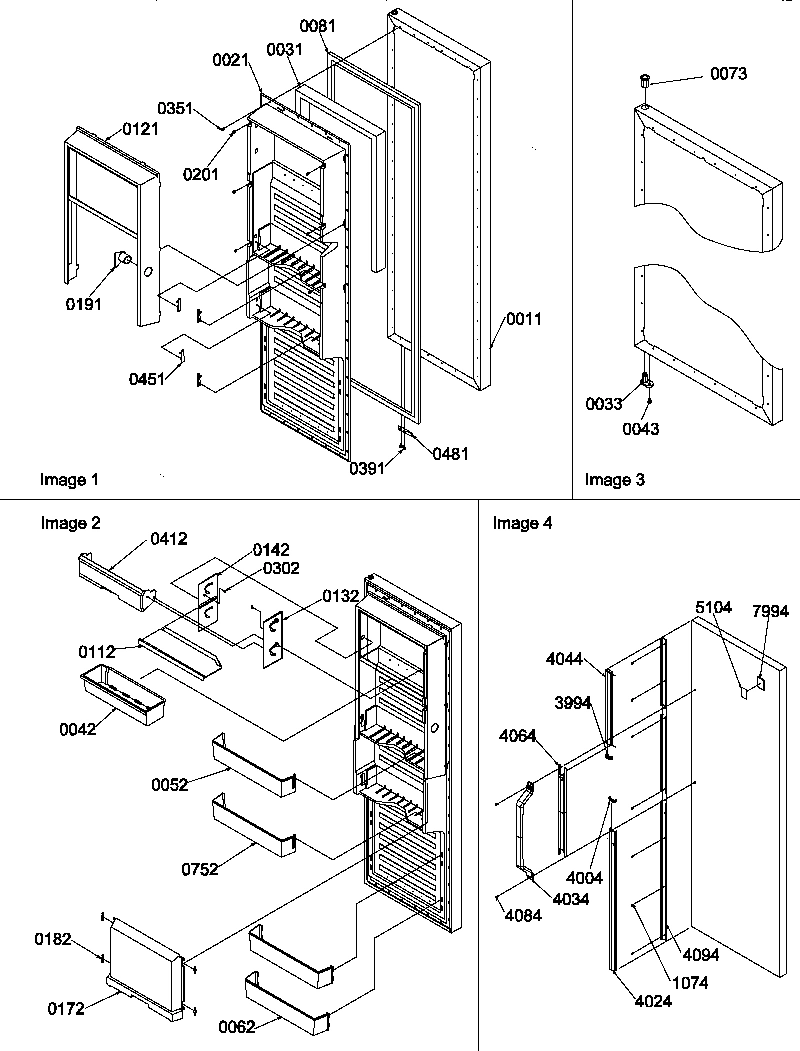

11 - REF DOOR

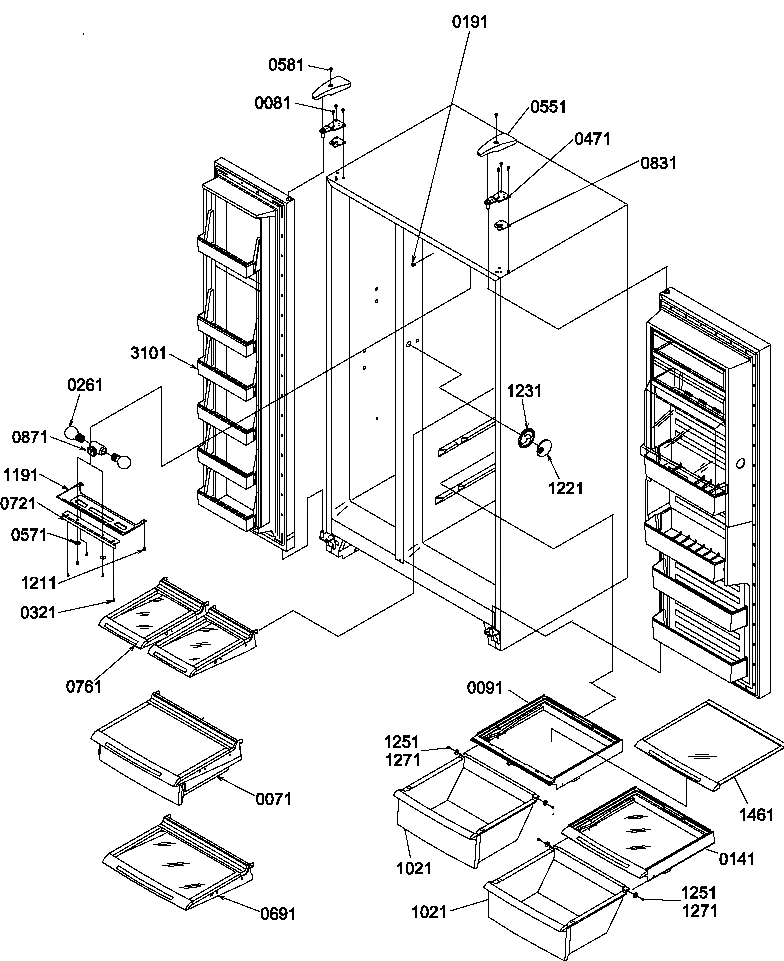

12 - REF/FZ SHELVES, LIGHTS, AND HINGES
Common parts from model Maytag SR25TW REFRIGERATOR
11
MAY M0238229 MAY M0238229 Contact Us For Availability
11
MAY 10881501W MAY 10881501W Contact Us For Availability
11
MAY R0183119 MAY R0183119 Contact Us For Availability
11
MAY 10881305W MAY 10881305W Contact Us For Availability
13
MAY 10809718 MAY 10809718 Contact Us For Availability
14
MAY 10809513 MAY 10809513 Contact Us For Availability
14
MAY C8742401 MAY C8742401 Contact Us For Availability
16
MAY 10968801 MAY 10968801 Contact Us For Availability
21
MAY 10809606 MAY 10809606 Contact Us For Availability
21
MAY 10522001 MAY 10522001 Contact Us For Availability
21
MAY R0156839 MAY R0156839 Contact Us For Availability
21
MAY 10602404 MAY 10602404 Contact Us For Availability
21
MAY 10861501 MAY 10861501 Contact Us For Availability
22
MAY 10992301 MAY 10992301 Contact Us For Availability
22
MAY A1017202 MAY A1017202 Contact Us For Availability
23
MAY 12017816 MAY 12017816 Contact Us For Availability
24
MAY M0117302 MAY M0117302 Contact Us For Availability
24
MAY 10875101 MAY 10875101 Contact Us For Availability
24
MAY M0286708 MAY M0286708 Contact Us For Availability
26
MAY 10882701 MAY 10882701 Contact Us For Availability
31
MAY 10784001 MAY 10784001 Contact Us For Availability
31
MAY R0156669 MAY R0156669 Contact Us For Availability
31
MAY B0523590 MAY B0523590 Contact Us For Availability
32
MAY 10436404 MAY 10436404 Contact Us For Availability
32
MAY A1055101 MAY A1055101 Contact Us For Availability
33
MAY 12113202 MAY 12113202 Contact Us For Availability
41
MAY C8971902 MAY C8971902 Contact Us For Availability
41
MAY 10872701 MAY 10872701 Contact Us For Availability
41
MAY R0183120 MAY R0183120 Contact Us For Availability
42
MAY 10423128 MAY 10423128 Contact Us For Availability
42
MAY 10890101 MAY 10890101 Contact Us For Availability
42
MAY 10883901 MAY 10883901 Contact Us For Availability
44
MAY M1205302 MAY M1205302 Contact Us For Availability
46
MAY Y10370066 MAY Y10370066 Contact Us For Availability
51
MAY 10872601 MAY 10872601 Contact Us For Availability
51
MAY C8982801 MAY C8982801 Contact Us For Availability
51
MAY R0161060 MAY R0161060 Contact Us For Availability
52
MAY 10436505 MAY 10436505 Contact Us For Availability
52
MAY 10656102 MAY 10656102 Contact Us For Availability
52
MAY 10520410 MAY 10520410 Contact Us For Availability
53
MAY RO170055 MAY RO170055 Contact Us For Availability
61
MAY 10852501 MAY 10852501 Contact Us For Availability
61
MAY C8956101 MAY C8956101 Contact Us For Availability
61
MAY R0191094 MAY R0191094 Contact Us For Availability
62
MAY D7725401 MAY D7725401 Contact Us For Availability
62
MAY 10513803 MAY 10513803 Contact Us For Availability
62
MAY 10521814 MAY 10521814 Contact Us For Availability
63
MAY 12049801 MAY 12049801 Contact Us For Availability
66
MAY 10782901 MAY 10782901 Contact Us For Availability
71
SEE NOTE SEE NOTE DELI SHELF ASSY - MAY Y00000000 Contact Us For Availability
71
MAY 10986401 MAY 10986401 Contact Us For Availability
71
MAY 10450602 MAY 10450602 Contact Us For Availability
71
MAY 10359702 MAY 10359702 Contact Us For Availability
71
MAY R0167203 MAY R0167203 Contact Us For Availability
72
MAY 10310901 MAY 10310901 Contact Us For Availability
72
MAY 10909401 MAY 10909401 Contact Us For Availability
72
MAY 10244903 MAY 10244903 Contact Us For Availability
73
MAY 10393802 MAY 10393802 Contact Us For Availability
76
MAY 12113003 MAY 12113003 Contact Us For Availability
81
MAY 10783803 MAY 10783803 Contact Us For Availability
81
MAY M1200004 MAY M1200004 Contact Us For Availability
81
MAY D7828601 MAY D7828601 Contact Us For Availability
81
MAY 10359701 MAY 10359701 Contact Us For Availability
81
MAY M0238731 MAY M0238731 Contact Us For Availability
82
MAY 10169004 MAY 10169004 Contact Us For Availability
82
MAY A3124301 MAY A3124301 Contact Us For Availability
91
MAY M1200202 MAY M1200202 Contact Us For Availability
91
MAY 10882801 MAY 10882801 Contact Us For Availability
92
MAY A3127412 MAY A3127412 Contact Us For Availability
100
MAY C8902601 MAY C8902601 Contact Us For Availability
101
MAY 10518702 MAY 10518702 Contact Us For Availability
102
MAY 10237602 MAY 10237602 Contact Us For Availability
102
MAY B5705321 MAY B5705321 Contact Us For Availability
102
MAY 10783201 MAY 10783201 Contact Us For Availability
105
MAY 10505101 MAY 10505101 Contact Us For Availability
111
MAY 10876302 MAY 10876302 Contact Us For Availability
112
MAY 10862701 MAY 10862701 Contact Us For Availability
112
MAY B5720301 MAY B5720301 Contact Us For Availability
112
MAY 10883801 MAY 10883801 Contact Us For Availability
113
MAY D7599003 MAY D7599003 Contact Us For Availability
115
MAY C8992302 MAY C8992302 Contact Us For Availability
116
MAY M0238636 MAY M0238636 Contact Us For Availability
117
MAY 10178505 MAY 10178505 Contact Us For Availability
118
MAY 10383201 MAY 10383201 Contact Us For Availability
119
MAY 10493202 MAY 10493202 Contact Us For Availability
120
MAY 10493302 MAY 10493302 Contact Us For Availability
121
MAY 10873802 MAY 10873802 Contact Us For Availability
121
MAY M0238846 MAY M0238846 Contact Us For Availability
121
MAY 10319801 MAY 10319801 Contact Us For Availability
121
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
121
MAY 10519004 MAY 10519004 Contact Us For Availability
122
MAY 10164808 MAY 10164808 Contact Us For Availability
123
MAY 10164702 MAY 10164702 Contact Us For Availability
125
ROLLER, PAN MAY 10481001 Contact Us For Availability
127
MAY M0238105 MAY M0238105 Contact Us For Availability
131
MAY 10784201 MAY 10784201 Contact Us For Availability
131
MAY B8391802 MAY B8391802 Contact Us For Availability
131
MAY 12066301 MAY 12066301 Contact Us For Availability
132
MAY D7868606 MAY D7868606 Contact Us For Availability
132
MAY 12102905 MAY 12102905 Contact Us For Availability
137
MAY 12011903 MAY 12011903 Contact Us For Availability
140
MAY 12011803 MAY 12011803 Contact Us For Availability
141
MAY M0253942 MAY M0253942 Contact Us For Availability
141
MAY 12011703 MAY 12011703 Contact Us For Availability
141
MAY M0211017 MAY M0211017 Contact Us For Availability
141
MAY 10882808 MAY 10882808 Contact Us For Availability
142
MAY 12012803 MAY 12012803 Contact Us For Availability
142
MAY 12102906 MAY 12102906 Contact Us For Availability
143
MAY 10991403 MAY 10991403 Contact Us For Availability
144
MAY 12015002 MAY 12015002 Contact Us For Availability
145
MAY 10941102 MAY 10941102 Contact Us For Availability
146
MAY 10783110 MAY 10783110 Contact Us For Availability
150
MAY 10877004 MAY 10877004 Contact Us For Availability
151
MAY R0183121 MAY R0183121 Contact Us For Availability
151
MAY A3293505 MAY A3293505 Contact Us For Availability
153
MAY M0218118 MAY M0218118 Contact Us For Availability
154
MAY 10530702 MAY 10530702 Contact Us For Availability
155
MAY M0232903 MAY M0232903 Contact Us For Availability
155
MAY M0102303 MAY M0102303 Contact Us For Availability
161
MAY D7785401 MAY D7785401 Contact Us For Availability
161
MAY R0186041 MAY R0186041 Contact Us For Availability
161
MAY M0221523 MAY M0221523 Contact Us For Availability
162
MAY C8986123 MAY C8986123 Contact Us For Availability
163
MAY D7789808 MAY D7789808 Contact Us For Availability
171
MAY R0186040 MAY R0186040 Contact Us For Availability
172
MAY 10519208 MAY 10519208 Contact Us For Availability
173
MAY D7789809 MAY D7789809 Contact Us For Availability
181
MAY M0322202 MAY M0322202 Contact Us For Availability
182
MAY 10162101 MAY 10162101 Contact Us For Availability
191
MAY M0580007 MAY M0580007 Contact Us For Availability
191
MAY 12023401 MAY 12023401 Contact Us For Availability
191
MAY 12033201 MAY 12033201 Contact Us For Availability
201
MAY M0051701 MAY M0051701 Contact Us For Availability
201
MAY 10165101 MAY 10165101 Contact Us For Availability
202
MAY 10496302 MAY 10496302 Contact Us For Availability
211
MAY 10377015 MAY 10377015 Contact Us For Availability
212
MAY D7712603 MAY D7712603 Contact Us For Availability
220
MAY B5636301 MAY B5636301 Contact Us For Availability
221
MAY D7827402 MAY D7827402 Contact Us For Availability
221
MAY 10266402 MAY 10266402 Contact Us For Availability
222
MAY D7806201 MAY D7806201 Contact Us For Availability
232
MAY 10176602 MAY 10176602 Contact Us For Availability
241
MAY D7821170 MAY D7821170 Contact Us For Availability
242
MAY D7820401 MAY D7820401 Contact Us For Availability
251
MAY 10178405 MAY 10178405 Contact Us For Availability
251
MAY A3189335 MAY A3189335 Contact Us For Availability
251
MAY 10097202 MAY 10097202 Contact Us For Availability
252
MAY D7824703 MAY D7824703 Contact Us For Availability
261
MAY 10923101 MAY 10923101 Contact Us For Availability
261
MAY A0282803 MAY A0282803 Contact Us For Availability
262
MAY D7826301 MAY D7826301 Contact Us For Availability
271
MAY C8931604 MAY C8931604 Contact Us For Availability
275
MAY A3080001 MAY A3080001 Contact Us For Availability
281
MAY 10757301 MAY 10757301 Contact Us For Availability
282
MAY D7795826 MAY D7795826 Contact Us For Availability
282
MAY D7839703 MAY D7839703 Contact Us For Availability
301
MAY 12012502 MAY 12012502 Contact Us For Availability
301
MAY 10496501 MAY 10496501 Contact Us For Availability
302
MAY Y10901401 MAY Y10901401 Contact Us For Availability
302
MAY M0500706 MAY M0500706 Contact Us For Availability
303
MAY M0581001 MAY M0581001 Contact Us For Availability
310
MAY 10523905 MAY 10523905 Contact Us For Availability
311
MAY 12012103 MAY 12012103 Contact Us For Availability
321
MAY M0238616 MAY M0238616 Contact Us For Availability
331
MAY 10884501 MAY 10884501 Contact Us For Availability
332
MAY D7788201 MAY D7788201 Contact Us For Availability
341
MAY 12049722 MAY 12049722 Contact Us For Availability
342
MAY D7822404 MAY D7822404 Contact Us For Availability
342
MAY M0104101 MAY M0104101 Contact Us For Availability
351
MAY D7838302 MAY D7838302 Contact Us For Availability
351
MAY M0219730 MAY M0219730 Contact Us For Availability
352
MAY M0104003 MAY M0104003 Contact Us For Availability
354
MAY 12039903 MAY 12039903 Contact Us For Availability
362
MAY M0251018 MAY M0251018 Contact Us For Availability
371
MAY 12013002 MAY 12013002 Contact Us For Availability
381
MAY 10187501 MAY 10187501 Contact Us For Availability
381
MAY 10991802 MAY 10991802 Contact Us For Availability
391
MAY 10187601 MAY 10187601 Contact Us For Availability
391
MAY B8386602 MAY B8386602 Contact Us For Availability
391
MAY M0211018 MAY M0211018 Contact Us For Availability
391
MAY M0204339 MAY M0204339 Contact Us For Availability
394
MAY 10470302 MAY 10470302 Contact Us For Availability
399
MAY 10953112 MAY 10953112 Contact Us For Availability
400
MAY 10953111 MAY 10953111 Contact Us For Availability
401
MAY B8386608 MAY B8386608 Contact Us For Availability
401
MAY 10810507 MAY 10810507 Contact Us For Availability
402
MAY 12096401 MAY 12096401 Contact Us For Availability
402
MAY 10810508 MAY 10810508 Contact Us For Availability
403
MAY 10809007 MAY 10809007 Contact Us For Availability
404
MAY B8386607 MAY B8386607 Contact Us For Availability
404
MAY 10810308 MAY 10810308 Contact Us For Availability
405
MAY 10893802 MAY 10893802 Contact Us For Availability
405
MAY 10810307 MAY 10810307 Contact Us For Availability
406
MAY D7850202 MAY D7850202 Contact Us For Availability
406
MAY 10810401 MAY 10810401 Contact Us For Availability
408
MAY 10098801 MAY 10098801 Contact Us For Availability
408
MAY M0223230 MAY M0223230 Contact Us For Availability
409
MAY 10852214 MAY 10852214 Contact Us For Availability
410
MAY 12113501 MAY 12113501 Contact Us For Availability
411
MAY D7716409 MAY D7716409 Contact Us For Availability
411
MAY 12187601 MAY 12187601 Contact Us For Availability
412
MAY M0216539 MAY M0216539 Contact Us For Availability
412
MAY 12103001 MAY 12103001 Contact Us For Availability
413
MAY M0580002 MAY M0580002 Contact Us For Availability
414
MAY A3079001 MAY A3079001 Contact Us For Availability
416
MAY 10623003 MAY 10623003 Contact Us For Availability
417
MAY 10890202 MAY 10890202 Contact Us For Availability
418
MAY 10281601 MAY 10281601 Contact Us For Availability
421
MAY D7760102 MAY D7760102 Contact Us For Availability
431
MAY C3680304 MAY C3680304 Contact Us For Availability
431
MAY 10852213 MAY 10852213 Contact Us For Availability
431
MAY M0310305 MAY M0310305 Contact Us For Availability
432
MAY M0560005 MAY M0560005 Contact Us For Availability
441
MAY D7297603 MAY D7297603 Contact Us For Availability
442
NUT, SLEEVE MAY M0753001 Contact Us For Availability
451
MAY C8973404 MAY C8973404 Contact Us For Availability
451
MAY 10202001 MAY 10202001 Contact Us For Availability
461
MAY 10496107 MAY 10496107 Contact Us For Availability
462
MAY A3044208 MAY A3044208 Contact Us For Availability
465
MAY M0224416 MAY M0224416 Contact Us For Availability
470
MAY 10655902 MAY 10655902 Contact Us For Availability
471
MAY B5733302 MAY B5733302 Contact Us For Availability
471
MAY 10496113 MAY 10496113 Contact Us For Availability
471
MAY 12077312 MAY 12077312 Contact Us For Availability
473
MAY Y10270101 MAY Y10270101 Contact Us For Availability
478
MAY B5794201 MAY B5794201 Contact Us For Availability
481
MAY C8972405 MAY C8972405 Contact Us For Availability
482
MAY B8345401 MAY B8345401 Contact Us For Availability
482
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
500
MAY M0220418 MAY M0220418 Contact Us For Availability
501
MAY M0223803 MAY M0223803 Contact Us For Availability
502
MAY B8387701 MAY B8387701 Contact Us For Availability
503
MAY B8387702 MAY B8387702 Contact Us For Availability
510
MAY 10992101 MAY 10992101 Contact Us For Availability
522
MAY 10177901 MAY 10177901 Contact Us For Availability
541
MAY 10270203 MAY 10270203 Contact Us For Availability
541
MAY M0216716 MAY M0216716 Contact Us For Availability
550
MAY M0227217 MAY M0227217 Contact Us For Availability
551
MAY A3189337 MAY A3189337 Contact Us For Availability
551
MAY 10849401 MAY 10849401 Contact Us For Availability
571
MAY M0270508 MAY M0270508 Contact Us For Availability
571
MAY M0585401 MAY M0585401 Contact Us For Availability
581
MAY 10508001 MAY 10508001 Contact Us For Availability
591
MAY C8976102 MAY C8976102 Contact Us For Availability
601
MAY C8976201 MAY C8976201 Contact Us For Availability
622
MAY C8977301 MAY C8977301 Contact Us For Availability
624
MAY M0220634 MAY M0220634 Contact Us For Availability
632
SCREW 1`` MAY M0211021 Contact Us For Availability
634
MAY C8960601 MAY C8960601 Contact Us For Availability
651
MAY 10495701 MAY 10495701 Contact Us For Availability
661
MAY 10507901 MAY 10507901 Contact Us For Availability
681
MAY 12013901 MAY 12013901 Contact Us For Availability
691
MAY 10883315 MAY 10883315 Contact Us For Availability
701
MAY 10916505 MAY 10916505 Contact Us For Availability
701
MAY M0118703 MAY M0118703 Contact Us For Availability
702
DRIER MAY B2150504 Contact Us For Availability
704
MAY 10547001 MAY 10547001 Contact Us For Availability
708
MAY M0103904 MAY M0103904 Contact Us For Availability
709
MAY M0211357 MAY M0211357 Contact Us For Availability
712
MAY M0232317 MAY M0232317 Contact Us For Availability
721
MAY 10014716 MAY 10014716 Contact Us For Availability
752
MAY 10520412 MAY 10520412 Contact Us For Availability
761
MAY 10883314 MAY 10883314 Contact Us For Availability
781
MAY M0233847 MAY M0233847 Contact Us For Availability
781
MAY M0585601 MAY M0585601 Contact Us For Availability
791
MAY M0321202 MAY M0321202 Contact Us For Availability
799
MAY 10992001 MAY 10992001 Contact Us For Availability
801
MAY M0213529 MAY M0213529 Contact Us For Availability
802
MAY M0211016 MAY M0211016 Contact Us For Availability
811
MAY 12146602 MAY 12146602 Contact Us For Availability
812
MAY 12146601 MAY 12146601 Contact Us For Availability
813
MAY 12146801 MAY 12146801 Contact Us For Availability
814
MAY 12146802 MAY 12146802 Contact Us For Availability
815
MAY A4539631 MAY A4539631 Contact Us For Availability
816
MAY 12147602 MAY 12147602 Contact Us For Availability
821
MAY M0110505 MAY M0110505 Contact Us For Availability
831
MAY 12187501 MAY 12187501 Contact Us For Availability
851
MAY M0585403 MAY M0585403 Contact Us For Availability
855
MAY 10876901 MAY 10876901 Contact Us For Availability
861
MAY 10508104 MAY 10508104 Contact Us For Availability
871
MAY 12156201 MAY 12156201 Contact Us For Availability
875
MAY M0585206 MAY M0585206 Contact Us For Availability
892
MAY C3615024 MAY C3615024 Contact Us For Availability
921
MAY M0231604 MAY M0231604 Contact Us For Availability
992
MAY D7547411 MAY D7547411 Contact Us For Availability
NI
MAY 10527011 MAY 10527011 Contact Us For Availability
NI
MAY 10549601 MAY 10549601 Contact Us For Availability
NI
MAY 10834701 MAY 10834701 Contact Us For Availability
NI
MAY A3036901 MAY A3036901 Contact Us For Availability
NI
MAY M0108001 MAY M0108001 Contact Us For Availability
NI
MAY M0211116 MAY M0211116 Contact Us For Availability
NI
MAY M0311301 MAY M0311301 Contact Us For Availability
NI
MAY 10994601 MAY 10994601 Contact Us For Availability
NI
MAY 10994603 MAY 10994603 Contact Us For Availability
NI
MAY RP1300023 MAY RP1300023 Contact Us For Availability
NI
MAY RS1000001 MAY RS1000001 Contact Us For Availability
NI
MAY RT1300014 MAY RT1300014 Contact Us For Availability
× ![]()
