Model Maytag SR25E-1-A REFRIGERATOR – Common Parts & Diagrams

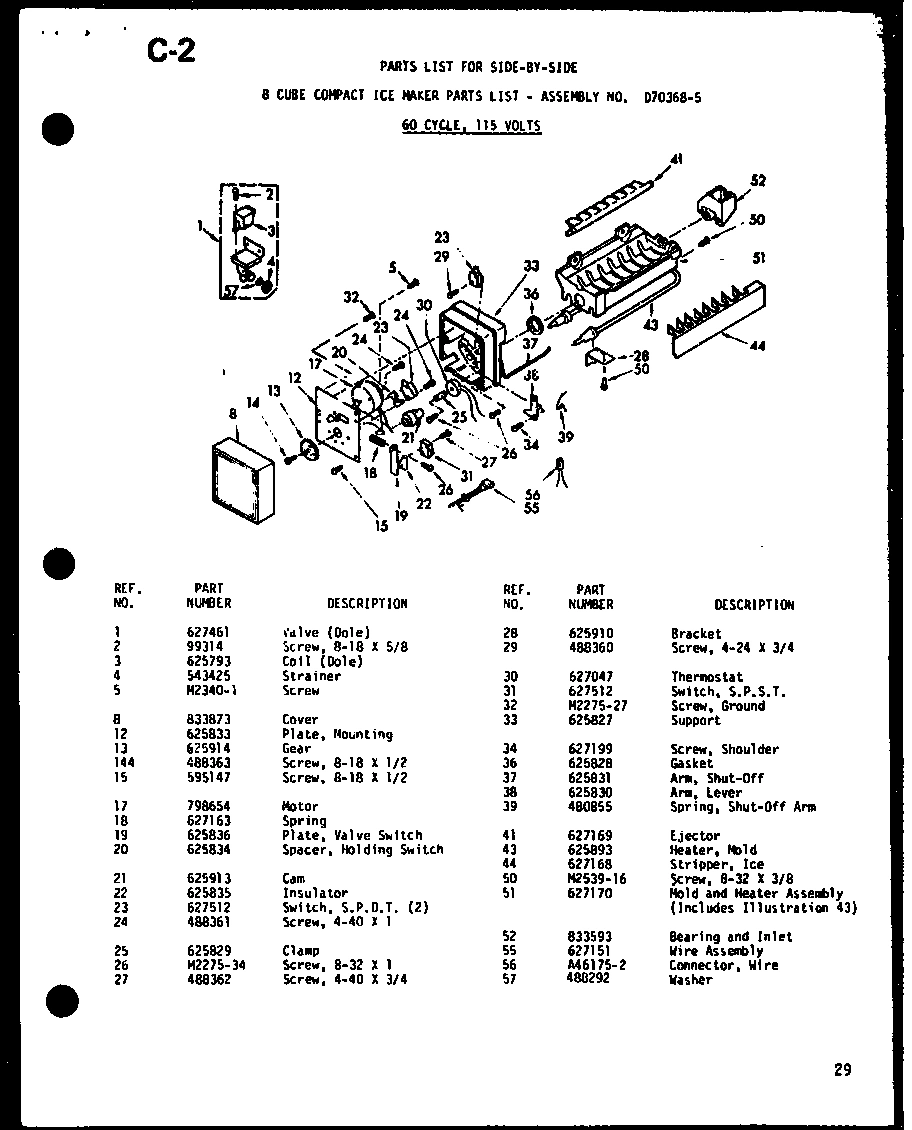

01 - 8 CUBE COMPACT ICE MAKER

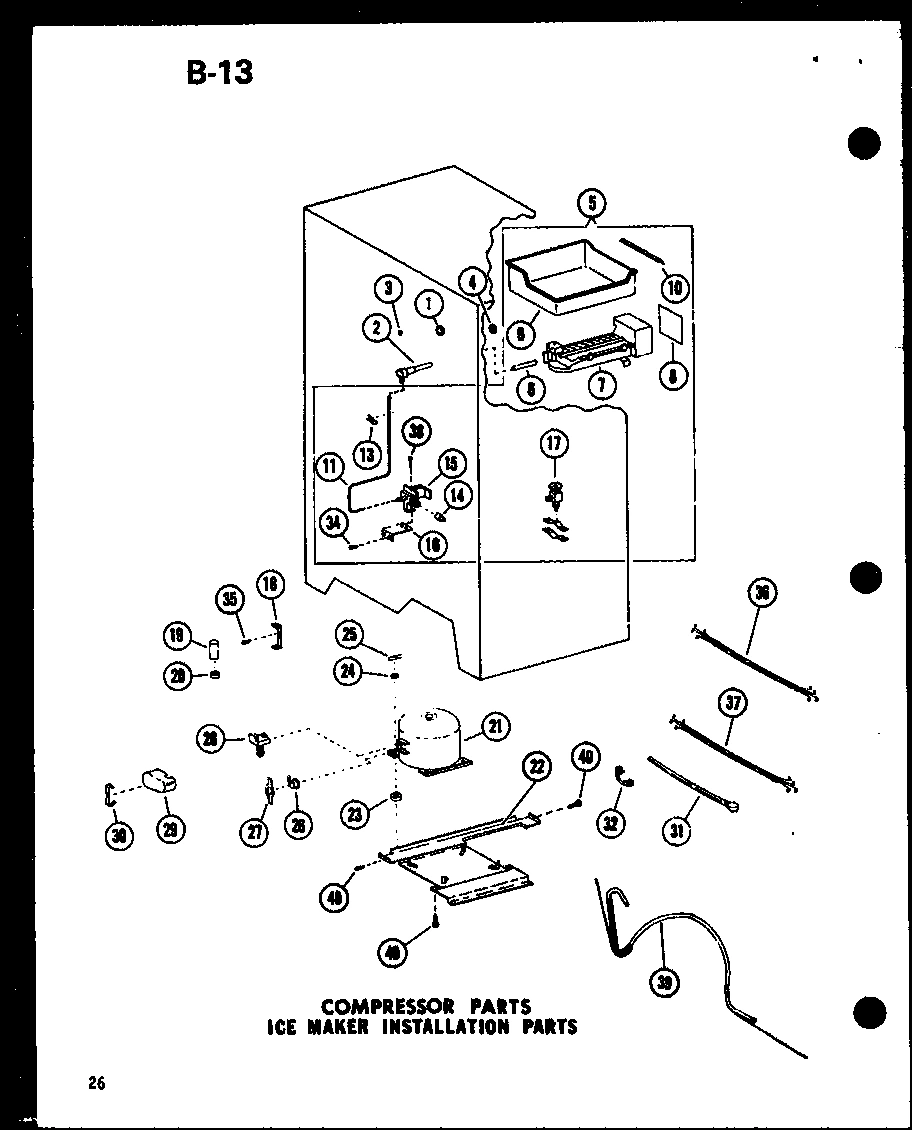

02 - COMP PARTS ICE MAKER INSTALLATION PARTS

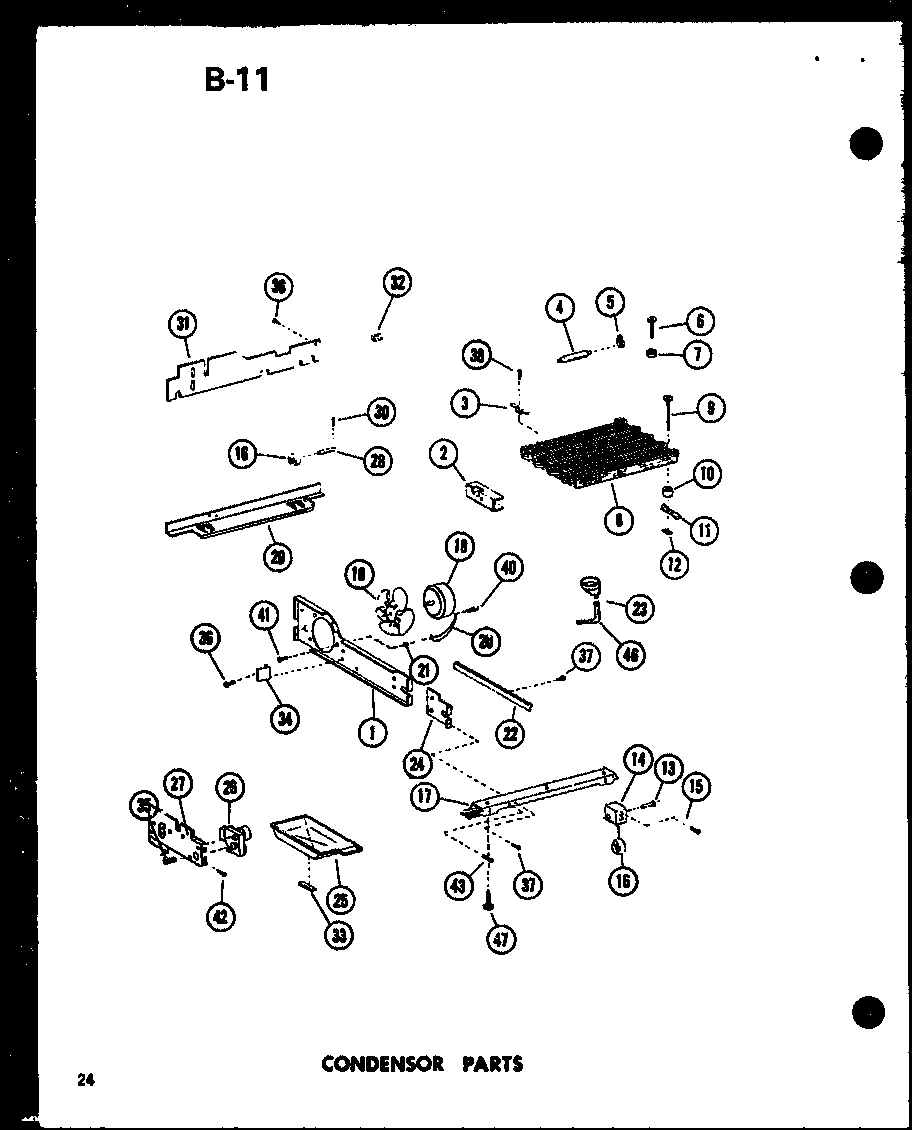

03 - CONDENSOR PARTS

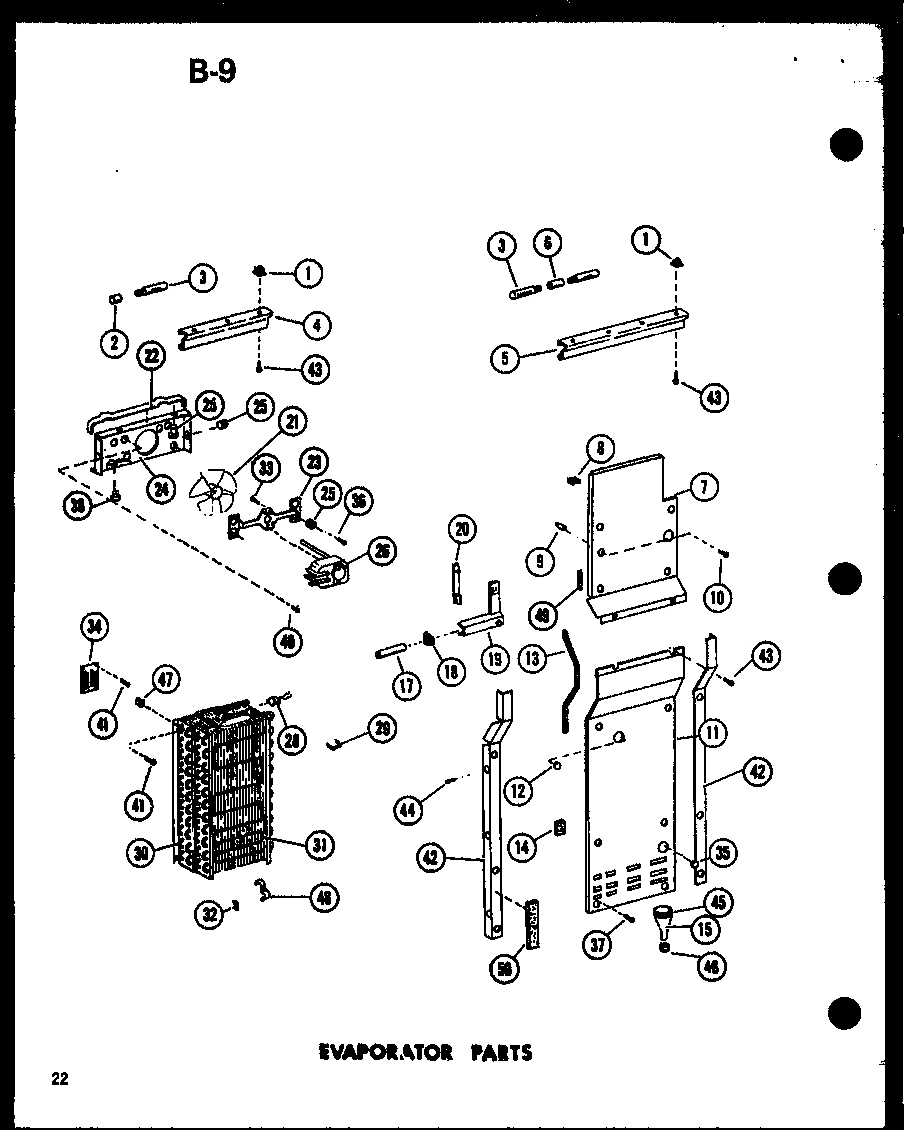

04 - EVAP PARTS

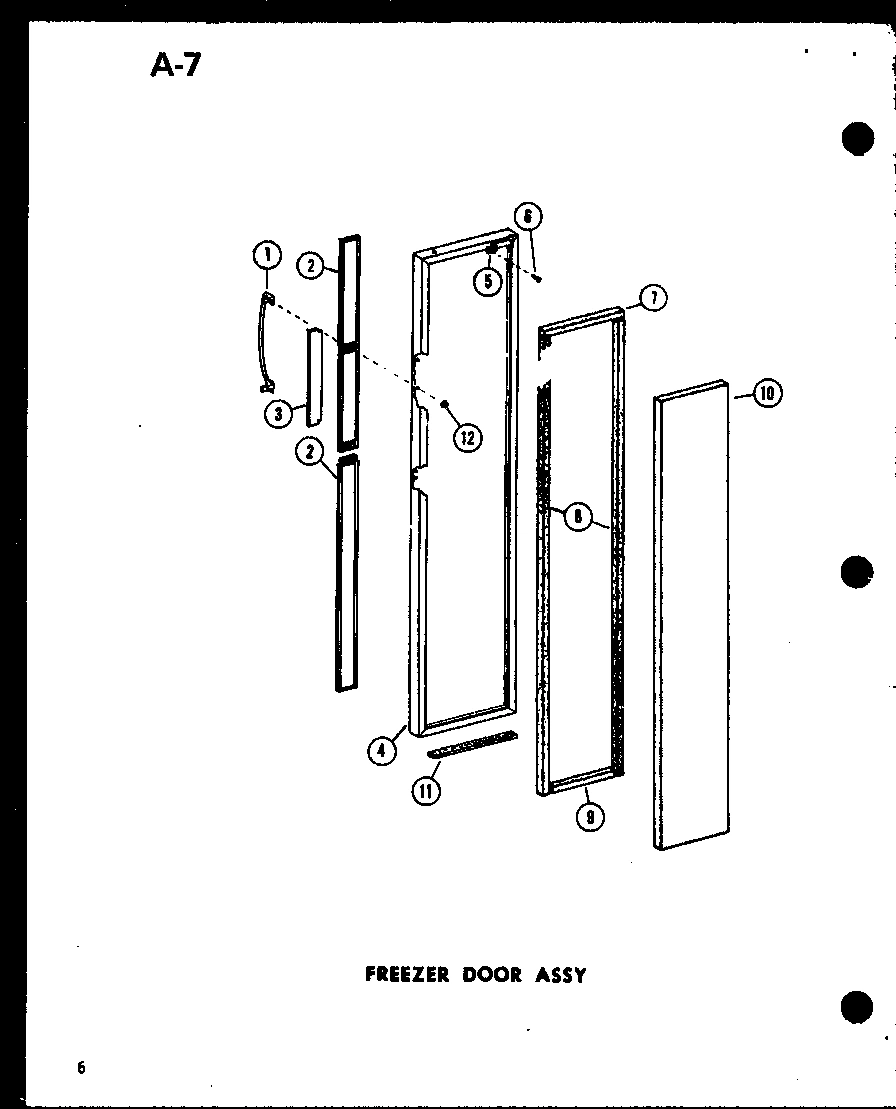

05 - FZ DOOR ASSY

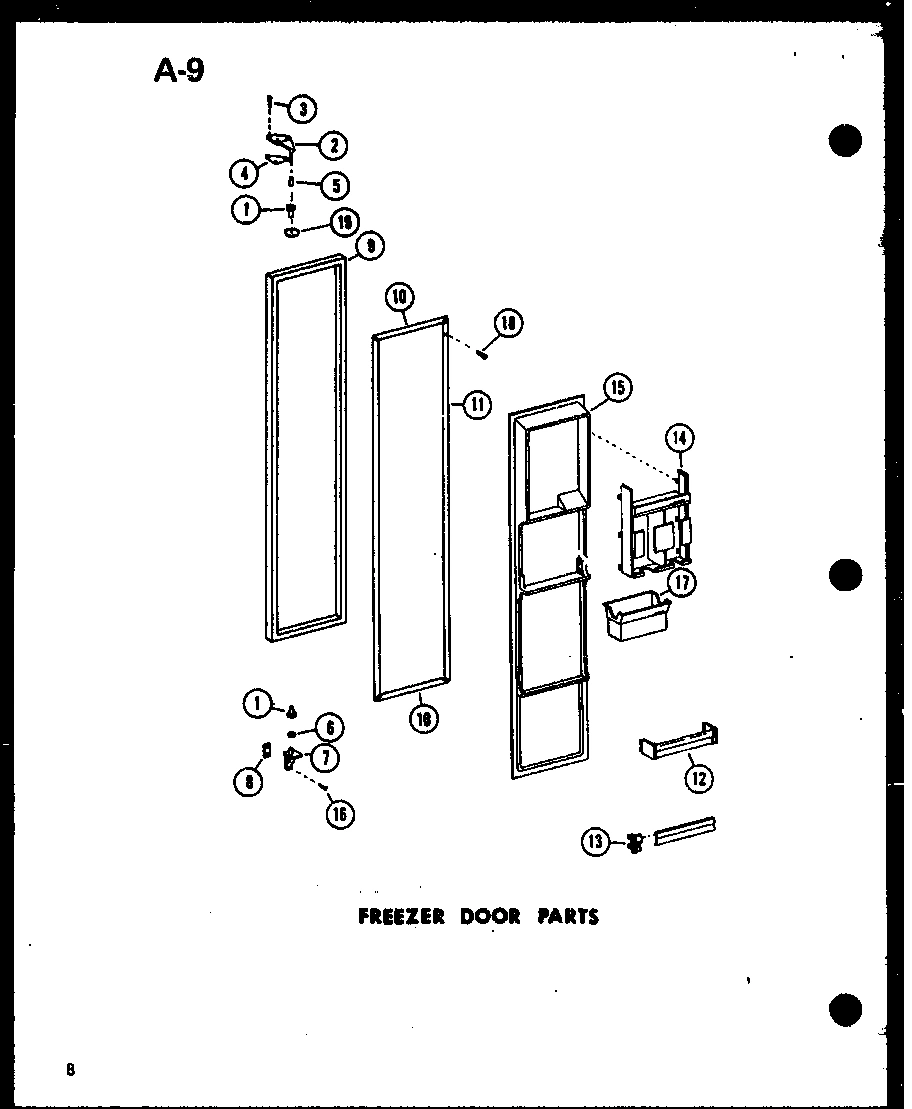

06 - FZ DOOR PARTS

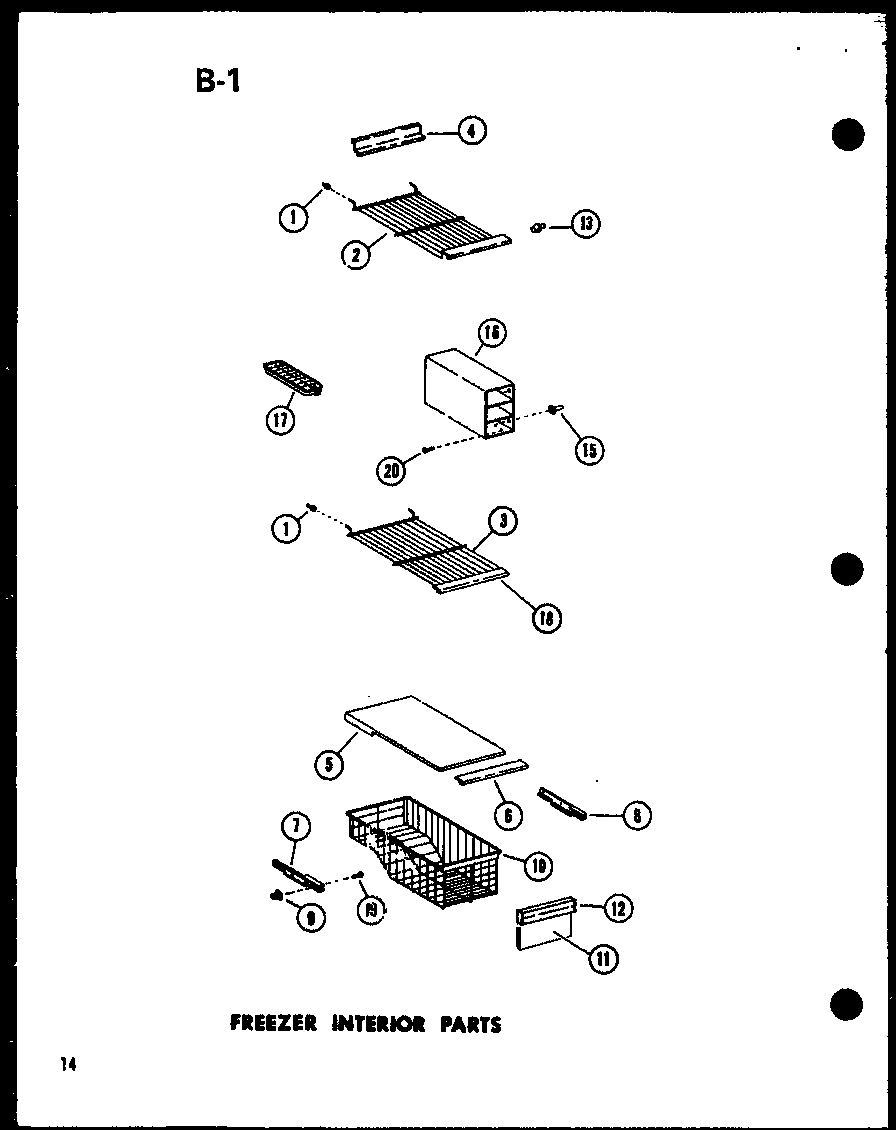

07 - FZ INTERIOR PARTS

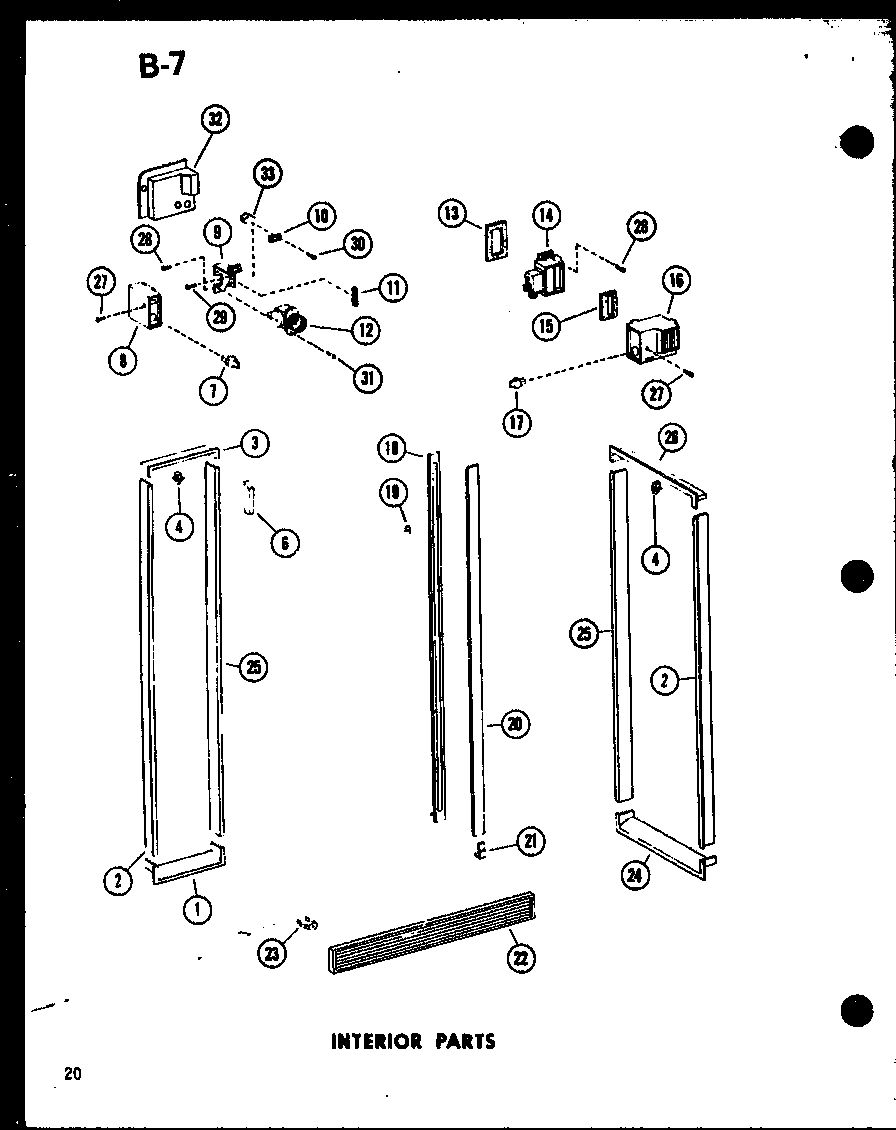

08 - INTERIOR PARTS

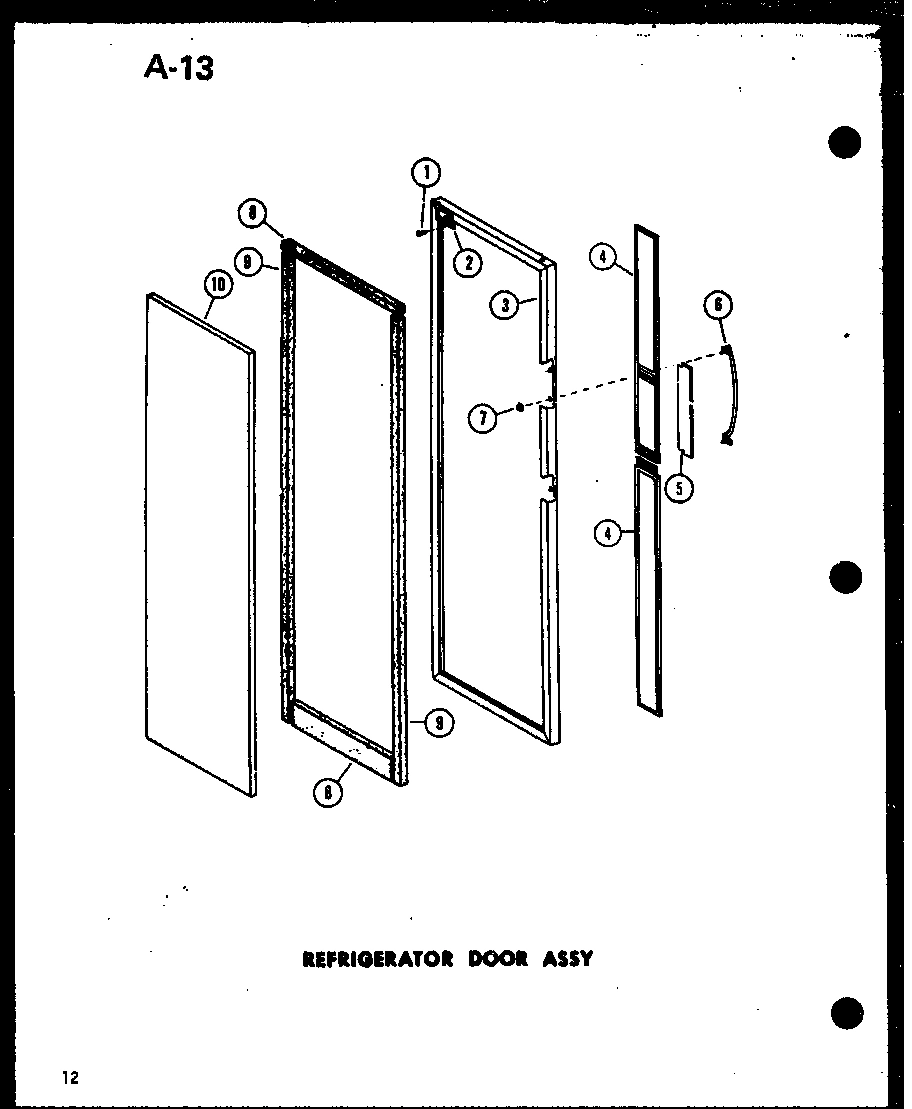

09 - REF DOOR ASSY

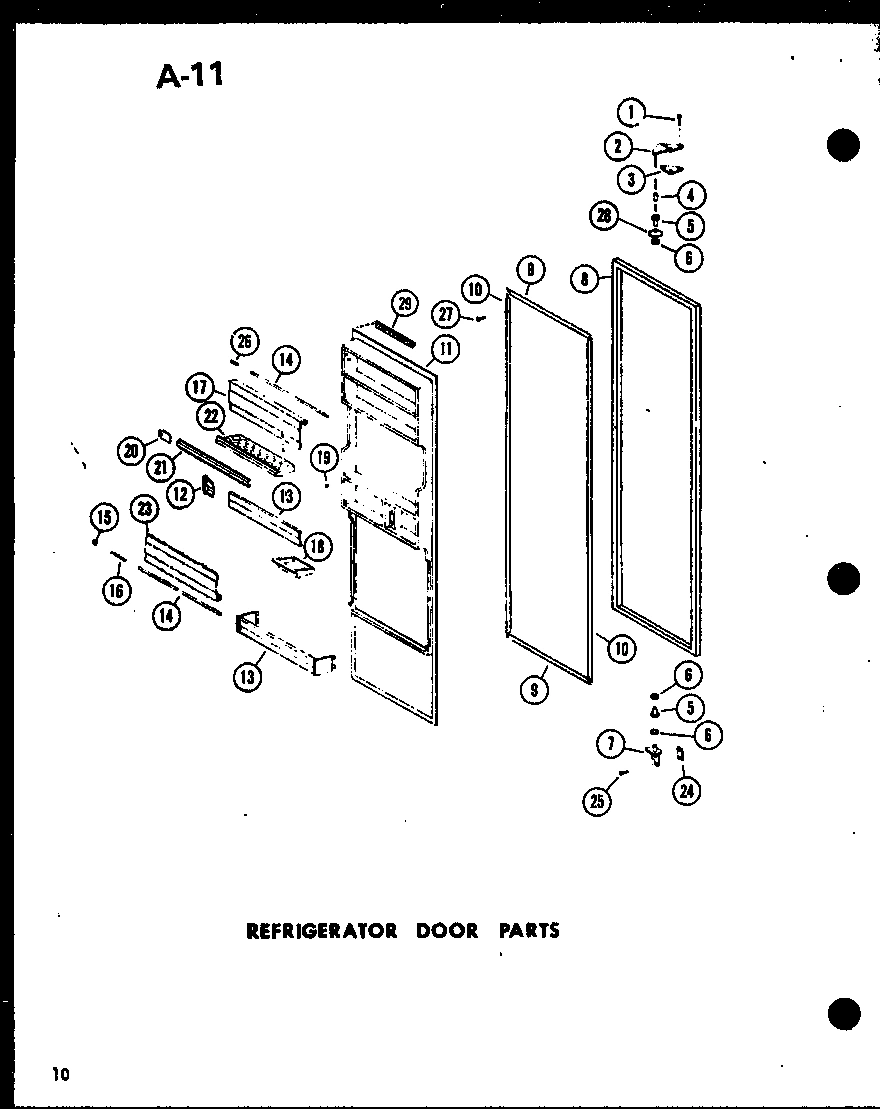

10 - REF DOOR PARTS

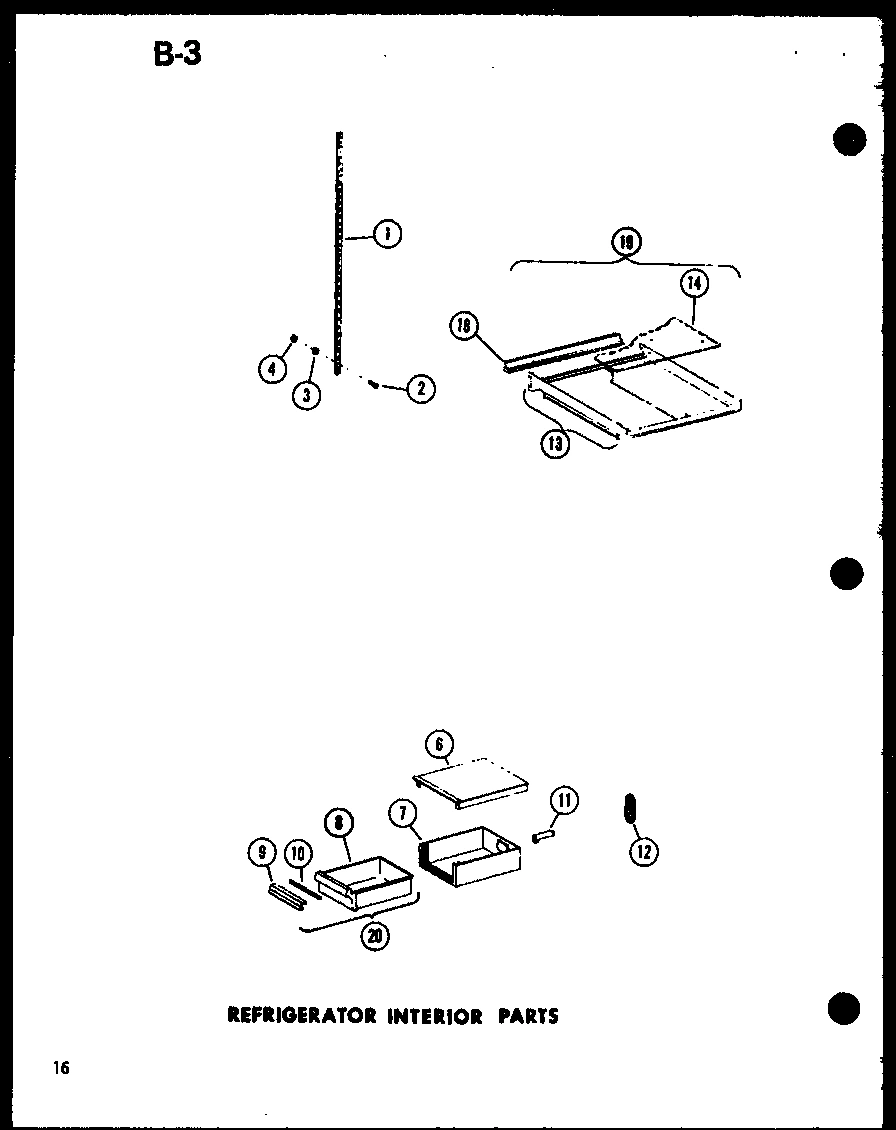

11 - REF INTERIOR PARTS

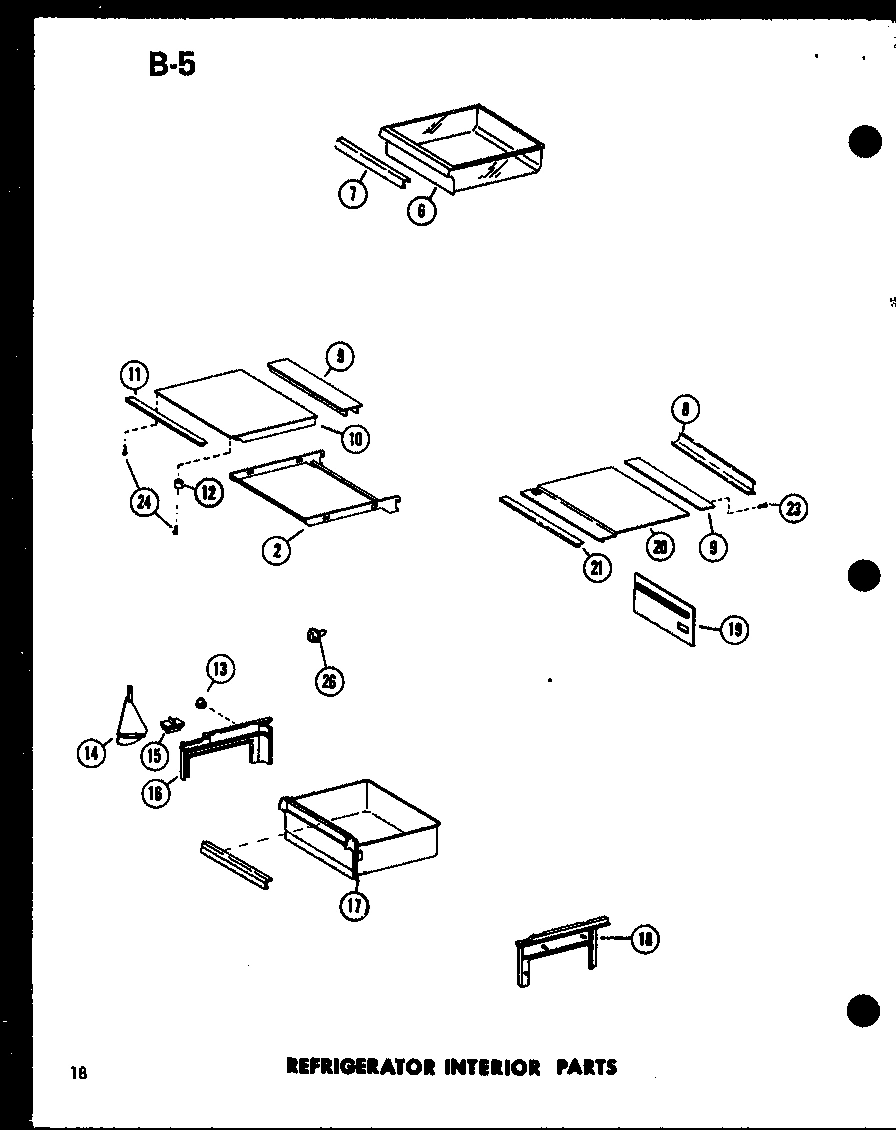

12 - REF INTERIOR PARTS
Common parts from model Maytag SR25E-1-A REFRIGERATOR
1
MAY A3080001 MAY A3080001 Contact Us For Availability
1
SHROUD, FAN MAY D7446702 Contact Us For Availability
1
MAY M0580009 MAY M0580009 Contact Us For Availability
1
MAY M1252001 MAY M1252001 Contact Us For Availability
1
MAY M0257244 MAY M0257244 Contact Us For Availability
1
MAY A0387302 MAY A0387302 Contact Us For Availability
1
BREAKER FRAME MAY D3952402 Contact Us For Availability
1
MAY D7103701 MAY D7103701 Contact Us For Availability
2
MAY 99314 MAY 99314 Contact Us For Availability
2
MAY B8318806 MAY B8318806 Contact Us For Availability
2
MAY B0544101 MAY B0544101 Contact Us For Availability
2
MAY B5637601 MAY B5637601 Contact Us For Availability
2
MAY D7493401 MAY D7493401 Contact Us For Availability
2
MAY D7501601 MAY D7501601 Contact Us For Availability
2
MAY B5644001 MAY B5644001 Contact Us For Availability
2
MAY D7022901 MAY D7022901 Contact Us For Availability
2
MAY C8816601 MAY C8816601 Contact Us For Availability
2
MAY D7419404 MAY D7419404 Contact Us For Availability
2
MAY D7510801 MAY D7510801 Contact Us For Availability
2
MAY C8816602 MAY C8816602 Contact Us For Availability
2
MAY M0207632 MAY M0207632 Contact Us For Availability
2
MAY D7000702 MAY D7000702 Contact Us For Availability
3
MAY Y625793 MAY Y625793 Contact Us For Availability
3
CLIP-COND MAY A3054502 Contact Us For Availability
3
MAY A3079001 MAY A3079001 Contact Us For Availability
3
MAY C8867103 MAY C8867103 Contact Us For Availability
3
MAY A3270303 MAY A3270303 Contact Us For Availability
3
MAY D7419401 MAY D7419401 Contact Us For Availability
3
MAY D3953105 MAY D3953105 Contact Us For Availability
3
MAY D7409341 MAY D7409341 Contact Us For Availability
3
MAY D7409342 MAY D7409342 Contact Us For Availability
3
MAY D7409343 MAY D7409343 Contact Us For Availability
3
MAY D7409344 MAY D7409344 Contact Us For Availability
3
MAY D7409345 MAY D7409345 Contact Us For Availability
3
MAY M0270508 MAY M0270508 Contact Us For Availability
4
MAY 543425 MAY 543425 Contact Us For Availability
4
MAY B5631801 MAY B5631801 Contact Us For Availability
4
MAY B5715001 MAY B5715001 Contact Us For Availability
4
MAY D3954208 MAY D3954208 Contact Us For Availability
4
MAY D7409441 MAY D7409441 Contact Us For Availability
4
MAY D7409442 MAY D7409442 Contact Us For Availability
4
MAY D7409443 MAY D7409443 Contact Us For Availability
4
MAY D7409444 MAY D7409444 Contact Us For Availability
4
MAY D7409445 MAY D7409445 Contact Us For Availability
4
MAY A3132401 MAY A3132401 Contact Us For Availability
4
MAY D7415103 MAY D7415103 Contact Us For Availability
4
MAY C3680304 MAY C3680304 Contact Us For Availability
4
MAY D7493402 MAY D7493402 Contact Us For Availability
4
MAY D7501602 MAY D7501602 Contact Us For Availability
4
MAY M0281003 MAY M0281003 Contact Us For Availability
5
MAY M0234001 MAY M0234001 Contact Us For Availability
5
SEE NOTE MODEL IC-2 MFG. NO. P36415-5W ICE MA MAY Y00000000 Contact Us For Availability
5
MAY M0104002 MAY M0104002 Contact Us For Availability
5
MAY D3954210 MAY D3954210 Contact Us For Availability
5
BEARING-HINGE MAY C8852201 Contact Us For Availability
5
BEARING, HINGE MAY C8852202 Contact Us For Availability
5
MAY B8303802 MAY B8303802 Contact Us For Availability
5
MAY C8864801 MAY C8864801 Contact Us For Availability
6
MAY M0257037 MAY M0257037 Contact Us For Availability
6
MAY B5637701 MAY B5637701 Contact Us For Availability
6
MAY D7096001 MAY D7096001 Contact Us For Availability
6
MAY M0274013 MAY M0274013 Contact Us For Availability
6
MAY M0274014 MAY M0274014 Contact Us For Availability
6
MAY B0596602 MAY B0596602 Contact Us For Availability
6
COVER-SWITCH MAY B5743601 Contact Us For Availability
6
MAY D7343603 MAY D7343603 Contact Us For Availability
6
MAY D7298810 MAY D7298810 Contact Us For Availability
7
MAY A3013906 MAY A3013906 Contact Us For Availability
7
ANGLE-FR BAFFLE MAY B5795201 Contact Us For Availability
7
MAY D7482201 MAY D7482201 Contact Us For Availability
7
MAY B5629006 MAY B5629006 Contact Us For Availability
7
MAY M0289801 MAY M0289801 Contact Us For Availability
7
MAY D7250104 MAY D7250104 Contact Us For Availability
7
GLIDE BASKET-L K MAY D7442901 Contact Us For Availability
7
MAY D7009801 MAY D7009801 Contact Us For Availability
7
MAY D7250103 MAY D7250103 Contact Us For Availability
7
MAY D7001304 MAY D7001304 Contact Us For Availability
7
MAY C8831702 MAY C8831702 Contact Us For Availability
8
MAY 833873 MAY 833873 Contact Us For Availability
8
CONDENSER ASSY PNT MAY C8860802 Contact Us For Availability
8
MAY A4591108 MAY A4591108 Contact Us For Availability
8
GLIDE BASKET-R K MAY D7442902 Contact Us For Availability
8
MAY D7345503 MAY D7345503 Contact Us For Availability
8
MAY B0534409 MAY B0534409 Contact Us For Availability
8
MAY B5629008 MAY B5629008 Contact Us For Availability
8
MAY D7092602 MAY D7092602 Contact Us For Availability
8
MAY D7425301 MAY D7425301 Contact Us For Availability
8
MAY C8831803 MAY C8831803 Contact Us For Availability
9
MAY M0257039 MAY M0257039 Contact Us For Availability
9
MAY M0500107 MAY M0500107 Contact Us For Availability
9
MAY A3044202 MAY A3044202 Contact Us For Availability
9
MAY B5629002 MAY B5629002 Contact Us For Availability
9
MAY B5629003 MAY B5629003 Contact Us For Availability
9
MAY D7251002 MAY D7251002 Contact Us For Availability
9
MAY C8850501 MAY C8850501 Contact Us For Availability
9
RETAINER GASKET MAY D7025102 Contact Us For Availability
9
MAY C8831704 MAY C8831704 Contact Us For Availability
9
MAY C3613005 MAY C3613005 Contact Us For Availability
9
MAY C3622306 MAY C3622306 Contact Us For Availability
10
MAY A3013907 MAY A3013907 Contact Us For Availability
10
MAY M0230923 MAY M0230923 Contact Us For Availability
10
MAY B5612004 MAY B5612004 Contact Us For Availability
10
MAY D7025103 MAY D7025103 Contact Us For Availability
10
MAY D7025101 MAY D7025101 Contact Us For Availability
10
MAY D7363602 MAY D7363602 Contact Us For Availability
10
MAY M0341201 MAY M0341201 Contact Us For Availability
10
MAY B5612005 MAY B5612005 Contact Us For Availability
10
GASKET (PER FOOT) MAY A3030313 Contact Us For Availability
10
MAY D7220103 MAY D7220103 Contact Us For Availability
11
MAY A3085401 MAY A3085401 Contact Us For Availability
11
MAY D7484701 MAY D7484701 Contact Us For Availability
11
MAY C8785301 MAY C8785301 Contact Us For Availability
11
MAY D7419601 MAY D7419601 Contact Us For Availability
11
MAY A3030335 MAY A3030335 Contact Us For Availability
11
MAY D7021105 MAY D7021105 Contact Us For Availability
11
MAY B0570902 MAY B0570902 Contact Us For Availability
12
MAY 625833 MAY 625833 Contact Us For Availability
12
MAY M0286003 MAY M0286003 Contact Us For Availability
12
PLUG MAY A3069103 Contact Us For Availability
12
MAY D7415703 MAY D7415703 Contact Us For Availability
12
MAY B5631705 MAY B5631705 Contact Us For Availability
12
MAY B5631706 MAY B5631706 Contact Us For Availability
12
MAY C8834901 MAY C8834901 Contact Us For Availability
12
MAY C3615018 MAY C3615018 Contact Us For Availability
12
MAY C3588303 MAY C3588303 Contact Us For Availability
12
GLIDE PAN MAY A3213402 Contact Us For Availability
13
MAY A3030302 MAY A3030302 Contact Us For Availability
13
MAY Y625914 MAY Y625914 Contact Us For Availability
13
MAY M1205302 MAY M1205302 Contact Us For Availability
13
MAY B0595101 MAY B0595101 Contact Us For Availability
13
MAY B8315901 MAY B8315901 Contact Us For Availability
13
MAY D7415704 MAY D7415704 Contact Us For Availability
13
MAY R0179058 MAY R0179058 Contact Us For Availability
13
MAY R0179061 MAY R0179061 Contact Us For Availability
13
MAY M0117901 MAY M0117901 Contact Us For Availability
14
MAY 488363 MAY 488363 Contact Us For Availability
14
MAY C8836302 MAY C8836302 Contact Us For Availability
14
MAY B8314701 MAY B8314701 Contact Us For Availability
14
MAY D7466202 MAY D7466202 Contact Us For Availability
14
MAY C3643115 MAY C3643115 Contact Us For Availability
14
MAY A3056205 MAY A3056205 Contact Us For Availability
14
MAY B8303603 MAY B8303603 Contact Us For Availability
14
MAY C8705401 MAY C8705401 Contact Us For Availability
15
MAY 595147 MAY 595147 Contact Us For Availability
15
MAY M0236230 MAY M0236230 Contact Us For Availability
15
MAY C8876801 MAY C8876801 Contact Us For Availability
15
MAY D7020604 MAY D7020604 Contact Us For Availability
15
MAY A0384901 MAY A0384901 Contact Us For Availability
15
MAY A3113601 MAY A3113601 Contact Us For Availability
15
MAY A3057003 MAY A3057003 Contact Us For Availability
15
MAY A3057004 MAY A3057004 Contact Us For Availability
15
MAY B5632101 MAY B5632101 Contact Us For Availability
16
MAY M0520102 MAY M0520102 Contact Us For Availability
16
MAY D7465401 MAY D7465401 Contact Us For Availability
16
MAY D7417301 MAY D7417301 Contact Us For Availability
16
MAY A3065201 MAY A3065201 Contact Us For Availability
16
MAY D7201202 MAY D7201202 Contact Us For Availability
17
MAY Y798654 MAY Y798654 Contact Us For Availability
17
MAY D7003306 MAY D7003306 Contact Us For Availability
17
MAY D7442301 MAY D7442301 Contact Us For Availability
17
MAY C8717801 MAY C8717801 Contact Us For Availability
17
MAY D7009802 MAY D7009802 Contact Us For Availability
17
MAY C8832801 MAY C8832801 Contact Us For Availability
17
MAY D7219802 MAY D7219802 Contact Us For Availability
18
MAY 627163 MAY 627163 Contact Us For Availability
18
MAY B5742601 MAY B5742601 Contact Us For Availability
18
MAY M0241118 MAY M0241118 Contact Us For Availability
18
MAY A3116601 MAY A3116601 Contact Us For Availability
18
MAY C8795201 MAY C8795201 Contact Us For Availability
18
MAY C3628301 MAY C3628301 Contact Us For Availability
18
MAY D3799801 MAY D3799801 Contact Us For Availability
18
MAY C8831501 MAY C8831501 Contact Us For Availability
18
MAY D7201302 MAY D7201302 Contact Us For Availability
19
PLATE, VALVE SWITCH MAY 625836 Contact Us For Availability
19
MAY C8736901 MAY C8736901 Contact Us For Availability
19
MAY B5656707 MAY B5656707 Contact Us For Availability
19
MAY M0113401 MAY M0113401 Contact Us For Availability
19
MAY A3059003 MAY A3059003 Contact Us For Availability
19
MAY C8823411 MAY C8823411 Contact Us For Availability
19
MAY C8823412 MAY C8823412 Contact Us For Availability
19
MAY C8705501 MAY C8705501 Contact Us For Availability
20
SPACER, HOLDING SWITCH MAY 625834 Contact Us For Availability
20
MAY B0598701 MAY B0598701 Contact Us For Availability
20
MAY B5622804 MAY B5622804 Contact Us For Availability
20
MAY M0219547 MAY M0219547 Contact Us For Availability
20
MAY C8810401 MAY C8810401 Contact Us For Availability
20
MULLION, COPPERTONE MAY C8810402 Contact Us For Availability
20
MULLION (AVOCADO) MAY C8810403 Contact Us For Availability
20
MULLION, GOLD MAY C8810404 Contact Us For Availability
20
MULLION (ALMOND) MAY C8810405 Contact Us For Availability
20
MAY B0530006 MAY B0530006 Contact Us For Availability
20
MAY D7219504 MAY D7219504 Contact Us For Availability
20
MAY D7022202 MAY D7022202 Contact Us For Availability
21
MAY Y625913 MAY Y625913 Contact Us For Availability
21
MAY D7351051 MAY D7351051 Contact Us For Availability
21
FAN-EVAP MAY C8795501 Contact Us For Availability
21
KEY MAY A3120801 Contact Us For Availability
21
MAY B8302601 MAY B8302601 Contact Us For Availability
21
MAY B0596603 MAY B0596603 Contact Us For Availability
22
MAY 625835 MAY 625835 Contact Us For Availability
22
WELD COMP SUPT PNTD MAY C8820402 Contact Us For Availability
22
MAY B8314101 MAY B8314101 Contact Us For Availability
22
MAY B5757702 MAY B5757702 Contact Us For Availability
22
MAY D7415401 MAY D7415401 Contact Us For Availability
22
MAY D7429603 MAY D7429603 Contact Us For Availability
23
MAY A3026101 MAY A3026101 Contact Us For Availability
23
DRAIN CUP MAY C8820601 Contact Us For Availability
23
BRACKET-EVAP MOTOR MAY C8829701 Contact Us For Availability
23
MAY M0117301 MAY M0117301 Contact Us For Availability
23
MAY C8833501 MAY C8833501 Contact Us For Availability
23
MAY M0211543 MAY M0211543 Contact Us For Availability
24
SCREW MAY 488361 Contact Us For Availability
24
MAY M0590101 MAY M0590101 Contact Us For Availability
24
EXTENSION MAY B5619802 Contact Us For Availability
24
MAY D7371502 MAY D7371502 Contact Us For Availability
24
MAY A3143601 MAY A3143601 Contact Us For Availability
24
MAY A3143602 MAY A3143602 Contact Us For Availability
24
MAY A3143603 MAY A3143603 Contact Us For Availability
24
BREAKER FRAME MAY D3952603 Contact Us For Availability
24
MAY M0230727 MAY M0230727 Contact Us For Availability
25
MAY 625829 MAY 625829 Contact Us For Availability
25
MAY A3140801 MAY A3140801 Contact Us For Availability
25
MAY D7001001 MAY D7001001 Contact Us For Availability
25
MAY A0381401 MAY A0381401 Contact Us For Availability
25
MAY A4573802 MAY A4573802 Contact Us For Availability
25
MAY YA0381501 MAY YA0381501 Contact Us For Availability
25
MAY M0246159 MAY M0246159 Contact Us For Availability
25
MAY D7510901 MAY D7510901 Contact Us For Availability
26
MAY M0227534 MAY M0227534 Contact Us For Availability
26
MAY C3689105 MAY C3689105 Contact Us For Availability
26
TIMER MAY D7004112 Contact Us For Availability
26
MAY D7241409 MAY D7241409 Contact Us For Availability
26
BREAKER FRAME MAY D3952505 Contact Us For Availability
26
MAY A3067001 MAY A3067001 Contact Us For Availability
27
MAY 488362 MAY 488362 Contact Us For Availability
27
MAY A3043601 MAY A3043601 Contact Us For Availability
27
MAY C3647902 MAY C3647902 Contact Us For Availability
27
MAY M0211018 MAY M0211018 Contact Us For Availability
27
MAY M0230926 MAY M0230926 Contact Us For Availability
28
MAY 625910 MAY 625910 Contact Us For Availability
28
RELAY K MAY C3689202 Contact Us For Availability
28
PIVOT PIN K MAY M1210001 Contact Us For Availability
28
THERMOSTAT K MAY C8871201 Contact Us For Availability
28
MAY M0500902 MAY M0500902 Contact Us For Availability
28
MAY M0230907 MAY M0230907 Contact Us For Availability
29
SCREW MAY 488360 Contact Us For Availability
29
MAY B0551801 MAY B0551801 Contact Us For Availability
29
MAY C3611304 MAY C3611304 Contact Us For Availability
29
CLIP THERMOSTAT K MAY B8325201 Contact Us For Availability
29
MAY B0523561 MAY B0523561 Contact Us For Availability
30
MAY 627047 MAY 627047 Contact Us For Availability
30
MAY A3041801 MAY A3041801 Contact Us For Availability
30
COTTER PIN K MAY M1200001 Contact Us For Availability
30
MAY R0170012 MAY R0170012 Contact Us For Availability
30
MAY M0010202 MAY M0010202 Contact Us For Availability
31
MAY Y627512 MAY Y627512 Contact Us For Availability
31
MAY R0157154 MAY R0157154 Contact Us For Availability
31
MAY C3655002 MAY C3655002 Contact Us For Availability
31
HEATER-EVAP MAY D7479703 Contact Us For Availability
31
MAY M0211016 MAY M0211016 Contact Us For Availability
32
MAY M0227527 MAY M0227527 Contact Us For Availability
32
MAY A0319703 MAY A0319703 Contact Us For Availability
32
MAY M0110505 MAY M0110505 Contact Us For Availability
32
CLIP-HEATER MAY B8324701 Contact Us For Availability
32
AIR TUNNEL MAY D7484901 Contact Us For Availability
33
MAY 625827 MAY 625827 Contact Us For Availability
33
MAY B5691701 MAY B5691701 Contact Us For Availability
33
MAY M0258055 MAY M0258055 Contact Us For Availability
33
MAY M0305301 MAY M0305301 Contact Us For Availability
34
MAY 627199 MAY 627199 Contact Us For Availability
34
MAY A3125701 MAY A3125701 Contact Us For Availability
34
TERM BOARD MAY B8326801 Contact Us For Availability
35
MAY M0310309 MAY M0310309 Contact Us For Availability
35
MAY M0233103 MAY M0233103 Contact Us For Availability
35
MAY M0213817 MAY M0213817 Contact Us For Availability
36
MAY 625828 MAY 625828 Contact Us For Availability
36
MAY D7451502 MAY D7451502 Contact Us For Availability
36
MAY M0211020 MAY M0211020 Contact Us For Availability
37
MAY 625831 MAY 625831 Contact Us For Availability
37
MAY D7518301 MAY D7518301 Contact Us For Availability
37
MAY M0230917 MAY M0230917 Contact Us For Availability
38
LEVER ARM MAY 625830 Contact Us For Availability
38
MAY M0292002 MAY M0292002 Contact Us For Availability
39
MAY Y480855 MAY Y480855 Contact Us For Availability
39
MAY D7501501 MAY D7501501 Contact Us For Availability
40
MAY M0220101 MAY M0220101 Contact Us For Availability
40
MAY M0233104 MAY M0233104 Contact Us For Availability
41
MAY 627169 MAY 627169 Contact Us For Availability
41
MAY M0221332 MAY M0221332 Contact Us For Availability
42
MAY M0211530 MAY M0211530 Contact Us For Availability
42
ANGLE, EVAPORATOR COVER, LEFT MAY D7393501 Contact Us For Availability
42
ANGLE-EVAP COVER MAY D7393502 Contact Us For Availability
43
MAY Y625893 MAY Y625893 Contact Us For Availability
43
MAY M0233844 MAY M0233844 Contact Us For Availability
43
MAY M0226960 MAY M0226960 Contact Us For Availability
44
MAY 627168 MAY 627168 Contact Us For Availability
44
MAY M0211030 MAY M0211030 Contact Us For Availability
45
MAY M0275584 MAY M0275584 Contact Us For Availability
46
MAY D7384701 MAY D7384701 Contact Us For Availability
46
MAY B5766402 MAY B5766402 Contact Us For Availability
47
MAY M0266510 MAY M0266510 Contact Us For Availability
47
MAY C8830701 MAY C8830701 Contact Us For Availability
48
CLIP-HEATER MAY B5784101 Contact Us For Availability
49
MAY B5759609 MAY B5759609 Contact Us For Availability
50
MAY M0253916 MAY M0253916 Contact Us For Availability
50
MAY B5759608 MAY B5759608 Contact Us For Availability
51
MAY Y627170 MAY Y627170 Contact Us For Availability
52
MAY 833593 MAY 833593 Contact Us For Availability
55
MAY 627151 MAY 627151 Contact Us For Availability
56
MAY A4617502 MAY A4617502 Contact Us For Availability
57
MAY 488292 MAY 488292 Contact Us For Availability
NI
MAY B5636301 MAY B5636301 Contact Us For Availability
× ![]()
