Model Maytag SR19E-C REFRIGERATOR – Common Parts & Diagrams

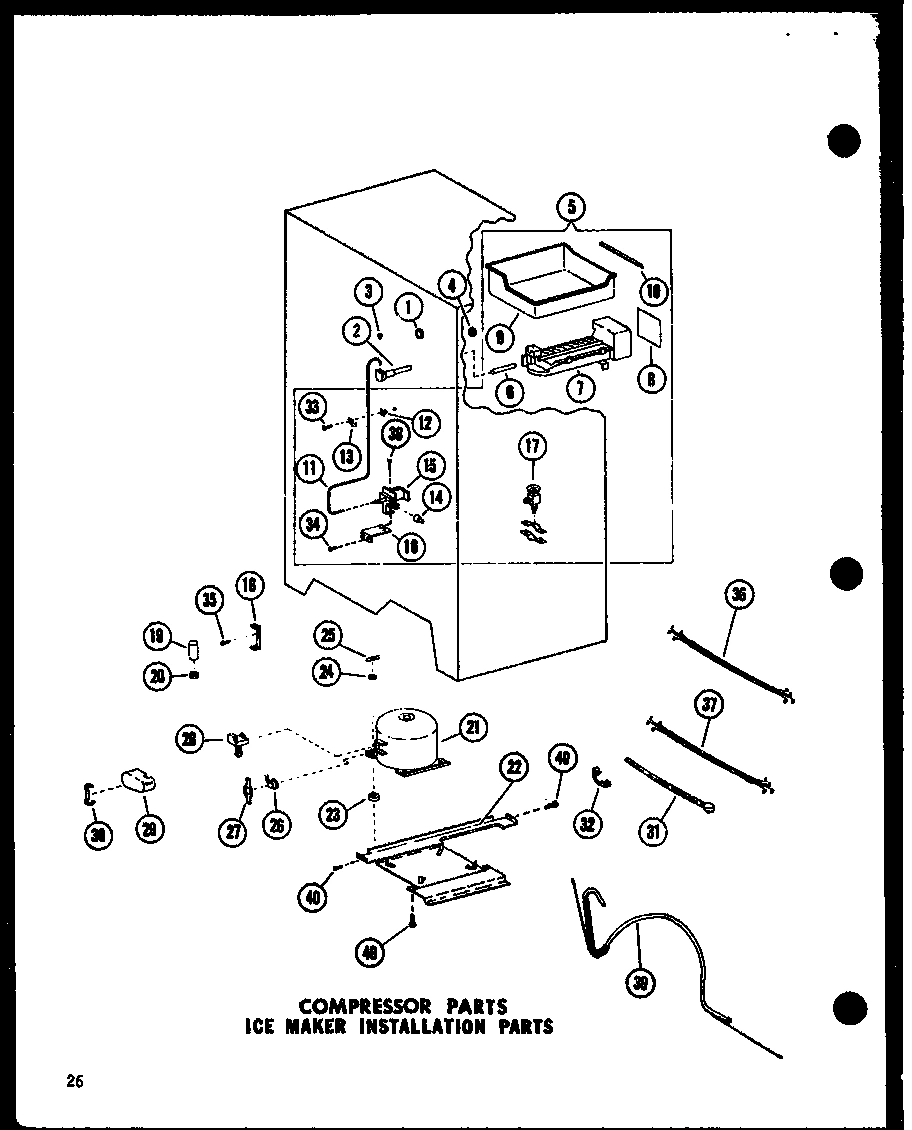

01 - COMP PARTS ICE MAKER INSTALLATION PARTS

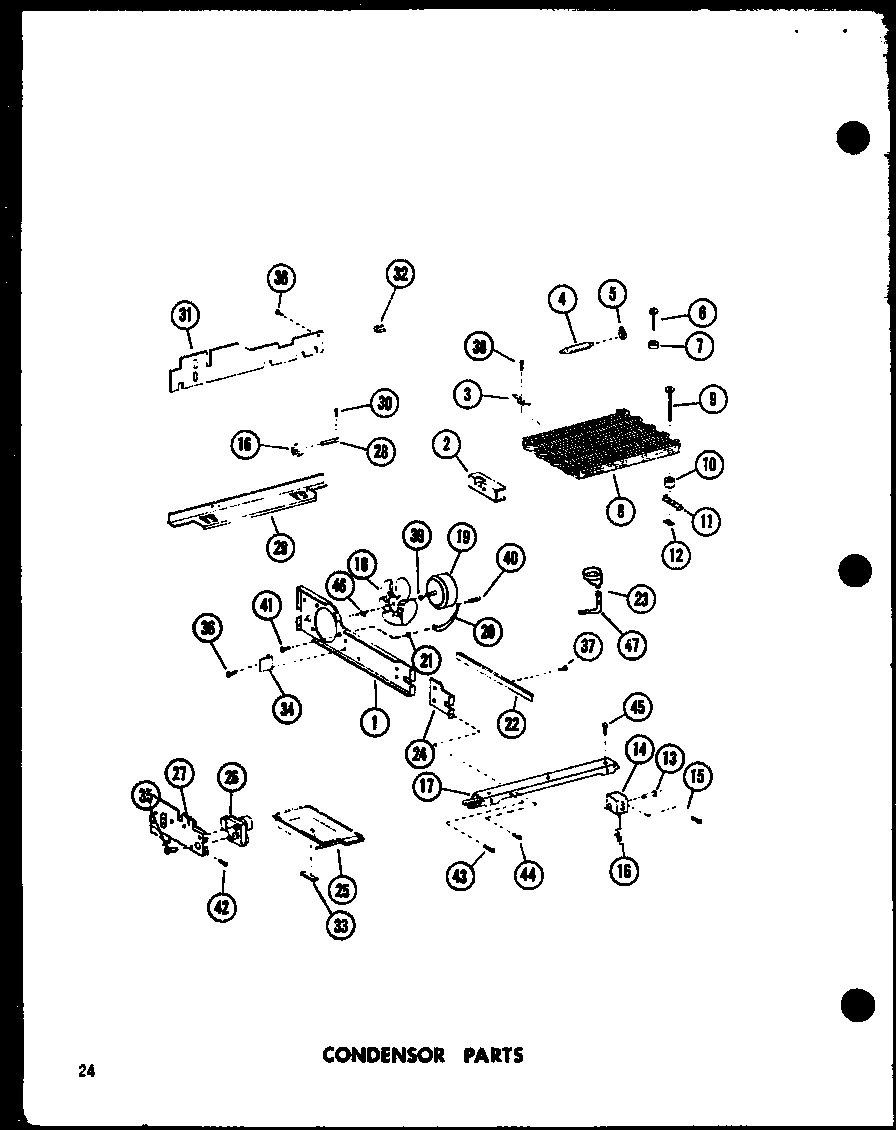

02 - CONDENSOR PARTS

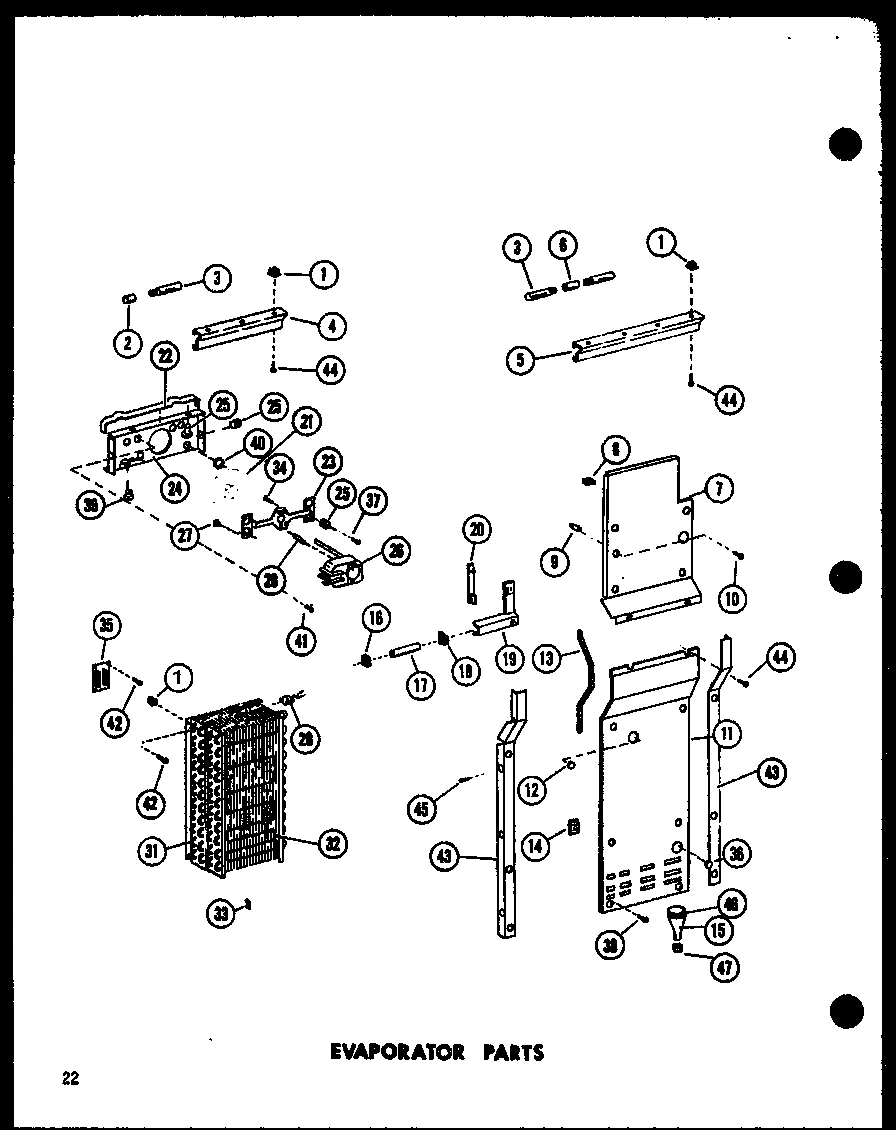

03 - EVAP PARTS

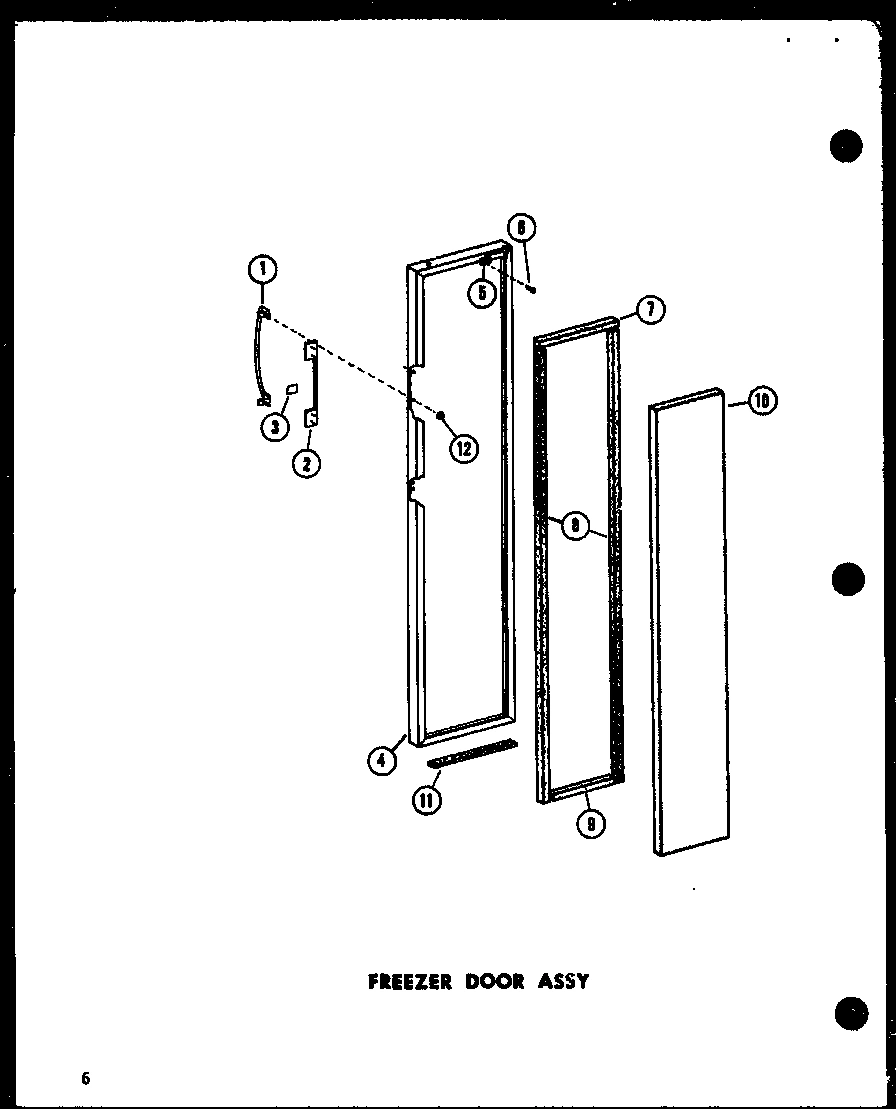

04 - FZ DOOR ASSY

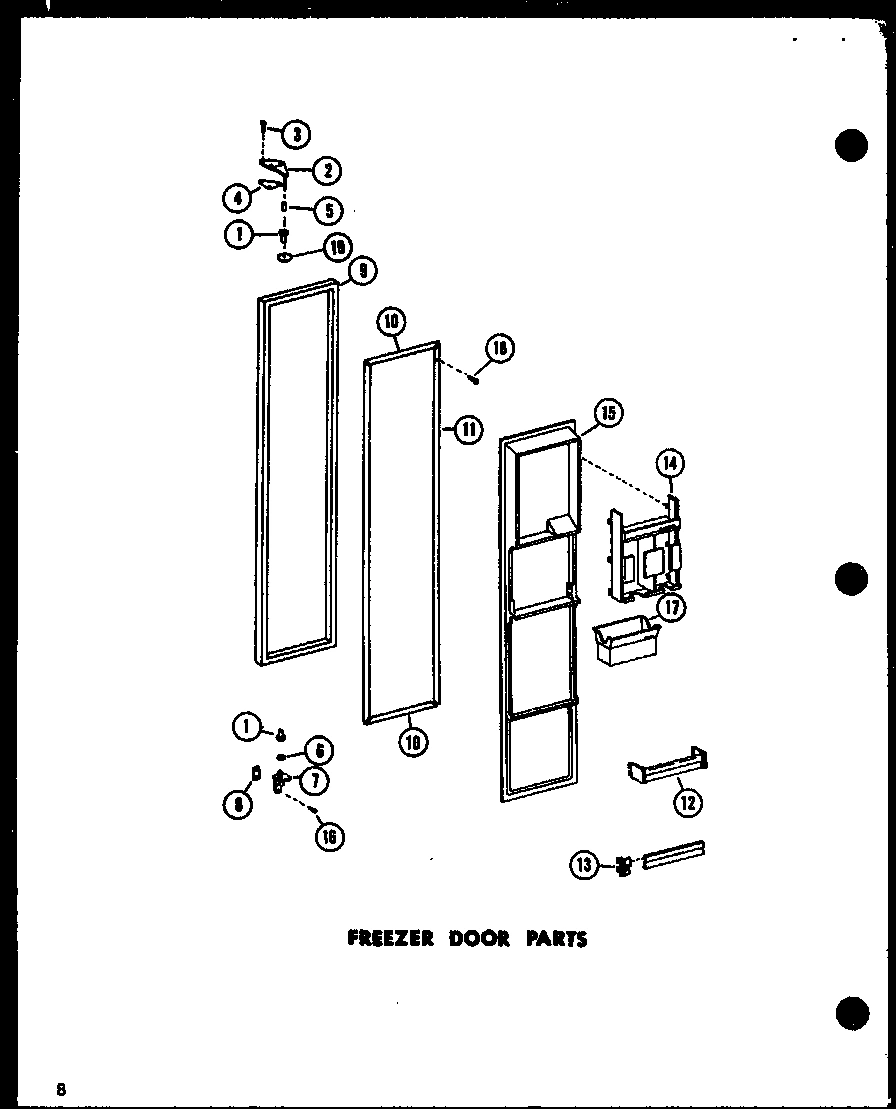

05 - FZ DOOR PARTS

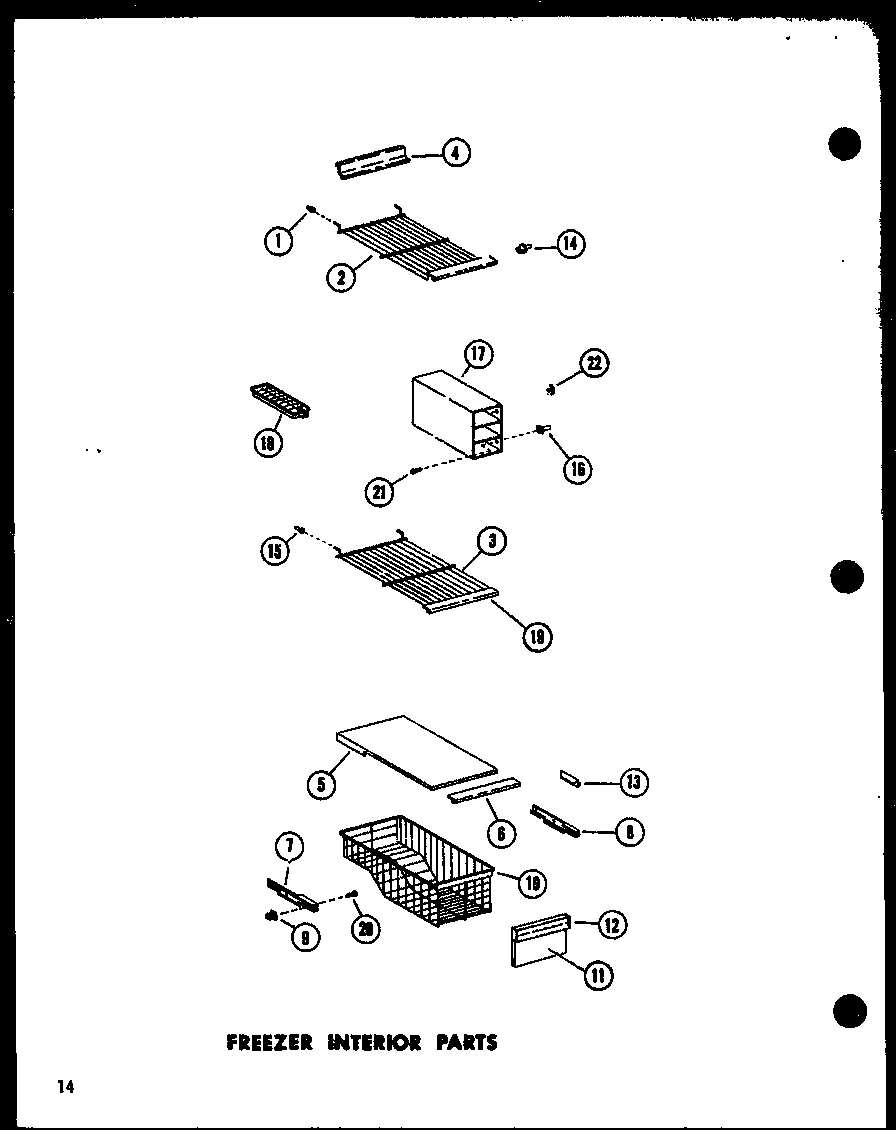

06 - FZ INTERIOR PARTS

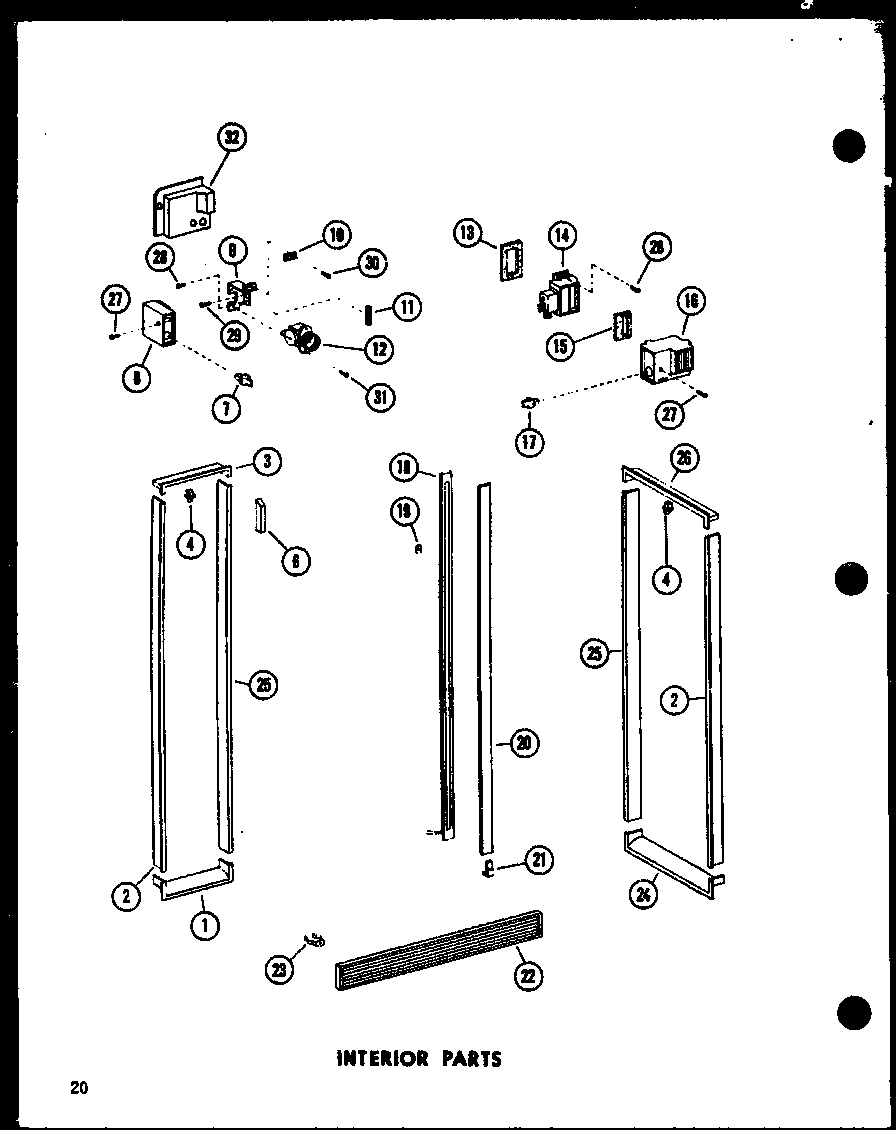

07 - INTERIOR PARTS

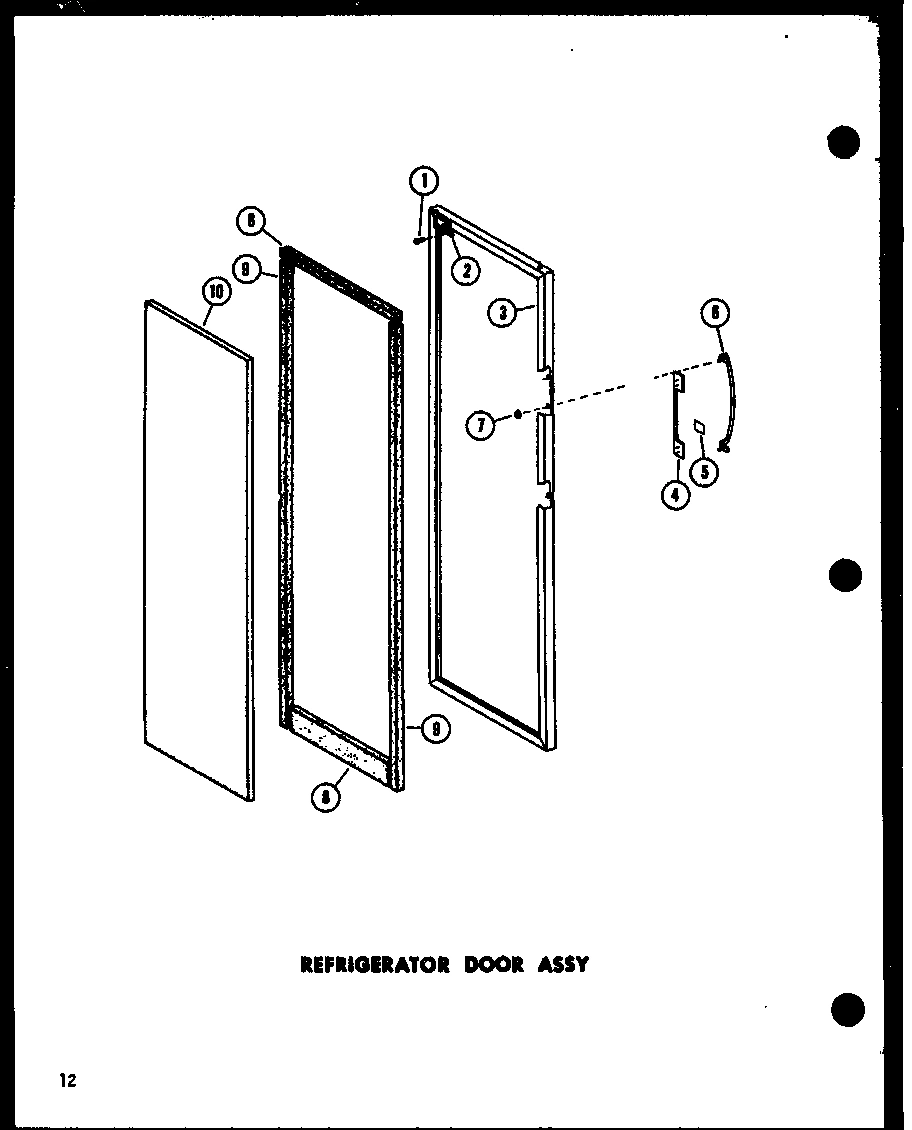

08 - REF DOOR ASSY

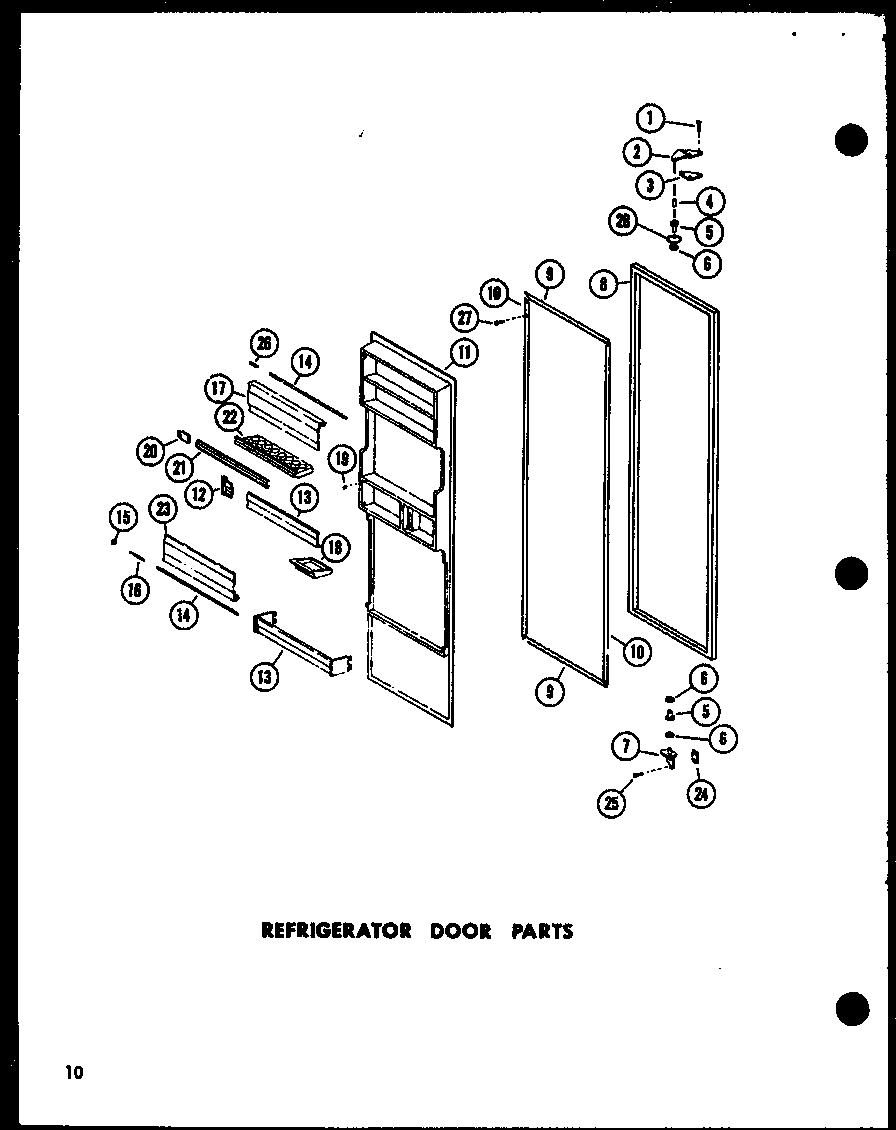

09 - REF DOOR PARTS

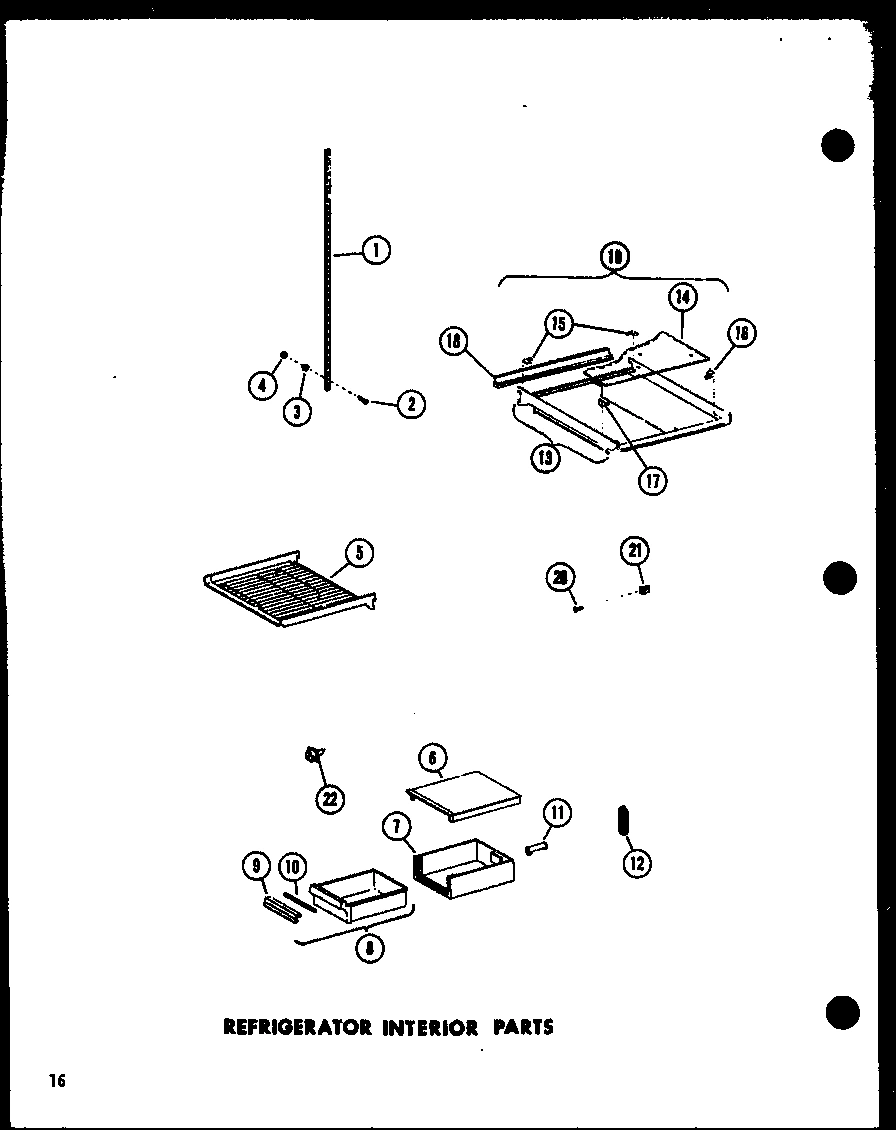

10 - REF INTERIOR PARTS

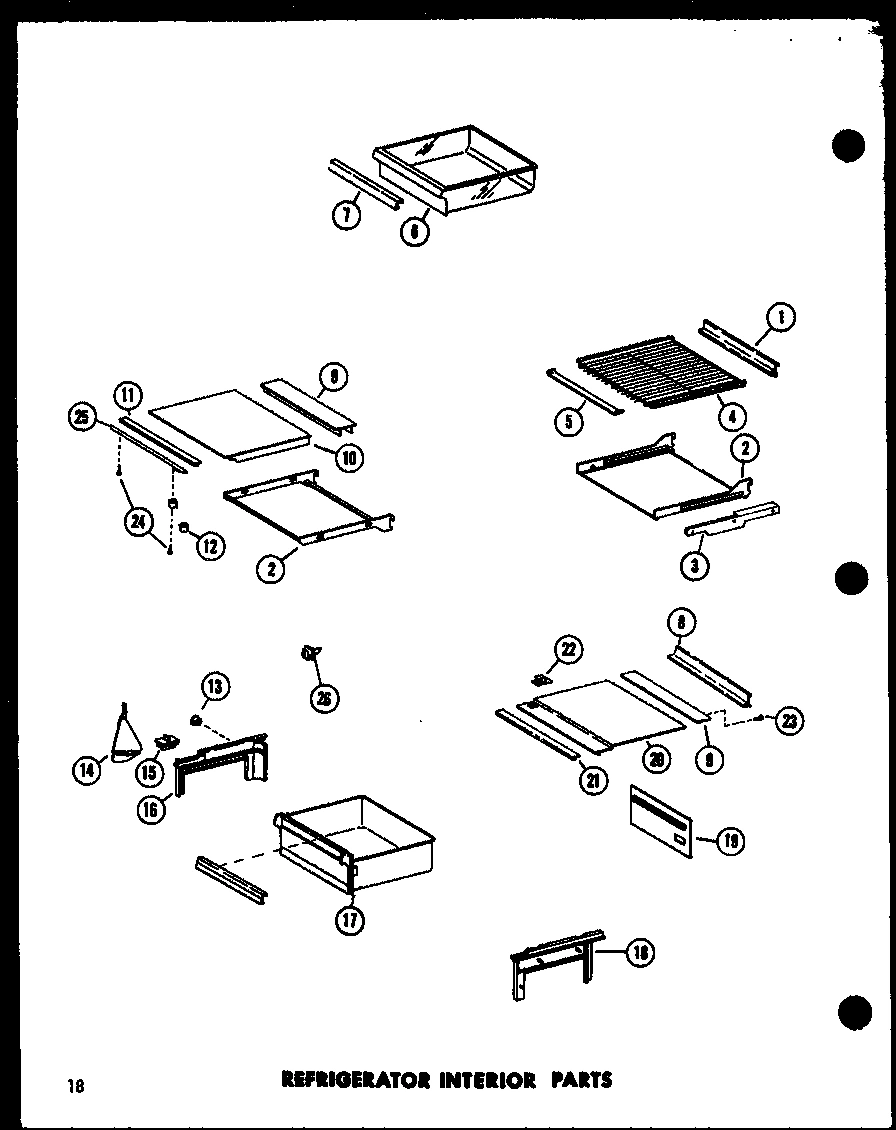

11 - REF INTERIOR PARTS
Common parts from model Maytag SR19E-C REFRIGERATOR
1
MAY A3080002 MAY A3080002 Contact Us For Availability
1
MAY D7446701 MAY D7446701 Contact Us For Availability
1
MAY M0580002 MAY M0580002 Contact Us For Availability
1
MAY M1252001 MAY M1252001 Contact Us For Availability
1
MAY M0257244 MAY M0257244 Contact Us For Availability
1
MAY A0387302 MAY A0387302 Contact Us For Availability
1
BREAKER FRAME MAY D3952402 Contact Us For Availability
1
MAY D7103701 MAY D7103701 Contact Us For Availability
2
MAY B5630512 MAY B5630512 Contact Us For Availability
2
MAY B5637601 MAY B5637601 Contact Us For Availability
2
MAY D7454002 MAY D7454002 Contact Us For Availability
2
MAY B5644001 MAY B5644001 Contact Us For Availability
2
MAY D7022901 MAY D7022901 Contact Us For Availability
2
MAY C8816601 MAY C8816601 Contact Us For Availability
2
MAY D7419402 MAY D7419402 Contact Us For Availability
2
MAY D7424101 MAY D7424101 Contact Us For Availability
2
MAY C8816602 MAY C8816602 Contact Us For Availability
2
MAY M0207632 MAY M0207632 Contact Us For Availability
2
MAY D7000802 MAY D7000802 Contact Us For Availability
3
CLIP-COND MAY A3054502 Contact Us For Availability
3
MAY A3079001 MAY A3079001 Contact Us For Availability
3
MAY C8832101 MAY C8832101 Contact Us For Availability
3
MAY A3270301 MAY A3270301 Contact Us For Availability
3
MAY A3270302 MAY A3270302 Contact Us For Availability
3
MAY A3270303 MAY A3270303 Contact Us For Availability
3
MAY D7419407 MAY D7419407 Contact Us For Availability
3
BREAKER FRAME MAY D3953104 Contact Us For Availability
3
MAY D7409336 MAY D7409336 Contact Us For Availability
3
MAY D7409337 MAY D7409337 Contact Us For Availability
3
MAY D7409338 MAY D7409338 Contact Us For Availability
3
MAY D7409339 MAY D7409339 Contact Us For Availability
3
MAY D7409340 MAY D7409340 Contact Us For Availability
3
MAY M0270508 MAY M0270508 Contact Us For Availability
4
MAY B5631801 MAY B5631801 Contact Us For Availability
4
MAY B5715001 MAY B5715001 Contact Us For Availability
4
MAY D3954208 MAY D3954208 Contact Us For Availability
4
MAY D7409431 MAY D7409431 Contact Us For Availability
4
MAY D7409432 MAY D7409432 Contact Us For Availability
4
MAY D7409433 MAY D7409433 Contact Us For Availability
4
MAY D7409434 MAY D7409434 Contact Us For Availability
4
MAY D7409435 MAY D7409435 Contact Us For Availability
4
MAY A3132401 MAY A3132401 Contact Us For Availability
4
MAY D7415103 MAY D7415103 Contact Us For Availability
4
MAY C3680304 MAY C3680304 Contact Us For Availability
4
MAY D7454001 MAY D7454001 Contact Us For Availability
4
MAY M0281003 MAY M0281003 Contact Us For Availability
5
SEE NOTE MODEL IC-2 MFG. NO. P36415-6W ICE MA MAY Y00000000 Contact Us For Availability
5
MAY M0104002 MAY M0104002 Contact Us For Availability
5
MAY C3597606 MAY C3597606 Contact Us For Availability
5
BEARING-HINGE MAY C8852201 Contact Us For Availability
5
BEARING, HINGE MAY C8852202 Contact Us For Availability
5
MAY B8303801 MAY B8303801 Contact Us For Availability
5
MAY C8832001 MAY C8832001 Contact Us For Availability
6
MAY M0257037 MAY M0257037 Contact Us For Availability
6
MAY B5637701 MAY B5637701 Contact Us For Availability
6
MAY D7096001 MAY D7096001 Contact Us For Availability
6
MAY M0274013 MAY M0274013 Contact Us For Availability
6
MAY M0274014 MAY M0274014 Contact Us For Availability
6
MAY B0596601 MAY B0596601 Contact Us For Availability
6
COVER-SWITCH MAY B5743601 Contact Us For Availability
6
MAY D7343603 MAY D7343603 Contact Us For Availability
6
MAY D7425503 MAY D7425503 Contact Us For Availability
7
MAY A3013906 MAY A3013906 Contact Us For Availability
7
ANGLE-FR BAFFLE MAY B5795201 Contact Us For Availability
7
MAY D7382301 MAY D7382301 Contact Us For Availability
7
MAY B5629006 MAY B5629006 Contact Us For Availability
7
MAY M0289801 MAY M0289801 Contact Us For Availability
7
MAY D7250104 MAY D7250104 Contact Us For Availability
7
GLIDE BASKET-L K MAY D7442901 Contact Us For Availability
7
MAY D7009801 MAY D7009801 Contact Us For Availability
7
MAY D7250103 MAY D7250103 Contact Us For Availability
7
MAY D7343702 MAY D7343702 Contact Us For Availability
7
MAY C8831701 MAY C8831701 Contact Us For Availability
8
MAY D7010701 MAY D7010701 Contact Us For Availability
8
MAY A4591108 MAY A4591108 Contact Us For Availability
8
GLIDE BASKET-R K MAY D7442902 Contact Us For Availability
8
MAY D7345503 MAY D7345503 Contact Us For Availability
8
MAY B0534410 MAY B0534410 Contact Us For Availability
8
MAY B5629018 MAY B5629018 Contact Us For Availability
8
MAY D7092603 MAY D7092603 Contact Us For Availability
8
MAY D7425301 MAY D7425301 Contact Us For Availability
8
MAY C8831804 MAY C8831804 Contact Us For Availability
9
MAY M0257039 MAY M0257039 Contact Us For Availability
9
MAY B5629002 MAY B5629002 Contact Us For Availability
9
MAY B5629003 MAY B5629003 Contact Us For Availability
9
MAY D7251002 MAY D7251002 Contact Us For Availability
9
MAY C8850501 MAY C8850501 Contact Us For Availability
9
MAY D7025105 MAY D7025105 Contact Us For Availability
9
MAY C8831704 MAY C8831704 Contact Us For Availability
10
MAY B0544101 MAY B0544101 Contact Us For Availability
10
MAY M0230923 MAY M0230923 Contact Us For Availability
10
MAY B5612004 MAY B5612004 Contact Us For Availability
10
MAY D7025103 MAY D7025103 Contact Us For Availability
10
MAY D7025101 MAY D7025101 Contact Us For Availability
10
MAY D7363601 MAY D7363601 Contact Us For Availability
10
MAY M0341201 MAY M0341201 Contact Us For Availability
10
MAY B5612011 MAY B5612011 Contact Us For Availability
10
GASKET (PER FOOT) MAY A3030313 Contact Us For Availability
10
MAY D3966704 MAY D3966704 Contact Us For Availability
11
MAY A3085401 MAY A3085401 Contact Us For Availability
11
MAY D7348301 MAY D7348301 Contact Us For Availability
11
MAY B0523561 MAY B0523561 Contact Us For Availability
11
MAY D7419601 MAY D7419601 Contact Us For Availability
11
MAY A3030338 MAY A3030338 Contact Us For Availability
11
MAY D7443501 MAY D7443501 Contact Us For Availability
11
MAY C8785301 MAY C8785301 Contact Us For Availability
11
MAY B0570903 MAY B0570903 Contact Us For Availability
12
MAY M0580007 MAY M0580007 Contact Us For Availability
12
MAY M0286003 MAY M0286003 Contact Us For Availability
12
PLUG MAY A3069103 Contact Us For Availability
12
MAY D7415703 MAY D7415703 Contact Us For Availability
12
MAY B5631705 MAY B5631705 Contact Us For Availability
12
MAY B5631706 MAY B5631706 Contact Us For Availability
12
MAY C8834901 MAY C8834901 Contact Us For Availability
12
MAY C3615018 MAY C3615018 Contact Us For Availability
12
MAY C3588302 MAY C3588302 Contact Us For Availability
12
MAY A3213401 MAY A3213401 Contact Us For Availability
13
MAY A3030302 MAY A3030302 Contact Us For Availability
13
MAY M1205302 MAY M1205302 Contact Us For Availability
13
MAY A3113501 MAY A3113501 Contact Us For Availability
13
MAY D7415705 MAY D7415705 Contact Us For Availability
13
MAY R0179056 MAY R0179056 Contact Us For Availability
13
MAY R0179059 MAY R0179059 Contact Us For Availability
14
MAY C8836302 MAY C8836302 Contact Us For Availability
14
MAY B8314701 MAY B8314701 Contact Us For Availability
14
MAY C8806301 MAY C8806301 Contact Us For Availability
14
MAY D7466201 MAY D7466201 Contact Us For Availability
14
MAY B0595101 MAY B0595101 Contact Us For Availability
14
MAY C3643114 MAY C3643114 Contact Us For Availability
14
MAY A3056206 MAY A3056206 Contact Us For Availability
14
MAY B8303601 MAY B8303601 Contact Us For Availability
15
MAY M0236230 MAY M0236230 Contact Us For Availability
15
MAY B5796101 MAY B5796101 Contact Us For Availability
15
MAY D7020604 MAY D7020604 Contact Us For Availability
15
MAY A3066301 MAY A3066301 Contact Us For Availability
15
MAY A3113601 MAY A3113601 Contact Us For Availability
15
MAY A3057003 MAY A3057003 Contact Us For Availability
15
MAY A3057004 MAY A3057004 Contact Us For Availability
15
MAY A3232201 MAY A3232201 Contact Us For Availability
16
MAY M0520102 MAY M0520102 Contact Us For Availability
16
MAY A3116401 MAY A3116401 Contact Us For Availability
16
MAY A0384901 MAY A0384901 Contact Us For Availability
16
MAY D7417301 MAY D7417301 Contact Us For Availability
16
MAY A3065201 MAY A3065201 Contact Us For Availability
16
MAY A3233901 MAY A3233901 Contact Us For Availability
17
MAY C8820503 MAY C8820503 Contact Us For Availability
17
MAY D7442301 MAY D7442301 Contact Us For Availability
17
MAY D7465401 MAY D7465401 Contact Us For Availability
17
MAY D7009802 MAY D7009802 Contact Us For Availability
17
MAY C8832802 MAY C8832802 Contact Us For Availability
17
MAY A3233902 MAY A3233902 Contact Us For Availability
17
MAY D7219727 MAY D7219727 Contact Us For Availability
18
MAY B5742601 MAY B5742601 Contact Us For Availability
18
MAY A3116601 MAY A3116601 Contact Us For Availability
18
MAY M0241132 MAY M0241132 Contact Us For Availability
18
MAY C8717801 MAY C8717801 Contact Us For Availability
18
MAY C3628301 MAY C3628301 Contact Us For Availability
18
MAY D3799801 MAY D3799801 Contact Us For Availability
18
MAY C8831502 MAY C8831502 Contact Us For Availability
19
MAY C8736901 MAY C8736901 Contact Us For Availability
19
MAY B5656707 MAY B5656707 Contact Us For Availability
19
MAY C8795201 MAY C8795201 Contact Us For Availability
19
MAY M0113401 MAY M0113401 Contact Us For Availability
19
MAY M0115501 MAY M0115501 Contact Us For Availability
19
MAY A3059003 MAY A3059003 Contact Us For Availability
19
MAY C8823407 MAY C8823407 Contact Us For Availability
19
MAY C8823408 MAY C8823408 Contact Us For Availability
20
MAY B0598701 MAY B0598701 Contact Us For Availability
20
MAY B5622804 MAY B5622804 Contact Us For Availability
20
MAY M0230917 MAY M0230917 Contact Us For Availability
20
MAY C8810401 MAY C8810401 Contact Us For Availability
20
MULLION, COPPERTONE MAY C8810402 Contact Us For Availability
20
MULLION (AVOCADO) MAY C8810403 Contact Us For Availability
20
MULLION, GOLD MAY C8810404 Contact Us For Availability
20
MULLION (ALMOND) MAY C8810405 Contact Us For Availability
20
MAY B0530006 MAY B0530006 Contact Us For Availability
21
MAY D7351051 MAY D7351051 Contact Us For Availability
21
MAY M0500107 MAY M0500107 Contact Us For Availability
21
FAN-EVAP MAY C8795501 Contact Us For Availability
21
MAY M0219547 MAY M0219547 Contact Us For Availability
21
KEY MAY A3120801 Contact Us For Availability
21
MAY B8302602 MAY B8302602 Contact Us For Availability
22
MAY C8820407 MAY C8820407 Contact Us For Availability
22
MAY B8314102 MAY B8314102 Contact Us For Availability
22
MAY B5757702 MAY B5757702 Contact Us For Availability
22
MAY D7415405 MAY D7415405 Contact Us For Availability
22
MAY D7429602 MAY D7429602 Contact Us For Availability
23
MAY A3026101 MAY A3026101 Contact Us For Availability
23
DRAIN CUP MAY C8820601 Contact Us For Availability
23
BRACKET-EVAP MOTOR MAY C8829701 Contact Us For Availability
23
MAY M0117301 MAY M0117301 Contact Us For Availability
23
MAY C8833502 MAY C8833502 Contact Us For Availability
24
MAY M0590101 MAY M0590101 Contact Us For Availability
24
MAY D7371501 MAY D7371501 Contact Us For Availability
24
MAY A3143601 MAY A3143601 Contact Us For Availability
24
MAY A3143602 MAY A3143602 Contact Us For Availability
24
MAY A3143603 MAY A3143603 Contact Us For Availability
24
MAY D3952604 MAY D3952604 Contact Us For Availability
25
MAY A3140801 MAY A3140801 Contact Us For Availability
25
MAY D7001001 MAY D7001001 Contact Us For Availability
25
MAY A0381401 MAY A0381401 Contact Us For Availability
25
MAY A4573802 MAY A4573802 Contact Us For Availability
25
MAY YA0381501 MAY YA0381501 Contact Us For Availability
25
MAY M0246159 MAY M0246159 Contact Us For Availability
25
MAY D7424001 MAY D7424001 Contact Us For Availability
26
MAY C3689105 MAY C3689105 Contact Us For Availability
26
TIMER MAY D7004112 Contact Us For Availability
26
MAY D7241409 MAY D7241409 Contact Us For Availability
26
MAY D3952506 MAY D3952506 Contact Us For Availability
26
MAY A3067001 MAY A3067001 Contact Us For Availability
27
MAY A3043601 MAY A3043601 Contact Us For Availability
27
MAY C3647902 MAY C3647902 Contact Us For Availability
27
MAY M0211018 MAY M0211018 Contact Us For Availability
27
MAY A0288701 MAY A0288701 Contact Us For Availability
27
MAY M0230926 MAY M0230926 Contact Us For Availability
28
RELAY K MAY C3689202 Contact Us For Availability
28
PIVOT PIN K MAY M1210001 Contact Us For Availability
28
MAY A3044202 MAY A3044202 Contact Us For Availability
28
MAY M0500902 MAY M0500902 Contact Us For Availability
29
MAY B0551801 MAY B0551801 Contact Us For Availability
29
MAY M0233104 MAY M0233104 Contact Us For Availability
29
MAY C3611301 MAY C3611301 Contact Us For Availability
29
MAY C8765002 MAY C8765002 Contact Us For Availability
30
MAY A3041801 MAY A3041801 Contact Us For Availability
30
COTTER PIN K MAY M1200001 Contact Us For Availability
30
MAY M0010202 MAY M0010202 Contact Us For Availability
31
MAY R0157154 MAY R0157154 Contact Us For Availability
31
MAY M0211016 MAY M0211016 Contact Us For Availability
31
MAY C3655001 MAY C3655001 Contact Us For Availability
31
MAY D7428301 MAY D7428301 Contact Us For Availability
32
MAY A0319703 MAY A0319703 Contact Us For Availability
32
MAY A3245101 MAY A3245101 Contact Us For Availability
32
MAY M0110505 MAY M0110505 Contact Us For Availability
32
MAY D7429501 MAY D7429501 Contact Us For Availability
32
MAY D7370101 MAY D7370101 Contact Us For Availability
33
MAY B5691701 MAY B5691701 Contact Us For Availability
33
CLIP-HEATER MAY B5784101 Contact Us For Availability
34
MAY A3125701 MAY A3125701 Contact Us For Availability
34
MAY M0258055 MAY M0258055 Contact Us For Availability
35
MAY M0213815 MAY M0213815 Contact Us For Availability
35
MAY B8303401 MAY B8303401 Contact Us For Availability
36
MAY M0310309 MAY M0310309 Contact Us For Availability
36
MAY D7451502 MAY D7451502 Contact Us For Availability
36
MAY M0241118 MAY M0241118 Contact Us For Availability
37
MAY D7453501 MAY D7453501 Contact Us For Availability
37
MAY M0232908 MAY M0232908 Contact Us For Availability
39
MAY D7427901 MAY D7427901 Contact Us For Availability
39
MAY M0274015 MAY M0274015 Contact Us For Availability
39
MAY M0292002 MAY M0292002 Contact Us For Availability
40
MAY M0220101 MAY M0220101 Contact Us For Availability
40
MAY M0270301 MAY M0270301 Contact Us For Availability
41
MAY M0221332 MAY M0221332 Contact Us For Availability
42
MAY M0211530 MAY M0211530 Contact Us For Availability
43
MAY M0233844 MAY M0233844 Contact Us For Availability
43
ANGLE, EVAPORATOR COVER, LEFT MAY D7393501 Contact Us For Availability
43
ANGLE-EVAP COVER MAY D7393502 Contact Us For Availability
44
MAY M0226960 MAY M0226960 Contact Us For Availability
45
MAY M0211030 MAY M0211030 Contact Us For Availability
45
MAY M0267101 MAY M0267101 Contact Us For Availability
46
MAY A3292301 MAY A3292301 Contact Us For Availability
47
MAY D7384701 MAY D7384701 Contact Us For Availability
47
MAY B5796401 MAY B5796401 Contact Us For Availability
NI
MAY B5636301 MAY B5636301 Contact Us For Availability
× ![]()
