Model Electrolux SP560MXV3 DISHWASHER – Common Parts & Diagrams
02 - DOOR PARTS
03 - TUB AND FRAME PARTS

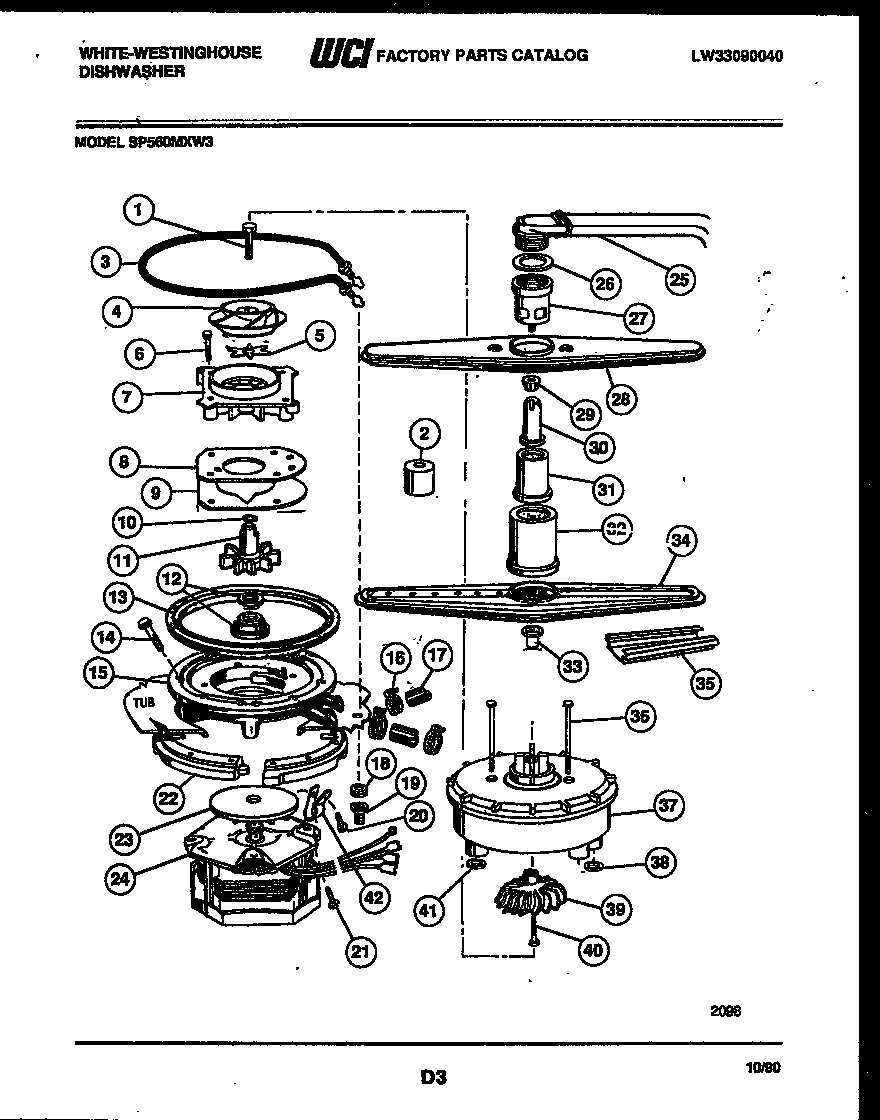

04 - MOTOR PUMP PARTS

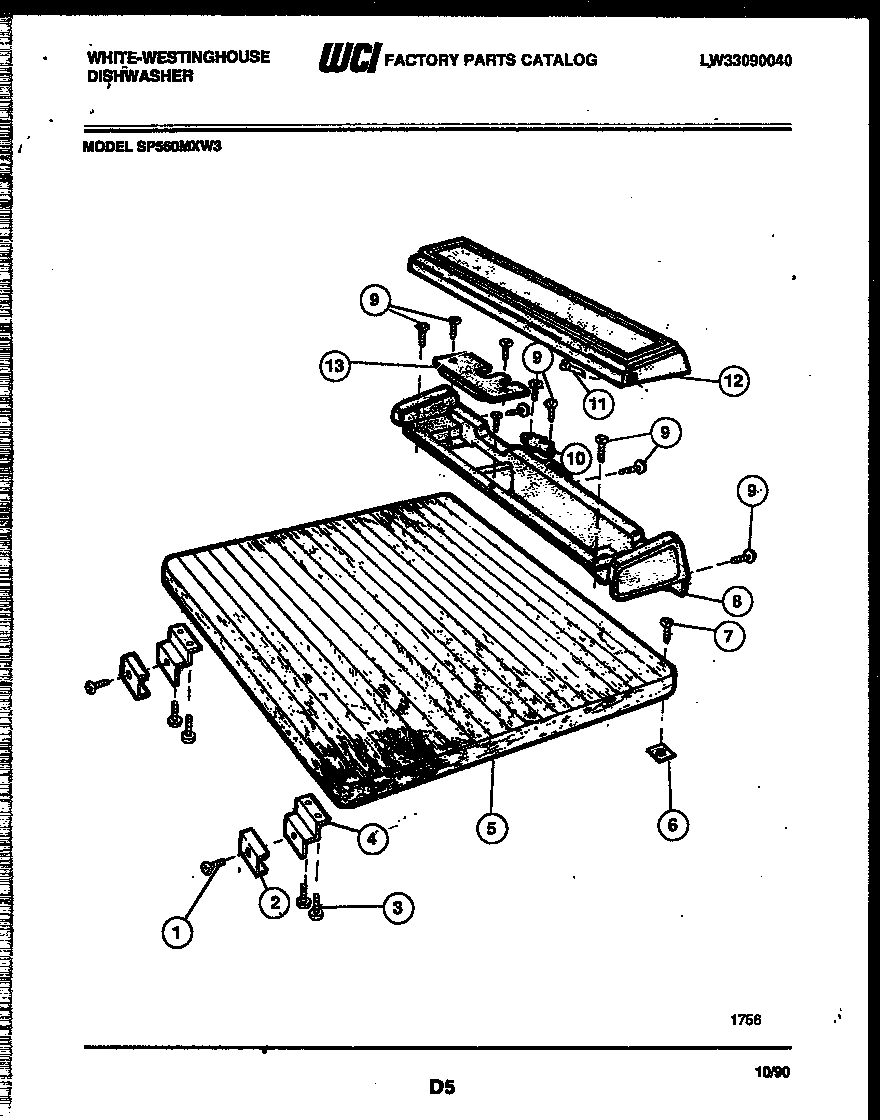

05 - TOP AND MISCELLANEOUS PARTS

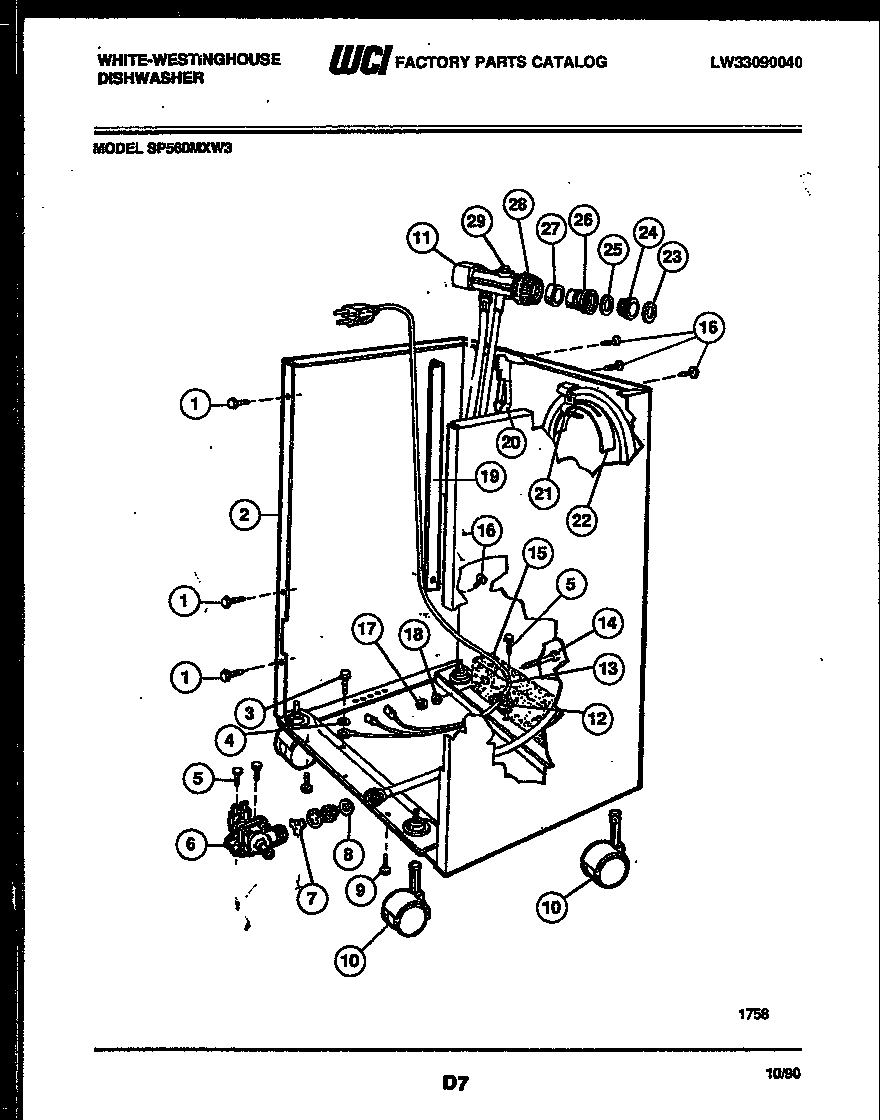

06 - CABINET PARTS

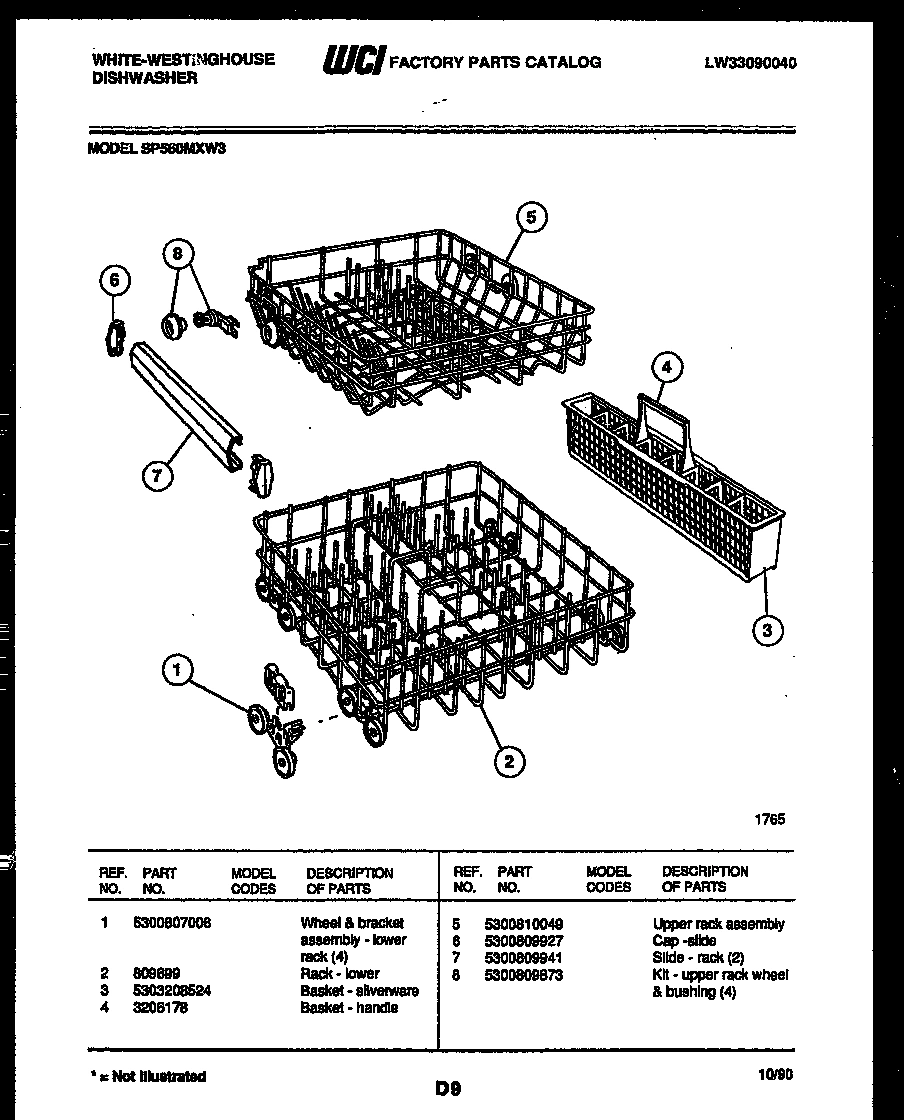

07 - RACKS AND TRAYS

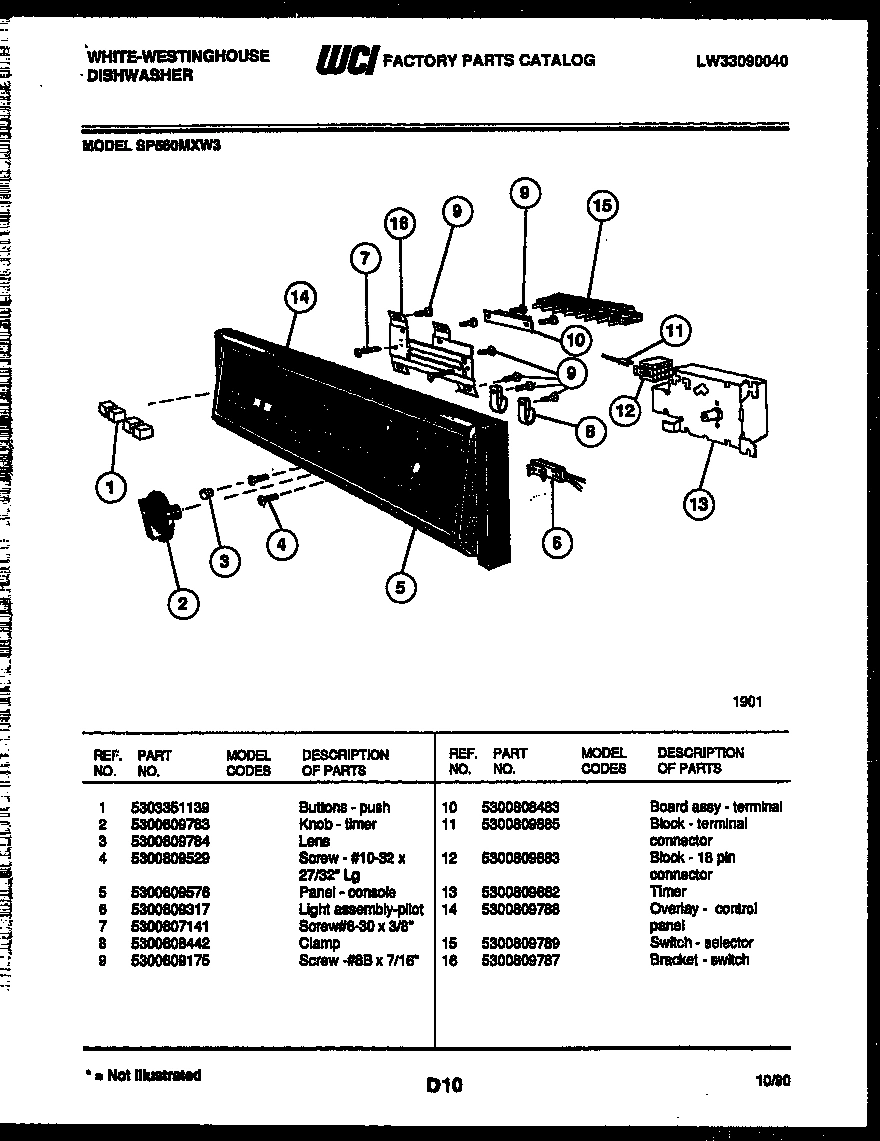

08 - CONSOLE AND CONTROL PARTS

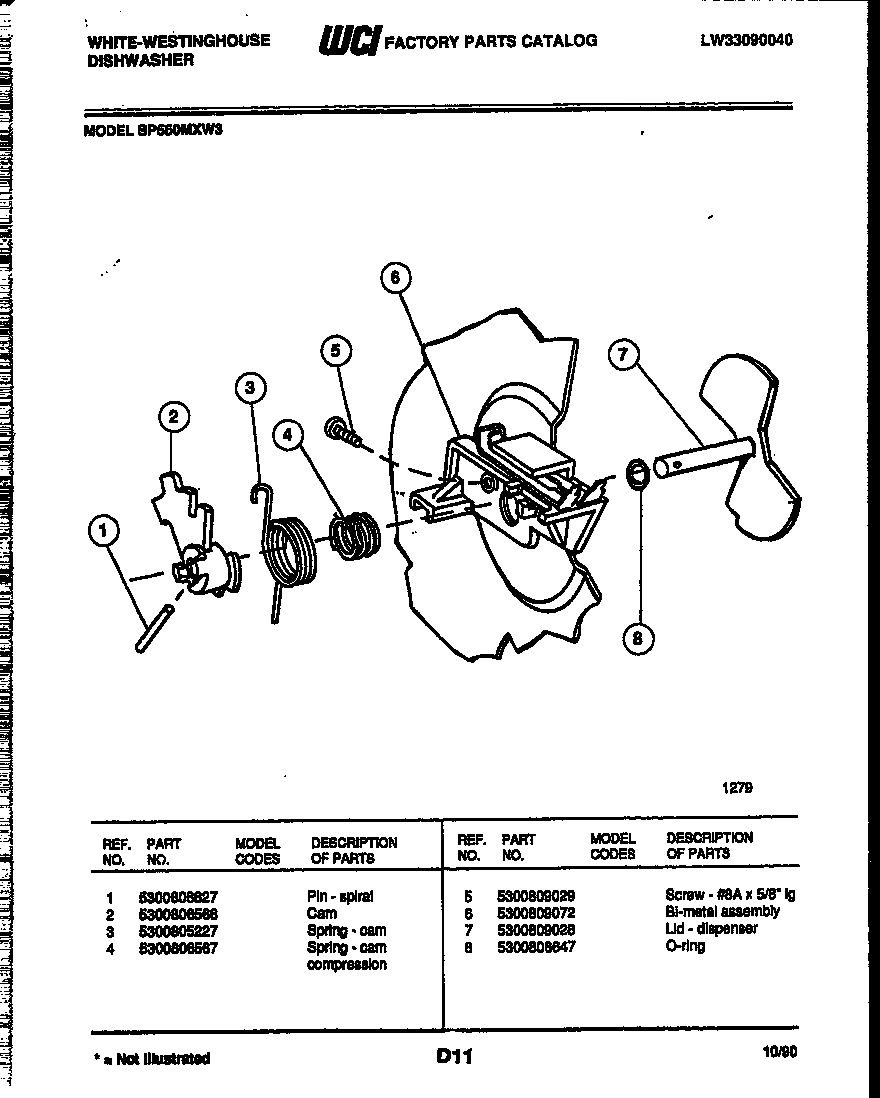

09 - CAM
Common parts from model Electrolux SP560MXV3 DISHWASHER
1
WCI 5300809360 No Longer Available
1
SCREW - 10-32 X 2-1/4`` LG WCI 5300806353 Contact Us For Availability
1
PLATE - TAPPING WCI 5300808868 Contact Us For Availability
1
SCREW WCI 5300806539 Contact Us For Availability
1
SCREW (2) WCI 5300809055 Contact Us For Availability
1
WHEEL & BRACKET ASSEMBLY - LOWER RACK (4) WCI 5300807008 Contact Us For Availability
1
BUTTONS - PUSH WCI 5303351139 Contact Us For Availability
1
PIN-SPIRAL WCI 5300808827 Contact Us For Availability
2
PLATE - TAPPING (6) WCI 3018073 Contact Us For Availability
2
TOOL - SEAL INSTALLATION WCI 5300803923 Contact Us For Availability
2
SHIM - CLIP (2) WCI 5300809199 Contact Us For Availability
2
WCI 809699 WCI 809699 Contact Us For Availability
2
WCI 5300809783 WCI 5300809783 Contact Us For Availability
3
PAD - TUB WCI 5300807454 Contact Us For Availability
3
HEATER - INCLUDES KEY 18 & 19 WCI 5300809004 Contact Us For Availability
3
SCREW (4) WCI 5300807270 Contact Us For Availability
3
SCREW WCI 5300807951 Contact Us For Availability
3
WCI 5300809784 WCI 5300809784 Contact Us For Availability
3
SPRING-CAM WCI 5300805227 Contact Us For Availability
4
IMPELLER-UPPER WCI 5300809918 Contact Us For Availability
4
CLIP-TOP (2) WCI 5300809088 Contact Us For Availability
4
BASKET - HANDLE WCI 3206178 Contact Us For Availability
4
WCI 5300809529 WCI 5300809529 Contact Us For Availability
4
SPRING-CAM COMPRESSION WCI 5300806567 Contact Us For Availability
5
SHIM - STRIKE WCI 5300809214 Contact Us For Availability
5
WCI 5300809698 WCI 5300809698 Contact Us For Availability
5
SCREW (3) WCI 5300807004 Contact Us For Availability
5
WCI 5300810049 WCI 5300810049 Contact Us For Availability
5
PANEL - CONSOLE WCI 5300809576 Contact Us For Availability
5
SCREW - 8A X 5/8`` LG WCI 5300809029 Contact Us For Availability
6
STRIKE - DOOR WCI 5300807015 Contact Us For Availability
6
SCREW-10 X 1-3/4`` LG WCI 5300807359 Contact Us For Availability
6
CLAMP WCI 5300807819 Contact Us For Availability
6
KIT - VALVE WATER - INCLUDES 14 WCI 5300808667 Contact Us For Availability
6
LIGHT ASSEMBLY-PILOT WCI 5300809317 Contact Us For Availability
6
BI-METAL ASSEMBLY WCI 5300809072 Contact Us For Availability
7
PLATE-SPACER WCI 5300809921 Contact Us For Availability
7
WCI 5300807817 WCI 5300807817 Contact Us For Availability
7
WCI 808432 WCI 808432 Contact Us For Availability
7
SLIDE-RACK, (2) WCI 5300809941 Contact Us For Availability
7
SCREW-6-30 X 3/8`` WCI 5300807141 Contact Us For Availability
7
LID - DISPENSER WCI 5300809028 Contact Us For Availability
8
WCI 5300805763 WCI 5300805763 Contact Us For Availability
8
PLATE - PUMP WCI 5300809006 Contact Us For Availability
8
WCI 5300808528 WCI 5300808528 Contact Us For Availability
8
KIT - UPPER RACK WHEEL & BUSHING (4) WCI 5300809873 Contact Us For Availability
8
WCI 5300806647 WCI 5300806647 Contact Us For Availability
9
WCI 5300807470 WCI 5300807470 Contact Us For Availability
9
GASKET - PUMP WCI 5300809007 Contact Us For Availability
9
WCI 5300809175 WCI 5300809175 Contact Us For Availability
10
WASHER WCI 5300809044 Contact Us For Availability
10
WCI 3014675 WCI 3014675 Contact Us For Availability
10
WCI 5300808529 WCI 5300808529 Contact Us For Availability
10
CASTERS WCI 5300809661 Contact Us For Availability
10
BOARD ASSY - TERMINAL WCI 5300808483 Contact Us For Availability
11
KIT - PUMP SEAL - INCLUDES 9 & 11 WCI 5300809910 Contact Us For Availability
11
PIN - HINGE (2) WCI 5300807822 Contact Us For Availability
11
HOSE & COUPLER ASSY WCI 5300807496 Contact Us For Availability
11
BLOCK - TERMINAL CONNECTOR WCI 5300809885 Contact Us For Availability
12
SEAL-WATER WCI 5300803903 Contact Us For Availability
12
KIT-SCREW & WASHER INCLUDES 10 WCI 5300808564 Contact Us For Availability
12
LID - HINGE WCI 5300808547 Contact Us For Availability
12
WCI 5300804426 WCI 5300804426 Contact Us For Availability
12
WCI 5300809883 WCI 5300809883 Contact Us For Availability
13
WCI 5300809008 WCI 5300809008 Contact Us For Availability
13
WCI 3018090 WCI 3018090 Contact Us For Availability
13
WCI 5300808532 WCI 5300808532 Contact Us For Availability
13
CORD - POWER WCI 5300805046 Contact Us For Availability
13
WCI 5300809662 WCI 5300809662 Contact Us For Availability
14
WCI 5300809861 WCI 5300809861 Contact Us For Availability
14
SCREW - 10 X 1`` LG WCI 5300807268 Contact Us For Availability
14
SCREW WCI 5300808612 Contact Us For Availability
14
WCI 5300809788 WCI 5300809788 Contact Us For Availability
15
KNOB - LATCH WCI 5300808712 Contact Us For Availability
15
HOUSING WCI 5300809939 Contact Us For Availability
15
WCI 5300808615 WCI 5300808615 Contact Us For Availability
15
SWITCH - SELECTOR WCI 5300809789 Contact Us For Availability
16
SCREW (5) WCI 5300807501 Contact Us For Availability
16
PLATE - FLOAT WCI 5300808064 Contact Us For Availability
16
CLAMP-HOSE WCI 3018117 Contact Us For Availability
16
BRACKET-SWITCH WCI 5300809787 Contact Us For Availability
17
GASKET - FLOAT WCI 5300808063 Contact Us For Availability
17
HOSE - CONNECTOR WCI 5300808174 Contact Us For Availability
17
NUT (2) WCI 5300808661 Contact Us For Availability
18
SCREW WCI 5300803319 Contact Us For Availability
18
WCI 5303351028 WCI 5303351028 Contact Us For Availability
18
WASHER WCI 5300808613 Contact Us For Availability
19
GASKET & WIRE ASSY. - INCLUDES 8 & 20 WCI 5300809035 Contact Us For Availability
19
WCI 5300808120 WCI 5300808120 Contact Us For Availability
20
WCI 5300809320 WCI 5300809320 Contact Us For Availability
20
WCI 5300805859 WCI 5300805859 Contact Us For Availability
21
CLIP WCI 5300808115 Contact Us For Availability
21
SCREW - 10 X 1`` LG WCI 5300809022 Contact Us For Availability
21
CLAMP WCI 5300806142 Contact Us For Availability
22
WCI 3018083 WCI 3018083 Contact Us For Availability
22
RING-CLAMP (2) WCI 5300807712 Contact Us For Availability
22
WCI 5300806143 WCI 5300806143 Contact Us For Availability
23
WCI 5300809366 WCI 5300809366 Contact Us For Availability
23
WCI 3202540 WCI 3202540 Contact Us For Availability
23
KIT - FLOAT SWITCH - INCLUDES 14, 16, 17, 22 WCI 5300809859 Contact Us For Availability
23
WCI 5300803393 WCI 5300803393 Contact Us For Availability
24
SWITCH - FLOAT WCI 5300809863 Contact Us For Availability
24
TRIM - BOTTOM ACCESS PANEL WCI 5300808521 Contact Us For Availability
24
MOTOR ASSY (INCLUDES 1, 7, & 14) WCI 5300809985 Contact Us For Availability
24
WCI 5300800782 WCI 5300800782 Contact Us For Availability
25
SCREW WCI 5300809864 Contact Us For Availability
25
WCI 5300808185 WCI 5300808185 Contact Us For Availability
25
WCI 5300803392 WCI 5300803392 Contact Us For Availability
26
BODY ASSEMBLY WCI 5300806753 Contact Us For Availability
26
WCI 5300809144 WCI 5300809144 Contact Us For Availability
26
WCI 5300808184 WCI 5300808184 Contact Us For Availability
26
ADAPTER - COUPLER WCI 5300803149 Contact Us For Availability
27
SEAL - RUBBER SLEEVE WCI 5300806584 Contact Us For Availability
27
WCI 5300808522 WCI 5300808522 Contact Us For Availability
27
CLAMP-WIRE WCI 3018136 Contact Us For Availability
27
WCI 5300808183 WCI 5300808183 Contact Us For Availability
28
WCI 5300809898 WCI 5300809898 Contact Us For Availability
28
WCI 5300809021 WCI 5300809021 Contact Us For Availability
28
KIT - COLLAR REPAIR WCI 5300809139 Contact Us For Availability
29
BI-METAL ASSEMBLY WCI 5300809109 Contact Us For Availability
29
TERMINAL - GROUND WCI 5300808933 Contact Us For Availability
29
WCI 5300808181 WCI 5300808181 Contact Us For Availability
29
VALVE - PRESSURE RELIEF WCI 5300807498 Contact Us For Availability
30
BRACKET WCI 5300807849 Contact Us For Availability
30
TIP - TOWER WCI 5300808180 Contact Us For Availability
31
PLUG - FILL WCI 5300807673 Contact Us For Availability
31
WCI 5300808739 WCI 5300808739 Contact Us For Availability
31
SECTION-TOWER WCI 5300808179 Contact Us For Availability
32
WCI 5300808104 WCI 5300808104 Contact Us For Availability
32
BASE-TOWER WCI 5300808178 Contact Us For Availability
33
TRIM - RH ACCESS PANEL WCI 5300808990 Contact Us For Availability
33
TUBING-WATER-INCLUDES 34 WCI 5300807891 Contact Us For Availability
33
BOLT-SPRAY ARM WCI 5300809018 Contact Us For Availability
34
SPRAY ARM ASSEMBLY WCI 5300809954 Contact Us For Availability
34
INSERTS - DOOR & ACCESS PANEL - PLATINUM WCI 5300808755 Contact Us For Availability
34
INSERTS - DOOR & ACCESS PANEL - BLACK WCI 5300808804 Contact Us For Availability
34
INSERTS - DOOR & ACCESS PANEL - AVOCADO WCI 5300808909 Contact Us For Availability
34
WCI 5300809996 WCI 5300809996 Contact Us For Availability
34
WCI 5300807813 WCI 5300807813 Contact Us For Availability
35
BLOCK - TERMINAL WCI 5300807486 Contact Us For Availability
35
SHIELD - SPRAY ARM WCI 5300809938 Contact Us For Availability
36
TRIM - BOTTOM DOOR PANEL WCI 5300807347 Contact Us For Availability
36
SCREW WCI 3018140 Contact Us For Availability
36
SCREW-10 X 2 7/8`` WCI 5300809012 Contact Us For Availability
37
FILTER BODY ASSY - INCLUDES DIFFUSER WCI 5300809011 Contact Us For Availability
37
TRIM - TOP ACCESS PANEL WCI 5300808346 Contact Us For Availability
37
SCREW WCI 3018141 Contact Us For Availability
38
WCI 5300808103 WCI 5300808103 Contact Us For Availability
38
RELAY - MOTOR WCI 5300805255 Contact Us For Availability
38
WCI 5300809015 WCI 5300809015 Contact Us For Availability
39
GROMMET-DISPENSER WCI 5300805631 Contact Us For Availability
39
WCI 83350-2 WCI 83350-2 Contact Us For Availability
39
WCI 5300809014 WCI 5300809014 Contact Us For Availability
40
GUIDE - RH ARM WCI 5300807471 Contact Us For Availability
40
SCREW - 8 X 3/4`` LG WCI 809073 Contact Us For Availability
41
WCI 5300809016 WCI 5300809016 Contact Us For Availability
42
GASKET-INLET WCI 5300803573 Contact Us For Availability
43
TUB & GASKET WCI 5300809347 Contact Us For Availability
× ![]()
