Model Electrolux SP560MXH2 DISHWASHER – Common Parts & Diagrams
02 - CONSOLE AND CONTROL PARTS
03 - CAM

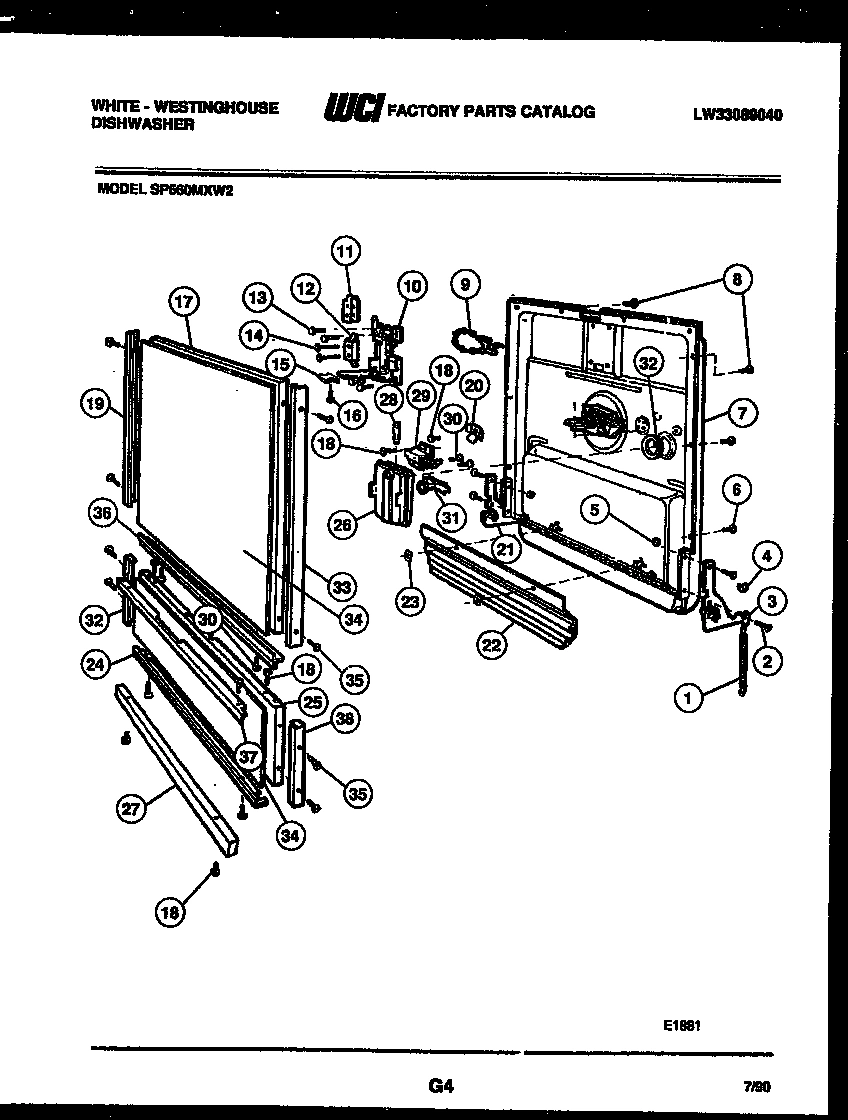

04 - DOOR PARTS

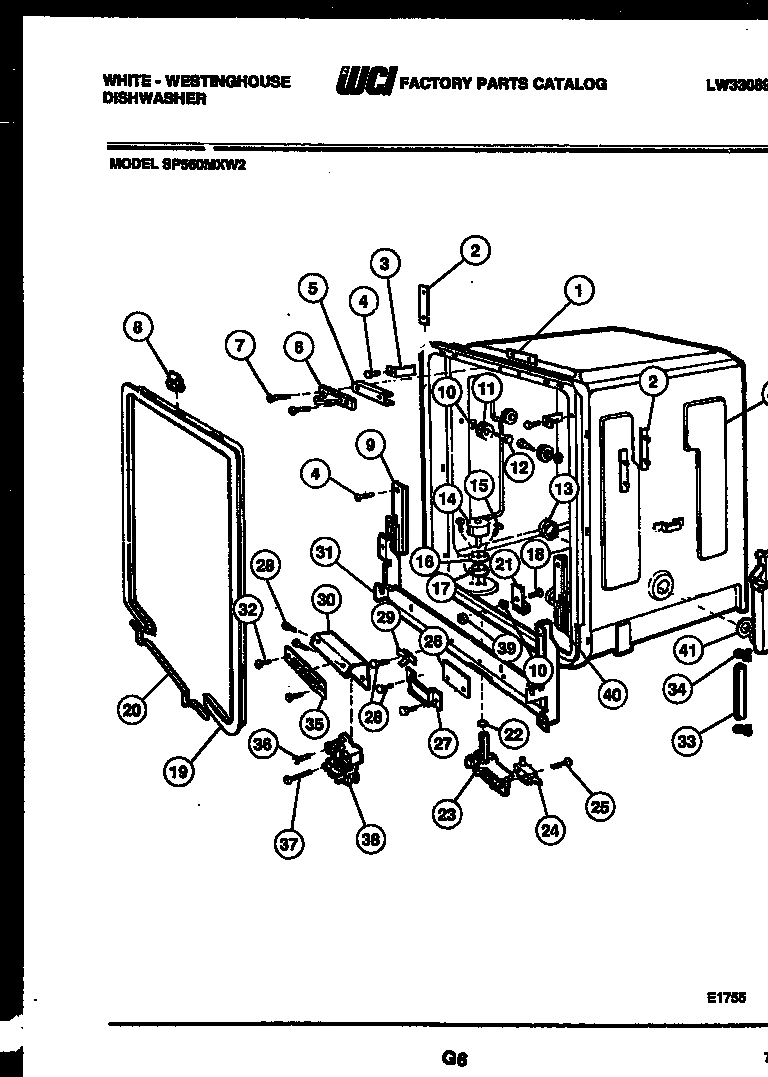

05 - TUB AND FRAME PARTS

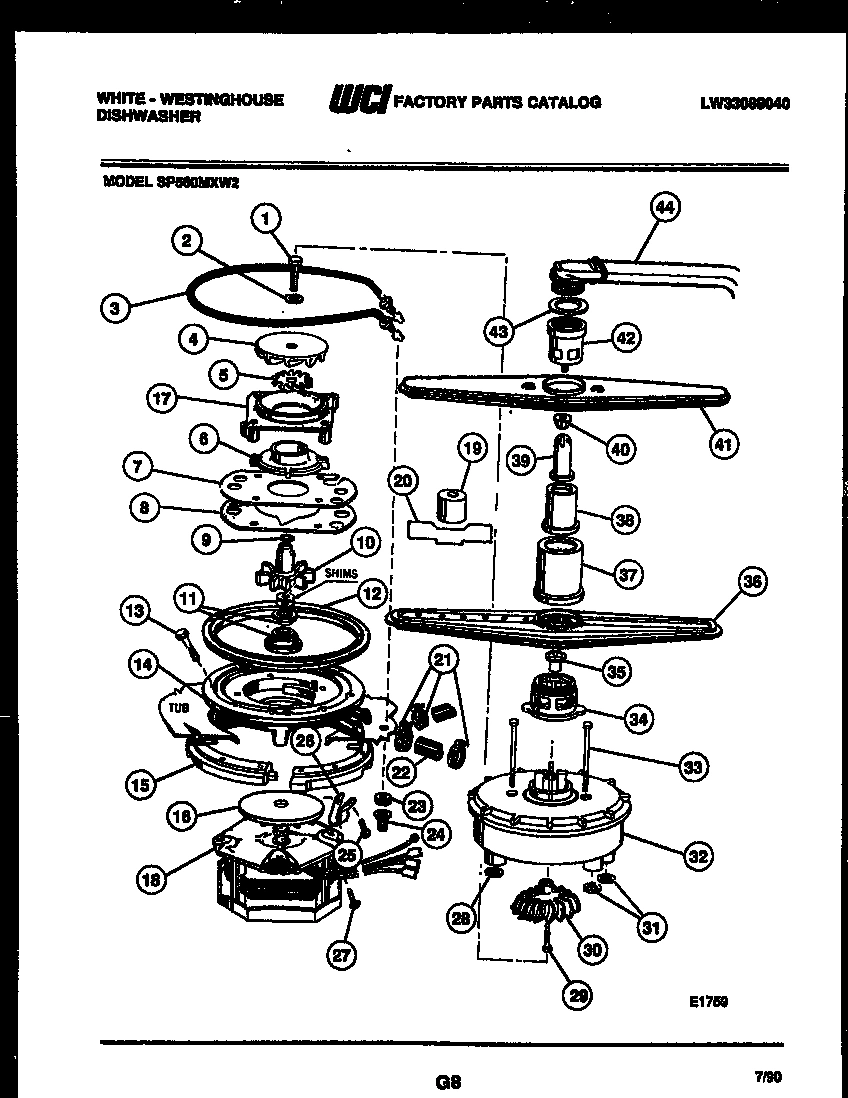

06 - MOTOR PUMP PARTS

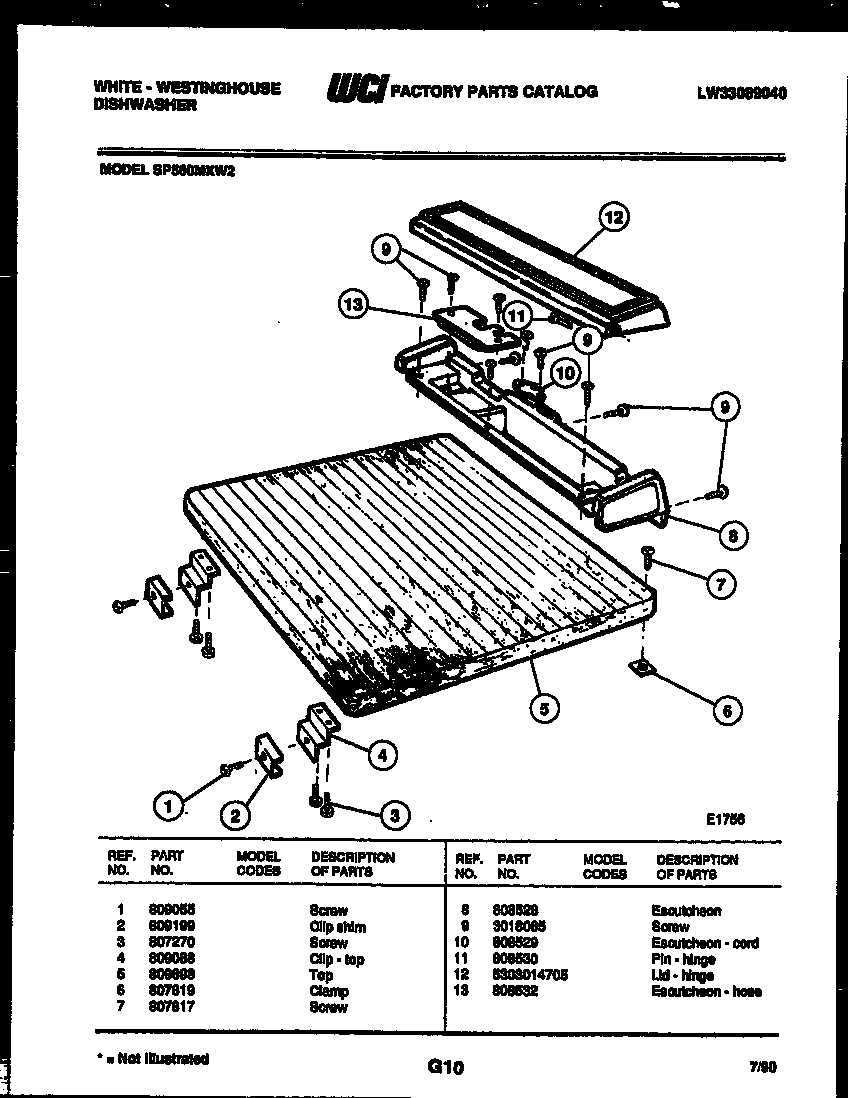

07 - TOP AND MISCELLANEOUS PARTS

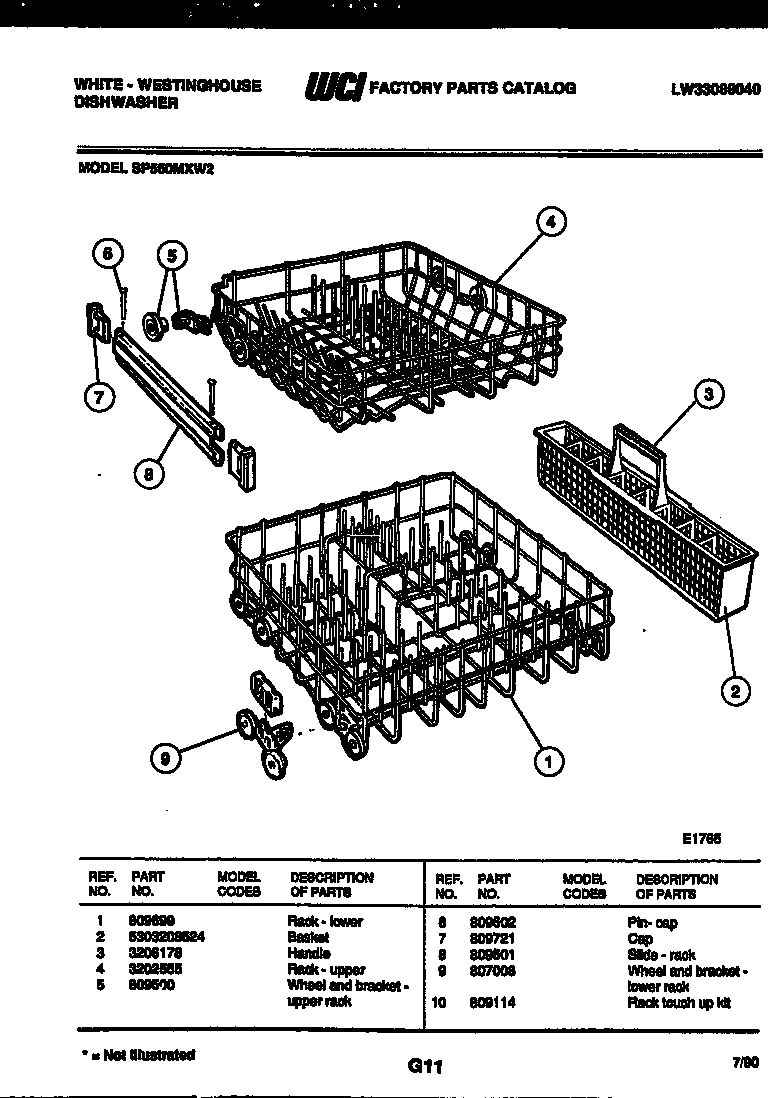

08 - RACKS AND TRAYS
09 - CABINET PARTS
Common parts from model Electrolux SP560MXH2 DISHWASHER
1
WCI 5303351139 WCI 5303351139 Contact Us For Availability
1
WCI 808827 WCI 808827 Contact Us For Availability
1
WCI 809360 WCI 809360 Contact Us For Availability
1
WCI 809055 WCI 809055 Contact Us For Availability
1
WCI 808868 WCI 808868 Contact Us For Availability
1
WCI 809446 WCI 809446 Contact Us For Availability
1
WCI 806353 WCI 806353 Contact Us For Availability
1
WCI 809699 WCI 809699 Contact Us For Availability
2
WCI 809783 WCI 809783 Contact Us For Availability
2
WCI 3018056 WCI 3018056 Contact Us For Availability
2
WCI 3018073 WCI 3018073 Contact Us For Availability
2
WCI 3018102 WCI 3018102 Contact Us For Availability
2
WCI 809199 WCI 809199 Contact Us For Availability
2
FRAME ASSY. (WHITE) WCI 808533 Contact Us For Availability
2
FRAMO ASSY - ALMOND WCI 808537 Contact Us For Availability
3
WCI 809784 WCI 809784 Contact Us For Availability
3
WCI 805227 WCI 805227 Contact Us For Availability
3
WCI 805681 WCI 805681 Contact Us For Availability
3
PAD - TUB WCI 807454 Contact Us For Availability
3
HEATER (INCLUDES 23 & 24) WCI 809004 Contact Us For Availability
3
WCI 807270 WCI 807270 Contact Us For Availability
3
HANDLE WCI 3206178 Contact Us For Availability
3
WCI 807951 WCI 807951 Contact Us For Availability
4
WCI 805324 WCI 805324 Contact Us For Availability
4
WCI 3014666 WCI 3014666 Contact Us For Availability
4
WCI 5303018103 WCI 5303018103 Contact Us For Availability
4
WCI 809088 WCI 809088 Contact Us For Availability
4
WCI 3202555 WCI 3202555 Contact Us For Availability
5
WCI 809576 WCI 809576 Contact Us For Availability
5
WCI 808470 WCI 808470 Contact Us For Availability
5
STRIKE - SHIM WCI 809214 Contact Us For Availability
5
WCI 3018104 WCI 3018104 Contact Us For Availability
5
WCI 809698 WCI 809698 Contact Us For Availability
5
WHEEL AND BRACKET - UPPER RACK WCI 809500 Contact Us For Availability
5
WCI 3018146 WCI 3018146 Contact Us For Availability
6
WCI 809317 WCI 809317 Contact Us For Availability
6
WCI 3202541 WCI 3202541 Contact Us For Availability
6
WCI 3014689 WCI 3014689 Contact Us For Availability
6
WCI 5303014671 WCI 5303014671 Contact Us For Availability
6
WCI 807819 WCI 807819 Contact Us For Availability
6
WCI 809502 WCI 809502 Contact Us For Availability
6
VALVE WATER KIT (INCLUDES 14) WCI 808667 Contact Us For Availability
7
WCI 3018170 WCI 3018170 Contact Us For Availability
7
WCI 3202542 WCI 3202542 Contact Us For Availability
7
DOOR ASSY. WCI 809054 Contact Us For Availability
7
WCI 809006 WCI 809006 Contact Us For Availability
7
WCI 807817 WCI 807817 Contact Us For Availability
7
WCI 809721 WCI 809721 Contact Us For Availability
7
WCI 808432 WCI 808432 Contact Us For Availability
8
WCI 3202543 WCI 3202543 Contact Us For Availability
8
WCI 808749 WCI 808749 Contact Us For Availability
8
WCI 3014661 WCI 3014661 Contact Us For Availability
8
WCI 809007 WCI 809007 Contact Us For Availability
8
WCI 808528 WCI 808528 Contact Us For Availability
8
SLIDE-RACK WCI 809501 Contact Us For Availability
9
WCI 809175 WCI 809175 Contact Us For Availability
9
WCI 809075 WCI 809075 Contact Us For Availability
9
WCI 808658 WCI 808658 Contact Us For Availability
9
WCI 807470 WCI 807470 Contact Us For Availability
9
WCI 3014675 WCI 3014675 Contact Us For Availability
9
WHEEL AND BRACKET - LOWER RACK WCI 807008 Contact Us For Availability
10
WCI 808483 WCI 808483 Contact Us For Availability
10
WCI 807016 WCI 807016 Contact Us For Availability
10
WCI 809044 WCI 809044 Contact Us For Availability
10
PUMP SEAL KIT (INCLUDES 2, 4, 5, 9, 11, & 20) WCI 809110 Contact Us For Availability
10
WCI 808529 WCI 808529 Contact Us For Availability
10
WCI 809114 WCI 809114 Contact Us For Availability
10
WCI 809661 WCI 809661 Contact Us For Availability
11
WCI 808333 WCI 808333 Contact Us For Availability
11
WCI 3018041 WCI 3018041 Contact Us For Availability
11
WCI 807180 WCI 807180 Contact Us For Availability
11
WCI 803903 WCI 803903 Contact Us For Availability
11
WCI 808520 WCI 808520 Contact Us For Availability
11
HOSE AND COUPLER ASSY WCI 807496 Contact Us For Availability
12
WCI 5303208522 WCI 5303208522 Contact Us For Availability
12
WCI 5303018043 WCI 5303018043 Contact Us For Availability
12
SCREW AND WASHER KIT (INCLUDES 10) WCI 3018075 Contact Us For Availability
12
WCI 3018108 WCI 3018108 Contact Us For Availability
12
LID - HINGE WCI 5303014705 Contact Us For Availability
12
WCI 804426 WCI 804426 Contact Us For Availability
13
WCI 5300809662 WCI 5300809662 Contact Us For Availability
13
WCI 809029 WCI 809029 Contact Us For Availability
13
WCI 3018090 WCI 3018090 Contact Us For Availability
13
WCI 3014699 WCI 3014699 Contact Us For Availability
13
WCI 808532 WCI 808532 Contact Us For Availability
13
WCI 805046 WCI 805046 Contact Us For Availability
14
INSERT - PANEL WCI 809788 Contact Us For Availability
14
WCI 808618 WCI 808618 Contact Us For Availability
14
WCI 5303208365 WCI 5303208365 Contact Us For Availability
14
WCI 809009 WCI 809009 Contact Us For Availability
14
WCI 808612 WCI 808612 Contact Us For Availability
15
WCI 809789 WCI 809789 Contact Us For Availability
15
WCI 808712 WCI 808712 Contact Us For Availability
15
WCI 5303018064 WCI 5303018064 Contact Us For Availability
15
WCI 808615 WCI 808615 Contact Us For Availability
16
WCI 809787 WCI 809787 Contact Us For Availability
16
WCI 809163 WCI 809163 Contact Us For Availability
16
WCI 3018065 WCI 3018065 Contact Us For Availability
16
WCI 3018077 WCI 3018077 Contact Us For Availability
16
WCI 809366 WCI 809366 Contact Us For Availability
17
WCI 807262 WCI 807262 Contact Us For Availability
17
WCI 3018078 WCI 3018078 Contact Us For Availability
17
WCI 809020 WCI 809020 Contact Us For Availability
17
WCI 808661 WCI 808661 Contact Us For Availability
18
WCI 3018081 WCI 3018081 Contact Us For Availability
18
MOTOR ASSY (INCLUDES 1, 9, 16 & 20) WCI 5303018112 Contact Us For Availability
18
WCI 808613 WCI 808613 Contact Us For Availability
19
WCI 3018061 WCI 3018061 Contact Us For Availability
19
GASKET AND WIRE ASSY (INCLUDES 8 AND 20) WCI 3202575 Contact Us For Availability
19
TOOL SEAL INSTALLATION (REQUIRED WHEN INSTALL WCI 5303018114 Contact Us For Availability
19
HOSE GUARD WCI 808120 Contact Us For Availability
20
WCI 809320 WCI 809320 Contact Us For Availability
20
SEAL SHIM GAGE WCI 3018115 Contact Us For Availability
20
HOSE GUARD WCI 805859 Contact Us For Availability
21
WCI 805682 WCI 805682 Contact Us For Availability
21
WCI 3018082 WCI 3018082 Contact Us For Availability
21
WCI 3018117 WCI 3018117 Contact Us For Availability
21
WCI 806142 WCI 806142 Contact Us For Availability
22
WCI 809025 WCI 809025 Contact Us For Availability
22
WCI 3018083 WCI 3018083 Contact Us For Availability
22
WCI 808174 WCI 808174 Contact Us For Availability
22
WCI 806143 WCI 806143 Contact Us For Availability
23
WCI 809026 WCI 809026 Contact Us For Availability
23
FLOAT SWITCH KIT (INCLUDES 14, 16, 17, 22, 2 WCI 5303208368 Contact Us For Availability
23
WCI 5303351028 WCI 5303351028 Contact Us For Availability
23
WCI 803393 WCI 803393 Contact Us For Availability
24
TRIM - ACCESS BOTTOM WCI 808521 Contact Us For Availability
24
WCI 5303208366 WCI 5303208366 Contact Us For Availability
24
WCI 5308000646 WCI 5308000646 Contact Us For Availability
25
WCI 809108 WCI 809108 Contact Us For Availability
25
WCI 5303208367 WCI 5303208367 Contact Us For Availability
25
WCI 5300803392 WCI 5300803392 Contact Us For Availability
26
WCI 808442 WCI 808442 Contact Us For Availability
26
WCI 3014680 WCI 3014680 Contact Us For Availability
26
WCI 809144 WCI 809144 Contact Us For Availability
26
COUPLER ADAPTOR WCI 5300803149 Contact Us For Availability
27
WCI 808522 WCI 808522 Contact Us For Availability
27
CLAMP-WIRE WCI 3018136 Contact Us For Availability
27
WCI 809022 WCI 809022 Contact Us For Availability
27
RUBBER SLEEVE SEAL WCI 806584 Contact Us For Availability
28
WCI 5303018172 WCI 5303018172 Contact Us For Availability
28
WCI 809016 WCI 809016 Contact Us For Availability
28
WCI 807499 WCI 807499 Contact Us For Availability
29
WCI 3018047 WCI 3018047 Contact Us For Availability
29
WCI 5303018173 WCI 5303018173 Contact Us For Availability
29
WCI 809073 WCI 809073 Contact Us For Availability
29
PRESSURE RELIEF VALVE WCI 807498 Contact Us For Availability
30
WCI 3018138 WCI 3018138 Contact Us For Availability
30
WCI 809014 WCI 809014 Contact Us For Availability
31
WCI 806755 WCI 806755 Contact Us For Availability
31
HINGE WCI 808739 Contact Us For Availability
31
WCI 809015 WCI 809015 Contact Us For Availability
32
WCI 3018182 WCI 3018182 Contact Us For Availability
32
WCI 809011 WCI 809011 Contact Us For Availability
33
WCI 3018044 WCI 3018044 Contact Us For Availability
33
TUBING - WATER (INCLUDES 34) WCI 3018094 Contact Us For Availability
33
WCI 809012 WCI 809012 Contact Us For Availability
34
ALMOND WCI 808908 Contact Us For Availability
34
AVOCADO WCI 808909 Contact Us For Availability
34
PLATINUM WCI 808910 Contact Us For Availability
34
TOAST WCI 808911 Contact Us For Availability
34
WHEAT WCI 808912 Contact Us For Availability
34
BLACK WCI 808913 Contact Us For Availability
34
WHITE WCI 808914 Contact Us For Availability
34
COFFEE WCI 808916 Contact Us For Availability
34
WCI 5303018121 WCI 5303018121 Contact Us For Availability
35
WCI 809752 WCI 809752 Contact Us For Availability
35
WCI 3018139 WCI 3018139 Contact Us For Availability
35
WCI 809018 WCI 809018 Contact Us For Availability
36
WCI 807347 WCI 807347 Contact Us For Availability
36
SCREW WCI 3018140 Contact Us For Availability
36
WCI 808177 WCI 808177 Contact Us For Availability
37
TRIM - ACCESS TOP WCI 808346 Contact Us For Availability
37
SCREW WCI 3018141 Contact Us For Availability
37
WCI 3018125 WCI 3018125 Contact Us For Availability
38
WCI 808103 WCI 808103 Contact Us For Availability
38
WCI 5303014653 WCI 5303014653 Contact Us For Availability
38
WCI 3018126 WCI 3018126 Contact Us For Availability
39
WCI 5300803346 WCI 5300803346 Contact Us For Availability
39
WCI 808180 WCI 808180 Contact Us For Availability
40
WCI 807471 WCI 807471 Contact Us For Availability
40
WCI 828181 WCI 828181 Contact Us For Availability
41
WCI 3018091 WCI 3018091 Contact Us For Availability
41
SPRAY ARM WCI 809021 Contact Us For Availability
42
INLET WATER WCI 5303018092 Contact Us For Availability
42
WCI 808183 WCI 808183 Contact Us For Availability
43
TUB AND GASKET WCI 809347 Contact Us For Availability
43
WCI 808184 WCI 808184 Contact Us For Availability
44
WCI 807509 WCI 807509 Contact Us For Availability
44
WCI 808135 WCI 808135 Contact Us For Availability
× ![]()
