Model Electrolux SP24D5KYGA DISHWASHER – Common Parts & Diagrams

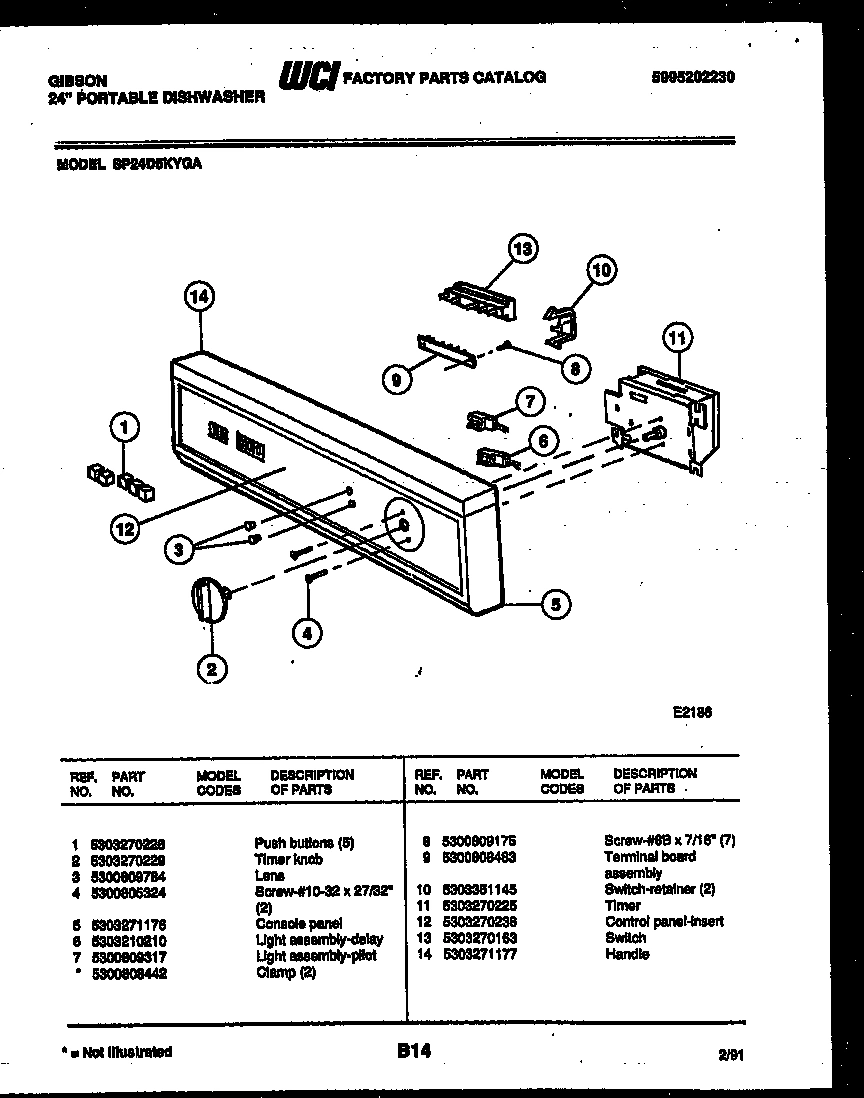

02 - CONSOLE AND CONTROL PARTS

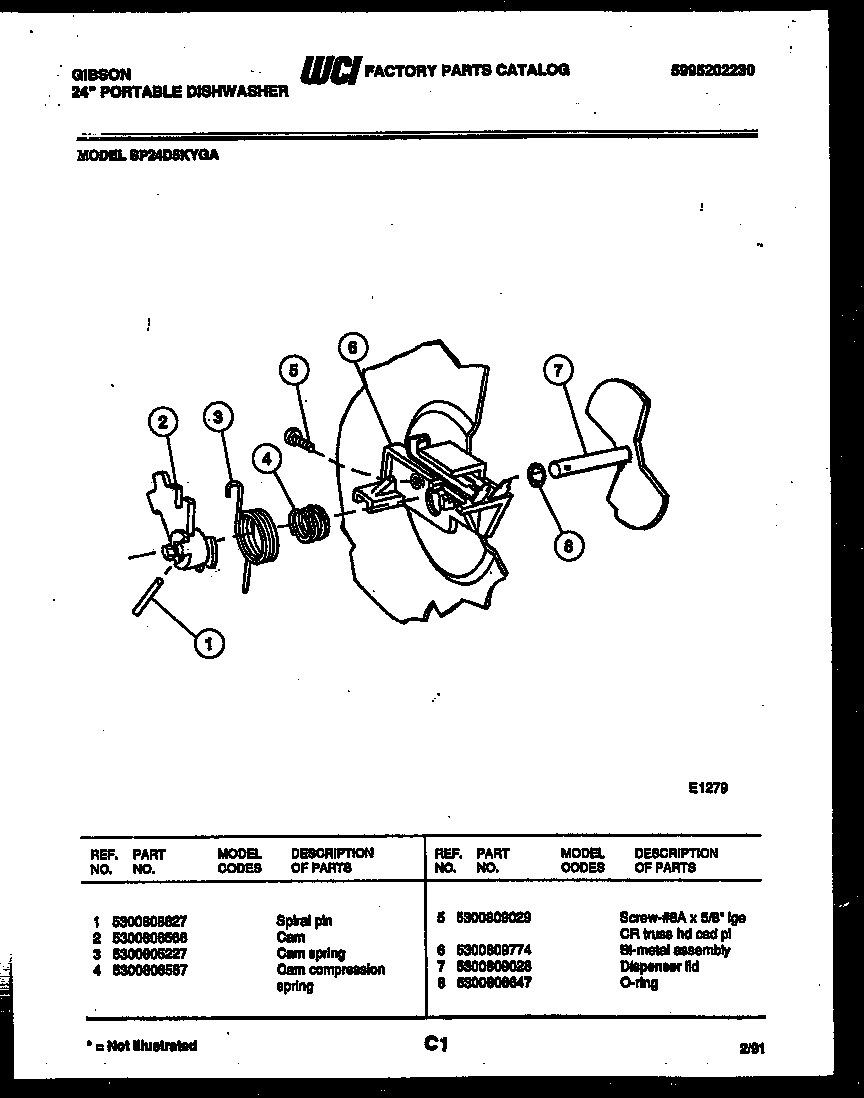

03 - CAM

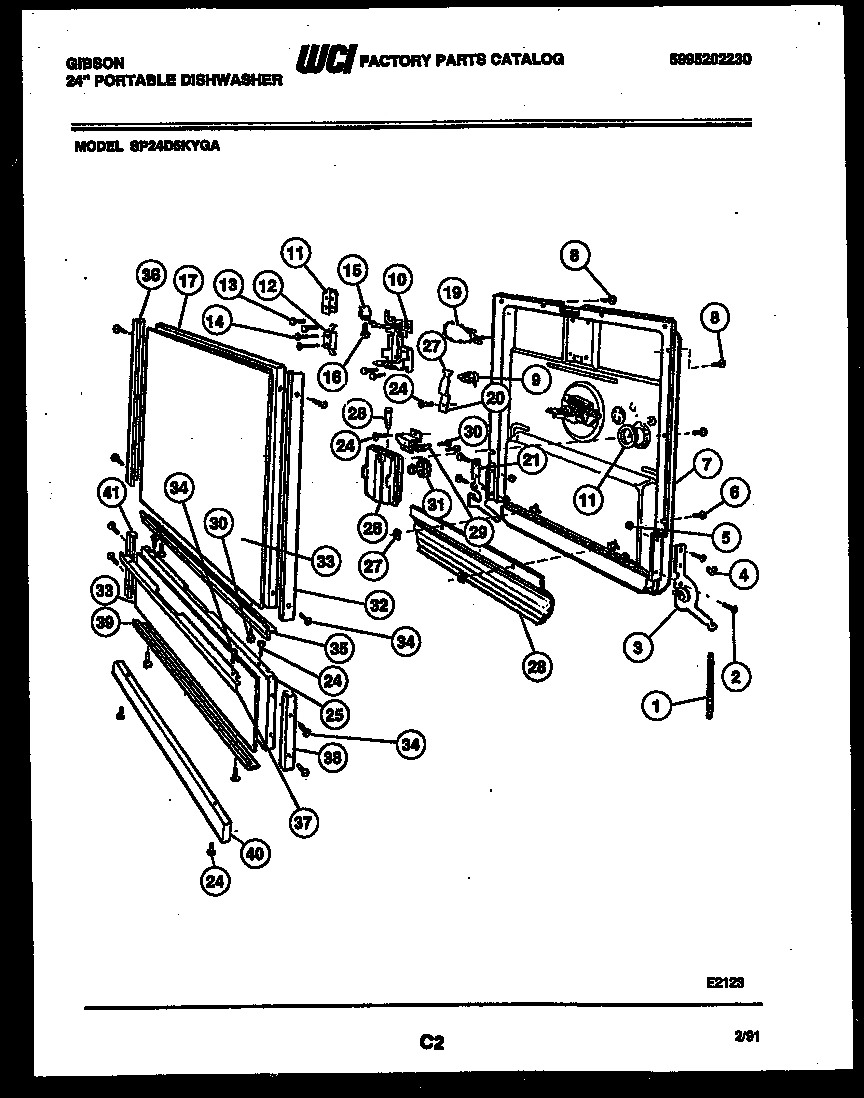

04 - DOOR PARTS

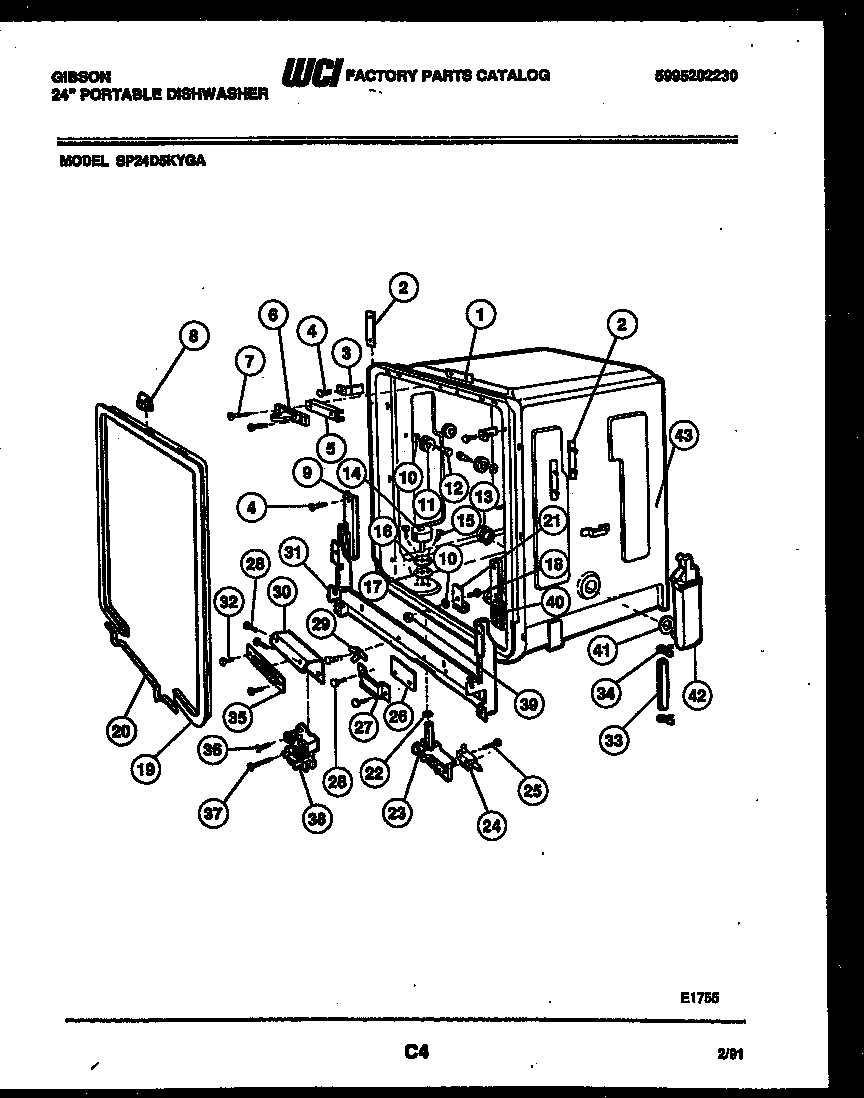

05 - TUB AND FRAME PARTS

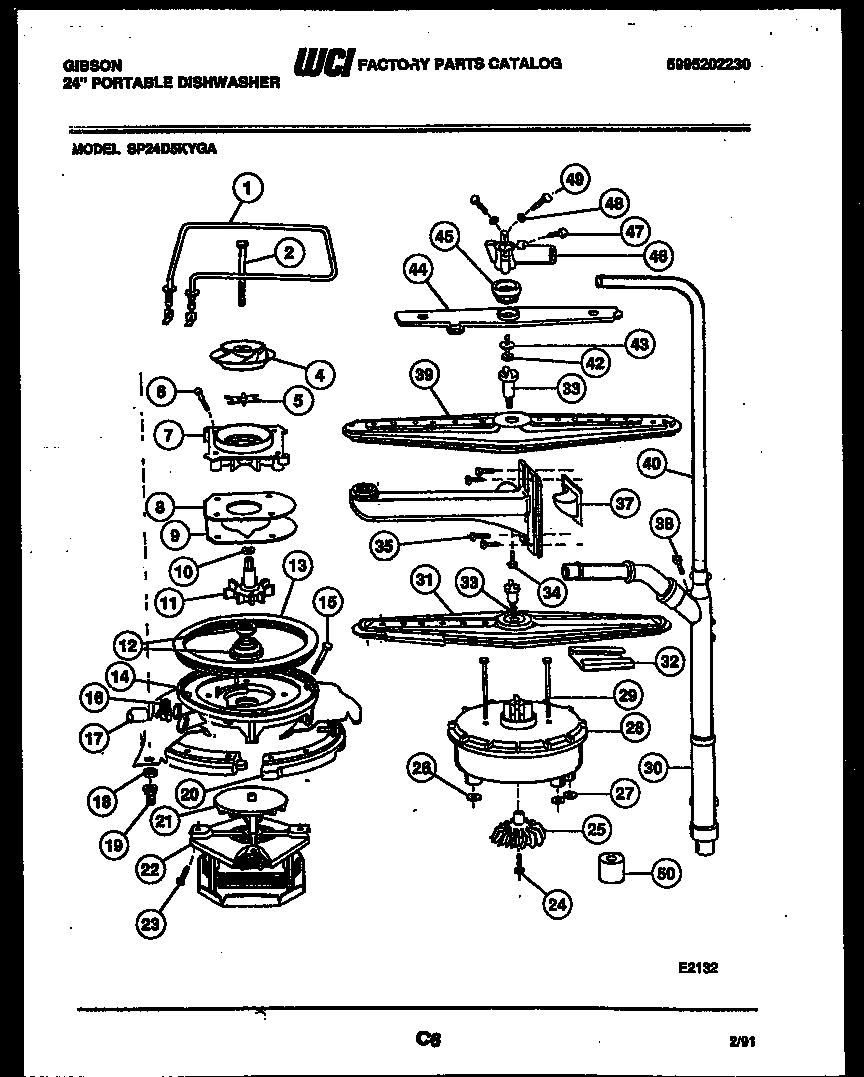

06 - MOTOR PUMP PARTS

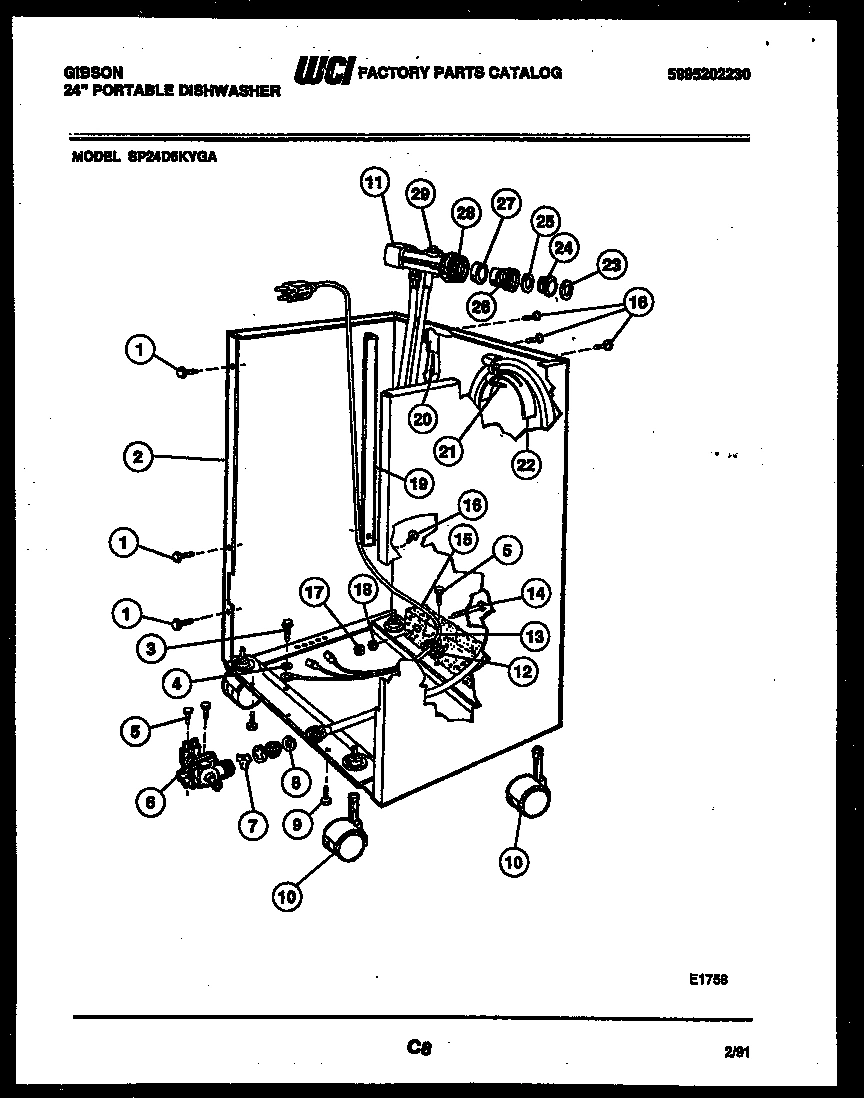

07 - CABINET PARTS

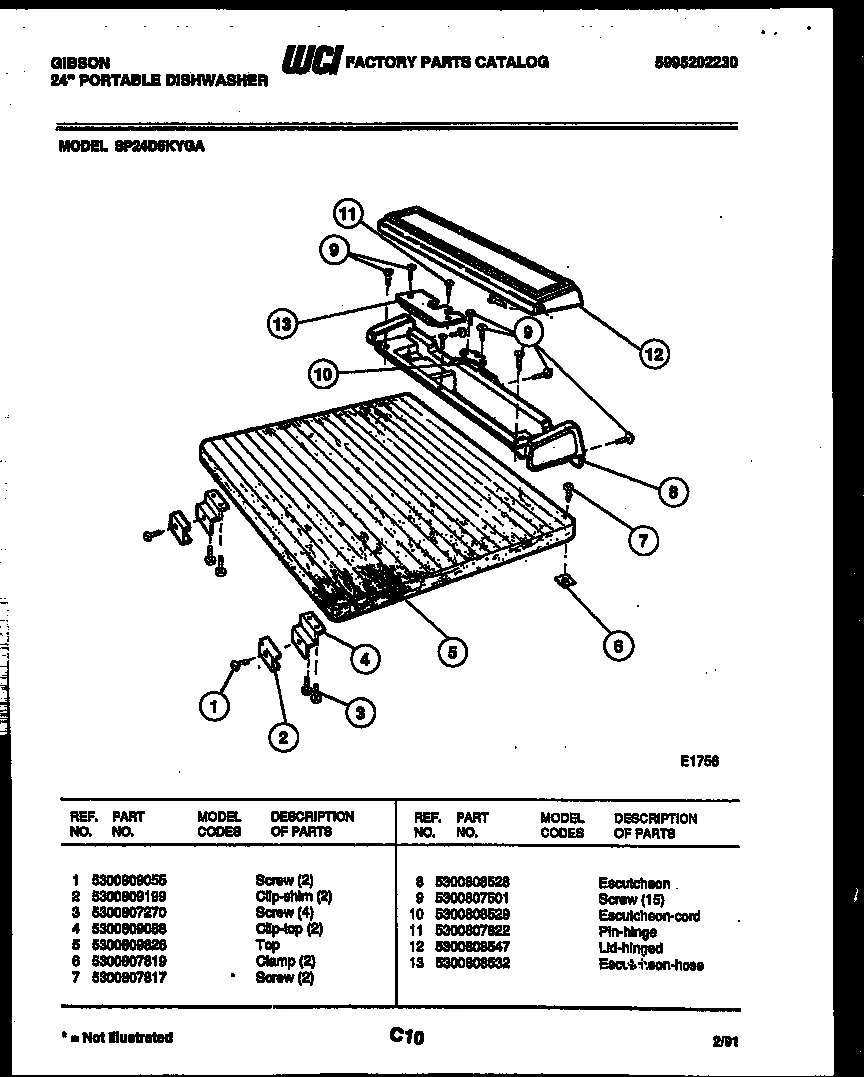

08 - TOP PARTS

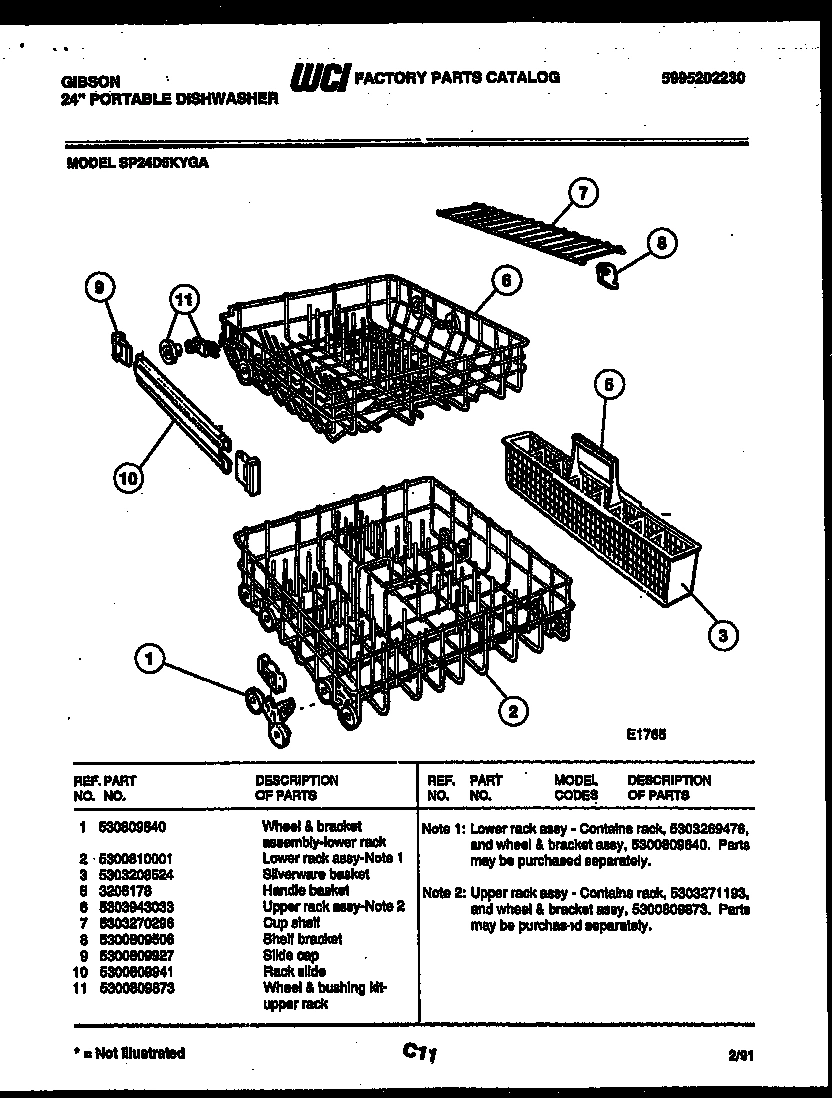

09 - RACKS AND TRAYS
Common parts from model Electrolux SP24D5KYGA DISHWASHER
1
WCI 5300809360 WCI 5300809360 Contact Us For Availability
1
SCREW (2) WCI 5300809055 Contact Us For Availability
1
PLATE - TAPPING WCI 5300808868 Contact Us For Availability
1
SCREW (4) WCI 5300806539 Contact Us For Availability
1
WCI 5300809004 WCI 5300809004 Contact Us For Availability
1
WCI 530809640 WCI 530809640 Contact Us For Availability
2
SCREW WCI 5300806353 Contact Us For Availability
2
SCREW-10-24 X 5/8`` (4) WCI 5300803311 Contact Us For Availability
2
PLATE-TAPPING (6) WCI 5300807038 Contact Us For Availability
2
WCI 5300808533 WCI 5300808533 Contact Us For Availability
2
WCI 5300809199 WCI 5300809199 Contact Us For Availability
2
WCI 5300810001 WCI 5300810001 Contact Us For Availability
3
ARM ASSEMBLY-RH WCI 5300805681 Contact Us For Availability
3
PAD - TUB WCI 5300807454 Contact Us For Availability
3
SCREW WCI 5300807951 Contact Us For Availability
3
SCREW (4) WCI 5300807270 Contact Us For Availability
4
SPRING PAD (2) WCI 5300805884 Contact Us For Availability
4
CLIP-TOP (2) WCI 5300809088 Contact Us For Availability
5
SHIM - STRIKE WCI 5300809214 Contact Us For Availability
5
SCREW (3) WCI 5300807004 Contact Us For Availability
5
TOP WCI 5300809826 Contact Us For Availability
5
WCI 3206178 WCI 3206178 Contact Us For Availability
6
STRIKE - DOOR WCI 5300807015 Contact Us For Availability
6
SCREW WCI 5300807359 Contact Us For Availability
6
WCI 5303212601 WCI 5303212601 Contact Us For Availability
6
WCI 5300807819 WCI 5300807819 Contact Us For Availability
6
WCI 5303943033 WCI 5303943033 Contact Us For Availability
7
DISPENSER LID WCI 5300809028 Contact Us For Availability
7
WCI 5300809054 WCI 5300809054 Contact Us For Availability
7
WCI 5300809921 WCI 5300809921 Contact Us For Availability
7
WCI 5300808432 WCI 5300808432 Contact Us For Availability
7
WCI 5300807817 WCI 5300807817 Contact Us For Availability
7
WCI 5303270296 WCI 5303270296 Contact Us For Availability
8
WCI 5300806647 WCI 5300806647 Contact Us For Availability
8
WCI 5300808749 WCI 5300808749 Contact Us For Availability
8
WCI 5300805763 WCI 5300805763 Contact Us For Availability
8
WCI 5300809006 WCI 5300809006 Contact Us For Availability
8
WCI 5300808528 WCI 5300808528 Contact Us For Availability
8
SHELF BRACKET WCI 5300809506 Contact Us For Availability
9
THERMOSTAT-WATER HEAT WCI 5300114003 Contact Us For Availability
9
SCREW (15) WCI 5300807501 Contact Us For Availability
9
WCI 5300807470 WCI 5300807470 Contact Us For Availability
9
WCI 5300809007 WCI 5300809007 Contact Us For Availability
10
WCI 5303271234 WCI 5303271234 Contact Us For Availability
10
CASTERS WCI 5300809661 Contact Us For Availability
10
WCI 5300808529 WCI 5300808529 Contact Us For Availability
10
WCI 5300809941 WCI 5300809941 Contact Us For Availability
11
PUMP IMPELLER KIT-INCLUDES 4-5-9-11 WCI 5300809910 Contact Us For Availability
11
WCI 5300807450 WCI 5300807450 Contact Us For Availability
11
HOSE & COUPLER ASSY WCI 5300807496 Contact Us For Availability
11
WCI 5300807822 WCI 5300807822 Contact Us For Availability
11
WHEEL & BUSHING KIT-UPPER RACK WCI 5300809873 Contact Us For Availability
12
WCI 5300803903 WCI 5300803903 Contact Us For Availability
12
WCI 5300808564 WCI 5300808564 Contact Us For Availability
12
WCI 5300807043 WCI 5300807043 Contact Us For Availability
12
WCI 5300804426 WCI 5300804426 Contact Us For Availability
12
WCI 5300808547 WCI 5300808547 Contact Us For Availability
13
PUMP GASKET WCI 5300809008 Contact Us For Availability
13
SCREW-8A X 5/8`` (4) WCI 5300809029 Contact Us For Availability
13
WCI 5300805669 WCI 5300805669 Contact Us For Availability
13
WCI 5300805046 WCI 5300805046 Contact Us For Availability
13
WCI 5300808532 WCI 5300808532 Contact Us For Availability
14
WCI 5300808618 WCI 5300808618 Contact Us For Availability
14
WCI 5300809861 WCI 5300809861 Contact Us For Availability
14
WCI 5300809939 WCI 5300809939 Contact Us For Availability
14
SCREW WCI 5300808612 Contact Us For Availability
15
WCI 5300808712 WCI 5300808712 Contact Us For Availability
15
SCREW WCI 5300807268 Contact Us For Availability
15
WCI 5300808615 WCI 5300808615 Contact Us For Availability
16
SCREW-8-32 X 5/16`` (4) WCI 5300808715 Contact Us For Availability
16
PLATE - FLOAT WCI 5300808064 Contact Us For Availability
16
WCI 5300808186 WCI 5300808186 Contact Us For Availability
17
GASKET - FLOAT WCI 5300808063 Contact Us For Availability
17
WCI 5300807262 WCI 5300807262 Contact Us For Availability
17
WCI 5300805923 WCI 5300805923 Contact Us For Availability
17
NUT (2) WCI 5300808661 Contact Us For Availability
18
WCI 5300805631 WCI 5300805631 Contact Us For Availability
18
INSULATING WASHER WCI 5300806833 Contact Us For Availability
18
SCREW WCI 5300803319 Contact Us For Availability
18
WASHER (2) WCI 5300808613 Contact Us For Availability
19
WCI 5300809035 WCI 5300809035 Contact Us For Availability
19
WCI 5300808120 WCI 5300808120 Contact Us For Availability
20
WCI 5300809320 WCI 5300809320 Contact Us For Availability
20
PUMP CLAMP WCI 5300807712 Contact Us For Availability
20
WCI 5300805859 WCI 5300805859 Contact Us For Availability
21
WCI 5300809366 WCI 5300809366 Contact Us For Availability
21
ARM ASSEMBLY-LH WCI 5300805682 Contact Us For Availability
21
CLIP WCI 5300808115 Contact Us For Availability
21
WCI 5300806142 WCI 5300806142 Contact Us For Availability
22
WCI 5300809025 WCI 5300809025 Contact Us For Availability
22
WCI 5300807759 WCI 5300807759 Contact Us For Availability
22
MOTOR ASSY WCI 5300809985 Contact Us For Availability
22
WCI 5300806143 WCI 5300806143 Contact Us For Availability
23
SPEEDNUT (2) WCI 5300809695 Contact Us For Availability
23
FLOAT SWITCH KIT (INCLUDES 14, 16, 17, 22, 24 WCI 5300809859 Contact Us For Availability
23
SCREW WCI 5300809022 Contact Us For Availability
23
WCI 5300803393 WCI 5300803393 Contact Us For Availability
24
SWITCH - FLOAT WCI 5300809863 Contact Us For Availability
24
SCREW WCI 5300809073 Contact Us For Availability
24
WCI 5300800782 WCI 5300800782 Contact Us For Availability
25
WCI 5300809108 WCI 5300809108 Contact Us For Availability
25
SCREW WCI 5300809864 Contact Us For Availability
25
WCI 5300809014 WCI 5300809014 Contact Us For Availability
25
WCI 5300803392 WCI 5300803392 Contact Us For Availability
26
BODY ASSEMBLY WCI 5300806753 Contact Us For Availability
26
WCI 5300809144 WCI 5300809144 Contact Us For Availability
26
WCI 5300809016 WCI 5300809016 Contact Us For Availability
26
COUPLER ADAPTOR WCI 5300803149 Contact Us For Availability
27
RUBBER SLEEVE SEAL WCI 5300806584 Contact Us For Availability
27
THERMOSTAT RETAINER WCI 5300809097 Contact Us For Availability
27
CLAMP - WIRE WCI 5300806723 Contact Us For Availability
27
WCI 5300809015 WCI 5300809015 Contact Us For Availability
28
WCI 5300809898 WCI 5300809898 Contact Us For Availability
28
WCI 5300809011 WCI 5300809011 Contact Us For Availability
28
WCI 5300809139 WCI 5300809139 Contact Us For Availability
29
TERMINAL GROUND WCI 5300807213 Contact Us For Availability
29
BI-METAL ASSEMBLY WCI 5300809109 Contact Us For Availability
29
SCREW WCI 5300809012 Contact Us For Availability
29
WCI 5300807498 WCI 5300807498 Contact Us For Availability
30
BRACKET WCI 5300807849 Contact Us For Availability
30
DELIVERY TUBE ASSY KIT WCI 5300808805 Contact Us For Availability
31
FILL PLUG WCI 5300807673 Contact Us For Availability
31
WCI 5300808739 WCI 5300808739 Contact Us For Availability
31
WCI 5303943014 WCI 5303943014 Contact Us For Availability
32
DOOR PANEL TRIM-RH WCI 5300808990 Contact Us For Availability
32
WCI 5300809938 WCI 5300809938 Contact Us For Availability
33
DOOR & ACCESS PANEL INSERTS-ALMOND & BLACK WCI 5300808908 Contact Us For Availability
33
TUBING-WATER-INCLUDES 34 WCI 5300807891 Contact Us For Availability
33
WCI 5300809018 WCI 5300809018 Contact Us For Availability
34
CLAMP WCI 5300807813 Contact Us For Availability
35
WCI 5300807347 WCI 5300807347 Contact Us For Availability
35
TERMINAL BLOCK WCI 5300809830 Contact Us For Availability
35
SCREW WCI 5300805106 Contact Us For Availability
36
WCI 5300809019 WCI 5300809019 Contact Us For Availability
36
DOOR PANEL TRIM-LH WCI 5300808991 Contact Us For Availability
36
SCREW WCI 3018140 Contact Us For Availability
37
ACCESS PANEL TRIM-TOP WCI 5300808346 Contact Us For Availability
37
SCREW WCI 3018141 Contact Us For Availability
37
WCI 5300805781 WCI 5300805781 Contact Us For Availability
38
ACCESS PANEL TRIM-RH WCI 5300808103 Contact Us For Availability
38
RELAY - MOTOR WCI 5300805255 Contact Us For Availability
38
SCREW WCI 5300806656 Contact Us For Availability
39
WCI 5300808521 WCI 5300808521 Contact Us For Availability
39
WCI 5300803346 WCI 5300803346 Contact Us For Availability
39
WCI 5300809021 WCI 5300809021 Contact Us For Availability
40
WCI 5300808522 WCI 5300808522 Contact Us For Availability
40
WCI 5300807471 WCI 5300807471 Contact Us For Availability
40
WCI 5300807224 WCI 5300807224 Contact Us For Availability
41
ACCESS PANEL TRIM-LH WCI 5300808104 Contact Us For Availability
41
WCI 530003573 WCI 530003573 Contact Us For Availability
42
INLET WATER WCI 5300806470 Contact Us For Availability
42
SCREW WCI 5300808466 Contact Us For Availability
43
WCI 5300809259 WCI 5300809259 Contact Us For Availability
43
WCI 5300808465 WCI 5300808465 Contact Us For Availability
44
SPRAY ARM SEAL ASSY WCI 5300808463 Contact Us For Availability
45
WCI 5300808462 WCI 5300808462 Contact Us For Availability
47
SCREW WCI 5300806976 Contact Us For Availability
48
WCI 5300809044 WCI 5300809044 Contact Us For Availability
49
SCREW WCI 5300806901 Contact Us For Availability
50
WCI 5300803923 WCI 5300803923 Contact Us For Availability
× ![]()
