Model Electrolux SP24C6WWGC DISHWASHER – Common Parts & Diagrams
02 - INNER DOOR PARTS
03 - INNER TUB PARTS

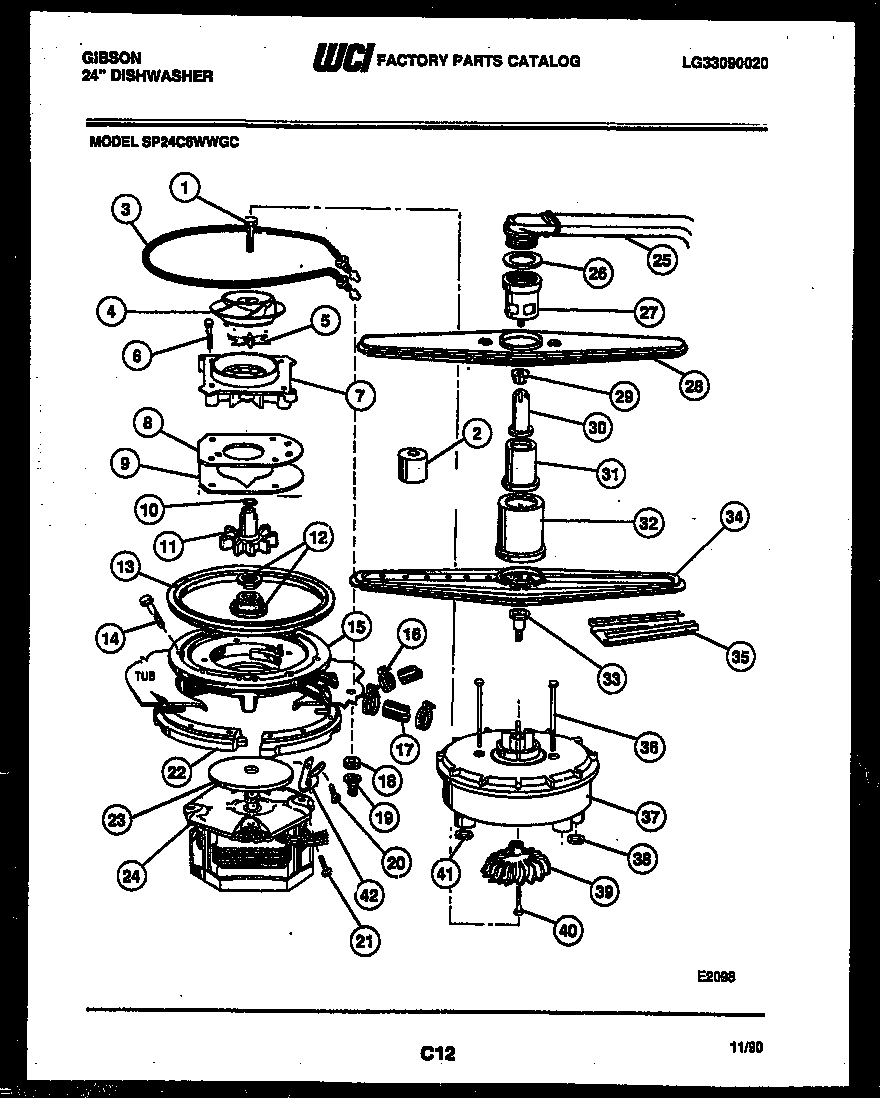

04 - MOTOR AND PUMP PARTS

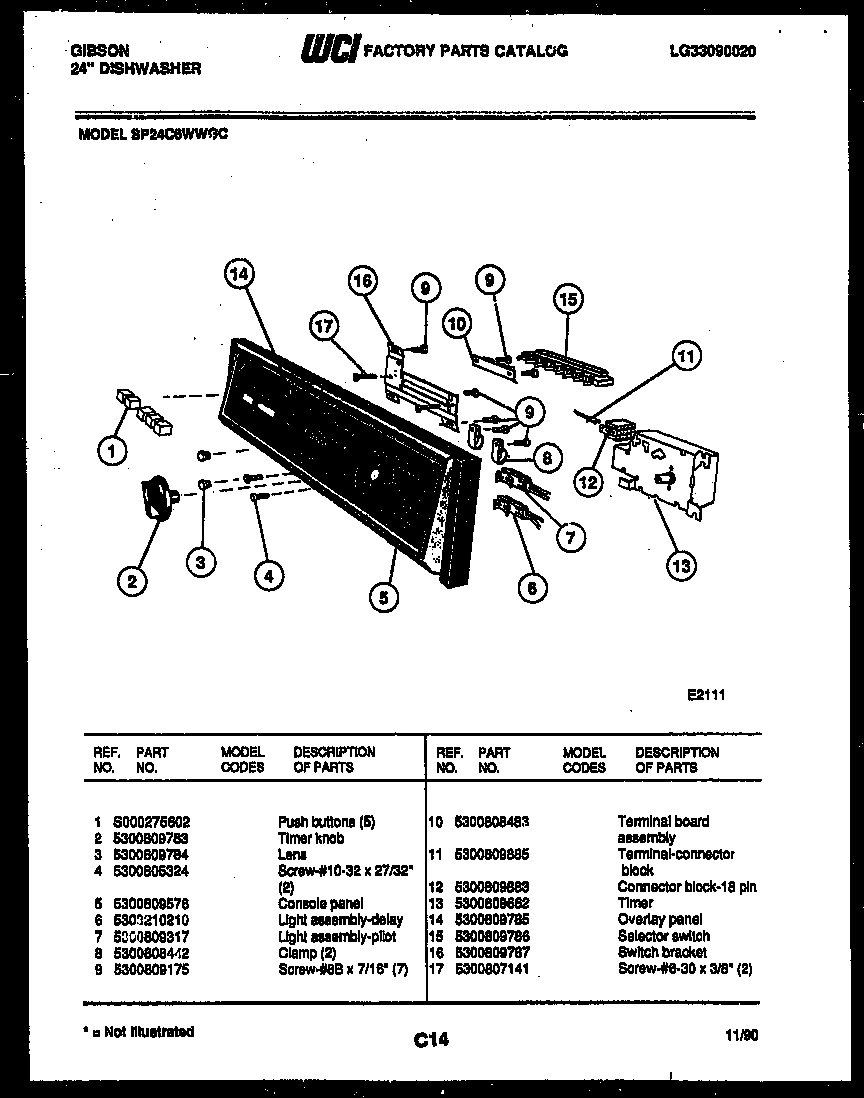

05 - CONSOLE AND CONTROL PARTS

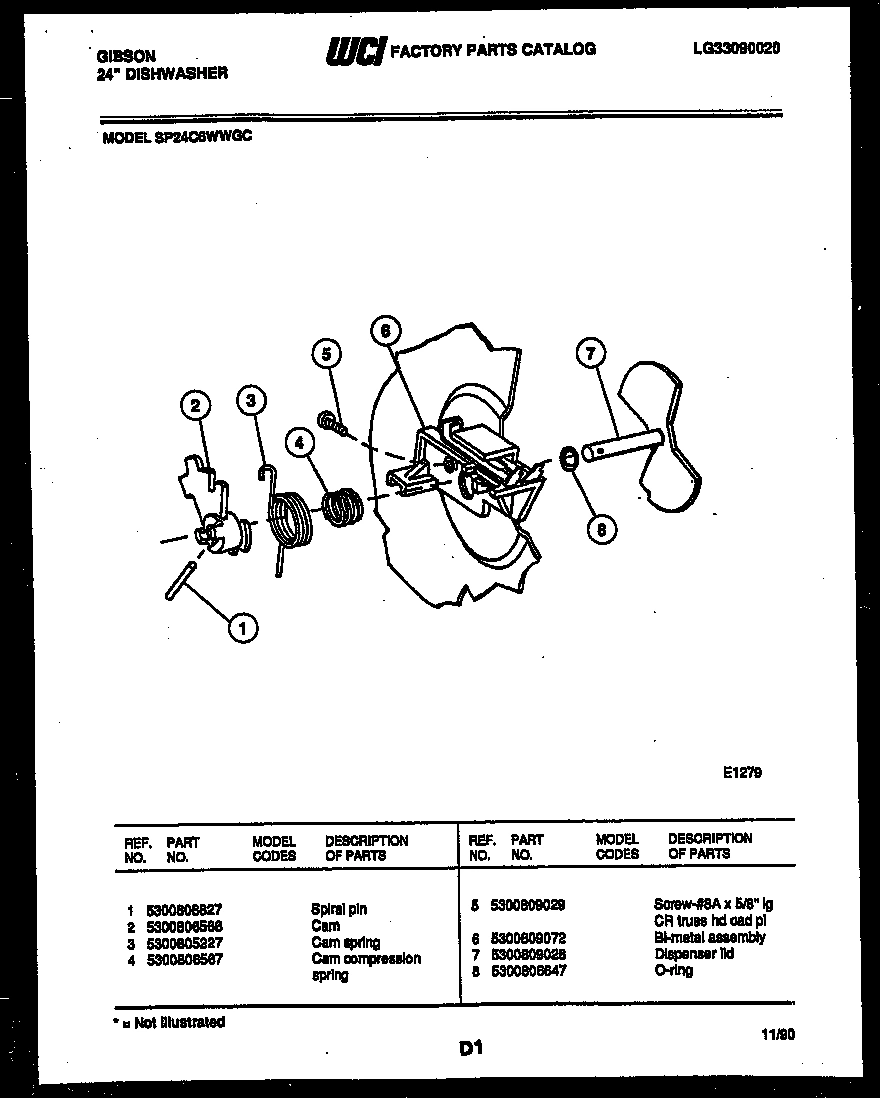

06 - CAM

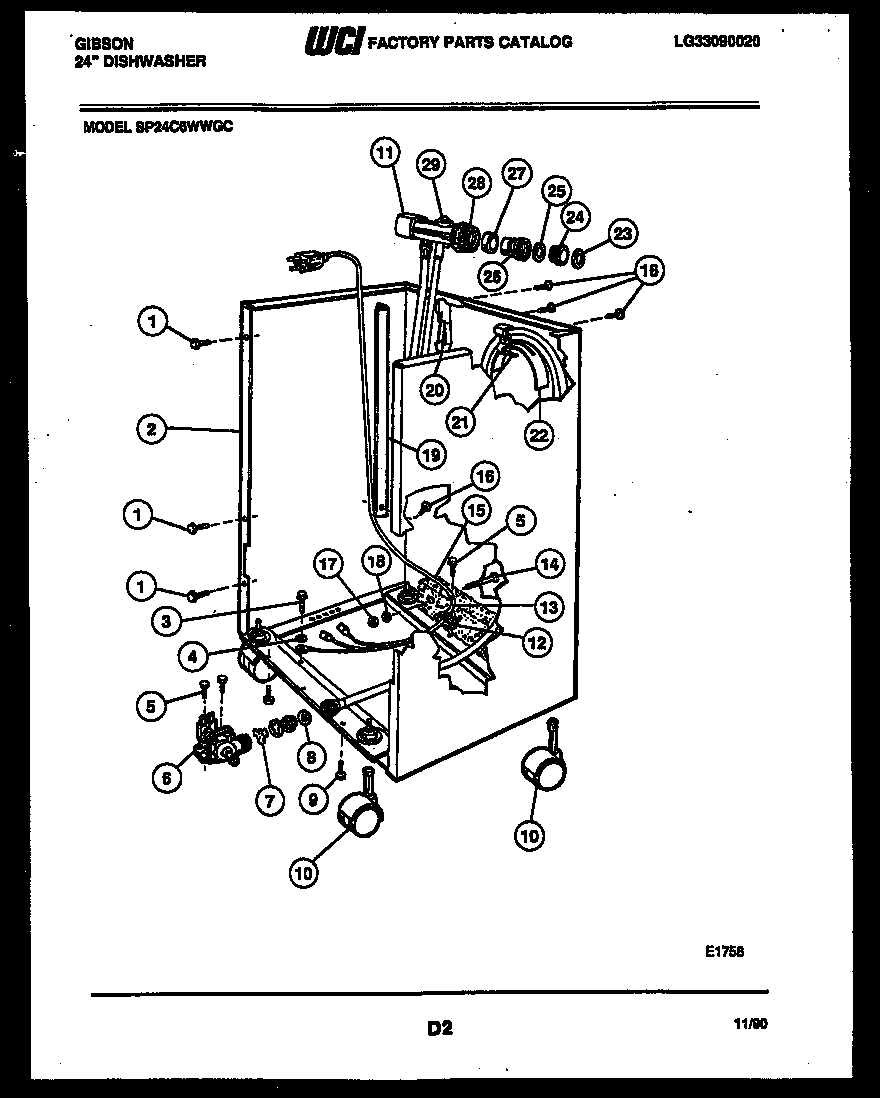

07 - CABINET PARTS

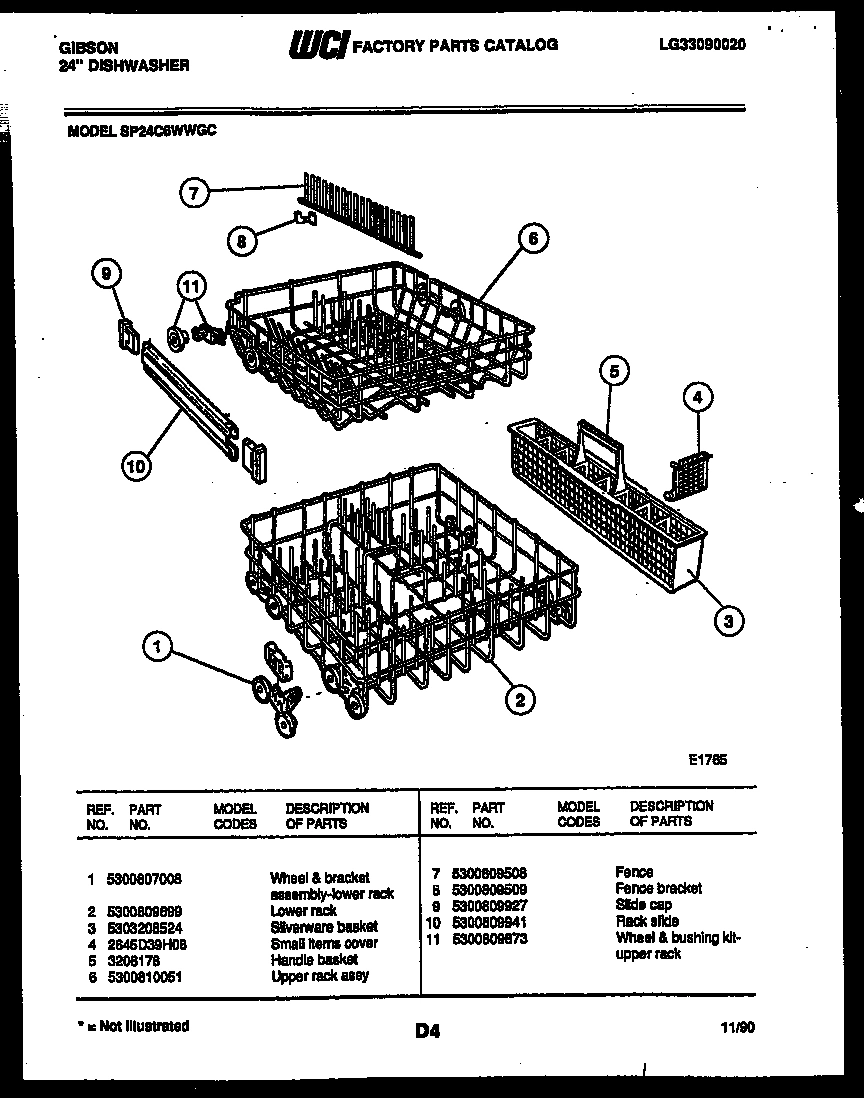

08 - RACKS AND TRAYS

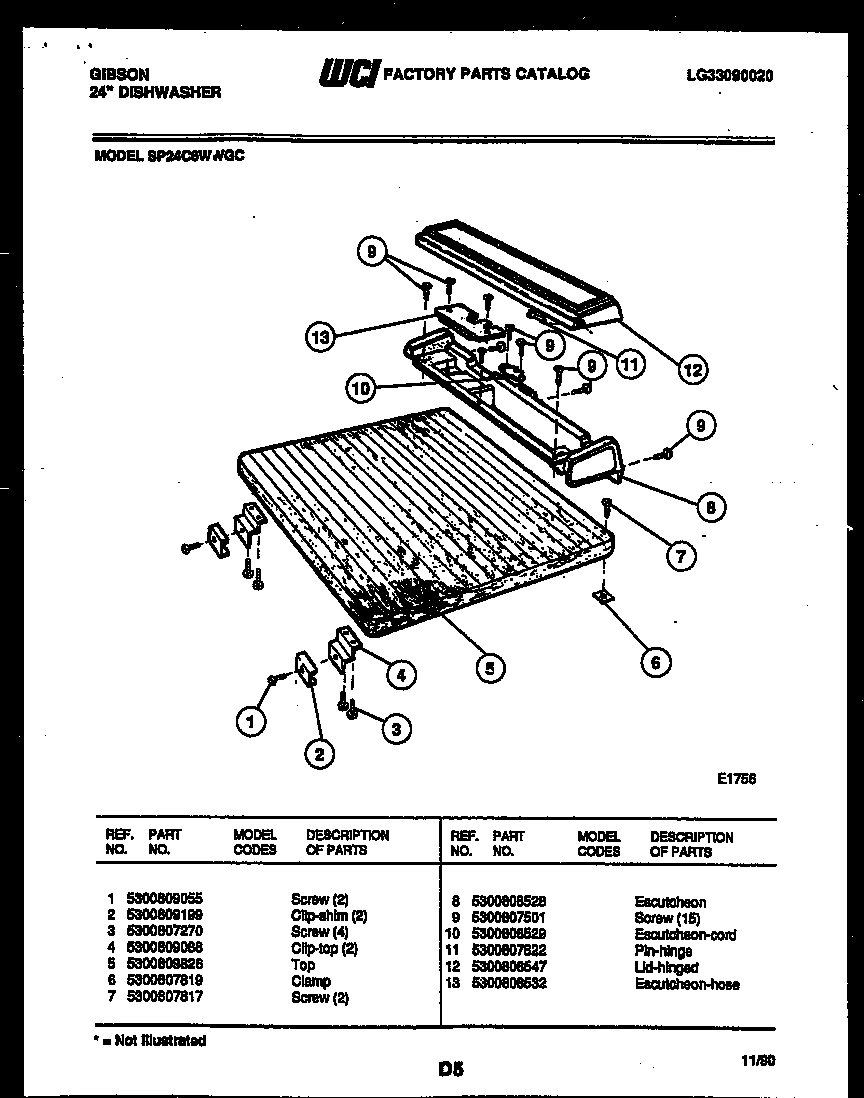

09 - TOP PARTS
Common parts from model Electrolux SP24C6WWGC DISHWASHER
1
WCI 5300809360 WCI 5300809360 Contact Us For Availability
1
SCREW-10-32 X 1/4`` WCI 5300806353 Contact Us For Availability
1
PLATE - TAPPING WCI 5300808868 Contact Us For Availability
1
SCREW (4) WCI 5300806539 Contact Us For Availability
1
PUSH BUTTONS (5) WCI S000275602 Contact Us For Availability
1
WCI 5300808827 WCI 5300808827 Contact Us For Availability
1
WHEEL & BRACKET ASSEMBLY-LOWER RACK WCI 5300807008 Contact Us For Availability
1
SCREW (2) WCI 5300809055 Contact Us For Availability
2
PLATE - TAPPING (6) WCI 3018073 Contact Us For Availability
2
WCI 5300803923 WCI 5300803923 Contact Us For Availability
2
TIMER KNOB WCI 5300809783 Contact Us For Availability
2
WCI 5300808533 WCI 5300808533 Contact Us For Availability
2
WCI 5300808537 WCI 5300808537 Contact Us For Availability
2
WCI 5300809699 WCI 5300809699 Contact Us For Availability
2
WCI 5300809199 WCI 5300809199 Contact Us For Availability
3
PAD - TUB WCI 5300807454 Contact Us For Availability
3
WCI 5300809004 WCI 5300809004 Contact Us For Availability
3
WCI 5300809784 WCI 5300809784 Contact Us For Availability
3
WCI 5300805227 WCI 5300805227 Contact Us For Availability
3
SCREW WCI 5300807951 Contact Us For Availability
3
SCREW (4) WCI 5300807270 Contact Us For Availability
4
SCREW-10-32 X 27/32`` (2) WCI 5300805324 Contact Us For Availability
4
SMALL ITEMS COVER WCI 2645D39H08 Contact Us For Availability
4
CLIP-TOP (2) WCI 5300809088 Contact Us For Availability
5
SHIM - STRIKE WCI 5300809214 Contact Us For Availability
5
CONSOLE PANEL WCI 5300809576 Contact Us For Availability
5
SCREW-8A X 5/8`` LG CR TRUSS HD CAD PL WCI 5300809029 Contact Us For Availability
5
SCREW (3) WCI 5300807004 Contact Us For Availability
5
WCI 3206178 WCI 3206178 Contact Us For Availability
5
TOP WCI 5300809826 Contact Us For Availability
6
STRIKE - DOOR WCI 5300807015 Contact Us For Availability
6
WCI 5300807359 WCI 5300807359 Contact Us For Availability
6
LIGHT ASSEMBLY-DELAY WCI 5303210210 Contact Us For Availability
6
BI-METAL ASSEMBLY WCI 5300809072 Contact Us For Availability
6
WATER VALVE KIT-INCLUDES 14 WCI 5300808667 Contact Us For Availability
6
UPPER RACK ASSY WCI 5300810051 Contact Us For Availability
6
CLAMP WCI 5300807819 Contact Us For Availability
7
WCI 5300809921 WCI 5300809921 Contact Us For Availability
7
LIGHT ASSEMBLY-PILOT WCI 5300809317 Contact Us For Availability
7
DISPENSER LID WCI 5300809028 Contact Us For Availability
7
WCI 5300808432 WCI 5300808432 Contact Us For Availability
7
WCI 5300809508 WCI 5300809508 Contact Us For Availability
7
WCI 5300807817 WCI 5300807817 Contact Us For Availability
8
WCI 5300805763 WCI 5300805763 Contact Us For Availability
8
WCI 5300809006 WCI 5300809006 Contact Us For Availability
8
WCI 5300806647 WCI 5300806647 Contact Us For Availability
8
FENCE BRACKET WCI 5300809509 Contact Us For Availability
8
WCI 5300808528 WCI 5300808528 Contact Us For Availability
9
SCREW (15) WCI 5300807501 Contact Us For Availability
9
WCI 5300807470 WCI 5300807470 Contact Us For Availability
9
WCI 5300809007 WCI 5300809007 Contact Us For Availability
9
WCI 5300809175 WCI 5300809175 Contact Us For Availability
10
WASHER WCI 5300809044 Contact Us For Availability
10
TERMINAL BOARD ASSEMBLY WCI 5300808483 Contact Us For Availability
10
CASTERS WCI 5300809661 Contact Us For Availability
10
WCI 5300809941 WCI 5300809941 Contact Us For Availability
10
WCI 5300808529 WCI 5300808529 Contact Us For Availability
11
PUMP IMPELLER KIT-INCLUDES 9 & 11 WCI 5300809910 Contact Us For Availability
11
WCI 5300809885 WCI 5300809885 Contact Us For Availability
11
HOSE & COUPLER ASSY WCI 5300807496 Contact Us For Availability
11
WHEEL & BUSHING KIT-UPPER RACK WCI 5300809873 Contact Us For Availability
11
WCI 5300807822 WCI 5300807822 Contact Us For Availability
12
WCI 5300803903 WCI 5300803903 Contact Us For Availability
12
WCI 5300808564 WCI 5300808564 Contact Us For Availability
12
CONNECTOR BLOCK- 18 PIN WCI 5300809883 Contact Us For Availability
12
WCI 5300804426 WCI 5300804426 Contact Us For Availability
12
WCI 5300808547 WCI 5300808547 Contact Us For Availability
13
WCI 5300809008 WCI 5300809008 Contact Us For Availability
13
WCI 3018090 WCI 3018090 Contact Us For Availability
13
WCI 5300809662 WCI 5300809662 Contact Us For Availability
13
WCI 5300805046 WCI 5300805046 Contact Us For Availability
13
WCI 5300808532 WCI 5300808532 Contact Us For Availability
14
WCI 5300809861 WCI 5300809861 Contact Us For Availability
14
WCI 5300807268 WCI 5300807268 Contact Us For Availability
14
WCI 5300809785 WCI 5300809785 Contact Us For Availability
14
SCREW WCI 5300808612 Contact Us For Availability
15
WCI 5300808712 WCI 5300808712 Contact Us For Availability
15
HOUSING WCI 5300809939 Contact Us For Availability
15
WCI 5300809786 WCI 5300809786 Contact Us For Availability
15
WCI 5300808615 WCI 5300808615 Contact Us For Availability
16
PLATE - FLOAT WCI 5300808064 Contact Us For Availability
16
WCI 3018065 WCI 3018065 Contact Us For Availability
16
HOSE CLAMP WCI 3018117 Contact Us For Availability
16
WCI 5300809787 WCI 5300809787 Contact Us For Availability
17
GASKET - FLOAT WCI 5300808063 Contact Us For Availability
17
WCI 5300808174 WCI 5300808174 Contact Us For Availability
17
SCREW-6-30 X 3/8`` (2) WCI 5300807141 Contact Us For Availability
17
NUT (2) WCI 5300808661 Contact Us For Availability
18
WCI 5300805631 WCI 5300805631 Contact Us For Availability
18
WCI 3018081 WCI 3018081 Contact Us For Availability
18
HEATER GROMMET WCI 5303351028 Contact Us For Availability
18
WASHER (2) WCI 5300808613 Contact Us For Availability
19
WCI 5300809035 WCI 5300809035 Contact Us For Availability
19
WCI 5300808120 WCI 5300808120 Contact Us For Availability
20
WCI 5300809320 WCI 5300809320 Contact Us For Availability
20
WCI 5300805859 WCI 5300805859 Contact Us For Availability
21
WCI 3018082 WCI 3018082 Contact Us For Availability
21
WCI 5300809022 WCI 5300809022 Contact Us For Availability
21
WCI 5300806142 WCI 5300806142 Contact Us For Availability
22
WCI 5300809025 WCI 5300809025 Contact Us For Availability
22
WCI 3018083 WCI 3018083 Contact Us For Availability
22
CLAMP RING (2) WCI 5300807712 Contact Us For Availability
22
WCI 5300806143 WCI 5300806143 Contact Us For Availability
23
WATERSHIELD ASSEMBLY WCI 5300809366 Contact Us For Availability
23
SPEEDNUT (2) WCI 3202540 Contact Us For Availability
23
FLOAT SWITCH KIT (INCLUDES 14, 16, 17, 22, 24 WCI 5300809859 Contact Us For Availability
23
WCI 5300803393 WCI 5300803393 Contact Us For Availability
24
SWITCH - FLOAT WCI 5300809863 Contact Us For Availability
24
MOTOR ASSY (INCLUDES 1, 7, & 14) WCI 5300809985 Contact Us For Availability
24
WCI 5300800782 WCI 5300800782 Contact Us For Availability
25
WCI 5300808526 WCI 5300808526 Contact Us For Availability
25
WCI 5300809108 WCI 5300809108 Contact Us For Availability
25
SCREW WCI 5300809864 Contact Us For Availability
25
ELBOW & TUBE ASSEMBLY WCI 5300808185 Contact Us For Availability
25
WCI 5300803392 WCI 5300803392 Contact Us For Availability
26
BODY ASSEMBLY WCI 5300806753 Contact Us For Availability
26
WCI 5300809144 WCI 5300809144 Contact Us For Availability
26
WCI 5300808184 WCI 5300808184 Contact Us For Availability
26
COUPLER ADAPTOR WCI 5300803149 Contact Us For Availability
27
RUBBER SLEEVE SEAL WCI 5300806584 Contact Us For Availability
27
THERMOSTAT RETAINER WCI 5300809097 Contact Us For Availability
27
CLAMP - WIRE WCI 5300806723 Contact Us For Availability
27
WCI 5300808183 WCI 5300808183 Contact Us For Availability
28
WCI 5300809898 WCI 5300809898 Contact Us For Availability
28
SPRAY ARM ASSEMBLY WCI 5300809021 Contact Us For Availability
28
WCI 5300809139 WCI 5300809139 Contact Us For Availability
29
BI-METAL ASSEMBLY WCI 5300809109 Contact Us For Availability
29
WCI 3018047 WCI 3018047 Contact Us For Availability
29
WCI 5300808181 WCI 5300808181 Contact Us For Availability
29
WCI 5300807498 WCI 5300807498 Contact Us For Availability
30
BRACKET WCI 5300807849 Contact Us For Availability
30
WCI 5300808180 WCI 5300808180 Contact Us For Availability
31
FILL PLUG WCI 5300807673 Contact Us For Availability
31
WCI 5300808739 WCI 5300808739 Contact Us For Availability
31
WCI 5300808179 WCI 5300808179 Contact Us For Availability
32
DOOR PANEL TRIM-RH WCI 3018044 Contact Us For Availability
32
WCI 5300808178 WCI 5300808178 Contact Us For Availability
33
DOOR & ACCESS PANEL INSERTS-COFFEE WCI 5300807644 Contact Us For Availability
33
DOOR & ACCESS PANEL INSERTS-PLATINUM WCI 5300808755 Contact Us For Availability
33
DOOR & ACCESS PANEL INSERTS-BLACK WCI 5300808804 Contact Us For Availability
33
DOOR & ACCESS PANEL INSERTS-ALMOND WCI 5300808908 Contact Us For Availability
33
DOOR & ACCESS PANEL INSERTS-WHEAT WCI 5300808912 Contact Us For Availability
33
WCI 5300808914 WCI 5300808914 Contact Us For Availability
33
WCI 5303808909 WCI 5303808909 Contact Us For Availability
33
WCI 5303809196 WCI 5303809196 Contact Us For Availability
33
TUBING-WATER-INCLUDES 34 WCI 5300807891 Contact Us For Availability
33
WCI 5300809018 WCI 5300809018 Contact Us For Availability
34
SPRAY ARM ASSEMBLY WCI 5300809954 Contact Us For Availability
34
WCI 5303212603 WCI 5303212603 Contact Us For Availability
35
WCI 5300807347 WCI 5300807347 Contact Us For Availability
35
TERMINAL BLOCK WCI 5300809830 Contact Us For Availability
35
WCI 5300809938 WCI 5300809938 Contact Us For Availability
36
DOOR PANEL TRIM-LH WCI 5300808918 Contact Us For Availability
36
SCREW WCI 3018140 Contact Us For Availability
36
SCREW-10 X 2 7/8`` WCI 5300809012 Contact Us For Availability
37
FILTER BODY ASSEMBLY (INCLUDES DIFFUSER) WCI 5300809011 Contact Us For Availability
37
ACCESS PANEL TRIM-TOP WCI 5300808346 Contact Us For Availability
37
SCREW WCI 3018141 Contact Us For Availability
38
ACCESS PANEL TRIM-RH WCI 3018185 Contact Us For Availability
38
RELAY - MOTOR WCI 5300805255 Contact Us For Availability
38
WCI 5300809015 WCI 5300809015 Contact Us For Availability
39
WCI 5300808521 WCI 5300808521 Contact Us For Availability
39
WCI 5300803346 WCI 5300803346 Contact Us For Availability
39
WCI 5300809014 WCI 5300809014 Contact Us For Availability
40
WCI 5300808522 WCI 5300808522 Contact Us For Availability
40
WCI 5300807471 WCI 5300807471 Contact Us For Availability
40
SCREW-8 X 3/4`` WCI 809073 Contact Us For Availability
41
ACCESS PANEL TRIM-LH WCI 3018182 Contact Us For Availability
41
WCI 3018091 WCI 3018091 Contact Us For Availability
41
WCI 5300809016 WCI 5300809016 Contact Us For Availability
42
INLET WATER WCI 5300806470 Contact Us For Availability
43
WCI 5300809347 WCI 5300809347 Contact Us For Availability
× ![]()
