Model Electrolux SMS107T1B1 MICROWAVE – Common Parts & Diagrams
01 - MICROWAVE
02 - CONTROL PANEL

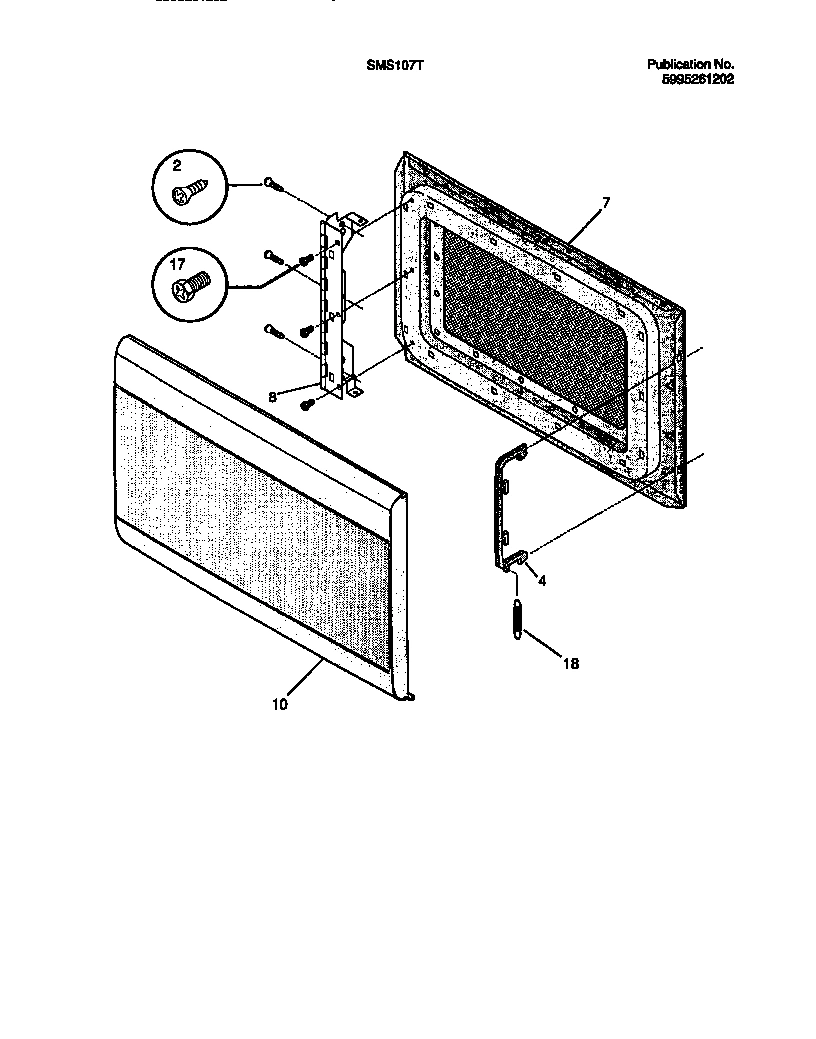

03 - DOOR

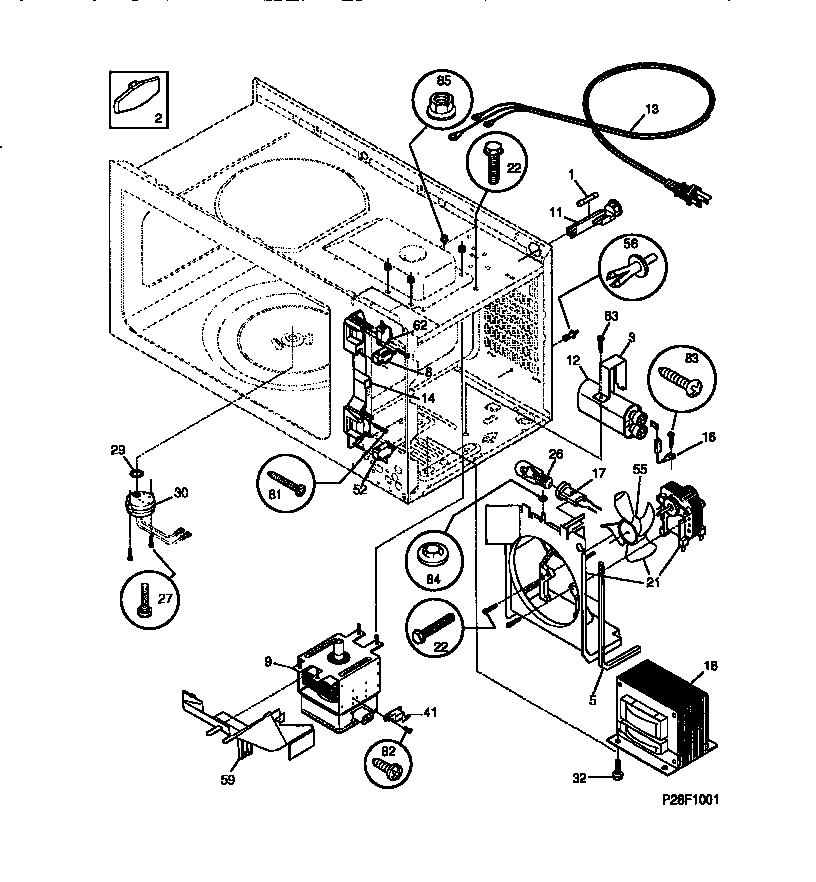

04 - FUNCTIONAL

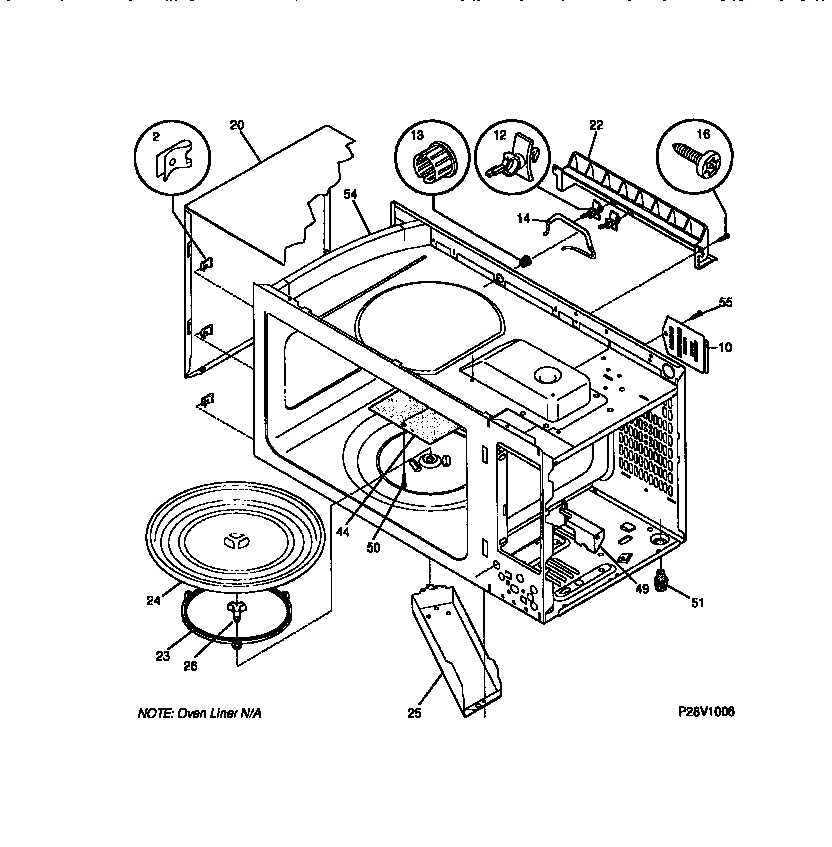

05 - WRAPPER/BODY

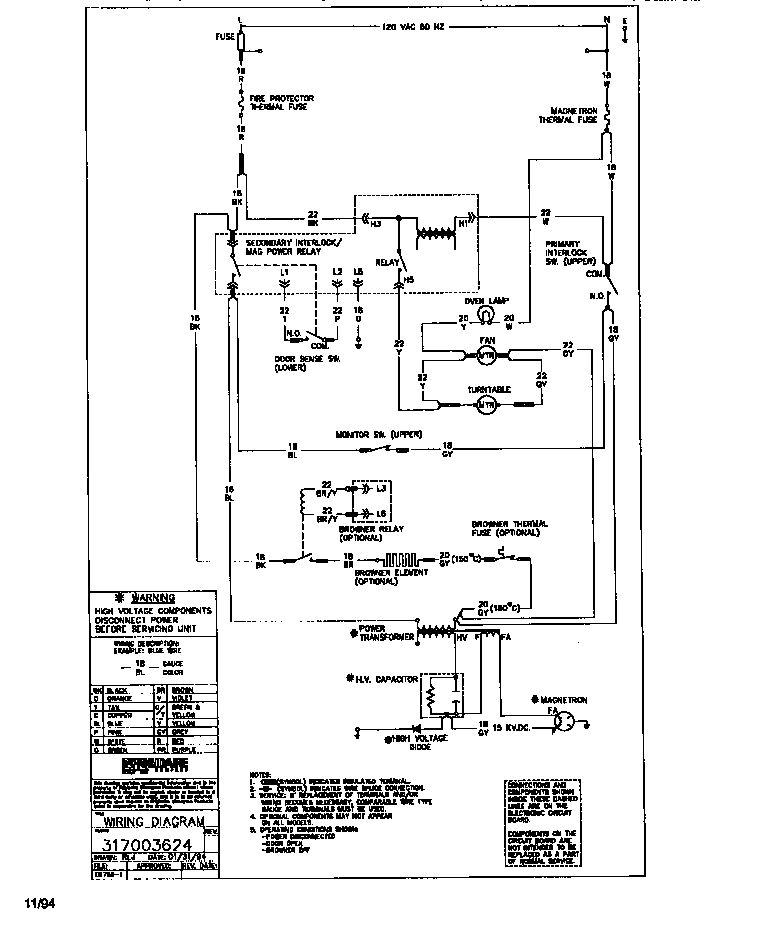

06 - WIRING DIAGRAM

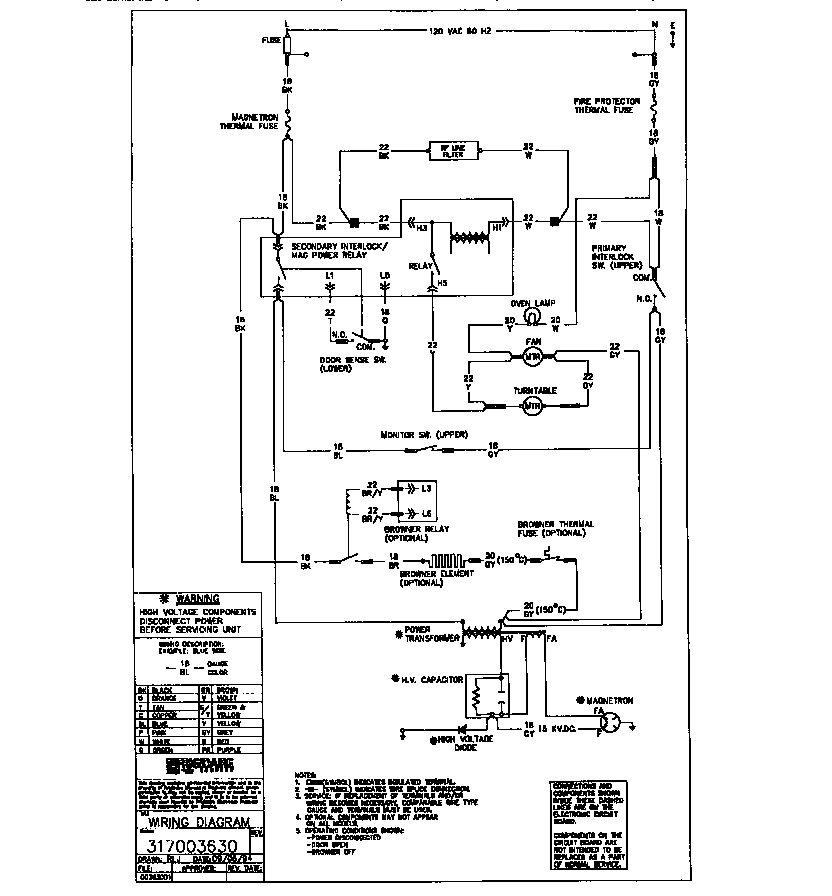

07 - WIRING DIAGRAM
Common parts from model Electrolux SMS107T1B1 MICROWAVE
*83280
SPACER-TURNTABLE MTR,PLACE BETWEEN, MTR & OVE WCI 5303292336 Contact Us For Availability
*83281
WCI 317000508 WCI 317000508 Contact Us For Availability
*83282
WCI 317000336 WCI 317000336 Contact Us For Availability
*83283
WCI 317016303 WCI 317016303 Contact Us For Availability
1
WCI 5303011670 WCI 5303011670 Contact Us For Availability
2
WCI 317018427 WCI 317018427 Contact Us For Availability
2
SCREW, CR FLAT HEAD, 8-15(A) X 1/2, HINGE, (4 WCI 5303013882 Contact Us For Availability
2
PLUB-BUTTON, BROWNER, (2) WCI 5303013626 Contact Us For Availability
3
WCI 5303013771 WCI 5303013771 Contact Us For Availability
4
HOOK-LATCYH WCI 317012701 Contact Us For Availability
5
WCI 394020800 WCI 394020800 Contact Us For Availability
5
WCI 5303017864 WCI 5303017864 Contact Us For Availability
7
FRAME, DOOR, GRAY WCI 5303305739 Contact Us For Availability
8
HINGE-DOOR, BLACK WCI 5303279373 Contact Us For Availability
8
WCI 5303203636 WCI 5303203636 Contact Us For Availability
9
WCI 317017002 WCI 317017002 Contact Us For Availability
9
MAGNETRON WCI 5303286175 Contact Us For Availability
10
WCI 317018502 WCI 317018502 Contact Us For Availability
10
WCI 5303212775 WCI 5303212775 Contact Us For Availability
11
WCI 396114300 WCI 396114300 Contact Us For Availability
11
WCI 5303212769 WCI 5303212769 Contact Us For Availability
12
WCI 317018704 WCI 317018704 Contact Us For Availability
12
WCI 5303212788 WCI 5303212788 Contact Us For Availability
13
WCI 317005403 WCI 317005403 Contact Us For Availability
13
WCI 5303280263 WCI 5303280263 Contact Us For Availability
14
WCI 317000704 WCI 317000704 Contact Us For Availability
14
WCI 317000511 WCI 317000511 Contact Us For Availability
16
WCI 5303212799 WCI 5303212799 Contact Us For Availability
16
SCREW, TEMPER PROFF, 8-15(A) X 1/2,(2) WCI 394027600 Contact Us For Availability
17
WCI 317018001 WCI 317018001 Contact Us For Availability
18
WCI 317013501 WCI 317013501 Contact Us For Availability
18
WCI 317016902 WCI 317016902 Contact Us For Availability
20
WCI 317019006 WCI 317019006 Contact Us For Availability
21
MOTOR-FAN, 120 V, INCLUDES MOTOR, FAN DUCT, F WCI 5303922053 Contact Us For Availability
22
SCREW, THREAD FORMING, 8-32 X 1/2, FAN MTR/GR WCI 317004703 Contact Us For Availability
22
WCI 5303295061 WCI 5303295061 Contact Us For Availability
23
WCI 317012905 WCI 317012905 Contact Us For Availability
24
WCI 317012801 WCI 317012801 Contact Us For Availability
25
WCI 317011205 WCI 317011205 Contact Us For Availability
26
WCI 317019302 WCI 317019302 Contact Us For Availability
26
WCI 317013101 WCI 317013101 Contact Us For Availability
27
WCI 317009502 WCI 317009502 Contact Us For Availability
29
WCI 317008102 WCI 317008102 Contact Us For Availability
30
WCI 317005503 WCI 317005503 Contact Us For Availability
32
WCI 5303013944 WCI 5303013944 Contact Us For Availability
41
WCI 317018902 WCI 317018902 Contact Us For Availability
44
WCI 317013303 WCI 317013303 Contact Us For Availability
49
WCI 317017801 WCI 317017801 Contact Us For Availability
51
WCI 317005302 WCI 317005302 Contact Us For Availability
52
WCI 317005121 WCI 317005121 Contact Us For Availability
54
WCI 317009909 WCI 317009909 Contact Us For Availability
55
FAN BLADE, FAN MOTOR WCI 5303212786 Contact Us For Availability
55
SCREW, 8-18 X 1/2, CAPACITOR, WRAPPER & COVER WCI 5303273263 Contact Us For Availability
56
WCI 5303271581 WCI 5303271581 Contact Us For Availability
59
WCI 317018801 WCI 317018801 Contact Us For Availability
62
WCI 317005120 WCI 317005120 Contact Us For Availability
81
SCREW-SWITCH BRKT MTG, SEMS,8-18(BT) X 12 MM, WCI 396122800 Contact Us For Availability
82
WCI 317009503 WCI 317009503 Contact Us For Availability
84
WCI 5303212803 WCI 5303212803 Contact Us For Availability
85
NUT,HEX,MAGNETRON WCI 5308008918 Contact Us For Availability
× ![]()
