Model Maytag SMH7174WE MICROWAVE – Common Parts & Diagrams

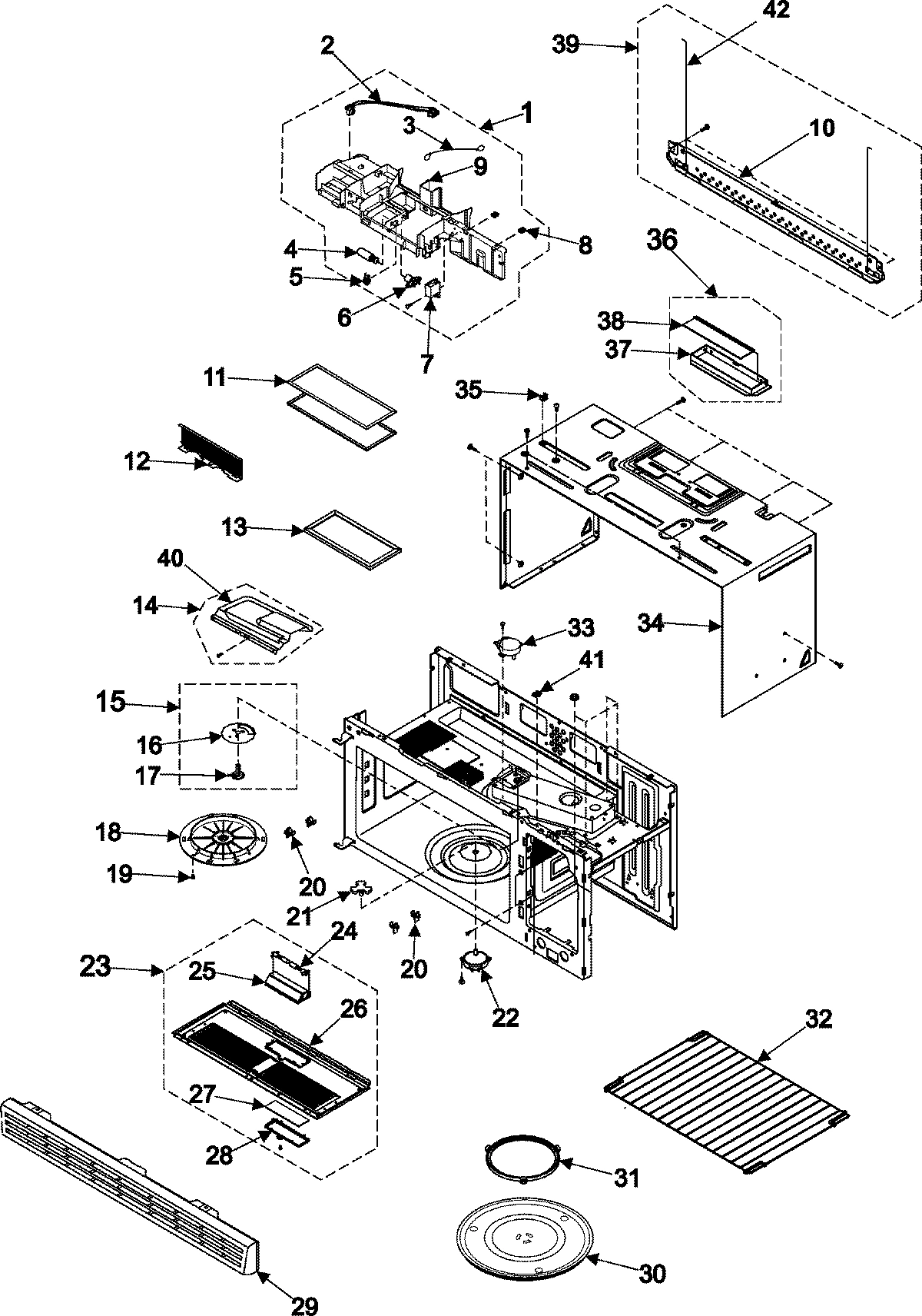

01 - BODY/CAVITY/ELEMENTS

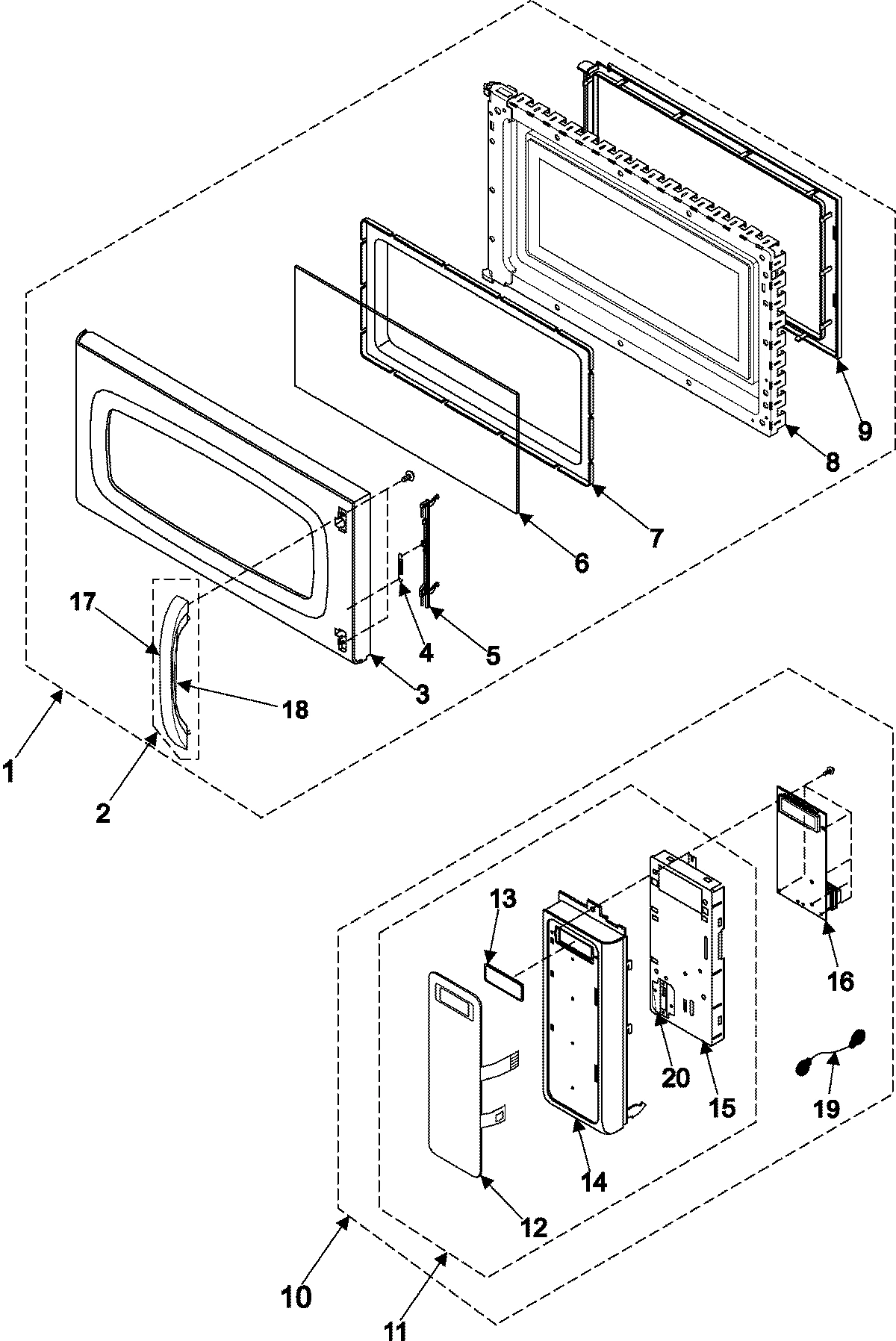

02 - CONTROL PANEL/DOOR ASSEMBLY

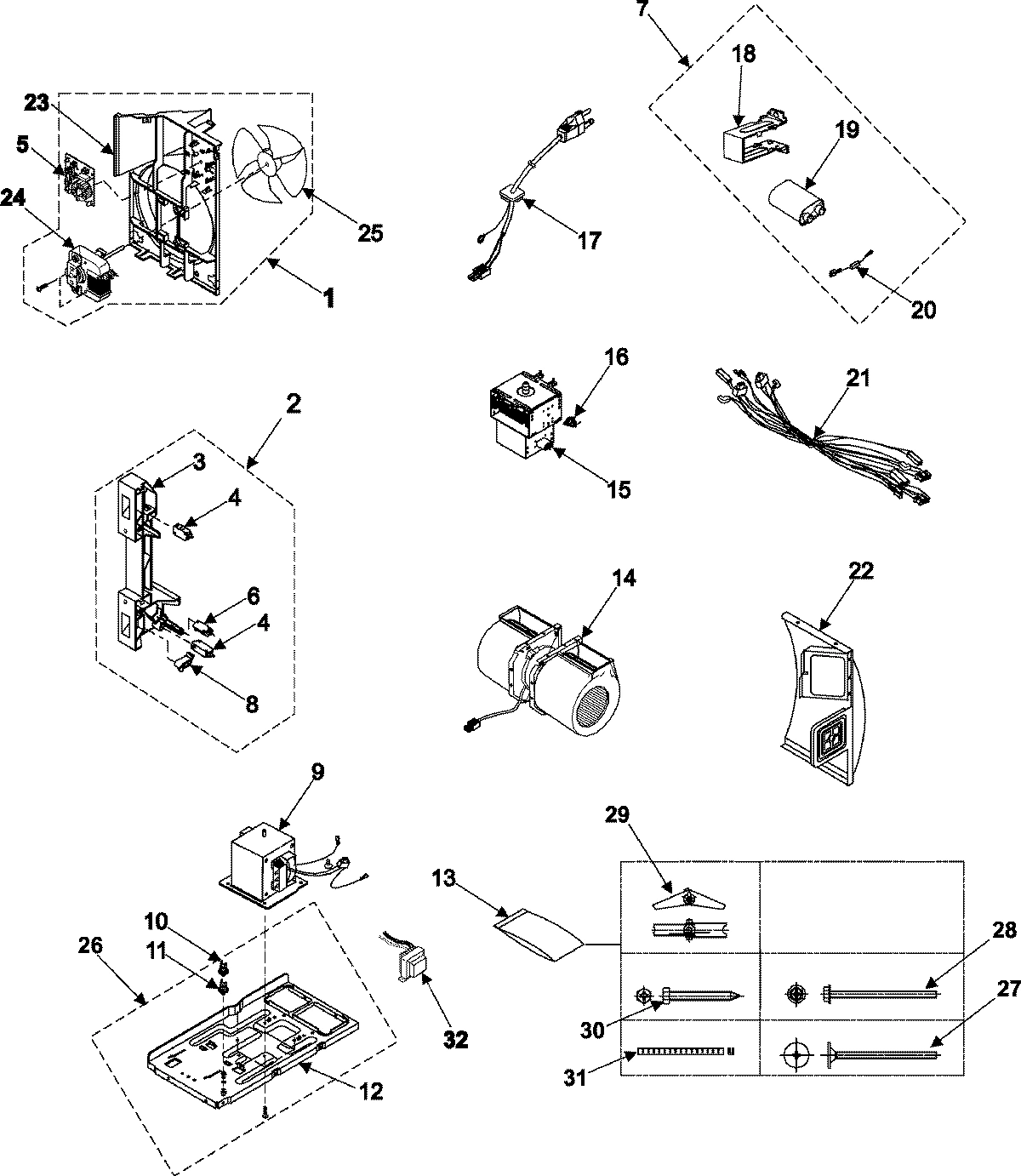

03 - INTERNAL CONTROLS/LATCH ASY/BASE
04 - SUPPLEMENTAL INFORMATION

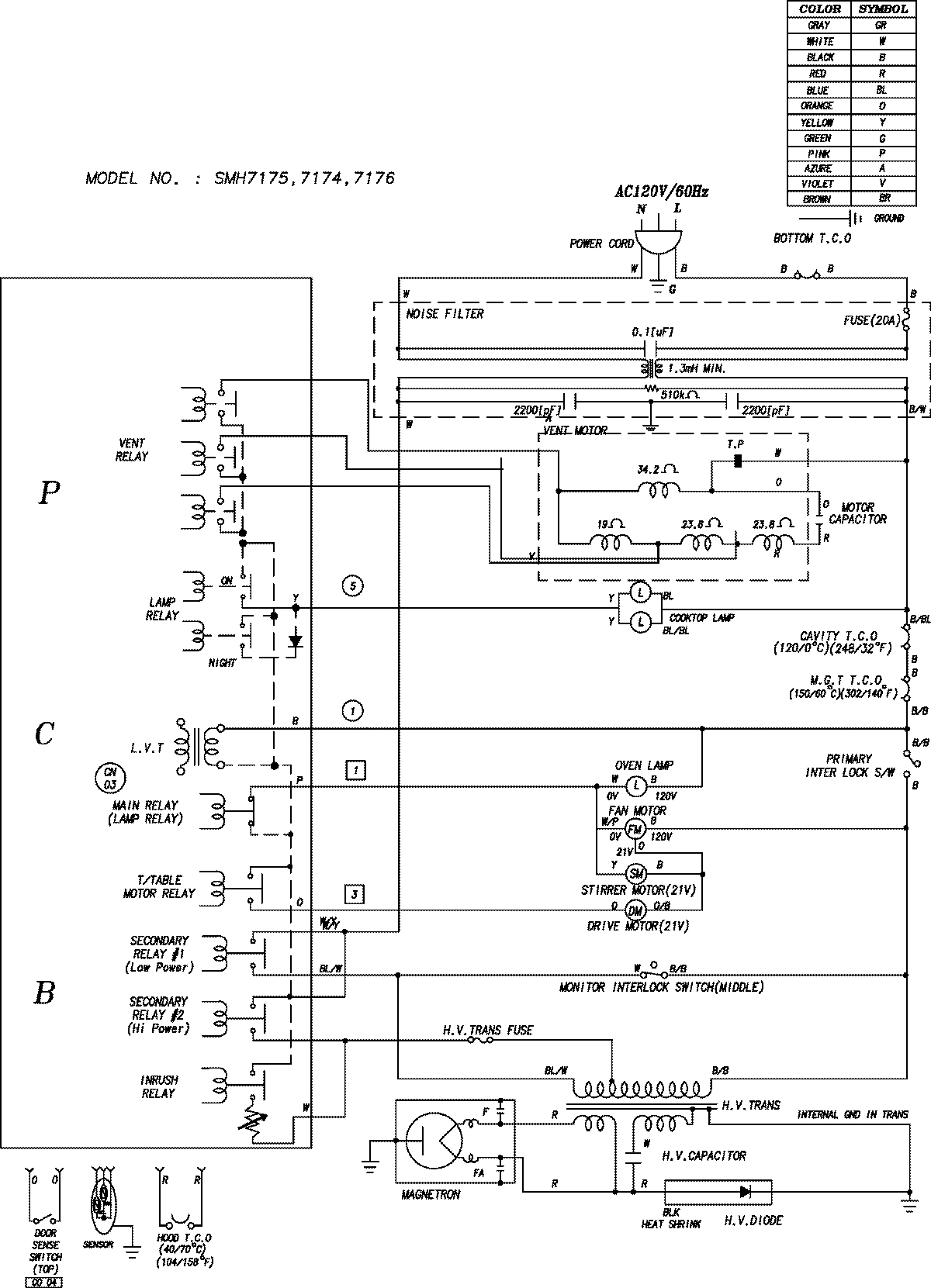

05 - WIRING INFORMATION SHEET 1

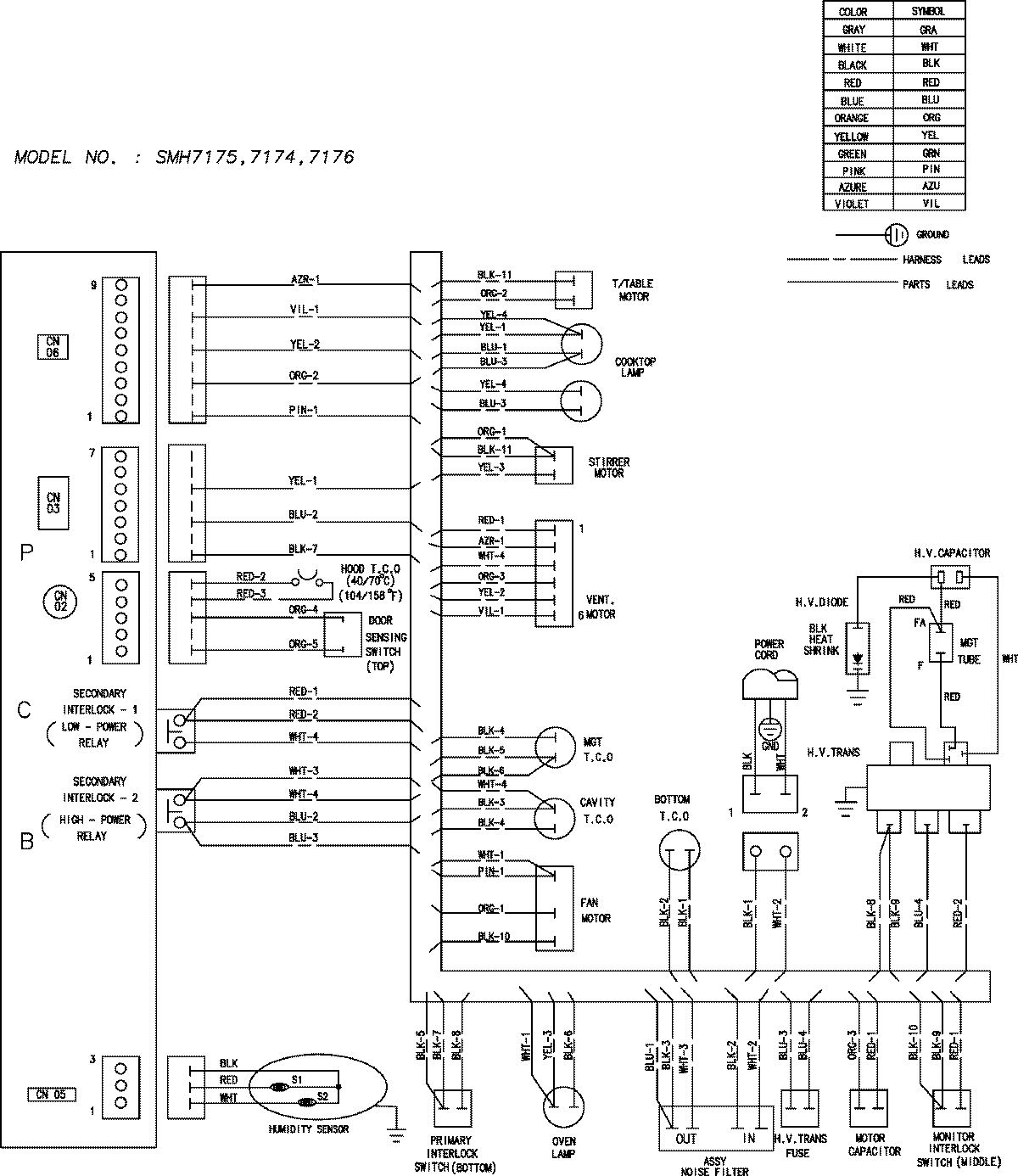

06 - WIRING INFORMATION SHEET 2
Common parts from model Maytag SMH7174WE MICROWAVE
1
MAY DE94-00881B MAY DE94-00881B Contact Us For Availability
1
MAY 15003924 MAY 15003924 Contact Us For Availability
1
MAY 15003925 MAY 15003925 Contact Us For Availability
2
ASSY-SENSOR HUMIDITY,SMH7175WE MAY DE97-00585A Contact Us For Availability
2
MAY DE97-00358B MAY DE97-00358B Contact Us For Availability
3
MAY DE64-00757B MAY DE64-00757B Contact Us For Availability
3
LATCH-BODY MAY DE66-00084A Contact Us For Availability
4
MAY 6107-001175 MAY 6107-001175 Contact Us For Availability
5
MAY DE64-00760A MAY DE64-00760A Contact Us For Availability
5
ASSY NOISE FILTER,SN-UF12B,250 MAY DE96-00400B Contact Us For Availability
6
MAY 3405-001033 MAY 3405-001033 Contact Us For Availability
6
MAY DE64-00910A MAY DE64-00910A Contact Us For Availability
7
MAY DE59-50002A MAY DE59-50002A Contact Us For Availability
7
MAY DE64-00864A MAY DE64-00864A Contact Us For Availability
7
MAY DE96-00269A MAY DE96-00269A Contact Us For Availability
8
MAY DE60-30063A MAY DE60-30063A Contact Us For Availability
8
MAY DE94-00882B MAY DE94-00882B Contact Us For Availability
9
MAY DE64-00759A MAY DE64-00759A Contact Us For Availability
10
MAY DE94-00933P MAY DE94-00933P Contact Us For Availability
11
MAY DE94-00939P MAY DE94-00939P Contact Us For Availability
12
MAY DE34-00178R MAY DE34-00178R Contact Us For Availability
12
BASE-PLATE MAY DE61-00415A Contact Us For Availability
13
MAY DE64-00766B MAY DE64-00766B Contact Us For Availability
14
MAY DE64-00763B MAY DE64-00763B Contact Us For Availability
15
MAY DE97-00359B MAY DE97-00359B Contact Us For Availability
15
ASSY-MAGNETRON MAY W10126785 Contact Us For Availability
16
MAY W10127127 MAY W10127127 Contact Us For Availability
17
MAY DE63-00139B MAY DE63-00139B Contact Us For Availability
18
COVER-STIRRER MAY DE71-60121A Contact Us For Availability
18
MAY DE64-00761B MAY DE64-00761B Contact Us For Availability
18
BRACKET-HVC MAY DE61-00115A Contact Us For Availability
19
MAY DE39-40673A MAY DE39-40673A Contact Us For Availability
20
MAY DE61-00266A MAY DE61-00266A Contact Us For Availability
21
MAY DE96-00491A MAY DE96-00491A Contact Us For Availability
22
MOTOR, DRIVE MAY DE31-10172A Contact Us For Availability
22
BRACKET-DUCT REAR MAY DE61-00411A Contact Us For Availability
25
HOLDER-LAMP MAY DE47-00006A Contact Us For Availability
25
BLADE, FAN MAY DE31-90051A Contact Us For Availability
26
MAY DE96-00268A MAY DE96-00268A Contact Us For Availability
27
MAY DE60-20066A MAY DE60-20066A Contact Us For Availability
28
MAY DE60-20022A MAY DE60-20022A Contact Us For Availability
28
COVER-GLASS COOKTOP MAY DE63-00137C Contact Us For Availability
29
MAY DE64-00755B MAY DE64-00755B Contact Us For Availability
31
MAY DE63-10011A MAY DE63-10011A Contact Us For Availability
32
MAY DE26-20144A MAY DE26-20144A Contact Us For Availability
36
MAY DE92-90242A MAY DE92-90242A Contact Us For Availability
37
DAMPER-MAIN MAY DE72-40022A Contact Us For Availability
38
COVER-DAMPER MAY DE71-60051A Contact Us For Availability
39
MAY DE97-00363A MAY DE97-00363A Contact Us For Availability
40
BRACKET-DUCT UPPER MAY DE61-00410A Contact Us For Availability
41
MAY DE63-00359A MAY DE63-00359A Contact Us For Availability
42
MAY DE66-00121A MAY DE66-00121A Contact Us For Availability
NI
MAY DE99-00221W MAY DE99-00221W Contact Us For Availability
NI
MAY SAM0116 MAY SAM0116 Contact Us For Availability
× ![]()
