Model Maytag SMD25TW REFRIGERATOR – Common Parts & Diagrams
01 - CABINET BACK
02 - CABINET PARTS

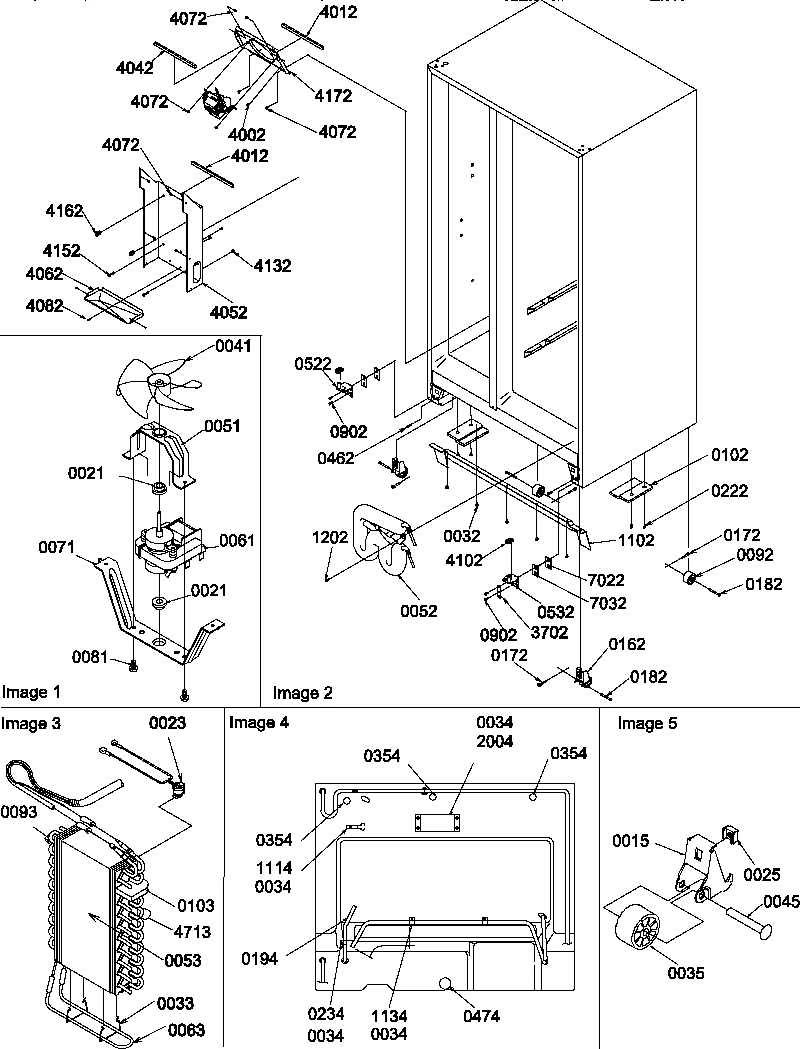

03 - DRAIN SYSTEM, ROLLERS, AND EVAP ASSY

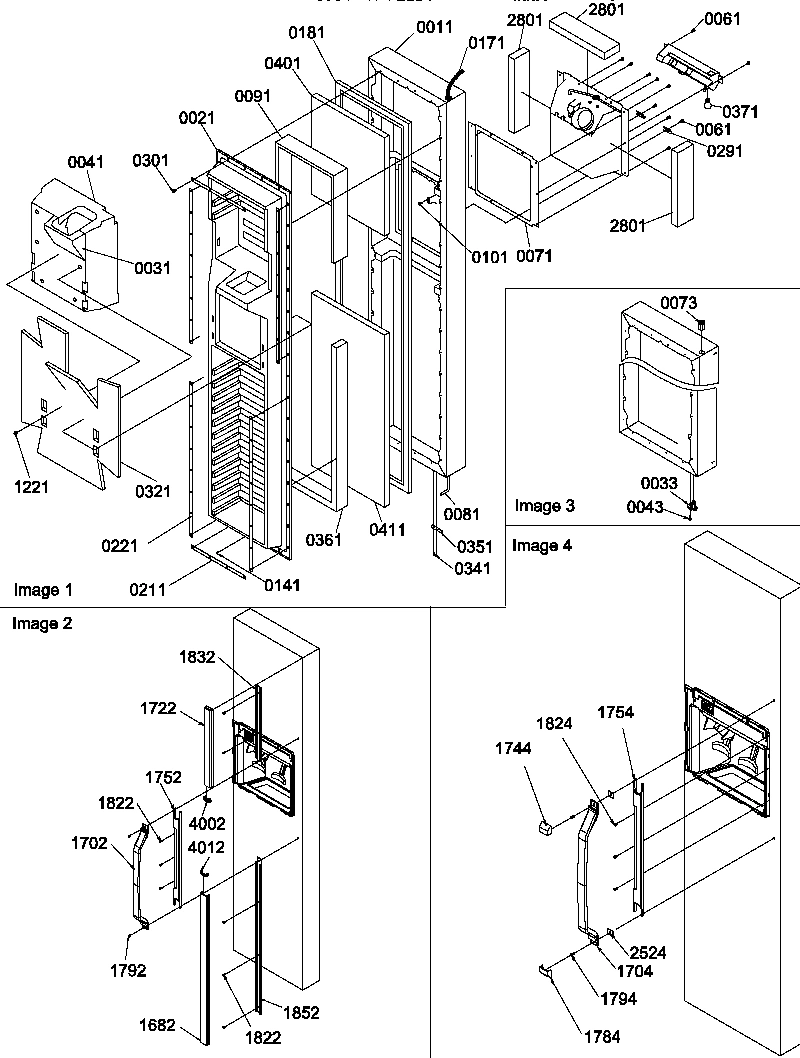

04 - FZ DOOR

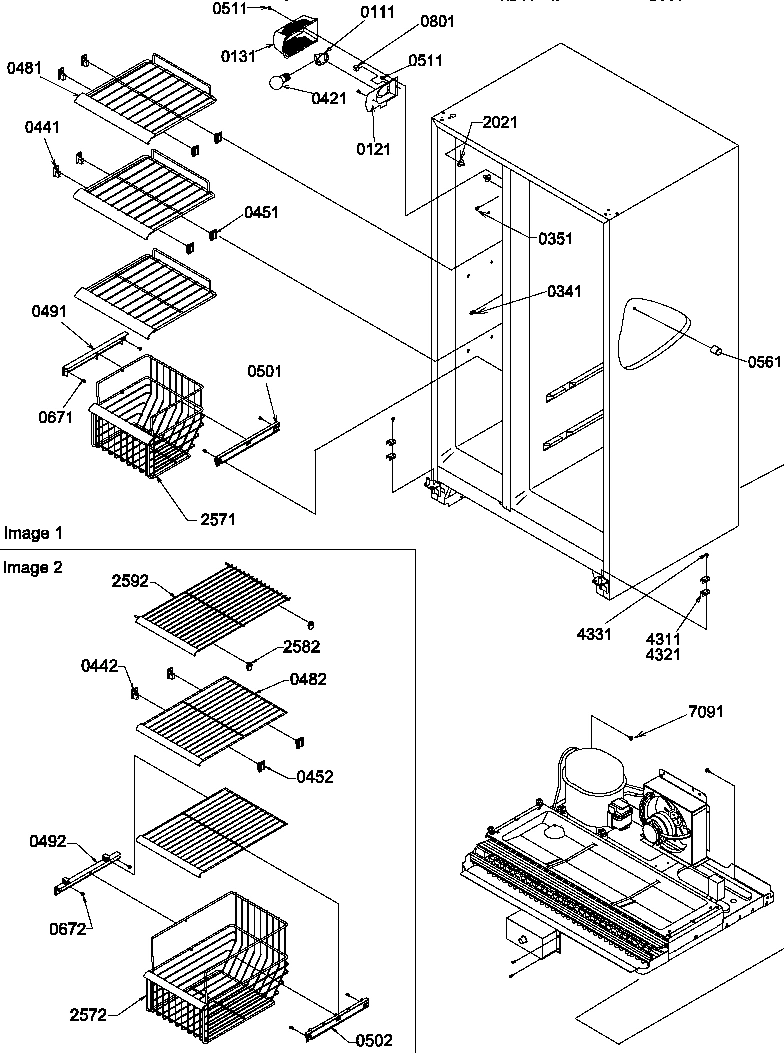

05 - FZ SHELVES AND LIGHT

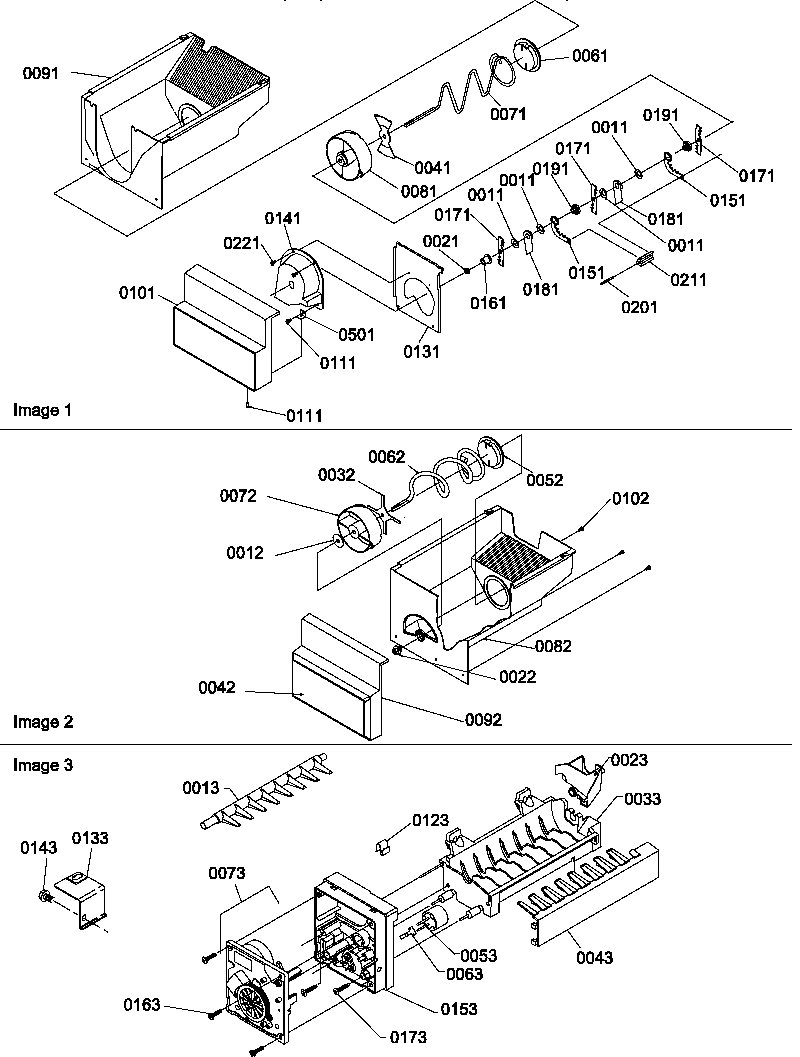

06 - ICE BUCKET AUGER AND ICE MAKER PARTS

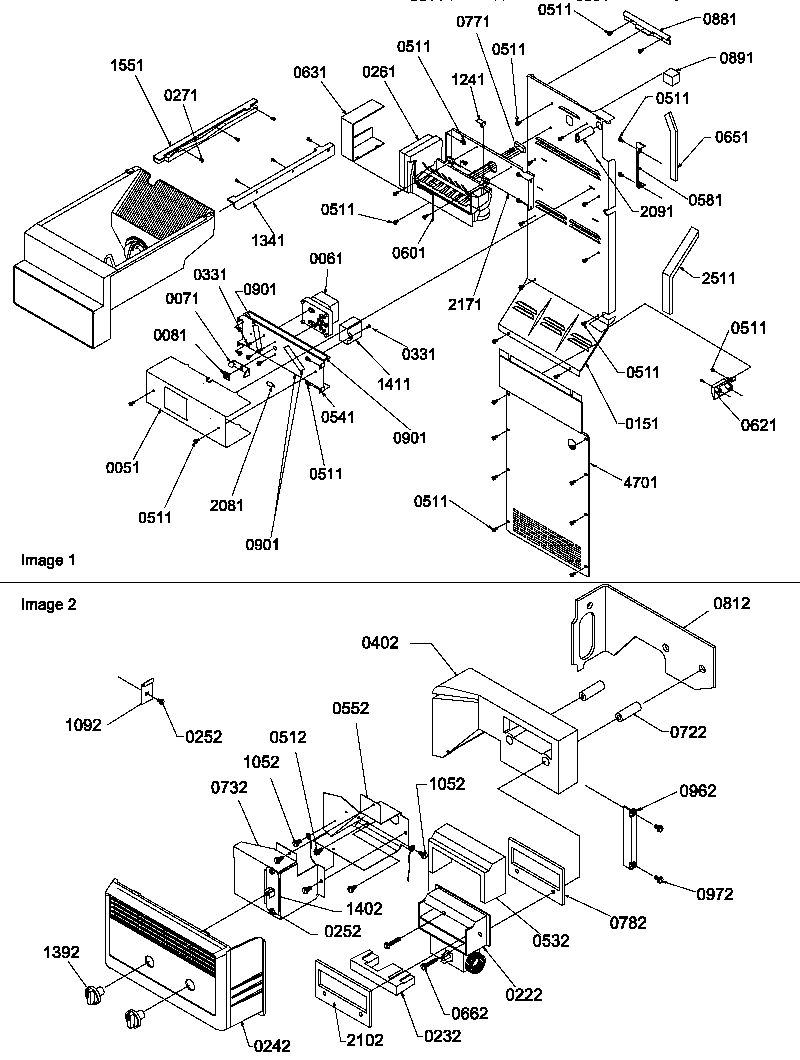

07 - ICE MAKER / CONTROL ASSY

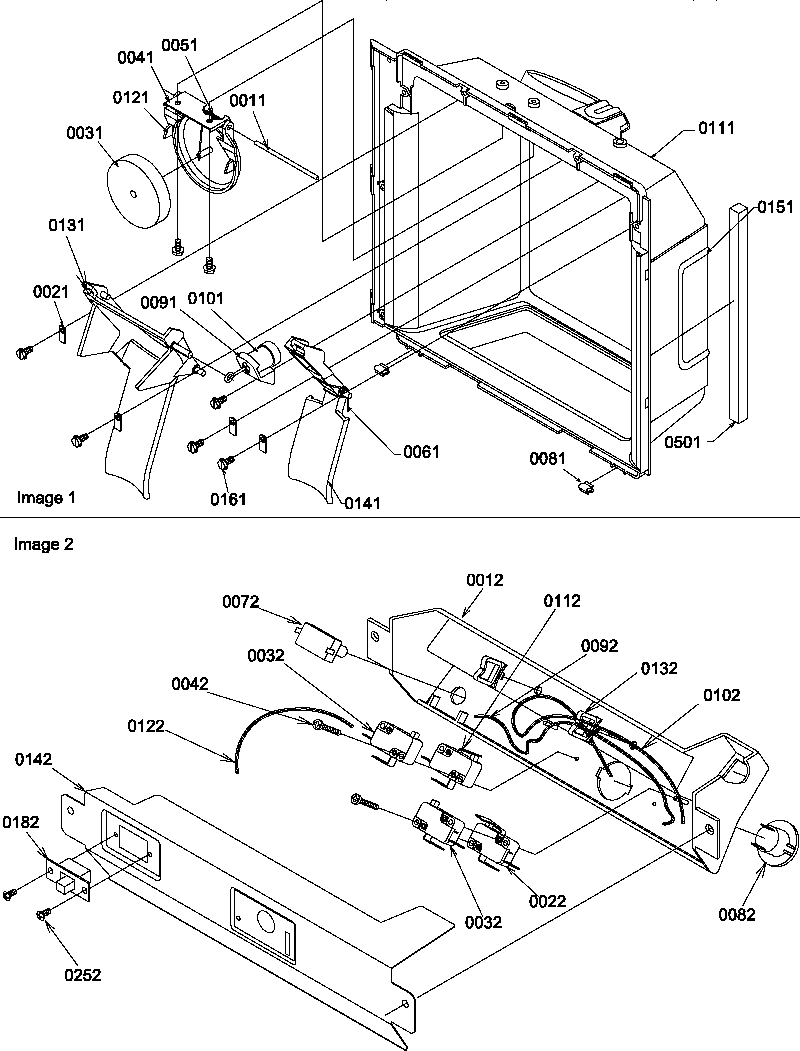

08 - ICE/WATER CAVITY & ELEC BRKT ASSY

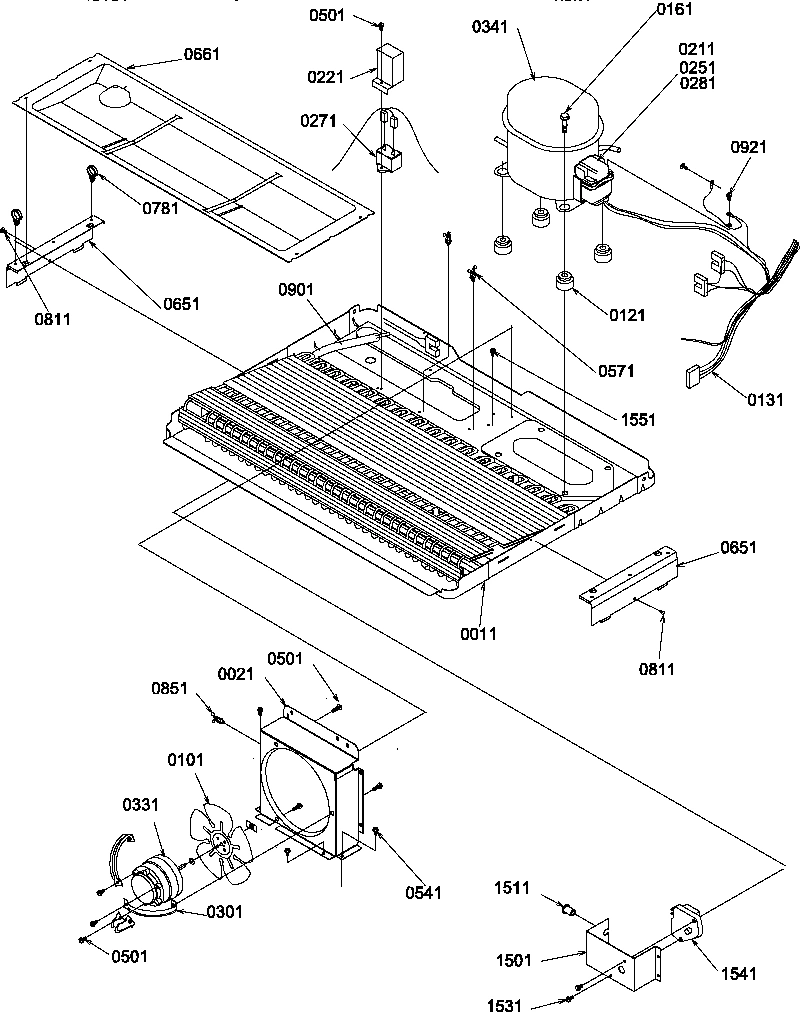

09 - MACHINE COMPARTMENT
10 - REF DOOR

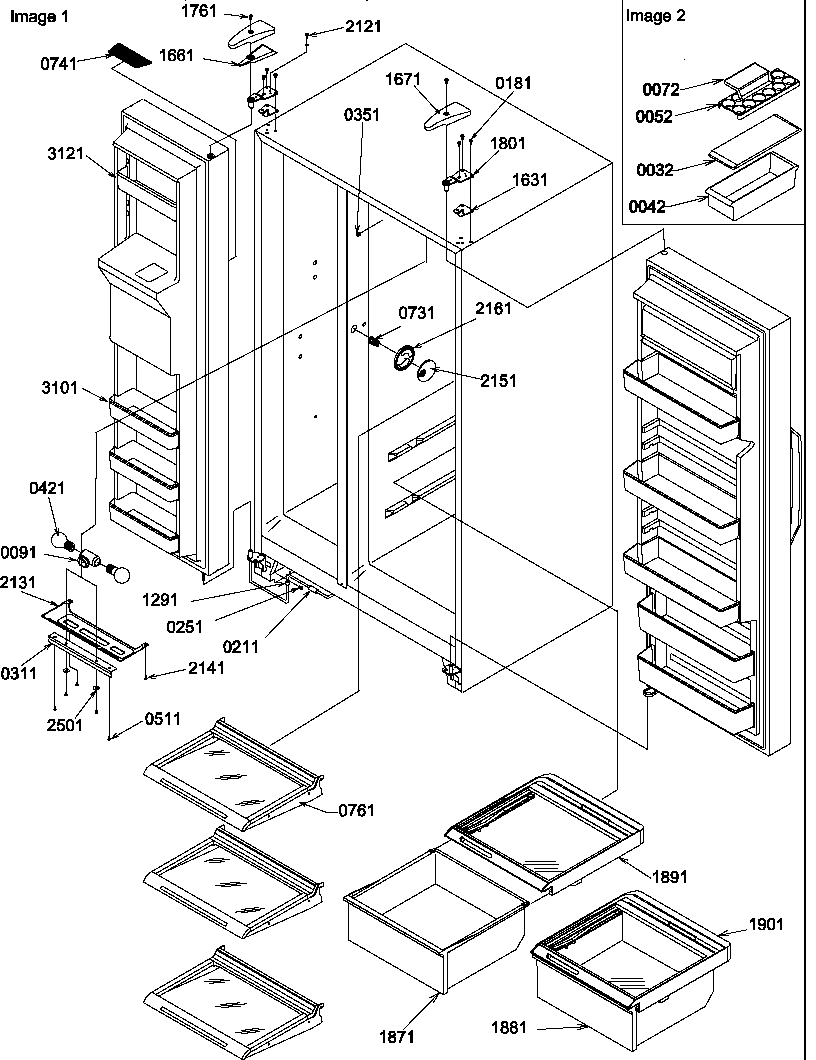

11 - REF/FZ SHELVES, LIGHTS, AND HINGES
12 - SHELVING, CRISPER ASSEMBLIES & TOE GRILL
Common parts from model Maytag SMD25TW REFRIGERATOR
11
MAY 10881409W MAY 10881409W Contact Us For Availability
11
MAY A1061501 MAY A1061501 Contact Us For Availability
11
MAY 10544108 MAY 10544108 Contact Us For Availability
11
MAY 10881312W MAY 10881312W Contact Us For Availability
11
MAY 10946006 MAY 10946006 Contact Us For Availability
12
MAY A1061701 MAY A1061701 Contact Us For Availability
12
MAY 10323307 MAY 10323307 Contact Us For Availability
13
MAY R0183119 MAY R0183119 Contact Us For Availability
15
MAY C8742401 MAY C8742401 Contact Us For Availability
21
MAY A1017202 MAY A1017202 Contact Us For Availability
21
MAY 10860902 MAY 10860902 Contact Us For Availability
21
MAY A1061601 MAY A1061601 Contact Us For Availability
21
MAY 10602408 MAY 10602408 Contact Us For Availability
21
MAY 10866102 MAY 10866102 Contact Us For Availability
21
MAY 10875306 MAY 10875306 Contact Us For Availability
22
MAY B8385101 MAY B8385101 Contact Us For Availability
22
MAY 10533002 MAY 10533002 Contact Us For Availability
23
MAY 12017823 MAY 12017823 Contact Us For Availability
23
MAY R0156839 MAY R0156839 Contact Us For Availability
25
MAY M0286708 MAY M0286708 Contact Us For Availability
25
MAY M0117303 MAY M0117303 Contact Us For Availability
31
MAY 10895501 MAY 10895501 Contact Us For Availability
31
MAY B8380701 MAY B8380701 Contact Us For Availability
31
MAY 10520405 MAY 10520405 Contact Us For Availability
31
MAY 10370064 MAY 10370064 Contact Us For Availability
32
MAY C8964101 MAY C8964101 Contact Us For Availability
33
MAY R0156669 MAY R0156669 Contact Us For Availability
34
MAY B0523590 MAY B0523590 Contact Us For Availability
41
MAY C8971902 MAY C8971902 Contact Us For Availability
41
MAY 10890101 MAY 10890101 Contact Us For Availability
41
MAY 10895401 MAY 10895401 Contact Us For Availability
41
MAY C8972405 MAY C8972405 Contact Us For Availability
41
MAY B8380801 MAY B8380801 Contact Us For Availability
41
MAY 10459910 MAY 10459910 Contact Us For Availability
42
MAY C8975345 MAY C8975345 Contact Us For Availability
42
MAY M0229005 MAY M0229005 Contact Us For Availability
43
MAY R0183120 MAY R0183120 Contact Us For Availability
45
MAY M1205302 MAY M1205302 Contact Us For Availability
51
MAY 10656102 MAY 10656102 Contact Us For Availability
51
MAY D7788818 MAY D7788818 Contact Us For Availability
51
MAY B8380901 MAY B8380901 Contact Us For Availability
52
MAY 10988502 MAY 10988502 Contact Us For Availability
52
MAY D7749401 MAY D7749401 Contact Us For Availability
53
MAY R0170055 MAY R0170055 Contact Us For Availability
53
MAY R0161060 MAY R0161060 Contact Us For Availability
61
MAY 10513803 MAY 10513803 Contact Us For Availability
61
MAY D7749302 MAY D7749302 Contact Us For Availability
61
MAY B8385401 MAY B8385401 Contact Us For Availability
62
MAY D7749501 MAY D7749501 Contact Us For Availability
63
MAY 12049801 MAY 12049801 Contact Us For Availability
63
MAY R0191094 MAY R0191094 Contact Us For Availability
63
MAY 10370027 MAY 10370027 Contact Us For Availability
64
MAY 10370030 MAY 10370030 Contact Us For Availability
71
MAY B8318803 MAY B8318803 Contact Us For Availability
71
MAY 10909401 MAY 10909401 Contact Us For Availability
71
MAY D7791003 MAY D7791003 Contact Us For Availability
71
MAY D7849501 MAY D7849501 Contact Us For Availability
71
MAY 10202001 MAY 10202001 Contact Us For Availability
72
MAY D7749601 MAY D7749601 Contact Us For Availability
73
MAY C8964401 MAY C8964401 Contact Us For Availability
73
MAY R0167203 MAY R0167203 Contact Us For Availability
81
MAY B5705321 MAY B5705321 Contact Us For Availability
81
MAY M0120501 MAY M0120501 Contact Us For Availability
81
MAY B8390302 MAY B8390302 Contact Us For Availability
82
MAY D7749707 MAY D7749707 Contact Us For Availability
82
MAY M0213531 MAY M0213531 Contact Us For Availability
83
MAY 10469609 MAY 10469609 Contact Us For Availability
84
MAY 10469608 MAY 10469608 Contact Us For Availability
91
MAY B0523562 MAY B0523562 Contact Us For Availability
91
MAY C8972501 MAY C8972501 Contact Us For Availability
91
MAY 12156201 MAY 12156201 Contact Us For Availability
92
MAY 10450602 MAY 10450602 Contact Us For Availability
92
MAY D7749802 MAY D7749802 Contact Us For Availability
93
MAY 10629601 MAY 10629601 Contact Us For Availability
94
MAY 10873909 MAY 10873909 Contact Us For Availability
101
MAY C8973602 MAY C8973602 Contact Us For Availability
101
MAY 10518702 MAY 10518702 Contact Us For Availability
102
MAY 10508001 MAY 10508001 Contact Us For Availability
102
MAY Y10901311 MAY Y10901311 Contact Us For Availability
103
MAY 10629001 MAY 10629001 Contact Us For Availability
111
MAY D7714407 MAY D7714407 Contact Us For Availability
111
SCREW, SM MAY M0238642 Contact Us For Availability
111
MAY 10876001 MAY 10876001 Contact Us For Availability
112
MAY 10533001 MAY 10533001 Contact Us For Availability
121
MAY D7753503 MAY D7753503 Contact Us For Availability
121
MAY 10246601 MAY 10246601 Contact Us For Availability
121
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
123
MAY 10319801 MAY 10319801 Contact Us For Availability
131
MAY 10923101 MAY 10923101 Contact Us For Availability
131
MAY D7786602 MAY D7786602 Contact Us For Availability
131
MAY 10967601 MAY 10967601 Contact Us For Availability
132
MAY B5667304 MAY B5667304 Contact Us For Availability
133
MAY B8391802 MAY B8391802 Contact Us For Availability
142
MAY 10131804 MAY 10131804 Contact Us For Availability
143
MAY M0211017 MAY M0211017 Contact Us For Availability
151
MAY D7821184 MAY D7821184 Contact Us For Availability
151
MAY 10882105 MAY 10882105 Contact Us For Availability
153
MAY R0183121 MAY R0183121 Contact Us For Availability
161
MAY M0211116 MAY M0211116 Contact Us For Availability
161
MAY M0221523 MAY M0221523 Contact Us For Availability
162
MAY C8956101 MAY C8956101 Contact Us For Availability
163
MAY D7789808 MAY D7789808 Contact Us For Availability
163
MAY R0186041 MAY R0186041 Contact Us For Availability
171
MAY D7785402 MAY D7785402 Contact Us For Availability
171
MAY 12192002 MAY 12192002 Contact Us For Availability
172
MAY M1200004 MAY M1200004 Contact Us For Availability
173
MAY D7789809 MAY D7789809 Contact Us For Availability
173
MAY R0186040 MAY R0186040 Contact Us For Availability
181
MAY 10359709 MAY 10359709 Contact Us For Availability
181
MAY M0238731 MAY M0238731 Contact Us For Availability
182
MAY M1200202 MAY M1200202 Contact Us For Availability
194
MAY 10505101 MAY 10505101 Contact Us For Availability
201
MAY 10359708 MAY 10359708 Contact Us For Availability
211
MAY C8982801 MAY C8982801 Contact Us For Availability
211
MAY 10377015 MAY 10377015 Contact Us For Availability
211
UNION K MAY B5706901 Contact Us For Availability
221
SEE NOTE VT MULL-PNT MAY Y00000000 Contact Us For Availability
221
MAY D7828601 MAY D7828601 Contact Us For Availability
221
MAY M0231704 MAY M0231704 Contact Us For Availability
221
MAY 10266402 MAY 10266402 Contact Us For Availability
221
MAY B0523563 MAY B0523563 Contact Us For Availability
222
MAY M0253942 MAY M0253942 Contact Us For Availability
222
MAY D7547412 MAY D7547412 Contact Us For Availability
232
MAY C8902601 MAY C8902601 Contact Us For Availability
234
MAY M0102303 MAY M0102303 Contact Us For Availability
241
MAY 10521812 MAY 10521812 Contact Us For Availability
242
MAY 10862701 MAY 10862701 Contact Us For Availability
251
MAY M0211016 MAY M0211016 Contact Us For Availability
251
MAY 10097202 MAY 10097202 Contact Us For Availability
251
MAY 12083401 MAY 12083401 Contact Us For Availability
252
MAY M0234001 MAY M0234001 Contact Us For Availability
261
MAY D7824705 MAY D7824705 Contact Us For Availability
271
MAY M0213529 MAY M0213529 Contact Us For Availability
271
MAY C8931604 MAY C8931604 Contact Us For Availability
281
MAY 10757301 MAY 10757301 Contact Us For Availability
291
MAY C8992901 MAY C8992901 Contact Us For Availability
301
MAY 10496501 MAY 10496501 Contact Us For Availability
303
MAY M0581001 MAY M0581001 Contact Us For Availability
311
MAY 10014716 MAY 10014716 Contact Us For Availability
321
MAY 10941501 MAY 10941501 Contact Us For Availability
331
MAY M0226528 MAY M0226528 Contact Us For Availability
331
MAY 10884501 MAY 10884501 Contact Us For Availability
341
MAY 12049702 MAY 12049702 Contact Us For Availability
351
MAY M0580007 MAY M0580007 Contact Us For Availability
354
MAY A3080001 MAY A3080001 Contact Us For Availability
354
MAY M0219730 MAY M0219730 Contact Us For Availability
394
MAY M0211018 MAY M0211018 Contact Us For Availability
401
MAY 12016901 MAY 12016901 Contact Us For Availability
402
MAY 10176602 MAY 10176602 Contact Us For Availability
411
MAY 10178405 MAY 10178405 Contact Us For Availability
411
MAY 12016902 MAY 12016902 Contact Us For Availability
421
MAY 10187501 MAY 10187501 Contact Us For Availability
421
MAY A0282803 MAY A0282803 Contact Us For Availability
431
MAY 10187601 MAY 10187601 Contact Us For Availability
435
MAY 10870801 MAY 10870801 Contact Us For Availability
441
MAY 12015002 MAY 12015002 Contact Us For Availability
451
MAY D7716409 MAY D7716409 Contact Us For Availability
451
MAY 10941102 MAY 10941102 Contact Us For Availability
455
MAY 12321807 MAY 12321807 Contact Us For Availability
461
MAY D7297603 MAY D7297603 Contact Us For Availability
462
MAY M0204339 MAY M0204339 Contact Us For Availability
471
MAY D7749002 MAY D7749002 Contact Us For Availability
481
MAY 12333701 MAY 12333701 Contact Us For Availability
491
MAY C3680304 MAY C3680304 Contact Us For Availability
491
MAY 12015102 MAY 12015102 Contact Us For Availability
501
MAY 10972802 MAY 10972802 Contact Us For Availability
501
MAY A3030357 MAY A3030357 Contact Us For Availability
501
MAY M0223803 MAY M0223803 Contact Us For Availability
511
MAY M0238616 MAY M0238616 Contact Us For Availability
522
MAY 10496107 MAY 10496107 Contact Us For Availability
532
MAY 10496113 MAY 10496113 Contact Us For Availability
532
MAY D7788201 MAY D7788201 Contact Us For Availability
541
MAY D7749206 MAY D7749206 Contact Us For Availability
541
MAY M0216716 MAY M0216716 Contact Us For Availability
552
MAY D7822406 MAY D7822406 Contact Us For Availability
561
MAY 10033201 MAY 10033201 Contact Us For Availability
571
MAY M0585401 MAY M0585401 Contact Us For Availability
581
MAY D7838302 MAY D7838302 Contact Us For Availability
601
MAY D7877001 MAY D7877001 Contact Us For Availability
621
MAY D7786902 MAY D7786902 Contact Us For Availability
631
MAY D7820401 MAY D7820401 Contact Us For Availability
651
MAY B8386602 MAY B8386602 Contact Us For Availability
651
MAY 10495702 MAY 10495702 Contact Us For Availability
661
MAY 10507903 MAY 10507903 Contact Us For Availability
662
MAY M0216539 MAY M0216539 Contact Us For Availability
722
MAY A3044208 MAY A3044208 Contact Us For Availability
732
MAY D7868606 MAY D7868606 Contact Us For Availability
741
MAY D7750603 MAY D7750603 Contact Us For Availability
761
MAY 10880704 MAY 10880704 Contact Us For Availability
771
MAY D7824601 MAY D7824601 Contact Us For Availability
781
MAY M0322202 MAY M0322202 Contact Us For Availability
782
MAY B8345401 MAY B8345401 Contact Us For Availability
801
MAY B5733302 MAY B5733302 Contact Us For Availability
811
MAY A4539601 MAY A4539601 Contact Us For Availability
812
MAY 10177901 MAY 10177901 Contact Us For Availability
825
MAY 10986109 MAY 10986109 Contact Us For Availability
835
MAY M0219614 MAY M0219614 Contact Us For Availability
851
MAY M0585403 MAY M0585403 Contact Us For Availability
863
MAY A1055101 MAY A1055101 Contact Us For Availability
873
SPRING, ANTI KINK MAY A1055105 Contact Us For Availability
881
MAY C8976201 MAY C8976201 Contact Us For Availability
891
MAY C8976102 MAY C8976102 Contact Us For Availability
901
MAY A3030305 MAY A3030305 Contact Us For Availability
901
MAY 10851302 MAY 10851302 Contact Us For Availability
902
MAY M0233847 MAY M0233847 Contact Us For Availability
921
MAY M0231604 MAY M0231604 Contact Us For Availability
962
MAY C8977301 MAY C8977301 Contact Us For Availability
972
SCREW 1`` MAY M0211021 Contact Us For Availability
1015
MAY M0220634 MAY M0220634 Contact Us For Availability
1025
MAY C8960601 MAY C8960601 Contact Us For Availability
1092
MAY C8992302 MAY C8992302 Contact Us For Availability
1102
MAY 10508104 MAY 10508104 Contact Us For Availability
1114
MAY M0585206 MAY M0585206 Contact Us For Availability
1133
MAY D7742204 MAY D7742204 Contact Us For Availability
1221
MAY M0114003 MAY M0114003 Contact Us For Availability
1221
MAY M0311602 MAY M0311602 Contact Us For Availability
1241
MAY B5720301 MAY B5720301 Contact Us For Availability
1263
NUT, SLEEVE MAY M0753001 Contact Us For Availability
1303
MAY 10496302 MAY 10496302 Contact Us For Availability
1311
MAY 10178505 MAY 10178505 Contact Us For Availability
1341
MAY D7849904 MAY D7849904 Contact Us For Availability
1392
MAY D7795826 MAY D7795826 Contact Us For Availability
1402
MAY R0161092 MAY R0161092 Contact Us For Availability
1501
MAY 10877004 MAY 10877004 Contact Us For Availability
1511
MAY A3293505 MAY A3293505 Contact Us For Availability
1531
MAY M0216705 MAY M0216705 Contact Us For Availability
1541
MAY 10530702 MAY 10530702 Contact Us For Availability
1551
MAY M0232903 MAY M0232903 Contact Us For Availability
1551
MAY D7849903 MAY D7849903 Contact Us For Availability
1631
MAY 12223003 MAY 12223003 Contact Us For Availability
1661
MAY 10863501 MAY 10863501 Contact Us For Availability
1671
MAY 10849406 MAY 10849406 Contact Us For Availability
1705
MAY 12139304 MAY 12139304 Contact Us For Availability
1735
MAY 10810401 MAY 10810401 Contact Us For Availability
1745
MAY 10975801 MAY 10975801 Contact Us For Availability
1754
MAY 10810601 MAY 10810601 Contact Us For Availability
1785
MAY 10975802 MAY 10975802 Contact Us For Availability
1801
MAY 12077312 MAY 12077312 Contact Us For Availability
1815
MAY 10852211 MAY 10852211 Contact Us For Availability
1825
MAY M0216517 MAY M0216517 Contact Us For Availability
1871
MAY 10471817 MAY 10471817 Contact Us For Availability
1891
MAY 10883021 MAY 10883021 Contact Us For Availability
1901
MAY 10883008 MAY 10883008 Contact Us For Availability
1925
MAY 10992001 MAY 10992001 Contact Us For Availability
1935
MAY 10992112 MAY 10992112 Contact Us For Availability
2004
MAY 10876901 MAY 10876901 Contact Us For Availability
2021
MAY M0560005 MAY M0560005 Contact Us For Availability
2061
MAY A3189336 MAY A3189336 Contact Us For Availability
2081
MAY M0585203 MAY M0585203 Contact Us For Availability
2091
MAY A3127410 MAY A3127410 Contact Us For Availability
2102
MAY 10383201 MAY 10383201 Contact Us For Availability
2131
MAY 10493202 MAY 10493202 Contact Us For Availability
2141
MAY M0238846 MAY M0238846 Contact Us For Availability
2501
MAY M0270508 MAY M0270508 Contact Us For Availability
2511
MAY A3189335 MAY A3189335 Contact Us For Availability
2524
MAY 10888001 MAY 10888001 Contact Us For Availability
2571
MAY 12012005 MAY 12012005 Contact Us For Availability
2801
MAY B0523596 MAY B0523596 Contact Us For Availability
3101
MAY 10521710 MAY 10521710 Contact Us For Availability
3121
MAY 10525511 MAY 10525511 Contact Us For Availability
3505
MAY 10984618 MAY 10984618 Contact Us For Availability
3702
MAY 12146901 MAY 12146901 Contact Us For Availability
4012
MAY B8386608 MAY B8386608 Contact Us For Availability
4026
MAY 12192102 MAY 12192102 Contact Us For Availability
4042
MAY B8386607 MAY B8386607 Contact Us For Availability
4052
MAY 10893802 MAY 10893802 Contact Us For Availability
4062
MAY D7850202 MAY D7850202 Contact Us For Availability
4072
MAY M0224416 MAY M0224416 Contact Us For Availability
4082
MAY 10098801 MAY 10098801 Contact Us For Availability
4102
MAY 12113501 MAY 12113501 Contact Us For Availability
4132
MAY M0580002 MAY M0580002 Contact Us For Availability
4152
MAY 10527401 MAY 10527401 Contact Us For Availability
4162
MAY 10623003 MAY 10623003 Contact Us For Availability
4172
MAY 10890202 MAY 10890202 Contact Us For Availability
4331
MAY M0220431 MAY M0220431 Contact Us For Availability
4701
MAY 10655902 MAY 10655902 Contact Us For Availability
4713
MAY M0321202 MAY M0321202 Contact Us For Availability
4784
MAY B5794201 MAY B5794201 Contact Us For Availability
5005
MAY 10504101 MAY 10504101 Contact Us For Availability
5015
MAY 12044501 MAY 12044501 Contact Us For Availability
5505
MAY M0227217 MAY M0227217 Contact Us For Availability
7014
MAY 10916505 MAY 10916505 Contact Us For Availability
7022
MAY 12146701 MAY 12146701 Contact Us For Availability
7024
DRIER MAY B2150504 Contact Us For Availability
7032
MAY 12146702 MAY 12146702 Contact Us For Availability
7044
MAY 10547001 MAY 10547001 Contact Us For Availability
7084
MAY M0103904 MAY M0103904 Contact Us For Availability
7091
MAY M0211357 MAY M0211357 Contact Us For Availability
7124
MAY M0239216 MAY M0239216 Contact Us For Availability
8111
MAY 12146602 MAY 12146602 Contact Us For Availability
8121
MAY 12146601 MAY 12146601 Contact Us For Availability
8131
MAY 12146801 MAY 12146801 Contact Us For Availability
8141
MAY 12146802 MAY 12146802 Contact Us For Availability
8151
MAY A4539631 MAY A4539631 Contact Us For Availability
8161
MAY 12147602 MAY 12147602 Contact Us For Availability
NI
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
NI
MAY 10834701 MAY 10834701 Contact Us For Availability
× ![]()
