Model Whirlpool SM988PESW8 GAS RANGE WITH MICROWAVE – Common Parts & Diagrams

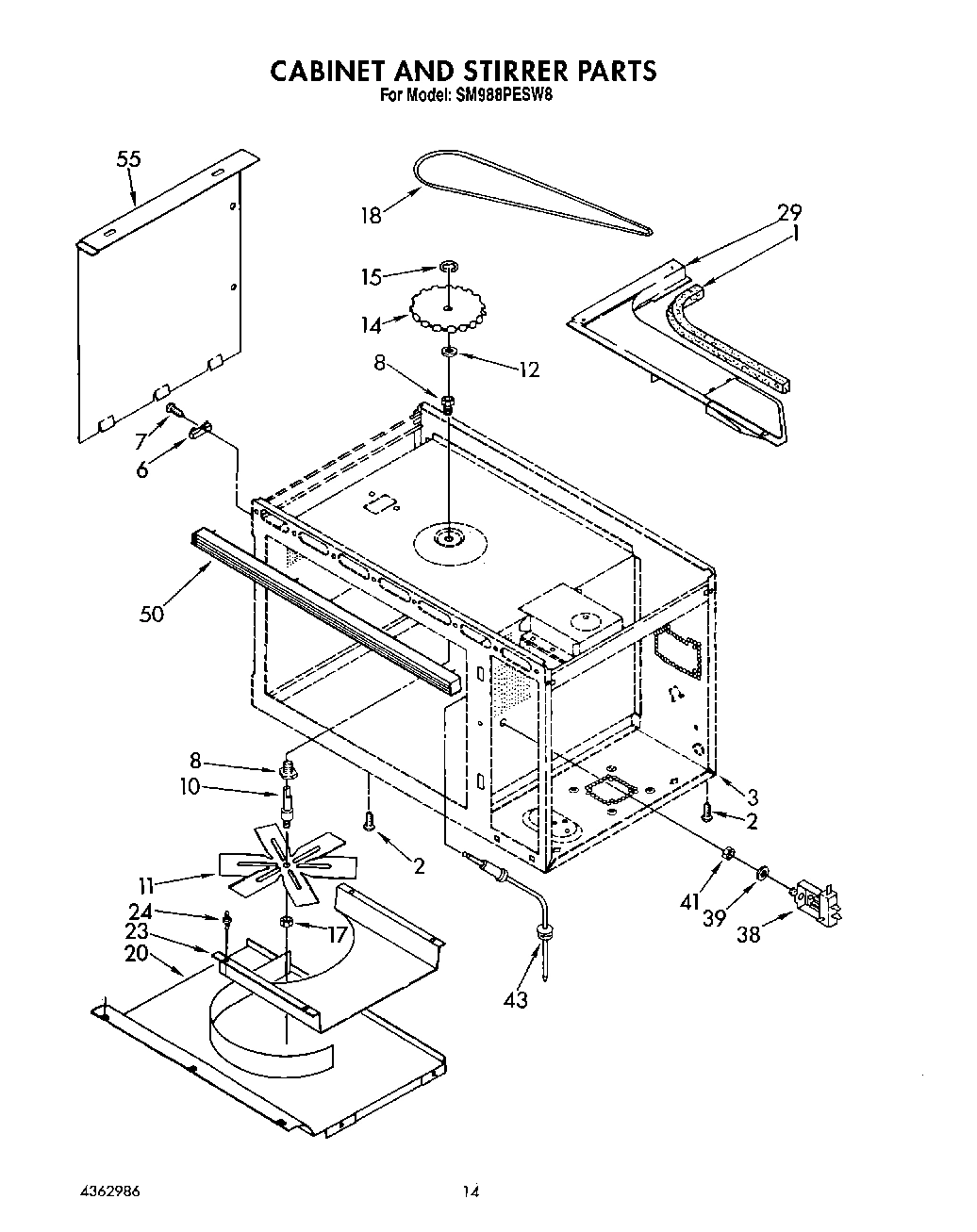

10 - CABINET AND STIRRER

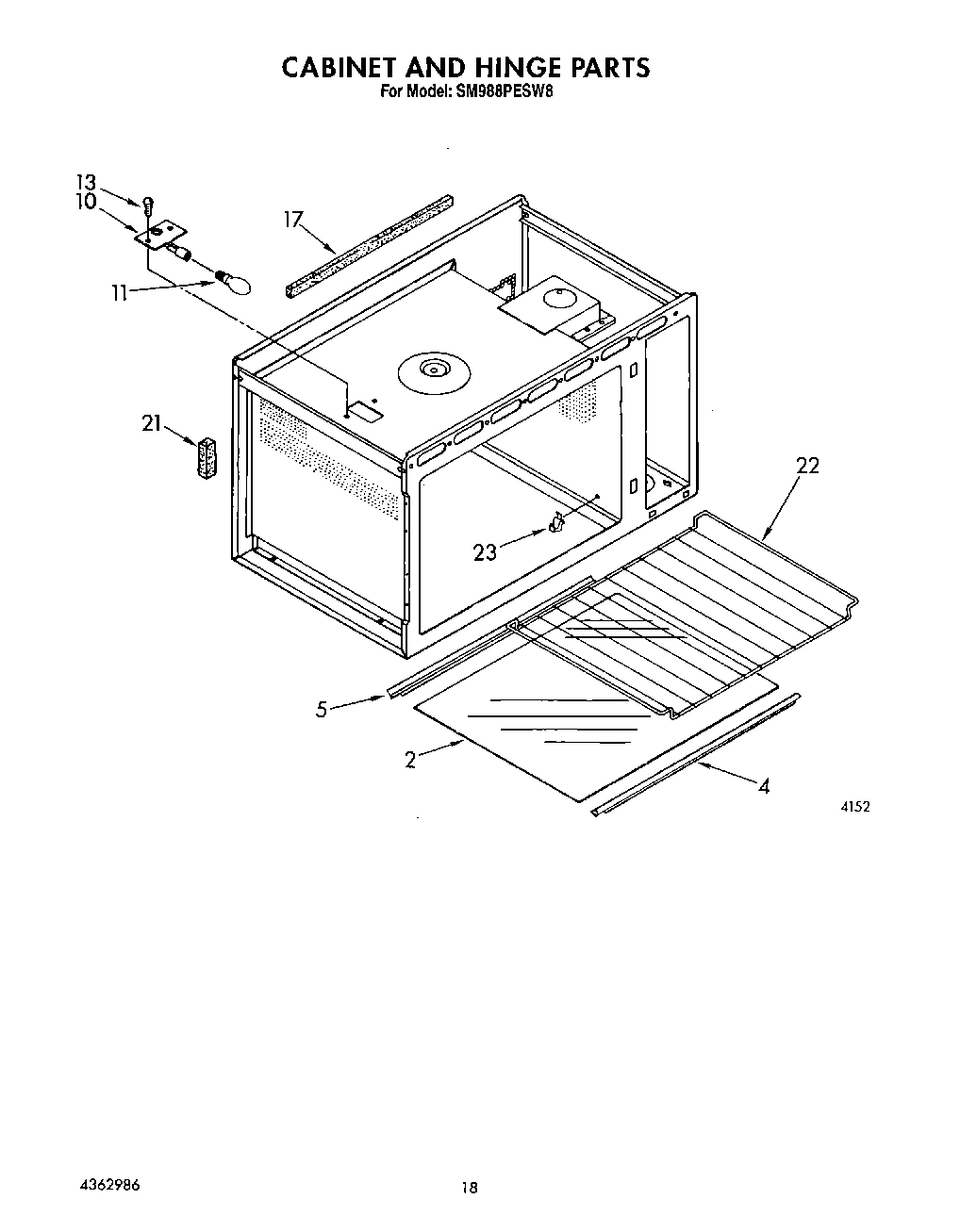

12 - CABINET AND HINGE

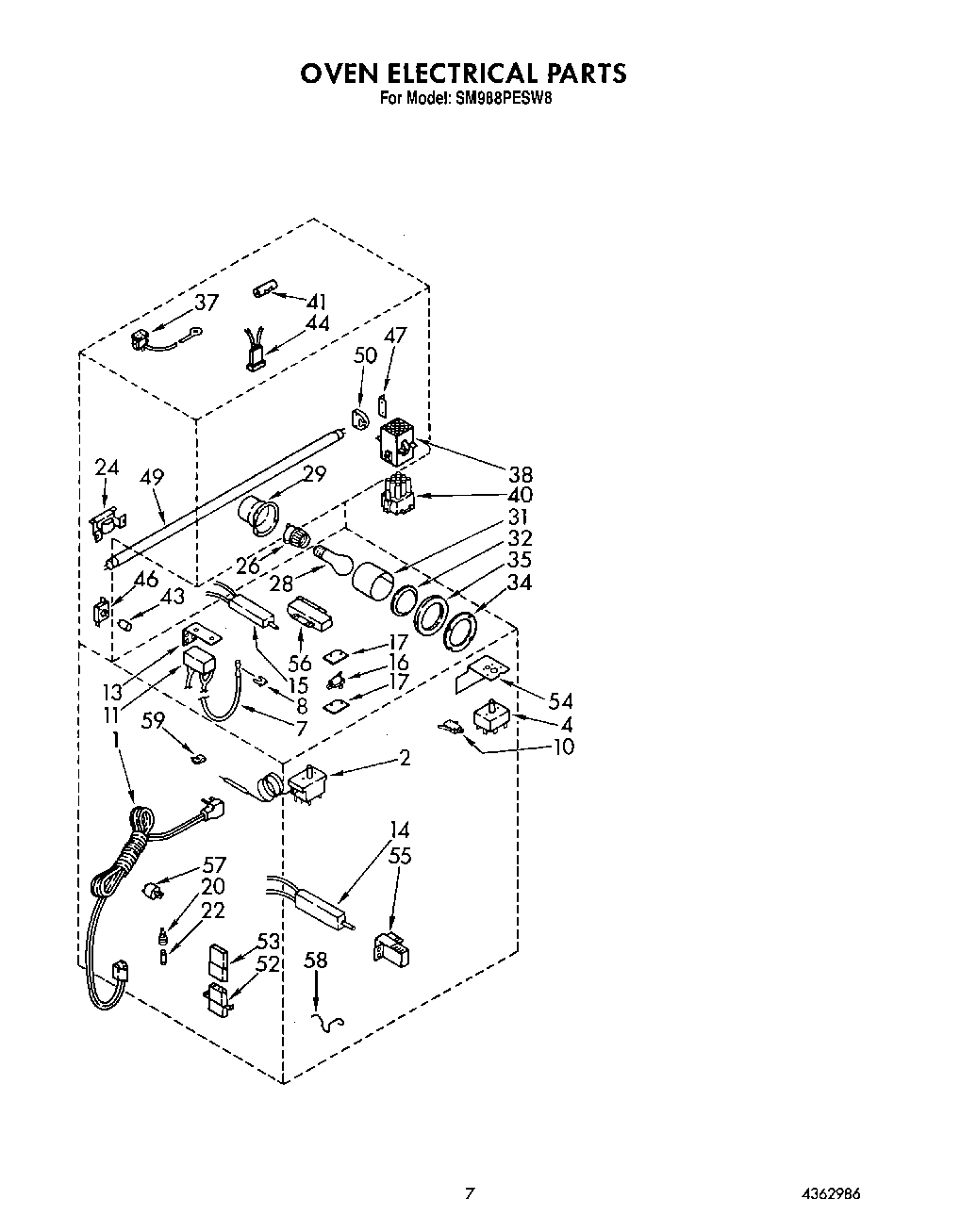

05 - OVEN ELECTRICAL

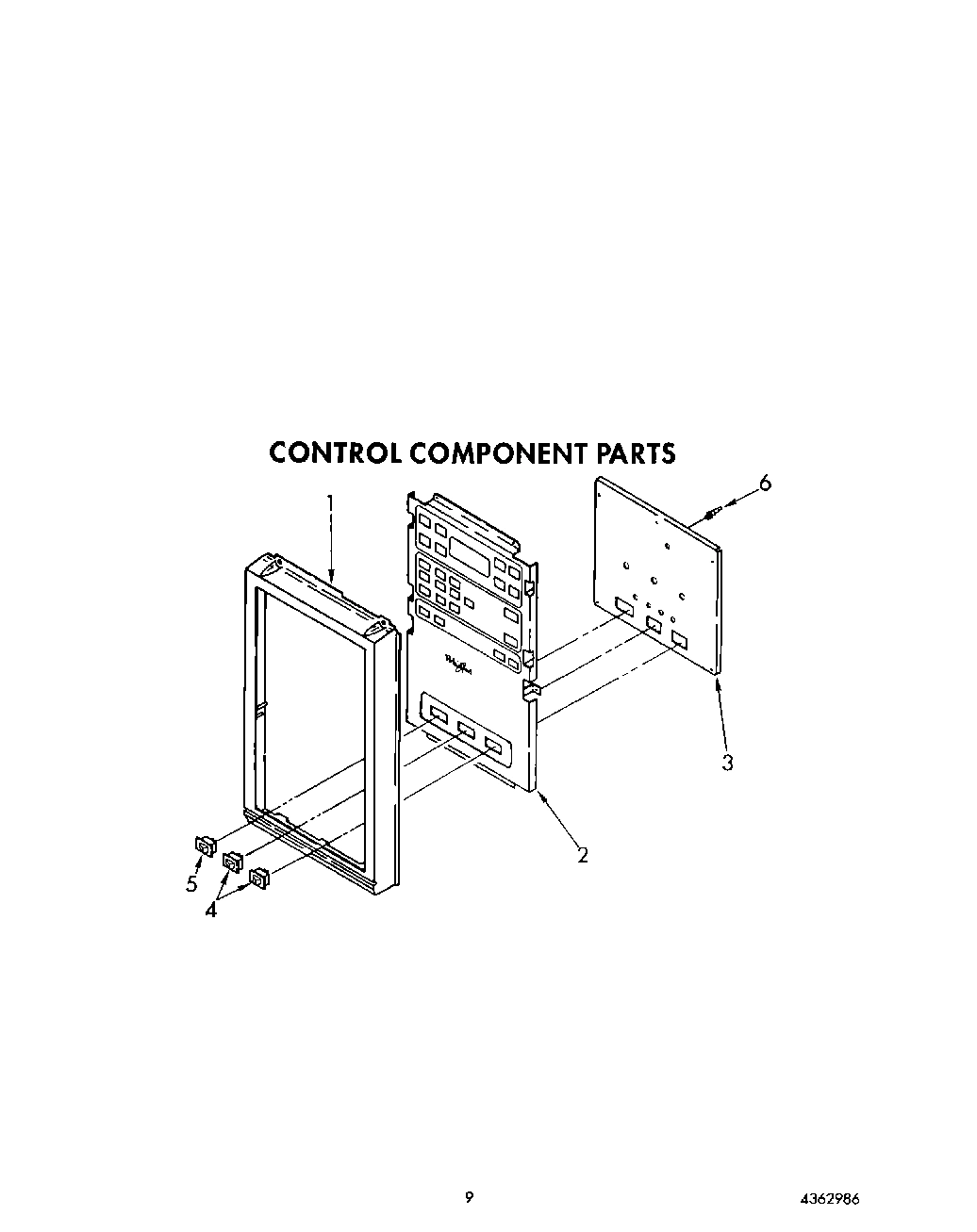

07 - CONTROL COMPARTMENT

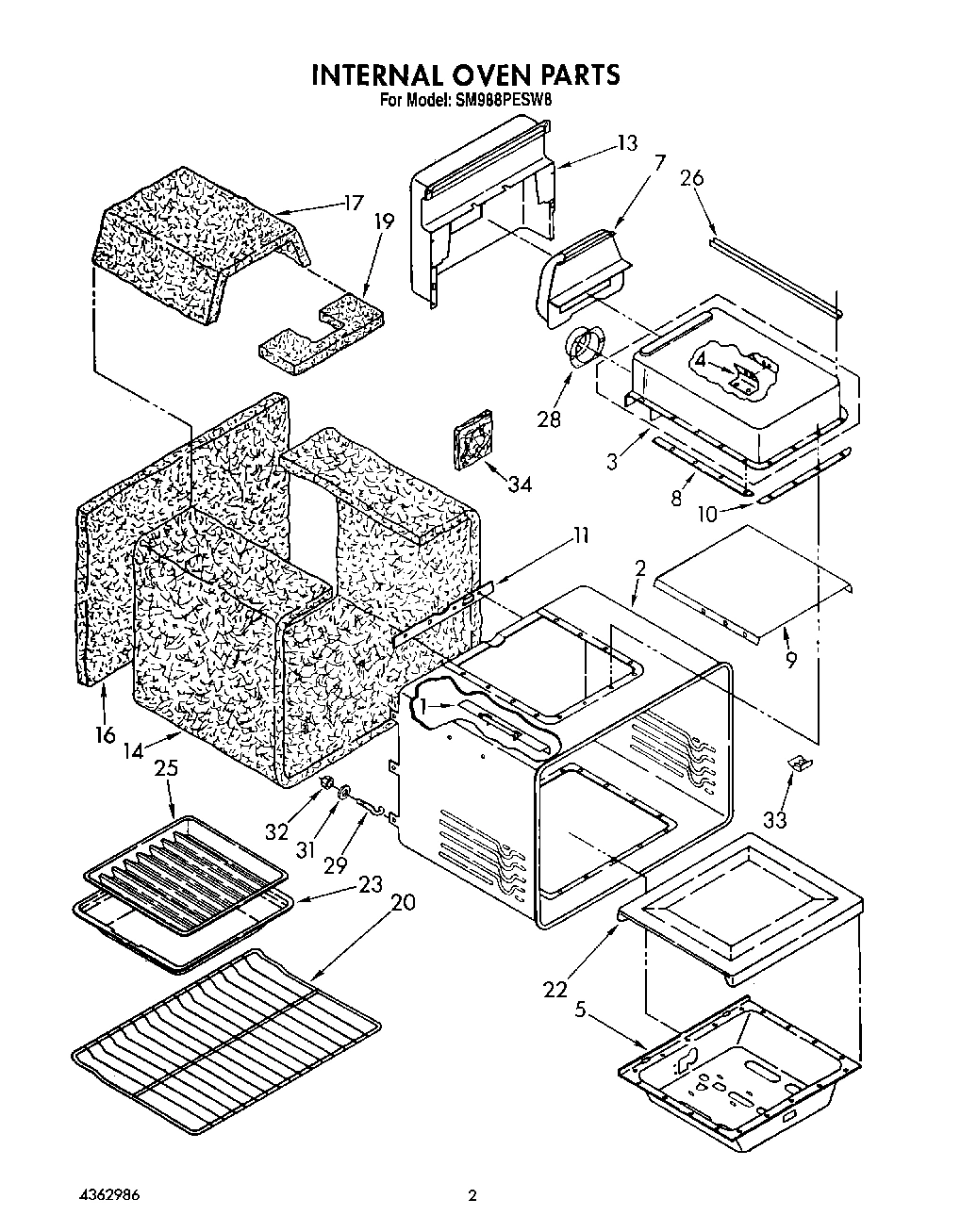

02 - INTERNAL OVEN, LIT/OPTIONAL

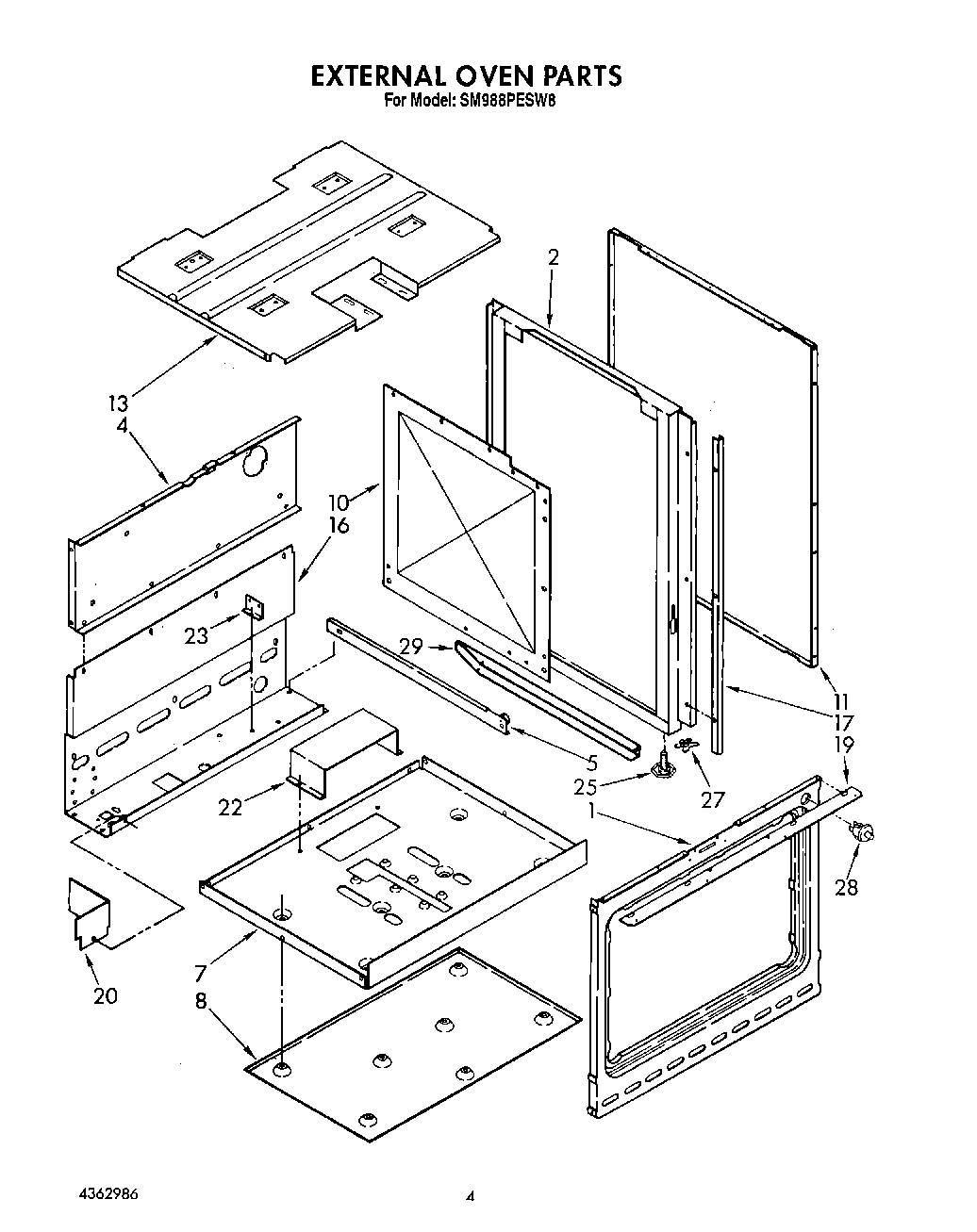

03 - EXTERNAL OVEN

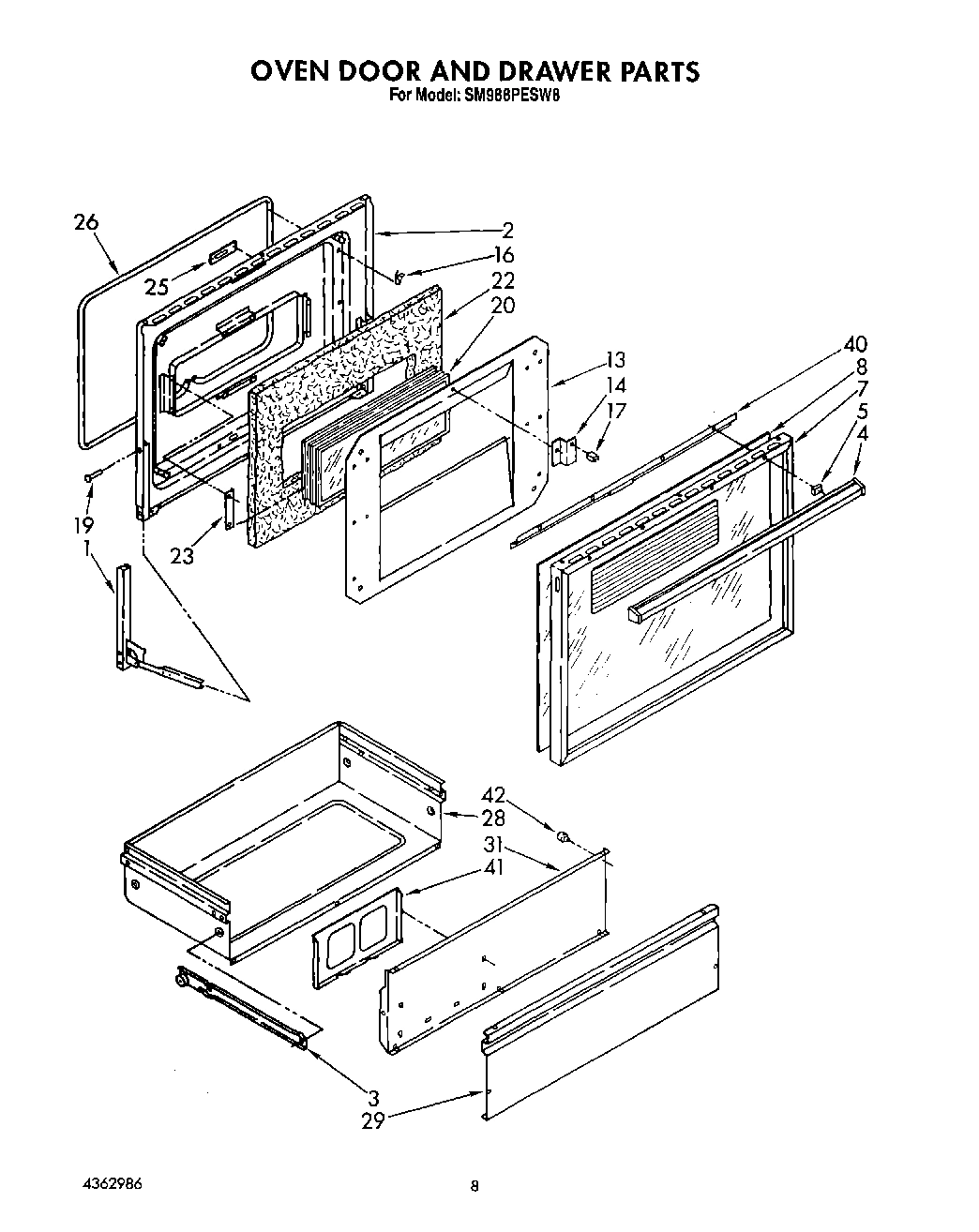

06 - OVEN DOOR AND DRAWER

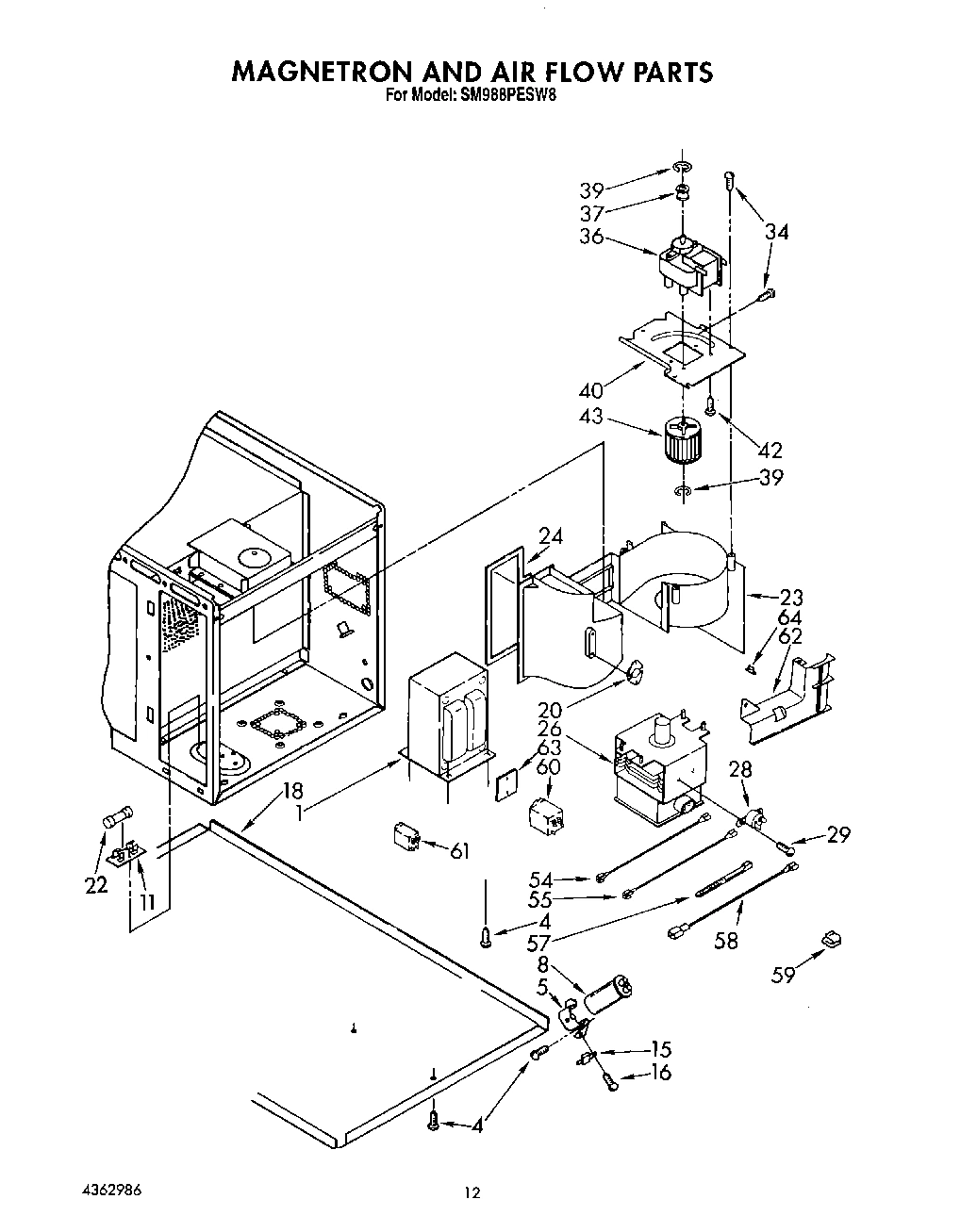

09 - MAGNETRON AND AIR FLOW

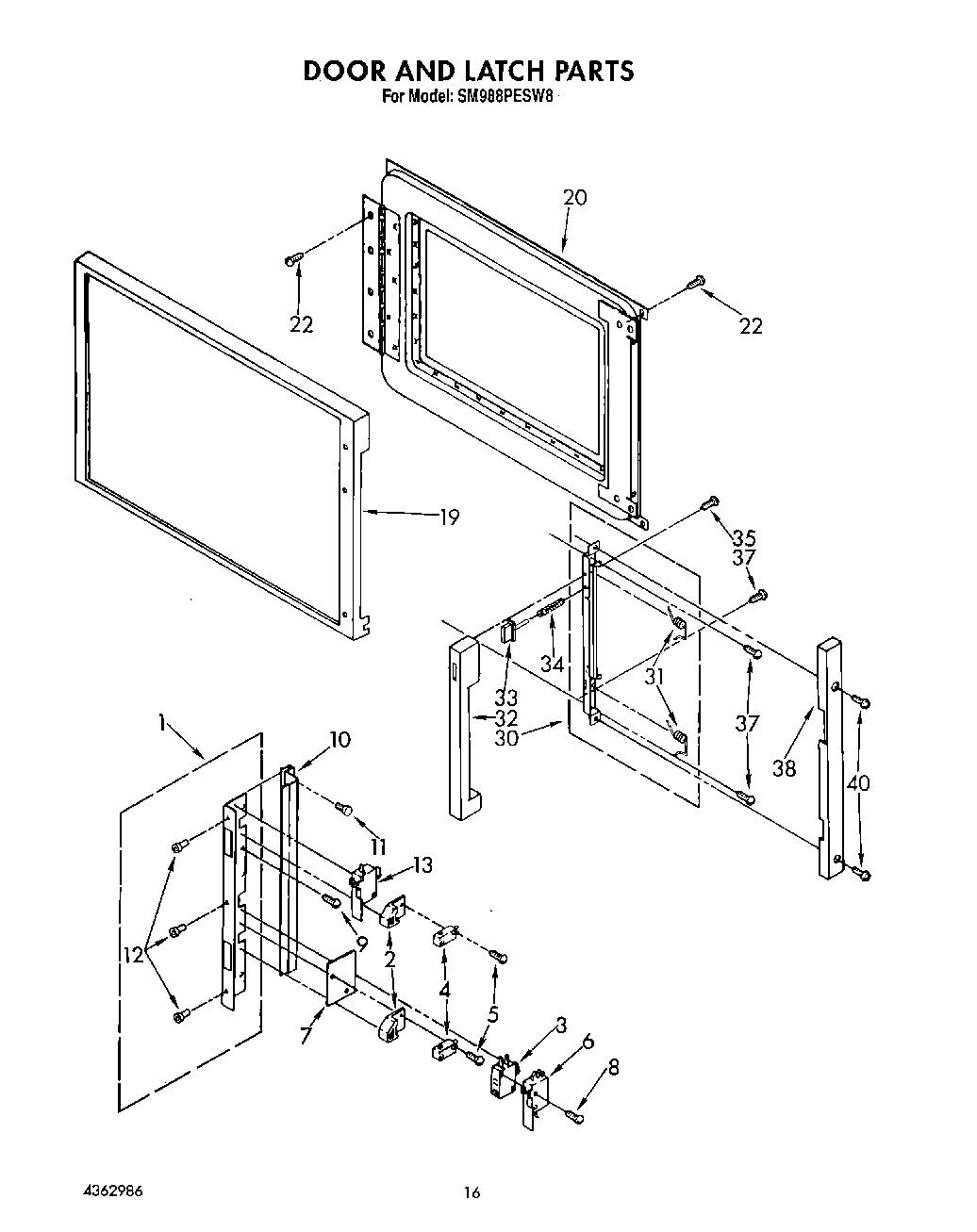

11 - DOOR AND LATCH

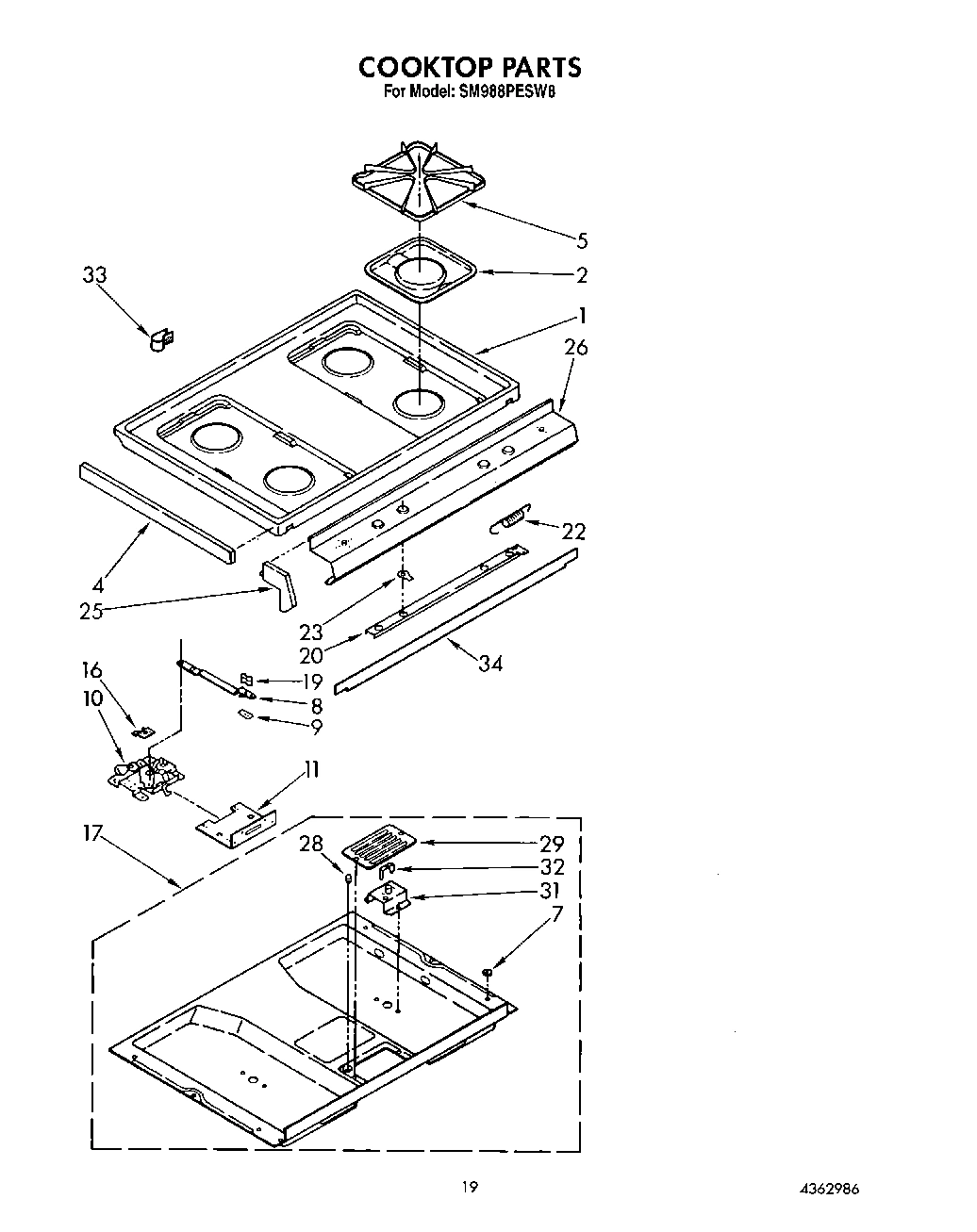

13 - COOKTOP

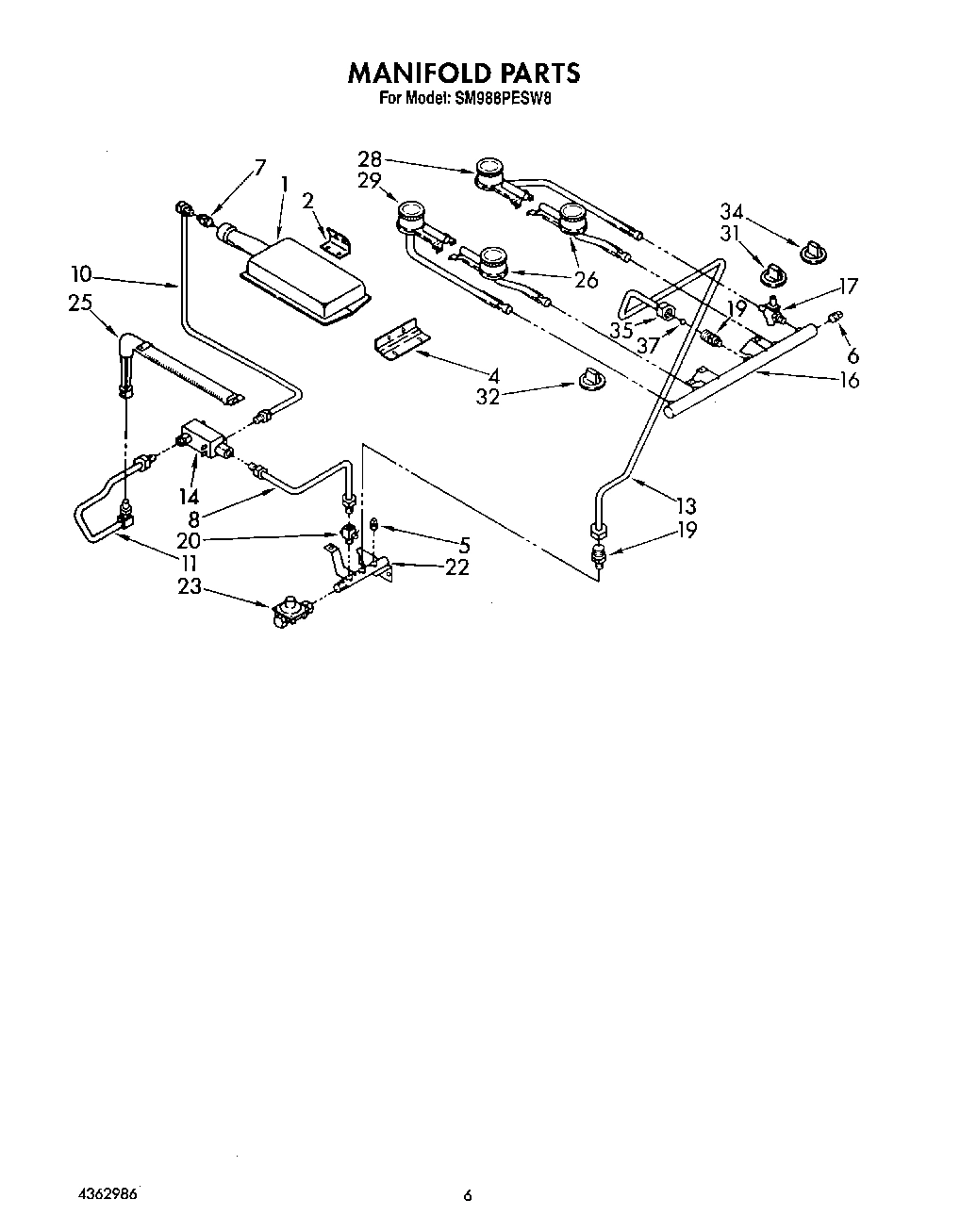

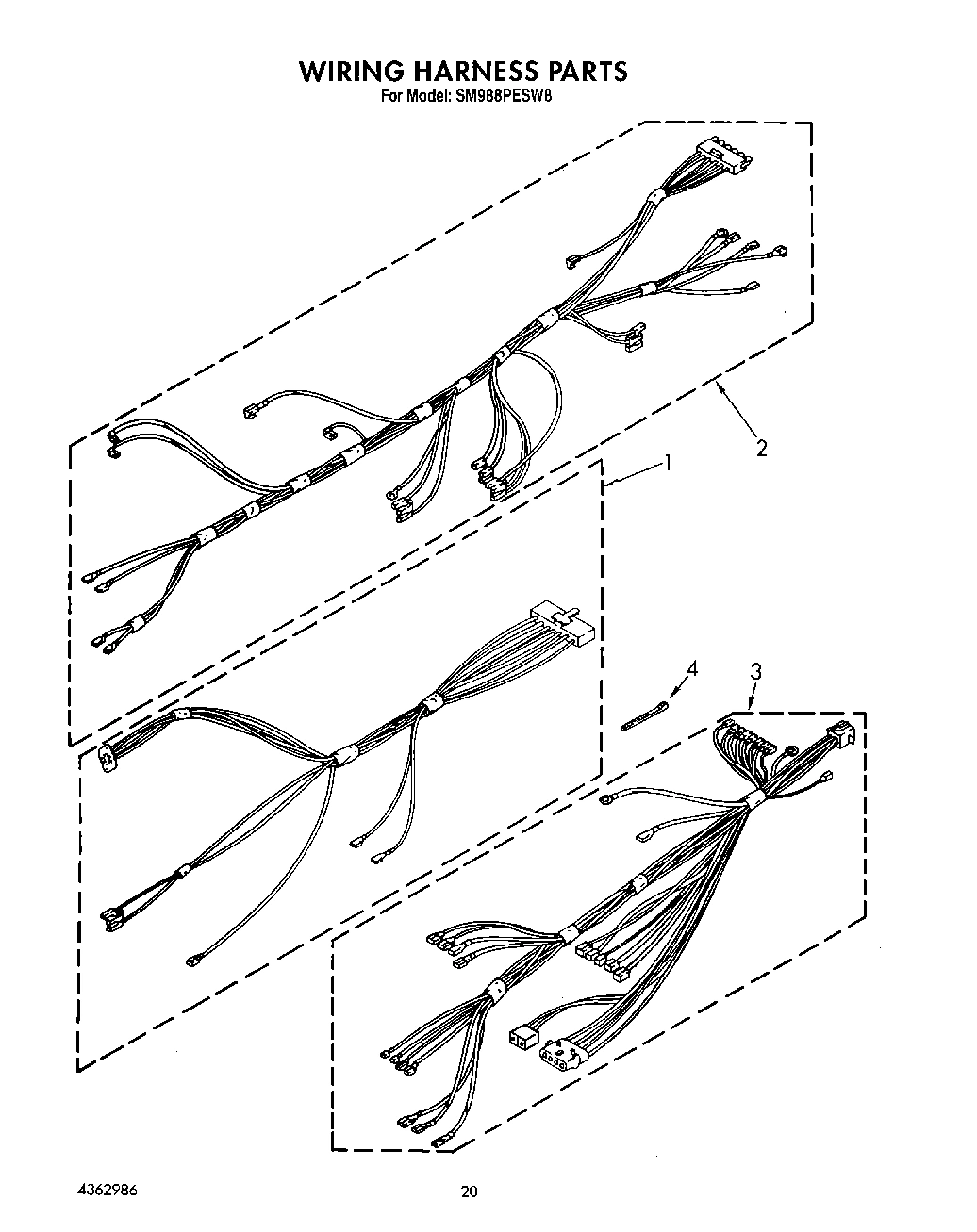

04 - MANIFOLD, WIRING HARNESS

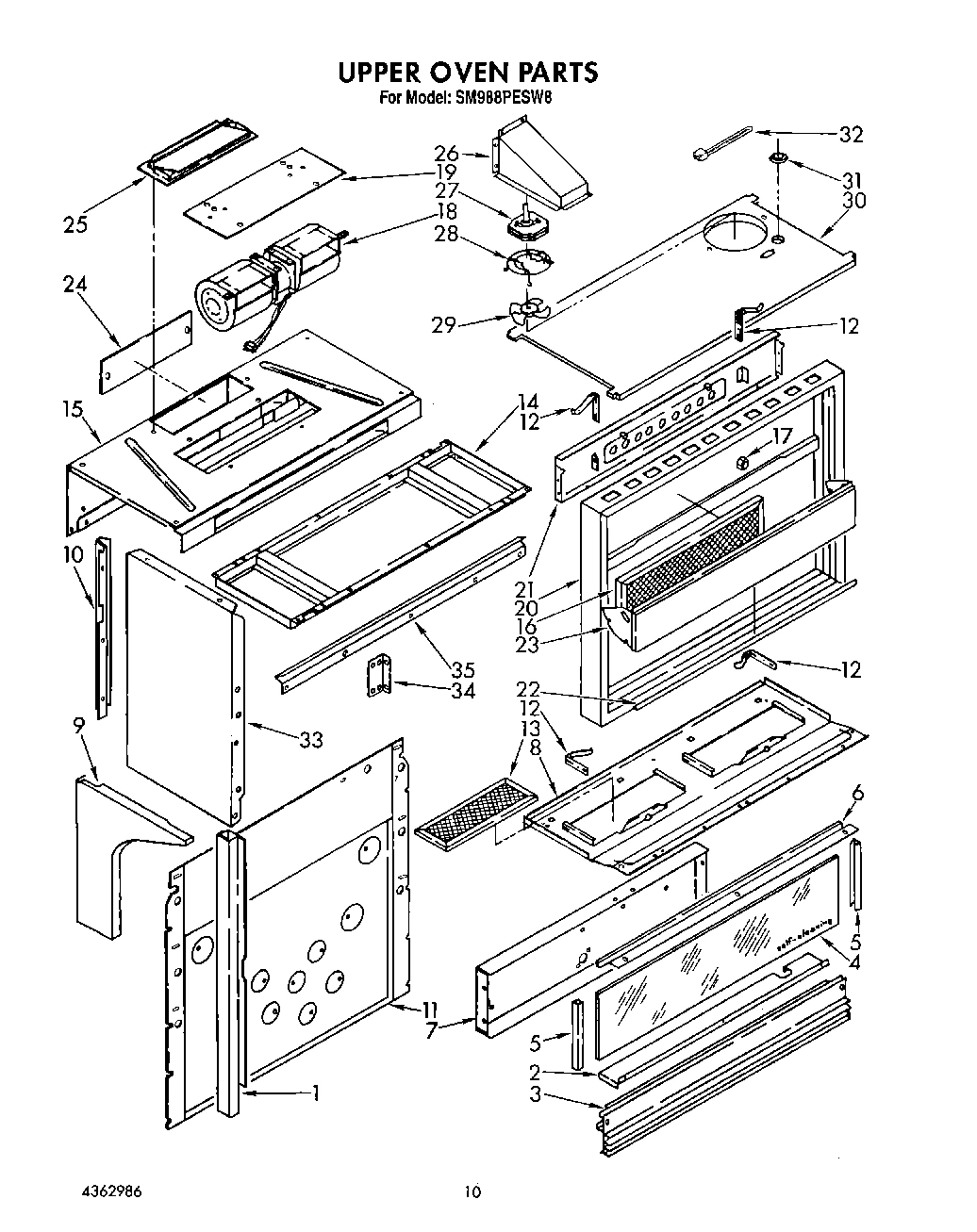

08 - UPPER OVEN, OPTIONAL
14 - SECTION
Common parts from model Whirlpool SM988PESW8 GAS RANGE WITH MICROWAVE
Cookbook WPL LIT311895 Contact Us For Availability
Guide, Use & Care (Microwave) WPL LIT312890 Contact Us For Availability
Installation Instructions WPL LIT4179112 Contact Us For Availability
Use & Care Guide (Range) WPL LIT4320794 Contact Us For Availability
Repair Parts List WPL LIT4362986 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
1
Screw, 8-32 x 3/8 WPL 312713 Contact Us For Availability
1
Cord, Power WPL 4362961 Contact Us For Availability
1
Frame, Control Panel WPL 3182412 Contact Us For Availability
1
Sheild, Thermostat Bulb WPL 786349 Contact Us For Availability
1
Frame, Front WPL 4320374 Contact Us For Availability
1
hinge, oven door (right side) WPL 786374 Contact Us For Availability
1
Hinge, Oven Door (Left Side) WPL 786739 Contact Us For Availability
1
Transformer WPL 661173 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Top, Main (White) WPL 4179071 Contact Us For Availability
1
Top, Main (Almond) WPL 4179072 Contact Us For Availability
1
Support, Upper Oven (L.H.) WPL 4362987 Contact Us For Availability
1
Burner, Ultra Ray Broiler WPL 4179233 Contact Us For Availability
1
Support, Upper Oven (R.H.) WPL 4362988 Contact Us For Availability
1
Harness, Wiring (Control) Microwave WPL 3147560 Contact Us For Availability
2
Shelf, Cavity (Install W/Silastic NO. 482338) WPL 313639 Contact Us For Availability
2
Thermostat, Oven WPL 4321095 Contact Us For Availability
2
Switch Membrane (Control Module) WPL 3148274 Contact Us For Availability
2
Oven 30`` Self-Clean WPL 4362983 Contact Us For Availability
2
Bracket, Ignitor WPL 786543 Contact Us For Availability
2
Frame, Side (Black) WPL 4362921 Contact Us For Availability
2
Liner, Oven Door WPL 4315131 Contact Us For Availability
2
Screw, 8-32 X 5/8 (4) WPL 786755 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Screw (2) WPL 4362967 Contact Us For Availability
2
Shield, Heat WPL 4362977 Contact Us For Availability
2
Harness, Wiring (Main) Microwave WPL 3148064 Contact Us For Availability
3
Bracket, Control (Mounting) WPL 3147283 Contact Us For Availability
3
Chamber, Broiler Burner WPL 4362984 Contact Us For Availability
3
Runner (L.H.) WPL 786813 Contact Us For Availability
3
runner (R.H.) WPL 786814 Contact Us For Availability
3
Switch WPL 661144 Contact Us For Availability
3
Trim, Lower WPL 4179231 Contact Us For Availability
3
Harness Wiring Vent Motor WPL 3147906 Contact Us For Availability
4
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
4
Switch, Selector WPL 4179076 Contact Us For Availability
4
screw, 10-24 x 7/16 (2) WPL 786740 Contact Us For Availability
4
Rear Panel, Upper WPL 4179143 Contact Us For Availability
4
Handle WPL 786408 Contact Us For Availability
4
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability
4
Trim, Main Top (Left Side) WPL 4362965 Contact Us For Availability
4
Trim, Main Top (Right Side) WPL 4362966 Contact Us For Availability
4
Bracket, Burner Mounting WPL 4179235 Contact Us For Availability
4
Glass, Splashplate WPL 4179238 Contact Us For Availability
5
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
5
Burner, Box, Lower WPL 786336 Contact Us For Availability
5
Track, Storage Draw (Right Side) WPL 786811 Contact Us For Availability
5
Track, Storage Draw (Left Side) WPL 786812 Contact Us For Availability
5
Spacer, Handle (2) WPL 786410 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Screw, 4-40 x 3/4 Pan Head Thread Form (4) WPL 312717 Contact Us For Availability
5
Grate, Top Burner WPL 786354 Contact Us For Availability
5
Trim, Glass WPL 786489 Contact Us For Availability
6
Light, Indicator WPL 3147867 Contact Us For Availability
6
Switch, Light/ Monitor WPL 661145 Contact Us For Availability
6
Pipe Plug, 3/8 NPT WPL 786665 Contact Us For Availability
6
Trim, Rear WPL 4179243 Contact Us For Availability
7
Flue, Inner WPL 4362985 Contact Us For Availability
7
retainer, bottom insulation WPL 4315770 Contact Us For Availability
7
Frame WPL 786417 Contact Us For Availability
7
Insulator WPL 313126 Contact Us For Availability
7
Spacer, Nylon (2) WPL 786342 Contact Us For Availability
7
spud, orifice (natural gas no. 50) WPL 786308 Contact Us For Availability
7
spud, orifice (LP gas no. 58) WPL 786309 Contact Us For Availability
7
Panel, Surface Light WPL 4362990 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Gasket, Side Chamber WPL 786338 Contact Us For Availability
8
Heat Shield, Storage Drawer WPL 786364 Contact Us For Availability
8
Panel, Black Glass WPL 786419 Contact Us For Availability
8
Capacitor WPL 661004 Contact Us For Availability
8
Screw, 4-40 x 10 (2) WPL 310211 Contact Us For Availability
8
Handle, Latch WPL 786376 Contact Us For Availability
8
Tubing (Inlet To Gas Valve) WPL 786547 Contact Us For Availability
8
Bumper (4) WPL 312783 Contact Us For Availability
8
Seal, Foam WPL 3147593 Contact Us For Availability
8
Panel, Bottom WPL 4179239 Contact Us For Availability
9
Baffle, Heat WPL 4392968 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
9
Support, Latch WPL 786690 Contact Us For Availability
9
Support, Side (L.H.) (White) WPL 3147649 Contact Us For Availability
9
Support, Side (L.H.) (Almond) WPL 3147650 Contact Us For Availability
9
Support, Side (L.H.) (White) WPL 3147654 Contact Us For Availability
9
Support, Side (L.H.) (Almond) WPL 3147655 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
Socket, Complete WPL 330514 Contact Us For Availability
10
switch, top burner actuator WPL 4320326 Contact Us For Availability
10
Gasket, Front Chamber WPL 786339 Contact Us For Availability
10
Retainer, Insulation (2) WPL 4362922 Contact Us For Availability
10
shield WPL 311360 Contact Us For Availability
10
Latch Assembly WPL 786303 Contact Us For Availability
10
Orifice & Tubing Assembly (Gas Valve To Ultra WPL 786548 Contact Us For Availability
10
Spacer, Wall WPL 4179242 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
11
Fastener (2) WPL 313740 Contact Us For Availability
11
Module, Spark WPL 786323 Contact Us For Availability
11
Gasket, Oven Back WPL 786340 Contact Us For Availability
11
Panel, End (2) (White) WPL 4362888 Contact Us For Availability
11
Panel, End (2) (Almond) WPL 4362897 Contact Us For Availability
11
Bracket, Latch Mounting WPL 4315774 Contact Us For Availability
11
hood & tubing assembly (gas valve to lower ov WPL 4320315 Contact Us For Availability
11
Panel, Cover WPL 4362962 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
Clip (4) WPL 3147525 Contact Us For Availability
13
Bracket, Spark Module WPL 786581 Contact Us For Availability
13
Flue, Dillution WPL 786341 Contact Us For Availability
13
Retainer, Top Insulation WPL 4362931 Contact Us For Availability
13
Retainer, Insulation WPL 786424 Contact Us For Availability
13
Switch, Miniture WPL 313120 Contact Us For Availability
13
Tubing (Inlet To Manifold) WPL 786550 Contact Us For Availability
13
Filter, Mesh (2) WPL 3147606 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
14
bracket, glass support (4) WPL 786425 Contact Us For Availability
14
Valve, Dual Gas Valve WPL 4320316 Contact Us For Availability
14
Support, Frame WPL 3170224 Contact Us For Availability
15
Rectifier, High Voltage WPL 313830 Contact Us For Availability
15
Top Panel WPL 3170472 Contact Us For Availability
16
Switch, Oven Door Latch WPL 4362916 Contact Us For Availability
16
Rear Panel, Lower WPL 4179142 Contact Us For Availability
16
Bushing, Snap WPL 4362820 Contact Us For Availability
16
nut, 6-32 WPL 786748 Contact Us For Availability
16
Clip, Speed (14) WPL 786426 Contact Us For Availability
16
Bracket, Switch WPL 786381 Contact Us For Availability
16
Manifold WPL 4320317 Contact Us For Availability
16
Filter, Mesh WPL 3147607 Contact Us For Availability
17
Seal, Foam WPL 313753 Contact Us For Availability
17
Insulator, Switch WPL 786380 Contact Us For Availability
17
Trim, Side Panel (2) WPL 4320862 Contact Us For Availability
17
Bumper, Window (5) WPL 4179237 Contact Us For Availability
17
Burner Box WPL 4315115 Contact Us For Availability
17
Valve, Top Burner (Tri-Set) WPL 4320318 Contact Us For Availability
17
Nut (3) WPL 3147378 Contact Us For Availability
18
Base, Chassis (Not Serviceable) WPL ARI130527A Contact Us For Availability
18
Motor, Fan WPL 3147817 Contact Us For Availability
19
Filler, Front Frame WPL 4315118 Contact Us For Availability
19
Pin, Hinge (2) WPL 786428 Contact Us For Availability
19
Frame, Door WPL 3170441 Contact Us For Availability
19
Knob, Latch Handle WPL 786386 Contact Us For Availability
19
Fitting WPL 4320319 Contact Us For Availability
19
Cover, Access WPL 3147798 Contact Us For Availability
20
Stirrer Cover WPL 313563 Contact Us For Availability
20
Holder, Fuse WPL 786584 Contact Us For Availability
20
Rack, Oven WPL 786347 Contact Us For Availability
20
Plate, Cover WPL 786385 Contact Us For Availability
20
Window Assembly WPL 786429 Contact Us For Availability
20
Screw, 6AB x 3/8 (2) WPL 246131 Contact Us For Availability
20
Thermostat WPL 3147274 Contact Us For Availability
20
Door, Inner WPL 3171012 Contact Us For Availability
20
Actuator, Spark Ignitor WPL 786390 Contact Us For Availability
20
Valve, Shut Off WPL 4362689 Contact Us For Availability
20
Screw, 8-32 x 1/2 (4) WPL 311945 Contact Us For Availability
20
Frame WPL 3170131 Contact Us For Availability
21
Seal, Foam WPL 3147602 Contact Us For Availability
21
Seal, Foam (2) WPL 3147595 Contact Us For Availability
21
Seal, Foam WPL 3147596 Contact Us For Availability
21
Panel, Vent Door WPL 3147712 Contact Us For Availability
21
Screw, Shoulder (2) WPL 3147724 Contact Us For Availability
21
Seal, Foam (4) WPL 3147751 Contact Us For Availability
21
Spring, Vent Door (2) WPL 3147764 Contact Us For Availability
21
Rivet (2) WPL 3147858 Contact Us For Availability
21
Rivet, Plastic (2) WPL 3148294 Contact Us For Availability
22
Rack, Wire WPL 4362963 Contact Us For Availability
22
Fuse WPL 786585 Contact Us For Availability
22
Bottom, Oven WPL 4315114 Contact Us For Availability
22
Cover, Burner WPL 786388 Contact Us For Availability
22
Spring WPL 786391 Contact Us For Availability
22
Inlet WPL 786557 Contact Us For Availability
22
Handle, Vent Door WPL 3147710 Contact Us For Availability
23
Plate, Tuning WPL 313735 Contact Us For Availability
23
Support, Rack WPL 4362964 Contact Us For Availability
23
Pan, Broiler WPL 4315109 Contact Us For Availability
23
Bracket, Gas Valve (2) WPL 4315678 Contact Us For Availability
23
Retainer, Window (4) WPL 4179236 Contact Us For Availability
23
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
23
Cam (4) WPL 786392 Contact Us For Availability
23
Regulator, Pressure WPL 786313 Contact Us For Availability
23
Door, Vent WPL 3170269 Contact Us For Availability
24
Support (4) WPL 313739 Contact Us For Availability
24
Ballast WPL 786540 Contact Us For Availability
24
Seal, Air Duct WPL 313752 Contact Us For Availability
24
Cover, Exhaust WPL 3147726 Contact Us For Availability
25
Grid, Broiler WPL 4362695 Contact Us For Availability
25
Leg, Leveling (4) WPL 786602 Contact Us For Availability
25
Plate, Latch (2) WPL 786671 Contact Us For Availability
25
End Cap (Right) WPL 786393 Contact Us For Availability
25
End Cap (Left) WPL 786394 Contact Us For Availability
25
Oven Burner, Lower WPL 786314 Contact Us For Availability
25
Damper WPL 3147843 Contact Us For Availability
26
Socket, Oven Lamp WPL 786653 Contact Us For Availability
26
Channel, Broiler Burner WPL 4362890 Contact Us For Availability
26
Gasket Assembly WPL 786432 Contact Us For Availability
26
Magnetron WPL 660595 Contact Us For Availability
26
Panel, Control WPL 4362881 Contact Us For Availability
26
Top Burner, Front (2) WPL 786315 Contact Us For Availability
26
Flue, Air WPL 3148009 Contact Us For Availability
27
Nut (4) WPL 4157527 Contact Us For Availability
27
Nut, Hex 6-32 (2) WPL 307602 Contact Us For Availability
27
Motor, Fan WPL 312389 Contact Us For Availability
28
Duct, Cup WPL 786353 Contact Us For Availability
28
Switch, Oven Light WPL 4179328 Contact Us For Availability
28
Wrapper, Storage Drawer WPL 4179232 Contact Us For Availability
28
Thermal Protector WPL 661165 Contact Us For Availability
28
Top Burner, R.R. WPL 786316 Contact Us For Availability
28
Mount, Fan Motor WPL 310420 Contact Us For Availability
29
Baffle, Air Exhaust WPL 3147002 Contact Us For Availability
29
Seal, Foam WPL 3147599 Contact Us For Availability
29
Hook Bolt, Oven Shell WPL 786350 Contact Us For Availability
29
Bracket, Panel (Right Hand) WPL 4362923 Contact Us For Availability
29
Bracket, Panel (Left Hand) WPL 4362935 Contact Us For Availability
29
Panel, Drawer (Almond) WPL 786521 Contact Us For Availability
29
Panel, Drawer (White) WPL 786522 Contact Us For Availability
29
Screw, 6A x 3/8 (2) WPL 312782 Contact Us For Availability
29
Plate, Cover WPL 786683 Contact Us For Availability
29
Top Burner, L.R. WPL 786317 Contact Us For Availability
29
Blade, Fan WPL 307535 Contact Us For Availability
30
Latch Assembly WPL 329066 Contact Us For Availability
30
Seal, Foam WPL 3147590 Contact Us For Availability
30
Separator, Air WPL 3148007 Contact Us For Availability
31
Retainer, Insulation WPL 786573 Contact Us For Availability
31
Washer WPL 786351 Contact Us For Availability
31
Liner, Door Panel WPL 4320307 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
31
Ignitor, Top (2) WPL 786684 Contact Us For Availability
31
Knob, Top Burner (4) WPL 786559 Contact Us For Availability
31
Bushing, Snap WPL 3148008 Contact Us For Availability
32
Lens, Oven Light WPL 786574 Contact Us For Availability
32
Nut, Hex 10-32 WPL 786352 Contact Us For Availability
32
Handle, Door WPL 314169 Contact Us For Availability
32
Bracket, Electrode (2) WPL 786754 Contact Us For Availability
32
Knob, Oven Thermostat WPL 4321111 Contact Us For Availability
33
Cover, Chip WPL 4315098 Contact Us For Availability
33
Side Pane, L.H. (Seal, Foam (2)) WPL 3147591 Contact Us For Availability
33
Side Panel, L.H. (Seal, Foam (2) Side Panel, WPL 3147592 Contact Us For Availability
33
Side Panel, L.H. (White) WPL 3171910 Contact Us For Availability
33
Side Panel, L.H. (White) WPL 3171911 Contact Us For Availability
33
Side Panel, WPL 3171912 Contact Us For Availability
33
WPL 3171913 WPL 3171913 Contact Us For Availability
34
Retainer, Oven Light Lens WPL 786575 Contact Us For Availability
34
Insulation, Oven Light WPL 4315034 Contact Us For Availability
34
Screw, 11-16 x 1/2 Double Load Space Thread ( WPL 346893 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
34
Knob, Selector WPL 786562 Contact Us For Availability
34
WPL 4315018 WPL 4315018 Contact Us For Availability
35
Gasket, Oven Light WPL 786576 Contact Us For Availability
35
Screw (2) WPL 313820 Contact Us For Availability
35
Nut, Compression 3/8 WPL 786565 Contact Us For Availability
35
WPL 242820 WPL 242820 Contact Us For Availability
35
WPL 242821 WPL 242821 Contact Us For Availability
35
WPL 242822 WPL 242822 Contact Us For Availability
35
WPL 242823 WPL 242823 Contact Us For Availability
35
WPL 242824 WPL 242824 Contact Us For Availability
35
WPL 242825 WPL 242825 Contact Us For Availability
35
WPL 242826 WPL 242826 Contact Us For Availability
35
WPL 242827 WPL 242827 Contact Us For Availability
35
WPL 242828 WPL 242828 Contact Us For Availability
35
WPL 242829 WPL 242829 Contact Us For Availability
35
WPL 242830 WPL 242830 Contact Us For Availability
35
WPL 242832 WPL 242832 Contact Us For Availability
35
WPL 4315104 WPL 4315104 Contact Us For Availability
35
WPL 591014 WPL 591014 Contact Us For Availability
35
WPL 814023 WPL 814023 Contact Us For Availability
36
Transmotor WPL 313641 Contact Us For Availability
37
Outlet, Fan Motor WPL 786651 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
37
Sleeve, Compression 3/8 WPL 786566 Contact Us For Availability
38
Jack, Probe WPL 3147071 Contact Us For Availability
38
Cap, 9 Pin Connector WPL 786652 Contact Us For Availability
38
End Cap WPL 3148297 Contact Us For Availability
39
``E`` Ring (2) WPL 311999 Contact Us For Availability
39
Washer, Internal Lock WPL 313105 Contact Us For Availability
40
Plug, 9 Pin Connector WPL 786593 Contact Us For Availability
40
Baffle, Air WPL 786422 Contact Us For Availability
40
Bracket, Motor WPL 313601 Contact Us For Availability
40
Screw, 8-22 (5) WPL 313823 Contact Us For Availability
41
Nut WPL 313104 Contact Us For Availability
41
Receptacle, 1 Circuit WPL 786654 Contact Us For Availability
41
Rack, Literature WPL 786807 Contact Us For Availability
42
Bumper WPL 786526 Contact Us For Availability
43
Probe, Temperature WPL 3148557 Contact Us For Availability
43
Starter, Fluorescent WPL 786541 Contact Us For Availability
43
Wheel, Blower WPL 3147223 Contact Us For Availability
44
Plug, 2 Circuit WPL 786655 Contact Us For Availability
46
Socket, Starter WPL 786542 Contact Us For Availability
47
Support Bracket, Socket WPL 786592 Contact Us For Availability
50
Air Deflector WPL 3148435 Contact Us For Availability
50
Lampholder Fluorescent WPL 786536 Contact Us For Availability
52
Receptacle, 3 Pin WPL 786661 Contact Us For Availability
53
Plug, 3-Pin WPL 786662 Contact Us For Availability
54
Insulator, Control (2) WPL 786689 Contact Us For Availability
54
Jumper, High Voltage Black 6-5/16`` WPL 312793 Contact Us For Availability
55
Screw, 8-32 x 1/2 (4) WPL 313816 Contact Us For Availability
55
Cover, Side WPL 3147004 Contact Us For Availability
55
Bracket, Bake Ignitor WPL 786801 Contact Us For Availability
55
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
56
Bracket, Broiler Ignitor WPL 786802 Contact Us For Availability
57
Plug, Male WPL 786570 Contact Us For Availability
58
Clip, Wire WPL 4179338 Contact Us For Availability
58
High Voltage Lead, Gray 6-3/4`` (2) WPL 3147863 Contact Us For Availability
59
Speed Clip WPL 4157515 Contact Us For Availability
59
Clip WPL 311311 Contact Us For Availability
60
Relay, Vent (24V, Clear) WPL 3147902 Contact Us For Availability
62
Extension, Air Duct WPL 3147262 Contact Us For Availability
63
Insulator, Power Relay WPL 3148083 Contact Us For Availability
64
screw (2) WPL 313818 Contact Us For Availability
64
Thermostat, Fixed WPL 3147834 Contact Us For Availability
× ![]()
