Model Whirlpool SM958PEKW0 GAS RANGE WITH MICROWAVE – Common Parts & Diagrams

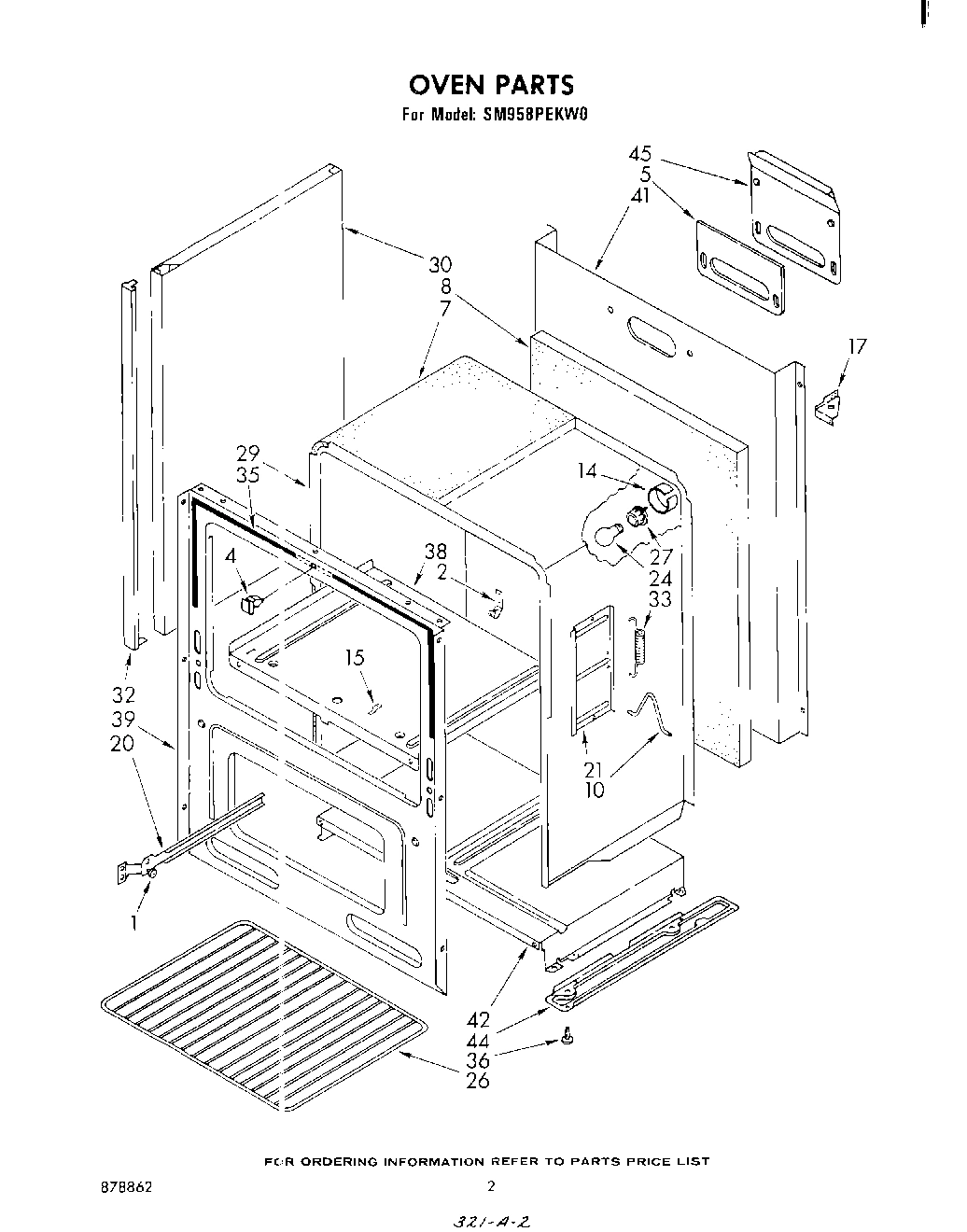

02 - OVEN , LITERATURE

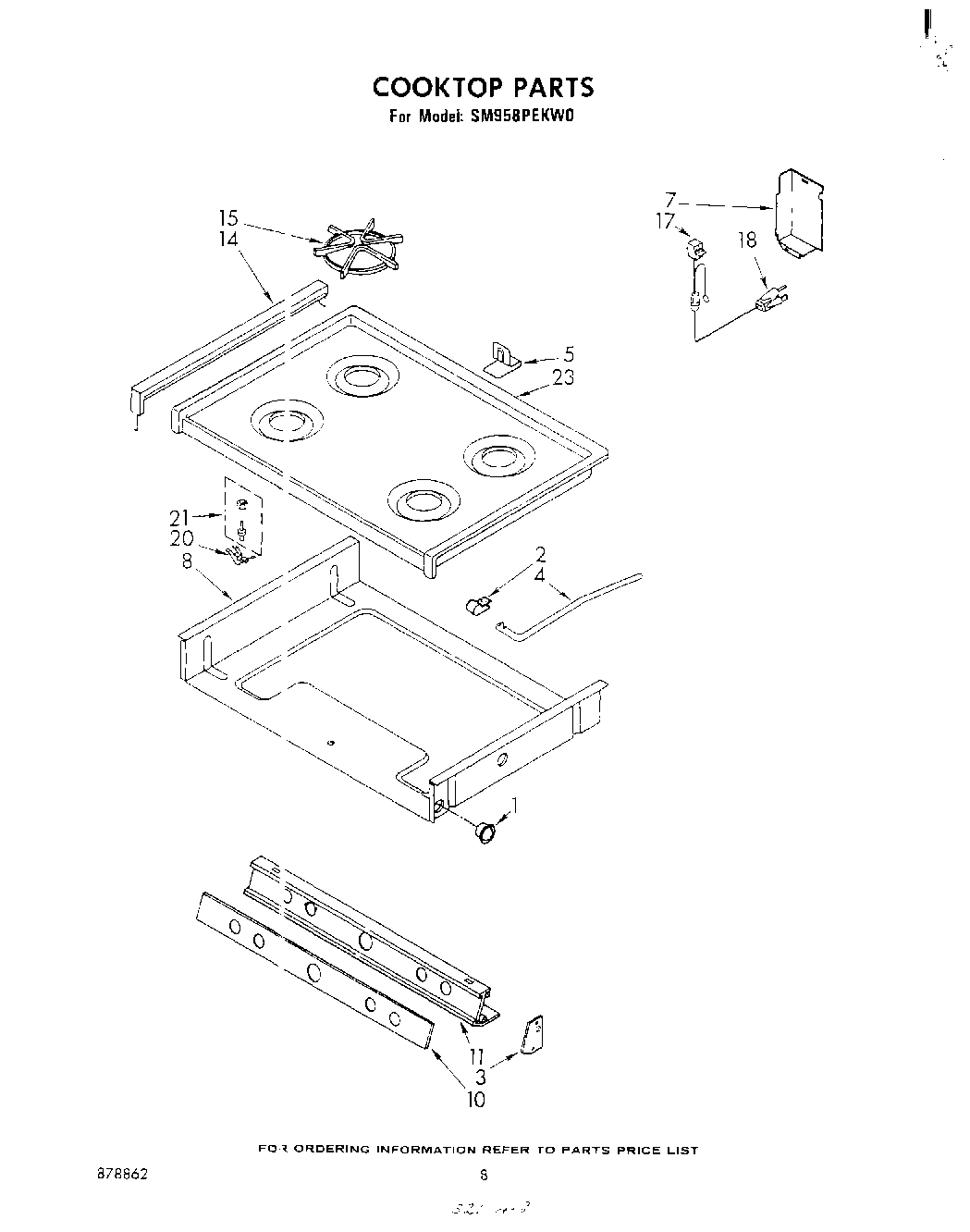

05 - COOKTOP

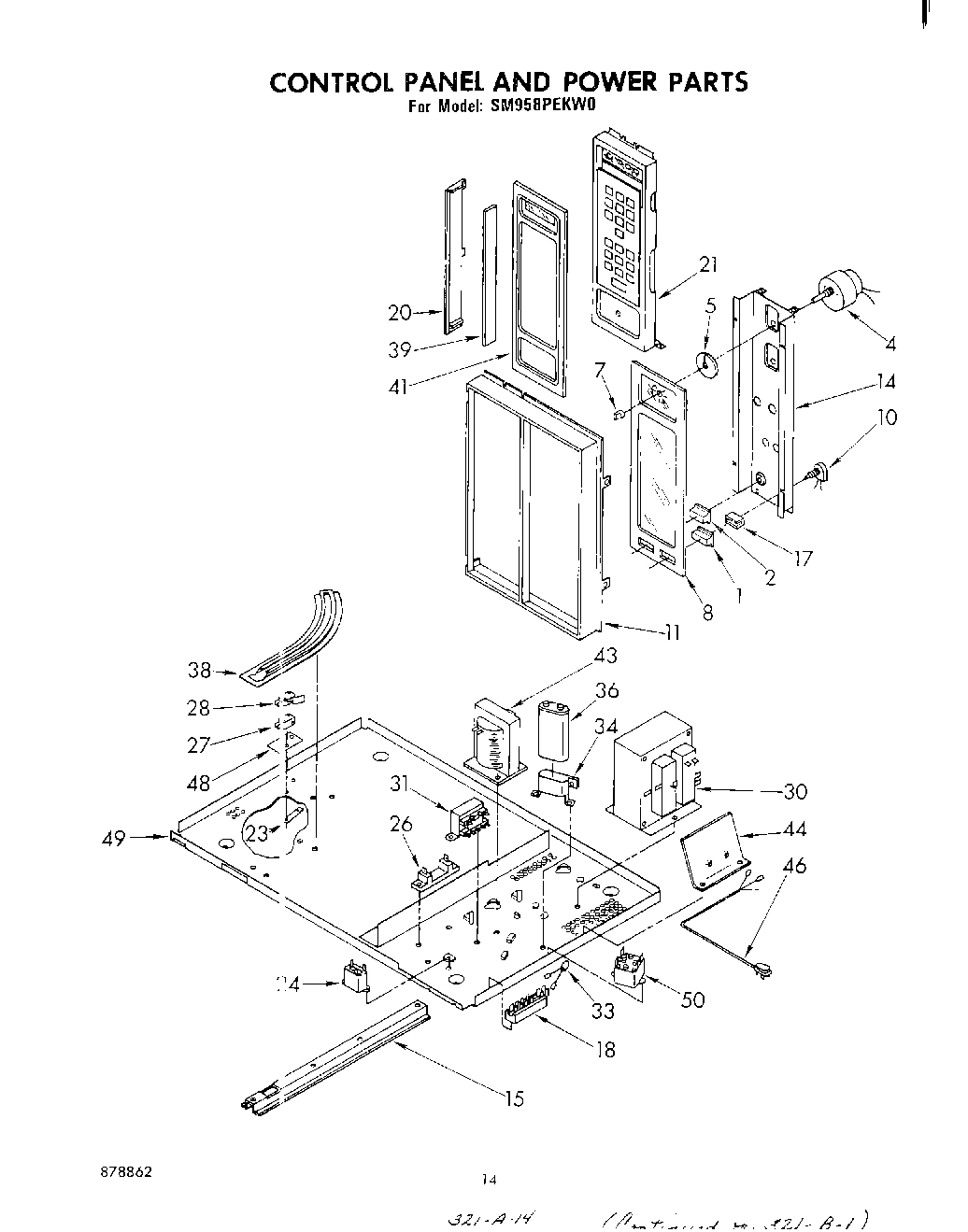

09 - CONTROL PANEL AND POWER

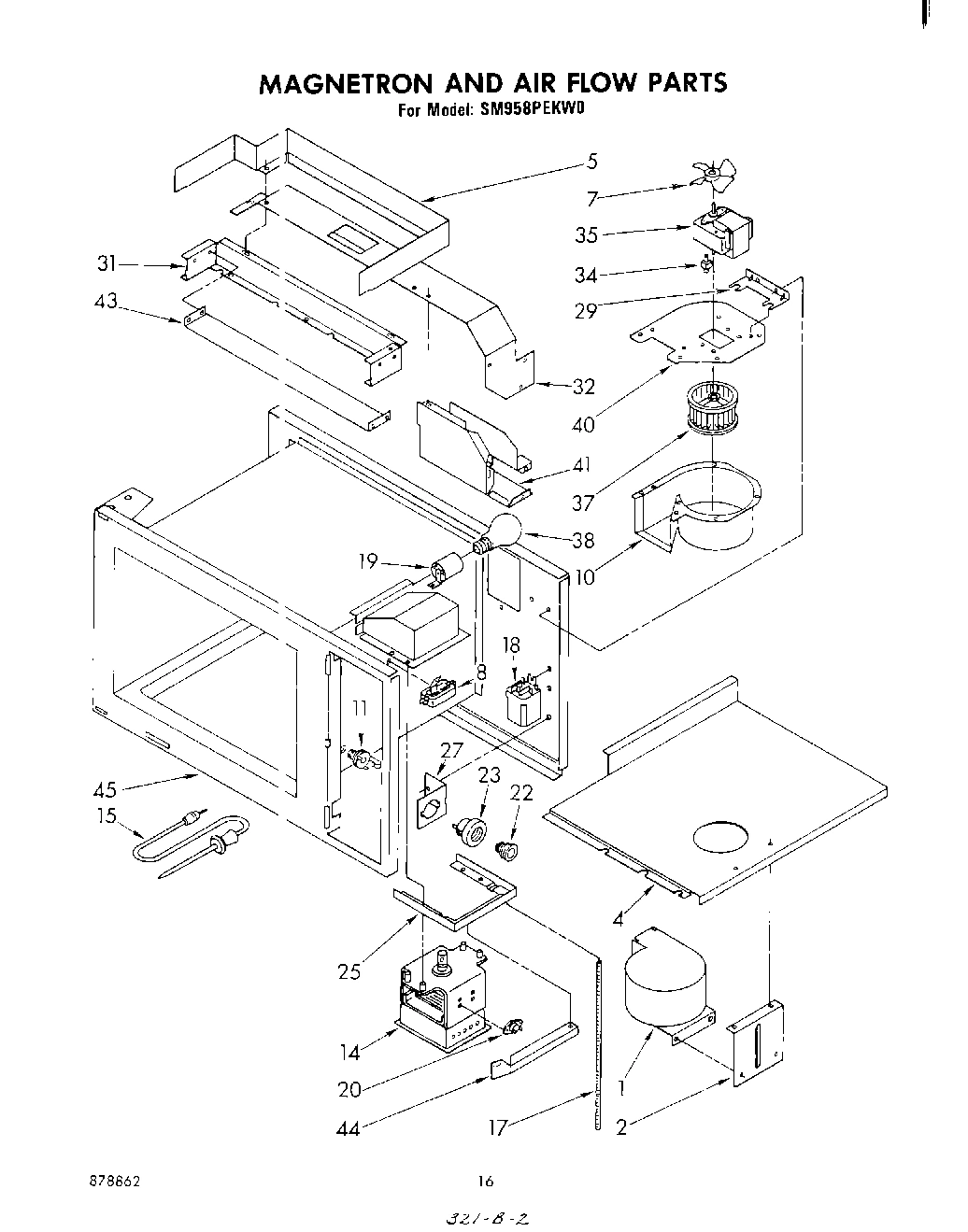

10 - MAGNETRON AND AIR FLOW

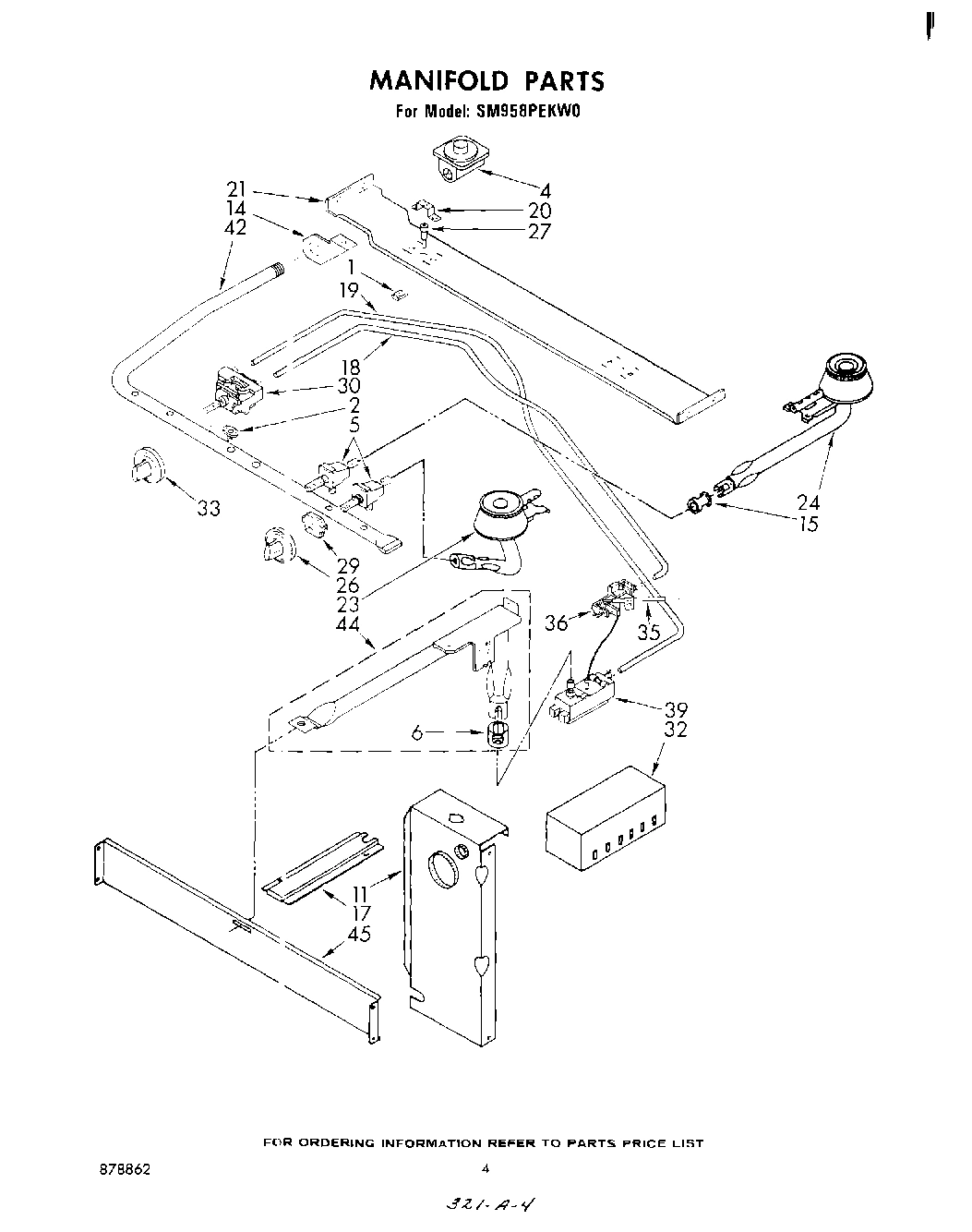

03 - MANIFOLD

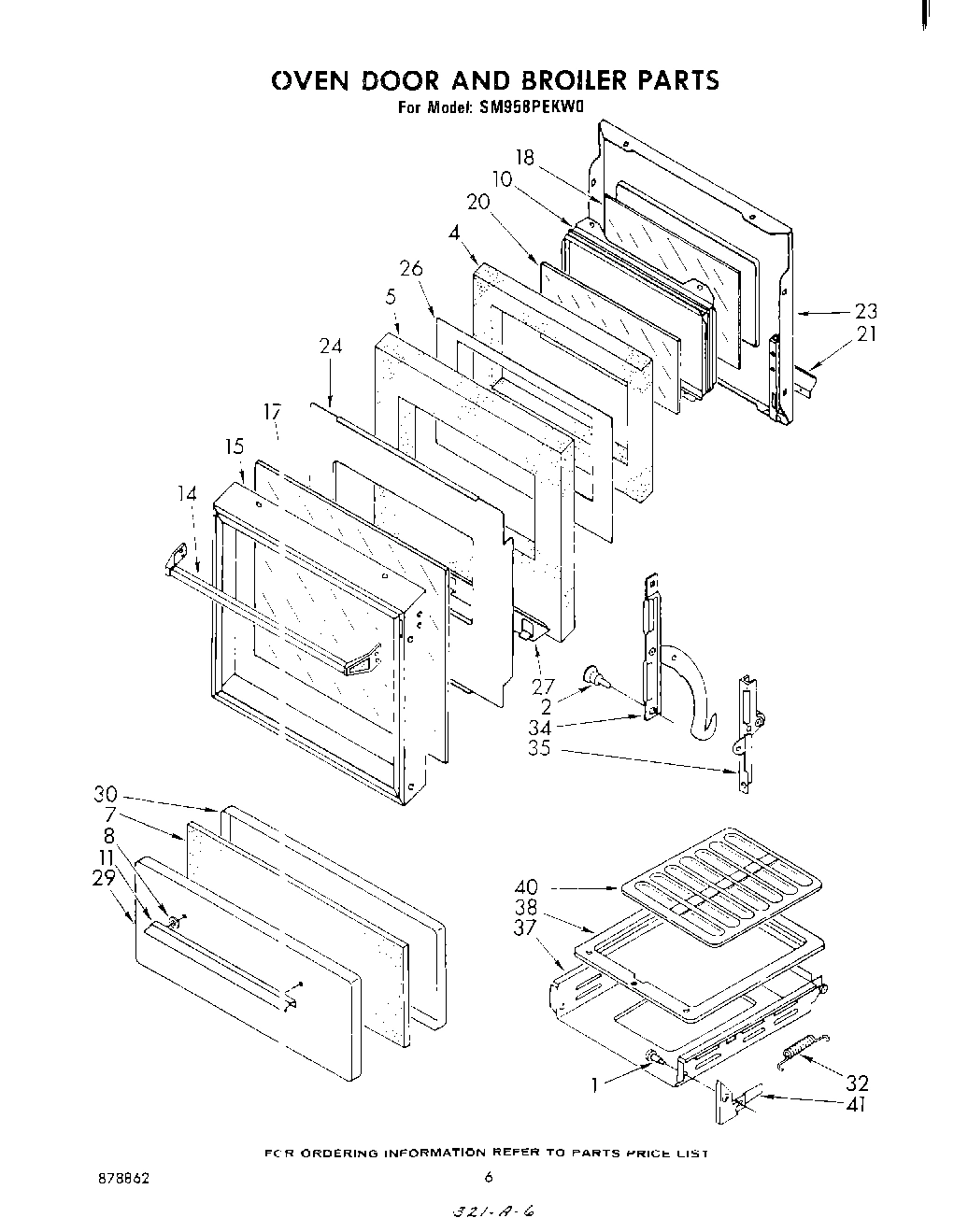

04 - OVEN DOOR AND BROILER

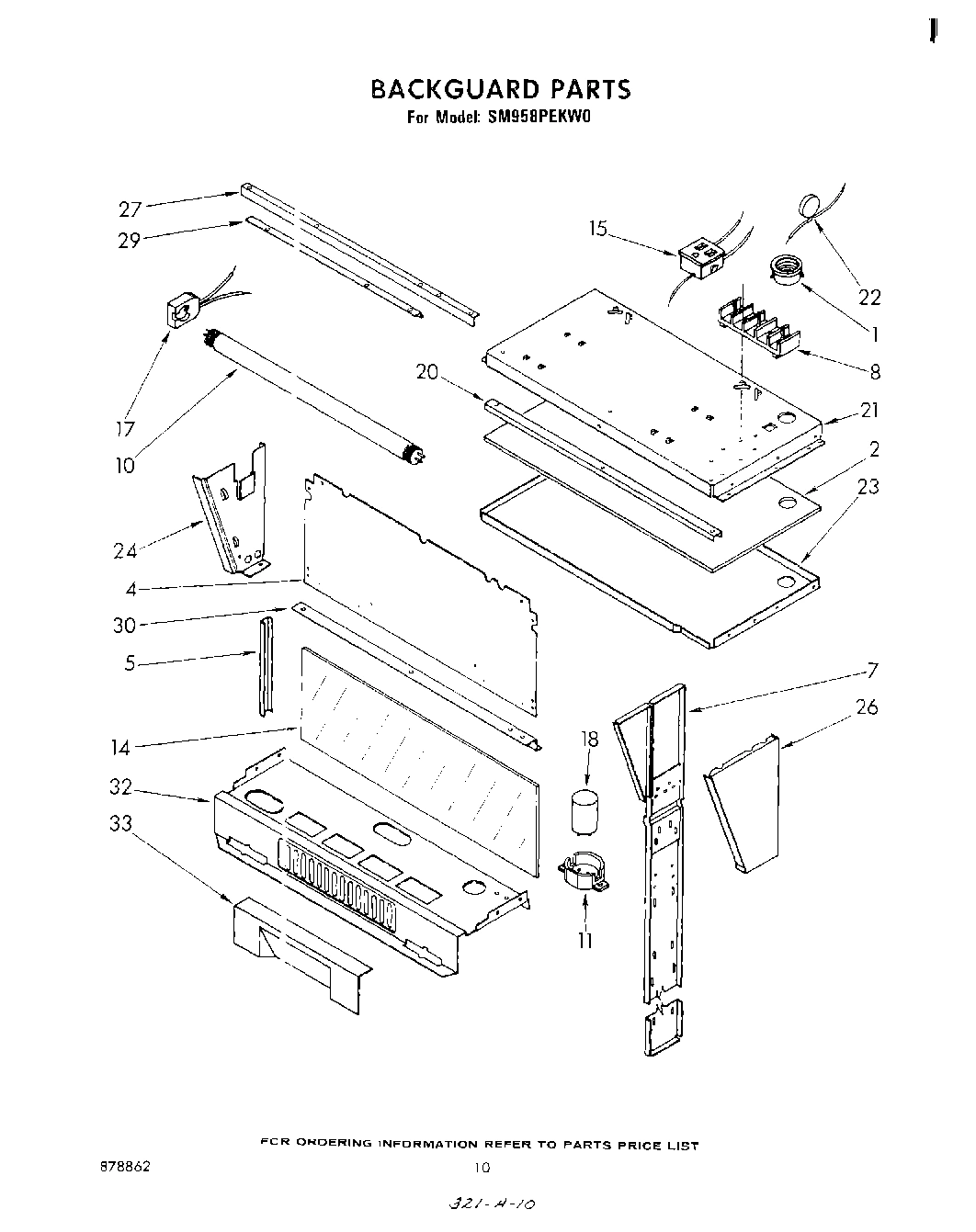

07 - BACKGUARD

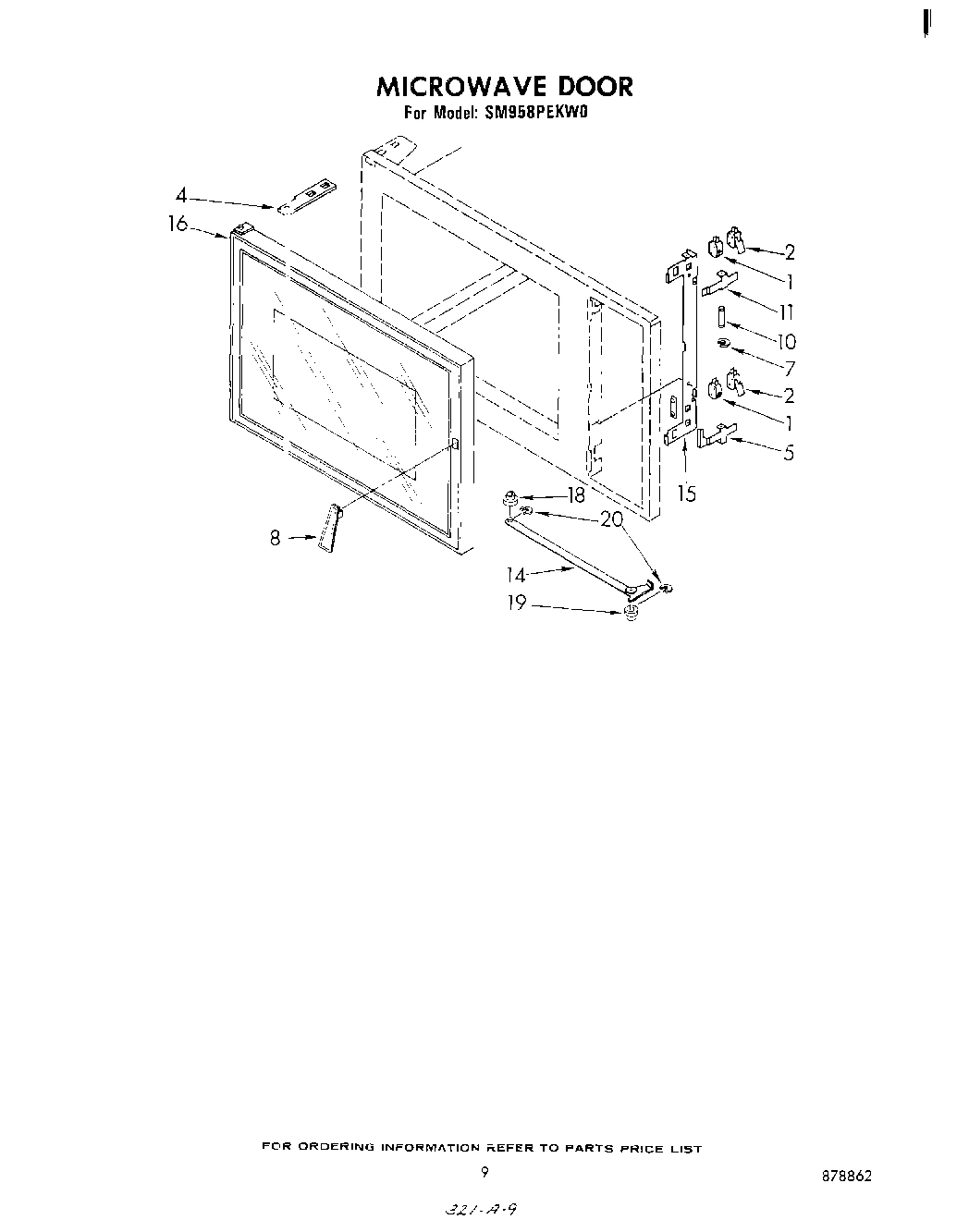

06 - MICROWAVE DOOR

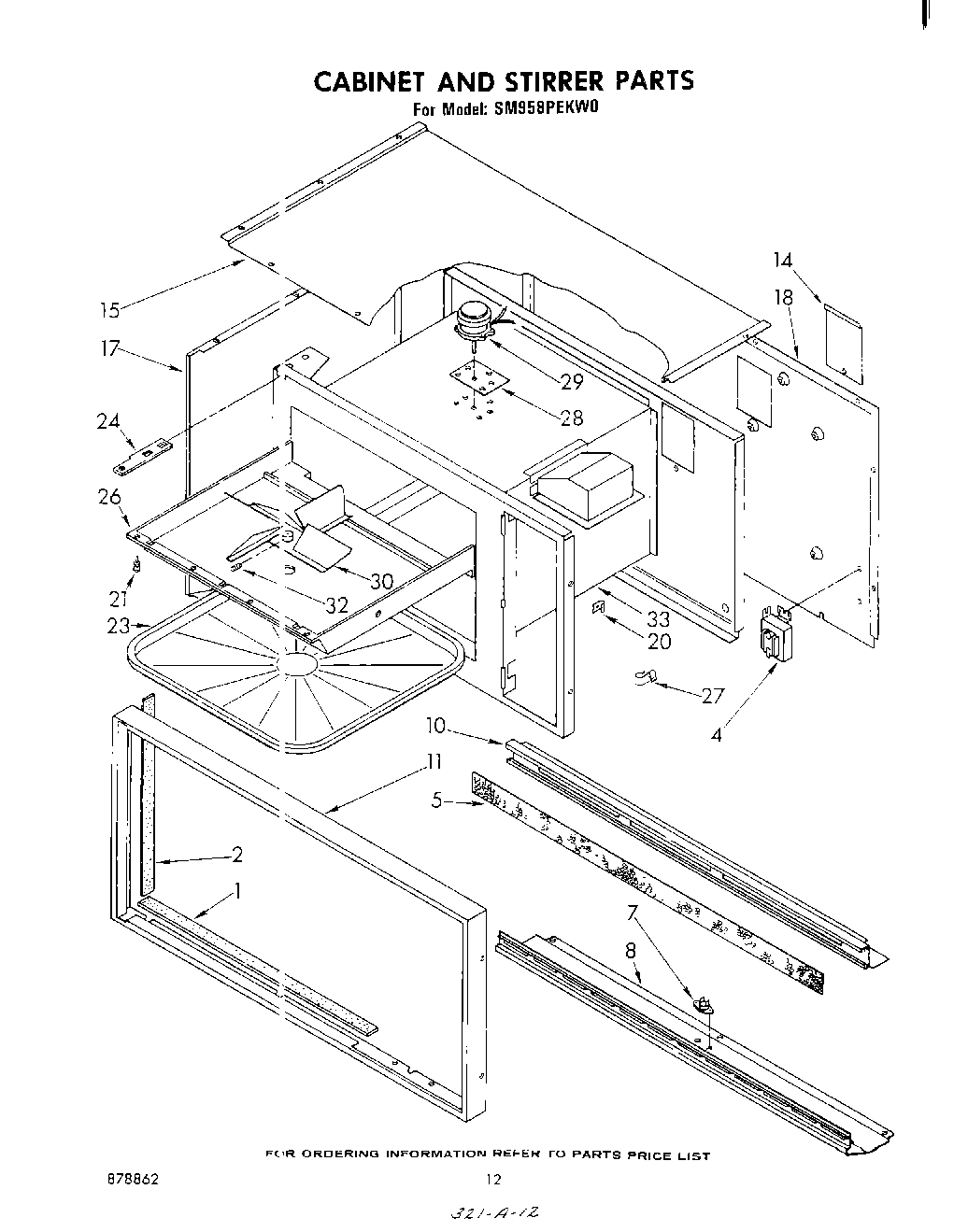

08 - CABINET AND STIRRER
Common parts from model Whirlpool SM958PEKW0 GAS RANGE WITH MICROWAVE
1
Bearing, Roller (4) WPL 878077 Contact Us For Availability
1
Bushing, Snap (2) WPL 878364 Contact Us For Availability
1
Button, Push-Surface WPL 878193 Contact Us For Availability
1
Switch, Interlock WPL 878020 Contact Us For Availability
1
Blower, Auxillary WPL 878013 Contact Us For Availability
1
Clip, Top Ignitor (2) WPL 878100 Contact Us For Availability
1
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878079 Contact Us For Availability
1
Bushing, Snap WPL 878078 Contact Us For Availability
1
Gasket, Leakage Top (2) WPL 878190 Contact Us For Availability
2
Clamp, Top Stop WPL 878083 Contact Us For Availability
2
Button, Push-On WPL 878194 Contact Us For Availability
2
Switch, Interlock WPL 878021 Contact Us For Availability
2
Bracket, Fan Mounting WPL 878205 Contact Us For Availability
2
Fitting, Flange WPL 878087 Contact Us For Availability
2
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878080 Contact Us For Availability
2
Insulation, Cabinet Bottom WPL 878091 Contact Us For Availability
2
Gasket, Leakage (Left) WPL 878740 Contact Us For Availability
3
End, Manifold Panel (Left Hand) WPL 878085 Contact Us For Availability
3
End, Manifold Panel (Right Hand) WPL 878086 Contact Us For Availability
4
Clip, Door Seal WPL 878084 Contact Us For Availability
4
Stop, Cook Top WPL 878098 Contact Us For Availability
4
Clock, Automatic WPL 878026 Contact Us For Availability
4
Duct, Auxillary WPL 878206 Contact Us For Availability
4
Regulator, Pressure WPL 878008 Contact Us For Availability
4
Insulation, Oven Door WPL 878798 Contact Us For Availability
4
Cover, Wire WPL 878111 Contact Us For Availability
4
Ballast, Fluorescent Light WPL 878192 Contact Us For Availability
5
Gasket, Vent Deflector WPL 878088 Contact Us For Availability
5
Spacer, Main Top WPL 878099 Contact Us For Availability
5
Disc, Indicator WPL 878754 Contact Us For Availability
5
Extension, Duct WPL 878224 Contact Us For Availability
5
Valve, Top Burner (4) WPL 878012 Contact Us For Availability
5
Trim, Backsplash Glass (Side) WPL 878112 Contact Us For Availability
5
Lever, Microswitch (Lower) WPL 878254 Contact Us For Availability
5
Grille, Vent WPL 878200 Contact Us For Availability
6
Shutter, Oven Burner Air WPL 878102 Contact Us For Availability
7
Cover, Wire WPL 878110 Contact Us For Availability
7
Knob, Clock WPL 878201 Contact Us For Availability
7
Blade, Transmotor WPL 878229 Contact Us For Availability
7
Insulation, Broiler Door WPL 878090 Contact Us For Availability
7
Support, Cabinet (Right Side) WPL 878170 Contact Us For Availability
7
Support, Cabinet (Left Side) WPL 878171 Contact Us For Availability
7
``E`` Ring (4) WPL 878260 Contact Us For Availability
7
Thermostat, Snap Acting WPL 878023 Contact Us For Availability
8
Bottom, Burner Box WPL 878126 Contact Us For Availability
8
Panel, Control WPL 878756 Contact Us For Availability
8
Connector, Probe WPL 878014 Contact Us For Availability
8
Spacer, Door Handle (2) WPL 878097 Contact Us For Availability
8
Handle, Latch WPL 878742 Contact Us For Availability
8
Trim, Cabinet Bottom WPL 878161 Contact Us For Availability
10
Link, Oven Door Spring (2) WPL 878094 Contact Us For Availability
10
Inlay, Manifold Panel WPL 878125 Contact Us For Availability
10
Switch, Oven Light WPL 878096 Contact Us For Availability
10
Housing, Blower WPL 878232 Contact Us For Availability
10
Frame, Window WPL 878106 Contact Us For Availability
10
Bulb, Fluorescent Light WPL 878108 Contact Us For Availability
10
Pin, Microswitch Lever (2) WPL 878743 Contact Us For Availability
10
Trim, Cabinet Top WPL 878197 Contact Us For Availability
11
Panel, Manifold WPL 878134 Contact Us For Availability
11
Trim, Control Panel WPL 878157 Contact Us For Availability
11
Jack, Turntable (Not Serviceable) WPL ARI130484A Contact Us For Availability
11
Bracket, Wire WPL 878109 Contact Us For Availability
11
Handle, Broiler Door WPL 878132 Contact Us For Availability
11
Base, Starter WPL 878195 Contact Us For Availability
11
Lever, Microswitch (Upper) WPL 878277 Contact Us For Availability
11
Trim, Cabinet WPL 878198 Contact Us For Availability
14
Sleeve, Light Hole WPL 878103 Contact Us For Availability
14
Trim, Main Top (Left Side) WPL 878135 Contact Us For Availability
14
Trim, Main Top (Right Side) WPL 878136 Contact Us For Availability
14
Bracket, Control Panel WPL 878204 Contact Us For Availability
14
Magnetron WPL 878016 Contact Us For Availability
14
Support, Inlet Pipe WPL 878115 Contact Us For Availability
14
Handle, Door WPL 878133 Contact Us For Availability
14
Glass, Backsplash WPL 878199 Contact Us For Availability
14
Link, Door WPL 878906 Contact Us For Availability
14
Cover, Access (Lamp) WPL 878202 Contact Us For Availability
15
Clip, Oven Bottom Plate (2) WPL 878107 Contact Us For Availability
15
Grate, Burner WPL 878150 Contact Us For Availability
15
Support, Microwave (2) WPL 878221 Contact Us For Availability
15
Probe, Temperature WPL 878019 Contact Us For Availability
15
Cap, Top Burner Air Mixer (4) WPL 878116 Contact Us For Availability
15
Frame, Door WPL 878138 Contact Us For Availability
15
Outlet, Convenience WPL 878755 Contact Us For Availability
15
Plate, Microswitch Lever WPL 878279 Contact Us For Availability
15
Top, Cabinet WPL 878208 Contact Us For Availability
16
Door, Microwave Complete WPL 878892 Contact Us For Availability
17
Bracket, Corner Support (Right Side) WPL 878693 Contact Us For Availability
17
Bracket, Corner Support (Left Side) WPL 878694 Contact Us For Availability
17
Block, Disconnect Socket WPL 878162 Contact Us For Availability
17
Extension, Pushbutton (2) WPL 878223 Contact Us For Availability
17
Rod, Waveguide Support WPL 878239 Contact Us For Availability
17
Raceway Wire WPL 878118 Contact Us For Availability
17
Glass, Oven Door Outside WPL 878139 Contact Us For Availability
17
Socket, Fluorescent Light (Right Side) WPL 878140 Contact Us For Availability
17
Socket, Fluorescent Light (Left Side) WPL 878152 Contact Us For Availability
17
Panel, Cabinet End (Left Side) (White) WPL 878210 Contact Us For Availability
17
Panel, Cabinet End (Left Side) (Almond) WPL 878211 Contact Us For Availability
17
Panel, Cabinet End (Left Side) (White) WPL 878212 Contact Us For Availability
17
Panel, Cabinet End (Left Side) (Almond) WPL 878213 Contact Us For Availability
17
Panel, Cabinet End (Left Side) (Coffee) WPL 878830 Contact Us For Availability
17
Panel, Cabinet End (Left Side) (Harvest Gold WPL 878831 Contact Us For Availability
17
Panel, Cabinet End (Left Side) (Coffee) WPL 878832 Contact Us For Availability
17
Panel, Cabinet End (Left Side) (Harvest Gold) WPL 878833 Contact Us For Availability
18
Cord, Extension WPL 878163 Contact Us For Availability
18
Block, Commoning WPL 878228 Contact Us For Availability
18
Relay, Auxillary Blower WPL 878024 Contact Us For Availability
18
Tubing, Control/Pilot WPL 878119 Contact Us For Availability
18
Glass, Oven Door Inside WPL 878002 Contact Us For Availability
18
Starter, Fluorescent Light WPL 878156 Contact Us For Availability
18
Bearing, Door WPL 878908 Contact Us For Availability
18
Back, Cabinet WPL 878214 Contact Us For Availability
19
Socket, Light WPL 878241 Contact Us For Availability
19
Tubing, Oven WPL 878120 Contact Us For Availability
19
Bushing, Guide WPL 878907 Contact Us For Availability
20
Track, Broiler (Right Side) WPL 878113 Contact Us For Availability
20
Track, Broiler (Left Side) WPL 878114 Contact Us For Availability
20
Catch, Main Top (2) WPL 878164 Contact Us For Availability
20
Insert, Control Panel WPL 878233 Contact Us For Availability
20
Thermostat WPL 878022 Contact Us For Availability
20
Target, Top Ignitor (2) WPL 878121 Contact Us For Availability
20
Glass, Oven Door Center WPL 878141 Contact Us For Availability
20
Channel, Microwave Base WPL 878203 Contact Us For Availability
20
E-Ring (2) WPL 878909 Contact Us For Availability
20
Clip, Cabinet Trim (4) WPL 878231 Contact Us For Availability
21
Cover, Hinge (2) WPL 878117 Contact Us For Availability
21
Strike, Main Top (2) WPL 878499 Contact Us For Availability
21
Microprocessor WPL 878027 Contact Us For Availability
21
Hanger, Top Burner WPL 878127 Contact Us For Availability
21
Strip, Door Seal WPL 878472 Contact Us For Availability
21
Base, Microwave WPL 878207 Contact Us For Availability
21
Rivet, Stirrer Cover (6) WPL 878240 Contact Us For Availability
22
Fuse, 15 Amp WPL 878015 Contact Us For Availability
22
Capacitor WPL 878904 Contact Us For Availability
23
Top, Main (White) WPL 878176 Contact Us For Availability
23
Top, Main (Almond) WPL 878177 Contact Us For Availability
23
Top, Main (Coffee) WPL 878365 Contact Us For Availability
23
Top, Main (Harvest Gold) WPL 878366 Contact Us For Availability
23
Top, Main (Brushed Chrome) WPL 878479 Contact Us For Availability
23
Plate, Switch Nut (3) WPL 878236 Contact Us For Availability
23
Holder, Fuse (15 Amp$FF3 only$FF1) WPL 878249 Contact Us For Availability
23
Burner, Top Front (2) (Includes Illus. 15) WPL 878130 Contact Us For Availability
23
Lining, Oven Door WPL 878143 Contact Us For Availability
23
Bottom, Cabinet WPL 878209 Contact Us For Availability
23
Tray, Cooking WPL 878036 Contact Us For Availability
24
Relay, Lockout WPL 878029 Contact Us For Availability
24
Burner, Top Rear (2) (Includes Illus. 15) WPL 878131 Contact Us For Availability
24
Baffle, Door WPL 878144 Contact Us For Availability
24
Insert, Cabinet Support (Left Side) WPL 878215 Contact Us For Availability
24
Insert, Cabinet Support (Right Side) WPL 878216 Contact Us For Availability
24
Hinge, Door (2) WPL 878251 Contact Us For Availability
25
Support, Waveguide Bracket WPL 878744 Contact Us For Availability
26
Rack, Oven (2) WPL 878123 Contact Us For Availability
26
Rectifier, High Voltage WPL 878028 Contact Us For Availability
26
Handle, Top Valve (4) WPL 878151 Contact Us For Availability
26
Shield, Heat WPL 878145 Contact Us For Availability
26
Panel, Cabinet Support (Left Side) (Almond) WPL 878217 Contact Us For Availability
26
Panel, Cabinet Support (Left) (Coffee) WPL 878218 Contact Us For Availability
26
Panel, Cabinet Support (Left) (White) WPL 878219 Contact Us For Availability
26
Panel, Cabinet Support (Left Side) (Harvest G WPL 878220 Contact Us For Availability
26
Panel, Cabinet Support (Left Side) (Almond) WPL 878525 Contact Us For Availability
26
Panel, Cabinet Support (Left Side) (Coffee) WPL 878526 Contact Us For Availability
26
Panel, Cabinet Support (Left Side) (White) WPL 878527 Contact Us For Availability
26
Panel, Cabinet Support (Left Side) (Harvest G WPL 878528 Contact Us For Availability
26
Cover, Stirrer WPL 878258 Contact Us For Availability
27
Socket, Oven Light WPL 878124 Contact Us For Availability
27
Support, Fuse Holder WPL 878745 Contact Us For Availability
27
Ignitor, Top Burner (Left Side) WPL 878007 Contact Us For Availability
27
Ignitor, Top Burner (Right Side) WPL 878153 Contact Us For Availability
27
Retainer, Insulation WPL 878146 Contact Us For Availability
27
Shield, Wire WPL 878903 Contact Us For Availability
27
Clamp, Wire WPL 878738 Contact Us For Availability
28
Gasket, Stirrer Motor WPL 878262 Contact Us For Availability
29
Oven 30`` Continuous Clean (Not Serviceable) WPL ARI130483A Contact Us For Availability
29
Bracket, Blower WPL 878252 Contact Us For Availability
29
Switch, Top Ignitor (4) WPL 878154 Contact Us For Availability
29
Panel, Broiler Door (White) WPL 878147 Contact Us For Availability
29
Panel, Broiler Door (Almond) WPL 878148 Contact Us For Availability
29
Panel, Broiler Door (Coffee) WPL 878473 Contact Us For Availability
29
Panel, Broiler Door (Harvest Gold) WPL 878474 Contact Us For Availability
29
Panel, Broiler Door (Black) WPL 878475 Contact Us For Availability
29
Tray, Wire WPL 878222 Contact Us For Availability
29
Motor, Stirrer WPL 878018 Contact Us For Availability
30
Panel, End (2) (White) WPL 878128 Contact Us For Availability
30
Panel, End (2) (Almond) WPL 878129 Contact Us For Availability
30
Panel, End (2) (Coffee) WPL 878461 Contact Us For Availability
30
Panel, End (2) (Harvest Gold) WPL 878462 Contact Us For Availability
30
Transformer, Power WPL 878033 Contact Us For Availability
30
Control, Oven WPL 878005 Contact Us For Availability
30
Lining, Broiler Door WPL 878149 Contact Us For Availability
30
Trim, Backguard Glass (Top) WPL 878225 Contact Us For Availability
30
Blade, Stirrer WPL 878282 Contact Us For Availability
31
Transformer, Microprocessor WPL 878032 Contact Us For Availability
31
Baffle, Exhaust WPL 878253 Contact Us For Availability
32
Trim, End Panel (2) WPL 878137 Contact Us For Availability
32
Duct, Magnetron Exhaust Top WPL 878255 Contact Us For Availability
32
Control, Ignitor WPL 878006 Contact Us For Availability
32
Spring, Broiler Door (2) WPL 878165 Contact Us For Availability
32
Top, Back WPL 878226 Contact Us For Availability
32
Setscrew, 8-32 x 1/4 WPL 878905 Contact Us For Availability
33
Spring, Oven Door (2) WPL 878142 Contact Us For Availability
33
Varistor WPL 878035 Contact Us For Availability
33
Dial, Oven Control WPL 878158 Contact Us For Availability
33
Baffle, Vent WPL 878227 Contact Us For Availability
34
Bracket, Capacitor WPL 878256 Contact Us For Availability
34
Bushing, Blower WPL 878257 Contact Us For Availability
34
Hinge, Oven Door (2) WPL 878167 Contact Us For Availability
35
Seal, Oven Door (Top) WPL 878003 Contact Us For Availability
35
Seal, Oven Door (Side (2)) WPL 878004 Contact Us For Availability
35
Transmotor, Blower WPL 878017 Contact Us For Availability
35
Ignitor, Oven Burner WPL 878159 Contact Us For Availability
35
Support, Oven Door (Left Side) WPL 878168 Contact Us For Availability
35
Support, Oven Door (Right Side) WPL 878169 Contact Us For Availability
36
Screw, Leveling (4) WPL 878166 Contact Us For Availability
36
Capacitor, High Voltage WPL 878025 Contact Us For Availability
36
Lighter, Oven Burner WPL 878160 Contact Us For Availability
37
Wheel, Blower WPL 878273 Contact Us For Availability
37
Drawer, Broiler WPL 878172 Contact Us For Availability
38
Plate, Oven Bottom WPL 878175 Contact Us For Availability
38
Guide, Door Link WPL 878741 Contact Us For Availability
38
Pan, Broiler WPL 878173 Contact Us For Availability
39
Front, Main WPL 878178 Contact Us For Availability
39
Gasket, Leakage (Right) WPL 878739 Contact Us For Availability
39
Valve, Oven Light Safety WPL 878011 Contact Us For Availability
40
Cover, Blower Housing WPL 878276 Contact Us For Availability
40
Tray, Broiler Pan WPL 878174 Contact Us For Availability
41
Back, Main WPL 878179 Contact Us For Availability
41
Panel, Control WPL 878865 Contact Us For Availability
41
Duct, Magnetron Exhaust Bottom WPL 878278 Contact Us For Availability
41
Hinge, Broiler Door (Left Side) WPL 878183 Contact Us For Availability
41
Hinge, Broiler Door (Right Side) WPL 878184 Contact Us For Availability
42
Bottom, Main WPL 878180 Contact Us For Availability
42
Pipe, Manifold WPL 878186 Contact Us For Availability
43
Transformer, Filament WPL 878031 Contact Us For Availability
43
Bracket, Baffle WPL 878281 Contact Us For Availability
44
Runner, Base (Left Side) WPL 878181 Contact Us For Availability
44
Runner, Base (Right Side) WPL 878182 Contact Us For Availability
44
Triac WPL 878272 Contact Us For Availability
44
Brace, Front Frame WPL 878737 Contact Us For Availability
44
Burner, Oven WPL 878187 Contact Us For Availability
45
Diagram, Wiring WPL 878052 Contact Us For Availability
45
Diagram, Schematic (Microwave) WPL 878060 Contact Us For Availability
45
Instructions, Installation WPL 878066 Contact Us For Availability
45
Sheet, Tech WPL 878069 Contact Us For Availability
45
Deflector Vent WPL 878185 Contact Us For Availability
45
List, Repair Parts WPL 878862 Contact Us For Availability
45
Guide, Use & Care WPL 878867 Contact Us For Availability
45
Cookbook WPL 878869 Contact Us For Availability
45
Deflector, Heat WPL 878189 Contact Us For Availability
46
Cord, Extension WPL 878274 Contact Us For Availability
48
Insulator, Switch WPL 878275 Contact Us For Availability
49
Base, Oven WPL 878280 Contact Us For Availability
50
Relay, Power WPL 878030 Contact Us For Availability
× ![]()
