Model Electrolux SM230LXW1 LAUNDRY CENTER – Common Parts & Diagrams

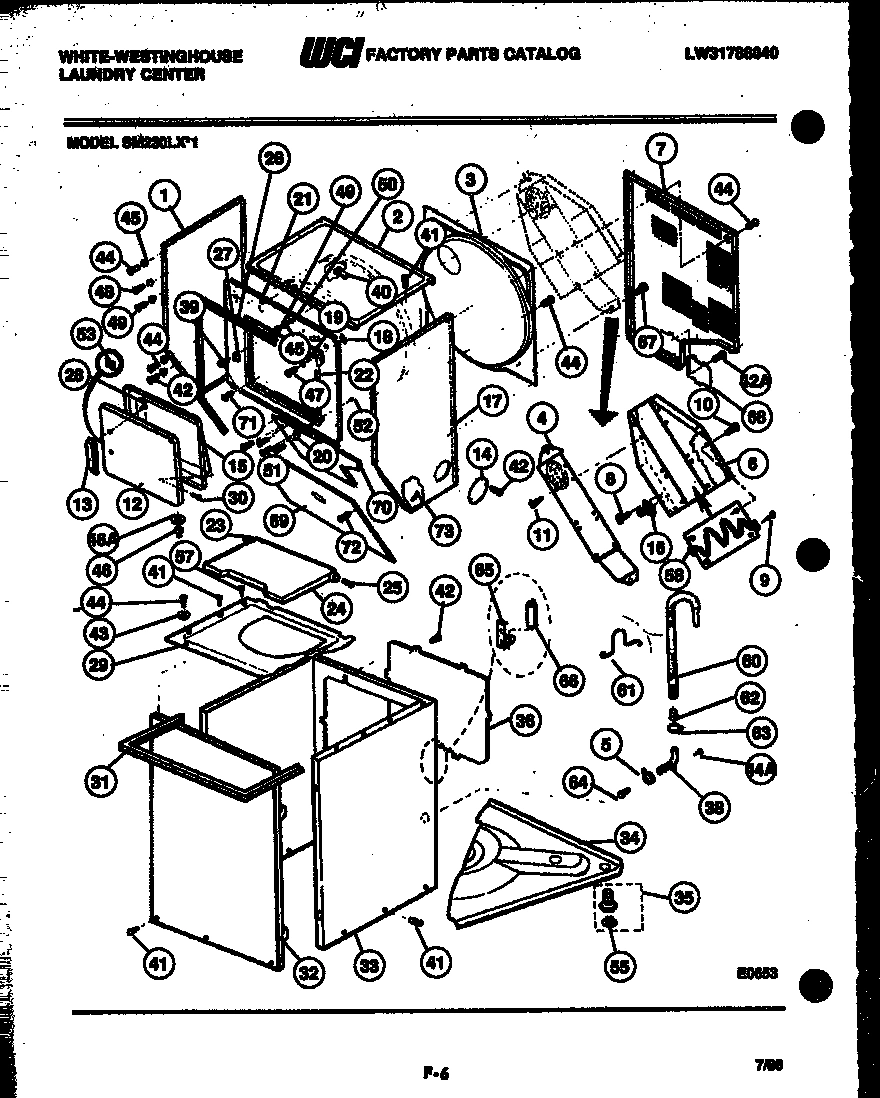

02 - CABINET PARTS AND HEATER

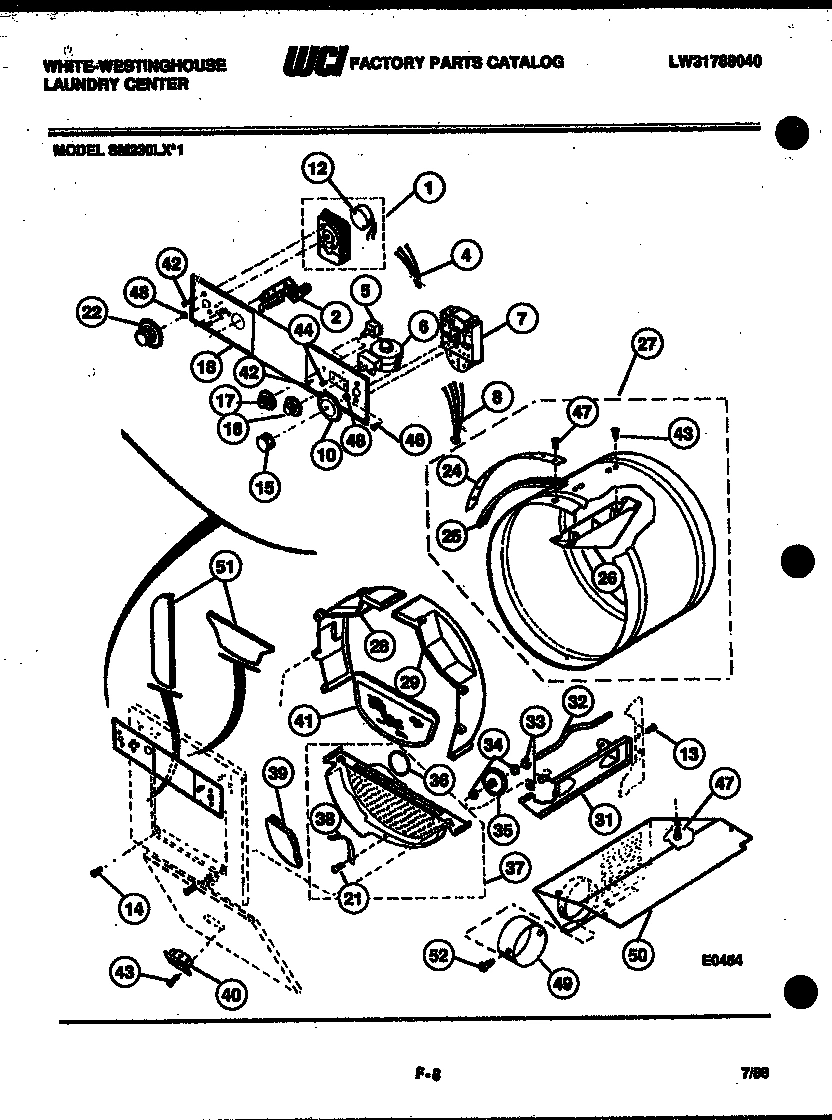

03 - CONSOLE, CONTROL AND DRUM
04 - DRYER MOTOR, BLOWER AND BELT
05 - TUBS, WATER VALVE AND LID SWITCH
06 - WASHER DRIVE SYSTEM AND PUMP
07 - TRANSMISSION PARTS
Common parts from model Electrolux SM230LXW1 LAUNDRY CENTER
*12536
INSULATION-ALUMINUM RACK WCI 3016444 Contact Us For Availability
*12536
INSULATION-REAR & VENT PANELS WCI F078207300 Contact Us For Availability
*12539
WCI 3004951 WCI 3004951 Contact Us For Availability
*12539
SHIELD-WASHER TIMER WCI F136211000 Contact Us For Availability
*12539
RESISTOR, 4.4 K OHMS-DRYER TIMER WCI F137448100 Contact Us For Availability
*12543
NYLUBE LUBRICANT-USE ON IDLER WHEEL SHAFT WCI F133077000 Contact Us For Availability
*12546
ADHESIVE FOR GROMMET-SPLASH TUB WCI F062805100 Contact Us For Availability
*12546
PRIMER ADHESIVE FOR GROMMET SPLASH TUB WCI F133016000 Contact Us For Availability
*12546
CLIP-PRESSURE-TUBE-SHORT WCI F136886000 Contact Us For Availability
*12546
CLIP-PRESSURE-TUBE-LONG WCI F136886001 Contact Us For Availability
*12550
TRANSMISSION OIL (1 QT.) WCI F060821100 Contact Us For Availability
*12550
WCI F130417000 WCI F130417000 Contact Us For Availability
1
PANEL-L.H.-DRYER (WHITE) WCI F136933032 Contact Us For Availability
1
WCI 3017936 WCI 3017936 Contact Us For Availability
1
WCI 3016461 WCI 3016461 Contact Us For Availability
1
TUB COVER WCI F142025000 Contact Us For Availability
1
STUD BOLT WCI F063882000 Contact Us For Availability
2
PNL-TOP-DRYER (WHITE) WCI F141644032 Contact Us For Availability
2
WCI 3017893 WCI 3017893 Contact Us For Availability
2
SPRING CLIP WCI F136097000 Contact Us For Availability
2
WCI F142046000 WCI F142046000 Contact Us For Availability
2
CUSHION-RUBBER WCI F077009100 Contact Us For Availability
3
PNL-REAR WCI 3017111 Contact Us For Availability
3
WCI F136096100 WCI F136096100 Contact Us For Availability
3
BOLT (3) WCI F077090000 Contact Us For Availability
4
WCI F136938026 WCI F136938026 Contact Us For Availability
4
WCI 3017937 WCI 3017937 Contact Us For Availability
4
PLATE-BLOWER HOUSING WCI F136095026 Contact Us For Availability
4
SEAL-TUB COVER WCI F078611100 Contact Us For Availability
4
LOCKNUT (3) WCI F073804000 Contact Us For Availability
4
DRIVE BLOCK WCI F140465000 Contact Us For Availability
5
CLAMP-HOSE WCI F064154013 Contact Us For Availability
5
SWITCH-WATER TEMP WCI 3017895 Contact Us For Availability
5
WCI F136923000 WCI F136923000 Contact Us For Availability
5
CLIP (8) WCI F079975000 Contact Us For Availability
5
WCI F140999100 WCI F140999100 Contact Us For Availability
6
WCI F141436026 WCI F141436026 Contact Us For Availability
6
WCI 3017896 WCI 3017896 Contact Us For Availability
6
WCI F144012000 WCI F144012000 Contact Us For Availability
6
RETAINING RING (2) WCI F068158000 Contact Us For Availability
7
WCI 3016426 WCI 3016426 Contact Us For Availability
7
TIMER-WASHER WCI 3017897 Contact Us For Availability
7
WCI F136102000 WCI F136102000 Contact Us For Availability
8
WCI 3016452 WCI 3016452 Contact Us For Availability
8
WCI 3016462 WCI 3016462 Contact Us For Availability
8
AGITATOR CAP (INCLUDES REF. 9) WCI F131203100 Contact Us For Availability
8
BUSHING (2) WCI F142027000 Contact Us For Availability
9
SCREW (2) WCI F130220000 Contact Us For Availability
9
WASHER-AGITATOR CAP WCI F073565000 Contact Us For Availability
9
HOSE-PUMP/DRAIN COUPLING WCI F141127000 Contact Us For Availability
10
WCI 3017898 WCI 3017898 Contact Us For Availability
10
MOTOR & SWITCH ASSY, DRYER WCI F141684000 Contact Us For Availability
10
WCI F142055000 WCI F142055000 Contact Us For Availability
10
CLAMP-HOSE (2) WCI F136152000 Contact Us For Availability
10
WCI 3161167 WCI 3161167 Contact Us For Availability
11
SWITCH-MOTOR (GE) WCI F067634008 Contact Us For Availability
11
WCI F141970000 WCI F141970000 Contact Us For Availability
11
WCI F07365300 WCI F07365300 Contact Us For Availability
11
PIPE PLUG WCI F077061000 Contact Us For Availability
12
WCI F141992032 WCI F141992032 Contact Us For Availability
12
MOTOR-TIMER-DRYER WCI F079459021 Contact Us For Availability
12
CLAMP-HOSE WCI F140887028 Contact Us For Availability
12
SCREW (6) WCI F079688000 Contact Us For Availability
13
HANDLE-DOOR (CHROME) WCI F141994000 Contact Us For Availability
13
SPIN TUB WCI F142026000 Contact Us For Availability
13
SCREW-PUMP MOUNTING (4) WCI F077669000 Contact Us For Availability
13
WCI F130895000 WCI F130895000 Contact Us For Availability
14
COVER-EXHAUST WHITE WCI F136033032 Contact Us For Availability
14
SCREW WCI F079999000 Contact Us For Availability
14
WCI F130405100 WCI F130405100 Contact Us For Availability
15
WCI F141995032 WCI F141995032 Contact Us For Availability
15
WCI 3017899 WCI 3017899 Contact Us For Availability
15
WCI F002618000 WCI F002618000 Contact Us For Availability
15
WCI F140604100 WCI F140604100 Contact Us For Availability
15
WCI F066078100 WCI F066078100 Contact Us For Availability
16
THERMOSTAT-SAFETY WCI F141947000 Contact Us For Availability
16
KNOB-PRESSURE WCI F141491000 Contact Us For Availability
16
WCI F140582000 WCI F140582000 Contact Us For Availability
16
SPLASH TUB & BEARING ASSY. WCI F141744000 Contact Us For Availability
16
PUMP ASSY.-COMPLETE WCI F133058100 Contact Us For Availability
16
WCI F130404100 WCI F130404100 Contact Us For Availability
17
PANEL-R.H.-DRYER (WHITE) WCI F136932032 Contact Us For Availability
17
KNOB-WATER WCI F141489000 Contact Us For Availability
17
BEARING HOUSING ASSY. WCI F140581000 Contact Us For Availability
17
SHAFT ASSY.-LOWER WCI F141770000 Contact Us For Availability
18
WCI F136054000 WCI F136054000 Contact Us For Availability
18
TRIM PLATE WCI 3017938 Contact Us For Availability
18
WCI F139592000 WCI F139592000 Contact Us For Availability
19
WCI F136053000 WCI F136053000 Contact Us For Availability
19
DOWEL PIN (2) WCI F077058000 Contact Us For Availability
20
HINGE-DOOR LOWER WCI F136056000 Contact Us For Availability
20
SPRING-HORIZONTAL-LONG WCI F079837000 Contact Us For Availability
20
SCREW WCI F077203000 Contact Us For Availability
21
WCI 3016436 WCI 3016436 Contact Us For Availability
21
BRACKET - THERMO MOUNTING WCI 3016464 Contact Us For Availability
21
SNUBBER RING ASSY. WCI F130789000 Contact Us For Availability
21
HSG. ASSY.-LOWER (INCLUDES REF. 13) WCI F140586000 Contact Us For Availability
22
SEAL-DOOR WCI F136018000 Contact Us For Availability
22
WCI F141497100 WCI F141497100 Contact Us For Availability
22
WCI F137203000 WCI F137203000 Contact Us For Availability
22
BEARING HOUSING-LGS SPRING PKG WCI F137014000 Contact Us For Availability
23
WCI F077075000 WCI F077075000 Contact Us For Availability
23
WCI F136123000 WCI F136123000 Contact Us For Availability
23
SPACER-PUMP MOUNTING (4) WCI F141131000 Contact Us For Availability
24
LID-WASHER (WHITE) WCI F136575432 Contact Us For Availability
24
WCI F13600900 WCI F13600900 Contact Us For Availability
24
NUT-EXPANSION WCI F077074000 Contact Us For Availability
24
SPRING-TENSION WCI F078465000 Contact Us For Availability
25
SCREW-HINGE WCI F139410000 Contact Us For Availability
25
DRUM SEAL-FRONT WCI F136007000 Contact Us For Availability
25
DRUM SEAL-REAR WCI F136008000 Contact Us For Availability
25
WCI 3016465 WCI 3016465 Contact Us For Availability
25
SPRING-VERTICAL-SHORT WCI F137997100 Contact Us For Availability
25
IDLER ARM ASSY WCI F141786000 Contact Us For Availability
25
RETAINING RING WCI F141261000 Contact Us For Availability
26
TRIM STRIP-DRYER WCI F136921400 Contact Us For Availability
26
WCI F136005100 WCI F136005100 Contact Us For Availability
26
SPRING-IDLER ARM WCI F136947000 Contact Us For Availability
26
WCI F079630000 WCI F079630000 Contact Us For Availability
26
WCI F142220000 WCI F142220000 Contact Us For Availability
27
WCI F141981000 WCI F141981000 Contact Us For Availability
27
DRUM ASSEMBLY WCI 3004200 Contact Us For Availability
27
WCI F136941000 WCI F136941000 Contact Us For Availability
27
WCI F054287000 WCI F054287000 Contact Us For Availability
27
WCI F132861000 WCI F132861000 Contact Us For Availability
28
WCI F136949000 WCI F136949000 Contact Us For Availability
28
CRADLLE ASSY. MOTOR WCI 3016466 Contact Us For Availability
28
SCREW (6) WCI F063532000 Contact Us For Availability
28
WCI F134881000 WCI F134881000 Contact Us For Availability
28
SPACER-RUBBER (2) WCI F078749000 Contact Us For Availability
29
WCI 3017112 WCI 3017112 Contact Us For Availability
29
WCI F136948000 WCI F136948000 Contact Us For Availability
29
THERMOSTAT-CONTROL WCI F141229000 Contact Us For Availability
29
SPRING-VERTICAL-LONG (2) WCI F137997000 Contact Us For Availability
29A
HEATER-THERMO WCI F136777000 Contact Us For Availability
30
SCREW-STRAIN RELIEF WCI 3016474 Contact Us For Availability
30
CLIP (2) WCI F136107000 Contact Us For Availability
30
PLATE-LEG BOLT (3) WCI F132729000 Contact Us For Availability
30
SUPPORT PLATE & BOLTS WCI F079494300 Contact Us For Availability
30
SPACER WASHER WCI F077098000 Contact Us For Availability
31
TRIM STRIP-WASHER WCI 3161039 Contact Us For Availability
31
BRACKET-DRUM ROLLER R.H. WCI 3017901 Contact Us For Availability
31
BRACKET-DRUM ROLLER L.H. WCI 3017902 Contact Us For Availability
31
WCI F133242000 WCI F133242000 Contact Us For Availability
31
HOSE-PUMP/BUTTON TRAP WCI F139191000 Contact Us For Availability
31
MOTOR & SWITCH WCI F140322000 Contact Us For Availability
31
THRUST WASHER WCI F077051000 Contact Us For Availability
32
PNL-FRONT-WASHER (WHITE) WCI F136128032 Contact Us For Availability
32
SHAFT-DRUM ROLLER (2) WCI F136073000 Contact Us For Availability
32
SHIM-BUTTON TRAP WCI F140324000 Contact Us For Availability
32
SWITCH-MOTOR (GE) WCI 3161161 Contact Us For Availability
33
CABINET-WASHER (WHITE) WCI F136888032 Contact Us For Availability
33
WCI F136075000 WCI F136075000 Contact Us For Availability
33
SCREW-GROUND WCI F132144000 Contact Us For Availability
33
BUTTON TRAP WCI F077276000 Contact Us For Availability
33
LGS SPRING (SMALL) WCI F077052000 Contact Us For Availability
34
BASE-WASHER WCI F136137026 Contact Us For Availability
34
WASHER-ROLLER SHAFT (4) WCI F136074000 Contact Us For Availability
34
WCI F141957028 WCI F141957028 Contact Us For Availability
34
GROMMET-SPLASH TUB WCI F137466000 Contact Us For Availability
34
WCI F130403100 WCI F130403100 Contact Us For Availability
35
LEVELING LEG ASSY. (4) WCI F134165300 Contact Us For Availability
35
ROLLER & WHEEL ASSY. (4) WCI F136175000 Contact Us For Availability
35
WASHER (3) WCI F079874000 Contact Us For Availability
35A
LOCKWASHER WCI F063602000 Contact Us For Availability
36
PNL-REAR ACCESS WCI F136131028 Contact Us For Availability
36
WCI F136240000 WCI F136240000 Contact Us For Availability
36
SPEEDNUT (2) WCI F136297000 Contact Us For Availability
36
HOUSING ASSY.-UPPER (WITH GASKET) WCI F140588000 Contact Us For Availability
37
HOUSING ASSY-LINT WCI F140583000 Contact Us For Availability
37
BRACKET-TERMINAL BLOCK WCI F136927000 Contact Us For Availability
37A
WCI 3016467 WCI 3016467 Contact Us For Availability
37A
CLIP-HARNESS/LEG WCI F131169000 Contact Us For Availability
38
COUPLER-DRAIN HOSE WCI F144004000 Contact Us For Availability
38
CLIP-LINT SCREEN WCI F136046000 Contact Us For Availability
38
CUP WASHER WCI F078101000 Contact Us For Availability
38
WCI 3017109 WCI 3017109 Contact Us For Availability
38
WCI F077354000 WCI F077354000 Contact Us For Availability
38
WCI F077156000 WCI F077156000 Contact Us For Availability
39
RIVET-LATCH/PANEL (2) WCI F136016000 Contact Us For Availability
39
WCI F136920000 WCI F136920000 Contact Us For Availability
39
IMPELLER KIT (CONSISTS OF SEAL ASSEMBLY, GASK WCI F079428000 Contact Us For Availability
40
WCI F136032000 WCI F136032000 Contact Us For Availability
40
MAGNET ASSY. (WHITE) WCI 3016456 Contact Us For Availability
40
WCI F141874100 WCI F141874100 Contact Us For Availability
40
THRUST WASHER WCI F062568000 Contact Us For Availability
41
WCI F136047000 WCI F136047000 Contact Us For Availability
41
WCI F077352000 WCI F077352000 Contact Us For Availability
41
TRANSMISSION, COMPLETE WCI F140606100 Contact Us For Availability
42
SCREW-WATER TEMP SW/PANEL WCI F135021000 Contact Us For Availability
42
WCI 3017110 WCI 3017110 Contact Us For Availability
42
SEAL KIT (CONSISTS OF SEAL ASSEMBLY & GASKET. WCI F076143000 Contact Us For Availability
42
WASHER-CLUTCH COIL WCI F141714000 Contact Us For Availability
42A
SCREW (4) WCI F136249000 Contact Us For Availability
43
SCREW-MANET ASSY./PANEL (2) WCI F136951000 Contact Us For Availability
44
HOSE-VALVE/WATER INLET WCI F137507000 Contact Us For Availability
44A
WCI F144005000 WCI F144005000 Contact Us For Availability
45
RETAINER-TRIM (14) WCI F136028000 Contact Us For Availability
45
RETAINER-HARNESS (2) WCI F136345000 Contact Us For Availability
46
WCI F141997000 WCI F141997000 Contact Us For Availability
46
SCREW (2) WCI F060796000 Contact Us For Availability
46
SCREW (4) WCI F138539000 Contact Us For Availability
46
BRACKET-LID LOCK WCI F136148000 Contact Us For Availability
46A
WASHER-SPACER WCI 3016641 Contact Us For Availability
47
SCREW (2) WCI F136029000 Contact Us For Availability
48
SPACER-TIMER SHAFT, WASHER WCI Q000199081 Contact Us For Availability
48
BRACE-LOWER (2) WCI 3016468 Contact Us For Availability
48
SCREW (2) WCI F141175000 Contact Us For Availability
49
WCI 3016459 WCI 3016459 Contact Us For Availability
49
CONNECTOR-PRESSURE TUBE WCI F077193000 Contact Us For Availability
50
SPACER (OPTIONAL)(2) WCI F136289000 Contact Us For Availability
50
SHIELD - DRUM & ROLLER WCI 3016460 Contact Us For Availability
50
PLATE-DRYER MOUNTING UPPER (2) WCI 3016469 Contact Us For Availability
51
SCREW-HINGE/LINT HSG. & FT. PANEL WCI F136354000 Contact Us For Availability
51
SCREW-HINGE/FRONT PANEL WCI F136058000 Contact Us For Availability
51
INSULATION FRONT PANEL TOP WCI F141446000 Contact Us For Availability
51
INSULATION FRONT PANEL LH WCI F141447000 Contact Us For Availability
52
ACORN NUT WCI F136057000 Contact Us For Availability
52
WCI F136973000 WCI F136973000 Contact Us For Availability
52
CLAMP-HOSE WCI F064154010 Contact Us For Availability
53
WCI F141998000 WCI F141998000 Contact Us For Availability
53
WCI F064154003 WCI F064154003 Contact Us For Availability
54
WCI F064154020 WCI F064154020 Contact Us For Availability
55
PAD-LEVELING LEG (4) WCI F134166000 Contact Us For Availability
55
CLAMP-HOSE WCI F140887027 Contact Us For Availability
56
WCI F079171000 WCI F079171000 Contact Us For Availability
56
WCI F136471000 WCI F136471000 Contact Us For Availability
57
SCREW (2) WCI F073635000 Contact Us For Availability
57
WCI 3016471 WCI 3016471 Contact Us For Availability
57
CLIP-HARNESS WCI F136162000 Contact Us For Availability
58
HEATER ASSEMBLY WCI F141683000 Contact Us For Availability
58
BODY ASSY-STRAIN RELIEF WCI 3016472 Contact Us For Availability
58
SPRING-HORIZONTAL-SHORT (2) WCI F078135000 Contact Us For Availability
59
SCREW (2) WCI F136470000 Contact Us For Availability
59
WCI 3016473 WCI 3016473 Contact Us For Availability
60
WCI F141730000 WCI F141730000 Contact Us For Availability
61
RETAINER-DRAIN HOSE WCI F131968000 Contact Us For Availability
62
BUSHING-DRAIN HOSE WCI F132251000 Contact Us For Availability
63
CLAMP-HOSE WCI F064154015 Contact Us For Availability
63A
CABLE TIE-DRAIN HOSE WCI F130495200 Contact Us For Availability
64
CHECK-VALVE DRAIN HOSE WCI F141123000 Contact Us For Availability
65
WCI F140401000 WCI F140401000 Contact Us For Availability
65
SHIELD-MOTOR (PLASTIC MOTOR SHIELD & TAPE-FAB WCI F132044000 Contact Us For Availability
66
WCI F140443000 WCI F140443000 Contact Us For Availability
66
WCI F139814000 WCI F139814000 Contact Us For Availability
68
WCI F136939126 WCI F136939126 Contact Us For Availability
69
PNL-ACCESS-DRYER (WHITE) WCI F136935032 Contact Us For Availability
70
WCI 3016443 WCI 3016443 Contact Us For Availability
72
SCREW (2) WCI F140203000 Contact Us For Availability
× ![]()
