Model Electrolux SM230JXW4 LAUNDRY CENTER – Common Parts & Diagrams

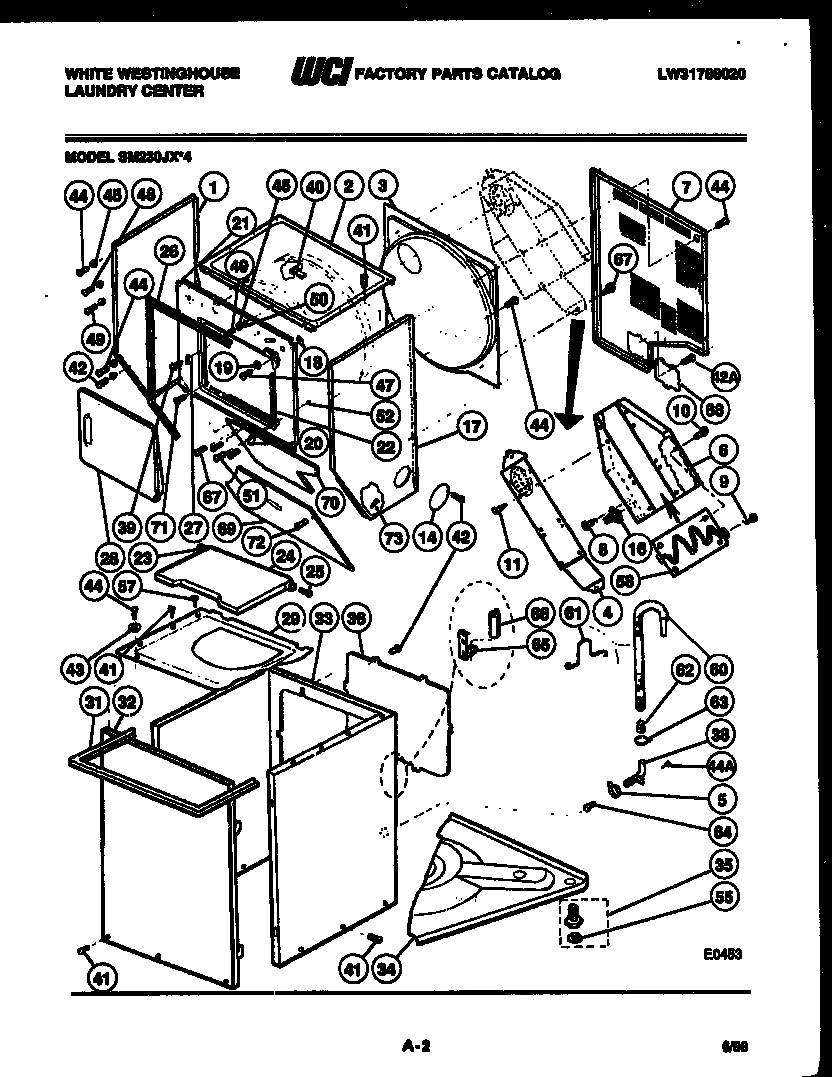

02 - CABINET PARTS AND HEATER

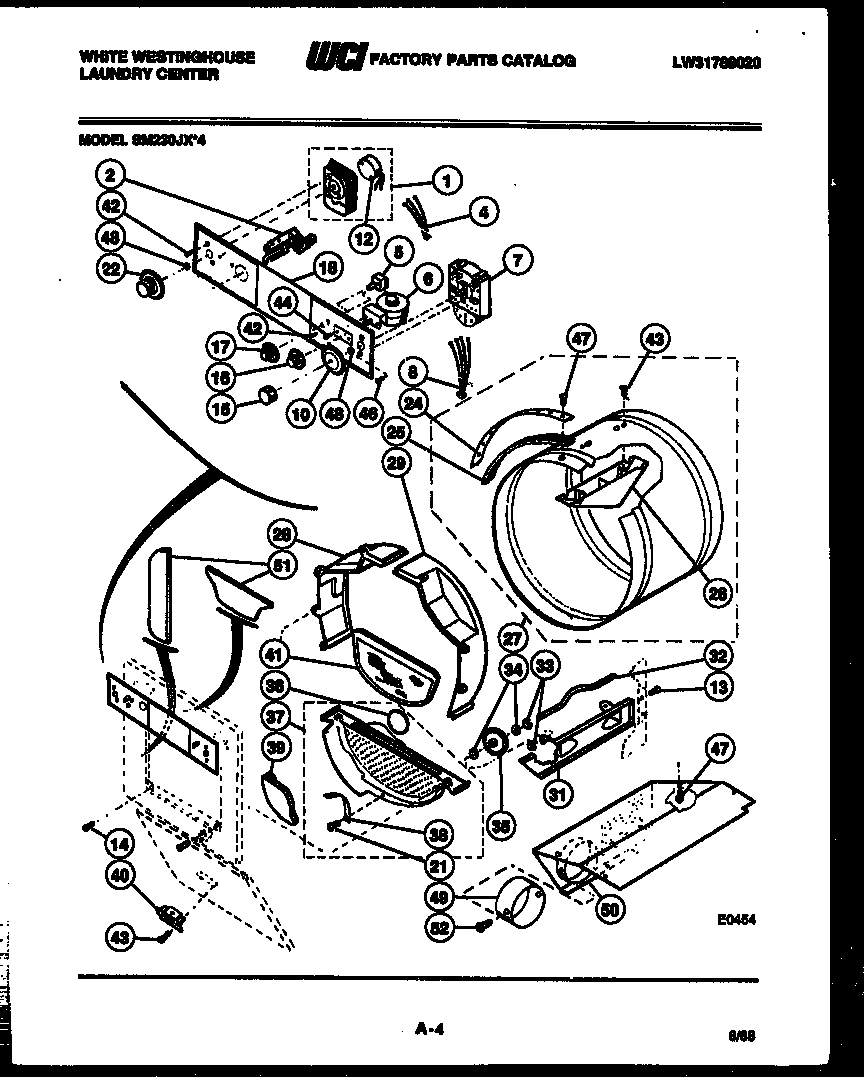

03 - CONSOLE, CONTROL AND DRUM
04 - DRYER MOTOR, BLOWER AND BELT
05 - TUBS, WATER VALVE AND LID SWITCH
06 - WASHER DRIVE SYSTEM AND PUMP
07 - TRANSMISSION PARTS
Common parts from model Electrolux SM230JXW4 LAUNDRY CENTER
*10724
RESISTOR-SELECTOR SWITCH (2.4 K OHMS) WCI 3004951 Contact Us For Availability
*10724
SHIELD-TIMER-WASHER WCI F136211000 Contact Us For Availability
*10724
RESISTOR-TIMER-DRYER (4.4 K OHMS) WCI F137448100 Contact Us For Availability
*10728
NYLUBE LUBRICANT WCI F133077000 Contact Us For Availability
*10732
WCI F062805100 WCI F062805100 Contact Us For Availability
*10732
WCI F133016000 WCI F133016000 Contact Us For Availability
*10732
CLIP-PRESSURE-TUBE-SHORT WCI F136886000 Contact Us For Availability
*10732
CLIP-PRESSURE-TUBE-LONG WCI F136886001 Contact Us For Availability
*10732
BUTYL RUBBER WCI F137091000 Contact Us For Availability
*10736
OIL, TRANSMISSION, 1 QUART WCI F060821100 Contact Us For Availability
*10736
WCI F130417000 WCI F130417000 Contact Us For Availability
*10736
WCI F140563000 WCI F140563000 Contact Us For Availability
1
PANEL-LH WHITE WCI F136933032 Contact Us For Availability
1
PANEL-LH ALMOND WCI F136933039 Contact Us For Availability
1
WCI 3017936 WCI 3017936 Contact Us For Availability
1
WCI 3016461 WCI 3016461 Contact Us For Availability
1
HOUSING-LINT FILTER WCI F140694000 Contact Us For Availability
1
STUD BOLT WCI F063882000 Contact Us For Availability
2
PANEL-TOP WHITE WCI F141644032 Contact Us For Availability
2
PANEL-TOP ALMOND WCI F141644039 Contact Us For Availability
2
WCI 3017893 WCI 3017893 Contact Us For Availability
2
SPRING CLIP WCI F136097000 Contact Us For Availability
2
WCI F140693000 WCI F140693000 Contact Us For Availability
2
WCI F077009100 WCI F077009100 Contact Us For Availability
2
DRIVE BLOCK WCI F140465000 Contact Us For Availability
3
WCI 3017111 WCI 3017111 Contact Us For Availability
3
WCI F136096100 WCI F136096100 Contact Us For Availability
3
TUB COVER WCI F141134000 Contact Us For Availability
3
BOLT (3) WCI F077090000 Contact Us For Availability
4
WCI F136938026 WCI F136938026 Contact Us For Availability
4
WCI 3017937 WCI 3017937 Contact Us For Availability
4
PLATE-BLOWER HOUSING WCI F136095026 Contact Us For Availability
4
SEAL-TUB COVER WCI F078611100 Contact Us For Availability
4
LOCKNUT (3) WCI F073804000 Contact Us For Availability
4
SHIM-DRIVE LUG (AS REQUIRED) WCI F063881400 Contact Us For Availability
5
CLAMP-HOSE/COUPLER WCI F064154013 Contact Us For Availability
5
SWITCH-WATER TEMPRATURE WCI 3017895 Contact Us For Availability
5
WCI F136923000 WCI F136923000 Contact Us For Availability
5
CLIP (8) WCI F079975000 Contact Us For Availability
5
PULLEY-TRANS WCI F140999100 Contact Us For Availability
6
WCI F141436026 WCI F141436026 Contact Us For Availability
6
WCI 3017896 WCI 3017896 Contact Us For Availability
6
WCI F144012000 WCI F144012000 Contact Us For Availability
6
SCREW (5) WCI F134167000 Contact Us For Availability
6
RING RETAINING (2) WCI F068158000 Contact Us For Availability
7
PANEL-VENT WCI 3016426 Contact Us For Availability
7
WCI 3017897 WCI 3017897 Contact Us For Availability
7
BELT WCI F136102000 Contact Us For Availability
7
WCI F130493000 WCI F130493000 Contact Us For Availability
8
WCI F141960000 WCI F141960000 Contact Us For Availability
8
WCI 3016462 WCI 3016462 Contact Us For Availability
8
CAP-AGITATOR W/REF 9 WCI F131203100 Contact Us For Availability
8
BUSHING (2) WCI F142027000 Contact Us For Availability
9
SCREW (2) WCI F130220000 Contact Us For Availability
9
WASHER WCI F073565000 Contact Us For Availability
9
HOSE-PUMP/DRAIN COUPLING WCI F141127000 Contact Us For Availability
10
WCI 3017898 WCI 3017898 Contact Us For Availability
10
DRYER MOTOR & SWITCH ASSEMBLY WCI F141684000 Contact Us For Availability
10
SCREW WCI F078862000 Contact Us For Availability
10
CLAMP (2) WCI F136152000 Contact Us For Availability
10
WCI F141783000 WCI F141783000 Contact Us For Availability
11
SWITCH-MOTOR (GE) WCI F067634008 Contact Us For Availability
11
WCI F141059100 WCI F141059100 Contact Us For Availability
11
PIPE PLUG WCI F077061000 Contact Us For Availability
12
MOTOR-TIMER-DRYER WCI F079459021 Contact Us For Availability
12
WCI F140887029 WCI F140887029 Contact Us For Availability
12
SCREW (6) WCI F079688000 Contact Us For Availability
13
WCI F078523100 WCI F078523100 Contact Us For Availability
13
SCREW (4) WCI F077669000 Contact Us For Availability
13
WCI F130895000 WCI F130895000 Contact Us For Availability
14
COVER-EXHAUST WHITE WCI F136033032 Contact Us For Availability
14
COVER-EXHAUST-ALMOND WCI F136033039 Contact Us For Availability
14
SCREW WCI F079999000 Contact Us For Availability
14
WCI F140887021 WCI F140887021 Contact Us For Availability
14
SECTOR GEAR WCI F130405100 Contact Us For Availability
15
KNOB-TIMER-WASHER WCI 3017899 Contact Us For Availability
15
CLIP-MOTOR WCI F002618000 Contact Us For Availability
15
WCI F140604100 WCI F140604100 Contact Us For Availability
15
HOSE-RECIRC-PUMP/TUB COVER WCI F136147000 Contact Us For Availability
15
WCI F066078100 WCI F066078100 Contact Us For Availability
16
WCI F141947000 WCI F141947000 Contact Us For Availability
16
KNOB-SWITCH-PRESSURE WCI F141491000 Contact Us For Availability
16
IDLER ARM & WHEEL ASSEMBLY WCI F140582000 Contact Us For Availability
16
TUB-SPLASH WCI F141744000 Contact Us For Availability
16
WCI F133058000 WCI F133058000 Contact Us For Availability
16
WCI F130404100 WCI F130404100 Contact Us For Availability
17
PANEL-RH WHITE WCI F136932032 Contact Us For Availability
17
PANEL-RH ALMOND WCI F136932039 Contact Us For Availability
17
KNOB-WATER-TEMPRATURE SWITCH WCI F141489000 Contact Us For Availability
17
BEARING WCI F140581000 Contact Us For Availability
17
LOWER SHAFT ASSEMBLY WCI F141770000 Contact Us For Availability
18
WCI F136054000 WCI F136054000 Contact Us For Availability
18
TRIM PLATE WCI 3017938 Contact Us For Availability
18
WCI F139592000 WCI F139592000 Contact Us For Availability
19
WCI F136053000 WCI F136053000 Contact Us For Availability
19
DOWEL PIN (2) WCI F077058000 Contact Us For Availability
20
HINGE-DOOR LOWER WCI F136056000 Contact Us For Availability
20
WCI F1362249000 WCI F1362249000 Contact Us For Availability
20
SPRING-HORIZONTAL-LONG WCI F079837000 Contact Us For Availability
20
SCREW WCI F077203000 Contact Us For Availability
21
PANEL-FRONT-WHITE WCI 3016436 Contact Us For Availability
21
PANEL-FRONT-ALMOND WCI 3016438 Contact Us For Availability
21
BRACKET-THERMOSTAT MOUNTING WCI 3016464 Contact Us For Availability
21
SNUBBER RING WCI F130789000 Contact Us For Availability
21
HOUSING-LOWER (W/REF 13) WCI F140586000 Contact Us For Availability
22
WCI F136018000 WCI F136018000 Contact Us For Availability
22
WCI F14149700 WCI F14149700 Contact Us For Availability
22
WCI F137203000 WCI F137203000 Contact Us For Availability
22
BEARING HOUSING-LGS SPRING PKG WCI F137014000 Contact Us For Availability
23
WCI F136123000 WCI F136123000 Contact Us For Availability
23
WCI F077075000 WCI F077075000 Contact Us For Availability
23
SPACER (4) WCI F141131000 Contact Us For Availability
24
WCI F136575432 WCI F136575432 Contact Us For Availability
24
LID-ALMOND WCI F136575439 Contact Us For Availability
24
WCI F136009000 WCI F136009000 Contact Us For Availability
24
NUT-EXPANSION WCI F077074000 Contact Us For Availability
24
SPRING-TENSION WCI F078465000 Contact Us For Availability
25
SCREW WCI F139410000 Contact Us For Availability
25
WCI F136007000 WCI F136007000 Contact Us For Availability
25
WCI F136008000 WCI F136008000 Contact Us For Availability
25
WCI 3016465 WCI 3016465 Contact Us For Availability
25
SPRING-VERTICAL-SHORT WCI F137997100 Contact Us For Availability
25
IDLER ARM ASSEMBLY WCI F141786000 Contact Us For Availability
25
RING-RETAINING WCI F141261000 Contact Us For Availability
26
WCI F136921400 WCI F136921400 Contact Us For Availability
26
WCI F136005100 WCI F136005100 Contact Us For Availability
26
SPRING-IDLER ARM WCI F136947000 Contact Us For Availability
26
LEG & DOME WCI F079630000 Contact Us For Availability
26
SCREW WCI F142220000 Contact Us For Availability
27
WCI F136015000 WCI F136015000 Contact Us For Availability
27
WCI F136004032 WCI F136004032 Contact Us For Availability
27
WCI F136941000 WCI F136941000 Contact Us For Availability
27
WCI F054287000 WCI F054287000 Contact Us For Availability
27
WCI F132861000 WCI F132861000 Contact Us For Availability
28
WCI F136050032 WCI F136050032 Contact Us For Availability
28
DOOR-ALMOND WCI F136050039 Contact Us For Availability
28
WCI F136949000 WCI F136949000 Contact Us For Availability
28
CRADLE MOTOR WCI 3016466 Contact Us For Availability
28
SCREW (6) WCI F063532000 Contact Us For Availability
28
WCI F134881000 WCI F134881000 Contact Us For Availability
28
SPACER-RUBBER (2) WCI F078749000 Contact Us For Availability
29
PANEL-TOP WHITE WCI F136574032 Contact Us For Availability
29
PANEL-TOP ALMOND WCI F136574039 Contact Us For Availability
29
WCI F136948000 WCI F136948000 Contact Us For Availability
29
THERMOSTAT-CONTROL WCI F141229000 Contact Us For Availability
29
SPRING-VERTICAL-LONG (2) WCI F137997000 Contact Us For Availability
29A
HEATER THERMOSTAT WCI F136777000 Contact Us For Availability
30
WCI F136107000 WCI F136107000 Contact Us For Availability
30
PLATE-LEG BOLT (3) WCI F132729000 Contact Us For Availability
30
PLATE-SUPPORT & BOLTS WCI F079494300 Contact Us For Availability
30
WCI F077098000 WCI F077098000 Contact Us For Availability
31
WCI F136134400 WCI F136134400 Contact Us For Availability
31
WCI 3017901 WCI 3017901 Contact Us For Availability
31
WCI F133242000 WCI F133242000 Contact Us For Availability
31
HOSE-PUMP/TRAP WCI F139191000 Contact Us For Availability
31
MOTOR & SWITCH WCI F140322000 Contact Us For Availability
31
THRUST WASHER WCI F077051000 Contact Us For Availability
32
PANEL-FRONT WHITE WCI F136128032 Contact Us For Availability
32
PANEL-FRONT ALMOND WCI F136128039 Contact Us For Availability
32
WCI 3017902 WCI 3017902 Contact Us For Availability
32
WCI F136073000 WCI F136073000 Contact Us For Availability
32
SHIM-BUTTON TRAP WCI F140324000 Contact Us For Availability
32
SWITCH-MOTOR (GE) WCI F067630015 Contact Us For Availability
33
WCI F136888032 WCI F136888032 Contact Us For Availability
33
CABINET-ALMOND WCI F136888039 Contact Us For Availability
33
WCI F136075000 WCI F136075000 Contact Us For Availability
33
SCREW-GROUND WCI F132144000 Contact Us For Availability
33
BUTTON TRAP WCI F077276000 Contact Us For Availability
33
LGS SPRING (SMALL) WCI F077052000 Contact Us For Availability
34
WCI F136137026 WCI F136137026 Contact Us For Availability
34
WCI F136074000 WCI F136074000 Contact Us For Availability
34
DRYER BASE WCI F141957028 Contact Us For Availability
34
WCI F137466000 WCI F137466000 Contact Us For Availability
34
WCI F130403100 WCI F130403100 Contact Us For Availability
35
SHAFT ASSEMBLY-AGITATOR WCI 134736400 No Longer Available
35
LEG-LEVELING ASSEMBLY WCI F134165300 Contact Us For Availability
35
ROLLER & WHEEL ASSEMBLY WCI F136175000 Contact Us For Availability
35
WCI F079874000 WCI F079874000 Contact Us For Availability
35
WCI F066912000 WCI F066912000 Contact Us For Availability
35A
LOCKWASHER (NON-ILLUSTRATED) WCI F063602000 Contact Us For Availability
36
PANEL-ACCESS REAR WCI F136131028 Contact Us For Availability
36
WCI F136240000 WCI F136240000 Contact Us For Availability
36
SPEEDNUT (2) WCI F078029000 Contact Us For Availability
36
UPPER HOUSING W/ GASKET WCI F140588000 Contact Us For Availability
37
HOUSING ASSEMBLY-LINT WCI F140583000 Contact Us For Availability
37
BRACKET-TERMINAL BLOCK WCI F136927000 Contact Us For Availability
37
CLIP (2) WCI F131169000 Contact Us For Availability
37A
BRACKET-TERMINAL BLOCK/BRACKET WCI 3016467 Contact Us For Availability
38
COUPLER-DRAIN HOSE WCI F144004000 Contact Us For Availability
38
WCI F136046000 WCI F136046000 Contact Us For Availability
38
CUP WASHER WCI F078101000 Contact Us For Availability
38
HARNESS WCI 3016475 Contact Us For Availability
38
WCI F077354000 WCI F077354000 Contact Us For Availability
38
WCI F077156000 WCI F077156000 Contact Us For Availability
39
WCI F136016000 WCI F136016000 Contact Us For Availability
39
WCI F136920000 WCI F136920000 Contact Us For Availability
39
IMPELLER KIT (CONSISTS OF SEAL ASSEMBLY, GASK WCI F079428000 Contact Us For Availability
40
WCI F136032000 WCI F136032000 Contact Us For Availability
40
WCI 3016456 WCI 3016456 Contact Us For Availability
40
WCI 3016458 WCI 3016458 Contact Us For Availability
40
WATER INLET ASSEMBLY WCI F137017000 Contact Us For Availability
40
WCI F141874100 WCI F141874100 Contact Us For Availability
40
THRUST WASHER WCI F062568000 Contact Us For Availability
41
WCI F136047000 WCI F136047000 Contact Us For Availability
41
WCI F077352000 WCI F077352000 Contact Us For Availability
41
WCI F141800000 WCI F141800000 Contact Us For Availability
42
SCREW-WATER TEMPRATURE SWITCH WCI F135021000 Contact Us For Availability
42
LID LOCK WCI F138862000 Contact Us For Availability
42
SEAL KIT (CONSISTS OF SEAL ASSEMBLY AND GASKE WCI F076143000 Contact Us For Availability
42
WCI F141714000 WCI F141714000 Contact Us For Availability
42A
SCREW WCI F136249000 Contact Us For Availability
43
SCREW-MAGNET ASSEMBLY WCI F136951000 Contact Us For Availability
44
HOSE WCI F137507000 Contact Us For Availability
44A
WCI F144005000 WCI F144005000 Contact Us For Availability
45
RETAINER (14) WCI F136028000 Contact Us For Availability
45
RETAINER WCI F136345000 Contact Us For Availability
46
WCI F060796000 WCI F060796000 Contact Us For Availability
46
SCREW WCI F138539000 Contact Us For Availability
46
BRACKET-LID LOCK WCI F136148000 Contact Us For Availability
47
WCI F136029000 WCI F136029000 Contact Us For Availability
48
SPACER-TIMER SHAFT-WASHER WCI Q199081 Contact Us For Availability
48
BRACE-DRYER BASE WCI 3016468 Contact Us For Availability
48
SCREW WCI F141175000 Contact Us For Availability
49
WCI 3016459 WCI 3016459 Contact Us For Availability
49
CONNECTER-PRESSURE TUBE WCI F077193000 Contact Us For Availability
49
SCREW WCI 3161291 Contact Us For Availability
50
SPACER (OPTIONAL)(2) WCI F136289000 Contact Us For Availability
50
SHEILD WCI 3016460 Contact Us For Availability
50
PLATE-DRYER MOUTING WCI 3016469 Contact Us For Availability
51
SCREW-HINGE/LINT HOUSING WCI F136354000 Contact Us For Availability
51
SCREW-HINGE/PANEL WCI F136058000 Contact Us For Availability
51
INSULATION FRONT PANEL TOP WCI F141446000 Contact Us For Availability
51
INSULATION FRONT PANEL LH WCI F141447000 Contact Us For Availability
52
WCI F136057000 WCI F136057000 Contact Us For Availability
52
WCI F136973000 WCI F136973000 Contact Us For Availability
52
CLAMP-HOSE WCI F064154010 Contact Us For Availability
53
WCI F064154003 WCI F064154003 Contact Us For Availability
54
WCI F064154020 WCI F064154020 Contact Us For Availability
55
PAD-LEVELING LEG WCI F134166000 Contact Us For Availability
55
CLAMP WCI F140887027 Contact Us For Availability
56
WCI F079171000 WCI F079171000 Contact Us For Availability
56
WCI F136471000 WCI F136471000 Contact Us For Availability
57
SCREW-BRACE (2) WCI F073635000 Contact Us For Availability
57
WCI 3016471 WCI 3016471 Contact Us For Availability
57
CLIP-HARNESS WCI F136162000 Contact Us For Availability
58
HEATER ASSEMBLY WCI F141683000 Contact Us For Availability
58
STRAIN RELIEF WCI 3016472 Contact Us For Availability
58
SPRING-HORIZONTAL-SHORT (2) WCI F078135000 Contact Us For Availability
59
SCREW (2) WCI F136470000 Contact Us For Availability
59
WCI 3016473 WCI 3016473 Contact Us For Availability
60
DRAIN HOSE ASSEMBLY WCI F141730000 Contact Us For Availability
60
SCREW-STRAIN RELIEF WCI 3016474 Contact Us For Availability
61
WCI F131968000 WCI F131968000 Contact Us For Availability
62
BUSHING-DRAIN HOSE WCI F132251000 Contact Us For Availability
63
CLAMP-HOSE WCI F064154015 Contact Us For Availability
63
WCI F130491000 WCI F130491000 Contact Us For Availability
63A
TIE-DRAIN HOSE (NON-ILLUSTRATED) WCI F130495200 Contact Us For Availability
64
CHECK-VALVE DRAIN HOSE WCI F141123000 Contact Us For Availability
65
WCI F140401000 WCI F140401000 Contact Us For Availability
65
SHIELD (PLASTIC MOTOR SHIELD AND TAPE - FABRI WCI F132044000 Contact Us For Availability
66
WCI F140443000 WCI F140443000 Contact Us For Availability
66
WASHER-HOSE WCI F139814000 Contact Us For Availability
67
WCI F138571000 WCI F138571000 Contact Us For Availability
68
WCI F136939126 WCI F136939126 Contact Us For Availability
68
WCI F142046000 WCI F142046000 Contact Us For Availability
69
PANEL-ACCESS WHITE WCI F136935032 Contact Us For Availability
69
PANEL-ACCESS-ALMOND WCI F136935039 Contact Us For Availability
70
WCI 3016443 WCI 3016443 Contact Us For Availability
72
SCREW (2) WCI F140203000 Contact Us For Availability
73A
INSULATION-ALUMINUM BACK (NON-ILLUSTRATED) WCI 3016444 Contact Us For Availability
73B
INSULATION-REAR & VENT PANEL (NON-ILLUSTRATED WCI F078207300 Contact Us For Availability
73C
WCI F094566050 WCI F094566050 Contact Us For Availability
× ![]()
