Model Maytag SM22TBW REFRIGERATOR – Common Parts & Diagrams
01 - CABINET BACK
02 - CABINET PARTS

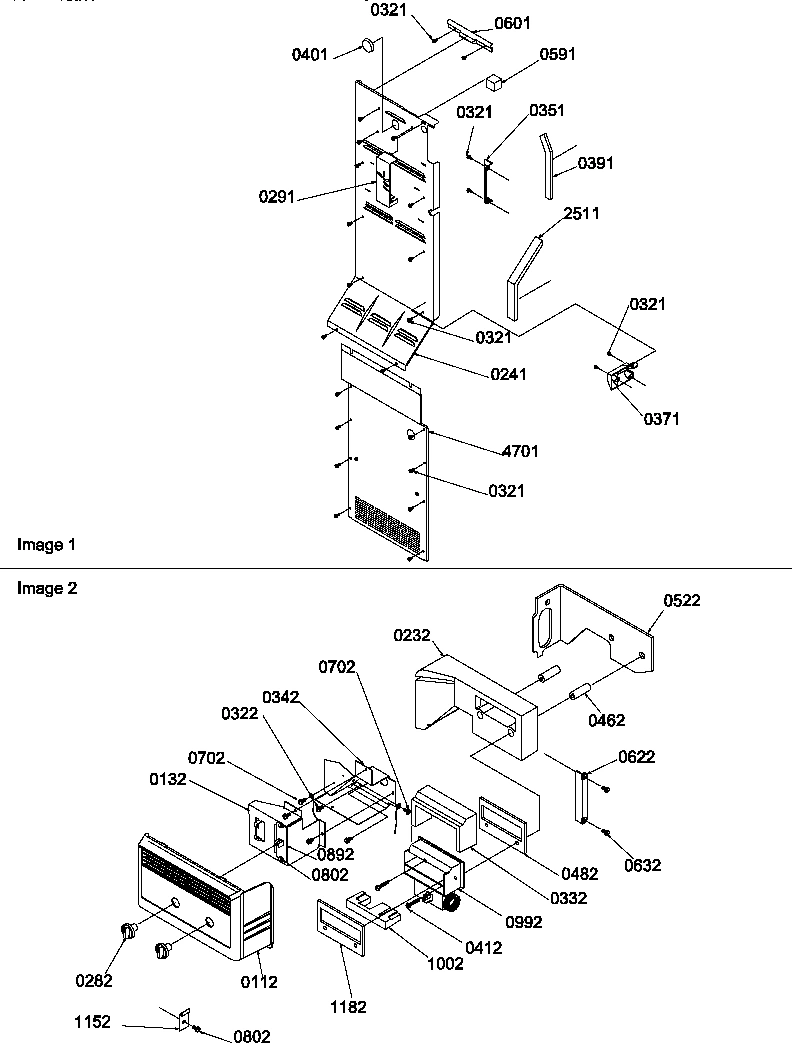

03 - CONTROL ASSY

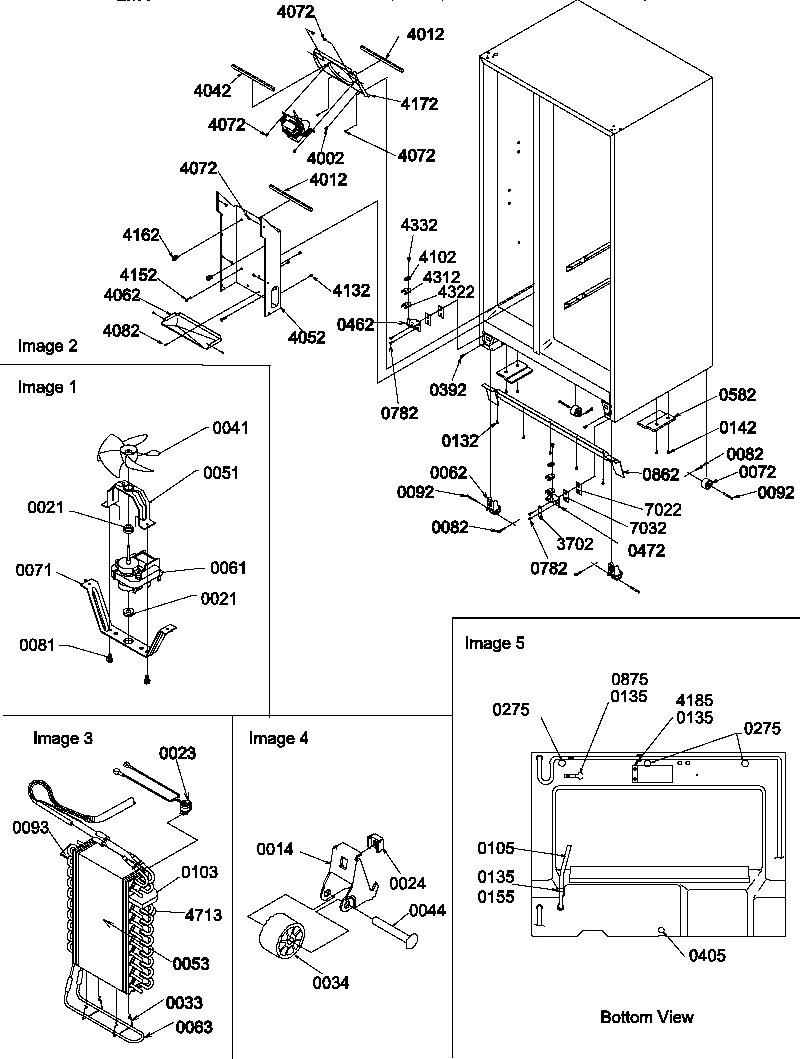

04 - DRAIN SYSTEM, ROLLERS, AND EVAP ASSY

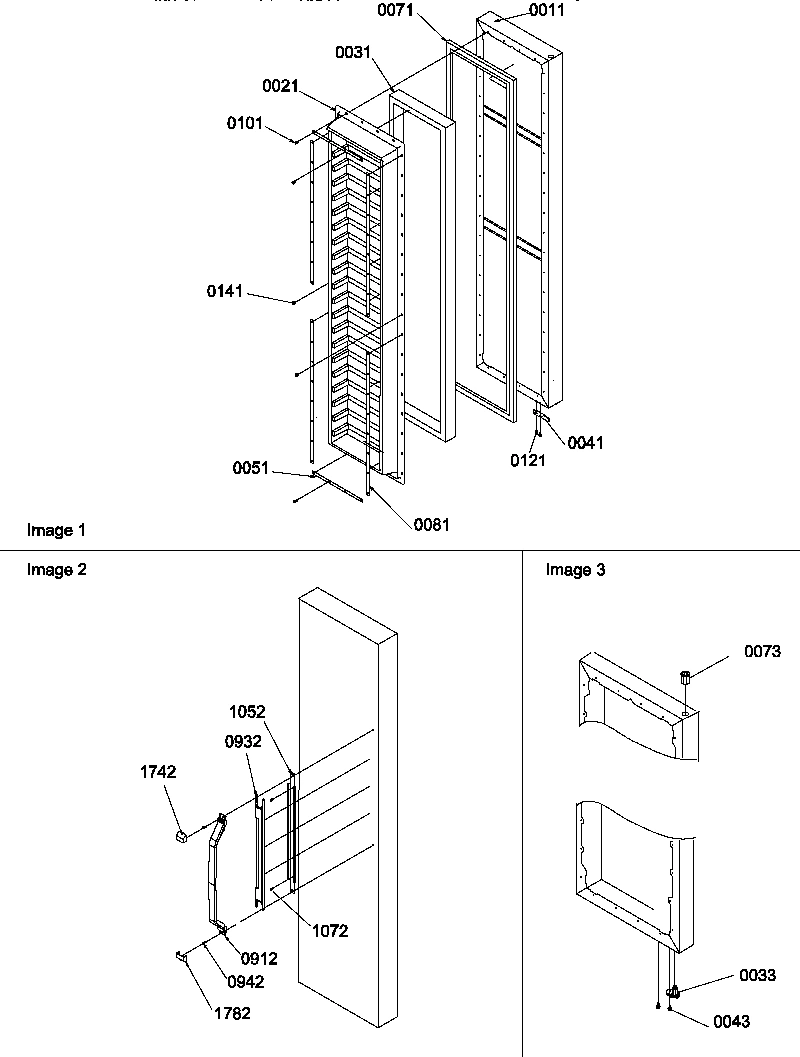

05 - FZ DOOR

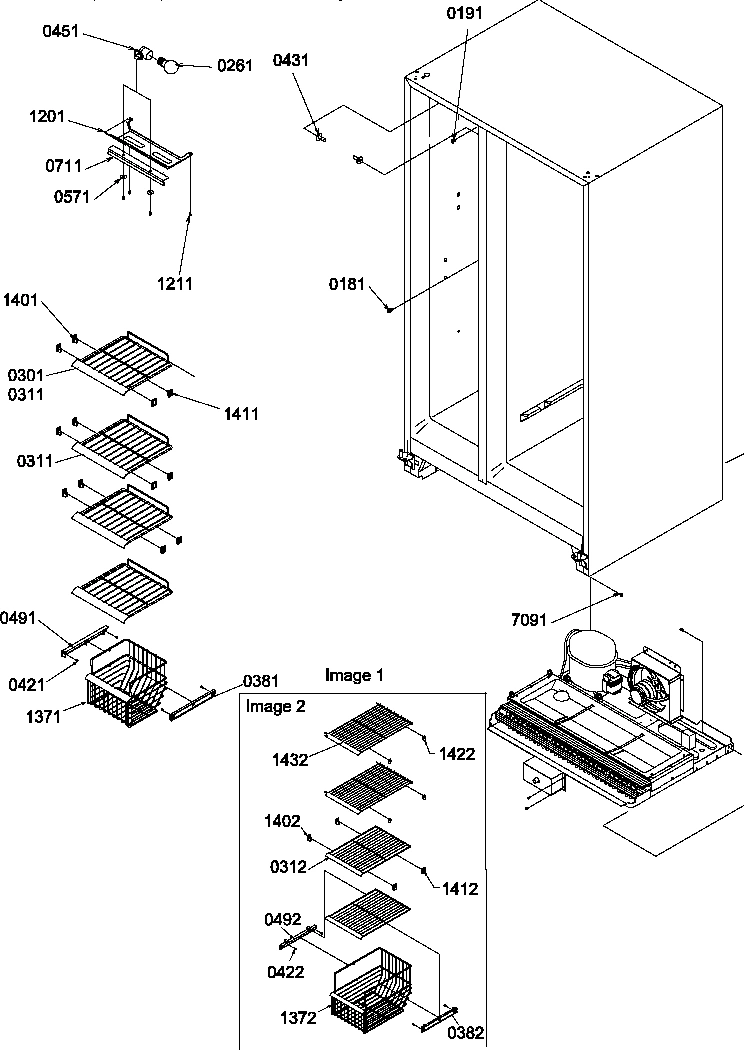

06 - FZ SHELVES AND LIGHT

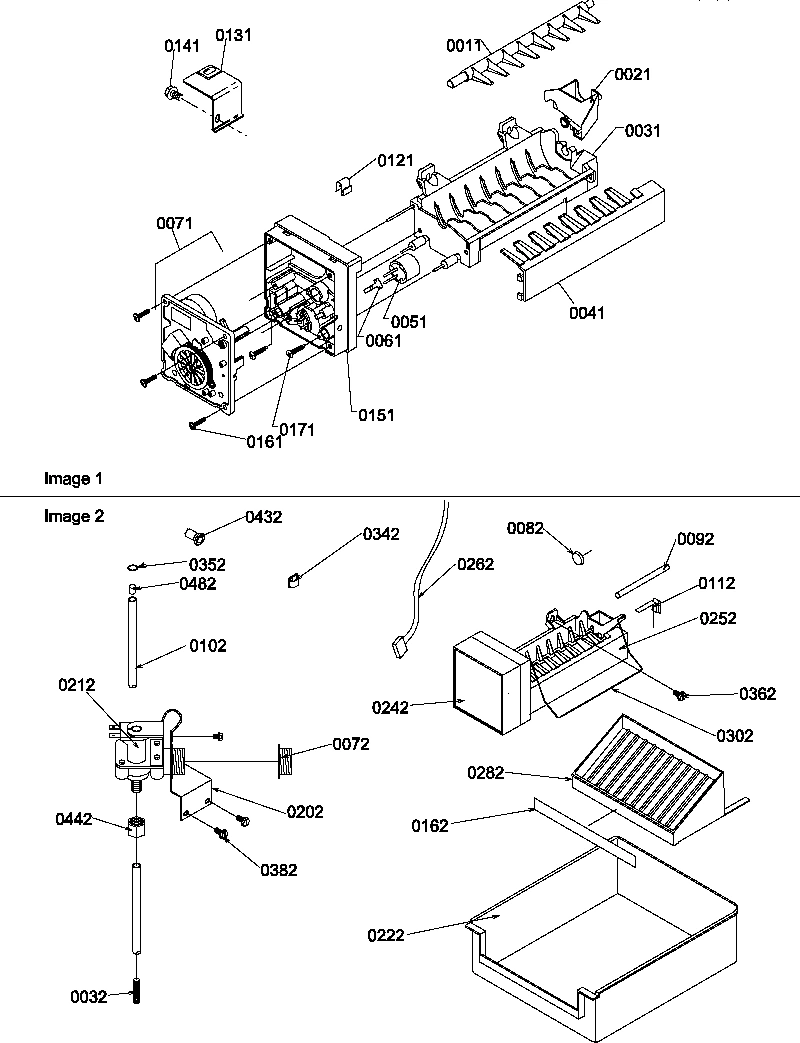

07 - ICE MAKER PARTS AND ADD ON ICE MAKER KIT

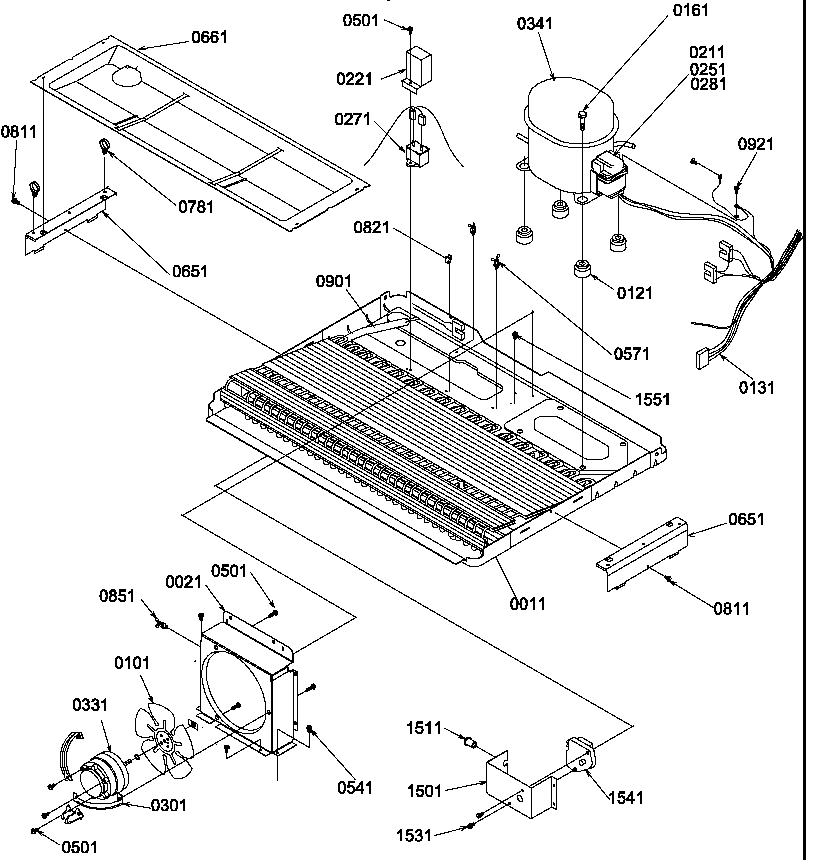

08 - MACHINE COMPARTMENT

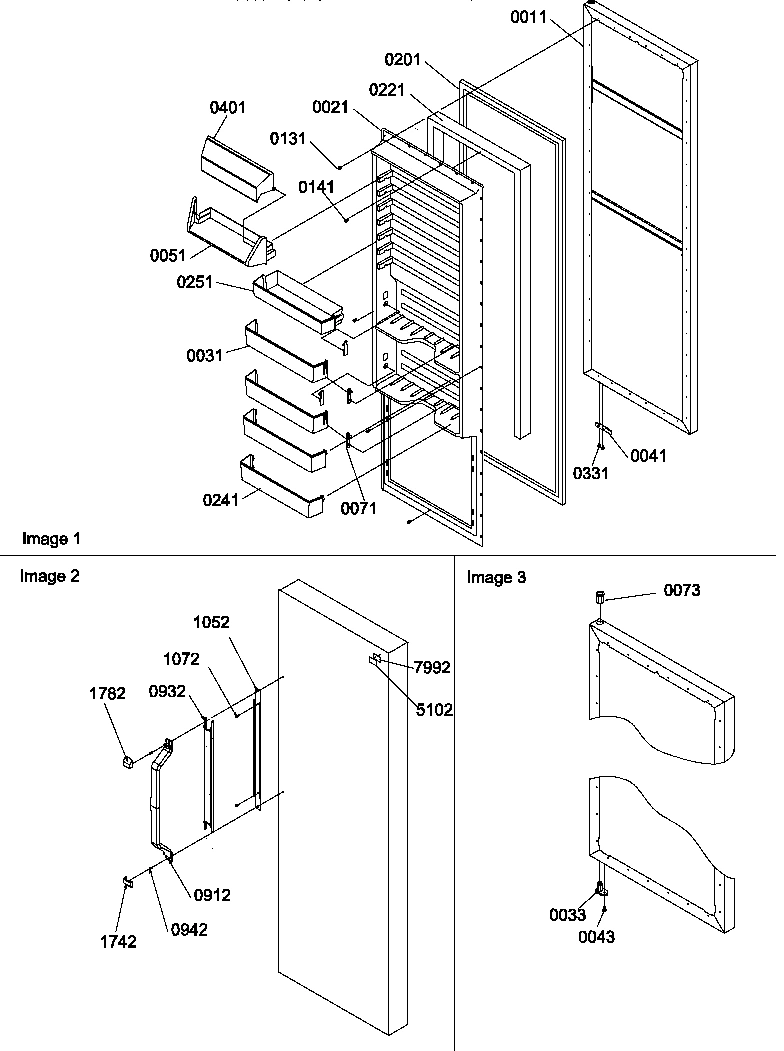

09 - REF DOOR

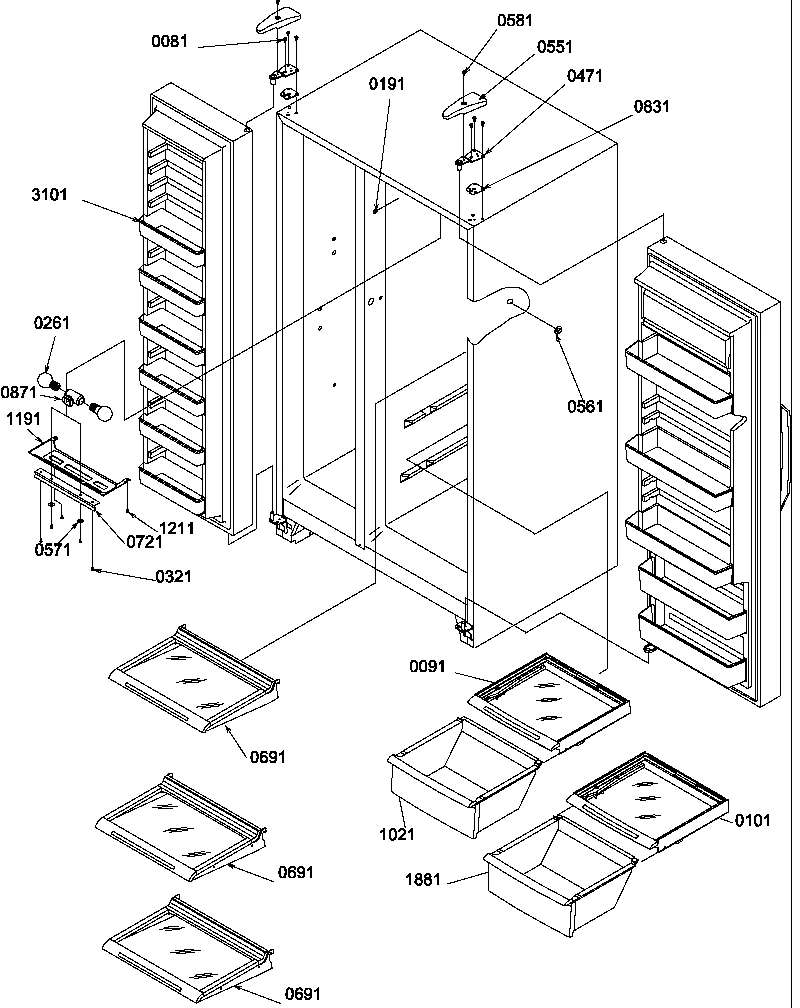

10 - REF\FZ SHELVES, LIGHTS, AND HINGES

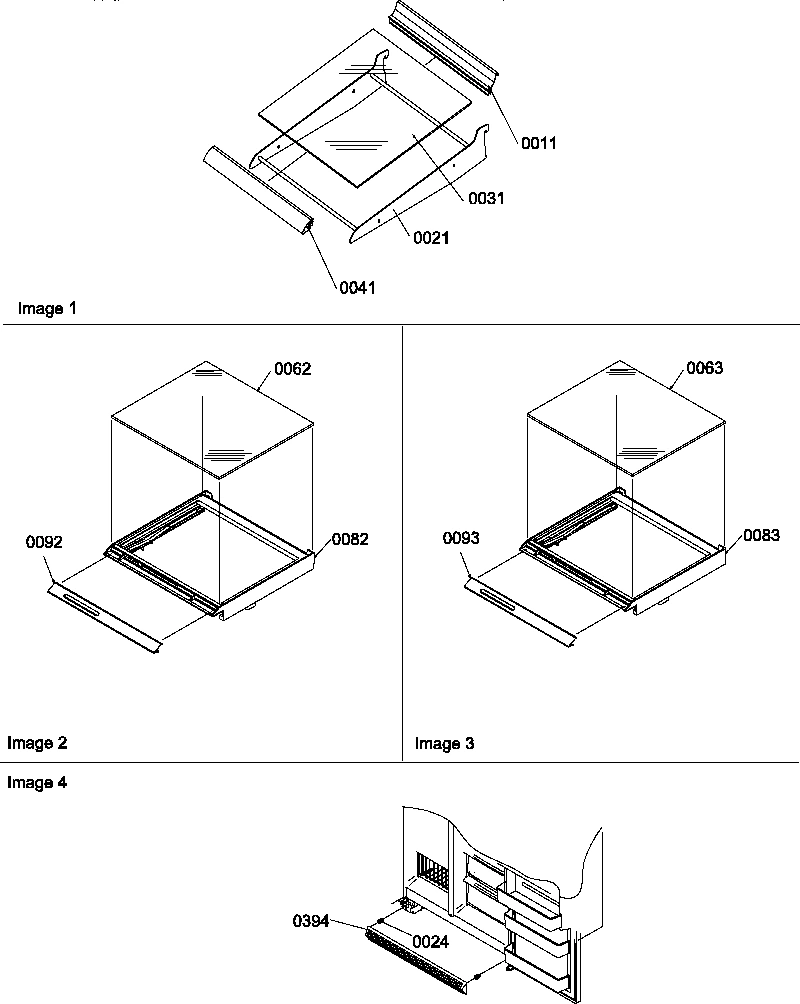

11 - SHELF, CRISPER ASSEMBLIES & TOE GRILLE
Common parts from model Maytag SM22TBW REFRIGERATOR
11
MAY 10881503W MAY 10881503W Contact Us For Availability
11
MAY R0183119 MAY R0183119 Contact Us For Availability
11
MAY 10544108 MAY 10544108 Contact Us For Availability
11
MAY 10881312W MAY 10881312W Contact Us For Availability
11
MAY 10946006 MAY 10946006 Contact Us For Availability
14
MAY C8742401 MAY C8742401 Contact Us For Availability
21
MAY A1017202 MAY A1017202 Contact Us For Availability
21
MAY 10522001 MAY 10522001 Contact Us For Availability
21
MAY R0156839 MAY R0156839 Contact Us For Availability
21
MAY 10602408 MAY 10602408 Contact Us For Availability
21
MAY 10866101 MAY 10866101 Contact Us For Availability
21
MAY 10875305 MAY 10875305 Contact Us For Availability
23
MAY 12017823 MAY 12017823 Contact Us For Availability
24
MAY M0286708 MAY M0286708 Contact Us For Availability
24
MAY M0117303 MAY M0117303 Contact Us For Availability
31
MAY R0156669 MAY R0156669 Contact Us For Availability
31
MAY 10520405 MAY 10520405 Contact Us For Availability
31
MAY Y10370071 MAY Y10370071 Contact Us For Availability
32
MAY A1055101 MAY A1055101 Contact Us For Availability
33
MAY 12113202 MAY 12113202 Contact Us For Availability
41
MAY C8971902 MAY C8971902 Contact Us For Availability
41
MAY 10890101 MAY 10890101 Contact Us For Availability
41
MAY C8972403 MAY C8972403 Contact Us For Availability
41
MAY R0183120 MAY R0183120 Contact Us For Availability
41
MAY 10459910 MAY 10459910 Contact Us For Availability
44
MAY M1205302 MAY M1205302 Contact Us For Availability
51
MAY 10656102 MAY 10656102 Contact Us For Availability
51
MAY C8982801 MAY C8982801 Contact Us For Availability
51
MAY R0161060 MAY R0161060 Contact Us For Availability
51
MAY 12083301 MAY 12083301 Contact Us For Availability
53
MAY R0170055 MAY R0170055 Contact Us For Availability
61
MAY 10513803 MAY 10513803 Contact Us For Availability
61
MAY R0191094 MAY R0191094 Contact Us For Availability
62
MAY C8956101 MAY C8956101 Contact Us For Availability
62
MAY 10370027 MAY 10370027 Contact Us For Availability
63
MAY 12049801 MAY 12049801 Contact Us For Availability
63
MAY 10370028 MAY 10370028 Contact Us For Availability
71
MAY 10909401 MAY 10909401 Contact Us For Availability
71
MAY 10359709 MAY 10359709 Contact Us For Availability
71
MAY R0167203 MAY R0167203 Contact Us For Availability
71
MAY 10202001 MAY 10202001 Contact Us For Availability
72
MAY 10450602 MAY 10450602 Contact Us For Availability
72
MAY 10244903 MAY 10244903 Contact Us For Availability
73
MAY 10961001 MAY 10961001 Contact Us For Availability
81
MAY D7828601 MAY D7828601 Contact Us For Availability
81
MAY M0238731 MAY M0238731 Contact Us For Availability
82
MAY M1200004 MAY M1200004 Contact Us For Availability
82
MAY A3124301 MAY A3124301 Contact Us For Availability
82
MAY 10469608 MAY 10469608 Contact Us For Availability
83
MAY 10469603 MAY 10469603 Contact Us For Availability
91
MAY 10883018 MAY 10883018 Contact Us For Availability
92
MAY M1200202 MAY M1200202 Contact Us For Availability
92
MAY A3127412 MAY A3127412 Contact Us For Availability
93
MAY 10629601 MAY 10629601 Contact Us For Availability
93
MAY 10873909 MAY 10873909 Contact Us For Availability
101
MAY 10518702 MAY 10518702 Contact Us For Availability
101
MAY 10883019 MAY 10883019 Contact Us For Availability
102
MAY B5705321 MAY B5705321 Contact Us For Availability
103
MAY 10629001 MAY 10629001 Contact Us For Availability
105
MAY 10505101 MAY 10505101 Contact Us For Availability
112
MAY 10862701 MAY 10862701 Contact Us For Availability
112
MAY B5720301 MAY B5720301 Contact Us For Availability
121
MAY D7753903 MAY D7753903 Contact Us For Availability
121
MAY 10319801 MAY 10319801 Contact Us For Availability
121
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
131
SEAL, O RING MAY M0500703 Contact Us For Availability
131
MAY M0219730 MAY M0219730 Contact Us For Availability
131
MAY B8391802 MAY B8391802 Contact Us For Availability
131
MAY 12066301 MAY 12066301 Contact Us For Availability
132
MAY D7868606 MAY D7868606 Contact Us For Availability
141
MAY M0226705 MAY M0226705 Contact Us For Availability
141
MAY M0211017 MAY M0211017 Contact Us For Availability
142
MAY M0253942 MAY M0253942 Contact Us For Availability
151
MAY R0183121 MAY R0183121 Contact Us For Availability
155
MAY M0102303 MAY M0102303 Contact Us For Availability
161
MAY D7785402 MAY D7785402 Contact Us For Availability
161
MAY R0186041 MAY R0186041 Contact Us For Availability
161
MAY M0221523 MAY M0221523 Contact Us For Availability
162
MAY C8986123 MAY C8986123 Contact Us For Availability
163
MAY D7789808 MAY D7789808 Contact Us For Availability
171
MAY R0186040 MAY R0186040 Contact Us For Availability
173
MAY D7789809 MAY D7789809 Contact Us For Availability
191
MAY M0580007 MAY M0580007 Contact Us For Availability
191
MAY 12023401 MAY 12023401 Contact Us For Availability
201
MAY 10359708 MAY 10359708 Contact Us For Availability
202
MAY 10496302 MAY 10496302 Contact Us For Availability
211
MAY 10377015 MAY 10377015 Contact Us For Availability
212
MAY D7712603 MAY D7712603 Contact Us For Availability
221
MAY 10266402 MAY 10266402 Contact Us For Availability
221
MAY B0523563 MAY B0523563 Contact Us For Availability
222
MAY D7806201 MAY D7806201 Contact Us For Availability
232
MAY 10176602 MAY 10176602 Contact Us For Availability
241
MAY D7821168 MAY D7821168 Contact Us For Availability
241
MAY 10521812 MAY 10521812 Contact Us For Availability
242
MAY D7820401 MAY D7820401 Contact Us For Availability
251
MAY 10097202 MAY 10097202 Contact Us For Availability
251
MAY 12083401 MAY 12083401 Contact Us For Availability
252
MAY D7824703 MAY D7824703 Contact Us For Availability
261
MAY 10923101 MAY 10923101 Contact Us For Availability
261
MAY A0282803 MAY A0282803 Contact Us For Availability
262
MAY D7826301 MAY D7826301 Contact Us For Availability
271
MAY C8931604 MAY C8931604 Contact Us For Availability
275
MAY A3080001 MAY A3080001 Contact Us For Availability
281
MAY 10757301 MAY 10757301 Contact Us For Availability
282
MAY D7795826 MAY D7795826 Contact Us For Availability
282
MAY D7839703 MAY D7839703 Contact Us For Availability
291
MAY D7827402 MAY D7827402 Contact Us For Availability
301
MAY 12012501 MAY 12012501 Contact Us For Availability
301
MAY 10496501 MAY 10496501 Contact Us For Availability
302
MAY Y10901401 MAY Y10901401 Contact Us For Availability
303
MAY M0581001 MAY M0581001 Contact Us For Availability
311
MAY 12012605 MAY 12012605 Contact Us For Availability
321
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
321
MAY M0238616 MAY M0238616 Contact Us For Availability
331
SEE NOTE W VT MULL-PNT MAY Y00000000 Contact Us For Availability
331
MAY M0211018 MAY M0211018 Contact Us For Availability
331
MAY 10884501 MAY 10884501 Contact Us For Availability
332
MAY D7788201 MAY D7788201 Contact Us For Availability
341
MAY 12049702 MAY 12049702 Contact Us For Availability
342
MAY D7822406 MAY D7822406 Contact Us For Availability
342
MAY M0104101 MAY M0104101 Contact Us For Availability
351
MAY D7838302 MAY D7838302 Contact Us For Availability
352
MAY M0114003 MAY M0114003 Contact Us For Availability
362
MAY M0251018 MAY M0251018 Contact Us For Availability
371
MAY D7786901 MAY D7786901 Contact Us For Availability
381
MAY 10187501 MAY 10187501 Contact Us For Availability
381
MAY 10972801 MAY 10972801 Contact Us For Availability
391
MAY 10187601 MAY 10187601 Contact Us For Availability
391
MAY B8386602 MAY B8386602 Contact Us For Availability
392
MAY M0204339 MAY M0204339 Contact Us For Availability
394
MAY 12321806 MAY 12321806 Contact Us For Availability
401
MAY B5636301 MAY B5636301 Contact Us For Availability
401
MAY 10527316 MAY 10527316 Contact Us For Availability
411
MAY D7716409 MAY D7716409 Contact Us For Availability
412
MAY M0216539 MAY M0216539 Contact Us For Availability
421
MAY D7760102 MAY D7760102 Contact Us For Availability
431
MAY C3680304 MAY C3680304 Contact Us For Availability
431
MAY M0310305 MAY M0310305 Contact Us For Availability
432
MAY M0560005 MAY M0560005 Contact Us For Availability
441
MAY D7297603 MAY D7297603 Contact Us For Availability
442
NUT, SLEEVE MAY M0753001 Contact Us For Availability
451
MAY C8973405 MAY C8973405 Contact Us For Availability
462
MAY A3044208 MAY A3044208 Contact Us For Availability
462
MAY 10496104 MAY 10496104 Contact Us For Availability
471
MAY B5733302 MAY B5733302 Contact Us For Availability
471
MAY 12077312 MAY 12077312 Contact Us For Availability
472
MAY 10496112 MAY 10496112 Contact Us For Availability
482
MAY B8345401 MAY B8345401 Contact Us For Availability
482
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
491
MAY 12015101 MAY 12015101 Contact Us For Availability
501
MAY M0223803 MAY M0223803 Contact Us For Availability
522
MAY 10177901 MAY 10177901 Contact Us For Availability
541
MAY M0216716 MAY M0216716 Contact Us For Availability
551
MAY 10849406 MAY 10849406 Contact Us For Availability
561
MAY 10033201 MAY 10033201 Contact Us For Availability
571
MAY M0270508 MAY M0270508 Contact Us For Availability
571
MAY M0585401 MAY M0585401 Contact Us For Availability
582
MAY 10508001 MAY 10508001 Contact Us For Availability
591
MAY C8976102 MAY C8976102 Contact Us For Availability
601
MAY C8976201 MAY C8976201 Contact Us For Availability
622
MAY C8977301 MAY C8977301 Contact Us For Availability
624
MAY M0220634 MAY M0220634 Contact Us For Availability
632
SCREW 1`` MAY M0211021 Contact Us For Availability
634
MAY C8960601 MAY C8960601 Contact Us For Availability
651
MAY 10495702 MAY 10495702 Contact Us For Availability
661
MAY 10507903 MAY 10507903 Contact Us For Availability
691
MAY 10880702 MAY 10880702 Contact Us For Availability
711
MAY 10014715 MAY 10014715 Contact Us For Availability
721
MAY 10014716 MAY 10014716 Contact Us For Availability
781
MAY M0322202 MAY M0322202 Contact Us For Availability
782
MAY M0233847 MAY M0233847 Contact Us For Availability
802
MAY M0211016 MAY M0211016 Contact Us For Availability
811
MAY M0310319 MAY M0310319 Contact Us For Availability
811
MAY A4539601 MAY A4539601 Contact Us For Availability
821
MAY M0110505 MAY M0110505 Contact Us For Availability
831
MAY 12223003 MAY 12223003 Contact Us For Availability
851
MAY M0585403 MAY M0585403 Contact Us For Availability
862
MAY 10508104 MAY 10508104 Contact Us For Availability
871
MAY 12156201 MAY 12156201 Contact Us For Availability
875
MAY M0585206 MAY M0585206 Contact Us For Availability
892
MAY R0161092 MAY R0161092 Contact Us For Availability
901
MAY 10851302 MAY 10851302 Contact Us For Availability
912
MAY 12139306 MAY 12139306 Contact Us For Availability
921
MAY M0231604 MAY M0231604 Contact Us For Availability
932
MAY 10810403 MAY 10810403 Contact Us For Availability
992
MAY D7547412 MAY D7547412 Contact Us For Availability
1002
MAY C8902601 MAY C8902601 Contact Us For Availability
1021
MAY 10471817 MAY 10471817 Contact Us For Availability
1052
MAY 10852211 MAY 10852211 Contact Us For Availability
1072
MAY M0216517 MAY M0216517 Contact Us For Availability
1111
MAY A3189336 MAY A3189336 Contact Us For Availability
1152
MAY C8992302 MAY C8992302 Contact Us For Availability
1171
MAY 10178505 MAY 10178505 Contact Us For Availability
1182
MAY 10383201 MAY 10383201 Contact Us For Availability
1191
MAY 10493202 MAY 10493202 Contact Us For Availability
1201
MAY 10493302 MAY 10493302 Contact Us For Availability
1211
MAY M0238846 MAY M0238846 Contact Us For Availability
1371
MAY 12012001 MAY 12012001 Contact Us For Availability
1401
MAY 12015002 MAY 12015002 Contact Us For Availability
1411
MAY 10941102 MAY 10941102 Contact Us For Availability
1501
MAY 10877004 MAY 10877004 Contact Us For Availability
1511
MAY A3293505 MAY A3293505 Contact Us For Availability
1531
MAY M0216705 MAY M0216705 Contact Us For Availability
1541
MAY 10530702 MAY 10530702 Contact Us For Availability
1551
MAY M0232903 MAY M0232903 Contact Us For Availability
1742
MAY 10975805 MAY 10975805 Contact Us For Availability
1782
MAY 10975806 MAY 10975806 Contact Us For Availability
1881
MAY 10469022 MAY 10469022 Contact Us For Availability
2511
MAY A3189335 MAY A3189335 Contact Us For Availability
3101
MAY 10523905 MAY 10523905 Contact Us For Availability
3101
MAY 10523907 MAY 10523907 Contact Us For Availability
3702
MAY 12146901 MAY 12146901 Contact Us For Availability
4012
MAY B8386608 MAY B8386608 Contact Us For Availability
4022
MAY 12096401 MAY 12096401 Contact Us For Availability
4042
MAY B8386607 MAY B8386607 Contact Us For Availability
4052
MAY 10893802 MAY 10893802 Contact Us For Availability
4062
MAY D7850202 MAY D7850202 Contact Us For Availability
4072
MAY M0224416 MAY M0224416 Contact Us For Availability
4082
MAY 10098801 MAY 10098801 Contact Us For Availability
4102
MAY 12113502 MAY 12113502 Contact Us For Availability
4132
MAY M0580002 MAY M0580002 Contact Us For Availability
4152
MAY 10527401 MAY 10527401 Contact Us For Availability
4162
MAY 10623003 MAY 10623003 Contact Us For Availability
4172
MAY 10890202 MAY 10890202 Contact Us For Availability
4185
MAY 10876901 MAY 10876901 Contact Us For Availability
4312
MAY B8387703 MAY B8387703 Contact Us For Availability
4322
MAY B8387704 MAY B8387704 Contact Us For Availability
4332
MAY M0220431 MAY M0220431 Contact Us For Availability
4701
MAY 10655902 MAY 10655902 Contact Us For Availability
4713
MAY M0321202 MAY M0321202 Contact Us For Availability
4783
MAY B5794201 MAY B5794201 Contact Us For Availability
5102
MAY 10992109 MAY 10992109 Contact Us For Availability
5504
MAY M0227217 MAY M0227217 Contact Us For Availability
6054
MAY 10178405 MAY 10178405 Contact Us For Availability
7013
MAY 10916505 MAY 10916505 Contact Us For Availability
7022
MAY 12146701 MAY 12146701 Contact Us For Availability
7023
DRIER MAY B2150504 Contact Us For Availability
7032
MAY 12146702 MAY 12146702 Contact Us For Availability
7043
MAY 10547001 MAY 10547001 Contact Us For Availability
7083
MAY M0103904 MAY M0103904 Contact Us For Availability
7091
MAY M0211357 MAY M0211357 Contact Us For Availability
7123
MAY M0239216 MAY M0239216 Contact Us For Availability
7992
MAY 10992001 MAY 10992001 Contact Us For Availability
8111
MAY 12146602 MAY 12146602 Contact Us For Availability
8121
MAY 12146601 MAY 12146601 Contact Us For Availability
8131
MAY 12146801 MAY 12146801 Contact Us For Availability
8141
MAY 12146802 MAY 12146802 Contact Us For Availability
8151
MAY A4539631 MAY A4539631 Contact Us For Availability
8161
MAY 12147602 MAY 12147602 Contact Us For Availability
NI
MAY 10527011 MAY 10527011 Contact Us For Availability
NI
MAY 10549601 MAY 10549601 Contact Us For Availability
NI
MAY 10834701 MAY 10834701 Contact Us For Availability
NI
MAY A3036901 MAY A3036901 Contact Us For Availability
NI
MAY M0108001 MAY M0108001 Contact Us For Availability
NI
MAY M0211116 MAY M0211116 Contact Us For Availability
NI
MAY M0311301 MAY M0311301 Contact Us For Availability
× ![]()
