Model Whirlpool SM10P-14-C MICROWAVE – Common Parts & Diagrams

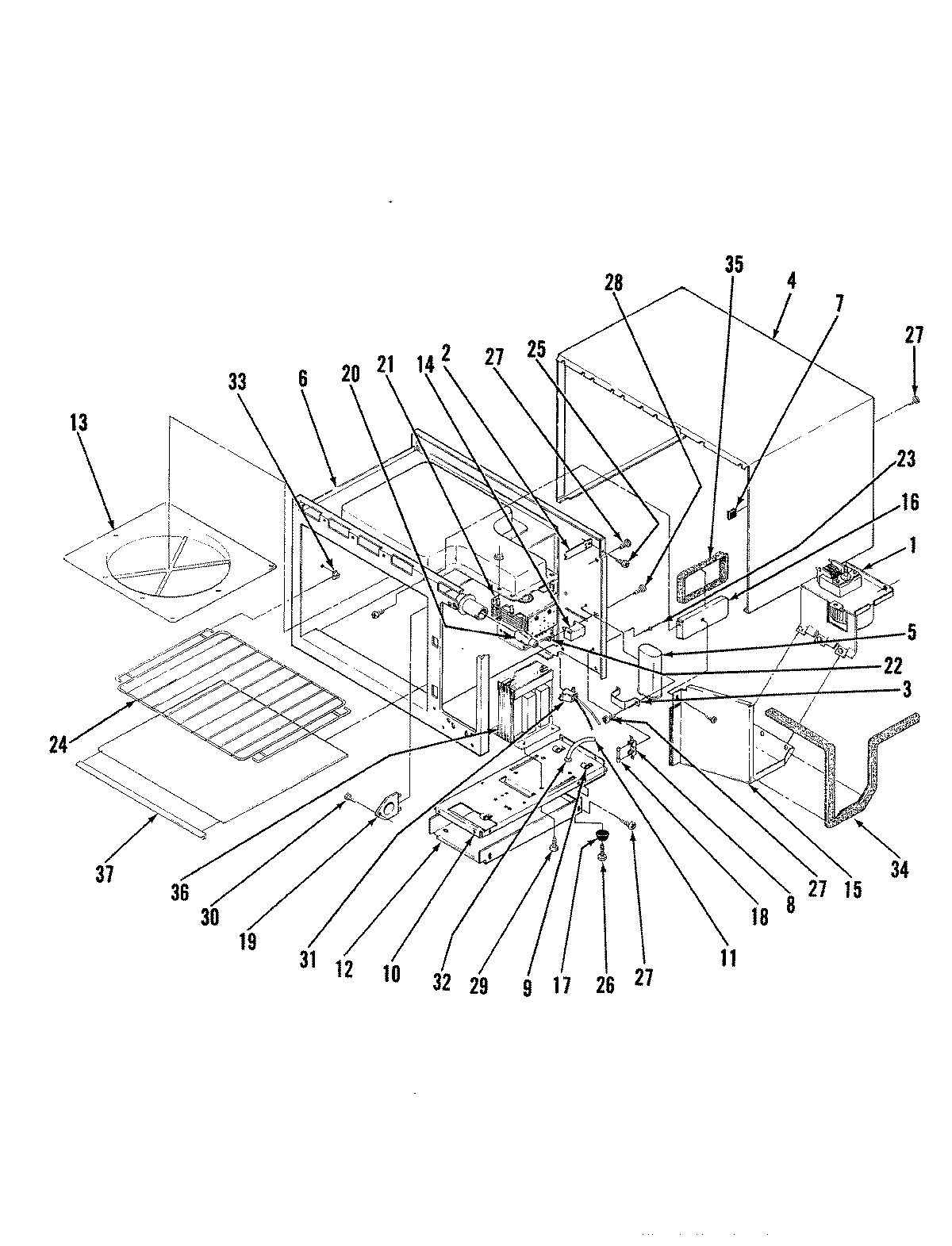

03 - FRT.FRAME/OVEN CAVITY/COOLING SYSTEM

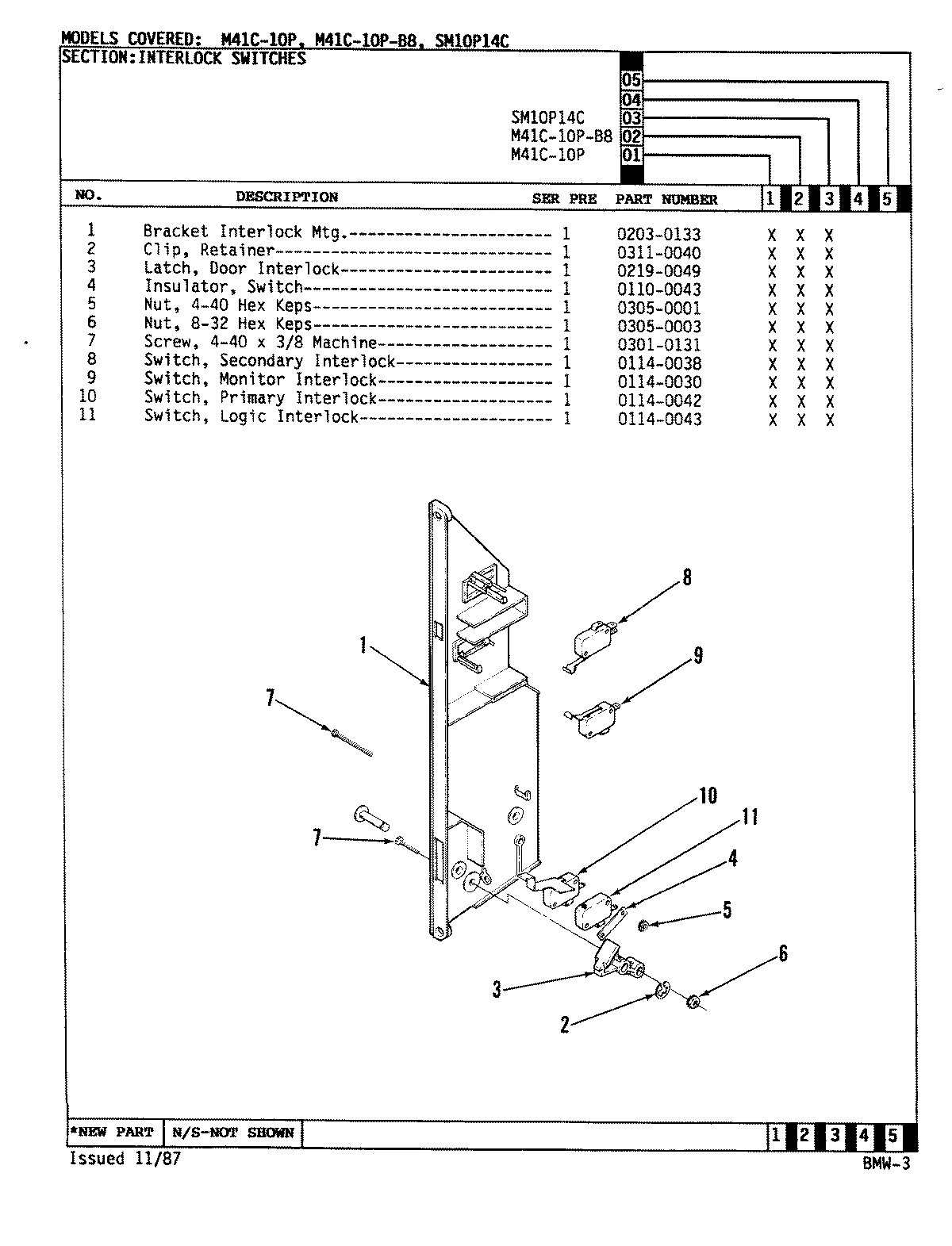

04 - LATCH RELEASE

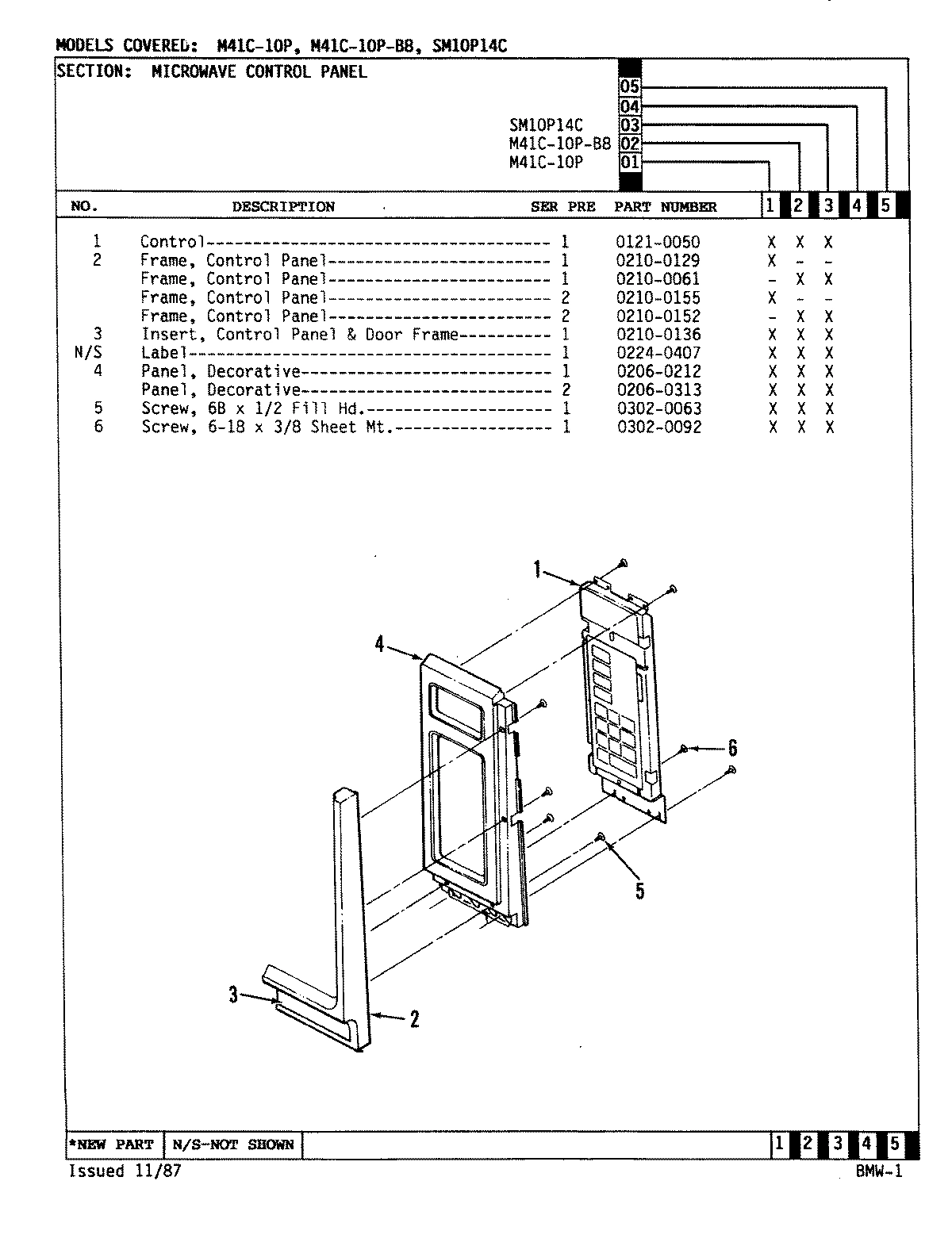

01 - CONTROL PANEL

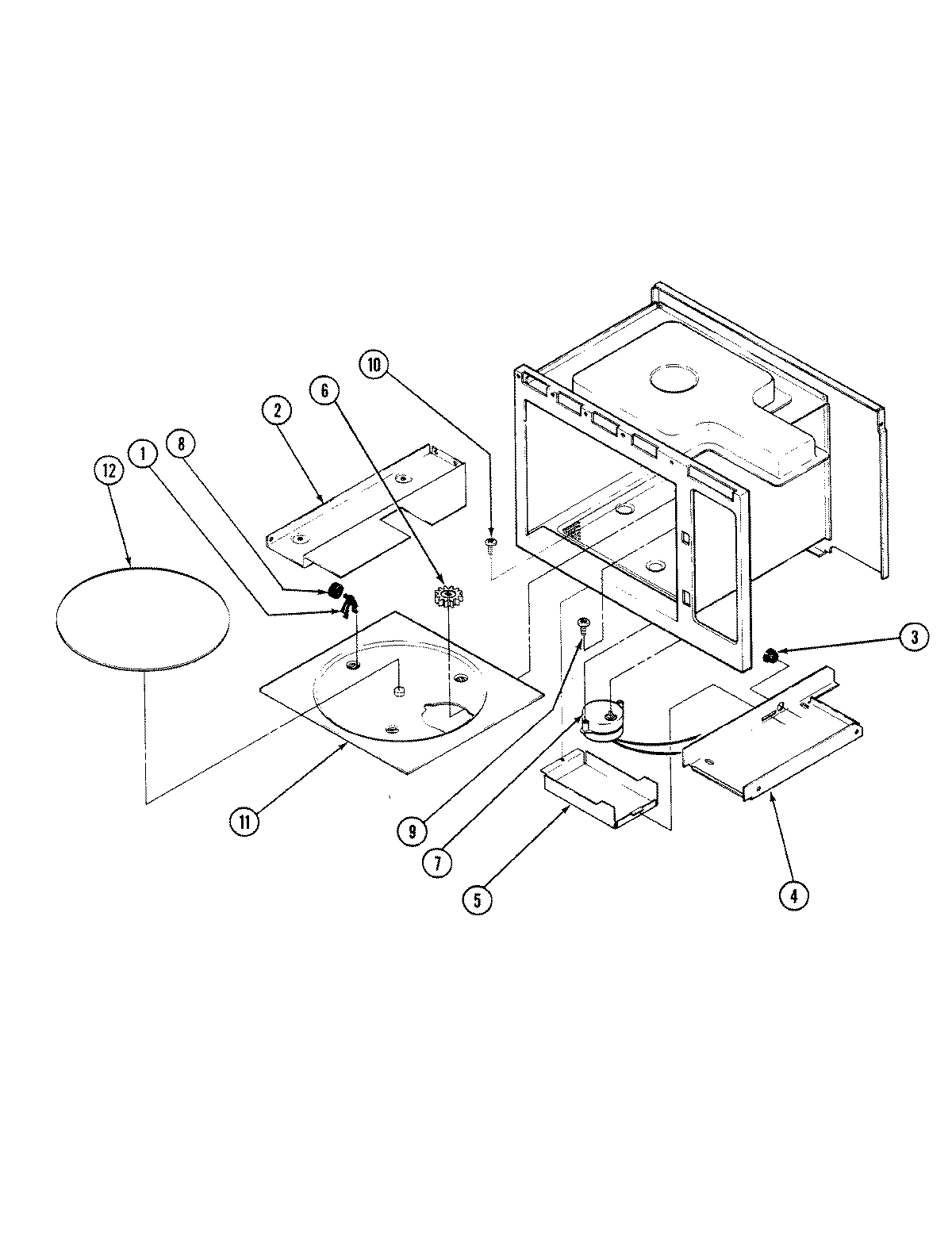

05 - TURNTABLE

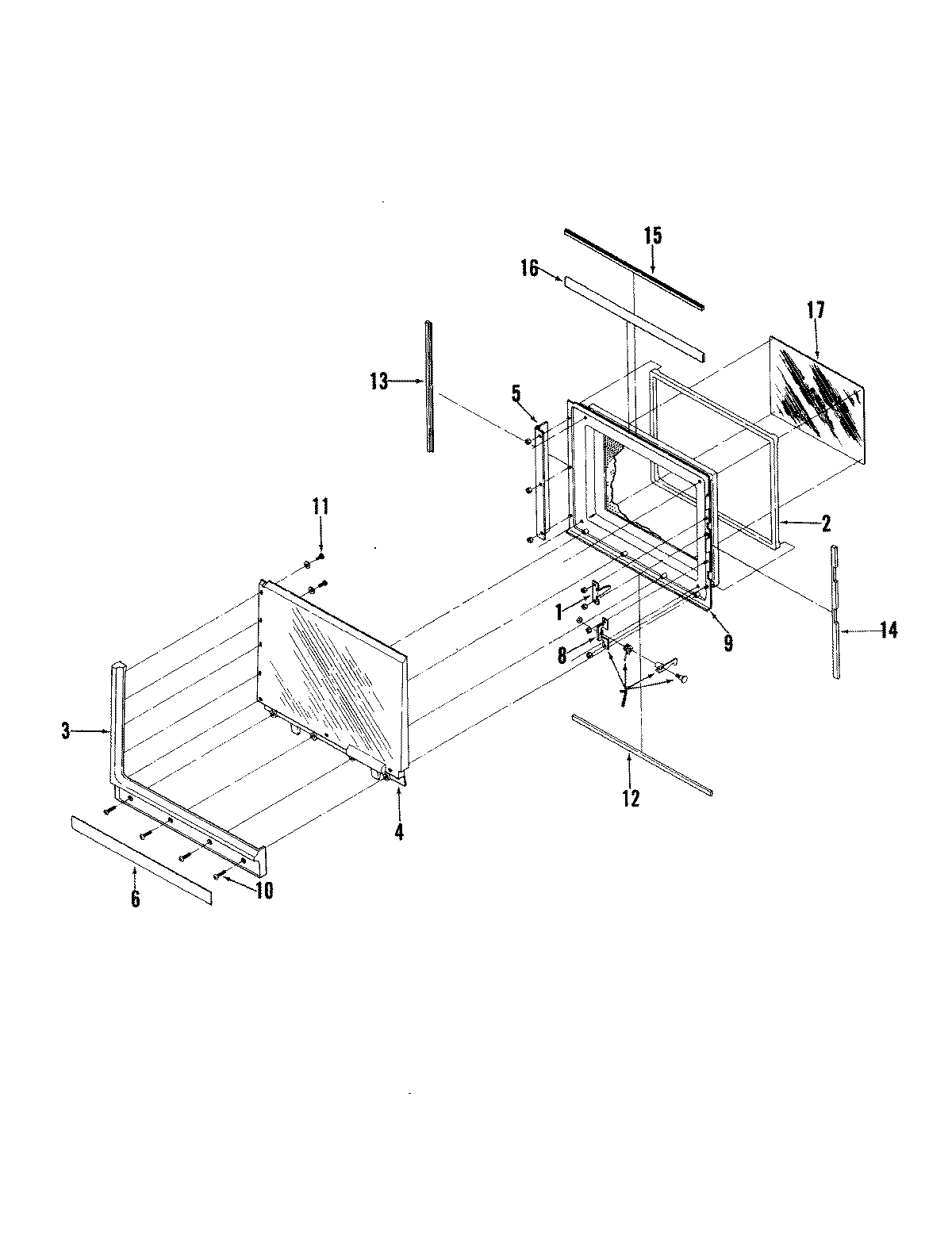

02 - DOOR
Common parts from model Whirlpool SM10P-14-C MICROWAVE
1
BLADE, BUSHING ASSEMBLY WPL 04021190 Contact Us For Availability
1
BLOWER ASSEMBLY WPL 04021191 Contact Us For Availability
1
BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability
1
BOARD, CONTROL WPL Y01210050 Contact Us For Availability
1
BEARING WPL Y02440001 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
2
SUPPORT TURNTABLE WPL Y02020024 Contact Us For Availability
2
BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
2
FRAME WPL 02100061 Contact Us For Availability
2
TRIM, CONTROL PANEL (BLK) WPL 02100152 Contact Us For Availability
2
BRACE WPL 04021111 Contact Us For Availability
2
CHOKE, FILLER (WHT) WPL Y02100080 Contact Us For Availability
3
BRACKET WPL 02030123 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
3
LABEL, RELAMPING WPL 02240407 Contact Us For Availability
3
BUSHING WPL Y03140008 Contact Us For Availability
3
TRIM, DOOR FRAME WPL 02100063 Contact Us For Availability
3
TRIM, DOOR BEZEL WPL 02100156 Contact Us For Availability
4
CABINET (WHITE) WPL 02140065 Contact Us For Availability
4
PLATE, COMPONENT MOUNTING WPL 02040053 Contact Us For Availability
4
INSULATOR, SWITCH WPL Y01100043 Contact Us For Availability
4
DECORATIVE PANEL WPL 02060212 Contact Us For Availability
4
CONTROL PANEL WPL 02060313 Contact Us For Availability
4
GLASS, OUTER WPL 02220077 Contact Us For Availability
5
CAPACITOR WPL Y01020022 Contact Us For Availability
5
NUT WPL Y03050001 Contact Us For Availability
5
SCREW WPL 03020063 Contact Us For Availability
5
COVER, MTR TURNTABLE WPL 02300038 Contact Us For Availability
5
HINGE, DOOR WPL Y02200017 Contact Us For Availability
6
CAVITY WPL 04021189 Contact Us For Availability
6
NUT WPL 03050003 Contact Us For Availability
6
INSERT, CONTROL & DR WPL 02100136 Contact Us For Availability
6
SCREW WPL 03020092 Contact Us For Availability
6
TURNTABLE, LABEL WPL 02240624 Contact Us For Availability
6
GEAR, TURNTABLE WPL Y02450002 Contact Us For Availability
7
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
7
SCREW WPL 03010131 Contact Us For Availability
7
MOTOR, TURNTABLE WPL 01110022 Contact Us For Availability
7
LATCH, DOOR WPL 02190056 Contact Us For Availability
8
SWITCH, SECONDARY INTERLOCK WPL Y01140038 Contact Us For Availability
8
ROLLER WPL 02210010 Contact Us For Availability
9
CLIP WPL 03110036 Contact Us For Availability
9
SCREW WPL 03020077 Contact Us For Availability
9
SWITCH, MONITOR INTERLOCK WPL Y01140030 Contact Us For Availability
9
INNER DOOR WPL 02060221 Contact Us For Availability
10
SWITCH, PRIMARY INTERLOCK WPL Y01140042 Contact Us For Availability
10
SCREW WPL Y03010118 Contact Us For Availability
11
CORD, POWER (BLK) WPL 01080050 Contact Us For Availability
11
SWITCH, LOGIC INTERLOCK WPL Y01140043 Contact Us For Availability
11
SHELF, TURNTABLE WPL 02280028 Contact Us For Availability
11
SCREW & WASHER (HI LO) WPL Y03020071 Contact Us For Availability
12
COVER, MTG PLATE WPL 02300039 Contact Us For Availability
12
TURNTABLE WPL 02460001 Contact Us For Availability
12
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
13
COVER, STIRRER WPL Y02300045 Contact Us For Availability
14
DIODE WPL Y01030012 Contact Us For Availability
14
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
15
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
15
SEAL, TOP WPL 02120118 Contact Us For Availability
15
SHIM WPL Y03120064 Contact Us For Availability
16
SUPPORT, MAG DUCT WPL Y02170112 Contact Us For Availability
16
TAPE, BUFFER WPL 02310129 Contact Us For Availability
17
FOOT, BASE WPL Y02230008 Contact Us For Availability
17
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
18
PROBE, JACK WPL 01170010 Contact Us For Availability
18
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
19
LENS, BULB WPL Y02400007 Contact Us For Availability
20
BULB, LIGHT WPL Y01060024 Contact Us For Availability
21
MAGNETRON WPL 01040004 Contact Us For Availability
22
PROBE JACK NUT WPL 03050035 Contact Us For Availability
23
PROBE, TEMP. WPL 01220006 Contact Us For Availability
23
RIVET, POP WPL Y03060004 Contact Us For Availability
24
RACK, OVEN WPL Y02410004 Contact Us For Availability
25
GROUND SCREW WPL 03010082 Contact Us For Availability
30
SCREW WPL 03020060 Contact Us For Availability
31
SOCKET, LAMP WPL 01100041 Contact Us For Availability
32
STRAIN RELIEF WPL 03150018 Contact Us For Availability
33
SUPPORT, RACK WPL 02010031 Contact Us For Availability
33
SWITCH, TEMPERATURE LIMIT WPL Y01180008 Contact Us For Availability
34
TAPE, FOAM WPL 02310070 Contact Us For Availability
35
TAPE, FOAM WPL 02310109 Contact Us For Availability
36
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
36
VENT TRIM WPL 02100069 Contact Us For Availability
36
TRIM, EXHAUST INTAKE (BLK) WPL 02100154 Contact Us For Availability
36
TRIM WPL 02100157 Contact Us For Availability
37
SHELF TRIM WPL 02100052 Contact Us For Availability
37
WIRE HARNESS WPL 04010202 Contact Us For Availability
37
HV LEAD WIRE WPL 04060534 Contact Us For Availability
37
HV LEAD WIRE (8 ``) WPL Y04060532 Contact Us For Availability
37
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
× ![]()
