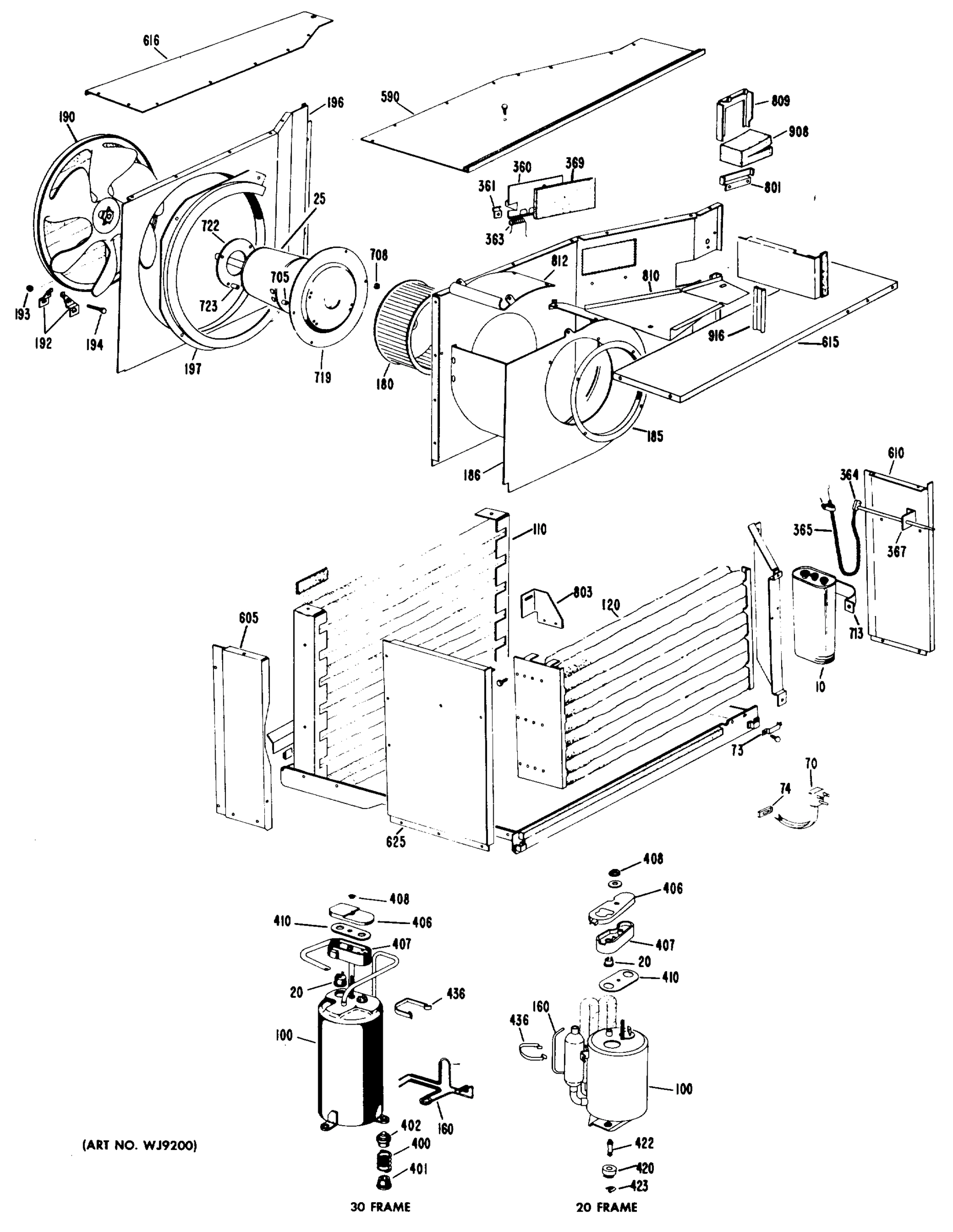

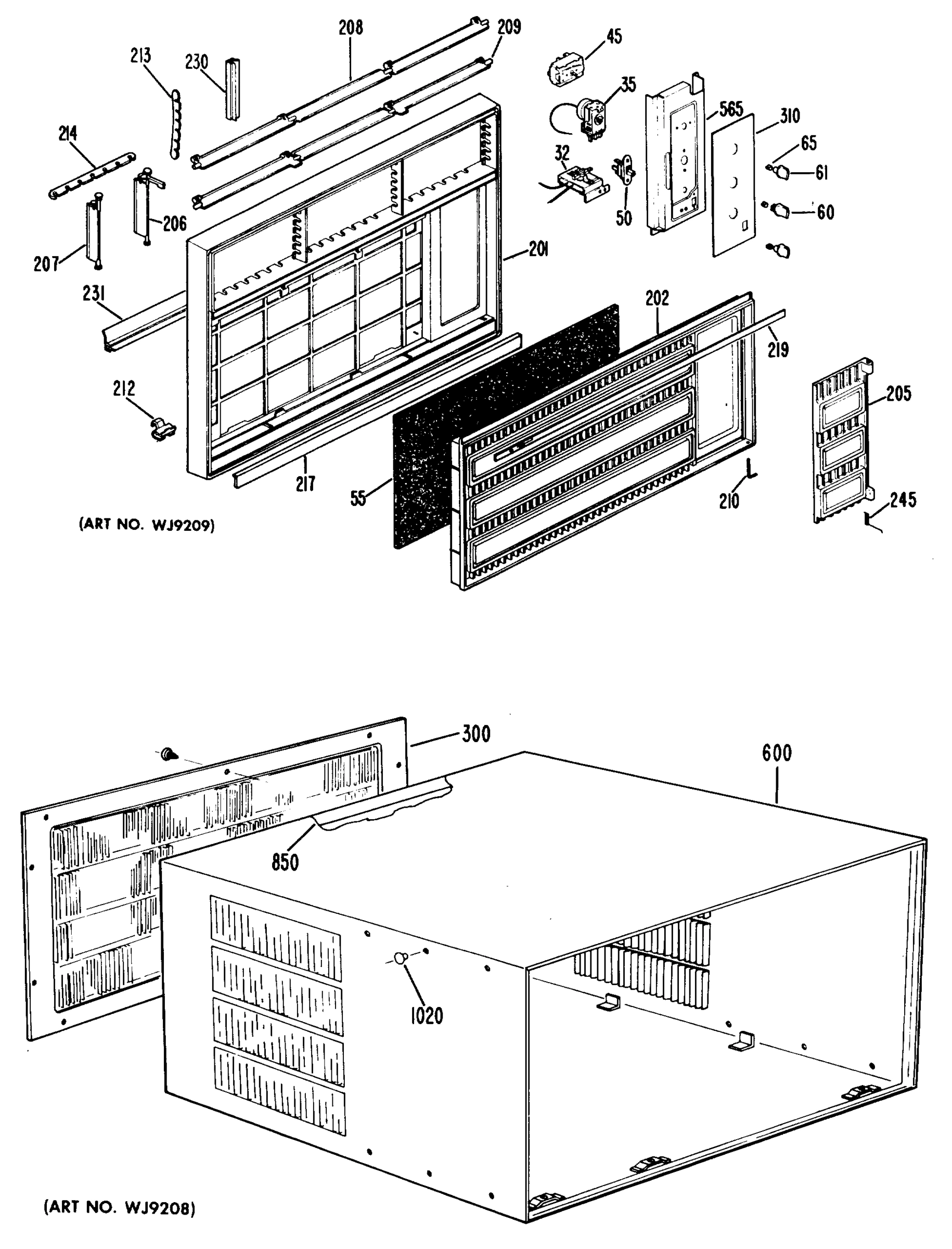

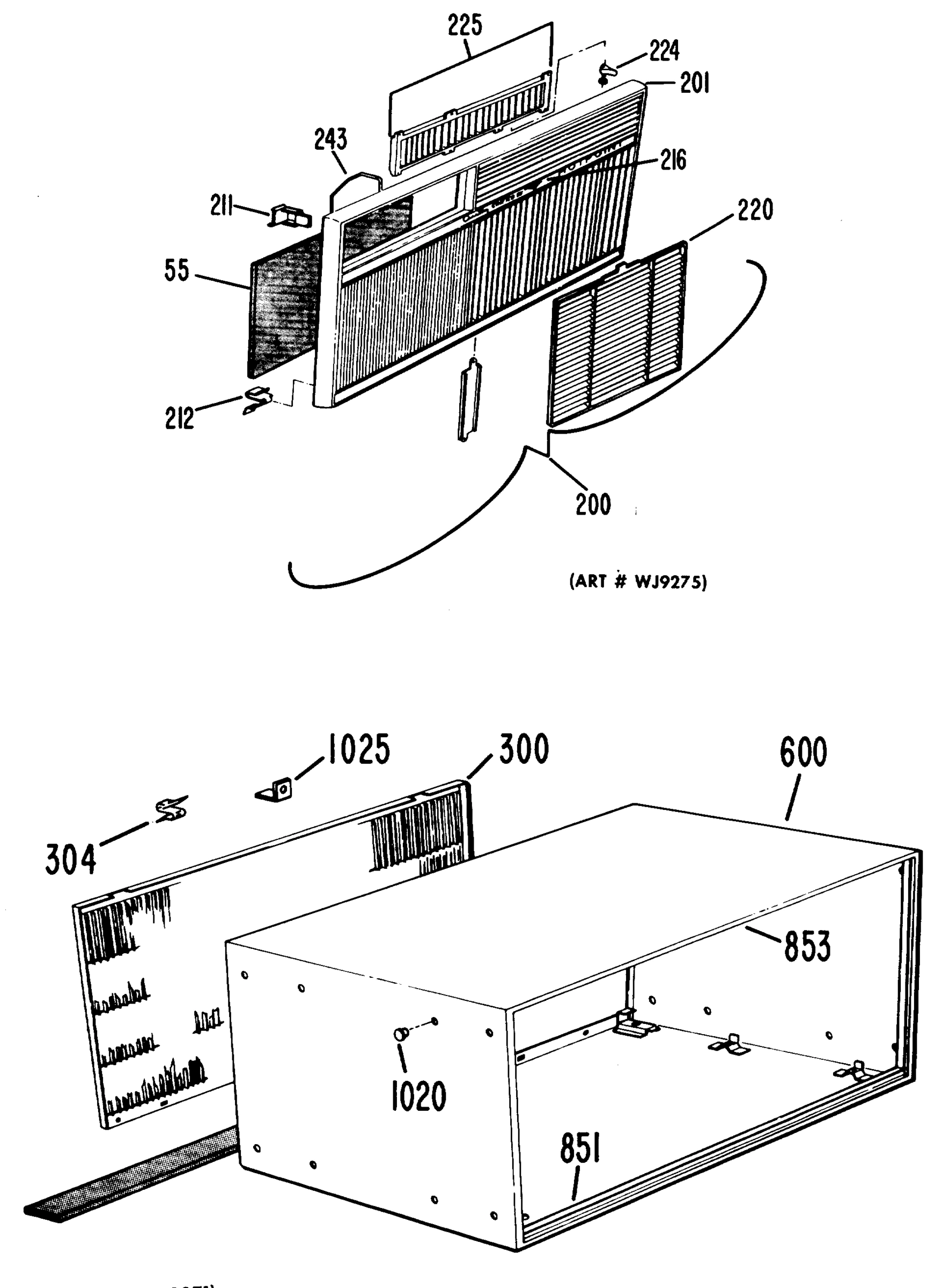

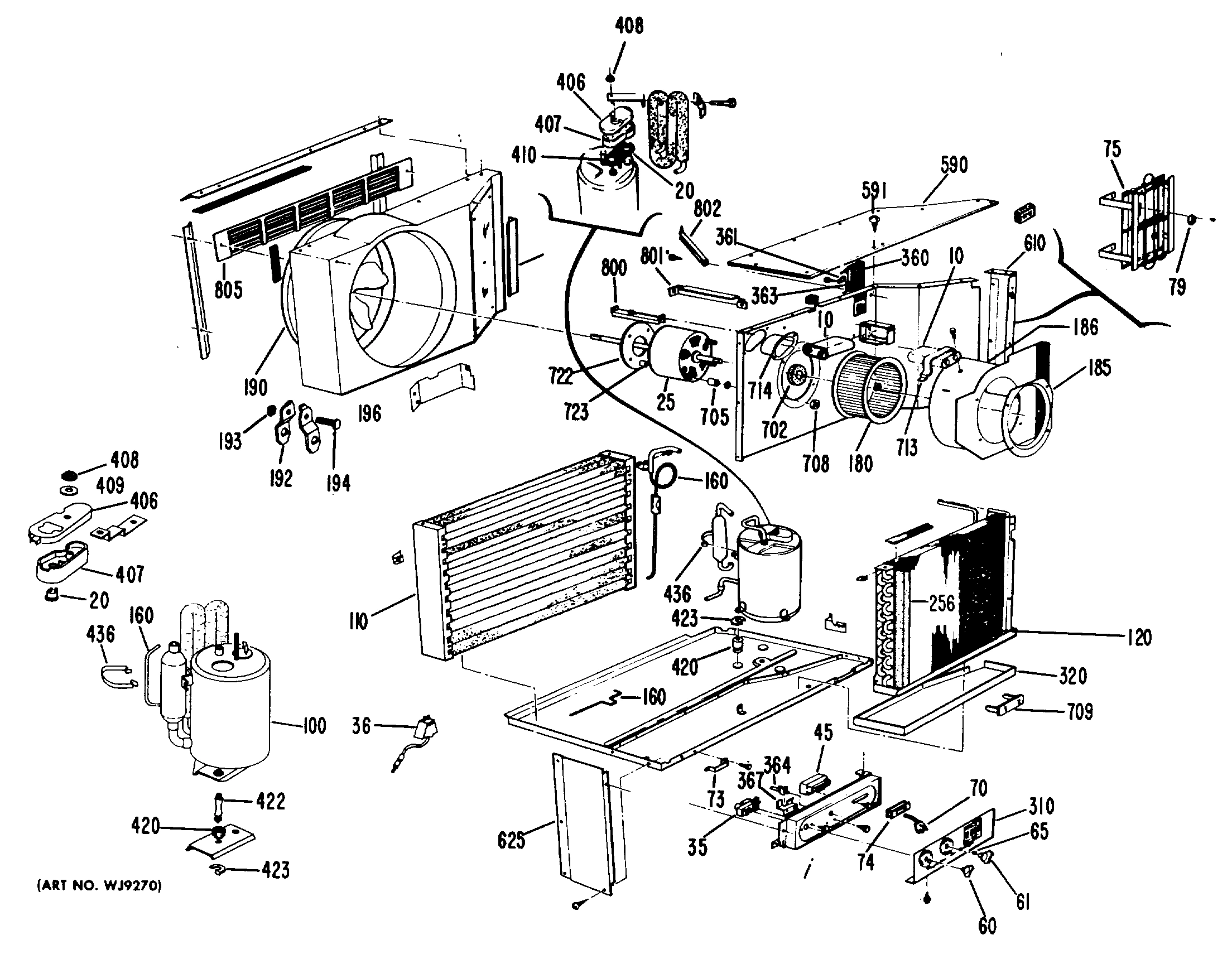

Model GE SLH12 – Common Parts & Diagrams
Common parts from model GE SLH12
10
GEN WJ20X0365 GEN WJ20X0365 Contact Us For Availability
20
GEN WJ23X0088 GEN WJ23X0088 Contact Us For Availability
25
GEN WJ20X0310 GEN WJ20X0310 Contact Us For Availability
25
GEN WJ94X0513 GEN WJ94X0513 Contact Us For Availability
35
GEN WJ28X0504 GEN WJ28X0504 Contact Us For Availability
45
SWITCH MAIN 7 POS ROTARY GEN WJ26X0175 Contact Us For Availability
55
FILTER GEN WJ85X0096 Contact Us For Availability
60
GEN WJ12X0131 GEN WJ12X0131 Contact Us For Availability
61
GEN WJ12X0132 GEN WJ12X0132 Contact Us For Availability
65
GEN WJ02X0187 GEN WJ02X0187 Contact Us For Availability
70
GEN WJ35X0092 GEN WJ35X0092 Contact Us For Availability
73
GEN WJ03X0169 GEN WJ03X0169 Contact Us For Availability
74
GEN WJ01X0329 GEN WJ01X0329 Contact Us For Availability
75
HEATER ASSEMBLY GEN WJ70X0214 Contact Us For Availability
79
HEATER PROTECTOR GEN WJ23X0189 Contact Us For Availability
100
GEN WJ98X0463 GEN WJ98X0463 Contact Us For Availability
110
GEN WJ88X0128 GEN WJ88X0128 Contact Us For Availability
120
EVAPORATOR KIT GEN WJ87X0197 Contact Us For Availability
160
CAPILLARY .046 CUT TO 14 GEN WJ53X0128 Contact Us For Availability
160
CAPILLARY .036 CUT TO 12 GEN WJ53X0137 Contact Us For Availability
165
GEN WJ56X0037 GEN WJ56X0037 Contact Us For Availability
165
GEN WJ56X0051 GEN WJ56X0051 Contact Us For Availability
180
BLOWER INDOOR GEN WJ74X0083 Contact Us For Availability
185
ORIFICE INDOOR GEN WJ76X0220 Contact Us For Availability
186
GEN WJ76X0218 GEN WJ76X0218 Contact Us For Availability
190
GEN WJ73X0043 GEN WJ73X0043 Contact Us For Availability
192
GEN WJ03X0215 GEN WJ03X0215 Contact Us For Availability
193
GEN WJ01X0508 GEN WJ01X0508 Contact Us For Availability
194
GEN WJ01X0507 GEN WJ01X0507 Contact Us For Availability
196
SHROUD OUTDOOR GEN WJ76X0236 Contact Us For Availability
197
SPLASH BAFFLE GEN WJ70X0188 Contact Us For Availability
200
GEN WJ71X0969 GEN WJ71X0969 Contact Us For Availability
201
GEN WJ71X0976 GEN WJ71X0976 Contact Us For Availability
202
GEN WJ71X0978 GEN WJ71X0978 Contact Us For Availability
205
GEN WJ71X0975 GEN WJ71X0975 Contact Us For Availability
206
GEN WJ71X0777 GEN WJ71X0777 Contact Us For Availability
207
GEN WJ71X0778 GEN WJ71X0778 Contact Us For Availability
208
GEN WJ71X0867 GEN WJ71X0867 Contact Us For Availability
208
GEN WJ71X0965 GEN WJ71X0965 Contact Us For Availability
209
GEN WJ71X0966 GEN WJ71X0966 Contact Us For Availability
210
PIN CONTROL DOOR GEN WJ03X0303 Contact Us For Availability
212
CLIP GRILLE BOTTOM GEN WJ02X0372 Contact Us For Availability
213
LINK HORIZONTAL LOUVERS GEN WJ71X0515 Contact Us For Availability
214
LINK VERTICAL LOUVERS GEN WJ71X0514 Contact Us For Availability
217
GEN WJ07X0756 GEN WJ07X0756 Contact Us For Availability
219
GEN WJ07X0757 GEN WJ07X0757 Contact Us For Availability
230
RETAINER HORZ. LOUVERS GEN WJ71X0743 Contact Us For Availability
231
RETAINER VERT. LOUVERS GEN WJ71X0513 Contact Us For Availability
245
SPRING DOOR PIN GEN WJ02X0421 Contact Us For Availability
300
GEN WJ71X0113 GEN WJ71X0113 Contact Us For Availability
310
GEN WJ07X0759 GEN WJ07X0759 Contact Us For Availability
310
GEN WJ07X0760 GEN WJ07X0760 Contact Us For Availability
360
GEN WJ70X0166 GEN WJ70X0166 Contact Us For Availability
361
GEN WJ02X0407 GEN WJ02X0407 Contact Us For Availability
363
GEN WJ02X0397 GEN WJ02X0397 Contact Us For Availability
364
SHAFT DAMPER DOOR GEN WJ14X0096 Contact Us For Availability
364
GEN WJ14X0097 GEN WJ14X0097 Contact Us For Availability
365
GEN WJ14X0095 GEN WJ14X0095 Contact Us For Availability
406
GEN WJ79X0199 GEN WJ79X0199 Contact Us For Availability
407
GEN WP79X0001 GEN WP79X0001 Contact Us For Availability
408
NUT TERMINAL COVER GEN WJ01X0292 Contact Us For Availability
410
GEN WJ43X0333 GEN WJ43X0333 Contact Us For Availability
436
ACCUMULATOR CLAMP GEN WJ02X0432 Contact Us For Availability
437
GEN WJ66X0230 GEN WJ66X0230 Contact Us For Availability
541
GEN WJ79X0242 GEN WJ79X0242 Contact Us For Availability
565
CONTROL PLATE GEN WJ79X0356 Contact Us For Availability
590
TOP COVER ASSEMBLY GEN WJ79X0232 Contact Us For Availability
600
GEN WJ90X0043 GEN WJ90X0043 Contact Us For Availability
603
GEN WJ89X0078 GEN WJ89X0078 Contact Us For Availability
610
GEN WJ81X0065 GEN WJ81X0065 Contact Us For Availability
615
GEN WJ79X0348 GEN WJ79X0348 Contact Us For Availability
616
GEN WJ79X0286 GEN WJ79X0286 Contact Us For Availability
625
GEN WJ82X0065 GEN WJ82X0065 Contact Us For Availability
701
GEN WP36X0003 GEN WP36X0003 Contact Us For Availability
702
SEAL MOTOR TO BARRIER GEN WJ43X0351 Contact Us For Availability
708
GEN WJ01X0445 GEN WJ01X0445 Contact Us For Availability
709
GEN WJ02X0361 GEN WJ02X0361 Contact Us For Availability
711
GEN WJ01X0662 GEN WJ01X0662 Contact Us For Availability
712
GEN WJ03X0203 GEN WJ03X0203 Contact Us For Availability
713
GEN WJ03X0294 GEN WJ03X0294 Contact Us For Availability
715
GEN WJ02X0252 GEN WJ02X0252 Contact Us For Availability
715
GEN WJ02X0411 GEN WJ02X0411 Contact Us For Availability
718
GEN WJ02X0416 GEN WJ02X0416 Contact Us For Availability
721
GEN WJ40X0028 GEN WJ40X0028 Contact Us For Availability
724
GEN WJ02X0405 GEN WJ02X0405 Contact Us For Availability
738
GEN WJ02X0420 GEN WJ02X0420 Contact Us For Availability
800
BRACE BARRIER TO SHROUD GEN WJ65X0321 Contact Us For Availability
801
GEN WJ79X0341 GEN WJ79X0341 Contact Us For Availability
809
GEN WJ79X0340 GEN WJ79X0340 Contact Us For Availability
810
GEN WJ79X0289 GEN WJ79X0289 Contact Us For Availability
812
COVER SCROLL GEN WJ76X0216 Contact Us For Availability
813
GEN WJ70X0152 GEN WJ70X0152 Contact Us For Availability
850
GEN WJ43X0285 GEN WJ43X0285 Contact Us For Availability
900
GEN WJ60X0018 GEN WJ60X0018 Contact Us For Availability
902
GEN WJ60X0008 GEN WJ60X0008 Contact Us For Availability
916
GEN WJ08X0006 GEN WJ08X0006 Contact Us For Availability
917
GEN WJ02X0263 GEN WJ02X0263 Contact Us For Availability
924
GEN WJ01X0208 GEN WJ01X0208 Contact Us For Availability
931
GEN WZ08X0006 GEN WZ08X0006 Contact Us For Availability
947
GEN WZ04X0386 GEN WZ04X0386 Contact Us For Availability
952
GEN WZ06X0083 GEN WZ06X0083 Contact Us For Availability
953
GEN WZ02X0529 GEN WZ02X0529 Contact Us For Availability
955
GEN WZ04X0268 GEN WZ04X0268 Contact Us For Availability
956
GEN WZ06X0108 GEN WZ06X0108 Contact Us For Availability
957
GEN WZ06X0050 GEN WZ06X0050 Contact Us For Availability
958
SCR 10-16 AB HXW 1 S GEN WZ04X0264 Contact Us For Availability
967
SCREW 10-16 X 1/2" HEX GEN WZ04X0275 Contact Us For Availability
974
GEN WZ04X0286 GEN WZ04X0286 Contact Us For Availability
980
SCREW GEN WZ05X0145 Contact Us For Availability
994
GEN WZ04X0362 GEN WZ04X0362 Contact Us For Availability
998
GEN WJ01X0402 GEN WJ01X0402 Contact Us For Availability
1019
GEN WJ41X0092 GEN WJ41X0092 Contact Us For Availability
1020
GEN WJ01X0449 GEN WJ01X0449 Contact Us For Availability
5000
GEN WJ02X0209 GEN WJ02X0209 Contact Us For Availability
5000
GEN WJ02X0216 GEN WJ02X0216 Contact Us For Availability
5000
GEN WJ84X0029 GEN WJ84X0029 Contact Us For Availability
5000
GEN WJ84X0031 GEN WJ84X0031 Contact Us For Availability
9999
GEN 30-7652 GEN 30-7652 Contact Us For Availability
9999
GEN 31-6504 GEN 31-6504 Contact Us For Availability
9999
GEN 34-0152 GEN 34-0152 Contact Us For Availability
9999
GEN 39-7042 GEN 39-7042 Contact Us For Availability
× ![]()
