Model Speed Queen SHT30S Dryer – Common Parts & Diagrams

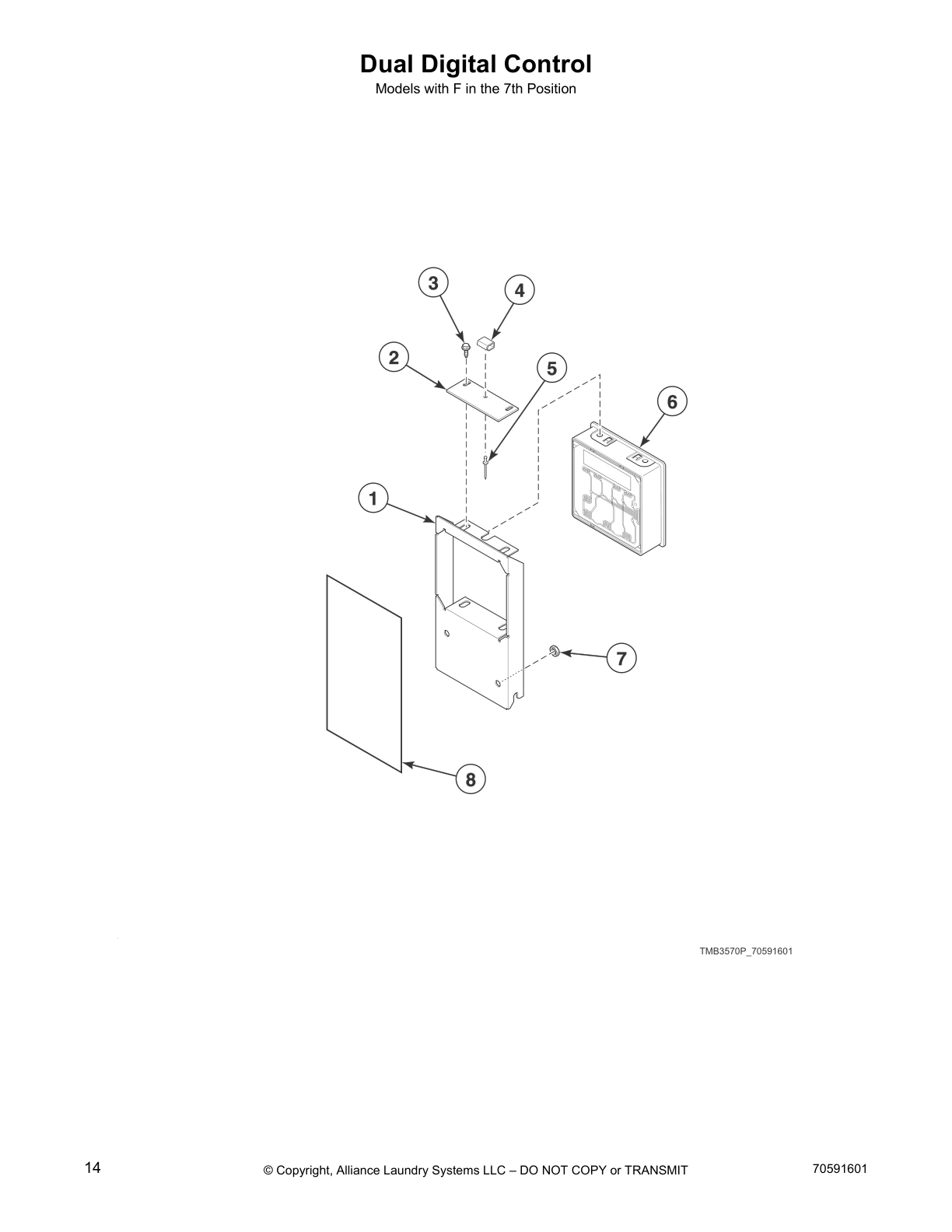

Dual Digital Control

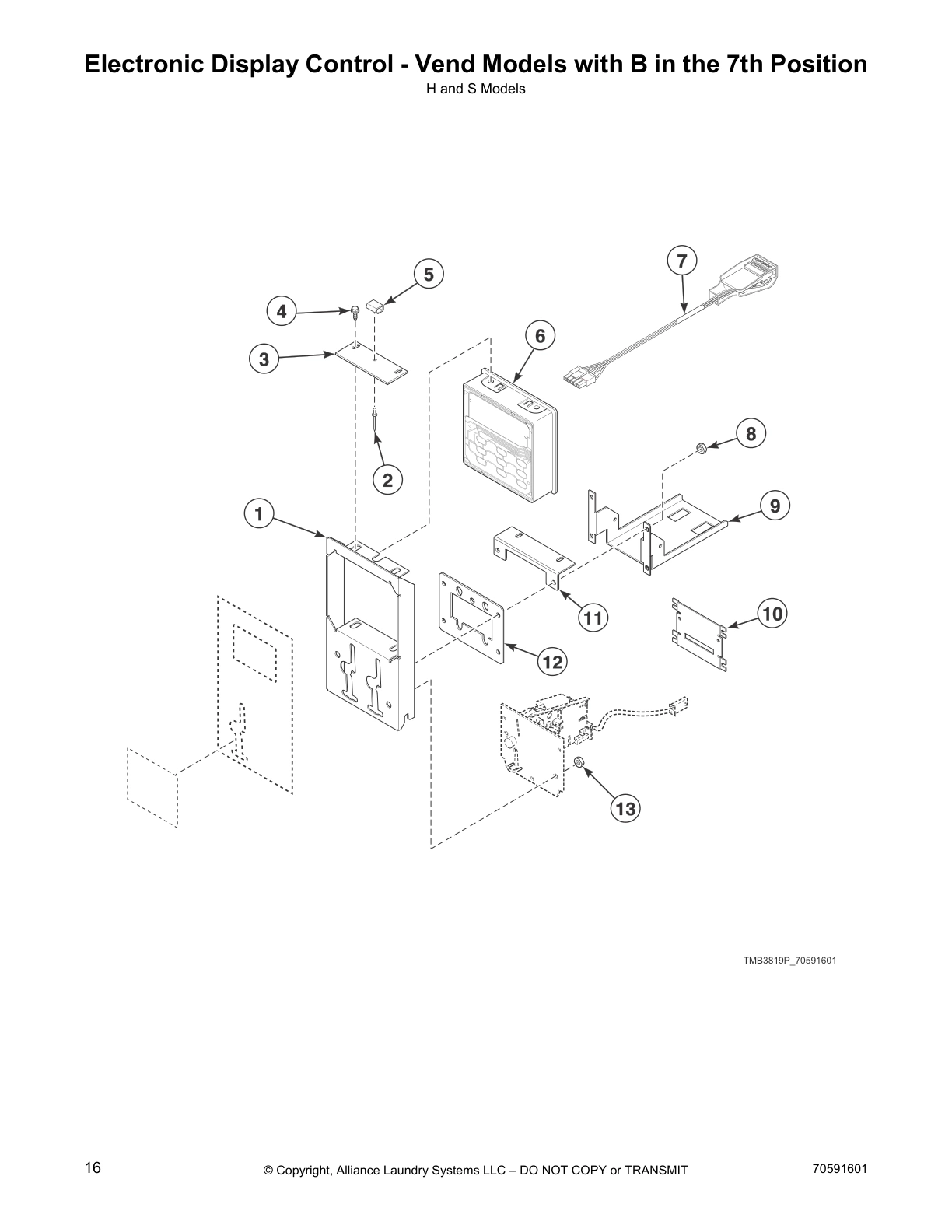

Electronic Display Control - Vend Models with B in the 7th Position

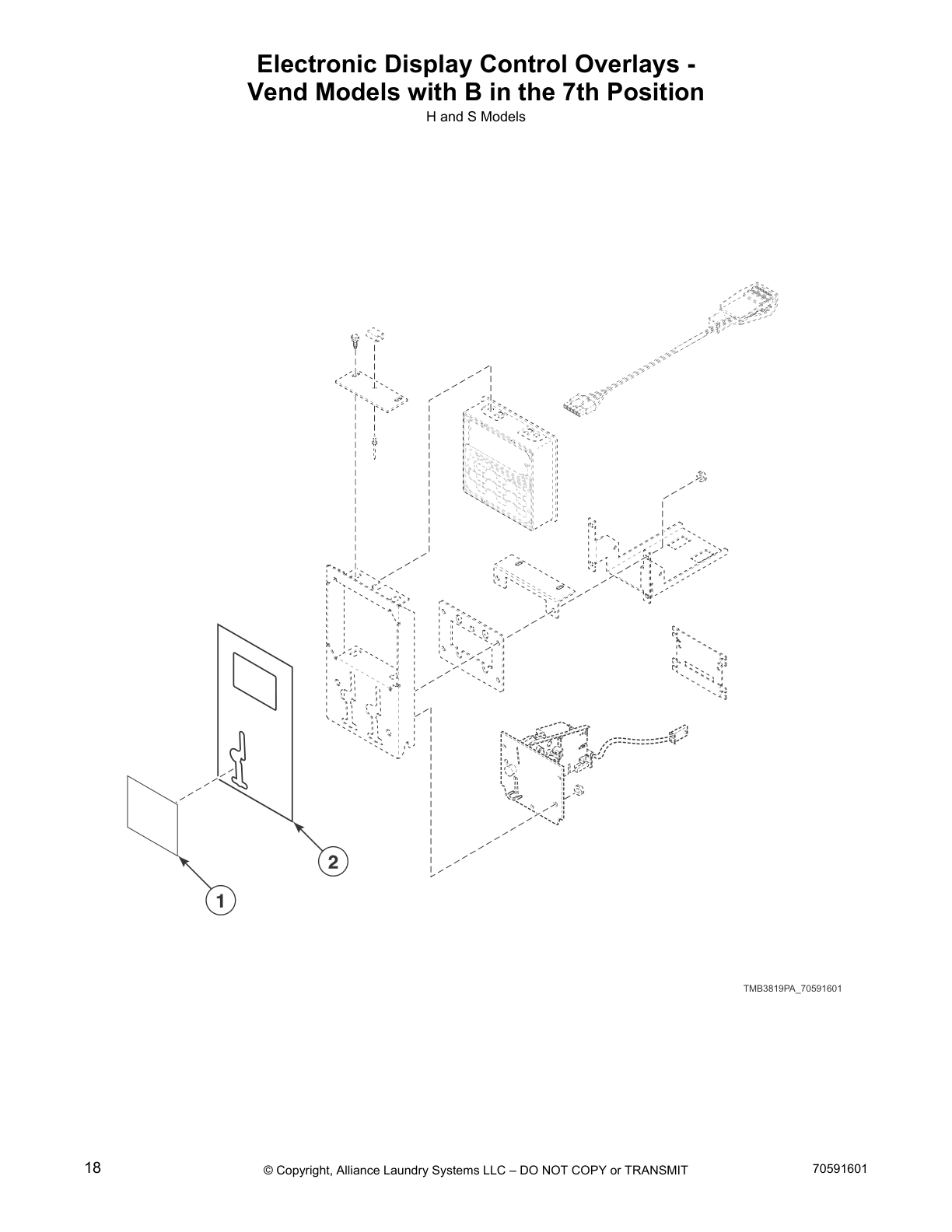

Electronic Display Control Overlays -
Vend Models with B in the 7th Position

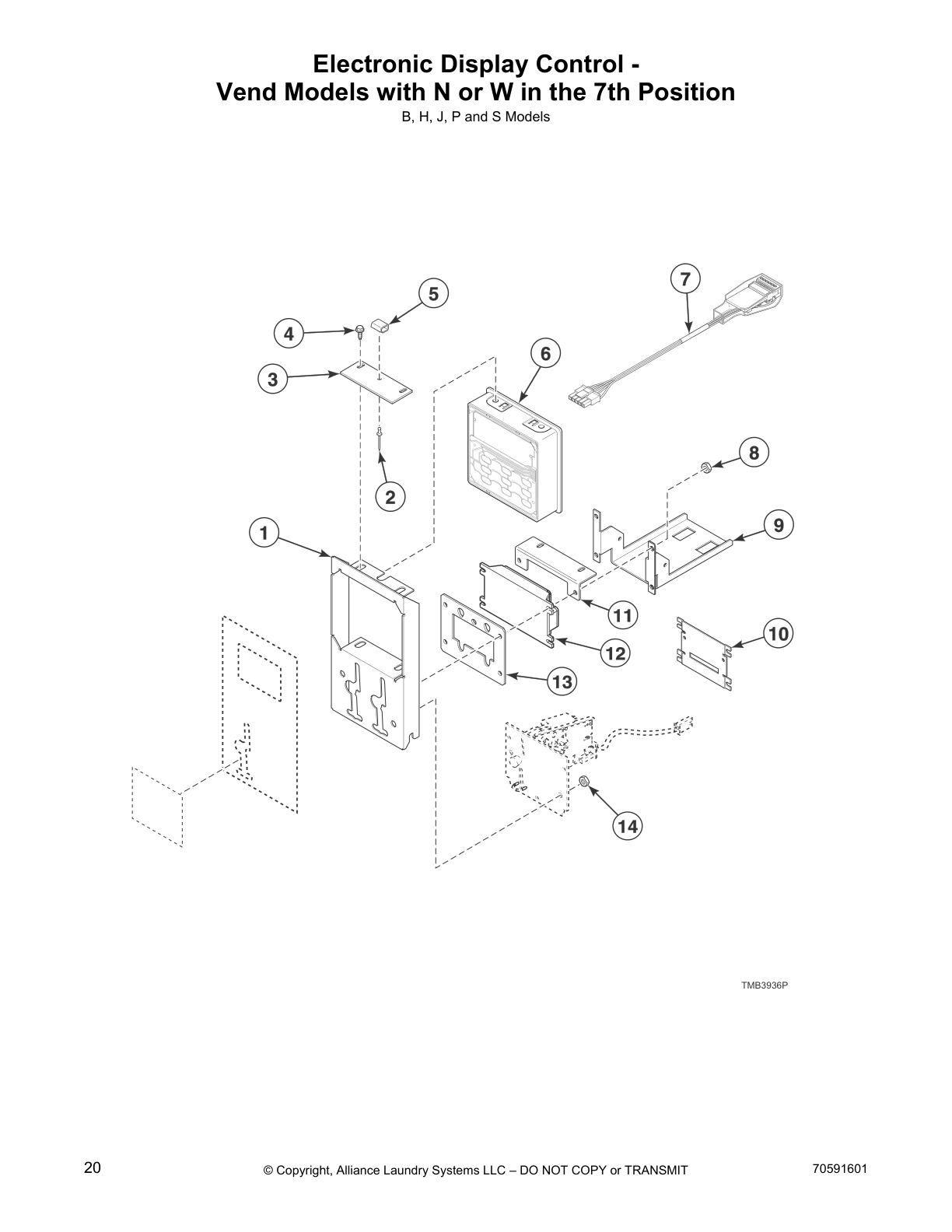

Electronic Display Control -
Vend Models with N or W in the 7th Position

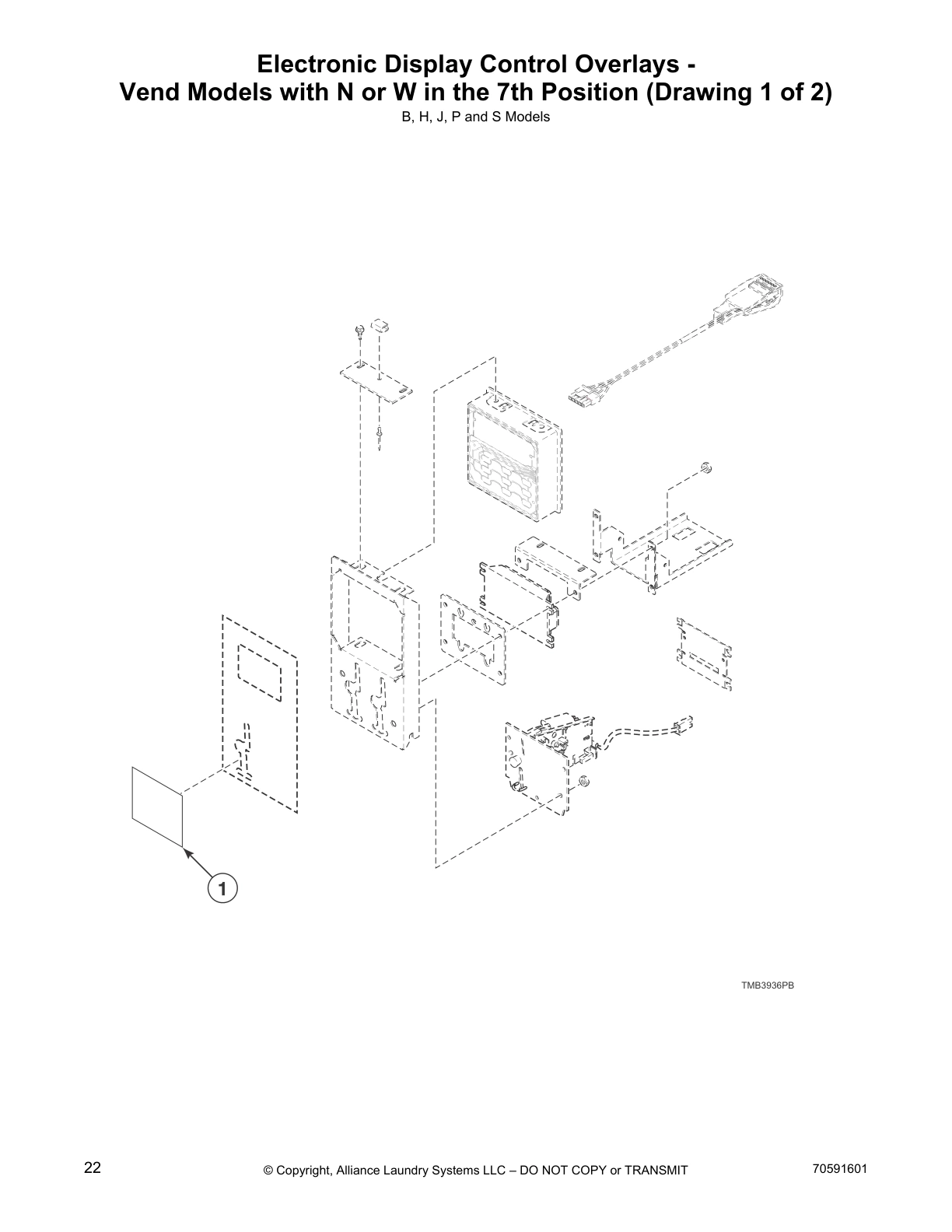

Electronic Display Control Overlays -
Vend Models with N or W in the 7th Position (Drawing 1 of 2)

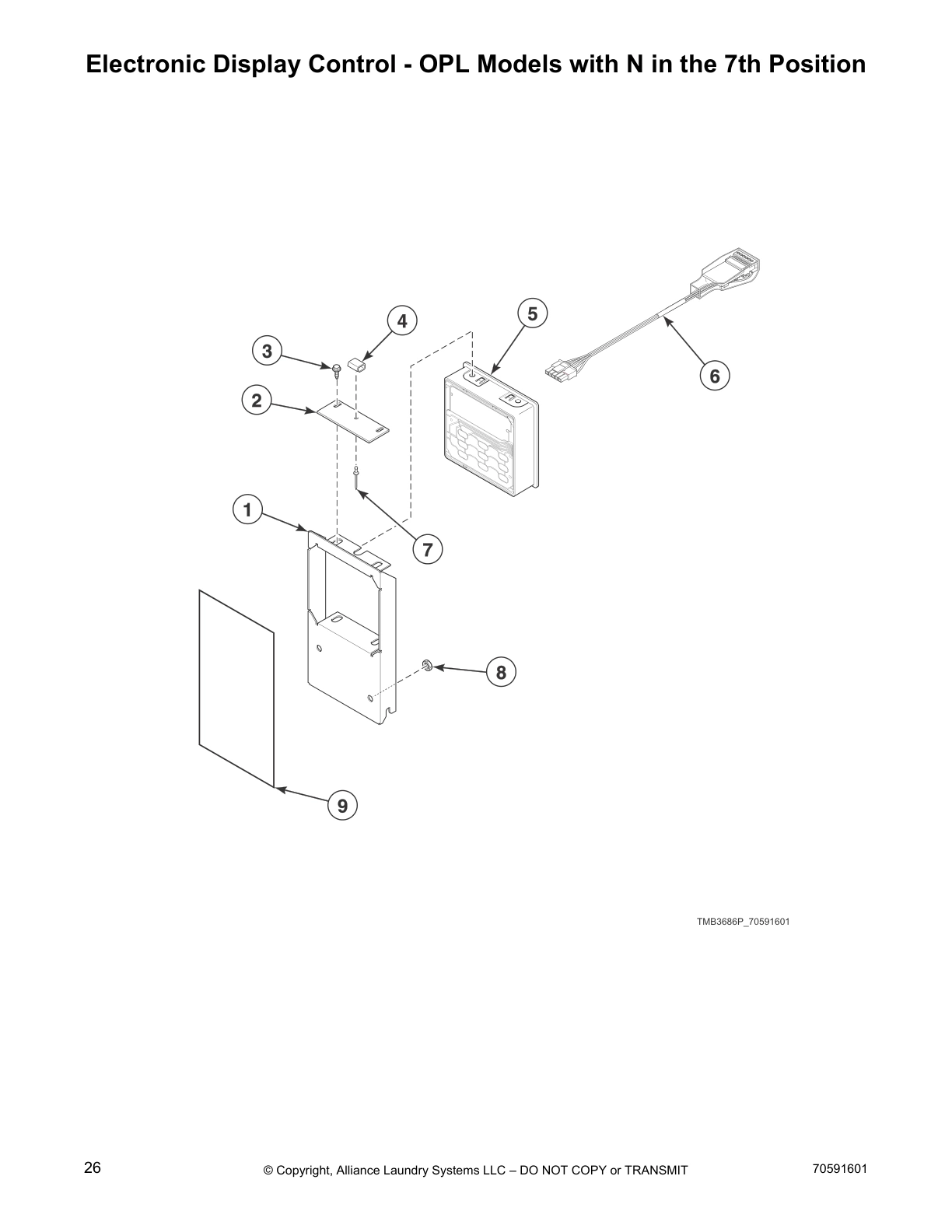

Electronic Display Control - OPL Models with N in the 7th Position

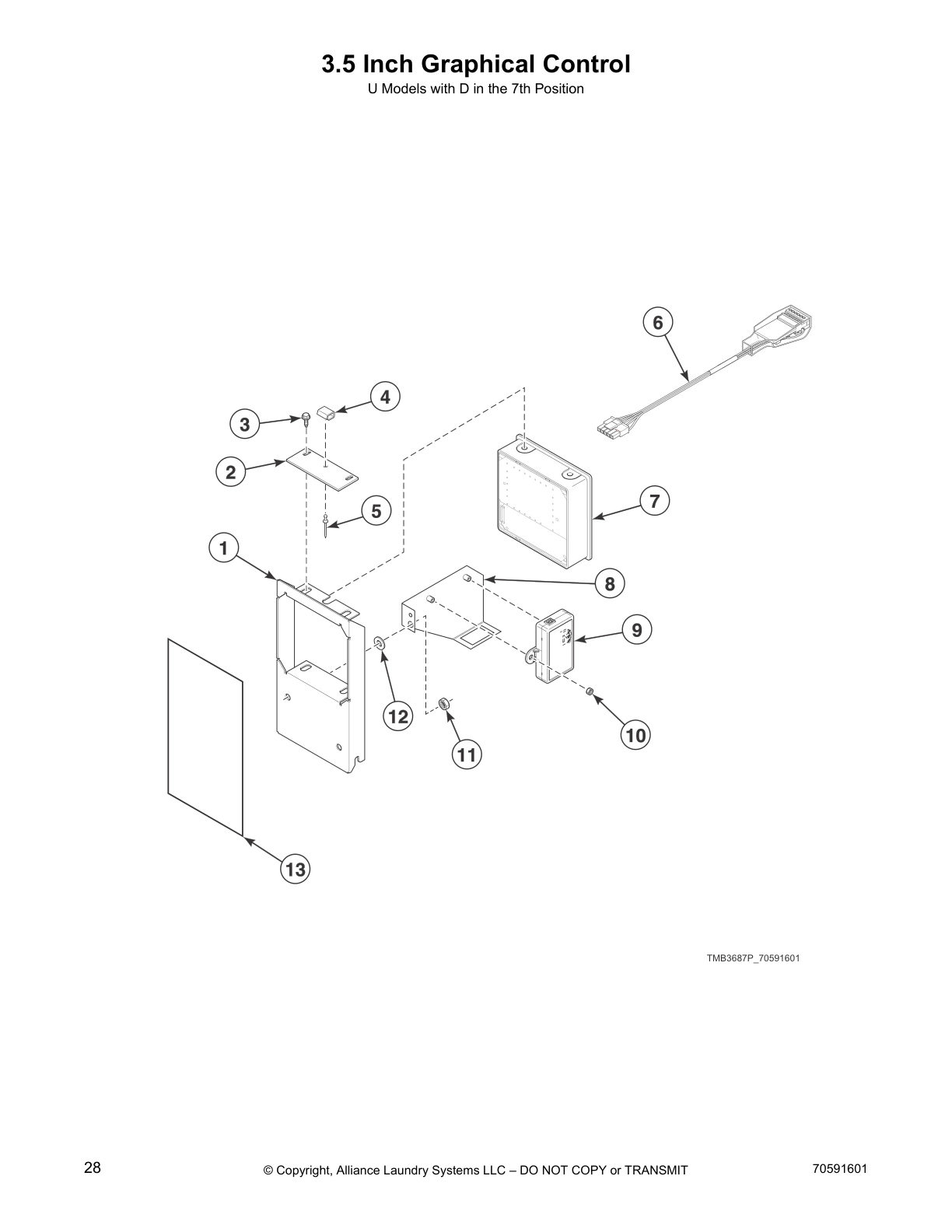

3.5 Inch Graphical Control

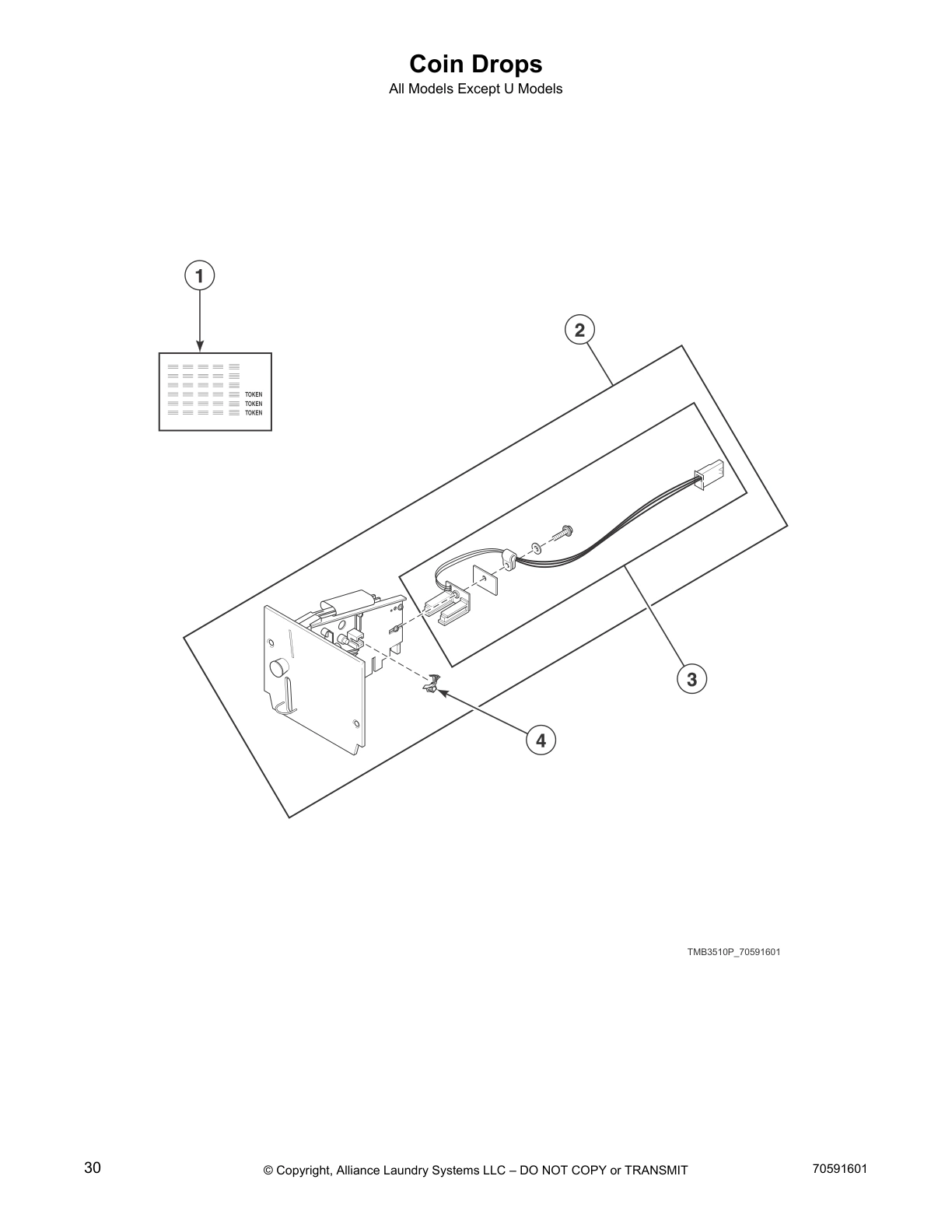

Coin Drops

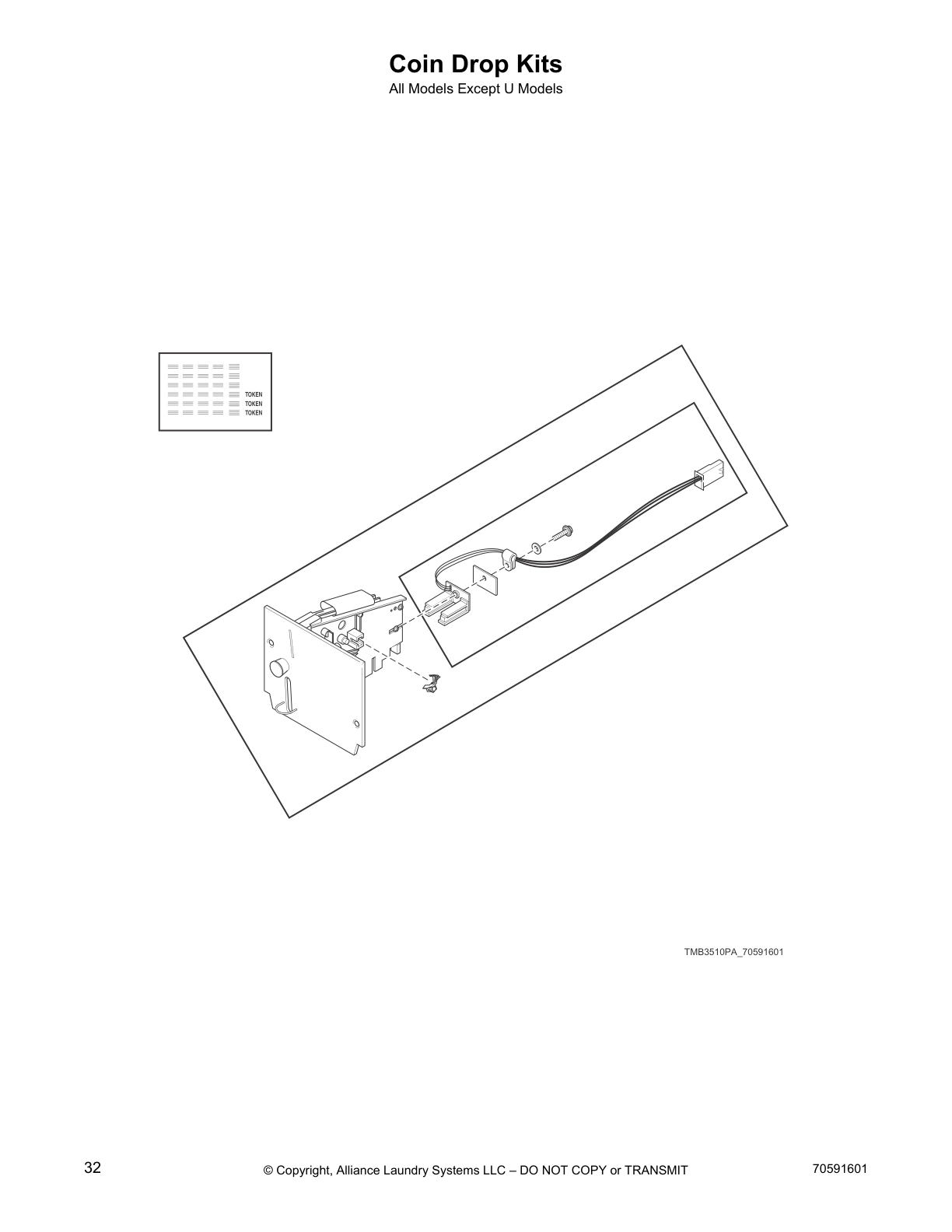

Coin Drop Kits

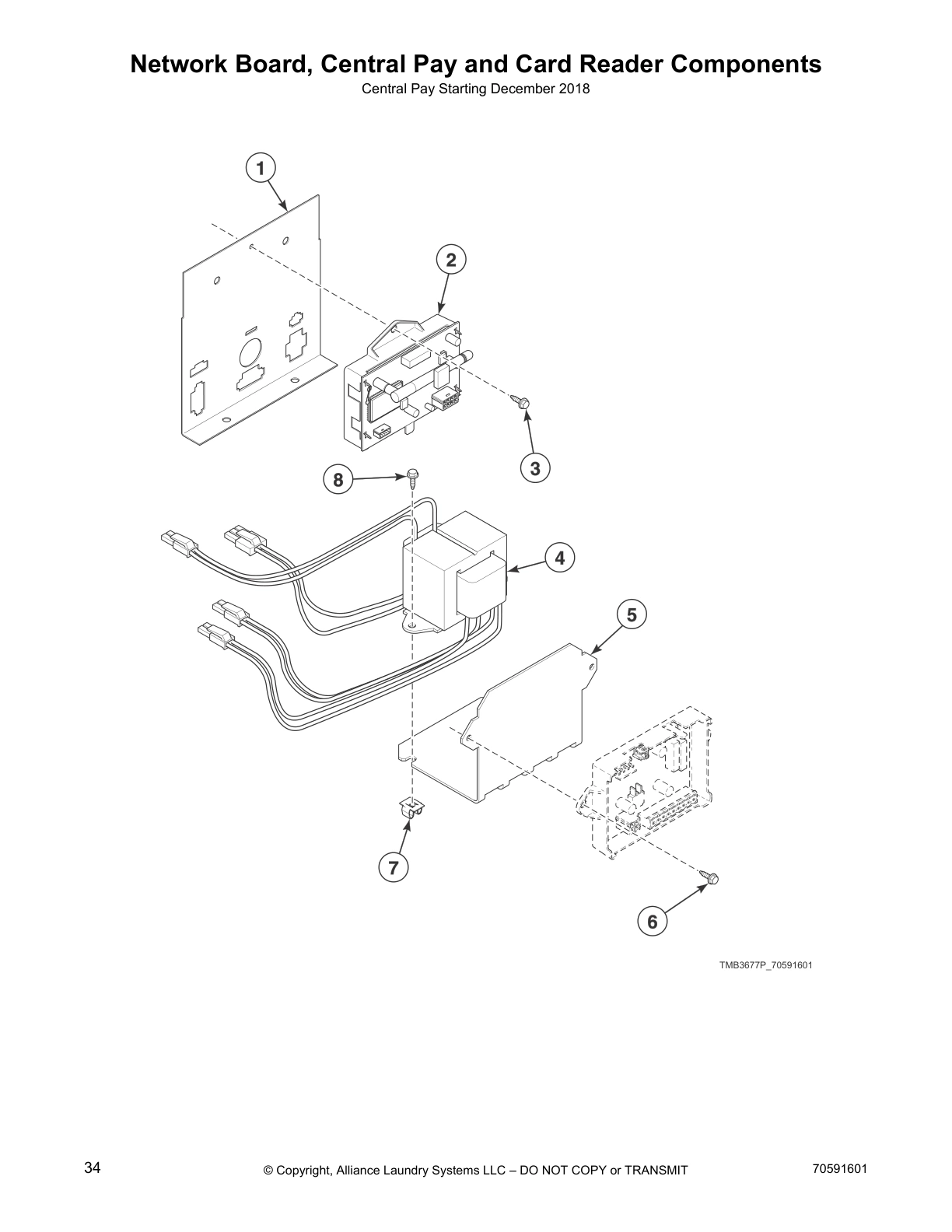

Network Board, Central Pay and Card Reader Components

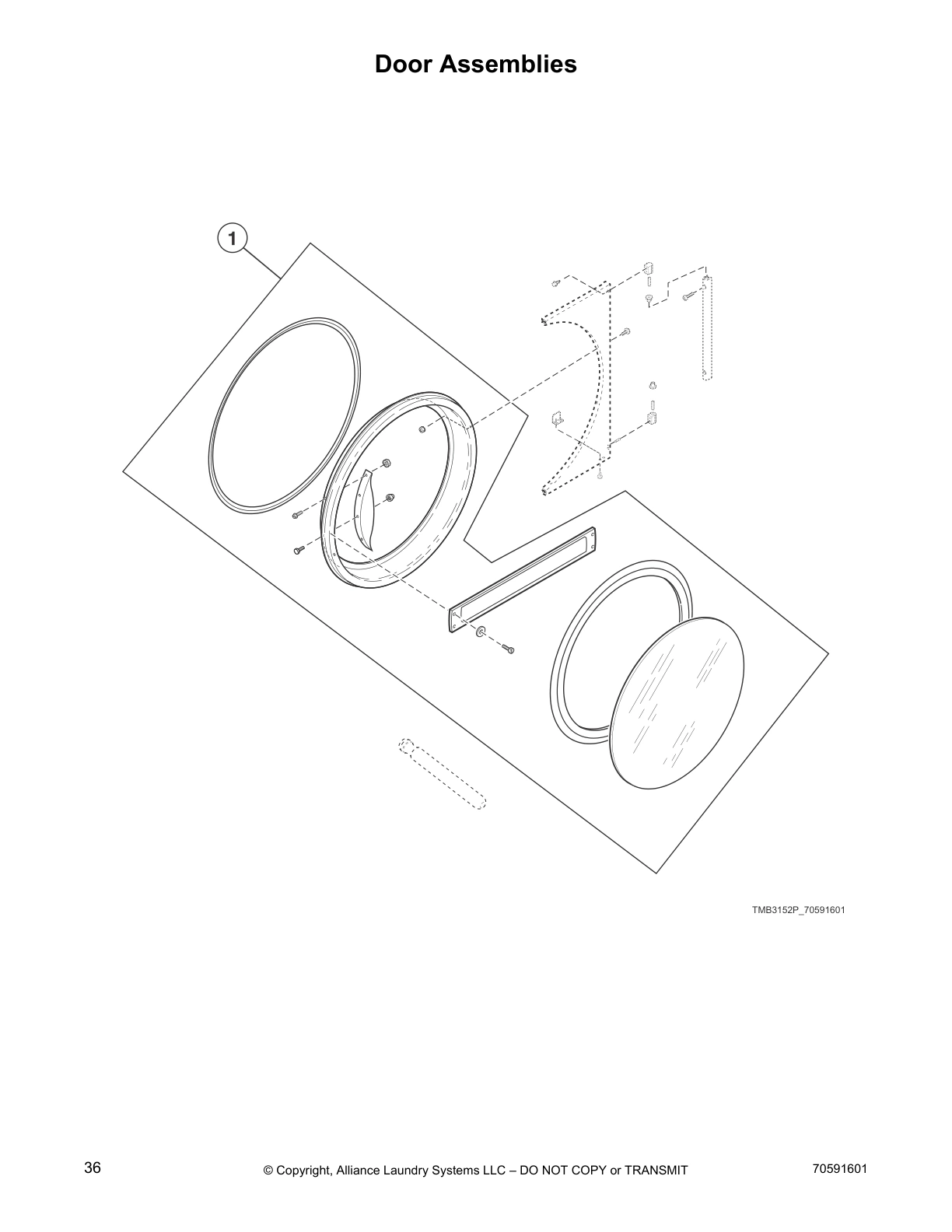

Door Assemblies

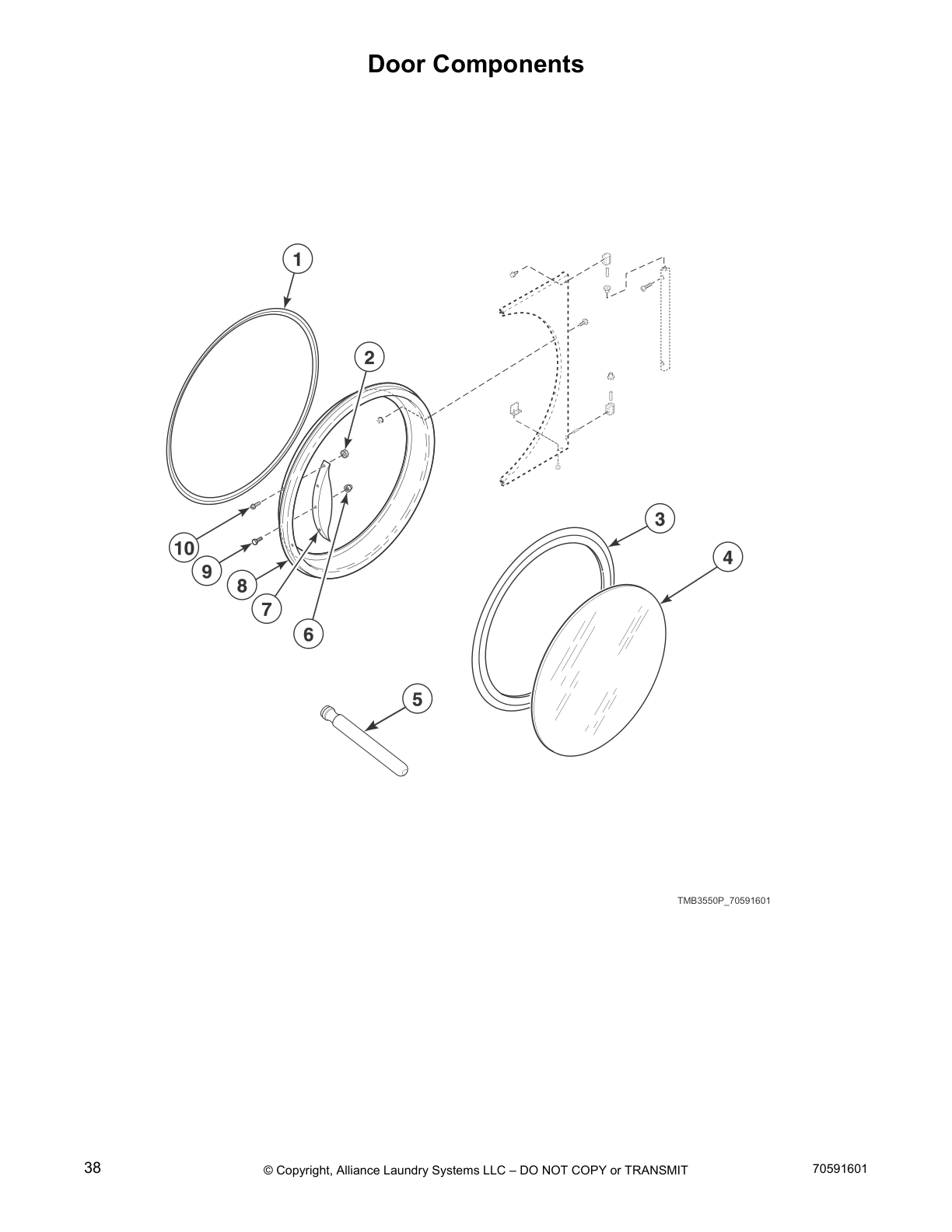

Door Components

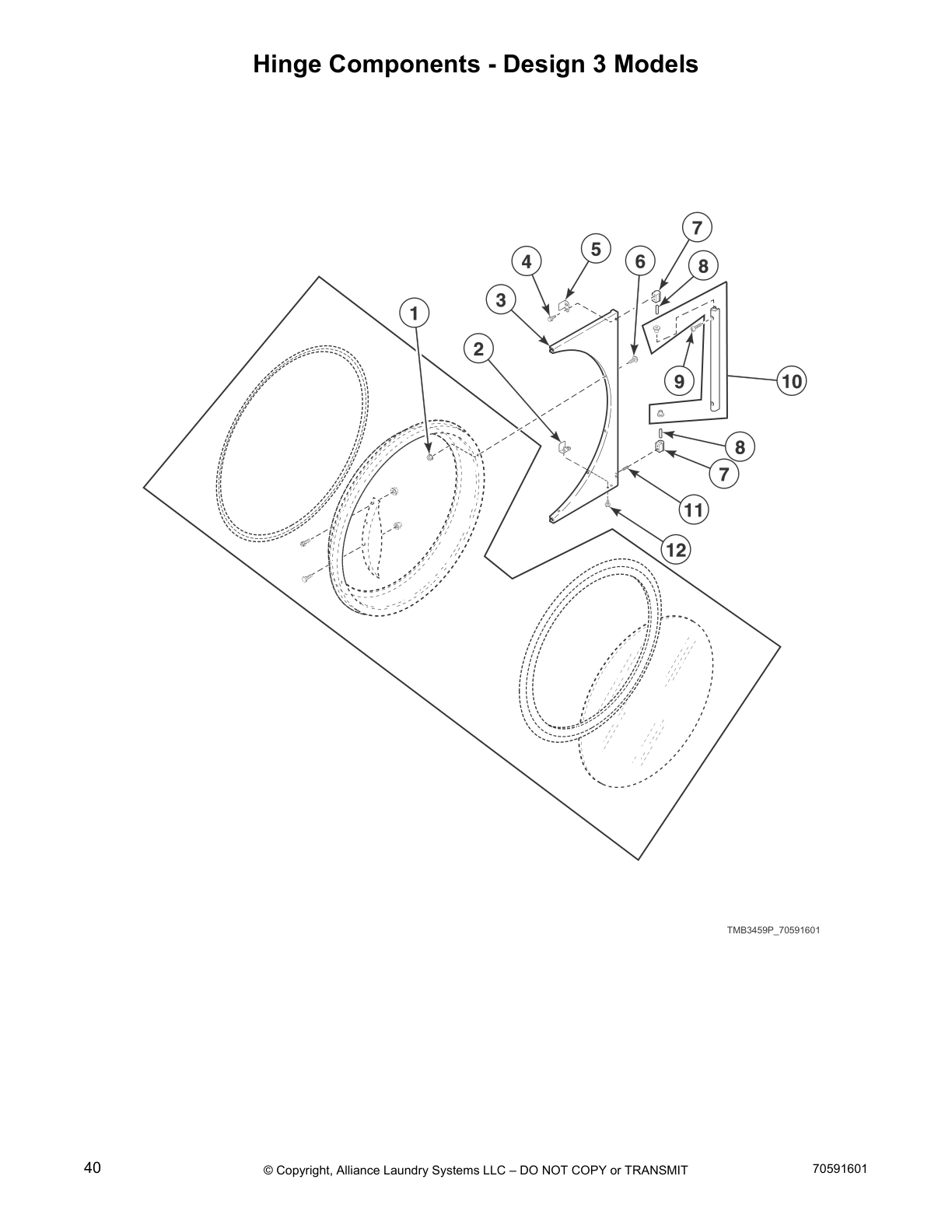

Hinge Components - Design 3 Models
Hinge Components - Design 5 Models

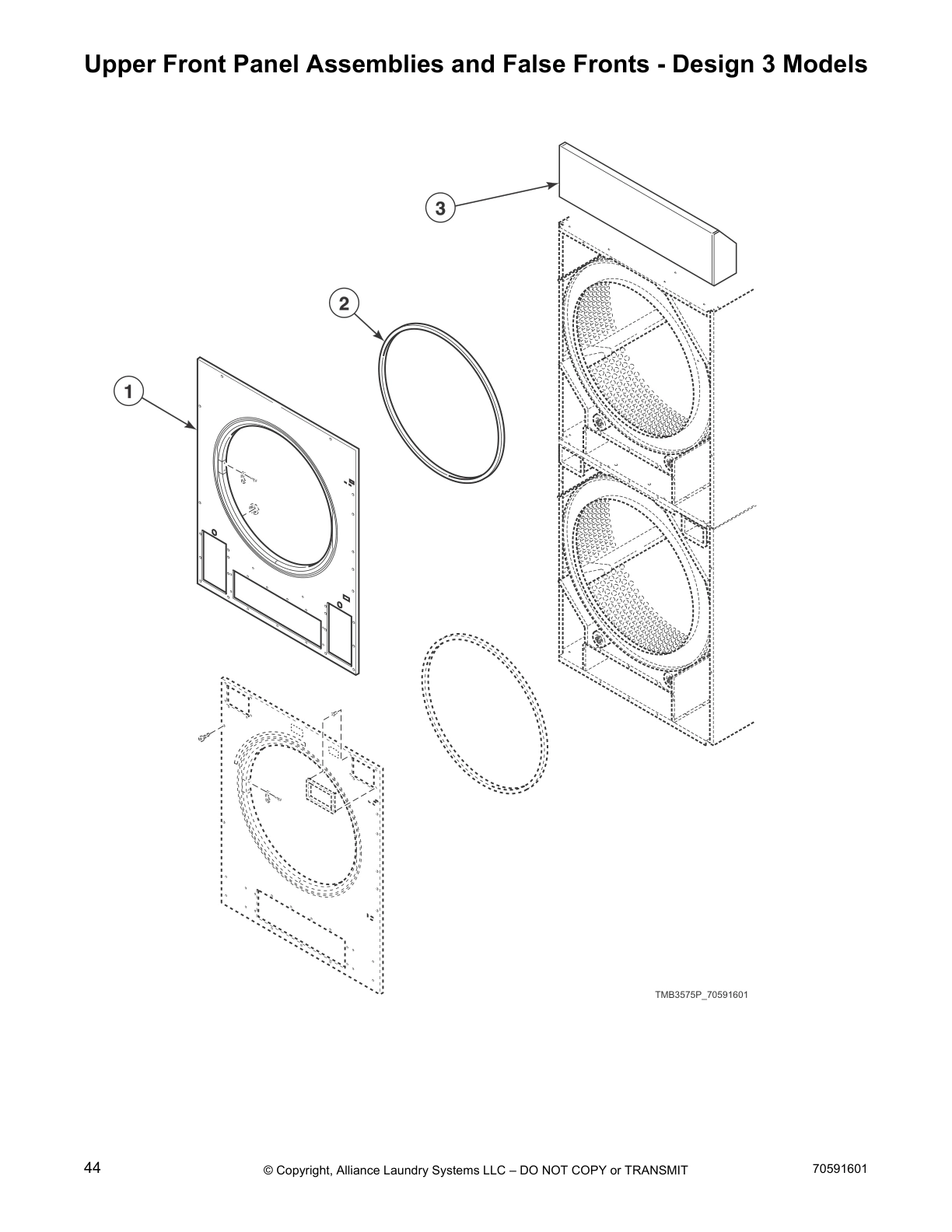

Upper Front Panel Assemblies and False Fronts - Design 3 Models

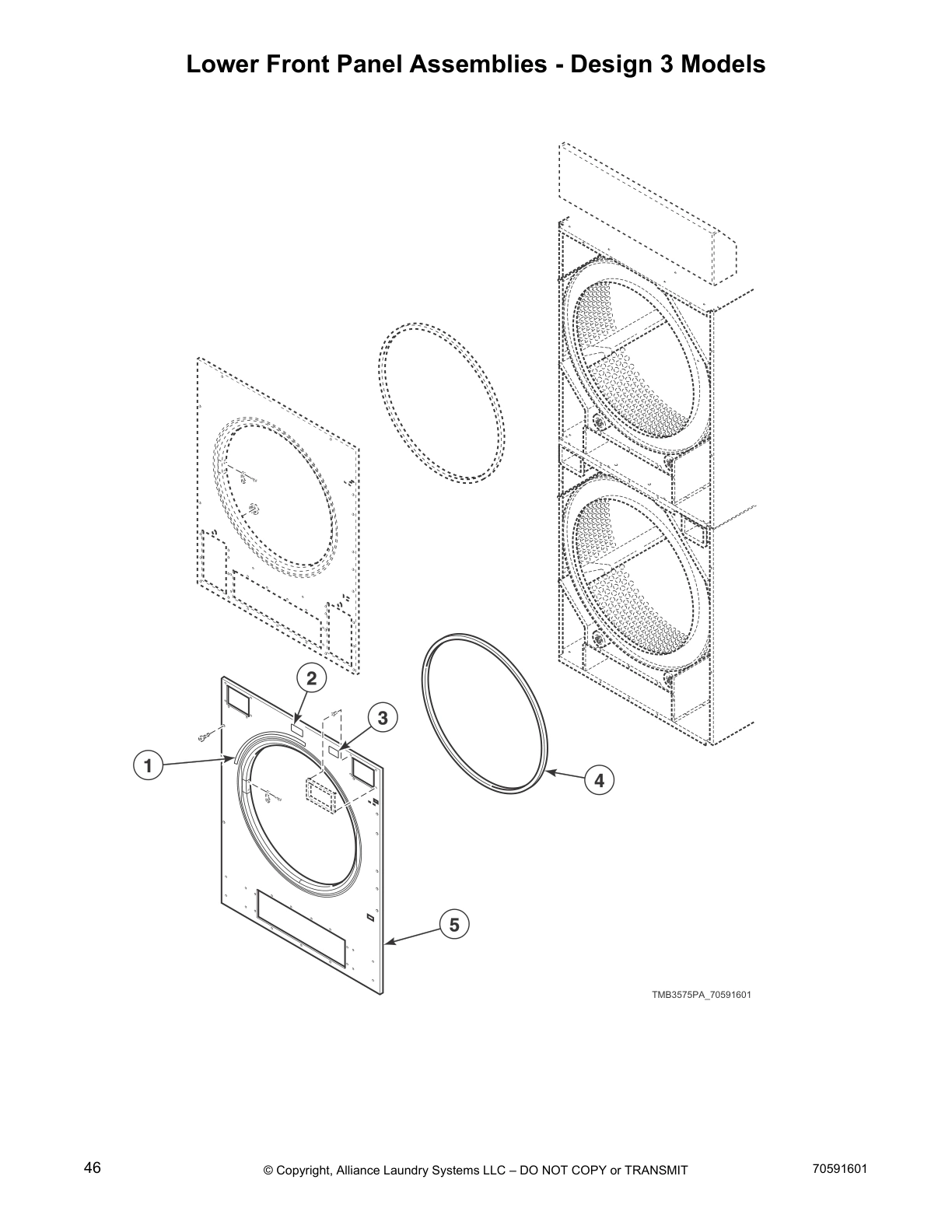

Lower Front Panel Assemblies - Design 3 Models

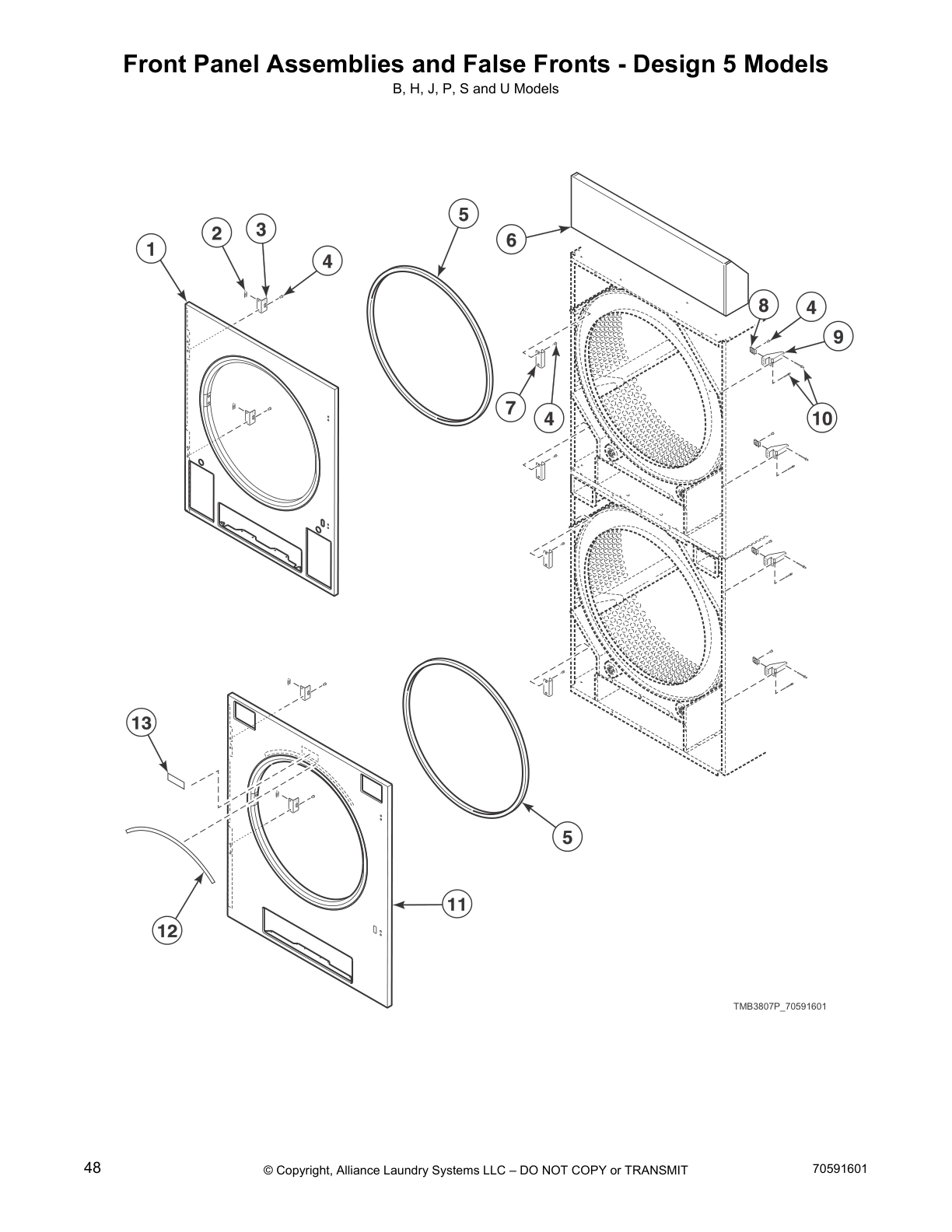

Front Panel Assemblies and False Fronts - Design 5 Models

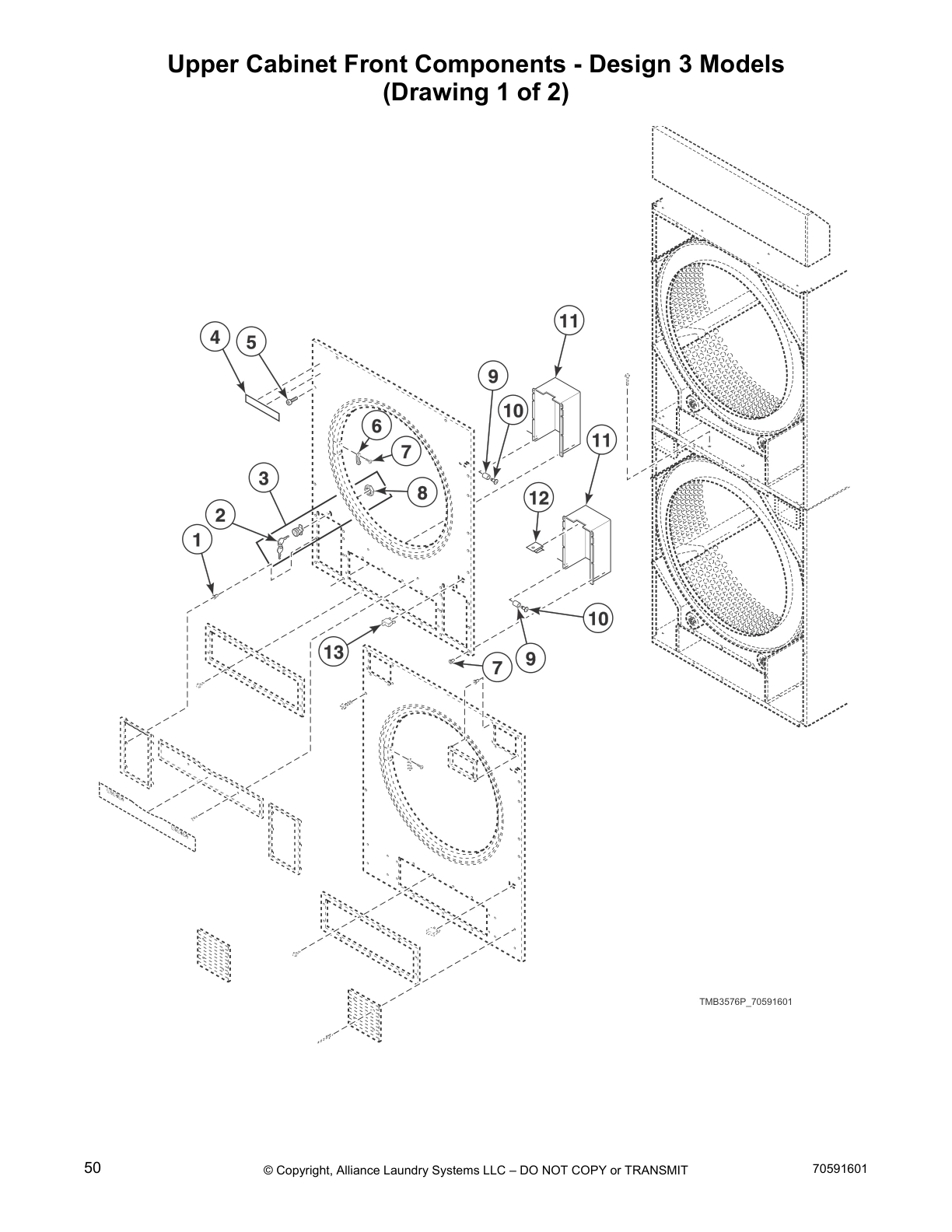

Upper Cabinet Front Components - Design 3 Models
(Drawing 1 of 2)

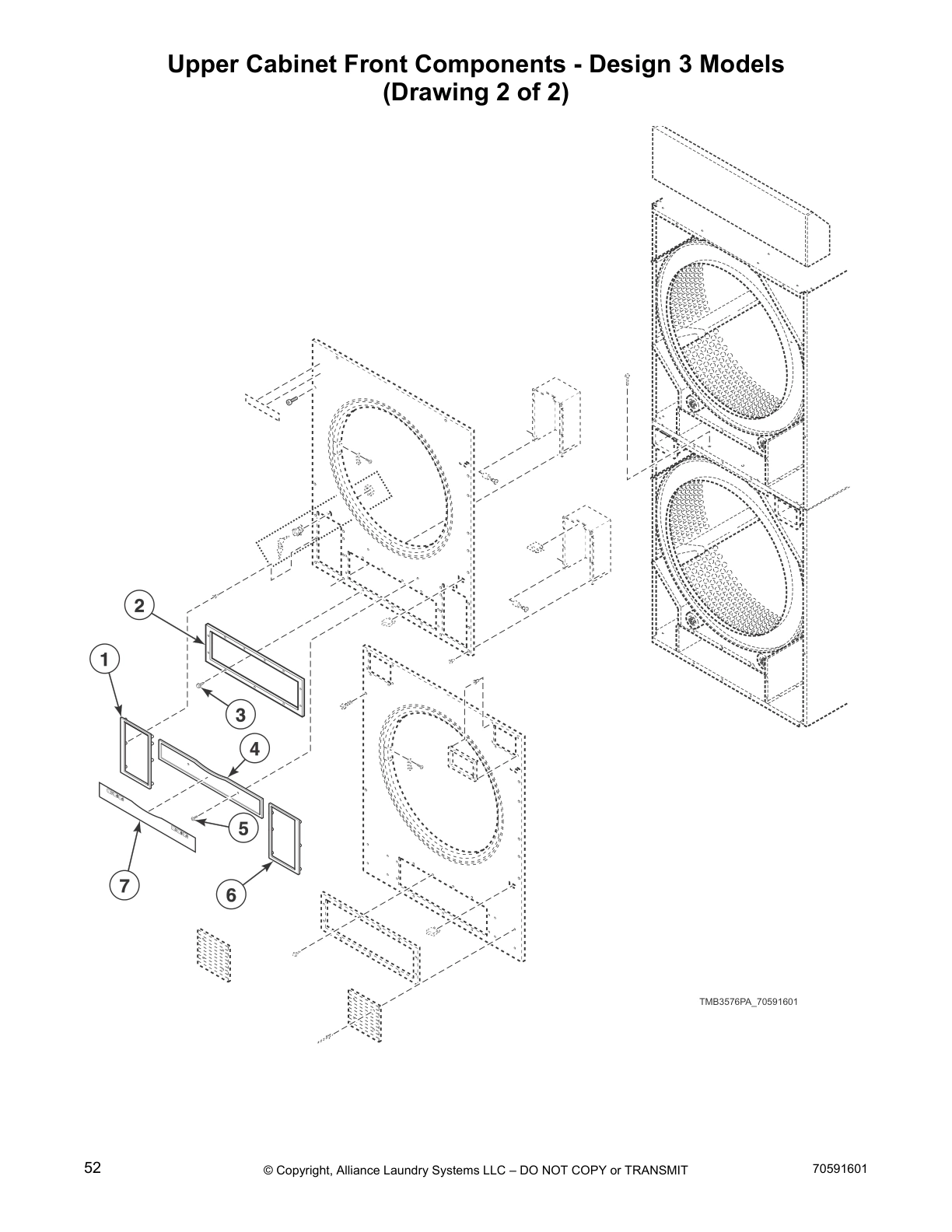

Upper Cabinet Front Components - Design 3 Models
(Drawing 2 of 2)

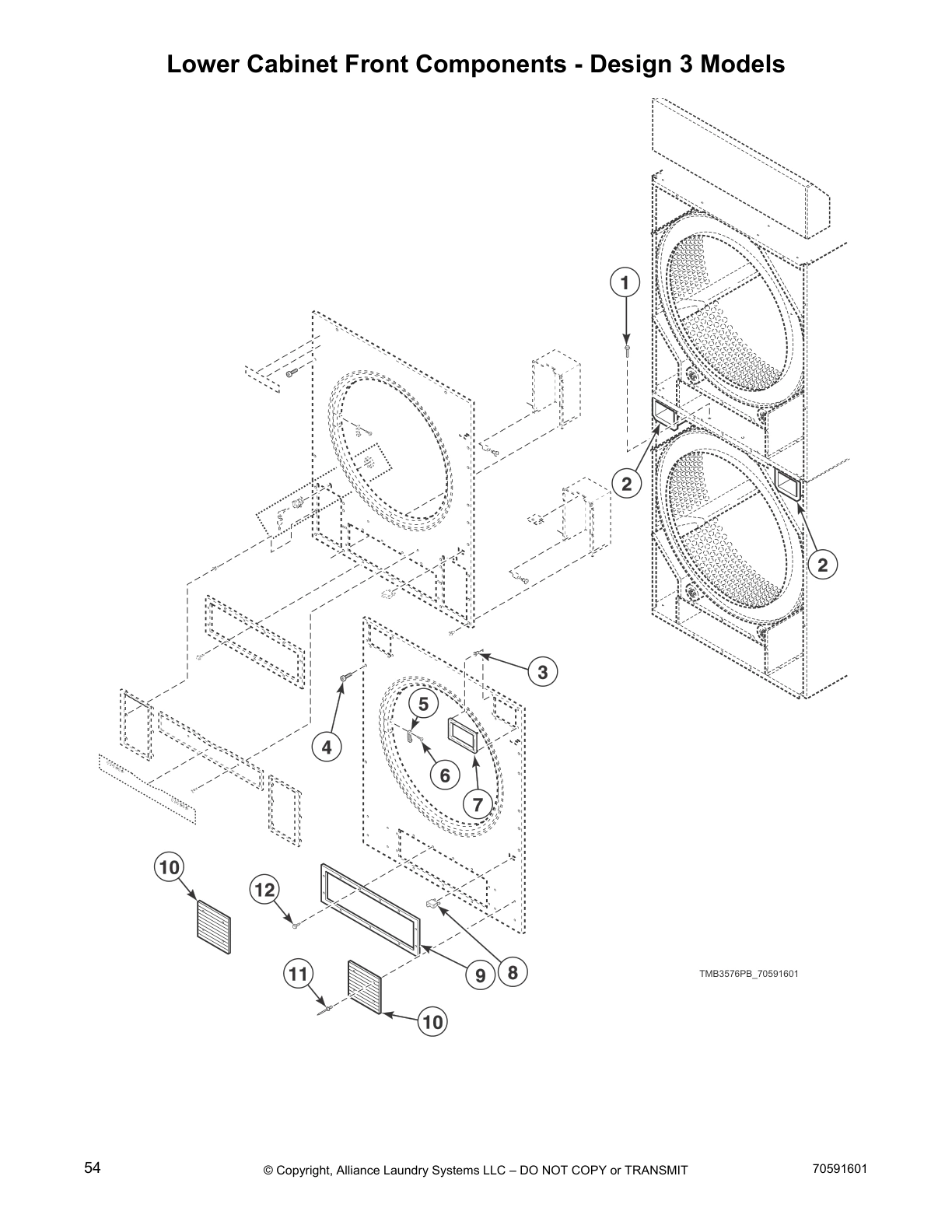

Lower Cabinet Front Components - Design 3 Models

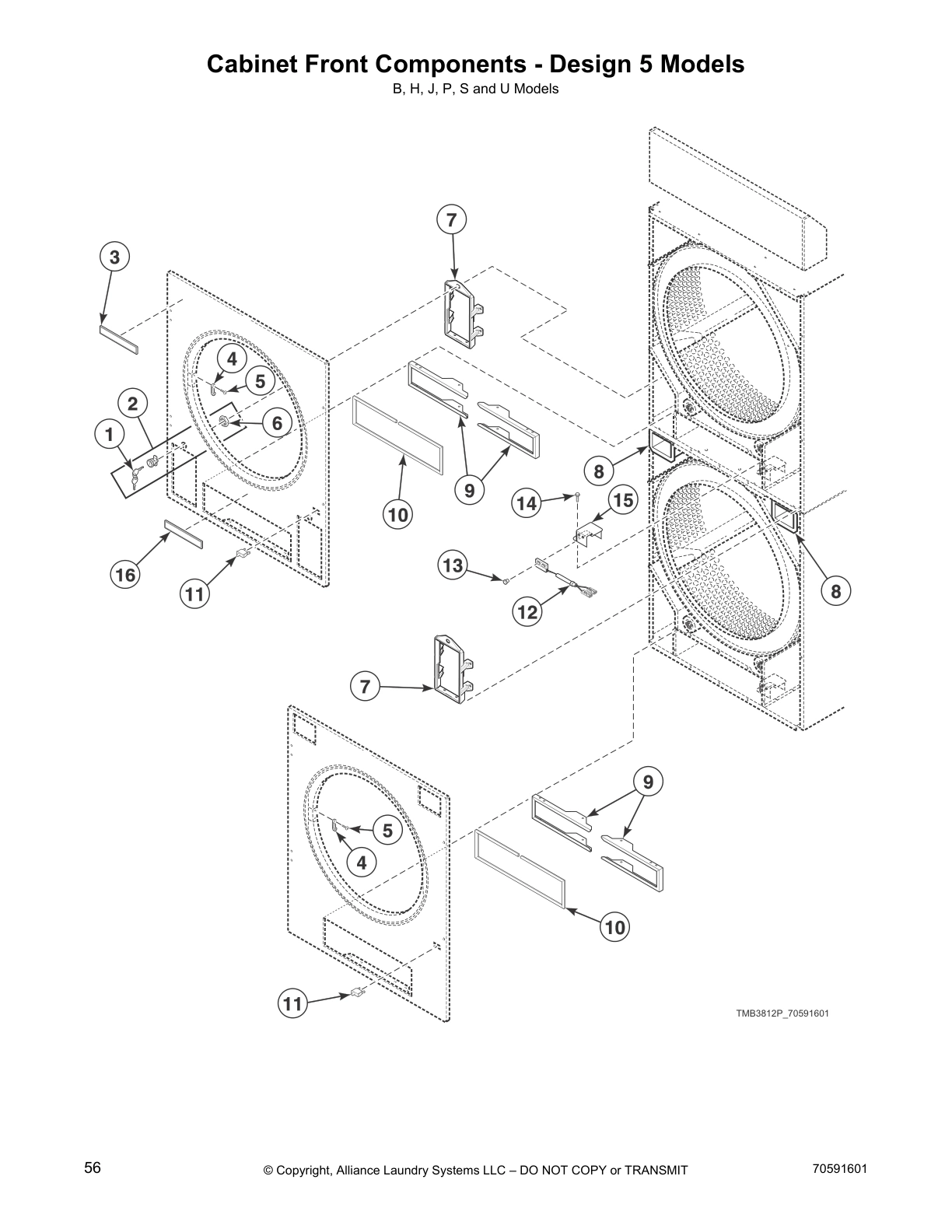

Cabinet Front Components - Design 5 Models

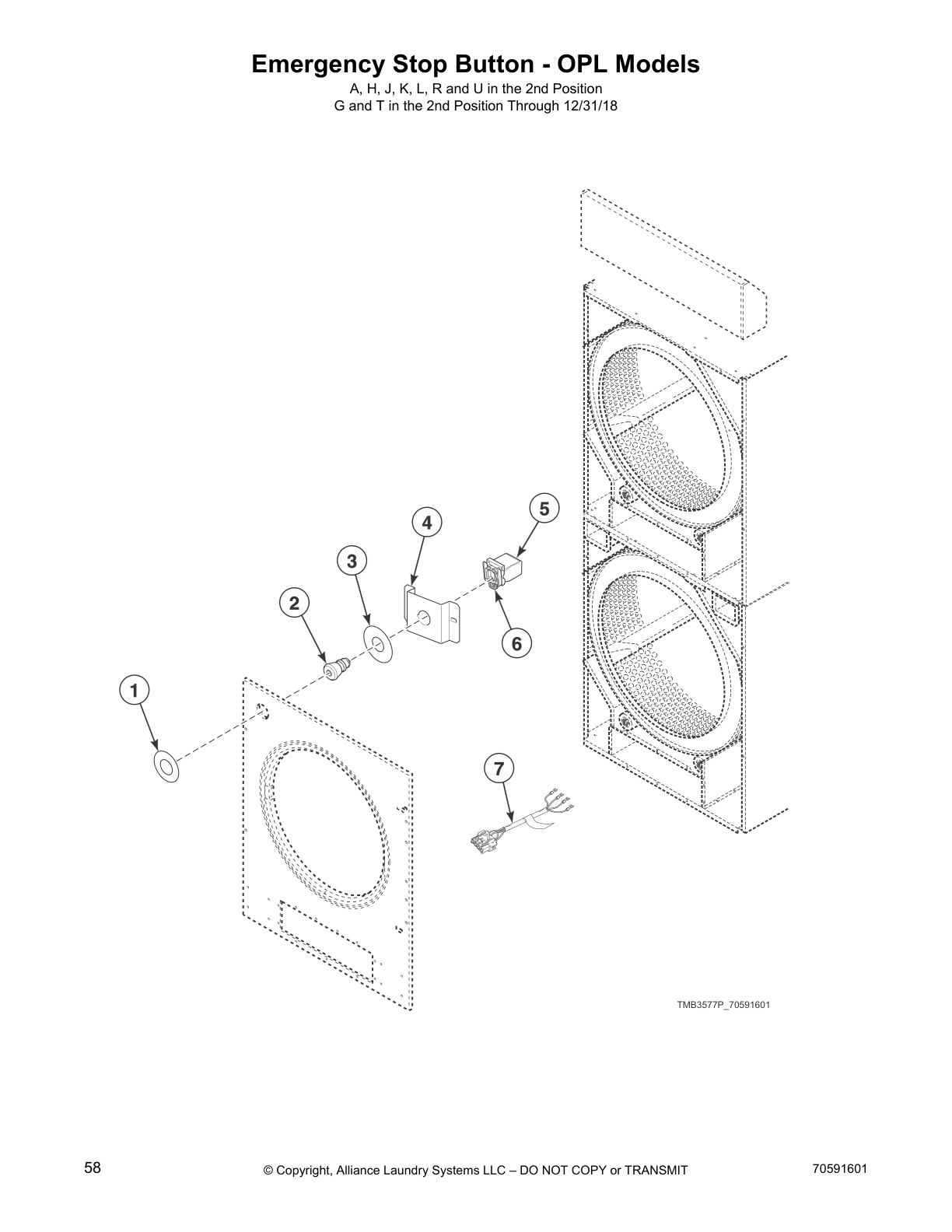

Emergency Stop Button - OPL Models

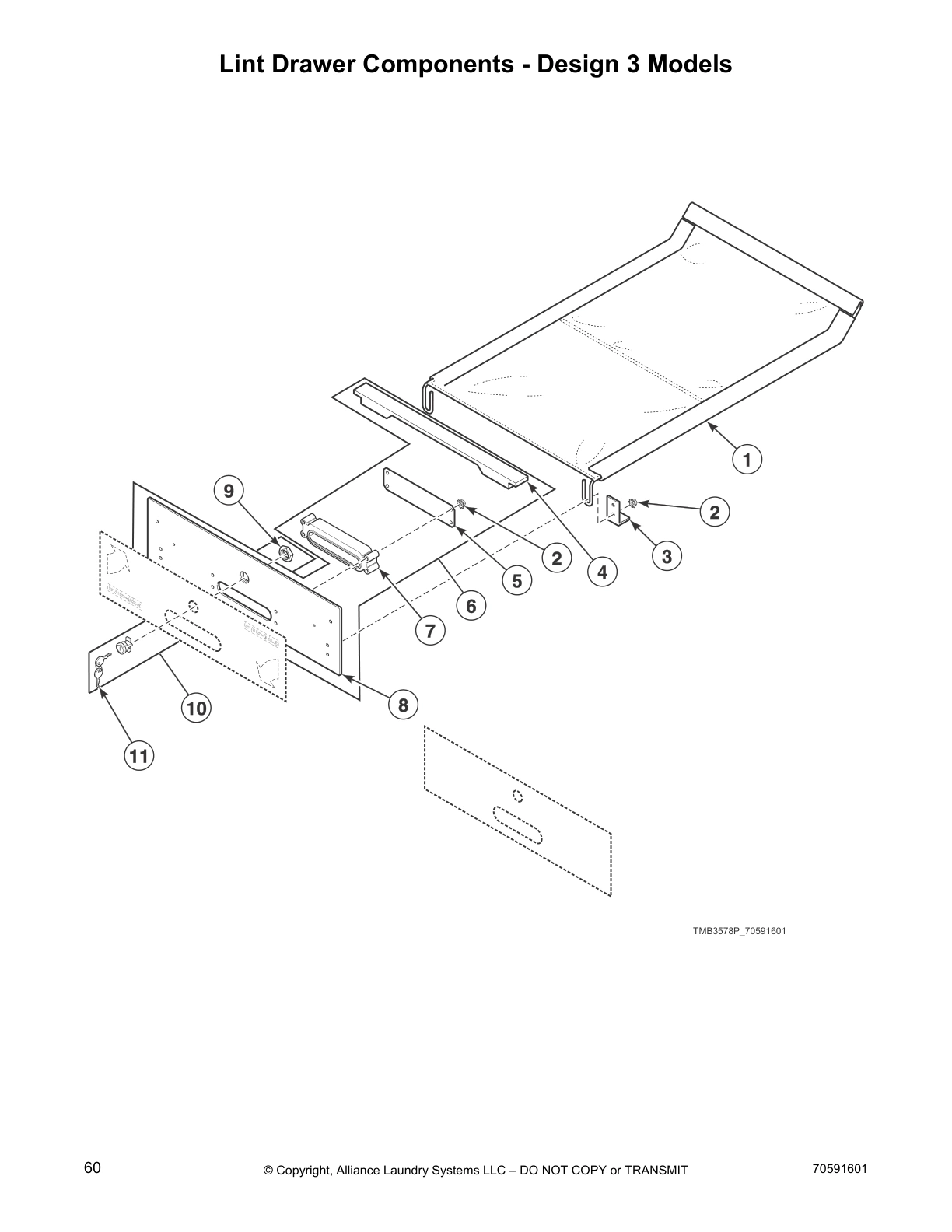

Lint Drawer Components - Design 3 Models

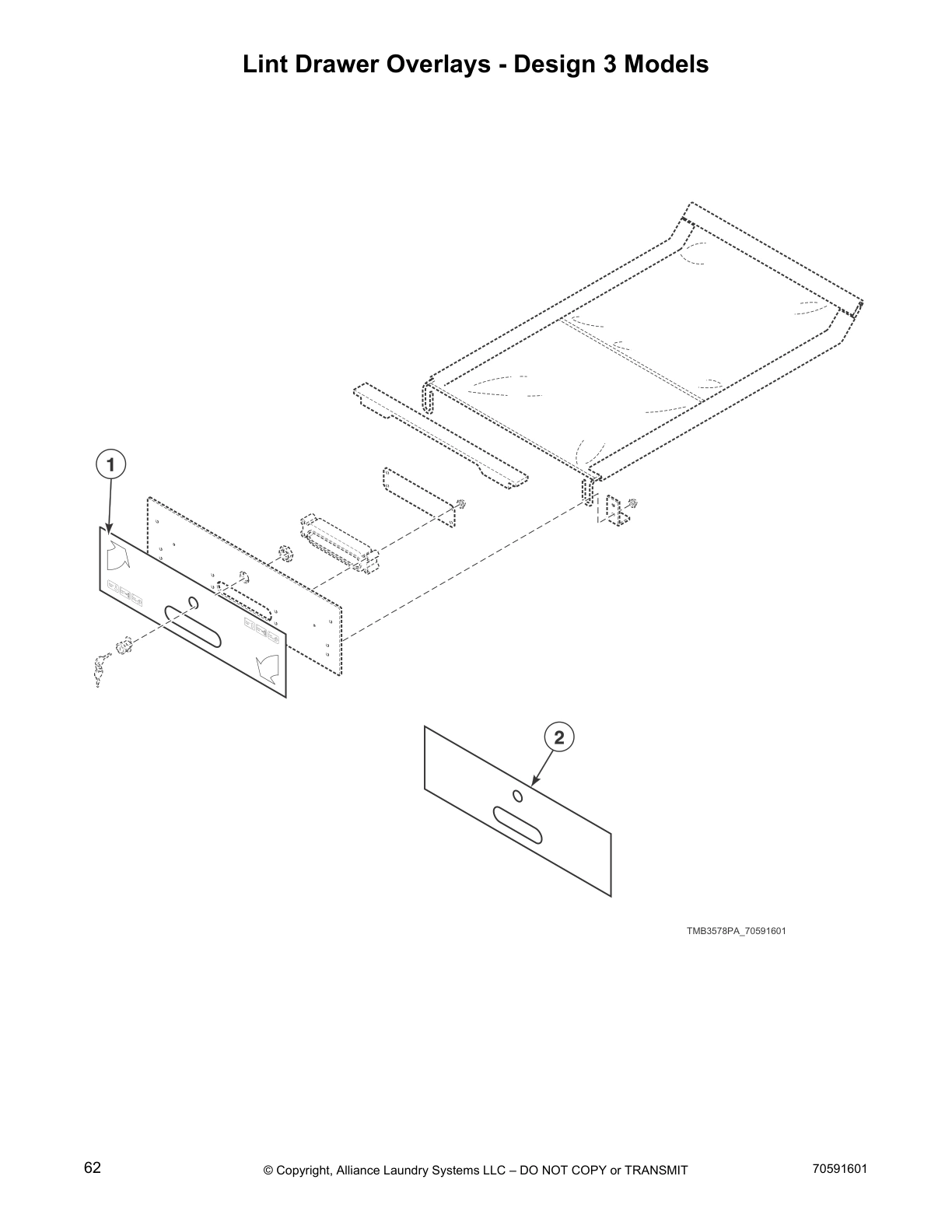

Lint Drawer Overlays - Design 3 Models

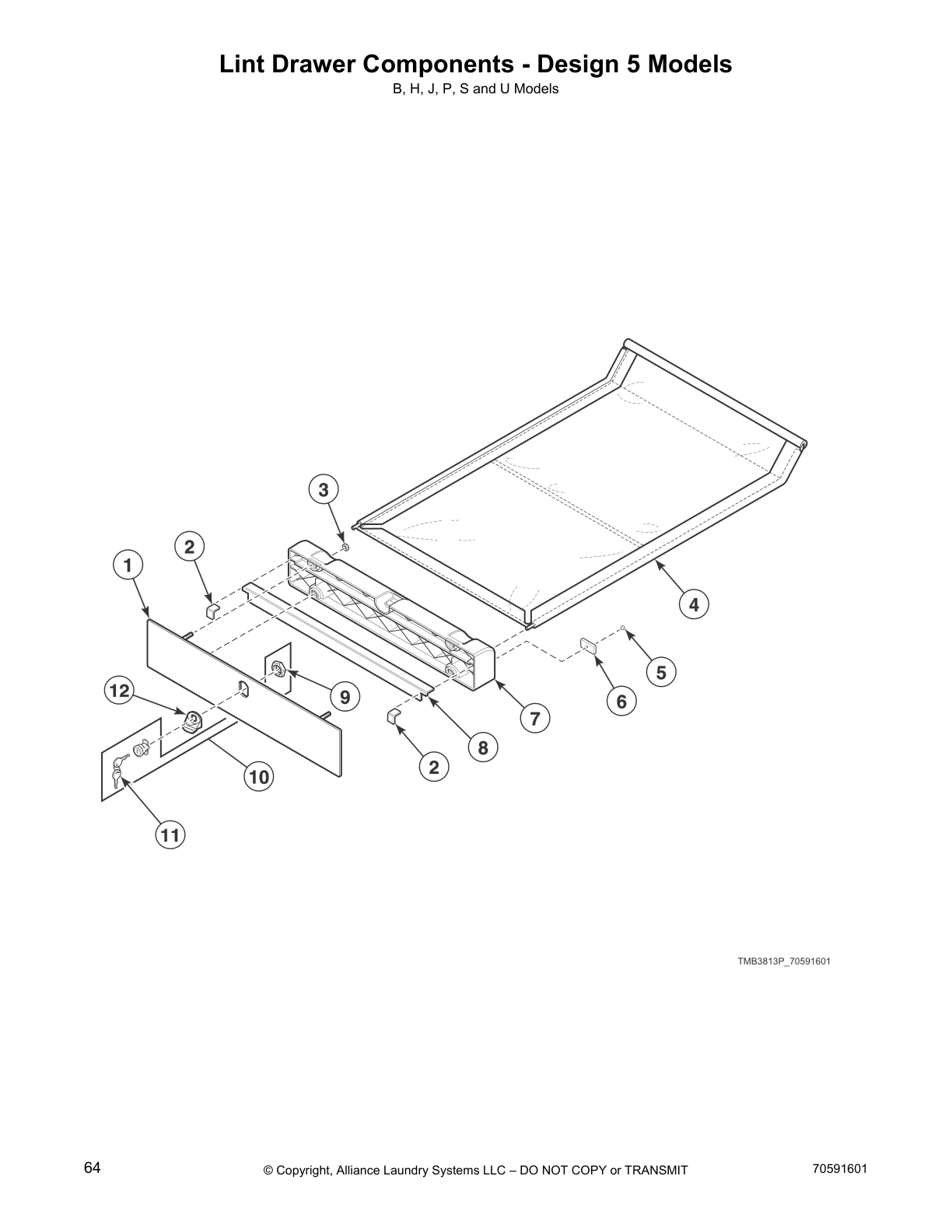

Lint Drawer Components - Design 5 Models
Cylinder and Trunnion Components

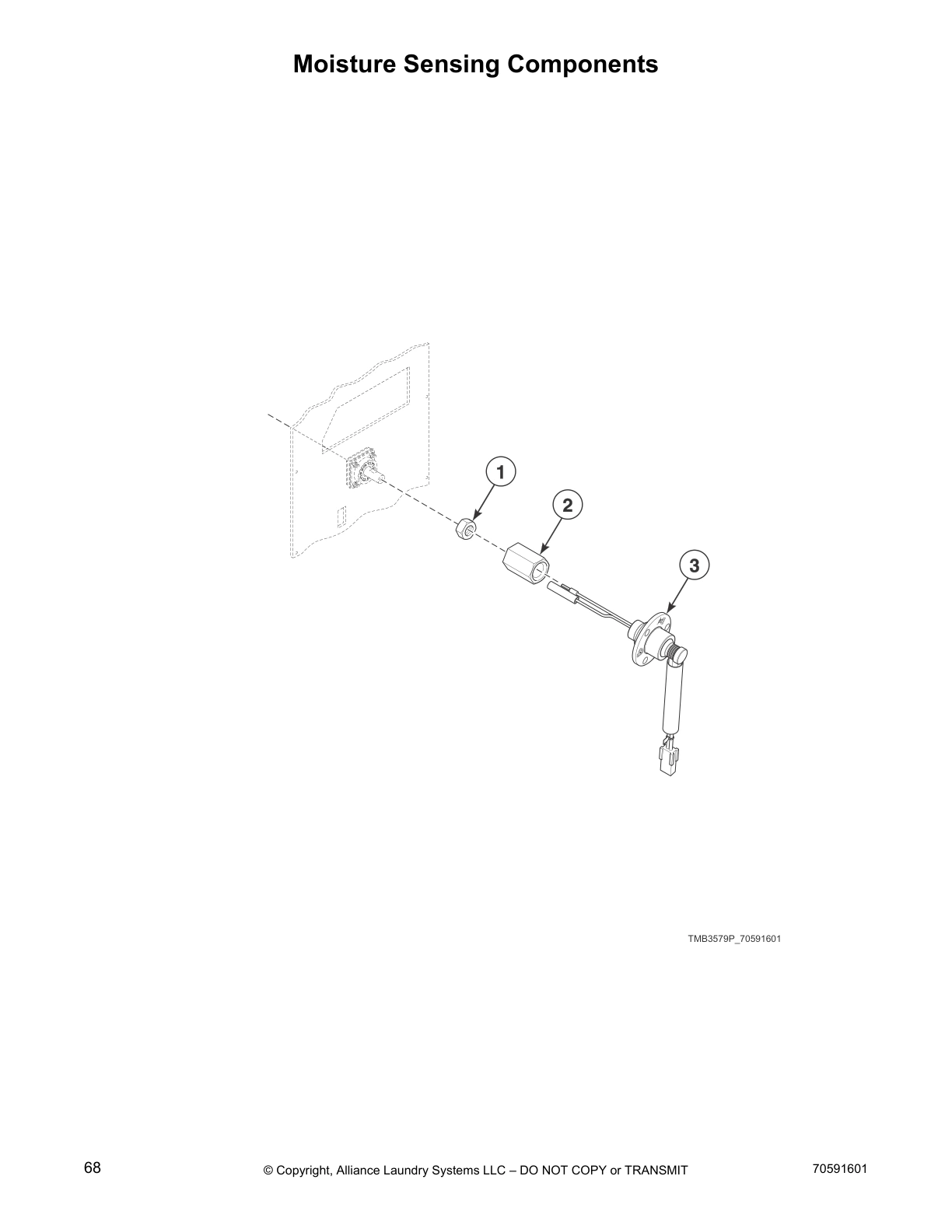

Moisture Sensing Components

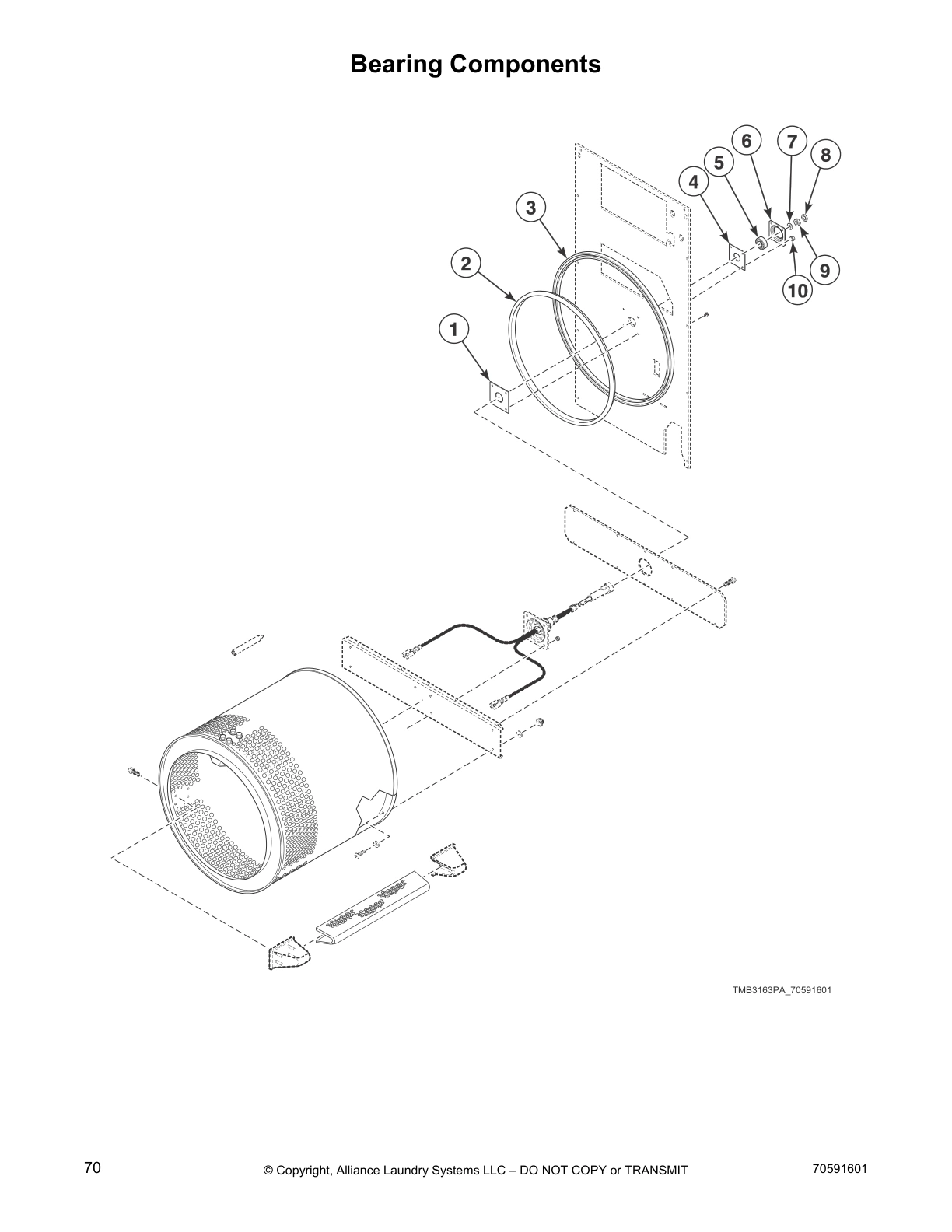

Bearing Components

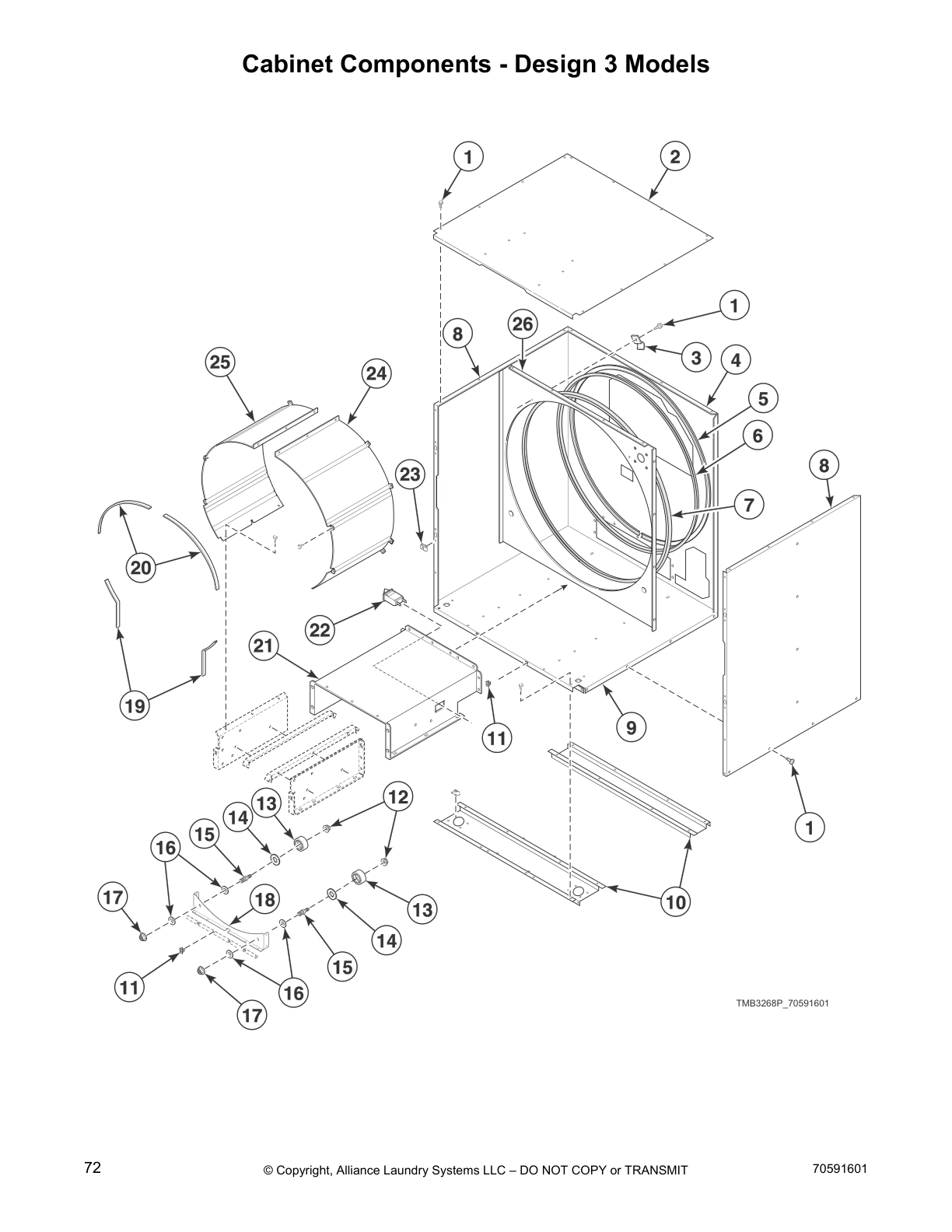

Cabinet Components - Design 3 Models

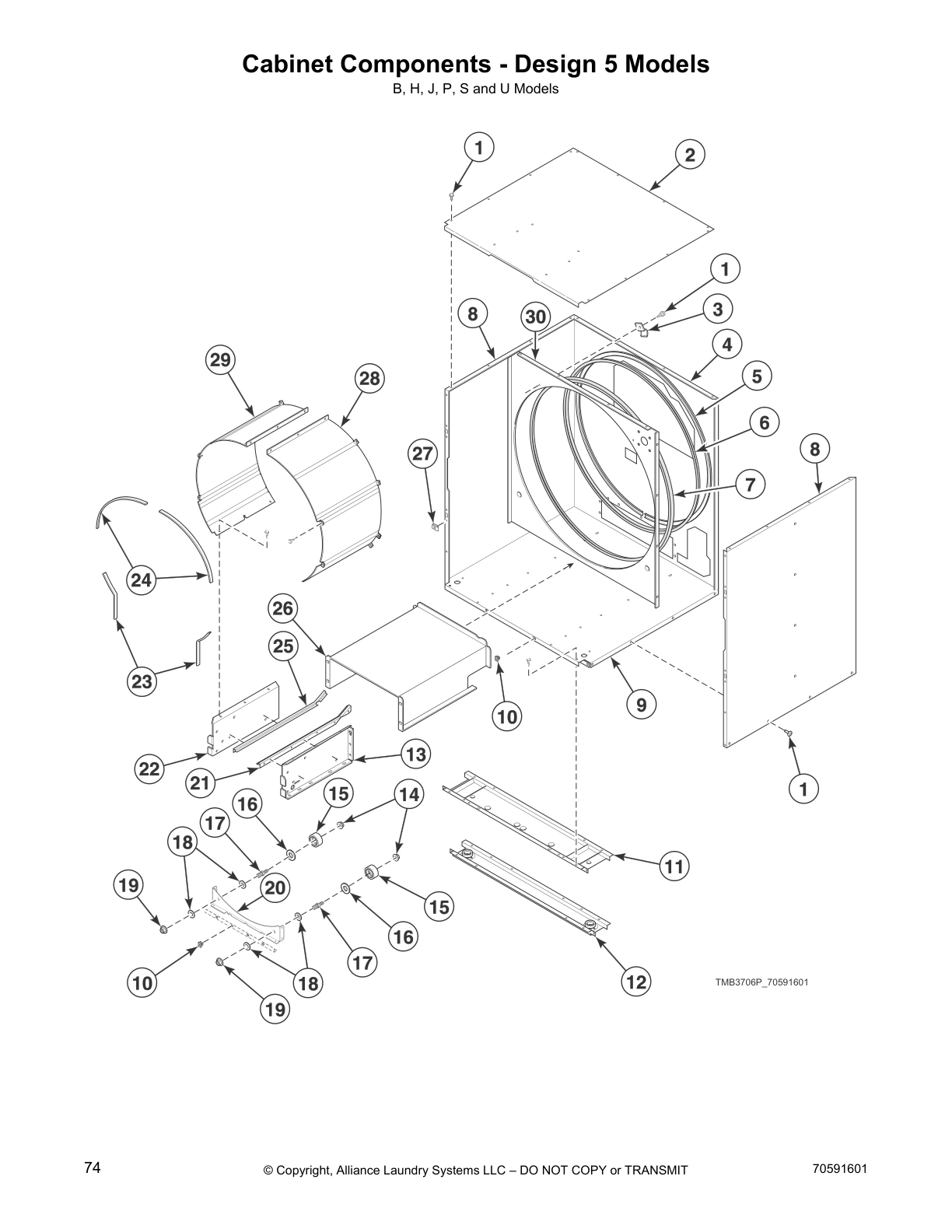

Cabinet Components - Design 5 Models

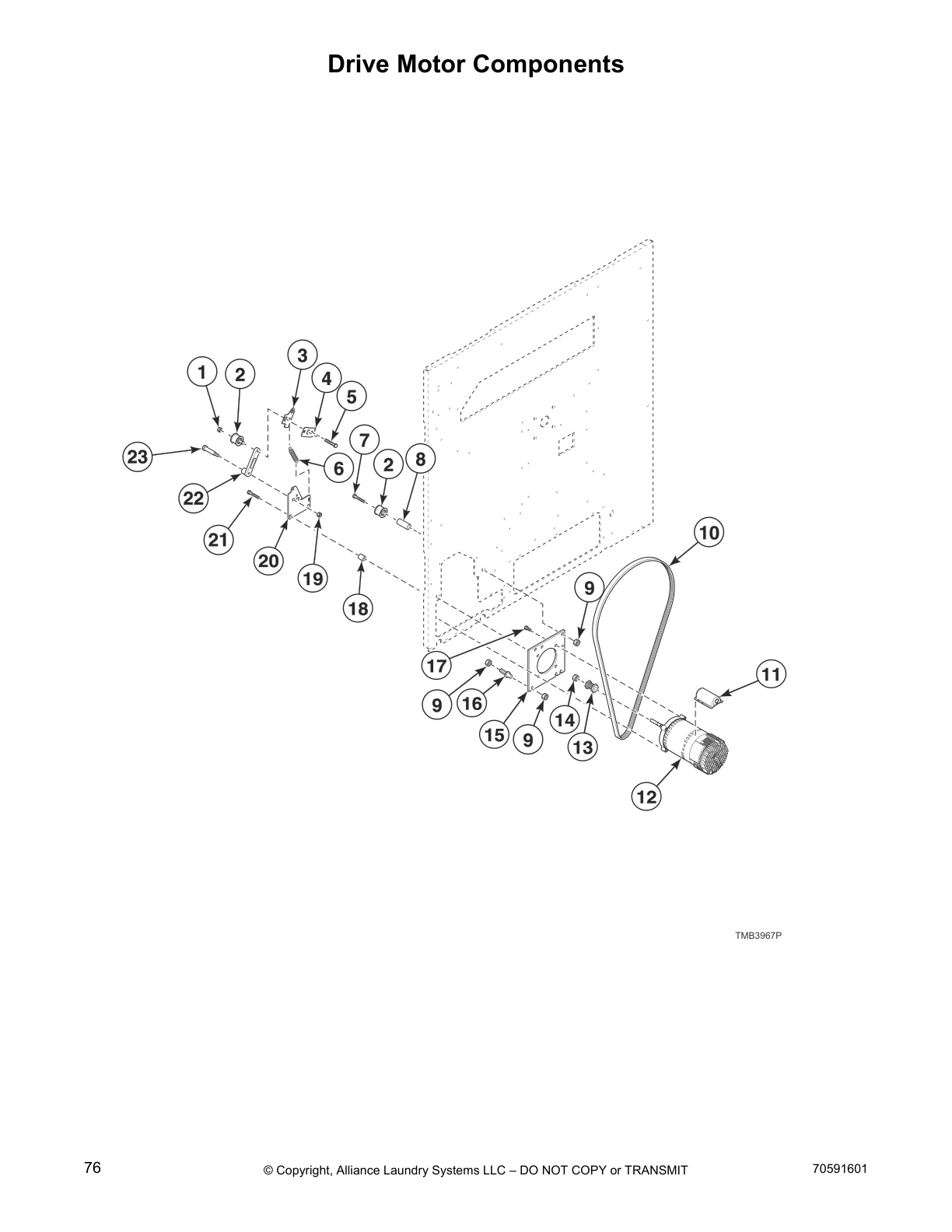

Drive Motor Components

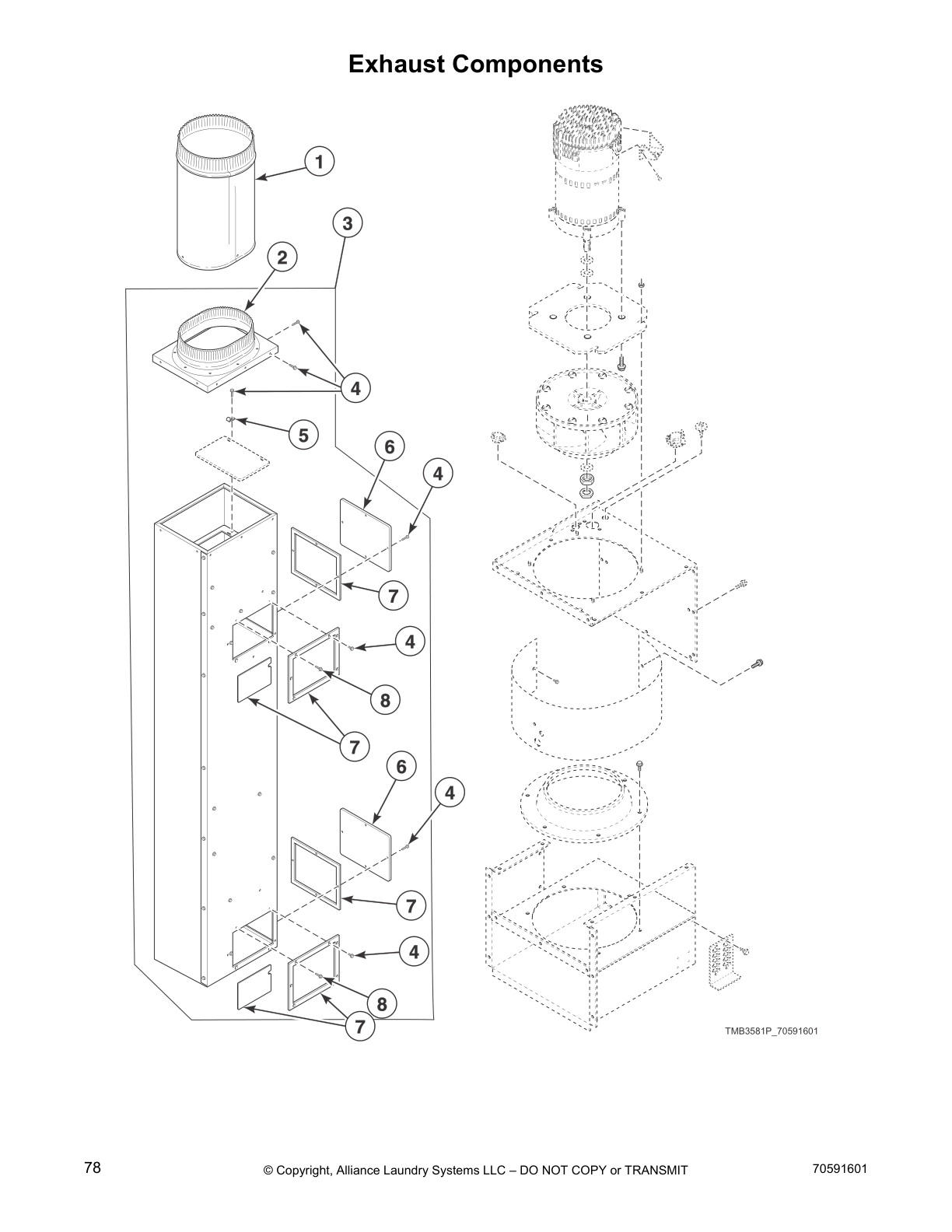

Exhaust Components

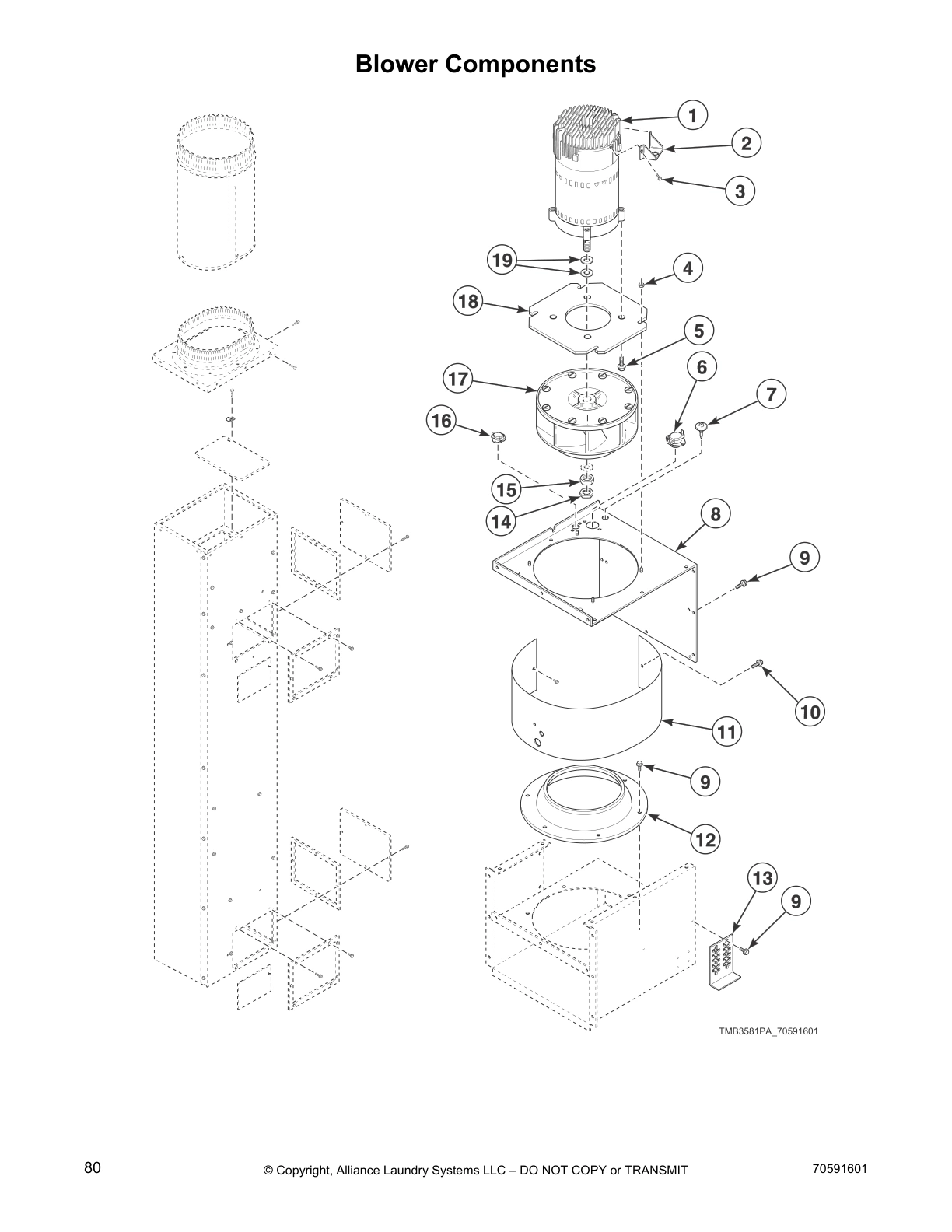

Blower Components
Airflow Switch

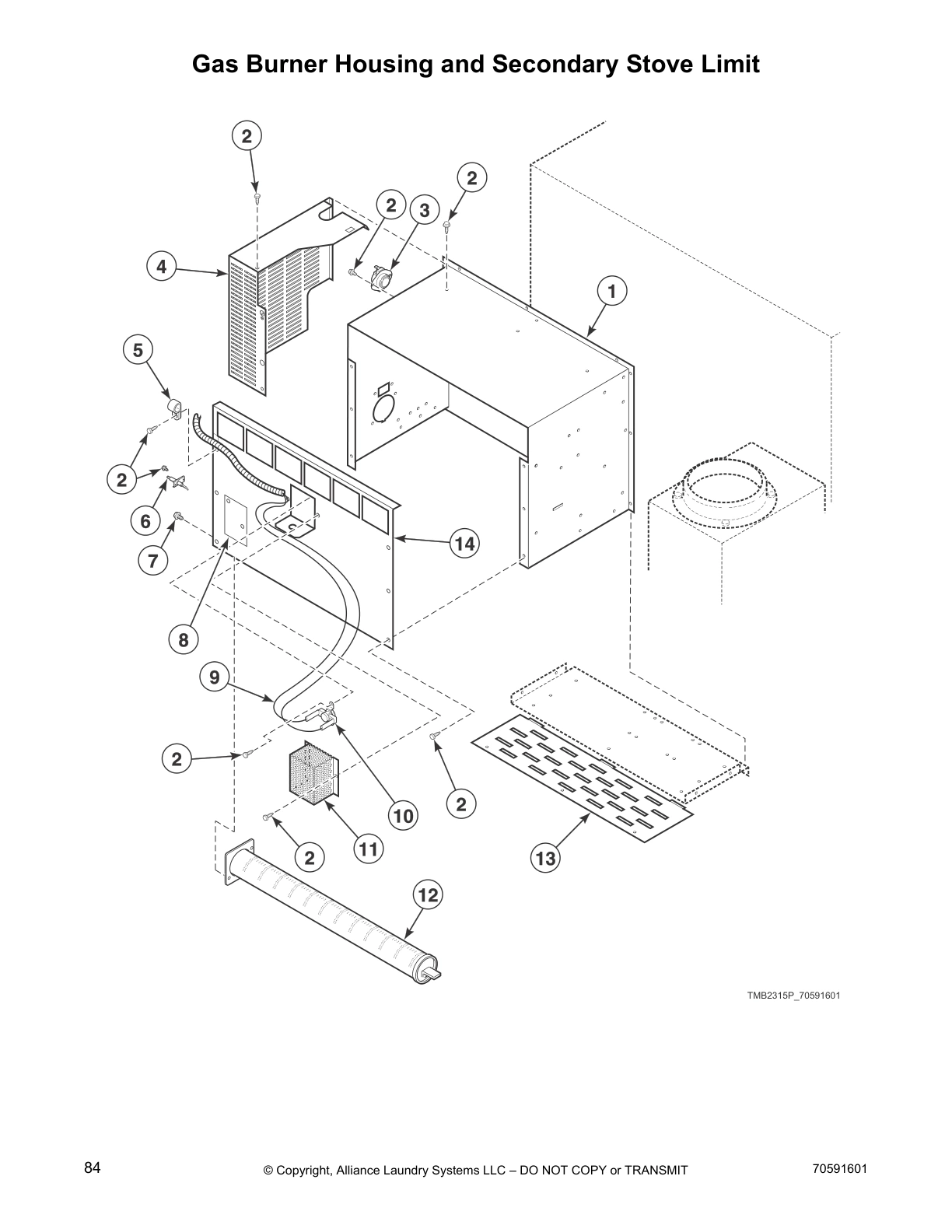

Gas Burner Housing and Secondary Stove Limit

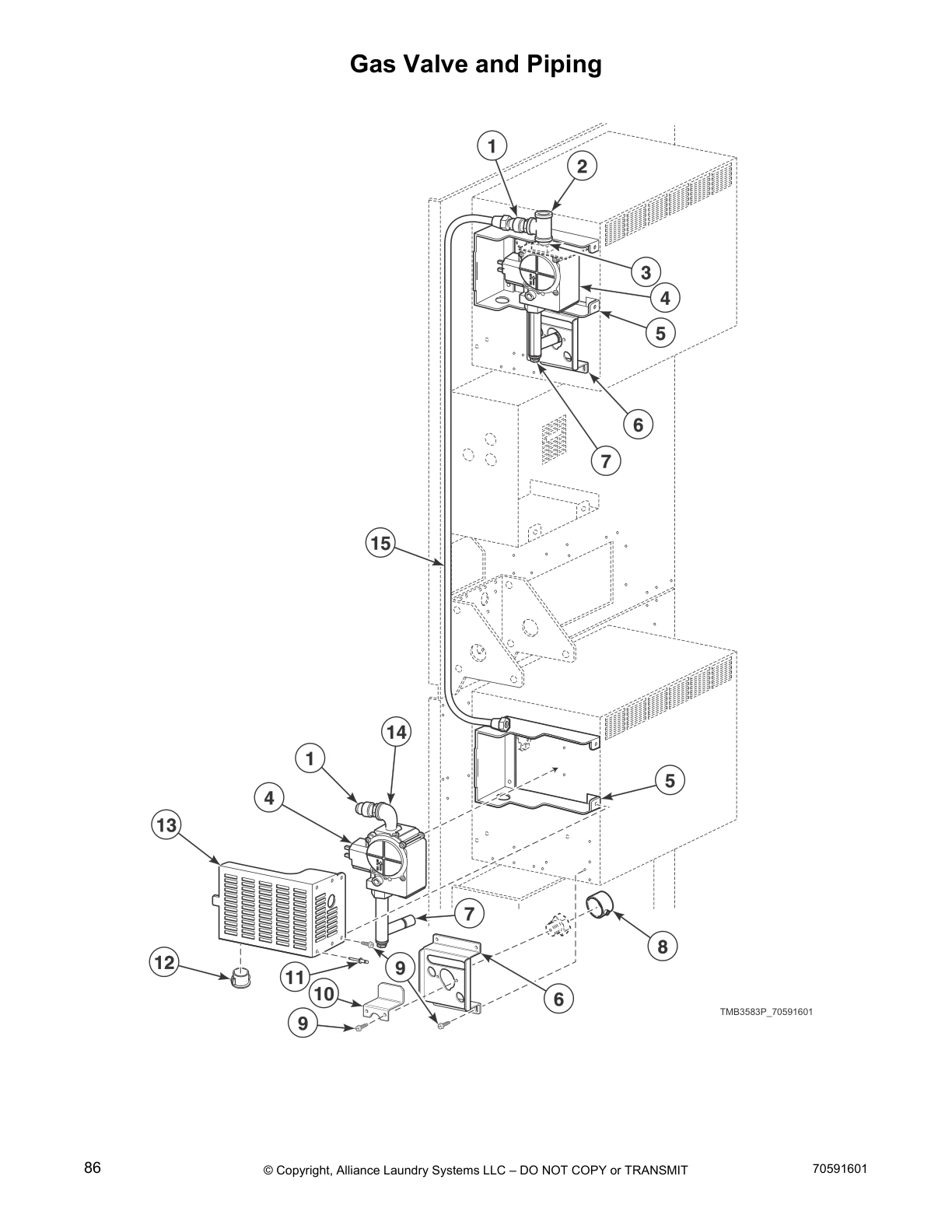

Gas Valve and Piping

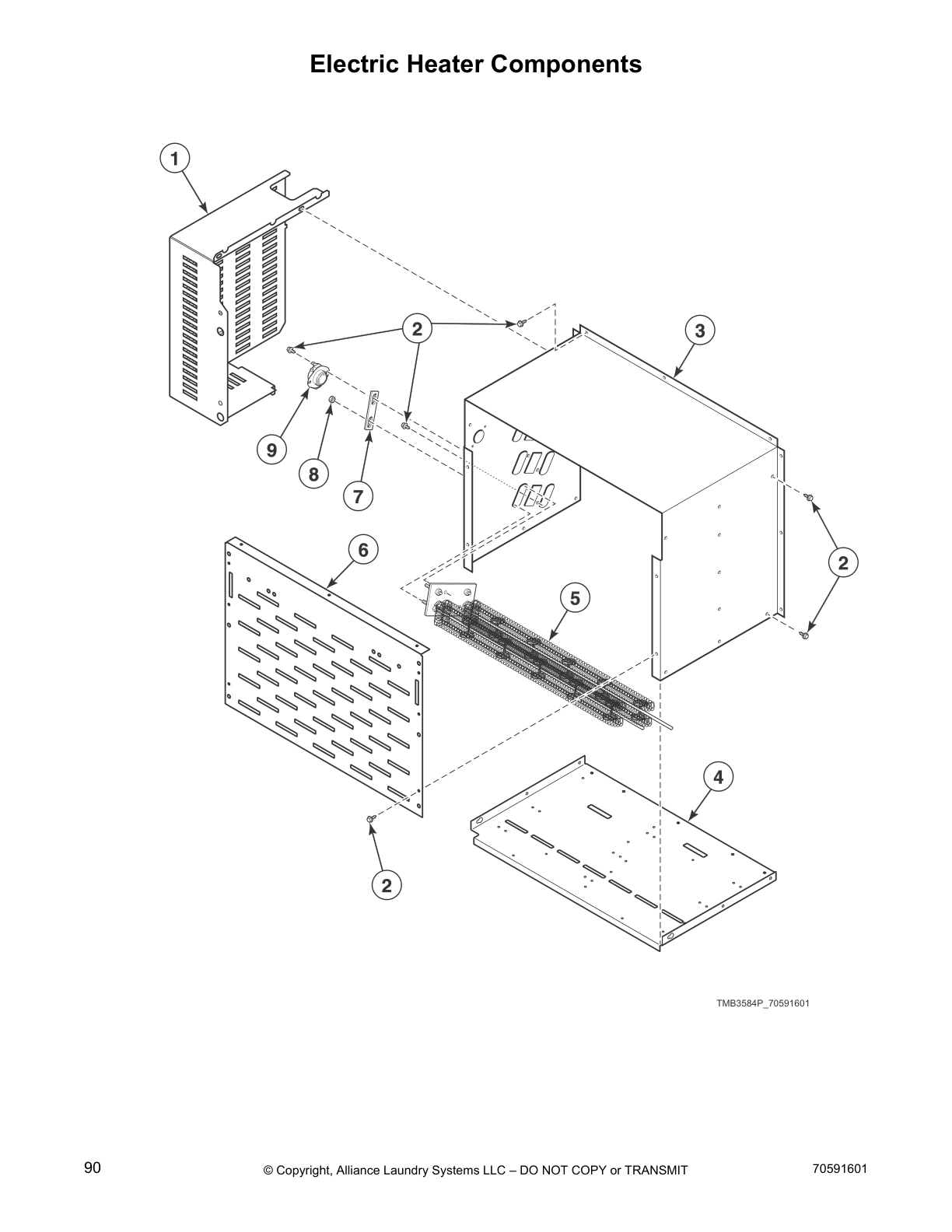

Electric Heater Components

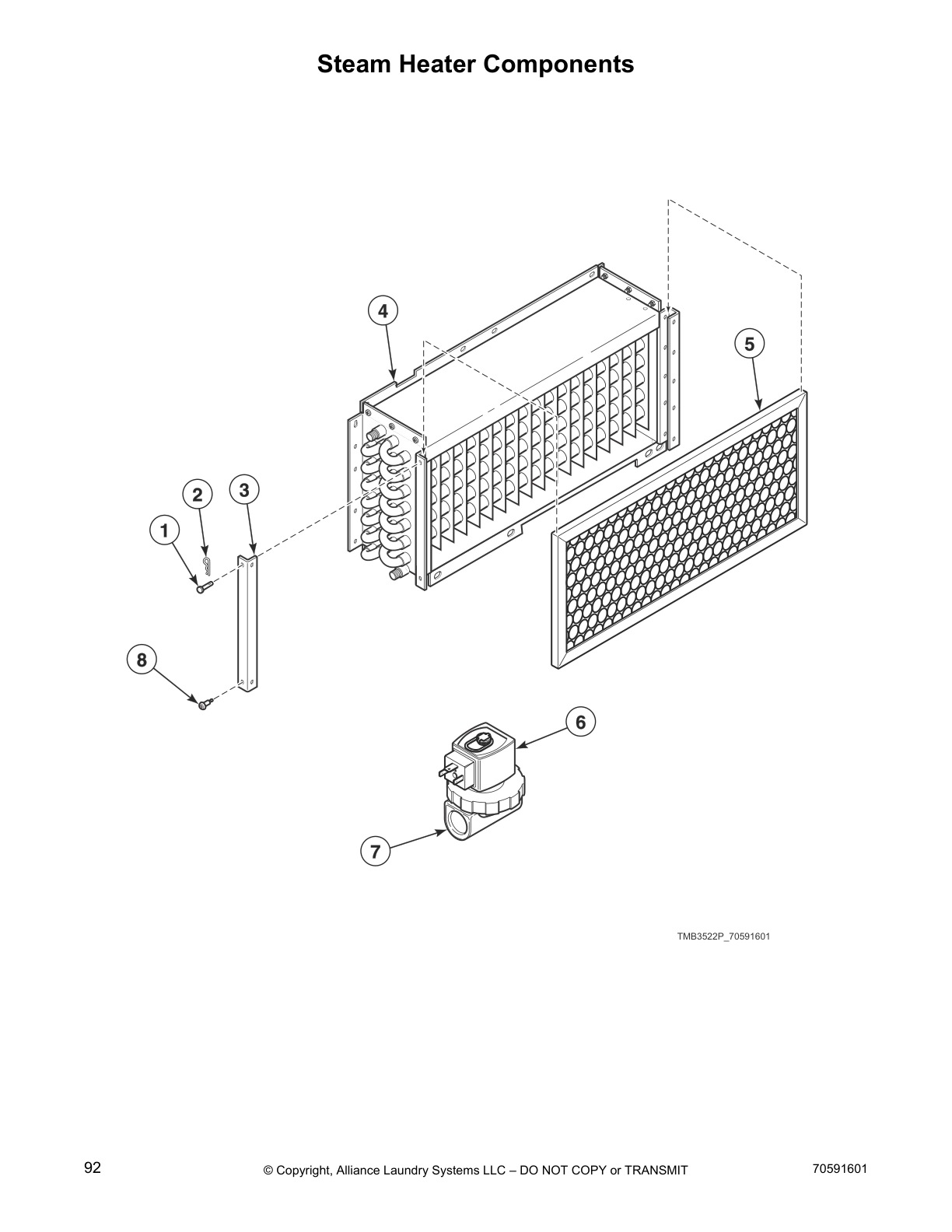

Steam Heater Components

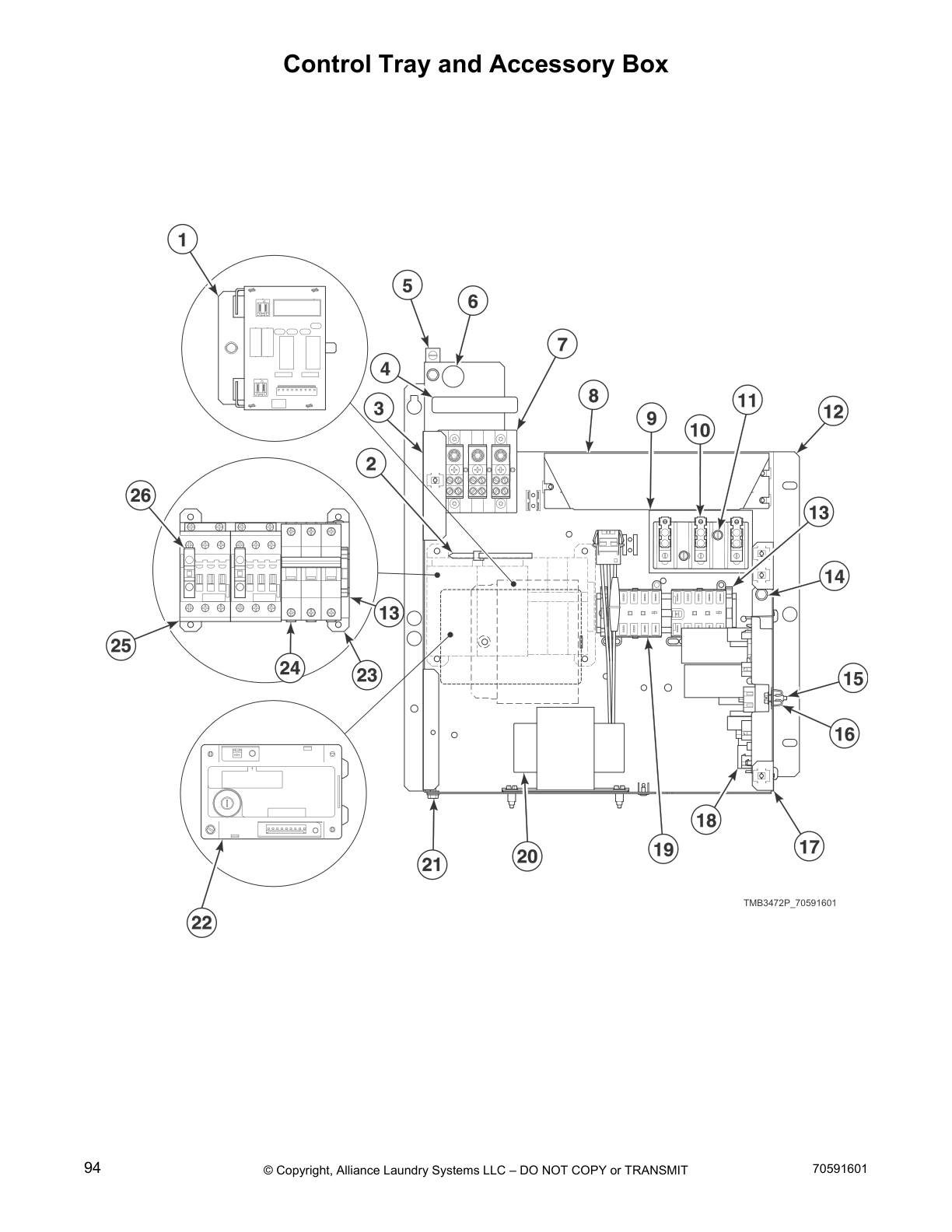

Control Tray and Accessory Box
Common parts from model Speed Queen SHT30S Dryer
Electronic Coin Drop Assembly SPQ 70283102 Contact Us For Availability
Wire Guard SPQ 39748 Contact Us For Availability
SPQ 38519 SPQ 38519 Contact Us For Availability
SPQ 38467 SPQ 38467 Contact Us For Availability
SPQ 210196 SPQ 210196 Contact Us For Availability
SPQ 201141 SPQ 201141 Contact Us For Availability
SPQ 70513315 SPQ 70513315 Contact Us For Availability
SPQ 70513313 SPQ 70513313 Contact Us For Availability
SPQ 70513310 SPQ 70513310 Contact Us For Availability
SPQ 70513308 SPQ 70513308 Contact Us For Availability
SPQ 70513304 SPQ 70513304 Contact Us For Availability
SPQ 70513302 SPQ 70513302 Contact Us For Availability
SPQ 70471601 SPQ 70471601 Contact Us For Availability
Coin Drop Kit SPQ CK108 Contact Us For Availability
SPQ CK100 SPQ CK100 Contact Us For Availability
SPQ CK122 SPQ CK122 Contact Us For Availability
SPQ CK120 SPQ CK120 Contact Us For Availability
SPQ CK117 SPQ CK117 Contact Us For Availability
Supply Harness SPQ F8536002 Contact Us For Availability
Power Supply Transformer Harness SPQ 44355603 Contact Us For Availability
USB IR Interface Kit SPQ 44272305 Contact Us For Availability
SPQ 44272303 SPQ 44272303 Contact Us For Availability
SPQ 203346 SPQ 203346 Contact Us For Availability
SPQ 70619602W SPQ 70619602W Contact Us For Availability
SPQ 70257201 SPQ 70257201 Contact Us For Availability
Steam Valve Harness SPQ 70058502 Contact Us For Availability
Steam Adapter Kit SPQ F8382301 Contact Us For Availability
1
Door Ring Gasket SPQ 70296801 Contact Us For Availability
1
Door Assembly SPQ 70212300 Contact Us For Availability
1
Nut SPQ 44088001 Contact Us For Availability
1
Upper Front Panel Assembly SPQ 70619402W Contact Us For Availability
1
Control Trim SPQ 70116902 Contact Us For Availability
1
Screw SPQ 70069901 Contact Us For Availability
1
Lint Screen Assembly SPQ 70290601 Contact Us For Availability
1
Overlay SPQ 70569301 Contact Us For Availability
1
Cylinder Assembly SPQ 70372502P Contact Us For Availability
1
Nut SPQ M400035 Contact Us For Availability
1
Exhaust Pipe SPQ 44154301 Contact Us For Availability
1
Fan Motor SPQ 70484901P Contact Us For Availability
1
Airflow Switch Wrapper SPQ 70356101 Contact Us For Availability
1
Clevis Pin SPQ 70389201 Contact Us For Availability
1
Steam Control Assembly SPQ 70501801 Contact Us For Availability
2
Lint Drawer Gasket SPQ 70117901P Contact Us For Availability
2
Key SPQ 70155601 Contact Us For Availability
2
Coin Drop Kit SPQ CK077 Contact Us For Availability
2
Wireless Network Control Assembly SPQ 807211 Contact Us For Availability
2
Front Panel Seal SPQ 70618601 Contact Us For Availability
2
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
2
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
2
SPQ 70136401 SPQ 70136401 Contact Us For Availability
2
Screw SPQ 70070101 Contact Us For Availability
2
Slip Ring Holder SPQ 70455401 Contact Us For Availability
2
Air Duct SPQ 70339601 Contact Us For Availability
2
Duct Cover SPQ 70207501 Contact Us For Availability
2
Switch SPQ 70411901 Contact Us For Availability
2
Hairpin Cotter SPQ 70389301 Contact Us For Availability
2
Terminal Block Shield SPQ 70335601 Contact Us For Availability
3
Nut SPQ 44087101 Contact Us For Availability
3
Coin Drop Assembly SPQ 70447301 Contact Us For Availability
3
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
3
Door Hinge SPQ 70115901W Contact Us For Availability
3
Emergency Stop Label SPQ 44012901 Contact Us For Availability
3
Lint Screen Bracket SPQ 70026901 Contact Us For Availability
3
Cylinder Guide Tool SPQ 70070102 Contact Us For Availability
3
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
3
Airflow Switch Arm SPQ 70319401 Contact Us For Availability
3
Steam Filter Holder SPQ 70369301 Contact Us For Availability
4
Door Glass SPQ M400784P Contact Us For Availability
4
Rear Bearing Shim SPQ 70355001 Contact Us For Availability
4
Hinge Cam Kit SPQ 70115904 Contact Us For Availability
4
Coin Vault Trim SPQ 70182601 Contact Us For Availability
4
Door Latch SPQ M401223 Contact Us For Availability
4
Front Panel Baffle Seal SPQ 70120501 Contact Us For Availability
4
Lint Frame Gasket SPQ 70333101 Contact Us For Availability
4
Lint Screen Assembly SPQ 70596102 Contact Us For Availability
4
Rear Cylinder Channel SPQ 70433002 Contact Us For Availability
4
Gasket SPQ 23222 Contact Us For Availability
4
Steam Coil SPQ 70369101P Contact Us For Availability
5
Support Bearing SPQ 70448701 Contact Us For Availability
5
Pop Rivet SPQ 70506402 Contact Us For Availability
5
Door Glass Installation Tool SPQ M4221P4 Contact Us For Availability
5
Pushbutton Switch SPQ 70033502 Contact Us For Availability
5
Lower Front Panel SPQ 70619902W Contact Us For Availability
5
Pop Rivet SPQ 44166601 Contact Us For Availability
5
Blind Rivet SPQ F8245101 Contact Us For Availability
5
Contact Switch SPQ F8069501 Contact Us For Availability
5
Lint Drawer Handle Plate SPQ 70323201 Contact Us For Availability
5
Trunnion and Seal Kit SPQ 70391101 Contact Us For Availability
5
Clip SPQ 70226701 Contact Us For Availability
5
SPQ 70501301 SPQ 70501301 Contact Us For Availability
5
Switch Bracket SPQ 70356301 Contact Us For Availability
5
Filter SPQ 70429401 Contact Us For Availability
5
Snap Bushing SPQ M411283 Contact Us For Availability
6
Cylinder Bearing Stud Plate Asse SPQ 70013701P Contact Us For Availability
6
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
6
Nut SPQ M414215 Contact Us For Availability
6
Pin SPQ 70576101 Contact Us For Availability
6
SPQ 70116901 SPQ 70116901 Contact Us For Availability
6
Contact Base SPQ F8538101 Contact Us For Availability
6
Lint Drawer Front Kit SPQ 70322901P Contact Us For Availability
6
Magnet SPQ 70343101 Contact Us For Availability
6
Exhaust Duct Gaskets Assembly SPQ 70340201 Contact Us For Availability
6
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
6
Air Filter SPQ 70036001 Contact Us For Availability
7
Washer SPQ M400991 Contact Us For Availability
7
Door Handle SPQ 44007902P Contact Us For Availability
7
SPQ M400044 SPQ M400044 Contact Us For Availability
7
Control Bezel SPQ 70642001 Contact Us For Availability
7
Emergency Stop Harness SPQ 44272402 Contact Us For Availability
7
Lint Drawer Handle SPQ 70322902P Contact Us For Availability
7
SPQ 70066003 SPQ 70066003 Contact Us For Availability
7
SPQ 70508301 SPQ 70508301 Contact Us For Availability
7
Gasket SPQ 70340401 Contact Us For Availability
7
SPQ 70126101 SPQ 70126101 Contact Us For Availability
7
Airflow Switch Vane SPQ 70319201 Contact Us For Availability
7
Coil SPQ F8514701 Contact Us For Availability
7
Conversion Kit SPQ 70333001 Contact Us For Availability
8
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
8
SPQ M411072 SPQ M411072 Contact Us For Availability
8
Tumbler Dolly Kit SPQ 70117502 Contact Us For Availability
8
Lint Panel and Studs Assembly SPQ 70320802 Contact Us For Availability
8
Nut SPQ 70257101 Contact Us For Availability
8
Cylinder Bearing Stud Plate Asse SPQ 70231803W Contact Us For Availability
8
Valve SPQ F8514601P Contact Us For Availability
9
SPQ M400661 SPQ M400661 Contact Us For Availability
9
SPQ 70071401 SPQ 70071401 Contact Us For Availability
9
Screw SPQ 44088801 Contact Us For Availability
9
Lock Shim SPQ 70320801 Contact Us For Availability
9
Washer SPQ 70257102 Contact Us For Availability
9
SPQ 70339501 SPQ 70339501 Contact Us For Availability
9
SPQ F430144 SPQ F430144 Contact Us For Availability
9
Power Harness SPQ M413862 Contact Us For Availability
10
Terminal Block SPQ 430642 Contact Us For Availability
10
Door Hinge Lug Assembly SPQ 44035001 Contact Us For Availability
10
Screw SPQ 70442101 Contact Us For Availability
10
Pop Rivet SPQ 44251101 Contact Us For Availability
10
Panel Lock SPQ 44390902 Contact Us For Availability
10
Cylinder and Trunnion Assembly SPQ 70372501P Contact Us For Availability
10
Clip SPQ M400984 Contact Us For Availability
10
Lever Arm and Belt Kit SPQ 70655102 Contact Us For Availability
10
Screw SPQ 70478701P Contact Us For Availability
11
Key SPQ 70155602 Contact Us For Availability
11
Screw SPQ 70436301 Contact Us For Availability
11
Screw SPQ 44349101 Contact Us For Availability
11
Control Housing SPQ 70119901 Contact Us For Availability
11
Pushbutton Switch SPQ 70413301 Contact Us For Availability
11
End Cap SPQ 70443901P Contact Us For Availability
11
Screw SPQ 51783 Contact Us For Availability
12
Shadow Box Clip SPQ 70275801 Contact Us For Availability
12
Cylinder Rib Assembly SPQ 70443902 Contact Us For Availability
12
Channel Base Assembly SPQ 70288201 Contact Us For Availability
12
Drive Motor SPQ 70485001P Contact Us For Availability
12
Blower Inlet Cone SPQ 70340801 Contact Us For Availability
13
Motor Pulley SPQ 70478601P Contact Us For Availability
13
Rear Stabilizer Bracket SPQ 70014101 Contact Us For Availability
13
End Stop SPQ F8449801 Contact Us For Availability
14
Double Ended Stud SPQ 70559101 Contact Us For Availability
15
Contactor SPQ F8206901 Contact Us For Availability
15
Roller and Seal Kit SPQ 70616701 Contact Us For Availability
15
Nut SPQ 70200301 Contact Us For Availability
16
Roller Seal SPQ 70443601 Contact Us For Availability
16
Screw SPQ 44333202 Contact Us For Availability
17
Blower Assembly SPQ M400022 Contact Us For Availability
17
Roller Shaft SPQ 70249501 Contact Us For Availability
17
Idler Wheel Assembly SPQ 70334701 Contact Us For Availability
18
Washer SPQ 70261401 Contact Us For Availability
18
Sheet Metal Edge Gasket SPQ 70339001 Contact Us For Availability
19
Sheet Metal Edge Gasket SPQ 70288801 Contact Us For Availability
19
Lever Arm and Bushing Assembly SPQ 70126104 Contact Us For Availability
19
Washer SPQ 70341001 Contact Us For Availability
19
Ground Lug Connector SPQ 70482601 Contact Us For Availability
21
Cylinder Shroud SPQ 70500101 Contact Us For Availability
22
SPQ 70050401P SPQ 70050401P Contact Us For Availability
23
Cylinder Shroud SPQ 70015711 Contact Us For Availability
23
SPQ 70653801 SPQ 70653801 Contact Us For Availability
24
Rear Cylinder Seal Support SPQ 70015712 Contact Us For Availability
27
Rear Cylinder Seal SPQ 70030401 Contact Us For Availability
28
Center Cylinder Seal SPQ 70339301 Contact Us For Availability
29
Spray Paint SPQ 70339302 Contact Us For Availability
NI
SPQ 70173401P SPQ 70173401P Contact Us For Availability
NI
SPQ 70144101 SPQ 70144101 Contact Us For Availability
NI
SPQ 70564803 SPQ 70564803 Contact Us For Availability
NI
Coin Drop SPQ 70294107 Contact Us For Availability
NI
Opto Coupler SPQ 70281102 Contact Us For Availability
NI
SPQ 38475 SPQ 38475 Contact Us For Availability
NI
SPQ 38464P SPQ 38464P Contact Us For Availability
NI
SPQ 210195 SPQ 210195 Contact Us For Availability
NI
SPQ 70513316 SPQ 70513316 Contact Us For Availability
NI
SPQ 70513314 SPQ 70513314 Contact Us For Availability
NI
SPQ 70513312 SPQ 70513312 Contact Us For Availability
NI
SPQ 70513309 SPQ 70513309 Contact Us For Availability
NI
SPQ 70513306 SPQ 70513306 Contact Us For Availability
NI
SPQ 70513303 SPQ 70513303 Contact Us For Availability
NI
SPQ 70482401 SPQ 70482401 Contact Us For Availability
NI
SPQ 70513311 SPQ 70513311 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK109 Contact Us For Availability
NI
SPQ CK101 SPQ CK101 Contact Us For Availability
NI
SPQ CK099 SPQ CK099 Contact Us For Availability
NI
SPQ CK121 SPQ CK121 Contact Us For Availability
NI
SPQ CK119 SPQ CK119 Contact Us For Availability
NI
SPQ CK116 SPQ CK116 Contact Us For Availability
NI
Central Pay Harness SPQ F8674007 Contact Us For Availability
NI
Transformer Harness SPQ 70609801 Contact Us For Availability
NI
Wireless Control Label SPQ 44272306 Contact Us For Availability
NI
USB Gateway Kit SPQ 44272304 Contact Us For Availability
NI
SPQ 204692 SPQ 204692 Contact Us For Availability
NI
SPQ NK330 SPQ NK330 Contact Us For Availability
NI
SPQ 70212301 SPQ 70212301 Contact Us For Availability
NI
Lower Front Panel SPQ 70619701W Contact Us For Availability
NI
SPQ 70619001 SPQ 70619001 Contact Us For Availability
NI
SPQ 70618801 SPQ 70618801 Contact Us For Availability
NI
SPQ 70289101P SPQ 70289101P Contact Us For Availability
NI
SPQ 431264 SPQ 431264 Contact Us For Availability
NI
SPQ 70017301 SPQ 70017301 Contact Us For Availability
NI
SPQ 70117605 SPQ 70117605 Contact Us For Availability
NI
Kickplate SPQ 70126301 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
Emergency Stop Bypass Harness SPQ 44272401 Contact Us For Availability
NI
SPQ F8519403 SPQ F8519403 Contact Us For Availability
NI
SPQ 70322906 SPQ 70322906 Contact Us For Availability
NI
SPQ 70322903 SPQ 70322903 Contact Us For Availability
NI
SPQ 70342402 SPQ 70342402 Contact Us For Availability
NI
SPQ 70342401 SPQ 70342401 Contact Us For Availability
NI
SPQ 70598101 SPQ 70598101 Contact Us For Availability
NI
Drywall Screw Magnet Kit SPQ 70564804 Contact Us For Availability
NI
SPQ 70411301 SPQ 70411301 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
SPQ 70247701 SPQ 70247701 Contact Us For Availability
NI
SPQ 381P4 SPQ 381P4 Contact Us For Availability
NI
SPQ 70392701P SPQ 70392701P Contact Us For Availability
NI
Airflow Switch Kit SPQ 70429601P Contact Us For Availability
NI
SPQ 70500601 SPQ 70500601 Contact Us For Availability
NI
Steam Valve SPQ F8322906P Contact Us For Availability
NI
Pop Rivet SPQ F8322904P Contact Us For Availability
NI
DIN Valve Adapter Kit SPQ F8520703 Contact Us For Availability
NI
Strain Relief SPQ 70529601 Contact Us For Availability
NI
SPQ 44304801 SPQ 44304801 Contact Us For Availability
NI
SPQ 44071501 SPQ 44071501 Contact Us For Availability
NI
SPQ 70559304 SPQ 70559304 Contact Us For Availability
× ![]()
