Model Whirlpool SHF7884P0 PORTABLE DISHWASHER – Common Parts & Diagrams
03 - DOOR
07 - WIRING HARNESS

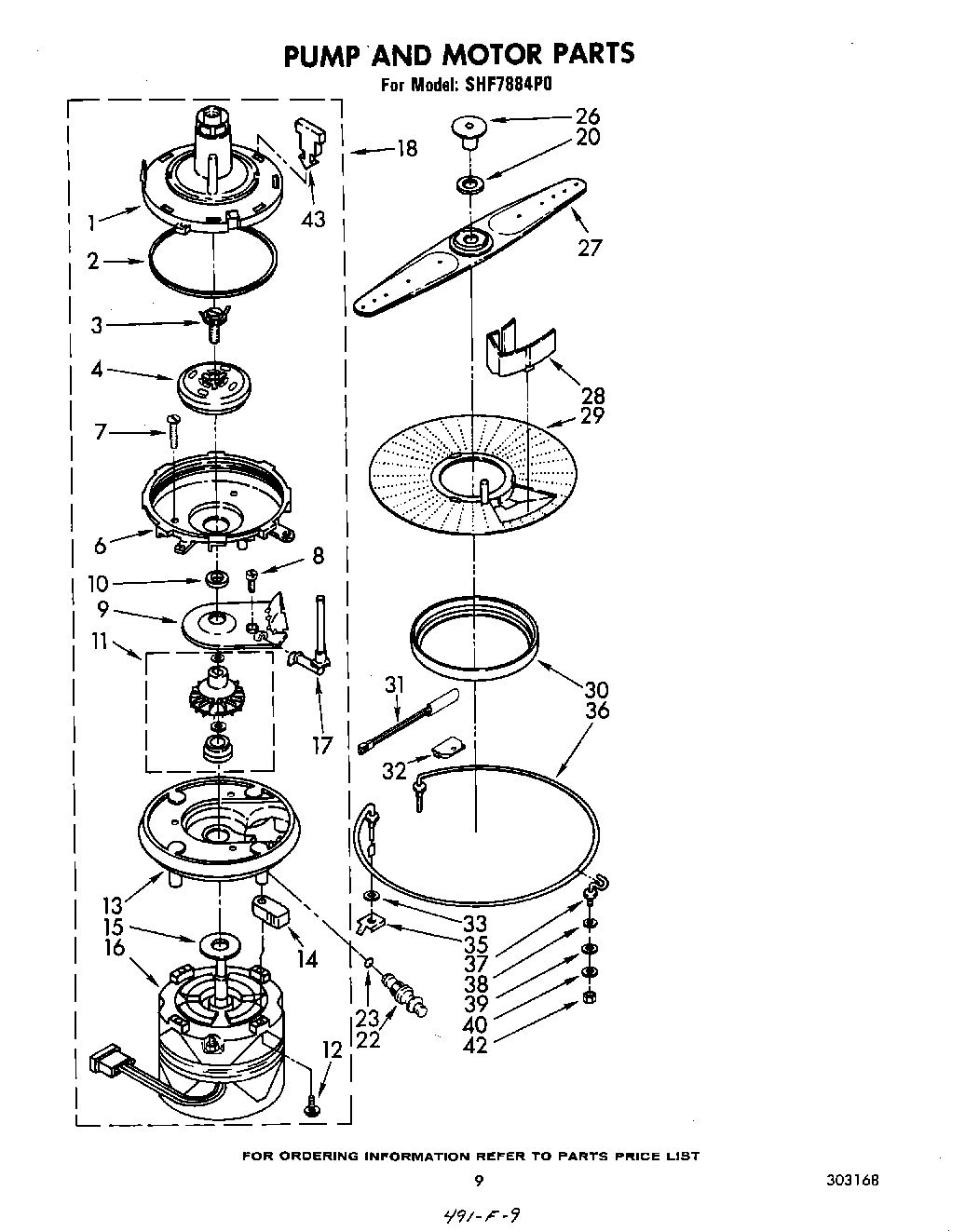

06 - PUMP AND MOTOR

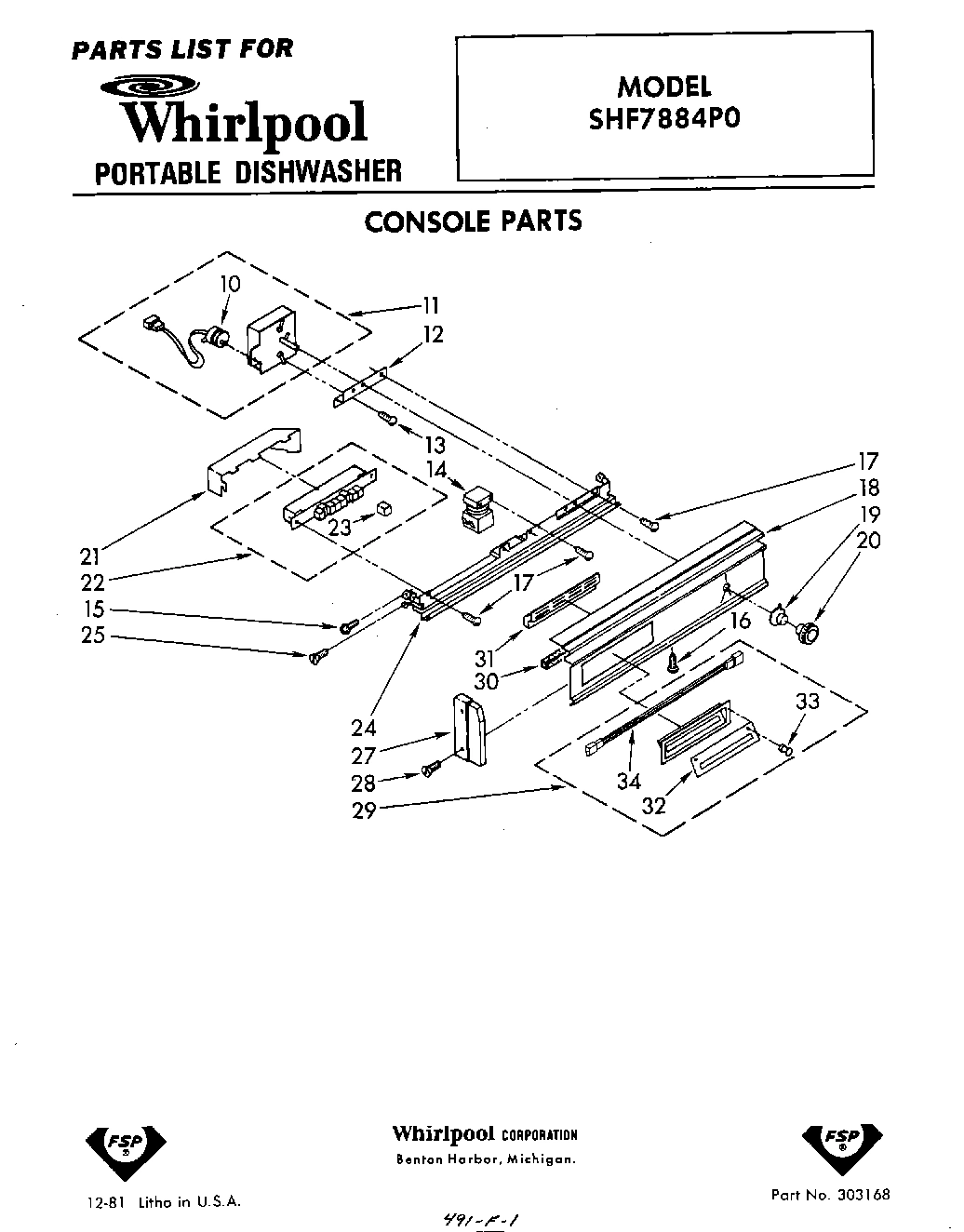

01 - CONSOLE

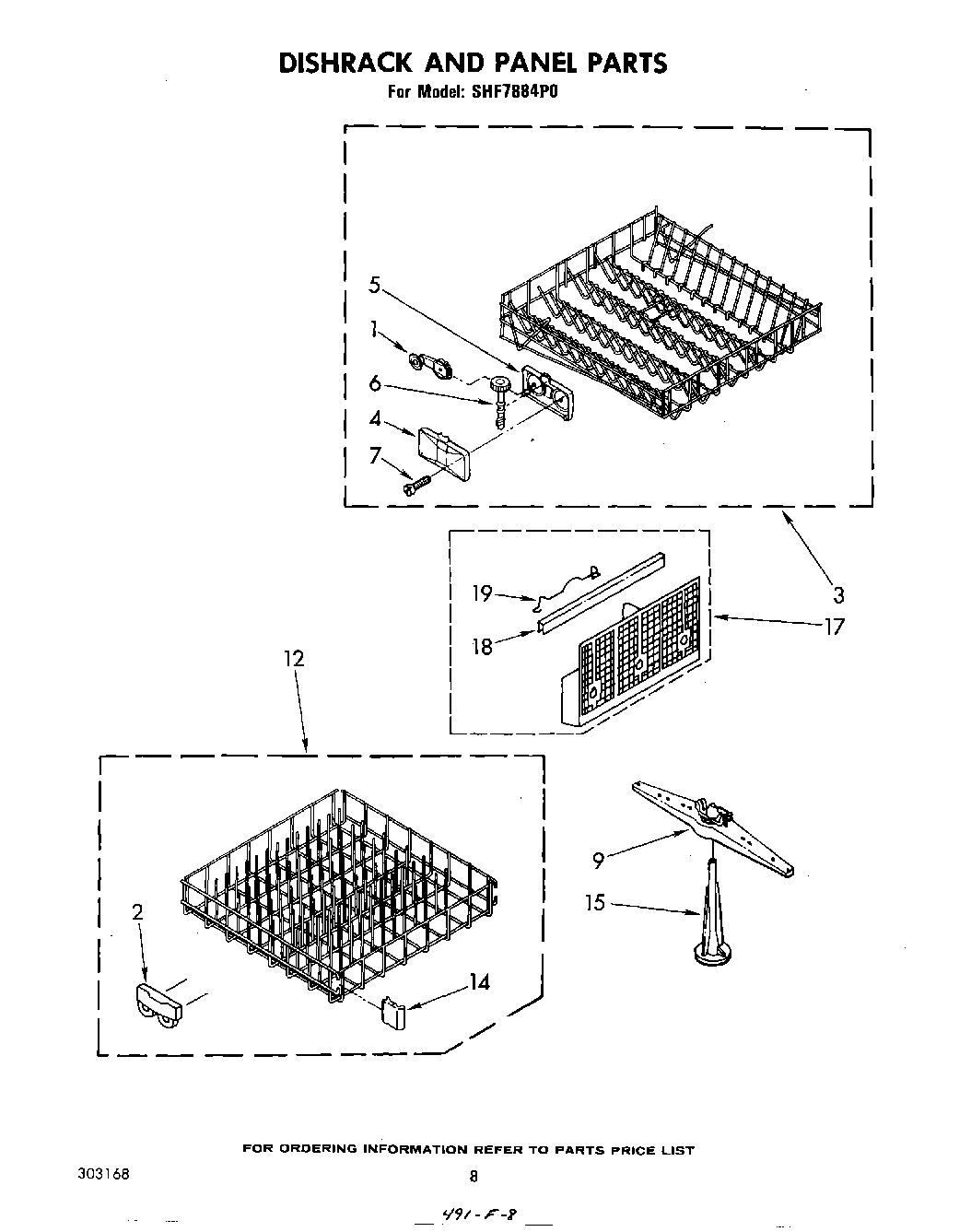

05 - DISHRACK AND PANEL

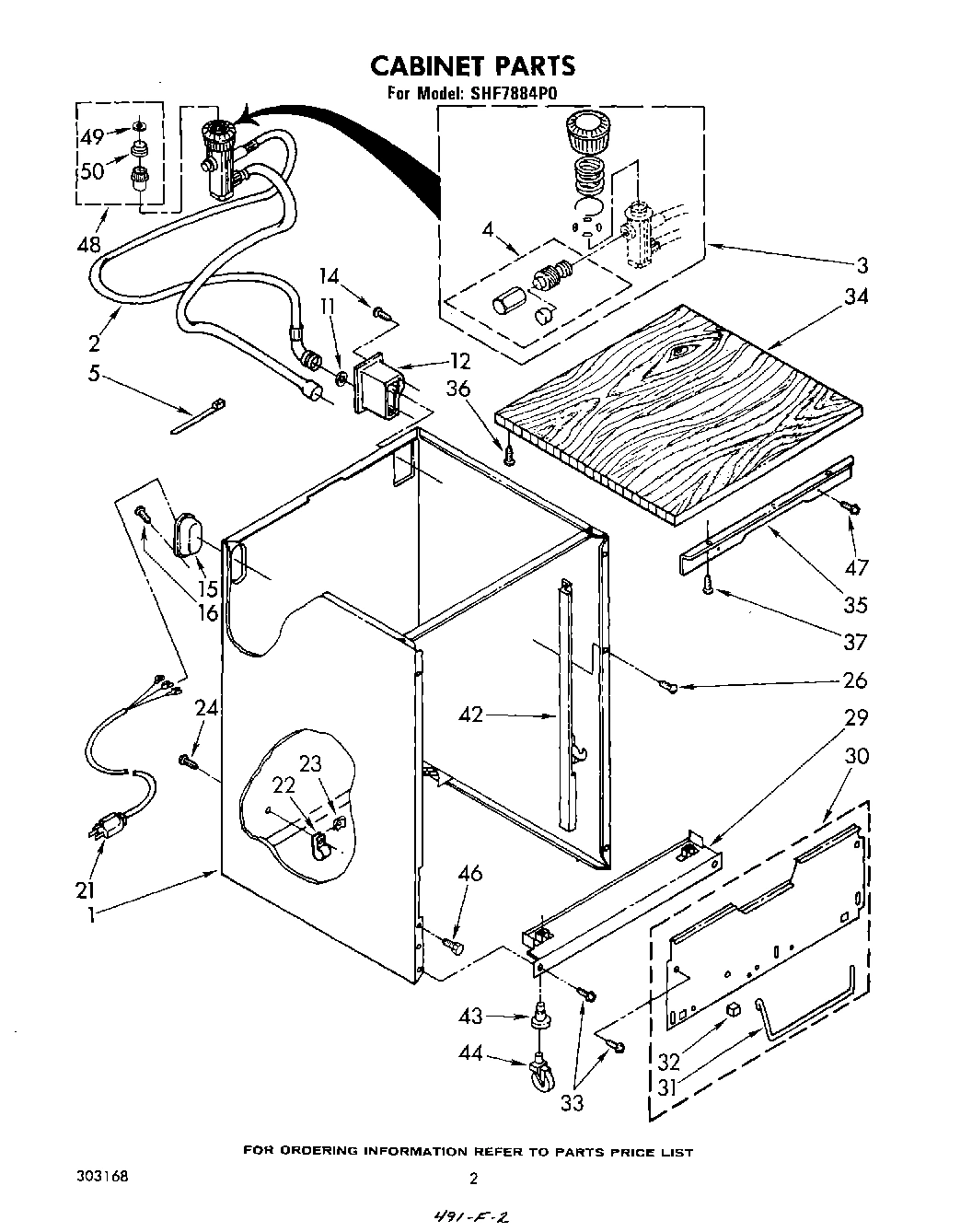

02 - CABINET

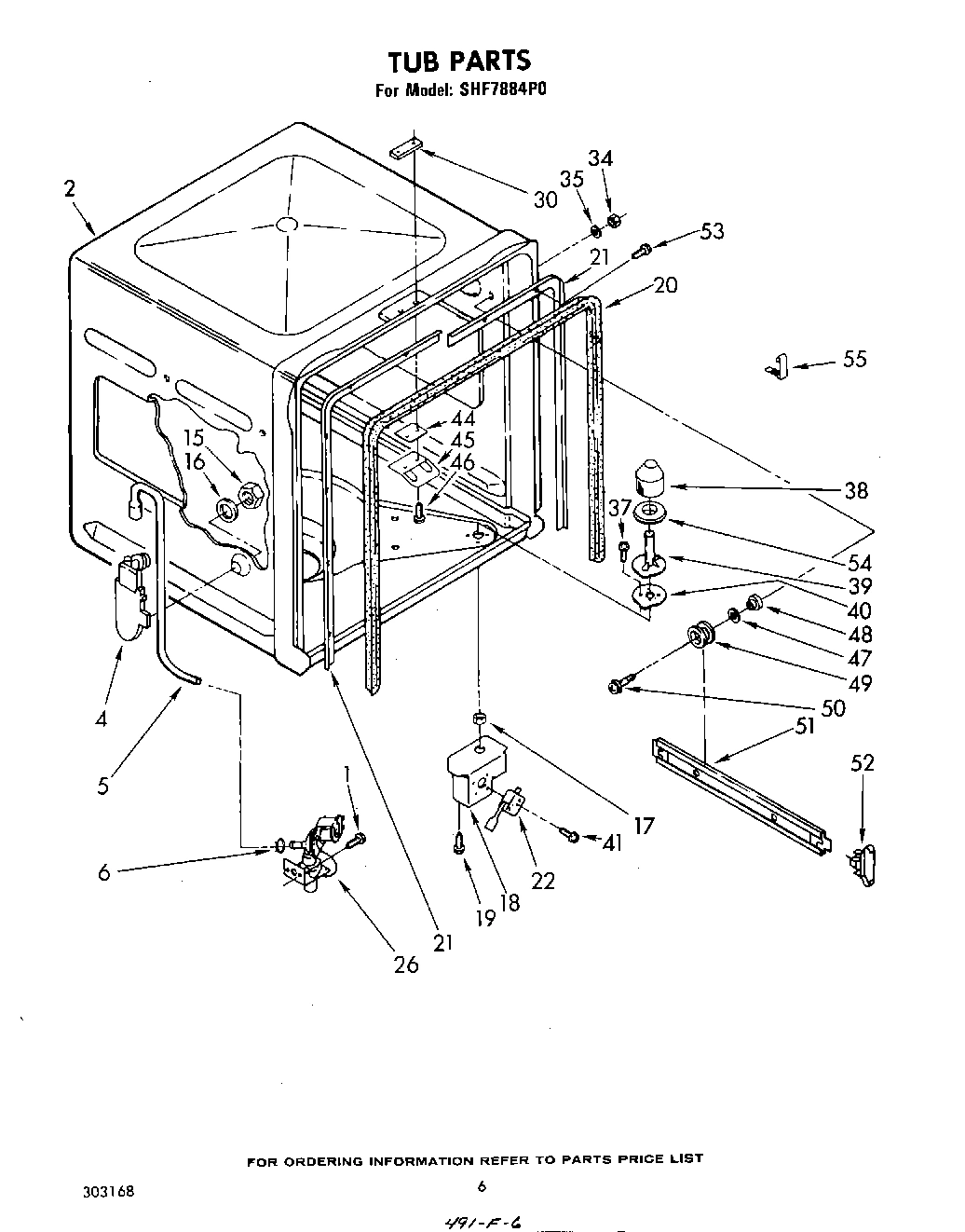

04 - TUB , LITERATURE AND OPTIONAL
Common parts from model Whirlpool SHF7884P0 PORTABLE DISHWASHER
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261887 WPL 261887 Contact Us For Availability
WPL 261889 WPL 261889 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 978833 WPL 978833 Contact Us For Availability
1
Pump Housing, Upper WPL 301558 Contact Us For Availability
1
Wheel & Gear Assembly (4) WPL 302025 Contact Us For Availability
1
Shell Assembly (Almond) WPL 302898 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
Coupler Assembly WPL 302902 Contact Us For Availability
2
Tub Assembly WPL 303110 Contact Us For Availability
3
Screw, 10-32 x .75 WPL 718326 Contact Us For Availability
4
Receptacle, Terminal (2-Way) WPL 717252 Contact Us For Availability
4
Impeller WPL 719949 Contact Us For Availability
4
Cover, Housing (2) WPL 302029 Contact Us For Availability
4
Valve, Pressure Relief WPL 285171 Contact Us For Availability
4
Inlet, Water WPL 300974 Contact Us For Availability
5
Housing, Gear (2) WPL 302028 Contact Us For Availability
5
Hose, Inlet WPL 301053 Contact Us For Availability
6
Receptacle, Terminal (3-Way) WPL 353425 Contact Us For Availability
6
Pump Housing, Lower WPL 718222 Contact Us For Availability
6
Worm, Dishrack (2) WPL 302026 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
9
Coverplate WPL 300084 Contact Us For Availability
10
Harness, Wiring WPL 303159 Contact Us For Availability
10
Spacer WPL 301619 Contact Us For Availability
10
Motor, Timer WPL 301062 Contact Us For Availability
11
Receptacle Terminal (2-Way) Red WPL 717251 Contact Us For Availability
11
Kit, Impeller Drain WPL 675297 Contact Us For Availability
11
Timer, Disconnect WPL 302844 Contact Us For Availability
12
Screw, 13-16 (4) WPL 301817 Contact Us For Availability
12
Bracket, Timer WPL 301875 Contact Us For Availability
12
Housing, Hose WPL 302891 Contact Us For Availability
13
Base, Pump WPL 301812 Contact Us For Availability
14
Support, Pump (4) WPL 718260 Contact Us For Availability
14
Relay, Start (Alternate) WPL 300516 Contact Us For Availability
14
Relay, Start (Alternate) WPL 301536 Contact Us For Availability
14
Relay, Start (Alternate) WPL 301620 Contact Us For Availability
14
Bumper (2) WPL 719964 Contact Us For Availability
15
Tower WPL 302030 Contact Us For Availability
15
Housing, Cord WPL 716234 Contact Us For Availability
15
Nut, 7/18-16 WPL 713799 Contact Us For Availability
16
Motor (Emerson) WPL 301811 Contact Us For Availability
16
Motor (General Electric) WPL 301858 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
17
Nut, .125 WPL 717488 Contact Us For Availability
17
Bleeder Assembly WPL 718629 Contact Us For Availability
17
Silverware Basket Assembly WPL 301994 Contact Us For Availability
18
Pump & Motor Assembly (Alternate) WPL 301829 Contact Us For Availability
18
Pump & Motor Assembly (Alternate) WPL 301860 Contact Us For Availability
18
Pump & Motor Assembly (Alternate) WPL 301861 Contact Us For Availability
18
Panel, Escutcheon WPL 303064 Contact Us For Availability
18
Trim, Basket WPL 717528 Contact Us For Availability
18
Bracket, Overflow Switch WPL 719342 Contact Us For Availability
19
Dial, Indicator WPL 302067 Contact Us For Availability
19
Handle, Basket WPL 300086 Contact Us For Availability
19
Screw, 8 x 1/2 (3) WPL 718250 Contact Us For Availability
20
Bearing, Nozzle WPL 719576 Contact Us For Availability
20
Knob, Timer WPL 302180 Contact Us For Availability
20
Gasket (Alternate) WPL 302090 Contact Us For Availability
20
Gasket (Alternate) WPL 302091 Contact Us For Availability
21
Barrier, Pushbutton Switch WPL 300242 Contact Us For Availability
21
Cord, Power WPL 302325 Contact Us For Availability
21
Retainer (R.H.) WPL 302093 Contact Us For Availability
21
Retainer (L.H.) WPL 302094 Contact Us For Availability
22
Adaptor Hose WPL 719930 Contact Us For Availability
22
Switch, Pushbutton WPL 303021 Contact Us For Availability
22
Clamp, Strain Relief WPL 596553 Contact Us For Availability
22
Switch, Pressure WPL 301671 Contact Us For Availability
22
Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
23
Button (7) WPL 301978 Contact Us For Availability
23
Nut, J-Type WPL 717337 Contact Us For Availability
24
Bracket, Control WPL 300750 Contact Us For Availability
26
Cap, Nozzle WPL 302816 Contact Us For Availability
26
Valve, Water Inlet WPL 719495 Contact Us For Availability
27
Arm, Lower Spray WPL 302767 Contact Us For Availability
27
End Cap, R.H. WPL 303005 Contact Us For Availability
27
Cap, End (L.H.) WPL 303006 Contact Us For Availability
28
Guard, Screen WPL 303069 Contact Us For Availability
29
Screen, Sump WPL 303070 Contact Us For Availability
29
Bezel Assembly WPL 303034 Contact Us For Availability
29
Toeplate Assembly (Includes Illus. 43) WPL 719513 Contact Us For Availability
30
Gasket, Pump WPL 717000 Contact Us For Availability
30
Baffle WPL 719860 Contact Us For Availability
30
Plate, Cover WPL 719091 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
31
Thermostat WPL 303071 Contact Us For Availability
31
Grille, Vent WPL 301878 Contact Us For Availability
31
Bar, Torsion (R.H.) WPL 719093 Contact Us For Availability
31
Bar, Torsion (L.H.) WPL 719094 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
32
Bracket, Thermostat WPL 303072 Contact Us For Availability
32
Escutcheon, Pushbutton WPL 302842 Contact Us For Availability
32
Bumper, Rubber WPL 719235 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
33
Lens, Red WPL 302840 Contact Us For Availability
34
Light Assembly WPL 302857 Contact Us For Availability
34
Panel, Top WPL 302182 Contact Us For Availability
34
Locknut (8) WPL 718829 Contact Us For Availability
35
Nut, Terminal 7/16-20 (2) WPL 718537 Contact Us For Availability
35
Trim, Front WPL 302250 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
36
Heater (Alternate) WPL 302113 Contact Us For Availability
36
Heater (Alternate) WPL 302562 Contact Us For Availability
36
Heater (Alternate) WPL 717141 Contact Us For Availability
36
Heater (Alternate) WPL 719687 Contact Us For Availability
36
Screw (2) WPL 343826 Contact Us For Availability
37
Support, Heater (2) WPL 717096 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Washer, Retainer (2) WPL 717289 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Washer (2) WPL 14351 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Washer (2) WPL 711284 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
41
Screw, 4-40 x 3/4 WPL 98086 Contact Us For Availability
42
Nut (2) WPL 120614 Contact Us For Availability
42
Leg Assembly, L.H. WPL 719621 Contact Us For Availability
42
Leg Assembly, R.H. WPL 719622 Contact Us For Availability
43
Socket, Caster (Alternate) WPL 300450 Contact Us For Availability
43
Key, Pump Housing WPL 301936 Contact Us For Availability
43
Socket, Caster (Alternate) WPL 717588 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
47
Screw, 8-18 x 5/8 (2) WPL 303090 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
Panel, Front WPL ARI130396A Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
49
Trim, Door (R.H.) WPL 302593 Contact Us For Availability
49
Trim, Door (L.H.) WPL 302594 Contact Us For Availability
49
Washer WPL 713747 Contact Us For Availability
49
Wheel Tub (8) WPL 300844 Contact Us For Availability
50
Bushing WPL 713748 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
53
Screw, 8-18 x 5/8 (10) WPL 719266 Contact Us For Availability
54
Gasket, Standpipe (2) WPL 301662 Contact Us For Availability
55
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
55
Coffee WPL 261886 Contact Us For Availability
55
New Avocado WPL 261888 Contact Us For Availability
55
Golden Harvest WPL 261890 Contact Us For Availability
55
Clip, Gasket (2) WPL 301663 Contact Us For Availability
55
Guide, Use & Care WPL 302964 Contact Us For Availability
55
Instructions, Installation WPL 303027 Contact Us For Availability
55
List, Repair Parts WPL 303168 Contact Us For Availability
55
Tag, Energy Fact WPL 303204 Contact Us For Availability
55
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
55
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
55
Kit, WPL 799640 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
62
Panel, Access WPL ARI130397A Contact Us For Availability
63
Cap, End (R.H.) WPL 302590 Contact Us For Availability
63
Cap, End (L.H.) WPL 302591 Contact Us For Availability
64
Foot (2) WPL 719581 Contact Us For Availability
66
Overlay Access Panel WPL 302595 Contact Us For Availability
67
Cap, Drip WPL 718576 Contact Us For Availability
77
Washer (2) WPL 300237 Contact Us For Availability
85
Acutator Assembly WPL 718646 Contact Us For Availability
86
Plate WPL 718596 Contact Us For Availability
87
Diaphragm, Pin Assembly WPL 718595 Contact Us For Availability
88
Spring, Conical WPL 718592 Contact Us For Availability
89
Lever, Relea WPL 300230 Contact Us For Availability
90
WPL 301957 WPL 301957 Contact Us For Availability
91
WPL 301582 WPL 301582 Contact Us For Availability
93
WPL 715779 WPL 715779 Contact Us For Availability
94
WPL 301857 WPL 301857 Contact Us For Availability
95
WPL 303121 WPL 303121 Contact Us For Availability
× ![]()
