Model GE SH208W0WW – Common Parts & Diagrams

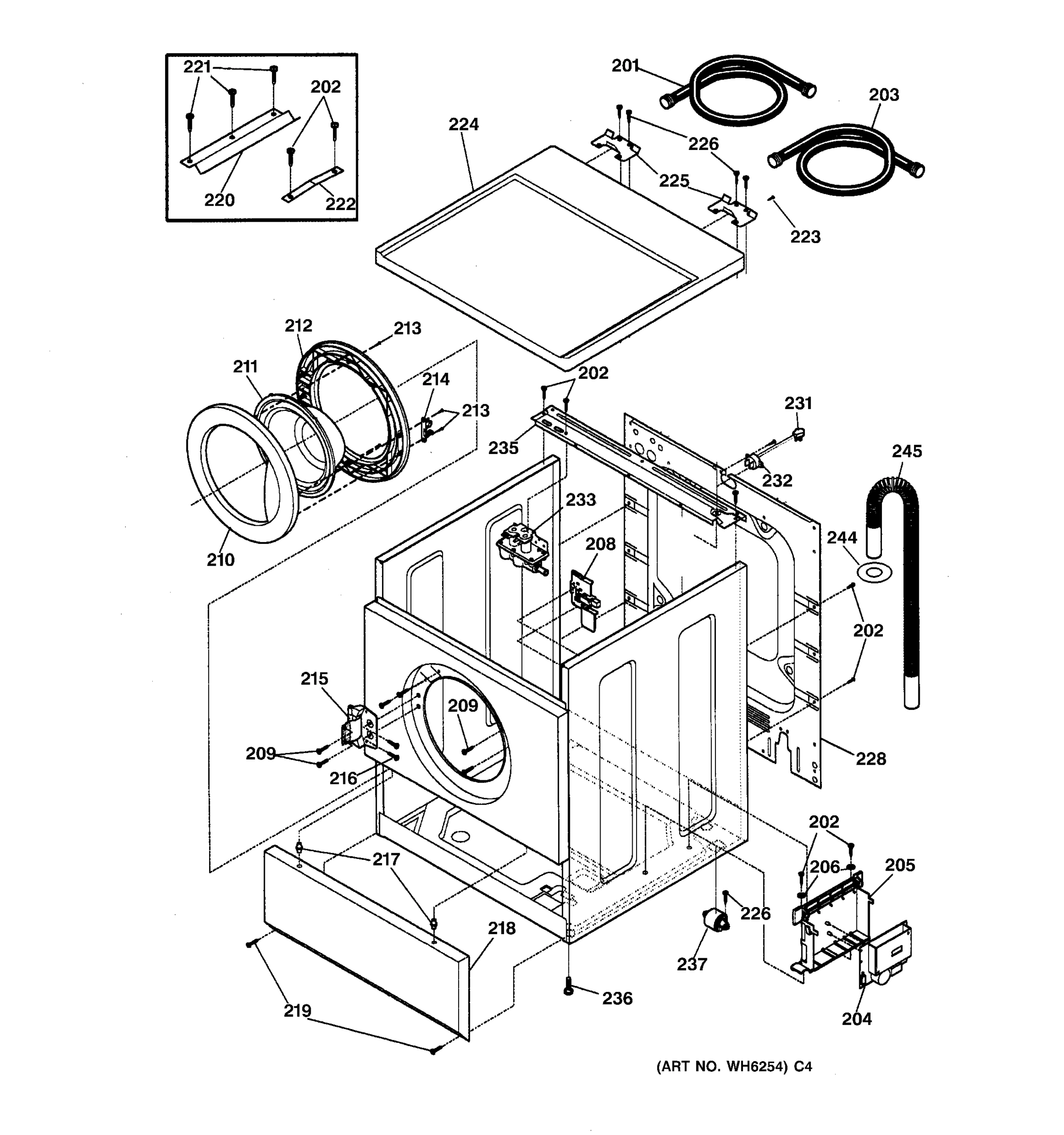

CABINET, DOOR & TOP

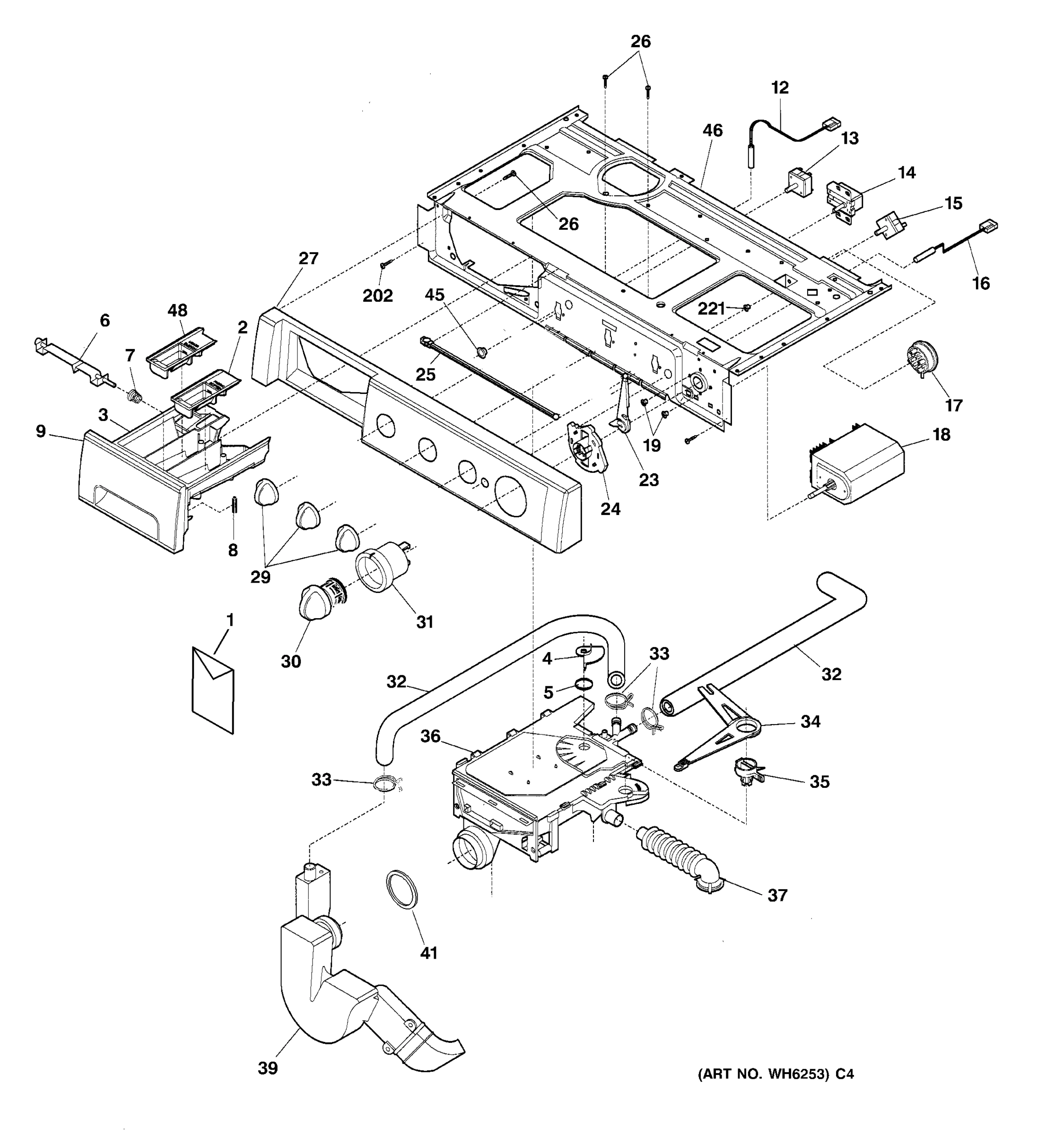

CONTROL PANEL

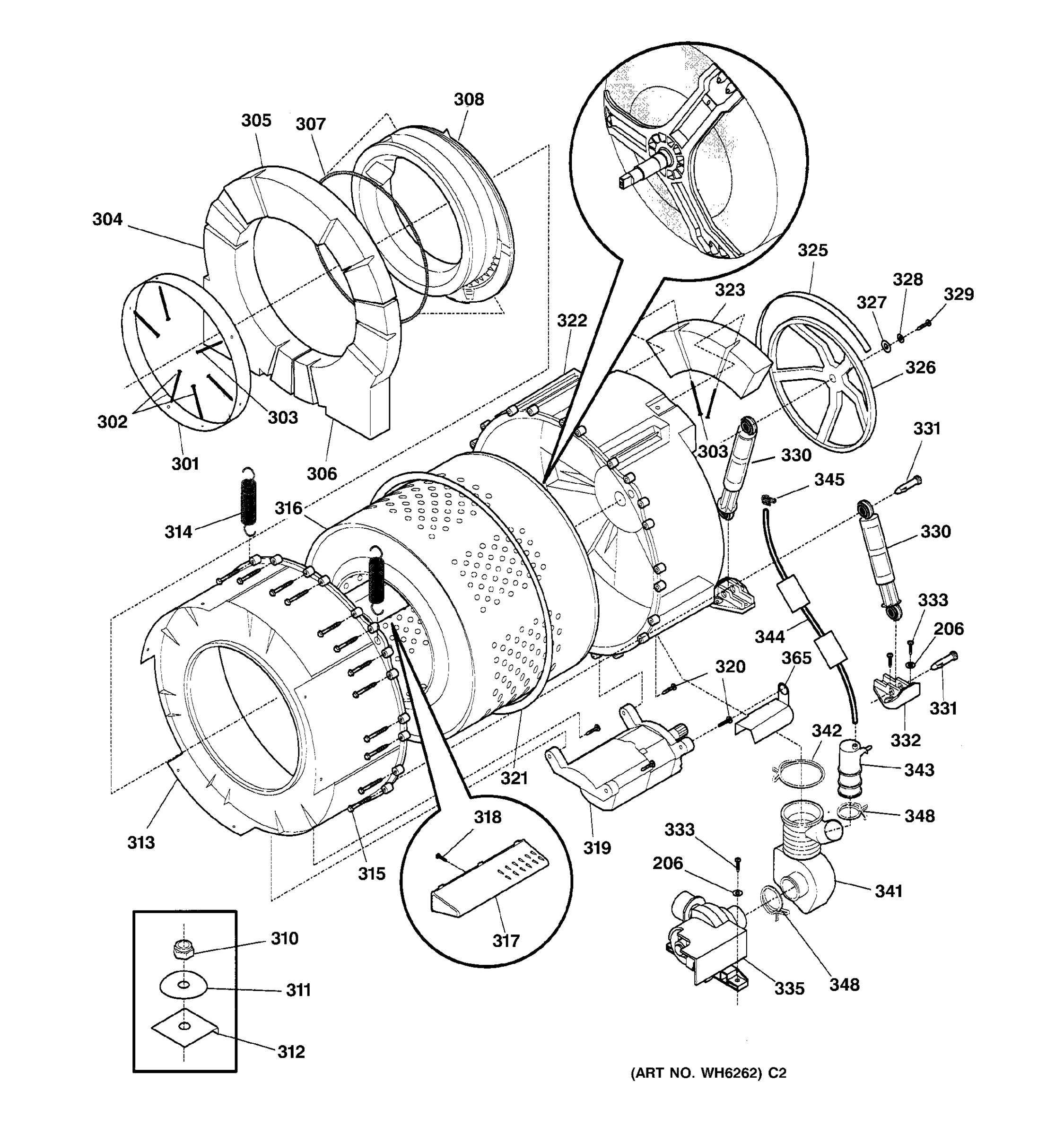

TUB & MOTOR
Common parts from model GE SH208W0WW
1
GEN 49-9942 GEN 49-9942 Contact Us For Availability
2
GEN WH41X10001 GEN WH41X10001 Contact Us For Availability
3
GEN WH41X10003 GEN WH41X10003 Contact Us For Availability
4
GEN WH01X10002 GEN WH01X10002 Contact Us For Availability
5
GEN WH01X10038 GEN WH01X10038 Contact Us For Availability
6
GEN WH01X10039 GEN WH01X10039 Contact Us For Availability
7
GEN WH01X10005 GEN WH01X10005 Contact Us For Availability
8
GEN WH01X10007 GEN WH01X10007 Contact Us For Availability
9
GEN WH41X10048 GEN WH41X10048 Contact Us For Availability
13
GEN WH12X10057 GEN WH12X10057 Contact Us For Availability
14
GEN WE04X10010 GEN WE04X10010 Contact Us For Availability
15
SWITCH EXTRA RINSE GEN WH12X10058 Contact Us For Availability
16
GEN WH12X10004 GEN WH12X10004 Contact Us For Availability
17
GEN WH12X10003 GEN WH12X10003 Contact Us For Availability
18
GEN WH12X10127 GEN WH12X10127 Contact Us For Availability
19
GEN WH02X10057 GEN WH02X10057 Contact Us For Availability
23
GEN WH11X10002 GEN WH11X10002 Contact Us For Availability
24
GEN WH11X10017 GEN WH11X10017 Contact Us For Availability
25
GEN WH16X10001 GEN WH16X10001 Contact Us For Availability
26
GEN WH02X10007 GEN WH02X10007 Contact Us For Availability
27
GEN WH42X10223 GEN WH42X10223 Contact Us For Availability
29
GEN WH01X10062 GEN WH01X10062 Contact Us For Availability
30
GEN WH01X10064 GEN WH01X10064 Contact Us For Availability
31
GEN WH11X10013 GEN WH11X10013 Contact Us For Availability
32
GEN WH41X10007 GEN WH41X10007 Contact Us For Availability
33
GEN WH01X10011 GEN WH01X10011 Contact Us For Availability
34
GEN WH01X10010 GEN WH01X10010 Contact Us For Availability
35
GEN WH43X10001 GEN WH43X10001 Contact Us For Availability
36
GEN WH41X10006 GEN WH41X10006 Contact Us For Availability
37
GEN WH41X10013 GEN WH41X10013 Contact Us For Availability
39
GEN WH41X10024 GEN WH41X10024 Contact Us For Availability
41
GEN WH41X10051 GEN WH41X10051 Contact Us For Availability
45
GEN WH01X10037 GEN WH01X10037 Contact Us For Availability
46
GEN WH46X10039 GEN WH46X10039 Contact Us For Availability
48
GEN WH41X10002 GEN WH41X10002 Contact Us For Availability
202
SCREW PANEL TO EVAP GEN WR02X9494 Contact Us For Availability
206
GEN WH02X10008 GEN WH02X10008 Contact Us For Availability
209
SCREW-LOCK 10-16X.50 GEN WH02X10009 Contact Us For Availability
210
GEN WH46X10002 GEN WH46X10002 Contact Us For Availability
212
GEN WH46X10004 GEN WH46X10004 Contact Us For Availability
213
GEN WH02X10010 GEN WH02X10010 Contact Us For Availability
215
GEN WH01X10092 GEN WH01X10092 Contact Us For Availability
220
GEN WH16X10003 GEN WH16X10003 Contact Us For Availability
221
SCREW PAN HD.8-18ABX.375 GEN WH01X10004 Contact Us For Availability
301
GEN WH45X10037 GEN WH45X10037 Contact Us For Availability
302
GEN WH02X10088 GEN WH02X10088 Contact Us For Availability
303
GEN WH02X10087 GEN WH02X10087 Contact Us For Availability
304
GEN WH01X10019 GEN WH01X10019 Contact Us For Availability
305
GEN WH01X10020 GEN WH01X10020 Contact Us For Availability
306
GEN WH01X10096 GEN WH01X10096 Contact Us For Availability
307
GEN WH08X10001 GEN WH08X10001 Contact Us For Availability
308
GEN WH45X10003 GEN WH45X10003 Contact Us For Availability
310
GEN WH02X10019 GEN WH02X10019 Contact Us For Availability
311
GEN WH02X10020 GEN WH02X10020 Contact Us For Availability
312
GEN WH16X10039 GEN WH16X10039 Contact Us For Availability
313
GEN WH45X10005 GEN WH45X10005 Contact Us For Availability
314
GEN WH01X10022 GEN WH01X10022 Contact Us For Availability
315
GEN WH02X10021 GEN WH02X10021 Contact Us For Availability
317
GEN WH16X10008 GEN WH16X10008 Contact Us For Availability
318
GEN WH02X10023 GEN WH02X10023 Contact Us For Availability
319
GEN WH02X10022 GEN WH02X10022 Contact Us For Availability
320
GEN WH02X10024 GEN WH02X10024 Contact Us For Availability
321
GEN WH08X10002 GEN WH08X10002 Contact Us For Availability
323
GEN WH01X10095 GEN WH01X10095 Contact Us For Availability
325
GEN WH08X10003 GEN WH08X10003 Contact Us For Availability
326
GEN WH07X10001 GEN WH07X10001 Contact Us For Availability
327
GEN WH02X10025 GEN WH02X10025 Contact Us For Availability
328
GEN WH02X10026 GEN WH02X10026 Contact Us For Availability
329
GEN WH02X10027 GEN WH02X10027 Contact Us For Availability
330
GEN WH17X10001 GEN WH17X10001 Contact Us For Availability
331
GEN WH01X10024 GEN WH01X10024 Contact Us For Availability
332
GEN WH16X10009 GEN WH16X10009 Contact Us For Availability
333
GEN WH02X10028 GEN WH02X10028 Contact Us For Availability
335
GEN WH23X10004 GEN WH23X10004 Contact Us For Availability
341
GEN WH41X10052 GEN WH41X10052 Contact Us For Availability
342
GEN WH02X10029 GEN WH02X10029 Contact Us For Availability
343
GEN WH41X10011 GEN WH41X10011 Contact Us For Availability
344
GEN WH41X10012 GEN WH41X10012 Contact Us For Availability
345
GEN WH02X10030 GEN WH02X10030 Contact Us For Availability
348
GEN WH02X10031 GEN WH02X10031 Contact Us For Availability
365
GEN WH41X10023 GEN WH41X10023 Contact Us For Availability
× ![]()
