Model Whirlpool SGS395XX0 SLIDE-IN GAS RANGE – Common Parts & Diagrams
05 - OVEN ELECTRICAL, LIT/OPTIONAL
07 - CONTROL PANEL

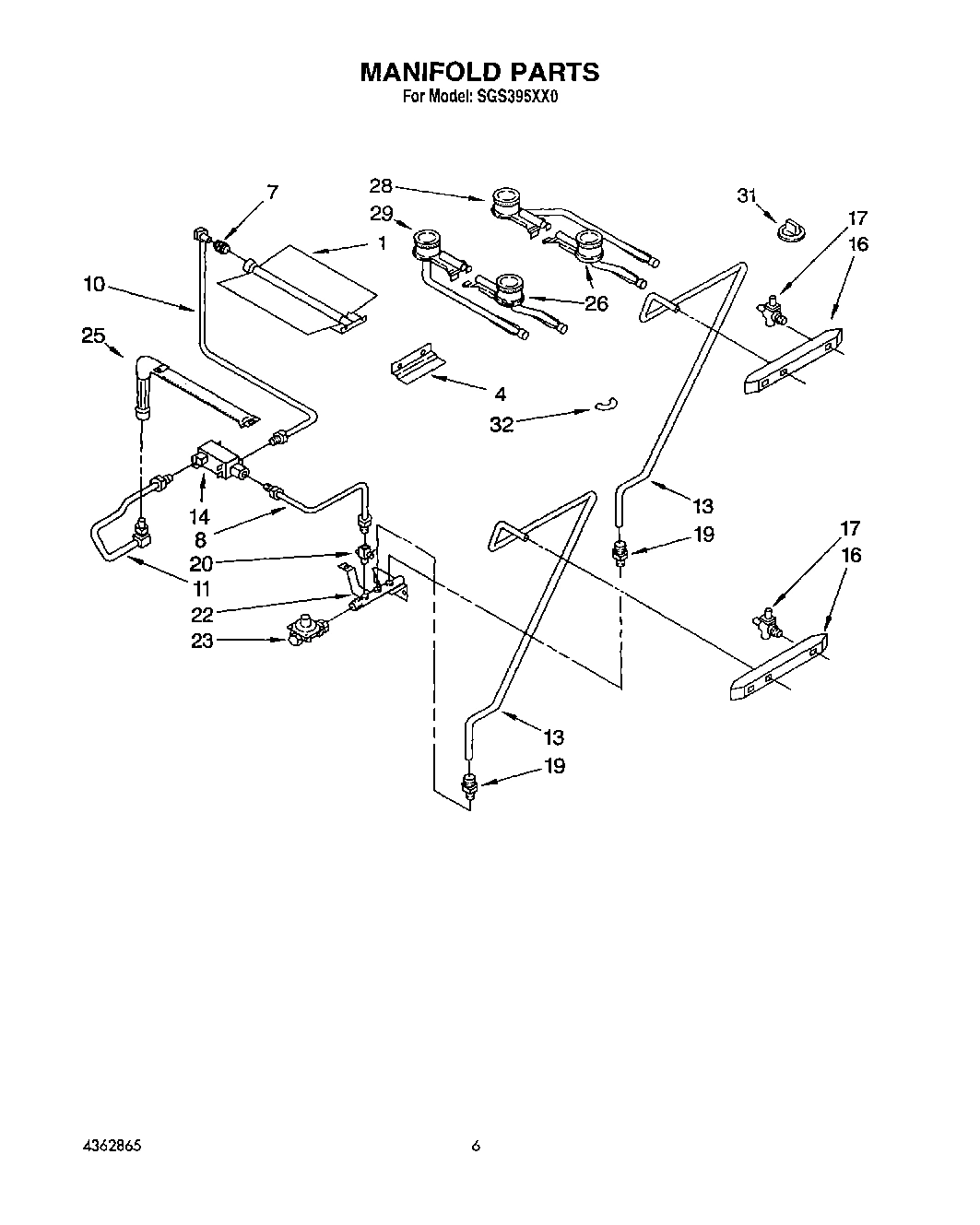

04 - MANIFOLD

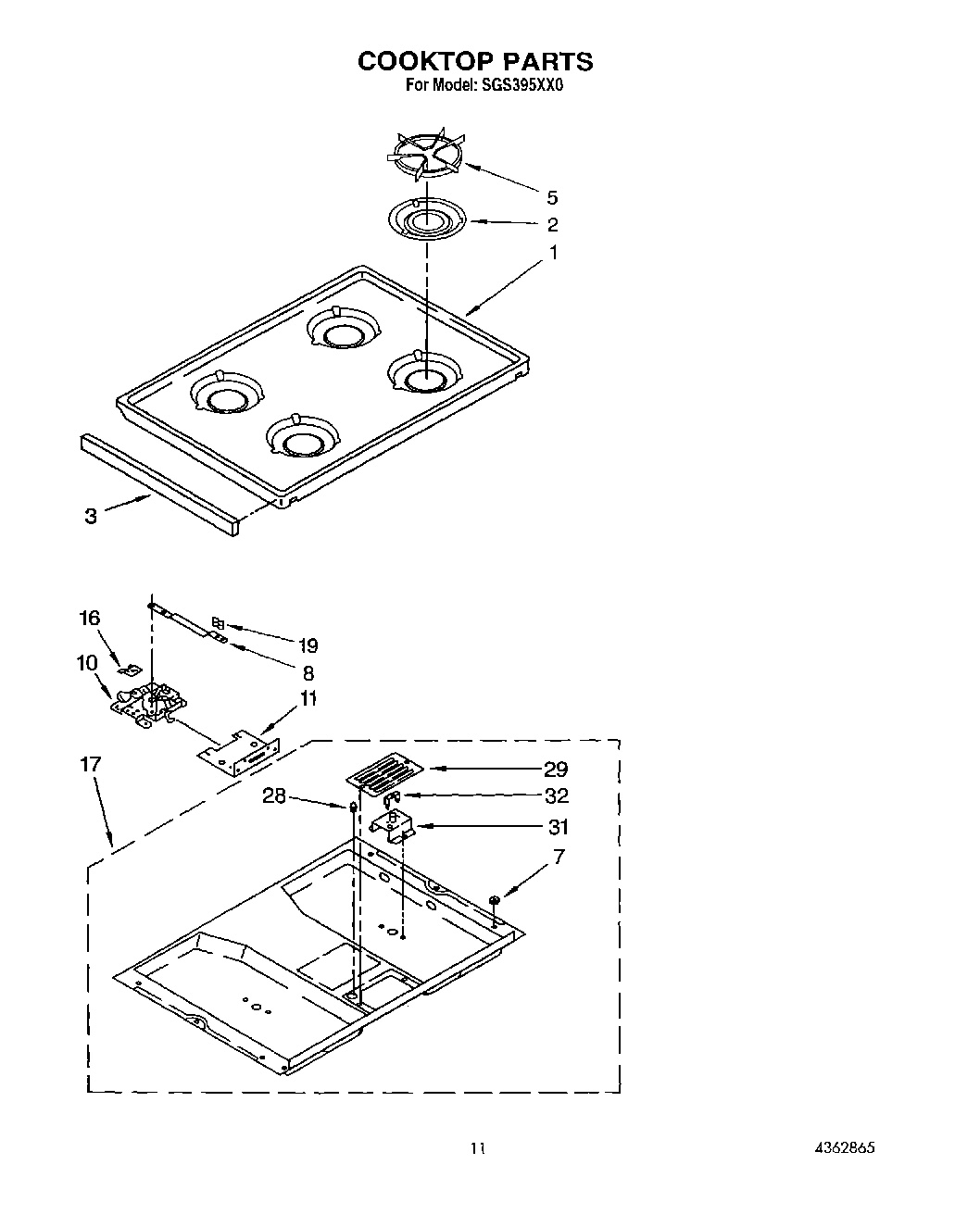

08 - COOKTOP

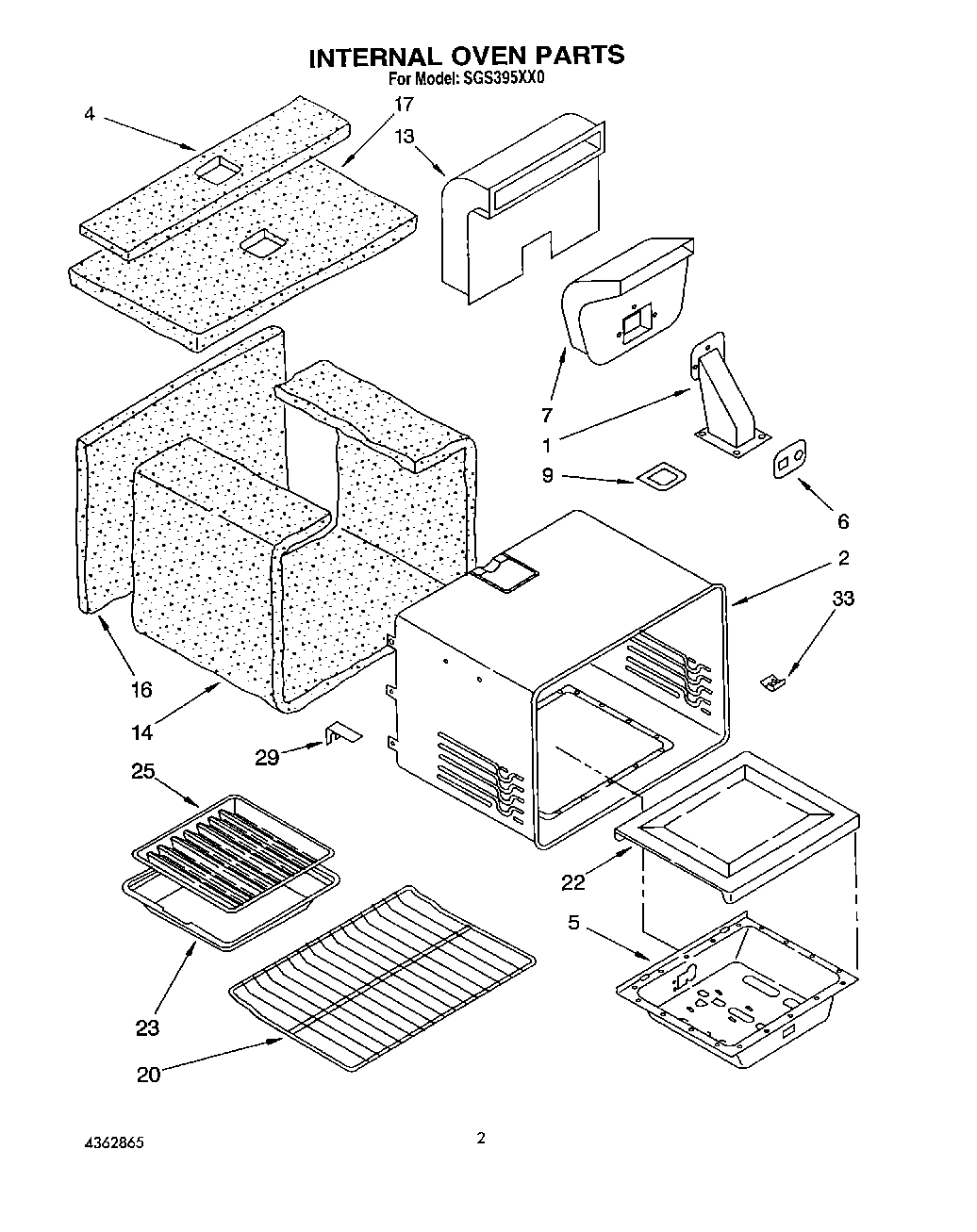

02 - INTERNAL OVEN

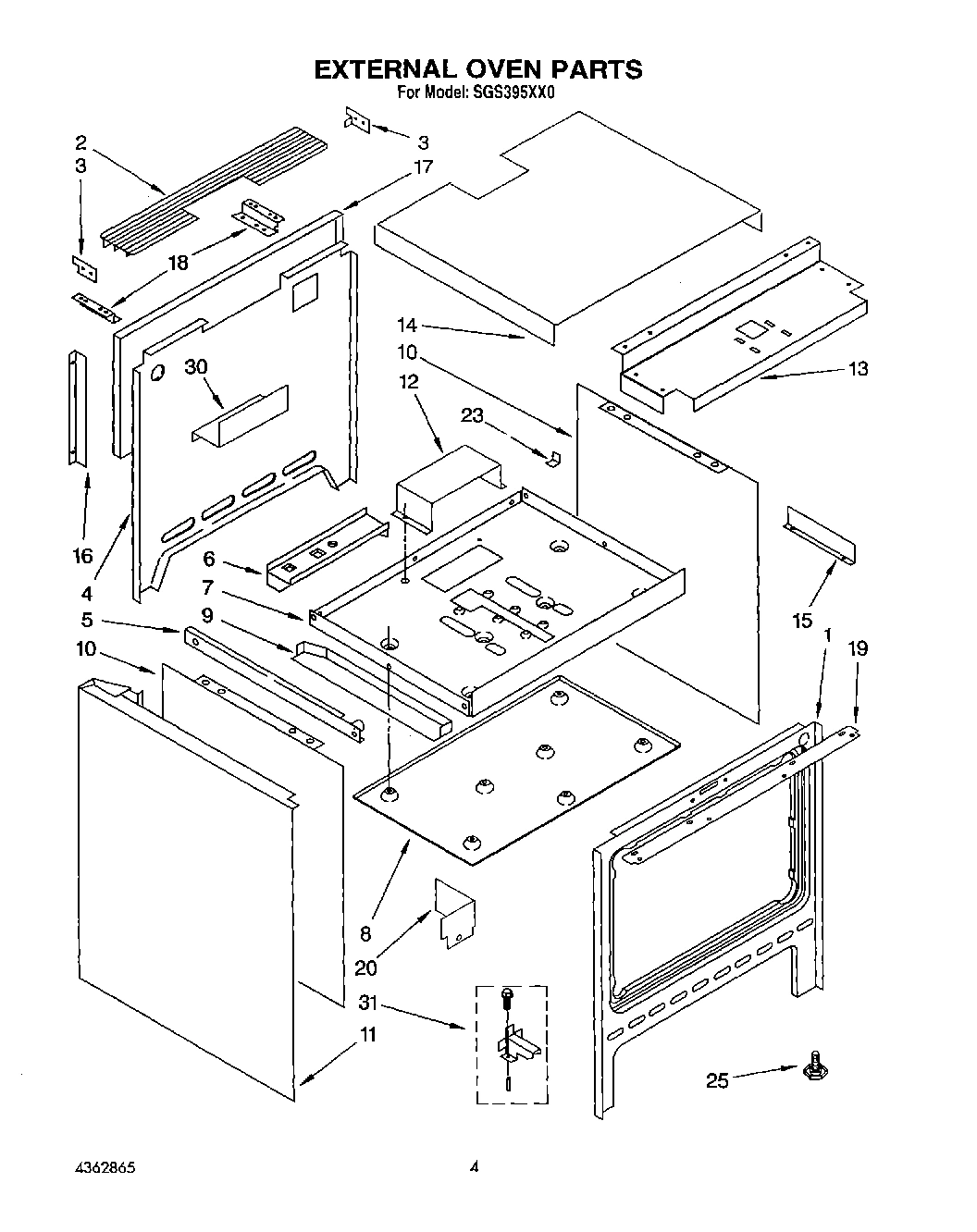

03 - EXTERNAL OVEN

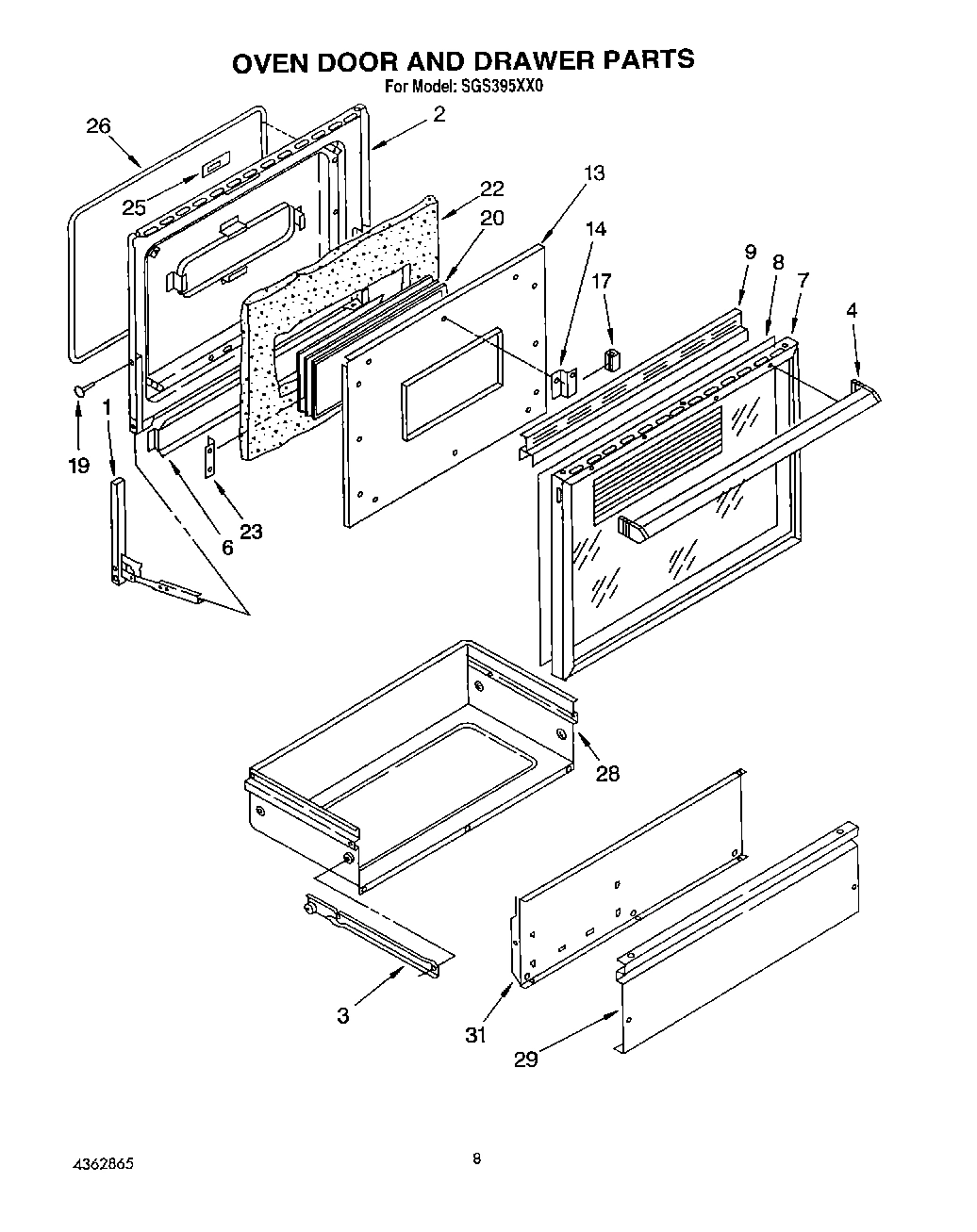

06 - OVEN DOOR AND DRAWER
Common parts from model Whirlpool SGS395XX0 SLIDE-IN GAS RANGE
Guide, Use & Care WPL LIT4320750 Contact Us For Availability
Instructions, Installation WPL LIT4320751 Contact Us For Availability
List, Repair Parts WPL LIT4362865 Contact Us For Availability
1
Cord, Power WPL 786578 Contact Us For Availability
1
Panel, Control WPL 4362672 Contact Us For Availability
1
Burner, Broiler WPL 4320907 Contact Us For Availability
1
Top, Main WPL 4362683 Contact Us For Availability
1
Vent WPL 4320951 Contact Us For Availability
1
Frame, Front Not Serviceable WPL 4320374 Contact Us For Availability
1
Hinge, Oven Door (R.H.) WPL 786374 Contact Us For Availability
1
Hinge, Oven Door (L.H.) WPL 786739 Contact Us For Availability
2
Bowl, Chrome WPL 4320921 Contact Us For Availability
2
Oven 30`` Self-Clean WPL 4320923 Contact Us For Availability
2
Backrail, Low WPL 4315013 Contact Us For Availability
2
liner, oven door WPL 4320300 Contact Us For Availability
2
Screw, 8-32 X 5/8 (4) WPL 786755 Contact Us For Availability
3
Support, Board WPL 4321026 Contact Us For Availability
3
Circuit Board WPL 4321066 Contact Us For Availability
3
Left Hand WPL 4315008 Contact Us For Availability
3
Right Hand WPL 4315009 Contact Us For Availability
3
End Cap WPL ARI130362A Contact Us For Availability
3
Trim, Maintop (Left Hand) WPL 4362661 Contact Us For Availability
3
Trim, Maintop (Right Hand) WPL 4362662 Contact Us For Availability
3
End Cap (Right Hand) WPL 4362679 Contact Us For Availability
3
End Cap (Left Hand) WPL 4362680 Contact Us For Availability
3
runner (l.h.) WPL 4320308 Contact Us For Availability
3
Runner (R.H.) WPL 4320309 Contact Us For Availability
4
Switch, Selector WPL 4179076 Contact Us For Availability
4
Support, Burner Mounting WPL 4320888 Contact Us For Availability
4
Screw (3) WPL 786740 Contact Us For Availability
4
Retainer, Rear Insulation WPL 4320889 Contact Us For Availability
4
Handle WPL 4320802 Contact Us For Availability
5
Thermostat WPL 4362682 Contact Us For Availability
5
Switch, Oven Light WPL 786325 Contact Us For Availability
5
Grate, Top Burner (4) WPL 4320569 Contact Us For Availability
5
Burner, Box, Lower WPL 786336 Contact Us For Availability
5
track, storage drawer (right side) WPL 4315768 Contact Us For Availability
5
track, storage drawer (left side) WPL 4315769 Contact Us For Availability
6
nut WPL 786753 Contact Us For Availability
6
Glass, Clock WPL 4321036 Contact Us For Availability
6
Gasket, Plate WPL 4320944 Contact Us For Availability
6
shelf, gas valve WPL 4315767 Contact Us For Availability
6
Baffle, Heat WPL 4320304 Contact Us For Availability
7
Spud, Orfice WPL 4157080 Contact Us For Availability
7
Natural Gas No. 51. WPL 4320926 Contact Us For Availability
7
Spacer, Nylon (4) WPL 786342 Contact Us For Availability
7
Flue, Inner WPL 4320929 Contact Us For Availability
7
retainer, bottom insulation WPL 4315770 Contact Us For Availability
7
Frame WPL 4320957 Contact Us For Availability
8
Bracket, Clock WPL 4362673 Contact Us For Availability
8
Tubing, (Inlet To Gas Valve) WPL 4320314 Contact Us For Availability
8
Handle, Latch WPL 786376 Contact Us For Availability
8
Heat Shield, Storage Drawer WPL 786364 Contact Us For Availability
8
Glass, Oven Door WPL 4320971 Contact Us For Availability
9
Switch, Top Burner Actuator (R.F. & R.R.) WPL 4314974 Contact Us For Availability
9
Switch, Top Burner Actuator (L.F. & L.R.) WPL 4314975 Contact Us For Availability
9
Switch, Top Burner Actuator (Screw, 4-40 X 5/ WPL 786259 Contact Us For Availability
9
Switch, Top Burner Actuator (Nut) WPL 786260 Contact Us For Availability
9
Clock/Timer WPL 4321040 Contact Us For Availability
9
Gasket, Vent WPL 4320930 Contact Us For Availability
9
Brace, Bottom (R.H.) WPL 4315781 Contact Us For Availability
9
brace, bottom (l.h.) WPL 4315782 Contact Us For Availability
9
Trim, Top Door WPL 4320849 Contact Us For Availability
10
Lens, Clock-Filter WPL 4362674 Contact Us For Availability
10
Orifice & Tubing Assembly WPL 4320925 Contact Us For Availability
10
Latch Assembly WPL 786303 Contact Us For Availability
10
Retainer, Insulation (2) WPL 4362543 Contact Us For Availability
11
Spark Module WPL 4320867 Contact Us For Availability
11
Light, Indicator (3) WPL 4315016 Contact Us For Availability
11
Nut, Lock WPL 786741 Contact Us For Availability
11
hood & tubing assembly (gas valve to lower ov WPL 4320315 Contact Us For Availability
11
Bracket, Latch Mounting WPL 4315774 Contact Us For Availability
11
Panel, End (2) Front WPL 4321113 Contact Us For Availability
12
Retainer, Ignitor WPL 4320890 Contact Us For Availability
13
Bracket, Spark Module WPL 4320892 Contact Us For Availability
13
Tubing (Inlet To Manifold) (Left Hand) WPL 4362580 Contact Us For Availability
13
Tubing (Inlet To Manifold) (Right Hand) WPL 4362671 Contact Us For Availability
13
Flue, Dillution WPL 4362989 Contact Us For Availability
13
Retainer, Top Front Insulation WPL 4320891 Contact Us For Availability
13
Retainer, Insulation WPL 4320875 Contact Us For Availability
14
Valve, Dual Gas Valve WPL 4320316 Contact Us For Availability
14
Retainer, Top Back WPL 4320960 Contact Us For Availability
14
bracket, glass support (4) WPL 786425 Contact Us For Availability
15
Heat Shield, Clock WPL 4362578 Contact Us For Availability
16
Switch, Oven Door Latch WPL 786669 Contact Us For Availability
16
screw, 4-40 x 5/8 (2) WPL 786751 Contact Us For Availability
16
Manifold WPL 4320956 Contact Us For Availability
16
Bracket, Switch WPL 4362570 Contact Us For Availability
16
screw, 4-40 (2) WPL 786752 Contact Us For Availability
16
Shield, Heat Clock WPL 4362681 Contact Us For Availability
17
Insulator, Switch WPL 786380 Contact Us For Availability
17
Knob, Thermostat WPL 4362678 Contact Us For Availability
17
Valve, Top Burner (4) WPL 4320943 Contact Us For Availability
17
Burner Box WPL 4320886 Contact Us For Availability
17
Heat Shield WPL 4315025 Contact Us For Availability
17
Bumper, Window (2) WPL 4179237 Contact Us For Availability
18
Knob, Surface WPL 4321045 Contact Us For Availability
18
Support, Low Rail (Right Hand) WPL 4362595 Contact Us For Availability
18
Support, Low Rail (Left Hand) WPL 4362596 Contact Us For Availability
19
Plug, Male WPL 786570 Contact Us For Availability
19
Fitting WPL 4320319 Contact Us For Availability
19
Knob, Latch Handle WPL 4320836 Contact Us For Availability
19
Filler, Front Frame WPL 4320801 Contact Us For Availability
19
Pin-Hinge (2) WPL 4362533 Contact Us For Availability
20
Knob, Selector WPL 4362677 Contact Us For Availability
20
Valve, Shut Off WPL 4362689 Contact Us For Availability
20
Rack, Oven (2) WPL 786347 Contact Us For Availability
20
Plate, Cover WPL 4315776 Contact Us For Availability
20
Window Assembly WPL 786429 Contact Us For Availability
21
Button, Clock WPL 4321048 Contact Us For Availability
22
Bushing, Clock Button WPL 4321049 Contact Us For Availability
22
Inlet, Gas WPL 4362561 Contact Us For Availability
22
Bottom, Oven WPL 4315114 Contact Us For Availability
22
Insulation, Door WPL 4315673 Contact Us For Availability
23
Lens, Indicator Light WPL 4315798 Contact Us For Availability
23
Regulator, Pressure WPL 786313 Contact Us For Availability
23
Pan, Broiler WPL 4315109 Contact Us For Availability
23
Bracket, Gas Valve (2) WPL 4315678 Contact Us For Availability
23
Retainer, Window (4) WPL 4179236 Contact Us For Availability
25
Oven Burner, Lower WPL 786314 Contact Us For Availability
25
Grid, Broiler WPL 786346 Contact Us For Availability
25
leg, leveling (4) WPL 4315777 Contact Us For Availability
25
Plate, Latch (2) WPL 786671 Contact Us For Availability
26
Top Burner, Front (2) WPL 786315 Contact Us For Availability
26
gasket assembly WPL 4320302 Contact Us For Availability
28
Spud, Orfice WPL 786309 Contact Us For Availability
28
Top Burner, R.R. WPL 786316 Contact Us For Availability
28
Wrapper, Storage Drawer WPL 4320306 Contact Us For Availability
29
Top Burner, L.R. WPL 786317 Contact Us For Availability
29
Plate, Cover WPL 4315785 Contact Us For Availability
29
bracket, oven shell WPL 4320330 Contact Us For Availability
29
Panel, Drawer WPL 4314976 Contact Us For Availability
30
cover, electrical WPL 4315779 Contact Us For Availability
31
Knob, Top Burner (4) WPL 4320942 Contact Us For Availability
31
Bracket, Top (2) WPL 786684 Contact Us For Availability
31
Anti-Tip Kit WPL 4321080 Contact Us For Availability
31
Liner, Door Panel WPL 4320307 Contact Us For Availability
32
Bracket, Electrode (2) WPL 786754 Contact Us For Availability
32
Elbow, Manifold WPL 4320940 Contact Us For Availability
33
Cover, Chip WPL 4320934 Contact Us For Availability
38
Bracket, Bake Ignitor WPL 786801 Contact Us For Availability
39
Bracket, Broiler Ignitor WPL 786802 Contact Us For Availability
41
Switch, Oven Door WPL 4179328 Contact Us For Availability
× ![]()
