Model Maytag SG521SW REFRIGERATOR – Common Parts & Diagrams
01 - CABINET BACK
02 - CABINET PARTS

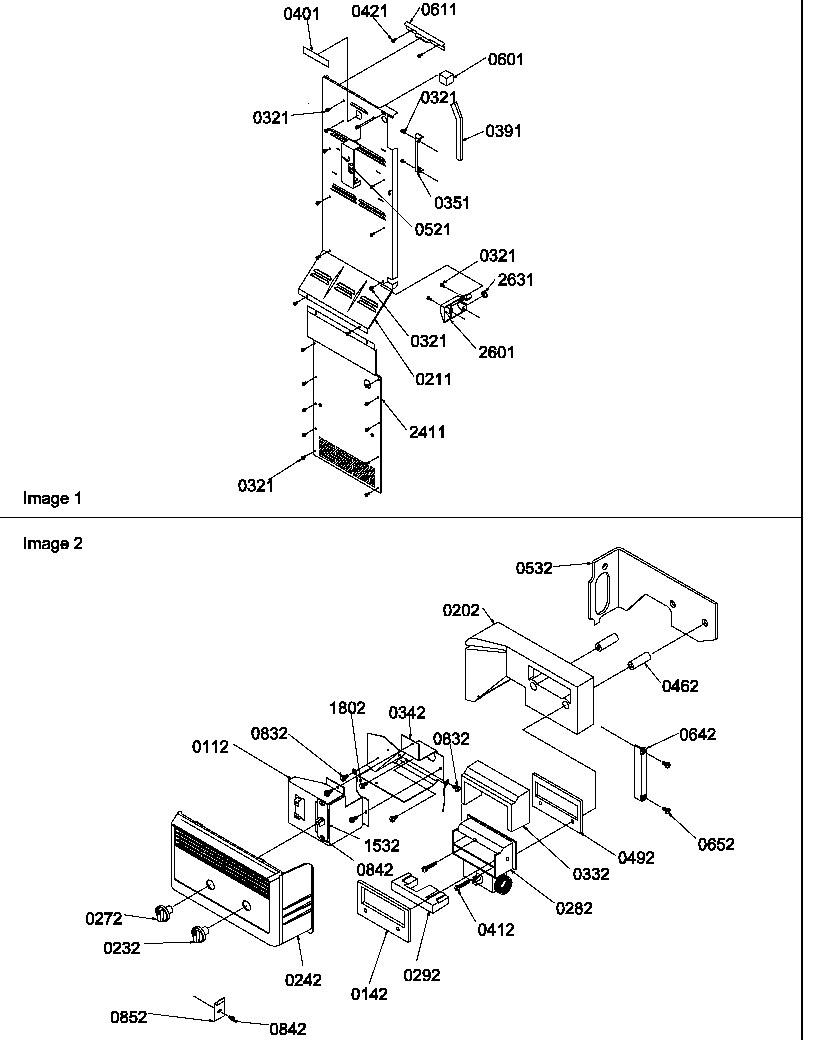

03 - CONTROL ASSY
04 - DRAIN SYSTEMS, ROLLERS, AND EVAP ASSY

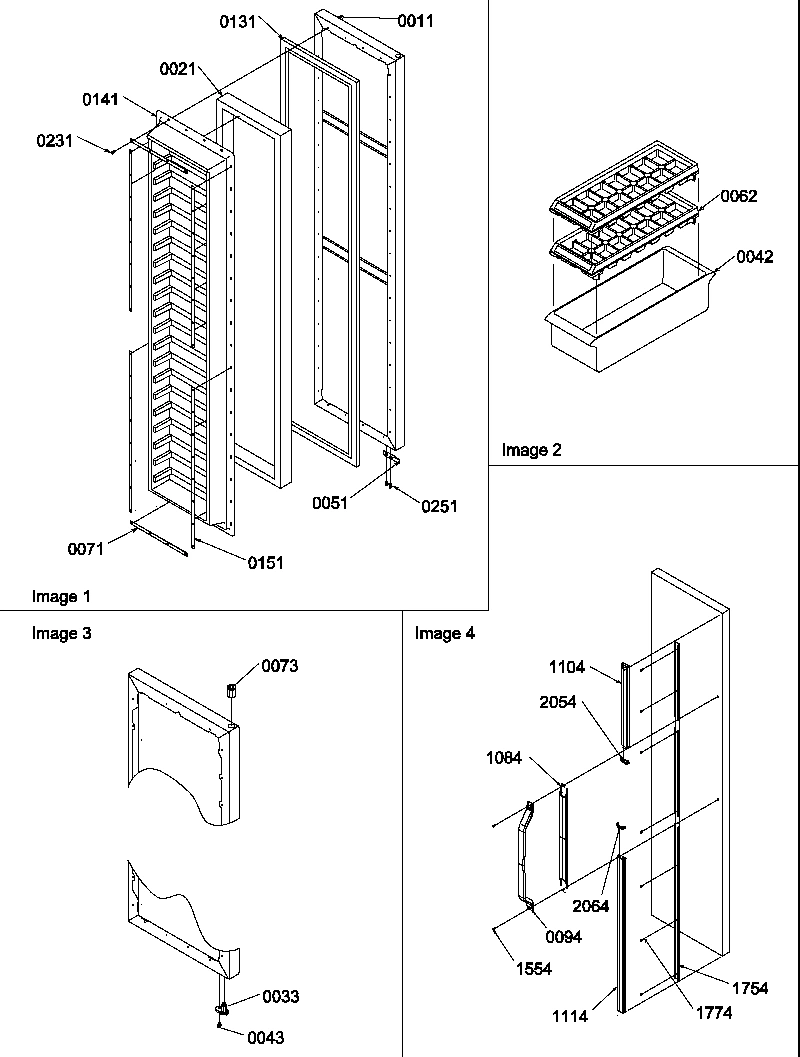

05 - FZ DOOR AND ACCESSORIES

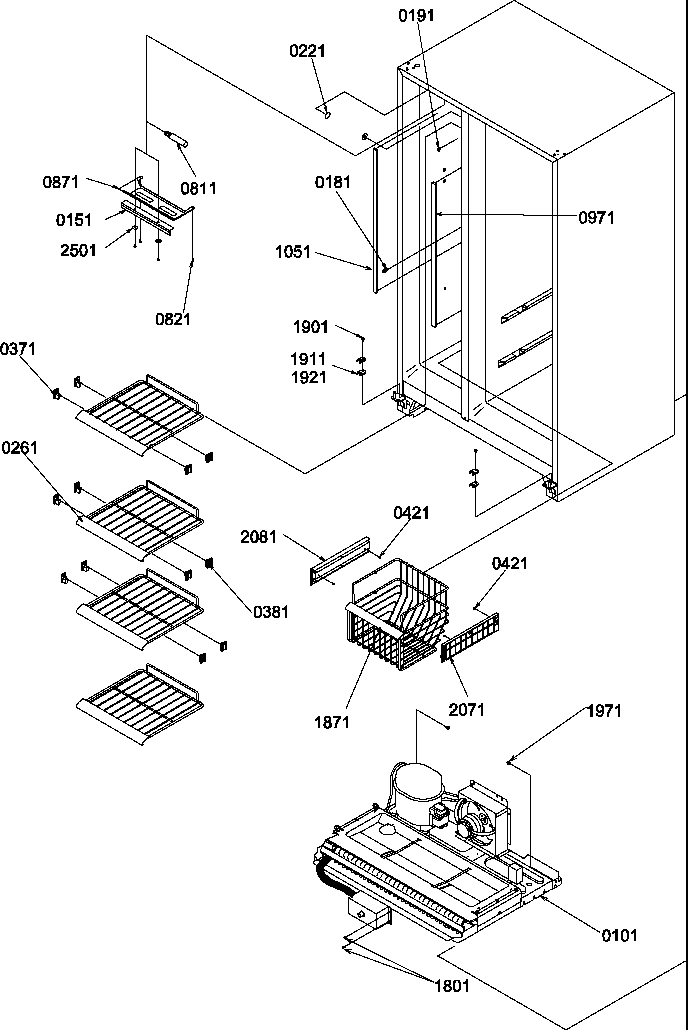

06 - FZ SHELVES AND LIGHT

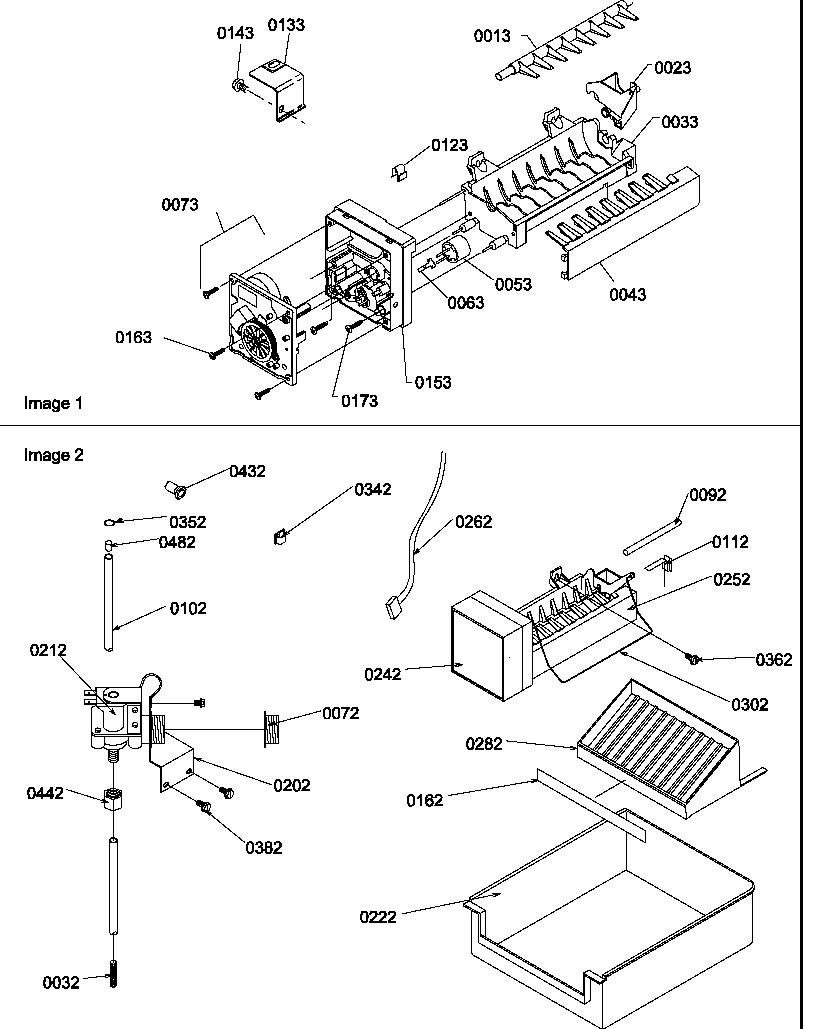

07 - ICE MAKER PARTS AND ADD ON ICE MAKER KIT

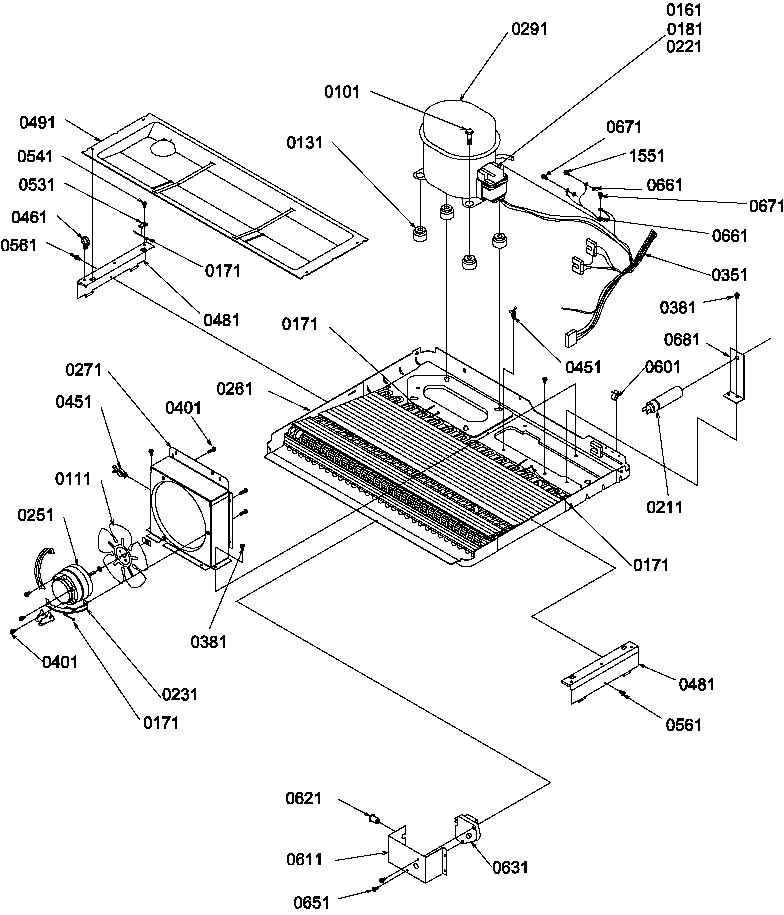

08 - MACHINE COMPARTMENT

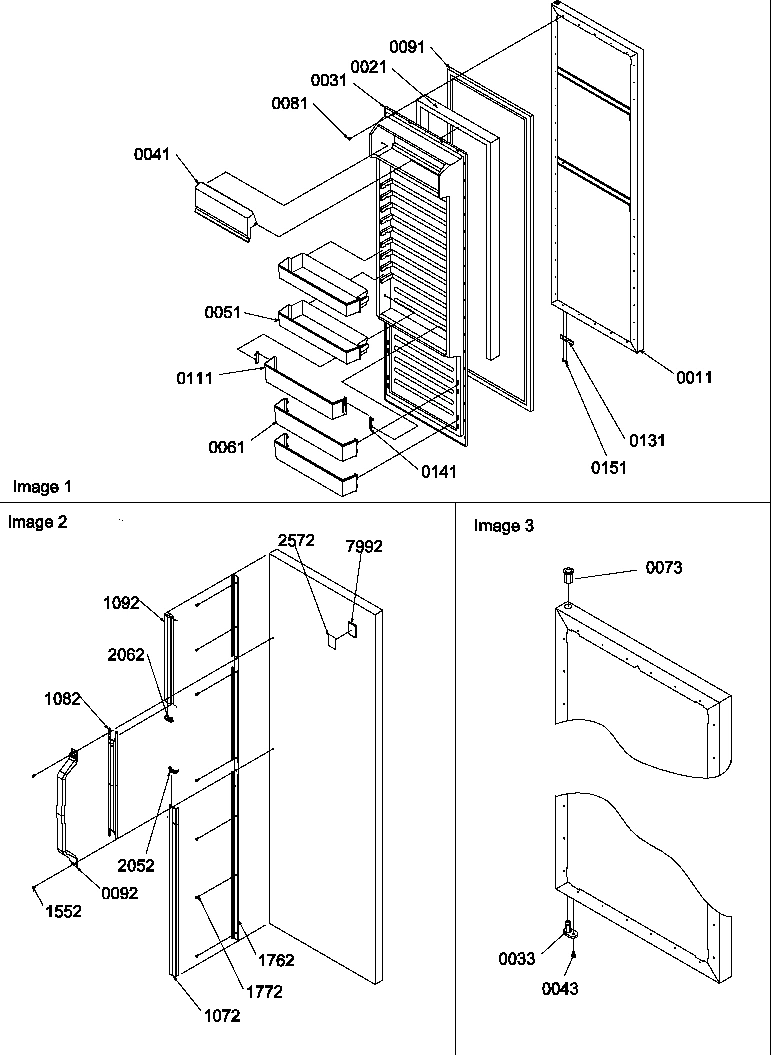

09 - REF DOOR

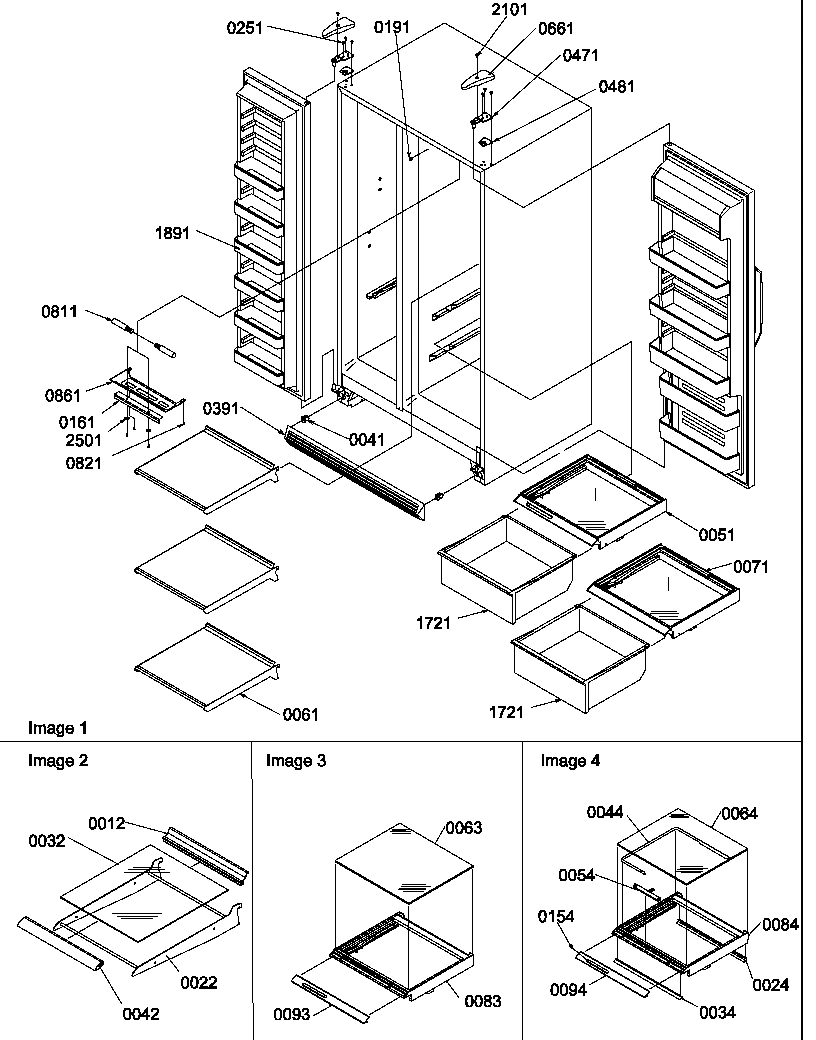

10 - REF/FZ SHELVES, LIGHTS, AND HINGES
Common parts from model Maytag SG521SW REFRIGERATOR
11
MAY 10547305W MAY 10547305W Contact Us For Availability
11
MAY 10580906W MAY 10580906W Contact Us For Availability
12
MAY 10946004 MAY 10946004 Contact Us For Availability
13
MAY R0183119 MAY R0183119 Contact Us For Availability
16
MAY C8742401 MAY C8742401 Contact Us For Availability
21
MAY B0523563 MAY B0523563 Contact Us For Availability
22
MAY 10875304 MAY 10875304 Contact Us For Availability
23
MAY R0156839 MAY R0156839 Contact Us For Availability
24
MAY A1017202 MAY A1017202 Contact Us For Availability
24
MAY D7718402 MAY D7718402 Contact Us For Availability
25
MAY 12017817 MAY 12017817 Contact Us For Availability
26
MAY M0286708 MAY M0286708 Contact Us For Availability
31
MAY 10579901 MAY 10579901 Contact Us For Availability
32
MAY A1055101 MAY A1055101 Contact Us For Availability
32
MAY 10370076 MAY 10370076 Contact Us For Availability
33
MAY 12113202 MAY 12113202 Contact Us For Availability
33
MAY R0156669 MAY R0156669 Contact Us For Availability
34
MAY A1047901 MAY A1047901 Contact Us For Availability
34
MAY 10523402 MAY 10523402 Contact Us For Availability
41
MAY C8971903 MAY C8971903 Contact Us For Availability
41
MAY M1200004 MAY M1200004 Contact Us For Availability
41
MAY 10581004 MAY 10581004 Contact Us For Availability
41
MAY M0117302 MAY M0117302 Contact Us For Availability
42
MAY 10423128 MAY 10423128 Contact Us For Availability
42
MAY 10459909 MAY 10459909 Contact Us For Availability
43
MAY R0183120 MAY R0183120 Contact Us For Availability
44
MAY 12033101 MAY 12033101 Contact Us For Availability
44
MAY 10882902 MAY 10882902 Contact Us For Availability
46
MAY M1205302 MAY M1205302 Contact Us For Availability
51
MAY A3187801 MAY A3187801 Contact Us For Availability
51
MAY M1200202 MAY M1200202 Contact Us For Availability
51
MAY 10580004 MAY 10580004 Contact Us For Availability
51
MAY 10543750 MAY 10543750 Contact Us For Availability
53
MAY R0161060 MAY R0161060 Contact Us For Availability
54
MAY C8881301 MAY C8881301 Contact Us For Availability
54
MAY D7860603 MAY D7860603 Contact Us For Availability
55
MAY RO170065 MAY RO170065 Contact Us For Availability
61
MAY 10580104 MAY 10580104 Contact Us For Availability
61
MAY 10880703 MAY 10880703 Contact Us For Availability
62
MAY D7725401 MAY D7725401 Contact Us For Availability
63
MAY 10505101 MAY 10505101 Contact Us For Availability
63
MAY R0191094 MAY R0191094 Contact Us For Availability
63
MAY 10370046 MAY 10370046 Contact Us For Availability
64
MAY C8891604 MAY C8891604 Contact Us For Availability
64
MAY Y10370045 MAY Y10370045 Contact Us For Availability
71
MAY 12023401 MAY 12023401 Contact Us For Availability
71
MAY C8982801 MAY C8982801 Contact Us For Availability
71
MAY 10543749 MAY 10543749 Contact Us For Availability
72
MAY 10244902 MAY 10244902 Contact Us For Availability
73
MAY 10961001 MAY 10961001 Contact Us For Availability
73
MAY R0167203 MAY R0167203 Contact Us For Availability
74
MAY D7767705 MAY D7767705 Contact Us For Availability
81
MAY M0219730 MAY M0219730 Contact Us For Availability
83
MAY 10470101 MAY 10470101 Contact Us For Availability
84
MAY 10470102 MAY 10470102 Contact Us For Availability
91
MAY 10359705 MAY 10359705 Contact Us For Availability
92
MAY 12139301 MAY 12139301 Contact Us For Availability
92
MAY A3127409 MAY A3127409 Contact Us For Availability
93
MAY 10873915 MAY 10873915 Contact Us For Availability
94
MAY 10873916 MAY 10873916 Contact Us For Availability
101
SEE NOTE MC ASSY -- (SEE PAGES 20 & 21 FOR AS MAY Y00000000 Contact Us For Availability
101
MAY M0253942 MAY M0253942 Contact Us For Availability
101
MAY M0221523 MAY M0221523 Contact Us For Availability
102
MAY B5705308 MAY B5705308 Contact Us For Availability
111
MAY 10518702 MAY 10518702 Contact Us For Availability
111
MAY 10580302 MAY 10580302 Contact Us For Availability
112
MAY D7868606 MAY D7868606 Contact Us For Availability
112
MAY B5720301 MAY B5720301 Contact Us For Availability
113
MAY M0102303 MAY M0102303 Contact Us For Availability
123
MAY 10319801 MAY 10319801 Contact Us For Availability
131
MAY C8972405 MAY C8972405 Contact Us For Availability
131
MAY 10359702 MAY 10359702 Contact Us For Availability
131
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
133
MAY B8391802 MAY B8391802 Contact Us For Availability
141
MAY 10522001 MAY 10522001 Contact Us For Availability
141
MAY 10202001 MAY 10202001 Contact Us For Availability
142
MAY 10383201 MAY 10383201 Contact Us For Availability
143
MAY M0211017 MAY M0211017 Contact Us For Availability
151
MAY M0211018 MAY M0211018 Contact Us For Availability
151
MAY D7828601 MAY D7828601 Contact Us For Availability
151
MAY 10014715 MAY 10014715 Contact Us For Availability
153
MAY R0183121 MAY R0183121 Contact Us For Availability
154
MAY 10038402 MAY 10038402 Contact Us For Availability
161
MAY 10899501 MAY 10899501 Contact Us For Availability
161
MAY 10014717 MAY 10014717 Contact Us For Availability
162
MAY C8986116 MAY C8986116 Contact Us For Availability
163
MAY D7789808 MAY D7789808 Contact Us For Availability
163
MAY R0186041 MAY R0186041 Contact Us For Availability
171
MAY M0321202 MAY M0321202 Contact Us For Availability
171
MAY D7785401 MAY D7785401 Contact Us For Availability
171
MAY 10508001 MAY 10508001 Contact Us For Availability
173
MAY D7789809 MAY D7789809 Contact Us For Availability
173
MAY R0186040 MAY R0186040 Contact Us For Availability
181
MAY M0322202 MAY M0322202 Contact Us For Availability
181
MAY 10899601 MAY 10899601 Contact Us For Availability
191
MAY M0580007 MAY M0580007 Contact Us For Availability
202
MAY D7749902 MAY D7749902 Contact Us For Availability
202
MAY D7701602 MAY D7701602 Contact Us For Availability
211
MAY D7846005 MAY D7846005 Contact Us For Availability
211
MAY 10958301 MAY 10958301 Contact Us For Availability
212
MAY D7847801 MAY D7847801 Contact Us For Availability
221
MAY M0310305 MAY M0310305 Contact Us For Availability
221
MAY 10899701 MAY 10899701 Contact Us For Availability
222
MAY D7806209 MAY D7806209 Contact Us For Availability
231
MAY 10496501 MAY 10496501 Contact Us For Availability
232
MAY D7795826 MAY D7795826 Contact Us For Availability
233
MAY A3080001 MAY A3080001 Contact Us For Availability
242
MAY 10862703 MAY 10862703 Contact Us For Availability
242
MAY D7820401 MAY D7820401 Contact Us For Availability
251
MAY D7846901 MAY D7846901 Contact Us For Availability
251
MAY M0238731 MAY M0238731 Contact Us For Availability
252
MAY D7846302 MAY D7846302 Contact Us For Availability
261
MAY 12012603 MAY 12012603 Contact Us For Availability
261
MAY 10580406 MAY 10580406 Contact Us For Availability
262
MAY D7879601 MAY D7879601 Contact Us For Availability
271
MAY 10602404 MAY 10602404 Contact Us For Availability
272
MAY D7795828 MAY D7795828 Contact Us For Availability
282
MAY D7547412 MAY D7547412 Contact Us For Availability
282
MAY D7839701 MAY D7839701 Contact Us For Availability
291
MAY 10496107 MAY 10496107 Contact Us For Availability
291
MAY 10740321 MAY 10740321 Contact Us For Availability
292
MAY C8902601 MAY C8902601 Contact Us For Availability
301
MAY 10496113 MAY 10496113 Contact Us For Availability
302
MAY Y10901401 MAY Y10901401 Contact Us For Availability
303
MAY M0581001 MAY M0581001 Contact Us For Availability
321
MAY 10450602 MAY 10450602 Contact Us For Availability
332
MAY D7788201 MAY D7788201 Contact Us For Availability
342
MAY D7822403 MAY D7822403 Contact Us For Availability
342
MAY M0104101 MAY M0104101 Contact Us For Availability
351
MAY D7838302 MAY D7838302 Contact Us For Availability
351
MAY 12025701 MAY 12025701 Contact Us For Availability
352
MAY M0104003 MAY M0104003 Contact Us For Availability
362
MAY M0251018 MAY M0251018 Contact Us For Availability
371
MAY M0204339 MAY M0204339 Contact Us For Availability
371
MAY 12015002 MAY 12015002 Contact Us For Availability
381
MAY 10941102 MAY 10941102 Contact Us For Availability
381
MAY M0216716 MAY M0216716 Contact Us For Availability
391
MAY 12187601 MAY 12187601 Contact Us For Availability
391
MAY 10492002 MAY 10492002 Contact Us For Availability
401
MAY C8994001 MAY C8994001 Contact Us For Availability
401
MAY C8956101 MAY C8956101 Contact Us For Availability
401
MAY M0223803 MAY M0223803 Contact Us For Availability
412
MAY M0216539 MAY M0216539 Contact Us For Availability
413
MAY 10876901 MAY 10876901 Contact Us For Availability
421
MAY 10703701 MAY 10703701 Contact Us For Availability
431
MAY 10581304 MAY 10581304 Contact Us For Availability
432
MAY M0560005 MAY M0560005 Contact Us For Availability
442
NUT, SLEEVE MAY M0753001 Contact Us For Availability
451
MAY D7716410 MAY D7716410 Contact Us For Availability
451
MAY M0585402 MAY M0585402 Contact Us For Availability
461
MAY D7297603 MAY D7297603 Contact Us For Availability
461
MAY M0118703 MAY M0118703 Contact Us For Availability
462
MAY A3044208 MAY A3044208 Contact Us For Availability
471
MAY 12077312 MAY 12077312 Contact Us For Availability
481
MAY 10495701 MAY 10495701 Contact Us For Availability
481
MAY 12187501 MAY 12187501 Contact Us For Availability
482
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
491
MAY C3680308 MAY C3680308 Contact Us For Availability
491
MAY 10507902 MAY 10507902 Contact Us For Availability
492
MAY B8345401 MAY B8345401 Contact Us For Availability
505
MAY 12017811 MAY 12017811 Contact Us For Availability
521
MAY 12138401 MAY 12138401 Contact Us For Availability
521
MAY D7827402 MAY D7827402 Contact Us For Availability
531
MAY M0585601 MAY M0585601 Contact Us For Availability
532
MAY D7819101 MAY D7819101 Contact Us For Availability
541
MAY M0213529 MAY M0213529 Contact Us For Availability
561
MAY A4539601 MAY A4539601 Contact Us For Availability
571
MAY 10508105 MAY 10508105 Contact Us For Availability
601
MAY C8976102 MAY C8976102 Contact Us For Availability
601
MAY M0110505 MAY M0110505 Contact Us For Availability
611
MAY C8976201 MAY C8976201 Contact Us For Availability
611
MAY 10877004 MAY 10877004 Contact Us For Availability
621
MAY A3293505 MAY A3293505 Contact Us For Availability
631
MAY 10129307 MAY 10129307 Contact Us For Availability
642
MAY C8977301 MAY C8977301 Contact Us For Availability
643
MAY M0585206 MAY M0585206 Contact Us For Availability
651
MAY M0218118 MAY M0218118 Contact Us For Availability
652
SCREW 1`` MAY M0211021 Contact Us For Availability
661
MAY M0272803 MAY M0272803 Contact Us For Availability
661
MAY 10849401 MAY 10849401 Contact Us For Availability
671
MAY M0253516 MAY M0253516 Contact Us For Availability
681
MAY 12021101 MAY 12021101 Contact Us For Availability
711
MAY M0310319 MAY M0310319 Contact Us For Availability
741
MAY B5759643 MAY B5759643 Contact Us For Availability
771
MAY D7863903 MAY D7863903 Contact Us For Availability
811
MAY M0360402 MAY M0360402 Contact Us For Availability
821
MAY M0238846 MAY M0238846 Contact Us For Availability
832
MAY M0232330 MAY M0232330 Contact Us For Availability
842
MAY M0211016 MAY M0211016 Contact Us For Availability
852
MAY C8992302 MAY C8992302 Contact Us For Availability
861
MAY 10493202 MAY 10493202 Contact Us For Availability
871
MAY 10493302 MAY 10493302 Contact Us For Availability
901
MAY M0233847 MAY M0233847 Contact Us For Availability
921
MAY D7845102 MAY D7845102 Contact Us For Availability
931
MAY D7844803 MAY D7844803 Contact Us For Availability
941
MAY C8969204 MAY C8969204 Contact Us For Availability
941
MAY M0320905 MAY M0320905 Contact Us For Availability
951
MAY M0104102 MAY M0104102 Contact Us For Availability
951
MAY A4554813 MAY A4554813 Contact Us For Availability
971
MAY M0217225 MAY M0217225 Contact Us For Availability
971
MAY A3189347 MAY A3189347 Contact Us For Availability
981
MAY M0219758 MAY M0219758 Contact Us For Availability
981
MAY A4539626 MAY A4539626 Contact Us For Availability
991
MAY Y10203701 MAY Y10203701 Contact Us For Availability
1001
MAY A3189357 MAY A3189357 Contact Us For Availability
1011
MAY 10377602 MAY 10377602 Contact Us For Availability
1021
MAY 10786301 MAY 10786301 Contact Us For Availability
1041
MAY B5669005 MAY B5669005 Contact Us For Availability
1051
MAY A3189346 MAY A3189346 Contact Us For Availability
1072
MAY 10810508 MAY 10810508 Contact Us For Availability
1082
MAY 10810401 MAY 10810401 Contact Us For Availability
1092
MAY 10810308 MAY 10810308 Contact Us For Availability
1101
MAY D7845101 MAY D7845101 Contact Us For Availability
1104
MAY 10810307 MAY 10810307 Contact Us For Availability
1114
MAY 10810507 MAY 10810507 Contact Us For Availability
1121
MAY D7383435 MAY D7383435 Contact Us For Availability
1131
MAY M0217224 MAY M0217224 Contact Us For Availability
1532
MAY D7846103 MAY D7846103 Contact Us For Availability
1552
MAY M0223230 MAY M0223230 Contact Us For Availability
1721
MAY 10471909 MAY 10471909 Contact Us For Availability
1754
MAY 10852213 MAY 10852213 Contact Us For Availability
1762
MAY 10852214 MAY 10852214 Contact Us For Availability
1801
MAY M0238616 MAY M0238616 Contact Us For Availability
1871
MAY 12012003 MAY 12012003 Contact Us For Availability
1891
MAY 10523907 MAY 10523907 Contact Us For Availability
1901
MAY M0220418 MAY M0220418 Contact Us For Availability
1911
MAY B8387701 MAY B8387701 Contact Us For Availability
1921
MAY B8387702 MAY B8387702 Contact Us For Availability
1942
DRIER MAY B2150504 Contact Us For Availability
1962
MAY 10547001 MAY 10547001 Contact Us For Availability
1971
MAY M0211357 MAY M0211357 Contact Us For Availability
1982
MAY M0232317 MAY M0232317 Contact Us For Availability
2052
MAY 10953111 MAY 10953111 Contact Us For Availability
2062
MAY 10953112 MAY 10953112 Contact Us For Availability
2071
MAY 10991801 MAY 10991801 Contact Us For Availability
2081
MAY 12013001 MAY 12013001 Contact Us For Availability
2411
MAY D7865914 MAY D7865914 Contact Us For Availability
2501
MAY M0270508 MAY M0270508 Contact Us For Availability
2541
MAY 10953201 MAY 10953201 Contact Us For Availability
2572
MAY 10992101 MAY 10992101 Contact Us For Availability
2601
MAY D7786901 MAY D7786901 Contact Us For Availability
2631
MAY A3189337 MAY A3189337 Contact Us For Availability
3701
MAY 12146901 MAY 12146901 Contact Us For Availability
4023
MAY 10945601 MAY 10945601 Contact Us For Availability
4042
MAY A3189362 MAY A3189362 Contact Us For Availability
4052
MAY D7865812 MAY D7865812 Contact Us For Availability
4062
MAY D7850202 MAY D7850202 Contact Us For Availability
4072
MAY M0224416 MAY M0224416 Contact Us For Availability
4082
MAY 10098801 MAY 10098801 Contact Us For Availability
4102
MAY 12113502 MAY 12113502 Contact Us For Availability
4132
MAY M0580002 MAY M0580002 Contact Us For Availability
4152
MAY 10527401 MAY 10527401 Contact Us For Availability
4162
MAY 10623003 MAY 10623003 Contact Us For Availability
4262
MAY B8386602 MAY B8386602 Contact Us For Availability
4292
MAY M0580003 MAY M0580003 Contact Us For Availability
5504
MAY M0227217 MAY M0227217 Contact Us For Availability
7992
MAY 10992001 MAY 10992001 Contact Us For Availability
8111
MAY 12146602 MAY 12146602 Contact Us For Availability
8121
MAY 12146601 MAY 12146601 Contact Us For Availability
8131
MAY 12146801 MAY 12146801 Contact Us For Availability
8141
MAY 12146802 MAY 12146802 Contact Us For Availability
8151
MAY A4539631 MAY A4539631 Contact Us For Availability
8161
MAY 12147602 MAY 12147602 Contact Us For Availability
NI
MAY 10527014 MAY 10527014 Contact Us For Availability
NI
MAY 10549601 MAY 10549601 Contact Us For Availability
NI
MAY 10834701 MAY 10834701 Contact Us For Availability
NI
MAY M0108001 MAY M0108001 Contact Us For Availability
NI
MAY M0211116 MAY M0211116 Contact Us For Availability
NI
MAY M0311301 MAY M0311301 Contact Us For Availability
× ![]()
