Model Whirlpool SF5145SPW0 GAS RANGE – Common Parts & Diagrams

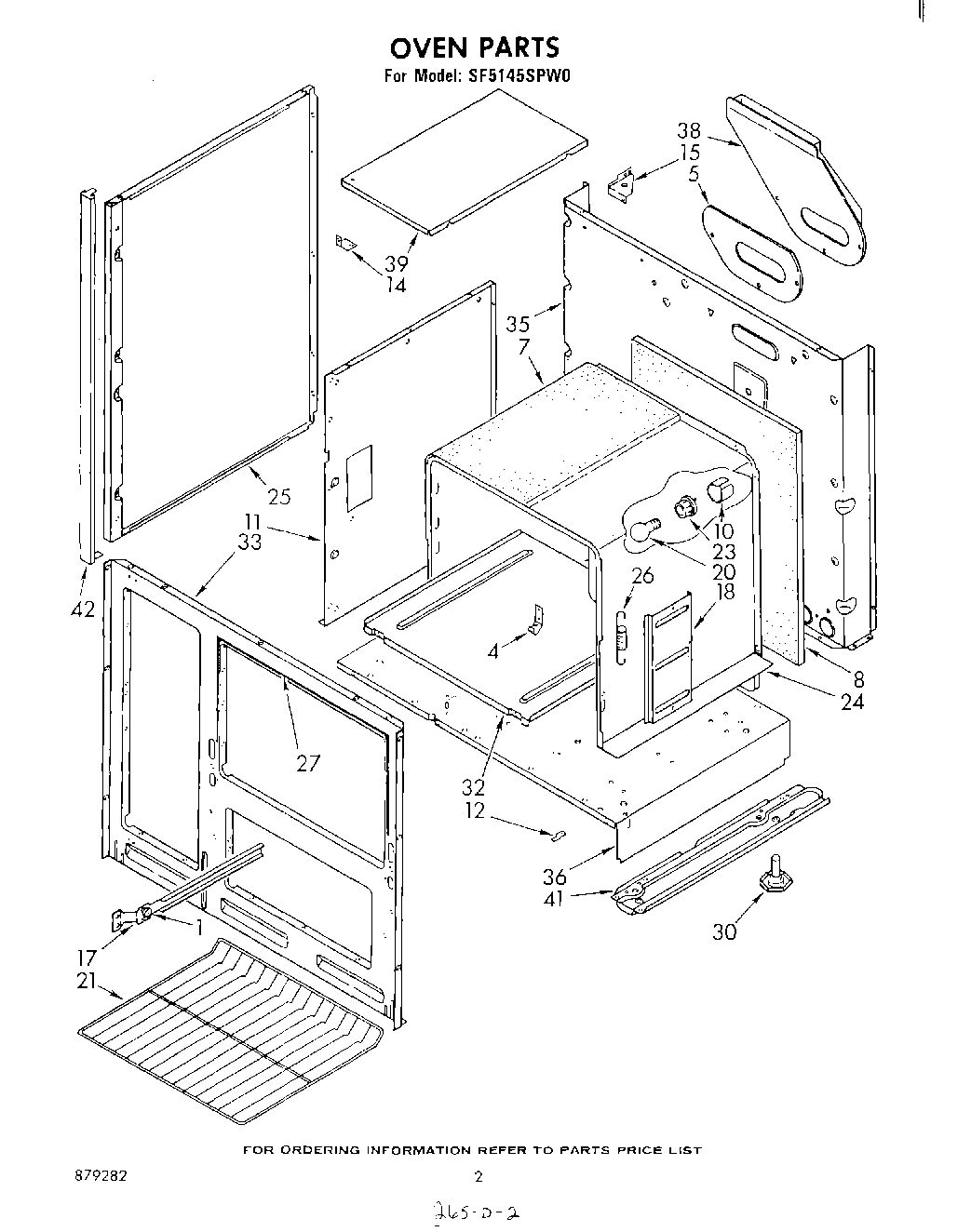

02 - OVEN , LIT/OPTIONAL

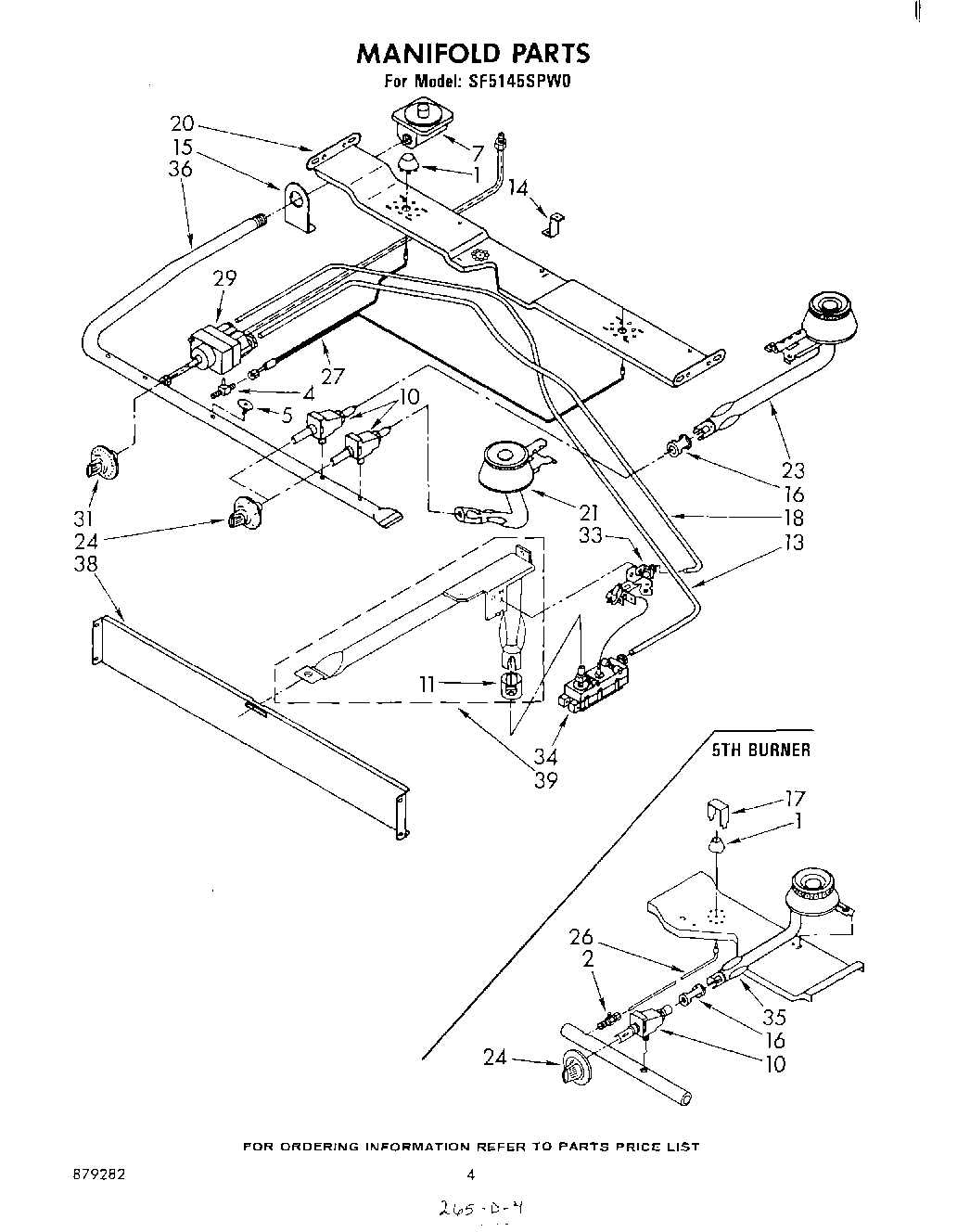

03 - MANIFOLD
06 - BACKGUARD
04 - DOOR
05 - COOKTOP
Common parts from model Whirlpool SF5145SPW0 GAS RANGE
Instructions, Installation WPL LIT878064 Contact Us For Availability
Guide, Use & Care WPL LIT878072 Contact Us For Availability
Diagram, Wiring WPL LIT878924 Contact Us For Availability
Diagrams, Installation Instructions WPL LIT878927 Contact Us For Availability
List, Repair Parts WPL LIT879282 Contact Us For Availability
1
Bearing, Roller (4) WPL 878077 Contact Us For Availability
1
Cone, Top Lighter (3) WPL 878701 Contact Us For Availability
1
Clamp, Wire WPL 879056 Contact Us For Availability
1
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878079 Contact Us For Availability
2
Filter, Top Lighter WPL 878887 Contact Us For Availability
2
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878080 Contact Us For Availability
2
Clamp, Top Stop WPL 878083 Contact Us For Availability
3
Catch, Compartment Door WPL 878529 Contact Us For Availability
4
Filter, Top Lighter WPL 878712 Contact Us For Availability
4
Stop, Cook Top WPL 878098 Contact Us For Availability
5
Gasket, Vent Deflector WPL 878530 Contact Us For Availability
5
Fitting, Flange WPL 878825 Contact Us For Availability
5
Ballast, Fluorescent Light WPL 878913 Contact Us For Availability
5
Insulation, Broiler Door WPL 878532 Contact Us For Availability
5
Spacer, Main Top WPL 878099 Contact Us For Availability
7
Regulator, Pressure WPL 878008 Contact Us For Availability
7
Block, Disconnect Pin WPL 878196 Contact Us For Availability
7
Spacer, Door Handle (2) WPL 878310 Contact Us For Availability
7
Center, Cooktop (Almond) WPL 878535 Contact Us For Availability
7
Center, Cooktop (White) WPL 878537 Contact Us For Availability
7
Top, Center Cook (Toast) WPL 879113 Contact Us For Availability
7
top, center cook (platinum) WPL 879114 Contact Us For Availability
8
Clock, Automatic WPL 879229 Contact Us For Availability
8
Spacer, Door Handle (4) WPL 878311 Contact Us For Availability
8
Hanger, Grease Cup WPL 878539 Contact Us For Availability
10
Sleeve, Light Hole WPL 878103 Contact Us For Availability
10
Valve, Top Burner (5) WPL 878312 Contact Us For Availability
10
Cap, End (Left Side) WPL 878801 Contact Us For Availability
10
Cap, End (Right Side) WPL 878802 Contact Us For Availability
10
Reflector, Grid Lighter WPL 878544 Contact Us For Availability
11
side, compartment WPL 879013 Contact Us For Availability
11
Shutter, Oven Burner Air WPL 878102 Contact Us For Availability
11
Glass, Backguard WPL 879285 Contact Us For Availability
11
Handle, Door 9`` (2) WPL 878550 Contact Us For Availability
11
Cover, Wire WPL 878719 Contact Us For Availability
12
Clip, Oven Bottom Plate (2) WPL 878107 Contact Us For Availability
13
Tubing, Oven WPL 878716 Contact Us For Availability
14
Support, Compartment Shelf WPL 878543 Contact Us For Availability
14
Support, Burner Hanger WPL 878542 Contact Us For Availability
14
Handle, Oven Door WPL 878324 Contact Us For Availability
14
Grate, Burner (5) WPL 878940 Contact Us For Availability
15
Bracket, Corner Support (Right Side) WPL 878717 Contact Us For Availability
15
Bracket, Corner Support (Left Side) WPL 878718 Contact Us For Availability
15
Support, Inlet Pipe WPL 878115 Contact Us For Availability
15
Spacer, Backguard Glass (2) WPL 878804 Contact Us For Availability
15
Bezel, Oven Door WPL 878556 Contact Us For Availability
15
Bottom, Burner Box WPL 879296 Contact Us For Availability
16
Cap, Top Burner Air Mixer WPL 878116 Contact Us For Availability
16
Trim, End (Left) WPL 878135 Contact Us For Availability
16
Trim, End (Right) WPL 878136 Contact Us For Availability
17
Track, Broiler (Right Side) WPL 878113 Contact Us For Availability
17
Track, Broiler (Left Side) WPL 878114 Contact Us For Availability
17
Shield, Top Light WPL 878889 Contact Us For Availability
17
Switch, Combination WPL 878001 Contact Us For Availability
17
Glass, Oven Door Outside WPL 878557 Contact Us For Availability
17
Inlay, Manifold Panel WPL 878551 Contact Us For Availability
18
Cover, Hinge (2) WPL 878117 Contact Us For Availability
18
Tubing, Control/Pilot WPL 878720 Contact Us For Availability
18
Socket, Fluorescent Light (Left Side) WPL 878661 Contact Us For Availability
18
Socket, Fluorescent Light (Right Side) WPL 878662 Contact Us For Availability
18
Glass, Oven Door Package WPL 878558 Contact Us For Availability
18
Panel, Manifold (Almond) WPL 878552 Contact Us For Availability
18
panel, manifold (white) WPL 878554 Contact Us For Availability
18
Panel, Manifold (Toast) WPL 879115 Contact Us For Availability
18
Panel, Manifold (Platinum) WPL 879116 Contact Us For Availability
20
Hanger, Top Burner WPL 879295 Contact Us For Availability
20
Trim, Backguard Top WPL 879286 Contact Us For Availability
20
panel, oven door (almond) WPL 878560 Contact Us For Availability
20
Panel, Oven Door (White) WPL 878562 Contact Us For Availability
20
Panel, Oven Door (Toast) WPL 879101 Contact Us For Availability
20
Panel, Oven Door (Platinum) WPL 879102 Contact Us For Availability
21
Rack, Oven (2) WPL 878546 Contact Us For Availability
21
Burner, Top Front (2) (Includes Illus. 16) WPL 878130 Contact Us For Availability
21
Trim, Backguard Bottom WPL 879287 Contact Us For Availability
21
Lining, Oven Door WPL 878564 Contact Us For Availability
21
Griddle WPL 878573 Contact Us For Availability
23
Socket, Oven Light WPL 878124 Contact Us For Availability
23
Burner, Top Rear (2) (Includes Illus. 16) WPL 878131 Contact Us For Availability
23
Bracket, Backguard Lampholder (Left Side) WPL 878807 Contact Us For Availability
23
Bracket, Backguard Lampholder (Right Side) WPL 878808 Contact Us For Availability
23
Baffle, Door WPL 878565 Contact Us For Availability
23
Cover, Griddle (Almond) WPL 878574 Contact Us For Availability
23
cover, griddle (white) WPL 878576 Contact Us For Availability
23
Cover, Griddle (Toast) WPL 879117 Contact Us For Availability
23
Cover, Griddle (Platinum) WPL 879118 Contact Us For Availability
24
Oven, 30`` Standard Clean (Not Serviceable) WPL ARI130357A Contact Us For Availability
24
Handle, Top Valve (5) WPL 878335 Contact Us For Availability
24
Retainer, Glass WPL 879293 Contact Us For Availability
24
Panel, Broiler Door (Almond) WPL 878566 Contact Us For Availability
24
panel, broiler door (white) WPL 878568 Contact Us For Availability
24
Panel, Broiler Door (Toast) WPL 879103 Contact Us For Availability
24
Panel, Broiler Door (Platinum) WPL 879104 Contact Us For Availability
24
Cup, Grease WPL 878578 Contact Us For Availability
25
Panel, End (2) (White) WPL 878128 Contact Us For Availability
25
Panel, End (2) (Almond) WPL 878129 Contact Us For Availability
25
Panel, End (2) (Toast) WPL 879081 Contact Us For Availability
25
Panel, End (2) (Platinum) WPL 879082 Contact Us For Availability
25
Lining, Broiler Door WPL 878570 Contact Us For Availability
26
Spring, Oven Door WPL 878559 Contact Us For Availability
26
Lighter, Top Burner WPL 878888 Contact Us For Availability
26
Panel, Backguard (White) WPL 879288 Contact Us For Availability
26
Panel, Backguard (Almond) WPL 879289 Contact Us For Availability
26
Panel, Backguard (Toast) WPL 879290 Contact Us For Availability
26
Panel, Backguard (Platinum) WPL 879291 Contact Us For Availability
26
Spring, Broiler Door (2) WPL 878165 Contact Us For Availability
26
Block, Disconnect Socket WPL 878162 Contact Us For Availability
27
Seal, Oven Door (Side (2)) WPL 878004 Contact Us For Availability
27
Seal, Oven Door (Top (1)) WPL 878496 Contact Us For Availability
27
Lighter, Top Burner WPL 878708 Contact Us For Availability
27
Cover, Backguard Wire WPL 879292 Contact Us For Availability
27
panel, compartment door (almond) WPL 878579 Contact Us For Availability
27
panel, compartment door (white) WPL 878581 Contact Us For Availability
27
Panel, Compartment Door (Toast) WPL 879105 Contact Us For Availability
27
panel, compartment door (platinum) WPL 879106 Contact Us For Availability
27
Cord, Extension WPL 878298 Contact Us For Availability
29
Control, Oven WPL 878709 Contact Us For Availability
29
Support, Clock (Right Side) WPL 878815 Contact Us For Availability
29
Support, Clock (Left Side) WPL 878816 Contact Us For Availability
29
Lining, Compartment Door WPL 878583 Contact Us For Availability
29
Catch, Main Top (2) WPL 878164 Contact Us For Availability
30
Screw, Leveling (4) WPL 878417 Contact Us For Availability
30
Trim, Backguard Glass (2) WPL 878817 Contact Us For Availability
30
Hinge, Compartment Door (2) WPL 878592 Contact Us For Availability
30
Strike, Main Top (2) WPL 878499 Contact Us For Availability
31
Dial, Oven Control WPL 878158 Contact Us For Availability
32
Plate, Oven Bottom WPL 879041 Contact Us For Availability
32
Plate, Switch WPL 878818 Contact Us For Availability
32
Hinge, Oven Door WPL 878167 Contact Us For Availability
32
top, main (almond) WPL 878585 Contact Us For Availability
32
top, main (white) WPL 878587 Contact Us For Availability
32
top, main (toast) WPL 879119 Contact Us For Availability
32
top, main (platinum) WPL 879120 Contact Us For Availability
33
Front, Main WPL 879012 Contact Us For Availability
33
Lighter, Oven Burner WPL 878710 Contact Us For Availability
33
Brace, Backguard WPL 879294 Contact Us For Availability
34
Valve, Oven Lighter Safety WPL 878711 Contact Us For Availability
34
Support, Oven Door (Left Side) WPL 878168 Contact Us For Availability
34
Support, Oven Door (Right Side) WPL 878169 Contact Us For Availability
34
Bowl, Drip (4 WPL 878914 Contact Us For Availability
35
Back, Main WPL 878590 Contact Us For Availability
35
Burner, Griddle (Includes Illus. 16) WPL 878572 Contact Us For Availability
35
Drawer, Broiler WPL 878172 Contact Us For Availability
36
Bottom, Main WPL 879000 Contact Us For Availability
36
Pipe Manifold WPL 878010 Contact Us For Availability
36
Pan, Broiler WPL 878173 Contact Us For Availability
38
Deflector, Vent WPL 878593 Contact Us For Availability
38
Deflector, Heat WPL 879253 Contact Us For Availability
38
Tray, Broiler Pan WPL 878174 Contact Us For Availability
39
Shelf, Compartment WPL 878595 Contact Us For Availability
39
Burner, Oven WPL 878187 Contact Us For Availability
39
Hinge, Broiler Door (Left Side) WPL 878183 Contact Us For Availability
39
Hinge, Broiler Door (Right Side) WPL 878184 Contact Us For Availability
41
Runner, Base (Left Side) WPL 878181 Contact Us For Availability
41
Runner, Base (Right Side) WPL 878182 Contact Us For Availability
42
Trim, End Panel WPL 878137 Contact Us For Availability
× ![]()
