Model Whirlpool SF5140EEW0 GAS RANGE – Common Parts & Diagrams

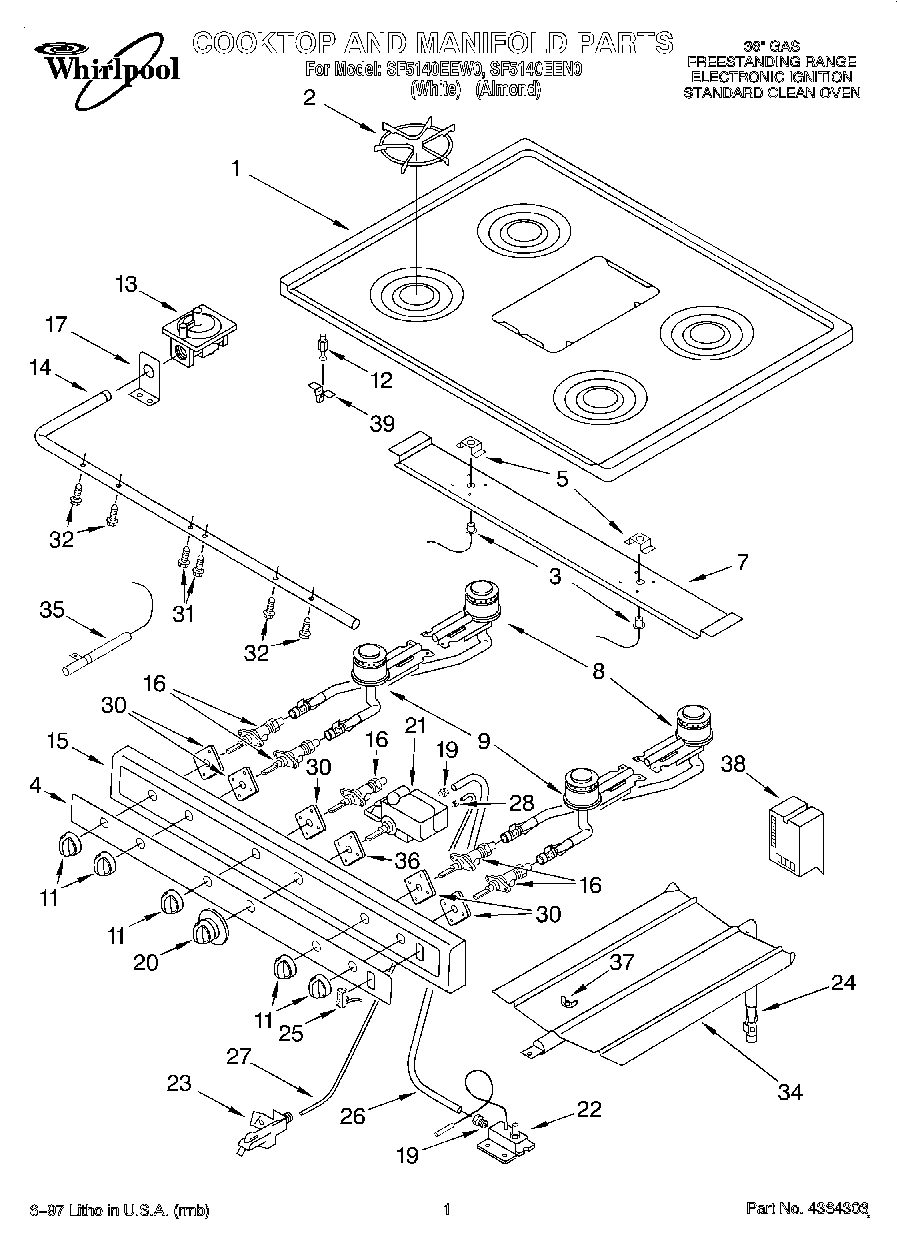

01 - COOKTOP AND MANIFOLD

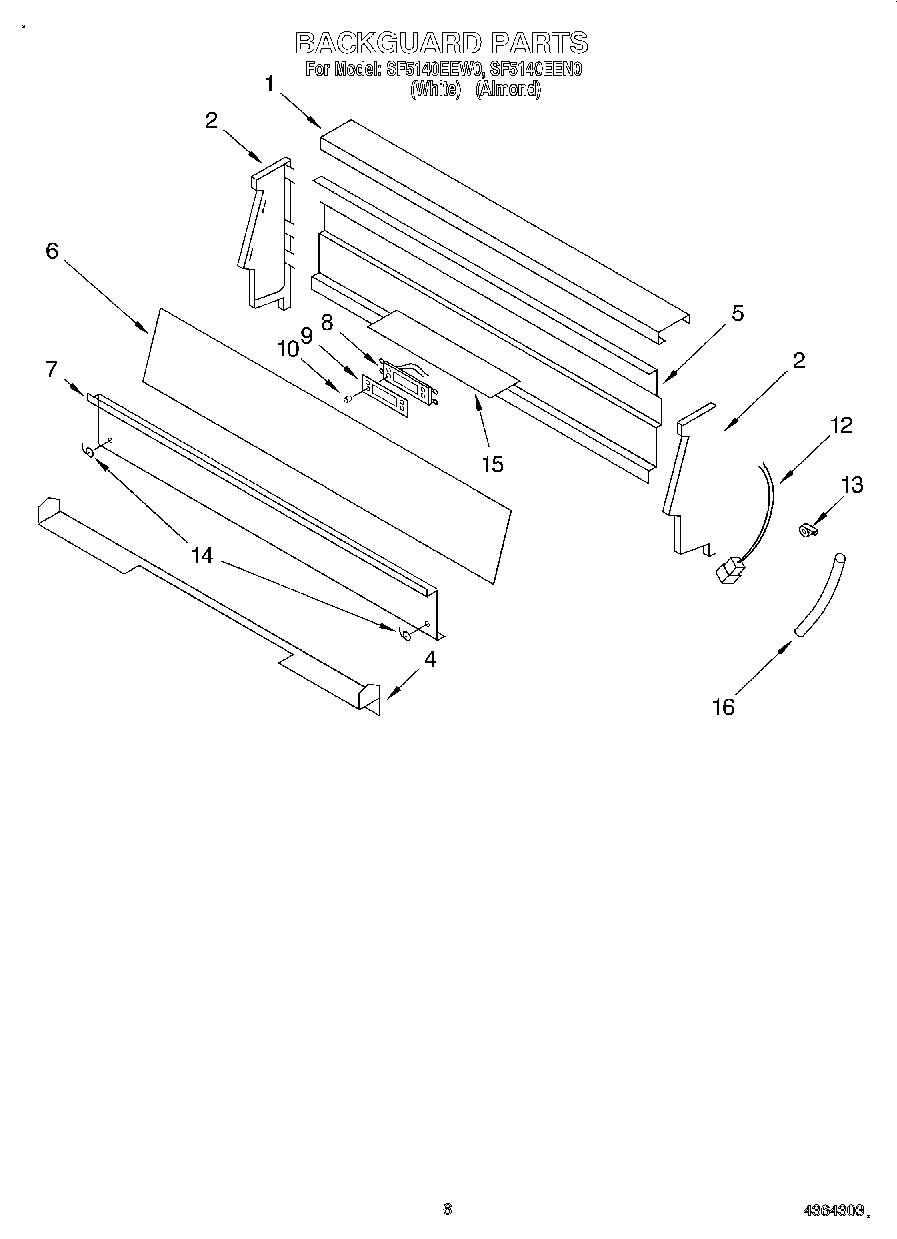

04 - BACKGUARD

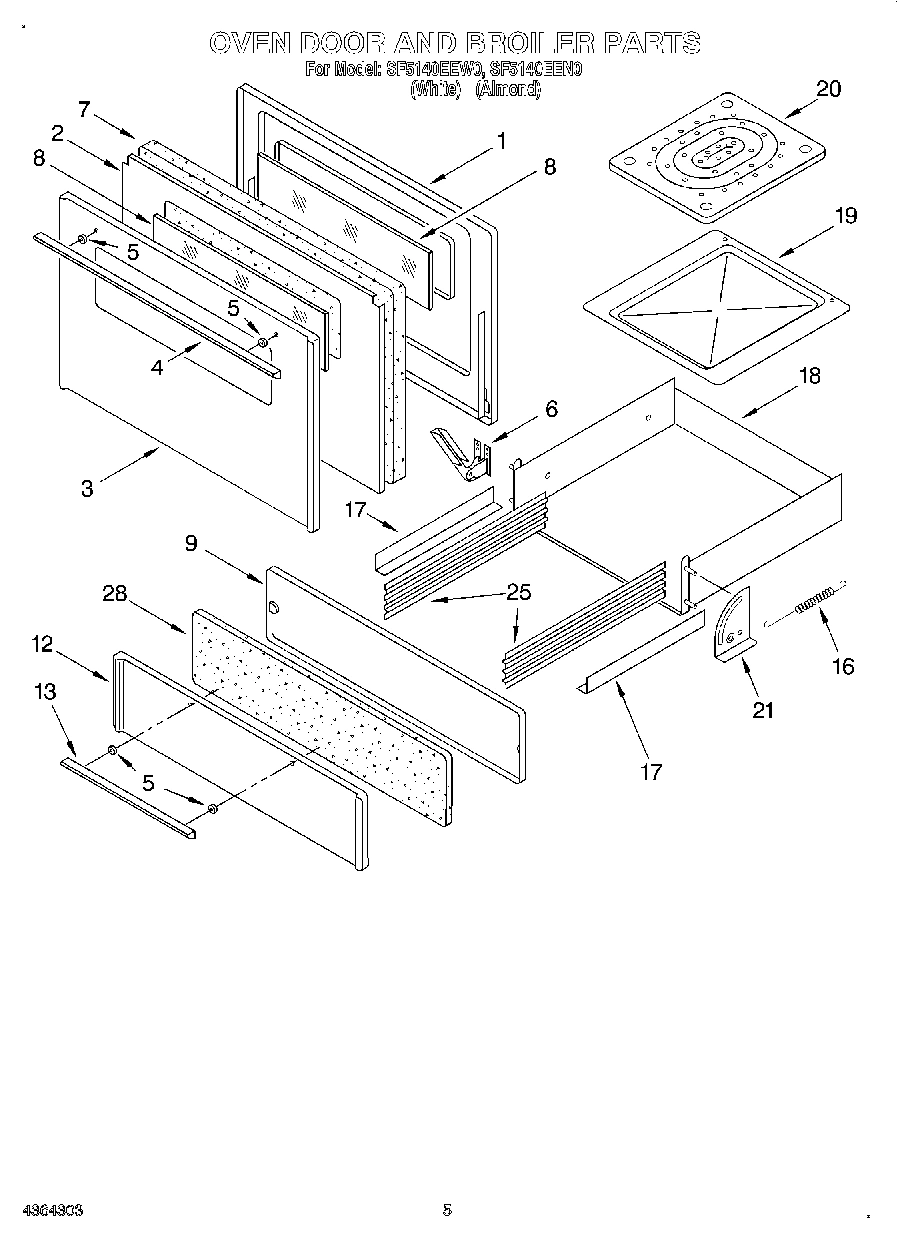

03 - OVEN DOOR AND BROILER

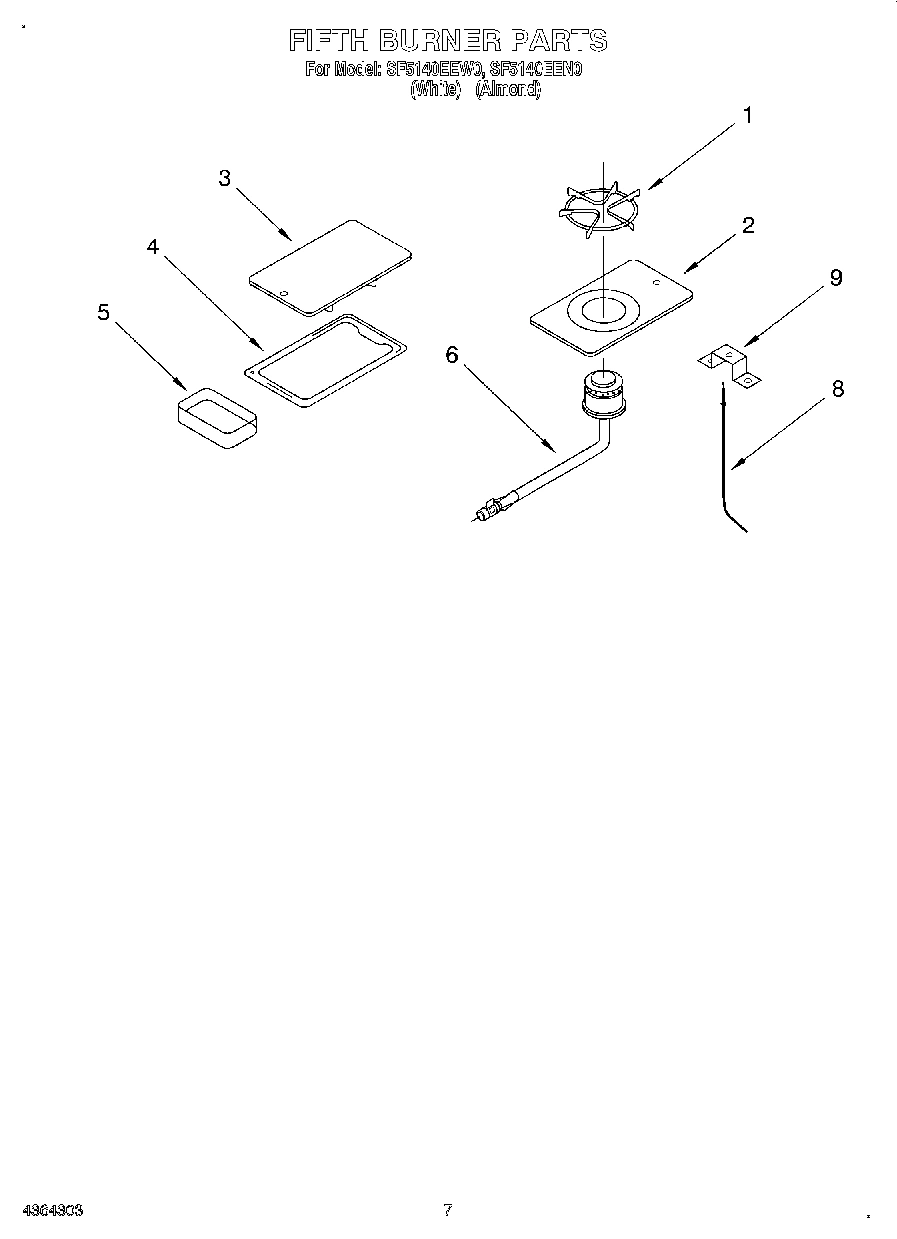

05 - FIFTH BURNER

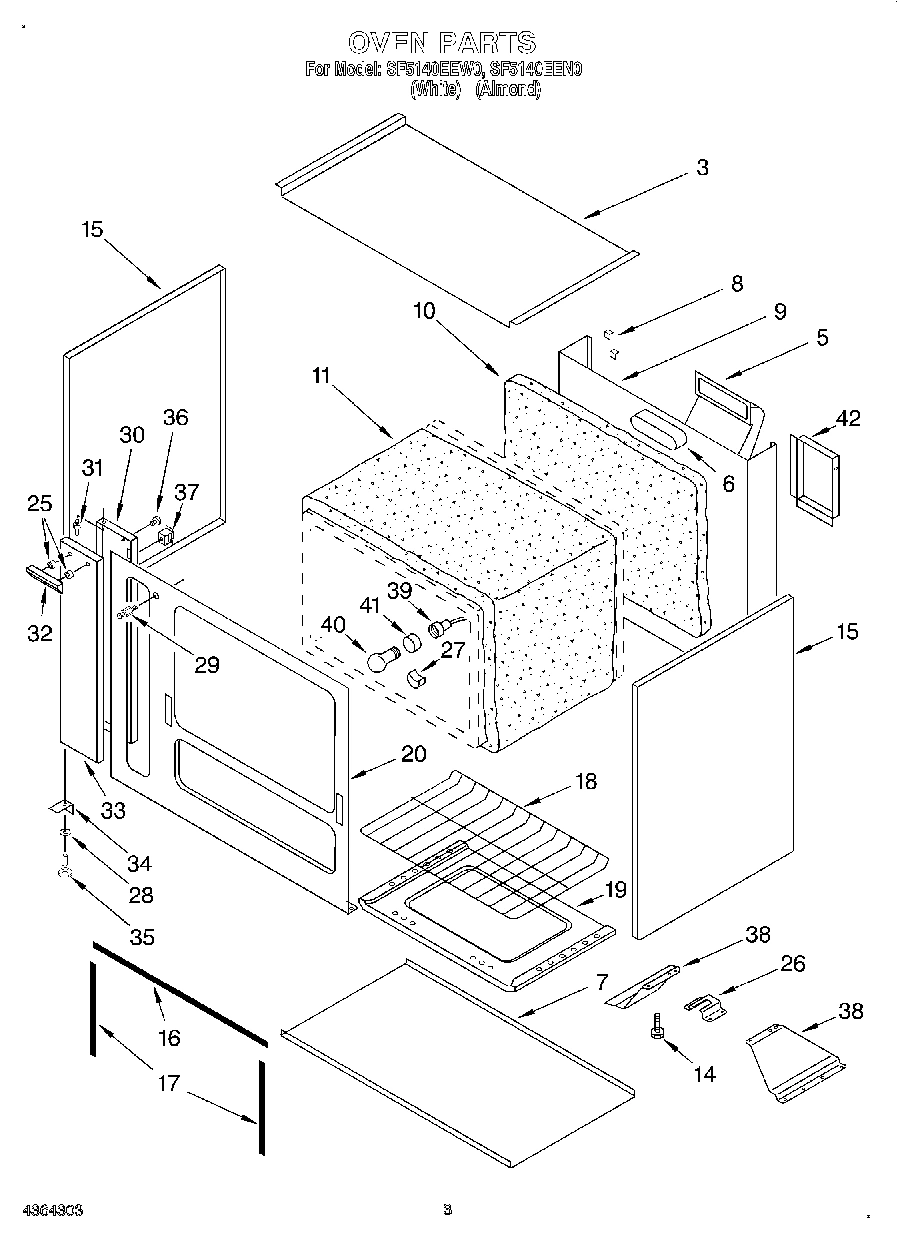

02 - OVEN
Common parts from model Whirlpool SF5140EEW0 GAS RANGE
1
Trim, Top WPL 4364329 Contact Us For Availability
1
Liner, Door WPL 4364326 Contact Us For Availability
1
Grate, Fifth Brnr WPL 4364313 Contact Us For Availability
2
Endcap (Left Hand) WPL 4364330 Contact Us For Availability
2
Endcap (Right Hand) WPL 4364331 Contact Us For Availability
2
Panel, Inner Door WPL 4364324 Contact Us For Availability
2
Top, Fifth Burner (White) WPL 4364311 Contact Us For Availability
2
Top, Fifth Burner (Almond) WPL 4364312 Contact Us For Availability
3
Panel, Oven Door (White) WPL 4364322 Contact Us For Availability
3
Panel, Oven Door (Almond) WPL 4364323 Contact Us For Availability
3
Cover, Griddle (Stainless Only) WPL 4364309 Contact Us For Availability
3
Bottom, Burner Box WPL 4364289 Contact Us For Availability
4
Screw, 10-12 x 1/2 WPL 4364153 Contact Us For Availability
4
Support, Backguard WPL 4364332 Contact Us For Availability
4
Handle, Door WPL 4364070 Contact Us For Availability
4
Griddle WPL 4364310 Contact Us For Availability
5
Screw, 8-18 x 3/8 WPL 4364151 Contact Us For Availability
5
Cover, Rear Bkgd WPL 4364333 Contact Us For Availability
5
Screw, 10-24 x 3/8 WPL 4364057 Contact Us For Availability
5
Tray, Grease WPL 4364319 Contact Us For Availability
5
Flue Box WPL 4364074 Contact Us For Availability
6
Glass, Backguard WPL 4364334 Contact Us For Availability
6
Hinge, Oven Door WPL 4364328 Contact Us For Availability
6
Burner, Fifth WPL 4364316 Contact Us For Availability
6
Ring, Flue Box WPL 4364075 Contact Us For Availability
7
Support, Burner WPL 4364317 Contact Us For Availability
7
Panel, Backsplash (Almond) WPL 4364335 Contact Us For Availability
7
Panel, Backsplash (White) WPL 4364336 Contact Us For Availability
7
Insulation, Door WPL 4364325 Contact Us For Availability
7
Bottom, Main WPL 4364290 Contact Us For Availability
8
Burner, Top Rear WPL 4364154 Contact Us For Availability
8
Clock, Timer WPL 4364337 Contact Us For Availability
8
Window, Oven WPL 4364327 Contact Us For Availability
8
Electrode, Burner WPL 4364265 Contact Us For Availability
8
Brace, Back WPL 4364133 Contact Us For Availability
9
Burner, Top Front WPL 4364155 Contact Us For Availability
9
Cover, Switch WPL 4364338 Contact Us For Availability
9
Liner, Brlr Drawer WPL 4364122 Contact Us For Availability
9
Wire Bushing WPL 4364095 Contact Us For Availability
9
Thermostat Wire WPL 4364098 Contact Us For Availability
9
Power Cord WPL 4364099 Contact Us For Availability
9
Strain Relief WPL 4364100 Contact Us For Availability
9
Cover, Pilot WPL 4364150 Contact Us For Availability
9
Harness, Wire (Black Jumper) WPL 4364320 Contact Us For Availability
9
Harness, Wire (Red Jumper) WPL 4364321 Contact Us For Availability
9
Main Back WPL 4364291 Contact Us For Availability
10
Button, Timer WPL 4364339 Contact Us For Availability
10
Insulation, Back WPL 4364078 Contact Us For Availability
11
Knob, Burner WPL 4364156 Contact Us For Availability
11
Insulation, Wrap WPL 4364079 Contact Us For Availability
12
Harness, Backguard WPL 4364341 Contact Us For Availability
12
Panel, Broiler Door (White) WPL 4364052 Contact Us For Availability
12
Panel, Broiler Door (Almond) WPL 4364053 Contact Us For Availability
13
Pressure Regulator WPL 4364159 Contact Us For Availability
13
Strain Relief WPL 4364342 Contact Us For Availability
13
Handle, Drawer WPL 4364054 Contact Us For Availability
14
Pipe, Manifold WPL 4364315 Contact Us For Availability
14
Pin, Hinge WPL 4364102 Contact Us For Availability
14
Leveler Leg (4) WPL 4364080 Contact Us For Availability
15
Panel, Manifold (Includes No.4) WPL 4364314 Contact Us For Availability
15
Deflector, Heat WPL 4364343 Contact Us For Availability
15
Panel, Side (White) WPL 4364081 Contact Us For Availability
15
Panel, Side (Almond) WPL 4364082 Contact Us For Availability
16
Gasket, Oven Top WPL 4364083 Contact Us For Availability
16
Valve, Burner (Includes No.32) WPL 4364162 Contact Us For Availability
16
Sleeve, Harness WPL 4364344 Contact Us For Availability
16
Spring, Broiler WPL 4364060 Contact Us For Availability
17
Gasket, Oven Side WPL 4364084 Contact Us For Availability
17
Support, Manifold WPL 4364163 Contact Us For Availability
17
Broiler Drawer Runner (Left) WPL 4364061 Contact Us For Availability
17
Broiler Drawer Runner (Right) WPL 4364062 Contact Us For Availability
18
Rack, Oven WPL 4364085 Contact Us For Availability
18
Liner, Broiler WPL 4364063 Contact Us For Availability
19
Loxit Fitting 3/8`` WPL 4364164 Contact Us For Availability
19
Broiler Pan WPL 4364064 Contact Us For Availability
19
Bottom, Oven WPL 4364086 Contact Us For Availability
20
Knob, Thermostat WPL 4364165 Contact Us For Availability
20
Grill, Broiler WPL 4364065 Contact Us For Availability
20
Frame, Front WPL 4364304 Contact Us For Availability
21
Thermostat, Oven (Includes No. 31) WPL 4364166 Contact Us For Availability
21
Hinge, Broiler (Left) WPL 4364066 Contact Us For Availability
21
Hinge, Broiler (Right) WPL 4364067 Contact Us For Availability
21
Hinge, Broiler (Screw, 10-24 x 3/8) WPL 4364068 Contact Us For Availability
22
Valve, Safety WPL 4364168 Contact Us For Availability
23
Pilot, Oven Burner WPL 4364169 Contact Us For Availability
24
Burner, Oven WPL 4364170 Contact Us For Availability
24
Screw, 10-24 x 5/8 WPL 4364171 Contact Us For Availability
25
Switch, Oven Light WPL 4364048 Contact Us For Availability
25
Spacer, Handle WPL 4364055 Contact Us For Availability
25
Glide, Broiler Pan WPL 4364123 Contact Us For Availability
26
Tubing, Oven 3/8`` O.D. WPL 4364038 Contact Us For Availability
27
Tubing, Pilot 3/16`` O.D. WPL 4364039 Contact Us For Availability
27
Clip, Oven Bulb WPL 4364130 Contact Us For Availability
28
Loxit Fitting 3/16 WPL 4364124 Contact Us For Availability
28
Insulation, Broiler Drawer WPL 4364056 Contact Us For Availability
28
Spacer, Door Hinge WPL 4364340 Contact Us For Availability
29
Catch, Door Strike WPL 4364294 Contact Us For Availability
30
Switch, Valve WPL 4364172 Contact Us For Availability
30
Liner, Comp. Door WPL 4364295 Contact Us For Availability
31
Bolt, Thermostat WPL 4364167 Contact Us For Availability
31
Pin, Upper Hinge WPL 4364296 Contact Us For Availability
32
Bolt, Valve Mtg. WPL 4364173 Contact Us For Availability
32
Handle, Comp. Door WPL 4364297 Contact Us For Availability
33
Panel, Comp. Door (White) WPL 4364298 Contact Us For Availability
33
Panel, Comp. Door (Almond) WPL 4364299 Contact Us For Availability
34
Flame Spreader WPL 4364042 Contact Us For Availability
34
Bracket, Hinge WPL 4364300 Contact Us For Availability
35
Screw, 6-32 x 1/4 WPL 4364043 Contact Us For Availability
35
Electrode, Oven WPL 4364044 Contact Us For Availability
35
Pin, Lower Hinge WPL 4364301 Contact Us For Availability
36
Switch, Thermostat WPL 4364045 Contact Us For Availability
36
Bumper, Rubber WPL 4364305 Contact Us For Availability
37
Strike, Door WPL 4364157 Contact Us For Availability
37
Wingnut WPL 4364046 Contact Us For Availability
38
Spark Module WPL 4364318 Contact Us For Availability
38
Support, Side (Left) WPL 4364089 Contact Us For Availability
38
Support, Side (Right) WPL 4364090 Contact Us For Availability
39
CATCH, STRIKEPIN WPL 4364158 Contact Us For Availability
39
Receptacle, Light WPL 4364091 Contact Us For Availability
41
Ring, Oven Light WPL 4364093 Contact Us For Availability
42
Box, Power WPL 4364094 Contact Us For Availability
× ![]()
