Model Whirlpool SF5100SKW0 GAS RANGE – Common Parts & Diagrams
04 - DOOR
05 - BACKGUARD

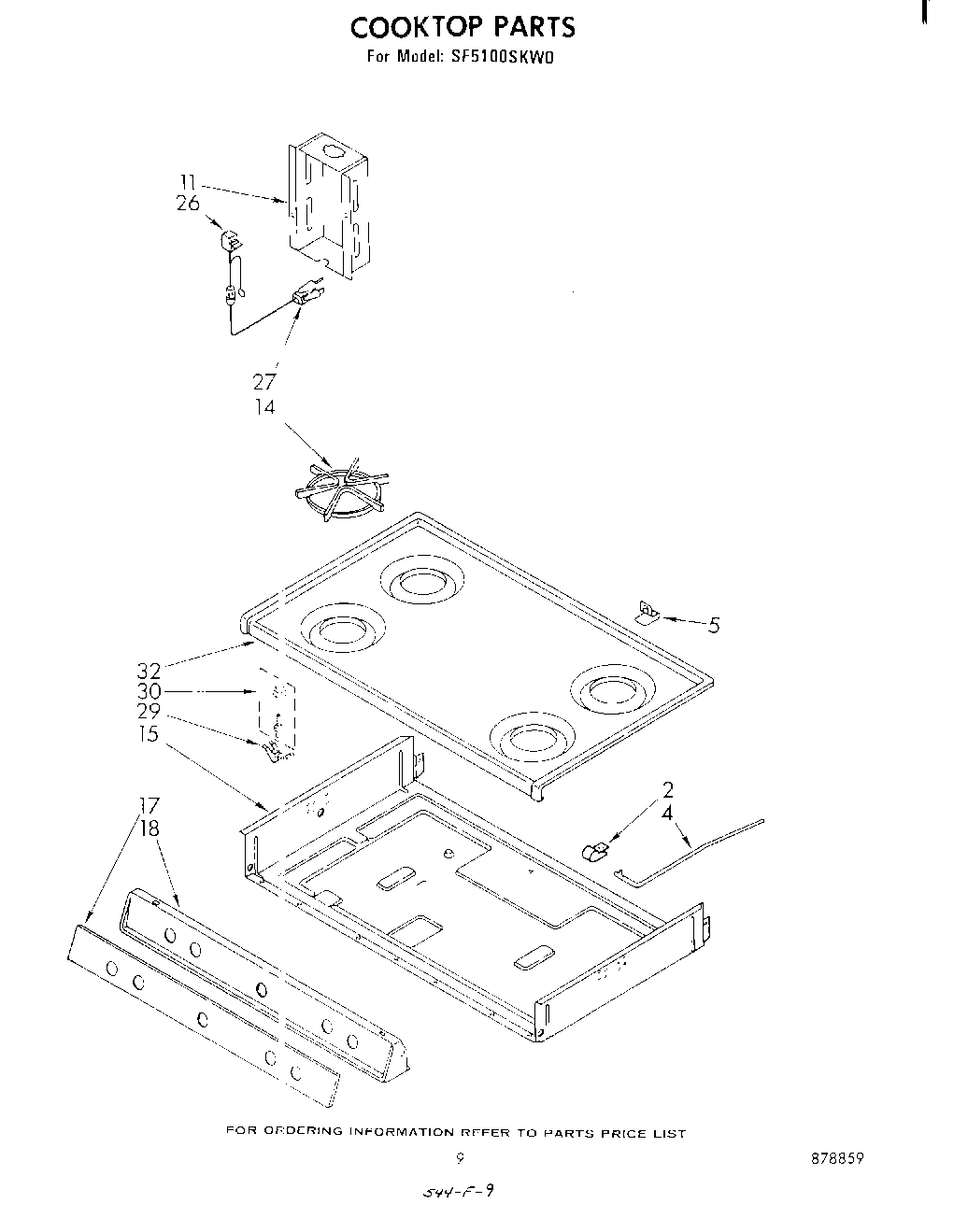

06 - COOK TOP

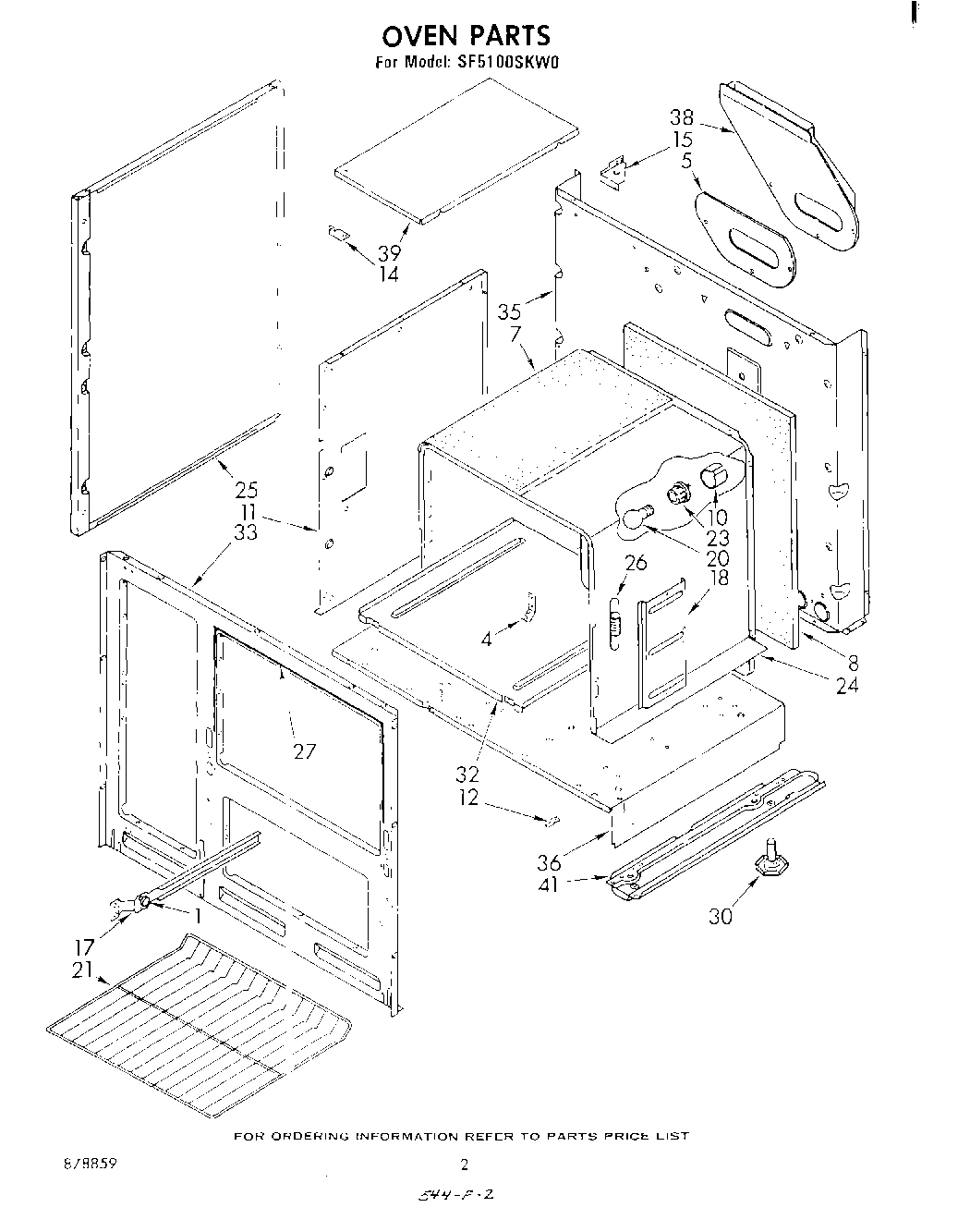

02 - OVEN , LITERATURE AND OPTIONAL

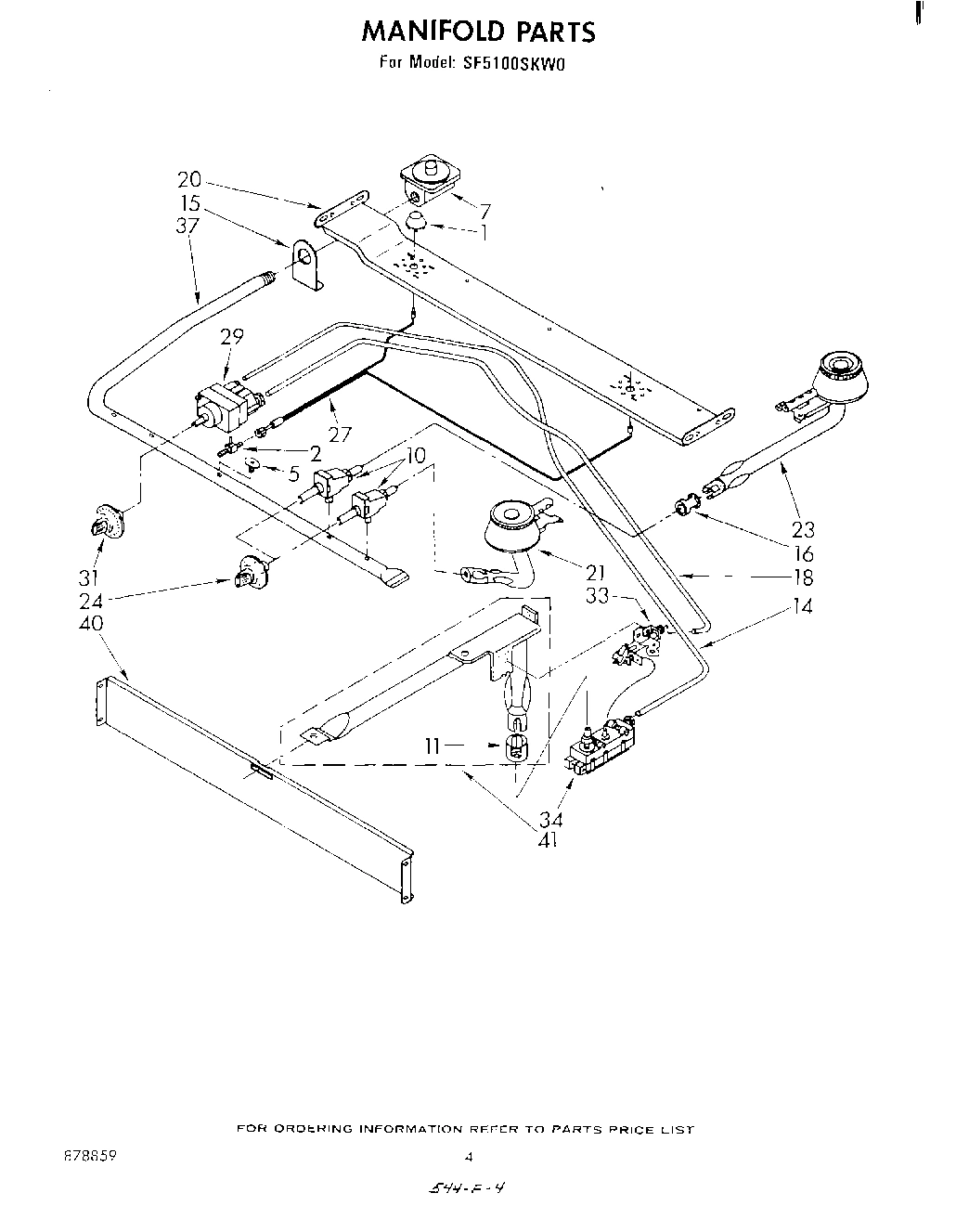

03 - MANIFOLD
Common parts from model Whirlpool SF5100SKW0 GAS RANGE
1
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878079 Contact Us For Availability
1
Block, Disconnect Pin WPL 878196 Contact Us For Availability
1
Bearing, Roller (4) WPL 878077 Contact Us For Availability
1
Cone, Top Lighter (2) WPL 878701 Contact Us For Availability
2
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878080 Contact Us For Availability
2
Clamp Wire (2) WPL 878082 Contact Us For Availability
2
Clamp, Top Stop WPL 878083 Contact Us For Availability
2
Filter, Top Lighter WPL 878712 Contact Us For Availability
3
Catch, Compartment Door WPL 878529 Contact Us For Availability
4
Clock, Regular WPL 878597 Contact Us For Availability
4
Stop, Cook Top WPL 878098 Contact Us For Availability
5
Insulation, Broiler Door WPL 878532 Contact Us For Availability
5
Inlay, Nameplate WPL 878598 Contact Us For Availability
5
Spacer, Main Top WPL 878099 Contact Us For Availability
5
Gasket, Vent Deflector WPL 878530 Contact Us For Availability
5
Fitting, Flange WPL 878296 Contact Us For Availability
7
Spacer, Door Handle (2) WPL 878310 Contact Us For Availability
7
Inlay, Backguard Panel WPL 878599 Contact Us For Availability
7
Regulator, Pressure WPL 878008 Contact Us For Availability
8
Spacer, Door Handle (4) WPL 878311 Contact Us For Availability
8
Plate, Name WPL 878600 Contact Us For Availability
10
Switch, Rocker WPL 878601 Contact Us For Availability
10
Sleeve, Light Hole WPL 878103 Contact Us For Availability
10
Valve, Top Burner (4) WPL 878312 Contact Us For Availability
11
Handle, Door 9`` (2) WPL 878550 Contact Us For Availability
11
Trim, Backguard (Right Side) WPL 878602 Contact Us For Availability
11
Trim, Backguard (Left Side) WPL 878603 Contact Us For Availability
11
Cover, Wire WPL 878719 Contact Us For Availability
11
Side, Compartment WPL 878540 Contact Us For Availability
11
Shutter, Oven Burner Air WPL 878102 Contact Us For Availability
12
Clip, Oven Bottom Plate WPL 878107 Contact Us For Availability
14
Handle, Oven Door WPL 878324 Contact Us For Availability
14
Panel, Backguard (Almond) WPL 878604 Contact Us For Availability
14
Panel, Backguard (Coffee) WPL 878605 Contact Us For Availability
14
panel, backguard (white) WPL 878606 Contact Us For Availability
14
Panel, Backguard (Harvest Gold) WPL 878607 Contact Us For Availability
14
Panel, Backguard (Toast) WPL 879111 Contact Us For Availability
14
Panel, Backguard (Platinum) WPL 879112 Contact Us For Availability
14
Grate, Burner (4) WPL 878150 Contact Us For Availability
14
Support, Compartment Shelf WPL 878543 Contact Us For Availability
14
Tubing, Oven WPL 878716 Contact Us For Availability
15
Bezel, Oven Door WPL 878556 Contact Us For Availability
15
Cover, Clock WPL 878608 Contact Us For Availability
15
Bottom, Burner Box WPL 878548 Contact Us For Availability
15
Bracket, Corner Support (Right Side) WPL 878717 Contact Us For Availability
15
Bracket, Corner Support (Left Side) WPL 878718 Contact Us For Availability
15
Support, Inlet Pipe WPL 878115 Contact Us For Availability
16
Glass WPL 308441 Contact Us For Availability
16
Cap, Top Burner Air Mixer WPL 878116 Contact Us For Availability
17
Glass, Oven Door Outside WPL 878557 Contact Us For Availability
17
Knob WPL 307802 Contact Us For Availability
17
Inlay, Manifold Panel WPL 878722 Contact Us For Availability
17
Track, Broiler (Right Side) WPL 878113 Contact Us For Availability
17
Track, Broiler (Left Side) WPL 878114 Contact Us For Availability
18
Glass, Oven Door Package WPL 878558 Contact Us For Availability
18
Bezel WPL 258851 Contact Us For Availability
18
Panel, Manifold (Almond) WPL 878723 Contact Us For Availability
18
Panel, Manifold (Coffee) WPL 878724 Contact Us For Availability
18
Panel, Manifold (White) WPL 878725 Contact Us For Availability
18
Panel, Manifold (Harvest Gold) WPL 878726 Contact Us For Availability
18
Panel, Manifold (Toast) WPL 879107 Contact Us For Availability
18
Panel, Manifold (Platinum) WPL 879108 Contact Us For Availability
18
Cover, Hinge (2) WPL 878117 Contact Us For Availability
18
Tubing, Control/Pilot WPL 878720 Contact Us For Availability
19
Motor WPL 256466 Contact Us For Availability
20
panel, oven door (almond) WPL 878560 Contact Us For Availability
20
Panel, Oven Door (Coffee) WPL 878561 Contact Us For Availability
20
Panel, Oven Door (White) WPL 878562 Contact Us For Availability
20
Panel, Oven Door (Harvest Gold) WPL 878563 Contact Us For Availability
20
Panel, Oven Door (Toast) WPL 879101 Contact Us For Availability
20
Panel, Oven Door (Platinum) WPL 879102 Contact Us For Availability
20
Hanger, Top Burner WPL 878721 Contact Us For Availability
21
Lining, Oven Door WPL 878564 Contact Us For Availability
21
Rack, Oven (2) WPL 878546 Contact Us For Availability
21
Burner, Top Front (2) (Includes Illus. 16) WPL 878130 Contact Us For Availability
23
Baffle, Door WPL 878565 Contact Us For Availability
23
Socket, Oven Light WPL 878124 Contact Us For Availability
23
Burner, Top Rear (2) (Includes Illus. 16) WPL 878131 Contact Us For Availability
24
Panel, Broiler Door (Almond) WPL 878566 Contact Us For Availability
24
Panel, Broiler Door (Coffee) WPL 878567 Contact Us For Availability
24
panel, broiler door (white) WPL 878568 Contact Us For Availability
24
Panel, Broiler Door (Harvest Gold) WPL 878569 Contact Us For Availability
24
Panel, Broiler Door (Toast) WPL 879103 Contact Us For Availability
24
Panel, Broiler Door (Platinum) WPL 879104 Contact Us For Availability
24
Oven, 30`` Standard Clean (Not Serviceable) WPL ARI130350A Contact Us For Availability
24
Handle, Top Valve (4) WPL 878335 Contact Us For Availability
25
Lining, Broiler Door WPL 878570 Contact Us For Availability
25
Panel, End (2) (White) WPL 878128 Contact Us For Availability
25
Panel, End (2) (Almond) WPL 878129 Contact Us For Availability
25
Panel, End (2) (Coffee) WPL 878461 Contact Us For Availability
25
Panel, End (2) (Harvest Gold) WPL 878462 Contact Us For Availability
25
Panel, End (2) (Toast) WPL 879081 Contact Us For Availability
25
Panel, End (2) (Platinum) WPL 879082 Contact Us For Availability
26
Spring, Broiler Door (2) WPL 878165 Contact Us For Availability
26
Block, Disconnect Socket WPL 878162 Contact Us For Availability
26
Spring, Oven Door WPL 878559 Contact Us For Availability
27
panel, compartment door (almond) WPL 878579 Contact Us For Availability
27
Panel, Compartment Door (Coffee) WPL 878580 Contact Us For Availability
27
panel, compartment door (white) WPL 878581 Contact Us For Availability
27
Panel, Compartment Door (Harvest Gold) WPL 878582 Contact Us For Availability
27
Panel, Compartment Door (Toast) WPL 879105 Contact Us For Availability
27
panel, compartment door (platinum) WPL 879106 Contact Us For Availability
27
Cord, Extension WPL 878298 Contact Us For Availability
27
Seal, Oven Door (Side (2)) WPL 878004 Contact Us For Availability
27
Seal, Oven Door (Top (1)) WPL 878496 Contact Us For Availability
27
Lighter, Top Burner WPL 878708 Contact Us For Availability
29
Lining, Compartment Door WPL 878583 Contact Us For Availability
29
Catch, Main Top (2) WPL 878164 Contact Us For Availability
29
Control, Oven WPL 878709 Contact Us For Availability
30
Hinge, Compartment Door (2) WPL 878592 Contact Us For Availability
30
Strike, Main Top (2) WPL 878499 Contact Us For Availability
30
Screw, Leveling (4) WPL 878417 Contact Us For Availability
31
Dial, Oven Control WPL 878158 Contact Us For Availability
32
Hinge, Oven Door WPL 878167 Contact Us For Availability
32
Top, Main (Almond) WPL 878732 Contact Us For Availability
32
Top, Main (Coffee) WPL 878733 Contact Us For Availability
32
Top, Main (White) WPL 878734 Contact Us For Availability
32
Top, Main (Harvest Gold) WPL 878735 Contact Us For Availability
32
Top, Main (Toast) WPL 879109 Contact Us For Availability
32
Top, Main (Platinum) WPL 879110 Contact Us For Availability
32
Plate, Oven Bottom WPL 878584 Contact Us For Availability
33
Front, Main WPL 878589 Contact Us For Availability
33
Lighter, Oven Burner WPL 878710 Contact Us For Availability
34
Support, Oven Door (Lef WPL 878168 Contact Us For Availability
34
WPL 878169 WPL 878169 Contact Us For Availability
34
Valve, Oven Lighter Safety WPL 878711 Contact Us For Availability
35
WPL 878172 WPL 878172 Contact Us For Availability
35
Back, Main WPL 878590 Contact Us For Availability
36
WPL 878173 WPL 878173 Contact Us For Availability
36
Bottom, Main WPL 878591 Contact Us For Availability
37
Pipe, Manifold WPL 878736 Contact Us For Availability
38
WPL 878174 WPL 878174 Contact Us For Availability
38
Deflector, Vent WPL 878593 Contact Us For Availability
39
WPL 878183 WPL 878183 Contact Us For Availability
39
WPL 878184 WPL 878184 Contact Us For Availability
39
Shelf, Compartment WPL 878595 Contact Us For Availability
40
Deflector, Heat WPL 878596 Contact Us For Availability
41
Diagram, Wiring WPL 878056 Contact Us For Availability
41
Instructions, Installation WPL 878064 Contact Us For Availability
41
Guide, Use & Care WPL 878072 Contact Us For Availability
41
Runner, Base (Left Side) WPL 878181 Contact Us For Availability
41
Runner, Base (Right Side) WPL 878182 Contact Us For Availability
41
List, Repair Parts WPL 878859 Contact Us For Availability
41
Burner, Oven WPL 878187 Contact Us For Availability
× ![]()
