Model Whirlpool SF462LXST0 30`` GAS FREESTANDING SELF CLEAN RANGE SEALED BURN – Common Parts & Diagrams

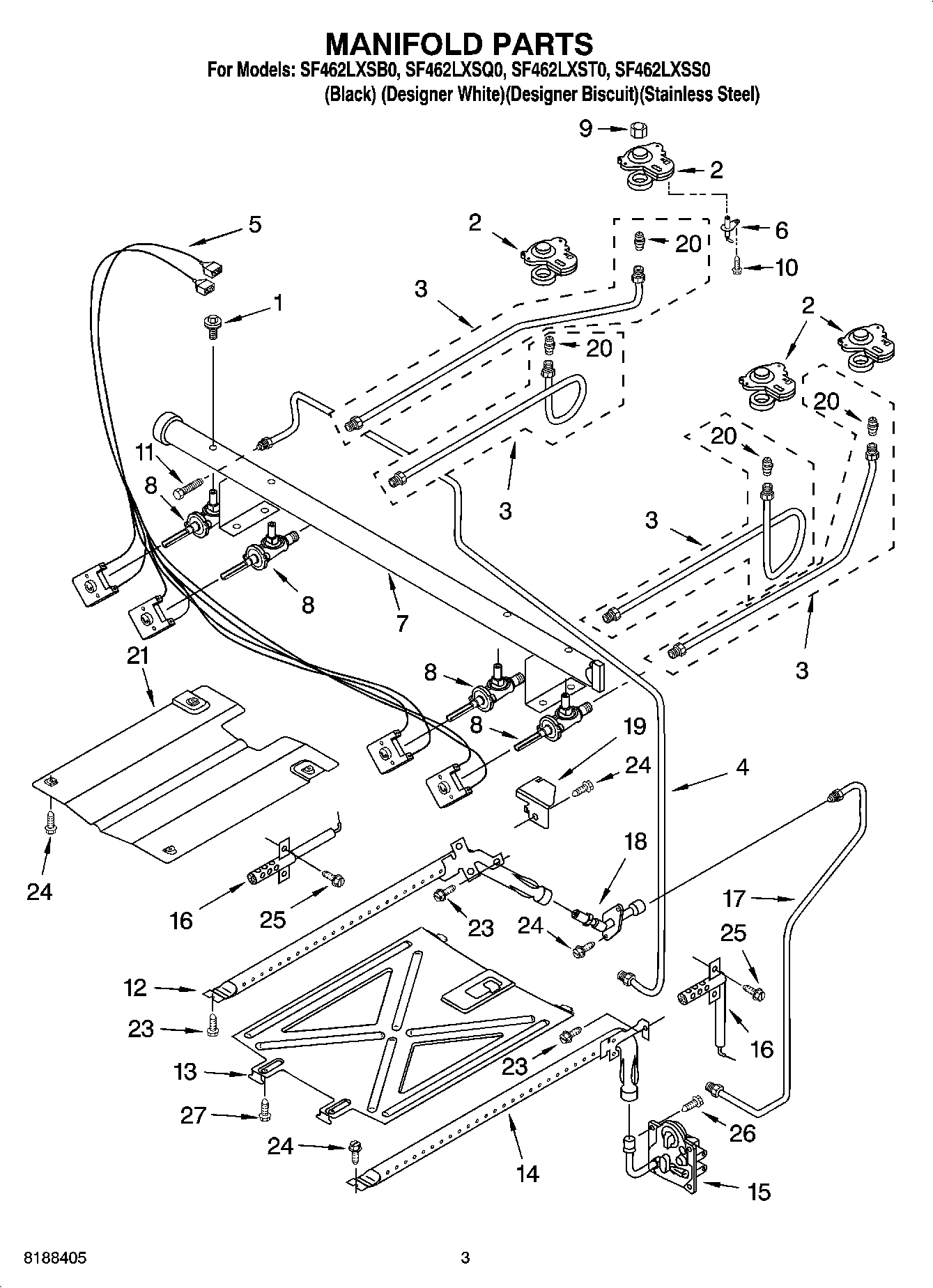

03 - MANIFOLD PARTS

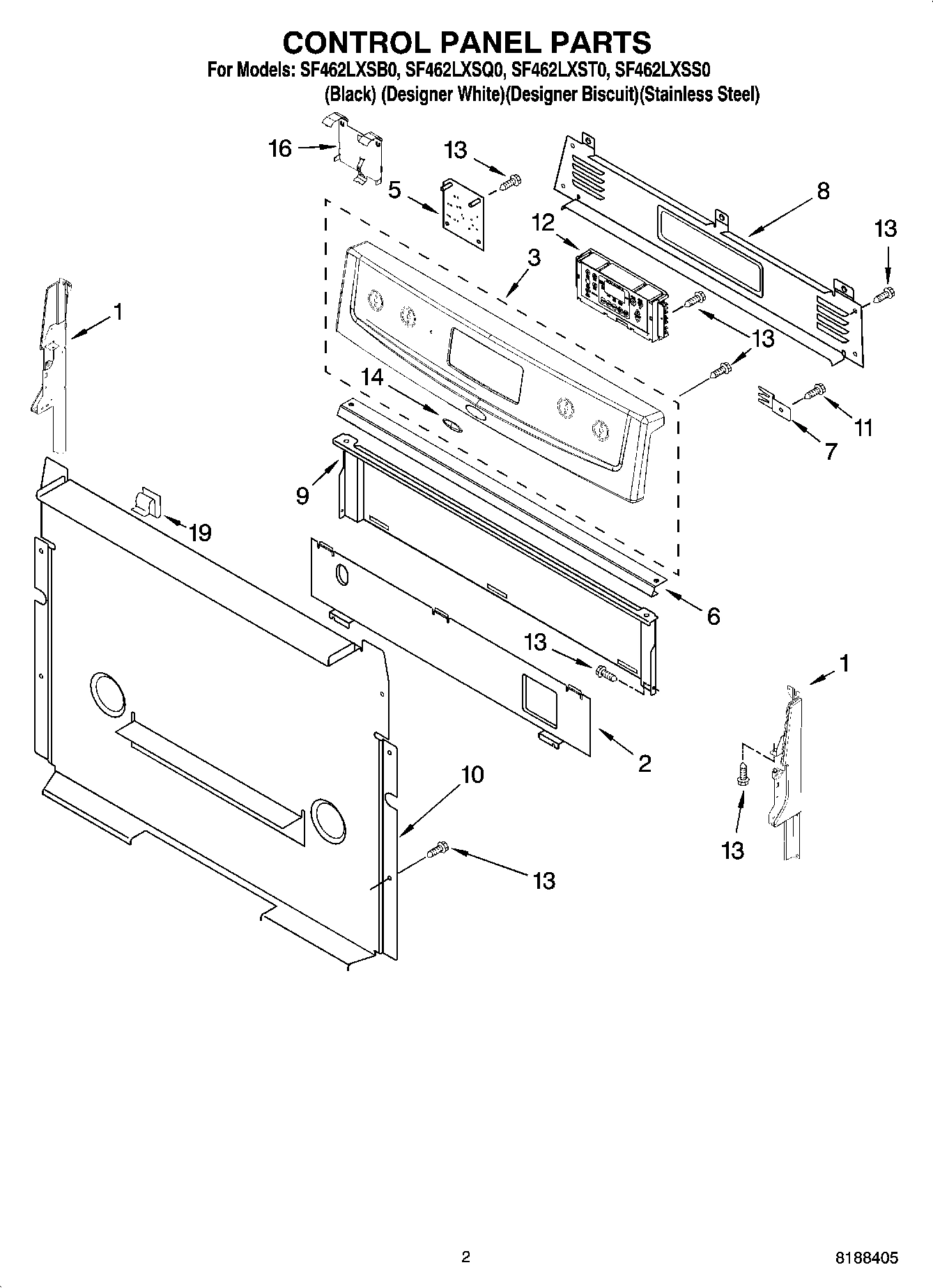

02 - CONTROL PANEL PARTS
04 - CHASSIS PARTS
06 - DRAWER & BROILER PARTS, OPTIONAL PARTS
01 - COOKTOP PARTS
05 - DOOR PARTS
Common parts from model Whirlpool SF462LXST0 30`` GAS FREESTANDING SELF CLEAN RANGE SEALED BURN
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Biscuit) WPL 4392899 Contact Us For Availability
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
Paint, Touch-Up 1/2 Oz WPL 511873 Contact Us For Availability
WPL 8524207 WPL 8524207 Contact Us For Availability
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
WPL 8523599 WPL 8523599 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
WPL W10045060 WPL W10045060 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
Grease WPL 261582 Contact Us For Availability
TIE,WIRE WPL 3195927 Contact Us For Availability
Clip, Harness WPL 3196696 Contact Us For Availability
CLIP, WIRE WPL 3196896 Contact Us For Availability
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
WPL 9762433 WPL 9762433 Contact Us For Availability
WPL ARI164099A WPL ARI164099A Contact Us For Availability
WPL ARI164100A WPL ARI164100A Contact Us For Availability
WPL ARI164101A WPL ARI164101A Contact Us For Availability
WPL ARI164102A WPL ARI164102A Contact Us For Availability
WPL ARI164103A WPL ARI164103A Contact Us For Availability
WPL ARI164104A WPL ARI164104A Contact Us For Availability
WPL ARI164105A WPL ARI164105A Contact Us For Availability
1
Trim, Top (Black) WPL W10016380 Contact Us For Availability
1
Trim, Top (Biscuit) WPL W10016450 Contact Us For Availability
1
Anti-Tip Template (English/Spanish) WPL 9757142 Contact Us For Availability
1
Anti-Tip Template (English/French) WPL 9757143 Contact Us For Availability
1
Safer Cooking Tips WPL 9762761 Contact Us For Availability
1
Tech Sheet WPL 9762973 Contact Us For Availability
1
Installation Instructions WPL 9762998 Contact Us For Availability
1
Owners Manual WPL 9763003 Contact Us For Availability
1
Trim, Top (Stainless Steel) WPL W10016420 Contact Us For Availability
2
Cap, Burner (Right Rear) (Grey) WPL 3191899 Contact Us For Availability
2
Burner Base (Small (1)) WPL 8273701 Contact Us For Availability
2
Shield, Lower Heat WPL 8053505 Contact Us For Availability
3
Tubing, Burner W/Orifice (Right Front) WPL 8273695 Contact Us For Availability
3
Tubing, Burner W/Orifice (Right Rear) WPL 8273697 Contact Us For Availability
3
Handle, Door (Biscuit) WPL 8522448 Contact Us For Availability
4
Drawer, Storage WPL 9761031 Contact Us For Availability
6
Panel, Manifold (Black) WPL 8523855 Contact Us For Availability
6
Brkt, Manifold Mtg WPL 8523249 Contact Us For Availability
6
Rivet, Push (2) (Almond) WPL 3196815 Contact Us For Availability
6
Panel, Manifold (Biscuit) WPL 8523856 Contact Us For Availability
7
Knob, Control (3) (Stainless Steel) WPL 8273279 Contact Us For Availability
7
Knob, Control (3) (Biscuit) WPL 8522626 Contact Us For Availability
7
Panel, Drawer Front (Biscuit) WPL 8272502 Contact Us For Availability
8
Valve (Right Rear) WPL 8273004 Contact Us For Availability
9
Nut (4) WPL 8273060 Contact Us For Availability
9
Knob, Powerburner (Black) WPL 8273281 Contact Us For Availability
9
Panel, Stainless WPL 9755797 Contact Us For Availability
9
Knob, Powerburner (Biscuit) WPL 8522627 Contact Us For Availability
11
Grate, Burner (4) (Espresso) WPL 8522853 Contact Us For Availability
11
Handle, Door (Stainless Model) WPL 9757237 Contact Us For Availability
11
Glass, Outer Door (Stainless Model) WPL 9756435 Contact Us For Availability
13
Baffle, Burner WPL 8053967 Contact Us For Availability
13
Spreader, Flame (Oven) WPL 8053970 Contact Us For Availability
15
Clip, Door Glass WPL 3196025 Contact Us For Availability
17
Tubing (Broiler Fitting To Valve) WPL 8272222 Contact Us For Availability
18
Fitting, Broiler WPL 3186489 Contact Us For Availability
18
Seal, Oven Flange WPL W10008830 Contact Us For Availability
21
CLIP,DOOR MNTG WPL 9761517 Contact Us For Availability
23
Screw WPL 3196265 Contact Us For Availability
23
Retainer, Insul. (Right Hand) WPL 9761448 Contact Us For Availability
23
Retainer, Insul. (Left Hand) WPL 9761449 Contact Us For Availability
27
Spuds, LP Gas (Kit of 4) WPL 8523418 Contact Us For Availability
38
Screw WPL 3196152 Contact Us For Availability
39
Screw (White) WPL 3196166 Contact Us For Availability
46
ROD - DOOR SWITCH, REAR MOUNT WPL 9757239 Contact Us For Availability
× ![]()
