Model Whirlpool SF395PEWW1 GAS RANGE – Common Parts & Diagrams
05 - OVEN ELECTRICAL
08 - COOKTOP

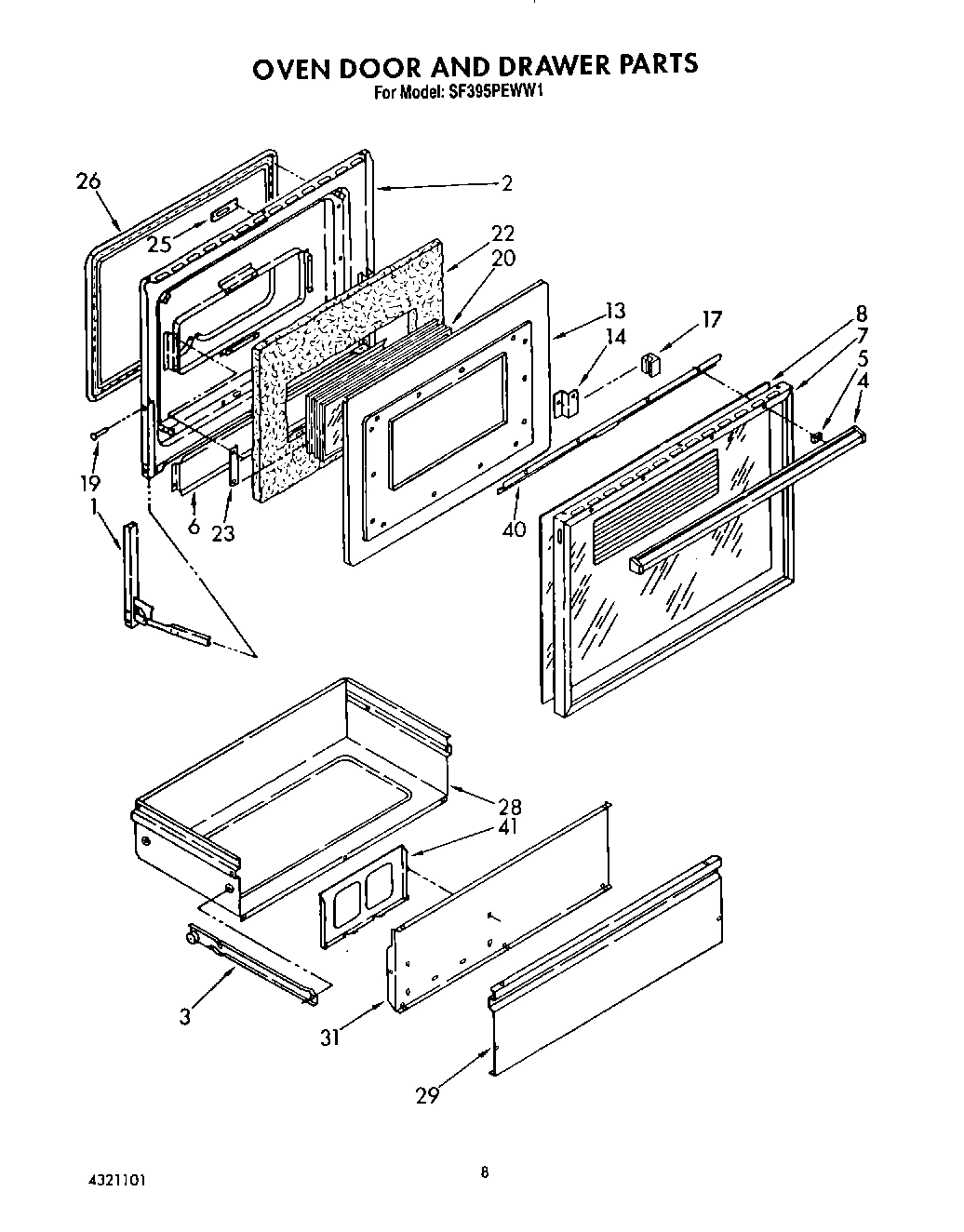

06 - OVEN DOOR AND DRAWER

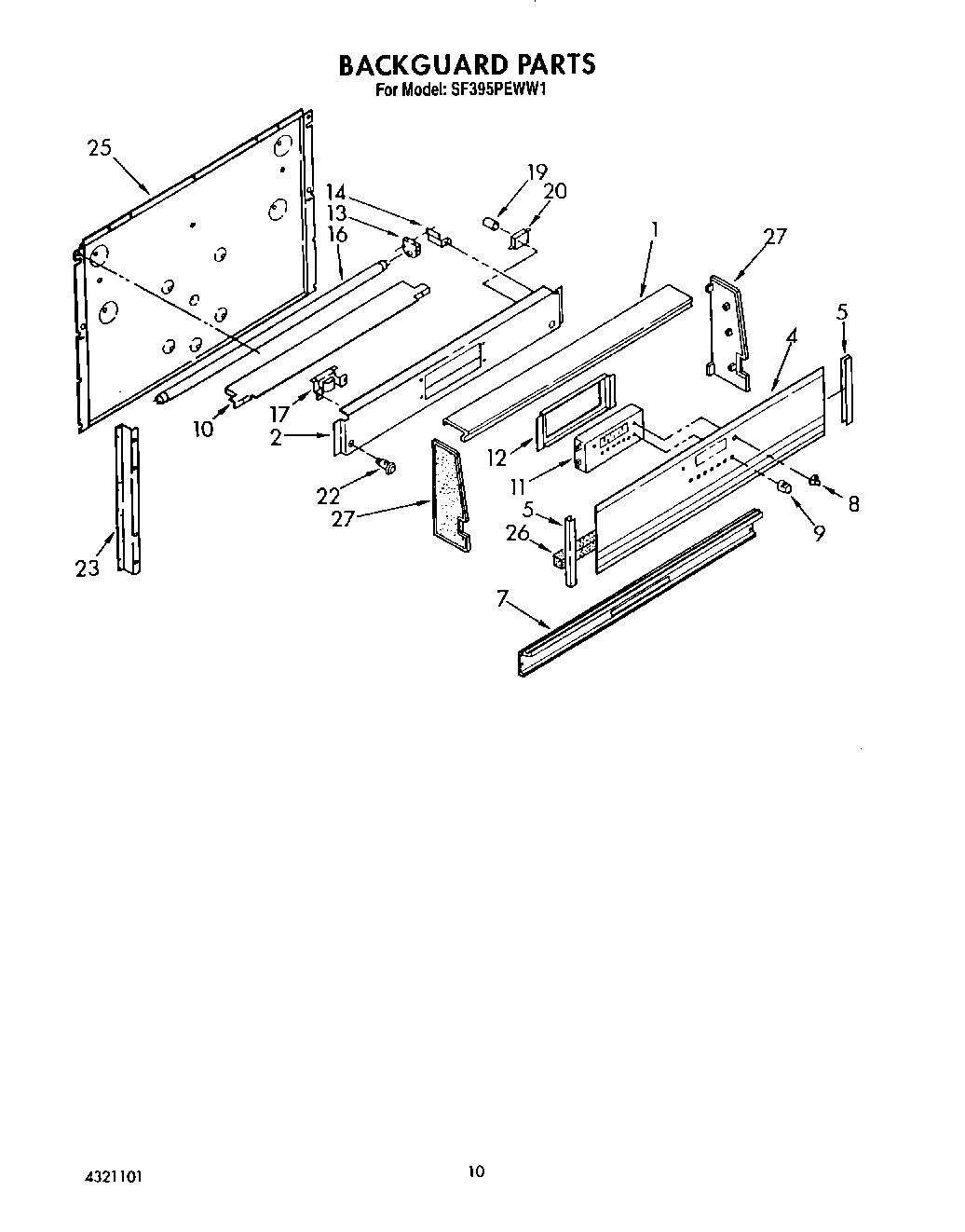

07 - BACKGUARD, OPTIONAL

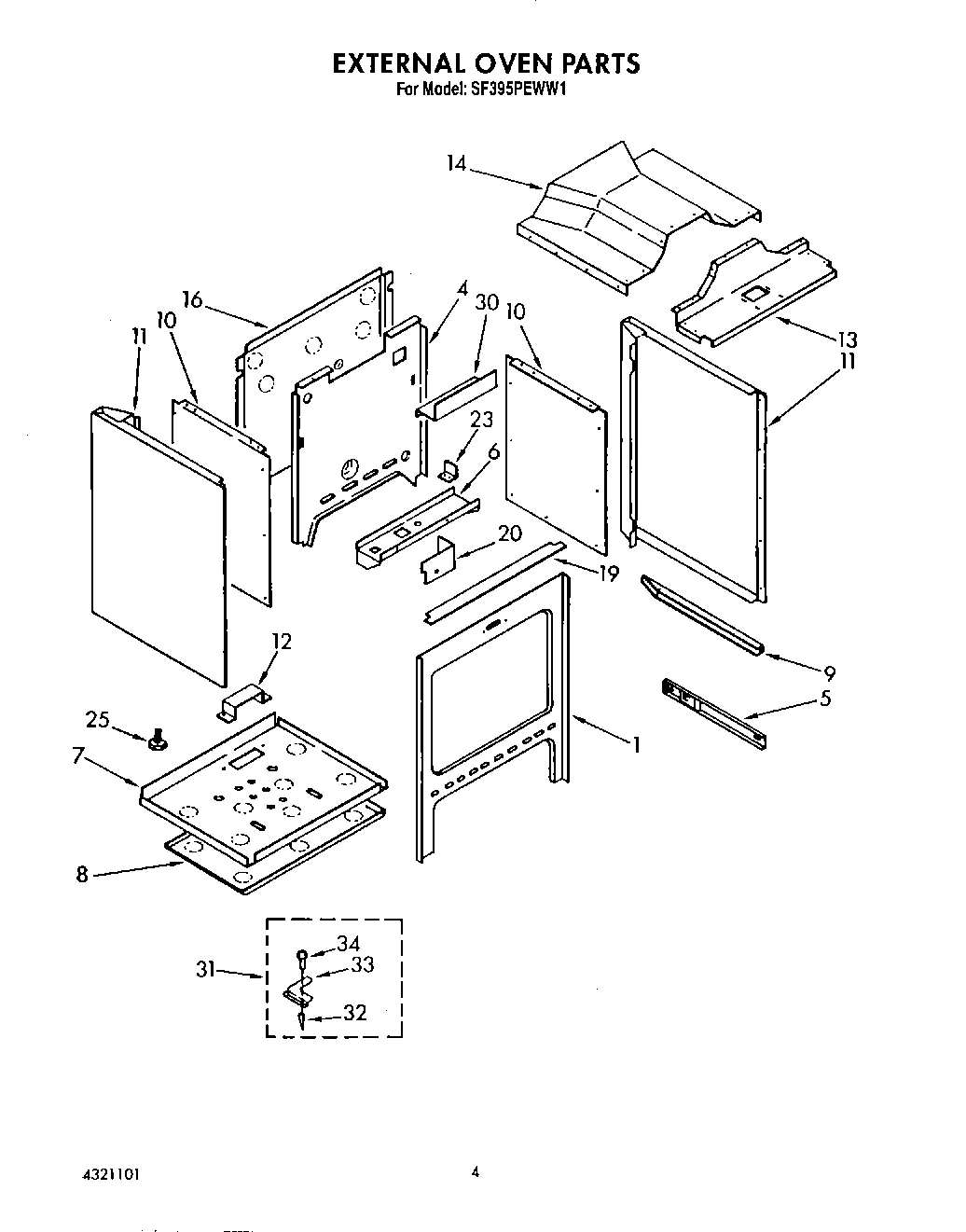

03 - EXTERNAL OVEN

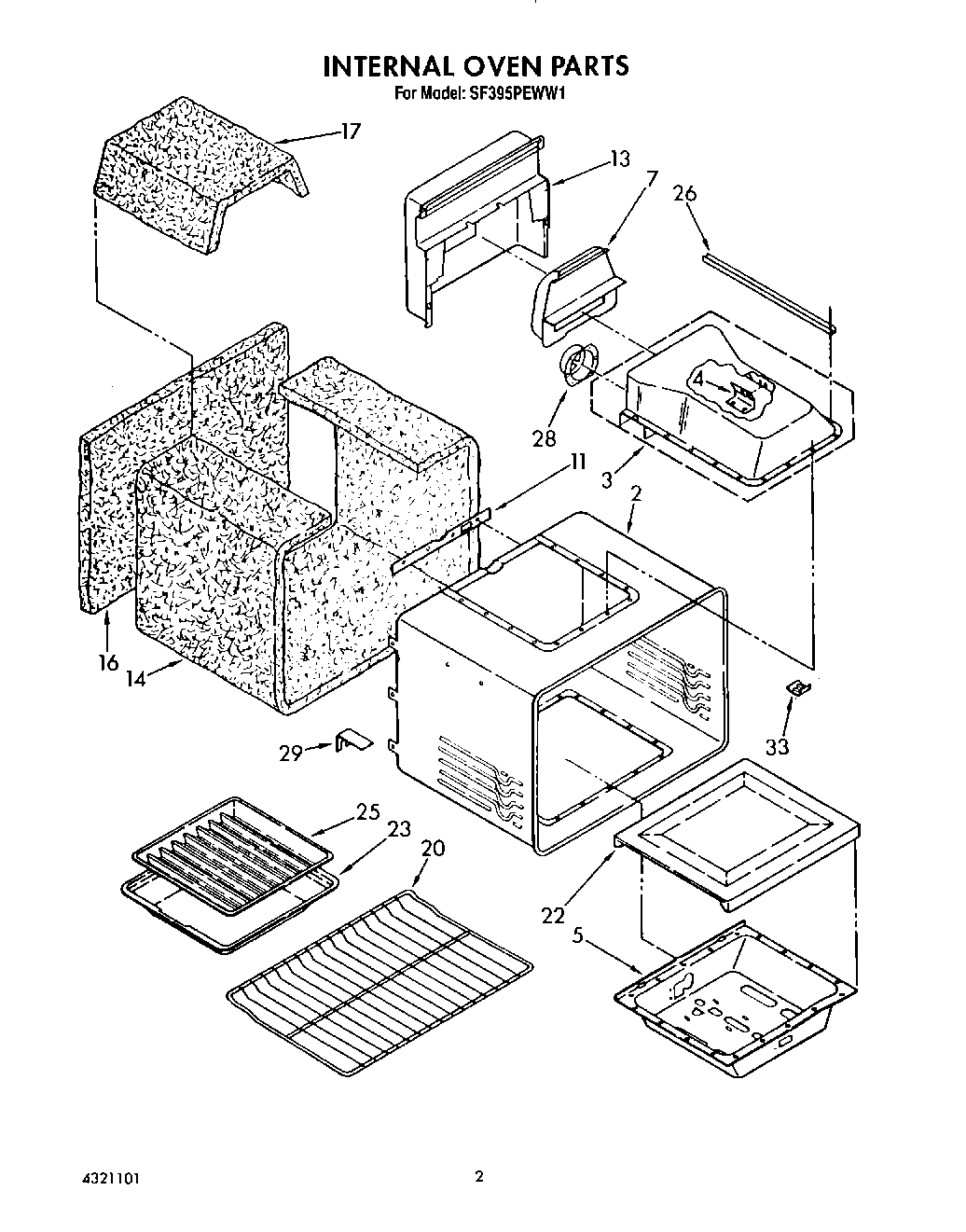

02 - INTERNAL OVEN

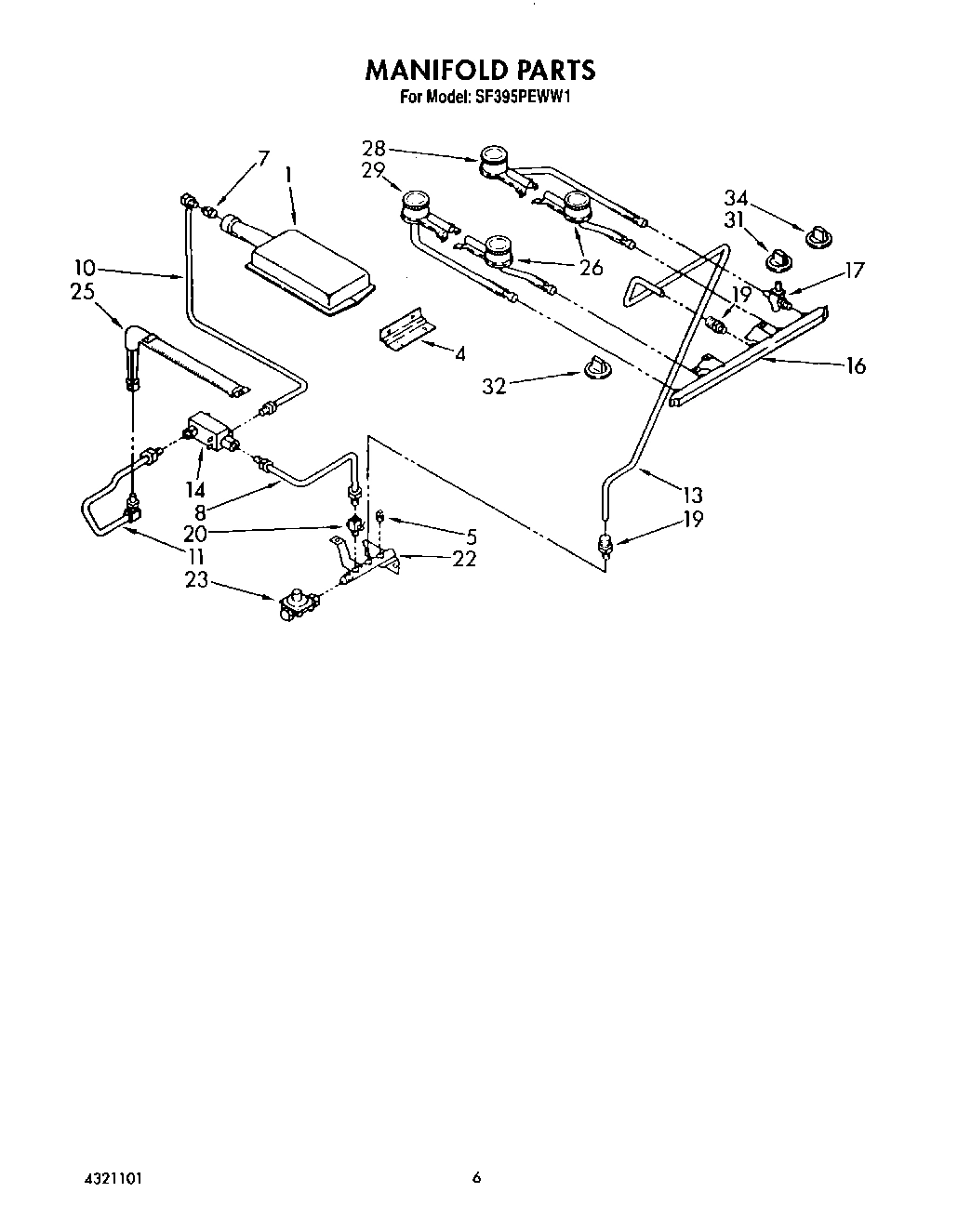

04 - MANIFOLD
Common parts from model Whirlpool SF395PEWW1 GAS RANGE
Guide, Use & Care WPL LIT4315708 Contact Us For Availability
Instuctions, Installation WPL LIT4315709 Contact Us For Availability
List, Repair Parts WPL LIT4321101 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
1
Cord, Power WPL 786578 Contact Us For Availability
1
Nut, 6-32 (6) WPL 786753 Contact Us For Availability
1
Top, Main (White) WPL 4179071 Contact Us For Availability
1
Top, Main (Almond) WPL 4179072 Contact Us For Availability
1
hinge, oven door (right side) WPL 786374 Contact Us For Availability
1
Hinge, Oven Door (Left Side) WPL 786739 Contact Us For Availability
1
Frame WPL 4320871 Contact Us For Availability
1
Screw (4) WPL 786438 Contact Us For Availability
1
Nut, Hex (4) WPL 786439 Contact Us For Availability
1
Screw (12) WPL 786761 Contact Us For Availability
1
Screw, 6-32 X 1/4 (2) WPL 786762 Contact Us For Availability
1
Frame, Front WPL 4320374 Contact Us For Availability
1
Burner, Ultra Ray Broiler WPL 4179233 Contact Us For Availability
2
liner, oven door WPL 4320300 Contact Us For Availability
2
Screw, 8-32 X 5/8 (4) WPL 786755 Contact Us For Availability
2
Panel, Control Mounting WPL 4320885 Contact Us For Availability
2
oven 30`` self-clean WPL 4320336 Contact Us For Availability
3
runner (l.h.) WPL 4320308 Contact Us For Availability
3
Runner (R.H.) WPL 4320309 Contact Us For Availability
3
Chamber, Broiler Burner WPL 786335 Contact Us For Availability
4
Bracket, Ignitor WPL 786543 Contact Us For Availability
4
Trim, Main Top (Right Side) WPL 786343 Contact Us For Availability
4
Trim, Main Top (Left Side) WPL 786344 Contact Us For Availability
4
Handle WPL 786408 Contact Us For Availability
4
Glass, Control Panel WPL 4179333 Contact Us For Availability
4
Retainer, Rear Insulation WPL 4315784 Contact Us For Availability
4
Screw (3) WPL 786740 Contact Us For Availability
4
Bracket, Burner Mounting WPL 4179235 Contact Us For Availability
5
Switch, Fluorescent Light (2) WPL 786325 Contact Us For Availability
5
Grate, Top Burner (4) WPL 4314875 Contact Us For Availability
5
Spacer, Handle (4) WPL 786410 Contact Us For Availability
5
Channel, Glass WPL 786760 Contact Us For Availability
5
track, storage draw (right side) WPL 4315768 Contact Us For Availability
5
Track, Storage Draw (Left Side) WPL 4315769 Contact Us For Availability
5
Burner, Box, Lower WPL 786336 Contact Us For Availability
6
Baffle, Heat WPL 4320304 Contact Us For Availability
6
shelf, gas valve WPL 4315767 Contact Us For Availability
7
Spacer, Nylon (4) WPL 786342 Contact Us For Availability
7
spud, orifice (LP gas no. 58) WPL 786309 Contact Us For Availability
7
Frame WPL 786417 Contact Us For Availability
7
Trim, Lower WPL 4320870 Contact Us For Availability
7
retainer, bottom insulation WPL 4315770 Contact Us For Availability
7
Flue, Inner WPL 786337 Contact Us For Availability
7
spud, orifice (natural gas no. 50) WPL 786308 Contact Us For Availability
8
Handle, Latch WPL 4320895 Contact Us For Availability
8
Panel, Black Glass WPL 786419 Contact Us For Availability
8
Knob, Timer (8) WPL 4320877 Contact Us For Availability
8
Heat Shield, Storage Drawer WPL 786364 Contact Us For Availability
8
Tubing, (Inlet To Gas Valve) WPL 4320314 Contact Us For Availability
9
Knob, Timer WPL 4320876 Contact Us For Availability
9
Brace, Bottom (R.H.) WPL 4315781 Contact Us For Availability
9
brace, bottom (l.h.) WPL 4315782 Contact Us For Availability
10
switch, top burner actuator WPL 4320326 Contact Us For Availability
10
Screw, 4-40 X 5/8 (2) WPL 786259 Contact Us For Availability
10
Nut WPL 786260 Contact Us For Availability
10
Latch Assembly WPL 786303 Contact Us For Availability
10
Screw (2) WPL 4320378 Contact Us For Availability
10
Shield, Heat WPL 4320874 Contact Us For Availability
10
Retainer, Insulation (2) WPL 4315771 Contact Us For Availability
10
Orifice & Tubing Assembly (Gas Valve To Ulta WPL 4320312 Contact Us For Availability
11
Module, Spark WPL 786323 Contact Us For Availability
11
Bracket, Latch Mounting WPL 4315774 Contact Us For Availability
11
Electronic Range Control WPL 4320735 Contact Us For Availability
11
Panel, End (2) (Trim, Panel) WPL 4320862 Contact Us For Availability
11
Panel, End (2) (White) WPL 4321094 Contact Us For Availability
11
Panel, End (2) (Almond) WPL 4321097 Contact Us For Availability
11
Gasket, Oven Back WPL 786340 Contact Us For Availability
11
Nut, Lock WPL 786741 Contact Us For Availability
11
hood & tubing assembly (gas valve to lower ov WPL 4320315 Contact Us For Availability
12
Bracket, Electronic Range Control WPL 4320878 Contact Us For Availability
12
Retainer, Ignitor WPL 4315783 Contact Us For Availability
13
Bracket, Spark Module WPL 4320892 Contact Us For Availability
13
Retainer, Insulation WPL 4315799 Contact Us For Availability
13
Socket, Fluorescent Light (2) WPL 786536 Contact Us For Availability
13
Retainer, Top Front Front Insulation WPL 4315677 Contact Us For Availability
13
Flue, Dillution WPL 786341 Contact Us For Availability
13
tubing (inlet to manifold) WPL 4320313 Contact Us For Availability
14
bracket, glass support (4) WPL 786425 Contact Us For Availability
14
Support, Lamp Socket (Left Side) WPL 786701 Contact Us For Availability
14
Support, Lamp Socket (Right Side) WPL 786702 Contact Us For Availability
14
Retainer, Top Back Insulation WPL 4315676 Contact Us For Availability
14
Valve, Dual Gas Valve WPL 4320316 Contact Us For Availability
16
Switch, Oven Door Latch WPL 786669 Contact Us For Availability
16
screw, 4-40 x 5/8 (2) WPL 786751 Contact Us For Availability
16
Bracket, Switch WPL 786381 Contact Us For Availability
16
screw, 4-40 (2) WPL 786752 Contact Us For Availability
16
Lamp, Fluorescent WPL 786539 Contact Us For Availability
16
rear panel, WPL 4315785 Contact Us For Availability
16
nut, 6-32 WPL 786748 Contact Us For Availability
16
bushing, snap WPL 786750 Contact Us For Availability
16
Manifold WPL 4320317 Contact Us For Availability
17
Insulator, Switch WPL 786380 Contact Us For Availability
17
Burner Box WPL 4315643 Contact Us For Availability
17
Bumper, Window (2) WPL 4179237 Contact Us For Availability
17
Ballast, 60 Hz. WPL 786540 Contact Us For Availability
17
Screw 1/4-20 X 3/8 WPL 417116 Contact Us For Availability
17
Valve, Top Burner (Tri-Set) (4) WPL 4320318 Contact Us For Availability
19
Plug, Male WPL 786570 Contact Us For Availability
19
Knob, Latch Handle WPL 4320863 Contact Us For Availability
19
Pin, Hinge (2) WPL 786428 Contact Us For Availability
19
Starter, Fluorescent Light WPL 786541 Contact Us For Availability
19
Frame, Filler Front WPL 4315775 Contact Us For Availability
19
Fitting (2) WPL 4320319 Contact Us For Availability
20
Window Assembly WPL 786429 Contact Us For Availability
20
Socket, Starter WPL 786542 Contact Us For Availability
20
Plate, Cover WPL 4315776 Contact Us For Availability
20
Rack, Oven (2) WPL 786347 Contact Us For Availability
20
Valve, Shut-Off WPL 4320320 Contact Us For Availability
22
Insulation, Door WPL 4315673 Contact Us For Availability
22
Light, Indicator (2) WPL 4179335 Contact Us For Availability
22
Bottom, Oven WPL 4315114 Contact Us For Availability
22
Inlet, Gas WPL 4320321 Contact Us For Availability
23
Retainer, Window (4) WPL 4179236 Contact Us For Availability
23
R.H. WPL 4315795 Contact Us For Availability
23
l.h. WPL 4315796 Contact Us For Availability
23
Support, Control Panel (2) WPL 786458 Contact Us For Availability
23
Bracket, Gas Valve (2) WPL 4315678 Contact Us For Availability
23
Pan, Broiler WPL 4315109 Contact Us For Availability
23
Regulator, Pressure WPL 786313 Contact Us For Availability
25
End Cap (Right) WPL 786393 Contact Us For Availability
25
End Cap (Left) WPL 786394 Contact Us For Availability
25
Plate, Latch (2) WPL 786671 Contact Us For Availability
25
Leg, Leveling (4) Side Frame (2) WPL 4315777 Contact Us For Availability
25
Grid, Broiler WPL 786346 Contact Us For Availability
25
Oven Burner, Lower WPL 786314 Contact Us For Availability
26
Panel, Control WPL 4320868 Contact Us For Availability
26
gasket assembly WPL 4320302 Contact Us For Availability
26
insulation, backguard WPL 4315797 Contact Us For Availability
26
Channel, Broiler Burner (2) WPL 786355 Contact Us For Availability
26
Top Burner, Front (2) WPL 786315 Contact Us For Availability
27
End Cap (R.H.) WPL 4320872 Contact Us For Availability
27
End Cap (L.H.) WPL 4320873 Contact Us For Availability
28
Wrapper, Storage Drawer WPL 4320306 Contact Us For Availability
28
Duct, Cup WPL 786353 Contact Us For Availability
28
Top Burner, R.R. WPL 786316 Contact Us For Availability
29
Plate, Cover WPL 4320377 Contact Us For Availability
29
Panel, Drawer (Almond) WPL 786521 Contact Us For Availability
29
Panel, Drawer (White) WPL 786522 Contact Us For Availability
29
Bracket, Oven Liner (2) WPL 4320330 Contact Us For Availability
29
Top Burner, L.R. WPL 786317 Contact Us For Availability
30
cover, electrical WPL 4315779 Contact Us For Availability
31
Bracket, Top (2) WPL 786684 Contact Us For Availability
31
Liner, Door Panel WPL 4320307 Contact Us For Availability
31
Anti Tip Kit WPL 4315756 Contact Us For Availability
31
Knob, Top Burner (4) WPL 4320722 Contact Us For Availability
32
Bracket, Electrode (2) WPL 786754 Contact Us For Availability
32
Anchor (2) WPL 4315786 Contact Us For Availability
32
Knob, Oven Control WPL 4179070 Contact Us For Availability
33
Bracket WPL 4315792 Contact Us For Availability
33
cover, chip WPL 4315764 Contact Us For Availability
34
Screw (2) WPL 4320348 Contact Us For Availability
34
Knob, Selector WPL 786562 Contact Us For Availability
38
Bracket, Bake Ignitor WPL 786801 Contact Us For Availability
40
Clip, Wire WPL 4179338 Contact Us For Availability
40
Baffle, Air WPL 786422 Contact Us For Availability
41
Switch, Oven Door WPL 4179328 Contact Us For Availability
41
Rack, Literature WPL 786807 Contact Us For Availability
42
Sensor, Electronic Range Control WPL 4320772 Contact Us For Availability
× ![]()
