Model Whirlpool SF387PEYQ5 GAS RANGE – Common Parts & Diagrams
05 - OVEN
07 - DOOR & DRAWER

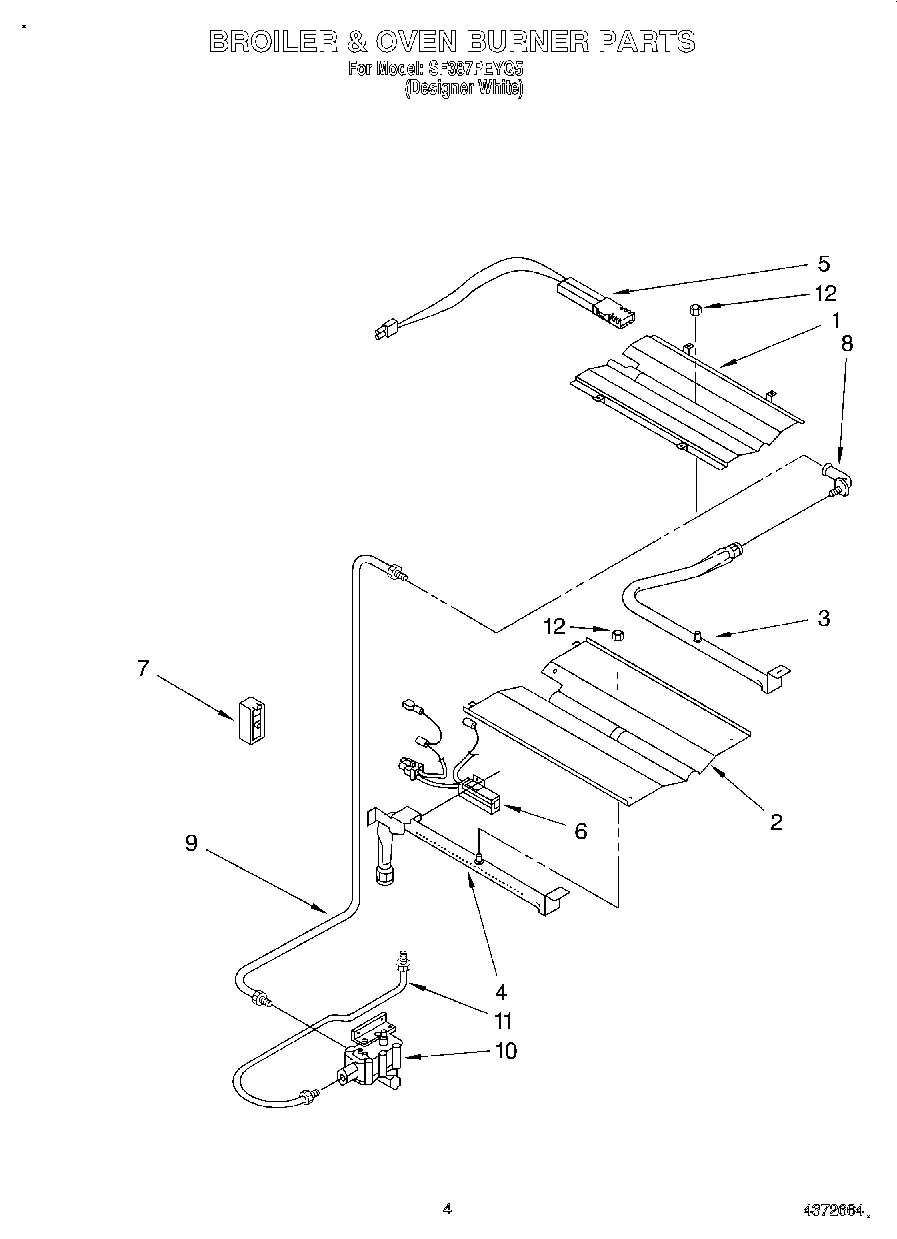

04 - BROILER & OVEN BURNER

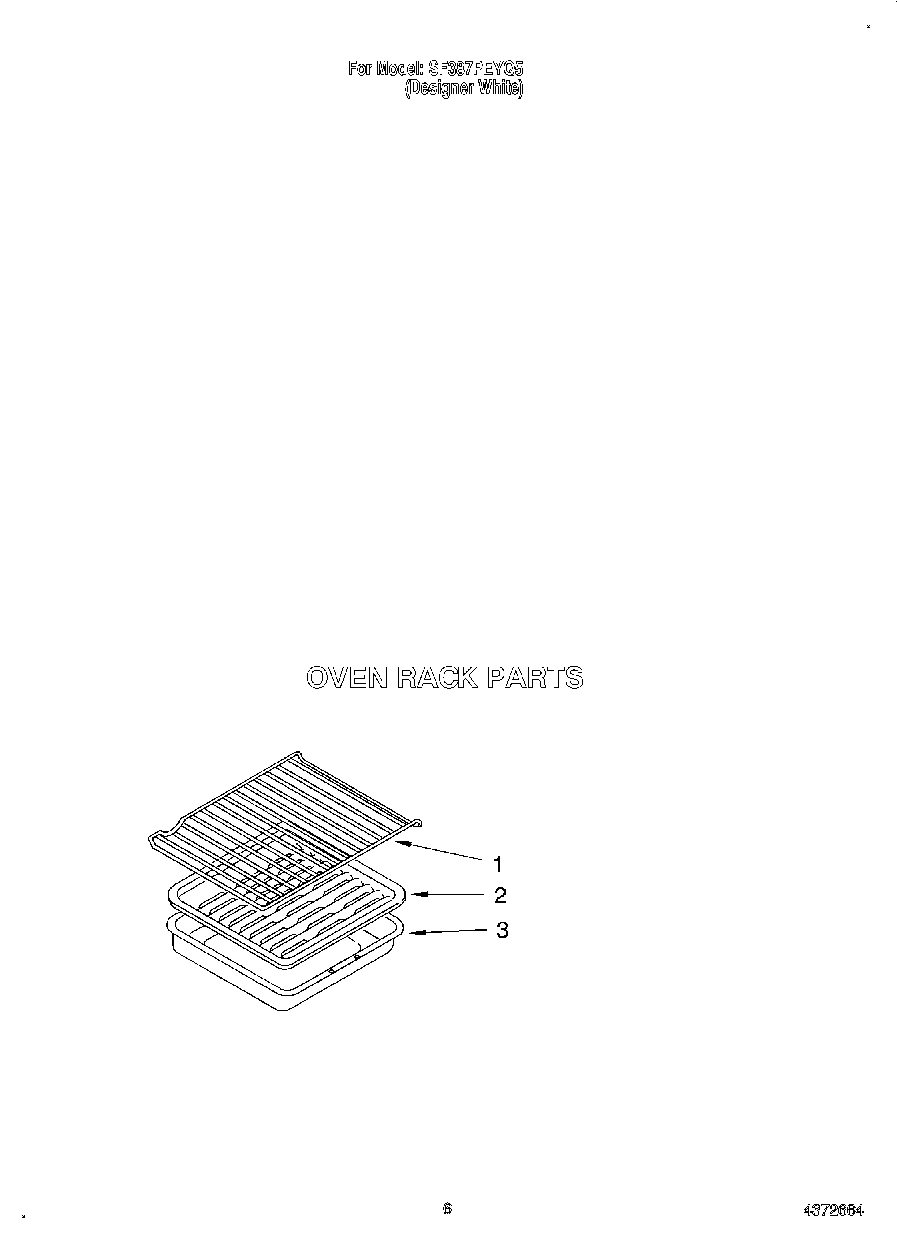

06 - OVEN RACK, LITERATURE

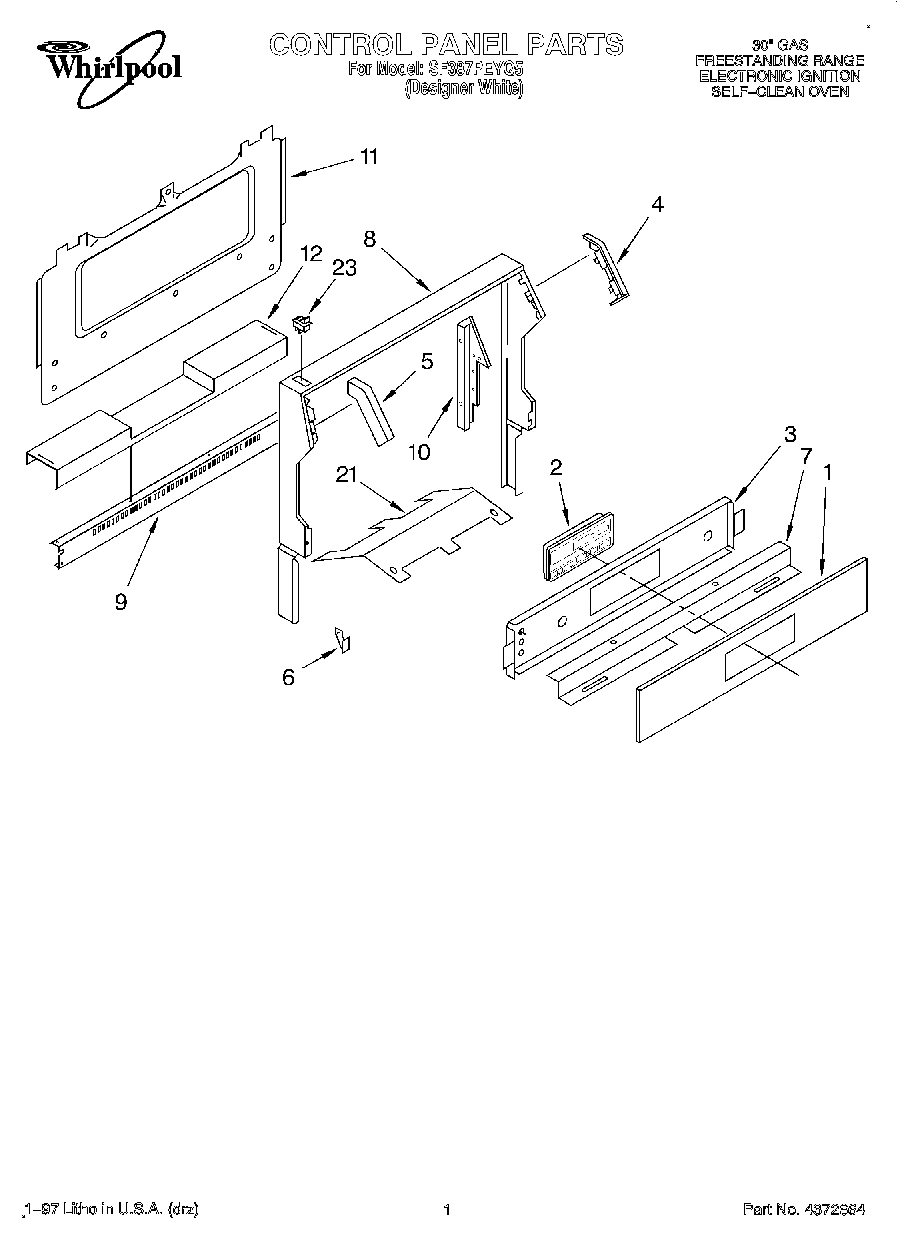

01 - CONTROL PANEL

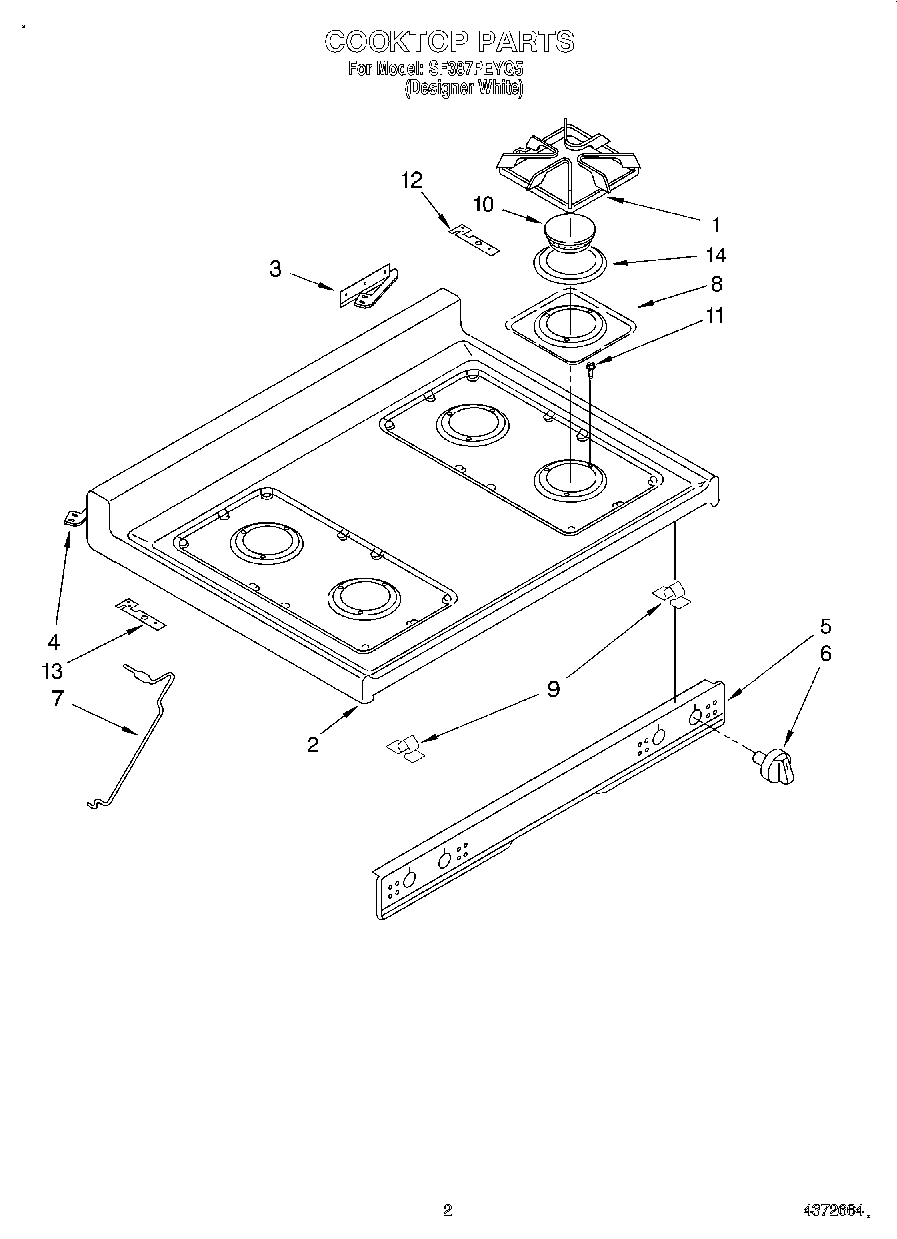

02 - COOKTOP

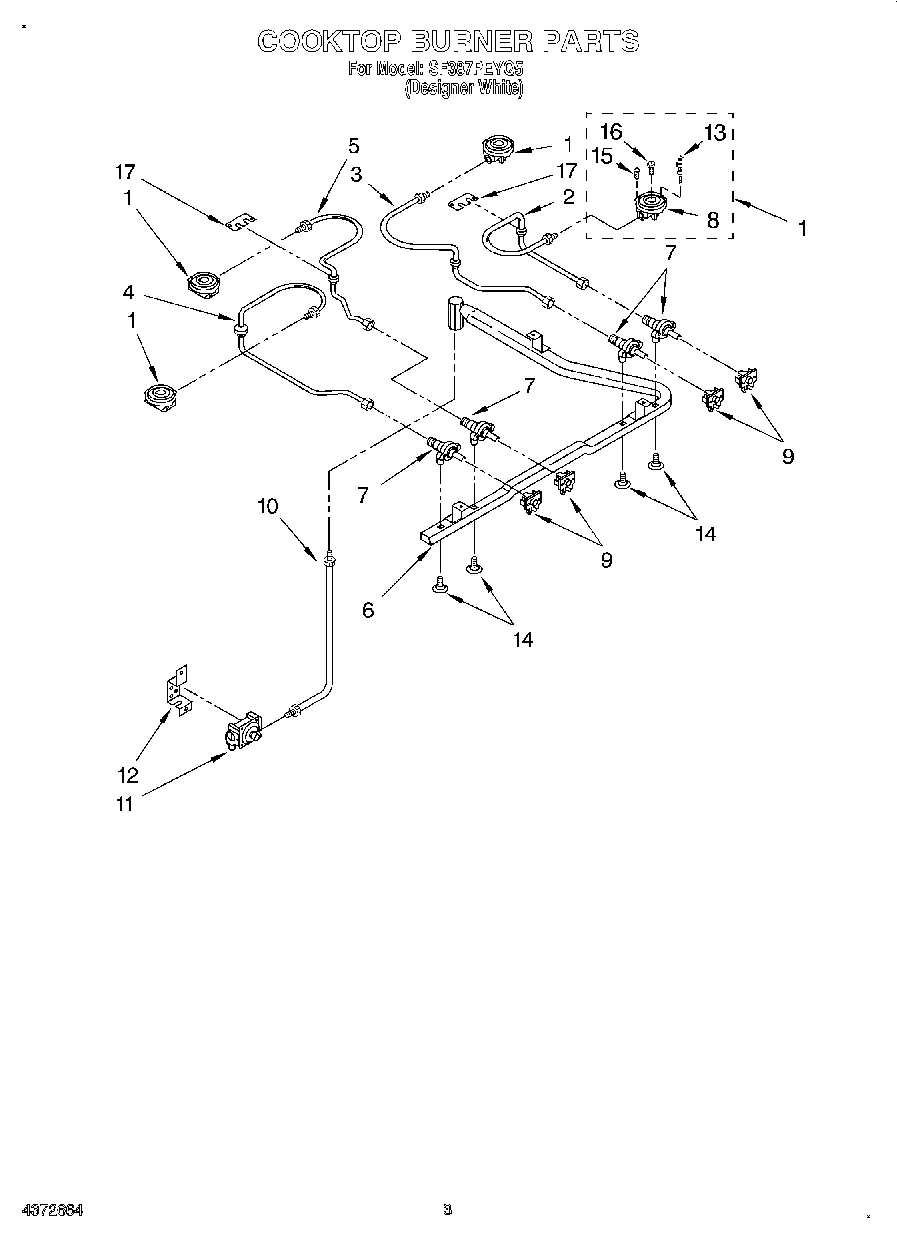

03 - COOKTOP BURNER
Common parts from model Whirlpool SF387PEYQ5 GAS RANGE
Use & Care Guide WPL LIT4372643 Contact Us For Availability
Installation Instructions WPL LIT4372667 Contact Us For Availability
1
Handle, Door WPL 816736 Contact Us For Availability
1
Baffle, Broiler Burner WPL 816582 Contact Us For Availability
1
Rack, Oven (2) WPL 4371483 Contact Us For Availability
1
Panel, Control WPL 4372088 Contact Us For Availability
1
Grate (4) WPL 4372211 Contact Us For Availability
1
Burner, Assy. (4) WPL 4371596 Contact Us For Availability
2
Shield, Rear Wall WPL 4371619 Contact Us For Availability
2
Trim, Oven Door WPL 4371953 Contact Us For Availability
2
Baffle, Oven Burner WPL 816584 Contact Us For Availability
2
Insert, Broiler Pan WPL 816626 Contact Us For Availability
2
Control, Electronic Timer WPL 4371841 Contact Us For Availability
2
Top, Main WPL 4372276 Contact Us For Availability
2
Tubing, Burner (RF) WPL 4372146 Contact Us For Availability
3
Screw, Oven Bottom WPL 816651 Contact Us For Availability
3
Glass, Oven Door WPL 4371709 Contact Us For Availability
3
Burner, Broiler WPL 816722 Contact Us For Availability
3
Pan, Broiler WPL 816644 Contact Us For Availability
3
Bracket, Timer WPL 4371834 Contact Us For Availability
3
Bracket, Hinge (Right Side) WPL 4371545 Contact Us For Availability
3
Tubing, Burner (RR) WPL 4372148 Contact Us For Availability
4
Foil, Alum. (2) WPL 816741 Contact Us For Availability
4
Burner, Oven WPL 816588 Contact Us For Availability
4
Cap, End (R.H.) WPL 4371316 Contact Us For Availability
4
Bracket, Hinge (Left Side) WPL 4371546 Contact Us For Availability
4
Tubing, Burner (LF) WPL 4372147 Contact Us For Availability
5
Foil, Alum. WPL 816742 Contact Us For Availability
5
Cap, End (L.H.) WPL 4371317 Contact Us For Availability
5
Panel, Manifold WPL 4371707 Contact Us For Availability
5
Tubing, Burner (LR) WPL 4372149 Contact Us For Availability
6
Retainer, Lens WPL 4371621 Contact Us For Availability
6
Bracket, Glass WPL 816743 Contact Us For Availability
6
Cap, Filler (2) WPL 4371563 Contact Us For Availability
6
Knob, Control (4) WPL 4372642 Contact Us For Availability
6
Pipe, Manifold WPL 4372306 Contact Us For Availability
7
Lens, Oven Light WPL 816609 Contact Us For Availability
7
Glass, Oven Door WPL 816679 Contact Us For Availability
7
Ignitor Module WPL 4371583 Contact Us For Availability
7
Retainer, Timer WPL 4371836 Contact Us For Availability
7
Rod, Support Top WPL 4371541 Contact Us For Availability
7
Valve, Top (4) WPL 4372658 Contact Us For Availability
8
Hinge, Oven Door WPL 4371143 Contact Us For Availability
8
Shield, Heat WPL 4371713 Contact Us For Availability
8
Mixer, Elbow WPL 816594 Contact Us For Availability
8
Trim, Wrapper WPL 4372846 Contact Us For Availability
8
Pan, Burner (4) WPL 4371710 Contact Us For Availability
8
Head, Burner WPL 4371597 Contact Us For Availability
9
Cover, Hinge WPL 816617 Contact Us For Availability
9
Collar, Glass WPL 4372311 Contact Us For Availability
9
Tubing, Valve To Mixing Elbow WPL 4372314 Contact Us For Availability
9
Trim, Deflector WPL 4371562 Contact Us For Availability
9
Clip, Spring (2) WPL 816612 Contact Us For Availability
9
Switch, Ignitor (4) WPL 4371164 Contact Us For Availability
10
Shield, Heat (Upper) WPL 4371042 Contact Us For Availability
10
Glass, Heat Barrier (2) WPL 816681 Contact Us For Availability
10
Valve, Safety WPL 816692 Contact Us For Availability
10
Support, Backguard (R.H.) WPL 4372307 Contact Us For Availability
10
Support, Backguard (L.H.) WPL 4372308 Contact Us For Availability
10
Cap, Burner WPL 4371874 Contact Us For Availability
10
Tubing, Regulator To Manifold Pipe WPL 4372316 Contact Us For Availability
11
Shield, Heat (Lower) WPL 816657 Contact Us For Availability
11
Spacer, Glass WPL 816687 Contact Us For Availability
11
Tubing, Valve To Regulator WPL 4372315 Contact Us For Availability
11
Shield, Rear Wall WPL 4371300 Contact Us For Availability
11
Screw, Burner Mtg (12) WPL 4371589 Contact Us For Availability
11
Regulator, Pressure WPL 4372040 Contact Us For Availability
12
Cord, Power WPL 816614 Contact Us For Availability
12
Insulation, Door WPL 816682 Contact Us For Availability
12
Nut, Hex (2) WPL 816642 Contact Us For Availability
12
Deflector, Flue WPL 4371537 Contact Us For Availability
12
Bracket, Mounting (R.H.) WPL 4371591 Contact Us For Availability
12
Bracket, Regulator WPL 816636 Contact Us For Availability
13
Switch, Latch WPL 4372101 Contact Us For Availability
13
Liner, Oven Door WPL 816683 Contact Us For Availability
13
Bracket, Mtg. LH WPL 4371592 Contact Us For Availability
13
Bracket & Electrode WPL 4371598 Contact Us For Availability
14
Screw, Handle (2) WPL 4371542 Contact Us For Availability
14
Ring, Trim (4) WPL 4371873 Contact Us For Availability
15
Seal, Oven Door WPL 816685 Contact Us For Availability
15
Screw, Electrode WPL 4371599 Contact Us For Availability
16
Back, Main WPL 4372290 Contact Us For Availability
16
Seal, Rope WPL 816684 Contact Us For Availability
16
Orifice WPL 816567 Contact Us For Availability
17
Guide, Drawer WPL 816712 Contact Us For Availability
17
Rod, Light Switch WPL 4372288 Contact Us For Availability
17
Conversion Kit (Natural Gas To L.P. Gas) WPL 4372091 Contact Us For Availability
17
Plate, Burner Tube WPL 816602 Contact Us For Availability
18
Bumper, Front (4) WPL 816608 Contact Us For Availability
18
Panel, Drawer WPL 4372318 Contact Us For Availability
19
Cover, Rod End WPL 4371682 Contact Us For Availability
19
Handle, Utility Drawer WPL 4371650 Contact Us For Availability
20
Switch, Door WPL 4372289 Contact Us For Availability
20
Shield, Panel WPL 816716 Contact Us For Availability
21
Spacer, Handle WPL 816713 Contact Us For Availability
21
Shield, Inner Bkgd WPL 4371655 Contact Us For Availability
22
Shield, Rear Heat WPL 4371661 Contact Us For Availability
22
Screw, Panel (5) WPL 4371062 Contact Us For Availability
23
Clip, Wire WPL 816577 Contact Us For Availability
23
Screw, Handle (2) WPL 4371063 Contact Us For Availability
23
Switch, Light WPL 4372659 Contact Us For Availability
24
Flue Box WPL 4371652 Contact Us For Availability
24
Drawer, Utility WPL 4371671 Contact Us For Availability
25
Gasket, Flue WPL 816620 Contact Us For Availability
26
Knob, Latch WPL 4371680 Contact Us For Availability
27
Latch, Door WPL 4371036 Contact Us For Availability
28
Handle, Latch WPL 4371151 Contact Us For Availability
29
Plate, Cover WPL 816615 Contact Us For Availability
30
Burner Box WPL 4372310 Contact Us For Availability
31
Shield, Main Front WPL 816776 Contact Us For Availability
32
Shield, Latch WPL 816638 Contact Us For Availability
33
Shield, Heat Baffle WPL 816660 Contact Us For Availability
34
Panel, Side (Right Side) WPL 816708 Contact Us For Availability
34
Panel, Side (Left Side) WPL 816709 Contact Us For Availability
35
Screw, Leveler (4) WPL 4371909 Contact Us For Availability
36
Support, Oven Bottom WPL 4372313 Contact Us For Availability
37
Fastener, Cord WPL 816618 Contact Us For Availability
38
Insulation, Oven Back WPL 4372312 Contact Us For Availability
39
Bottom, Oven WPL 4372245 Contact Us For Availability
41
Bracket, Anti-Tip WPL 816585 Contact Us For Availability
42
Spacer, Stud (2) WPL 816639 Contact Us For Availability
43
Shield, Latch WPL 816637 Contact Us For Availability
44
Shield, Oven Top WPL 816658 Contact Us For Availability
45
Shield, Side (2) WPL 816648 Contact Us For Availability
46
Insulation, Front WPL 816627 Contact Us For Availability
47
Insulation, Oven Wrapper WPL 816629 Contact Us For Availability
48
Screw, Latch WPL 4371664 Contact Us For Availability
49
Glide, Drawer WPL 816621 Contact Us For Availability
50
Shield, Flue WPL 4371662 Contact Us For Availability
51
Insulation, Ov Top WPL 816628 Contact Us For Availability
52
Shield, Wire WPL 816663 Contact Us For Availability
53
Shield, Wool WPL 816664 Contact Us For Availability
54
Bracket, Maintop RH WPL 4371527 Contact Us For Availability
55
Bracket, Maintop LH WPL 4371528 Contact Us For Availability
56
Probe, Oven Temp WPL 816645 Contact Us For Availability
× ![]()
