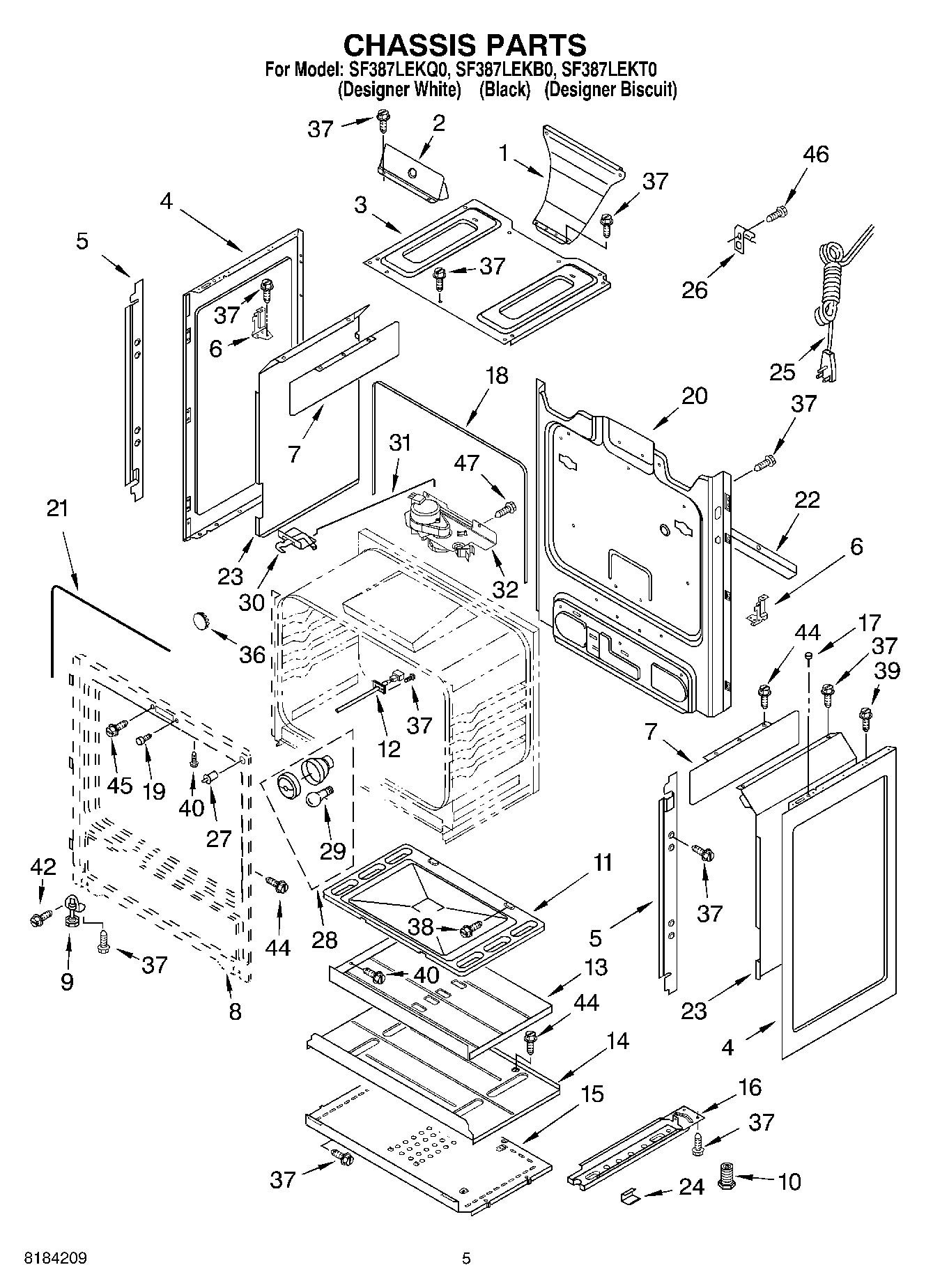

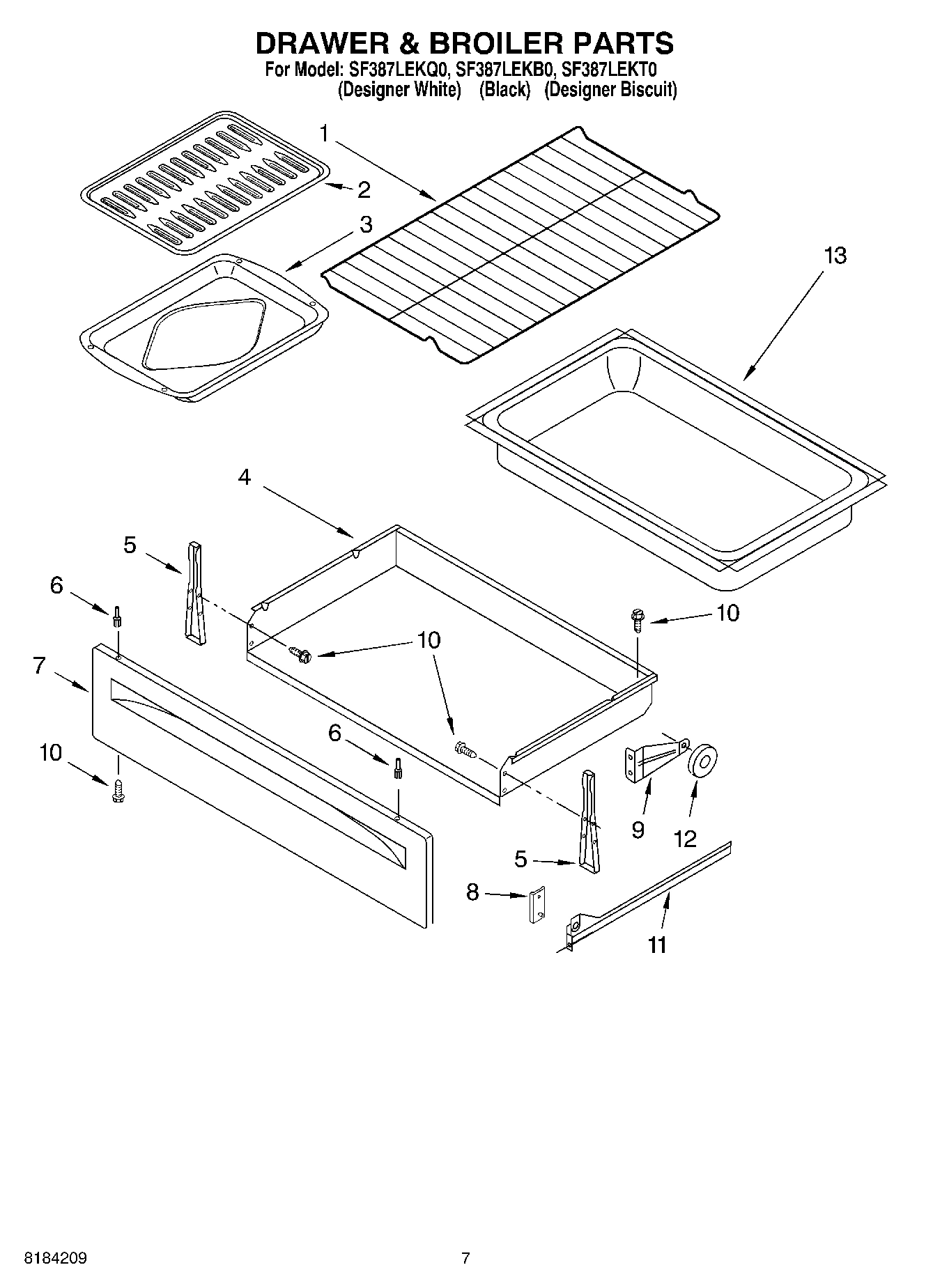

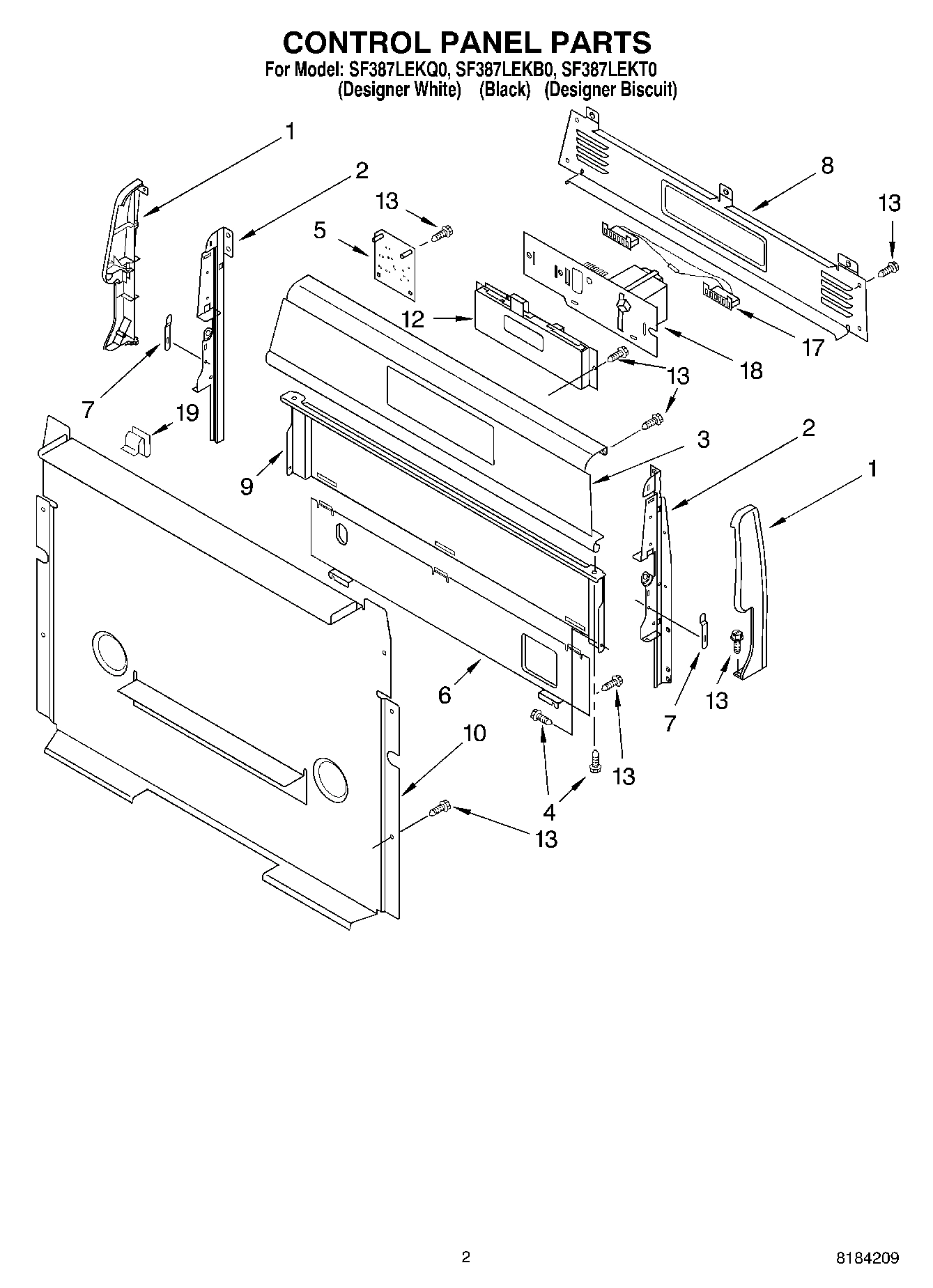

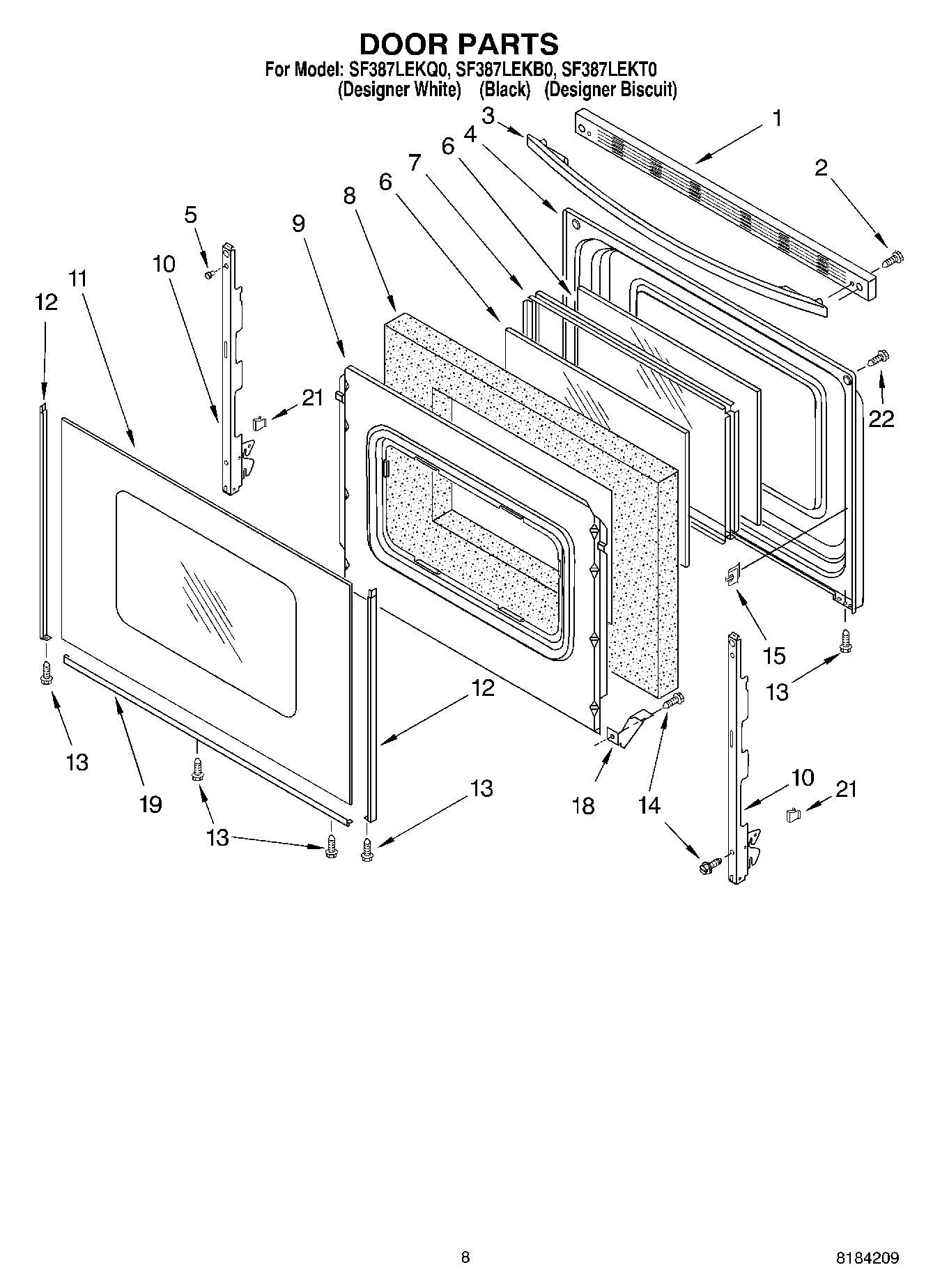

Model Whirlpool SF387LEKT0 GAS RANGE – Common Parts &amp; Diagrams

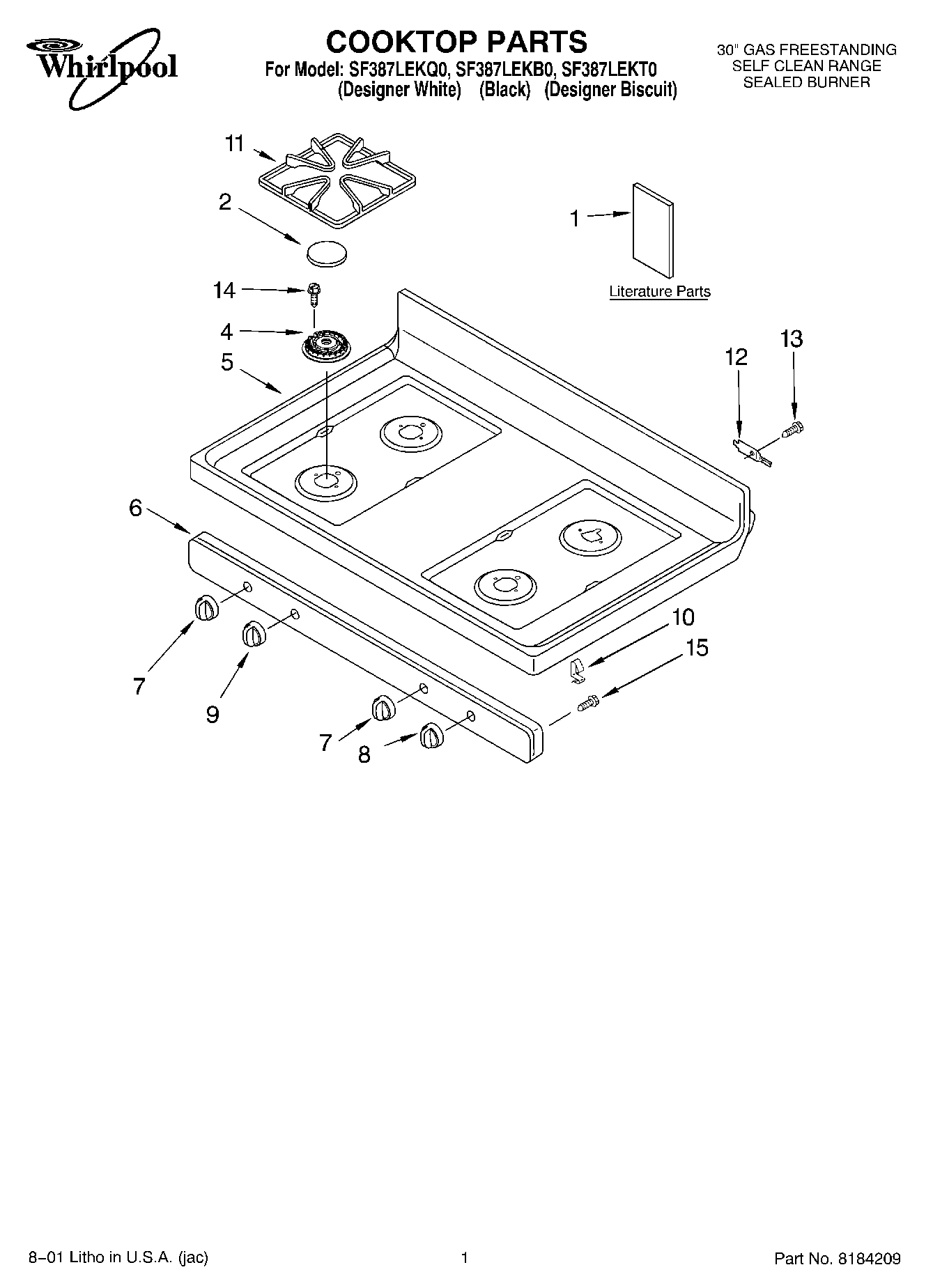

1

WP8273096 Whirlpool Screw Backorder WPL WP8273096 $2.51

1

WPW10256908 Whirlpool Oven Range Rack In Stock WPL WPW10256908 $60.51

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8522648 Contact Us For Availability

1

Guide, Use & Care WPL LIT8522778 Contact Us For Availability

1

Literature Parts (Instructions, Installation) WPL LIT8522956 Contact Us For Availability

1

Literature Parts (Instruct, Install (Template WPL LIT8523048 Contact Us For Availability

2

WP3191898 Whirlpool Surface Burner Cap Black Backorder WPL WP3191898 $42.16

2

WP3191901 Whirlpool Burner Cap Backorder WPL WP3191901 $54.85

2

WP3191903 Whirlpool Burner Cap In Stock WPL WP3191903 $96.80

2

WP3191904 Whirlpool Burner Cap In Stock WPL WP3191904 $95.75

2

WP3191905 Whirlpool Burner Cap Backorder WPL WP3191905 $44.01

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

2

WP8272747 Whirlpool Heat Shield Backorder WPL WP8272747 $26.21

2

WP8273343 Whirlpool Burner Cap Backorder WPL WP8273343 $35.28

2

WP8273344 Whirlpool Burner Cap Backorder WPL WP8273344 $35.28

2

WP8273345 Whirlpool Burner Cap Backorder WPL WP8273345 $87.55

2

WP8273700 Whirlpool Base Burner In Stock WPL WP8273700 $55.66

2

Cap, Burner (Grey (RR)) WPL 3191899 Contact Us For Availability

2

Burner Base (Small (1)) WPL 8273701 Contact Us For Availability

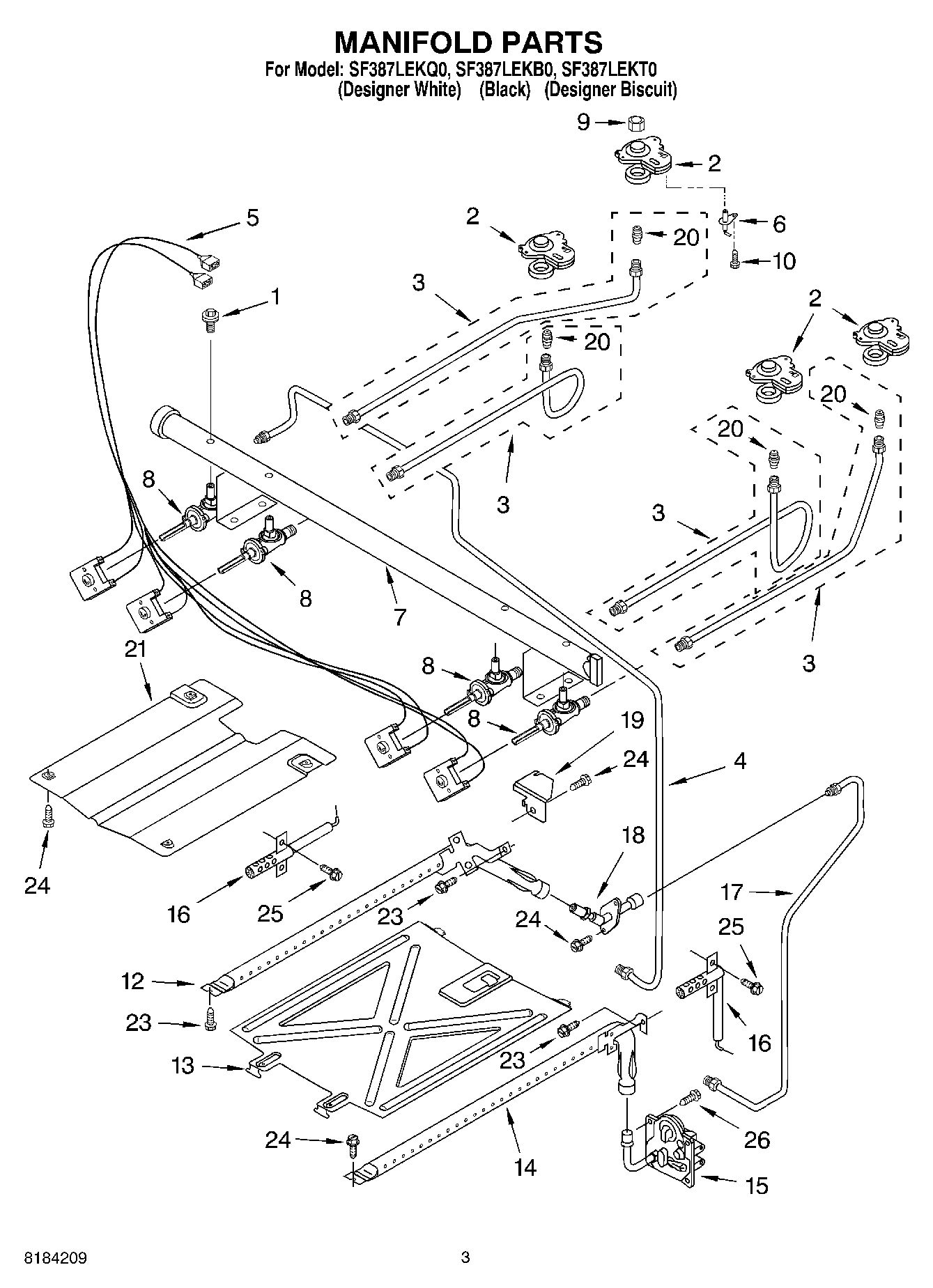

3

W11379351 Whirlpool Burner Box Backorder WPL W11379351 $34.99

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

3

WP8273692 Whirlpool Gas Tubing Backorder WPL WP8273692 $61.88

3

WP8273694 Whirlpool Gas Tubing Backorder WPL WP8273694 $61.79

3

Tubing, Burner W/Orifice (Right Front) WPL 8273695 Contact Us For Availability

3

Tubing, Burner W/Orifice (Right Rear) WPL 8273697 Contact Us For Availability

4

W10162246 Whirlpool Side Panel Backorder WPL W10162246 $81.54

4

W11730303 Whirlpool Side Panel In Stock WPL W11730303 $58.52

4

WP4455979 Whirlpool Range Small Burner Head Backorder WPL WP4455979 $34.15

4

WP4455980 Whirlpool Burner Head Backorder WPL WP4455980 $37.44

4

WP4455981 Whirlpool Burner Head Backorder WPL WP4455981 $52.72

4

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $75.80

4

Screw WPL 4449746 Contact Us For Availability

4

Tubing (Manifold to Regulator) WPL 8272685 Contact Us For Availability

4

Drawer, Storage WPL 8053343 Contact Us For Availability

5

8195546 Whirlpool Oven Cooktop O/S2 Backorder WPL 8195546 $264.99

5

W11213958 Whirlpool Oven Cooktop Backorder WPL W11213958 $266.02

5

W11213959 Whirlpool Cooktop Backorder WPL W11213959 $266.02

5

W11759228 Whirlpool Mounting Bracket Backorder WPL W11759228 $11.02

5

Harness, Igniter (Incl. Switches) WPL 8273075 Contact Us For Availability

5

Sheild, Heat (2) WPL 3196137 Contact Us For Availability

6

3196815 Whirlpool Oven Rivet Backorder WPL 3196815 $9.59

6

8053505 Whirlpool Oven Shield Backorder WPL 8053505 $54.35

6

8523855 Whirlpool Oven Manifold Panel Backorder WPL 8523855 $61.99

6

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $4.43

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WP8523793 Whirlpool Oven Surface Igniter In Stock WPL WP8523793 $17.68

6

WP8523854 Whirlpool Manifold Panel Backorder WPL WP8523854 $113.92

6

Panel, Manifold (Biscuit) WPL 8273028 Contact Us For Availability

6

Brkt, Manifold Mtg (Left Hand) WPL 3186405 Contact Us For Availability

6

Brkt, Manifold Mtg (Right Hand) WPL 3186406 Contact Us For Availability

7

3196200 Whirlpool Clip In Stock WPL 3196200 $5.05

7

W11230486 Whirlpool Drawer Panel Backorder WPL W11230486 $70.99

7

W11230490 Whirlpool Drawer Panel Backorder WPL W11230490 $70.99

7

WP8273103 Whirlpool Black Control Knob In Stock WPL WP8273103 $9.46

7

WP8273104 Whirlpool Knob In Stock WPL WP8273104 $9.17

7

WP8273106 Whirlpool Knob Backorder WPL WP8273106 $10.89

7

Pipe, Manifold WPL 8272411 Contact Us For Availability

7

Panel, Drawer Front (Biscuit) WPL 8272502 Contact Us For Availability

7

Shield, Heat (2) WPL 3196136 Contact Us For Availability

8

WP9757218 Whirlpool Burner Valve In Stock WPL WP9757218 $122.66

8

Knob, Accusimmer (White) WPL 8273108 Contact Us For Availability

8

Valve (Right Rear) WPL 8273004 Contact Us For Availability

8

Spacer, Glide WPL 8522669 Contact Us For Availability

8

Frame, Front (Not Serviceable) WPL ARI164062A Contact Us For Availability

9

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

9

Nut (4) WPL 8273060 Contact Us For Availability

9

Bracket, Roller WPL 8054069 Contact Us For Availability

WP8053807 Whirlpool Oven Door Hinge In Stock WPL WP8053807 $49.45

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $2.51

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

Clip, Cooktop (2) WPL 3195813 Contact Us For Availability

WP3195097 Whirlpool Oven Bottom In Stock WPL WP3195097 $81.40

WPW10447925 Whirlpool Grate Kit In Stock WPL WPW10447925 $189.29

Grate, Burner (4) (Espresso) WPL 8522853 Contact Us For Availability

Rail Assy, Drawer (Left Side) WPL 8274190 Contact Us For Availability

Rail Assy, Drawer (Right Side) WPL 8274191 Contact Us For Availability

814229 Whirlpool Primary Roller In Stock WPL 814229 $27.60

WP3195060 Whirlpool Cooktop Pin Backorder WPL WP3195060 $4.23

WP8054078 Whirlpool Broiler Burner Backorder WPL WP8054078 $93.47

WPW10181986 Whirlpool Oven Sensor In Stock WPL WPW10181986 $50.55

13

8053967 Whirlpool Oven Heat Baffle Backorder WPL 8053967 $106.98

13

Spreader, Flame (Oven) WPL 8053970 Contact Us For Availability

13

Liner, Drawer WPL 8272528 Contact Us For Availability

8053969 Whirlpool Heat Shield Backorder WPL 8053969 $36.58

8190618 Whirlpool Gas Range Oven Burner Assem In Stock WPL 8190618 $125.21

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

15

8053968 Whirlpool Oven Heat Shield Backorder WPL 8053968 $29.43

15

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

15

WPW10293048 Whirlpool Gas Valve In Stock WPL WPW10293048 $313.77

16

WP8054129 Whirlpool Oven Igniter In Stock WPL WP8054129 $70.95

16

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $50.64

17

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

17

Tubing (Broiler Fitting To Valve) WPL 8272222 Contact Us For Availability

18

Fitting, Broiler WPL 3186489 Contact Us For Availability

18

Seal, Oven Flange WPL 3195737 Contact Us For Availability

19

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $26.75

19

Cover, Igniter WPL 8272403 Contact Us For Availability

WP8273065 Whirlpool Orifice Backorder WPL WP8273065 $32.90

WP8273067 Whirlpool Orifice In Stock WPL WP8273067 $32.98

Orifice, Burner (Left Front) WPL 8273063 Contact Us For Availability

Back, Main WPL 8274179 Contact Us For Availability

21

W10137062 Whirlpool Burner Baffle Backorder WPL W10137062 $154.20

21

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

21

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

WPL 8273901 WPL 8273901 Contact Us For Availability

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 8053527 WPL 8053527 Contact Us For Availability

WPL 8274195 WPL 8274195 Contact Us For Availability

WPL 8522613 WPL 8522613 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Brace, Main Back WPL 8053971 Contact Us For Availability

23

3196265 Whirlpool Oven Screw Backorder WPL 3196265 $9.59

23

Retainer, Insul. (Right Hand) WPL 3195726 Contact Us For Availability

23

Retainer, Insul. (Left Hand) WPL 3196523 Contact Us For Availability

24

Clip, Panel (6) WPL 3196576 Contact Us For Availability

25

W11684507 Whirlpool Screw In Stock WPL W11684507 $8.11

25

WP9757891 Whirlpool Power Cord Backorder WPL WP9757891 $48.39

26

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

26

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

26

Spuds, LP Gas (Kit of 4) WPL 8523418 Contact Us For Availability

27

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $58.66

28

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

30

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $86.66

31

W10078370 Whirlpool Latch Rod Backorder WPL W10078370 $28.80

32

WPW10107820 Whirlpool Door Latch In Stock WPL WPW10107820 $111.45

36

Button, Plug WPL 3196439 Contact Us For Availability

38

Screw WPL 3196152 Contact Us For Availability

39

3196166 Whirlpool Screw Backorder WPL 3196166 $4.85

39

Screw (Almond) WPL 3196167 Contact Us For Availability

40

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

42

Screw WPL 3196179 Contact Us For Availability

44

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

45

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

46

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

47

W10491985 Whirlpool Screw In Stock WPL W10491985 $2.51

47

W11688737 Whirlpool Insulation Backorder WPL W11688737 $45.31
