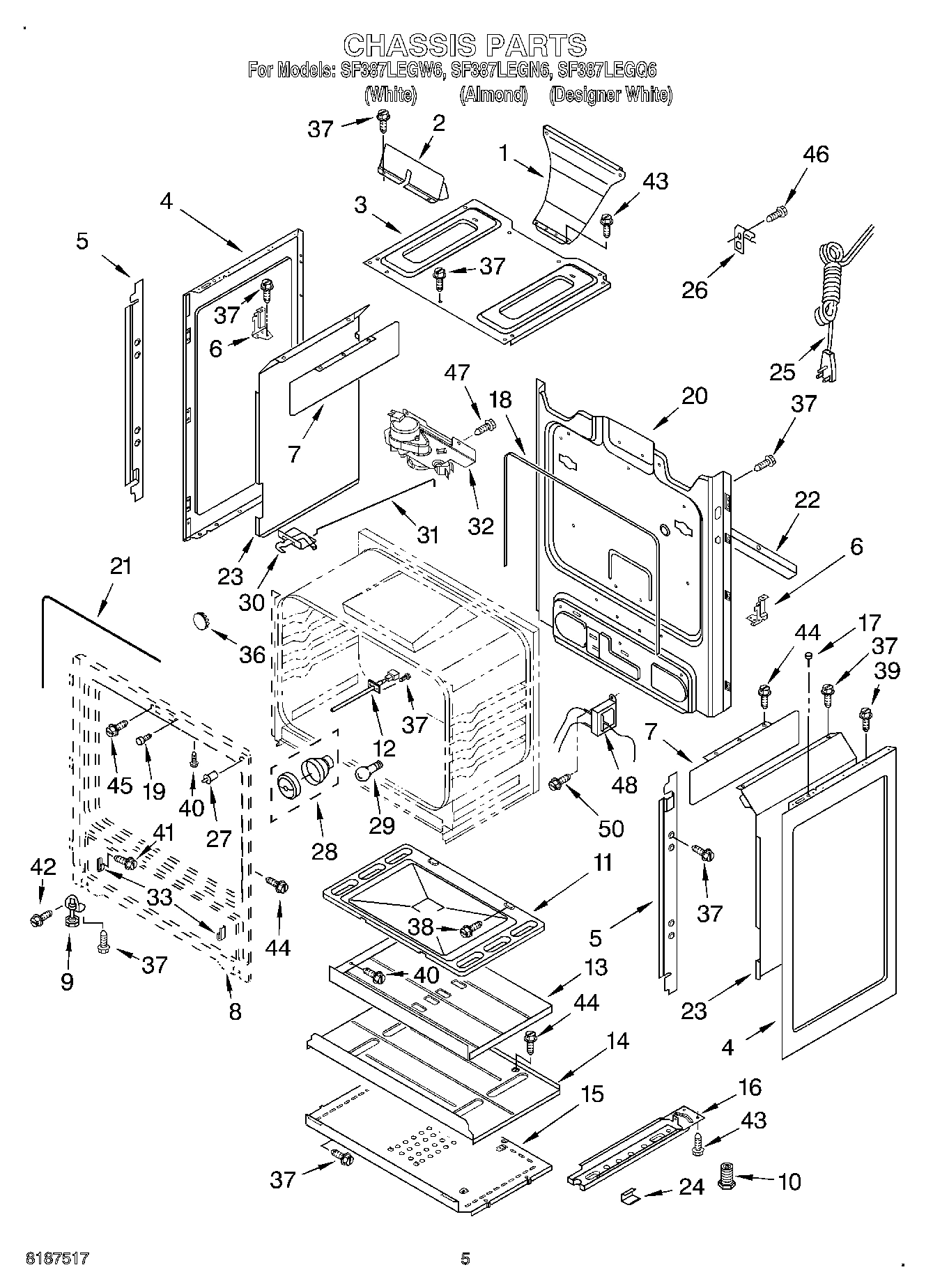

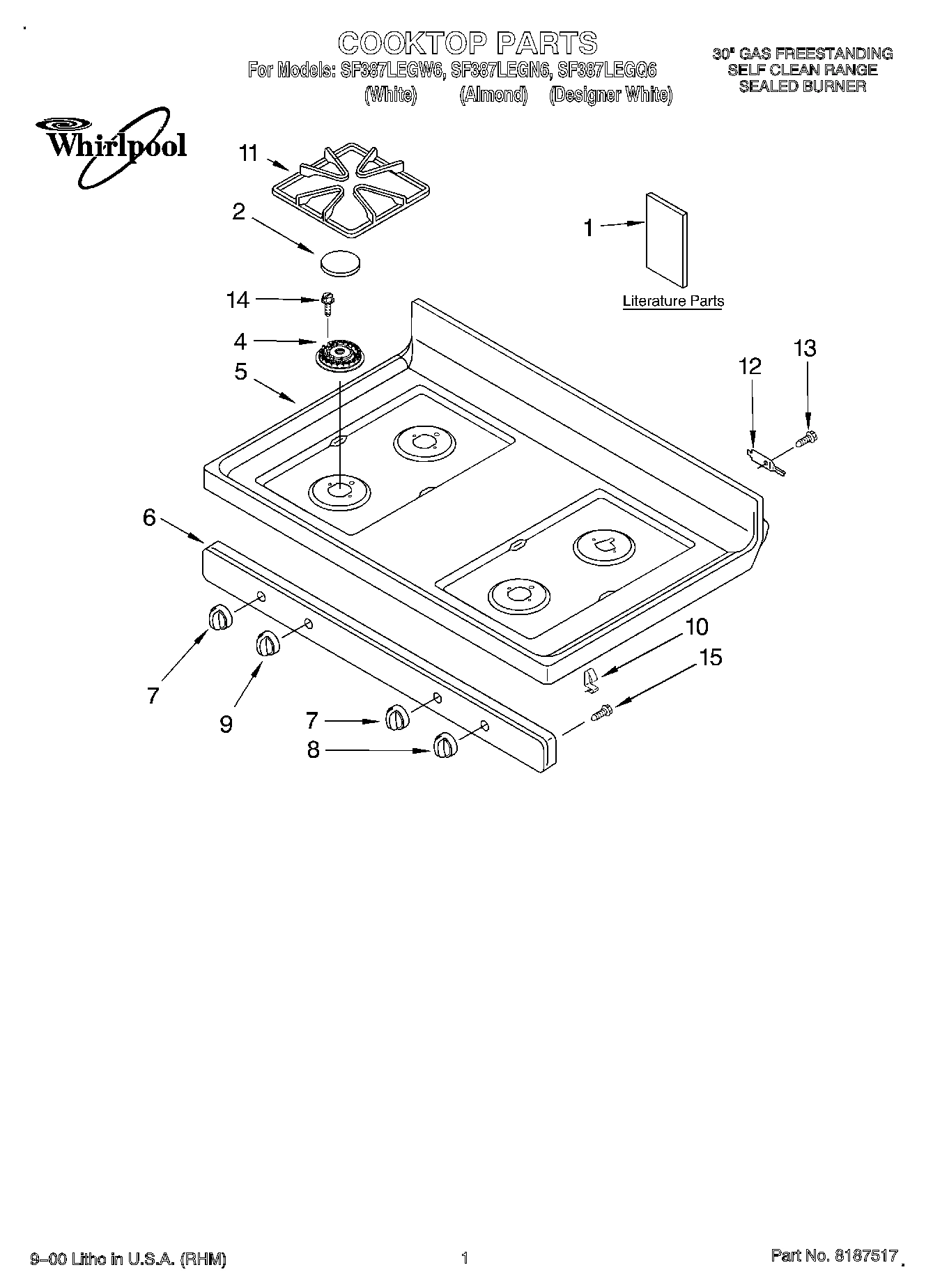

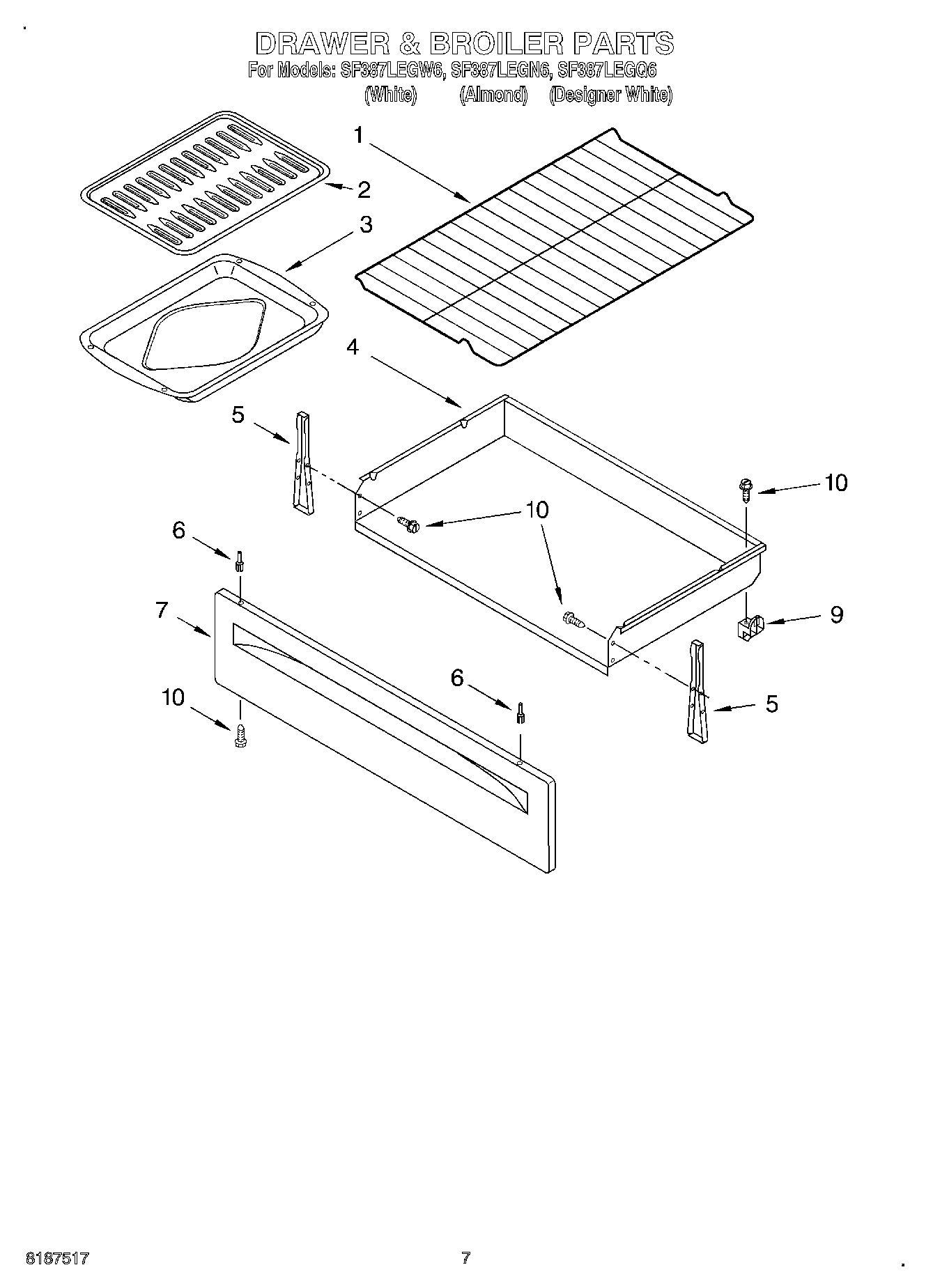

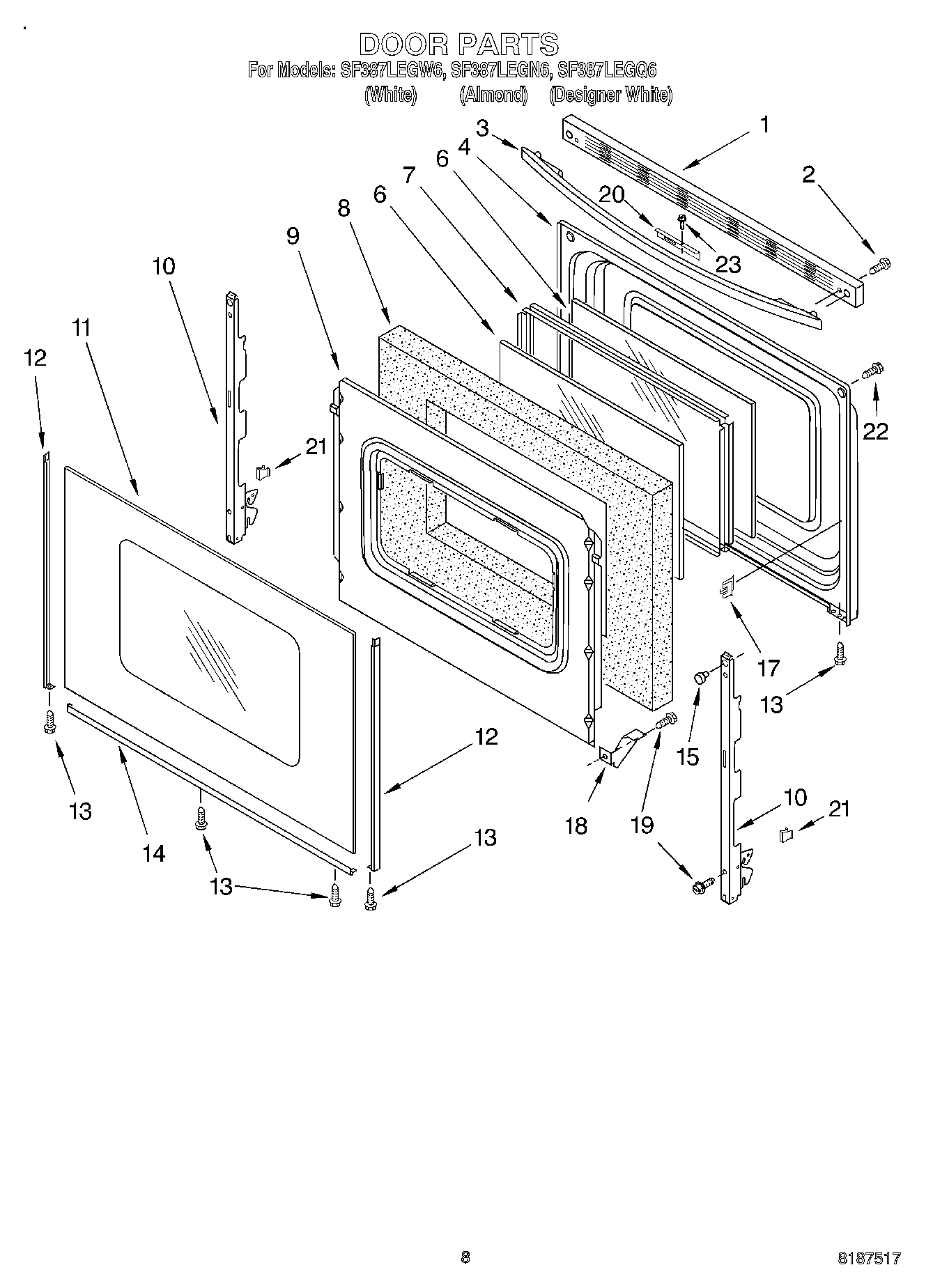

Model Whirlpool SF387LEGQ6 GAS RANGE – Common Parts &amp; Diagrams

1

WP8273096 Whirlpool Screw Backorder WPL WP8273096 $2.51

1

WPW10256908 Whirlpool Oven Range Rack In Stock WPL WPW10256908 $60.51

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Installation Instr (Templat WPL LIT3195945 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8272223 Contact Us For Availability

1

Literature Parts (Guide, Use & Care) WPL LIT8273153 Contact Us For Availability

1

Literature Parts (Instructions, Installation) WPL LIT8273170 Contact Us For Availability

1

Literature Parts (Tech Sheet (Supplemental)) WPL LIT8274006 Contact Us For Availability

2

WP3191898 Whirlpool Surface Burner Cap Black Backorder WPL WP3191898 $42.16

2

WP3191901 Whirlpool Burner Cap Backorder WPL WP3191901 $54.85

2

WP3191903 Whirlpool Burner Cap In Stock WPL WP3191903 $96.80

2

WP3191904 Whirlpool Burner Cap In Stock WPL WP3191904 $95.75

2

WP3191905 Whirlpool Burner Cap Backorder WPL WP3191905 $44.01

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

2

WP8272747 Whirlpool Heat Shield Backorder WPL WP8272747 $26.21

2

Cap, Burner Left Front (Grey) WPL 3191899 Contact Us For Availability

3

W11379351 Whirlpool Burner Box Backorder WPL W11379351 $34.99

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

4

WP4455979 Whirlpool Range Small Burner Head Backorder WPL WP4455979 $34.15

4

WP4455980 Whirlpool Burner Head Backorder WPL WP4455980 $37.44

4

WP4455981 Whirlpool Burner Head Backorder WPL WP4455981 $52.72

4

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $75.80

4

Screw WPL 4449746 Contact Us For Availability

4

Panel, Side (2) (Almond-Textured) WPL 8053831 Contact Us For Availability

4

Drawer, Storage WPL 8053343 Contact Us For Availability

5

W11213959 Whirlpool Cooktop Backorder WPL W11213959 $266.02

5

W11759228 Whirlpool Mounting Bracket Backorder WPL W11759228 $11.02

5

Harness, Igniter (Incl. Switches) WPL 8273075 Contact Us For Availability

5

Sheild, Heat (2) WPL 3196137 Contact Us For Availability

5

Cooktop (Almond) WPL 8272252 Contact Us For Availability

6

3196815 Whirlpool Oven Rivet Backorder WPL 3196815 $9.59

6

8053505 Whirlpool Oven Shield Backorder WPL 8053505 $54.35

6

8523855 Whirlpool Oven Manifold Panel Backorder WPL 8523855 $61.99

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WP8523854 Whirlpool Manifold Panel Backorder WPL WP8523854 $113.92

6

Brkt, Manifold Mtg (Left Hand) WPL 3186405 Contact Us For Availability

6

Brkt, Manifold Mtg (Right Hand) WPL 3186406 Contact Us For Availability

7

3196200 Whirlpool Clip In Stock WPL 3196200 $5.05

7

W11230486 Whirlpool Drawer Panel Backorder WPL W11230486 $70.99

7

WP8273103 Whirlpool Black Control Knob In Stock WPL WP8273103 $9.46

7

WP8273104 Whirlpool Knob In Stock WPL WP8273104 $9.17

7

Shield, Heat (2) WPL 3196136 Contact Us For Availability

7

Panel, Drawer Front (Almond) WPL 8053337 Contact Us For Availability

8

Knob, Accusimmer (White) WPL 8273108 Contact Us For Availability

8

Valve (Right Rear) WPL 8273004 Contact Us For Availability

8

Frame, Front (Not Serviceable) WPL ARI130300A Contact Us For Availability

9

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $3.70

9

Nut (4) WPL 8273060 Contact Us For Availability

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

WP8053807 Whirlpool Oven Door Hinge In Stock WPL WP8053807 $49.45

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $2.51

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

Clip, Cooktop (2) WPL 3195813 Contact Us For Availability

11

WP3195097 Whirlpool Oven Bottom In Stock WPL WP3195097 $81.40

11

WP8053456 Whirlpool Burner Grate Backorder WPL WP8053456 $95.21

11

WPW10447925 Whirlpool Grate Kit In Stock WPL WPW10447925 $189.29

WP3195060 Whirlpool Cooktop Pin Backorder WPL WP3195060 $4.23

WP8054078 Whirlpool Broiler Burner Backorder WPL WP8054078 $93.47

Control, Range (White) WPL 6610279 Contact Us For Availability

Sensor, Oven WPL 3196966 Contact Us For Availability

13

8053967 Whirlpool Oven Heat Baffle Backorder WPL 8053967 $106.98

13

Spreader, Flame (Oven) WPL 8053970 Contact Us For Availability

14

8053969 Whirlpool Heat Shield Backorder WPL 8053969 $36.58

14

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

15

8053968 Whirlpool Oven Heat Shield Backorder WPL 8053968 $29.43

16

WP8054129 Whirlpool Oven Igniter In Stock WPL WP8054129 $70.95

16

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $50.64

17

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

17

Tubing (Broiler Fitting To Valve) WPL 8272222 Contact Us For Availability

18

Fitting, Broiler WPL 3186489 Contact Us For Availability

18

Seal, Oven Flange WPL 3195737 Contact Us For Availability

19

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $26.75

WP8273064 Whirlpool Orifice Backorder WPL WP8273064 $32.90

WP8273065 Whirlpool Orifice Backorder WPL WP8273065 $32.90

WP8273066 Whirlpool Orifice Backorder WPL WP8273066 $32.98

WP8273067 Whirlpool Orifice In Stock WPL WP8273067 $32.98

Back, Main WPL 8272921 Contact Us For Availability

21

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

21

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

22

Brace, Main Back WPL 8053971 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

3196265 Whirlpool Oven Screw Backorder WPL 3196265 $9.59

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Gre WPL 261582 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 8053527 WPL 8053527 Contact Us For Availability

WPL 8054085 WPL 8054085 Contact Us For Availability

WPL 8054086 WPL 8054086 Contact Us For Availability

WPL 8272466 WPL 8272466 Contact Us For Availability

WPL 8273341 WPL 8273341 Contact Us For Availability

WPL 8273974 WPL 8273974 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Retainer, Insul. (Right Hand) WPL 3195726 Contact Us For Availability

Retainer, Insul. (Left Hand) WPL 3196523 Contact Us For Availability

24

Clip, Panel (6) WPL 3196576 Contact Us For Availability

25

W11684507 Whirlpool Screw In Stock WPL W11684507 $8.11

25

WP9757891 Whirlpool Power Cord Backorder WPL WP9757891 $48.39

26

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

27

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

27

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $58.66

27

Spuds, LP Gas (Kit of 4) WPL 8523418 Contact Us For Availability

28

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

30

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $86.66

31

W10078370 Whirlpool Latch Rod Backorder WPL W10078370 $28.80

32

WPW10107820 Whirlpool Door Latch In Stock WPL WPW10107820 $111.45

33

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

36

Button, Plug WPL 3196439 Contact Us For Availability

38

Screw WPL 3196152 Contact Us For Availability

39

3196166 Whirlpool Screw Backorder WPL 3196166 $4.85

39

Screw (Almond) WPL 3196167 Contact Us For Availability

40

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

41

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

42

Screw WPL 3196179 Contact Us For Availability

43

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

44

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

46

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

47

W10491985 Whirlpool Screw In Stock WPL W10491985 $2.51

48

WPW10331686 Whirlpool Oven Spark Module In Stock WPL WPW10331686 $178.45

50

W11688737 Whirlpool Insulation Backorder WPL W11688737 $45.31

50

Screw WPL 489436 Contact Us For Availability
