Model Whirlpool SF386PEWW3 GAS RANGE – Common Parts & Diagrams

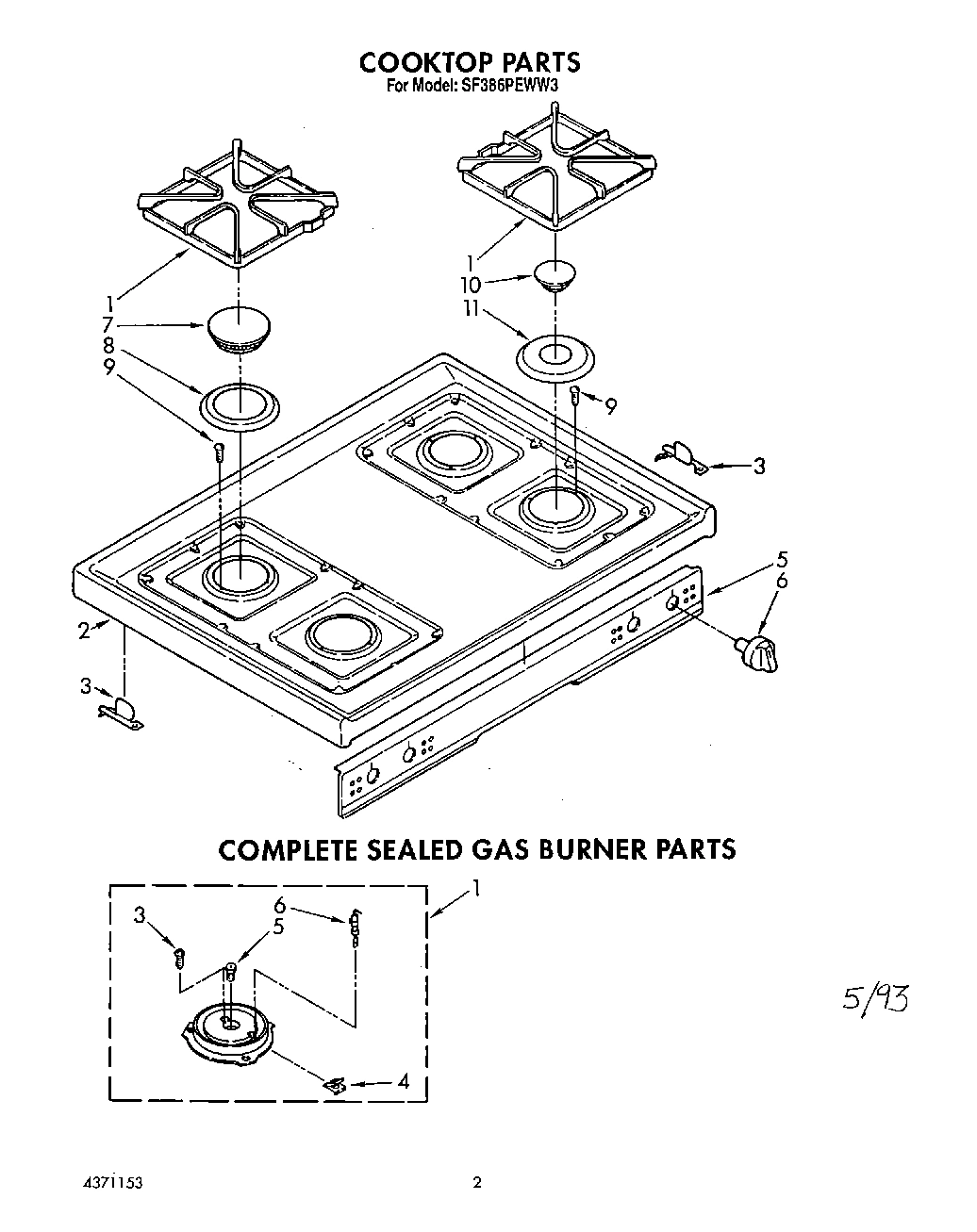

01 - COOKTOP, COMPLETE SEALED GAS BURNER
04 - CONTROL PANEL
02 - BROILER AND OVEN BURNER
03 - COOKTOP BURNER
06 - OVEN RACK, LIT/OPTIONAL
05 - OVEN
07 - OVEN DOOR AND DRAWER
Common parts from model Whirlpool SF386PEWW3 GAS RANGE
Guide, Cooking WPL LIT3149508 Contact Us For Availability
Repair Parts List WPL LIT4371153 Contact Us For Availability
Use & Care Guide WPL LIT816515 Contact Us For Availability
Installation Instructions WPL LIT816516 Contact Us For Availability
Tech Sheet WPL LIT816517 Contact Us For Availability
Quick Reference Sheet WPL LIT816520 Contact Us For Availability
Wiring Diagram WPL LIT816521 Contact Us For Availability
1
Burner, (Small) See Page 5 For Further Breakd WPL 816592 Contact Us For Availability
1
Grate WPL 816735 Contact Us For Availability
1
Glass, Backguard WPL 816748 Contact Us For Availability
1
Baffle, Broiler Burner WPL 816582 Contact Us For Availability
1
Rack, Oven WPL 816646 Contact Us For Availability
1
Spacer, Body WPL 816669 Contact Us For Availability
1
Handle, Door WPL 816736 Contact Us For Availability
2
Top, Main WPL 816717 Contact Us For Availability
2
Electronic Control WPL 816697 Contact Us For Availability
2
Baffle, Oven Burner WPL 816584 Contact Us For Availability
2
Tubing, Burner (RF) WPL 816603 Contact Us For Availability
2
Insert, Broiler Pan WPL 816626 Contact Us For Availability
2
Shield, Wool WPL 816659 Contact Us For Availability
2
Trim, Door WPL 816746 Contact Us For Availability
3
Bracket, Hinge (Left) WPL 816586 Contact Us For Availability
3
Bracket, Hinge (Right) WPL 816721 Contact Us For Availability
3
Plate, Instrument Mounting WPL 816701 Contact Us For Availability
3
Burner, Broiler WPL 816722 Contact Us For Availability
3
Tubing, Burner (RR) WPL 816605 Contact Us For Availability
3
Pan, Broiler WPL 816644 Contact Us For Availability
3
Screw, No.8-18 x 1 7/16 WPL 816651 Contact Us For Availability
3
Glass, Door WPL 816744 Contact Us For Availability
4
Clip, Ignitor WPL 816566 Contact Us For Availability
4
Burner, Oven WPL 816588 Contact Us For Availability
4
Tubing, Burner (LF) WPL 816604 Contact Us For Availability
5
Orifice, Burner (Large) WPL 816567 Contact Us For Availability
5
Orifice, Burner (Small) WPL 816570 Contact Us For Availability
5
Panel, Manifold WPL 816739 Contact Us For Availability
5
Tubing, Burner (LR) WPL 816606 Contact Us For Availability
6
Ignitor WPL 816565 Contact Us For Availability
6
Knob, Control (4) WPL 816738 Contact Us For Availability
6
Brace, Backguard WPL 816702 Contact Us For Availability
6
Pipe, Manifold WPL 816599 Contact Us For Availability
6
Retainer, Glass WPL 816647 Contact Us For Availability
6
Bracket, Glass WPL 816743 Contact Us For Availability
7
Cap, Burner (Lg) WPL 816732 Contact Us For Availability
7
End Cap (Left) WPL 816694 Contact Us For Availability
7
End Cap (Right) WPL 816696 Contact Us For Availability
7
Ignitor, Module WPL 816541 Contact Us For Availability
7
Valve, Top Burner (LG) WPL 4371012 Contact Us For Availability
7
Lens, Oven Lamp WPL 816609 Contact Us For Availability
7
Glass, Heat Shield WPL 816681 Contact Us For Availability
8
Ring, Trim (Lg) WPL 816553 Contact Us For Availability
8
Trim, Wrapper WPL 816751 Contact Us For Availability
8
Mixer, Elbow WPL 816594 Contact Us For Availability
8
Valve, Top Burner (SM) WPL 4371013 Contact Us For Availability
8
Hinge, Oven Door (2) WPL 4371143 Contact Us For Availability
8
Shield, Heat WPL 816686 Contact Us For Availability
9
Screw, Burner Mtg. WPL 816718 Contact Us For Availability
9
Trim, Vent WPL 816707 Contact Us For Availability
9
Tubing, Valve To Mixing Elbow WPL 816689 Contact Us For Availability
9
Switch, Ignitor (4) WPL 4371014 Contact Us For Availability
9
Cover, Hinge WPL 816617 Contact Us For Availability
9
Spacer, Glass WPL 816687 Contact Us For Availability
10
Cap, Burner (Sm) WPL 816545 Contact Us For Availability
10
Trim, Splasher WPL 816705 Contact Us For Availability
10
Valve, Dual WPL 816692 Contact Us For Availability
10
Tubing, Regulator To Manifold Pipe WPL 816691 Contact Us For Availability
10
Shield, Heat (Upper) WPL 816775 Contact Us For Availability
10
Window Door WPL 816679 Contact Us For Availability
11
Ring, Trim (Sm) WPL 816740 Contact Us For Availability
11
Shield, Rear Wall WPL 816661 Contact Us For Availability
11
Tubing, Valve To Regulator WPL 816690 Contact Us For Availability
11
Control Regulator WPL 816613 Contact Us For Availability
11
Shield, Heat (Lower) WPL 816657 Contact Us For Availability
11
Collar, Glass WPL 816677 Contact Us For Availability
12
Button, Control, (8) WPL 816747 Contact Us For Availability
12
Nut, Hex (2) WPL 816642 Contact Us For Availability
12
Bracket, Regulator WPL 816636 Contact Us For Availability
12
Cord, Power WPL 816614 Contact Us For Availability
12
Insulation, Door WPL 816682 Contact Us For Availability
13
Knob, Oven WPL 816749 Contact Us For Availability
13
Burner, (Large) See Page 5 For Further Breakd WPL 816589 Contact Us For Availability
13
Switch, Latch WPL 816640 Contact Us For Availability
13
Liner, Oven Door WPL 816683 Contact Us For Availability
14
Retainer, Glass WPL 816752 Contact Us For Availability
14
Shutter (Lg) WPL 816550 Contact Us For Availability
14
Screw, Handle WPL 816652 Contact Us For Availability
15
Shutter, (Sm) WPL 816551 Contact Us For Availability
15
Clip, Spring (2) WPL 816612 Contact Us For Availability
15
Seal, Oven Door WPL 816685 Contact Us For Availability
16
Seal, Burner (Sm) WPL 816560 Contact Us For Availability
16
Back, Main WPL 816581 Contact Us For Availability
16
Drawer, Utility WPL 816711 Contact Us For Availability
17
Guide, Drawer WPL 816712 Contact Us For Availability
17
Seal, Burner (Lg) WPL 816561 Contact Us For Availability
17
Rod, Light WPL 816649 Contact Us For Availability
18
Plate, Burner Mounting (2) WPL 816593 Contact Us For Availability
18
Bumper, Front (2) WPL 816608 Contact Us For Availability
18
Panel, Drawer WPL 816754 Contact Us For Availability
19
Screw, Mounting Plate To Burner WPL 816719 Contact Us For Availability
19
Handle, Utility Drawer WPL 816753 Contact Us For Availability
20
Plate, Burner Tube (2) WPL 816602 Contact Us For Availability
20
Switch, Door WPL 816671 Contact Us For Availability
20
Shield, Panel WPL 816716 Contact Us For Availability
21
Screw, Burner WPL 816568 Contact Us For Availability
21
Bracket, Light Switch WPL 816587 Contact Us For Availability
21
Spacer, Handle WPL 816713 Contact Us For Availability
22
Screw, Valve To Manifold WPL 816555 Contact Us For Availability
22
Shield, Heat WPL 816662 Contact Us For Availability
23
Clip, Wire WPL 816577 Contact Us For Availability
23
Screw, 10-18 x 1/2 (2) WPL 816755 Contact Us For Availability
24
Flue Box WPL 816619 Contact Us For Availability
25
Gasket, Flue WPL 816620 Contact Us For Availability
26
Knob, Latch WPL 4371144 Contact Us For Availability
27
Latch, Door WPL 816635 Contact Us For Availability
28
Handle, Latch WPL 4371142 Contact Us For Availability
29
Plate, Cover WPL 816615 Contact Us For Availability
30
Burner Box WPL 816595 Contact Us For Availability
31
Shield, Main Front WPL 816776 Contact Us For Availability
32
Shield, Latch WPL 816638 Contact Us For Availability
33
Shield, Heat Baffle WPL 816660 Contact Us For Availability
34
Panel, Side (R.H.) WPL 816708 Contact Us For Availability
34
Panel, Side (LH) WPL 816709 Contact Us For Availability
35
Screw, Leveler (4) WPL 816650 Contact Us For Availability
36
Support, Oven Bottom WPL 816670 Contact Us For Availability
37
Fastener, Cord WPL 816618 Contact Us For Availability
38
Insulation, Oven Back WPL 816630 Contact Us For Availability
39
Oven Bottom WPL 816583 Contact Us For Availability
41
Probe, Temperature WPL 816645 Contact Us For Availability
42
Spacer, (2) WPL 816639 Contact Us For Availability
43
Shield, Latch WPL 816637 Contact Us For Availability
44
Screw, Latch Knob WPL 816653 Contact Us For Availability
46
Insulation, Front WPL 816627 Contact Us For Availability
47
Insulation, Oven Wrapper WPL 816629 Contact Us For Availability
48
Bracket, Anti-Tip WPL 816585 Contact Us For Availability
49
Glide, Drawer (2) WPL 816621 Contact Us For Availability
× ![]()
