Model Whirlpool SF385PEYW3 GAS RANGE – Common Parts & Diagrams

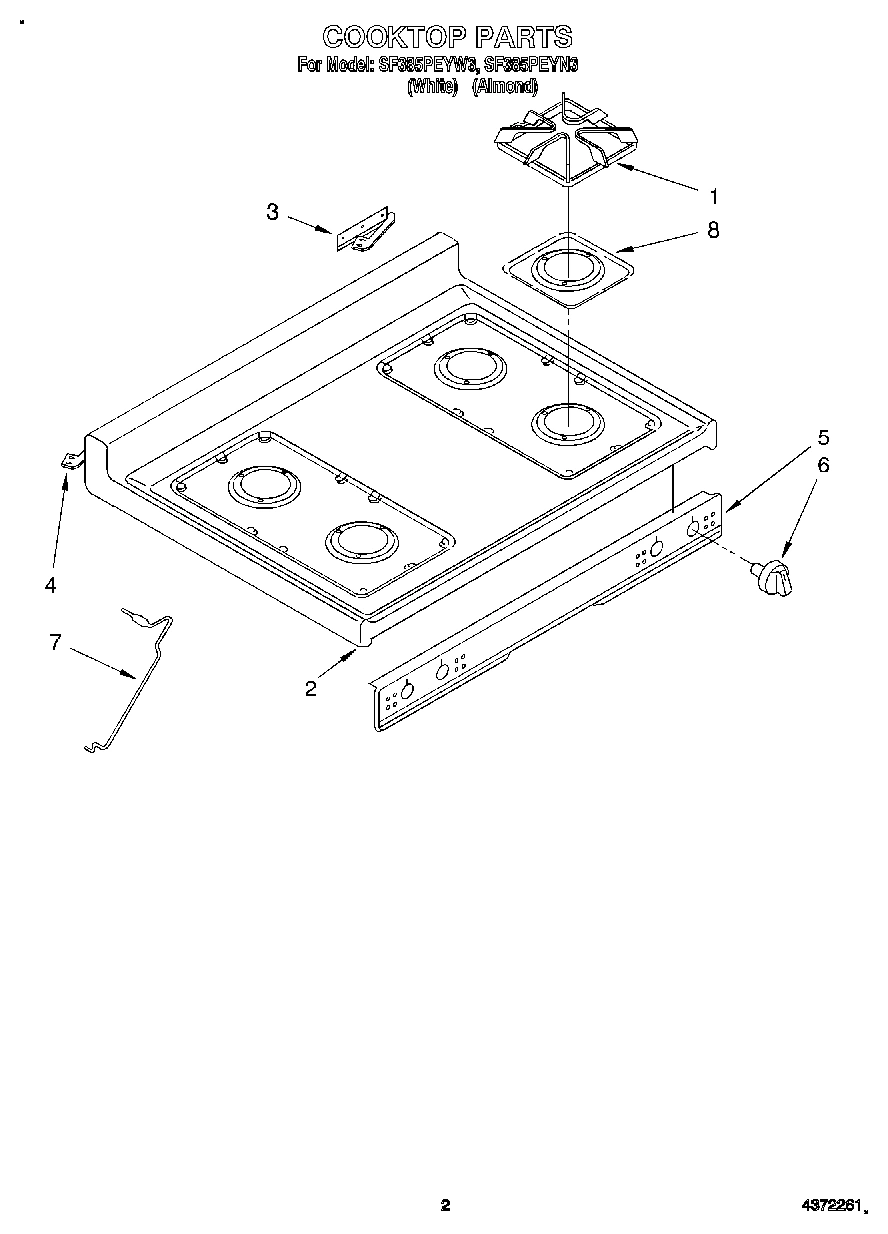

02 - COOKTOP

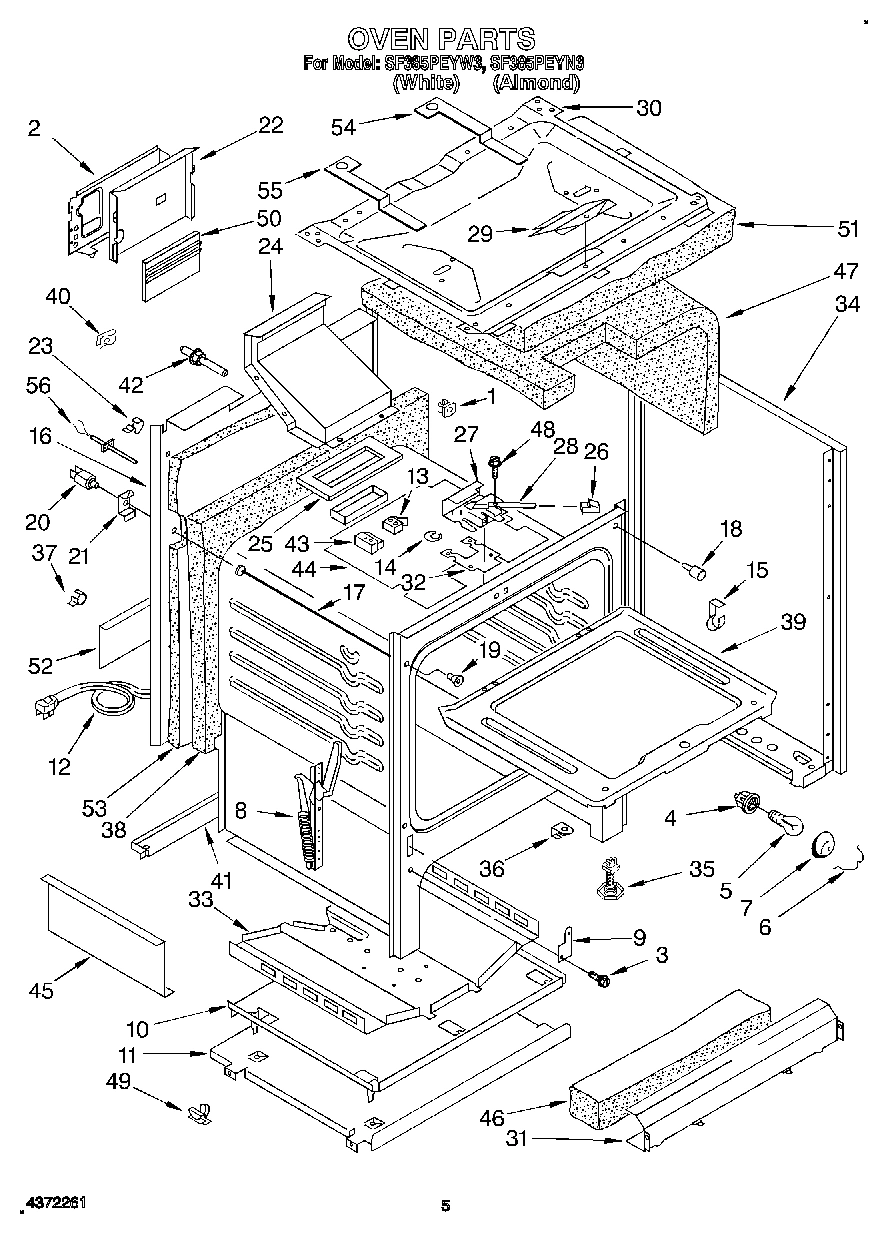

05 - OVEN

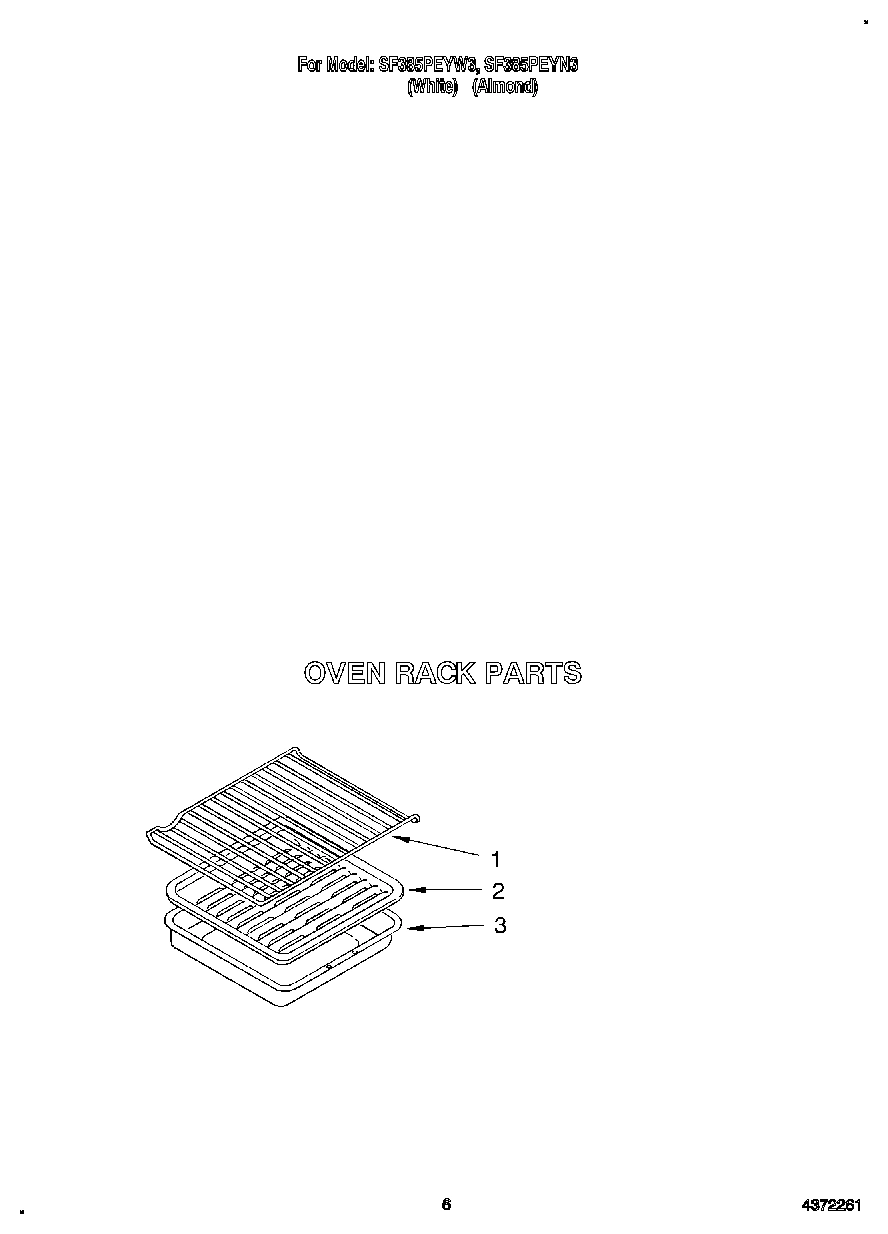

06 - OVEN RACK, LITERATURE

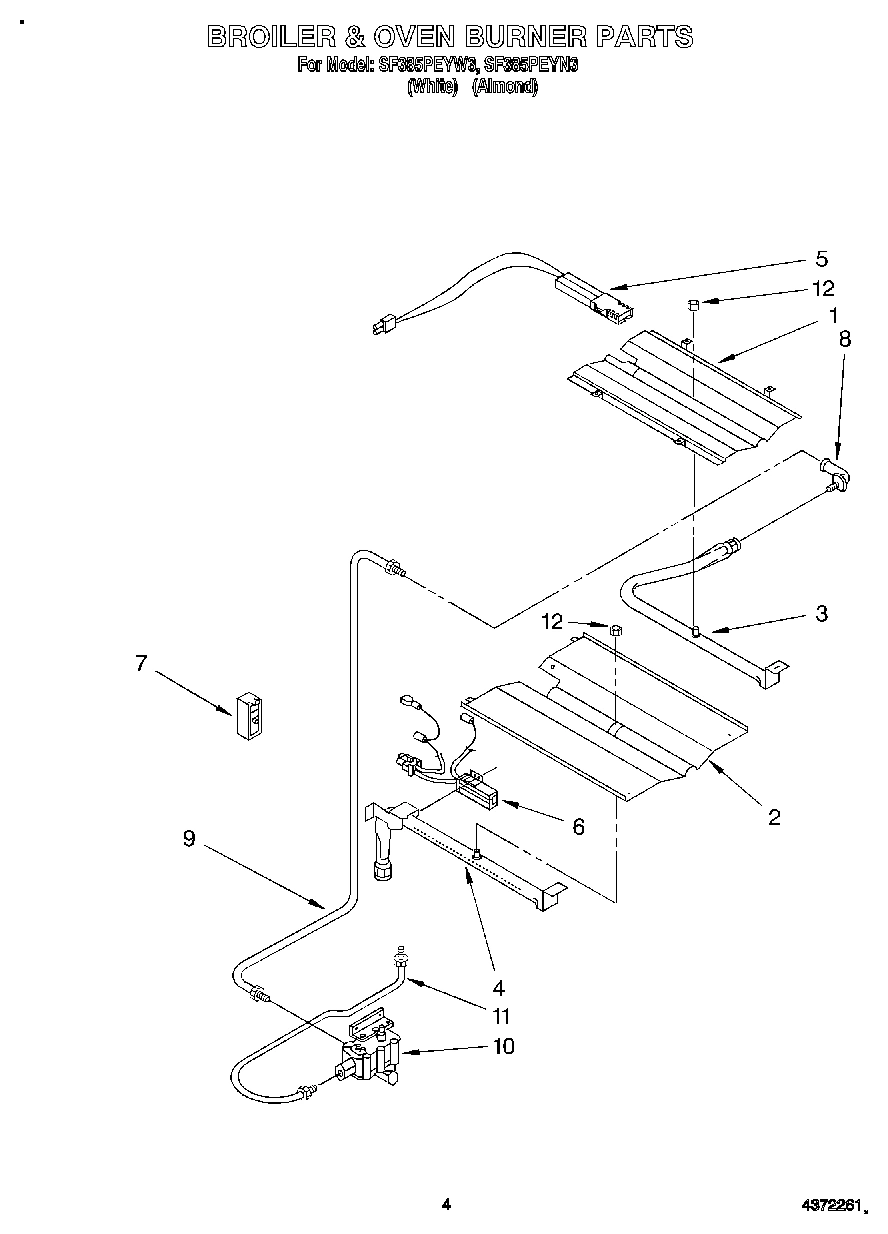

04 - BROILER & OVEN BURNER

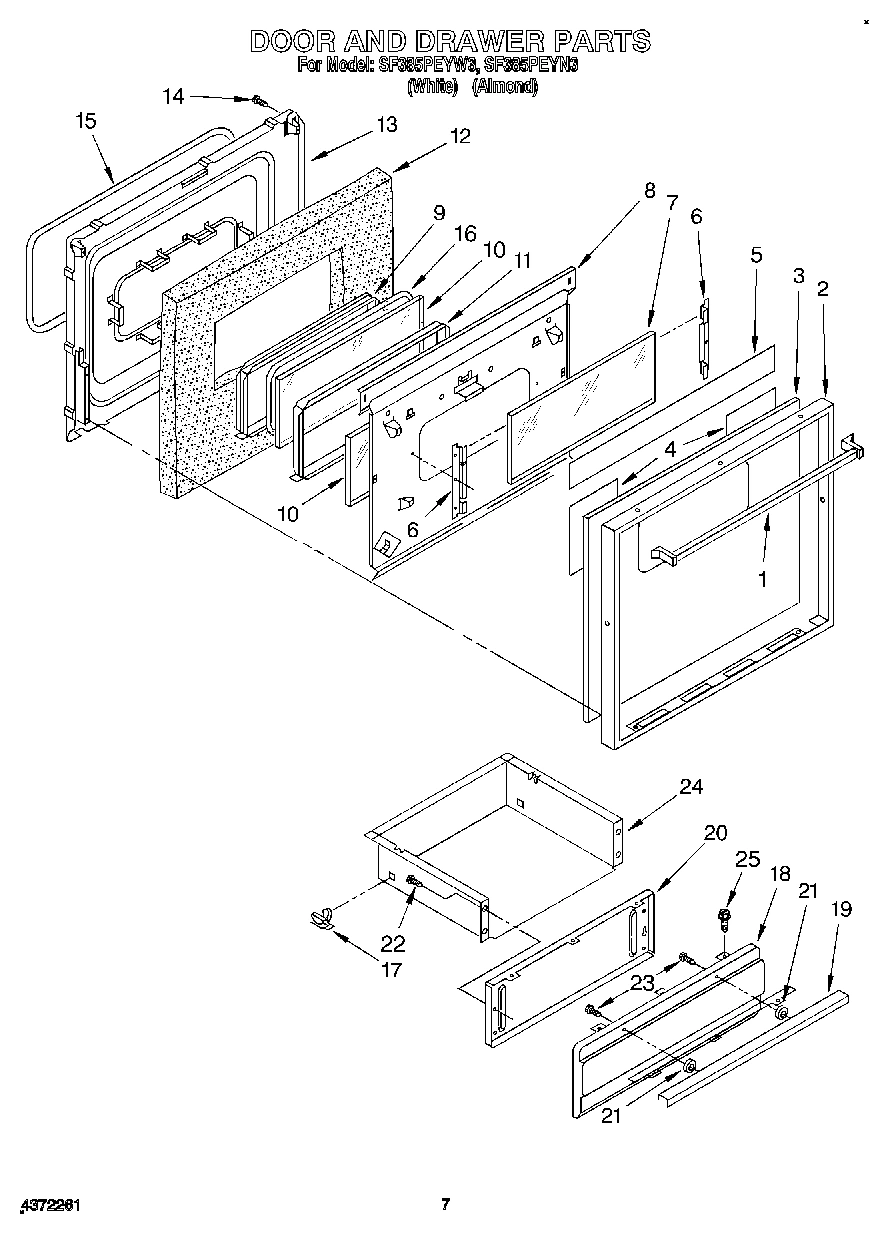

07 - DOOR AND DRAWER

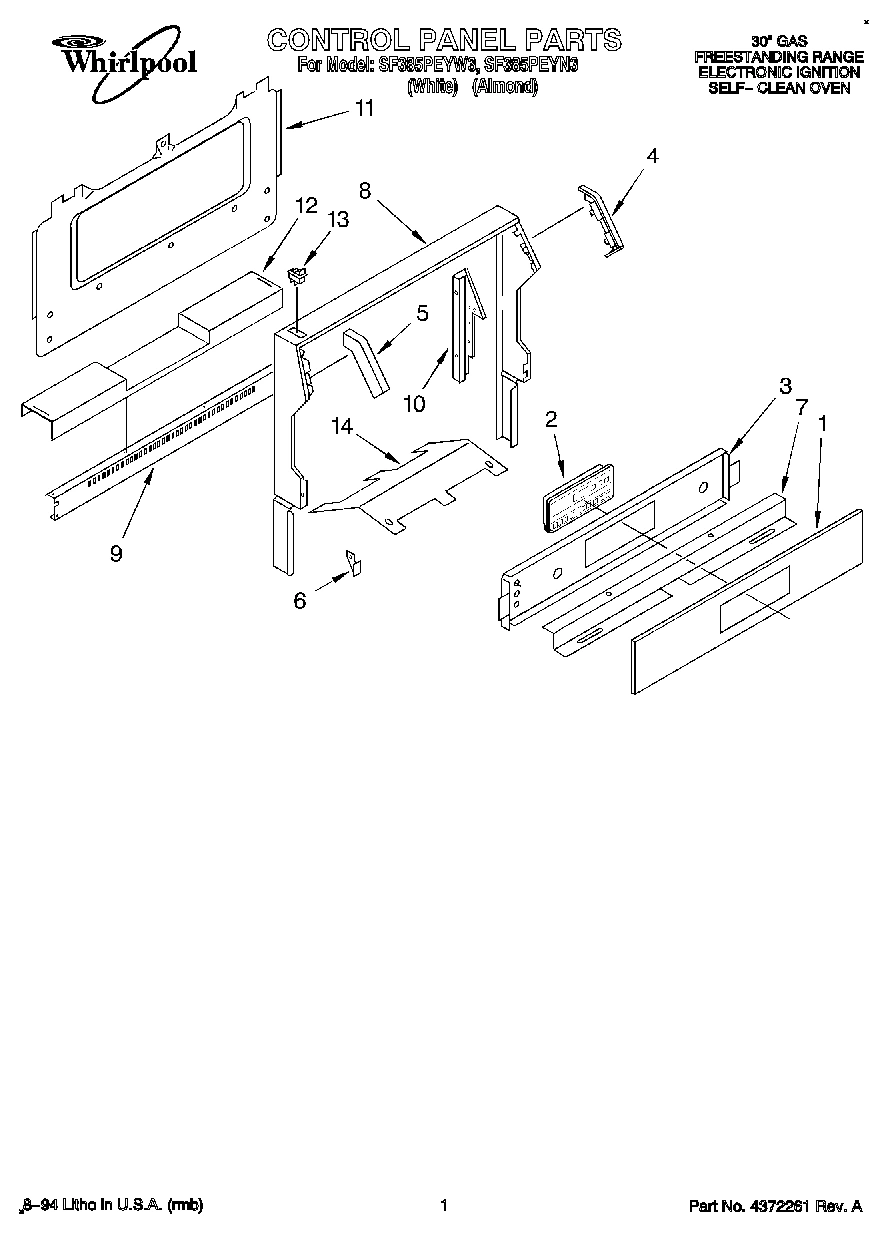

01 - CONTROL PANEL

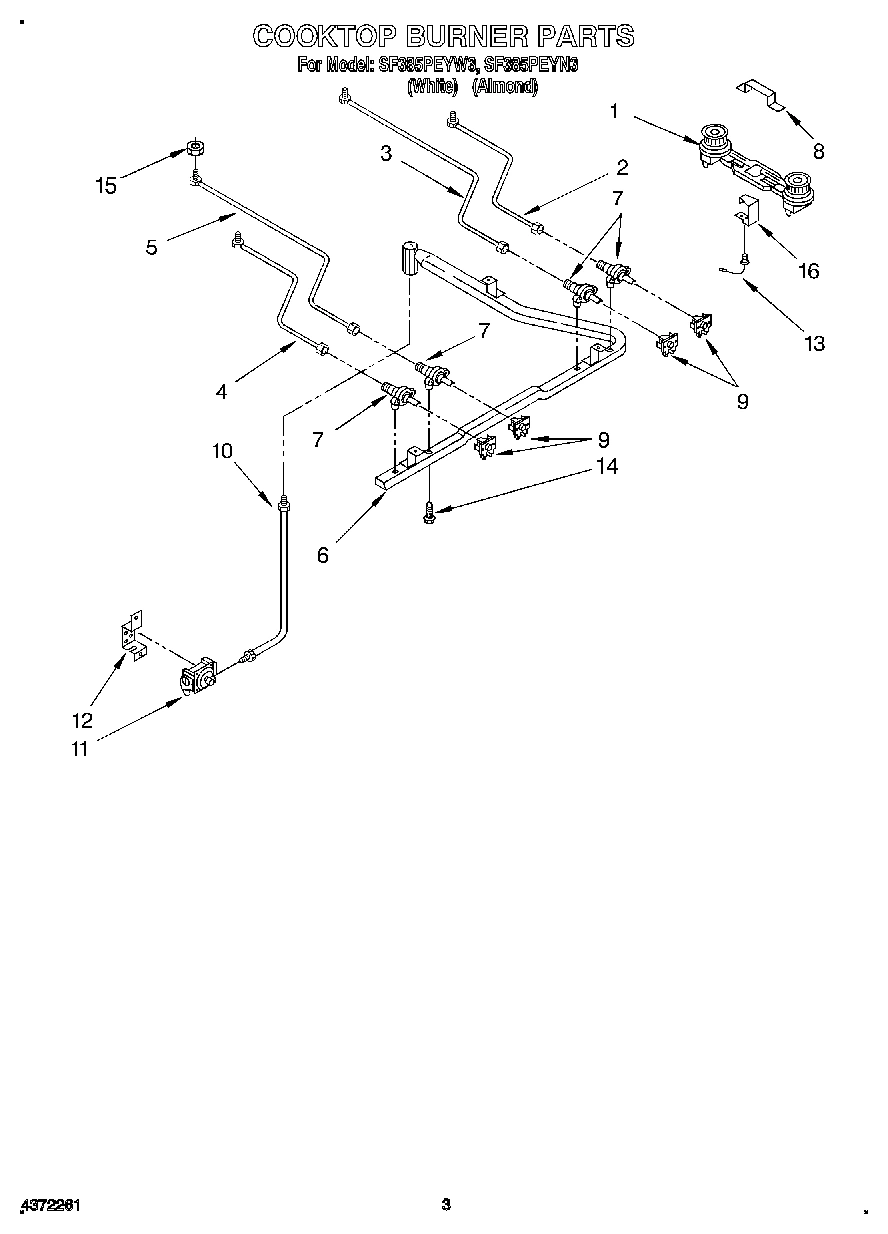

03 - COOKTOP BURNER
Common parts from model Whirlpool SF385PEYW3 GAS RANGE
Instructions, Installation WPL LIT4372195 Contact Us For Availability
Guide, Use & Care WPL LIT4372205 Contact Us For Availability
1
Spacer, Body (8) WPL 816669 Contact Us For Availability
1
Rack, Oven (2) WPL 4371483 Contact Us For Availability
1
Baffle, Broiler Burner WPL 816582 Contact Us For Availability
1
Handle, Door WPL 816622 Contact Us For Availability
1
Panel, Control WPL 4371837 Contact Us For Availability
1
Burner, Double (2) WPL 4371020 Contact Us For Availability
2
Shield, Rear Wall WPL 4371619 Contact Us For Availability
2
Insert, Broiler Pan WPL 816626 Contact Us For Availability
2
Baffle, Oven Burner WPL 816584 Contact Us For Availability
2
Trim, Door WPL 816688 Contact Us For Availability
2
Control, Electronic Timer WPL 4371835 Contact Us For Availability
2
Tubing, Burner (RF) WPL 4371021 Contact Us For Availability
3
Bracket, Hinge (Right Side) WPL 4371545 Contact Us For Availability
3
Screw, Oven Bottom WPL 816651 Contact Us For Availability
3
Pan, Broiler WPL 816644 Contact Us For Availability
3
Burner, Broiler WPL 816722 Contact Us For Availability
3
Glass, Door WPL 4371690 Contact Us For Availability
3
Bracket, Timer WPL 4371834 Contact Us For Availability
3
Tubing, Burner (RR) WPL 4371023 Contact Us For Availability
4
Bracket, Hinge (Left Side) WPL 4371546 Contact Us For Availability
4
Burner, Oven WPL 816588 Contact Us For Availability
4
Foil, Alum. (2) WPL 816674 Contact Us For Availability
4
Cap, End (R.H.) WPL 4371316 Contact Us For Availability
4
Tubing, Burner (LF) WPL 4371022 Contact Us For Availability
5
Panel, Manifold WPL 4371653 Contact Us For Availability
5
Foil, Alum. WPL 816675 Contact Us For Availability
5
Cap, End (L.H.) WPL 4371317 Contact Us For Availability
5
Tubing, Burner (LR) WPL 4371024 Contact Us For Availability
6
Knob, Control (4) WPL 4371663 Contact Us For Availability
6
Retainer, Lens WPL 4371621 Contact Us For Availability
6
Bracket, Glass WPL 816676 Contact Us For Availability
6
Cap, Filler WPL 4371536 Contact Us For Availability
6
Pipe, Manifold WPL 4371026 Contact Us For Availability
7
Rod, Support (2) WPL 4371838 Contact Us For Availability
7
Lens, Oven Light WPL 816609 Contact Us For Availability
7
Module, Spark WPL 4371030 Contact Us For Availability
7
Glass, Oven Door WPL 816679 Contact Us For Availability
7
Retainer, Timer WPL 4371836 Contact Us For Availability
7
Valve, Top (4) WPL 4371504 Contact Us For Availability
8
Pan, Burner (4) WPL 4371506 Contact Us For Availability
8
Hinge, Oven Door WPL 4371143 Contact Us For Availability
8
Mixer, Elbow WPL 816594 Contact Us For Availability
8
Shield, Heat WPL 4371253 Contact Us For Availability
8
Trim, Wrapper WPL 4371534 Contact Us For Availability
8
Bracket, Burner Mounting WPL 4371019 Contact Us For Availability
9
Cover, Hinge WPL 816617 Contact Us For Availability
9
Tubing, Valve To Mixing Elbow WPL 816689 Contact Us For Availability
9
Collar, Glass WPL 816677 Contact Us For Availability
9
Trim, Deflector WPL ARI130295A Contact Us For Availability
9
Switch, Ignitor (4) WPL 4371164 Contact Us For Availability
10
Shield, Heat (Upper) WPL 4371042 Contact Us For Availability
10
Valve, Safety WPL 816692 Contact Us For Availability
10
Glass, Heat Barrier (2) WPL 816681 Contact Us For Availability
10
Support, Backguard (RH.) WPL 4371532 Contact Us For Availability
10
Support, Backguard (LH.) WPL 4371533 Contact Us For Availability
10
Tubing, Regulator To Manifold Pipe WPL 4371261 Contact Us For Availability
11
Shield, Heat (Lower) WPL 816657 Contact Us For Availability
11
Tubing, Valve To Regulator WPL 4371260 Contact Us For Availability
11
Spacer, Glass WPL 816687 Contact Us For Availability
11
Shield, Rear Wall WPL 4371300 Contact Us For Availability
11
Regulator, Pressure WPL 4372040 Contact Us For Availability
12
Cord, Power WPL 816614 Contact Us For Availability
12
Nut, Hex (2) WPL 816642 Contact Us For Availability
12
Insulation, Door WPL 816682 Contact Us For Availability
12
Deflector, Flue WPL 4371537 Contact Us For Availability
12
Bracket, Regulator WPL 816636 Contact Us For Availability
13
Ignitor, Top Burner WPL 4371017 Contact Us For Availability
13
Switch, Latch WPL 816640 Contact Us For Availability
13
Liner, Oven Door WPL 816683 Contact Us For Availability
14
Screw, Handle (2) WPL 4371542 Contact Us For Availability
14
Shield, Inner Bkgd WPL 4371655 Contact Us For Availability
14
Screw, Burner Mtg. WPL 4371027 Contact Us For Availability
15
Clip, Thermo Bulb WPL 4371482 Contact Us For Availability
15
Seal, Oven Door WPL 816685 Contact Us For Availability
15
Nut, Special (4) WPL 4371029 Contact Us For Availability
16
Back, Main WPL 816581 Contact Us For Availability
16
Seal, Rope WPL 816684 Contact Us For Availability
16
Retainer, Ignitor WPL 4371242 Contact Us For Availability
17
Guide, Drawer WPL 816712 Contact Us For Availability
17
Rod, Light WPL 4371038 Contact Us For Availability
18
Bumper, Front (4) WPL 816608 Contact Us For Availability
18
Panel, Drawer WPL 816715 Contact Us For Availability
19
Cover, Rod End WPL 4371682 Contact Us For Availability
19
Handle, Utility Drawer WPL 4371060 Contact Us For Availability
20
Switch, Door WPL 816671 Contact Us For Availability
20
Shield, Panel WPL 816716 Contact Us For Availability
21
Bracket, Door Switch WPL 816587 Contact Us For Availability
21
Spacer, Handle WPL 816713 Contact Us For Availability
22
Shield, Rear Heat WPL 4371661 Contact Us For Availability
22
Screw, Panel (5) WPL 4371062 Contact Us For Availability
23
Clip, Wire WPL 816577 Contact Us For Availability
23
Screw, Handle (2) WPL 4371063 Contact Us For Availability
24
Flue Box WPL 4371652 Contact Us For Availability
24
Drawer, Utility WPL 816711 Contact Us For Availability
25
Gasket, Flue WPL 816620 Contact Us For Availability
26
Knob, Latch WPL 4371144 Contact Us For Availability
27
Latch, Door WPL 4371036 Contact Us For Availability
28
Handle, Latch WPL 4371265 Contact Us For Availability
29
Plate, Cover WPL 816615 Contact Us For Availability
30
Burner Box WPL 4371025 Contact Us For Availability
31
Shield, Main Front WPL 816776 Contact Us For Availability
32
Shield, Latch WPL 816638 Contact Us For Availability
33
Shield, Heat Baffle WPL 816660 Contact Us For Availability
34
Panel, Side (Almond RH) WPL 816672 Contact Us For Availability
34
Panel, Side (Almond LH) WPL 816695 Contact Us For Availability
34
Panel, Side (White RH) WPL 816708 Contact Us For Availability
34
Panel, Side (White LH) WPL 816709 Contact Us For Availability
35
Screw, Leveler (4) WPL 4371909 Contact Us For Availability
36
Support, Oven Bottom WPL 816670 Contact Us For Availability
37
Fastener, Cord WPL 816618 Contact Us For Availability
38
Insulation, Oven Back WPL 816630 Contact Us For Availability
39
Bottom, Oven WPL 4371018 Contact Us For Availability
40
Fastener, U Type WPL 4371033 Contact Us For Availability
41
Bracket, Anti-Tip WPL 816585 Contact Us For Availability
42
Spacer, (2) WPL 816639 Contact Us For Availability
43
Shield, Latch WPL 816637 Contact Us For Availability
44
Shield, Oven Top WPL 816658 Contact Us For Availability
45
Shield, Side (2) WPL 816648 Contact Us For Availability
46
Insulation, Front WPL 816627 Contact Us For Availability
47
Insulation, Oven Wrapper WPL 816629 Contact Us For Availability
48
Screw, Latch WPL 4371664 Contact Us For Availability
49
Glide, Drawer WPL 816621 Contact Us For Availability
50
Shield, Flue WPL 4371662 Contact Us For Availability
51
Insulation, Ov Top WPL 816628 Contact Us For Availability
52
Shield, Wire WPL 816663 Contact Us For Availability
53
Shield, Wool WPL 816664 Contact Us For Availability
54
Bracket, Maintop RH WPL 4371527 Contact Us For Availability
55
Bracket, Maintop LH WPL 4371528 Contact Us For Availability
56
Probe, Oven WPL 816645 Contact Us For Availability
× ![]()
