Model Whirlpool SF380LEPT2 30`` GAS FREESTANDING SELF CLEAN RANGE SEALED BURN – Common Parts & Diagrams
03 - MANIFOLD PARTS
04 - CHASSIS PARTS

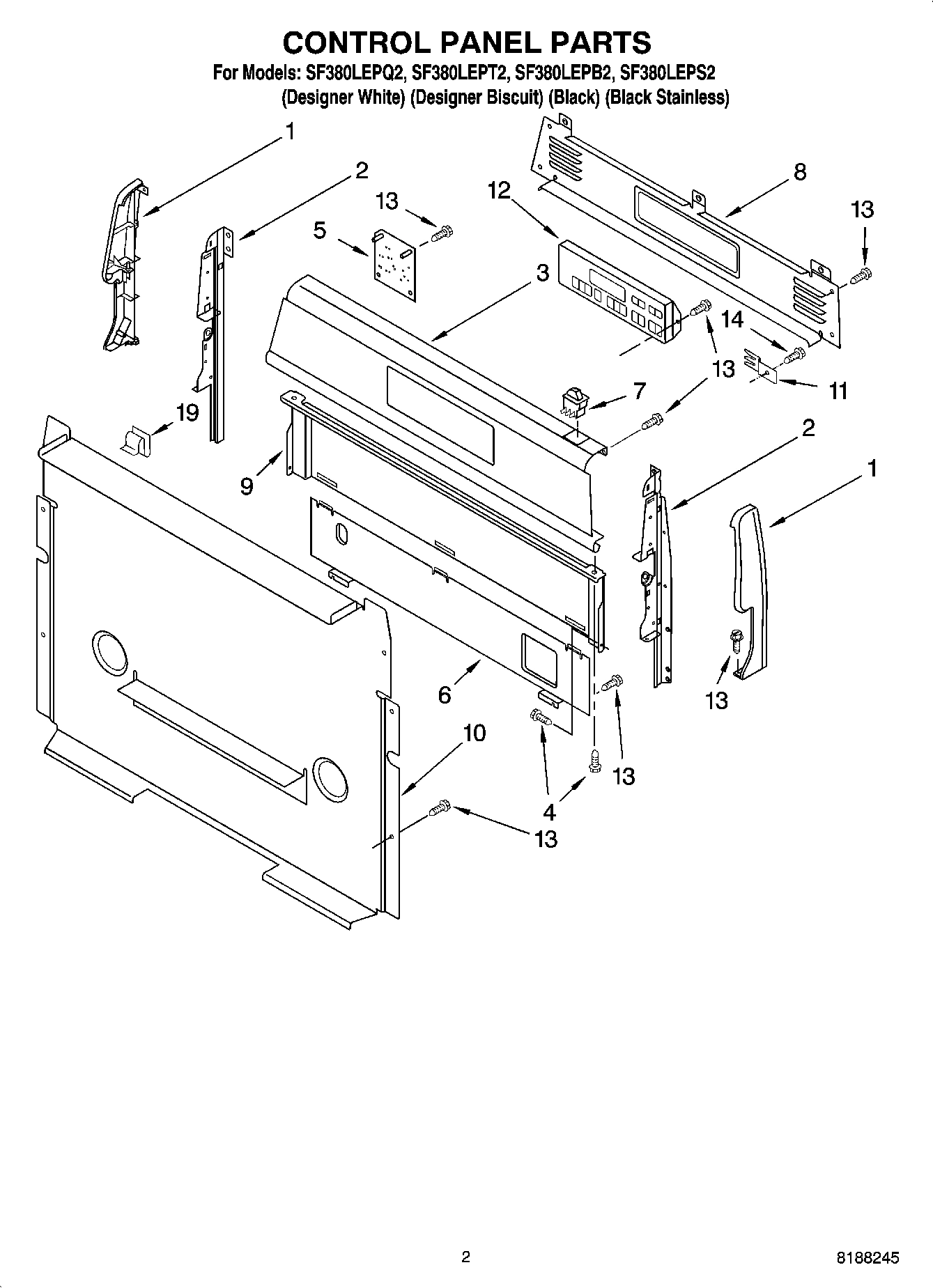

02 - CONTROL PANEL PARTS

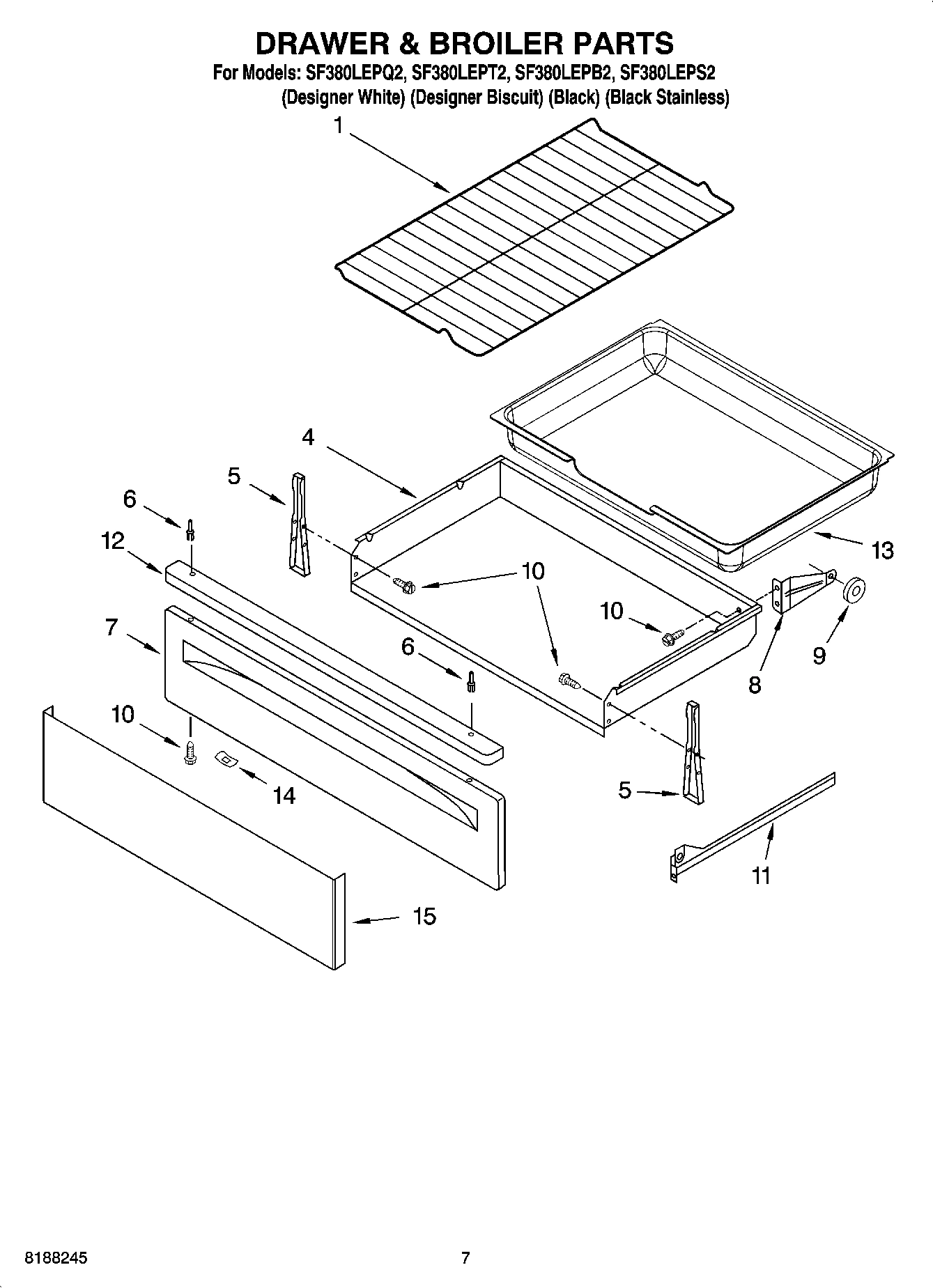

05 - DRAWER & BROILER PARTS

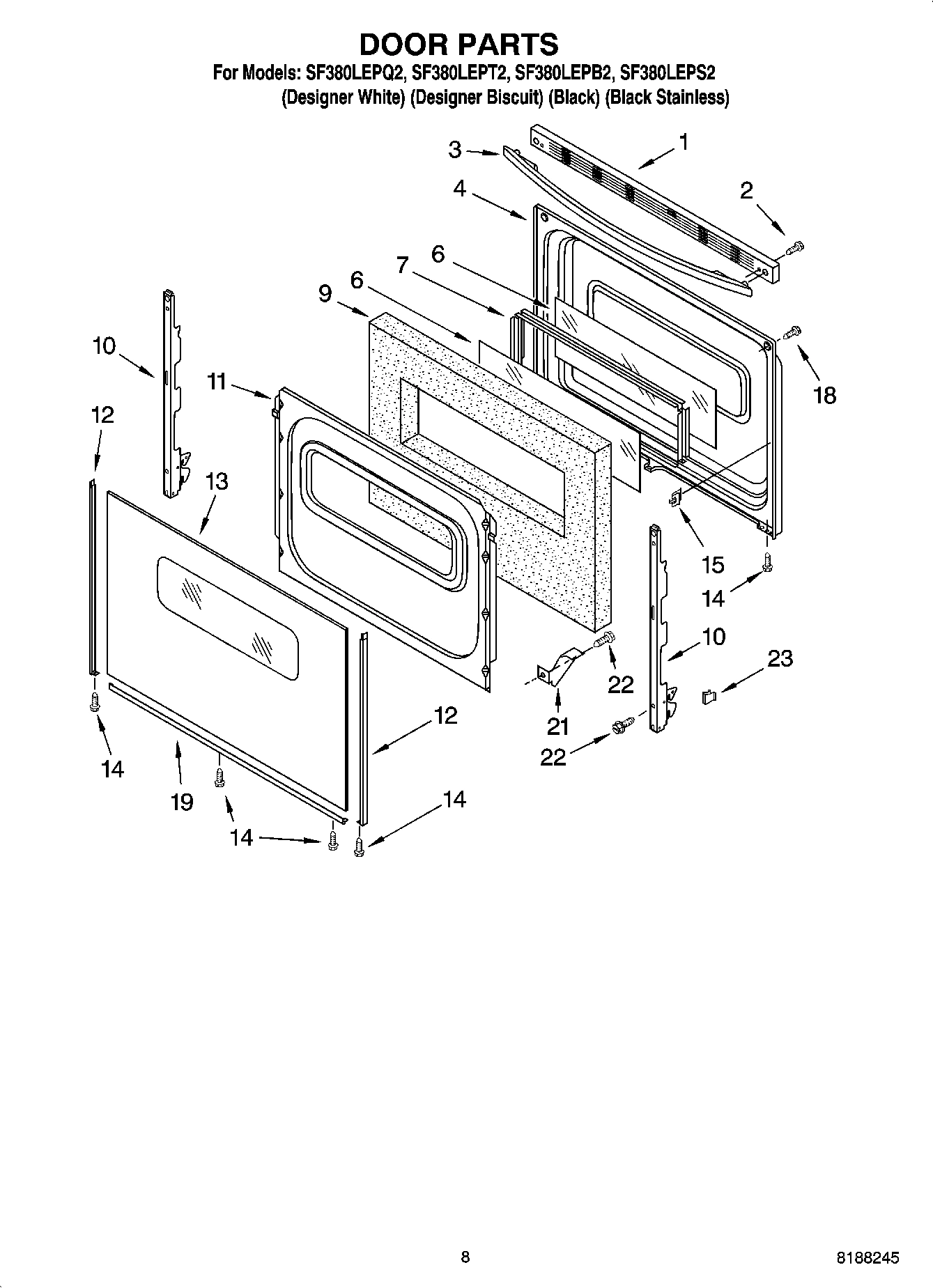

06 - DOOR PARTS, OPTIONAL PARTS

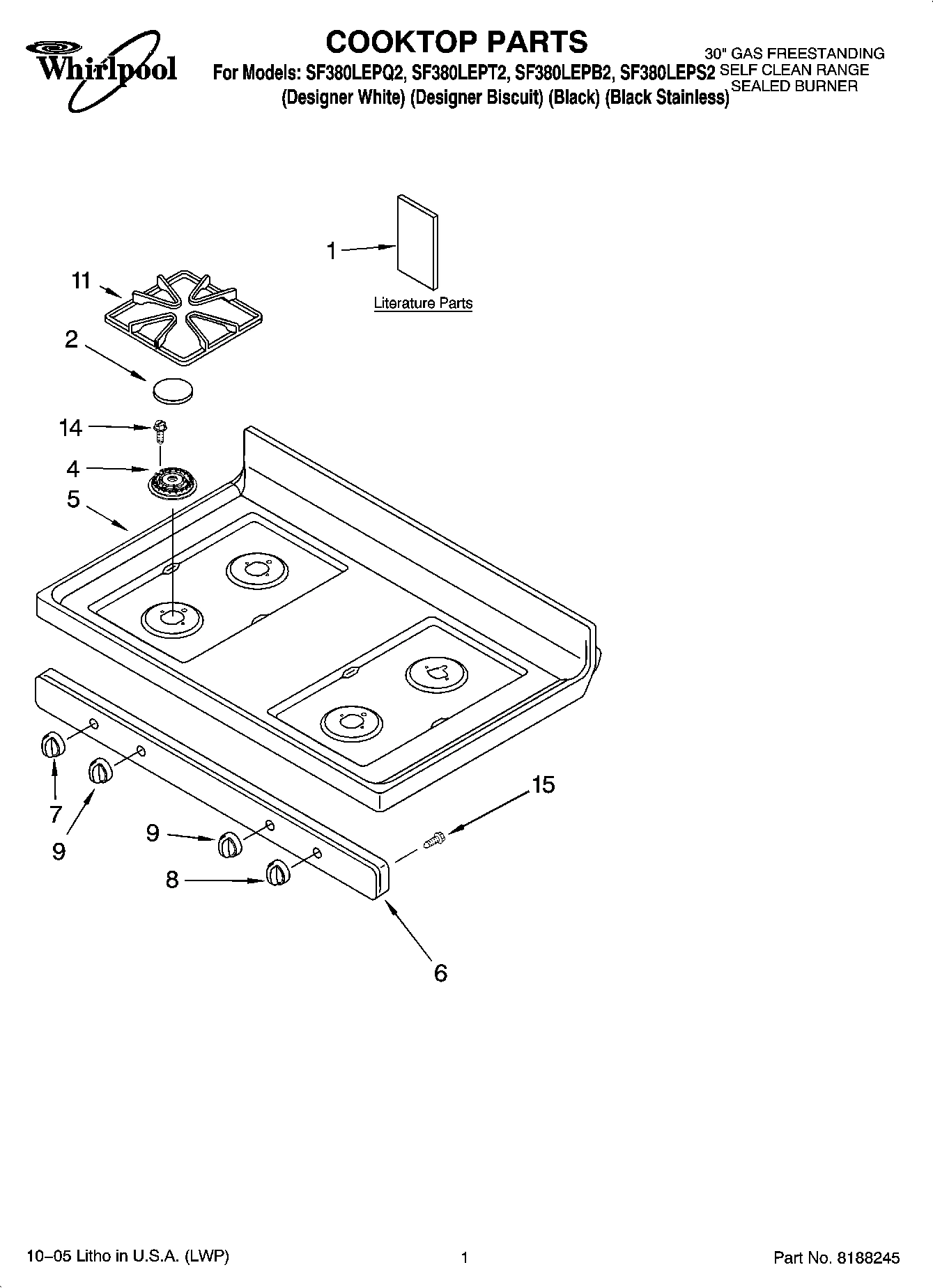

01 - COOKTOP PARTS
Common parts from model Whirlpool SF380LEPT2 30`` GAS FREESTANDING SELF CLEAN RANGE SEALED BURN
WPL 72017 WPL 72017 Contact Us For Availability
WPL 350930 WPL 350930 Contact Us For Availability
WPL 4392899 WPL 4392899 Contact Us For Availability
WPL 285006 WPL 285006 Contact Us For Availability
WPL 4392901 WPL 4392901 Contact Us For Availability
WPL 350956 WPL 350956 Contact Us For Availability
WPL 511873 WPL 511873 Contact Us For Availability
WPL 8524207 WPL 8524207 Contact Us For Availability
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 WPL 242827 Contact Us For Availability
WPL 242828 WPL 242828 Contact Us For Availability
WPL 242830 WPL 242830 Contact Us For Availability
WPL 242831 WPL 242831 Contact Us For Availability
WPL 261582 WPL 261582 Contact Us For Availability
WPL 3195927 WPL 3195927 Contact Us For Availability
WPL 3196696 WPL 3196696 Contact Us For Availability
WPL 3196896 WPL 3196896 Contact Us For Availability
WPL 4392900 WPL 4392900 Contact Us For Availability
WPL 799832 WPL 799832 Contact Us For Availability
WPL 9758205 WPL 9758205 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL ARI164026A WPL ARI164026A Contact Us For Availability
WPL ARI164027A WPL ARI164027A Contact Us For Availability
WPL ARI164028A WPL ARI164028A Contact Us For Availability
WPL ARI164029A WPL ARI164029A Contact Us For Availability
WPL ARI164030A WPL ARI164030A Contact Us For Availability
WPL ARI164031A WPL ARI164031A Contact Us For Availability
WPL ARI164032A WPL ARI164032A Contact Us For Availability
WPL ARI164033A WPL ARI164033A Contact Us For Availability
1
Screw, Valve WPL 8273096 Contact Us For Availability
1
Trim, Top (Black) WPL 3196819 Contact Us For Availability
1
Trim, Top (Blk for Stainless) WPL 8272243 Contact Us For Availability
1
Trim, Top (Biscuit) WPL 8522434 Contact Us For Availability
1
Safer Cooking Tips WPL 3191638 Contact Us For Availability
1
Tech Sheet WPL 9755996 Contact Us For Availability
1
Anti-Tip Template (English/Spanish) WPL 9757142 Contact Us For Availability
1
Anti-Tip Template (English/French) WPL 9757143 Contact Us For Availability
1
Installation Instructions Anti-Tip Template WPL 9758657 Contact Us For Availability
1
Owner`s Manual WPL 9762363 Contact Us For Availability
2
Cap, Burner (RR) (Grey) WPL 3191899 Contact Us For Availability
3
Tubing, Burner W/Orifice (Left Front) WPL 8273693 Contact Us For Availability
3
Tubing, Burner W/Orifice (Right Rear) WPL 8273697 Contact Us For Availability
3
Handle, Door (Biscuit) WPL 8522445 Contact Us For Availability
4
Burner (RR (5K)) WPL 4455979 Contact Us For Availability
4
Screw WPL 4449746 Contact Us For Availability
4
Drawer, Storage WPL 8272606 Contact Us For Availability
4
Liner, Door WPL 3186292 Contact Us For Availability
6
Panel, Manifold (Black) WPL 8523855 Contact Us For Availability
6
Rivet, Push (2) (Almond) WPL 3196815 Contact Us For Availability
6
Panel, Manifold (Biscuit) WPL 8523856 Contact Us For Availability
7
Drawer Front (Biscuit) WPL 8272502 Contact Us For Availability
8
Knob, Accusimmer (White) WPL 8273108 Contact Us For Availability
8
Valve (Right Rear) WPL 8273004 Contact Us For Availability
8
Bracket, Roller WPL 8054069 Contact Us For Availability
9
Nut (4) WPL 8273060 Contact Us For Availability
10
Stainless Model WPL 8272822 Contact Us For Availability
10
Cover, Lower WPL 8273132 Contact Us For Availability
11
Grate, Burner (4) (Espresso) WPL 8522853 Contact Us For Availability
11
Bracket, Support WPL 8523412 Contact Us For Availability
11
Rail Assy, Drawer (Left Side) WPL 8274190 Contact Us For Availability
11
Rail Assy, Drawer (Right Side) WPL 8274191 Contact Us For Availability
12
Control, Range (White) WPL 6610450 Contact Us For Availability
12
Control, Range (Biscuit) WPL 6610451 Contact Us For Availability
12
Handle, Stainless WPL 9757237 Contact Us For Availability
13
Baffle, Burner WPL 8053967 Contact Us For Availability
13
Spreader, Flame (Oven) WPL 8053970 Contact Us For Availability
13
Liner, Drawer WPL 9761033 Contact Us For Availability
13
Glass, Outer Door (Biscuit) WPL 9756416 Contact Us For Availability
13
Glass, Outer Door (Stainless Model) WPL 9756435 Contact Us For Availability
15
Panel, Stainless WPL 9755797 Contact Us For Availability
15
Clip, Door Glass WPL 3196025 Contact Us For Availability
17
Tubing (Broiler Fitting To Valve) WPL 8272222 Contact Us For Availability
18
Seal, Oven Flange WPL 8524109 Contact Us For Availability
18
Fitting, Broiler WPL 3186489 Contact Us For Availability
21
Bracket, Window WPL 3196794 Contact Us For Availability
23
Clip, Door Stop (2) WPL 3196925 Contact Us For Availability
23
Screw WPL 3196265 Contact Us For Availability
26
Rod - Dr Switch WPL 9757239 Contact Us For Availability
38
Screw WPL 3196152 Contact Us For Availability
39
Screw (White) WPL 3196166 Contact Us For Availability
× ![]()
