Model Whirlpool SF378PEWQ1 – Common Parts & Diagrams

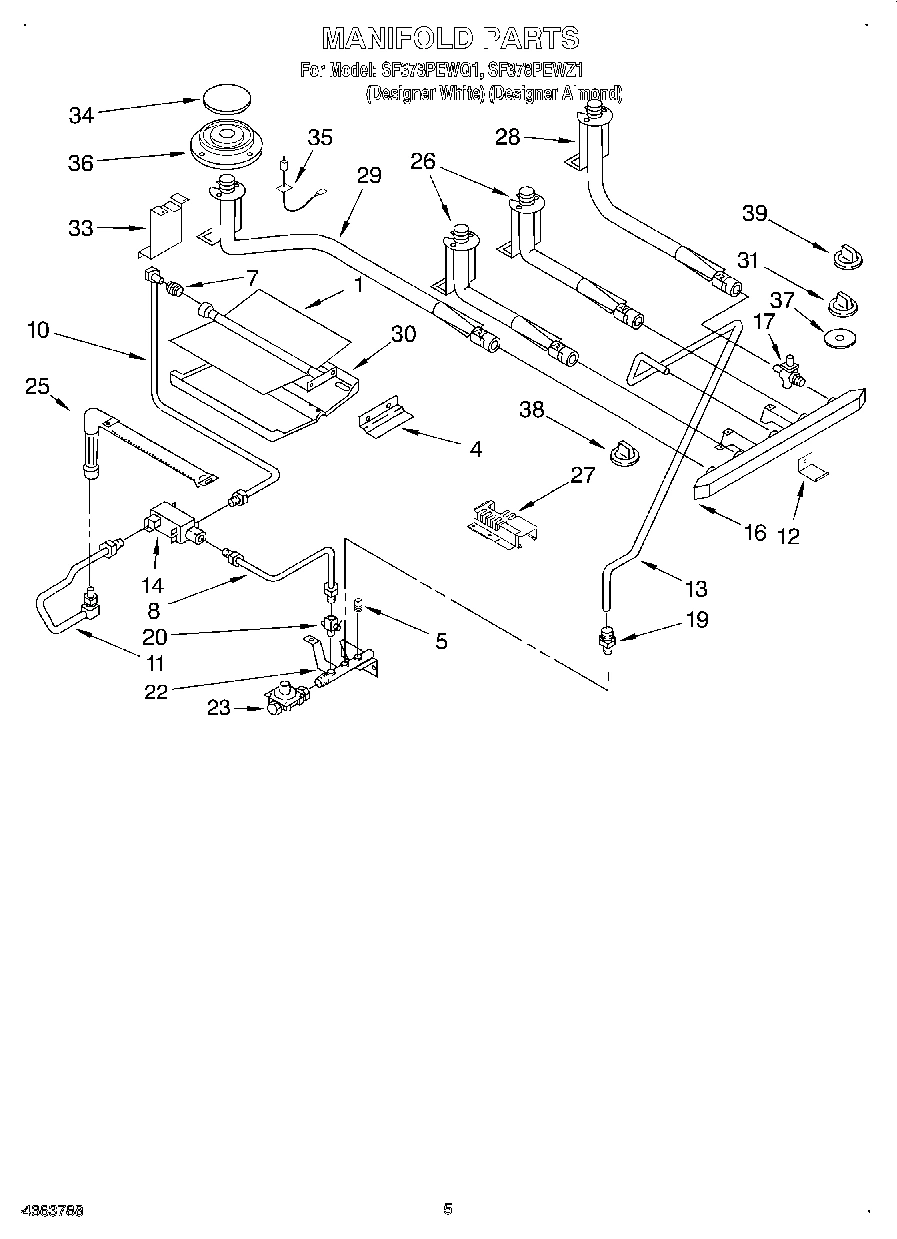

03 - MANIFOLD

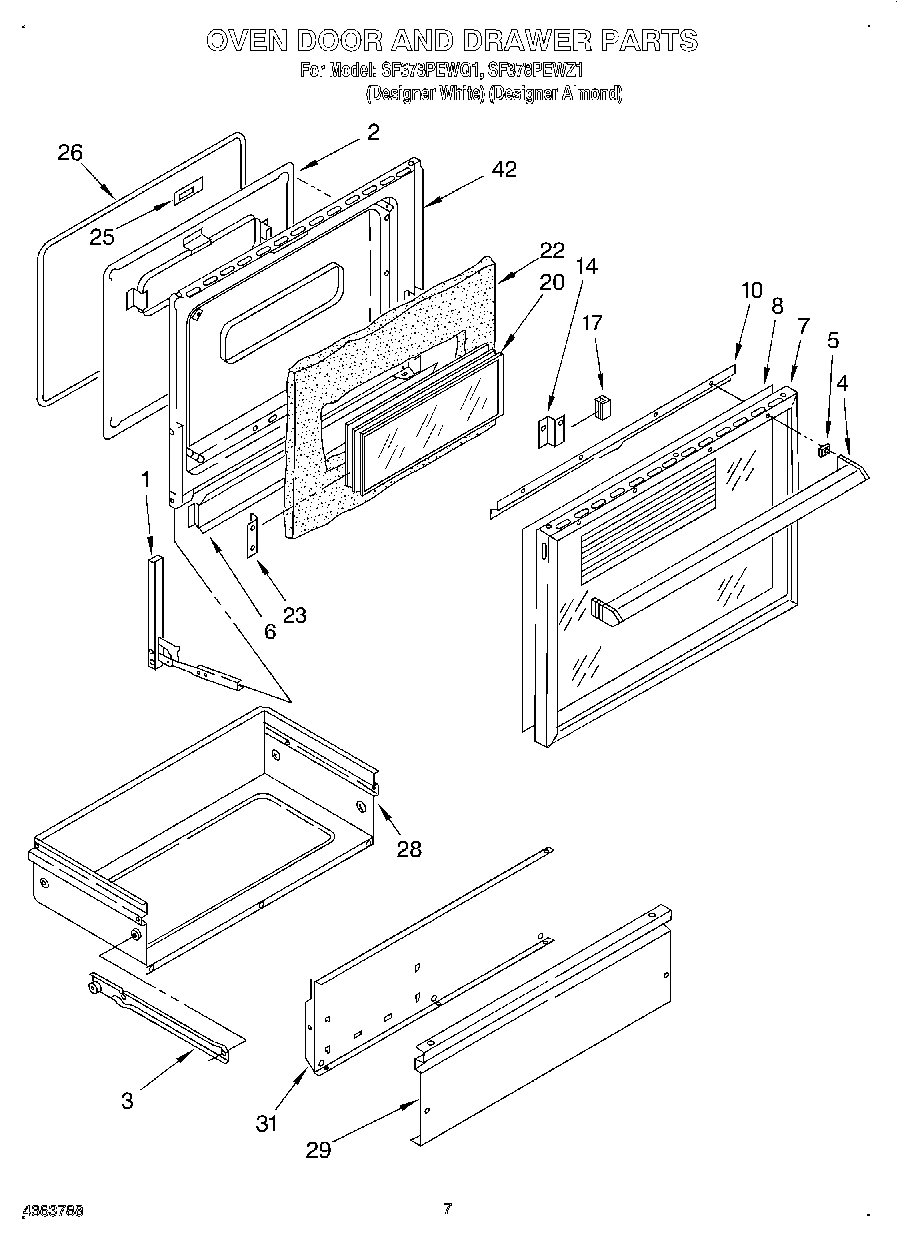

05 - OVEN DOOR AND DRAWER
07 - COOKTOP
06 - BACKGUARD
02 - EXTERNAL OVEN
04 - OVEN ELECTRICAL, LITERATURE
01 - INTERNAL OVEN
Common parts from model Whirlpool SF378PEWQ1
Instructions, Installation WPL LIT4363404 Contact Us For Availability
Guide, Use & Care WPL LIT4363408 Contact Us For Availability
Diagram, Wiring WPL LIT4363618 Contact Us For Availability
1
Burner, Broiler WPL 4320907 Contact Us For Availability
1
Hinge, Oven Door (L.H.) WPL 4363717 Contact Us For Availability
1
Hinge, Oven Door (R.H.) WPL 4363718 Contact Us For Availability
1
Top, Main (White) WPL 4363223 Contact Us For Availability
1
Top, Main (Almond) WPL 4363224 Contact Us For Availability
1
Frame, Front Not Serviceable WPL 4363324 Contact Us For Availability
1
Cord, Power WPL 4363561 Contact Us For Availability
2
liner, oven door WPL 4320300 Contact Us For Availability
2
Screw WPL 4321151 Contact Us For Availability
2
Rivet, Semi-Tube WPL 4362533 Contact Us For Availability
2
Panel, Control Mounting (White) WPL 4362898 Contact Us For Availability
2
Panel, Control Mounting (Almond) WPL 4362993 Contact Us For Availability
2
Oven 30`` Self-Clean WPL 4320923 Contact Us For Availability
3
Runner (R.H.) WPL 4363734 Contact Us For Availability
3
Runner (L.H.) WPL 4363735 Contact Us For Availability
3
Filler, Control Panel WPL 4363027 Contact Us For Availability
3
Frame (White) WPL 4363467 Contact Us For Availability
3
Frame (Almond) WPL 4363468 Contact Us For Availability
3
Plate, Burner Broil WPL 4320952 Contact Us For Availability
4
Support, Burner Mounting WPL 4320888 Contact Us For Availability
4
Screw WPL 4363530 Contact Us For Availability
4
Handle, Oven Door ((White Model)) WPL 4363441 Contact Us For Availability
4
Handle, Oven Door ((Almond Model)) WPL 4363575 Contact Us For Availability
4
Decorative Inlay (White) WPL 4363469 Contact Us For Availability
4
Decorative Inlay (Almond) WPL 4363470 Contact Us For Availability
4
Retainer, Rear Insulation WPL 4363724 Contact Us For Availability
4
Switch, Selector WPL 4179076 Contact Us For Availability
5
Spacer, Handle (4) WPL 4363010 Contact Us For Availability
5
Grate, (4) (Almond) WPL 4362614 Contact Us For Availability
5
Grate, (4) (Gray) WPL 4363713 Contact Us For Availability
5
Track, Storage Drawer (Right Side) WPL 4363727 Contact Us For Availability
5
Track, Storage Drawer (Left Side) WPL 4363728 Contact Us For Availability
5
Switch, Rocker (White) WPL 4315672 Contact Us For Availability
5
Switch, Rocker (Almond) WPL 4363606 Contact Us For Availability
5
Burner, Box, Lower WPL 786336 Contact Us For Availability
6
Baffle, Heat WPL 4363316 Contact Us For Availability
6
Shelf, Gas Valve WPL 4363314 Contact Us For Availability
6
Switch, Oven Light WPL 4363736 Contact Us For Availability
6
Gasket, Plate WPL 4320944 Contact Us For Availability
7
Orifice (Natural Gas No. 51.) WPL 4320926 Contact Us For Availability
7
Frame, Oven Door ((White Model)) WPL 4363571 Contact Us For Availability
7
Frame, Oven Door ((Almond Model)) WPL 4363595 Contact Us For Availability
7
Spacer, Nylon (4) WPL 786342 Contact Us For Availability
7
Trim, Lower WPL 786694 Contact Us For Availability
7
Retainer, Bottom Insulation WPL 4363725 Contact Us For Availability
7
Thermostat, Oven WPL 4321095 Contact Us For Availability
7
Flue, Inner WPL 4320929 Contact Us For Availability
8
Tubing, (Inlet To Gas Valve) WPL 4320314 Contact Us For Availability
8
Glass, Outer Door ((White Model)) WPL 4363440 Contact Us For Availability
8
Glass, Outer Door (Almond) WPL 4363596 Contact Us For Availability
8
Handle, Latch ((White Model)) WPL 4363598 Contact Us For Availability
8
Handle, Latch (Almond) WPL 4363599 Contact Us For Availability
8
Knob, Clock (3) (Almond) WPL 4363630 Contact Us For Availability
8
Knob, Clock (3) (White) WPL 786434 Contact Us For Availability
8
Heat Shield, Storage Drawer WPL 4363723 Contact Us For Availability
9
Brace, Bottom (L.H.) WPL 4363720 Contact Us For Availability
9
Brace, Bottom (R.H.) WPL 4363721 Contact Us For Availability
9
Gasket, Vent WPL 4320930 Contact Us For Availability
10
Orifice & Tubing Assembly (Gas Valve To Ultra WPL 4320925 Contact Us For Availability
10
Plate, Air Baffle WPL 786422 Contact Us For Availability
10
Latch Assembly WPL 786303 Contact Us For Availability
10
Retainer, Insulation WPL 4362922 Contact Us For Availability
10
Shield, Thermostat WPL 786349 Contact Us For Availability
11
Nut, Lock WPL 786741 Contact Us For Availability
11
hood & tubing assembly (gas valve to lower ov WPL 4320315 Contact Us For Availability
11
Bracket, Latch Mounting WPL 4315774 Contact Us For Availability
11
Clock (White) WPL 4363617 Contact Us For Availability
11
Clock (Almond) WPL 4363621 Contact Us For Availability
11
Panel, Side (Almond) WPL 4363411 Contact Us For Availability
11
Panel, Side (White) WPL 4363743 Contact Us For Availability
11
Spark Module WPL 4363536 Contact Us For Availability
12
Bracket, Manifold WPL 4363593 Contact Us For Availability
12
Plate, Clock Mounting WPL 786454 Contact Us For Availability
12
Retainer, Ignitor WPL 4320890 Contact Us For Availability
13
tubing (inlet to manifold) WPL 4320313 Contact Us For Availability
13
Glass, Timer WPL 786453 Contact Us For Availability
13
Retainer, Top Front Insulation WPL 4363587 Contact Us For Availability
13
Bracket, Spark Module WPL 4363548 Contact Us For Availability
13
Flue, Dilution WPL 4320924 Contact Us For Availability
14
Valve, Dual Gas Valve WPL 4320316 Contact Us For Availability
14
bracket, glass support (4) WPL 786425 Contact Us For Availability
14
Retainer, Top Back WPL 4363589 Contact Us For Availability
15
Ignitor, Broil WPL 4363531 Contact Us For Availability
16
Manifold WPL 4363533 Contact Us For Availability
16
Bracket, Switch WPL 4362570 Contact Us For Availability
16
Screw WPL 786752 Contact Us For Availability
16
Panel, Rear WPL 4362559 Contact Us For Availability
16
Switch, Oven Door Latch WPL 4362916 Contact Us For Availability
17
Valve, Top Burner (Screw) WPL 4179116 Contact Us For Availability
17
Valve, Top Burner (R.F. & L.R.) WPL 4363520 Contact Us For Availability
17
Valve, Top Burner (L.F. & R.R.) WPL 4363521 Contact Us For Availability
17
Bumper, Window (2) WPL 4179237 Contact Us For Availability
17
Insulator, Switch WPL 786380 Contact Us For Availability
17
Screw WPL 786751 Contact Us For Availability
18
Cable, Clip ESM WPL 4315780 Contact Us For Availability
19
Fitting WPL 4362560 Contact Us For Availability
19
Knob, Latch Handle (White) WPL 4320977 Contact Us For Availability
19
Knob, Latch Handle (Almond) WPL 4363597 Contact Us For Availability
19
Frame, Filler Front WPL 4362949 Contact Us For Availability
20
Valve, Shut-Off WPL 4363534 Contact Us For Availability
20
Window Assembly WPL 4362602 Contact Us For Availability
20
Rack, Oven (2) WPL 4373737 Contact Us For Availability
22
Inlet, Gas WPL 4362561 Contact Us For Availability
22
Insulation, Door WPL 4315673 Contact Us For Availability
22
Bottom, Oven WPL 4315114 Contact Us For Availability
23
nut WPL 786753 Contact Us For Availability
23
Regulator, Pressure WPL 786313 Contact Us For Availability
23
Retainer, Window (4) WPL 4179236 Contact Us For Availability
23
Screw WPL 4363526 Contact Us For Availability
23
Support, Control Panel (2) (L.H.) WPL 4363522 Contact Us For Availability
23
Support, Control Panel (2) (R.H.) WPL 4363523 Contact Us For Availability
23
Bracket, Gas Valve (2) WPL 4315678 Contact Us For Availability
23
Pan, Broiler WPL 4363570 Contact Us For Availability
25
Oven Burner, Lower WPL 786314 Contact Us For Availability
25
Plate, Latch WPL 786671 Contact Us For Availability
25
End Cap (White Model) (L.H.) WPL 4363472 Contact Us For Availability
25
End Cap (White Model) (R.H.) WPL 4363473 Contact Us For Availability
25
End Cap (Almond Model) (L.H.) WPL 4363474 Contact Us For Availability
25
End Cap (Almond Model) (R.H.) WPL 4363475 Contact Us For Availability
25
Leg, Leveling (4) WPL 4363722 Contact Us For Availability
25
Grid, Broiler WPL 4362695 Contact Us For Availability
26
Venturi Tube (2) WPL 4362562 Contact Us For Availability
26
gasket assembly WPL 4320302 Contact Us For Availability
26
Panel, Control (White) WPL 4363573 Contact Us For Availability
26
Panel, Control (Almond) WPL 4363574 Contact Us For Availability
27
Shield, Broiler Ignitor WPL 4363532 Contact Us For Availability
27
Screw WPL 4363528 Contact Us For Availability
27
Lens WPL 4336078 Contact Us For Availability
27
Light Indicator WPL 4363638 Contact Us For Availability
27
Screw WPL 786761 Contact Us For Availability
28
Venturi Tube R.R. WPL 4362564 Contact Us For Availability
28
Drawer, Storage WPL 4363306 Contact Us For Availability
28
Vent WPL 4320951 Contact Us For Availability
29
Venturi Tube L.R. WPL 4362565 Contact Us For Availability
29
Panel, Drawer (Almond) WPL 786521 Contact Us For Availability
29
Panel, Drawer (White) WPL 786522 Contact Us For Availability
29
bracket, oven shell WPL 4320330 Contact Us For Availability
30
Reflector WPL 4179139 Contact Us For Availability
30
Cover, Electrical WPL 4363315 Contact Us For Availability
31
Knob, Top Burner (4) ((White Model)) WPL 4320978 Contact Us For Availability
31
Knob, Top Burner (4) ((Almond Model)) WPL 4363601 Contact Us For Availability
31
Liner, Door Panel WPL 4363307 Contact Us For Availability
31
Anti Tip Kit WPL 4315756 Contact Us For Availability
33
Bracket WPL 4363620 Contact Us For Availability
34
(Burner Cap, Almond Model) (Small) WPL 4363489 Contact Us For Availability
34
(Burner Cap, Almond Model) (Large) WPL 4363490 Contact Us For Availability
34
Burner Cap (White Model) (Large) WPL 4363714 Contact Us For Availability
34
Burner Cap (White Model) (Small) WPL 4363715 Contact Us For Availability
35
Electrode (4) WPL 4363540 Contact Us For Availability
36
Burner, Cast (Large (2)) WPL 4363591 Contact Us For Availability
36
Burner, Cast (Small (2)) WPL 4363592 Contact Us For Availability
37
Shield WPL 4363627 Contact Us For Availability
38
Knob, Oven Control ((White Model)) WPL 4321296 Contact Us For Availability
38
Knob, Oven Control ((Almond Model)) WPL 4363628 Contact Us For Availability
38
Bracket, Bake Ignitor WPL 786801 Contact Us For Availability
39
Knob, Selector ((White Model)) WPL 4320899 Contact Us For Availability
39
Knob, Selector ((Almond Model)) WPL 4363629 Contact Us For Availability
40
Plug, Ignitor Wires WPL 4362620 Contact Us For Availability
41
Clamp, Wire WPL 4157298 Contact Us For Availability
42
Backer, Door WPL 4320875 Contact Us For Availability
42
Bumper, Rubber WPL 786526 Contact Us For Availability
× ![]()
