Model Whirlpool SF377PEGN7 COOKTOP – Common Parts & Diagrams
01 - COOKTOP, LITERATURE

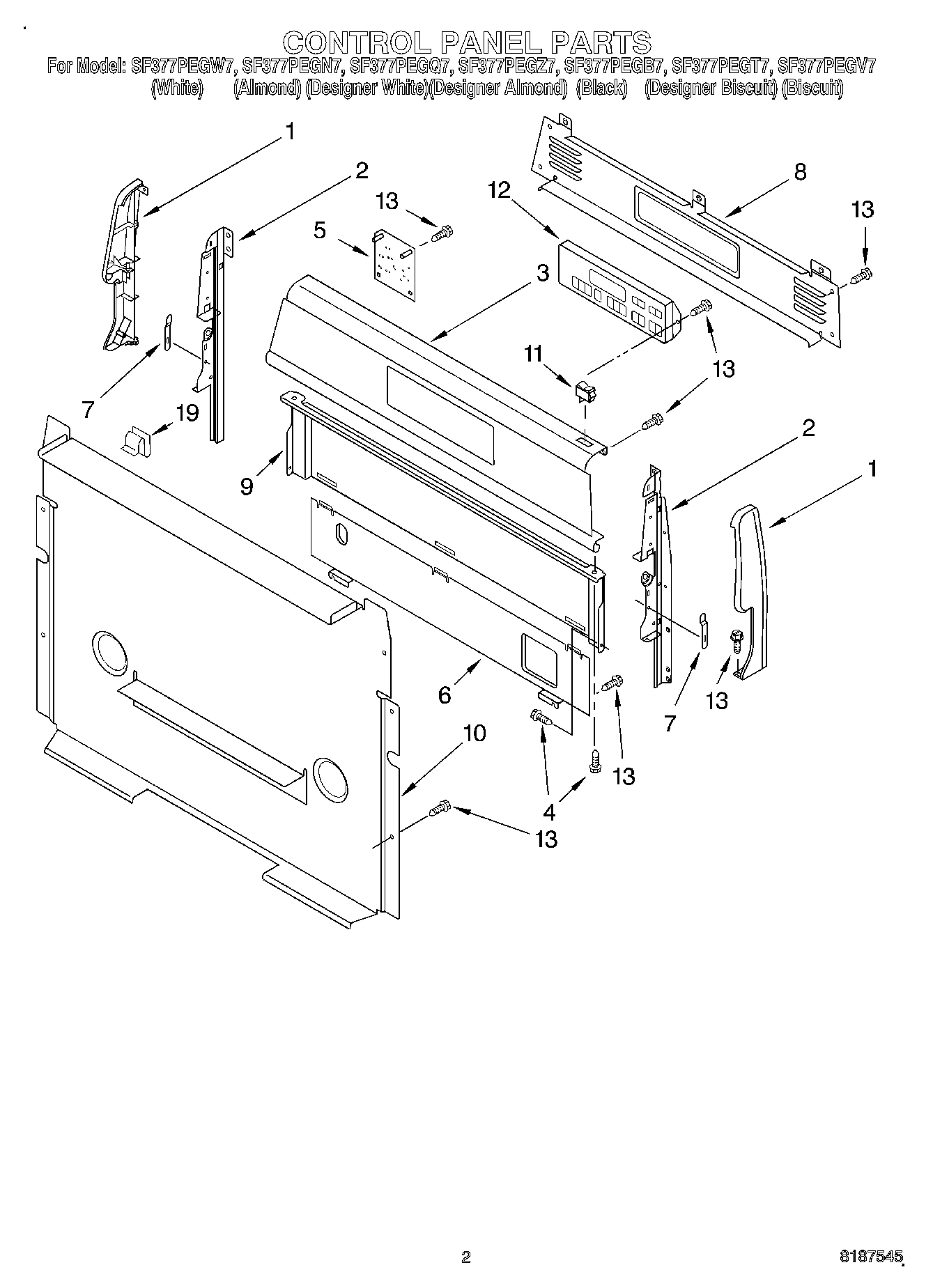

02 - CONTROL PANEL

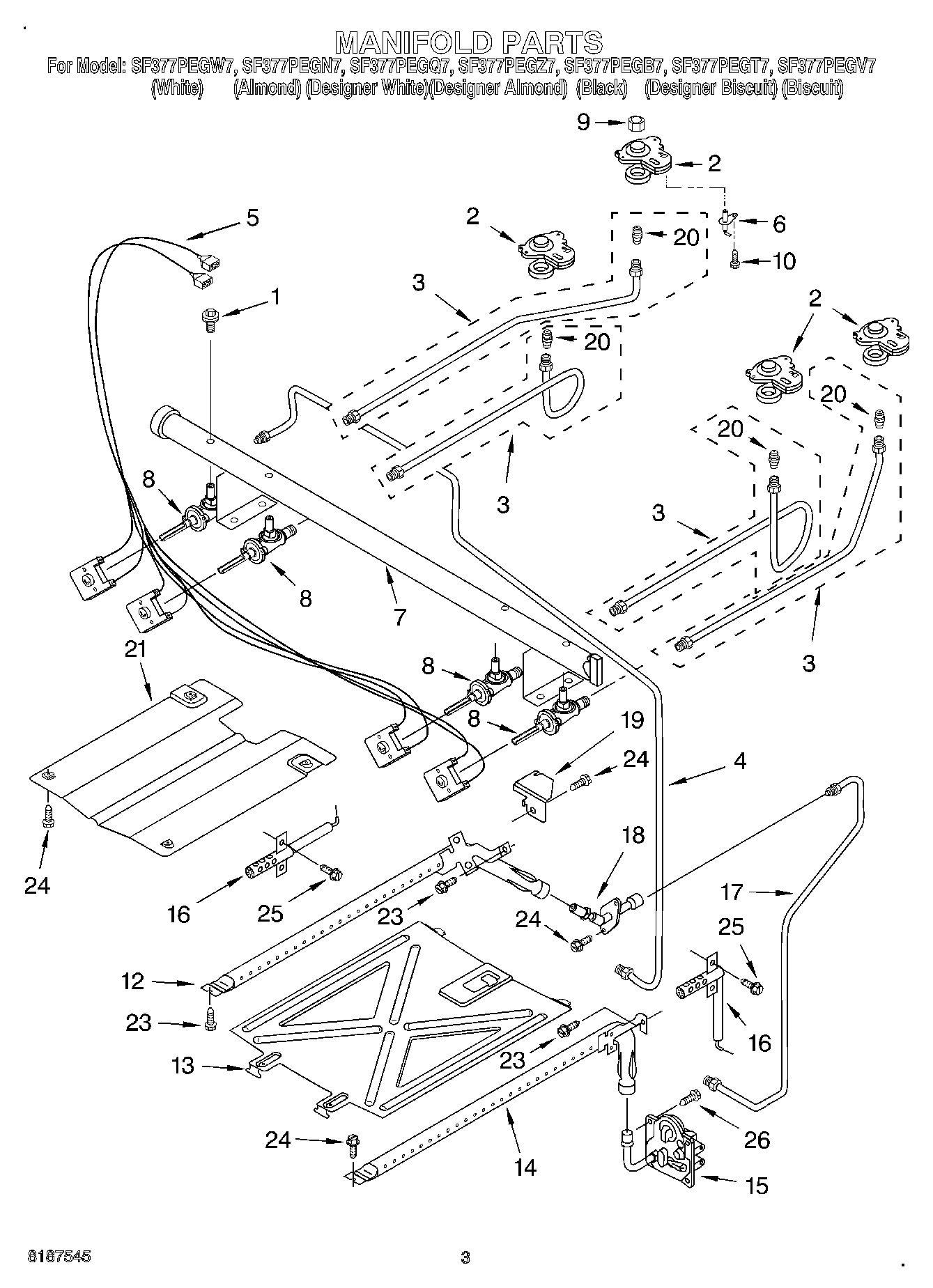

03 - MANIFOLD
04 - CHASSIS

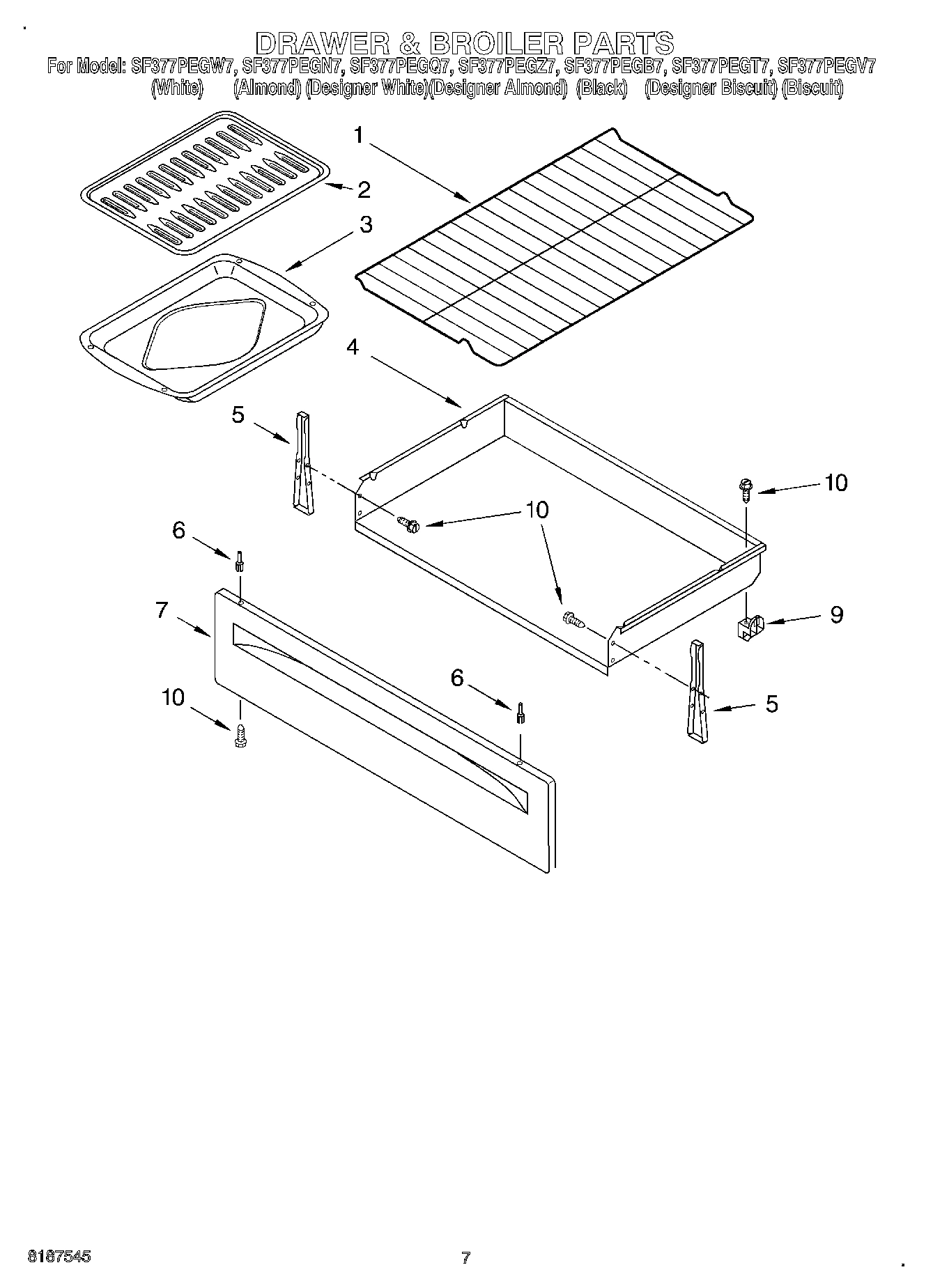

05 - DRAWER & BROILER

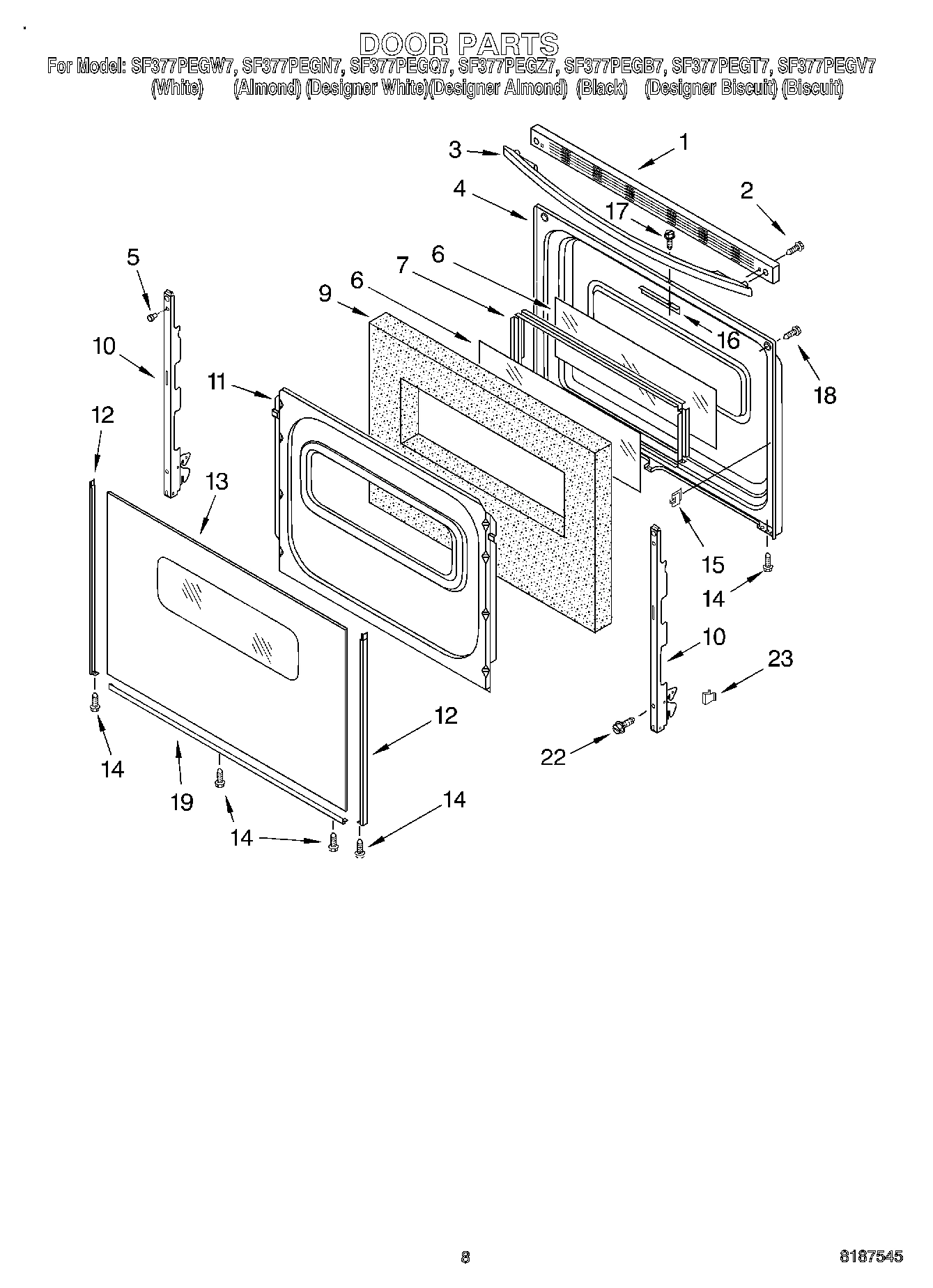

06 - DOOR, OPTIONAL
Common parts from model Whirlpool SF377PEGN7 COOKTOP
1
Trim, Top (Black) WPL 3196819 Contact Us For Availability
1
Trim, Top (Almond) WPL 3196820 Contact Us For Availability
1
Trim, Top (Biscuit) WPL 8272494 Contact Us For Availability
2
Cap, Burner (RR) (Grey) WPL 3191899 Contact Us For Availability
2
Burner Base (Small (1)) WPL 8273019 Contact Us For Availability
3
Tubing, Burner W/Orifice (Right Front) WPL 8272905 Contact Us For Availability
3
Tubing, Burner W/Orifice (Right Rear) WPL 8272907 Contact Us For Availability
3
Tubing, Burner W/Orifice (Left Rear) WPL 8273142 Contact Us For Availability
3
Handle, Door (Almond) WPL 3195921 Contact Us For Availability
3
Handle, Door (Biscuit) WPL 8272495 Contact Us For Availability
4
Screw WPL 4449746 Contact Us For Availability
4
Tubing (Manifold to Regulator) WPL 8272685 Contact Us For Availability
4
Panel, Side (2) (Almond-Textured) WPL 8053831 Contact Us For Availability
4
Drawer, Storage WPL 8053343 Contact Us For Availability
4
Liner, Door WPL 3186296 Contact Us For Availability
5
Harness, Igniter (Incl. Switches) WPL 8273075 Contact Us For Availability
5
Sheild, Heat (2) WPL 3196137 Contact Us For Availability
6
Shield, Lower Heat WPL 8053505 Contact Us For Availability
6
Brkt, Manifold Mtg (Left Hand) WPL 3186405 Contact Us For Availability
6
Brkt, Manifold Mtg (Right Hand) WPL 3186406 Contact Us For Availability
6
Rivet, Push (2) (Almond) WPL 3196815 Contact Us For Availability
7
Clip, Spring (2) WPL 3196200 Contact Us For Availability
7
Pipe, Manifold WPL 8272411 Contact Us For Availability
7
Shield, Heat (2) WPL 3196136 Contact Us For Availability
7
Panel, Drawer Front (Almond) WPL 8053337 Contact Us For Availability
7
Panel, Drawer Front (Biscuit) WPL 8272502 Contact Us For Availability
7
Frame, Glass WPL 3186290 Contact Us For Availability
8
Valve (Right Rear) WPL 8273004 Contact Us For Availability
8
Frame, Front (Not Serviceable) WPL ARI163576A Contact Us For Availability
9
Nut (4) WPL 8273060 Contact Us For Availability
11
Switch, Rocker (White) WPL 3149360 Contact Us For Availability
11
Switch, Rocker (Biscuit) WPL 8273501 Contact Us For Availability
12
Control, Range (White) WPL 6610272 Contact Us For Availability
12
Control, Range (Almond) WPL 6610273 Contact Us For Availability
12
Control, Range (Biscuit) WPL 6610288 Contact Us For Availability
13
Baffle, Burner WPL 8053967 Contact Us For Availability
13
Spreader, Flame (Oven) WPL 8053970 Contact Us For Availability
13
Glass, Outer Door (Almond) WPL 8053483 Contact Us For Availability
13
Glass, Outer Door (Biscuit) WPL 8273525 Contact Us For Availability
14
Shield, Heat WPL 8053969 Contact Us For Availability
15
Shield, Lower WPL 8053968 Contact Us For Availability
15
Clip, Door Glass WPL 3196025 Contact Us For Availability
16
Bracket, Latch WPL 3195914 Contact Us For Availability
17
Tubing (Broiler Fitting To Valve) WPL 8272222 Contact Us For Availability
18
Fitting, Broiler WPL 3186489 Contact Us For Availability
18
Seal, Oven Flange WPL 3195737 Contact Us For Availability
19
Cover, Igniter WPL 8272403 Contact Us For Availability
20
Back, Main WPL 8272921 Contact Us For Availability
22
Brace, Main Back WPL 8053971 Contact Us For Availability
23
WPL 350930 WPL 350930 Contact Us For Availability
23
WPL 4392899 WPL 4392899 Contact Us For Availability
23
WPL 285006 WPL 285006 Contact Us For Availability
23
WPL 4392901 WPL 4392901 Contact Us For Availability
23
WPL 350956 WPL 350956 Contact Us For Availability
23
WPL 511873 WPL 511873 Contact Us For Availability
23
WPL 814381 WPL 814381 Contact Us For Availability
23
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
23
Screw WPL 3196265 Contact Us For Availability
23
WPL 799344 WPL 799344 Contact Us For Availability
23
Retainer, Insul. (Right Hand) WPL 3195726 Contact Us For Availability
23
Retainer, Insul. (Left Hand) WPL 3196523 Contact Us For Availability
23
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
23
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
23
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
23
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
23
Wire (14 Ga. WPL 242824 Contact Us For Availability
23
WPL 242825 WPL 242825 Contact Us For Availability
23
WPL 242826 WPL 242826 Contact Us For Availability
23
WPL 242827 WPL 242827 Contact Us For Availability
23
WPL 242828 WPL 242828 Contact Us For Availability
23
WPL 242829 WPL 242829 Contact Us For Availability
23
WPL 242830 WPL 242830 Contact Us For Availability
23
WPL 242831 WPL 242831 Contact Us For Availability
23
WPL 242832 WPL 242832 Contact Us For Availability
23
WPL 261582 WPL 261582 Contact Us For Availability
23
WPL 3196696 WPL 3196696 Contact Us For Availability
23
WPL 3196896 WPL 3196896 Contact Us For Availability
23
WPL 4392900 WPL 4392900 Contact Us For Availability
23
WPL 799832 WPL 799832 Contact Us For Availability
23
WPL 8053527 WPL 8053527 Contact Us For Availability
23
WPL 8273897 WPL 8273897 Contact Us For Availability
23
WPL 8273966 WPL 8273966 Contact Us For Availability
23
WPL 8273967 WPL 8273967 Contact Us For Availability
23
WPL 8274195 WPL 8274195 Contact Us For Availability
23
WPL 978883 WPL 978883 Contact Us For Availability
24
Clip, Panel (6) WPL 3196576 Contact Us For Availability
26
Spuds, LP Gas (Kit of 4) WPL 8523418 Contact Us For Availability
36
Button, Plug WPL 3196439 Contact Us For Availability
38
Screw WPL 3196152 Contact Us For Availability
39
Screw (White) WPL 3196166 Contact Us For Availability
39
Screw (Almond) WPL 3196167 Contact Us For Availability
42
Screw WPL 3196179 Contact Us For Availability
× ![]()
