Model Whirlpool SF376PEPW0 – Common Parts & Diagrams

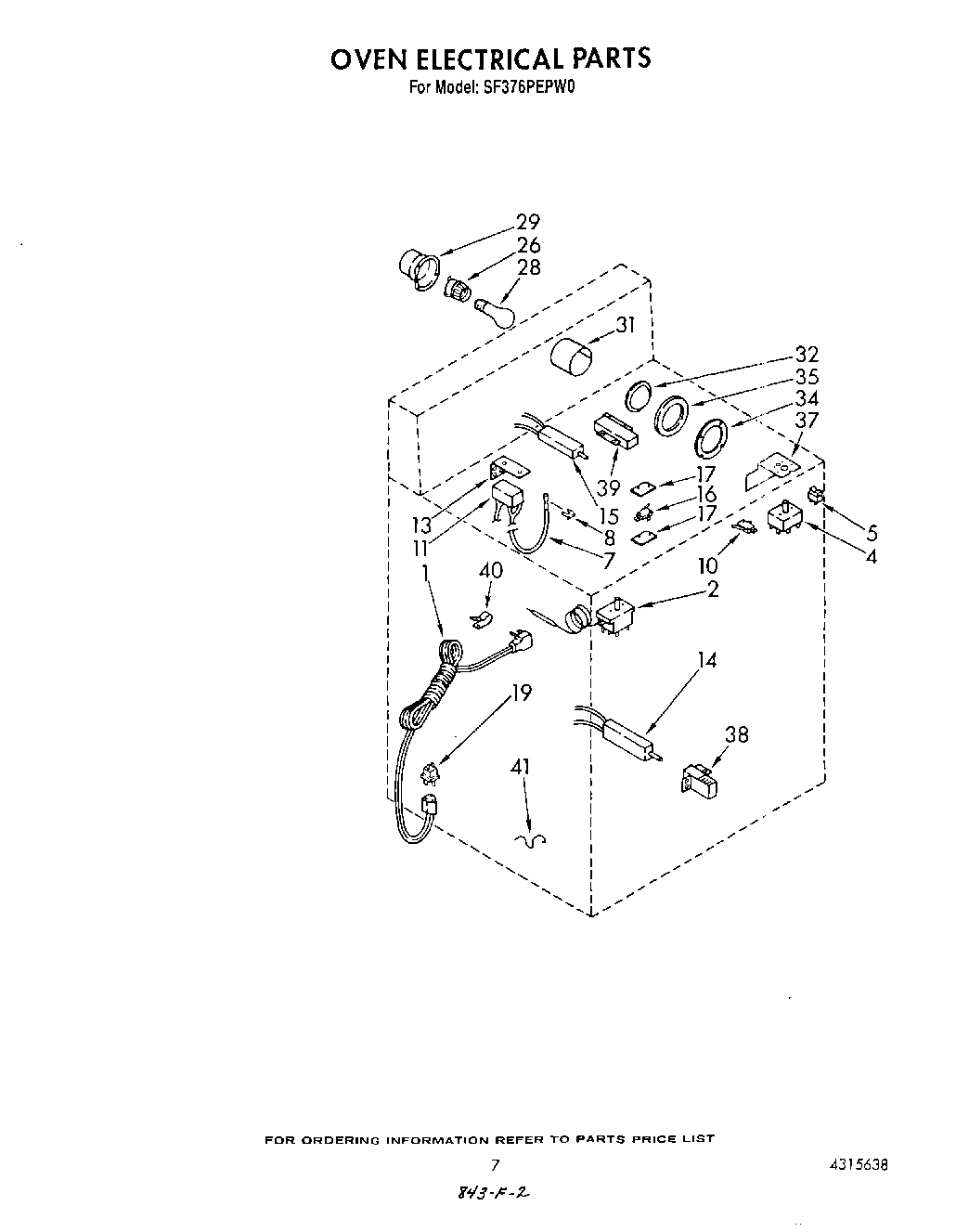

05 - OVEN ELECTRICAL

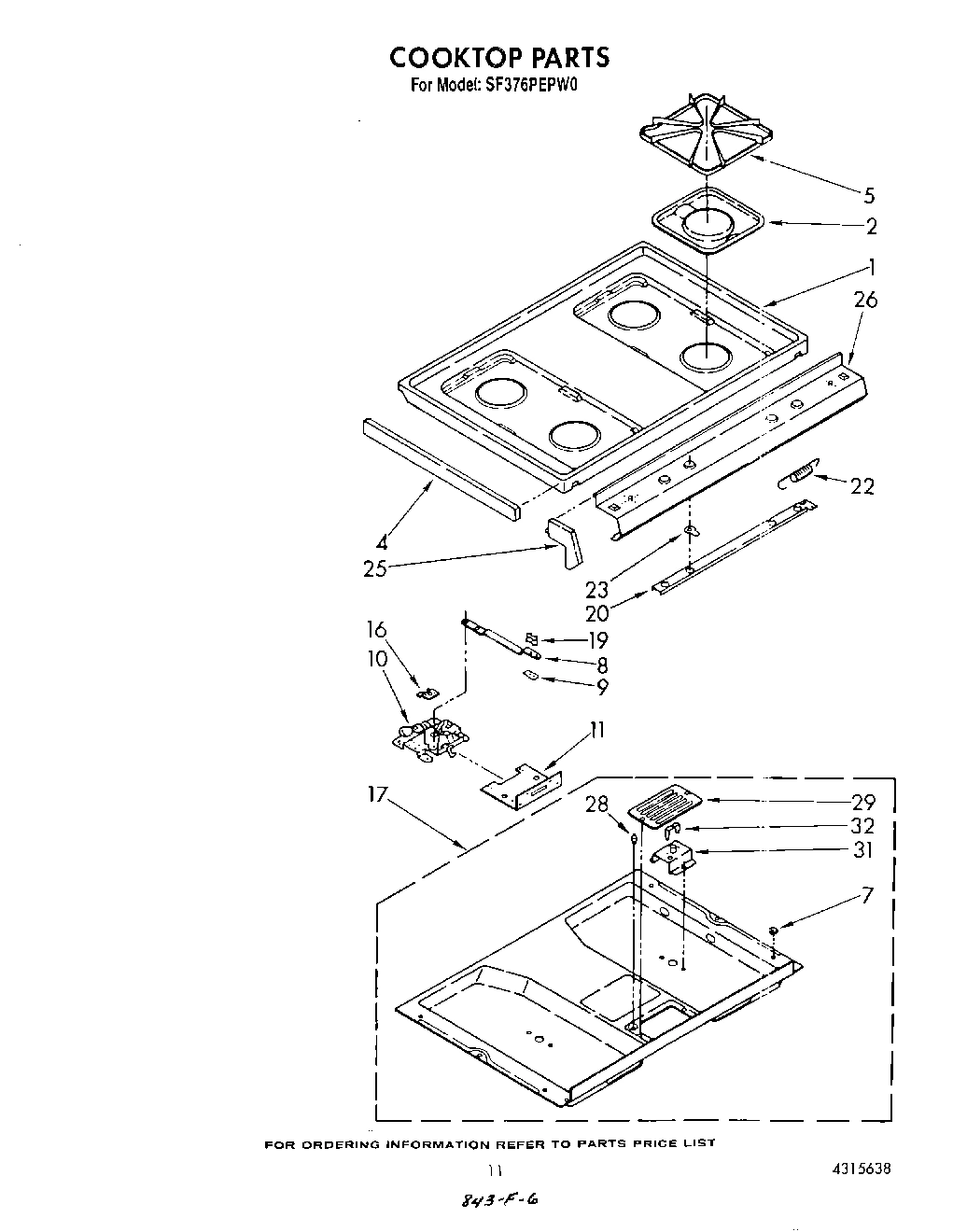

08 - COOK TOP

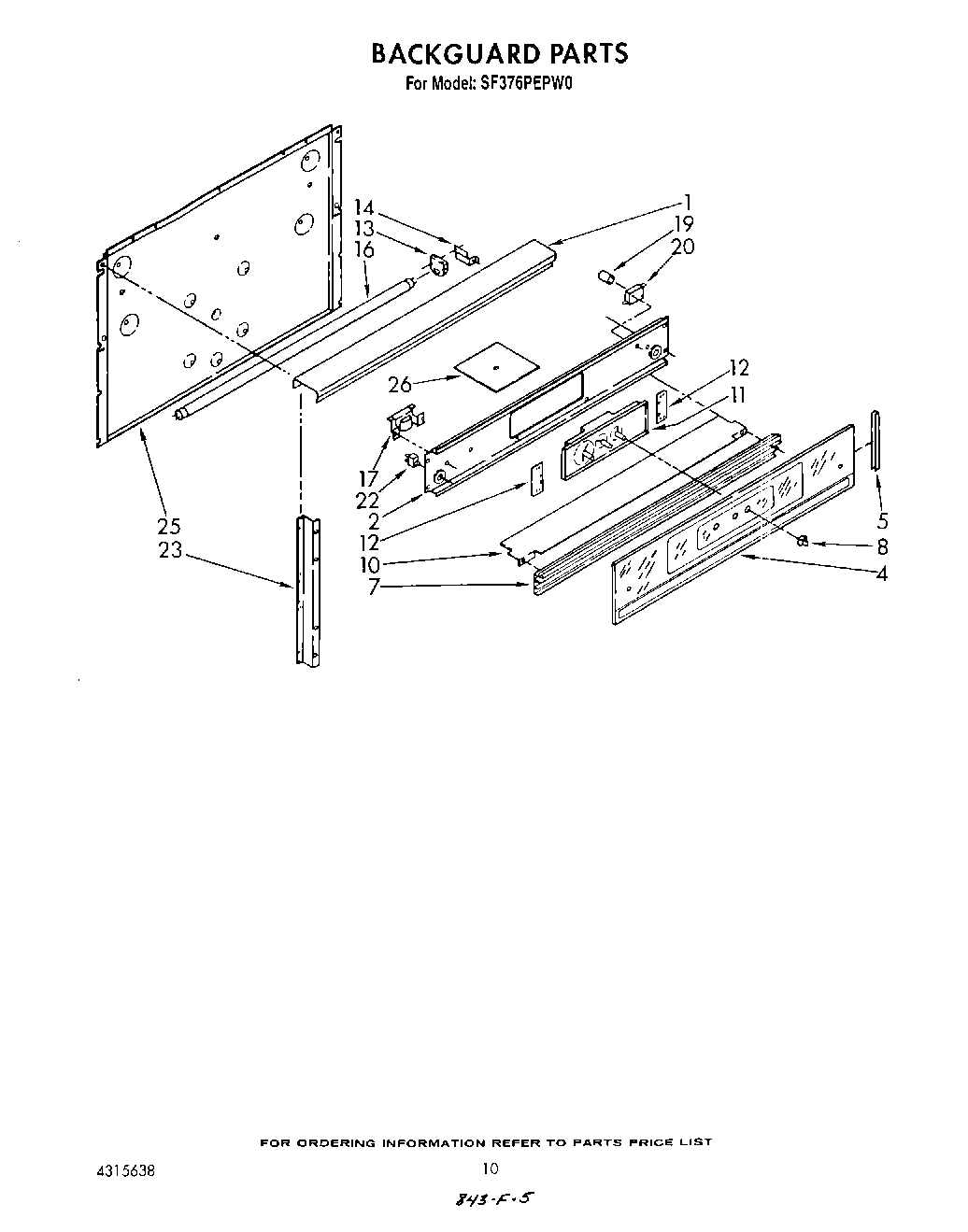

07 - BACKGUARD , LIT/OPTIONAL

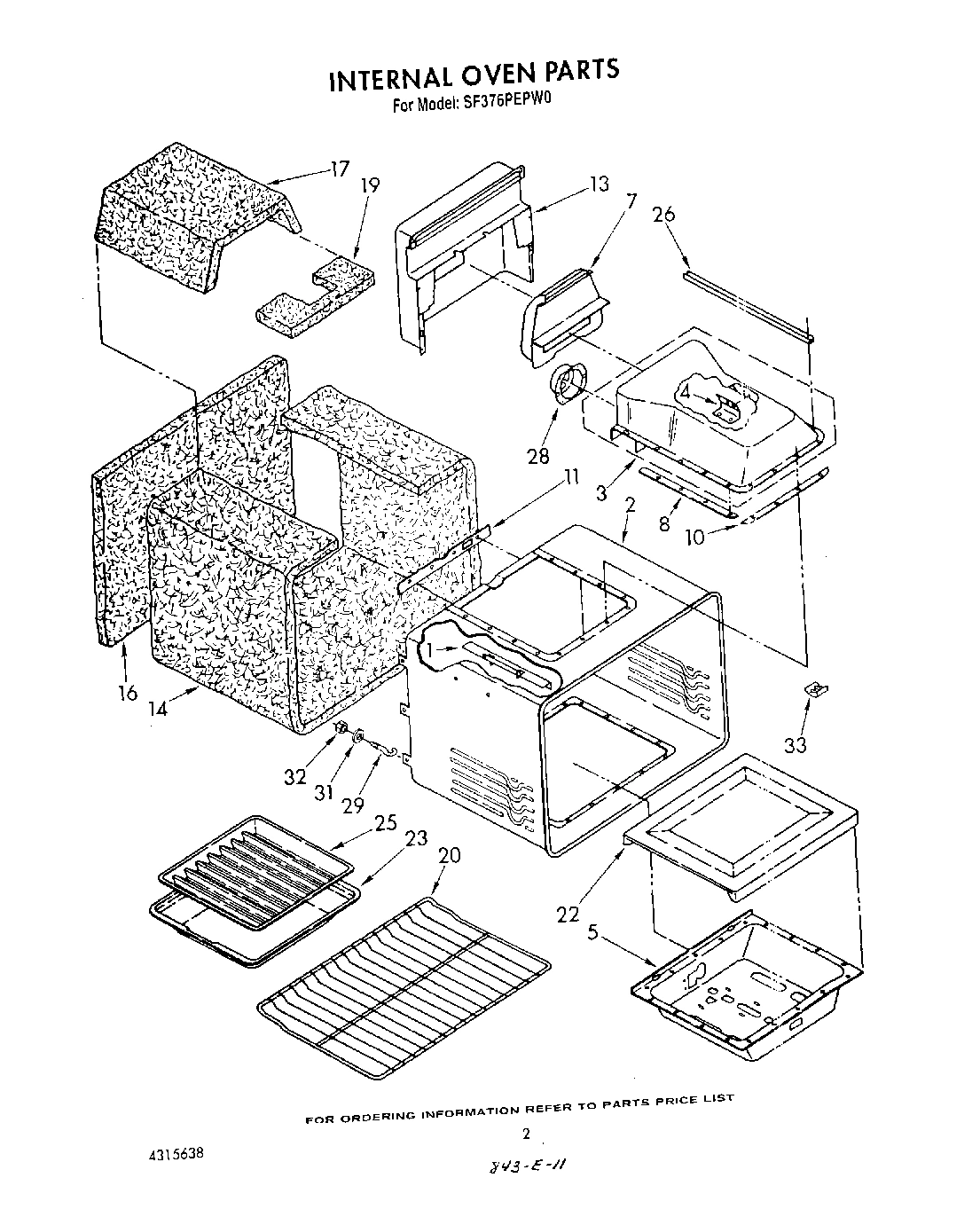

02 - INTERNAL OVEN

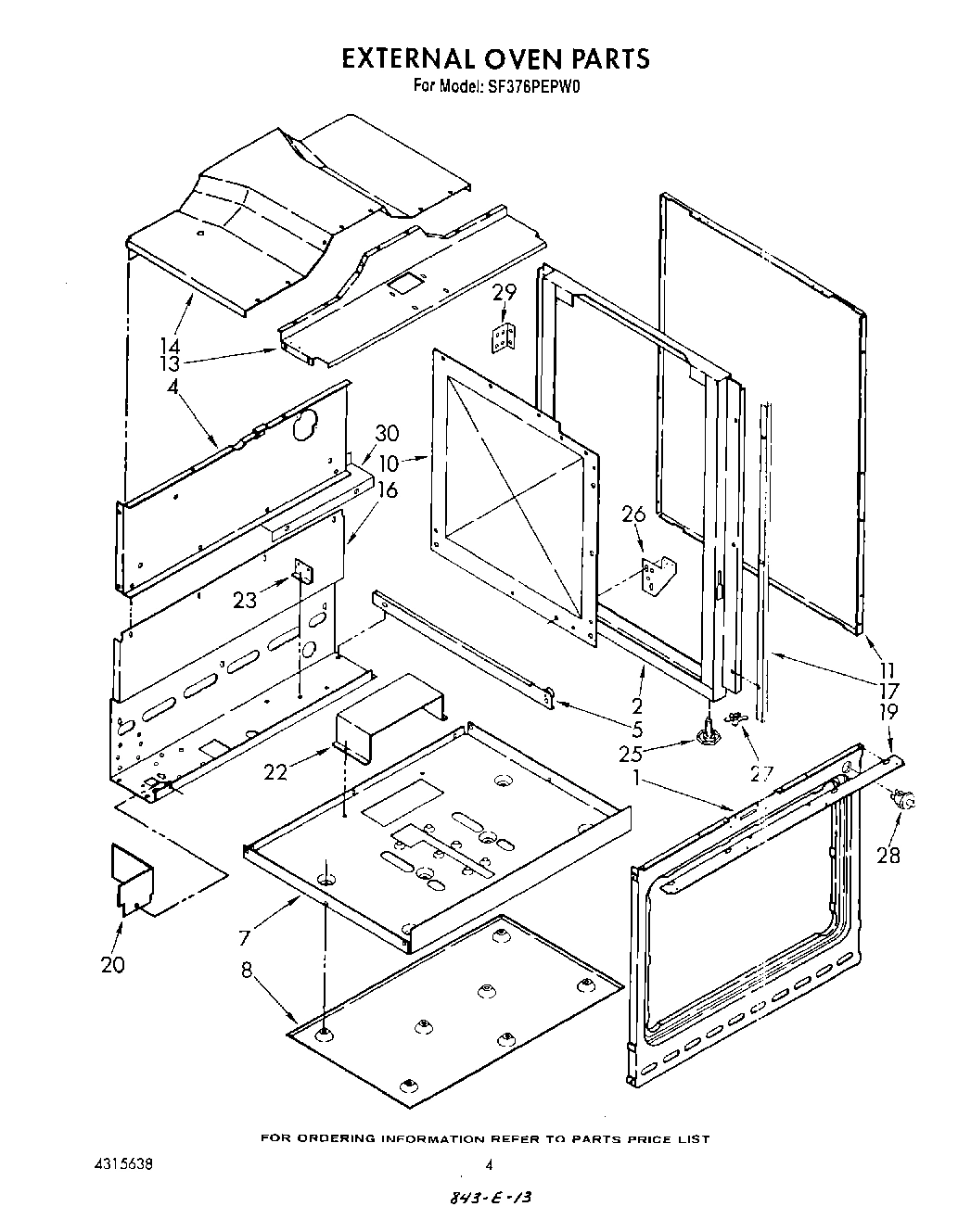

03 - EXTERNAL OVEN

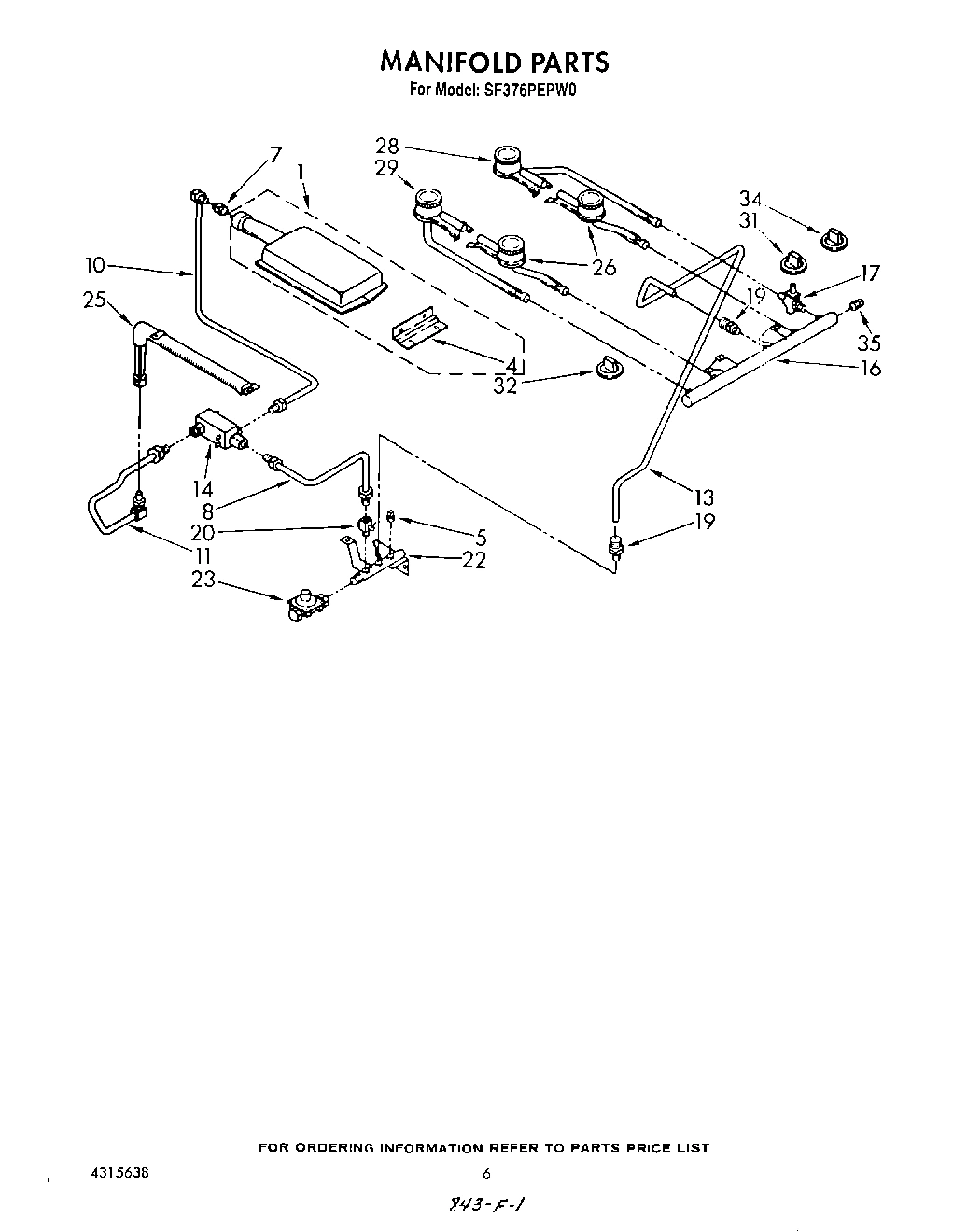

04 - MANIFOLD

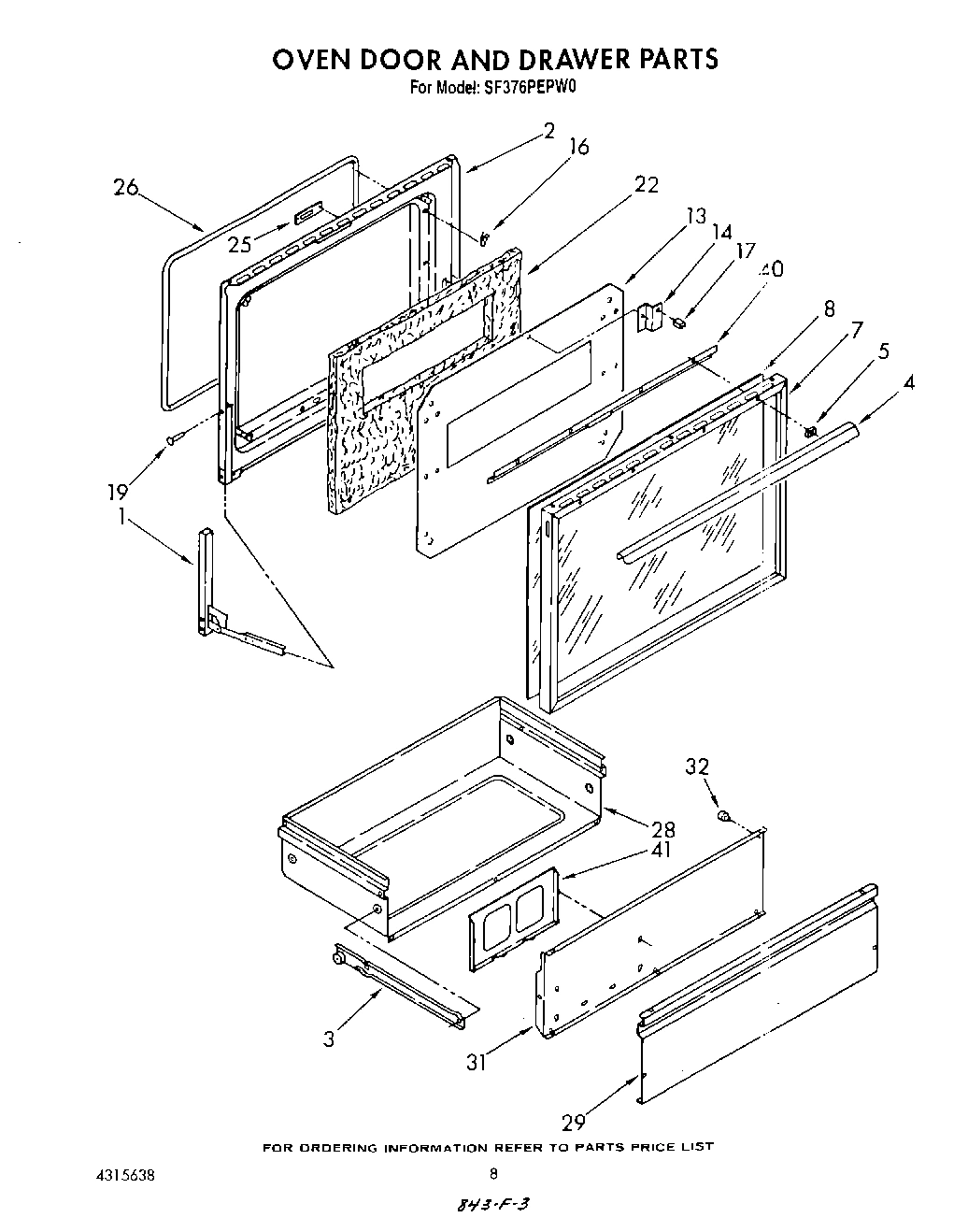

06 - OVEN DOOR AND DRAWER
Common parts from model Whirlpool SF376PEPW0
List, Repair Parts WPL LIT4315638 Contact Us For Availability
Guide, Use & Care WPL LIT786295 Contact Us For Availability
Instructions, Installation WPL LIT786300 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
1
Nut, 6-32 (6) WPL 786753 Contact Us For Availability
1
Top, Main (White) WPL 4179071 Contact Us For Availability
1
Top, Main (Almond) WPL 4179072 Contact Us For Availability
1
Top, Main (Toast) WPL 4179073 Contact Us For Availability
1
Top, Main (Platinum) WPL 4179074 Contact Us For Availability
1
Trim, Top WPL 4315680 Contact Us For Availability
1
End Cap L.H. WPL 4315681 Contact Us For Availability
1
End Cap R.H. WPL 4315682 Contact Us For Availability
1
Sheild, Thermostat Bulb WPL 786349 Contact Us For Availability
1
Frame, Front WPL 4315111 Contact Us For Availability
1
Burner, Ultra Ray Broiler WPL 4179233 Contact Us For Availability
1
hinge, oven door (right side) WPL 786374 Contact Us For Availability
1
Hinge, Oven Door (Left Side) WPL 786375 Contact Us For Availability
2
Thermostat, Oven WPL 4314978 Contact Us For Availability
2
screw, 6-32 x 1/4 (2) WPL 786744 Contact Us For Availability
2
Panel, Control Mounting WPL 4315679 Contact Us For Availability
2
Oven 30`` Self-Clean WPL 4315110 Contact Us For Availability
2
Frame, Side (Right Side) WPL 4315674 Contact Us For Availability
2
Frame, Side (Left Side) WPL 4315675 Contact Us For Availability
2
Liner, Oven Door WPL 4315131 Contact Us For Availability
2
Screw, 8-32 X 5/8 (4) WPL 786755 Contact Us For Availability
3
Chamber, Broiler Burner WPL 786597 Contact Us For Availability
3
Storage Drawer Track (R.H.) WPL 4315457 Contact Us For Availability
3
Storage Drawer Track (L.H.) WPL 4315458 Contact Us For Availability
4
Switch, Selector WPL 4179076 Contact Us For Availability
4
Trim, Main Top (Right Side) WPL 786343 Contact Us For Availability
4
Trim, Main Top (Left Side) WPL 786344 Contact Us For Availability
4
Glass, Control Panel WPL 4315667 Contact Us For Availability
4
Bracket, Ignitor WPL 786543 Contact Us For Availability
4
screw, 10-24 x 7/16 (2) WPL 786740 Contact Us For Availability
4
Rear Panel, Upper WPL 4179143 Contact Us For Availability
4
Bracket, Burner Mounting WPL 4179235 Contact Us For Availability
4
Handle WPL 4315665 Contact Us For Availability
5
Switch, Fluorescent Light WPL 4315672 Contact Us For Availability
5
Grate, Top Burner (4) WPL 4315657 Contact Us For Availability
5
Channel, Glass (2) WPL 4315669 Contact Us For Availability
5
Burner, Box, Lower WPL 786336 Contact Us For Availability
5
Track, Storage Draw (Right Side) WPL 4315455 Contact Us For Availability
5
Track, Storage Draw (Left Side) WPL 4315456 Contact Us For Availability
5
Spacer, Handle (4) WPL 786410 Contact Us For Availability
7
Spacer, Nylon (4) WPL 786342 Contact Us For Availability
7
spud, orifice (LP gas no. 58) WPL 786309 Contact Us For Availability
7
Trim, Lower WPL 4315668 Contact Us For Availability
7
Flue, Inner WPL 786337 Contact Us For Availability
7
Retainer, Bottom Insulation WPL 786363 Contact Us For Availability
7
spud, orifice (natural gas no. 50) WPL 786308 Contact Us For Availability
7
Frame, Oven Door WPL 4315664 Contact Us For Availability
8
Handle, Latch WPL 786376 Contact Us For Availability
8
Knob, Clock (3) WPL 4315670 Contact Us For Availability
8
Gasket, Side Chamber (2) WPL 786338 Contact Us For Availability
8
Heat Shield, Storage Drawer WPL 786364 Contact Us For Availability
8
Tubing (Inlet To Gas Valve) WPL 786547 Contact Us For Availability
8
Panel, White Glass WPL 4315666 Contact Us For Availability
9
Support, Handle WPL 786690 Contact Us For Availability
10
Screw, 4-40 X 5/8 (2) WPL 786259 Contact Us For Availability
10
Nut WPL 786260 Contact Us For Availability
10
Switch, Top Burner Actuator WPL 786322 Contact Us For Availability
10
Latch Assembly WPL 786303 Contact Us For Availability
10
Shield, Heat WPL 4179336 Contact Us For Availability
10
Gasket, Front Chamber WPL 786339 Contact Us For Availability
10
Retainer, Insulation (2) WPL 786365 Contact Us For Availability
10
Orifice & Tubing Assembly (Gas Valve To Ultra WPL 786548 Contact Us For Availability
11
Module, Spark WPL 786323 Contact Us For Availability
11
Bracket, Mounting Latch WPL 786378 Contact Us For Availability
11
Clock WPL 4315671 Contact Us For Availability
11
Gasket, Oven Back WPL 786340 Contact Us For Availability
11
panel, end (2) (platinum) WPL 786367 Contact Us For Availability
11
panel, end (2) (toast) WPL 786368 Contact Us For Availability
11
Panel, End (2) (Almond) WPL 786369 Contact Us For Availability
11
Panel, End (2) (White) WPL 786370 Contact Us For Availability
11
Nut, Lock WPL 786741 Contact Us For Availability
11
Hood & Tubing Assembly (Gas Valve To Lower Ov WPL 786549 Contact Us For Availability
12
Plate, Clock Mounting WPL 786706 Contact Us For Availability
13
Bracket, Spark Module WPL 786581 Contact Us For Availability
13
Socket, Fluorescent Light WPL 786536 Contact Us For Availability
13
Flue, Dillution WPL 786341 Contact Us For Availability
13
Retainer, Top Front Insulation WPL 4315677 Contact Us For Availability
13
Tubing (Inlet To Manifold) WPL 786550 Contact Us For Availability
13
Plate, Insulation WPL 786424 Contact Us For Availability
14
Support, Lamp Socket (Left Side) WPL 786701 Contact Us For Availability
14
Support, Lamp Socket (Right Side) WPL 786702 Contact Us For Availability
14
Retainer, Top Back Insulation WPL 4315676 Contact Us For Availability
14
Valve, Dual Gas Valve WPL 786310 Contact Us For Availability
14
Bracket, Glass Support (3) WPL 786425 Contact Us For Availability
15
screw, 4-40 x 5/8 (2) WPL 786751 Contact Us For Availability
16
Switch, Oven Door Latch WPL 786669 Contact Us For Availability
16
Bracket, Switch WPL 786381 Contact Us For Availability
16
screw, 4-40 (2) WPL 786752 Contact Us For Availability
16
Lamp, Fluorescent WPL 786539 Contact Us For Availability
16
Rear Panel, Lower WPL 4179142 Contact Us For Availability
16
nut, 6-32 WPL 786748 Contact Us For Availability
16
bushing, snap WPL 786750 Contact Us For Availability
16
Manifold WPL 786554 Contact Us For Availability
16
Clip, Speed (15) WPL 786426 Contact Us For Availability
17
Insulator, Switch WPL 786380 Contact Us For Availability
17
Burner Box WPL 4315643 Contact Us For Availability
17
Ballast, 60 Hz. WPL 786540 Contact Us For Availability
17
Trim, Side Panel (2) WPL 786382 Contact Us For Availability
17
Valve, Top Burner (Tri-Set) WPL 786311 Contact Us For Availability
17
Bumper, Window (5) WPL 4179237 Contact Us For Availability
19
Plug, Male WPL 786570 Contact Us For Availability
19
Knob, Latch Handle WPL 4315663 Contact Us For Availability
19
Starter, Fluorescent Light WPL 786541 Contact Us For Availability
19
Filler, Front Frame WPL 4315118 Contact Us For Availability
19
Fitting WPL 786556 Contact Us For Availability
19
Pin, Hinge (2) WPL 786428 Contact Us For Availability
20
Actuator, Spark Ignitor WPL 786390 Contact Us For Availability
20
Socket, Starter WPL 786542 Contact Us For Availability
20
Rack, Oven (2) WPL 786347 Contact Us For Availability
20
Plate, Cover WPL 786385 Contact Us For Availability
20
Valve, Shut-Off WPL 786312 Contact Us For Availability
22
Spring WPL 786391 Contact Us For Availability
22
Light, Indicator (2) WPL 786433 Contact Us For Availability
22
Bottom, Oven WPL 4315114 Contact Us For Availability
22
Cover, Burner WPL 786388 Contact Us For Availability
22
Inlet, Gas WPL 786557 Contact Us For Availability
22
Insulation, Door WPL 4315673 Contact Us For Availability
23
Cam (4) WPL 786392 Contact Us For Availability
23
Support, Control Panel (2) WPL 786458 Contact Us For Availability
23
Pan, Broiler WPL 4315109 Contact Us For Availability
23
Bracket, Gas Valve (2) WPL 4315678 Contact Us For Availability
23
Regulator, Pressure WPL 786313 Contact Us For Availability
25
End Cap (Right) WPL 786393 Contact Us For Availability
25
End Cap (Left) WPL 786394 Contact Us For Availability
25
Plate, Rear Cover WPL 786455 Contact Us For Availability
25
Grid, Broiler WPL 786346 Contact Us For Availability
25
Leg, Leveling (4) WPL 786602 Contact Us For Availability
25
Oven Burner, Lower WPL 786314 Contact Us For Availability
25
Plate, Latch WPL 786671 Contact Us For Availability
26
Socket, Oven Lamp WPL 786653 Contact Us For Availability
26
Panel, Control WPL 4315662 Contact Us For Availability
26
Insulation WPL 4315034 Contact Us For Availability
26
Channel, Broiler Burner (2) WPL 786355 Contact Us For Availability
26
Bracket, Door Switch WPL 786699 Contact Us For Availability
26
Top Burner, Front (2) WPL 786315 Contact Us For Availability
26
Gasket Assembly WPL 786432 Contact Us For Availability
27
Nut (4) WPL 4157527 Contact Us For Availability
28
Duct, Cup WPL 786353 Contact Us For Availability
28
Switch, Oven Light WPL 4179328 Contact Us For Availability
28
Top Burner, R.R. WPL 786316 Contact Us For Availability
28
Wrapper, Storage Drawer WPL 4179232 Contact Us For Availability
29
Housing, Oven Light WPL 786743 Contact Us For Availability
29
Plate, Cover WPL 786683 Contact Us For Availability
29
Hook Bolt, Oven Shell (2) WPL 786350 Contact Us For Availability
29
Gusset, Side Frame (2) WPL 4315018 Contact Us For Availability
29
Top Burner, L.R. WPL 786317 Contact Us For Availability
29
Panel, Drawer (Platinum) WPL 786519 Contact Us For Availability
29
panel, drawer (toast) WPL 786520 Contact Us For Availability
29
Panel, Drawer (Almond) WPL 786521 Contact Us For Availability
29
Panel, Drawer (White) WPL 786522 Contact Us For Availability
30
Cover, Electrical WPL 4315106 Contact Us For Availability
31
Retainer, Insulation WPL 786573 Contact Us For Availability
31
Bracket, Top (2) WPL 786684 Contact Us For Availability
31
Washer (2) WPL 786351 Contact Us For Availability
31
Knob, Top Burner (4) WPL 4315661 Contact Us For Availability
31
Liner, Door Panel WPL 4315696 Contact Us For Availability
32
Lens, Oven Light WPL 786574 Contact Us For Availability
32
Bracket, Electrode (2) WPL 786754 Contact Us For Availability
32
Nut, Hex 10-32 (2) WPL 786352 Contact Us For Availability
32
Knob, Oven Control WPL 4315659 Contact Us For Availability
32
Bumper, Rubber (5) WPL 786526 Contact Us For Availability
33
Cover, Chip WPL 4315098 Contact Us For Availability
34
Retainer, Oven Light Lens WPL 786575 Contact Us For Availability
34
Knob, Selector WPL 4315660 Contact Us For Availability
35
Gasket, Oven Light WPL 786576 Contact Us For Availability
35
Pipe Plug, 3/8 NPT WPL 786665 Contact Us For Availability
37
Insulator (2) WPL 786689 Contact Us For Availability
38
Bracket, Bake Ignitor WPL 786801 Contact Us For Availability
39
Bracket, Broiler Ignitor WPL 786802 Contact Us For Availability
40
Clamp WPL 4157298 Contact Us For Availability
40
Baffle, Air WPL 786422 Contact Us For Availability
41
Clip, Wire WPL 4179338 Contact Us For Availability
41
Rack, Literature WPL 786807 Contact Us For Availability
× ![]()
