Model Whirlpool SF375PEWW3 – Common Parts & Diagrams

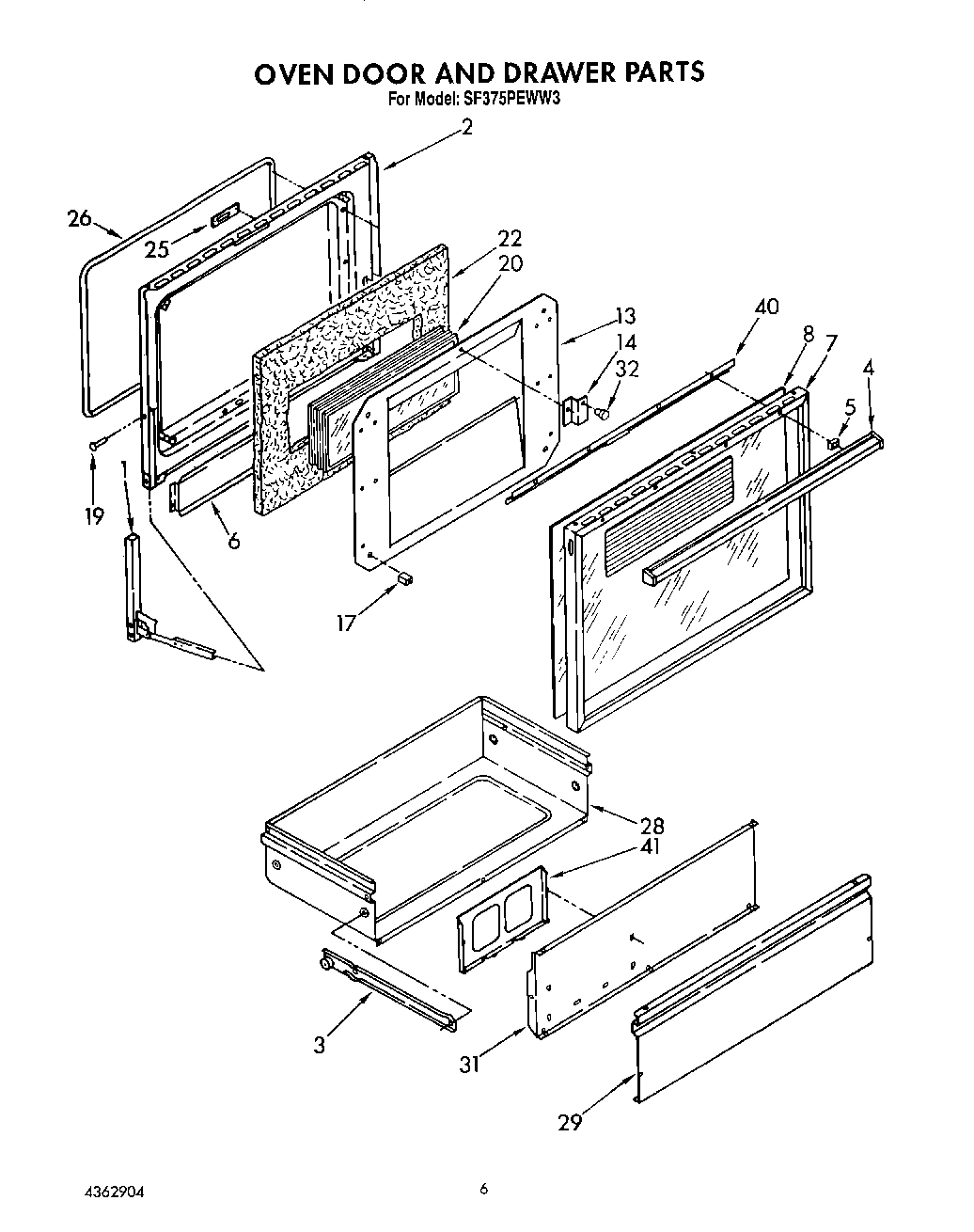

05 - OVEN DOOR AND DRAWER
08 - COOKTOP

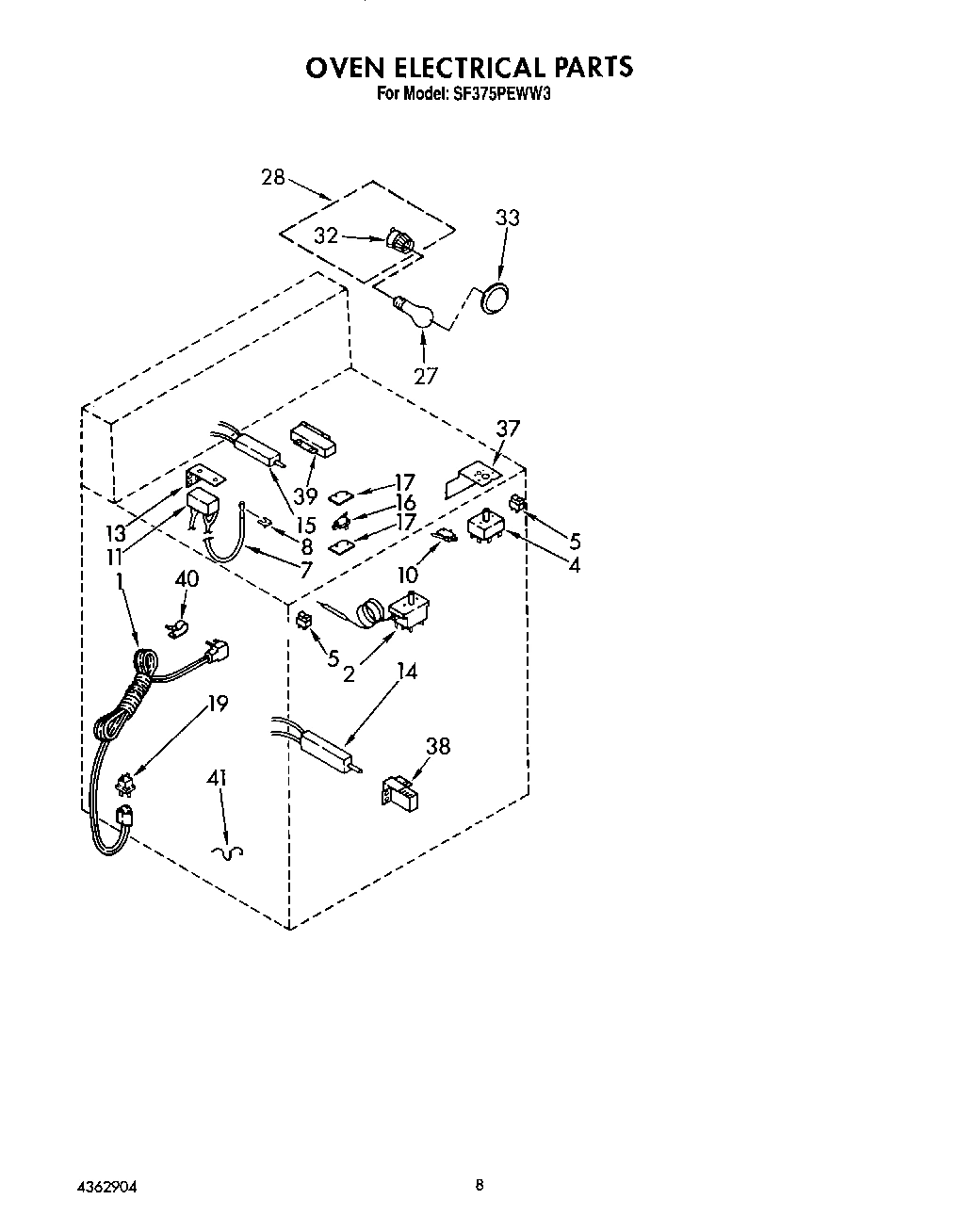

06 - OVEN ELECTRICAL

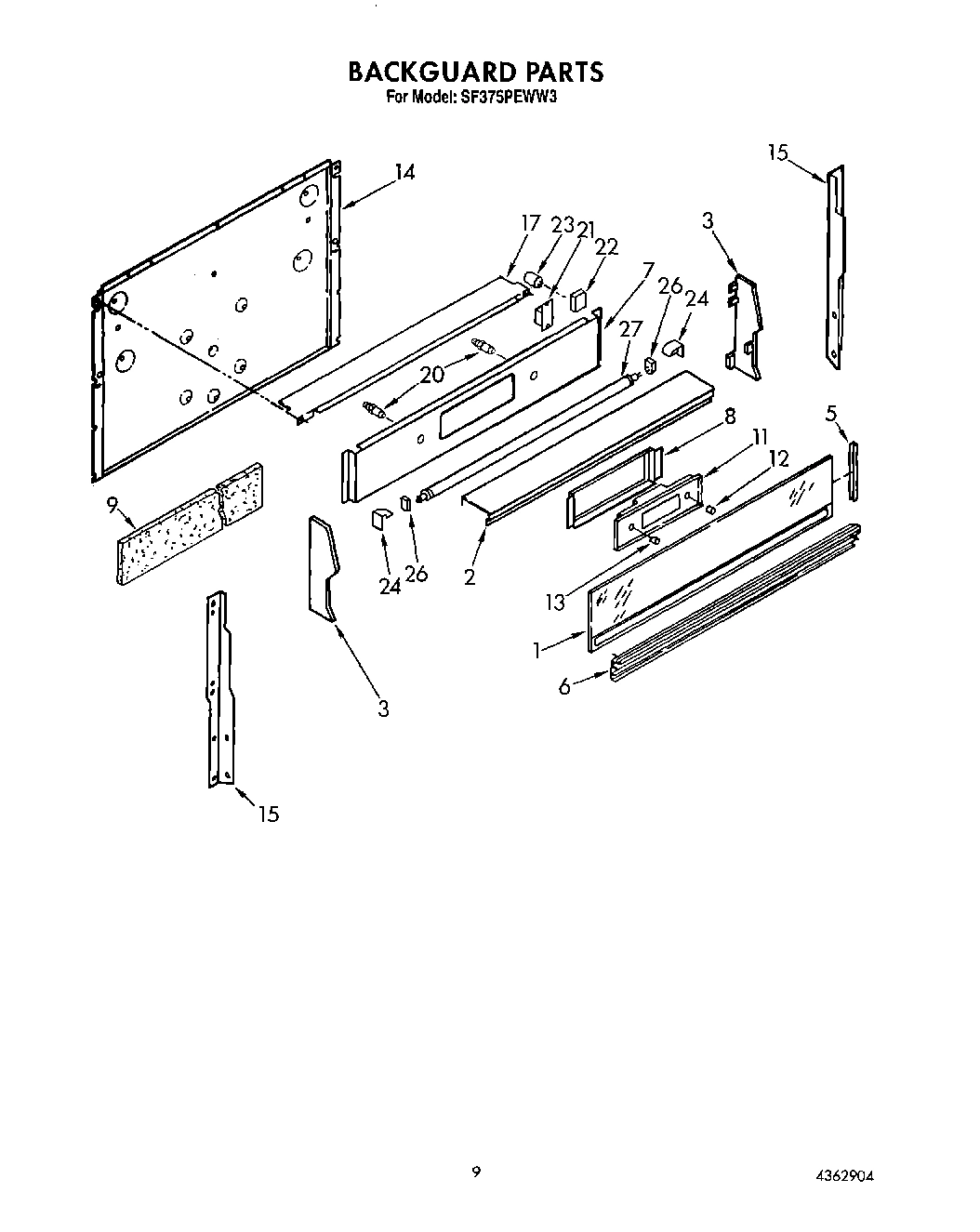

07 - BACKGUARD, LIT/OPTIONAL

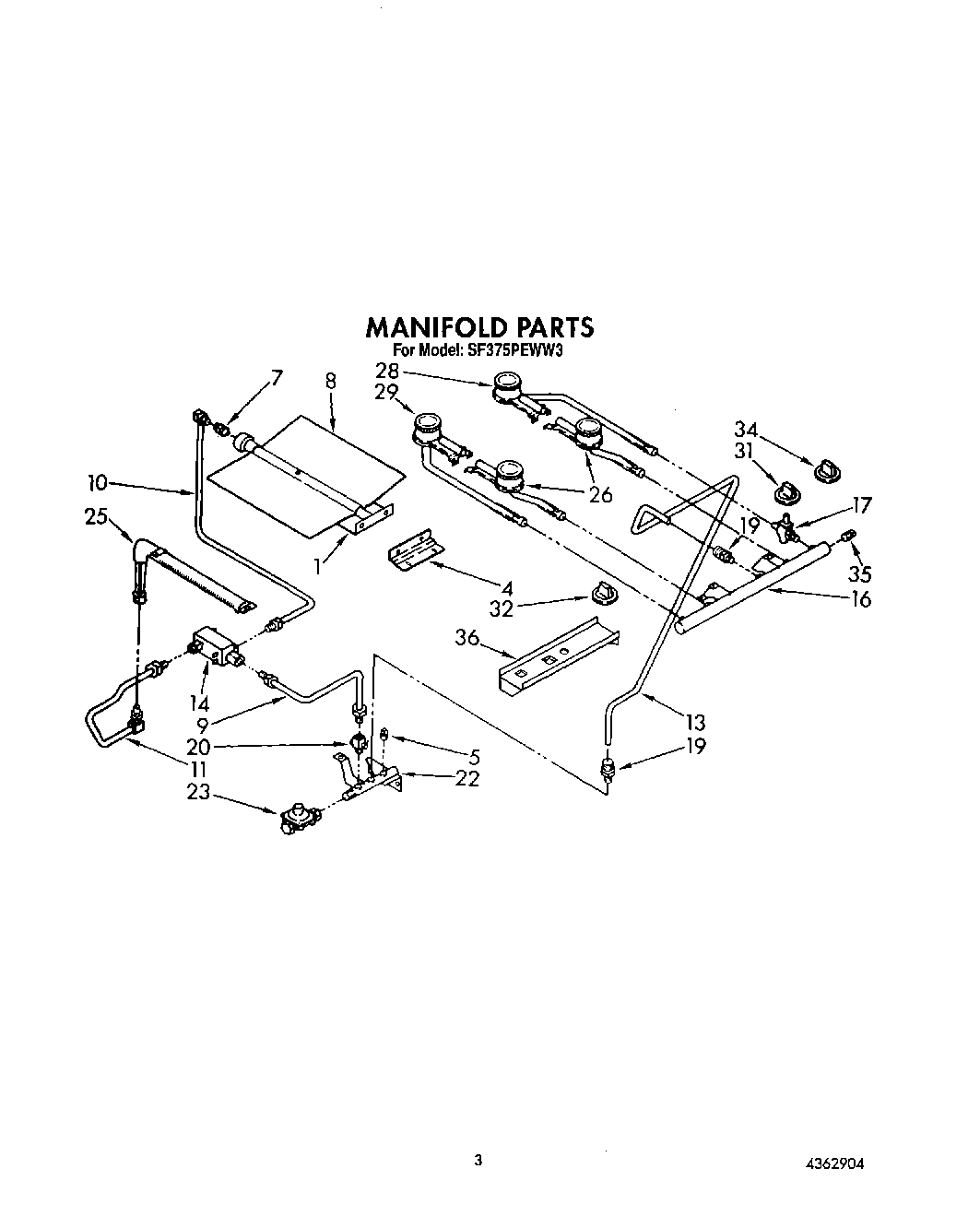

03 - MANIFOLD

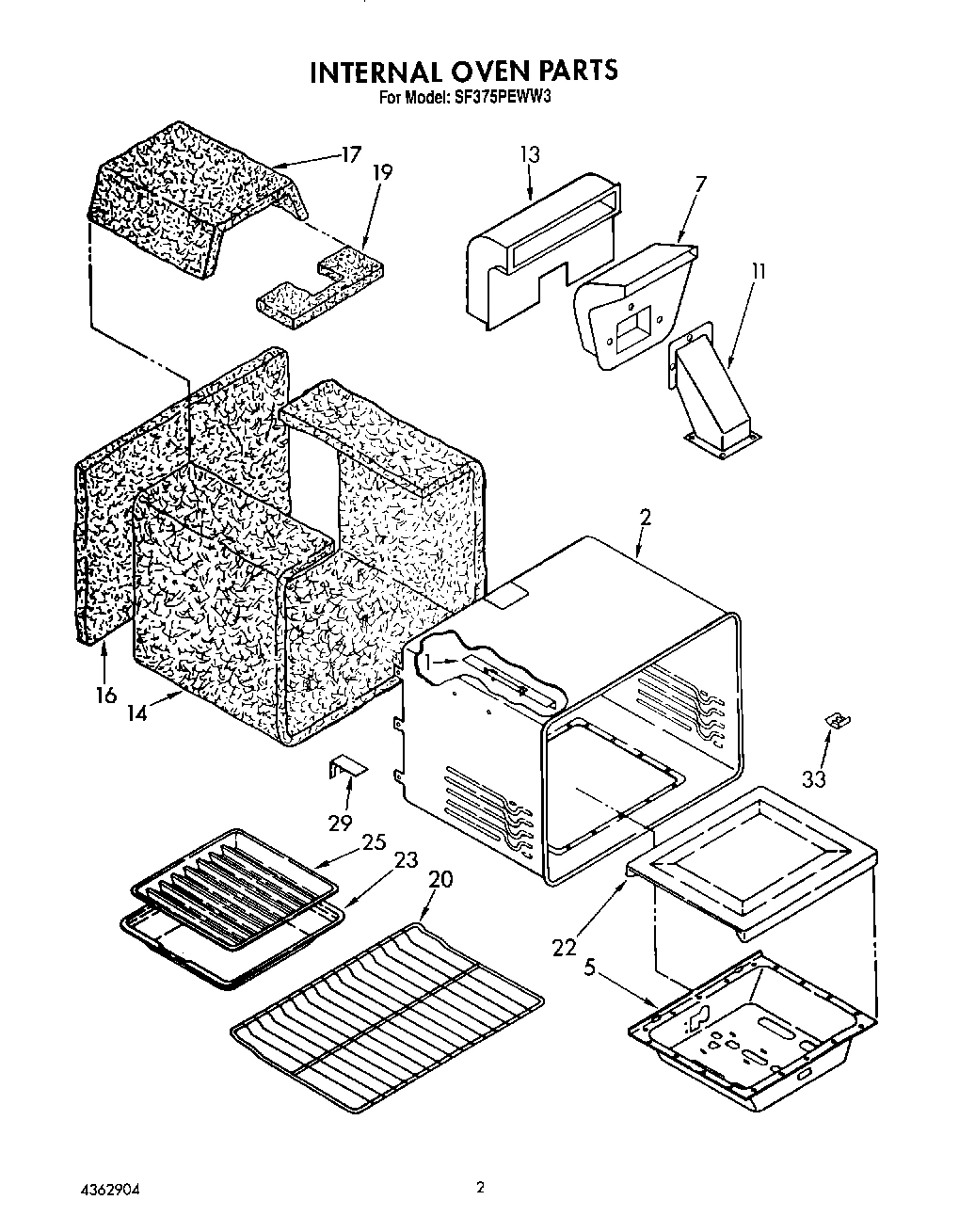

02 - INTERNAL OVEN

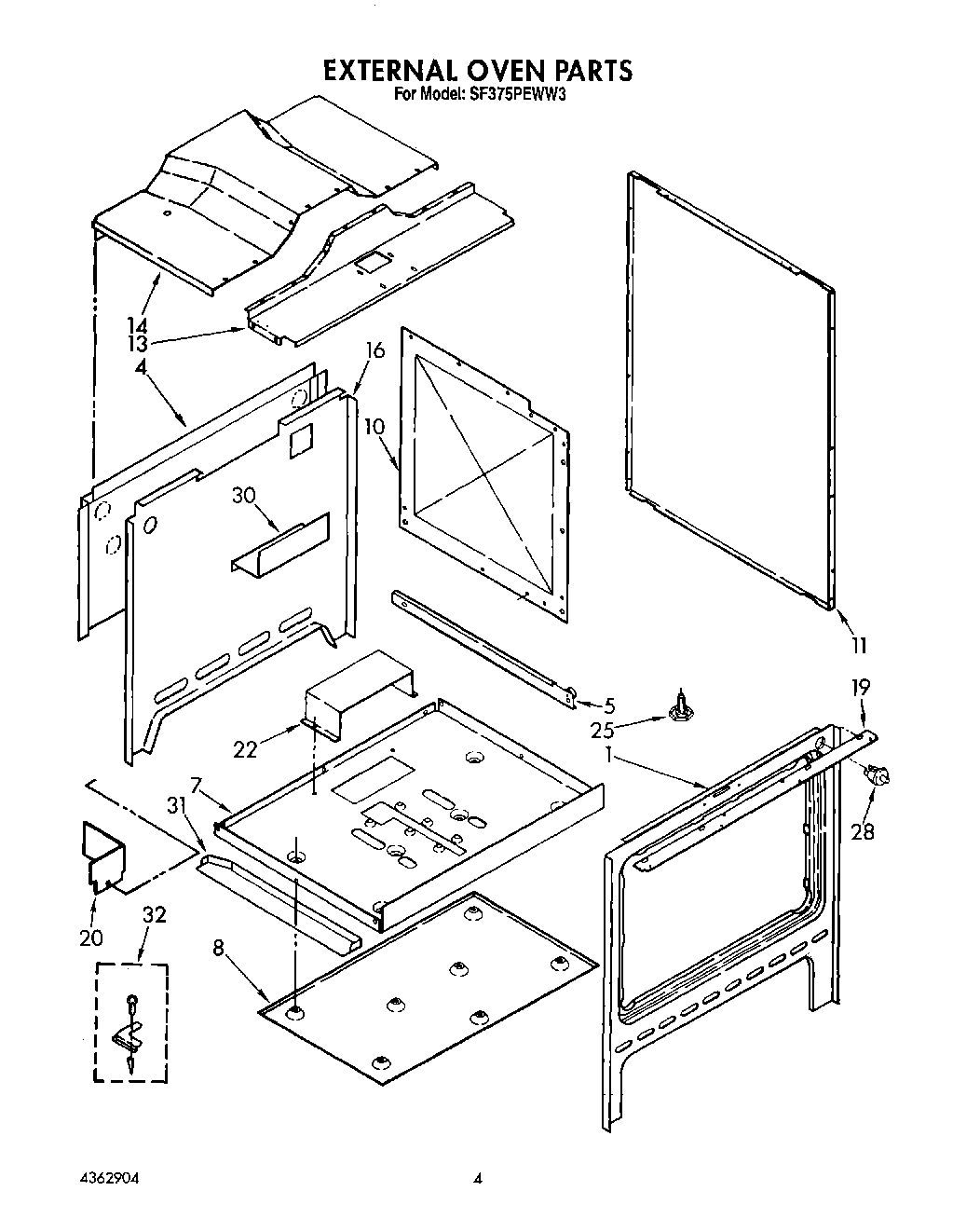

04 - EXTERNAL OVEN
Common parts from model Whirlpool SF375PEWW3
Instructions, Installation WPL LIT4315710 Contact Us For Availability
Guide, Use & Care WPL LIT4320792 Contact Us For Availability
List, Repair Parts WPL LIT4362904 Contact Us For Availability
1
hinge, oven door (right side) WPL 786374 Contact Us For Availability
1
Hinge, Oven Door (Left Side) WPL 786739 Contact Us For Availability
1
Top, Main (White) WPL 4179071 Contact Us For Availability
1
Top, Main (Almond) WPL 4179072 Contact Us For Availability
1
Cord, Power WPL 786578 Contact Us For Availability
1
Screw (10) WPL 786325 Contact Us For Availability
1
Nut, 6-32 (6) WPL 786753 Contact Us For Availability
1
Glass, Backguard WPL 4320782 Contact Us For Availability
1
Burner, Broiler WPL 4320907 Contact Us For Availability
1
shield, thermostat bulb WPL 786349 Contact Us For Availability
1
Frame, Front WPL 4320374 Contact Us For Availability
2
liner, oven door WPL 4320300 Contact Us For Availability
2
Screw, 8-32 X 5/8 (4) WPL 786755 Contact Us For Availability
2
Thermostat, Oven WPL 4321095 Contact Us For Availability
2
screw, 6-32 x 1/4 (2) WPL 786744 Contact Us For Availability
2
Trim, Backguard Top WPL 4320871 Contact Us For Availability
2
Oven 30`` Self-Clean WPL 4320923 Contact Us For Availability
3
Storage Drawer Track (L.H.) WPL 4320308 Contact Us For Availability
3
Storage Drawer Track (R.H.) WPL 4320309 Contact Us For Availability
3
End Cap (L.H.) WPL 4320872 Contact Us For Availability
3
End Cap (R.H.) WPL 4320873 Contact Us For Availability
4
Handle WPL 4362534 Contact Us For Availability
4
Trim, Main Top (Right Side) WPL 786343 Contact Us For Availability
4
Trim, Main Top (Left Side) WPL 786344 Contact Us For Availability
4
Switch, Selector WPL 4179076 Contact Us For Availability
4
Bracket, Burner Mounting WPL 4320888 Contact Us For Availability
4
Retainer, Back WPL 4320889 Contact Us For Availability
5
Spacer, Handle (4) WPL 786410 Contact Us For Availability
5
Grate, Top Burner (4) WPL 4314875 Contact Us For Availability
5
Channel, Glass WPL 786760 Contact Us For Availability
5
Burner, Box, Lower WPL 786336 Contact Us For Availability
5
Track, Storage Drawer (Left Side) WPL 4315768 Contact Us For Availability
5
Track, Storage Drawer (Right Side) WPL 4315769 Contact Us For Availability
6
Baffle, Heat WPL 4320304 Contact Us For Availability
6
Trim, Lower WPL 4320870 Contact Us For Availability
7
Frame, Oven Door WPL 786417 Contact Us For Availability
7
Spacer, Nylon (4) WPL 786342 Contact Us For Availability
7
spud, orifice (LP gas no. 58) WPL 786309 Contact Us For Availability
7
Panel, Control WPL 4320885 Contact Us For Availability
7
Spud, Orifice (Natural Gas No. 50) WPL 4320926 Contact Us For Availability
7
Flue, Inner WPL 4320929 Contact Us For Availability
7
retainer, bottom insulation WPL 4315770 Contact Us For Availability
8
Panel, White Glass WPL 786419 Contact Us For Availability
8
Handle, Latch WPL 4320895 Contact Us For Availability
8
Bracket, clip WPL 4320878 Contact Us For Availability
8
Reflector, Broil WPL 4320928 Contact Us For Availability
8
Heat Shield, Storage Drawer WPL 786364 Contact Us For Availability
9
Insulation WPL 4315797 Contact Us For Availability
9
Tubing, (Inlet To Gas Valve) WPL 4320314 Contact Us For Availability
10
Latch Assembly WPL 786303 Contact Us For Availability
10
switch, top burner actuator WPL 4320326 Contact Us For Availability
10
Screw, 4-40 X 5/8 (2) WPL 786259 Contact Us For Availability
10
Nut WPL 786260 Contact Us For Availability
10
Orifice & Tubing Assembly (Gas Valve To Broil WPL 4320925 Contact Us For Availability
10
Retainer, Insulation (2) WPL 4362922 Contact Us For Availability
11
Bracket, Latch Mounting WPL 4315774 Contact Us For Availability
11
Spark Module WPL 4320867 Contact Us For Availability
11
Timer WPL 4320811 Contact Us For Availability
11
Nut, Lock WPL 786741 Contact Us For Availability
11
hood & tubing assembly (gas valve to lower ov WPL 4320315 Contact Us For Availability
11
Gasket, Vent WPL 4320930 Contact Us For Availability
11
Vent WPL 4320951 Contact Us For Availability
11
Trim, End Panel WPL 4320862 Contact Us For Availability
11
White WPL 4321094 Contact Us For Availability
11
Almond WPL 4321097 Contact Us For Availability
11
Panel, End (2) WPL 4362888 Contact Us For Availability
12
Bracket, Switch WPL 4362570 Contact Us For Availability
12
screw, 4-40 (2) WPL 786752 Contact Us For Availability
12
Knob, Clock WPL 4314999 Contact Us For Availability
13
Backer, Oven Door WPL 4320875 Contact Us For Availability
13
Burner Box WPL 4362919 Contact Us For Availability
13
Bracket, Spark Module WPL 4320892 Contact Us For Availability
13
Button, Set WPL 4320905 Contact Us For Availability
13
tubing (inlet to manifold) WPL 4320313 Contact Us For Availability
13
Flue, Dillution WPL 4362989 Contact Us For Availability
13
Retainer, Top Front Insulation WPL 4362546 Contact Us For Availability
14
Bracket, Glass WPL 786425 Contact Us For Availability
14
Knob, Latch Handle WPL 4320863 Contact Us For Availability
14
cover, rear WPL 4315785 Contact Us For Availability
14
Valve, Dual Gas Valve WPL 4320316 Contact Us For Availability
14
Retainer, Top Back Insulation WPL 4320960 Contact Us For Availability
15
End Cap (Right) WPL 786393 Contact Us For Availability
15
End Cap (Left) WPL 786394 Contact Us For Availability
15
screw, 4-40 x 5/8 (2) WPL 786751 Contact Us For Availability
15
Support, Backguard (R.H.) WPL 4315795 Contact Us For Availability
15
Support, Backguard (L.H.) WPL 4315796 Contact Us For Availability
16
Panel, Control WPL 4363013 Contact Us For Availability
16
Switch, Oven Door Latch WPL 4362916 Contact Us For Availability
16
Manifold WPL 4320317 Contact Us For Availability
16
Rear Panel, WPL 4362559 Contact Us For Availability
16
Bushing, Snap WPL 4362820 Contact Us For Availability
16
nut, 6-32 WPL 786748 Contact Us For Availability
17
Bumper, Window (5) WPL 4179237 Contact Us For Availability
17
Insulator, Switch WPL 786380 Contact Us For Availability
17
Shield, Heat WPL 4320974 Contact Us For Availability
17
Valve, Top Burner (Tri-Set) WPL 4320318 Contact Us For Availability
18
Plate, Cover WPL 4320377 Contact Us For Availability
19
Pin, Hinge (2) WPL 786428 Contact Us For Availability
19
Bracket, Top (2) WPL 786684 Contact Us For Availability
19
Plug, Male WPL 786570 Contact Us For Availability
19
Fitting WPL 4320319 Contact Us For Availability
19
Frame, Filler Front WPL 4362949 Contact Us For Availability
20
Retainer WPL 417236 Contact Us For Availability
20
Window Assembly WPL 4362602 Contact Us For Availability
20
Bracket WPL 786754 Contact Us For Availability
20
Light, Indicator (2) WPL 4179335 Contact Us For Availability
20
Valve, Shut Off WPL 4362689 Contact Us For Availability
20
Rack, Oven (2) WPL 786347 Contact Us For Availability
20
Plate, Cover WPL 4315776 Contact Us For Availability
21
Ballast, Light WPL 786540 Contact Us For Availability
22
Insulation, Door WPL 4315673 Contact Us For Availability
22
Socket, Light WPL 786542 Contact Us For Availability
22
Inlet, Gas WPL 4320321 Contact Us For Availability
22
Bottom, Oven WPL 4320893 Contact Us For Availability
22
Cover, Burner WPL 4320890 Contact Us For Availability
23
Starter, Light WPL 786541 Contact Us For Availability
23
Regulator, Pressure WPL 786313 Contact Us For Availability
23
Pan, Broiler WPL 4315109 Contact Us For Availability
24
Bracket, Socket (L.H) WPL 786701 Contact Us For Availability
24
Bracket, Socket (R.H.) WPL 786702 Contact Us For Availability
25
Plate, Latch WPL 786671 Contact Us For Availability
25
Oven Burner, Lower WPL 786314 Contact Us For Availability
25
Grid, Broiler WPL 4362695 Contact Us For Availability
25
leg, leveling (4) WPL 4315777 Contact Us For Availability
26
gasket assembly WPL 4320302 Contact Us For Availability
26
Socket, Lamp WPL 786536 Contact Us For Availability
26
Top Burner, Front (2) WPL 786315 Contact Us For Availability
27
Lamp WPL 786539 Contact Us For Availability
28
Wrapper, Storage Drawer WPL 4320306 Contact Us For Availability
28
Top Burner, R.R. WPL 786316 Contact Us For Availability
28
Switch, WPL 4179328 Contact Us For Availability
29
Panel, Drawer (Almond) WPL 786521 Contact Us For Availability
29
Panel, Drawer (White) WPL 786522 Contact Us For Availability
29
Top Burner, L.R. WPL 786317 Contact Us For Availability
29
bracket, oven shell WPL 4320330 Contact Us For Availability
30
cover, electrical WPL 4315779 Contact Us For Availability
31
Liner, Door Panel WPL 4320307 Contact Us For Availability
31
Knob, Top Burner (4) WPL 4320722 Contact Us For Availability
31
Brace, Bottom (L.H.) WPL 4362935 Contact Us For Availability
31
Brace, Bottom (Right) WPL 4362956 Contact Us For Availability
32
Bumper, Rubber (5) WPL 786526 Contact Us For Availability
32
Knob, Oven Control WPL 4321096 Contact Us For Availability
32
Anti Tip Kit WPL 4315756 Contact Us For Availability
33
Cover, Chip WPL 4320934 Contact Us For Availability
34
Knob, Selector WPL 4320738 Contact Us For Availability
35
Pipe Plug, 3/8 NPT WPL 786665 Contact Us For Availability
36
shelf, gas valve WPL 4315767 Contact Us For Availability
37
Insulator (2) WPL 786689 Contact Us For Availability
38
Bracket, Bake Ignitor WPL 786801 Contact Us For Availability
39
Bracket, Broil Ignitor WPL 4362899 Contact Us For Availability
40
Baffle, Air WPL 786422 Contact Us For Availability
40
Clamp WPL 4157298 Contact Us For Availability
41
Rack, Literature WPL 786807 Contact Us For Availability
41
Clip, Wire WPL 4179338 Contact Us For Availability
× ![]()
